This document discusses intercepting Windows printing by modifying the GDI subsystem. It describes how intercepting printing can provide data for monitoring and DLP solutions. It outlines the various API levels involved in printing, from driver components to the spooler and GDI APIs. The key technique discussed is swapping GDI printer handle cells to redirect print jobs to a "fake" printer, from which the intercepted image can be forwarded to the original printer or saved off. A sample implementation uses a DLL to intercept GDI printing functions and perform the handle swapping trick.

1. Intercepting Windows
Printing by Modifying
GDI Subsystem
by Artyom Shishkin,
Positive Technologies

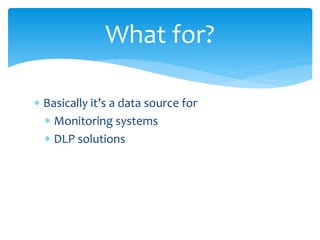

2. What for?
 Basically it’s a data source for
 Monitoring systems
 DLP solutions

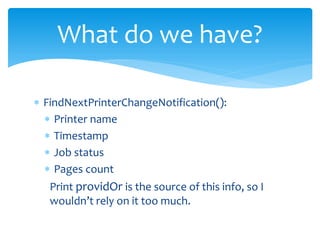

3. What do we have?
 FindNextPrinterChangeNotification():
 Printer name
 Timestamp
 Job status
 Pages count
Print providOr is the source of this info, so I
wouldn’t rely on it too much.

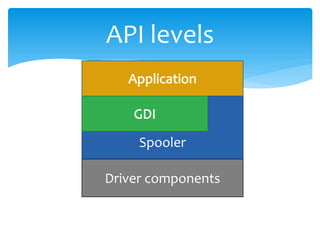

4. API levels
Spooler
Driver components

5. Driver components
 Print providers send jobs to a local or a remote
machine
 A print processor converts the spooled data into
a format suitable for a print monitor
 The print monitor passes the data to a port
monitor
 A port monitor is an interface between the
usermode and the kernelmode parts of the
printing system
 What a mess!

6. Spooler API
 A set of Spooler service functions, which serve as
wrappers for driver components
 At this level, we can only get the spooled data
 This is a level of raw printing
 Try to parse this data

7. GDI API
 The same set of functions used for Windows graphics
 A printer is a device context suitable for GDI drawing
functions
 hPrinter = CreateDC(‘SuperLaserJet’, params);
 StartDoc(hPrinter);
 TextOut(hPrinter, ‘Text’);
 …
 Graphical data is Windows graphical data – NT EMF
format

8. Inside GDI
 Found with the help of PEB
 Thanks to Feng Yuan
GDI cell
Process Object kernel address
Address Space Selection count
Process ID
GDI shared handle Upper handle value
table Object type
Usermode info

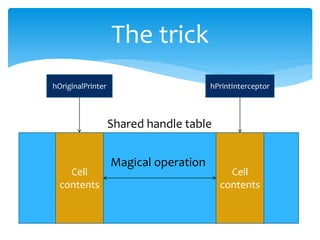

9. The trick
hOriginalPrinter hPrintInterceptor
Shared handle table
Magical operation
Cell Cell
contents contents

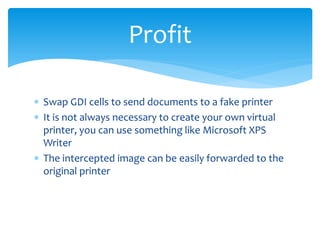

10. Profit
 Swap GDI cells to send documents to a fake printer
 It is not always necessary to create your own virtual
printer, you can use something like Microsoft XPS
Writer
 The intercepted image can be easily forwarded to the
original printer

11. The concept
Application wants to print things
I’ll save the original parameters
of this printing request
DLL: It’s using GDI, I’ll load
here using windows hooks
Hey, you’ve decided to print! I’ll
and patch some GDI
swap the GDI cells so that you use
functions
the old handle for a new device
CreateDC()
Okay, done here, I’ll
print your document on
StartDoc()
the real printer
EndDoc()
Let’s clean everything up and
DeleteDC() make things look like they did
before

12. Sample implementation
Settings file
Dll used for
function .xps image
interception Application
that fulfills
GUI-based the original
application request
that is
supposed to
Kernelmode
print
something
magic performer

13. Thank you!
 Any questions?
