1. Introduction to Mobile
Development Frameworks
and Tools

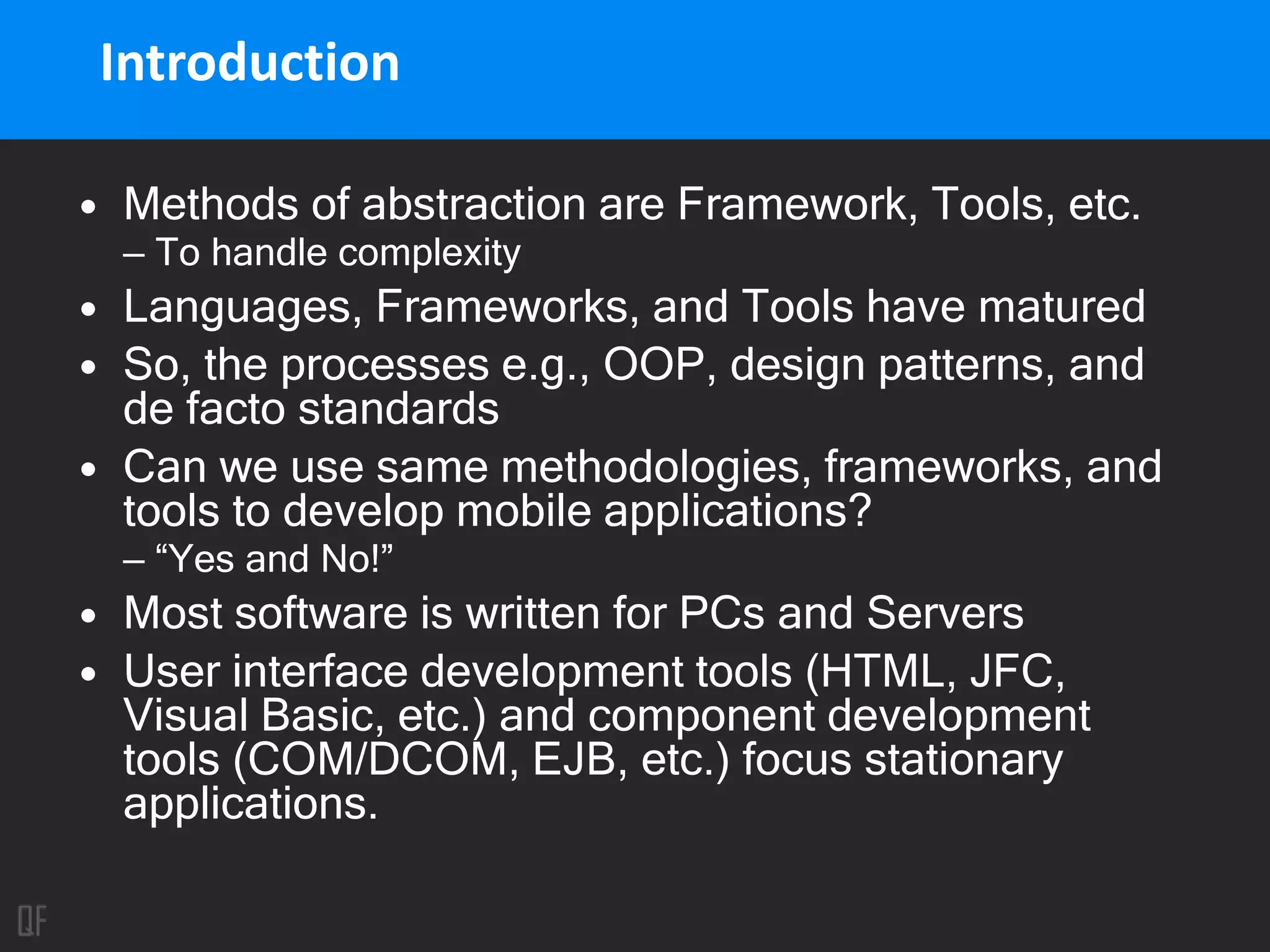

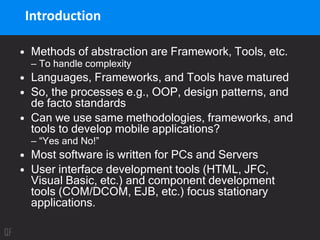

2. Introduction
• Methods of abstraction are Framework, Tools, etc.
– To handle complexity
• Languages, Frameworks, and Tools have matured
• So, the processes e.g., OOP, design patterns, and
de facto standards
• Can we use same methodologies, frameworks, and
tools to develop mobile applications?
– “Yes and No!”
• Most software is written for PCs and Servers
• User interface development tools (HTML, JFC,
Visual Basic, etc.) and component development
tools (COM/DCOM, EJB, etc.) focus stationary
applications.

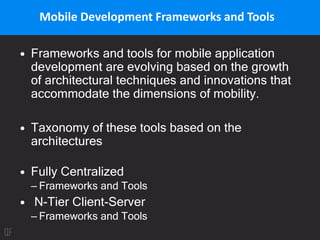

3. Mobile Development Frameworks and Tools
• Frameworks and tools for mobile application
development are evolving based on the growth
of architectural techniques and innovations that
accommodate the dimensions of mobility.
• Taxonomy of these tools based on the
architectures
• Fully Centralized
– Frameworks and Tools
• N-Tier Client-Server
– Frameworks and Tools

4. 4 / 95

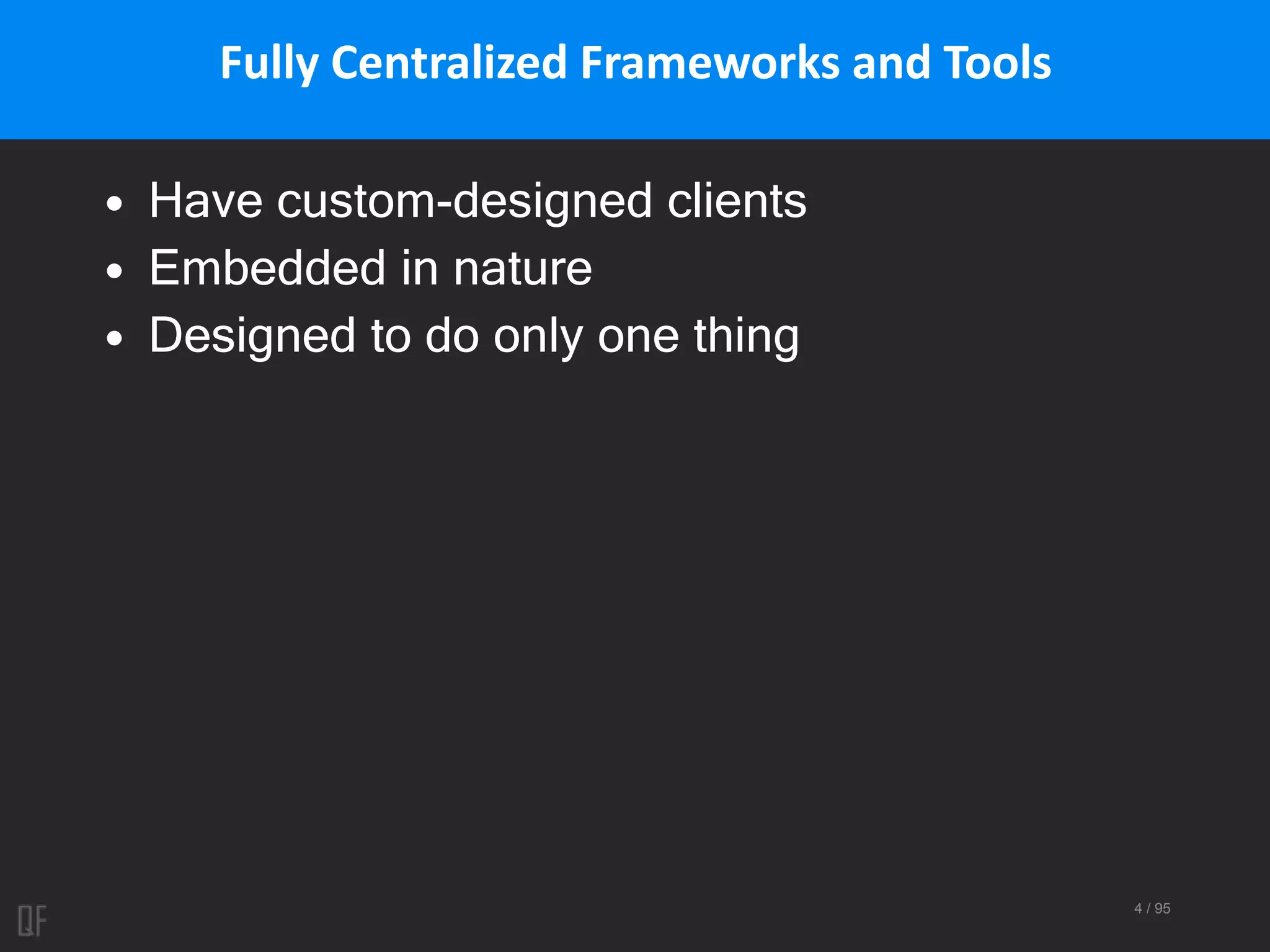

Fully Centralized Frameworks and Tools
• Have custom-designed clients
• Embedded in nature
• Designed to do only one thing

5. 5 / 95

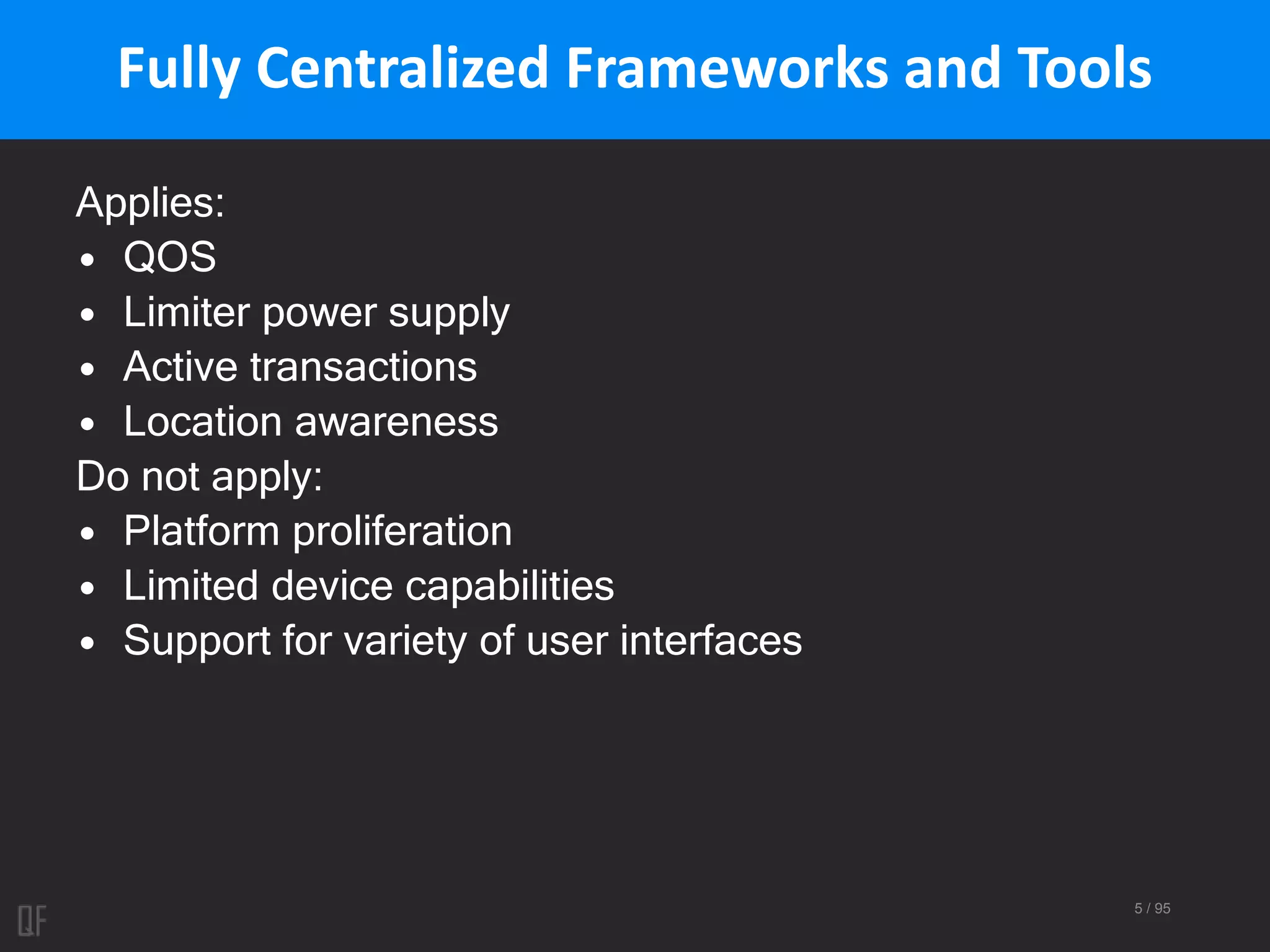

Fully Centralized Frameworks and Tools
Applies:
• QOS
• Limiter power supply
• Active transactions
• Location awareness
Do not apply:
• Platform proliferation
• Limited device capabilities
• Support for variety of user interfaces

6. 6 / 95
Examples
• Call centers
• Battlefield systems
• Grocery store

7. 7 / 95

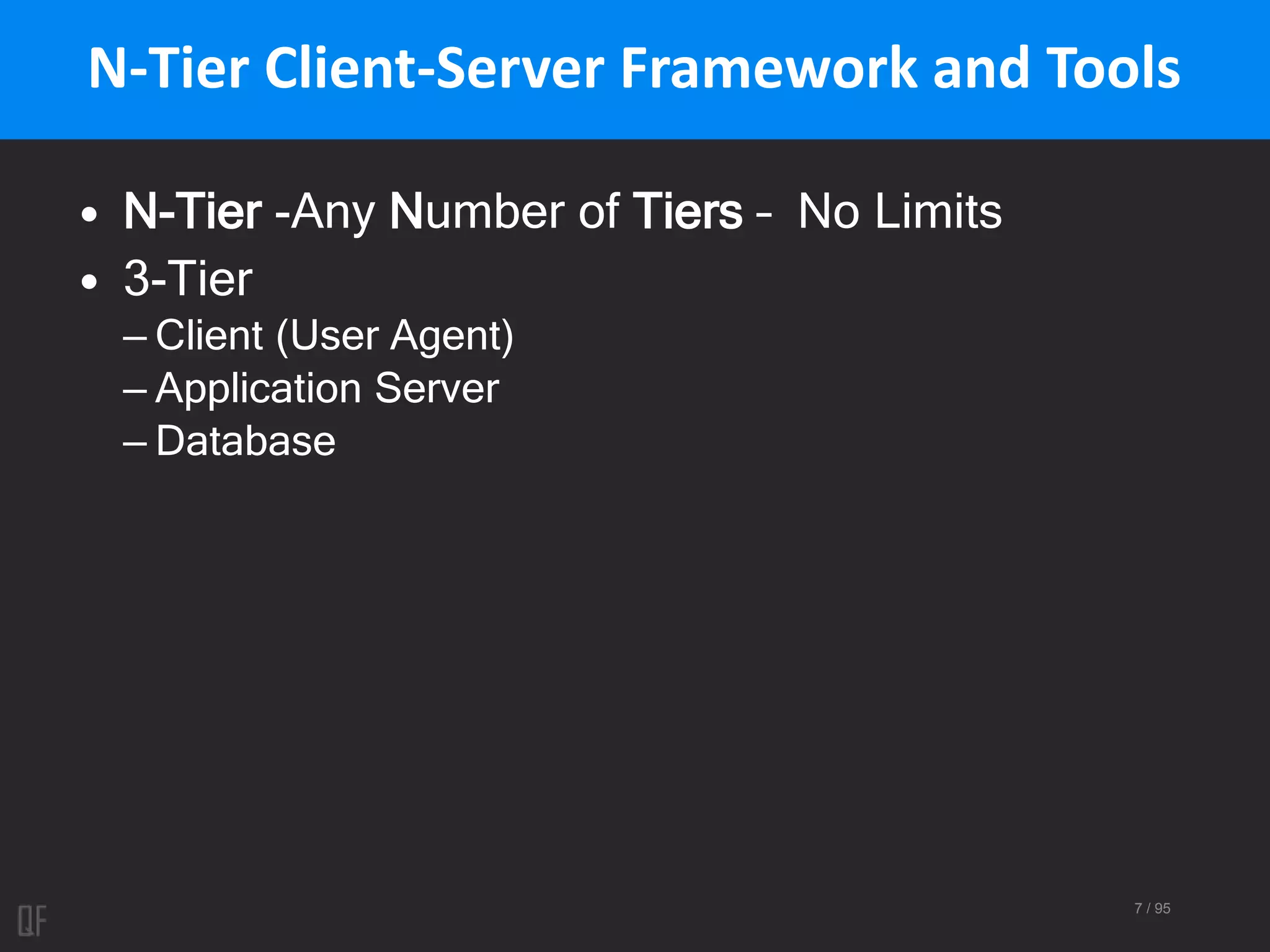

N-Tier Client-Server Framework and Tools
• N-Tier -Any Number of Tiers – No Limits
• 3-Tier
– Client (User Agent)
– Application Server
– Database

8. 8 / 95

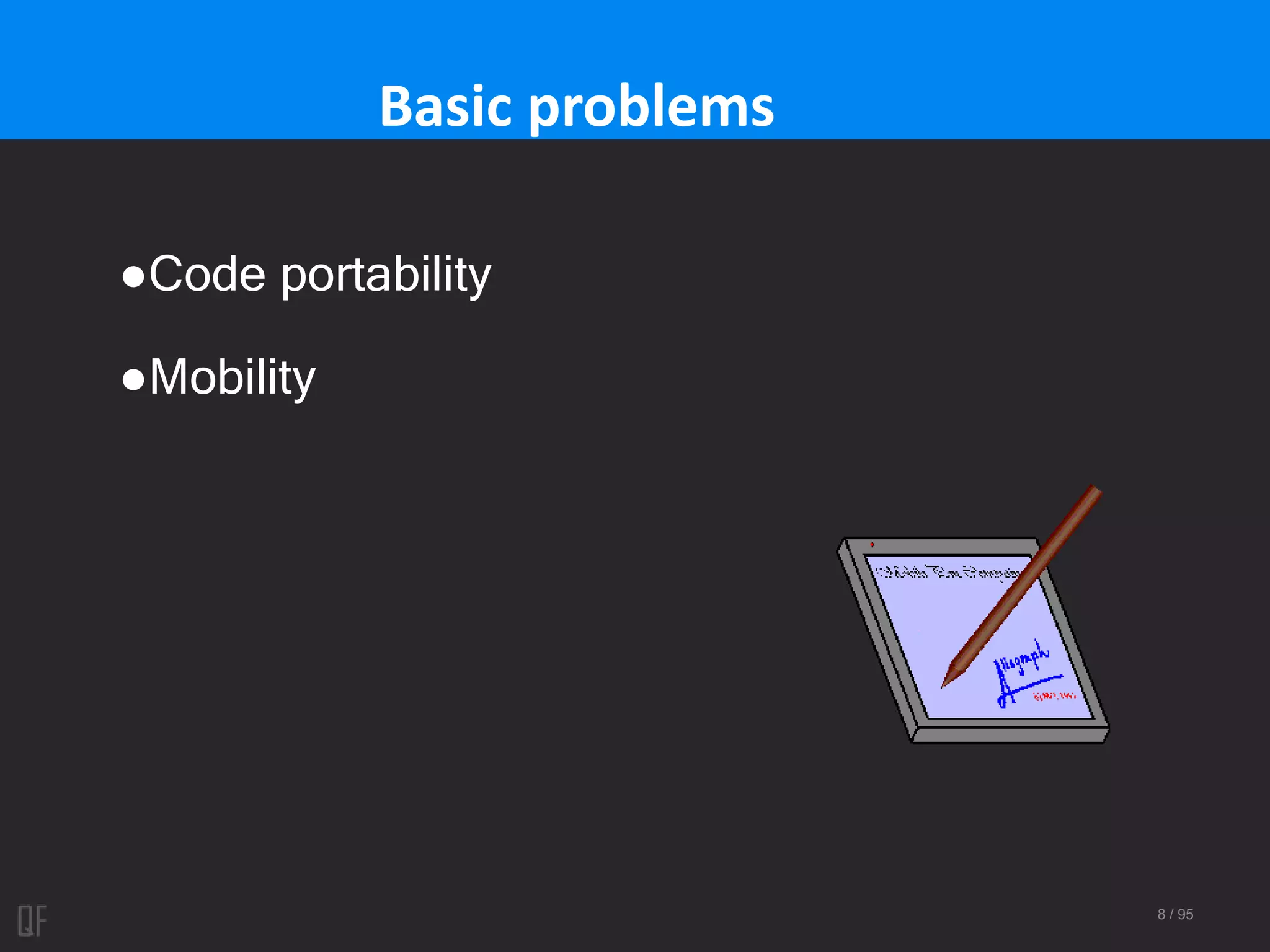

Basic problems
●Code portability
●Mobility

9. 9 / 95

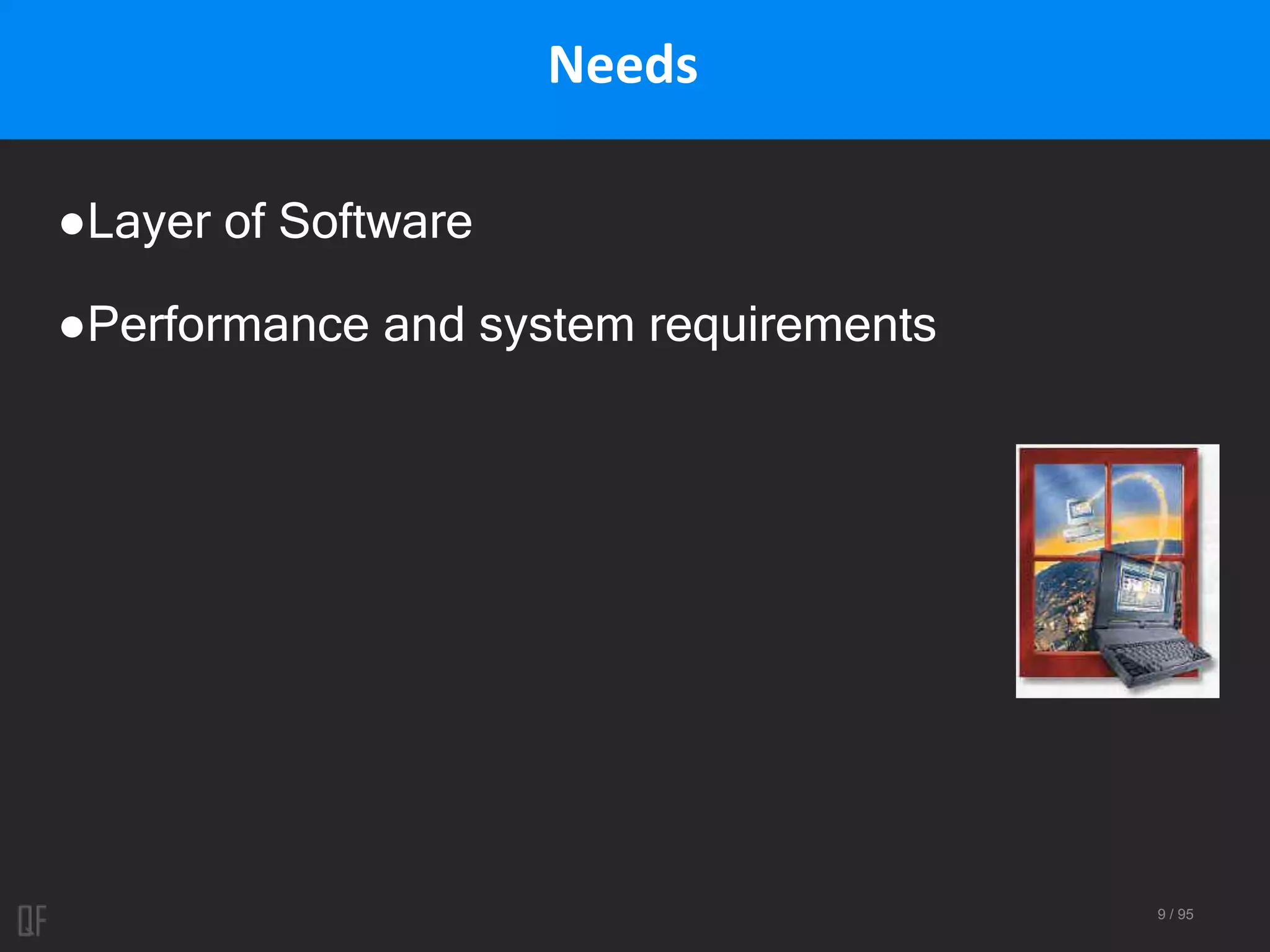

Needs
●Layer of Software
●Performance and system requirements

10. 10 / 95

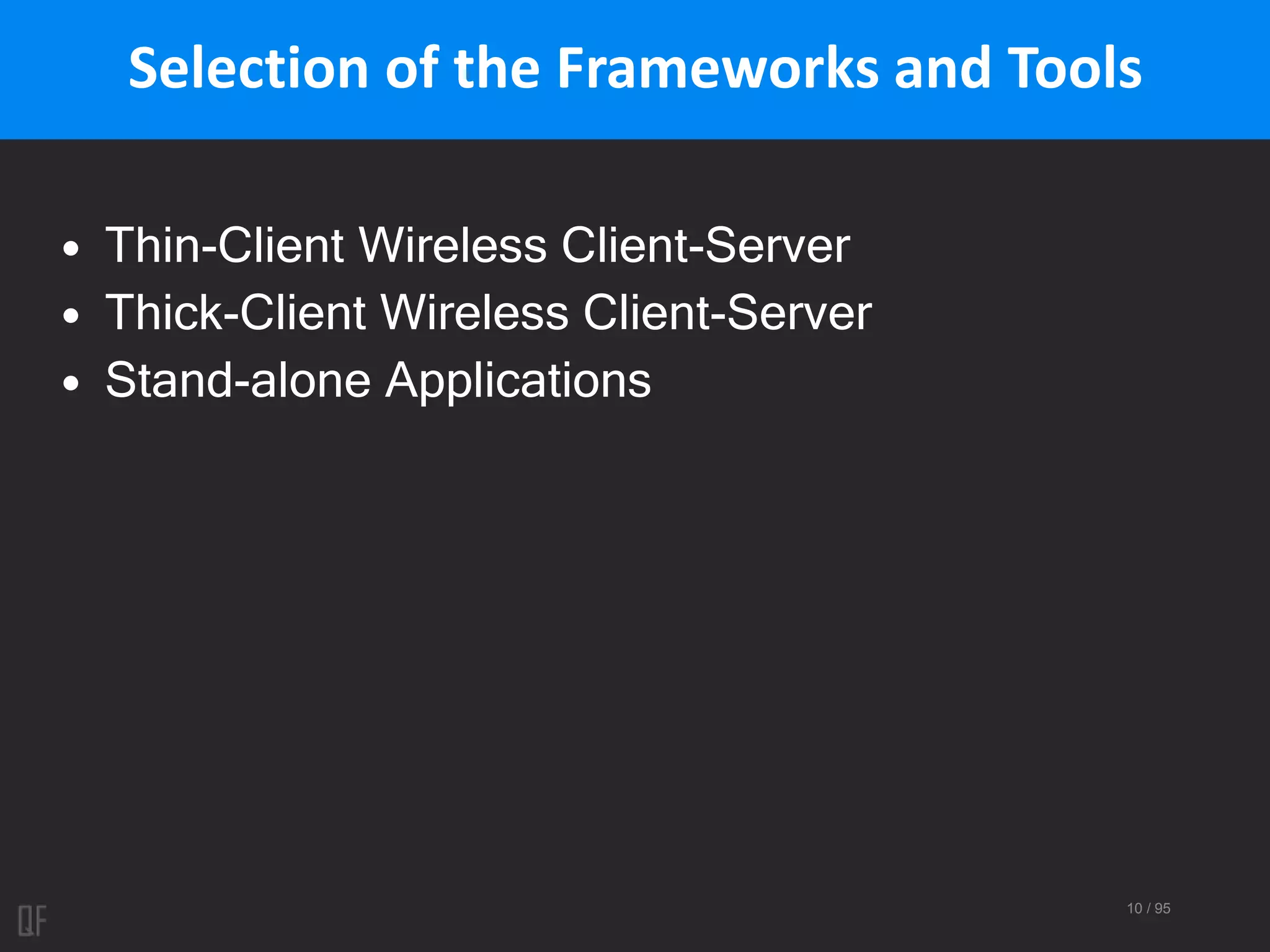

Selection of the Frameworks and Tools
• Thin-Client Wireless Client-Server
• Thick-Client Wireless Client-Server
• Stand-alone Applications

11. 11 / 95

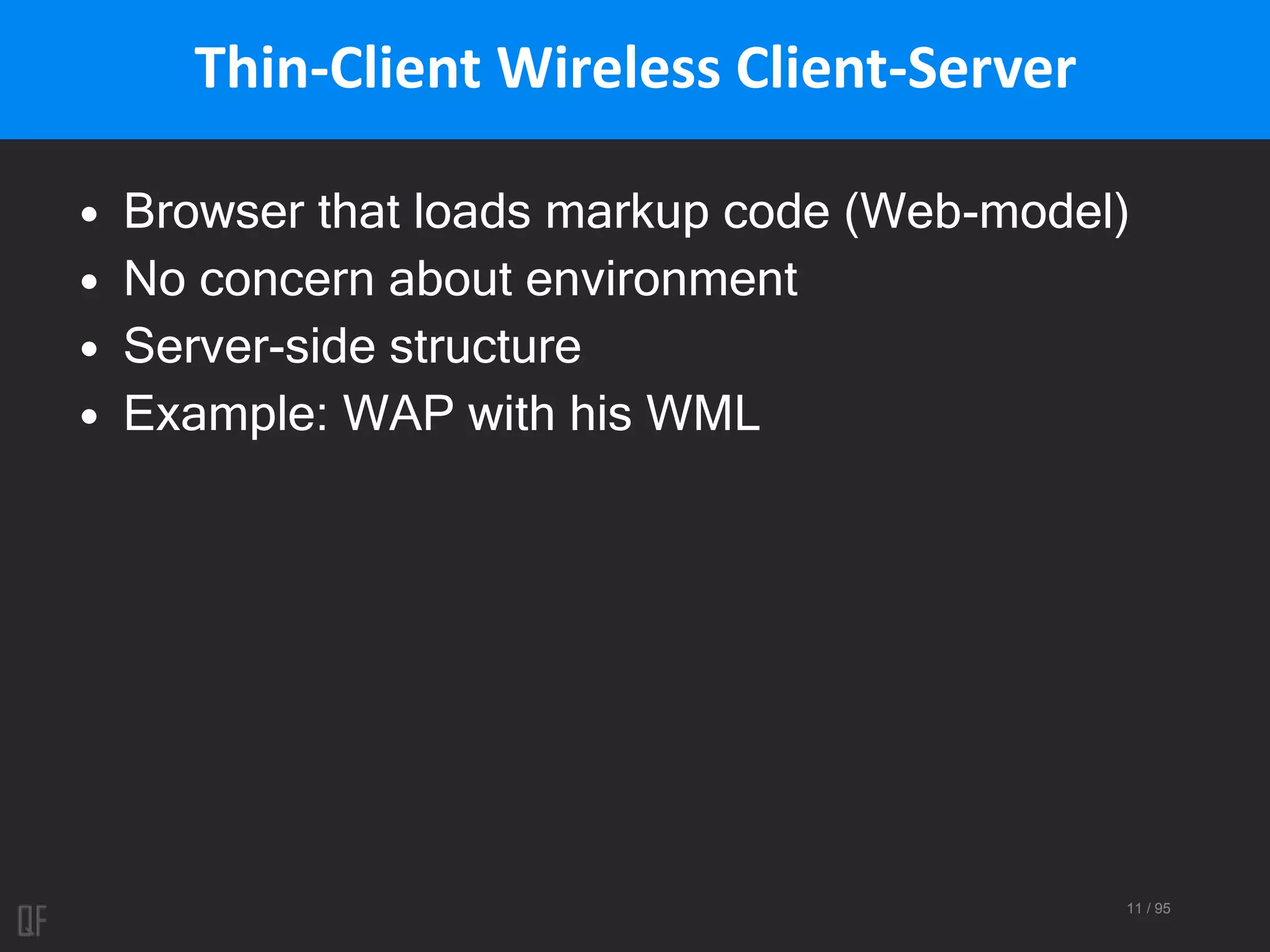

Thin-Client Wireless Client-Server
• Browser that loads markup code (Web-model)
• No concern about environment
• Server-side structure
• Example: WAP with his WML

12. 12 / 95

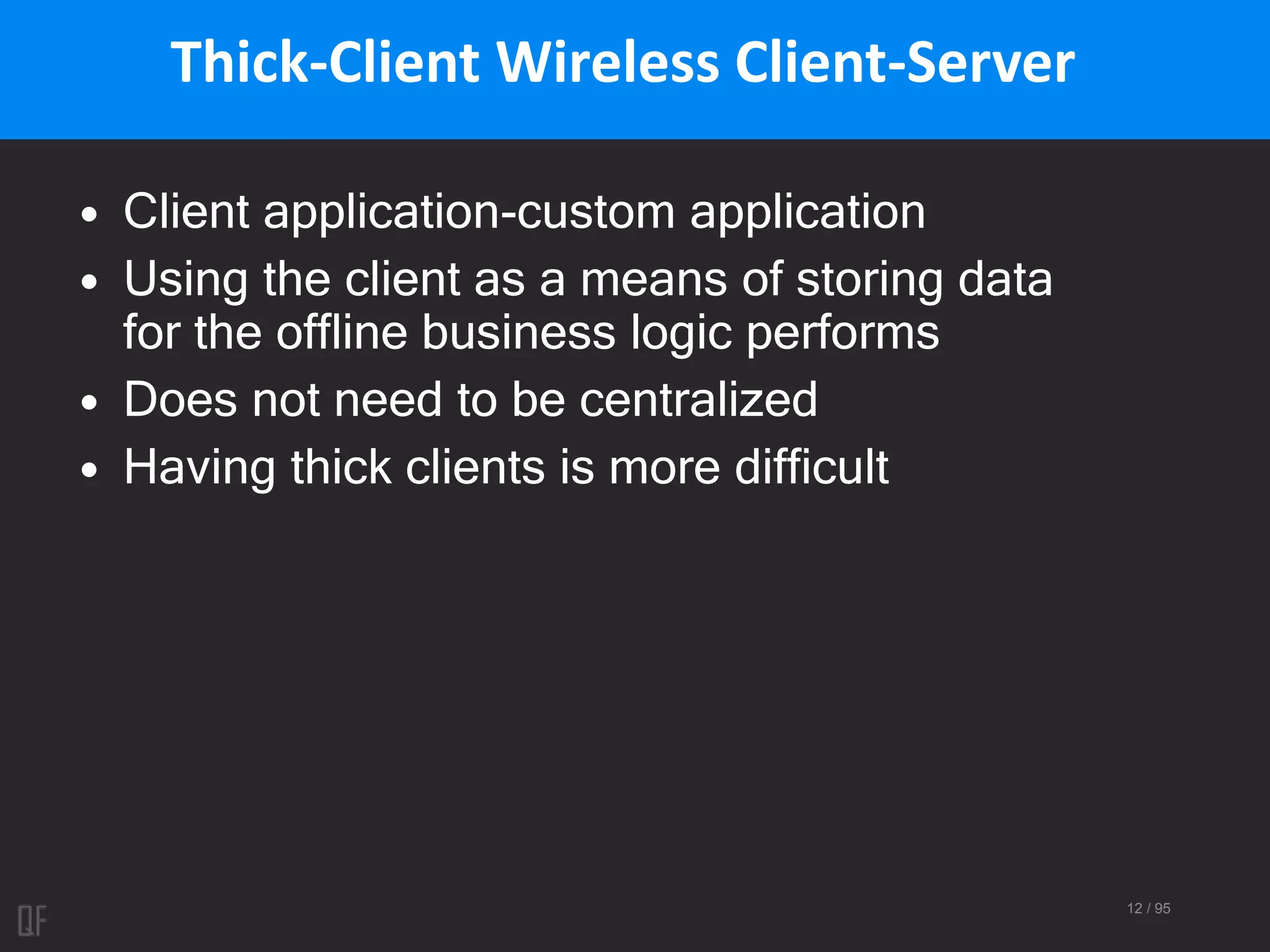

Thick-Client Wireless Client-Server
• Client application-custom application
• Using the client as a means of storing data
for the offline business logic performs
• Does not need to be centralized
• Having thick clients is more difficult

13. 13 / 95

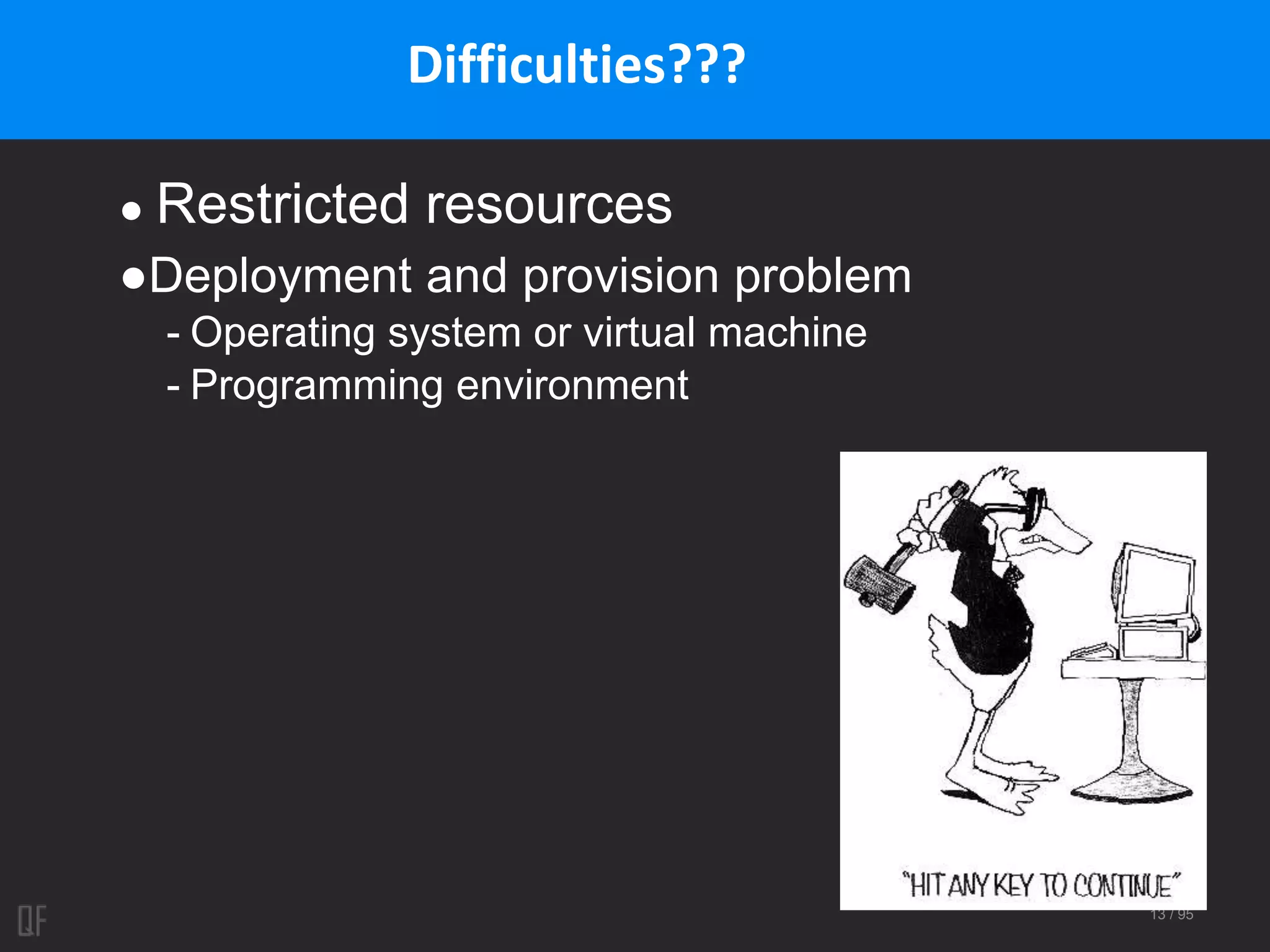

Difficulties???
● Restricted resources
●Deployment and provision problem
- Operating system or virtual machine
- Programming environment

14. Aleksandar Kovačević & Mina Mićanović 14 / 95

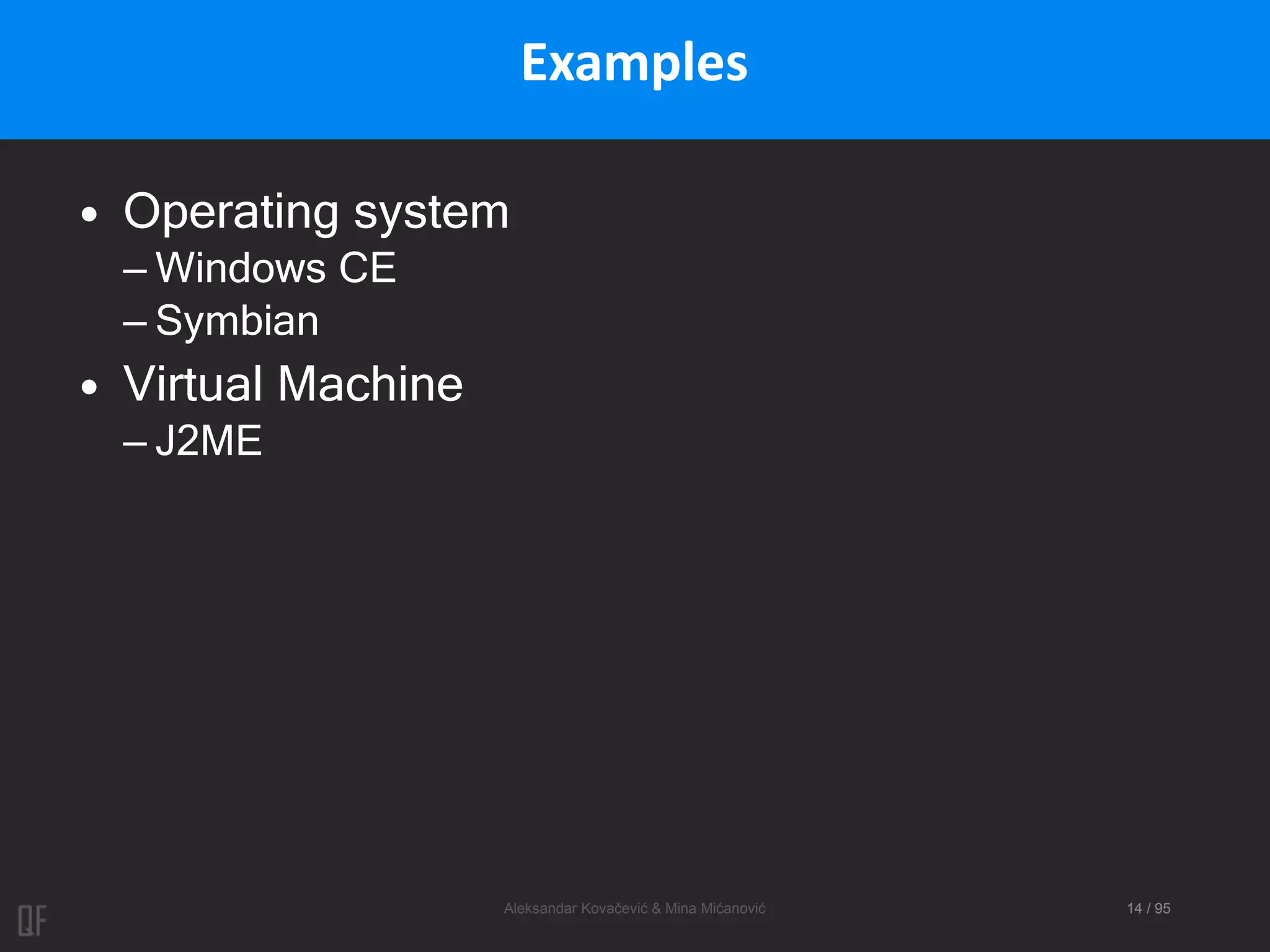

Examples
• Operating system
– Windows CE
– Symbian
• Virtual Machine
– J2ME

15. 15 / 95

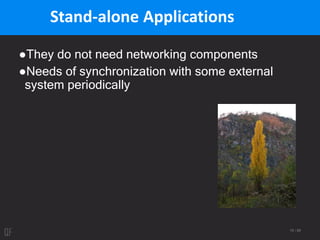

Stand-alone Applications
●They do not need networking components
●Needs of synchronization with some external
system periodically

16. 16 / 95

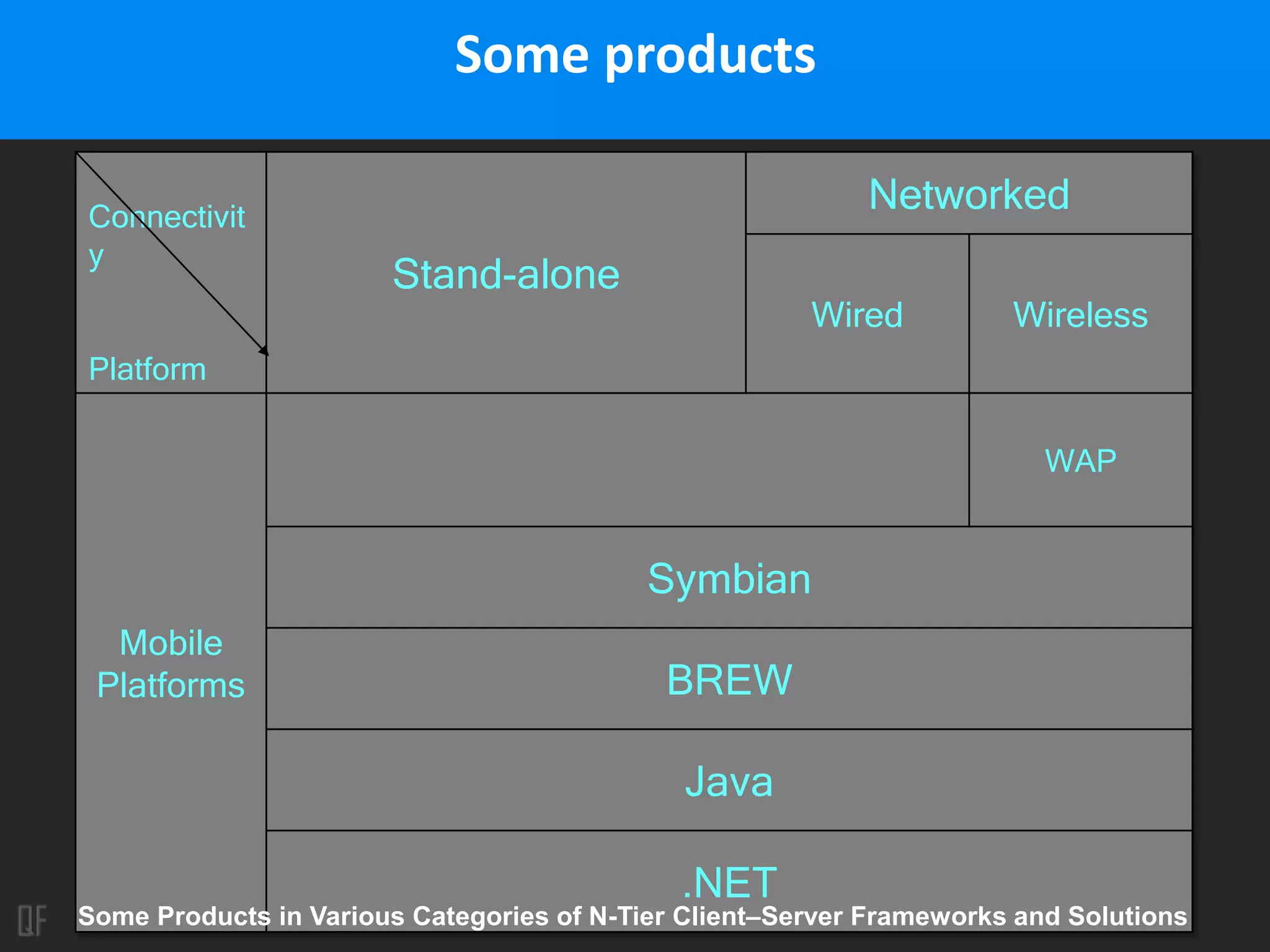

Some products
Connectivit
y
Platform
Stand-alone
Networked
Wired Wireless
Mobile
Platforms
WAP
Symbian
BREW
Java
.NET
Some Products in Various Categories of N-Tier Client–Server Frameworks and Solutions

17. 17 / 95

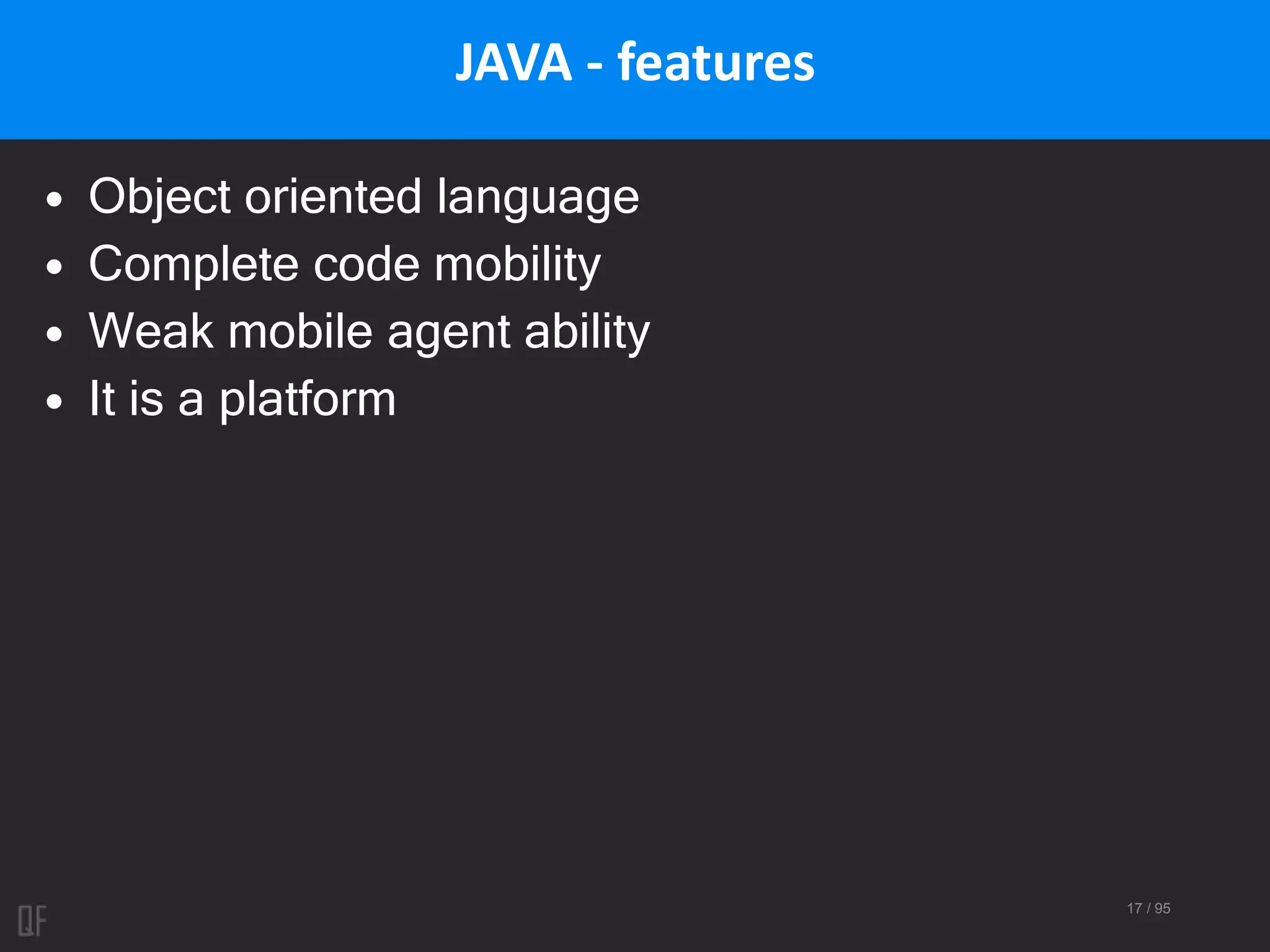

JAVA - features
• Object oriented language
• Complete code mobility
• Weak mobile agent ability
• It is a platform

18. 18 / 95

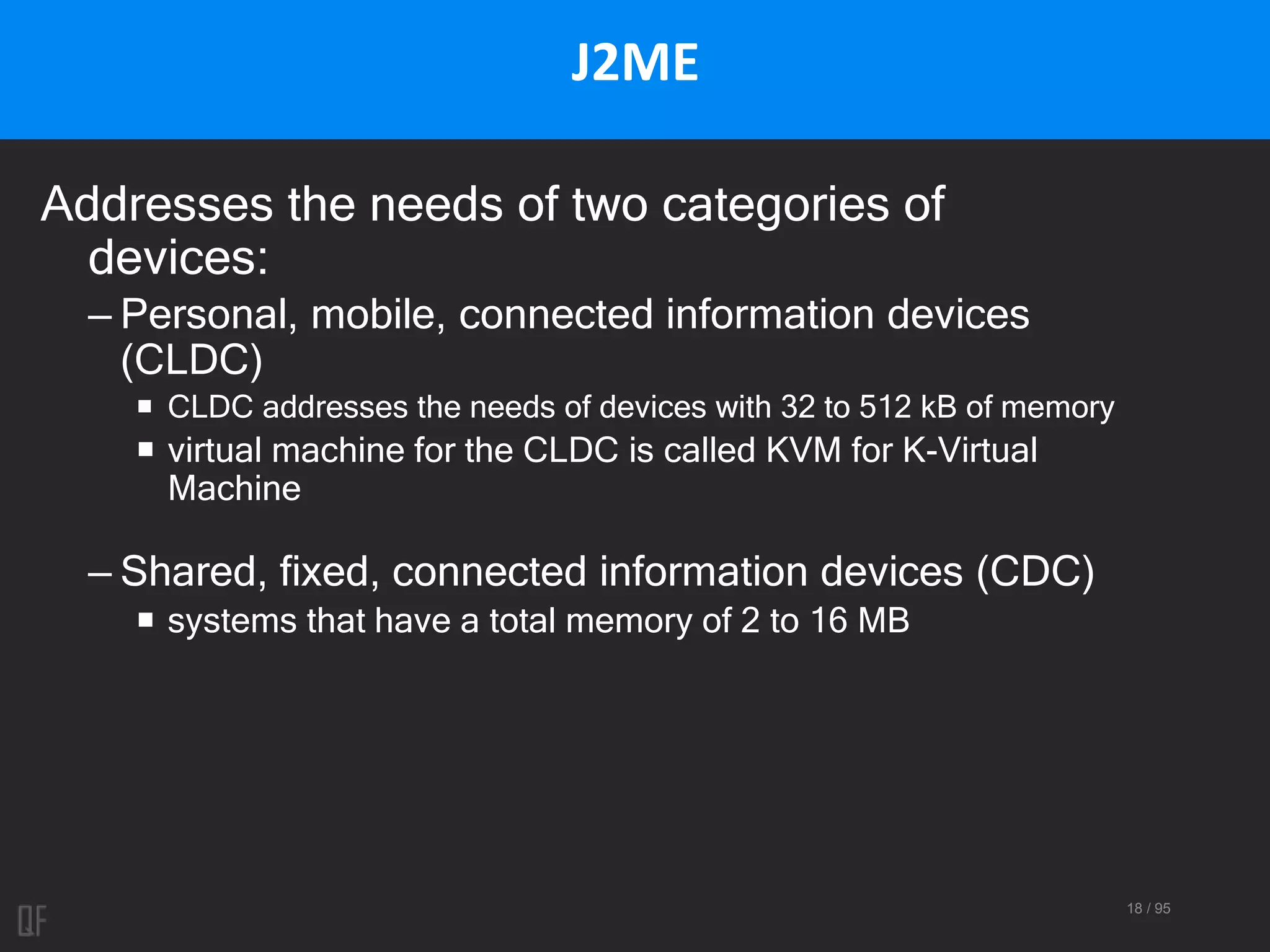

J2ME
Addresses the needs of two categories of
devices:
– Personal, mobile, connected information devices
(CLDC)
 CLDC addresses the needs of devices with 32 to 512 kB of memory
 virtual machine for the CLDC is called KVM for K-Virtual
Machine
– Shared, fixed, connected information devices (CDC)
 systems that have a total memory of 2 to 16 MB

19. 19 / 95

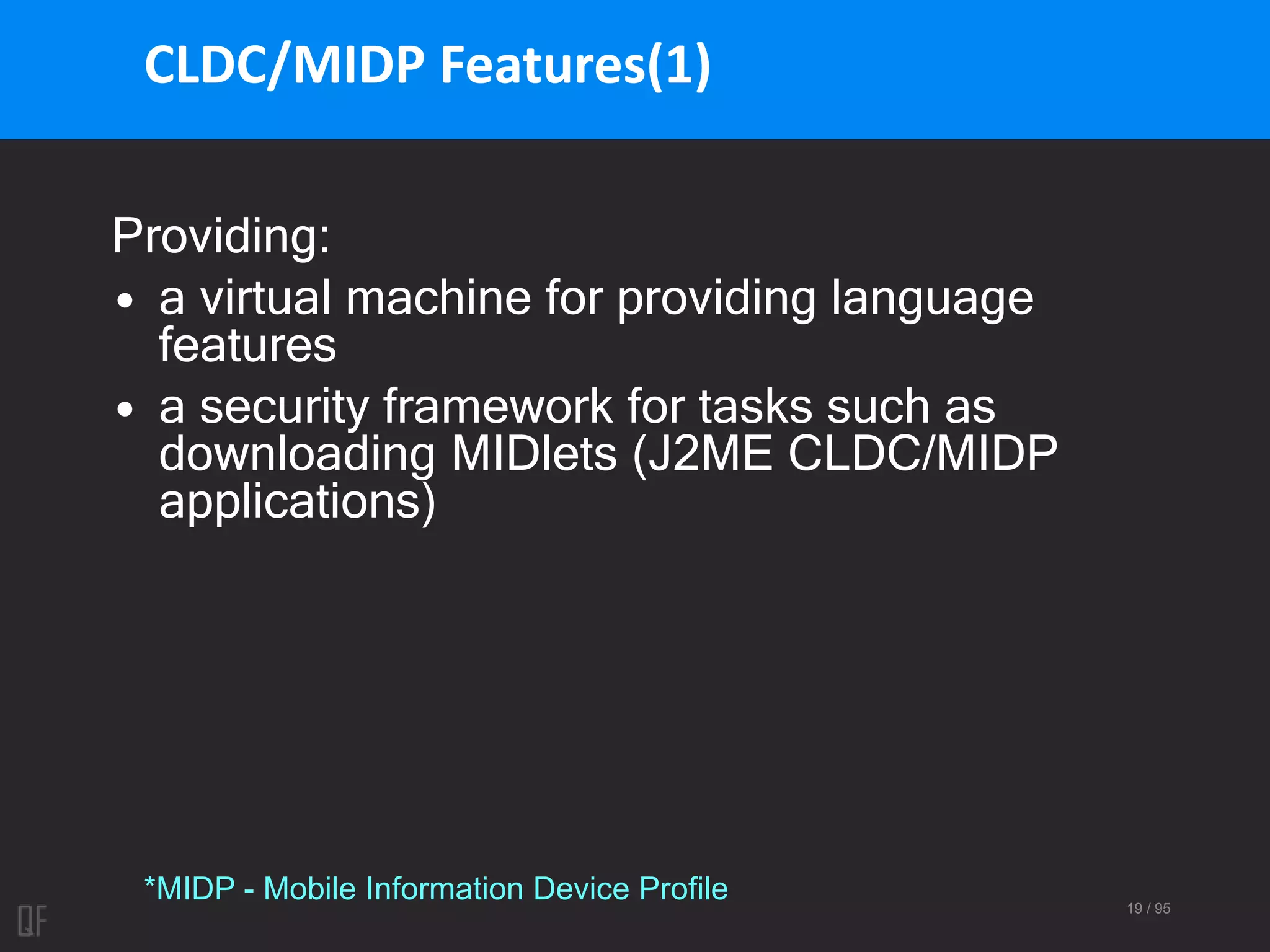

CLDC/MIDP Features(1)
Providing:
• a virtual machine for providing language
features
• a security framework for tasks such as
downloading MIDlets (J2ME CLDC/MIDP
applications)
*MIDP - Mobile Information Device Profile

20. 20 / 95

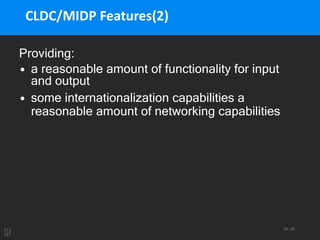

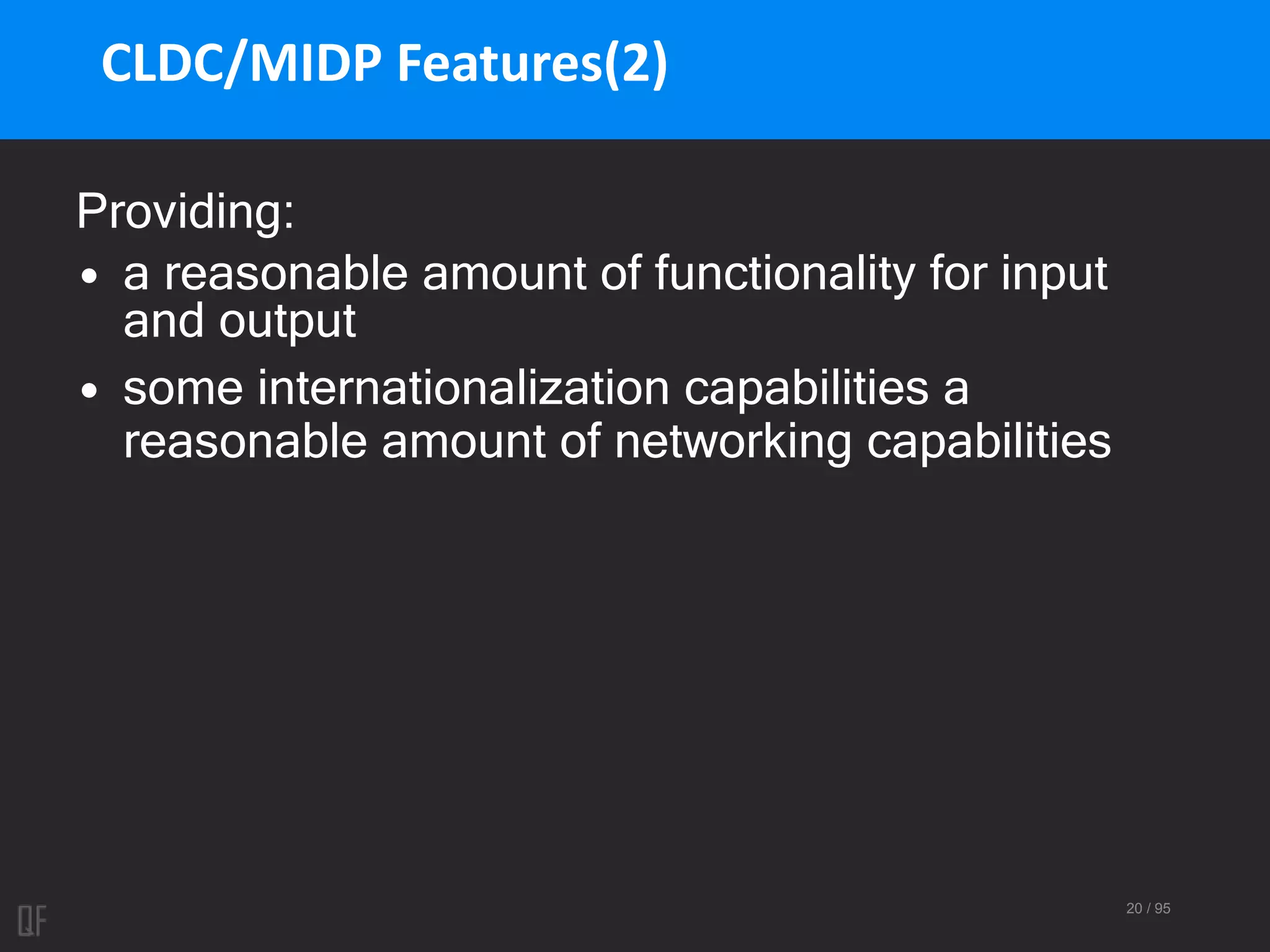

CLDC/MIDP Features(2)
Providing:
• a reasonable amount of functionality for input
and output
• some internationalization capabilities a
reasonable amount of networking capabilities

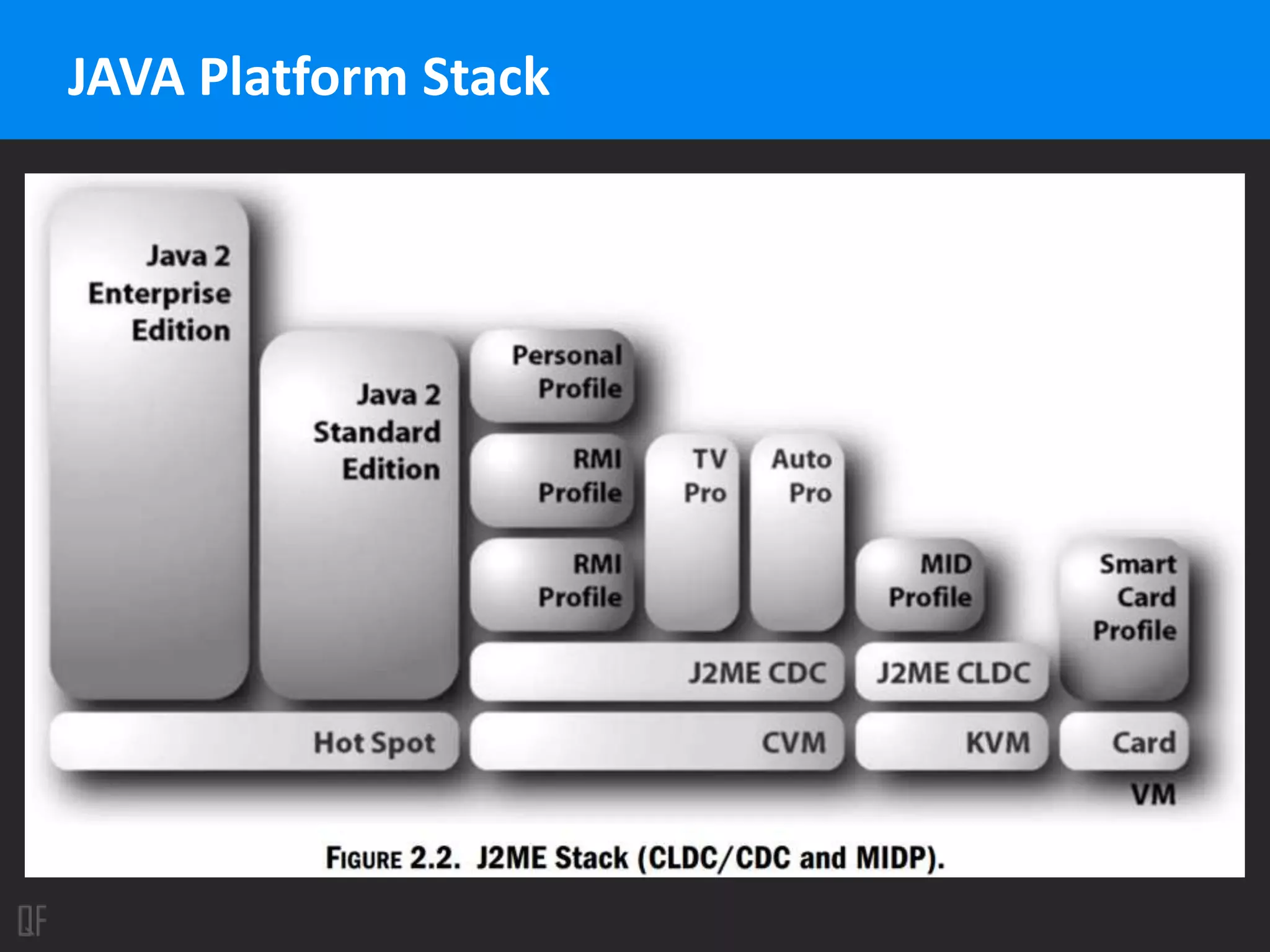

21. JAVA Platform Stack

22. 22 / 95

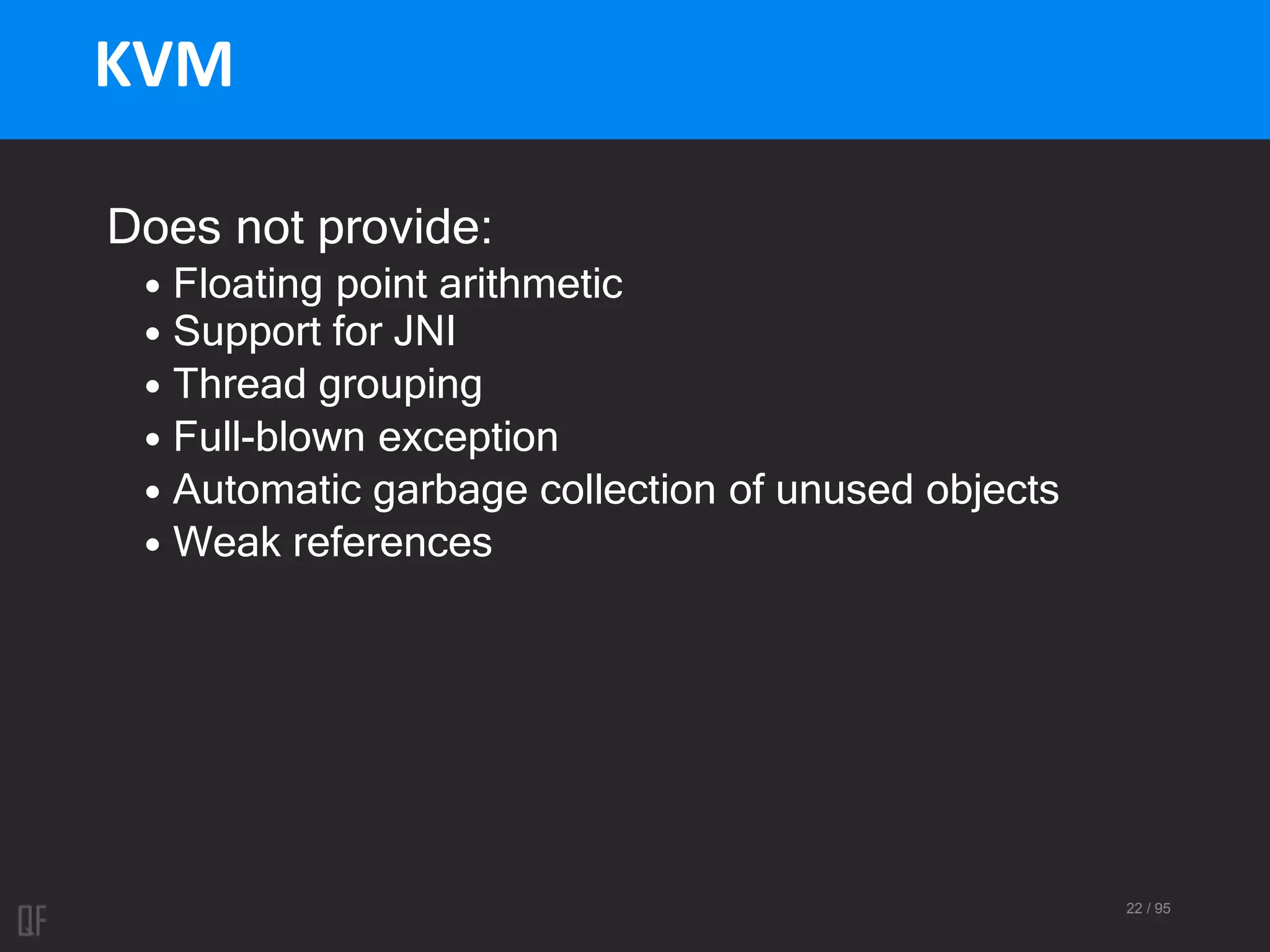

KVM
Does not provide:
• Floating point arithmetic
• Support for JNI
• Thread grouping
• Full-blown exception
• Automatic garbage collection of unused objects
• Weak references

23. 23 / 95

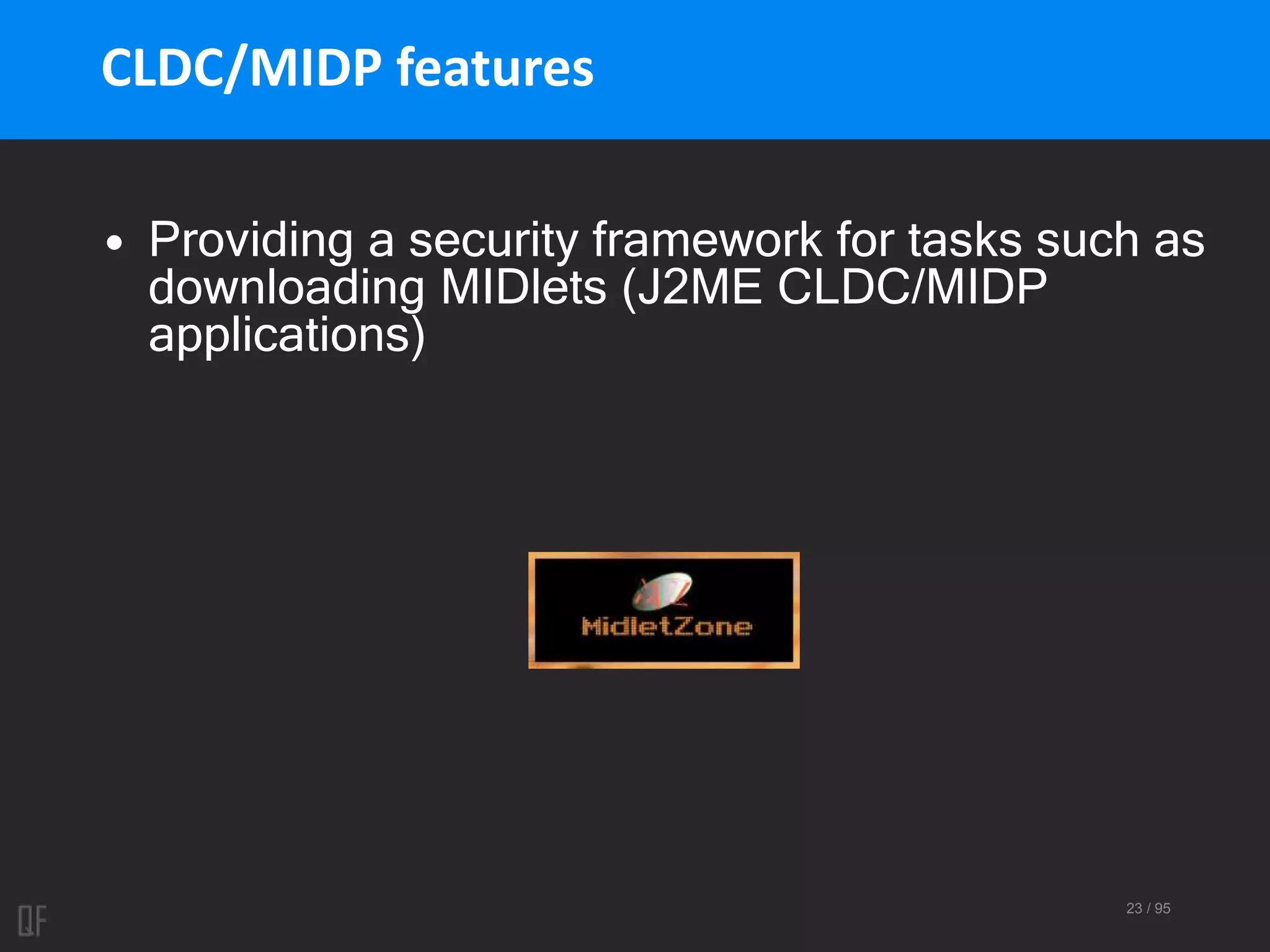

CLDC/MIDP features
• Providing a security framework for tasks such as
downloading MIDlets (J2ME CLDC/MIDP
applications)

24. 24 / 95

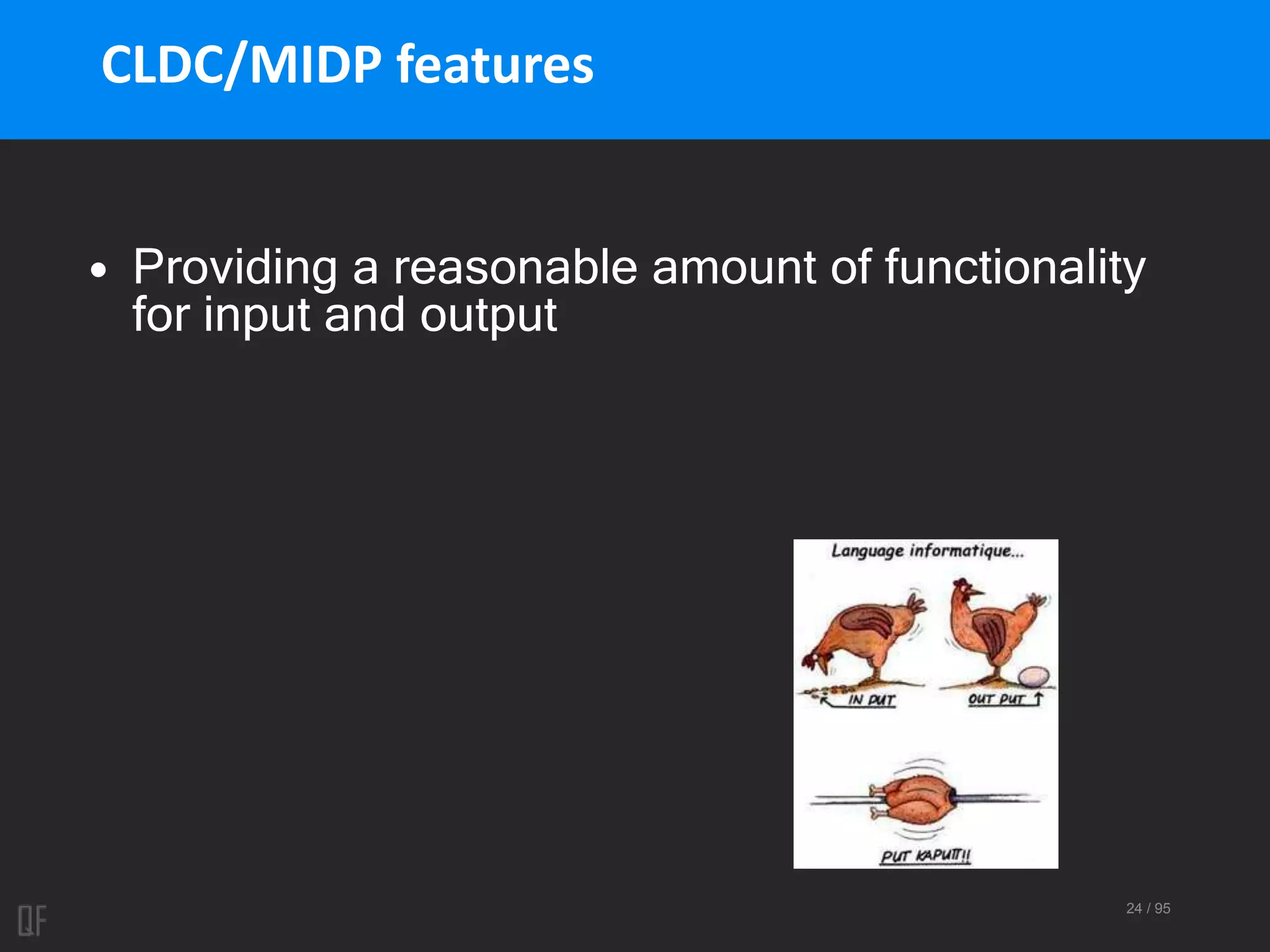

CLDC/MIDP features
• Providing a reasonable amount of functionality
for input and output

25. 25 / 95

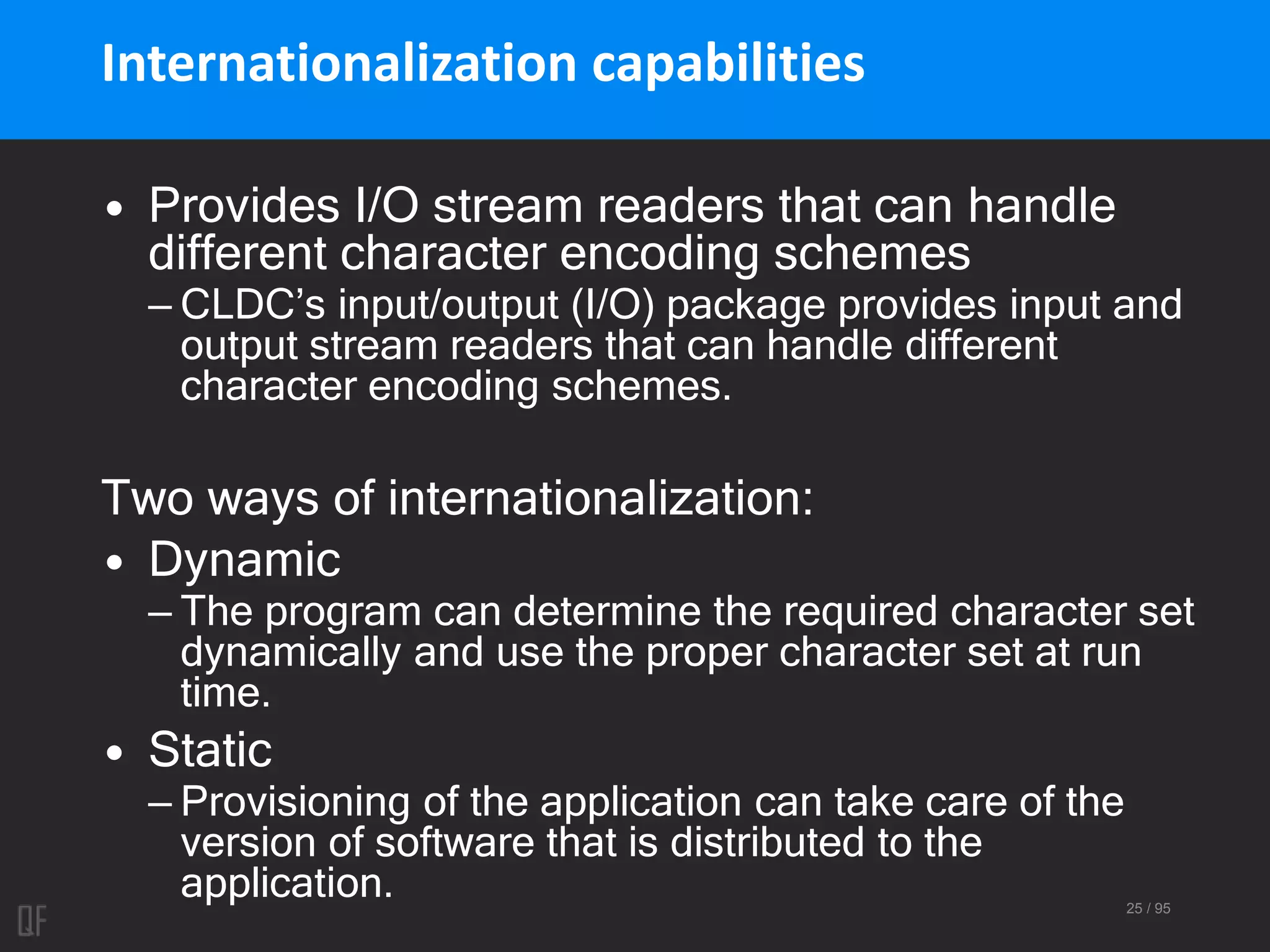

Internationalization capabilities
• Provides I/O stream readers that can handle
different character encoding schemes
– CLDC’s input/output (I/O) package provides input and
output stream readers that can handle different
character encoding schemes.
Two ways of internationalization:
• Dynamic
– The program can determine the required character set
dynamically and use the proper character set at run
time.
• Static
– Provisioning of the application can take care of the
version of software that is distributed to the
application.

26. 26 / 95

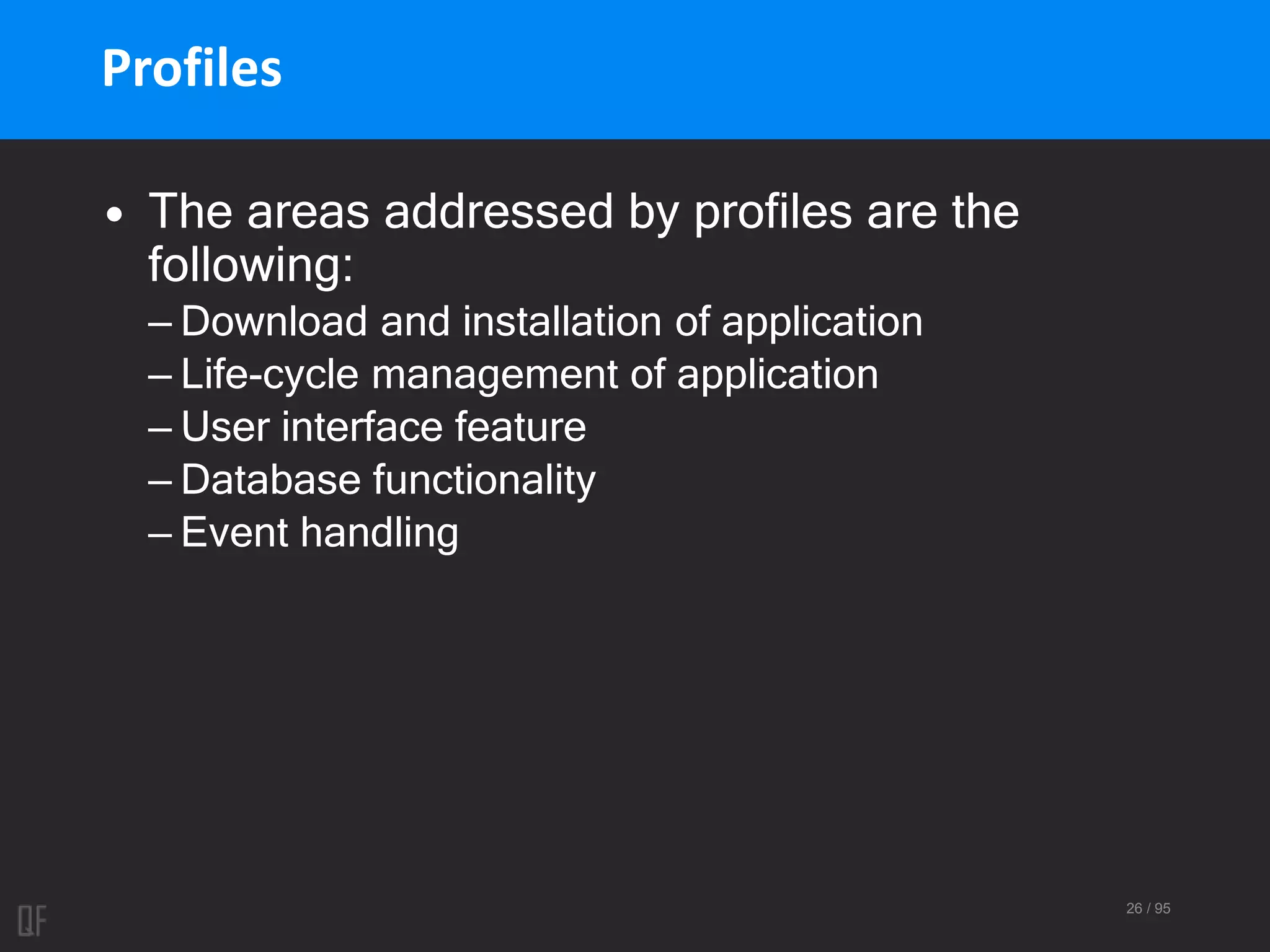

Profiles
• The areas addressed by profiles are the
following:
– Download and installation of application
– Life-cycle management of application
– User interface feature
– Database functionality
– Event handling

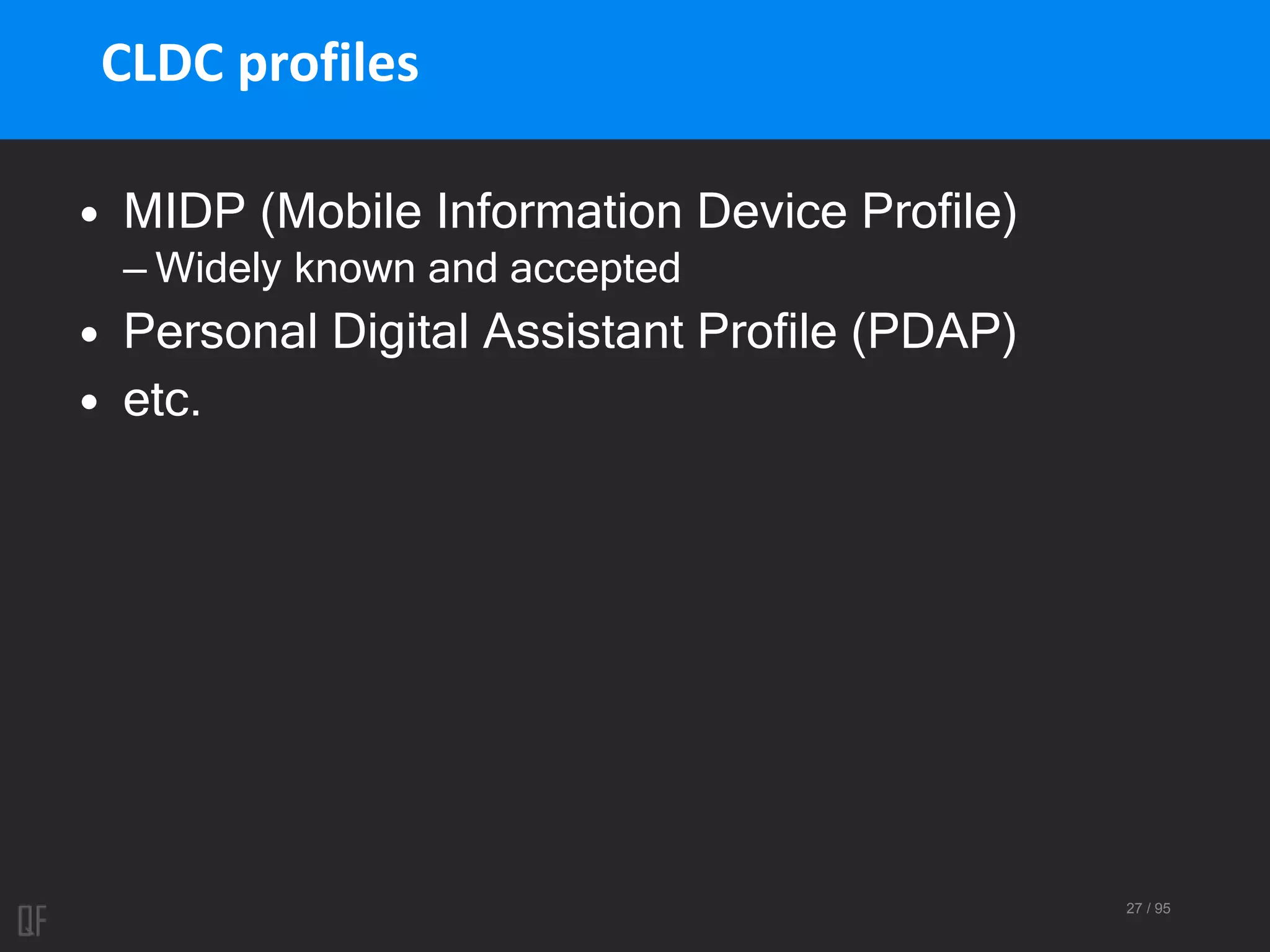

27. 27 / 95

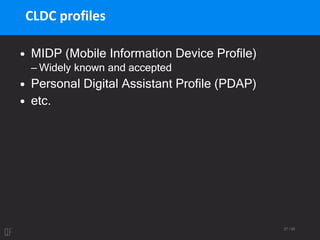

CLDC profiles
• MIDP (Mobile Information Device Profile)
– Widely known and accepted
• Personal Digital Assistant Profile (PDAP)
• etc.

28. 28 / 95

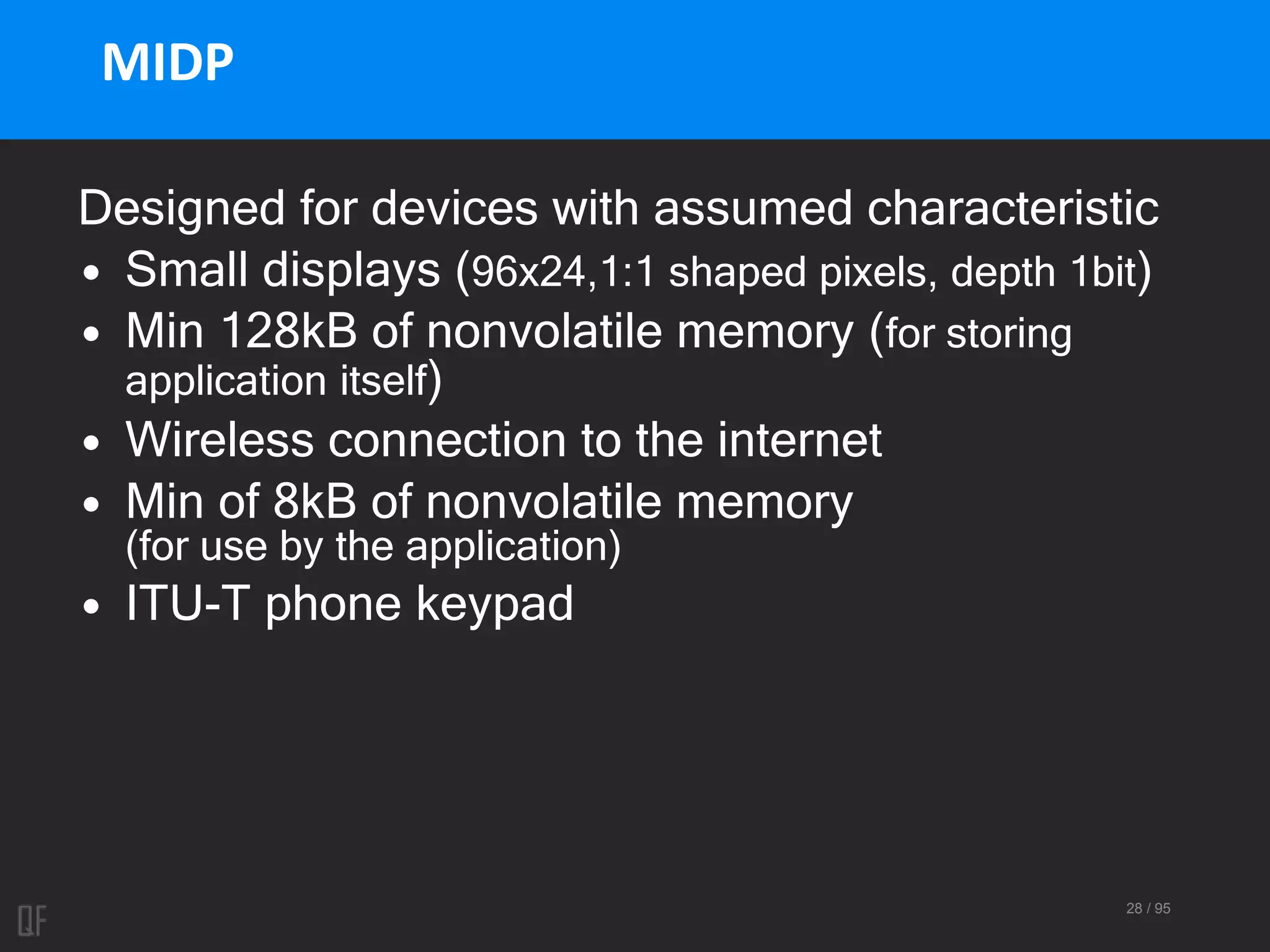

MIDP
Designed for devices with assumed characteristic
• Small displays (96x24,1:1 shaped pixels, depth 1bit)
• Min 128kB of nonvolatile memory (for storing
application itself)
• Wireless connection to the internet
• Min of 8kB of nonvolatile memory
(for use by the application)
• ITU-T phone keypad

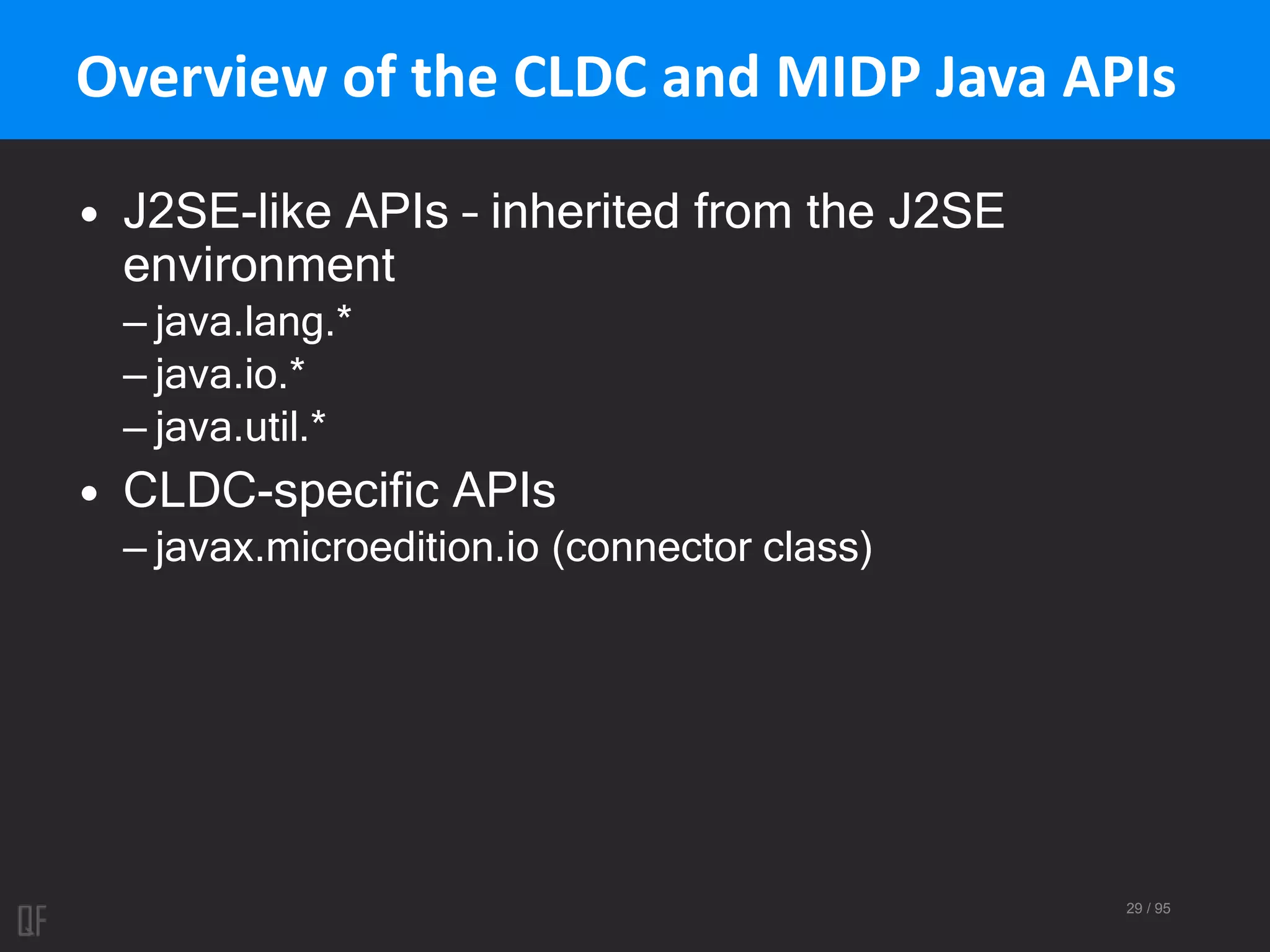

29. 29 / 95
Overview of the CLDC and MIDP Java APIs
• J2SE-like APIs – inherited from the J2SE
environment
– java.lang.*
– java.io.*
– java.util.*
• CLDC-specific APIs
– javax.microedition.io (connector class)

30. 30 / 95

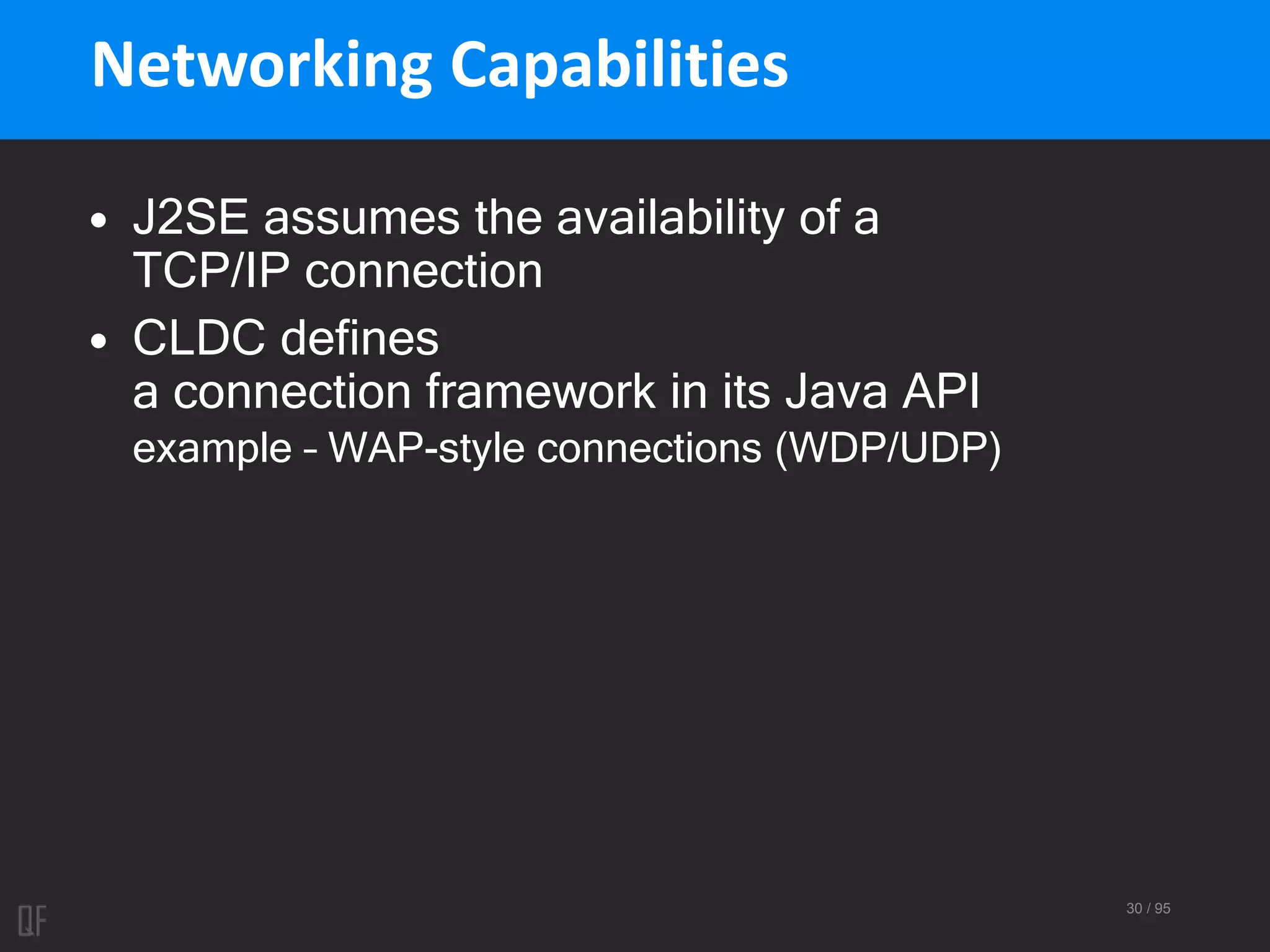

Networking Capabilities
• J2SE assumes the availability of a
TCP/IP connection
• CLDC defines
a connection framework in its Java API
example – WAP-style connections (WDP/UDP)

31. 31 / 95

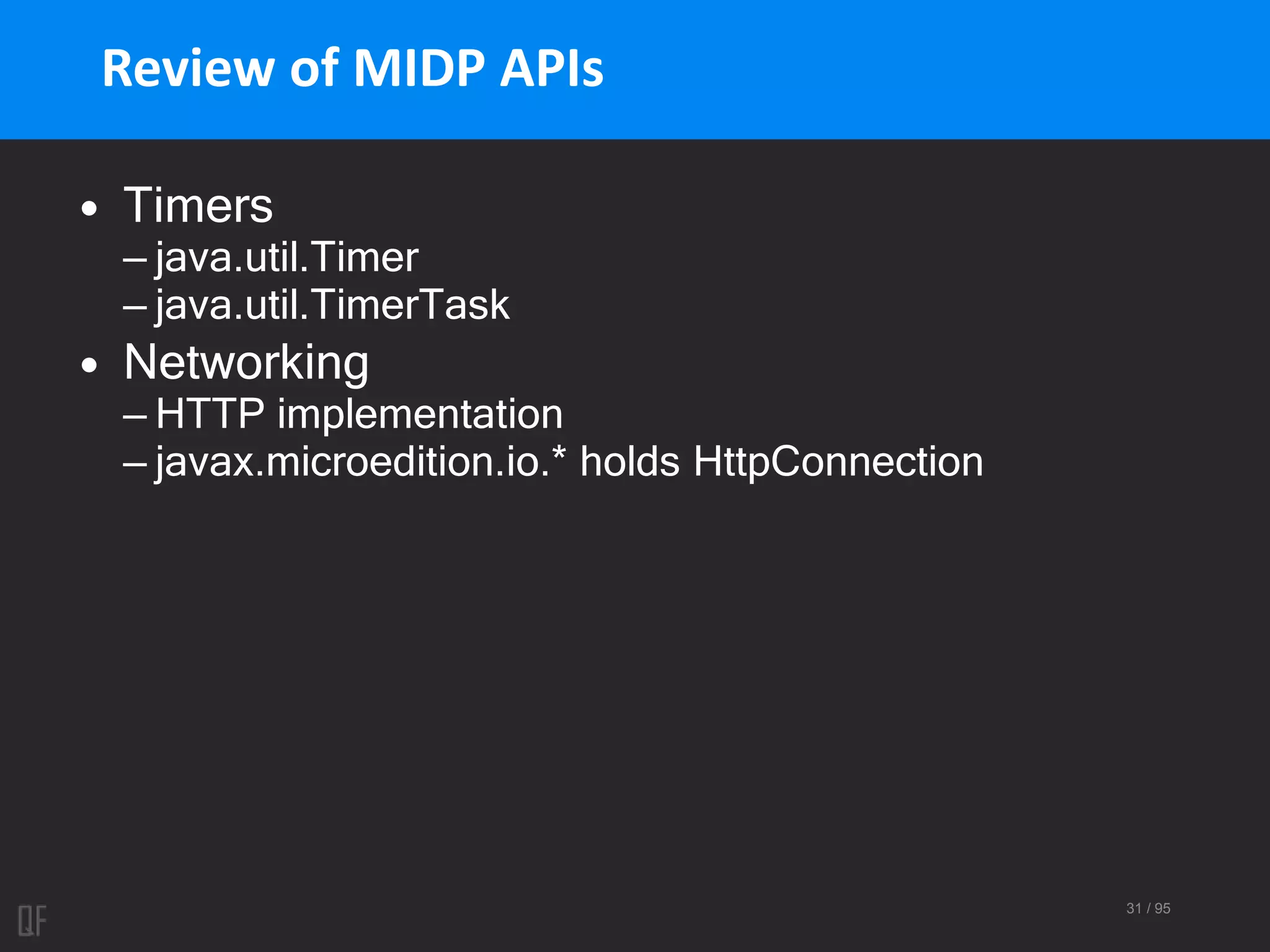

Review of MIDP APIs
• Timers
– java.util.Timer
– java.util.TimerTask
• Networking
– HTTP implementation
– javax.microedition.io.* holds HttpConnection

32. 32 / 95

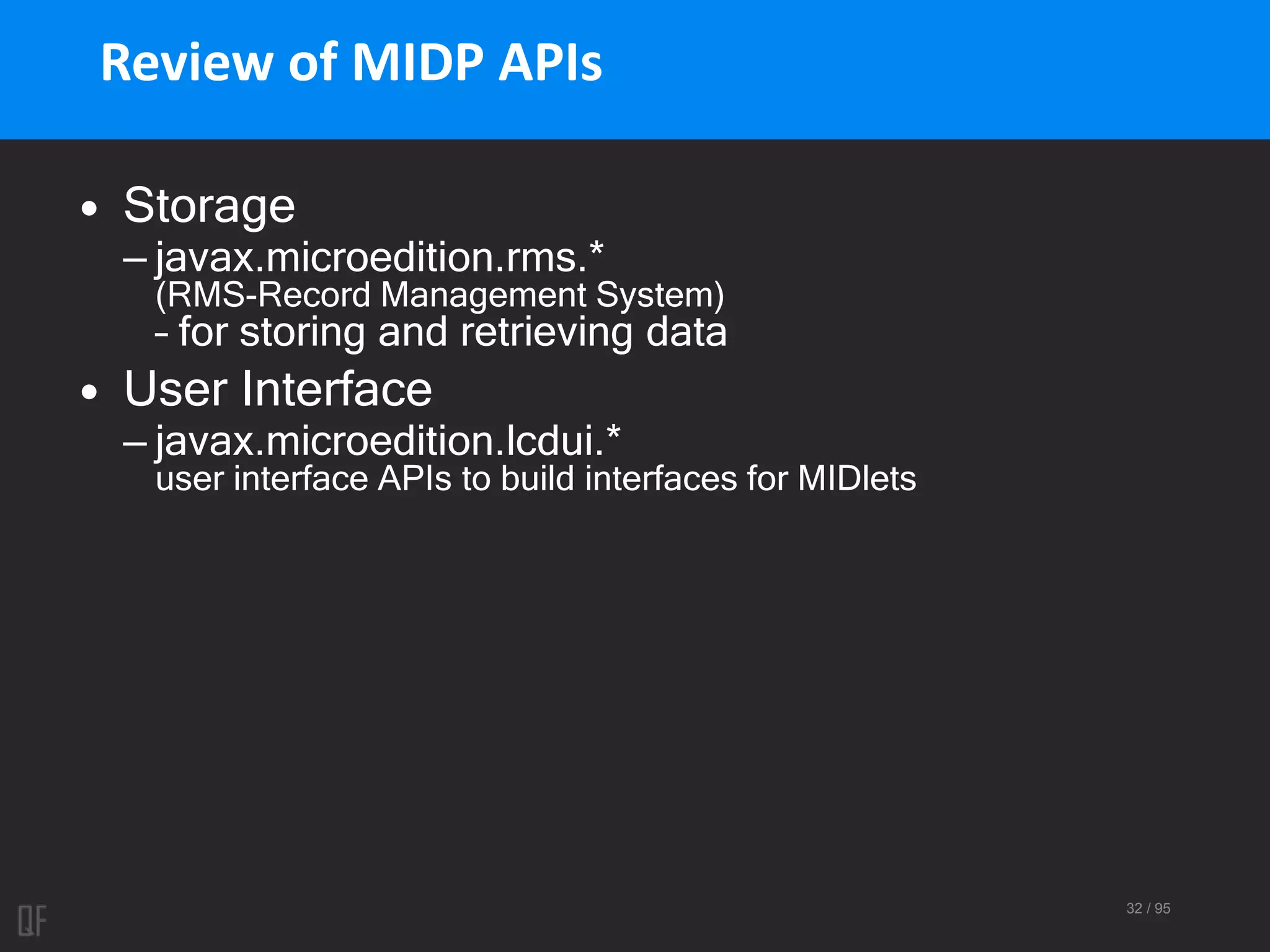

Review of MIDP APIs
• Storage
– javax.microedition.rms.*
(RMS-Record Management System)
– for storing and retrieving data
• User Interface
– javax.microedition.lcdui.*
user interface APIs to build interfaces for MIDlets

33. 33 / 95

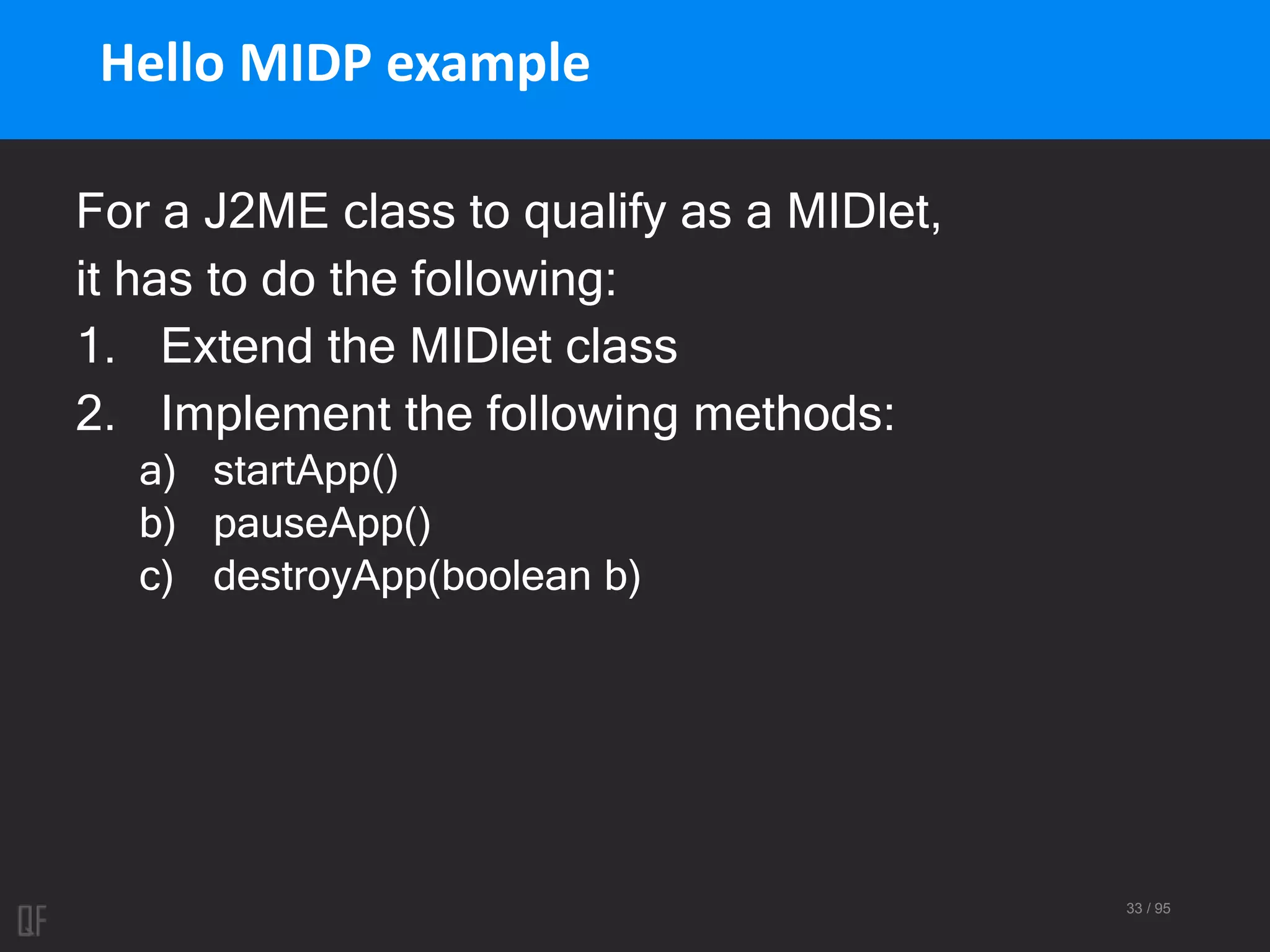

Hello MIDP example
For a J2ME class to qualify as a MIDlet,
it has to do the following:
1. Extend the MIDlet class
2. Implement the following methods:
a) startApp()
b) pauseApp()
c) destroyApp(boolean b)

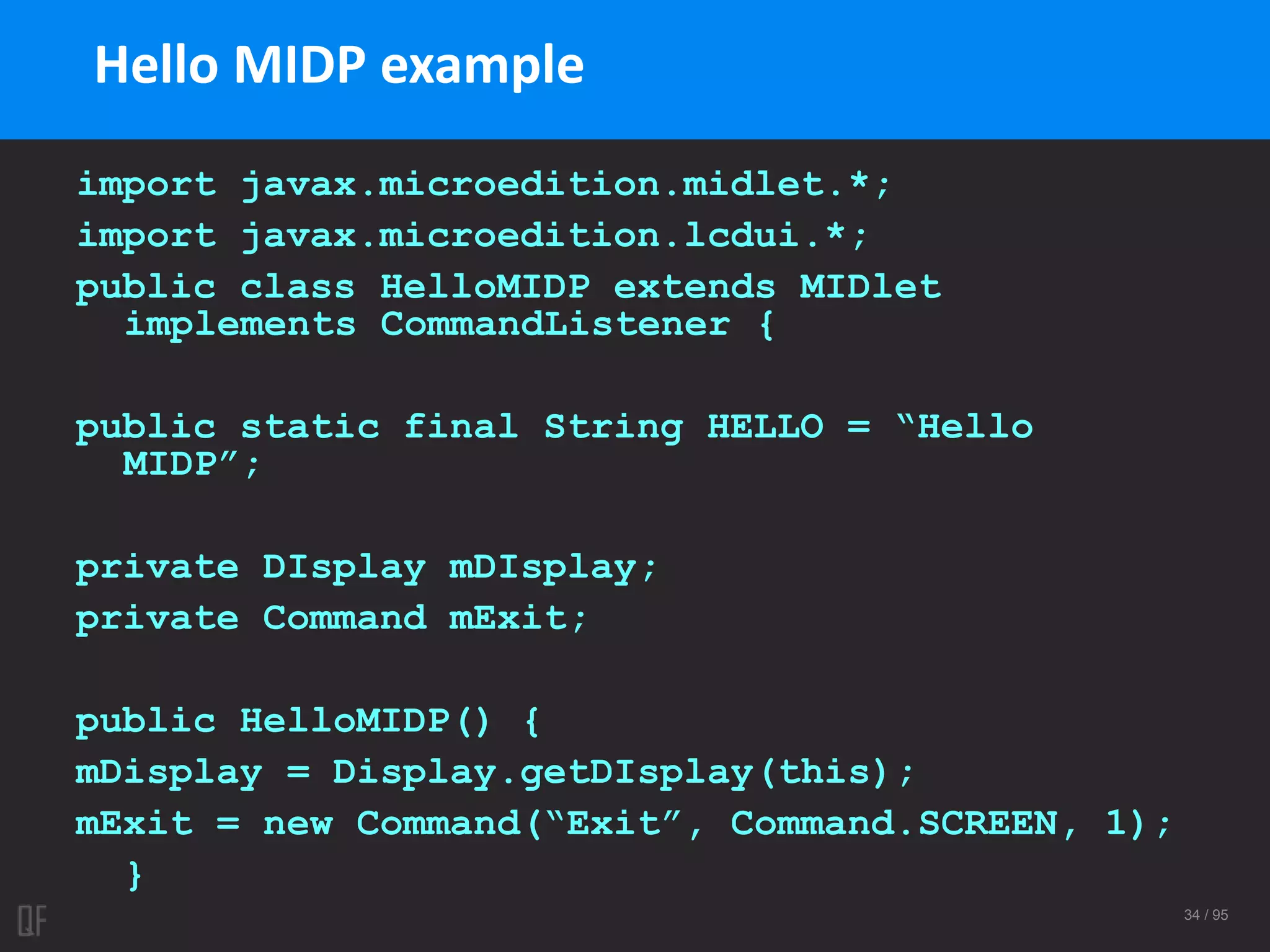

34. 34 / 95
import javax.microedition.midlet.*;
import javax.microedition.lcdui.*;
public class HelloMIDP extends MIDlet
implements CommandListener {
public static final String HELLO = “Hello
MIDP”;
private DIsplay mDIsplay;
private Command mExit;
public HelloMIDP() {
mDisplay = Display.getDIsplay(this);
mExit = new Command(“Exit”, Command.SCREEN, 1);
}
Hello MIDP example

35. 35 / 95

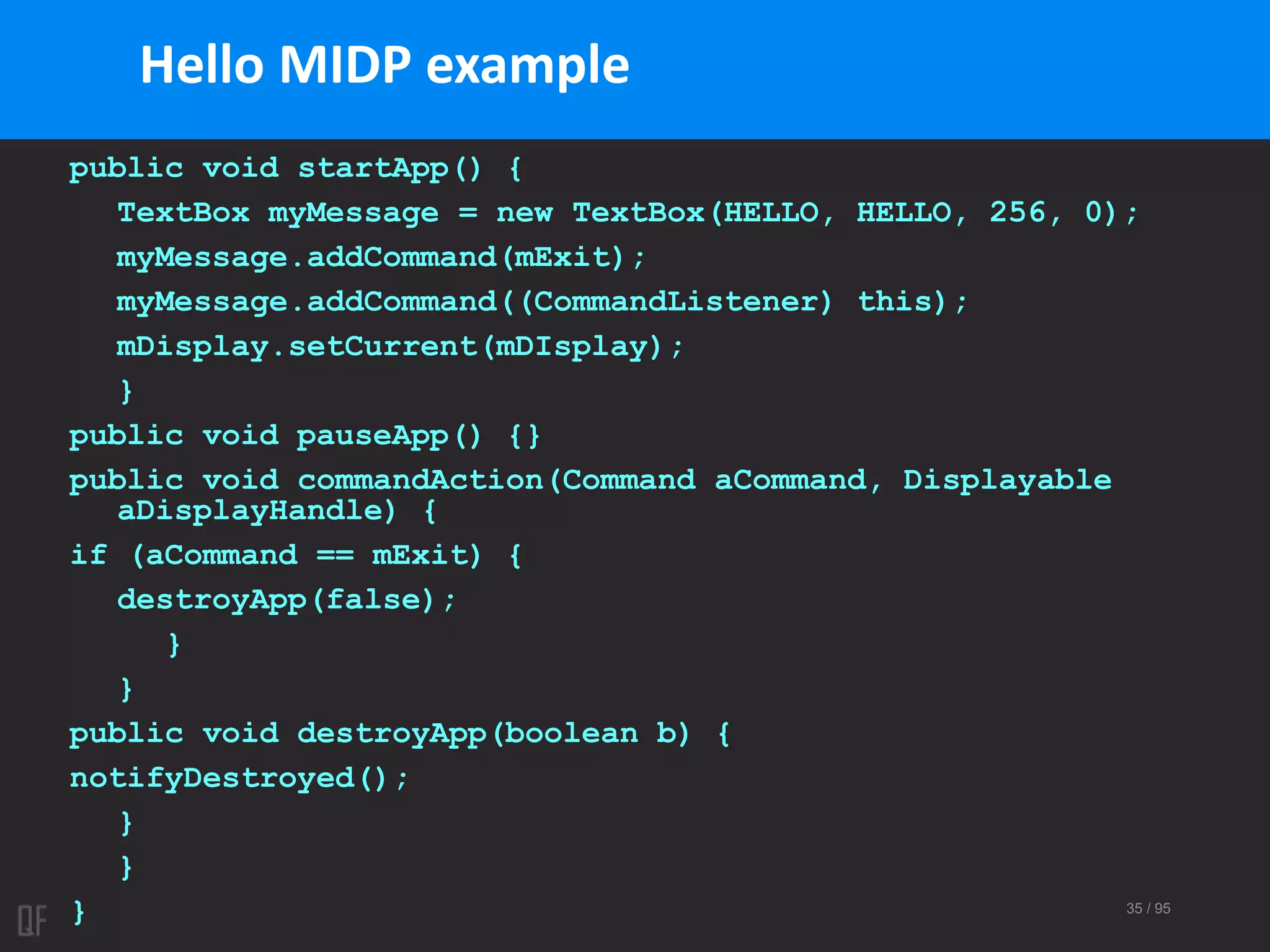

public void startApp() {
TextBox myMessage = new TextBox(HELLO, HELLO, 256, 0);
myMessage.addCommand(mExit);
myMessage.addCommand((CommandListener) this);
mDisplay.setCurrent(mDIsplay);
}
public void pauseApp() {}
public void commandAction(Command aCommand, Displayable
aDisplayHandle) {
if (aCommand == mExit) {
destroyApp(false);
}
}
public void destroyApp(boolean b) {
notifyDestroyed();
}
}
}
Hello MIDP example

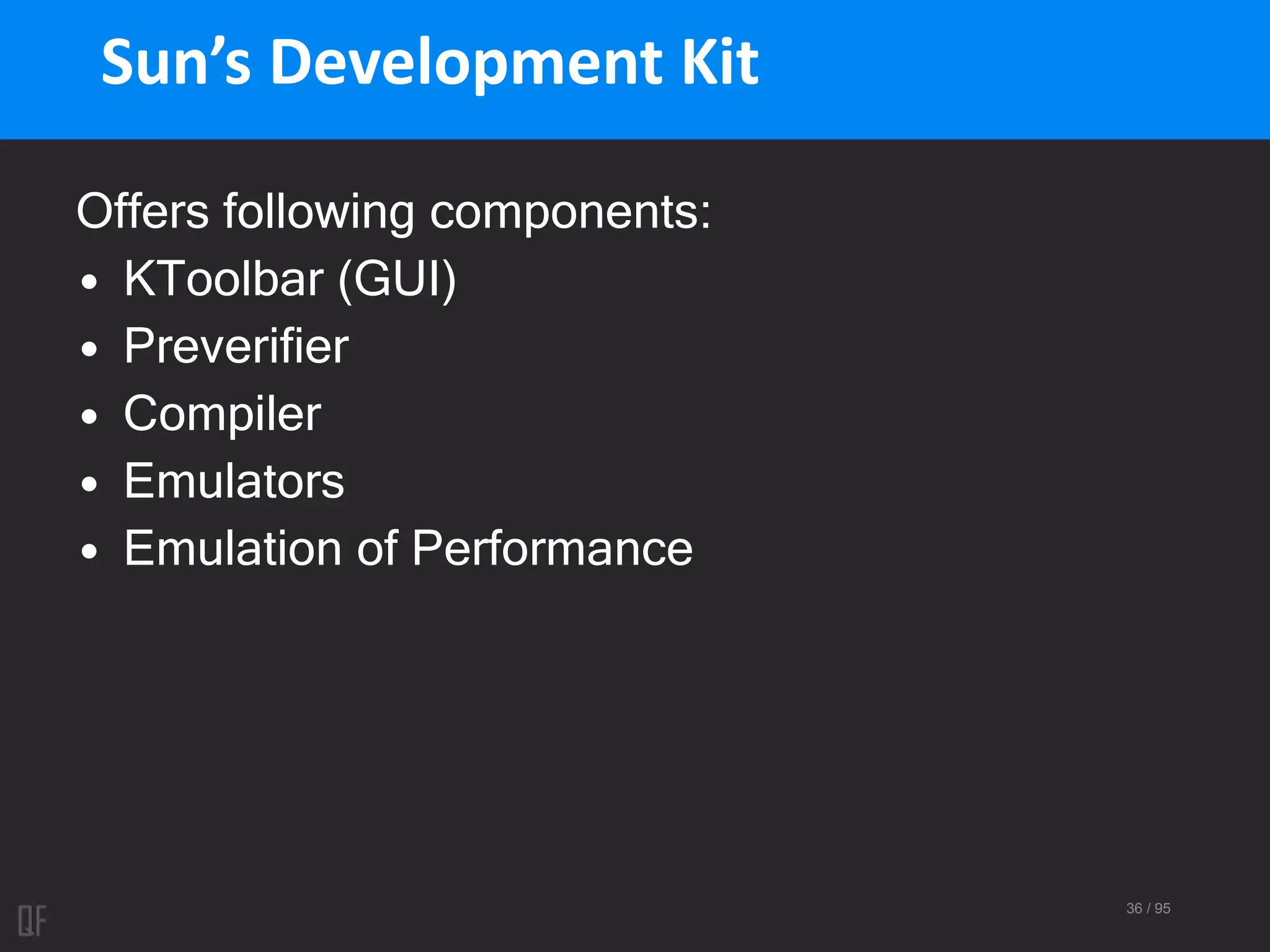

36. 36 / 95
Sun’s Development Kit
Offers following components:
• KToolbar (GUI)
• Preverifier
• Compiler
• Emulators
• Emulation of Performance

37. 37 / 95

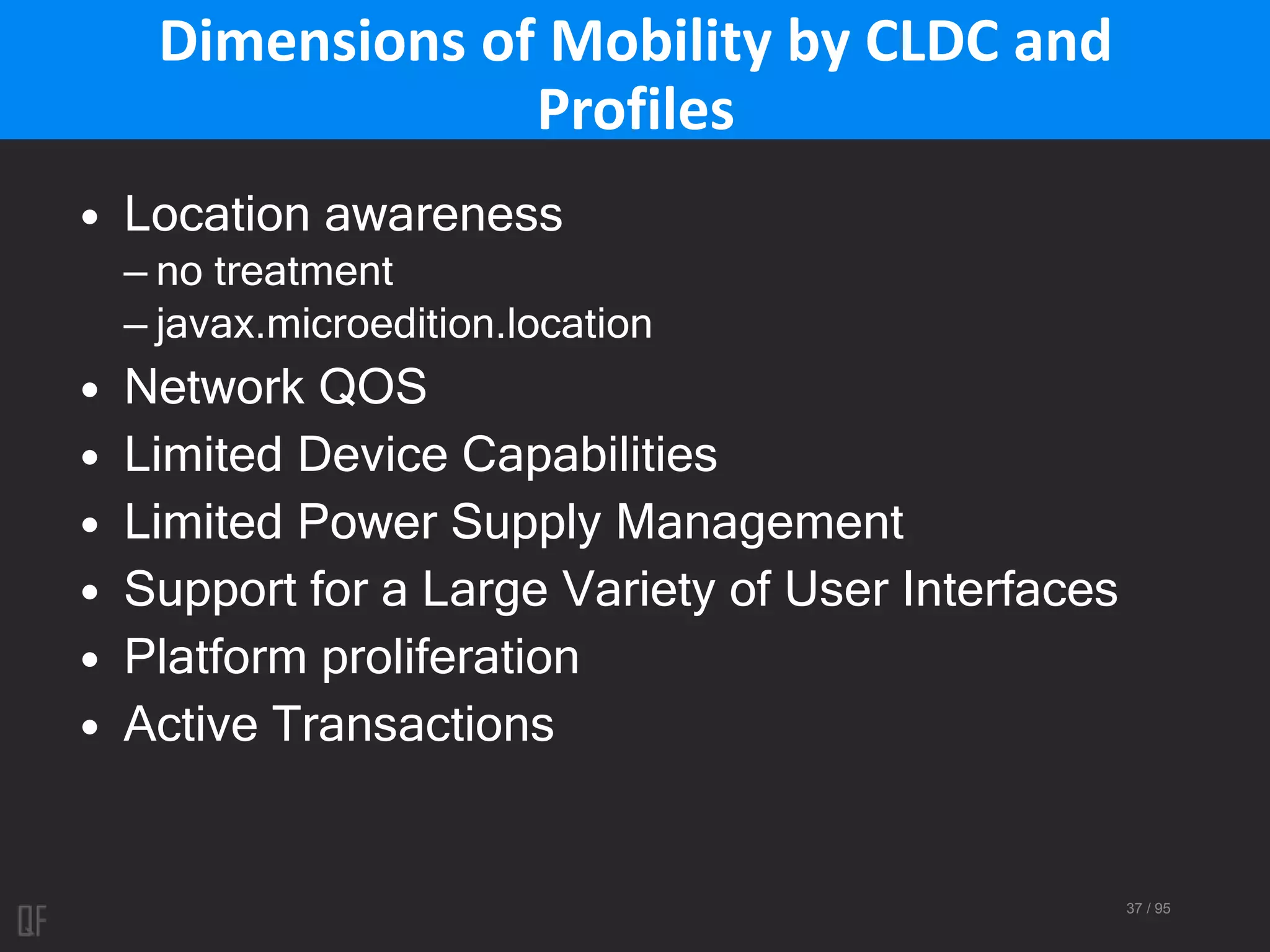

Dimensions of Mobility by CLDC and
Profiles
• Location awareness
– no treatment
– javax.microedition.location
• Network QOS
• Limited Device Capabilities
• Limited Power Supply Management
• Support for a Large Variety of User Interfaces
• Platform proliferation
• Active Transactions

38. 38 / 95

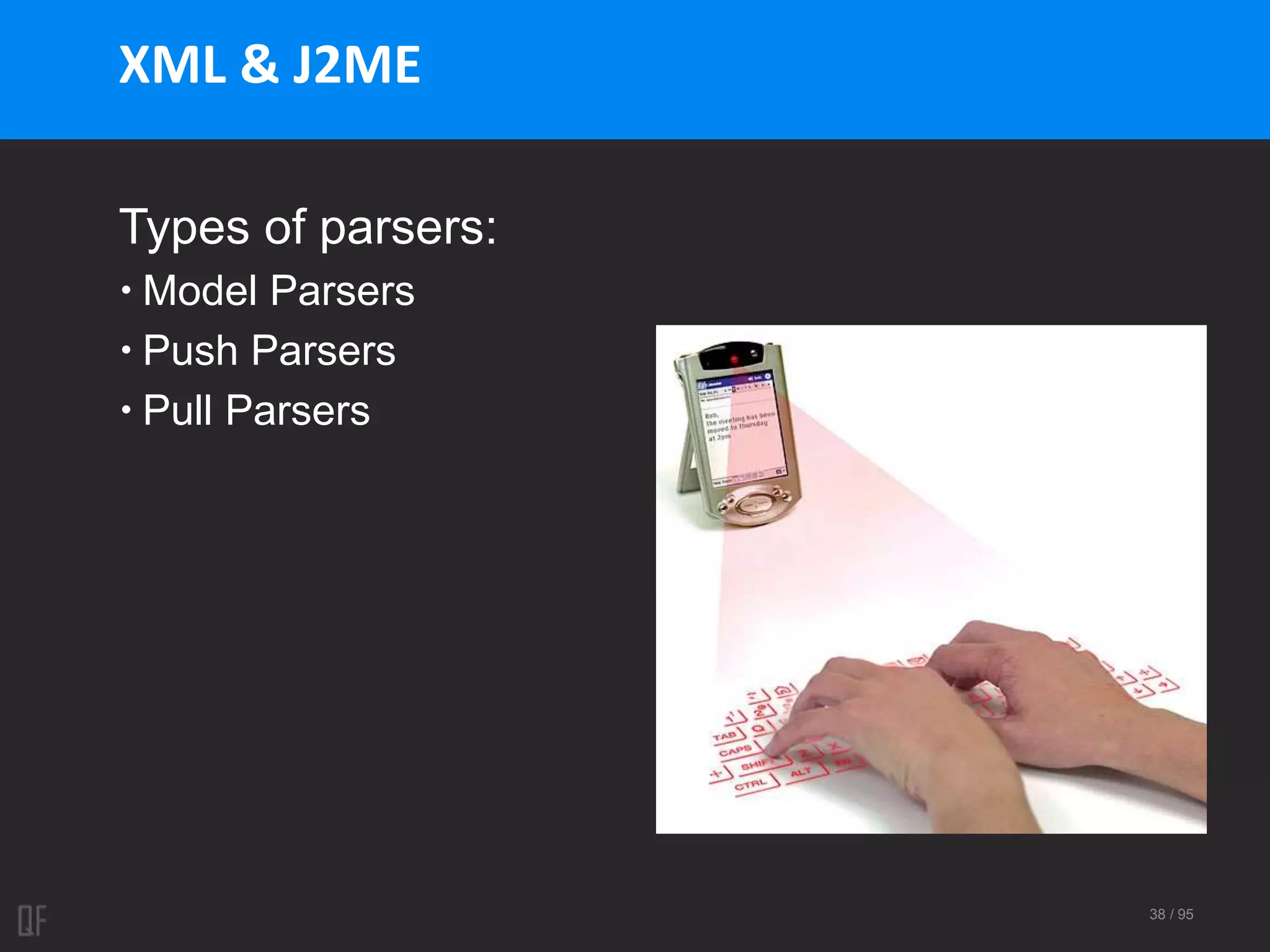

XML & J2ME
Types of parsers:
 Model Parsers
 Push Parsers
 Pull Parsers

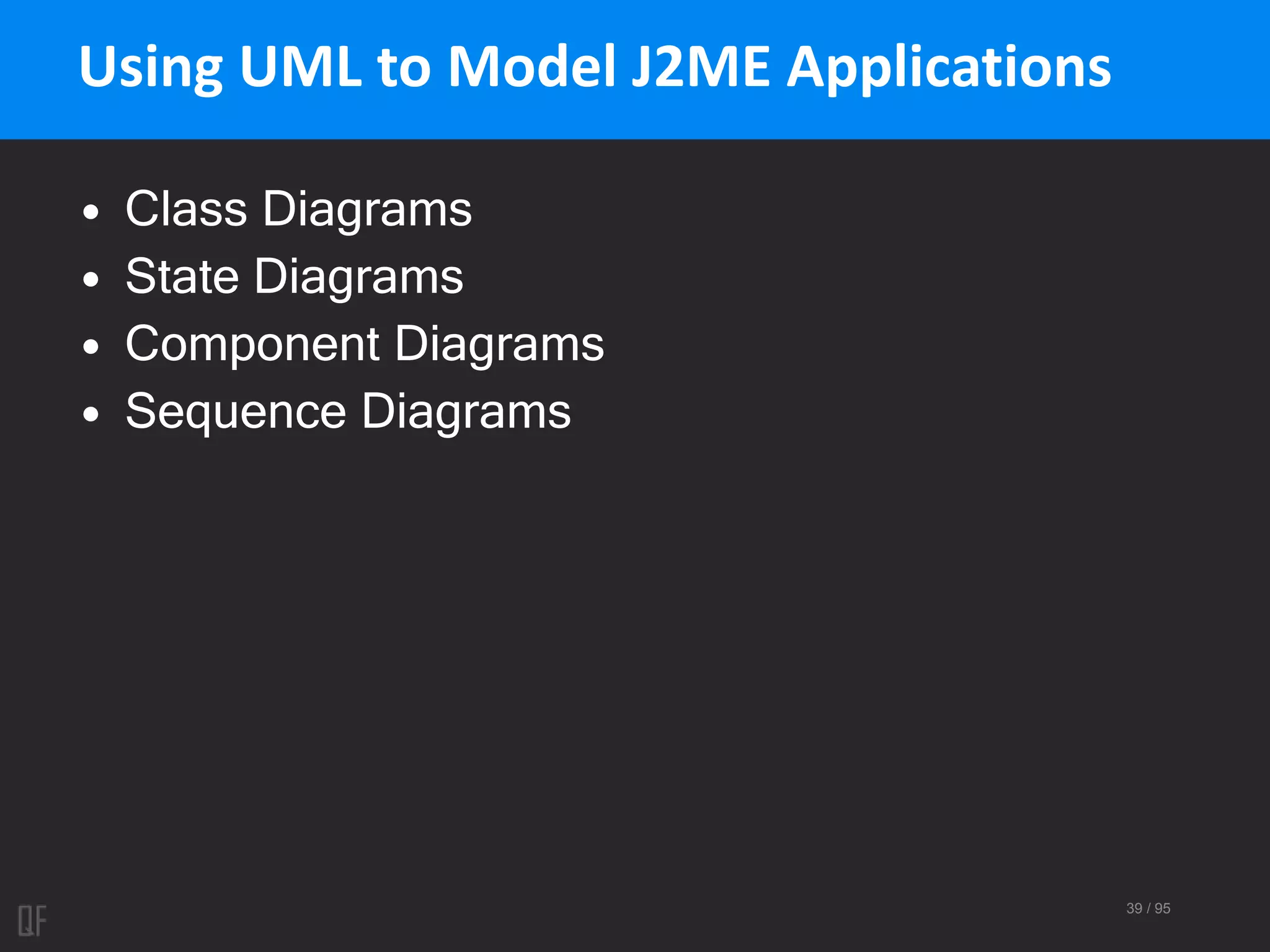

39. 39 / 95

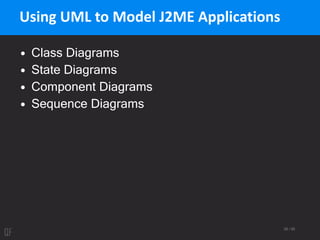

Using UML to Model J2ME Applications
• Class Diagrams
• State Diagrams
• Component Diagrams
• Sequence Diagrams

40. 40 / 95

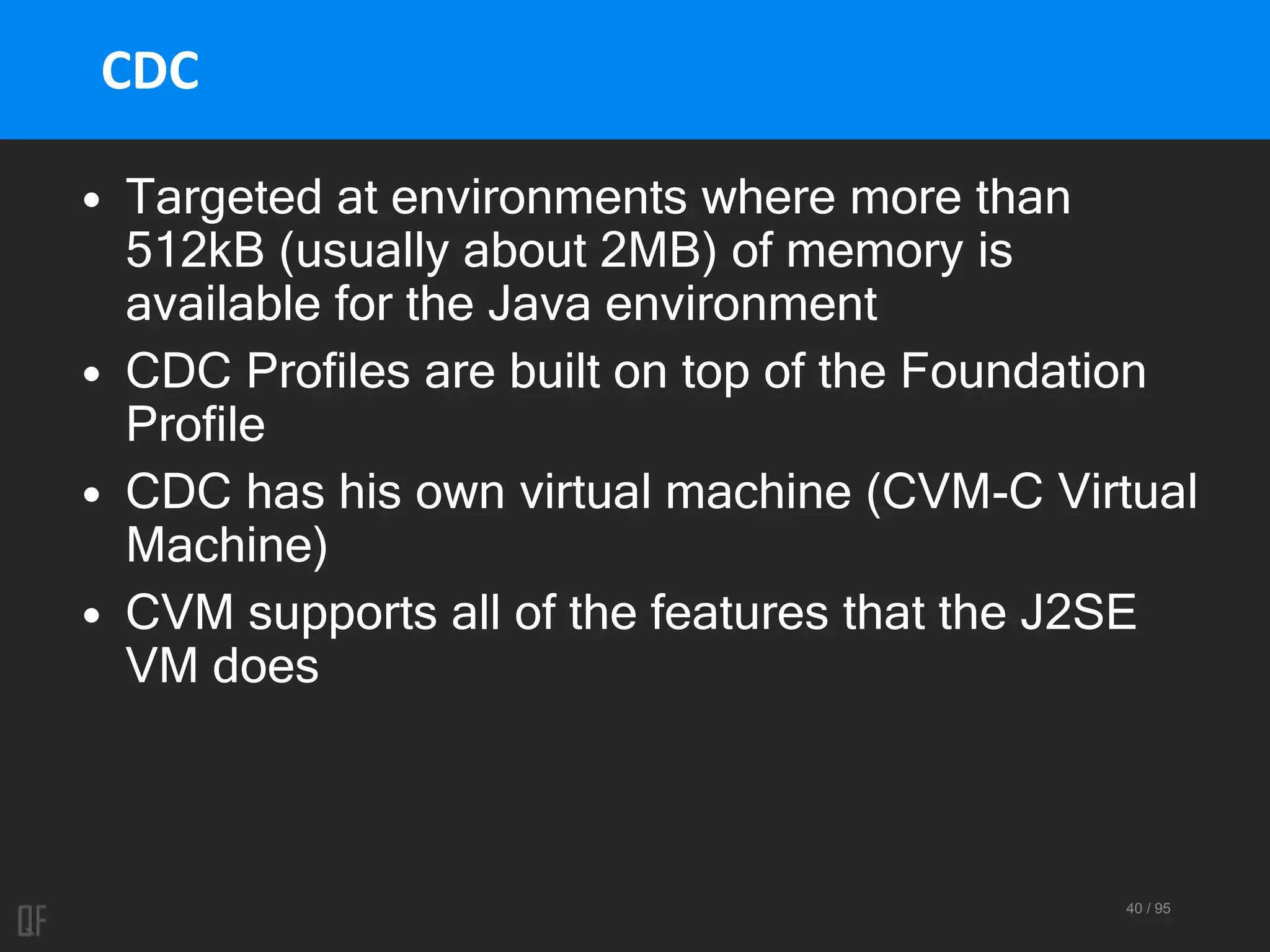

CDC
• Targeted at environments where more than
512kB (usually about 2MB) of memory is
available for the Java environment
• CDC Profiles are built on top of the Foundation
Profile
• CDC has his own virtual machine (CVM-C Virtual
Machine)
• CVM supports all of the features that the J2SE
VM does

41. 41 / 95

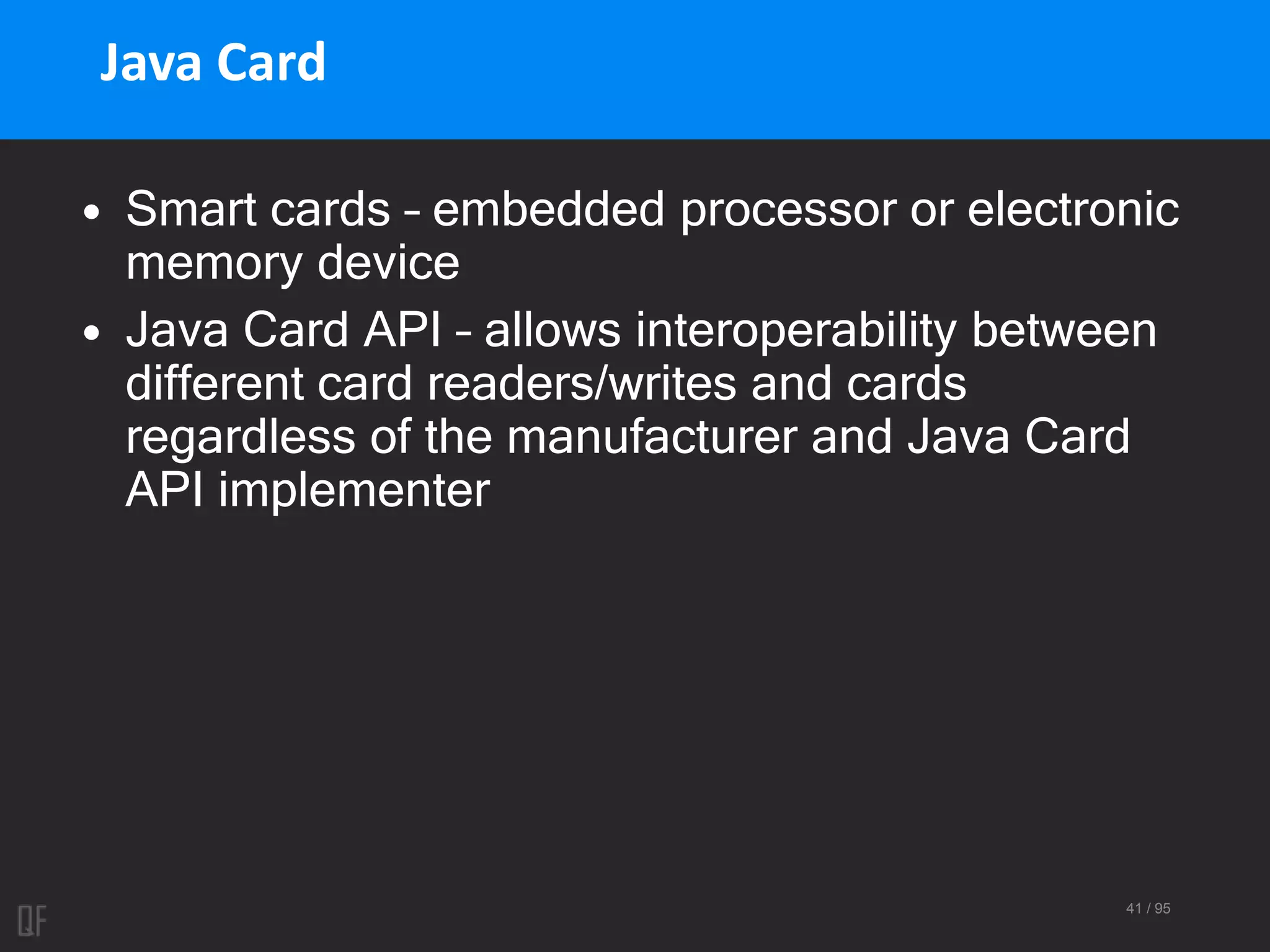

Java Card
• Smart cards – embedded processor or electronic
memory device
• Java Card API – allows interoperability between
different card readers/writes and cards
regardless of the manufacturer and Java Card
API implementer

42. 42 / 95

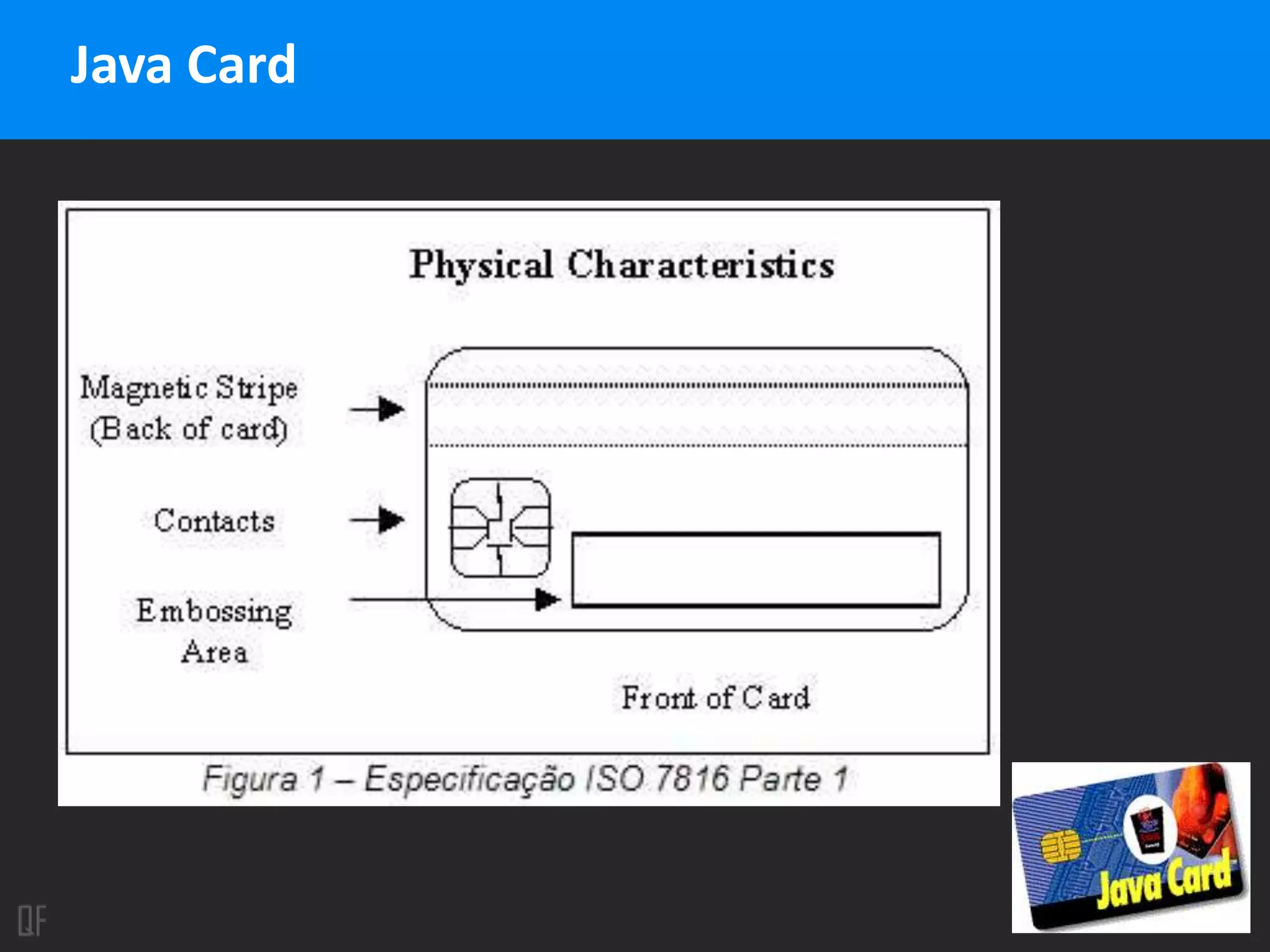

Java Card

43. 43 / 95

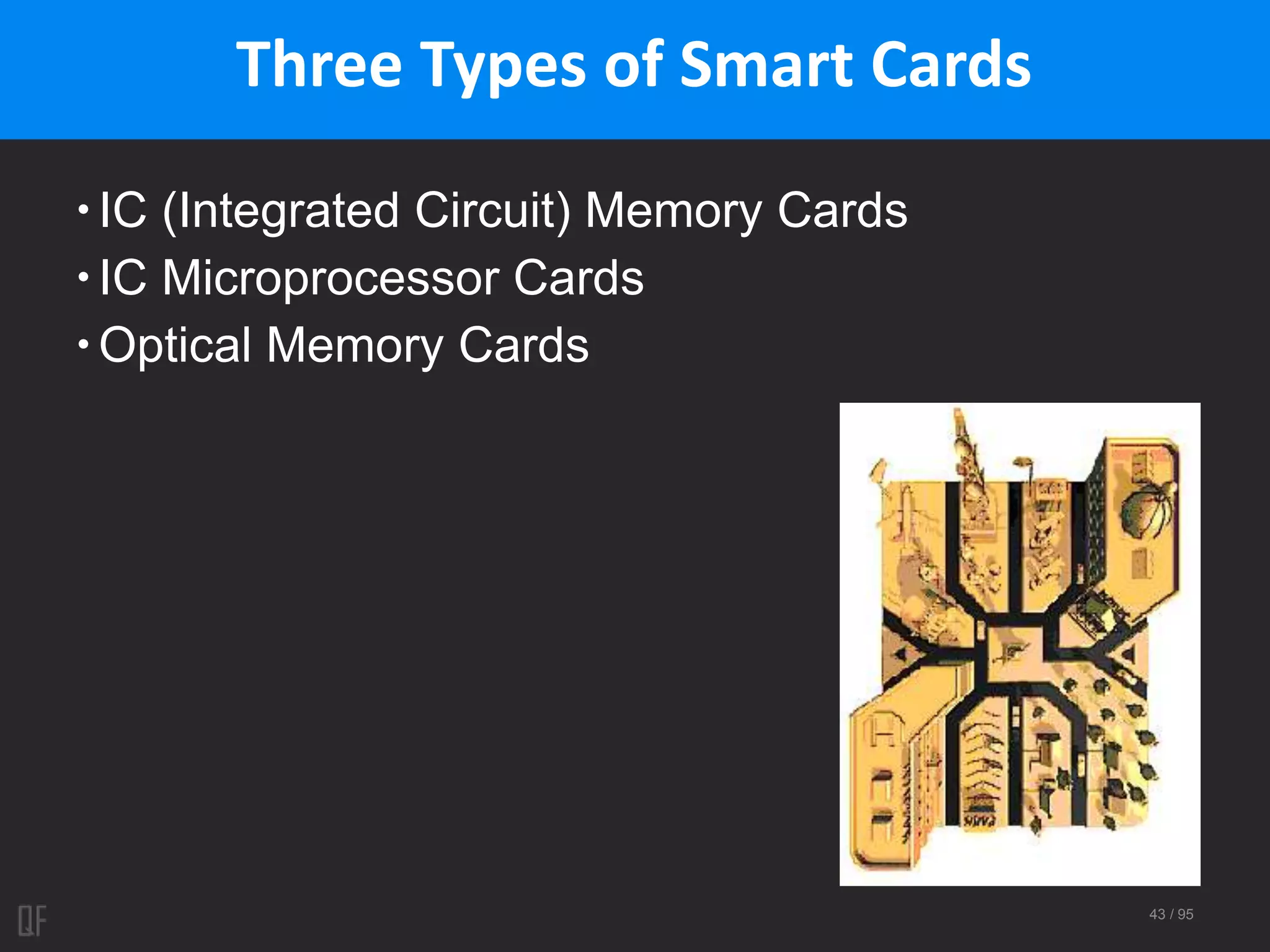

Three Types of Smart Cards
IC (Integrated Circuit) Memory Cards
IC Microprocessor Cards
Optical Memory Cards

44. 44 / 95

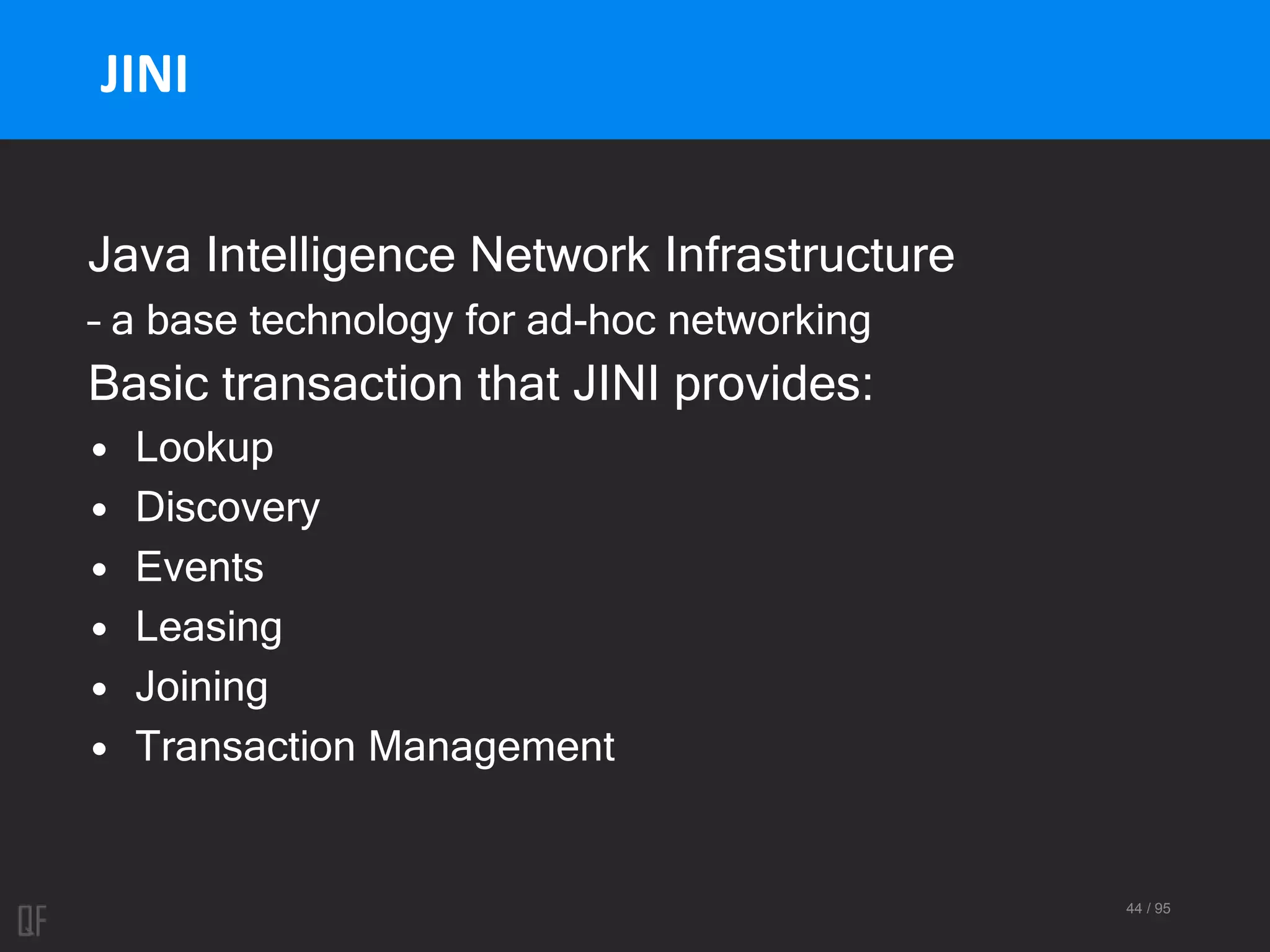

JINI
Java Intelligence Network Infrastructure
– a base technology for ad-hoc networking
Basic transaction that JINI provides:
• Lookup
• Discovery
• Events
• Leasing
• Joining
• Transaction Management

45. 45 / 95

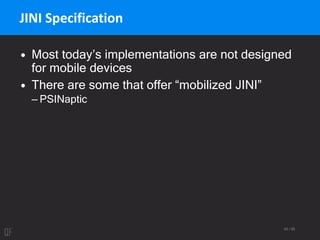

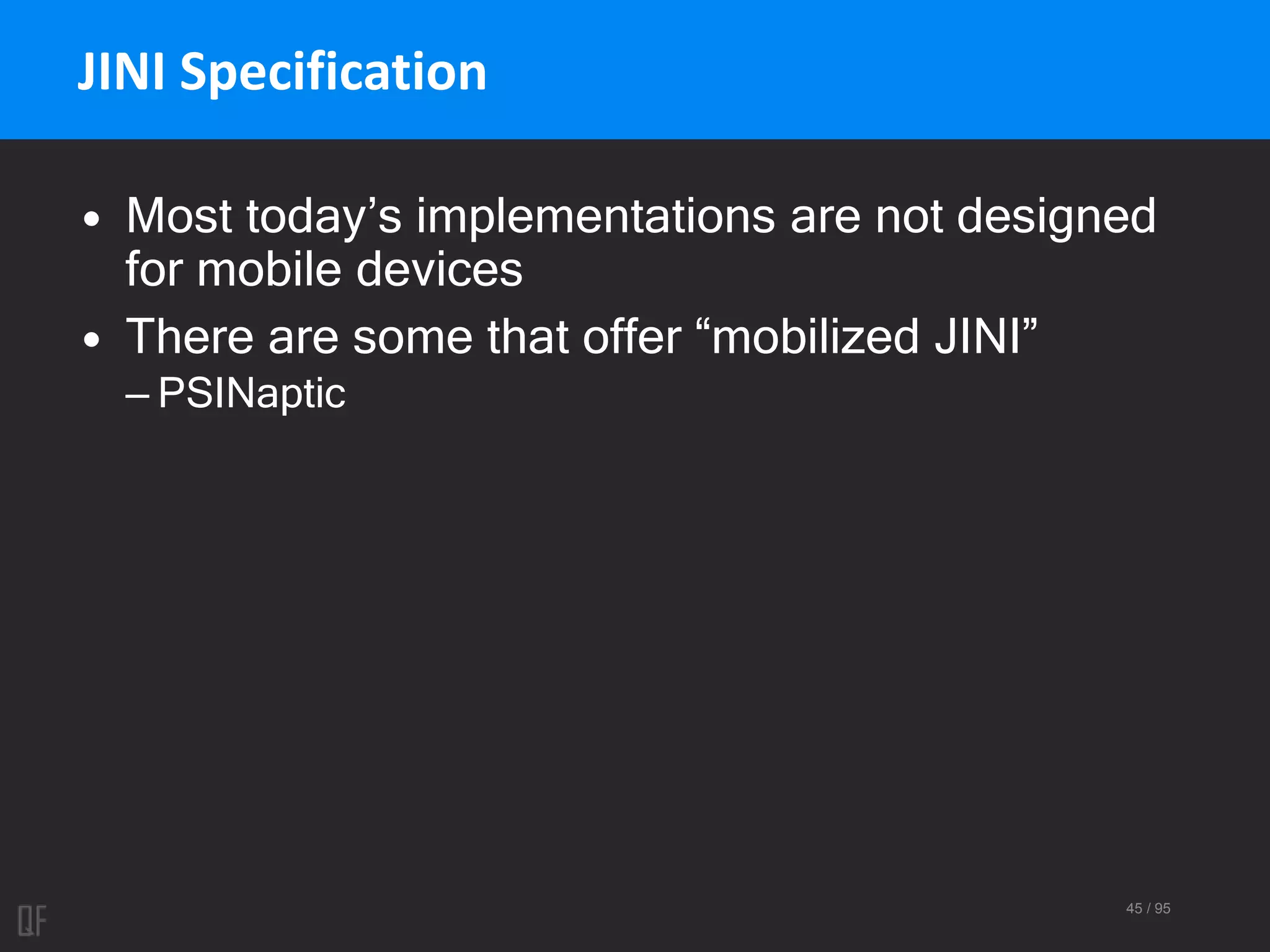

JINI Specification
• Most today’s implementations are not designed
for mobile devices
• There are some that offer “mobilized JINI”
– PSINaptic

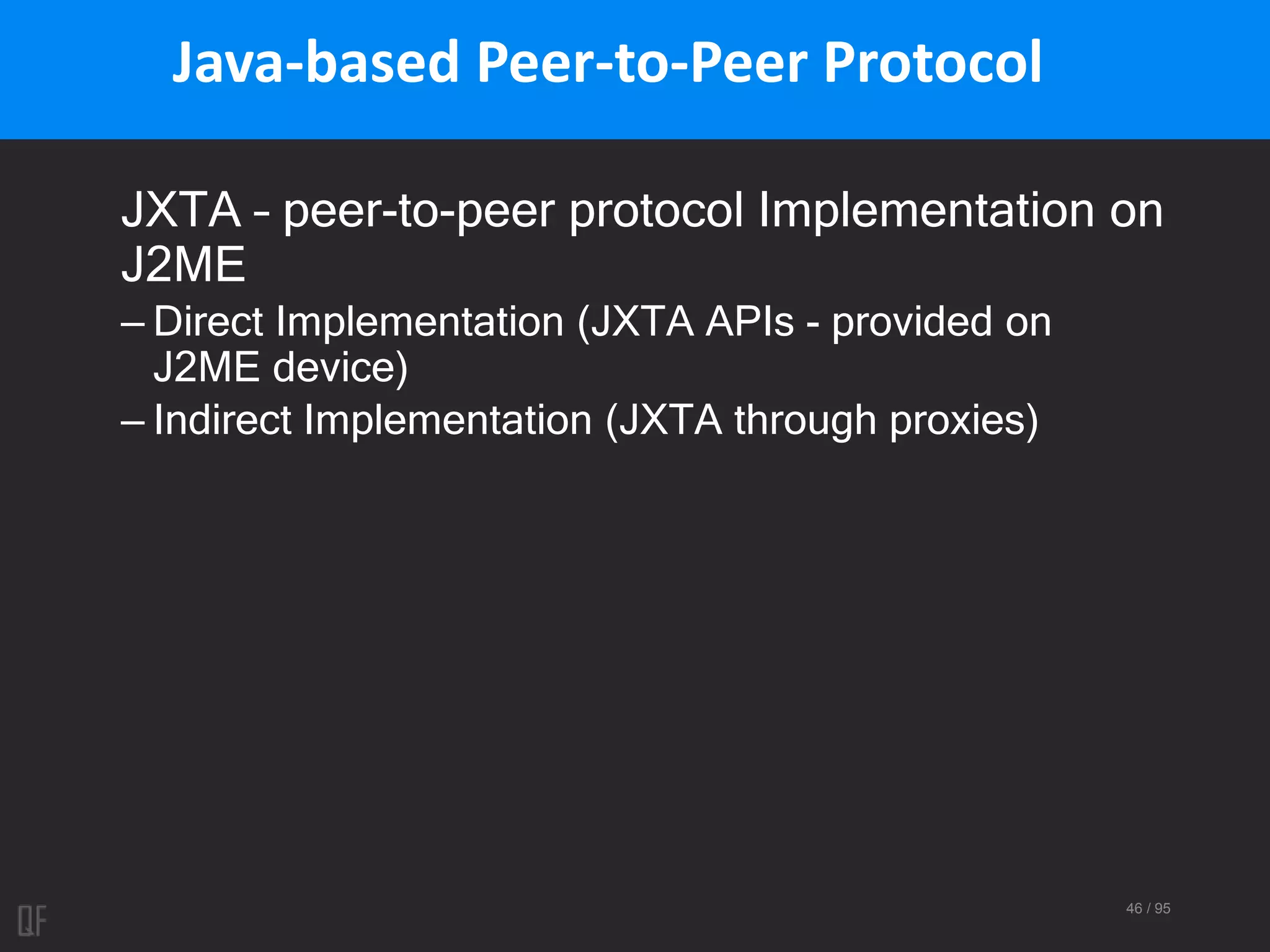

46. 46 / 95

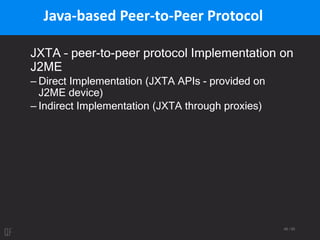

Java-based Peer-to-Peer Protocol
JXTA – peer-to-peer protocol Implementation on
J2ME
– Direct Implementation (JXTA APIs - provided on
J2ME device)
– Indirect Implementation (JXTA through proxies)

47. 47 / 95

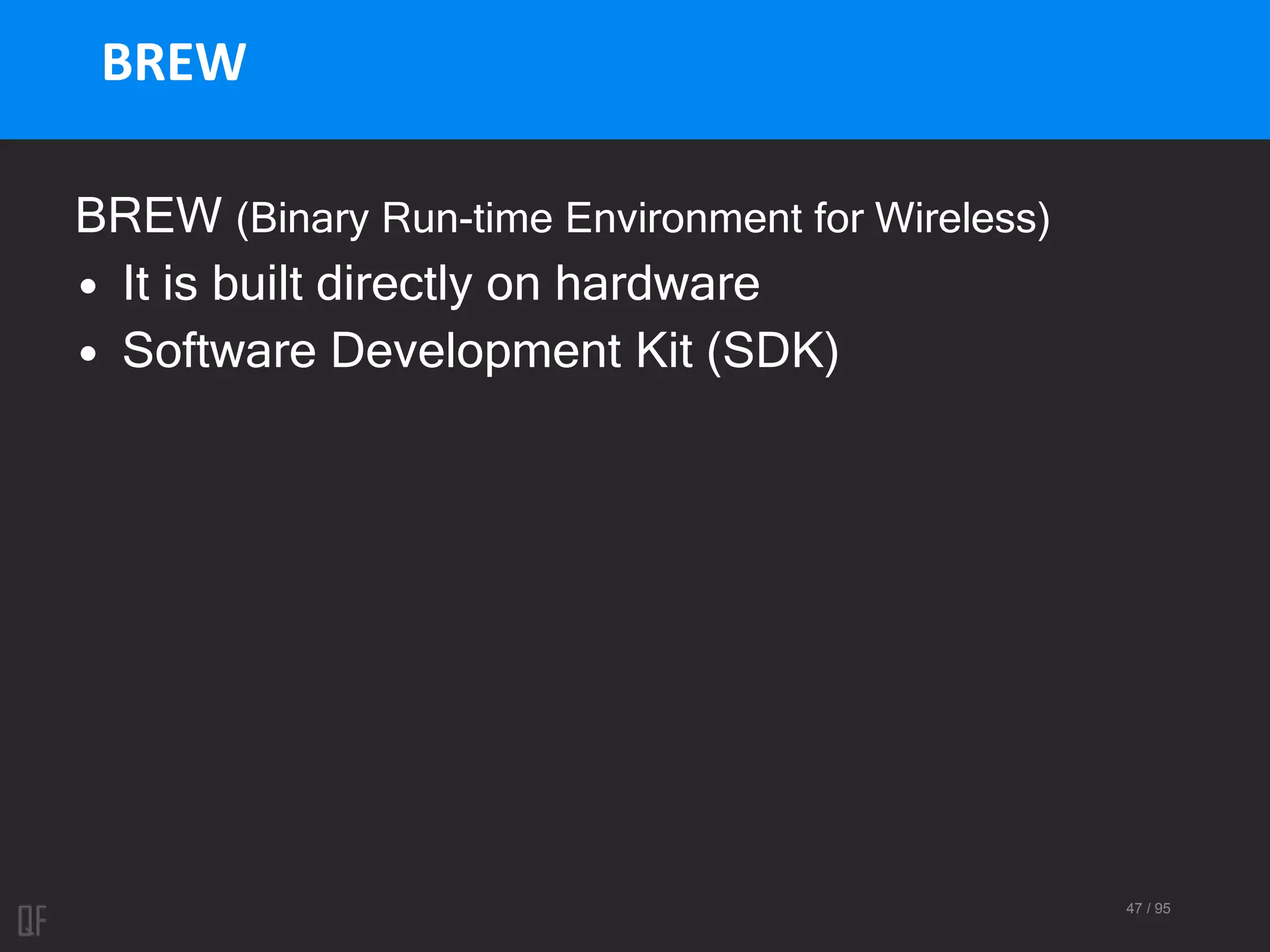

BREW
BREW (Binary Run-time Environment for Wireless)
• It is built directly on hardware
• Software Development Kit (SDK)

48. 48 / 95

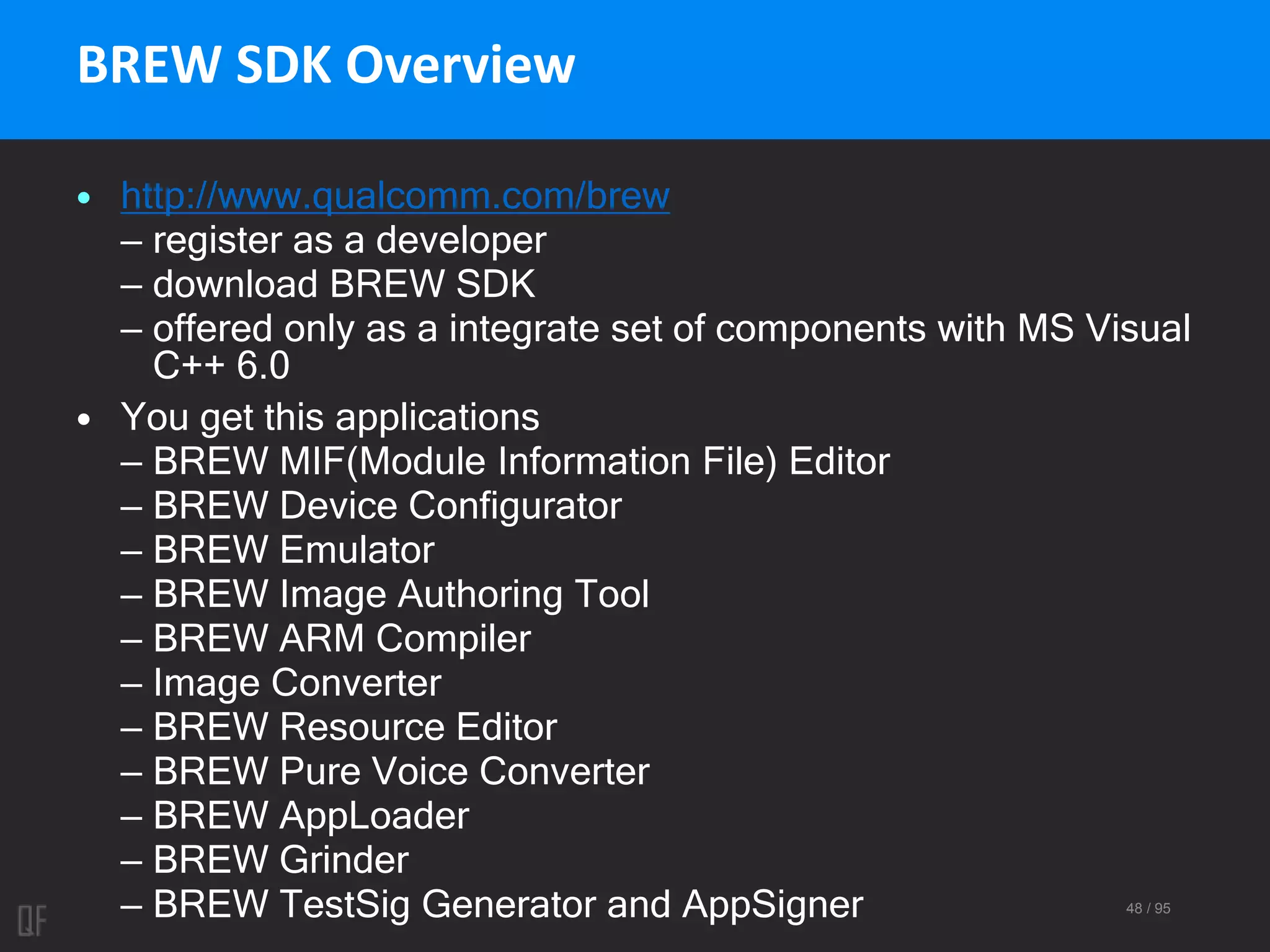

BREW SDK Overview
• http://www.qualcomm.com/brew
– register as a developer
– download BREW SDK
– offered only as a integrate set of components with MS Visual
C++ 6.0
• You get this applications
– BREW MIF(Module Information File) Editor
– BREW Device Configurator
– BREW Emulator
– BREW Image Authoring Tool
– BREW ARM Compiler
– Image Converter
– BREW Resource Editor
– BREW Pure Voice Converter
– BREW AppLoader
– BREW Grinder
– BREW TestSig Generator and AppSigner

49. 49 / 95

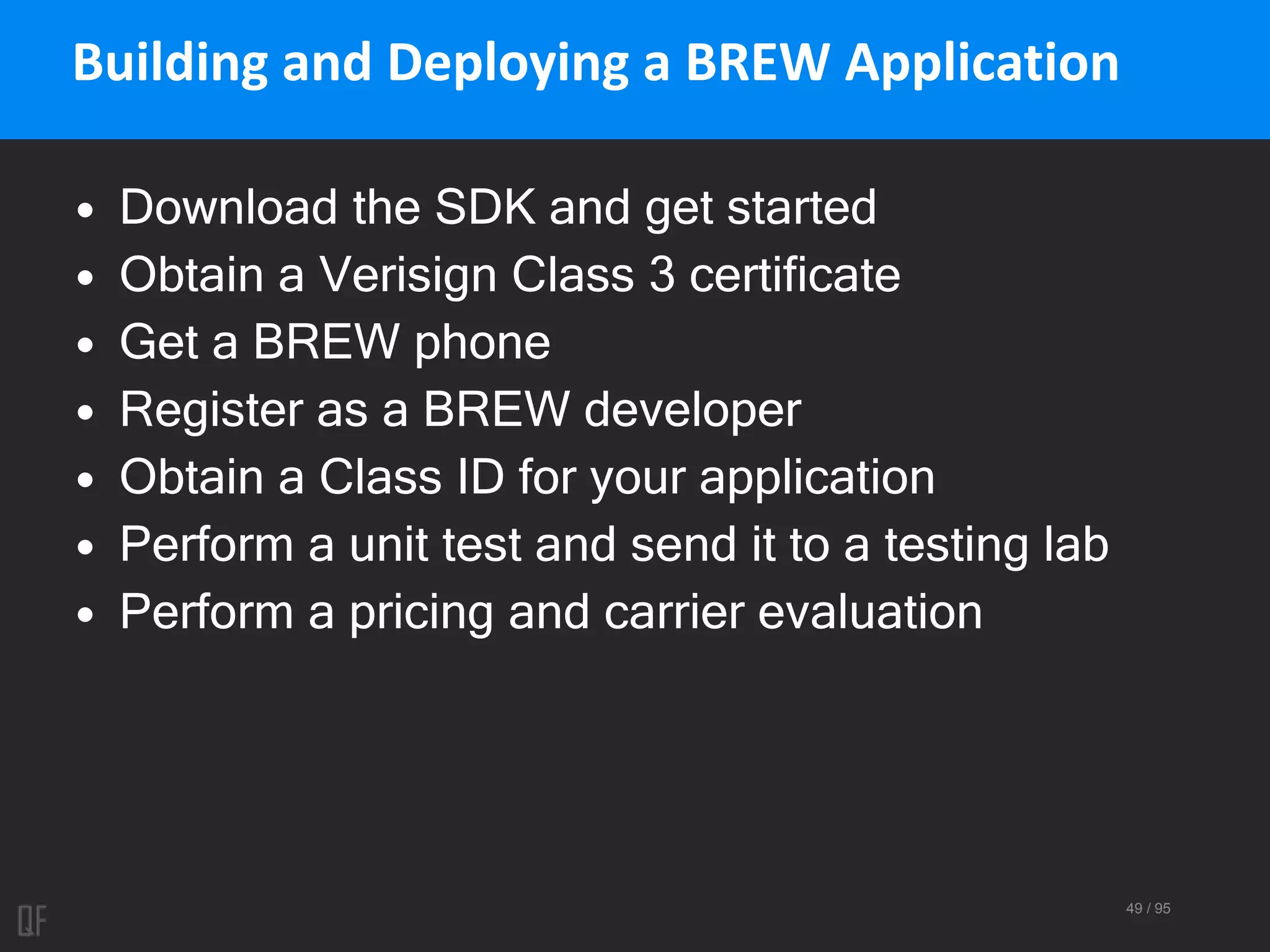

Building and Deploying a BREW Application
• Download the SDK and get started
• Obtain a Verisign Class 3 certificate
• Get a BREW phone
• Register as a BREW developer
• Obtain a Class ID for your application
• Perform a unit test and send it to a testing lab
• Perform a pricing and carrier evaluation

50. 50 / 95

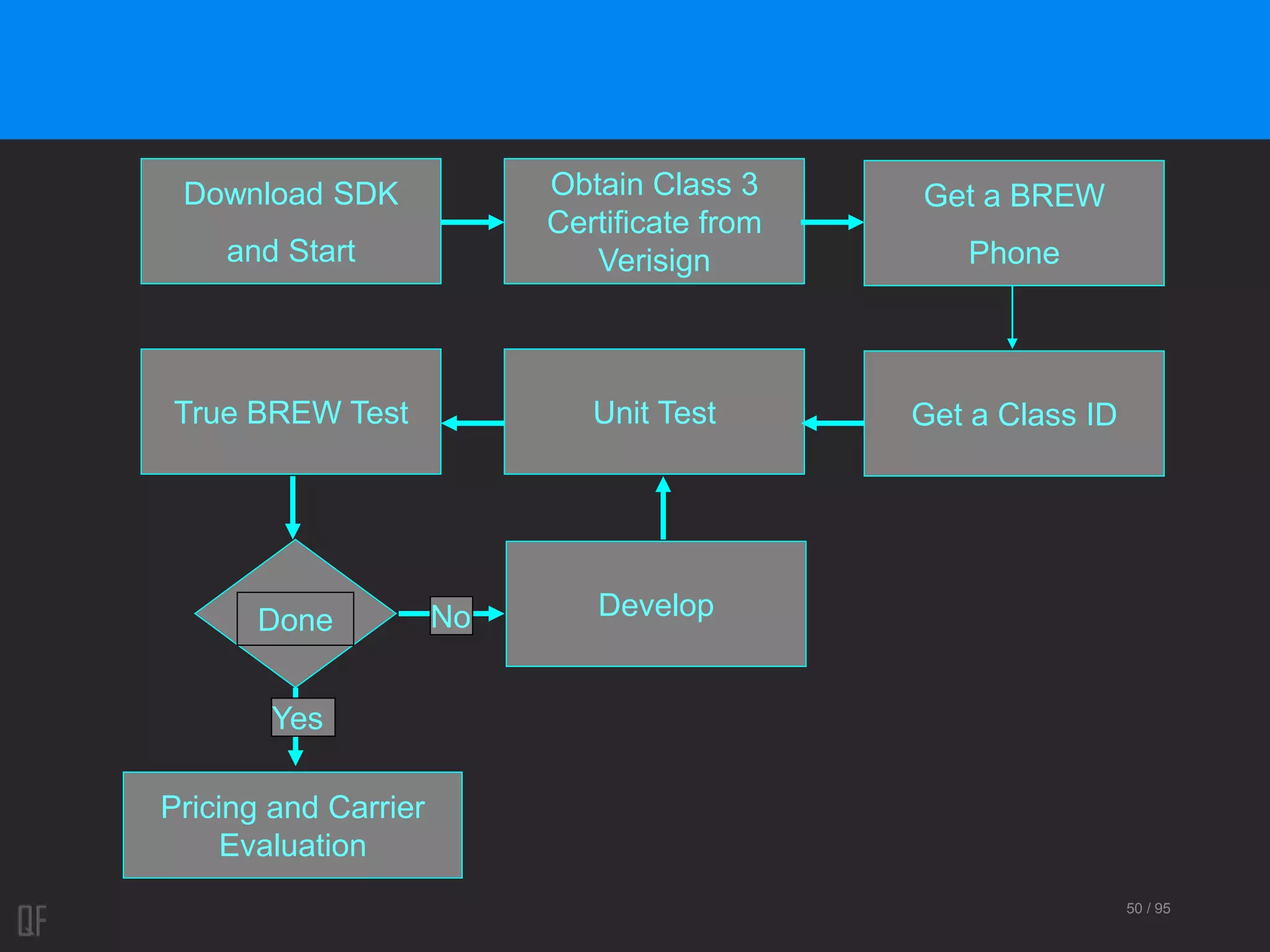

Download SDK
and Start
Unit Test
Obtain Class 3
Certificate from
Verisign
Get a BREW
Phone
Pricing and Carrier
Evaluation
True BREW Test Get a Class ID
DevelopDone No
Yes

51. 51 / 95

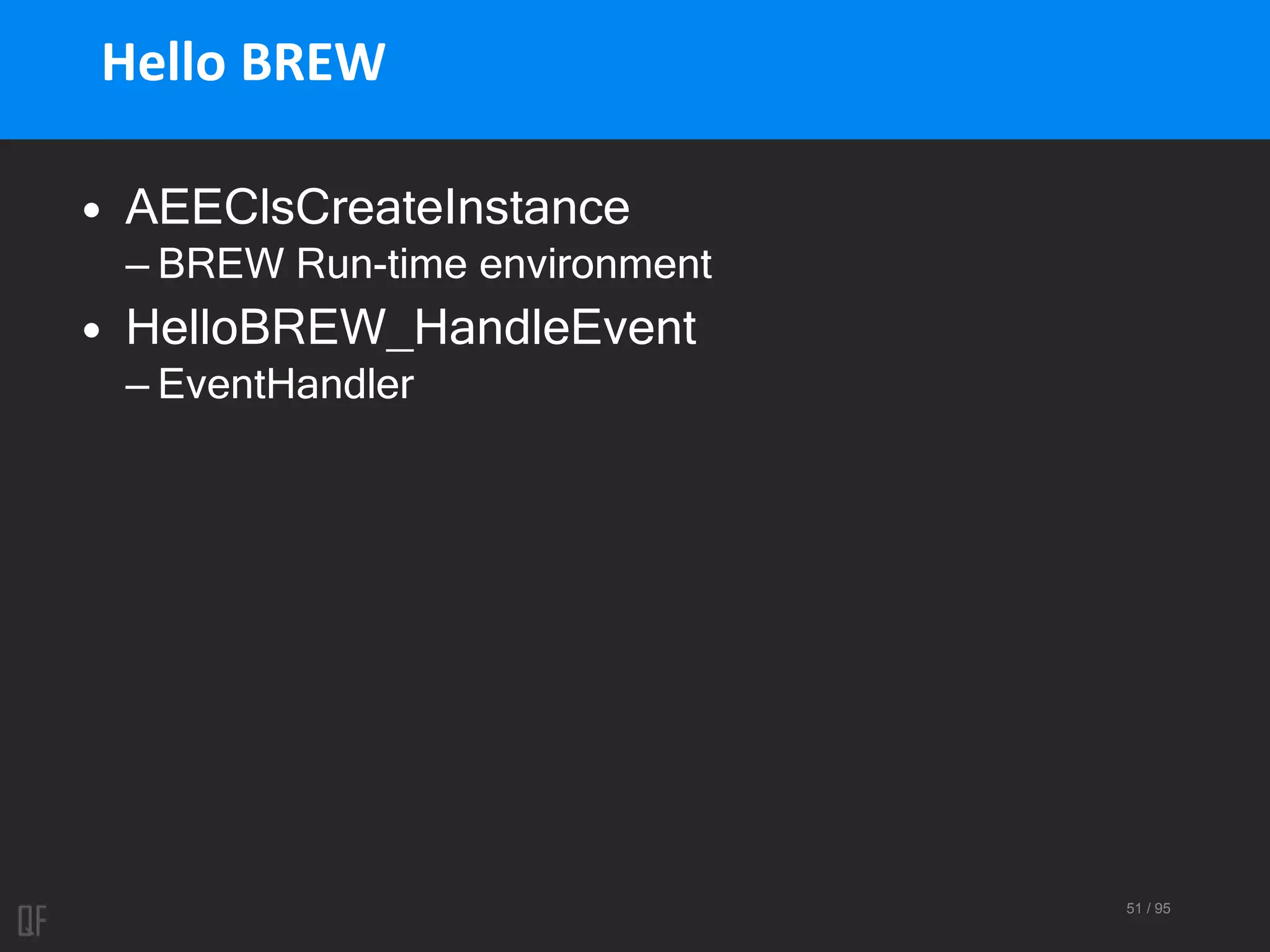

Hello BREW
• AEEClsCreateInstance
– BREW Run-time environment
• HelloBREW_HandleEvent
– EventHandler

52. 52 / 95

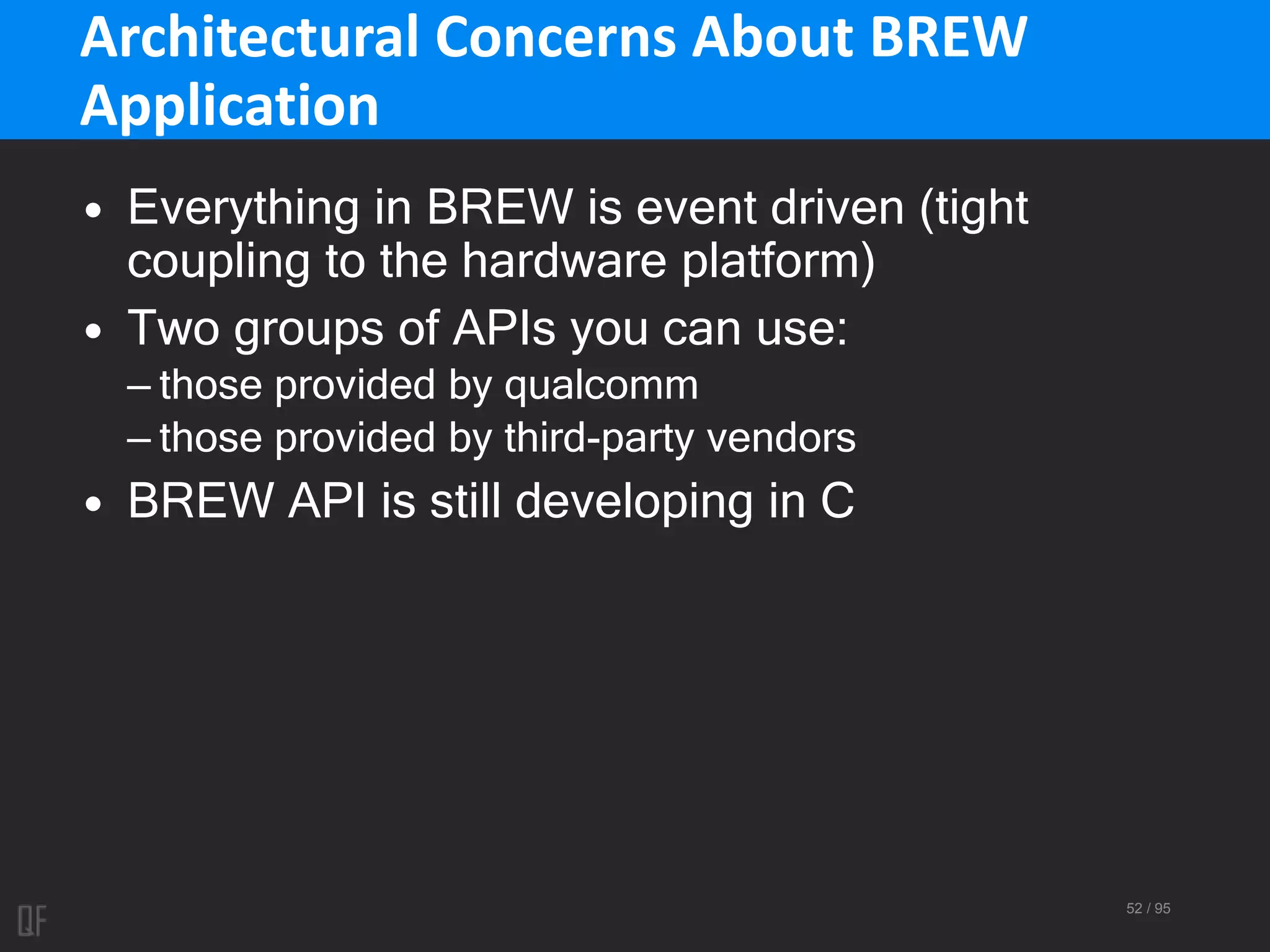

Architectural Concerns About BREW
Application
• Everything in BREW is event driven (tight
coupling to the hardware platform)
• Two groups of APIs you can use:
– those provided by qualcomm
– those provided by third-party vendors
• BREW API is still developing in C

53. 53 / 95

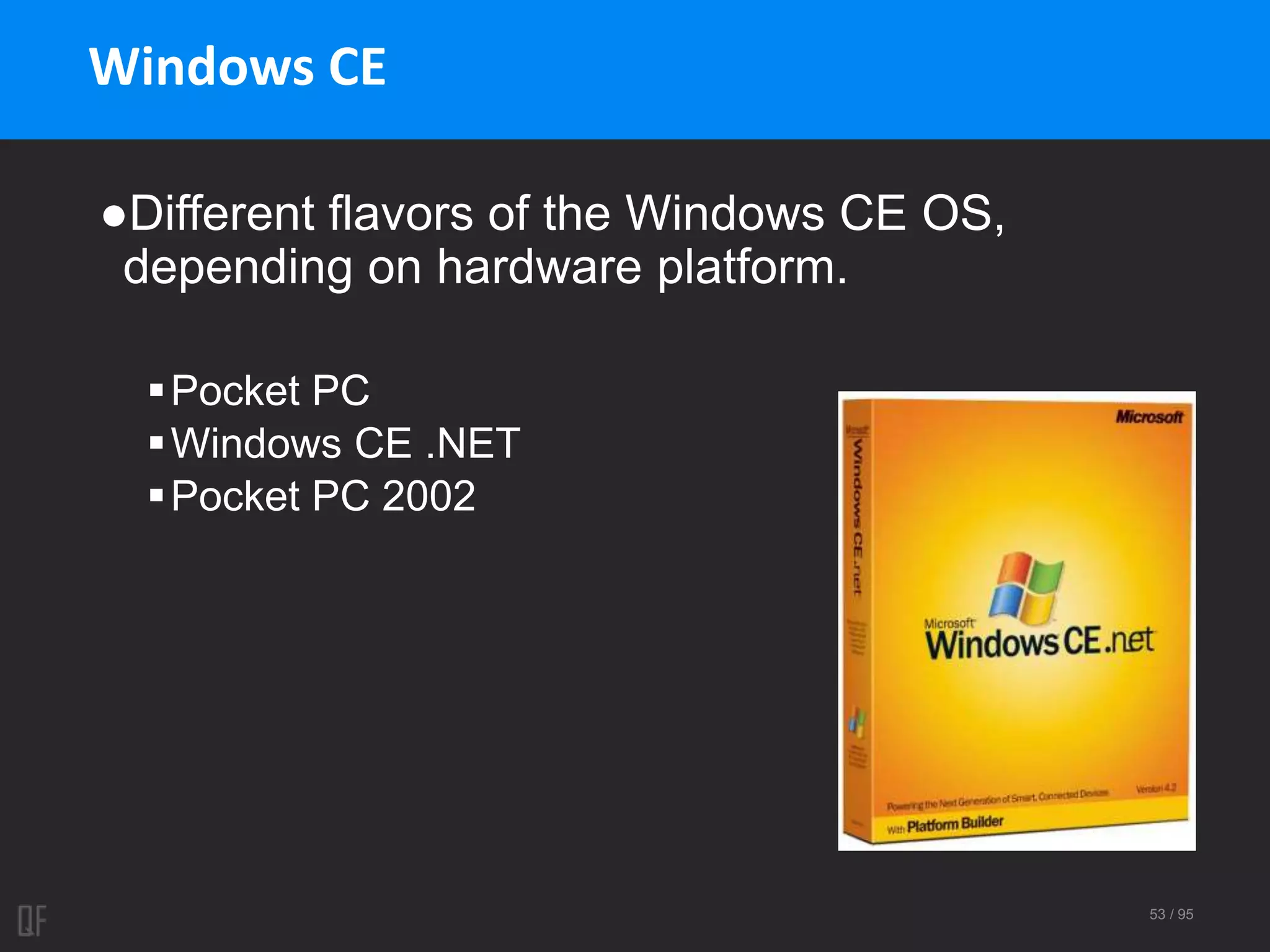

Windows CE
●Different flavors of the Windows CE OS,
depending on hardware platform.
Pocket PC
Windows CE .NET
Pocket PC 2002

54. 54 / 95

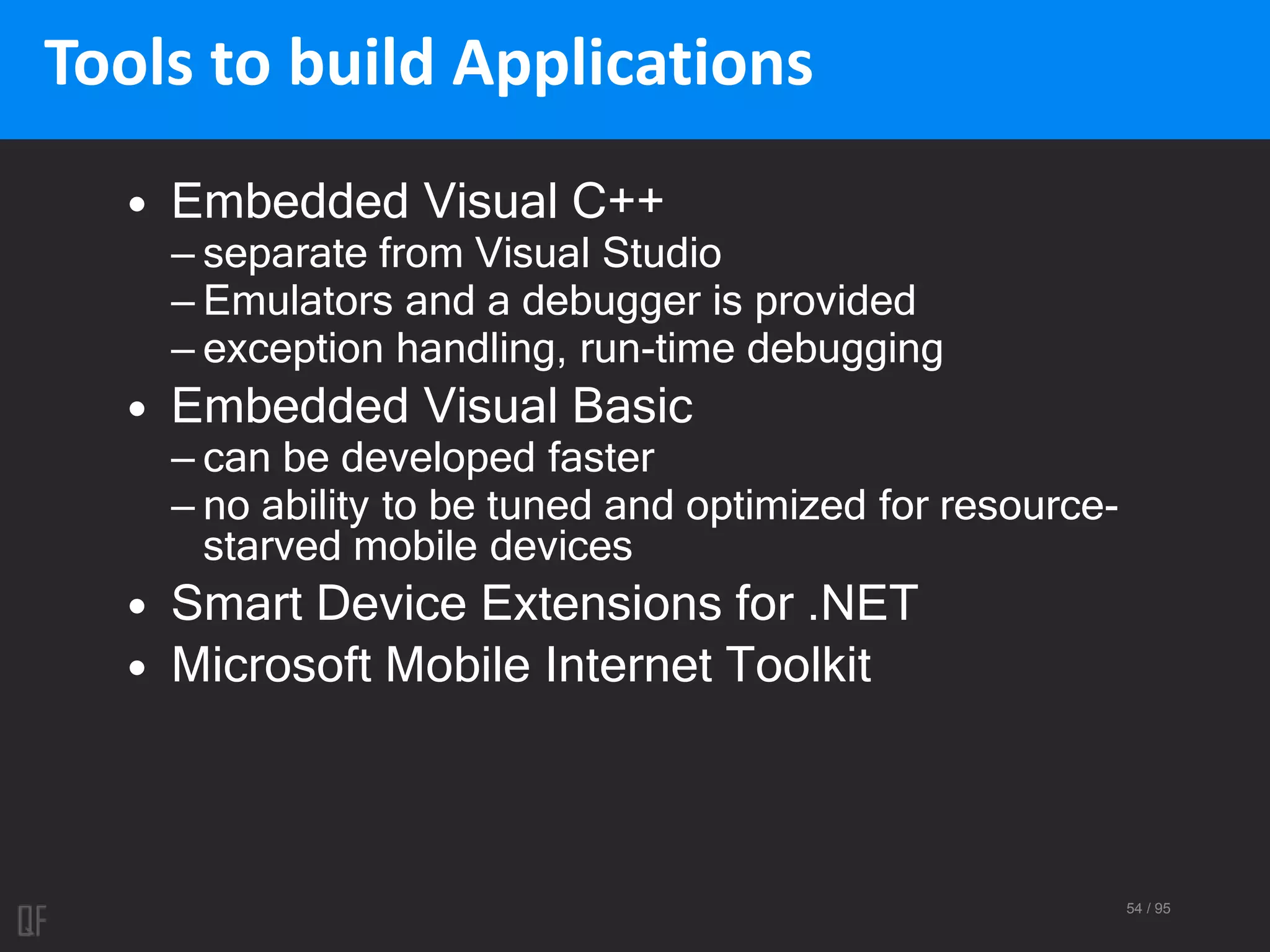

Tools to build Applications
• Embedded Visual C++
– separate from Visual Studio
– Emulators and a debugger is provided
– exception handling, run-time debugging
• Embedded Visual Basic
– can be developed faster
– no ability to be tuned and optimized for resource-
starved mobile devices
• Smart Device Extensions for .NET
• Microsoft Mobile Internet Toolkit

55. 55 / 95

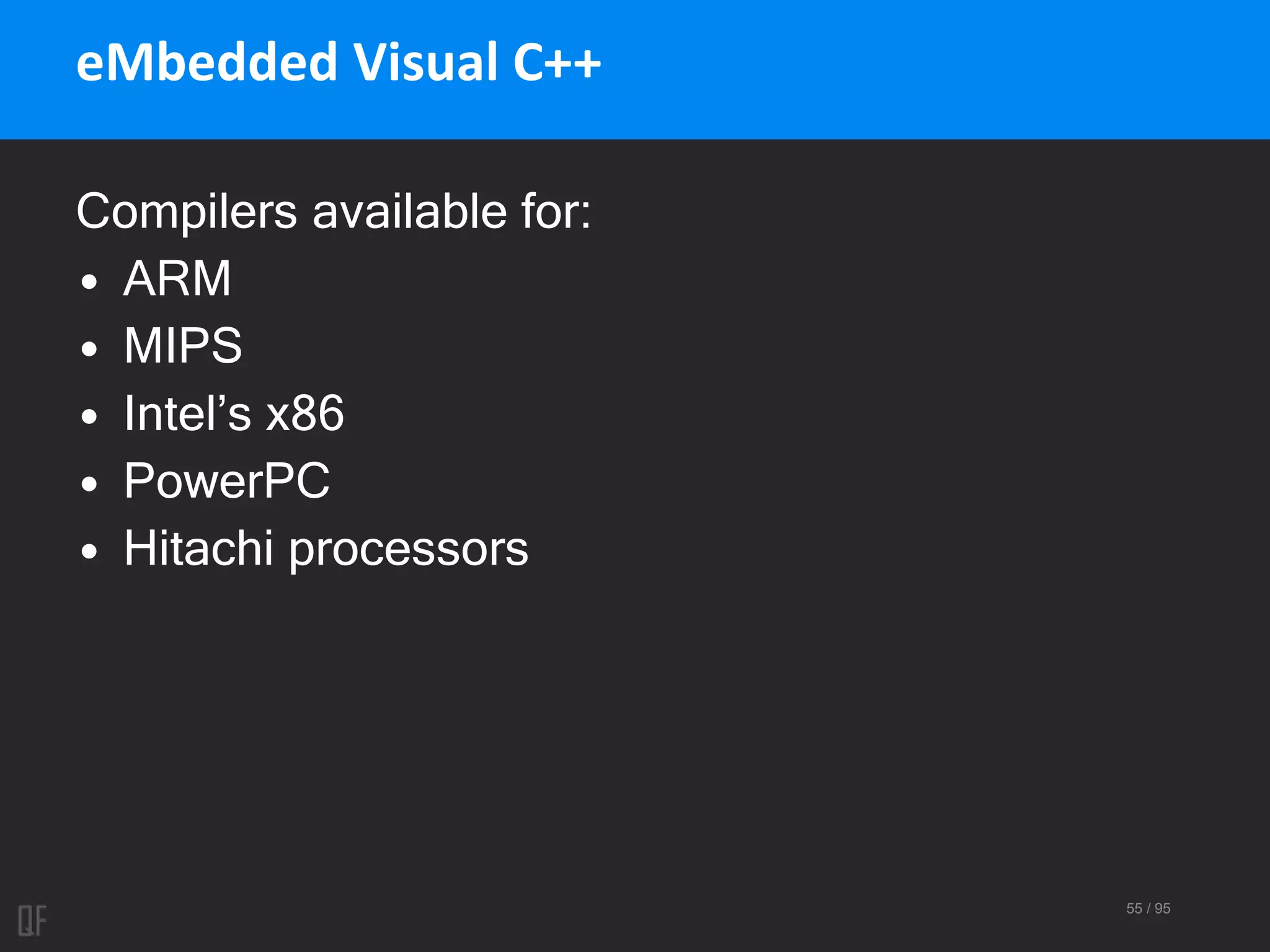

eMbedded Visual C++
Compilers available for:
• ARM
• MIPS
• Intel’s x86
• PowerPC
• Hitachi processors

56. 56 / 95

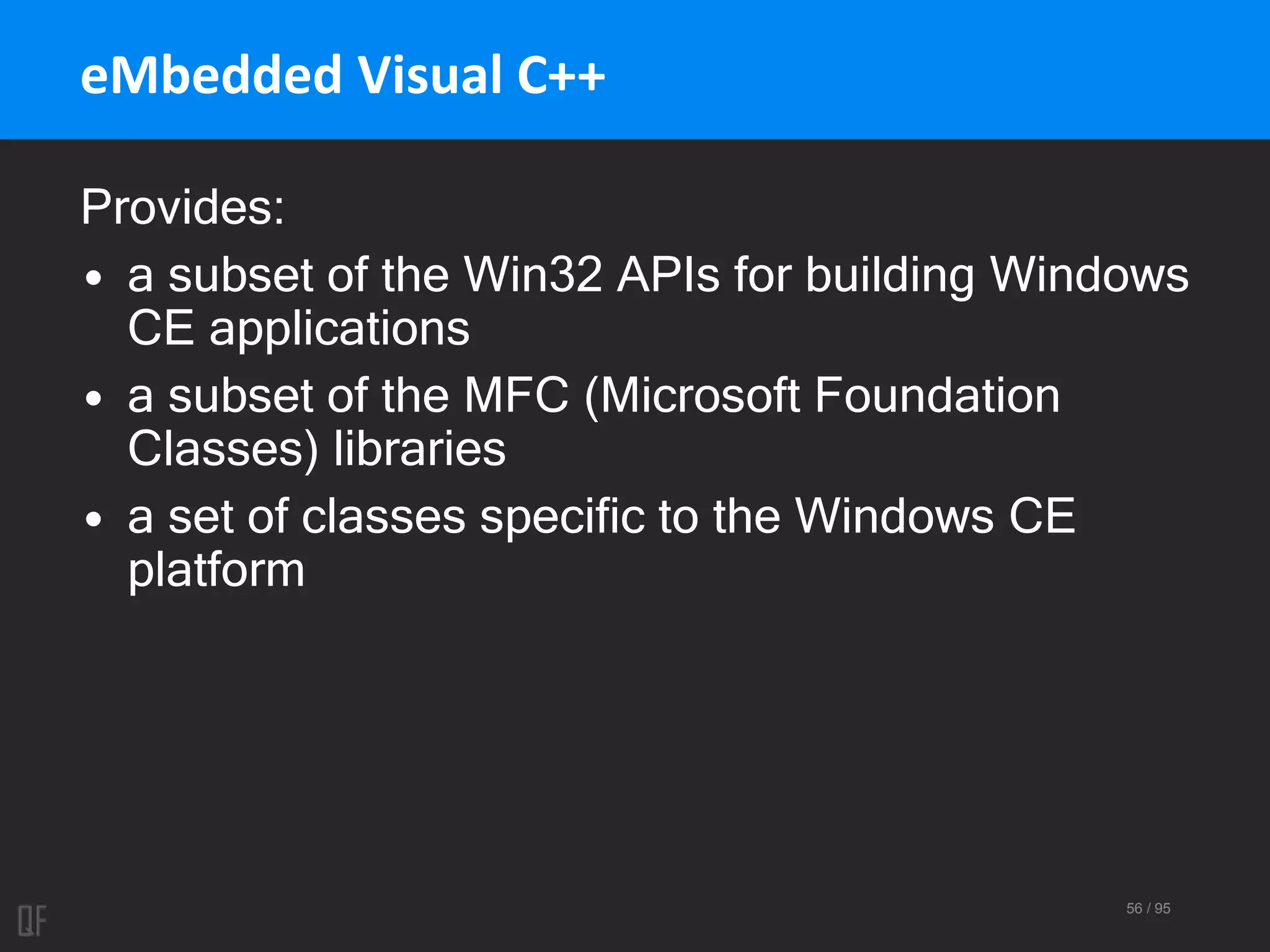

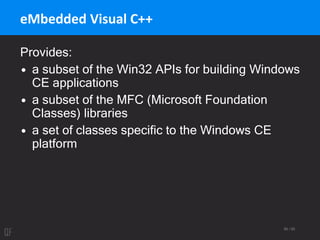

eMbedded Visual C++
Provides:
• a subset of the Win32 APIs for building Windows
CE applications
• a subset of the MFC (Microsoft Foundation
Classes) libraries
• a set of classes specific to the Windows CE
platform

57. 57 / 95
Things You Should keep in mind
• Graphics are expensive
• Use events instead of polling when possible
• Economize with your memory (saving power)
• Provided functionality of getting the status
of the Power Consumption
– useful for testing application
– useful to change behavior of application
• Clean up memory resources
whenever you get WM_HIBERNATE event

58. 58 / 95

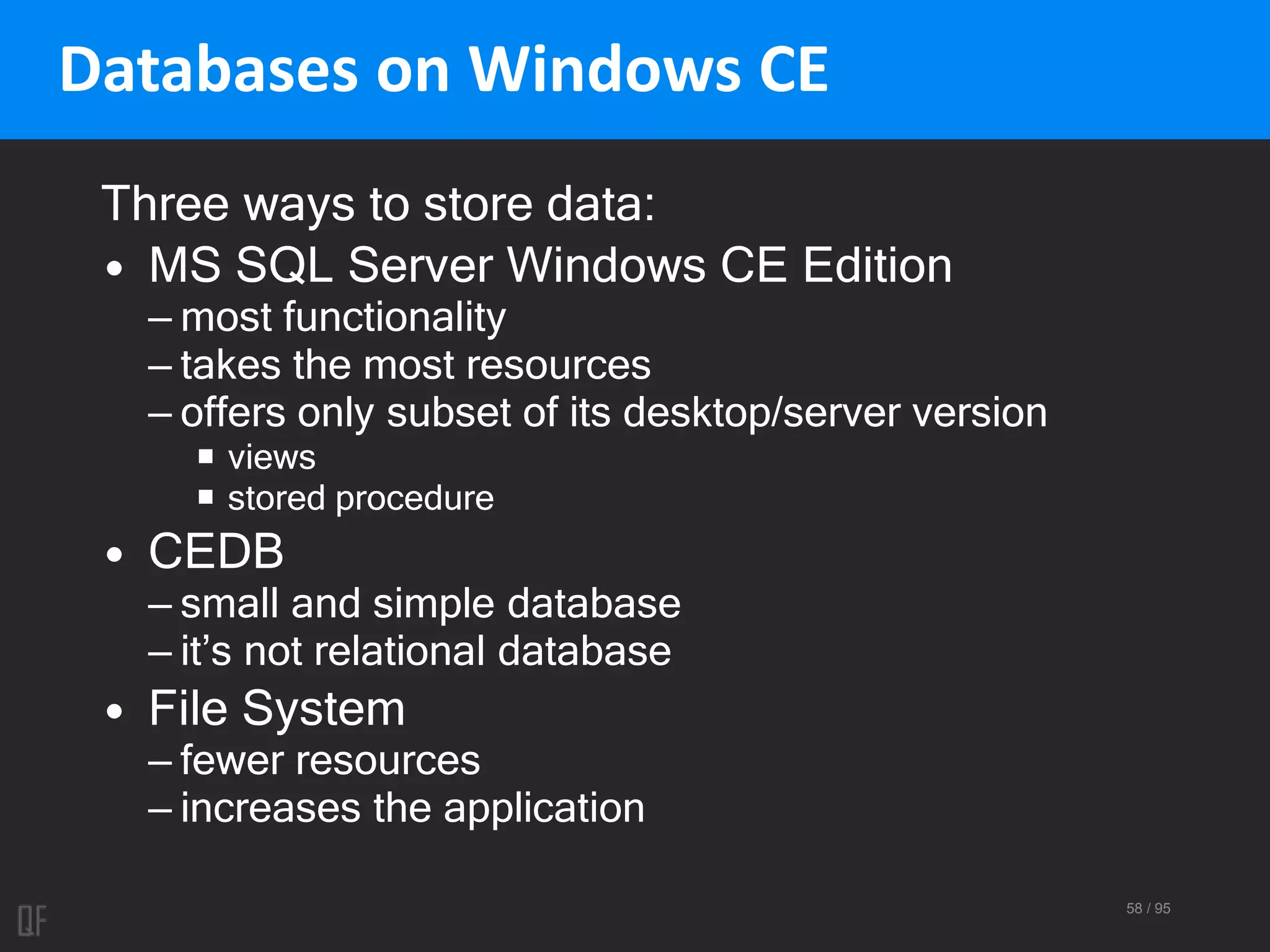

Databases on Windows CE
Three ways to store data:
• MS SQL Server Windows CE Edition
– most functionality
– takes the most resources
– offers only subset of its desktop/server version
 views
 stored procedure
• CEDB
– small and simple database
– it’s not relational database
• File System
– fewer resources
– increases the application

59. 59 / 95

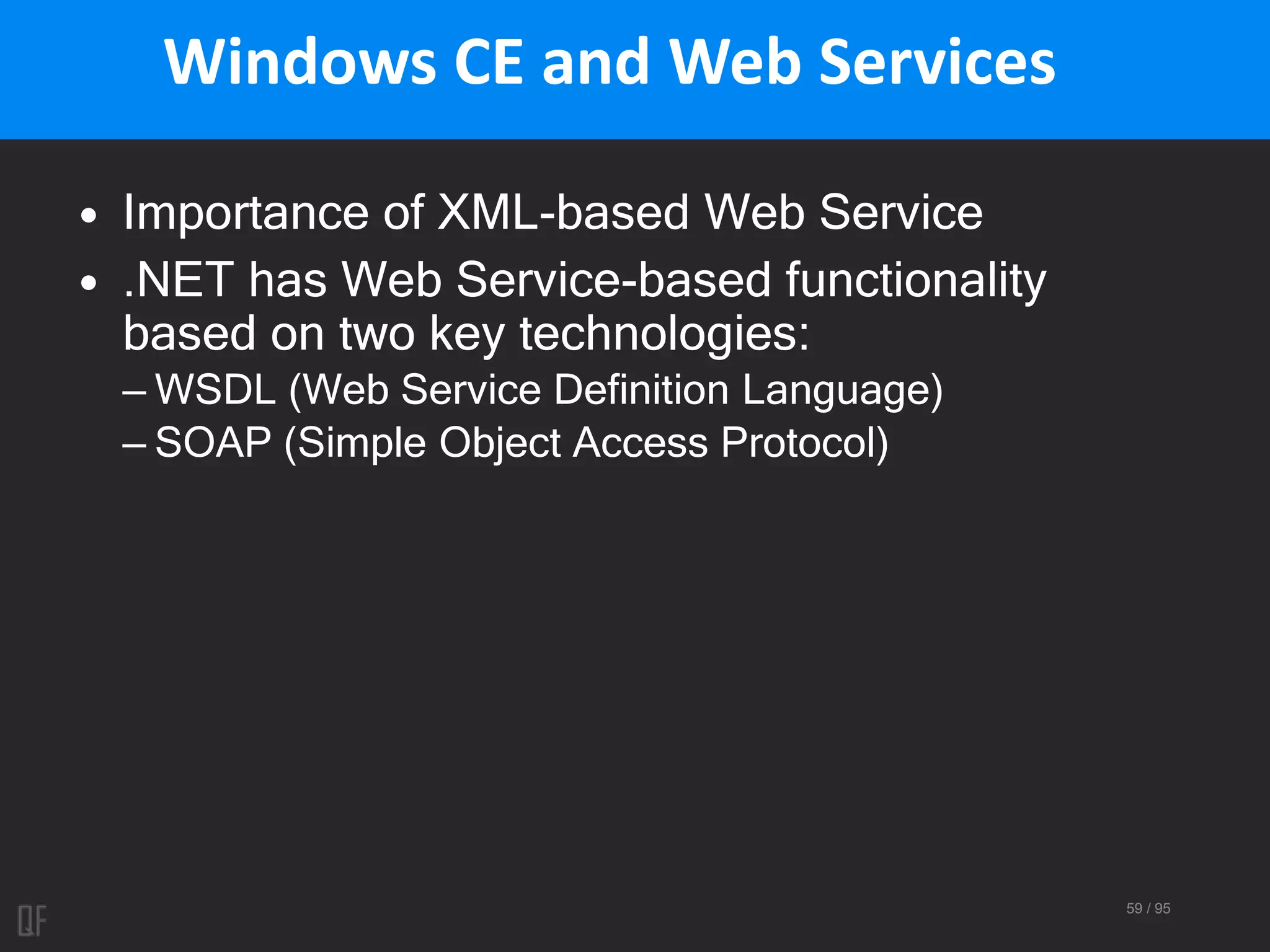

Windows CE and Web Services
• Importance of XML-based Web Service
• .NET has Web Service-based functionality
based on two key technologies:
– WSDL (Web Service Definition Language)
– SOAP (Simple Object Access Protocol)

60. 60 / 95

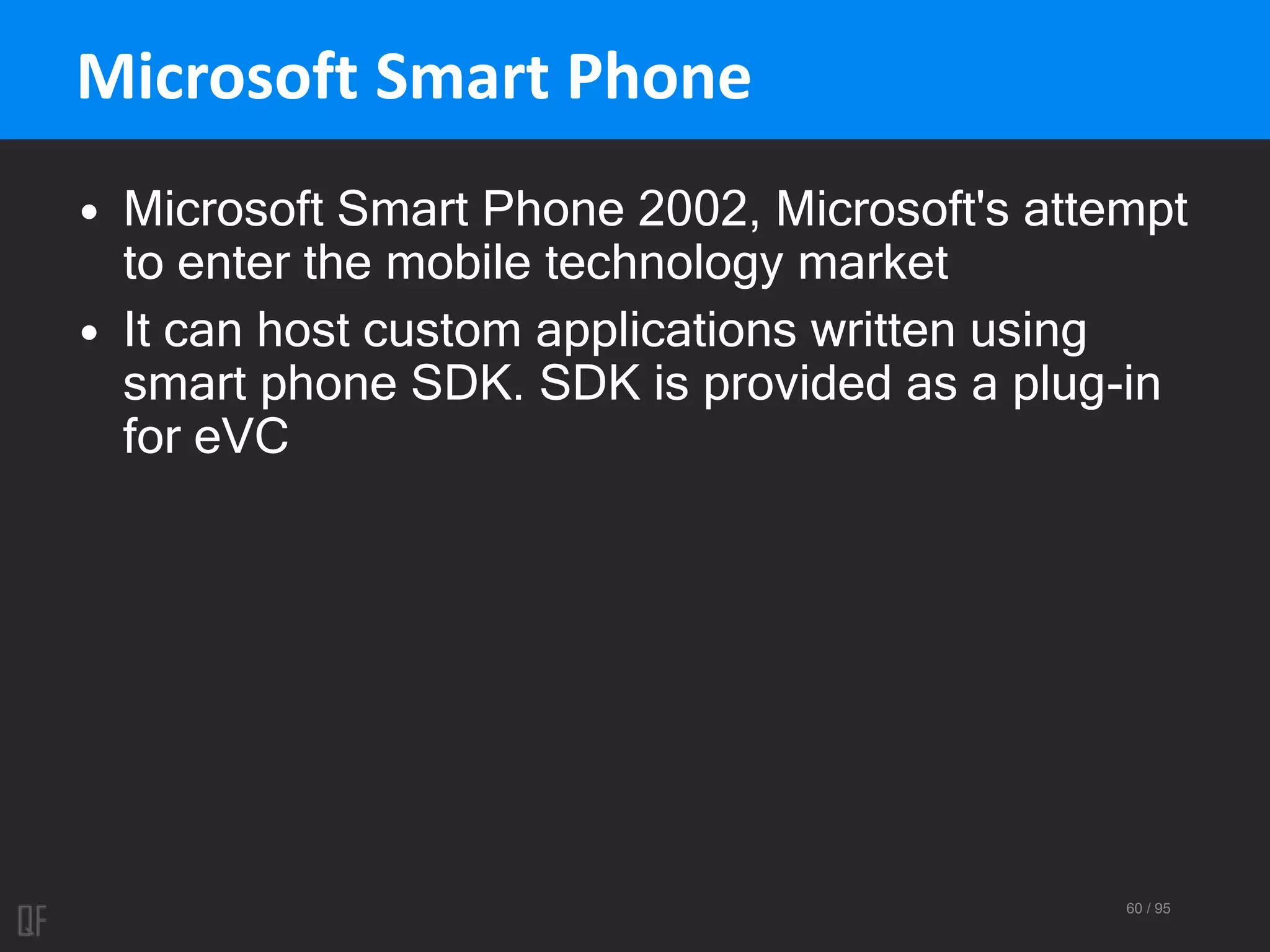

Microsoft Smart Phone
• Microsoft Smart Phone 2002, Microsoft's attempt
to enter the mobile technology market
• It can host custom applications written using
smart phone SDK. SDK is provided as a plug-in
for eVC

61. 61 / 95

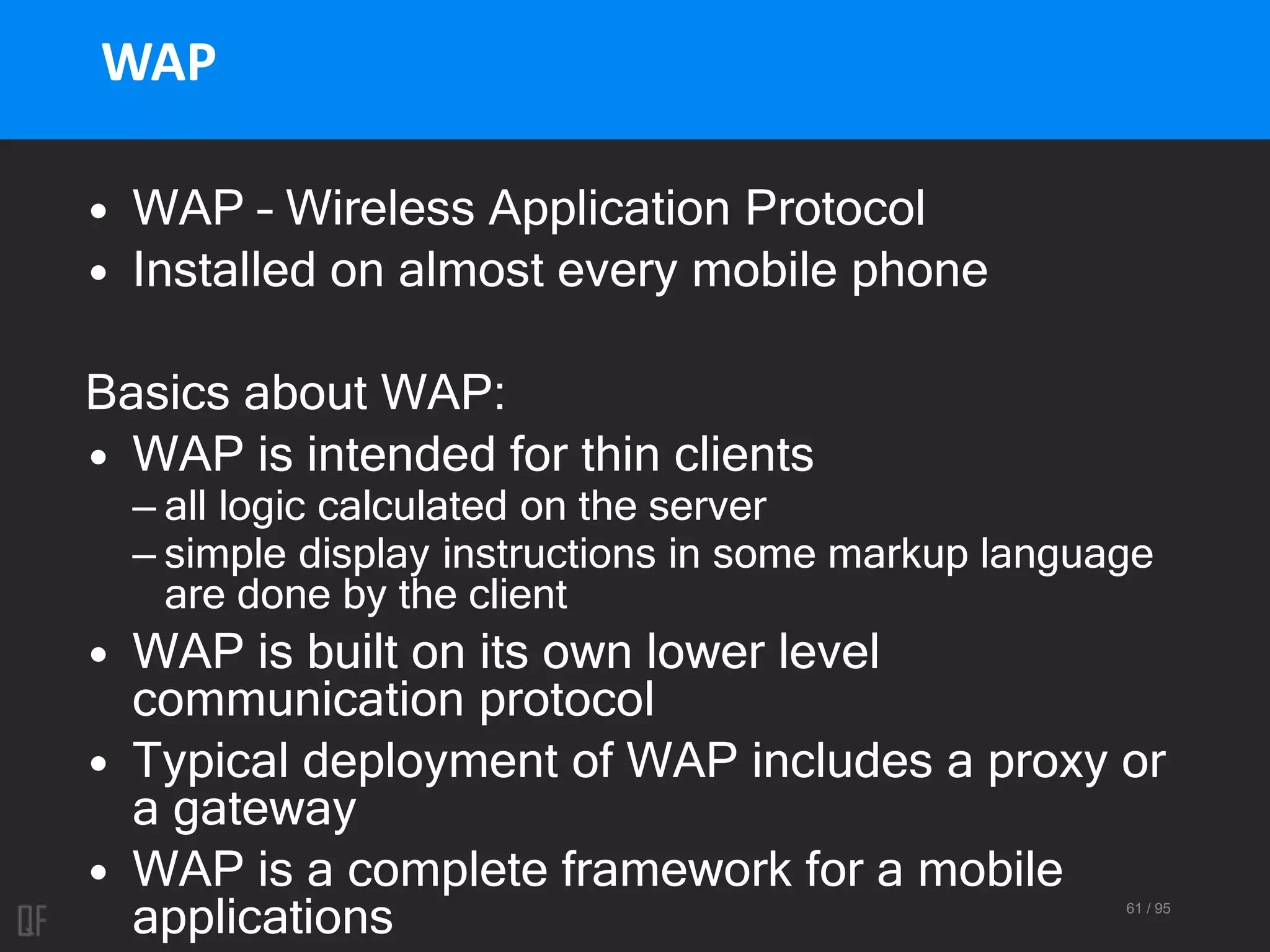

WAP
• WAP – Wireless Application Protocol
• Installed on almost every mobile phone
Basics about WAP:
• WAP is intended for thin clients
– all logic calculated on the server
– simple display instructions in some markup language
are done by the client
• WAP is built on its own lower level
communication protocol
• Typical deployment of WAP includes a proxy or
a gateway
• WAP is a complete framework for a mobile
applications

62. 62 / 95

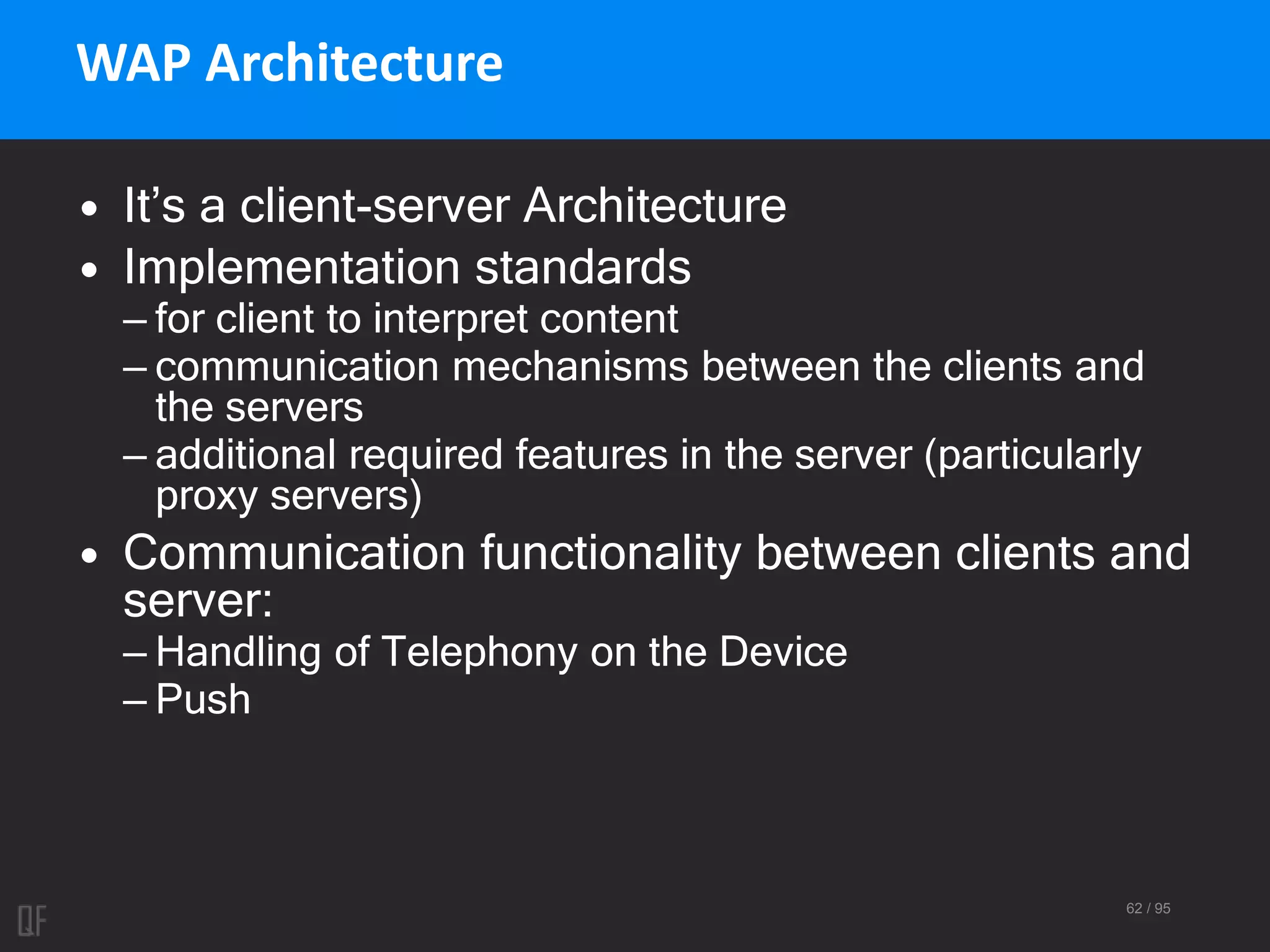

WAP Architecture
• It’s a client-server Architecture
• Implementation standards
– for client to interpret content
– communication mechanisms between the clients and
the servers
– additional required features in the server (particularly
proxy servers)
• Communication functionality between clients and
server:
– Handling of Telephony on the Device
– Push

63. 63 / 95

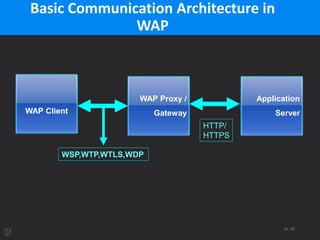

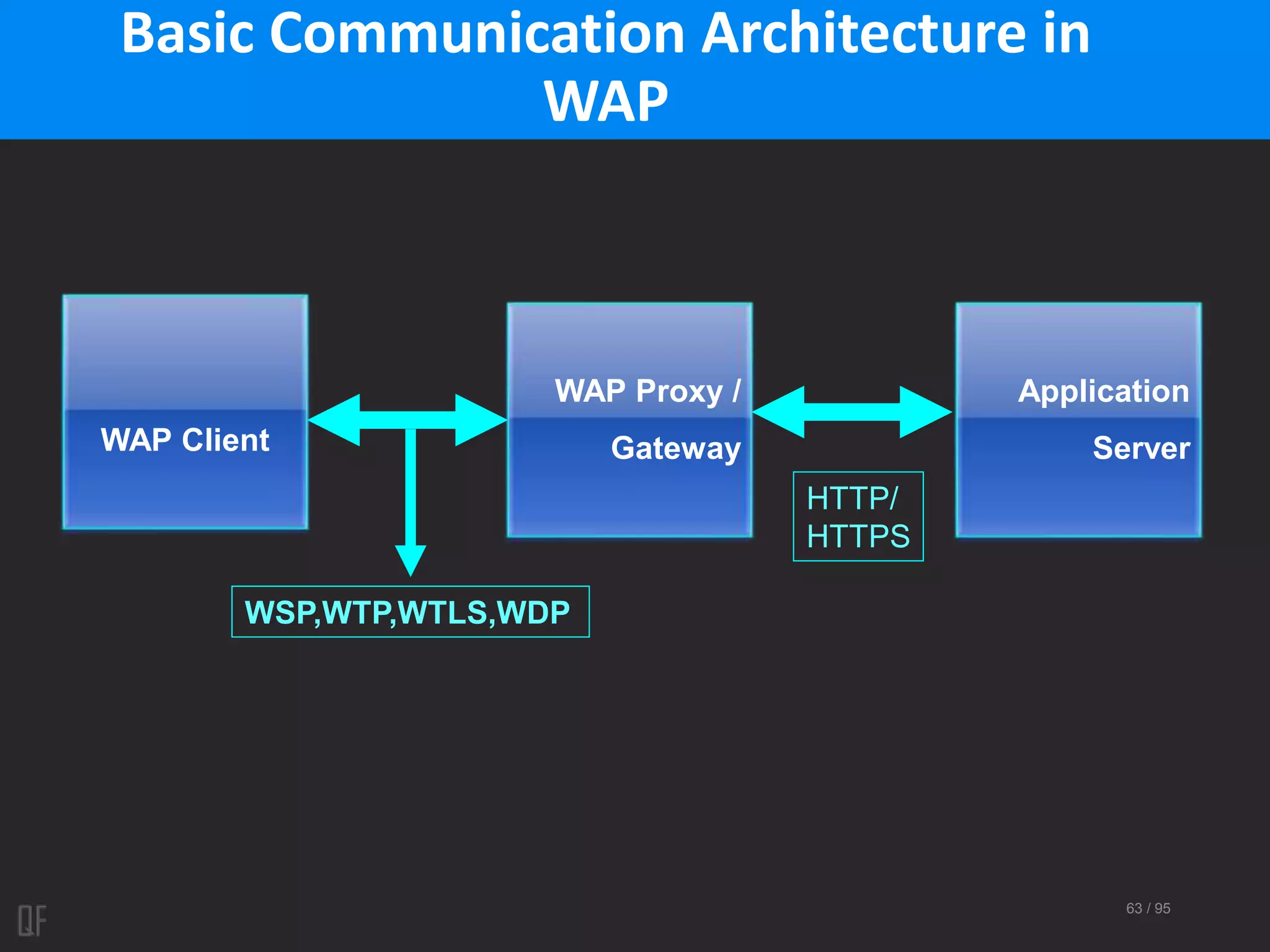

Application
Server
WAP Proxy /
Gateway
Basic Communication Architecture in
WAP
WAP Client
WSP,WTP,WTLS,WDP
HTTP/
HTTPS

64. 64 / 95

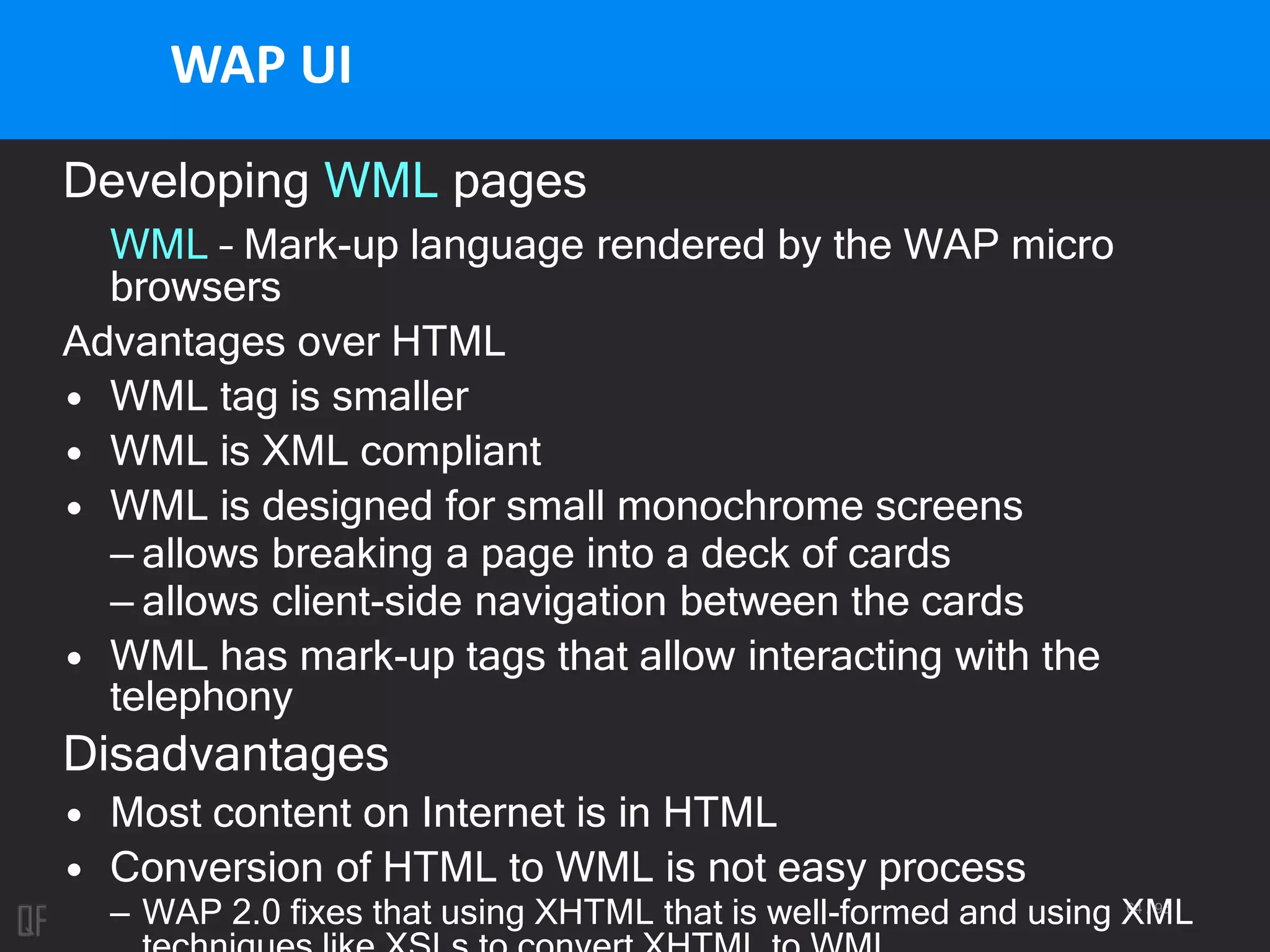

WAP UI
Developing WML pages
WML – Mark-up language rendered by the WAP micro
browsers
Advantages over HTML
• WML tag is smaller
• WML is XML compliant
• WML is designed for small monochrome screens
– allows breaking a page into a deck of cards
– allows client-side navigation between the cards
• WML has mark-up tags that allow interacting with the
telephony
Disadvantages
• Most content on Internet is in HTML
• Conversion of HTML to WML is not easy process
– WAP 2.0 fixes that using XHTML that is well-formed and using XML

65. 65 / 95

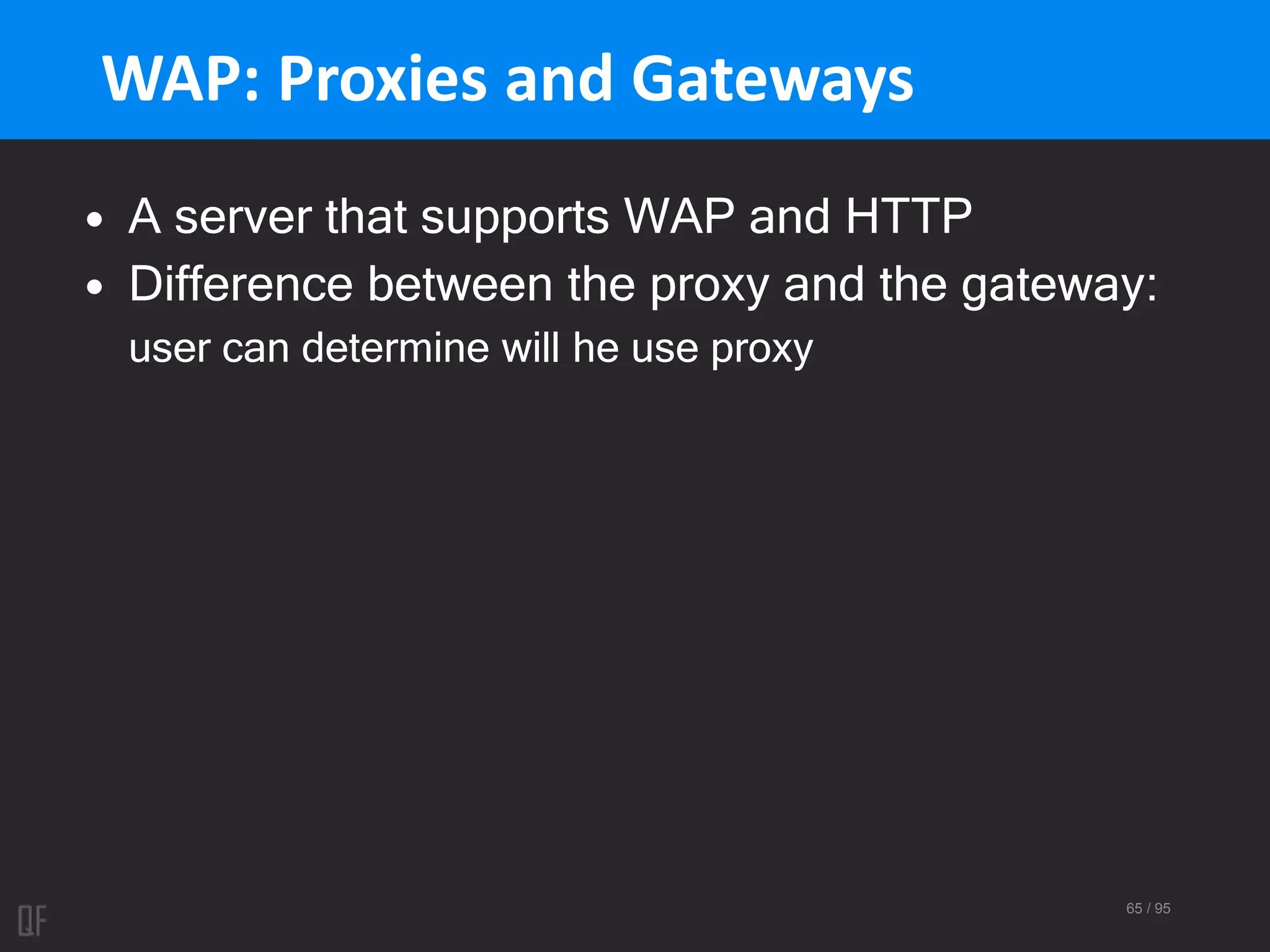

WAP: Proxies and Gateways
• A server that supports WAP and HTTP
• Difference between the proxy and the gateway:
user can determine will he use proxy

66. 66 / 95

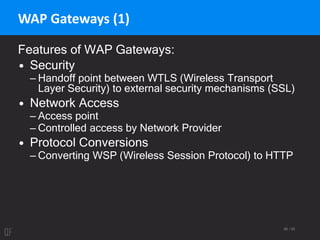

WAP Gateways (1)
Features of WAP Gateways:
• Security
– Handoff point between WTLS (Wireless Transport
Layer Security) to external security mechanisms (SSL)
• Network Access
– Access point
– Controlled access by Network Provider
• Protocol Conversions
– Converting WSP (Wireless Session Protocol) to HTTP

67. 67 / 95

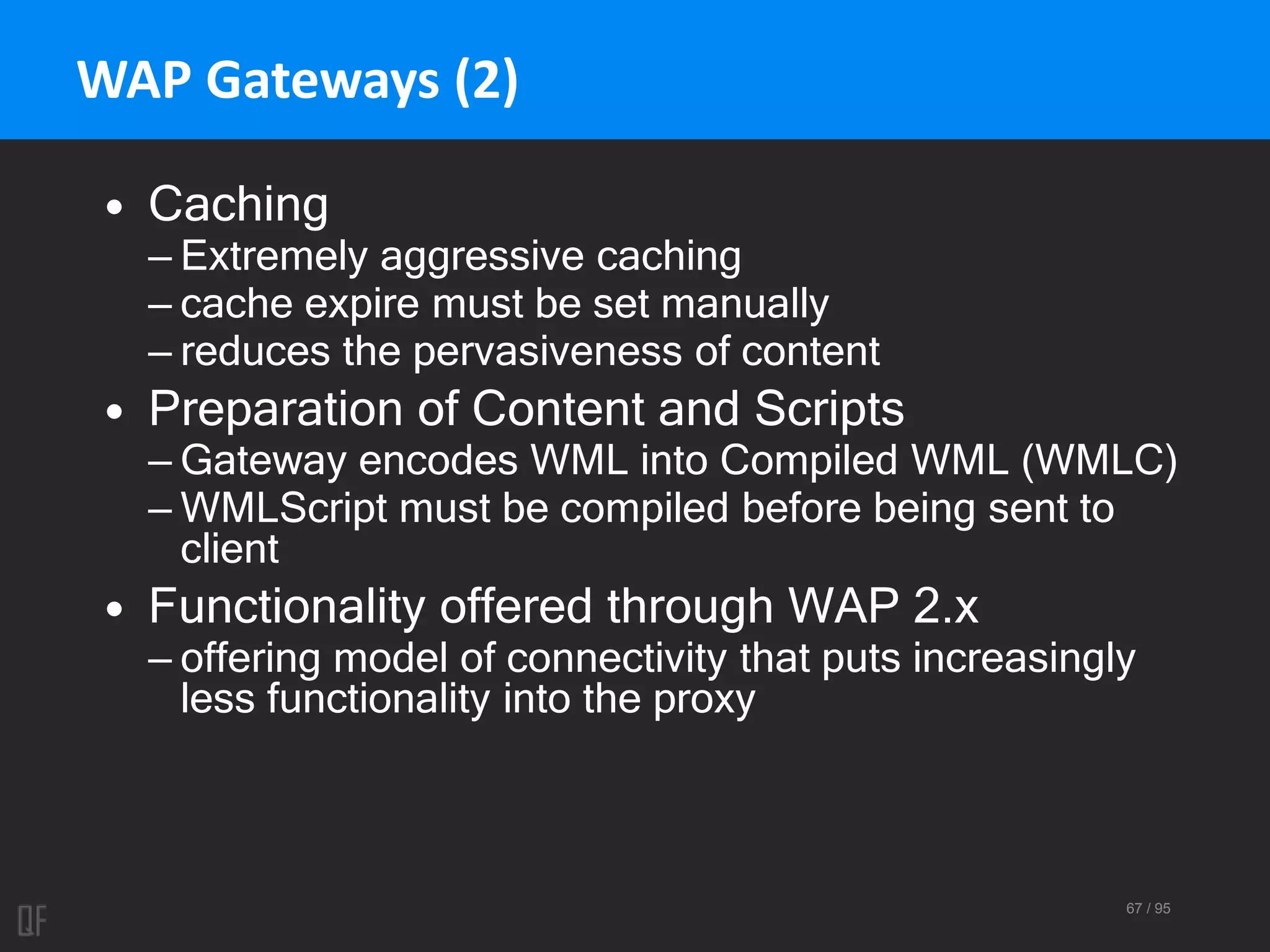

WAP Gateways (2)
• Caching
– Extremely aggressive caching
– cache expire must be set manually
– reduces the pervasiveness of content
• Preparation of Content and Scripts
– Gateway encodes WML into Compiled WML (WMLC)
– WMLScript must be compiled before being sent to
client
• Functionality offered through WAP 2.x
– offering model of connectivity that puts increasingly
less functionality into the proxy

68. 68 / 95

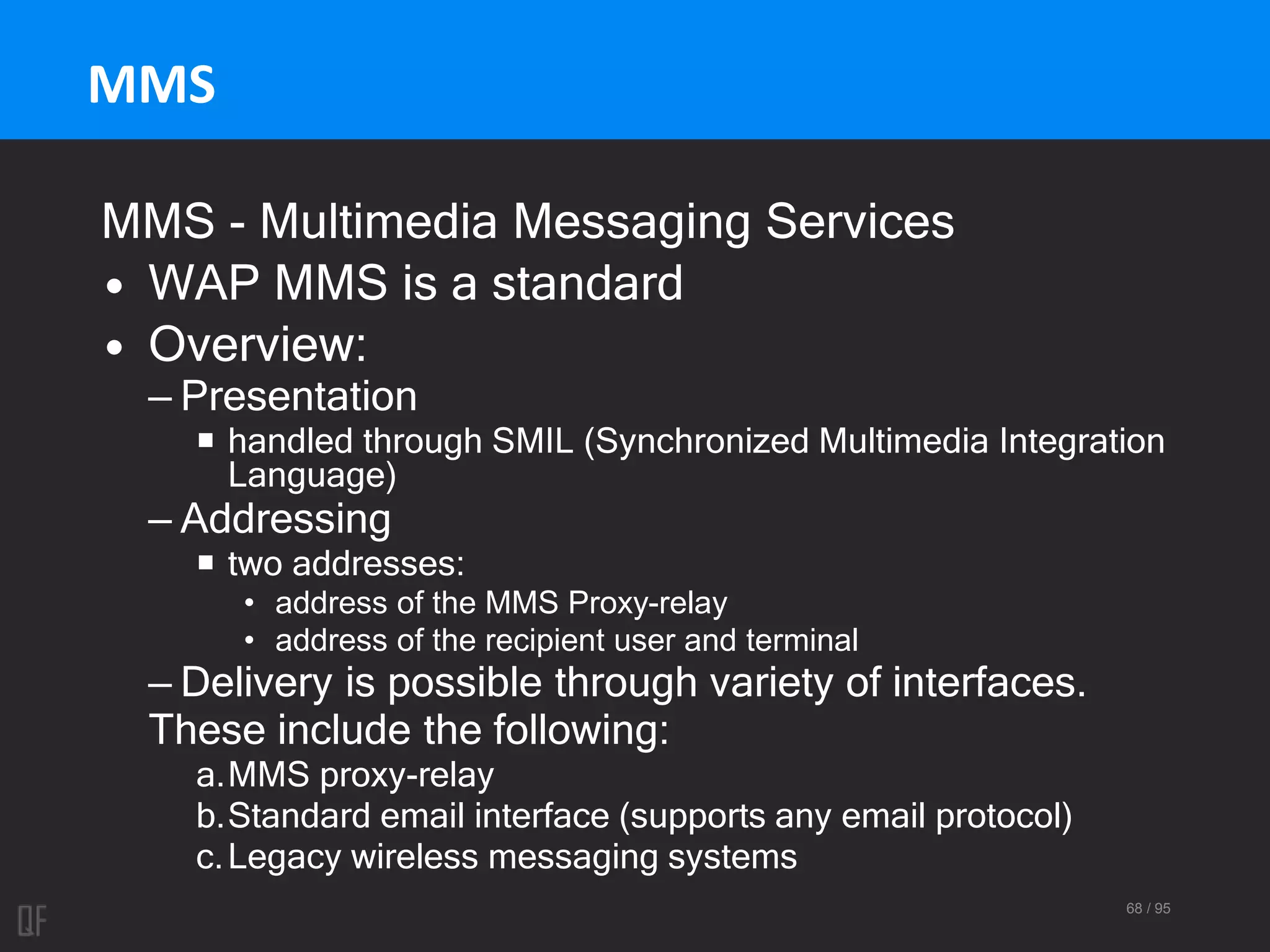

MMS
MMS - Multimedia Messaging Services
• WAP MMS is a standard
• Overview:
– Presentation
 handled through SMIL (Synchronized Multimedia Integration
Language)
– Addressing
 two addresses:
• address of the MMS Proxy-relay
• address of the recipient user and terminal
– Delivery is possible through variety of interfaces.
These include the following:
a.MMS proxy-relay
b.Standard email interface (supports any email protocol)
c.Legacy wireless messaging systems

69. 69 / 95

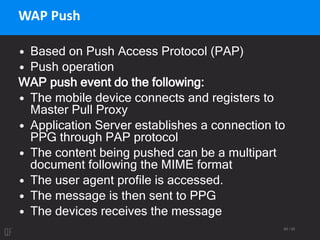

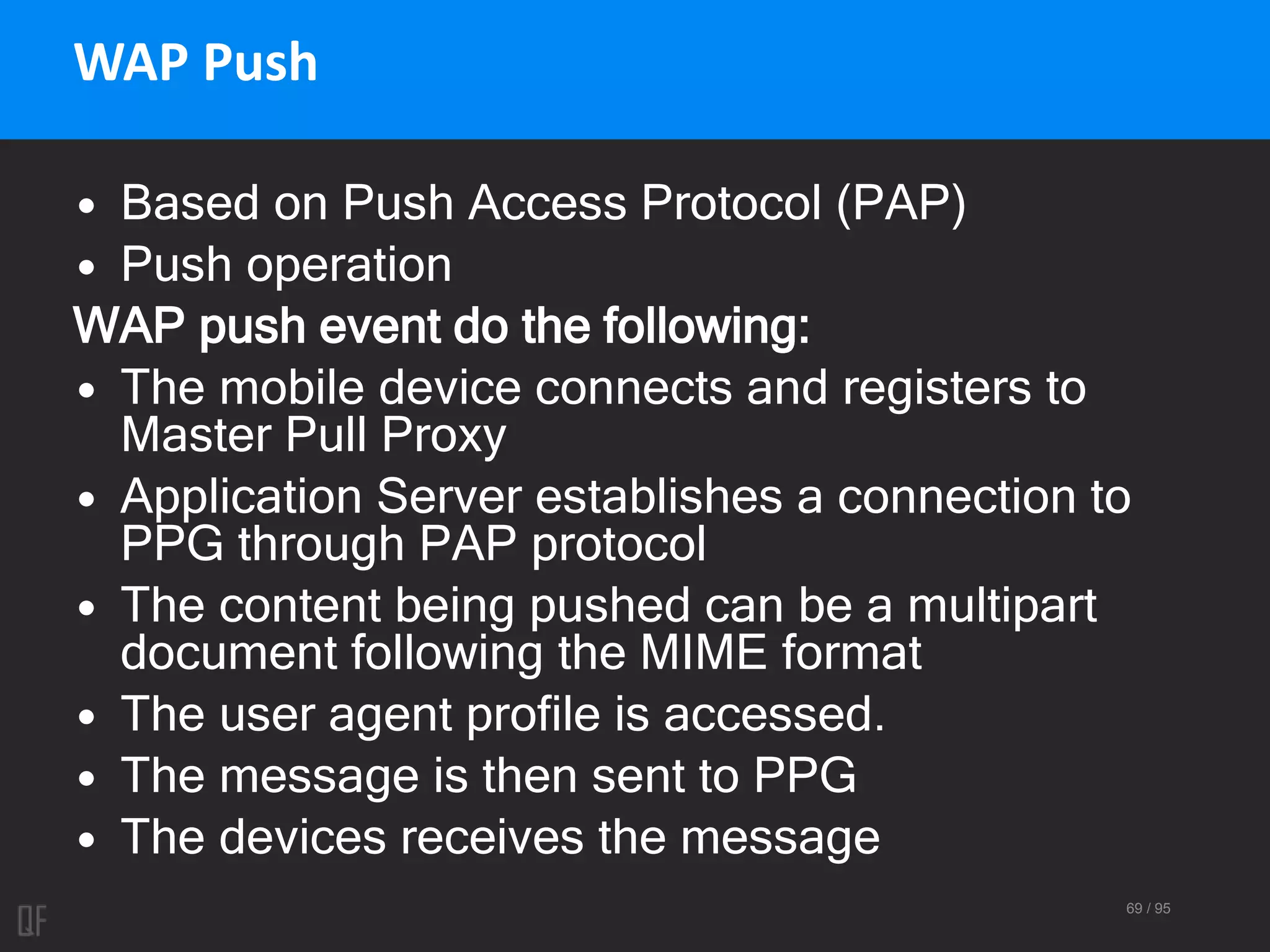

WAP Push
• Based on Push Access Protocol (PAP)
• Push operation
WAP push event do the following:
• The mobile device connects and registers to
Master Pull Proxy
• Application Server establishes a connection to
PPG through PAP protocol
• The content being pushed can be a multipart
document following the MIME format
• The user agent profile is accessed.
• The message is then sent to PPG
• The devices receives the message

70. 70 / 95

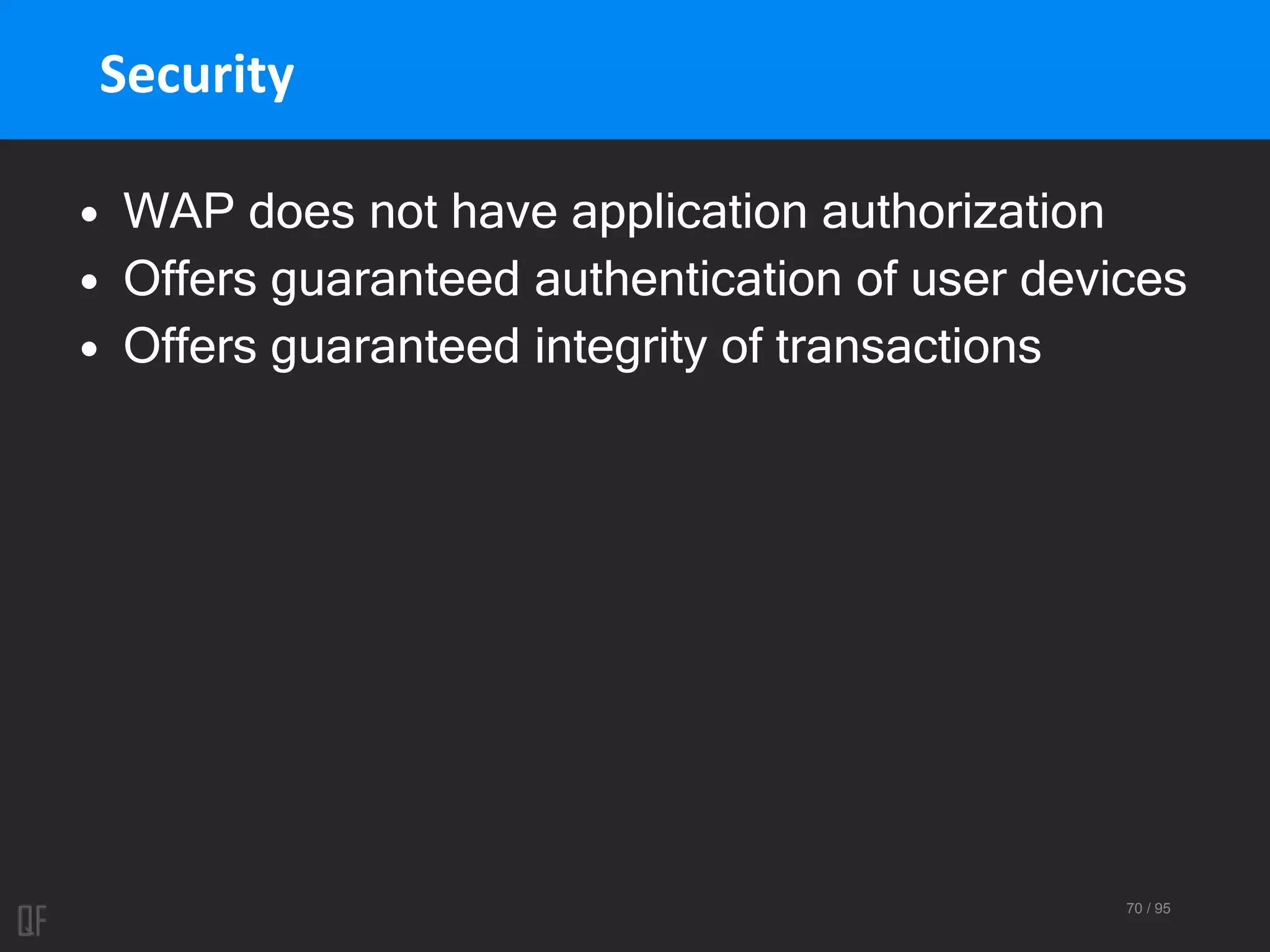

Security
• WAP does not have application authorization
• Offers guaranteed authentication of user devices
• Offers guaranteed integrity of transactions

71. 71 / 95

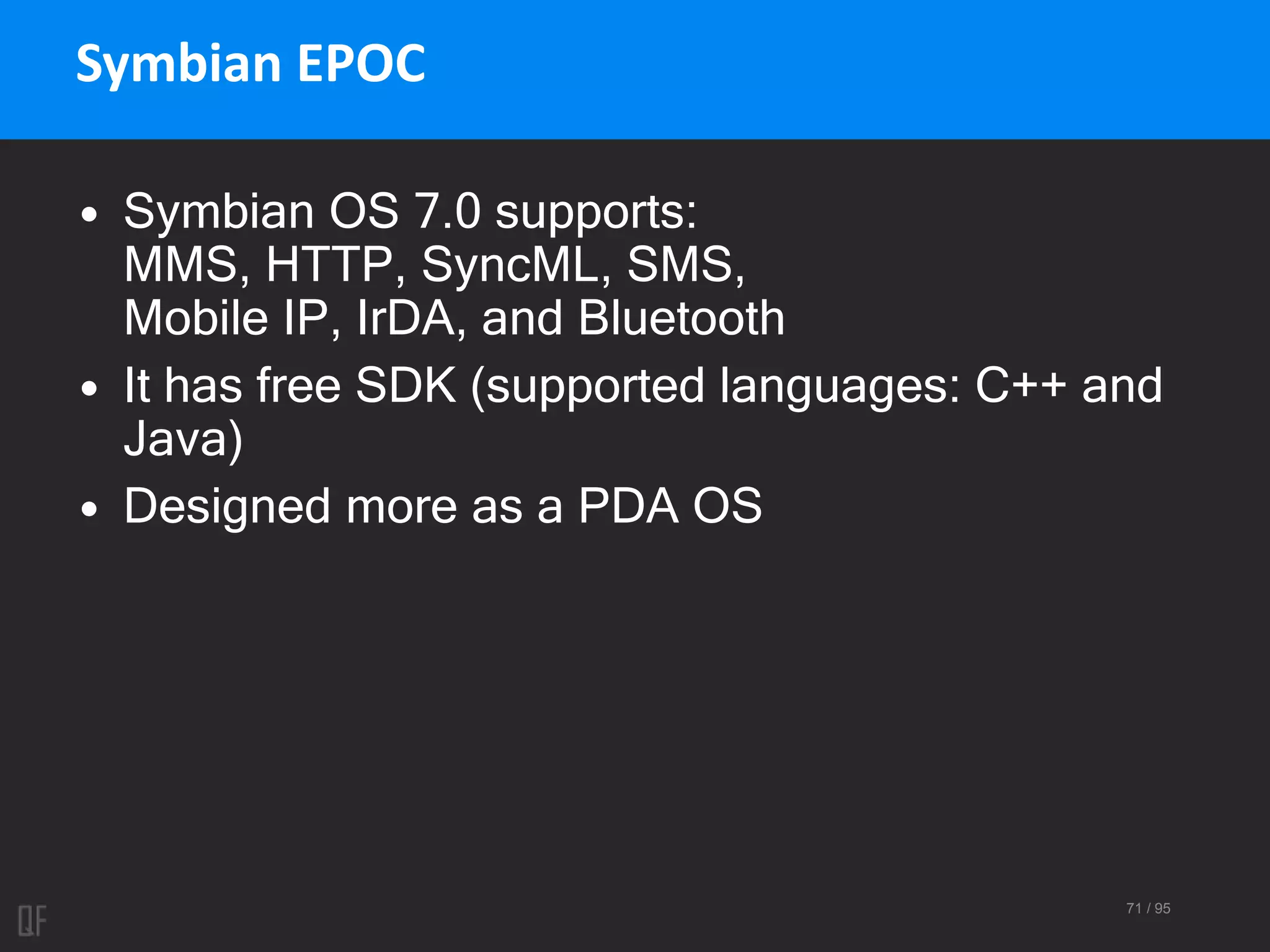

Symbian EPOC
• Symbian OS 7.0 supports:
MMS, HTTP, SyncML, SMS,
Mobile IP, IrDA, and Bluetooth
• It has free SDK (supported languages: C++ and
Java)
• Designed more as a PDA OS

72. 72 / 95

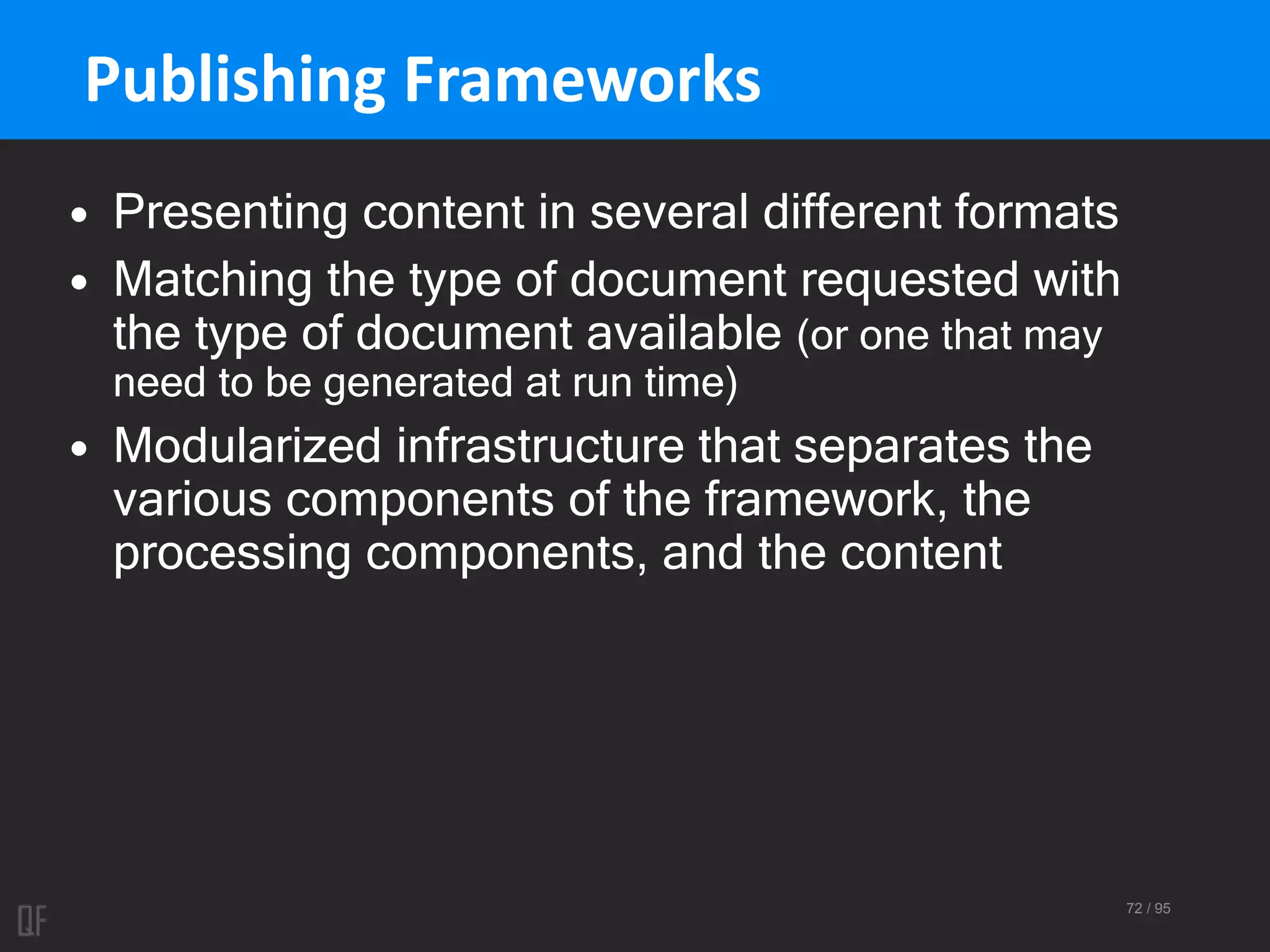

Publishing Frameworks
• Presenting content in several different formats
• Matching the type of document requested with
the type of document available (or one that may
need to be generated at run time)
• Modularized infrastructure that separates the
various components of the framework, the
processing components, and the content

73. 73 / 95

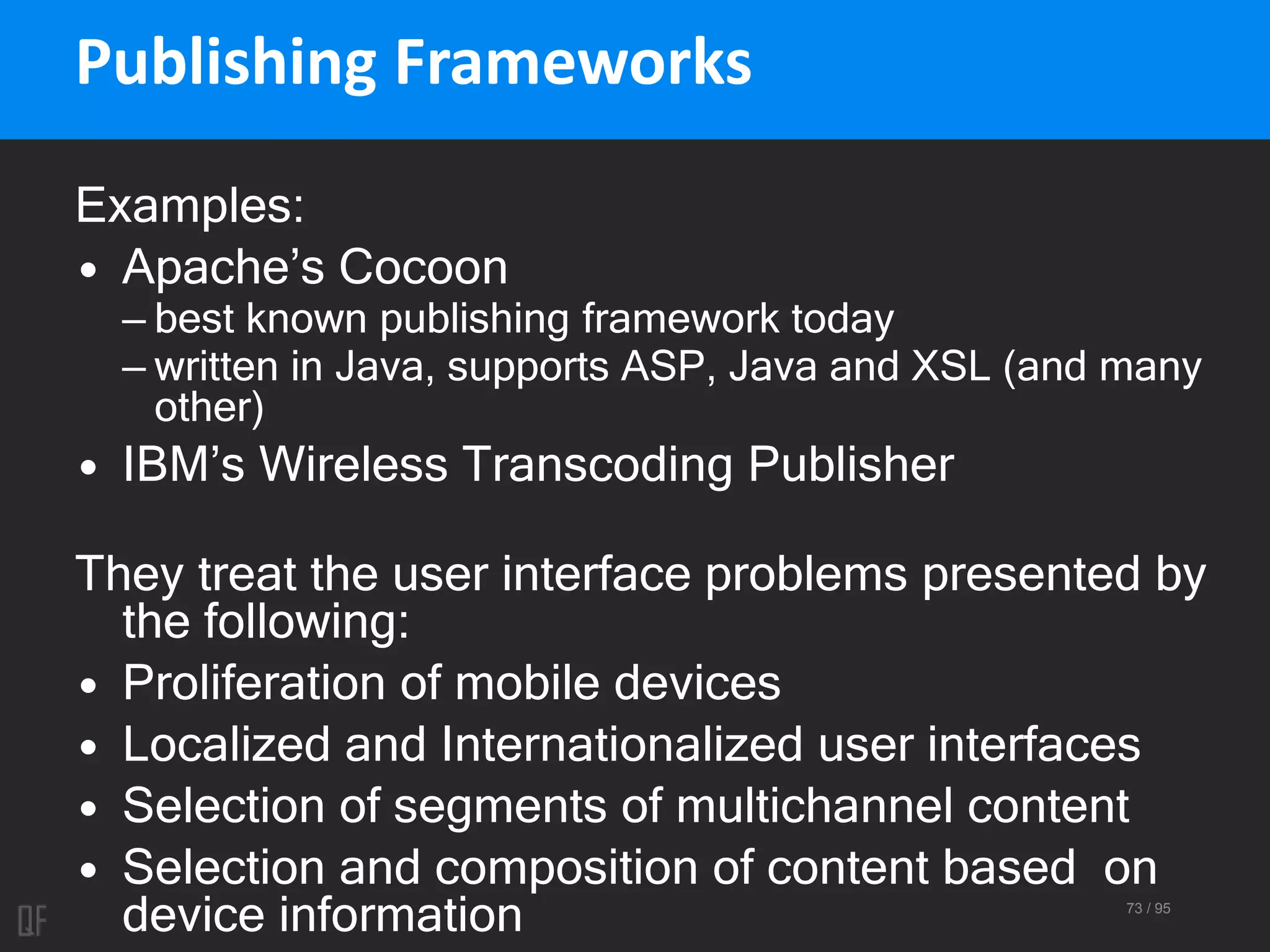

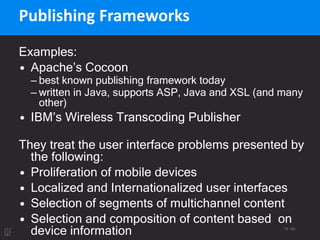

Publishing Frameworks
Examples:
• Apache’s Cocoon
– best known publishing framework today
– written in Java, supports ASP, Java and XSL (and many
other)
• IBM’s Wireless Transcoding Publisher
They treat the user interface problems presented by
the following:
• Proliferation of mobile devices
• Localized and Internationalized user interfaces
• Selection of segments of multichannel content
• Selection and composition of content based on
device information

74. 74 / 95

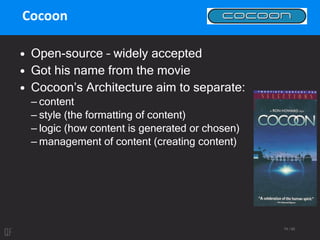

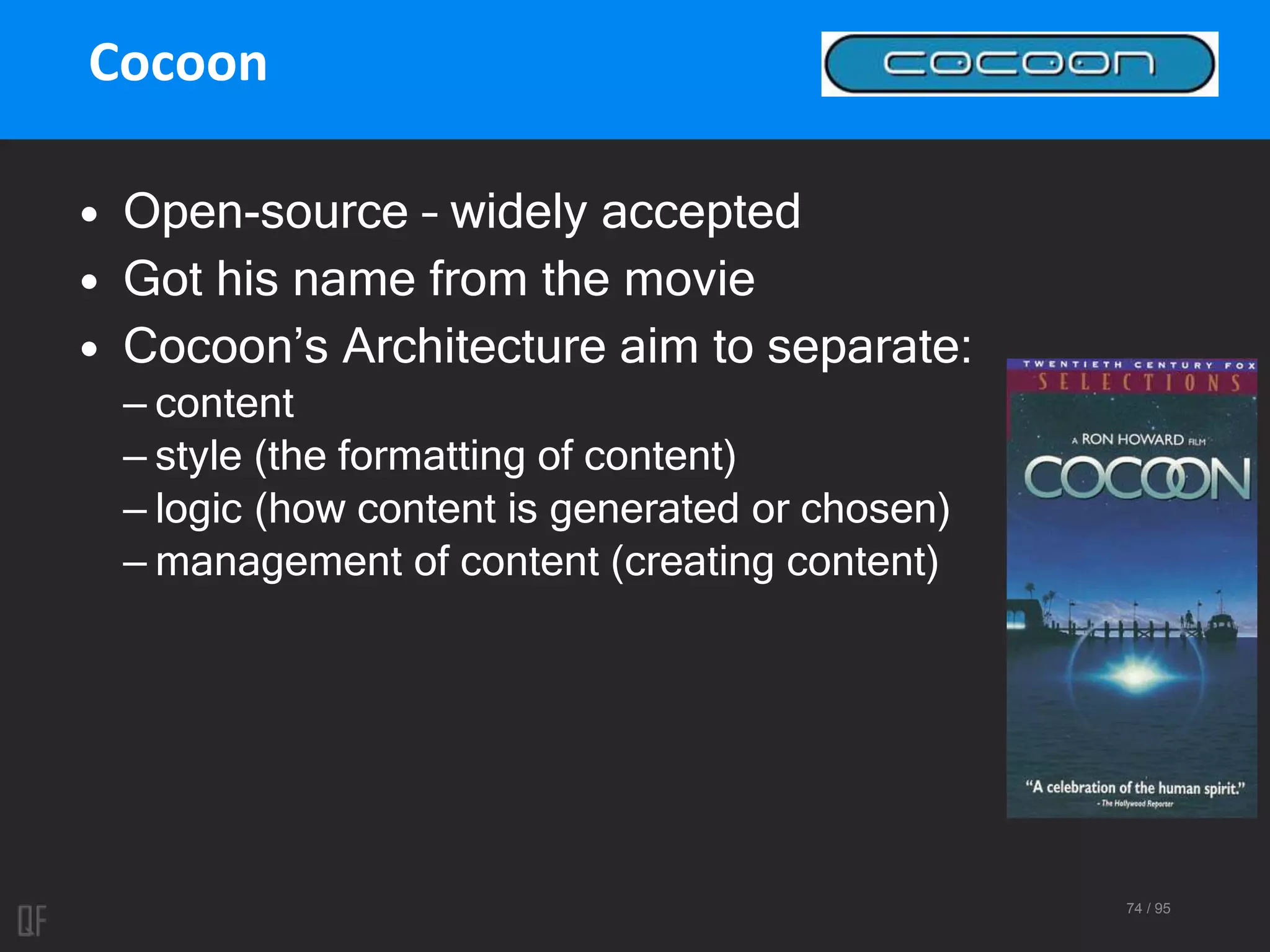

Cocoon
• Open-source – widely accepted
• Got his name from the movie
• Cocoon’s Architecture aim to separate:
– content
– style (the formatting of content)
– logic (how content is generated or chosen)
– management of content (creating content)

75. 75 / 95

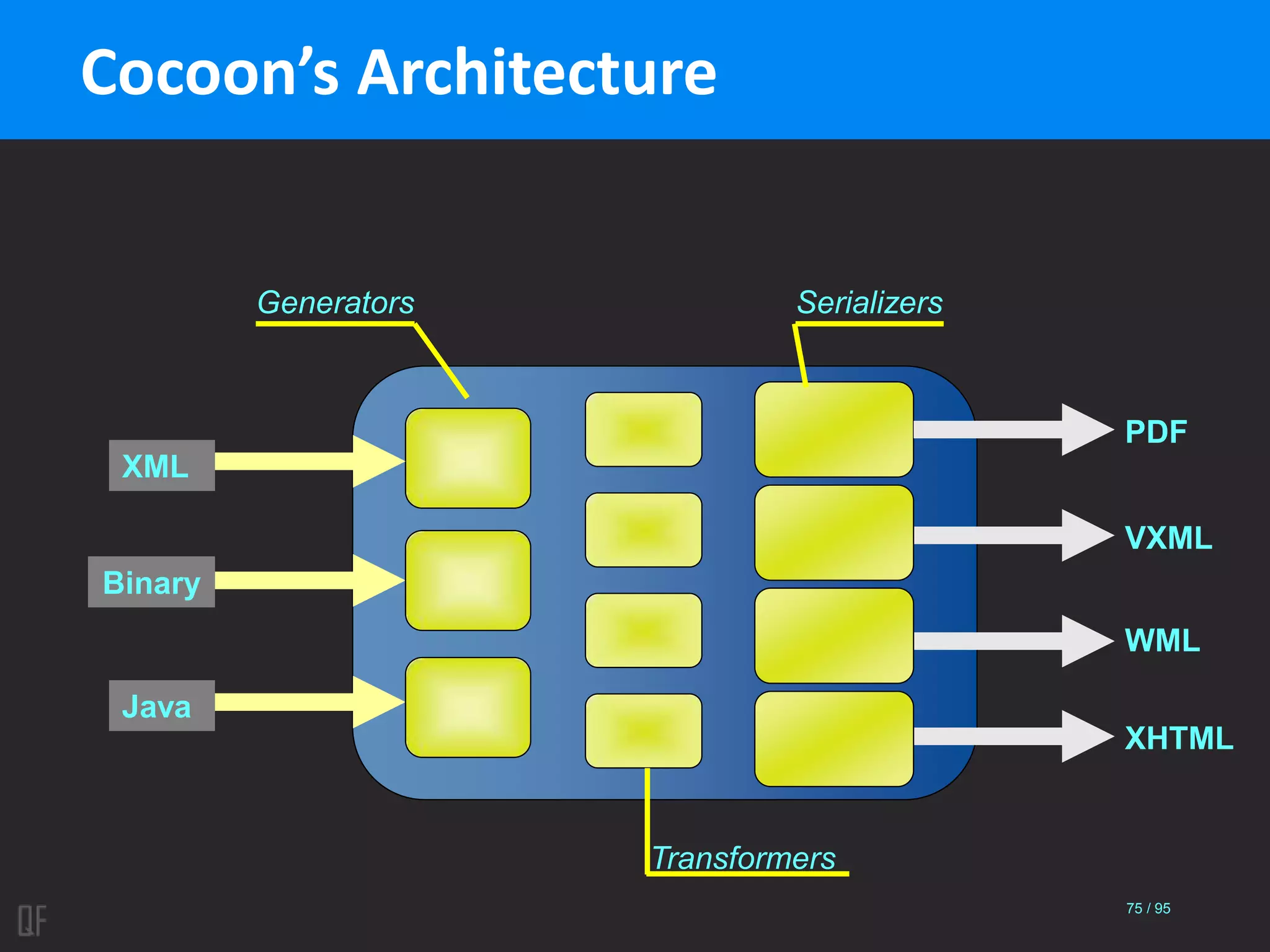

Cocoon’s Architecture
XHTML
PDF
VXML
WML
XML
Binary
Java
Transformers
Generators Serializers

76. 76 / 95

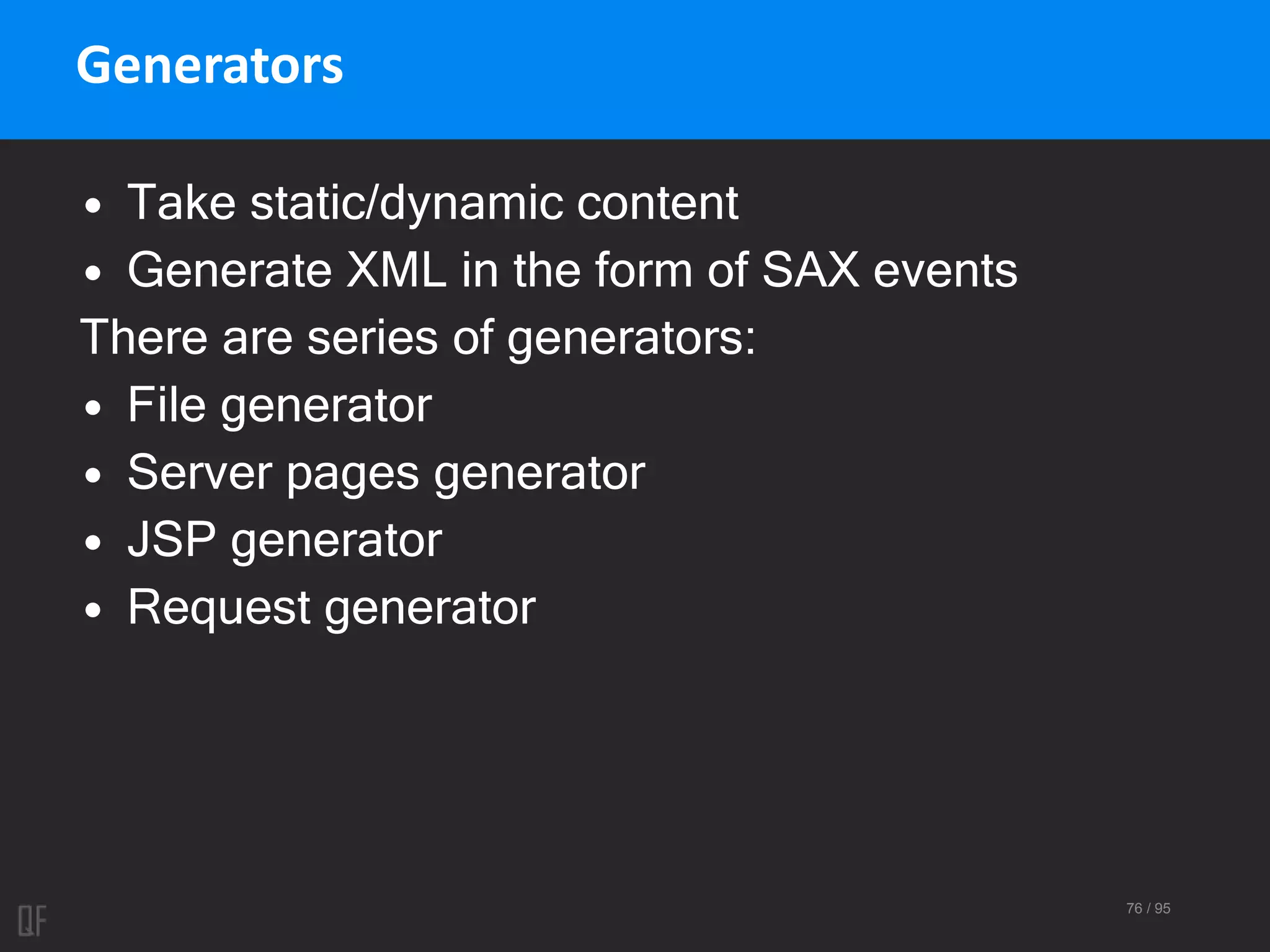

Generators
• Take static/dynamic content
• Generate XML in the form of SAX events
There are series of generators:
• File generator
• Server pages generator
• JSP generator
• Request generator

77. 77 / 95

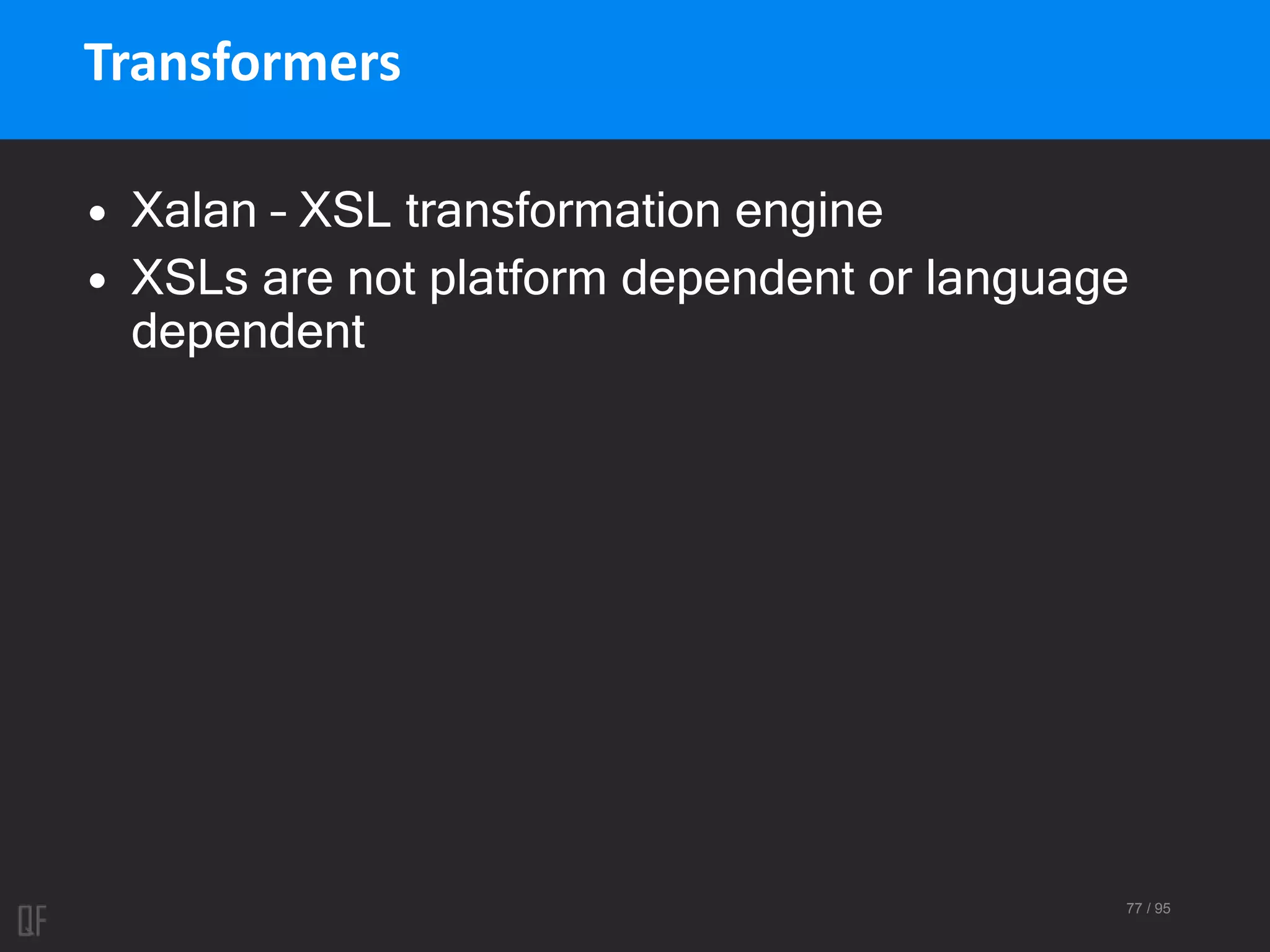

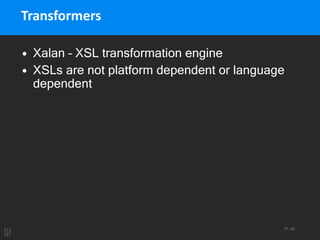

Transformers
• Xalan – XSL transformation engine
• XSLs are not platform dependent or language
dependent

78. 78 / 95

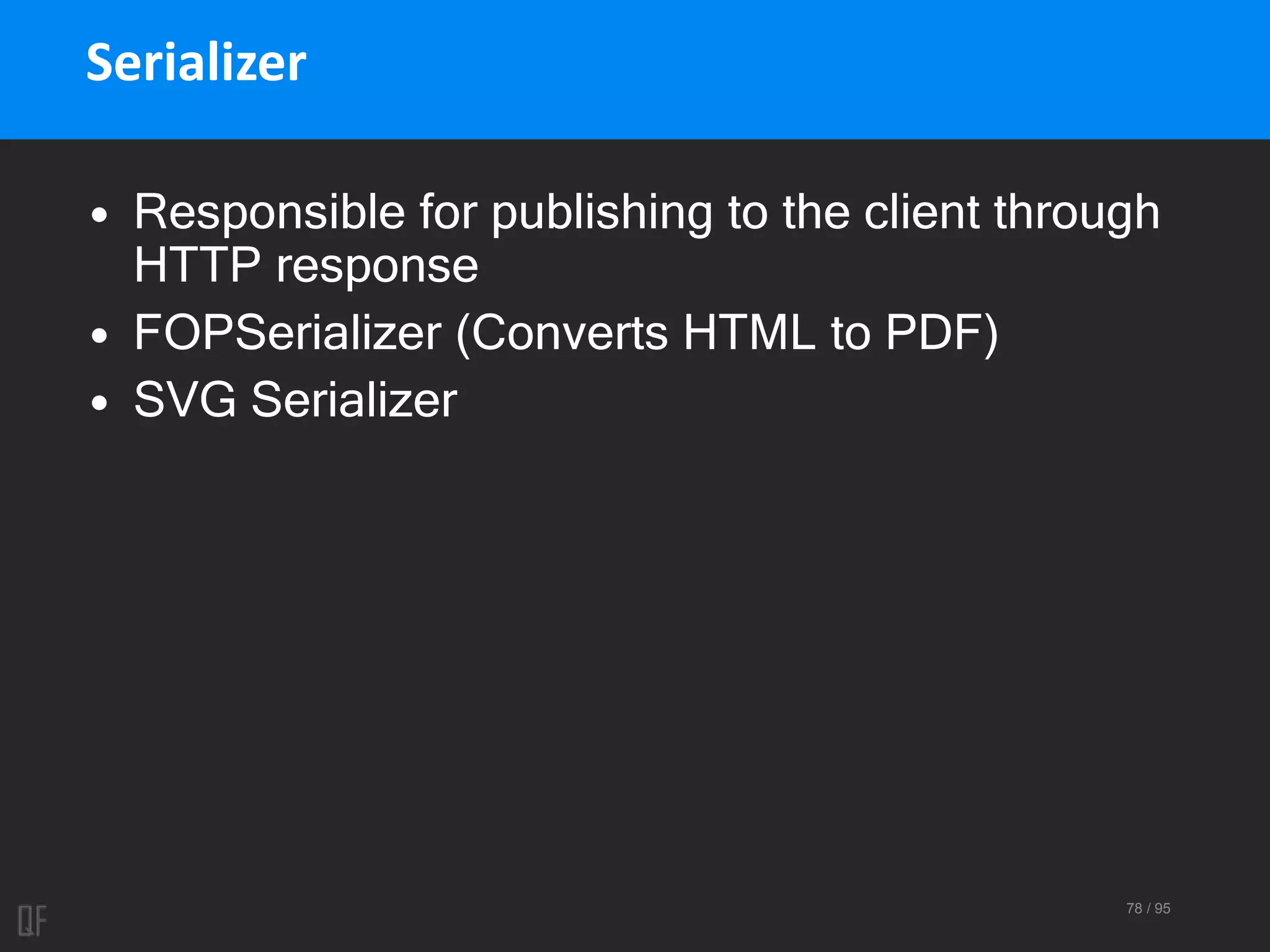

Serializer
• Responsible for publishing to the client through
HTTP response
• FOPSerializer (Converts HTML to PDF)
• SVG Serializer

79. Aleksandar Kovačević & Mina Mićanović 79 / 95

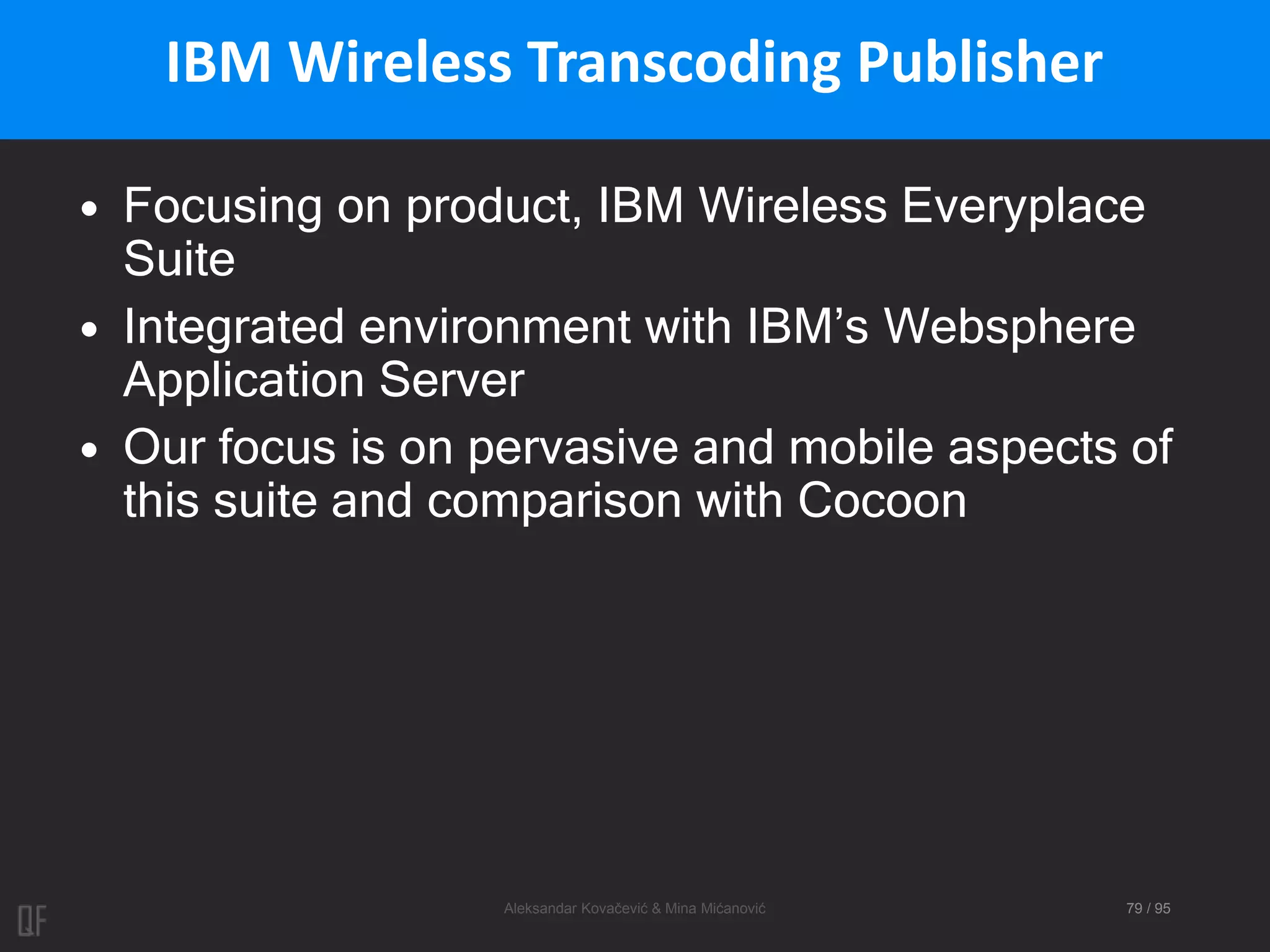

IBM Wireless Transcoding Publisher
• Focusing on product, IBM Wireless Everyplace
Suite
• Integrated environment with IBM’s Websphere
Application Server
• Our focus is on pervasive and mobile aspects of
this suite and comparison with Cocoon

80. 80 / 95

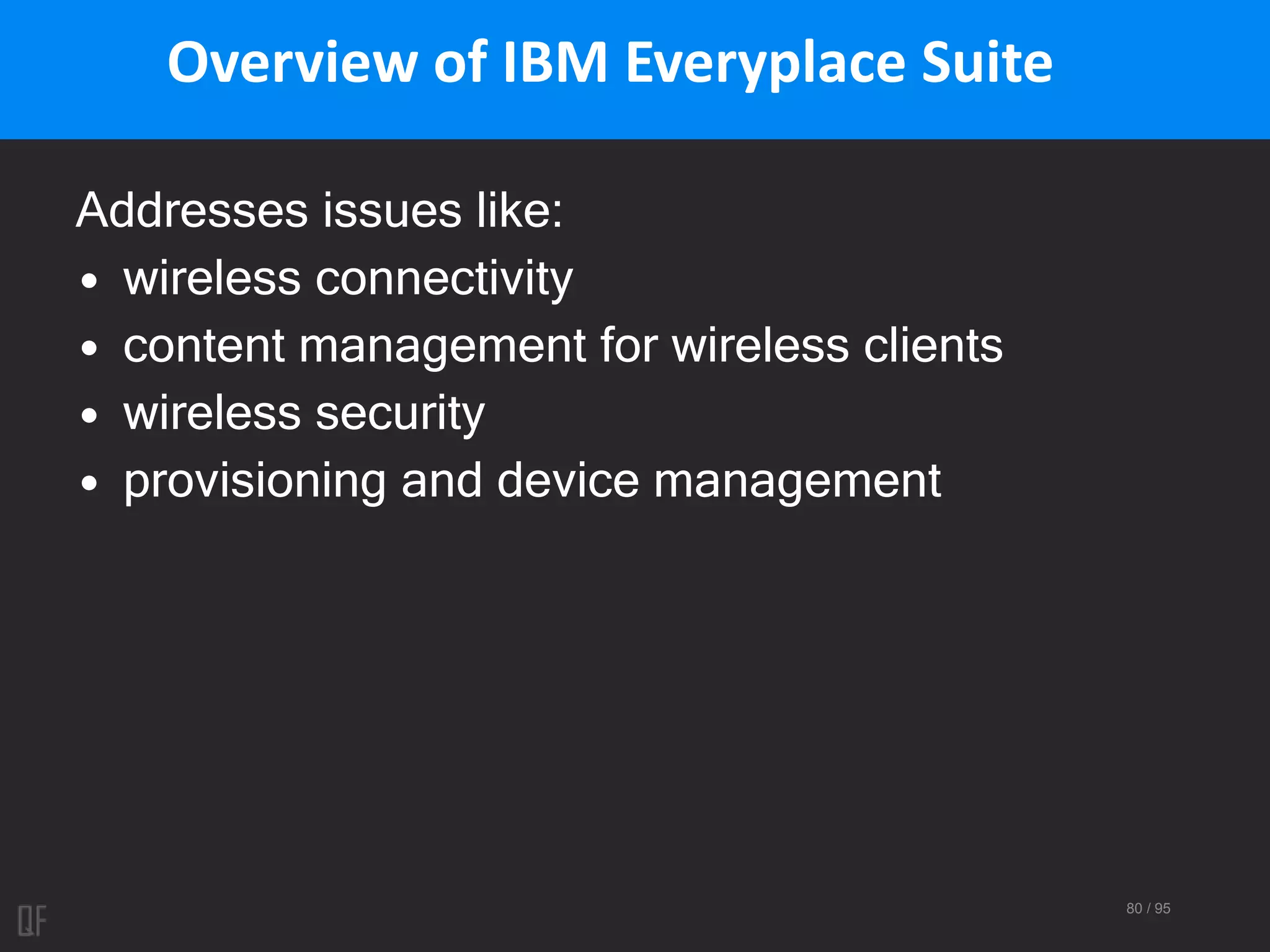

Overview of IBM Everyplace Suite
Addresses issues like:
• wireless connectivity
• content management for wireless clients
• wireless security
• provisioning and device management

81. 81 / 95

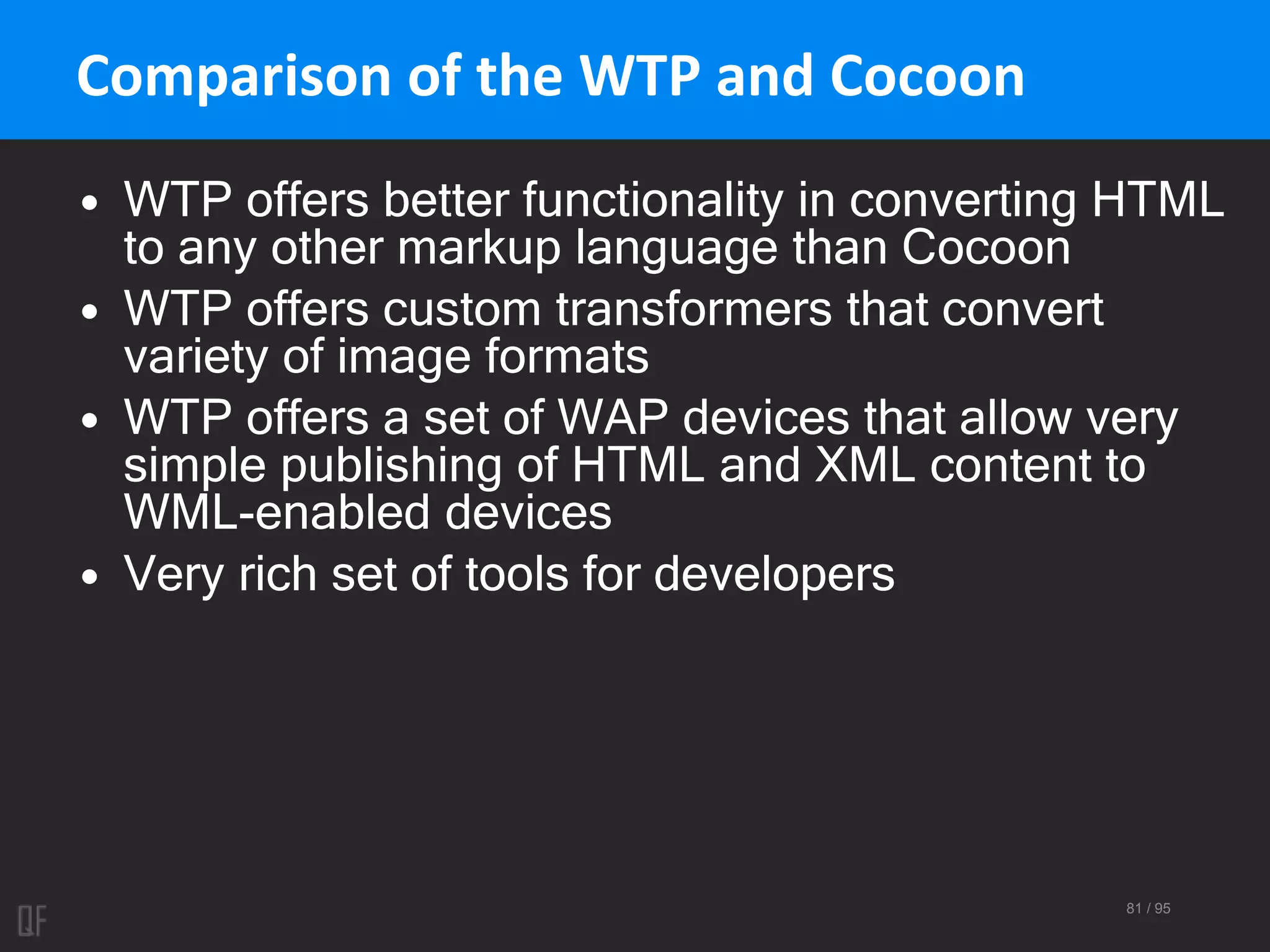

Comparison of the WTP and Cocoon
• WTP offers better functionality in converting HTML
to any other markup language than Cocoon
• WTP offers custom transformers that convert
variety of image formats
• WTP offers a set of WAP devices that allow very
simple publishing of HTML and XML content to
WML-enabled devices
• Very rich set of tools for developers

82. Aleksandar Kovačević & Mina Mićaović 82 / 95

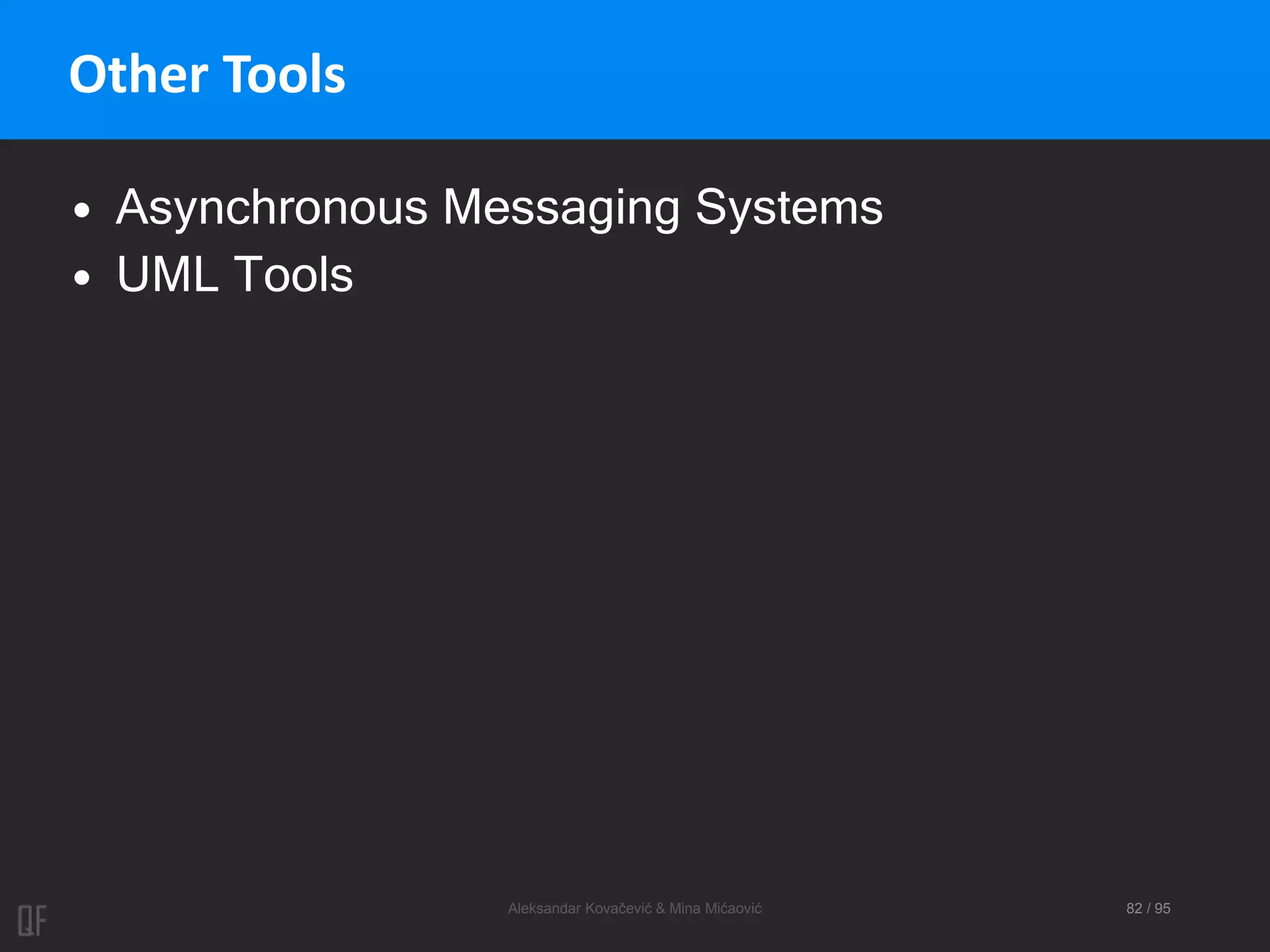

Other Tools
• Asynchronous Messaging Systems
• UML Tools

83. Aleksandar Kovačević & Mina Mićanović 83

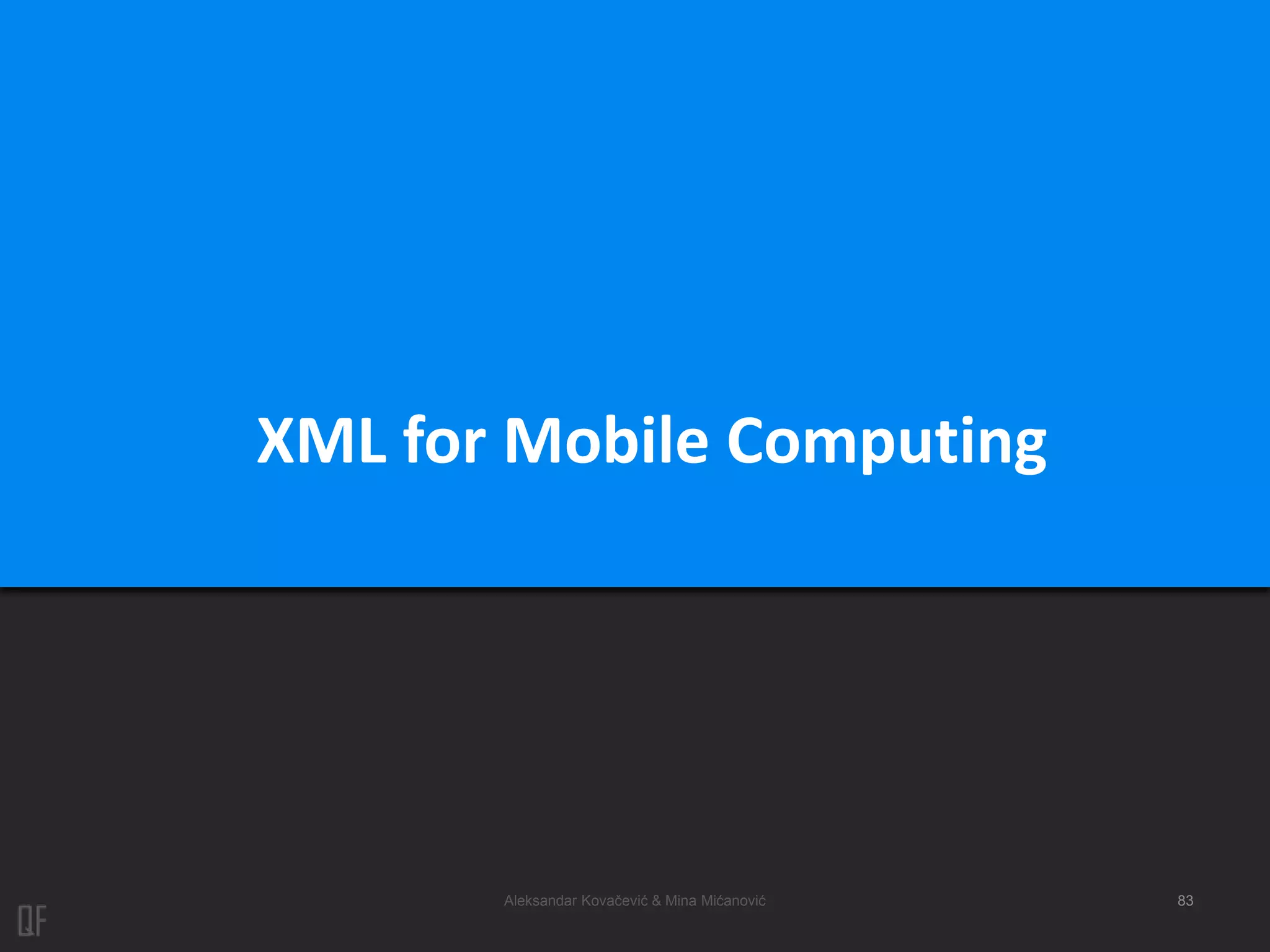

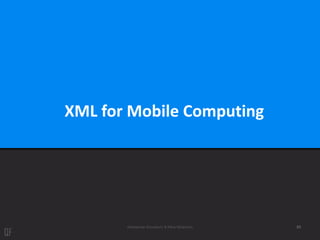

XML for Mobile Computing

84. 84 / 95

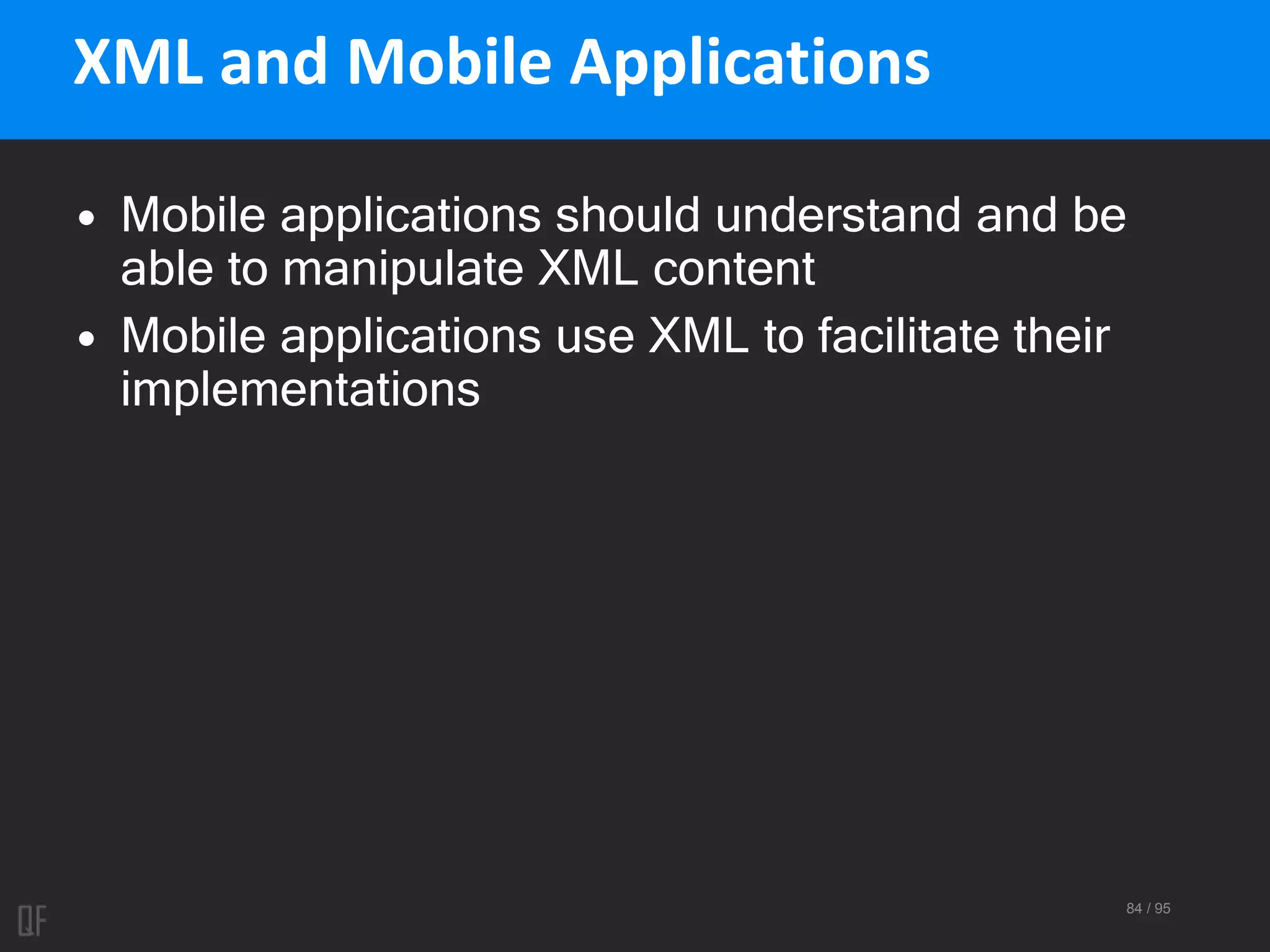

XML and Mobile Applications
• Mobile applications should understand and be
able to manipulate XML content
• Mobile applications use XML to facilitate their
implementations

85. 85 / 95

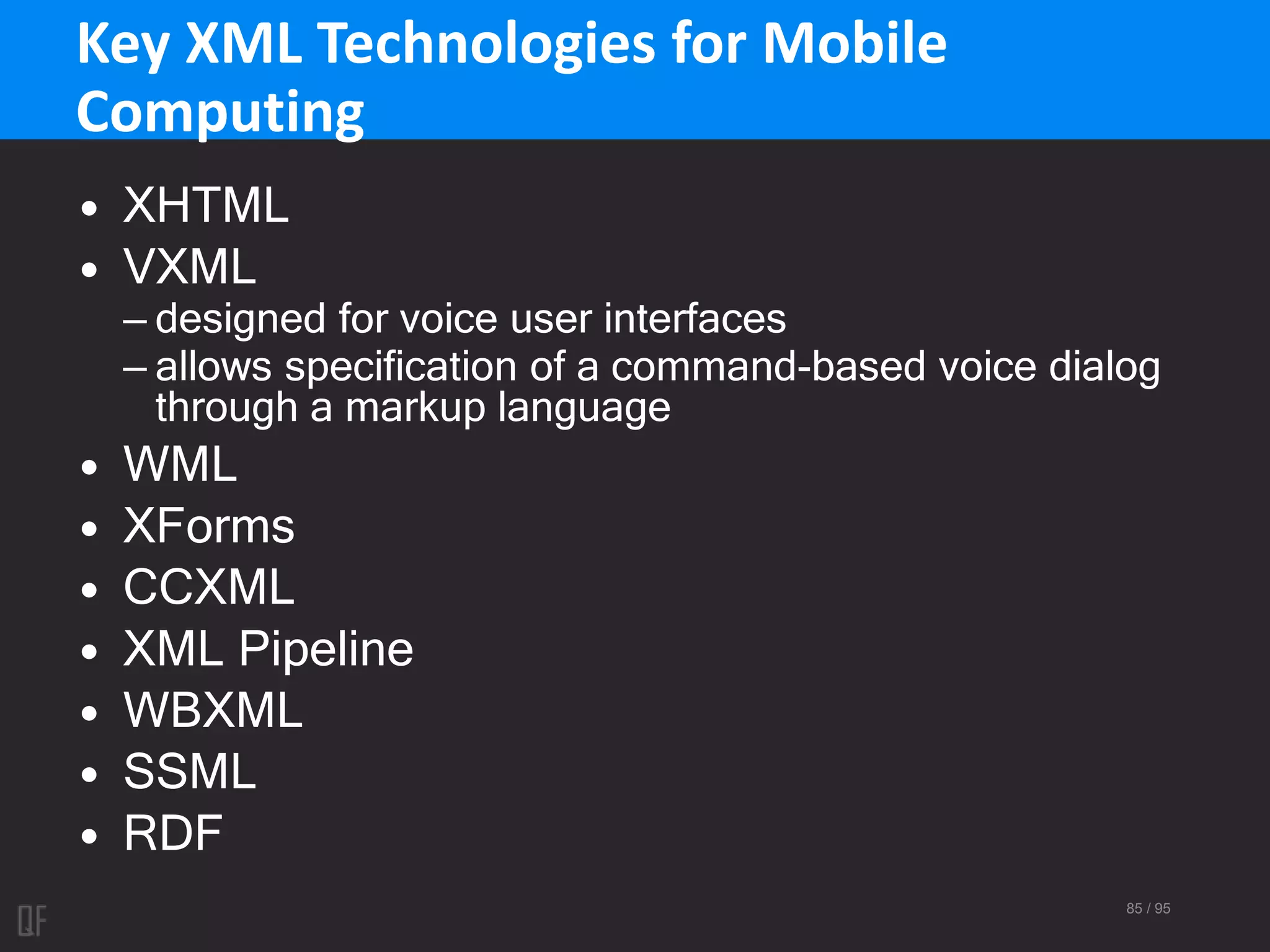

Key XML Technologies for Mobile
Computing
• XHTML
• VXML
– designed for voice user interfaces
– allows specification of a command-based voice dialog
through a markup language
• WML
• XForms
• CCXML
• XML Pipeline
• WBXML
• SSML
• RDF

86. 86 / 95

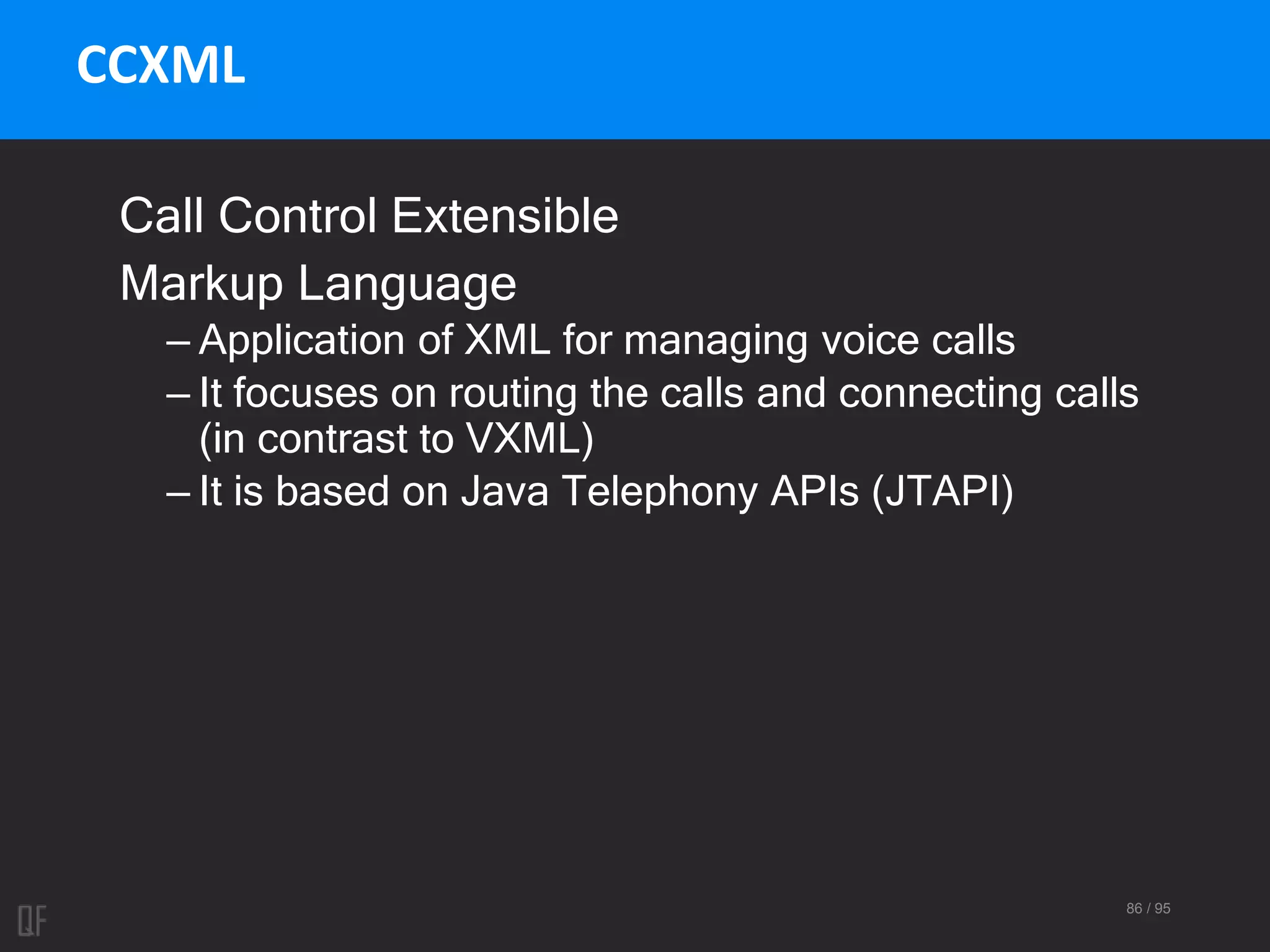

CCXML
Call Control Extensible
Markup Language
– Application of XML for managing voice calls
– It focuses on routing the calls and connecting calls
(in contrast to VXML)
– It is based on Java Telephony APIs (JTAPI)

87. 87 / 95

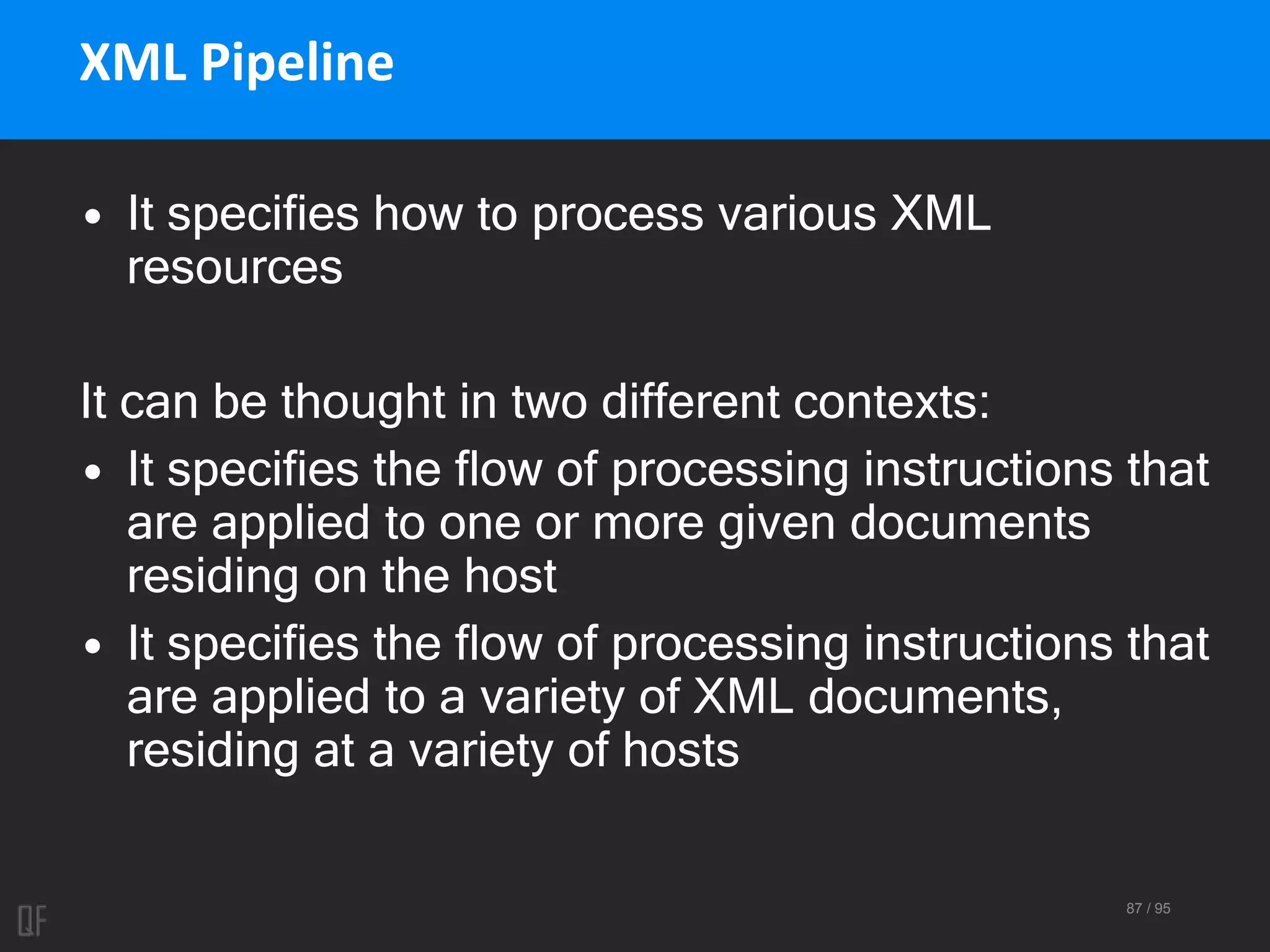

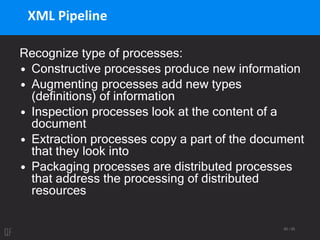

XML Pipeline
• It specifies how to process various XML
resources
It can be thought in two different contexts:
• It specifies the flow of processing instructions that
are applied to one or more given documents
residing on the host
• It specifies the flow of processing instructions that
are applied to a variety of XML documents,
residing at a variety of hosts

88. 88 / 95

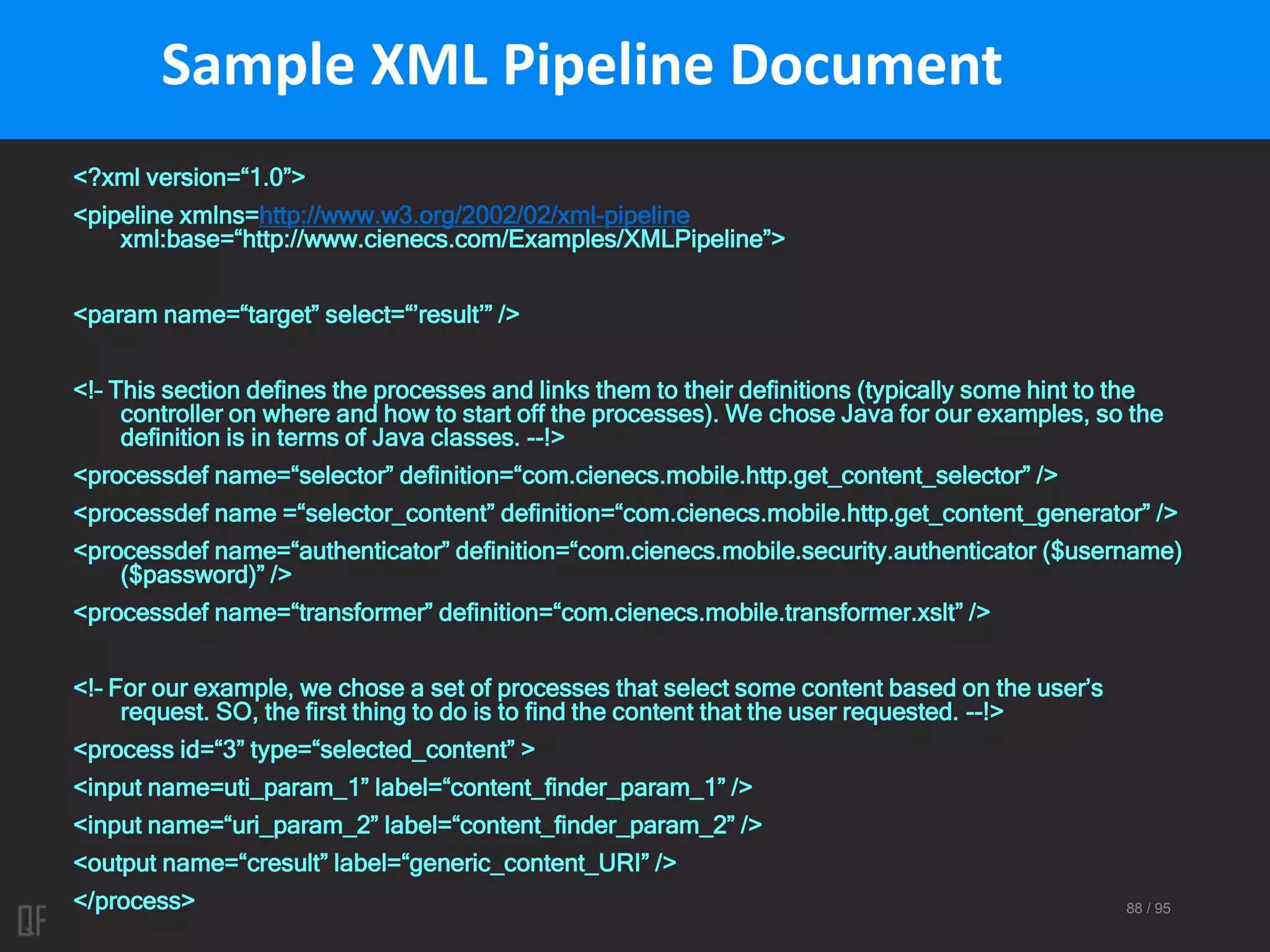

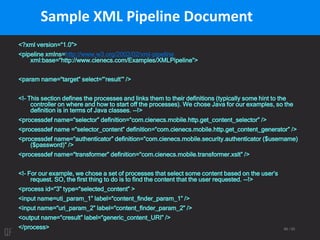

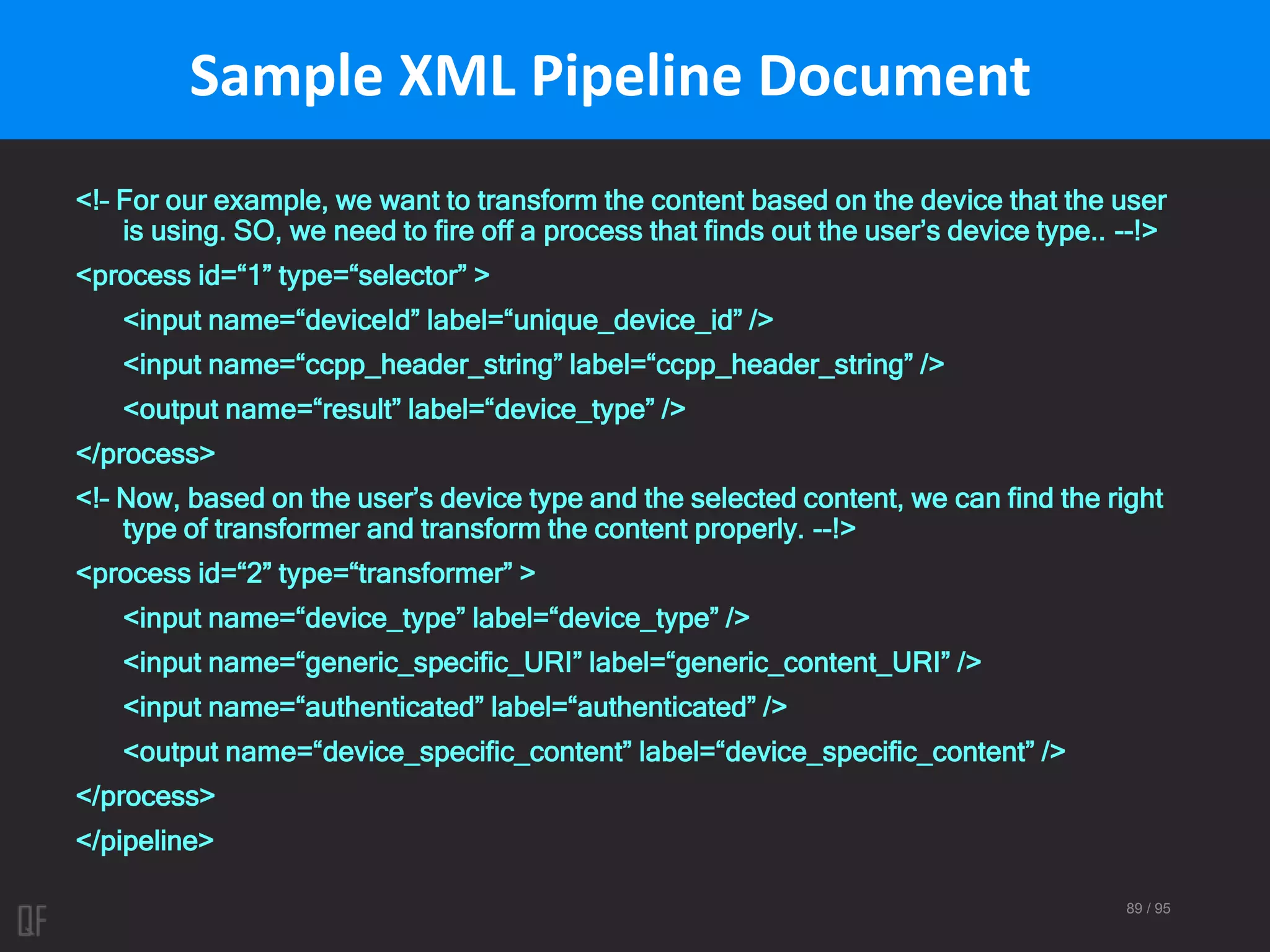

Sample XML Pipeline Document
<?xml version=“1.0”>
<pipeline xmlns=http://www.w3.org/2002/02/xml-pipeline
xml:base=“http://www.cienecs.com/Examples/XMLPipeline”>
<param name=“target” select=“’result’” />
<!– This section defines the processes and links them to their definitions (typically some hint to the
controller on where and how to start off the processes). We chose Java for our examples, so the
definition is in terms of Java classes. --!>
<processdef name=“selector” definition=“com.cienecs.mobile.http.get_content_selector” />
<processdef name =“selector_content” definition=“com.cienecs.mobile.http.get_content_generator” />
<processdef name=“authenticator” definition=“com.cienecs.mobile.security.authenticator ($username)
($password)” />
<processdef name=“transformer” definition=“com.cienecs.mobile.transformer.xslt” />
<!– For our example, we chose a set of processes that select some content based on the user’s
request. SO, the first thing to do is to find the content that the user requested. --!>
<process id=“3” type=“selected_content” >
<input name=uti_param_1” label=“content_finder_param_1” />
<input name=“uri_param_2” label=“content_finder_param_2” />
<output name=“cresult” label=“generic_content_URI” />
</process>

89. 89 / 95
Sample XML Pipeline Document
<!– For our example, we want to transform the content based on the device that the user
is using. SO, we need to fire off a process that finds out the user’s device type.. --!>
<process id=“1” type=“selector” >
<input name=“deviceId” label=“unique_device_id” />
<input name=“ccpp_header_string” label=“ccpp_header_string” />
<output name=“result” label=“device_type” />
</process>
<!– Now, based on the user’s device type and the selected content, we can find the right
type of transformer and transform the content properly. --!>
<process id=“2” type=“transformer” >
<input name=“device_type” label=“device_type” />
<input name=“generic_specific_URI” label=“generic_content_URI” />
<input name=“authenticated” label=“authenticated” />
<output name=“device_specific_content” label=“device_specific_content” />
</process>
</pipeline>

90. 90 / 95

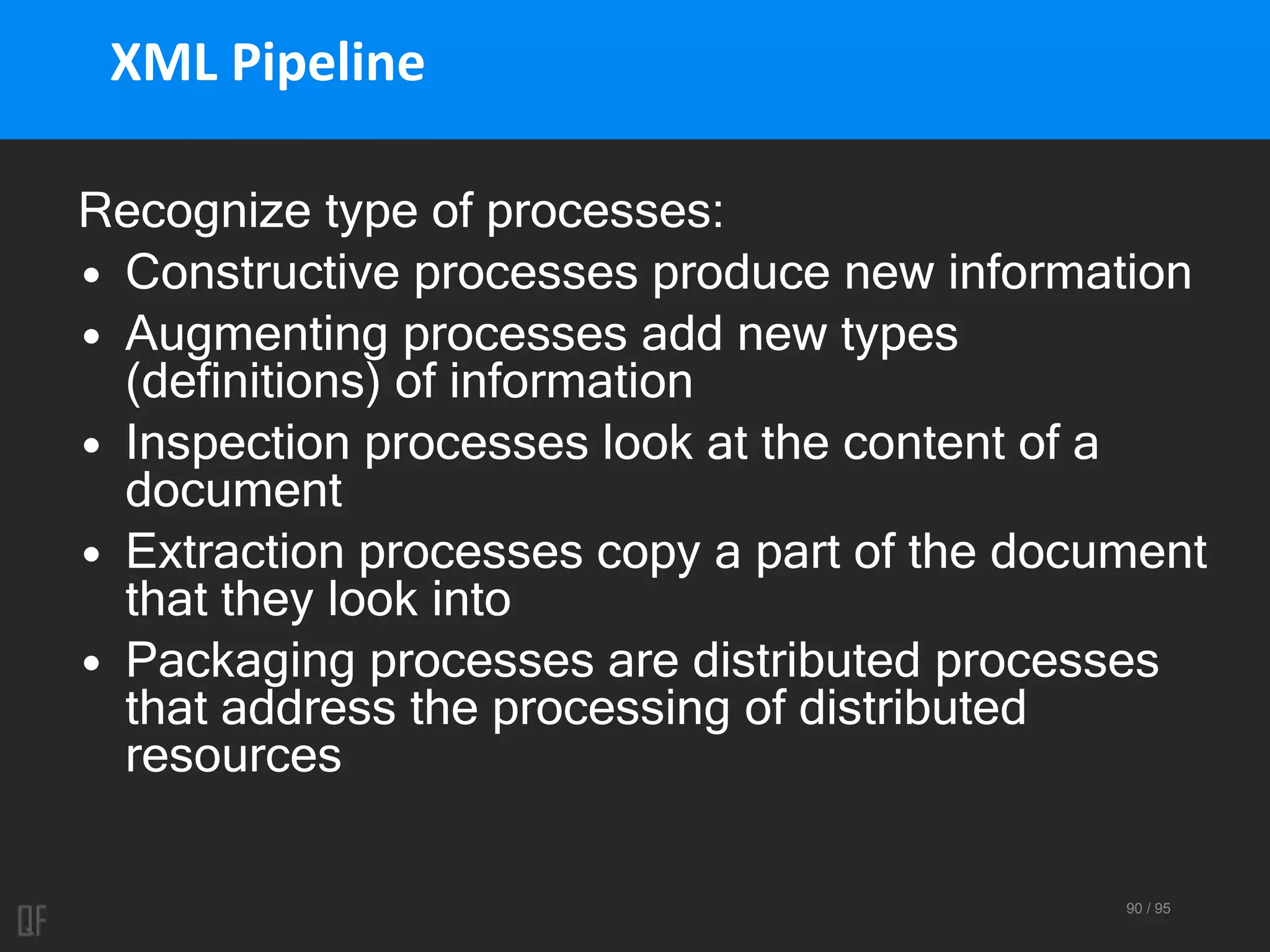

XML Pipeline
Recognize type of processes:
• Constructive processes produce new information
• Augmenting processes add new types
(definitions) of information
• Inspection processes look at the content of a
document
• Extraction processes copy a part of the document
that they look into
• Packaging processes are distributed processes
that address the processing of distributed
resources

91. 91 / 95

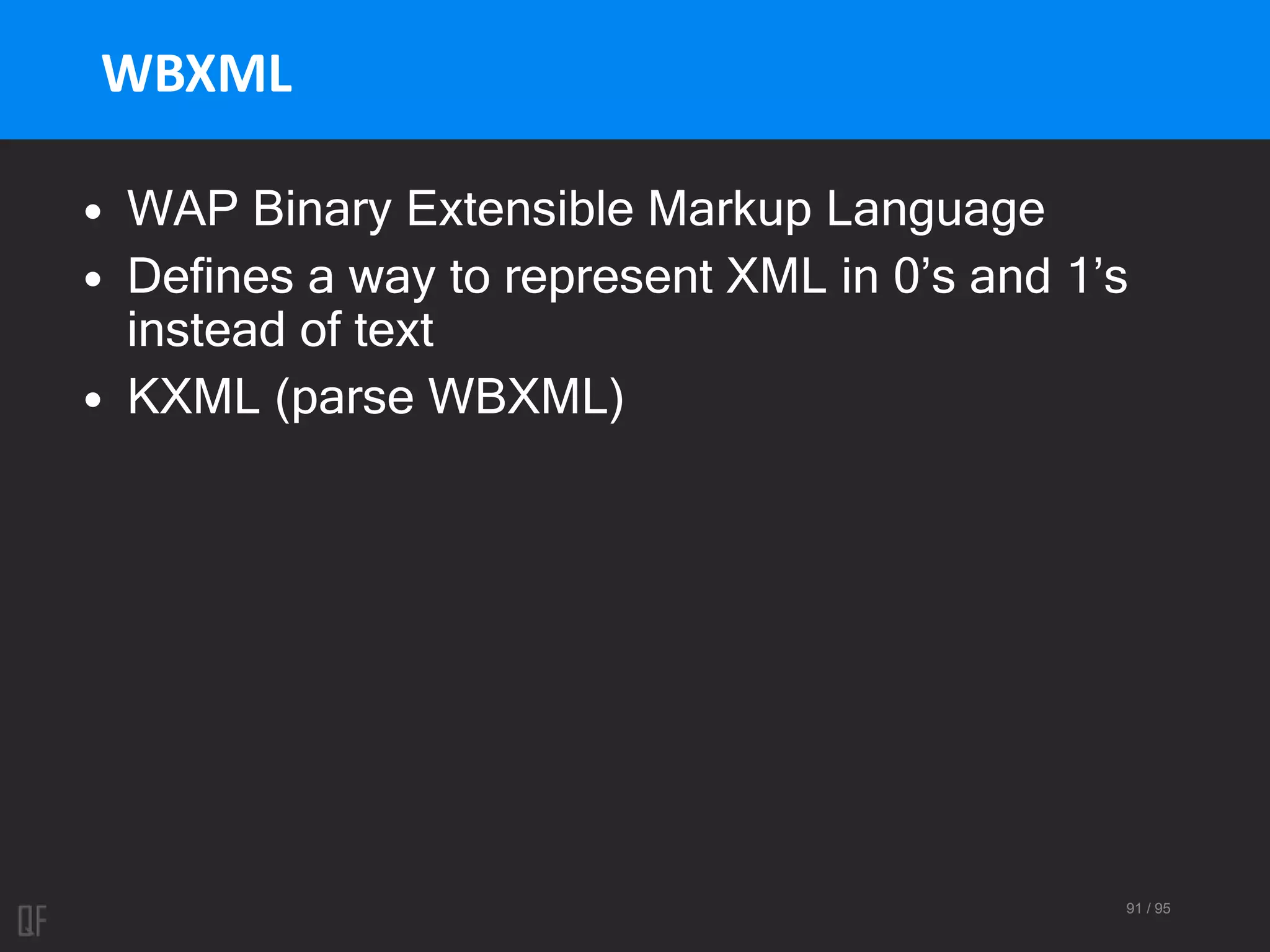

WBXML
• WAP Binary Extensible Markup Language
• Defines a way to represent XML in 0’s and 1’s
instead of text
• KXML (parse WBXML)

92. 92 / 95

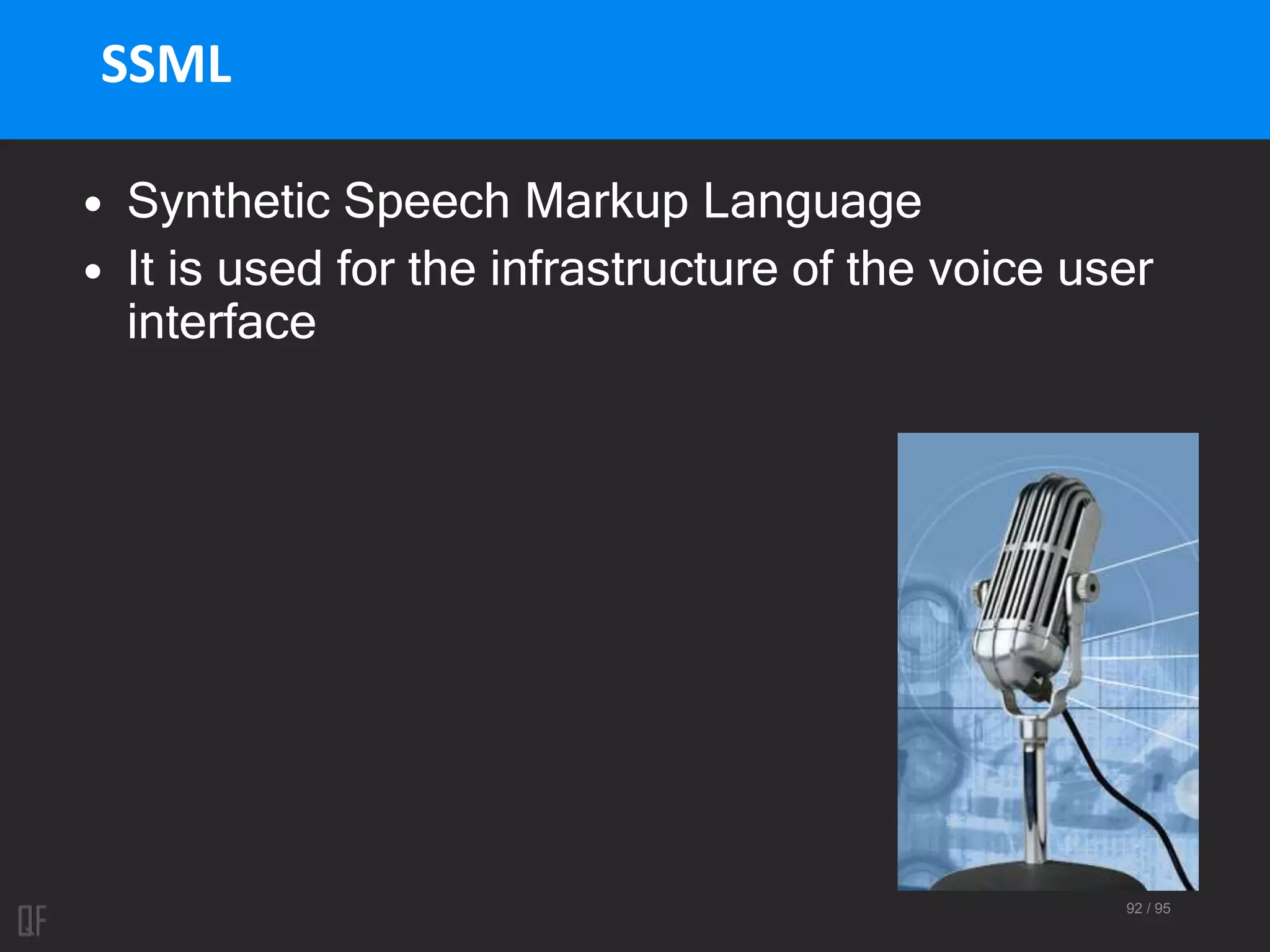

SSML
• Synthetic Speech Markup Language
• It is used for the infrastructure of the voice user
interface

93. 93 / 95

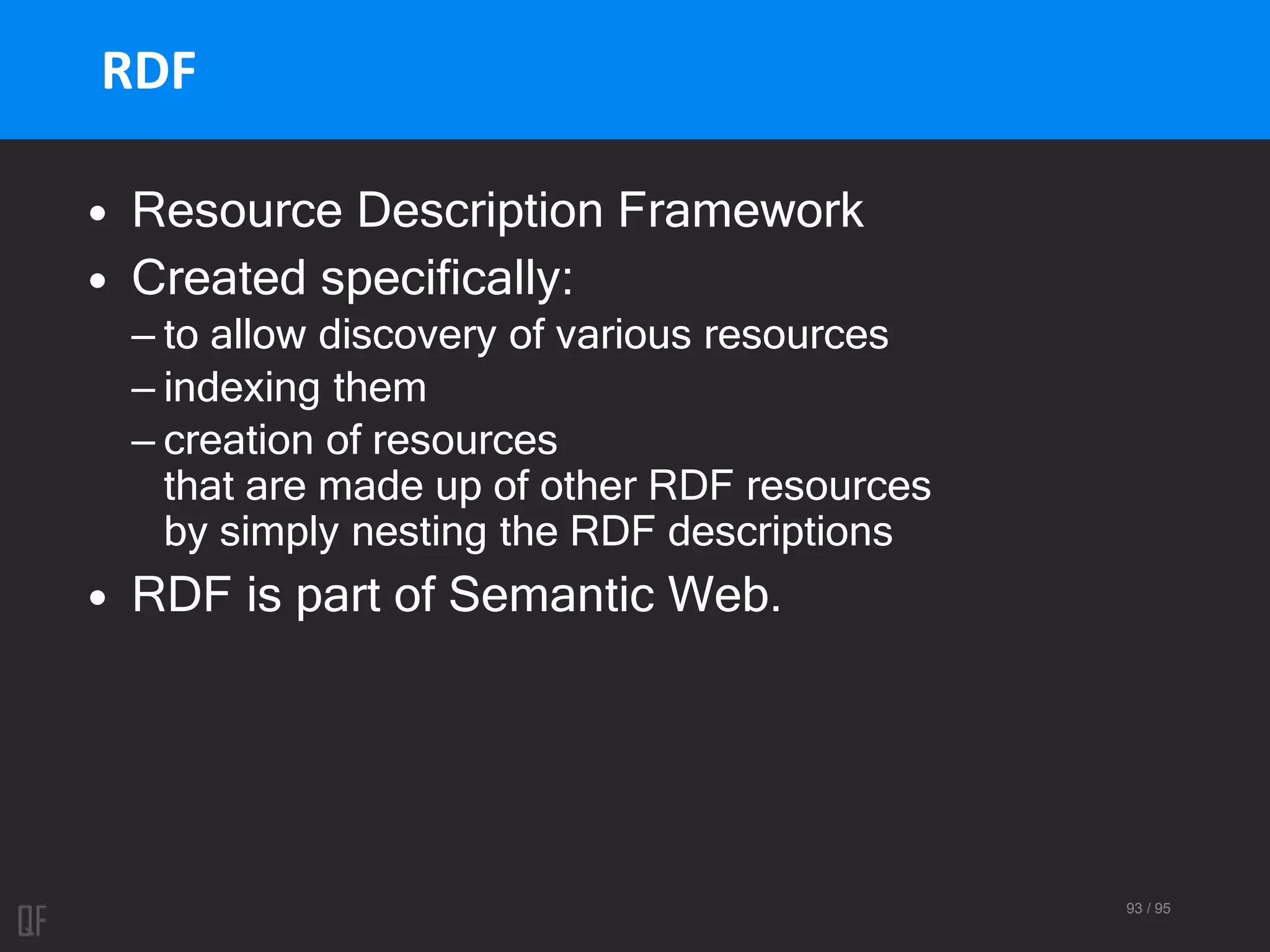

RDF
• Resource Description Framework
• Created specifically:
– to allow discovery of various resources
– indexing them
– creation of resources
that are made up of other RDF resources
by simply nesting the RDF descriptions
• RDF is part of Semantic Web.

94. 94
Thank You
for Your Attention
