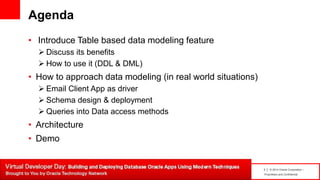

Agenda
• Introduce Table based data modeling feature
 Discuss its benefits
 How to use it (DDL & DML)
• How to approach data modeling (in real world situations)
 Email Client App as driver
 Schema design & deployment
 Queries into Data access methods
• Architecture
• Demo

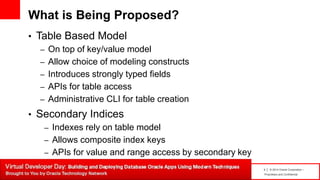

What is Being Proposed?
• Table Based Model
– On top of key/value model
– Allow choice of modeling constructs
– Introduces strongly typed fields
– APIs for table access
– Administrative CLI for table creation
• Secondary Indices
– Indexes rely on table model
– Allows composite index keys
– APIs for value and range access by secondary key

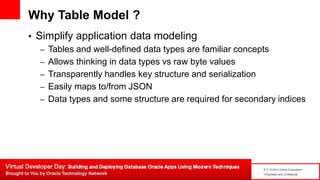

Why Table Model ?
• Simplify application data modeling
– Tables and well-defined data types are familiar concepts
– Allows thinking in data types vs raw byte values
– Transparently handles key structure and serialization
– Easily maps to/from JSON
– Data types and some structure are required for secondary indices

Developing Applications
• Major-Minor ( hash – local )
• Keep small ( memory ), align with queries

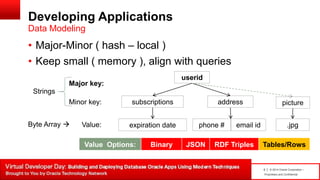

Data Modeling
userid
addresssubscriptions
email idphone #expiration date
Major key:
Minor key:
Value:
Strings
Byte Array 
Value Options: Binary JSON RDF Triples Tables/Rows
.jpg

Example 1 – Key/Value Paradigm
Simple Data Model

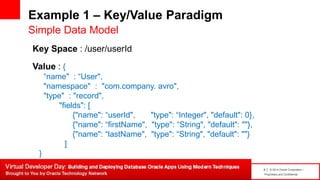

Key Space : /user/userId
Value : {
“name" : “User",
"namespace" : "com.company. avro",
"type" : "record",
"fields": [
{"name": “userId", "type": “Integer", "default": 0},
{"name": “firstName", "type": “String", "default": ""},
{"name": “lastName", "type": “String", "default": ""}
]
}

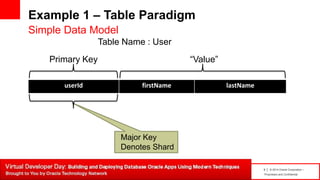

Example 1 – Table Paradigm
userId firstName lastName
Simple Data Model
Table Name : User
Major Key
Denotes Shard
Primary Key “Value”

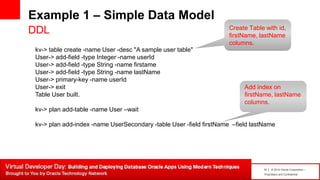

Example 1 – Simple Data Model
DDL
kv-> table create -name User -desc "A sample user table"
User-> add-field -type Integer -name userId
User-> add-field -type String -name firstame
User-> add-field -type String -name lastName
User-> primary-key -name userId
User-> exit
Table User built.
kv-> plan add-table -name User –wait
kv-> plan add-index -name UserSecondary -table User -field firstName –field lastName
Create Table with id,
firstName, lastName
columns.
Add index on
firstName, lastName
columns.

How to Describe It ?
DDL

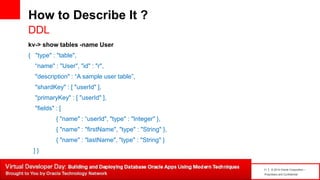

kv-> show tables -name User
{ "type" : "table",
“name" : "User", "id" : "r",
"description" : “A sample user table”,
"shardKey" : [ "userId" ],
"primaryKey" : [ "userId" ],
"fields" : [
{ "name" : “userId", "type" : "Integer" },
{ "name" : "firstName", "type" : "String" },
{ "name" : "lastName", "type" : "String" }
] }

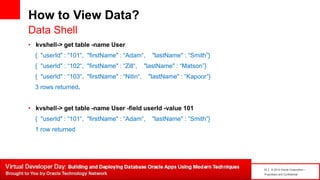

How to View Data?
• kvshell-> get table -name User
{ "userId" : “101“, "firstName" : “Adam“, "lastName" : “Smith”}
{ "userId" : “102“, "firstName" : “Zill“, "lastName" : “Matson”}
{ "userId" : “103“, "firstName" : “Nitin“, "lastName" : “Kapoor”}
3 rows returned.
• kvshell-> get table -name User -field userId -value 101
{ "userId" : “101“, "firstName" : “Adam“, "lastName" : “Smith”}
1 row returned
Data Shell

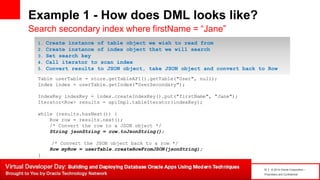

Example 1 - How does DML looks like?
Search secondary index where firstName = “Jane”
Table userTable = store.getTableAPI().getTable("User", null);
Index index = userTable.getIndex("UserSecondary");
IndexKey indexKey = index.createIndexKey().put("firstName", "Jane");
Iterator<Row> results = apiImpl.tableIterator(indexKey);
while (results.hasNext()) {
Row row = results.next();
/* Convert the row to a JSON object */
String jsonString = row.toJsonString();
/* Convert the JSON object back to a row */
Row myRow = userTable.createRowFromJSON(jsonString);
}
1. Create instance of table object we wish to read from
2. Create instance of index object that we will search
3. Set search key
4. Call iterator to scan index
5. Convert results to JSON object, take JSON object and convert back to Row

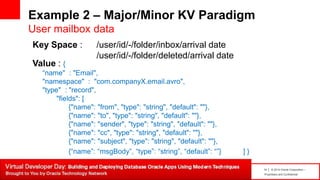

Example 2 – Major/Minor KV Paradigm
User mailbox data
Key Space : /user/id/-/folder/inbox/arrival date
/user/id/-/folder/deleted/arrival date
Value : {
“name" : "Email",
"namespace" : "com.companyX.email.avro",
"type" : "record",
"fields": [
{"name": "from", "type": "string", "default": ""},
{"name": "to", "type": "string", "default": ""},
{"name": "sender", "type": "string", "default": ""},
{"name": "cc", "type": "string", "default": ""},
{"name": "subject", "type": "string", "default": ""},
{“name”: “msgBody”, “type”: “string”, “default”: “”} ] }

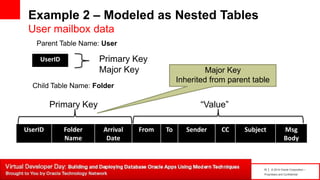

Example 2 – Modeled as Nested Tables
User mailbox data
UserID Folder
Name
Arrival
Date
From To Sender CC Subject Msg
Body
Parent Table Name: User
Major Key
Inherited from parent table
Primary Key “Value”
UserID Primary Key
Major Key
Child Table Name: Folder

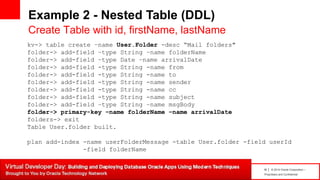

Example 2 - Nested Table (DDL)
Create Table with id, firstName, lastName
kv-> table create –name User.Folder -desc “Mail folders"
folder-> add-field –type String –name folderName
folder-> add-field –type Date –name arrivalDate
folder-> add-field -type String -name from
folder-> add-field -type String -name to
folder-> add-field -type String -name sender
folder-> add-field -type String -name cc
folder-> add-field -type String -name subject
folder-> add-field –type String –name msgBody
folder-> primary-key –name folderName –name arrivalDate
folders-> exit
Table User.folder built.
plan add-index -name userFolderMessage -table User.folder -field userId
-field folderName

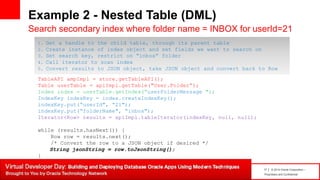

Example 2 - Nested Table (DML)
Search secondary index where folder name = INBOX for userId=21
TableAPI ampImpl = store.getTableAPI();
Table userTable = apiImpl.getTable("User.Folder“);
Index index = userTable.getIndex(“userFolderMessage ");
IndexKey indexKey = index.createIndexKey();
indexKey.put(“userId", “21");
indexKey.put(“folderName", “inbox");
Iterator<Row> results = apiImpl.tableIterator(indexKey, null, null);
while (results.hasNext()) {
Row row = results.next();
/* Convert the row to a JSON object if desired */
String jsonString = row.toJsonString();
}
1. Get a handle to the child table, through its parent table
2. Create instance of index object and set fields we want to search on
3. Set search key, restrict on “inbox” folder
4. Call iterator to scan index
5. Convert results to JSON object, take JSON object and convert back to Row

How to Approach Data Modeling
• Process is not much different from RDBMS
– Business requirements
– Entities & Relationships
– Query access patterns (CRUD, range, ACID)
Email Sample App.
Sender Email Recipients
SENT INBOX
send receive

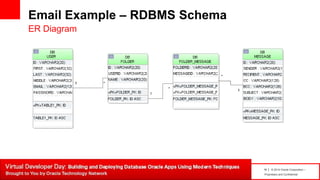

Email Example – RDBMS Schema
ER Diagram

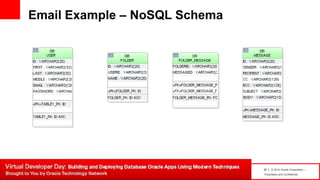

Email Example – NoSQL Schema

Architecture
Scalable, Available
NoSQLDBDriver
Application
Shard 2
Shard N
Shard 1
NoSQLDBDriver
Application
LoadBalancer
App. Tier Storage TierEmail Client

Data Access Layer
• UserDAO
 User Creation - addUser(userTO)
 User Login - getUser(email, password)
• FolderDAO
 Add default folders - addDefaultFolder(userId)
• MessageDAO
 Add email message – addMessage(messageTO)
• UserFolderMessageDAO
 Add messages to designated folders – addMessage(userId, folderId, messageId)
Email Client
