1. API Trends & Use Cases
Know-how Sharing Session
Wout Geldhof – Axway
Emmanuel Dupouy - SmartWave
1st of February 2018

2. |
Your speakers
Wout Geldhof
Axway
Digital Account Executive
Emmanuel Dupouy
SmartWave
Sales Director
February 2018API Workshop & Tech Lab 5

3. |
API
February 2018API Workshop & Tech Lab 6

4. |
Application Program Interface
February 2018API Workshop & Tech Lab 7

5. |
Accelerated Product Innovation
February 2018API Workshop & Tech Lab 8

6. |

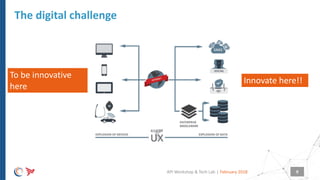

The digital challenge
API Workshop & Tech Lab
To be innovative
here
Innovate here!!
February 2018 9

7. |
From browser to ubiquity
February 2018API Workshop & Tech Lab 10
Smartphone
Tablet
Web Application
Internet TV
Social Media
Strategic
Partner
Integration
Connected
car
Innovation
Connected
house
API
API
API
API

8. |

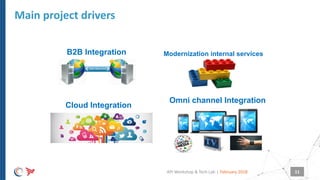

Main project drivers
February 2018API Workshop & Tech Lab
Cloud Integration
B2B Integration Modernization internal services
Omni channel Integration
11

9. |

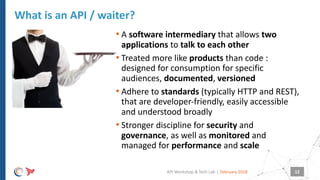

• A software intermediary that allows two
applications to talk to each other
• Treated more like products than code :
designed for consumption for specific
audiences, documented, versioned
• Adhere to standards (typically HTTP and REST),
that are developer-friendly, easily accessible
and understood broadly
• Stronger discipline for security and
governance, as well as monitored and
managed for performance and scale
What is an API / waiter?
February 2018API Workshop & Tech Lab 12

10. |

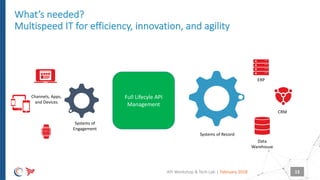

Systems of Record
Systems of
Engagement
CRM
ERP
Data
Warehouse
Channels, Apps,
and Devices
What’s needed?
Multispeed IT for efficiency, innovation, and agility
Full Lifecyle API
Management
February 2018API Workshop & Tech Lab 13

11. |

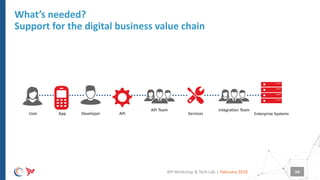

What’s needed?
Support for the digital business value chain
Enterprise Systems
Integration Team
Services
API Team
DeveloperApp APIUser
February 2018API Workshop & Tech Lab 14

12. |
Typical integration topology
February 2018API Workshop & Tech Lab 15

13. |
API exposition
Typical use cases
February 2018API Workshop & Tech Lab 16

14. |
Gateway
February 2018API Workshop & Tech Lab
• Link external apps to internal apps, with security, using SOA and APIs
Solution
Challenges
Identity Management
Authentication
Authorization
Audit
API Gateway
Services
Applications
Data
Backend Services
Messaging
Partners
17

15. |

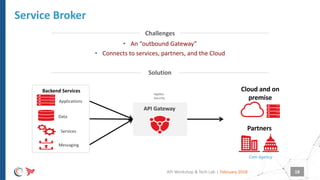

Service Broker
February 2018API Workshop & Tech Lab
• An “outbound Gateway”
• Connects to services, partners, and the Cloud
Solution
Challenges
Applies
Security
Services
Applications
Data
Backend Services
Messaging
API Gateway
Cloud and on
premise
Partners
Com Agency
18

16. |

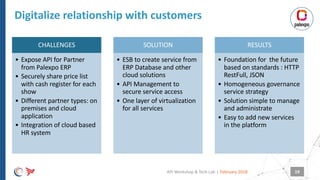

CHALLENGES
• Expose API for Partner
from Palexpo ERP
• Securely share price list
with cash register for each
show
• Different partner types: on
premises and cloud
application
• Integration of cloud based
HR system
SOLUTION
• ESB to create service from
ERP Database and other
cloud solutions
• API Management to
secure service access
• One layer of virtualization
for all services
RESULTS
• Foundation for the future
based on standards : HTTP
RestFull, JSON
• Homogeneous governance
service strategy
• Solution simple to manage
and administrate
• Easy to add new services
in the platform
Digitalize relationship with customers
February 2018API Workshop & Tech Lab 19

17. |

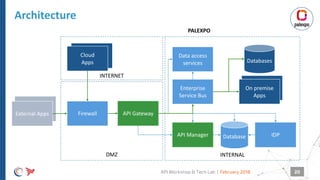

On premise
Apps
External Apps
App A
Architecture
February 2018API Workshop & Tech Lab 20
API Gateway
Databases
Enterprise
Service Bus
Cloud
Apps
External Apps
DMZ INTERNAL
On premise
Apps
PALEXPO
Internet
Data access
services
API Manager IDP
Firewall
Database
INTERNET

18. |
Governance
Typical use cases
February 2018API Workshop & Tech Lab 21

19. |
Solution
Challenge
API Governance
February 2018API Workshop & Tech Lab
• Expose existing applications as APIs, securely.
• Onboard developers who want to use your APIs
API Gateway
Retailers
Communication employeesProducts designers
22

20. |
Challenges
• Auditory requirement
• Insecure API exposure with
sensitive data
• Knowing who’s accessing
API data
• Knowing available API :
target 100+
Solution
• API Gateway to secure
access to API in a single of
enforcement and
homogeneous security
policies
• Developer portal to mange
the usage of development
using API : oauth (client ID
and secret per application)
• Control API usage with
monitoring solution
• API Catalog to list and
document available API and
manage life cycle
Benefit
• Improved security
• Better API governance with
clearly defined roles and
responsibilities : Architect,
API developer, API Manager,
Application developer
• Clear SLA
• Improved resources
allocation based on usage
• Easier API end of life
Swiss administration
February 2018API Workshop & Tech Lab 23

21. |
Token Mediation
Typical use cases
February 2018API Workshop & Tech Lab 24

22. |

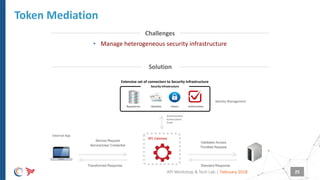

Token Mediation
February 2018API Workshop & Tech Lab 25
Identities TokensRepositories Authorization
Security Infrastructure
Extensive set of connectors to Security Infrastructure
Service Request
Service/User Credential
Validated Access
Throttled Request
External App
Identity Management
Authentication
Authorization
Audit
Transformed Response Standard Response
API Gateway
• Manage heterogeneous security infrastructure
Solution
Challenges

23. |

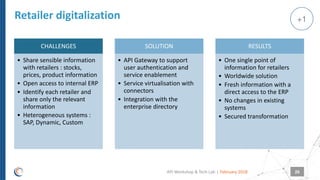

Retailer digitalization
February 2018API Workshop & Tech Lab
CHALLENGES
• Share sensible information
with retailers : stocks,
prices, product information
• Open access to internal ERP
• Identify each retailer and
share only the relevant
information
• Heterogeneous systems :
SAP, Dynamic, Custom
SOLUTION
• API Gateway to support
user authentication and
service enablement
• Service virtualisation with
connectors
• Integration with the
enterprise directory
RESULTS
• One single point of
information for retailers
• Worldwide solution
• Fresh information with a
direct access to the ERP
• No changes in existing
systems
• Secured transformation
26
+1

24. |
Architecture
February 2018API Workshop & Tech Lab 27
Active
Directory
Retailer Portal
Single Page
Application
USER BROWSER PRIVATE CLOUD
Retailer Portal
SAML IDP
API Manager Backend
Reverse proxy
+1
Internet
Load Application
Invoke Service
Navigate
Authenticate
HTTPS
SPSAML
Single Page
Application
JWTToken
SessionCookie

25. |

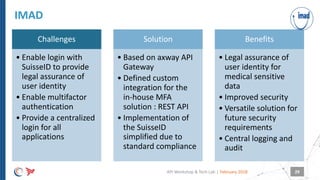

Challenges
• Enable login with
SuisseID to provide
legal assurance of
user identity
• Enable multifactor
authentication
• Provide a centralized
login for all
applications
Solution
• Based on axway API
Gateway
• Defined custom
integration for the
in-house MFA
solution : REST API
• Implementation of
the SuisseID
simplified due to
standard compliance
Benefits
• Legal assurance of
user identity for
medical sensitive
data
• Improved security
• Versatile solution for
future security
requirements
• Central logging and
audit
IMAD
February 2018API Workshop & Tech Lab 29

26. |

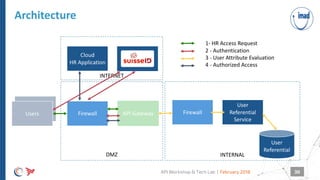

User
Referential
Service
External Apps
SuisseID IDP
Architecture
February 2018API Workshop & Tech Lab 30
API Gateway
User
Referential
Cloud
HR Application
Users
DMZ INTERNAL
Internet
Firewall
INTERNET
Firewall
1- HR Access Request
2 - Authentication
3 - User Attribute Evaluation
4 - Authorized Access

27. |
Light integration
Typical use cases
February 2018API Workshop & Tech Lab 31

28. |
API Modernization / Integration
February 2018API Workshop & Tech Lab 32
Solution
Challenges
• Integrate with heterogeneous back end platforms
• Protocol and message mediation
• Service Modernization
Services
Applications
Data
Backend Services
Messaging
Services
Applications
Data
Backend Services
Messaging
HTTP
REST/SOAP
JSON/XML
FTP
JMS JMS
HTTP
REST/SOAP
JSON/XML
FTP
API Gateway
For Backend Service

29. |
Challenges
• Aging product
• Expensive licenses
• Difficult to reuse fragments
of solution
• 400 services to migrate:
80% of services are simple
data transfers
• Requires another product
for API management
Solution
• Migrate ESB services to API
Gateway
• Both systems are active
during the transition phase
to ease the migration
• Phased migration: services
are migrated and
decommissioned by lot
• 80% of services easily
migrated with a custom
migration tool
• 20% of services needs to be
re-developed in API
Gateway
Benefits
• Agile solution: focus on
configuration instead of
coding
• Cheaper TCO
• Controlled migration:
limited impact on clients as
service contracts are
retained
• Up-to-date market
standards: Integration in
the DevOps factory with
Docker container,
automated testing suite &
log mining solution
From ESB Migration to API Gateway
February 2018API Workshop & Tech Lab 33
+1

30. |

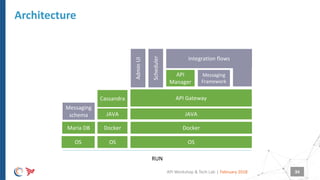

Architecture
February 2018API Workshop & Tech Lab 34
API Gateway
Scheduler
Integration flows
OS
JAVA
Maria DB
Messaging
schema
OS
RUN
Messaging
Framework
API
Manager
OS
Cassandra
JAVA
AdminUI
DockerDocker

31. |
Other challenges
February 2018API Workshop & Tech Lab 35

32. |

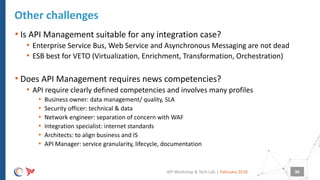

• Is API Management suitable for any integration case?
• Enterprise Service Bus, Web Service and Asynchronous Messaging are not dead
• ESB best for VETO (Virtualization, Enrichment, Transformation, Orchestration)
• Does API Management requires news competencies?
• API require clearly defined competencies and involves many profiles
• Business owner: data management/ quality, SLA
• Security officer: technical & data
• Network engineer: separation of concern with WAF
• Integration specialist: internet standards
• Architects: to align business and IS
• API Manager: service granularity, lifecycle, documentation
Other challenges
February 2018API Workshop & Tech Lab 36

33. |
Questions ?
February 2018API Workshop & Tech Lab 37
