This document discusses Microsoft's vision for integration across on-premises and cloud environments. It describes how a real estate company called Akelius uses APIs, Logic Apps, and other Azure services to integrate their various on-premises systems more flexibly and securely. By extracting data through system, process, and experience APIs and storing it in a staging database, Akelius is able to expose entities as APIs and build applications accessing integrated data from multiple devices and locations. This new approach improves requirements around reusability, access, uptime, standardization, data quality, and a microservices architecture.

1. Welcome to
iBiz Solutions and Microsoft’s
webinar on future integration

3. Systems of record
(legacy, operational)
Customer
Enterprise resource
planning
Finance
Customer relationship
management

4. Machine learningInternet of things
Digital customer
experiences
and apps
Web
services
Componentized
software
leveraging cloud
Enterprise resource
planning
Finance
Customer relationship
management

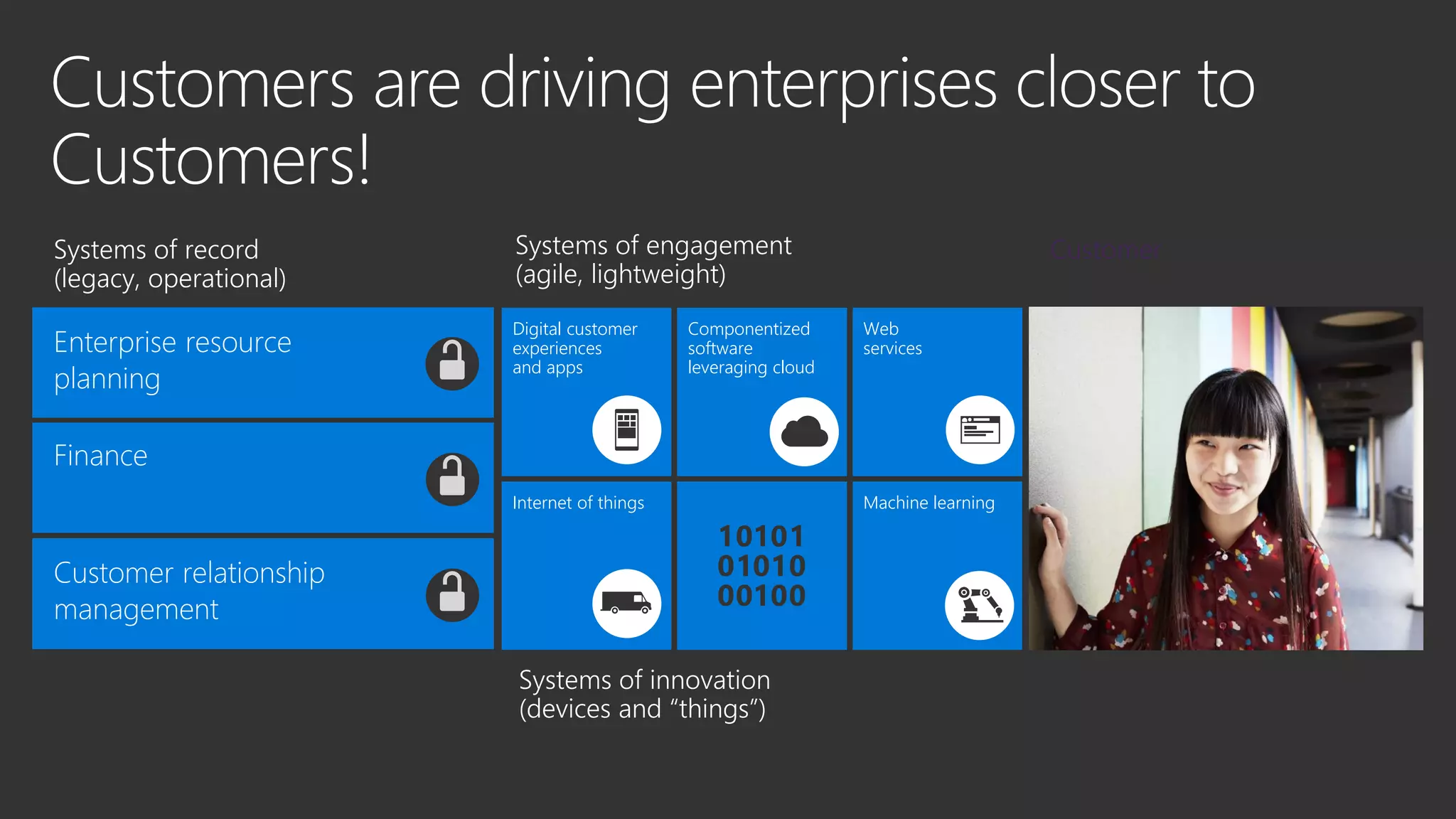

Systems of innovation
(devices and “things”)
Systems of record
(legacy, operational)
CustomerSystems of engagement
(agile, lightweight)

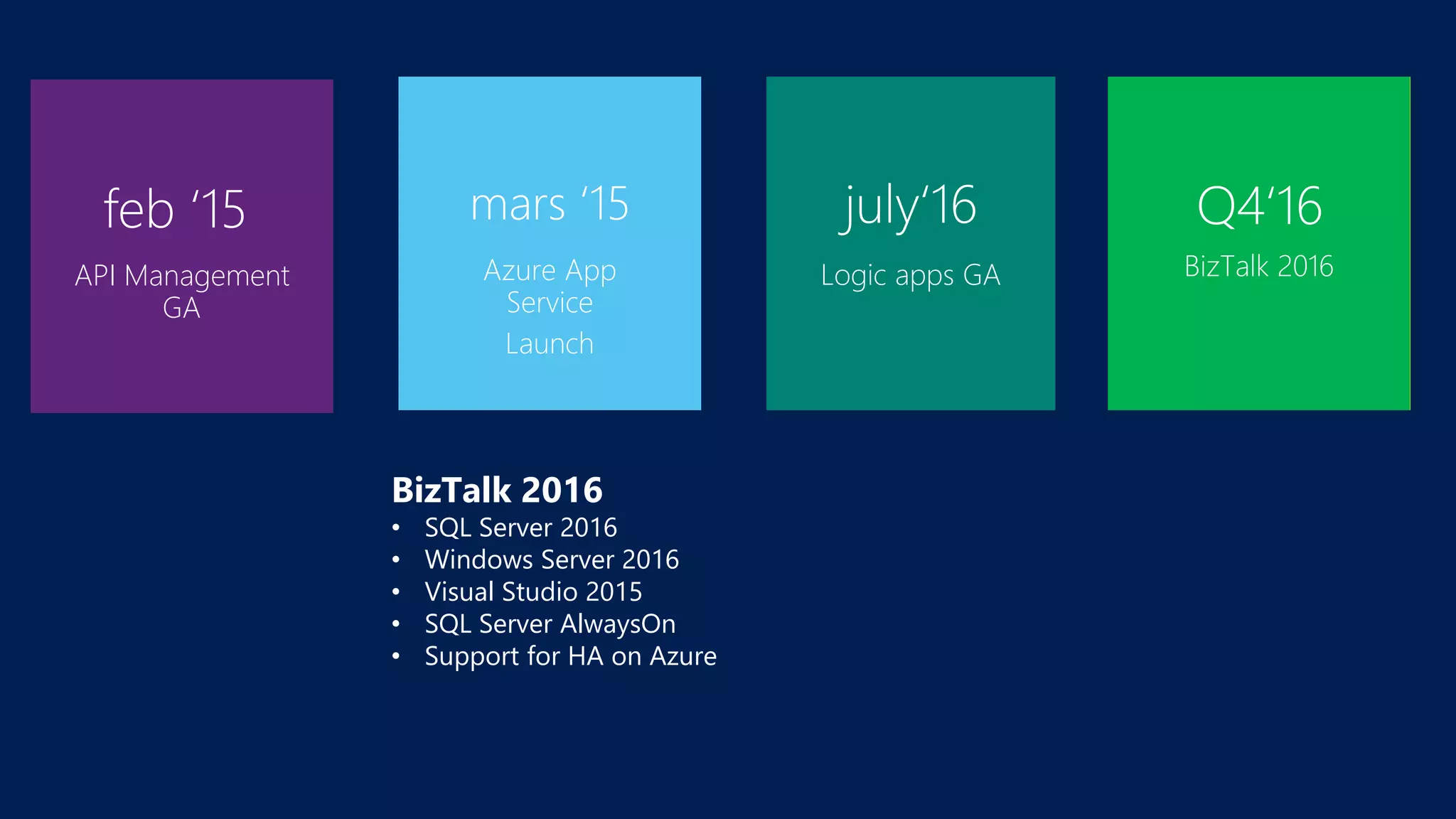

7. mars ‘15
Azure App
Service
Launch
feb ‘15
API Management
GA
july‘16
Logic apps GA
Q4‘16
BizTalk 2016
BizTalk 2016
• SQL Server 2016
• Windows Server 2016
• Visual Studio 2015
• SQL Server AlwaysOn
• Support for HA on Azure

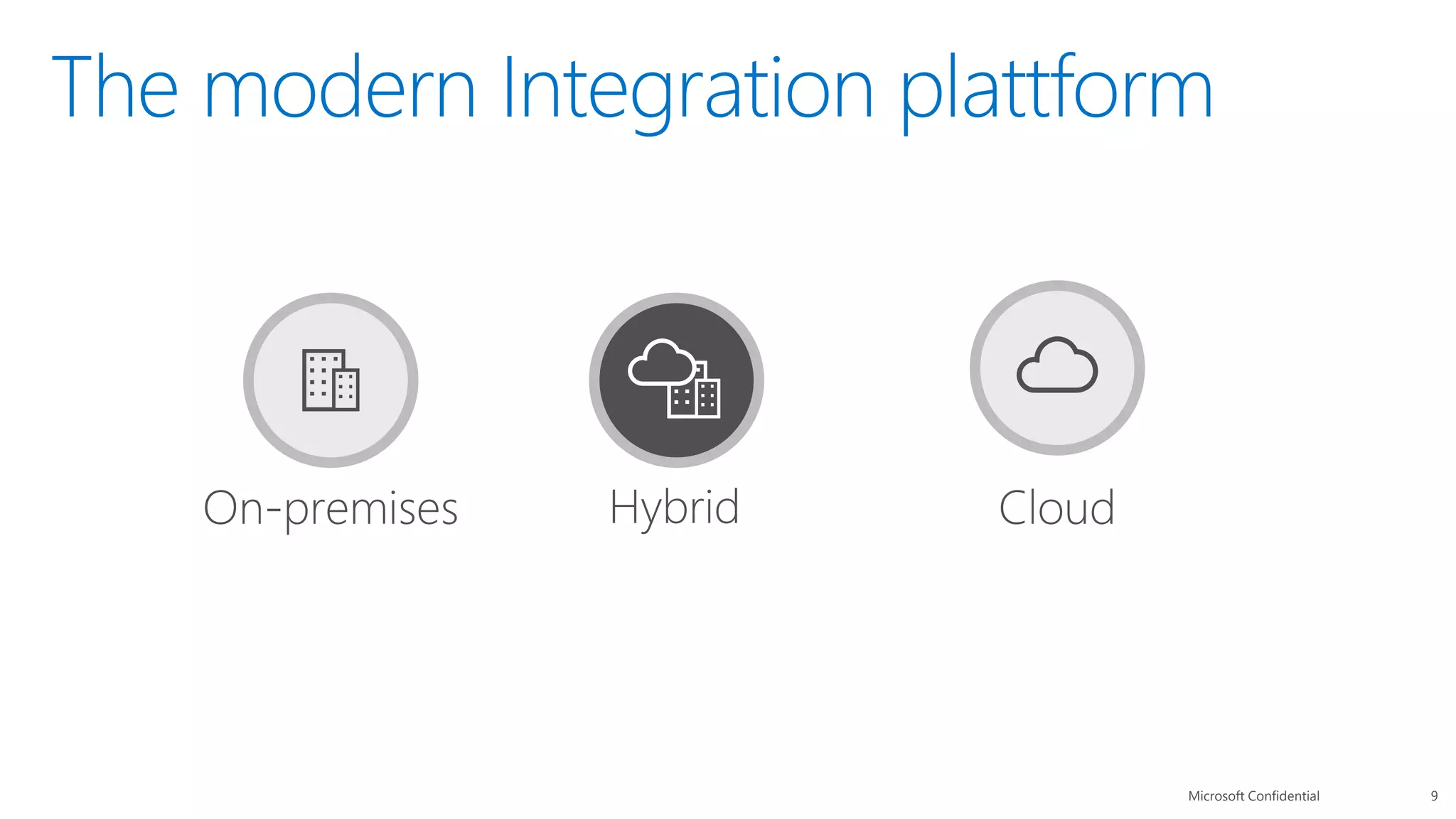

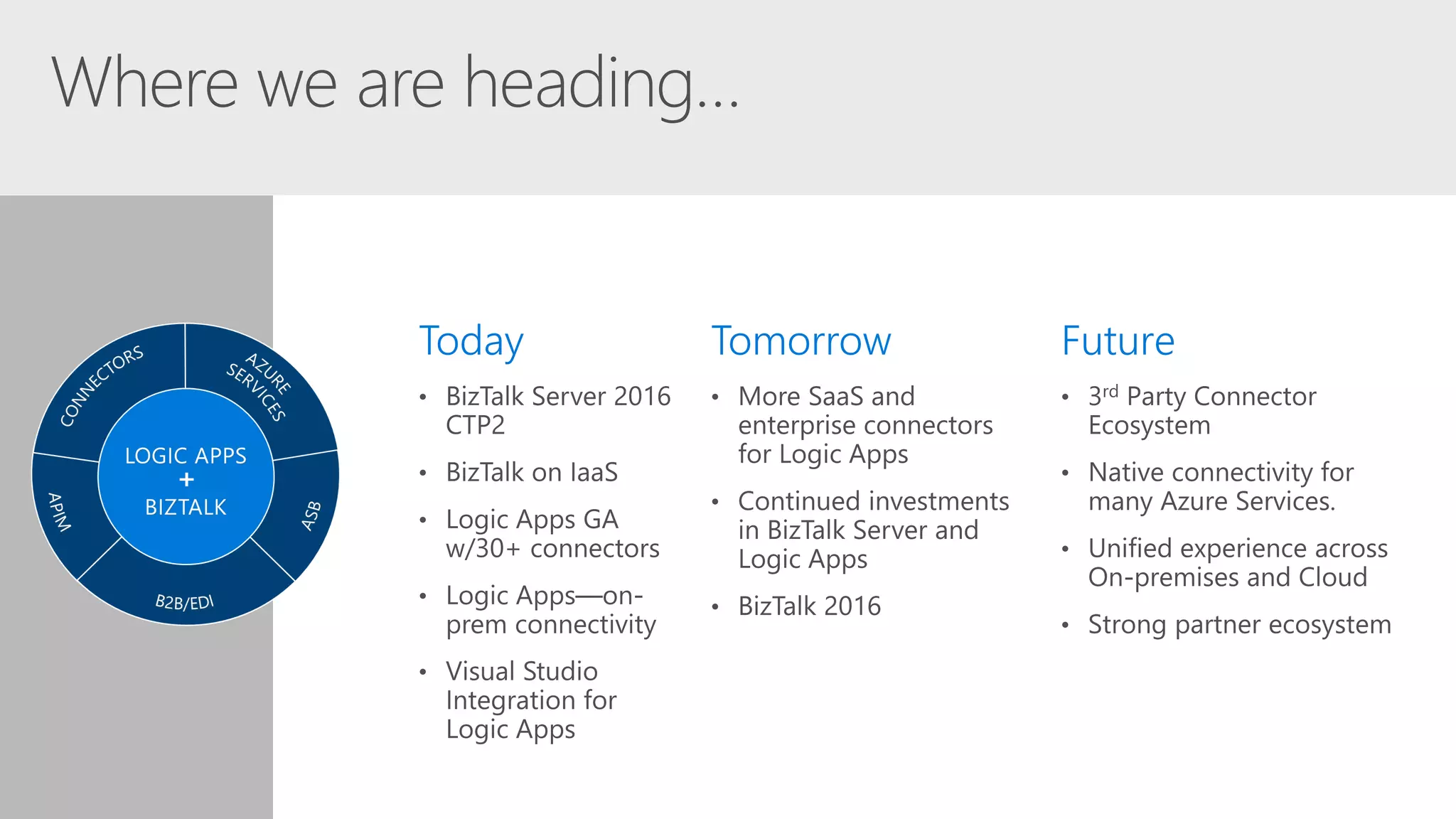

9. The modern Integration plattform
Microsoft Confidential 9

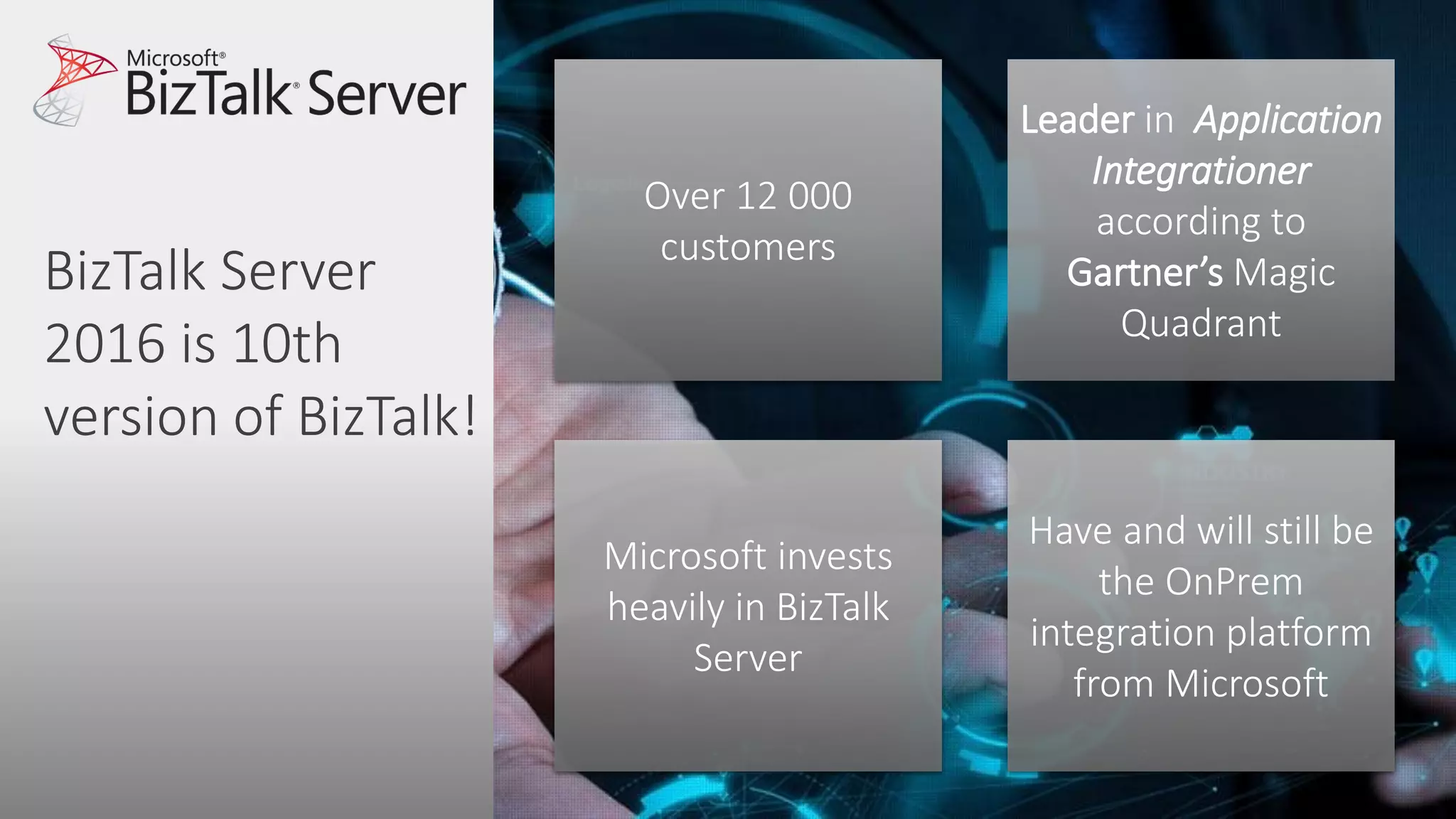

11. Leader in Application
Integrationer
according to
Gartner’s Magic
Quadrant
Over 12 000
customers
Microsoft invests
heavily in BizTalk
Server
Have and will still be
the OnPrem
integration platform
from Microsoft
BizTalk Server
2016 is 10th
version of BizTalk!

12. Alignment
Customer driven
improvments
Always On
Cloud connectivity

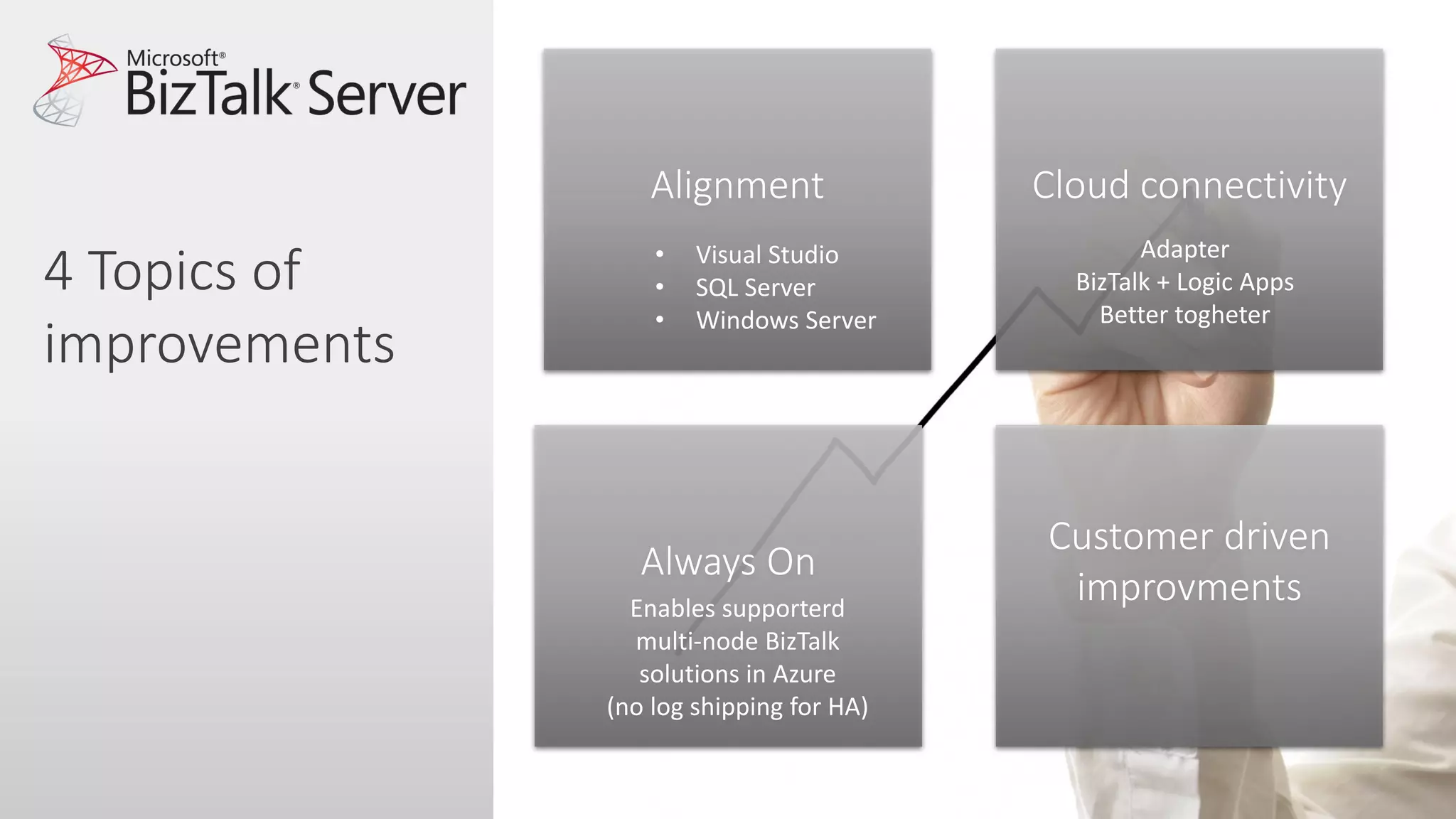

4 Topics of
improvements
• Visual Studio
• SQL Server
• Windows Server
Adapter
BizTalk + Logic Apps
Better togheter
Enables supporterd
multi-node BizTalk
solutions in Azure
(no log shipping for HA)

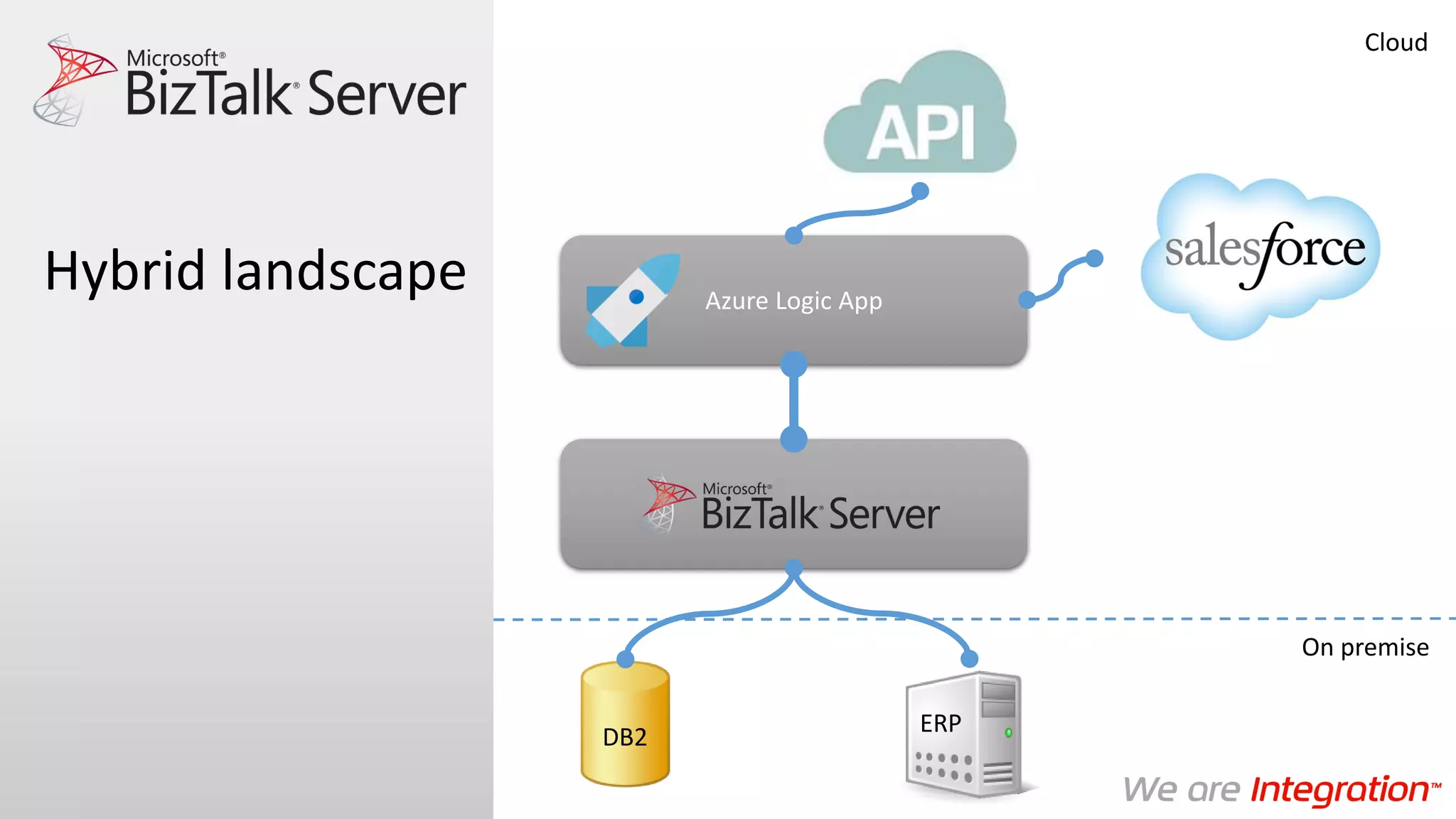

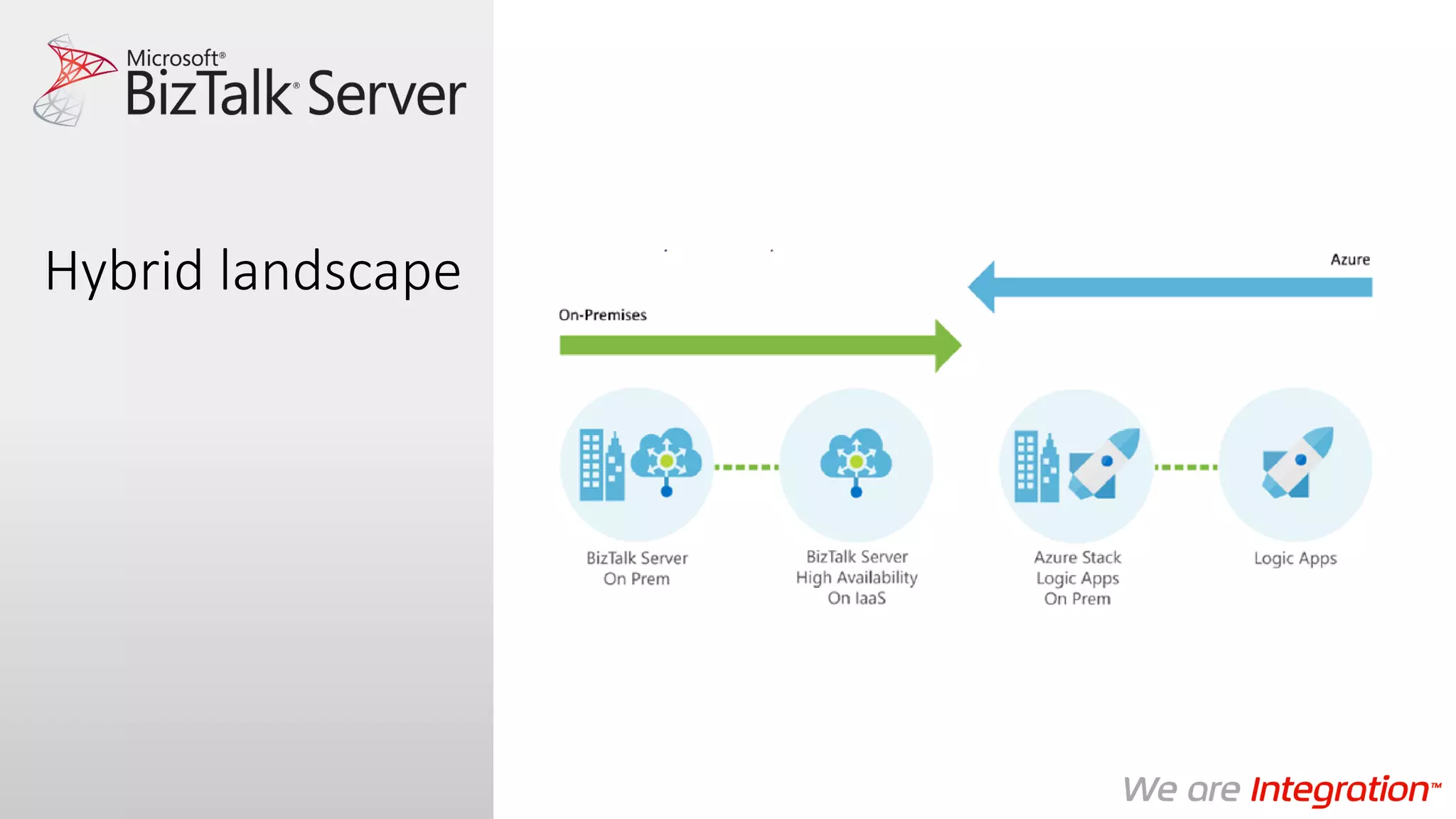

13. Hybrid landscape

14. Azure Logic App
Hybrid landscape
On premise
Cloud
DB2
ERP

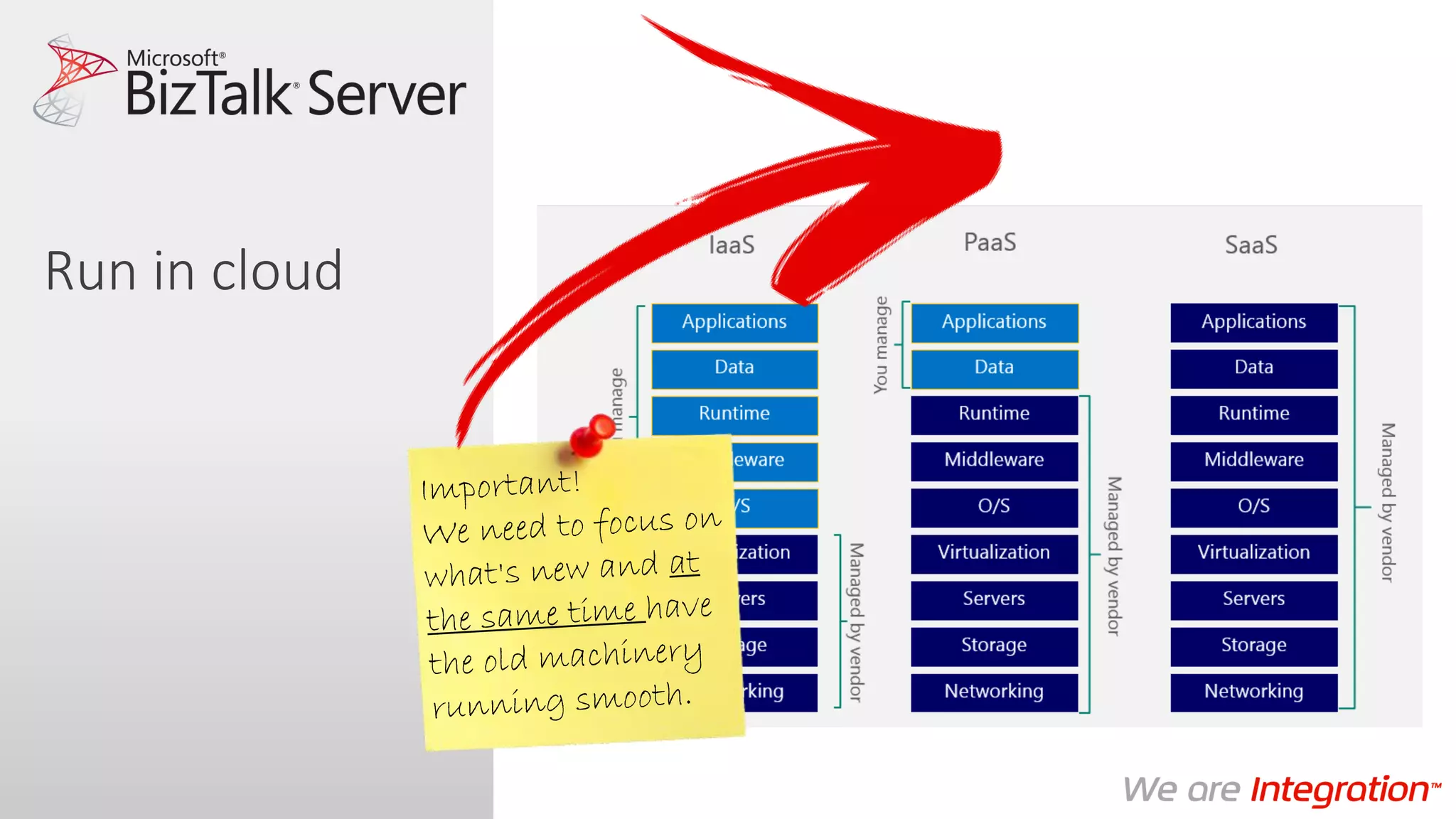

15. Run in cloud

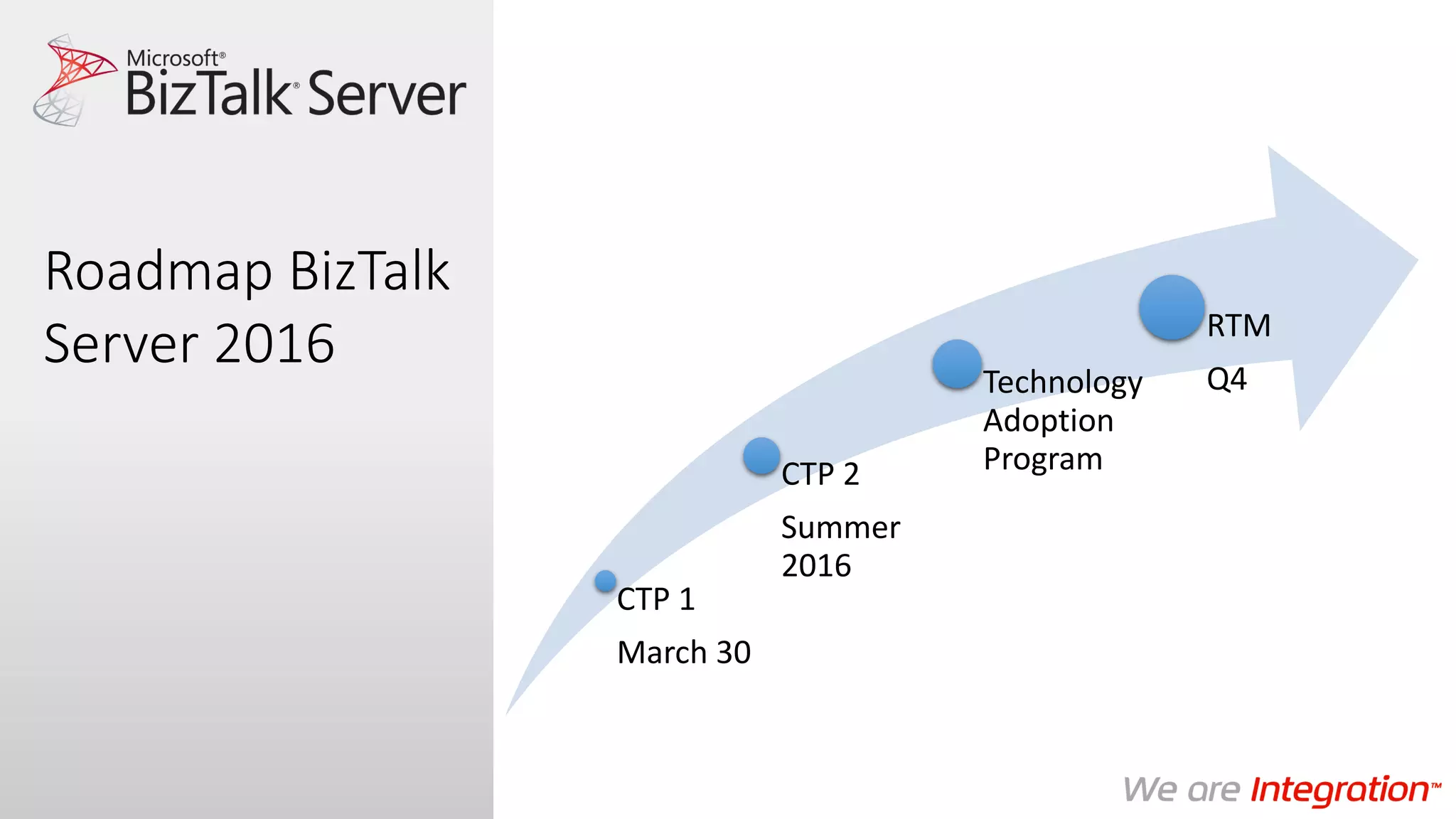

16. CTP 1
March 30
CTP 2
Summer
2016
Technology
Adoption
Program
RTM
Q4
Roadmap BizTalk
Server 2016

17. ETL
EAI
FTP
SFTP
DB2
Sql Server
MQ Service
Batch
EDI
Flat files
Rest
SOAP
Json
Real time
API
ERPFile share

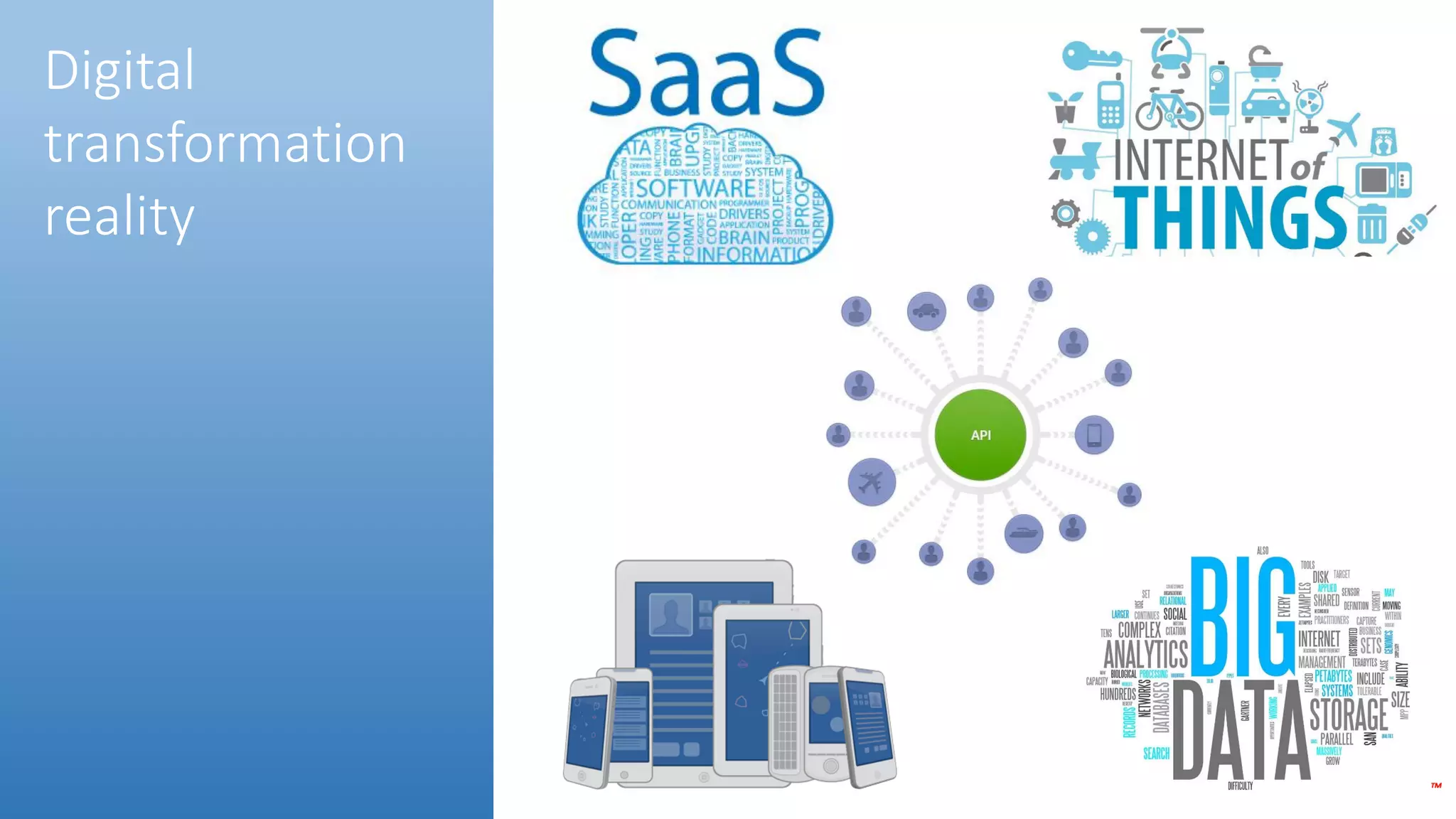

18. Digital
transformation
reality

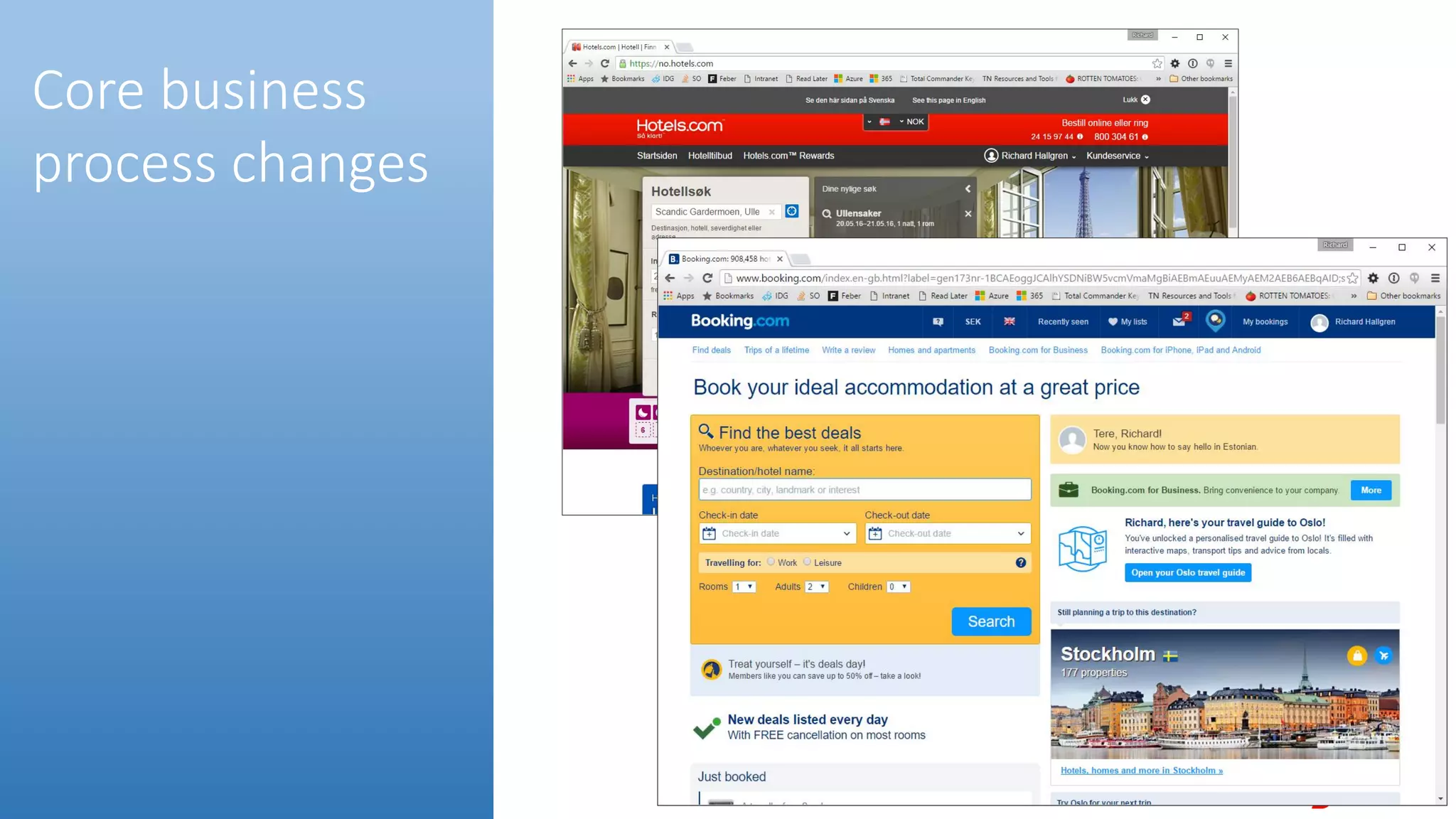

19. Core business
process changes

20. Digital transformation is more
than ever about organise your
organization for
constant change.

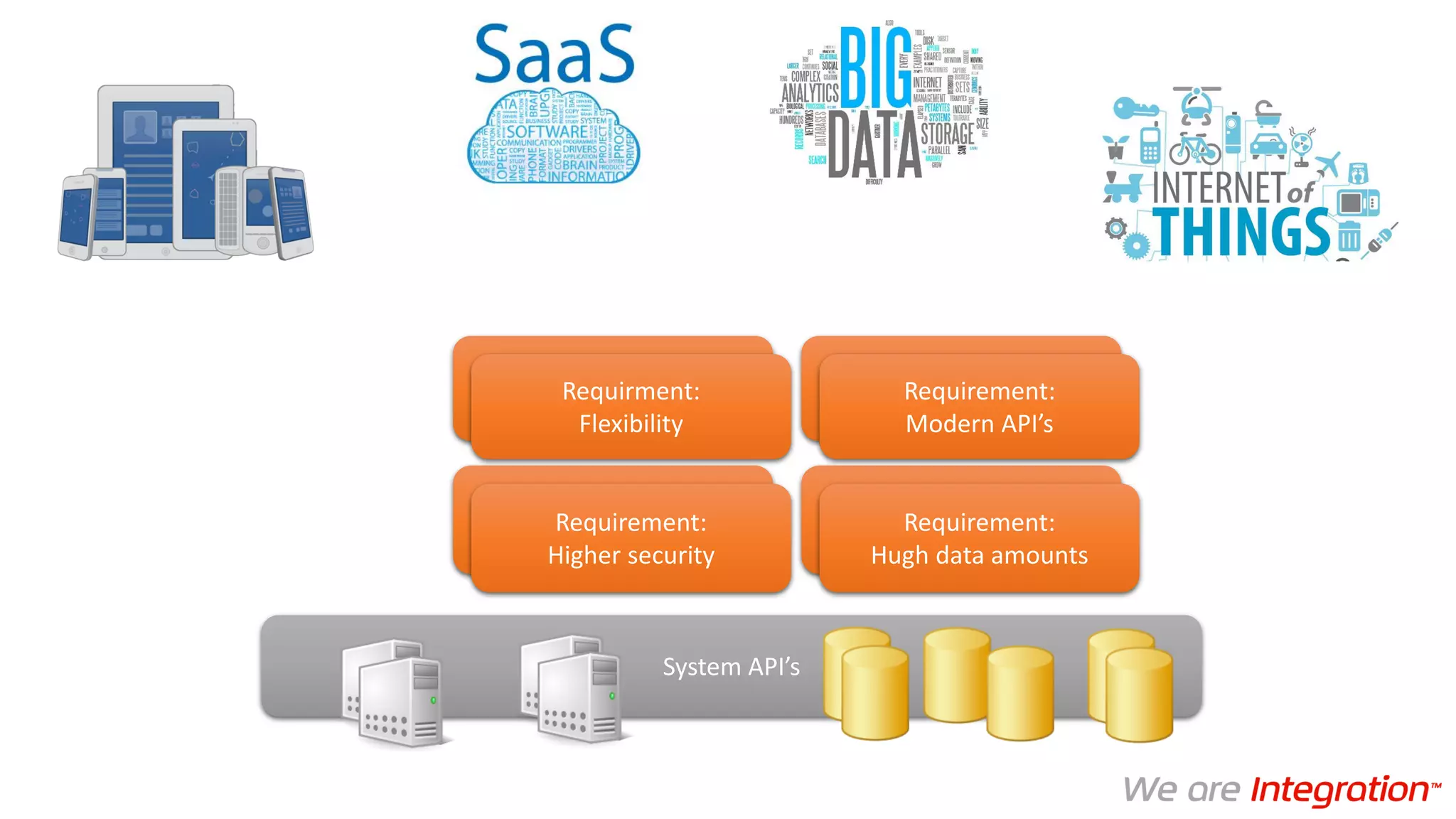

22. Krav: Nya säkerhets krav
Krav: Flexibilitet
Krav: Stora mängder data
Krav: Moderna API:erRequirment:
Flexibility
Requirement:
Modern API’s
Requirement:
Higher security
Requirement:
Hugh data amounts
System API’s

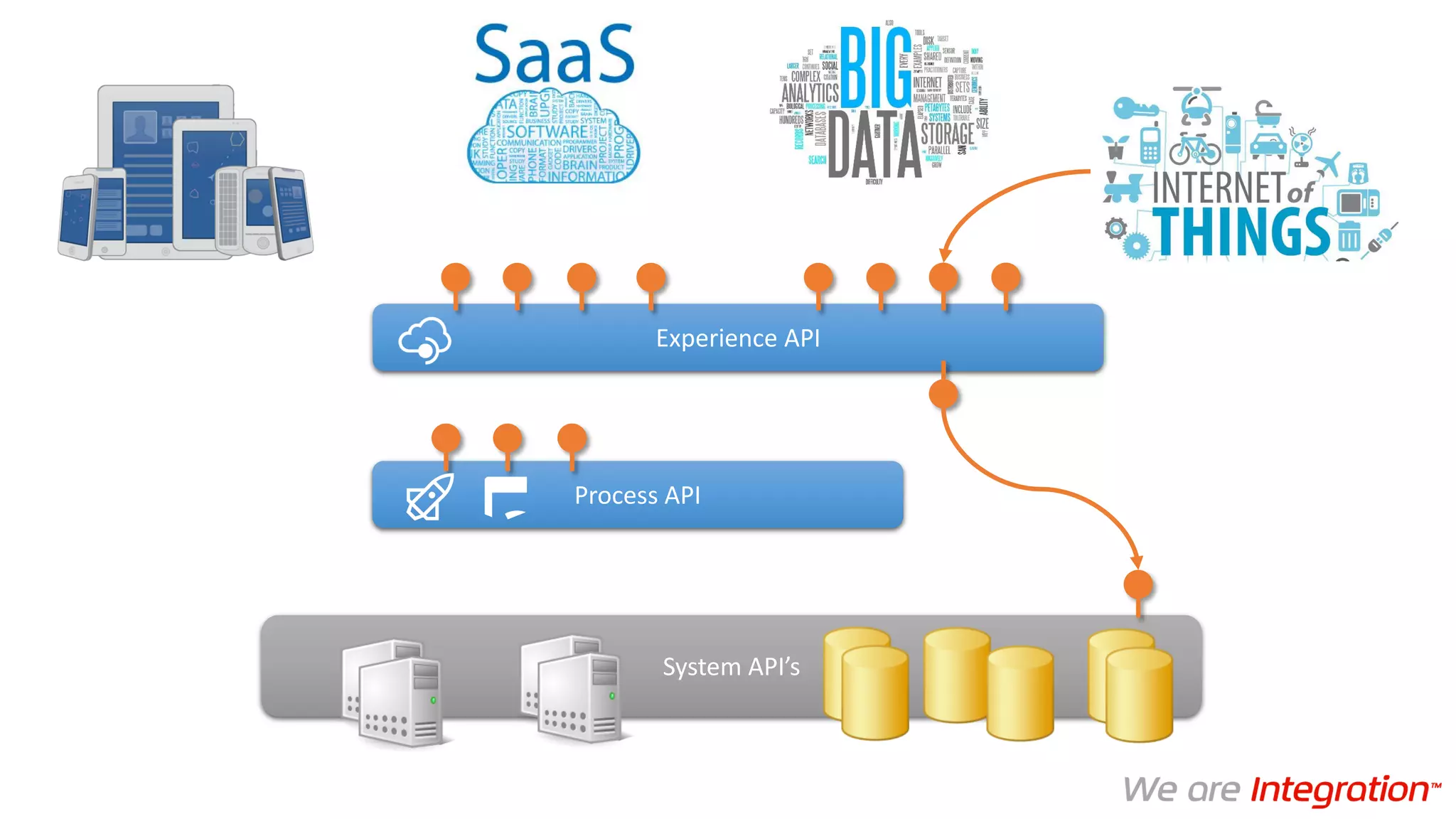

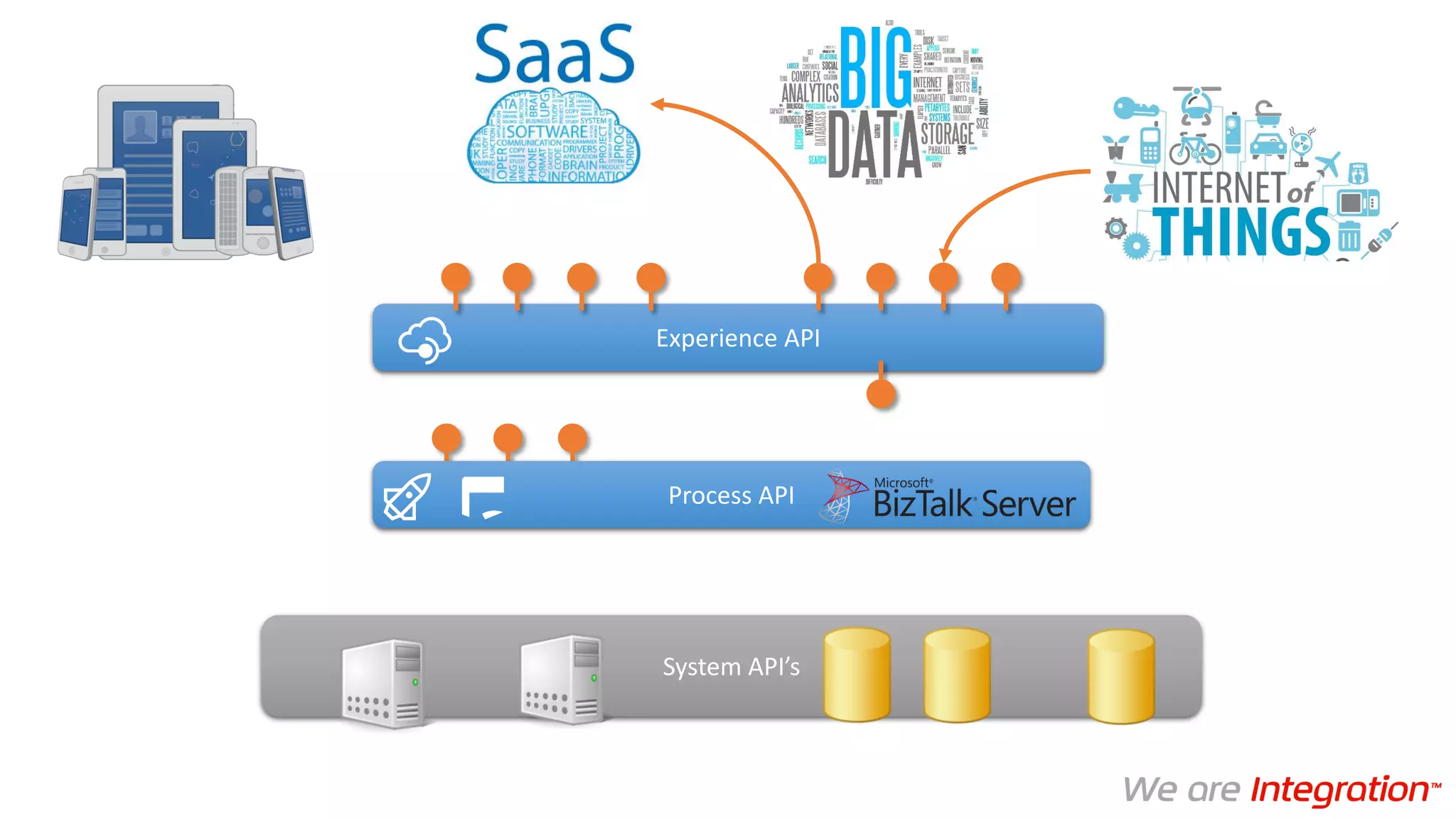

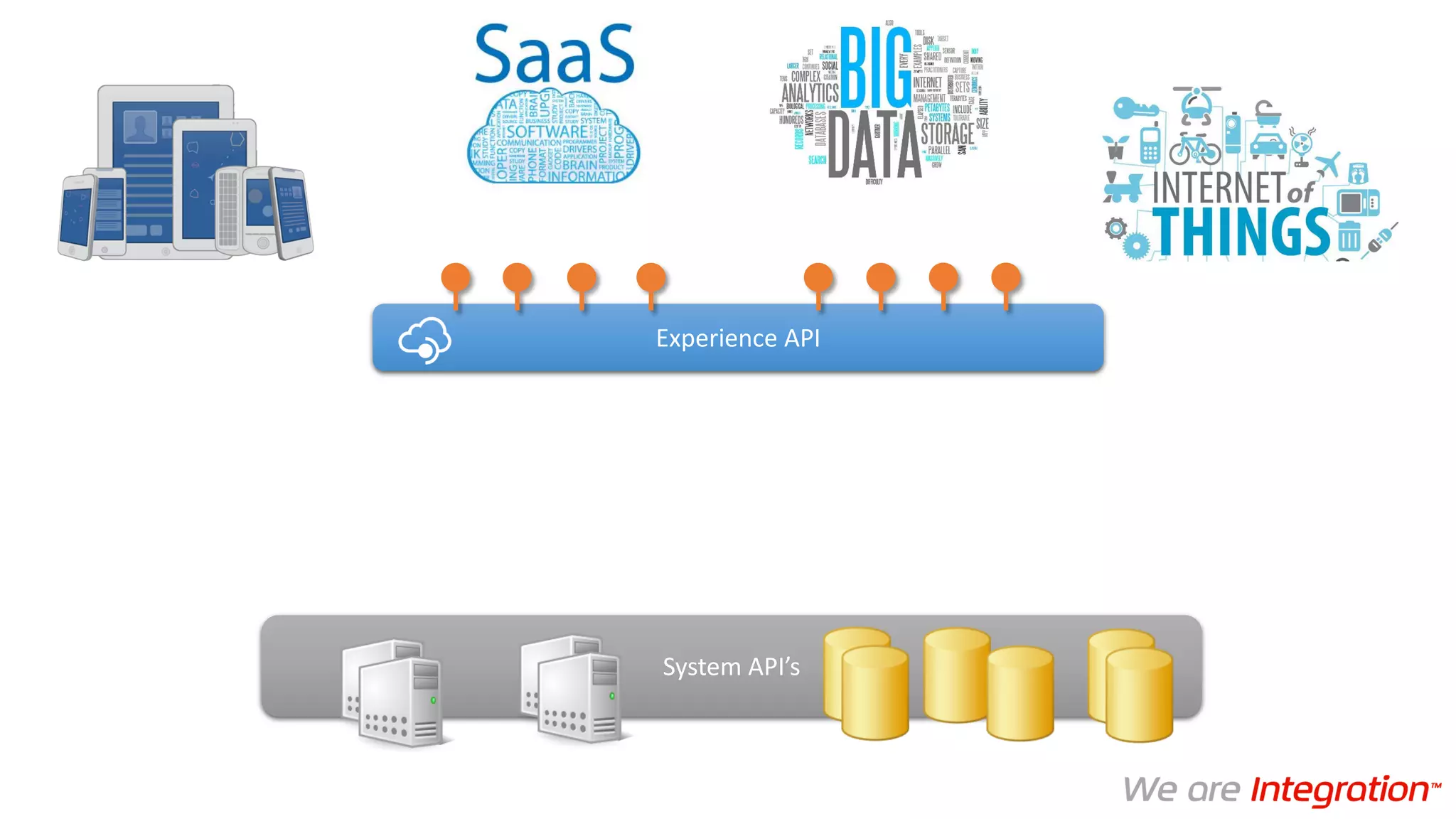

23. Experience API
System API’s

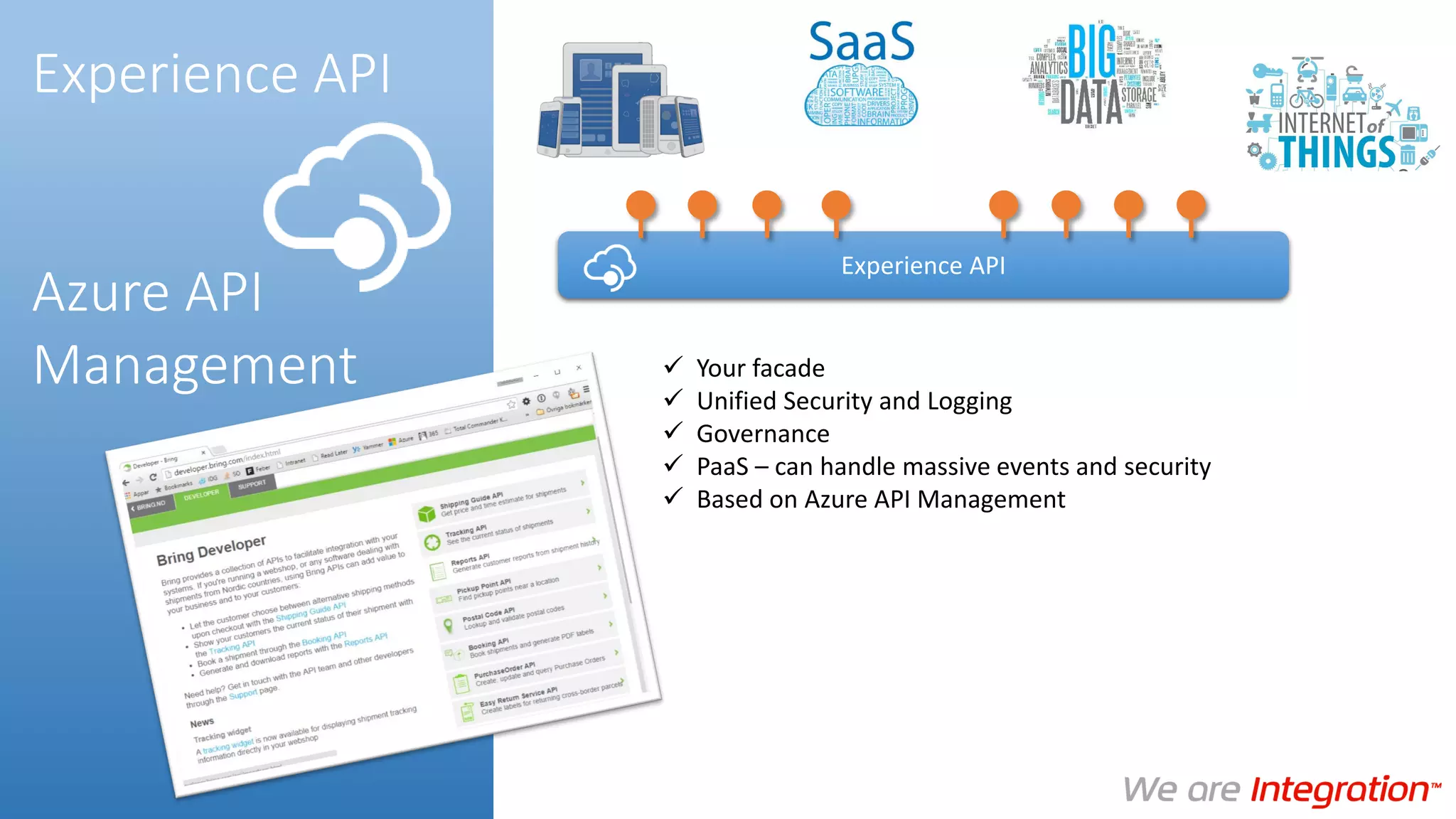

24.  Your facade
 Unified Security and Logging
 Governance
 PaaS – can handle massive events and security
 Based on Azure API Management
Experience API
Experience API
Azure API
Management

25. System API’s
Experience API
Process API

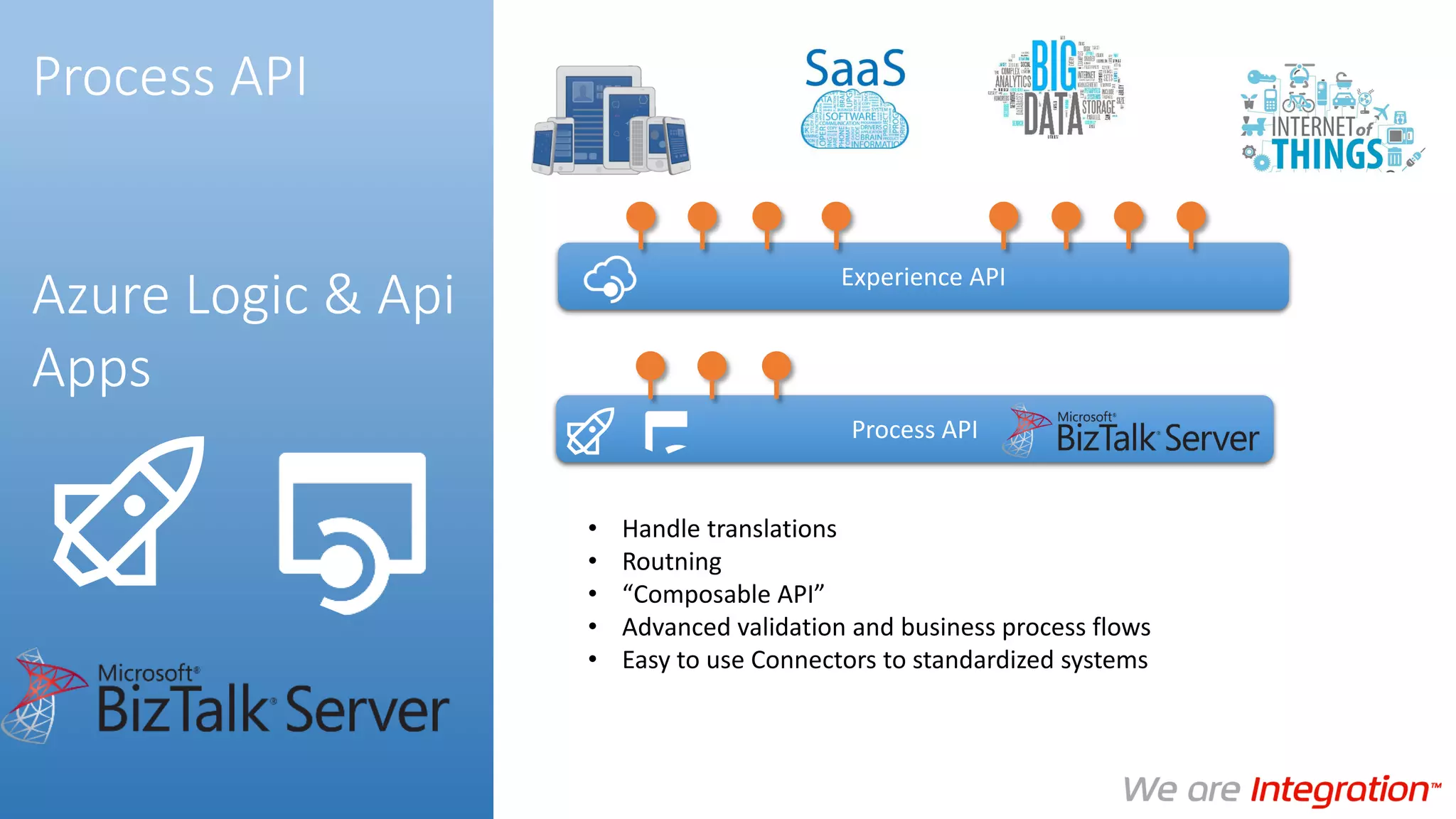

26. • Handle translations
• Routning
• “Composable API”
• Advanced validation and business process flows
• Easy to use Connectors to standardized systems
Process API
Azure Logic & Api
Apps
Experience API
Process API

27. Experience API
Process API
System API’s

28. Experience API
System API’s
Process API

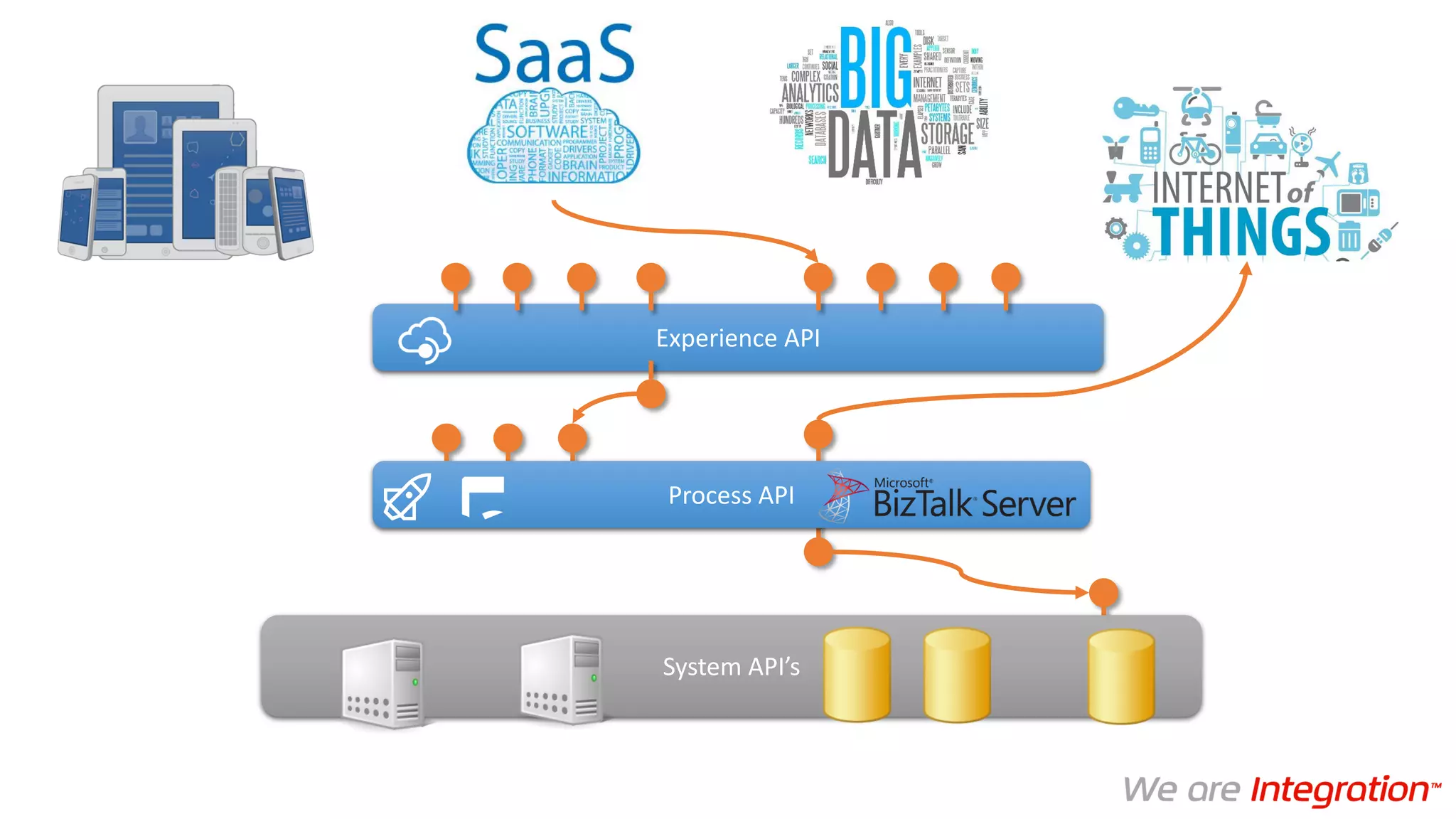

29. Experience API
System API’s
Process API

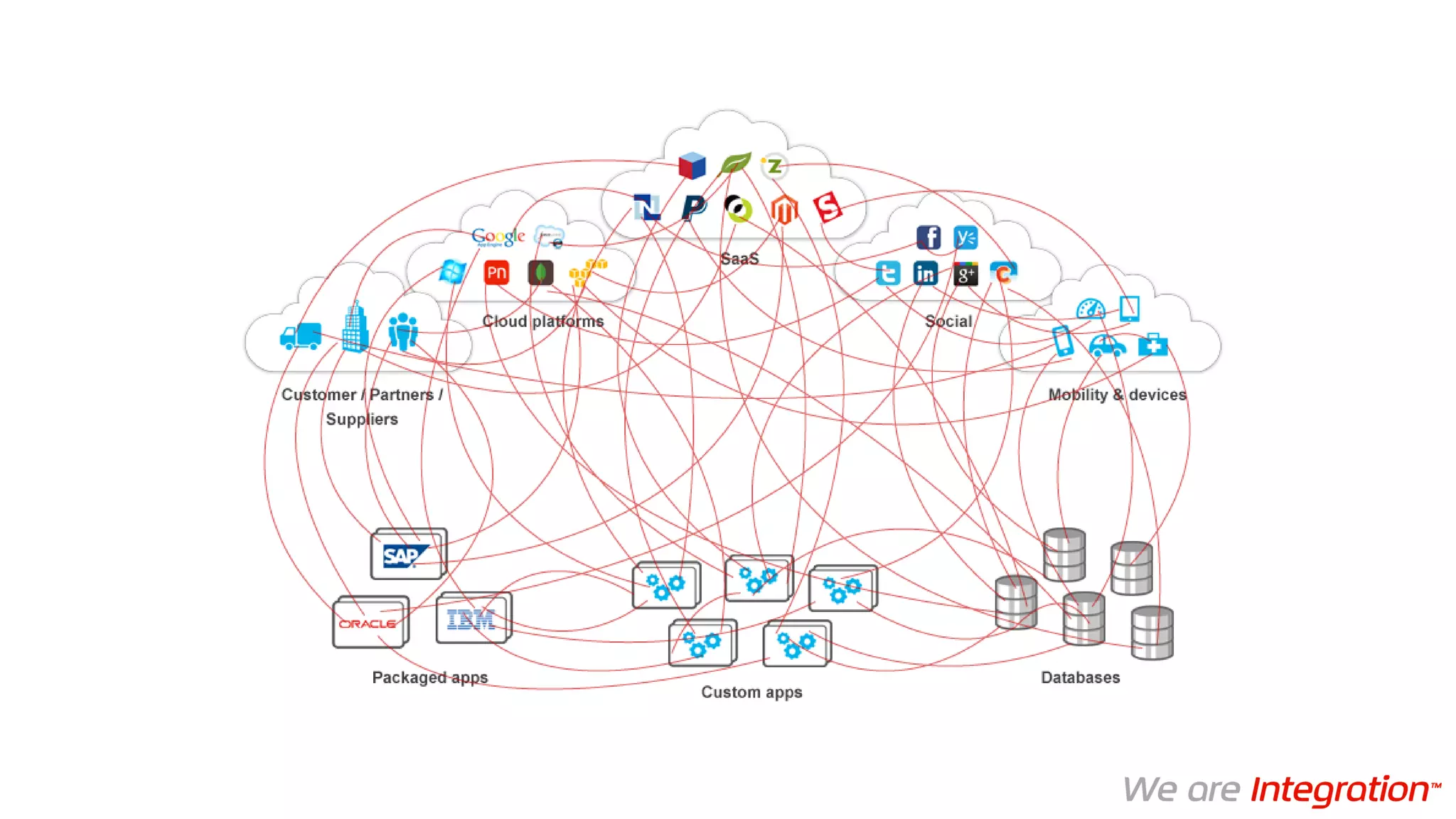

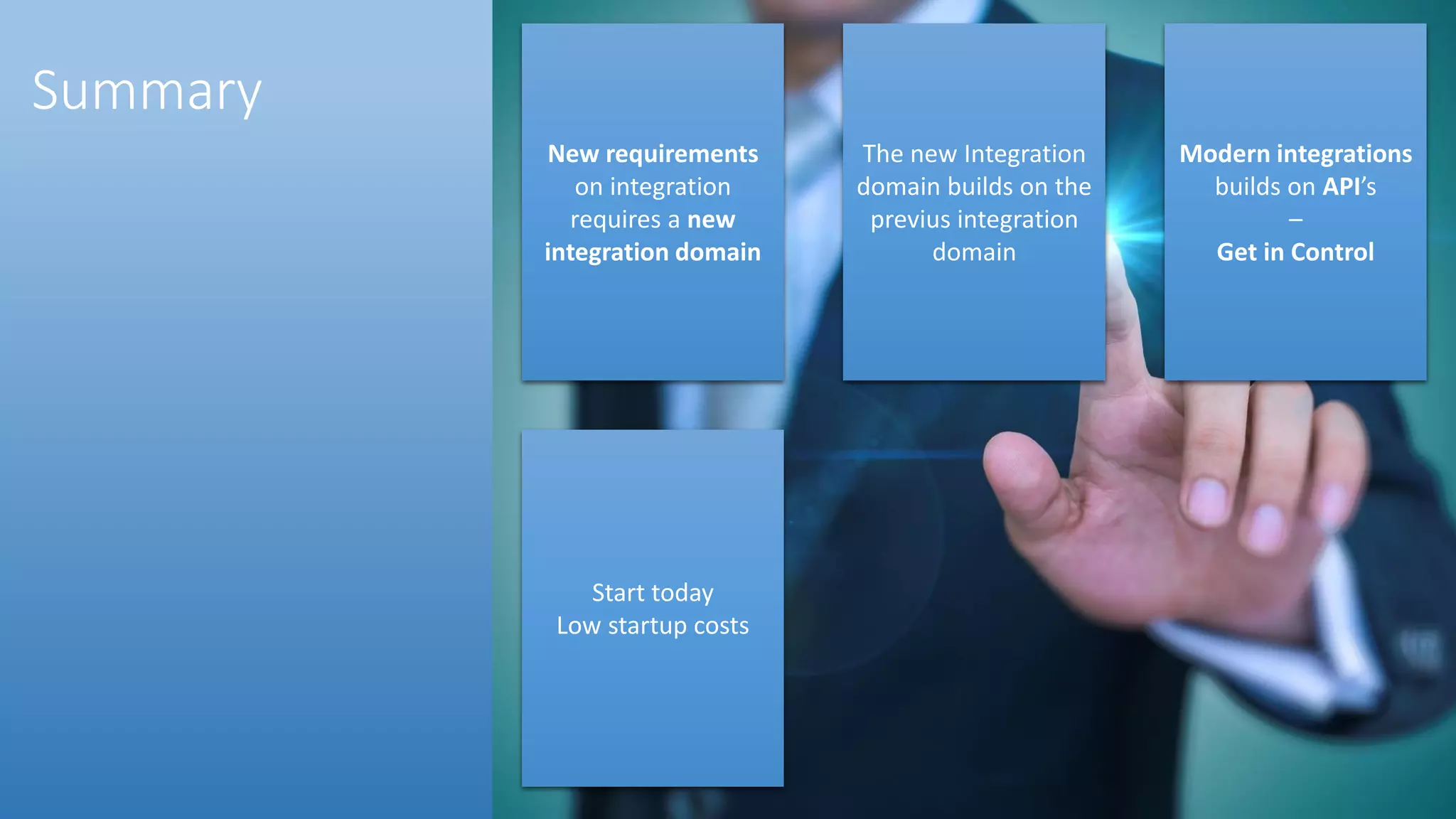

31. New requirements
on integration
requires a new
integration domain
Modern integrations
builds on API’s
–
Get in Control
The new Integration
domain builds on the
previus integration
domain
Start today
Low startup costs
Summary

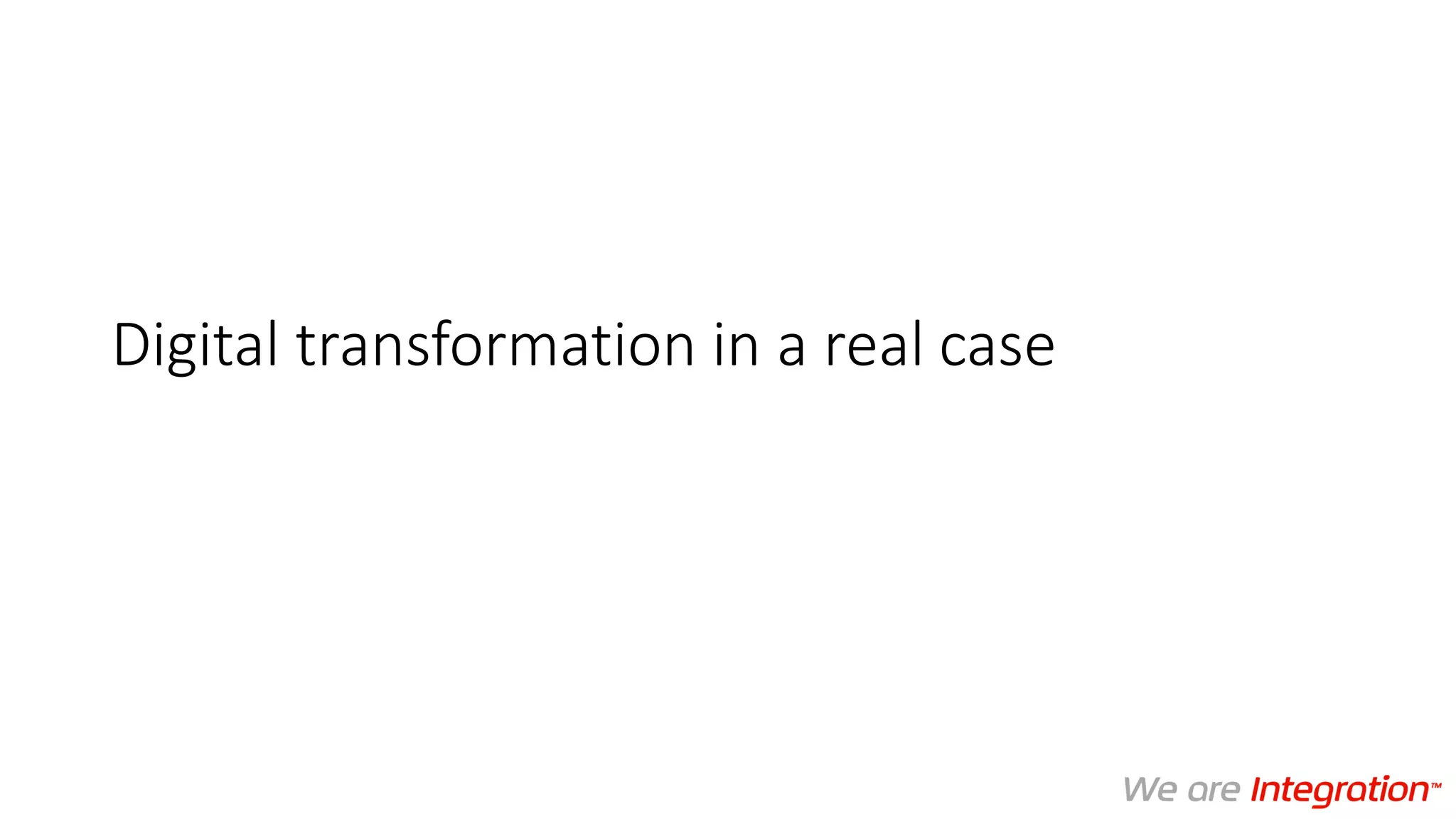

32. Digital transformation in a real case

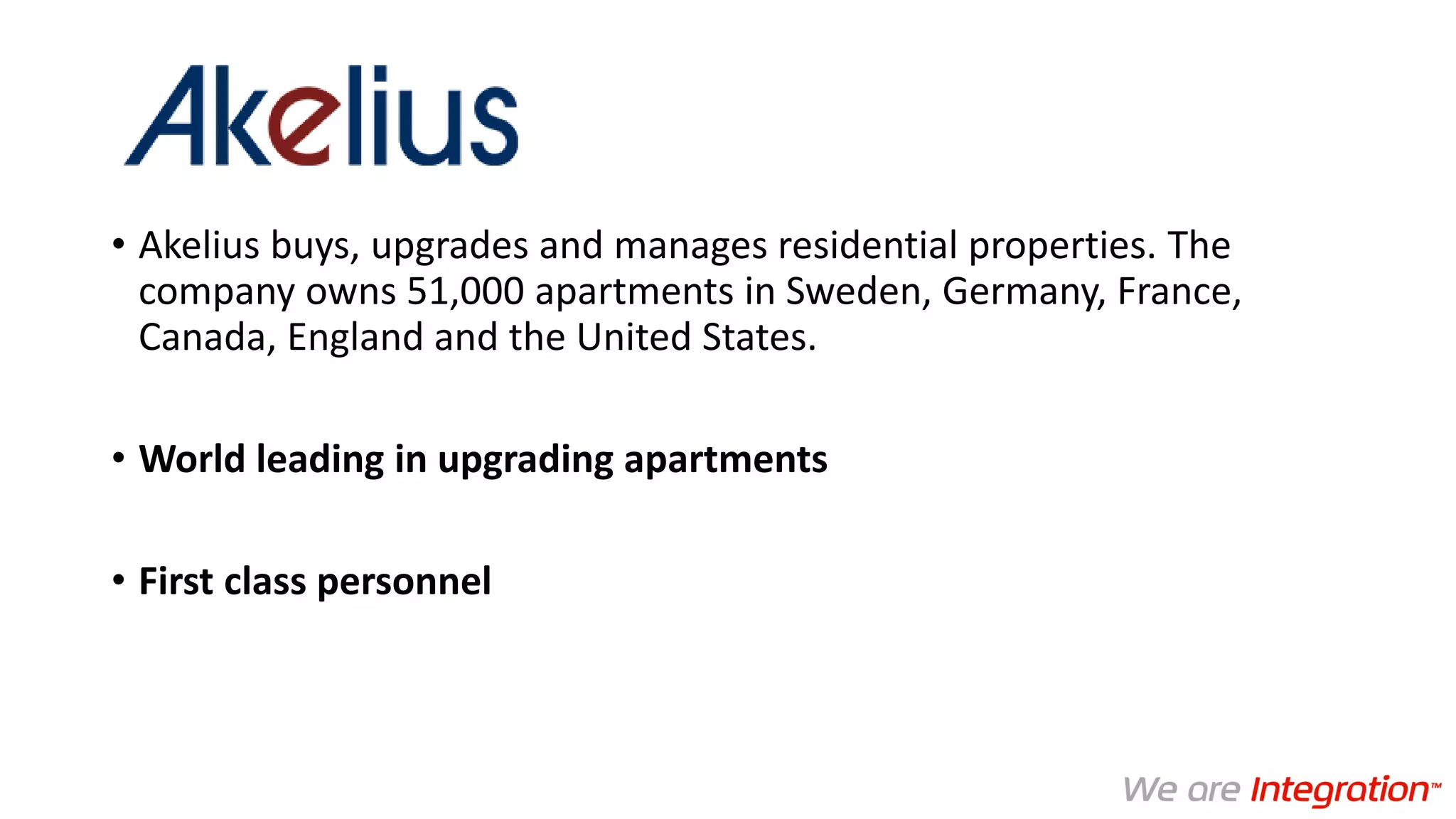

33. • Akelius buys, upgrades and manages residential properties. The
company owns 51,000 apartments in Sweden, Germany, France,
Canada, England and the United States.
• World leading in upgrading apartments
• First class personnel

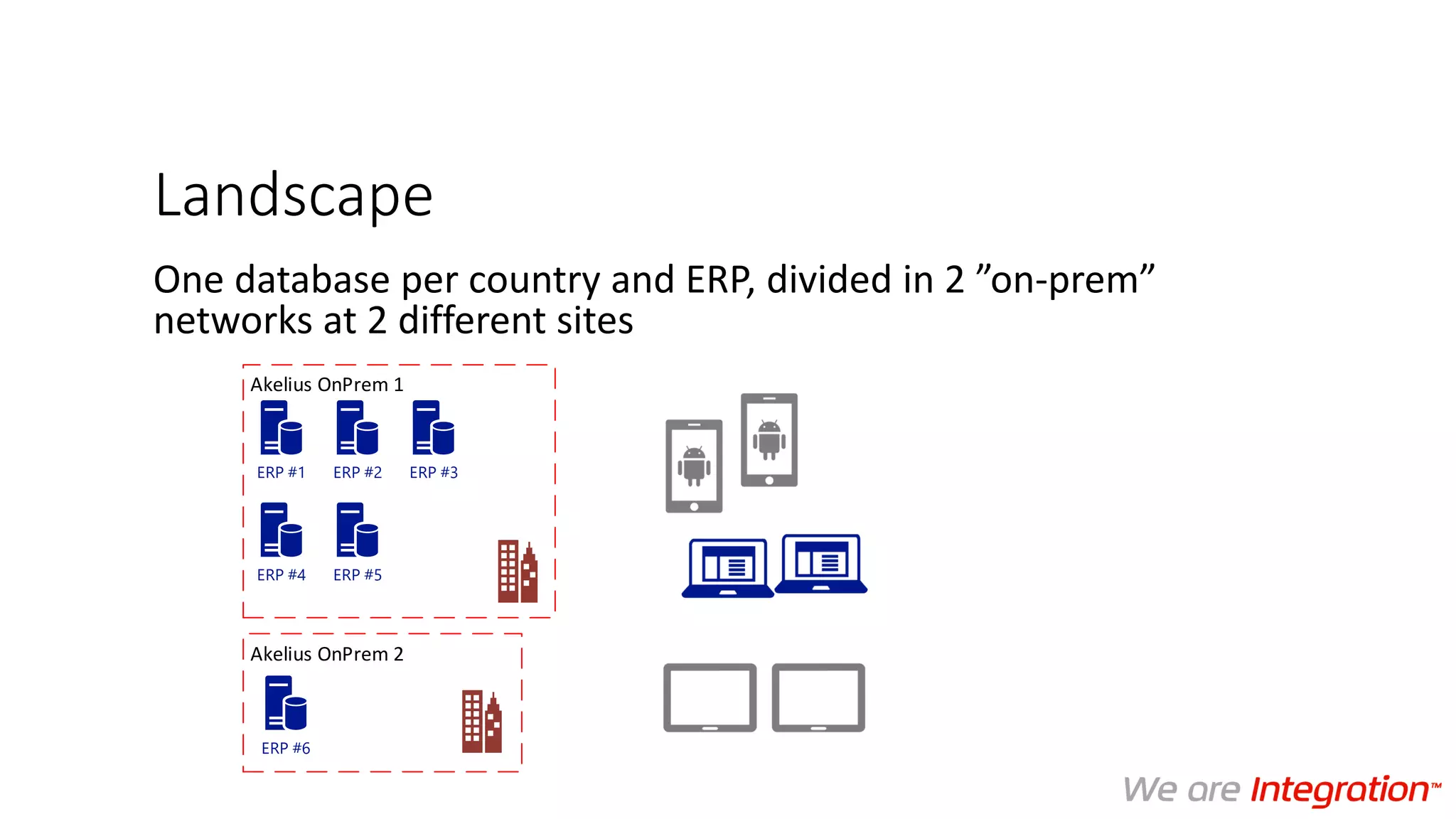

34. Landscape
One database per country and ERP, divided in 2 ”on-prem”
networks at 2 different sites
Akelius OnPrem 1
Akelius OnPrem 2
ERP #1 ERP #2 ERP #3
ERP #4 ERP #5
ERP #6

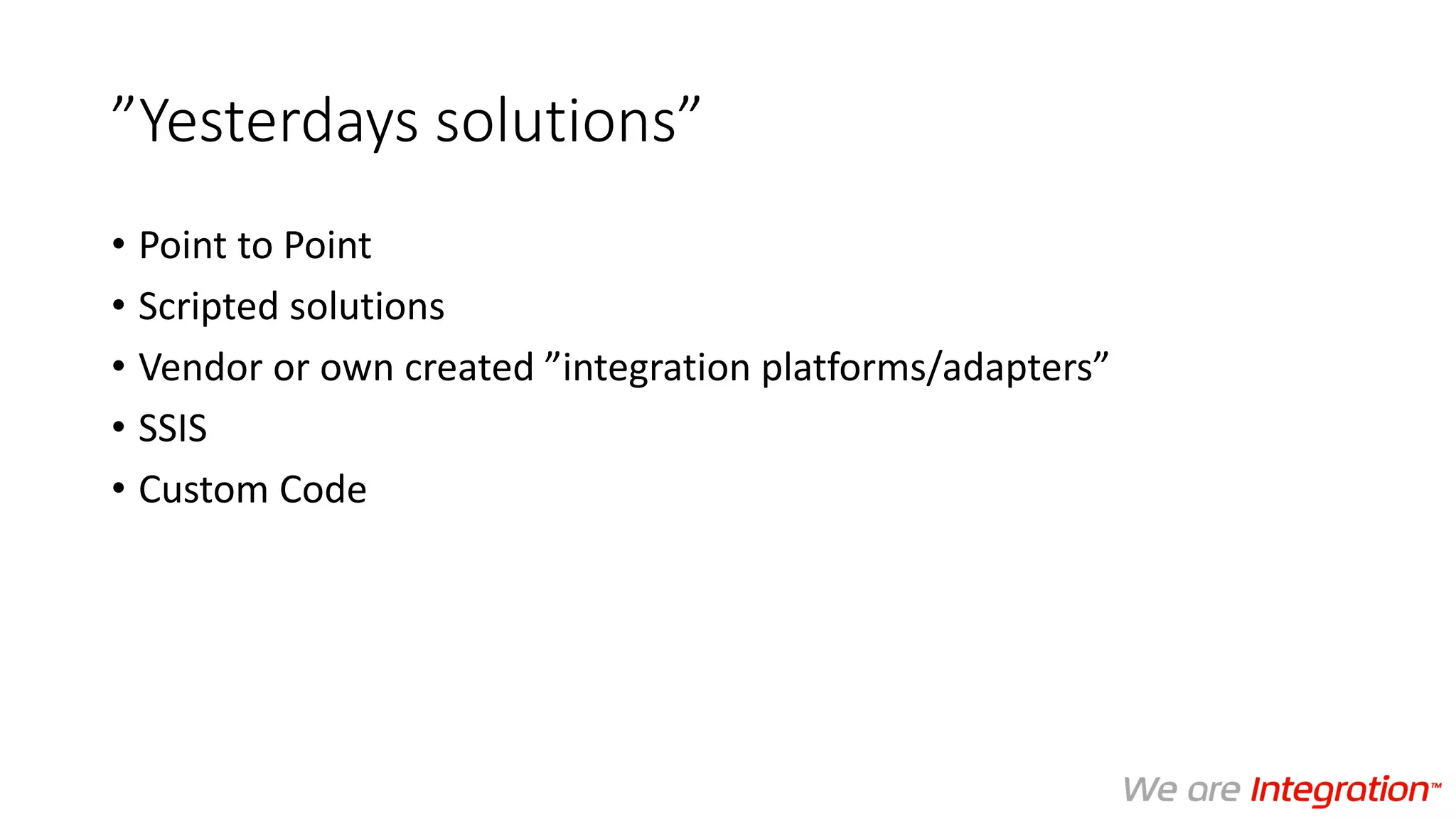

35. ”Yesterdays solutions”
• Point to Point
• Scripted solutions
• Vendor or own created ”integration platforms/adapters”
• SSIS
• Custom Code

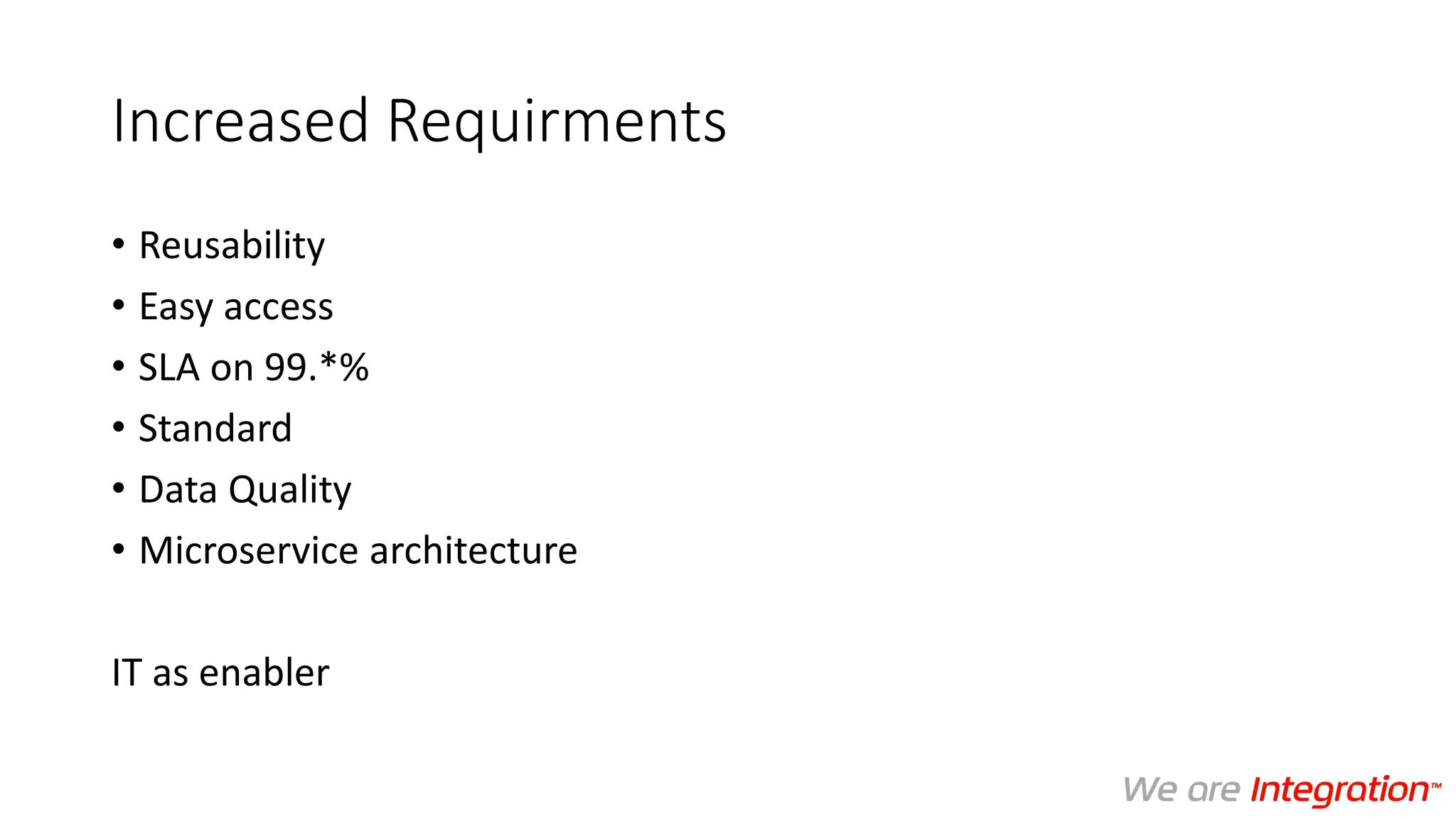

36. Increased Requirments
• Reusability
• Easy access
• SLA on 99.*%
• Standard
• Data Quality
• Microservice architecture
IT as enabler

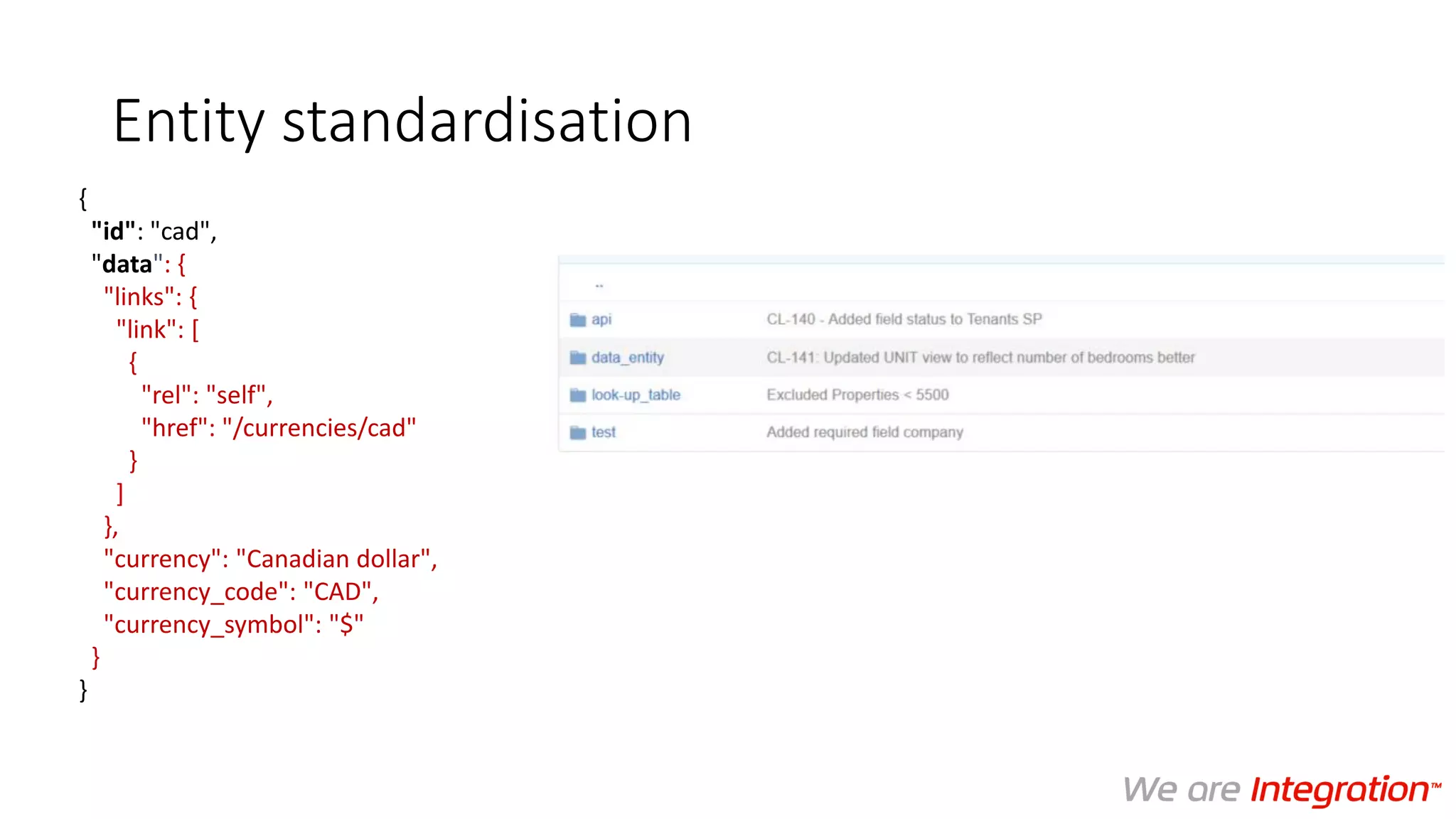

38. Entity standardisation
{
"id": "cad",
"data": {
"links": {
"link": [
{
"rel": "self",
"href": "/currencies/cad"
}
]
},
"currency": "Canadian dollar",
"currency_code": "CAD",
"currency_symbol": "$"
}
}

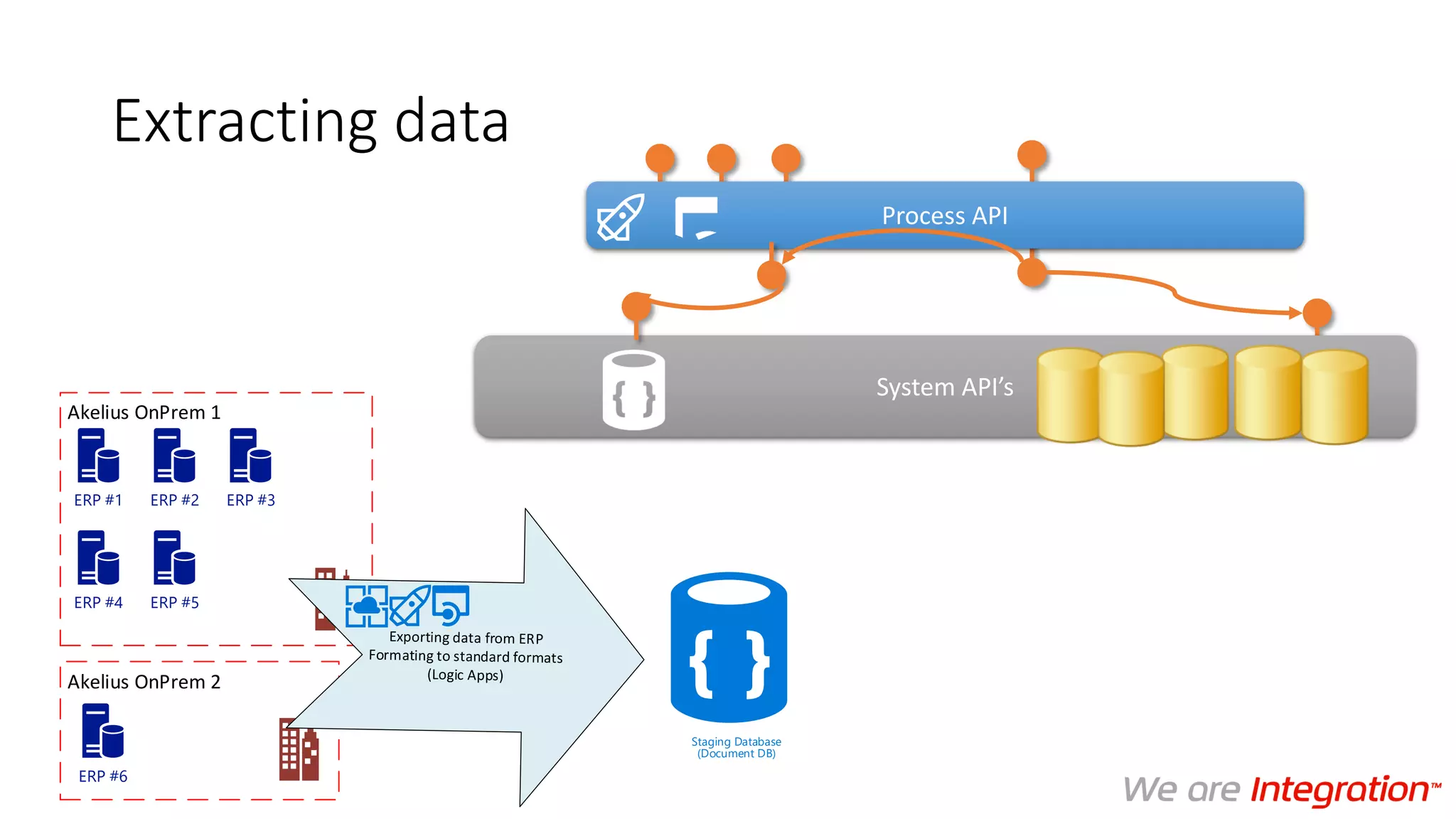

39. Extracting data
System API’s
Process API
Akelius OnPrem 1
Akelius OnPrem 2
ERP #1 ERP #2 ERP #3
ERP #4 ERP #5
ERP #6
Staging Database
(Document DB)

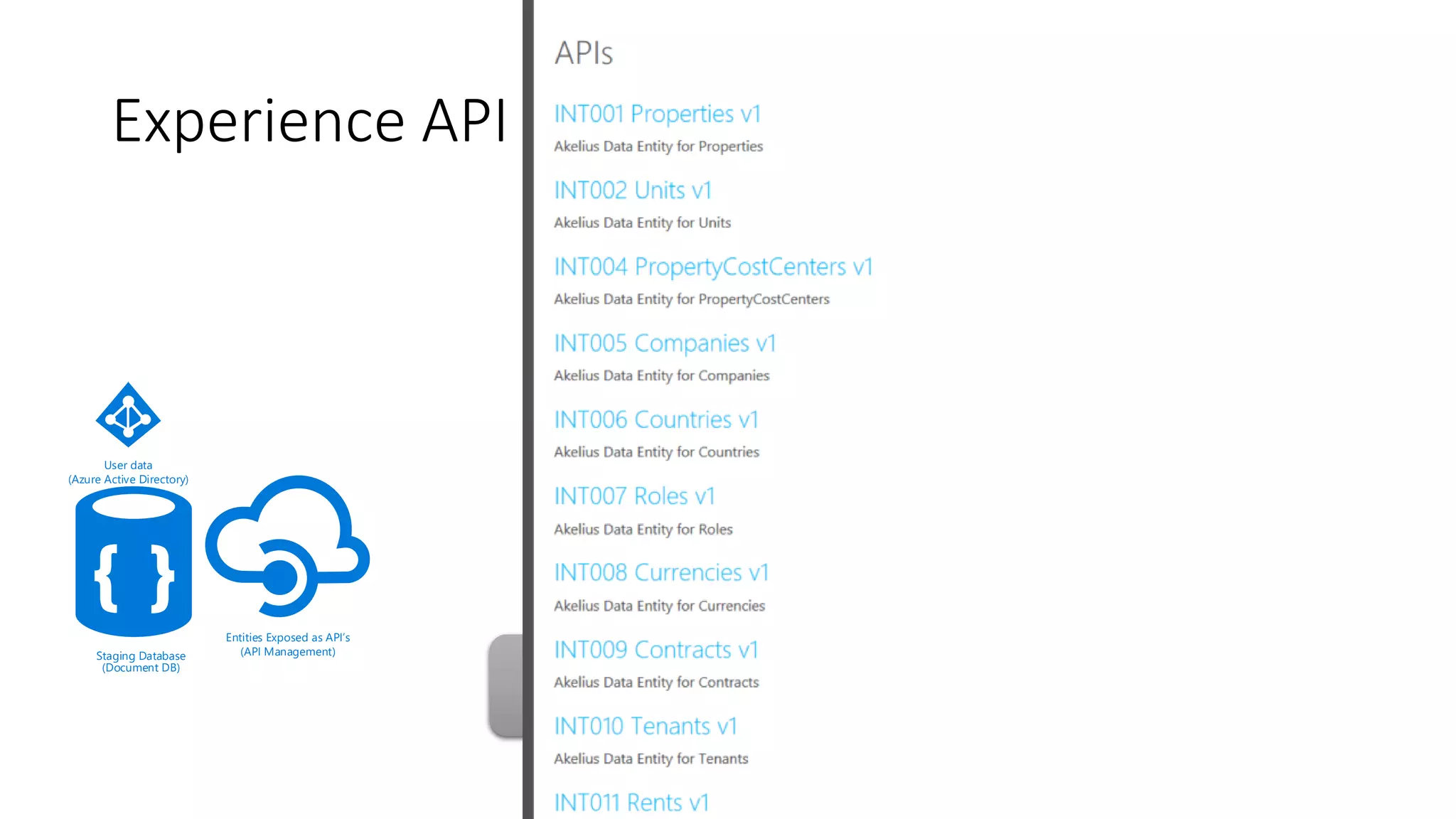

40. Experience API
Experience API
System API’s
Process API
Staging Database
(Document DB)
Entities Exposed as API s
(API Management)
User data
(Azure Active Directory)

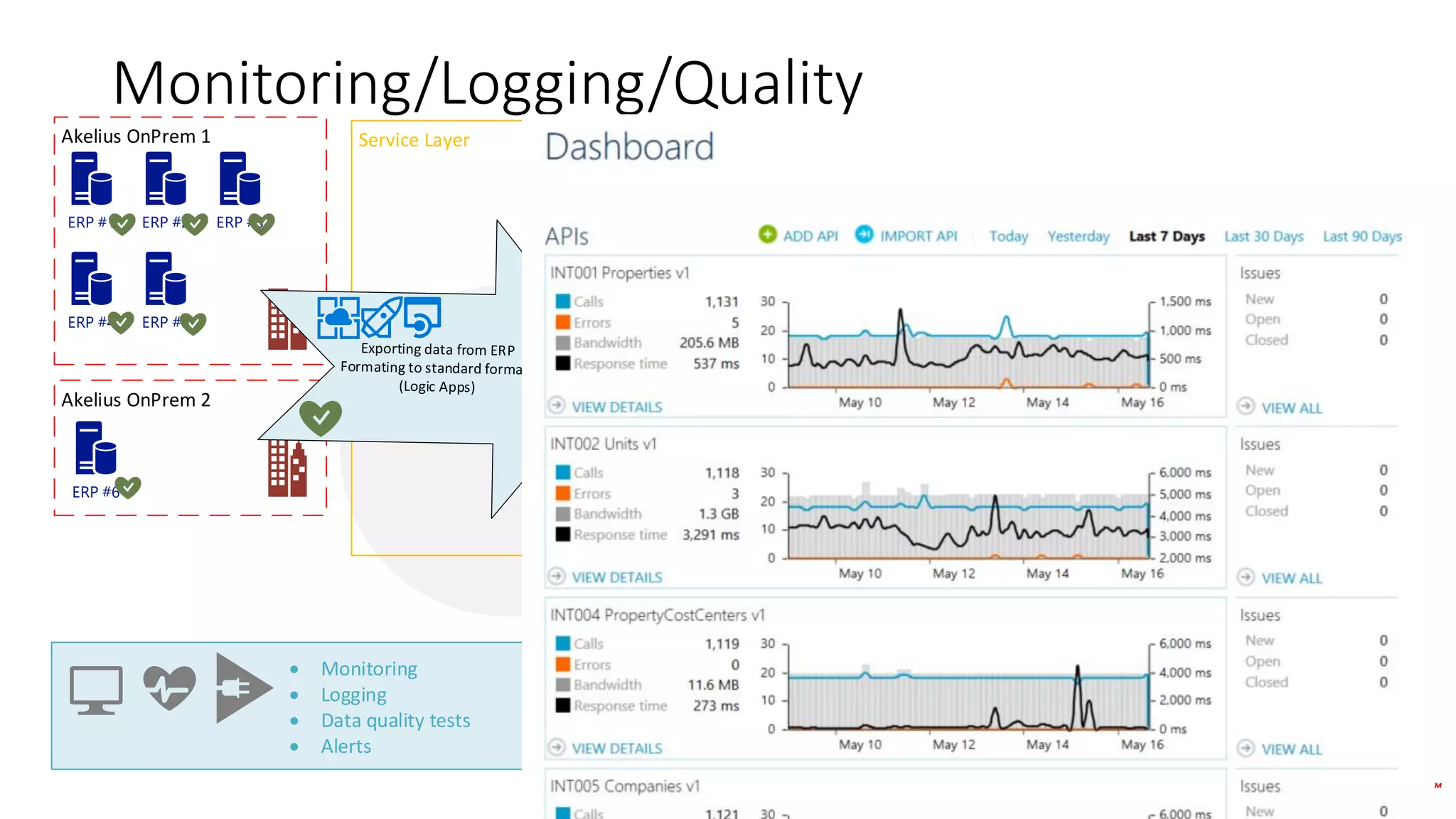

41. Monitoring/Logging/Quality
Monitored by Integration Manager
 Monitoring
 Logging
 Data quality tests
 Alerts
Akelius OnPrem 1
Akelius OnPrem 2
Azure
ERP #1 ERP #2 ERP #3
ERP #4 ERP #5
ERP #6
Staging Database
(Document DB)
Service Layer
Entities Exposed as API s
(API Management)
User data
(Azure Active Directory)
Akelius BI
Solutions
Phone
Tablet
Web App
Akelius

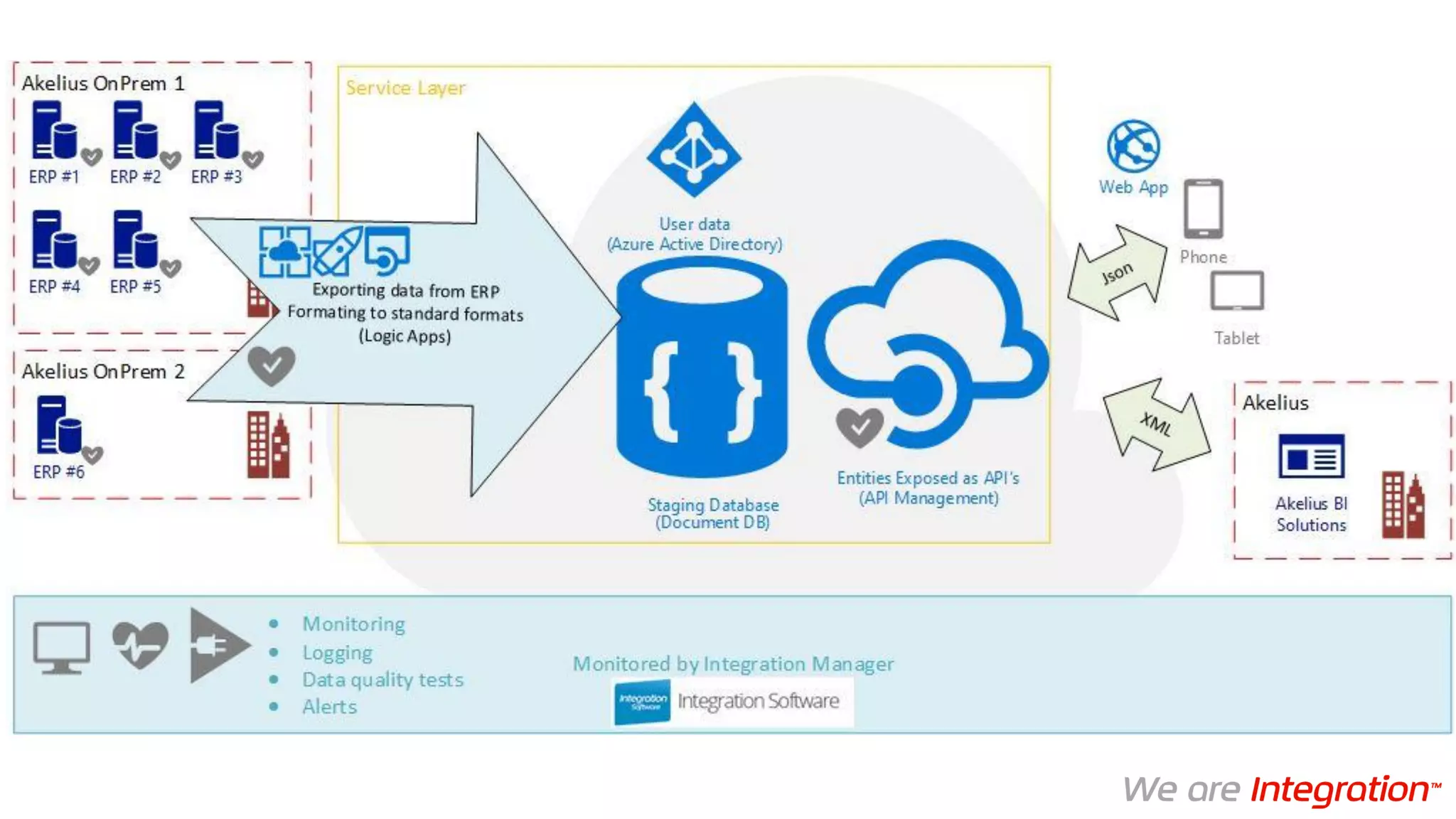

42. Overall View

43. Key findings

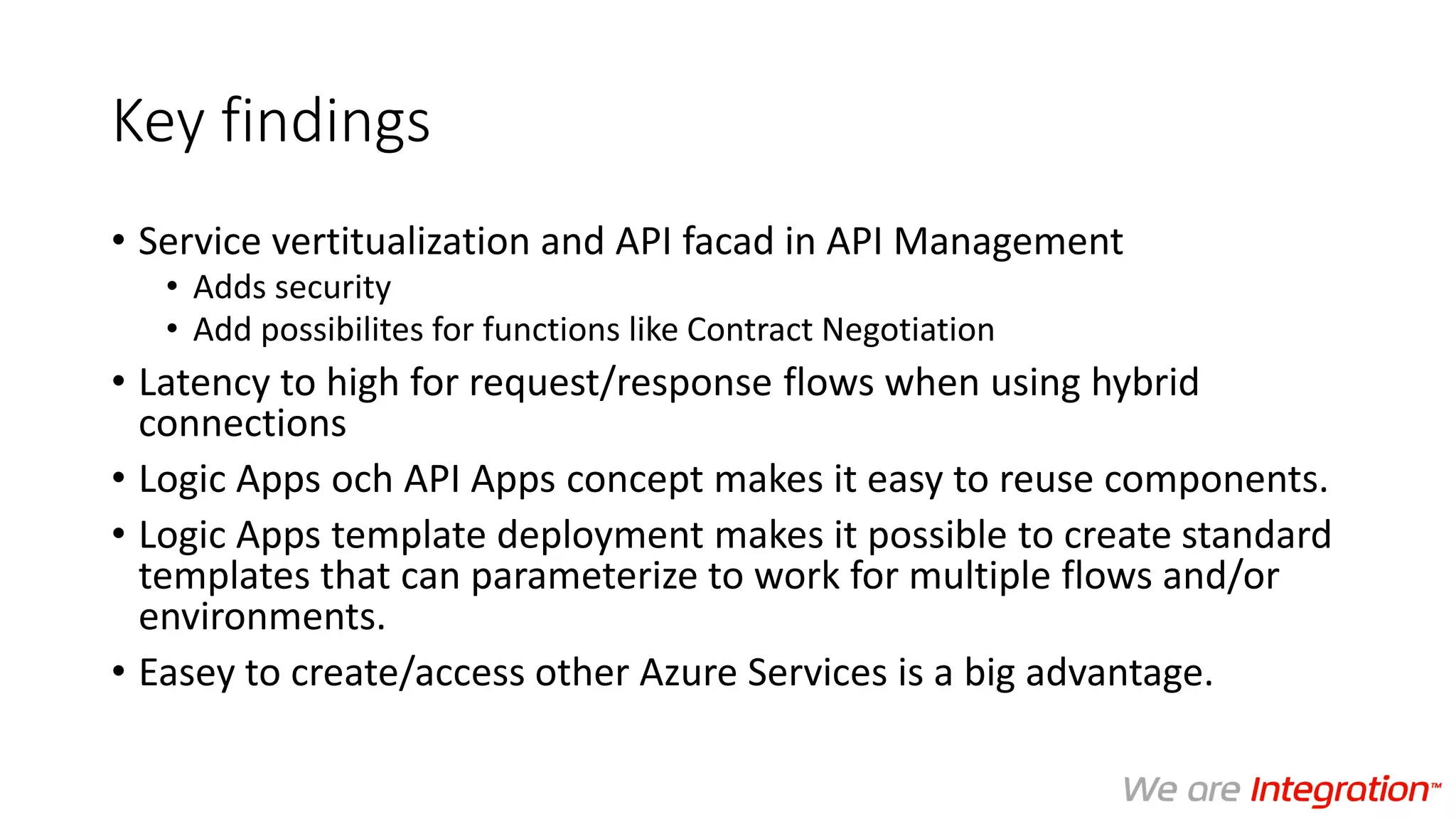

• Service vertitualization and API facad in API Management
• Adds security
• Add possibilites for functions like Contract Negotiation
• Latency to high for request/response flows when using hybrid
connections
• Logic Apps och API Apps concept makes it easy to reuse components.
• Logic Apps template deployment makes it possible to create standard
templates that can parameterize to work for multiple flows and/or
environments.
• Easey to create/access other Azure Services is a big advantage.

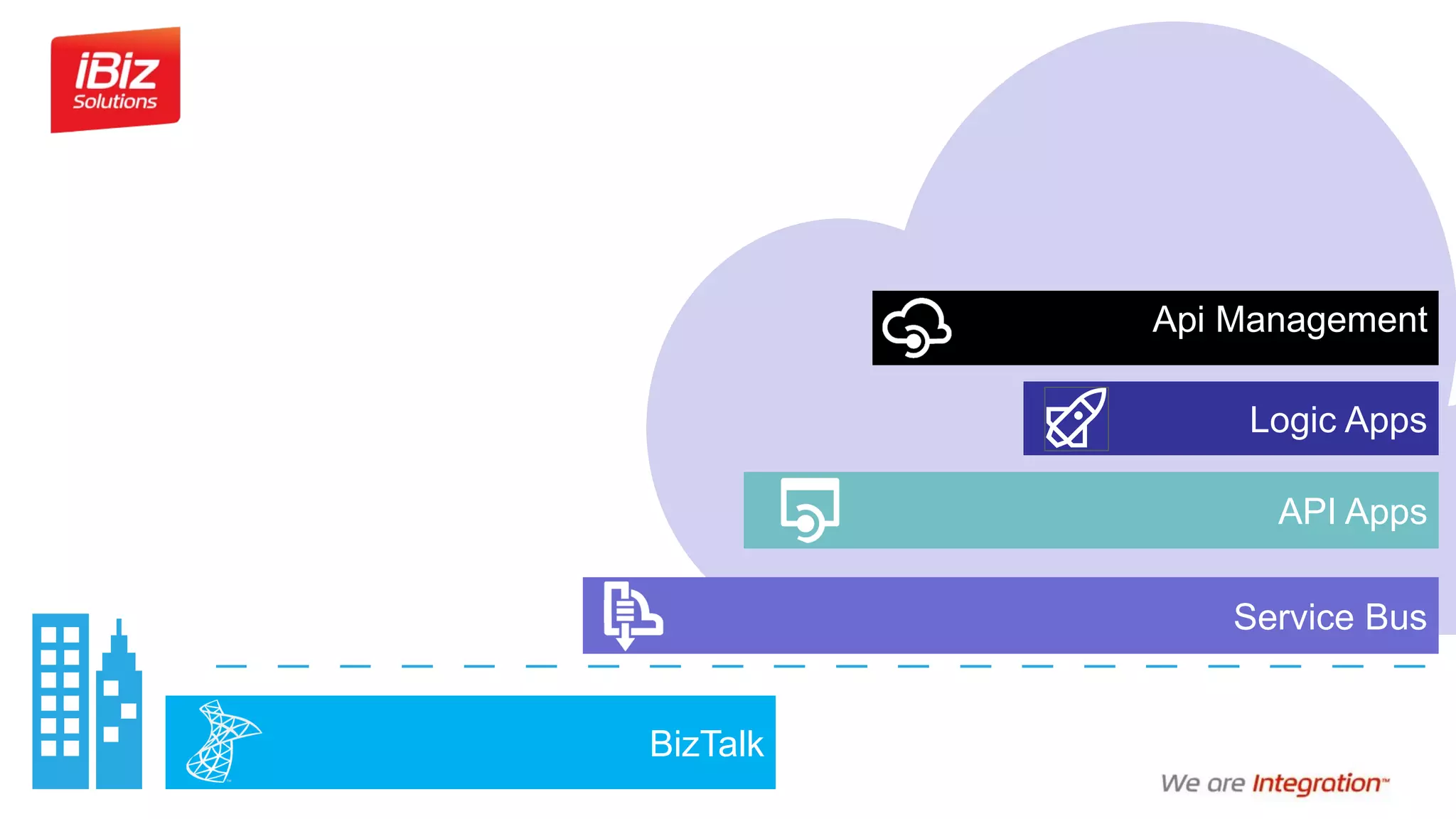

44. Service Bus
Api Management
Logic Apps
API Apps
BizTalk

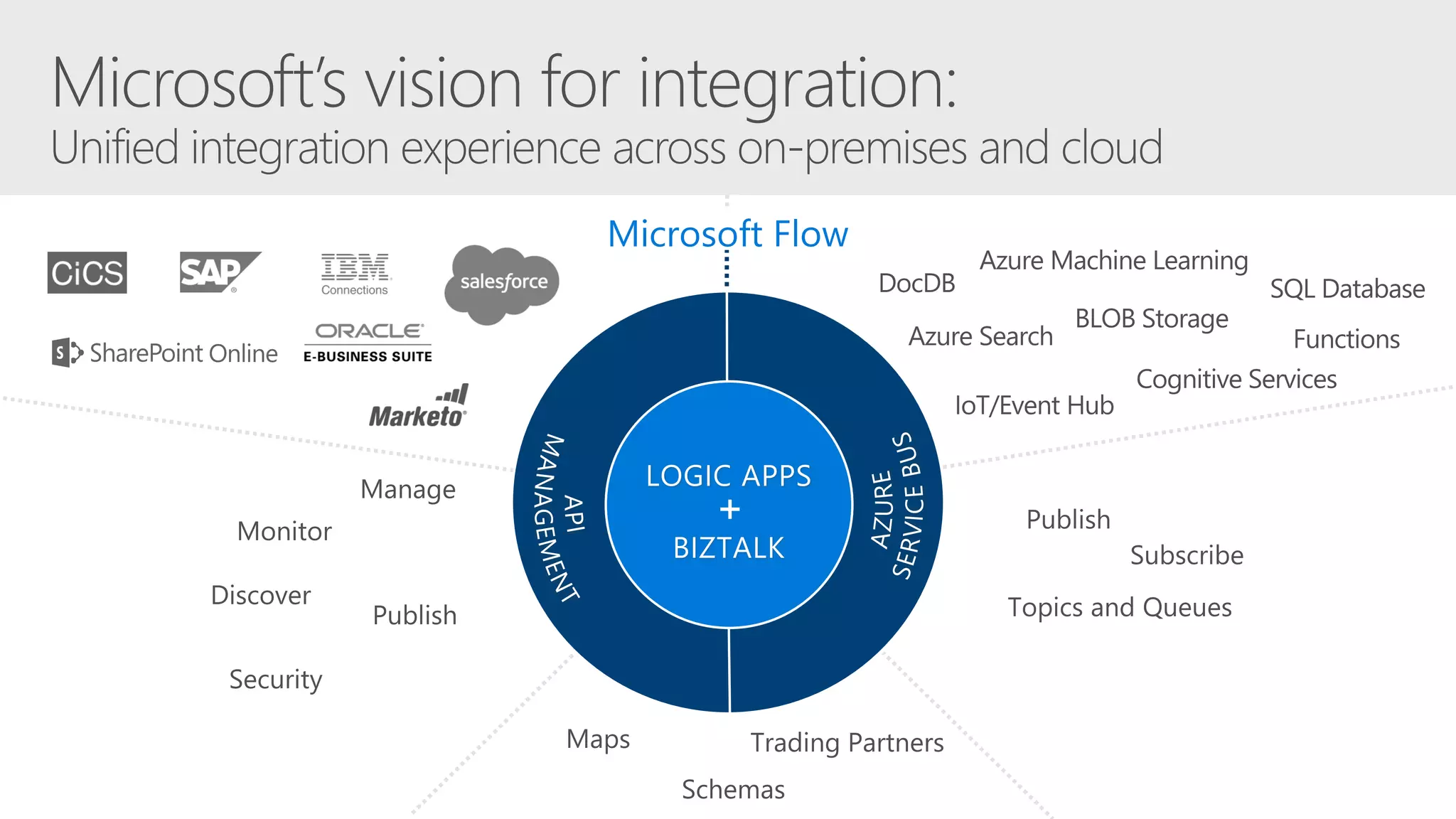

45. Microsoft’s vision for integration:
