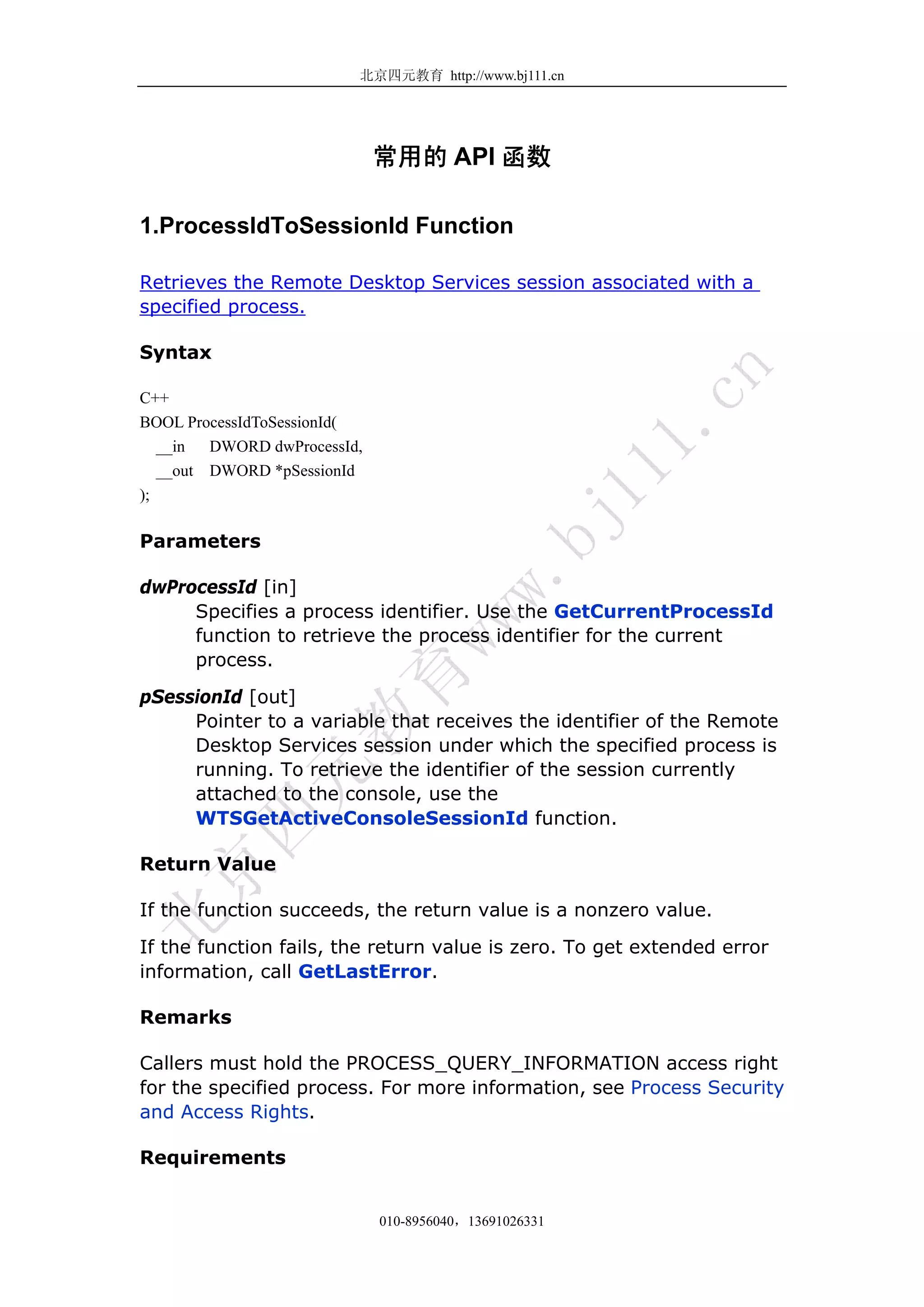

常用的 API 函数
1.ProcessIdToSessionId Function
Retrieves the Remote Desktop Services session associated with a
specified process.
Syntax
C++
BOOL ProcessIdToSessionId(
__in DWORD dwProcessId,
__out DWORD *pSessionId
);
Parameters
dwProcessId [in]
Specifies a process identifier. Use the GetCurrentProcessId
function to retrieve the process identifier for the current
process.
pSessionId [out]
Pointer to a variable that receives the identifier of the Remote
Desktop Services session under which the specified process is
running. To retrieve the identifier of the session currently
attached to the console, use the
WTSGetActiveConsoleSessionId function.
Return Value
If the function succeeds, the return value is a nonzero value.
If the function fails, the return value is zero. To get extended error
information, call GetLastError.
Remarks
Callers must hold the PROCESS_QUERY_INFORMATION access right
for the specified process. For more information, see Process Security
and Access Rights.
Requirements

010-8956040，13691026331
Minimum supported client Windows 2000 Professional
Minimum supported server Windows 2000 Server
Header Winbase.h (include Windows.h)
Library Kernel32.lib
DLL Kernel32.dll

010-8956040，13691026331
2.GetCurrentDirectory Function
Retrieves the current directory for the current process.
Syntax
C++
DWORD WINAPI GetCurrentDirectory(
__in DWORD nBufferLength,
__out LPTSTR lpBuffer
);
Parameters
nBufferLength [in]
The length of the buffer for the current directory string, in
TCHARs. The buffer length must include room for a terminating
null character.
lpBuffer [out]
A pointer to the buffer that receives the current directory string.
This null-terminated string specifies the absolute path to the
current directory.
To determine the required buffer size, set this parameter to
NULL and the nBufferLength parameter to 0.
Return Value
If the function succeeds, the return value specifies the number of
characters that are written to the buffer, not including the terminating
null character.
If the buffer that is pointed to by lpBuffer is not large enough, the
return value specifies the required size of the buffer, in characters,
including the null-terminating character.
Remarks
Each process has a single current directory that consists of two parts:

010-8956040，13691026331
• A disk designator that is either a drive letter followed by a colon,
or a server name followed by a share name
(servernamesharename)
• A directory on the disk designator
To set the current directory, use the SetCurrentDirectory function.
Multithreaded applications and shared library code should not use the
GetCurrentDirectory function and should avoid using relative path
names. The current directory state written by the
SetCurrentDirectory function is stored as a global variable in each
process, therefore multithreaded applications cannot reliably use this
value without possible data corruption from other threads that may
also be reading or setting this value. This limitation also applies to the
SetCurrentDirectory and GetFullPathName functions. The
exception being when the application is guaranteed to be running in a
single thread, for example parsing file names from the command line
argument string in the main thread prior to creating any additional
threads. Using relative path names in multithreaded applications or
shared library code can yield unpredictable results and is not
supported.
Examples
For an example, see Changing the Current Directory.
Requirements
Minimum
supported client
Windows 2000 Professional
Minimum
supported server
Windows 2000 Server
Header WinBase.h (include Windows.h)
DLL Kernel32.dll
Unicode and
ANSI names
GetCurrentDirectoryW (Unicode) and
GetCurrentDirectoryA (ANSI)

010-8956040，13691026331
3. SetCurrentDirectory
C++
BOOL WINAPI SetCurrentDirectory(
__in LPCTSTR lpPathName
);
Parameters
lpPathName [in]
The path to the new current directory. This parameter may
specify a relative path or a full path. In either case, the full path
of the specified directory is calculated and stored as the current
directory. For more information, see File Names, Paths, and
Namespaces.
The string must not exceed MAX_PATH characters, including
the terminating null character. The final character before the
null character must be a backslash (''). If you do not specify the
backslash, it will be added for you; therefore, specify
MAX_PATH-2 characters for the path unless you include the
trailing backslash, in which case, specify MAX_PATH-1
characters for the path.
Return Value
If the function succeeds, the return value is nonzero.
Remarks
Each process has a single current directory made up of two parts:
• A disk designator that is either a drive letter followed by a colon,
or a server name and share name (servernamesharename)
• A directory on the disk designator
Multithreaded applications and shared library code should not use the
SetCurrentDirectory function and should avoid using relative path
names. The current directory state written by the
SetCurrentDirectory function is stored as a global variable in each
process, therefore multithreaded applications cannot reliably use this

010-8956040，13691026331
value without possible data corruption from other threads that may
also be reading or setting this value. This limitation also applies to the
GetCurrentDirectory and GetFullPathName functions. The
exception being when the application is guaranteed to be running in a
single thread, for example parsing file names from the command line
argument string in the main thread prior to creating any additional
threads. Using relative path names in multithreaded applications or
shared library code can yield unpredictable results and is not
supported.
Examples
For an example, see Changing the Current Directory.
Requirements
Minimum
supported client
Minimum
supported server
Windows 2000 Server
Header WinBase.h (include Windows.h)
DLL Kernel32.dll
Unicode and
ANSI names
SetCurrentDirectoryW (Unicode) and
SetCurrentDirectoryA (ANSI)

010-8956040，13691026331
4. Gets
char *gets(
char *buffer
);
wchar_t *_getws(
wchar_t *buffer
);
Parameter
buffer
Storage location for input string.
Return Value
Returns its argument if successful. A NULL pointer indicates an error
or end-of-file condition. Use ferror or feof to determine which one has
occurred.
Remarks
The gets function reads a line from the standard input stream stdin
and stores it in buffer. The line consists of all characters up to and
including the first newline character ('n'). gets then replaces the
newline character with a null character ('0') before returning the line.
In contrast, the fgets function retains the newline character. _getws
is a wide-character version of gets; its argument and return value are
wide-character strings.
Security Note Because there is no way to limit the number of
characters read by gets, untrusted input can easily cause buffer
overruns. Use fgets instead.
Generic-Text Routine Mappings
TCHAR.H
routine
_UNICODE &
_MBCS not
defined
_MBCS
defined
_UNICODE
defined
_getts gets gets _getws

Requirements
Routine
Required
header Compatibility
gets <stdio.h> ANSI, Win 98, Win Me, Win NT, Win
2000, Win XP
_getws <stdio.h> or
<wchar.h>
ANSI, Win 98, Win Me, Win NT, Win
2000, Win XP
For additional compatibility information, see Compatibility in the
Introduction.
5 .MEMSET
void *memset(
void *dest,
int c,
size_t count
);
wchar_t *wmemset(
wchar_t *dest,
wchar_t c,
size_t count
);
Parameters
dest
Pointer to destination.
c
Character to set.
count
Number of characters.
Return Value
The value of dest.
Remarks
Sets the first count characters of dest to the character c.
Security Note Make sure that the destination buffer has enough
room for at least count characters. For more information, see
Avoiding Buffer Overruns.
Requirements
010-8956040，13691026331

Routine Required header
memset <memory.h> or <string.h>
wmemset <wchar.h>
Introduction.
Libraries
All versions of the C run-time libraries.
Example
Copy Code
// crt_memset.c
/* This program uses memset to
* set the first four chars of buffer to "*".
*/
#include <memory.h>
#include <stdio.h>
int main( void )
{
char buffer[] = "This is a test of the memset function";
printf( "Before: %sn", buffer );
memset( buffer, '*', 4 );
printf( "After: %sn", buffer );
}
Output
Before: This is a test of the memset function
After: **** is a test of the memset function
010-8956040，13691026331

6. fread
Reads data from a stream.
size_t fread(
void *buffer,
size_t size,
size_t count,
FILE *stream
);
Parameters
buffer
Storage location for data.
size
Item size in bytes.
count
Maximum number of items to be read.
stream
Pointer to FILE structure.
Return Value
fread returns the number of full items actually read, which may be
less than count if an error occurs or if the end of the file is encountered
before reaching count. Use the feof or ferror function to distinguish a
read error from an end-of-file condition. If size or count is 0, fread
returns 0 and the buffer contents are unchanged. If stream or buffer
is a null pointer, fread invokes the invalid parameter handler, as
described in Parameter Validation. If execution is allowed to continue,
this function sets errno to EINVAL and returns 0.
See _doserrno, errno, _sys_errlist, and _sys_nerr for more
information on these, and other, error codes.
Remarks
The fread function reads up to count items of size bytes from the
input stream and stores them in buffer. The file pointer associated
with stream (if there is one) is increased by the number of bytes
actually read. If the given stream is opened in text mode, carriage
return–linefeed pairs are replaced with single linefeed characters. The
replacement has no effect on the file pointer or the return value. The
file-pointer position is indeterminate if an error occurs. The value of a
partially read item cannot be determined.
010-8956040，13691026331

This function locks out other threads. If you need a non-locking
version, use _fread_nolock.
Requirements
Function Required header
fread <stdio.h>
Introduction.
Example
Copy Code
// crt_fread.c
// This program opens a file named FREAD.OUT and
// writes 25 characters to the file. It then tries to open
// FREAD.OUT and read in 25 characters. If the attempt succeeds,
// the program displays the number of actual items read.
#include <stdio.h>
int main( void )
{
FILE *stream;
char list[30];
int i, numread, numwritten;
// Open file in text mode:
if( fopen_s( &stream, "fread.out", "w+t" ) == 0 )
{
for ( i = 0; i < 25; i++ )
list[i] = (char)('z' - i);
// Write 25 characters to stream
numwritten = fwrite( list, sizeof( char ), 25, stream );
printf( "Wrote %d itemsn", numwritten );
fclose( stream );
}
else
printf( "Problem opening the filen" );
if( fopen_s( &stream, "fread.out", "r+t" ) == 0 )
{
// Attempt to read in 25 characters
numread = fread( list, sizeof( char ), 25, stream );
010-8956040，13691026331

010-8956040，13691026331
printf( "Number of items read = %dn", numread );
printf( "Contents of buffer = %.25sn", list );
fclose( stream );
}
else
printf( "File could not be openedn" );
}
Copy Code
Wrote 25 items
Number of items read = 25
Contents of buffer = zyxwvutsrqponmlkjihgfedcb
7. CreateEvent Function
Creates or opens a named or unnamed event object.
To specify an access mask for the object, use the CreateEventEx
function.
Syntax
C++
HANDLE WINAPI CreateEvent(
__in_opt LPSECURITY_ATTRIBUTES lpEventAttributes,
__in BOOL bManualReset,
__in BOOL bInitialState,
__in_opt LPCTSTR lpName
);
Parameters
lpEventAttributes [in, optional]
A pointer to a SECURITY_ATTRIBUTES structure. If this
parameter is NULL, the handle cannot be inherited by child
processes.
The lpSecurityDescriptor member of the structure specifies a
security descriptor for the new event. If lpEventAttributes is
NULL, the event gets a default security descriptor. The ACLs in
the default security descriptor for an event come from the
primary or impersonation token of the creator.
bManualReset [in]

010-8956040，13691026331
If this parameter is TRUE, the function creates a manual-reset
event object, which requires the use of the ResetEvent
function to set the event state to nonsignaled. If this parameter
is FALSE, the function creates an auto-reset event object, and
system automatically resets the event state to nonsignaled
after a single waiting thread has been released.
bInitialState [in]
If this parameter is TRUE, the initial state of the event object is
signaled; otherwise, it is nonsignaled.
lpName [in, optional]
The name of the event object. The name is limited to MAX_PATH
characters. Name comparison is case sensitive.
If lpName matches the name of an existing named event object,
this function requests the EVENT_ALL_ACCESS access right. In
this case, the bManualReset and bInitialState parameters are
ignored because they have already been set by the creating
process. If the lpEventAttributes parameter is not NULL, it
determines whether the handle can be inherited, but its
security-descriptor member is ignored.
If lpName is NULL, the event object is created without a name.
If lpName matches the name of another kind of object in the
same name space (such as an existing semaphore, mutex,
waitable timer, job, or file-mapping object), the function fails
and the GetLastError function returns
ERROR_INVALID_HANDLE. This occurs because these objects
share the same name space.
The name can have a "Global" or "Local" prefix to explicitly
create the object in the global or session name space. The
remainder of the name can contain any character except the
backslash character (). For more information, see Kernel
Object Namespaces. Fast user switching is implemented using
Terminal Services sessions. Kernel object names must follow
the guidelines outlined for Terminal Services so that
applications can support multiple users.
Windows 2000: If Terminal Services is not running, the
"Global" and "Local" prefixes are ignored. The remainder of
the name can contain any character except the backslash
character.
The object can be created in a private namespace. For more
information, see Object Namespaces.

010-8956040，13691026331
Return Value
If the function succeeds, the return value is a handle to the event
object. If the named event object existed before the function call, the
function returns a handle to the existing object and GetLastError
returns ERROR_ALREADY_EXISTS.
If the function fails, the return value is NULL. To get extended error
Remarks
The handle returned by CreateEvent has the EVENT_ALL_ACCESS
access right; it can be used in any function that requires a handle to
an event object, provided that the caller has been granted access. If
an event is created from a service or a thread that is impersonating a
different user, you can either apply a security descriptor to the event
when you create it, or change the default security descriptor for the
creating process by changing its default DACL. For more information,
see Synchronization Object Security and Access Rights.
Any thread of the calling process can specify the event-object handle
in a call to one of the wait functions. The single-object wait functions
return when the state of the specified object is signaled. The
multiple-object wait functions can be instructed to return either when
any one or when all of the specified objects are signaled. When a wait
function returns, the waiting thread is released to continue its
execution.
The initial state of the event object is specified by the bInitialState
parameter. Use the SetEvent function to set the state of an event
object to signaled. Use the ResetEvent function to reset the state of
an event object to nonsignaled.
When the state of a manual-reset event object is signaled, it remains
signaled until it is explicitly reset to nonsignaled by the ResetEvent
function. Any number of waiting threads, or threads that
subsequently begin wait operations for the specified event object, can
be released while the object's state is signaled.
When the state of an auto-reset event object is signaled, it remains
signaled until a single waiting thread is released; the system then
automatically resets the state to nonsignaled. If no threads are
waiting, the event object's state remains signaled.

010-8956040，13691026331
Multiple processes can have handles of the same event object,
enabling use of the object for interprocess synchronization. The
following object-sharing mechanisms are available:
• A child process created by the CreateProcess function can
inherit a handle to an event object if the lpEventAttributes
parameter of CreateEvent enabled inheritance.
• A process can specify the event-object handle in a call to the
DuplicateHandle function to create a duplicate handle that
can be used by another process.
• A process can specify the name of an event object in a call to the
OpenEvent or CreateEvent function.
Use the CloseHandle function to close the handle. The system closes
the handle automatically when the process terminates. The event
object is destroyed when its last handle has been closed.
Examples
For an example that uses CreateEvent, see Using Event Objects.
Requirements
Minimum supported
client
Minimum supported
server
Windows 2000 Server
DLL Kernel32.dll
Unicode and ANSI
names
CreateEventW (Unicode) and
CreateEventA (ANSI)
See Also
CloseHandle
CreateEventEx

010-8956040，13691026331
CreateProcess
DuplicateHandle
Event Objects
Object Names
OpenEvent
ResetEvent
SECURITY_ATTRIBUTES
SetEvent
Synchronization Functions
8.OpenEvent Function
Opens an existing named event object.
Syntax
C++
HANDLE WINAPI OpenEvent(
__in DWORD dwDesiredAccess,
__in BOOL bInheritHandle,
__in LPCTSTR lpName
);
Parameters
dwDesiredAccess [in]
The access to the event object. The function fails if the security descriptor of the specified object
does not permit the requested access for the calling process. For a list of access rights, see
Synchronization Object Security and Access Rights.
bInheritHandle [in]
If this value is TRUE, processes created by this process will inherit the handle. Otherwise, the
processes do not inherit this handle.
lpName [in]
The name of the event to be opened. Name comparisons are case sensitive.
This function can open objects in a private namespace. For more information, see Object
Namespaces.
Terminal Services: The name can have a "Global" or "Local" prefix to explicitly
open an object in the global or session name space. The remainder of the name can
contain any character except the backslash character (). For more information, see
Kernel Object Namespaces.
Windows XP Home Edition: Fast user switching is implemented using Terminal
Services sessions. The first user to log on uses session 0, the next user to log on uses

010-8956040，13691026331
session 1, and so on. Kernel object names must follow the guidelines outlined for
Terminal Services so that applications can support multiple users.
Windows 2000: If Terminal Services is not running, the "Global" and "Local"
prefixes are ignored. The remainder of the name can contain any character except the
backslash character.
Return Value
If the function succeeds, the return value is a handle to the event object.
If the function fails, the return value is NULL. To get extended error information, call GetLastError.
Remarks
The OpenEvent function enables multiple processes to open handles of the same event object. The
function succeeds only if some process has already created the event by using the CreateEvent function.
The calling process can use the returned handle in any function that requires a handle to an event object,
subject to the limitations of the access specified in the dwDesiredAccess parameter.
The handle can be duplicated by using the DuplicateHandle function. Use the CloseHandle function to
close the handle. The system closes the handle automatically when the process terminates. The event
object is destroyed when its last handle has been closed.
9 SetEvent Function
首先介绍 CreateEvent 是创建 windows 事件的意思，作用主要用在判
断线程退出，程锁定方面.
CreateEvent
函功能描述：创建或打开一个命名的或无名的事件对象.
EVENT 有两种状态：发信号，不发信号。
SetEvent/ResetEvent 分别将 EVENT 置为这两种状态分别是发信号与
不发信号。
WaitForSingleObject()等待，直到参数所指定的 OBJECT 成为发信
号状态时才返回，OBJECT 可以是 EVENT，也可以是其它内核对象。

010-8956040，13691026331
当你创建一个线程时，其实那个线程是一个循环，不像上面那样只运
行一次的。这样就带来了一个问题，在那个死循环里要找到合适的条
件退出那个死循环，那么是怎么样实现它的呢？在 Windows 里往往
是采用事件的方式，当然还可以采用其它的方式。在这里先介绍采用
事件的方式来通知从线程运行函数退出来，它的实现原理是这样，在
那个死循环里不断地使用 WaitForSingleObject 函数来检查事件是否
满足，如果满足就退出线程，不满足就继续运行。当在线程里运行阻
塞的函数时，就需要在退出线程时，先要把阻塞状态变成非阻塞状态，
比如使用一个线程去接收网络数据，同时使用阻塞的 SOCKET 时，
那么要先关闭 SOCKET，再发送事件信号，才可以退出线程的。下面
就来演示怎么样使用事件来通知线程退出来。
Sets the specified event object to the signaled state.
Syntax
C++
BOOL WINAPI SetEvent(
__in HANDLE hEvent
);
Parameters
hEvent [in]
A handle to the event object. The CreateEvent or OpenEvent function returns this handle.
The handle must have the EVENT_MODIFY_STATE access right. For more information, see
Return Value

010-8956040，13691026331
If the function fails, the return value is zero. To get extended error information, call GetLastError.
Remarks
The state of a manual-reset event object remains signaled until it is set explicitly to the nonsignaled state
by the ResetEvent function. Any number of waiting threads, or threads that subsequently begin wait
operations for the specified event object by calling one of the wait functions, can be released while the
object's state is signaled.
The state of an auto-reset event object remains signaled until a single waiting thread is released, at
which time the system automatically sets the state to nonsignaled. If no threads are waiting, the event
object's state remains signaled.
Setting an event that is already set has no effect.
Examples
10 ResetEvent Function
Sets the specified event object to the nonsignaled state.
Syntax
C++
BOOL WINAPI ResetEvent(
__in HANDLE hEvent
);
Parameters
hEvent [in]
Return Value
Remarks
The state of an event object remains nonsignaled until it is explicitly set to signaled by the SetEvent or
PulseEvent function. This nonsignaled state blocks the execution of any threads that have specified the
event object in a call to one of the wait functions.

010-8956040，13691026331
The ResetEvent function is used primarily for manual-reset event objects, which must be set explicitly
to the nonsignaled state. Auto-reset event objects automatically change from signaled to nonsignaled
after a single waiting thread is released.
Resetting an event that is already reset has no effect
11 PulseEvent Function
Sets the specified event object to the signaled state and then resets it to the nonsignaled state after
releasing the appropriate number of waiting threads.
Note This function is unreliable and should not be used. It exists mainly for backward compatibility. For
more information, see Remarks.
Syntax
C++
BOOL WINAPI PulseEvent(
__in HANDLE hEvent
);
Parameters
hEvent [in]
Return Value
Remarks
A thread waiting on a synchronization object can be momentarily removed from the wait state by a
kernel-mode APC, and then returned to the wait state after the APC is complete. If the call to PulseEvent
occurs during the time when the thread has been removed from the wait state, the thread will not be
released because PulseEvent releases only those threads that are waiting at the moment it is called.
Therefore, PulseEvent is unreliable and should not be used by new applications. Instead, use condition
variables.
For a manual-reset event object, all waiting threads that can be released immediately are released. The
function then resets the event object's state to nonsignaled and returns.

010-8956040，13691026331
For an auto-reset event object, the function resets the state to nonsignaled and returns after releasing a
single waiting thread, even if multiple threads are waiting.
If no threads are waiting, or if no thread can be released immediately, PulseEvent simply sets the event
object's state to nonsignaled and returns.
Note that for a thread using the multiple-object wait functions to wait for all specified objects to be
signaled, PulseEvent can set the event object's state to signaled and reset it to nonsignaled without
causing the wait function to return. This happens if not all of the specified objects are simultaneously
signaled.
12 Creating Processes
The CreateProcess function creates a new process, which runs independently of the creating process.
However, for simplicity, the relationship is referred to as a parent-child relationship.
The following code demonstrates how to create a process.
Copy Code
#include <windows.h>
#include <stdio.h>
#include <tchar.h>
void _tmain( int argc, TCHAR *argv[] )
{
STARTUPINFO si;
PROCESS_INFORMATION pi;
ZeroMemory( &si, sizeof(si) );
si.cb = sizeof(si);
ZeroMemory( &pi, sizeof(pi) );
if( argc != 2 )
{
printf("Usage: %s [cmdline]n", argv[0]);
return;
}
// Start the child process.
if( !CreateProcess( NULL, // No module name (use command line)
argv[1], // Command line
NULL, // Process handle not inheritable
NULL, // Thread handle not inheritable
FALSE, // Set handle inheritance to FALSE

010-8956040，13691026331
0, // No creation flags
NULL, // Use parent's environment block
NULL, // Use parent's starting directory
&si, // Pointer to STARTUPINFO structure
&pi ) // Pointer to PROCESS_INFORMATION structure
)
{
printf( "CreateProcess failed (%d).n", GetLastError() );
return;
}
// Wait until child process exits.
WaitForSingleObject( pi.hProcess, INFINITE );
// Close process and thread handles.
CloseHandle( pi.hProcess );
CloseHandle( pi.hThread );
}
If CreateProcess succeeds, it returns a PROCESS_INFORMATION structure containing handles and
identifiers for the new process and its primary thread. The thread and process handles are created with
full access rights, although access can be restricted if you specify security descriptors. When you no
longer need these handles, close them by using the CloseHandle function.
You can also create a process using the CreateProcessAsUser or CreateProcessWithLogonW
function. This allows you to specify the security context of the user account in which the process will
execute.
13 WaitForSingleObject Function
Waits until the specified object is in the signaled state or the time-out interval elapses.
To enter an alertable wait state, use the WaitForSingleObjectEx function. To wait for multiple objects,
use the WaitForMultipleObjects.
Syntax
C++
DWORD WINAPI WaitForSingleObject(
__in HANDLE hHandle,
__in DWORD dwMilliseconds
);
Parameters
hHandle [in]

010-8956040，13691026331
A handle to the object. For a list of the object types whose handles can be specified, see the
following Remarks section.
If this handle is closed while the wait is still pending, the function's behavior is undefined.
The handle must have the SYNCHRONIZE access right. For more information, see Standard
Access Rights.
dwMilliseconds [in]
The time-out interval, in milliseconds. If a nonzero value is specified, the function waits until the
object is signaled or the interval elapses. If dwMilliseconds is zero, the function does not enter
a wait state if the object is not signaled; it always returns immediately. If dwMilliseconds is
INFINITE, the function will return only when the object is signaled.
Return Value
If the function succeeds, the return value indicates the event that caused the function to return. It can be
one of the following values.
Return code/value Description
WAIT_ABANDONED
0x00000080L
The specified object is a mutex object that was not released by the thread
that owned the mutex object before the owning thread terminated.
Ownership of the mutex object is granted to the calling thread and the
mutex state is set to nonsignaled.
If the mutex was protecting persistent state information, you should check
it for consistency.
WAIT_OBJECT_0
0x00000000L
The state of the specified object is signaled.
WAIT_TIMEOUT
0x00000102L
The time-out interval elapsed, and the object's state is nonsignaled.
WAIT_FAILED
(DWORD)0xFFFFFFFF
The function has failed. To get extended error information, call
GetLastError.
Remarks
The WaitForSingleObject function checks the current state of the specified object. If the object's state
is nonsignaled, the calling thread enters the wait state until the object is signaled or the time-out interval
elapses.
The function modifies the state of some types of synchronization objects. Modification occurs only for the
object whose signaled state caused the function to return. For example, the count of a semaphore object
is decreased by one.

010-8956040，13691026331
The WaitForSingleObject function can wait for the following objects:
• Change notification
• Console input
• Event
• Memory resource notification
• Mutex
• Process
• Semaphore
• Thread
• Waitable timer
Use caution when calling the wait functions and code that directly or indirectly creates windows. If a
thread creates any windows, it must process messages. Message broadcasts are sent to all windows in
the system. A thread that uses a wait function with no time-out interval may cause the system to become
deadlocked. Two examples of code that indirectly creates windows are DDE and the CoInitialize
function. Therefore, if you have a thread that creates windows, use MsgWaitForMultipleObjects or
MsgWaitForMultipleObjectsEx, rather than WaitForSingleObject.
Examples
For an example, see Using Mutex Objects.
Requirements
Minimum supported client Windows 2000 Professional
Minimum supported server Windows 2000 Server
DLL Kernel32.dll
See Also
14 HeapAlloc Function
Allocates a block of memory from a heap. The allocated memory is not movable.

010-8956040，13691026331
Syntax
C++
LPVOID WINAPI HeapAlloc(
__in HANDLE hHeap,
__in DWORD dwFlags,
__in SIZE_T dwBytes
);
Parameters
hHeap [in]
A handle to the heap from which the memory will be allocated. This handle is returned by the
HeapCreate or GetProcessHeap function.
dwFlags [in]
The heap allocation options. Specifying any of these values will override the corresponding
value specified when the heap was created with HeapCreate. This parameter can be one or
more of the following values.
Value Meaning
HEAP_GENERATE_EXCEPTIONS
0x00000004
The system will raise an exception to indicate a function failure,
such as an out-of-memory condition, instead of returning NULL.
To ensure that exceptions are generated for all calls to this
function, specify HEAP_GENERATE_EXCEPTIONS in the call to
HeapCreate. In this case, it is not necessary to additionally
specify HEAP_GENERATE_EXCEPTIONS in this function call.
HEAP_NO_SERIALIZE
0x00000001
Serialized access will not be used for this allocation. For more
information, see Remarks.
To ensure that serialized access is disabled for all calls to this
function, specify HEAP_NO_SERIALIZE in the call to
HeapCreate. In this case, it is not necessary to additionally
specify HEAP_NO_SERIALIZE in this function call.
This value should not be specified when accessing the process's
default heap. The system may create additional threads within
the application's process, such as a CTRL+C handler, that
simultaneously access the process's default heap.
HEAP_ZERO_MEMORY
0x00000008
The allocated memory will be initialized to zero. Otherwise, the
memory is not initialized to zero.
dwBytes [in]
The number of bytes to be allocated.

010-8956040，13691026331
If the heap specified by the hHeap parameter is a "non-growable" heap, dwBytes must be less
than 0x7FFF8. You create a non-growable heap by calling the HeapCreate function with a
nonzero value.
Return Value
If the function succeeds, the return value is a pointer to the allocated memory block.
If the function fails and you have not specified HEAP_GENERATE_EXCEPTIONS, the return value is NULL.
If the function fails and you have specified HEAP_GENERATE_EXCEPTIONS, the function may generate
either of the following exceptions. The particular exception depends upon the nature of the heap
corruption.
Return code Description
STATUS_NO_MEMORY The allocation attempt failed because of a lack of available memory
or heap corruption.
STATUS_ACCESS_VIOLATION The allocation attempt failed because of heap corruption or
improper function parameters.
If the function fails, it does not call SetLastError. An application cannot call GetLastError for extended
error information.
Remarks
If the HeapAlloc function succeeds, it allocates at least the amount of memory requested.
To allocate memory from the process's default heap, use HeapAlloc with the handle returned by the
GetProcessHeap function.
To free a block of memory allocated by HeapAlloc, use the HeapFree function.
Memory allocated by HeapAlloc is not movable. The address returned by HeapAlloc is valid until the
memory block is freed or reallocated; the memory block does not need to be locked. Because the system
cannot compact a private heap, it can become fragmented.
Applications that allocate large amounts of memory in various allocation sizes can use the
low-fragmentation heap to reduce heap fragmentation.
Serialization ensures mutual exclusion when two or more threads attempt to simultaneously allocate or
free blocks from the same heap. There is a small performance cost to serialization, but it must be used
whenever multiple threads allocate and free memory from the same heap. Setting the
HEAP_NO_SERIALIZE value eliminates mutual exclusion on the heap. Without serialization, two or more
threads that use the same heap handle might attempt to allocate or free memory simultaneously, likely

010-8956040，13691026331
causing corruption in the heap. The HEAP_NO_SERIALIZE value can, therefore, be safely used only in the
following situations:
• The process has only one thread.
• The process has multiple threads, but only one thread calls the heap functions for a specific
heap.
• The process has multiple threads, and the application provides its own mechanism for mutual
exclusion to a specific heap.
15 LocalFree Function
Frees the specified local memory object and invalidates its handle.
Note The local functions have greater overhead and provide fewer features than other memory
management functions. New applications should use the heap functions unless documentation states
that a local function should be used. For more information, see Global and Local Functions.
Syntax
C++
HLOCAL WINAPI LocalFree(
__in HLOCAL hMem
);
Parameters
hMem [in]
A handle to the local memory object. This handle is returned by either the LocalAlloc or
LocalReAlloc function. It is not safe to free memory allocated with GlobalAlloc.
Return Value
If the function succeeds, the return value is NULL.
If the function fails, the return value is equal to a handle to the local memory object. To get extended
error information, call GetLastError.
Remarks
If the process tries to examine or modify the memory after it has been freed, heap corruption may occur
or an access violation exception (EXCEPTION_ACCESS_VIOLATION) may be generated.
If the hMem parameter is NULL, LocalFree ignores the parameter and returns NULL.

010-8956040，13691026331
The LocalFree function will free a locked memory object. A locked memory object has a lock count
greater than zero. The LocalLock function locks a local memory object and increments the lock count by
one. The LocalUnlock function unlocks it and decrements the lock count by one. To get the lock count
of a local memory object, use the LocalFlags function.
If an application is running under a debug version of the system, LocalFree will issue a message that
tells you that a locked object is being freed. If you are debugging the application, LocalFree will enter a
breakpoint just before freeing a locked object. This allows you to verify the intended behavior, then
continue execution.
16 GetLastError Function
Retrieves the calling thread's last-error code value. The last-error code is maintained on a
per-thread basis. Multiple threads do not overwrite each other's last-error code.
Visual Basic: Applications should call err.LastDllError instead of GetLastError.
17．CreateProcess
This function is used to run a new program. It creates a new process and its primary thread. The
new process executes the specified executable file.
Note The remote application interface (RAPI) version of this function is named CeCreateProcess
(RAPI).
BOOL CreateProcess(
LPCWSTR pszImageName,
LPCWSTR pszCmdLine,
LPSECURITY_ATTRIBUTES psaProcess,
LPSECURITY_ATTRIBUTES psaThread,
BOOL fInheritHandles,
DWORD fdwCreate,
LPVOID pvEnvironment,
LPWSTR pszCurDir,
LPSTARTUPINFOW psiStartInfo,
LPPROCESS_INFORMATION pProcInfo
);
Parameters
pszImageName
[in] Pointer to a null-terminated string that specifies the module
to execute.

010-8956040，13691026331
The string can specify the full path and filename of the module to
execute or it can specify a partial path and filename.
The lpszImageName parameter must be non-NULL and must include
the module name.
pszCmdLine
[in, out] Pointer to a null-terminated string that specifies the
command line to execute.
The system adds a null character to the command line, trimming the
string if necessary, to indicate which file was used.
The lpszCmdLine parameter can be NULL. In that case, the function
uses the string pointed to by lpszImageName as the command line.
If lpszImageName and lpszCmdLine are non-NULL, * lpszImageName
specifies the module to execute, and * lpszCmdLine specifies the
command line.
18 GetSystemTimeAsFileTime
Retrieves the current system date and time. The information is in Coordinated Universal Time
(UTC) format.
Syntax
C++
void WINAPI GetSystemTimeAsFileTime(
__out LPFILETIME lpSystemTimeAsFileTime
);
Parameters
lpSystemTimeAsFileTime [out]
A pointer to a FILETIME structure to receive the current system date and time in
UTC format.
Return Value

010-8956040，13691026331
This function does not return a value.
Requirements

API

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (10)

Similar to API

Similar to API (20)

Recently uploaded

Recently uploaded (20)

API
