Apache Flink is an open-source stream processing framework designed for low latency and high throughput in event-driven applications. It provides building blocks for stateful computations over data streams and supports various use cases including streaming analytics, fraud detection, and machine learning. The document outlines key concepts, APIs, and implementation details relevant to leveraging Flink for real-time data processing.

1. Apache Flink
Building a Stream Processor for fast analytics,
event-driven applications, event time, and tons of
state
Robert Metzger
@rmetzger_
robert@data-artisans.com
1

2. 2
Original creators of
Apache Flink®
dA Platform 2
Open Source Apache Flink +
dA Application Manager

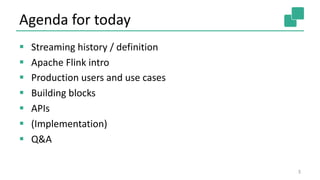

3. Agenda for today
§ Streaming history / definition
§ Apache Flink intro
§ Production users and use cases
§ Building blocks
§ APIs
§ (Implementation)
§ Q&A
3

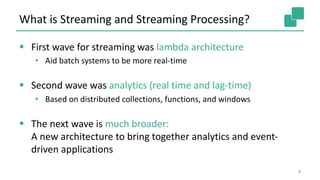

4. What is Streaming and Streaming Processing?
§ First wave for streaming was lambda architecture
• Aid batch systems to be more real-time
§ Second wave was analytics (real time and lag-time)
• Based on distributed collections, functions, and windows
§ The next wave is much broader:
A new architecture to bring together analytics and event-
driven applications
4

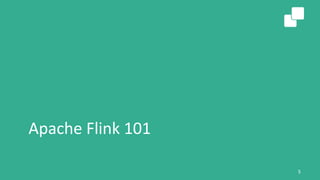

5. Apache Flink 101
5

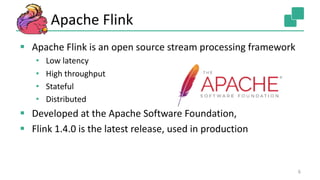

6. Apache Flink
§ Apache Flink is an open source stream processing framework
• Low latency
• High throughput
• Stateful
• Distributed
§ Developed at the Apache Software Foundation,
§ Flink 1.4.0 is the latest release, used in production
6

7. What is Apache Flink?
7
Batch Processing
process static and
historic data
Data Stream
Processing
realtime results
from data streams
Event-driven
Applications
data-driven actions
and services
Stateful Computations Over Data Streams

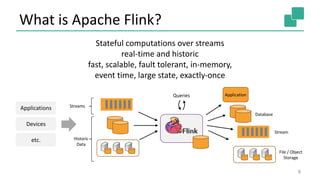

8. What is Apache Flink?
8
Queries
Applications
Devices
etc.
Database
Stream
File / Object
Storage
Stateful computations over streams
real-time and historic
fast, scalable, fault tolerant, in-memory,
event time, large state, exactly-once
Historic
Data
Streams
Application

9. Hardened at scale
9
AthenaX Streaming SQL
Platform Service
trillion messages per day
Streaming Platform as a Service
Fraud detection
Streaming Analytics Platform
100s jobs, 1000s nodes, TBs state
metrics, analytics, real time ML
Streaming SQL as a platform

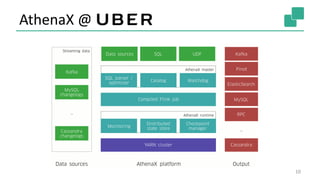

10. AthenaX @ Uber
10

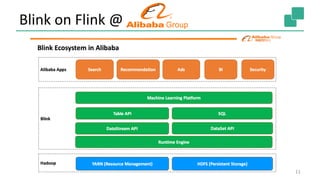

11. Blink on Flink @
11

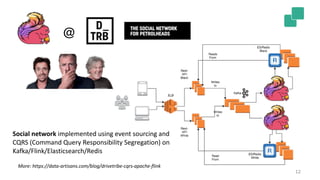

12. 12
@
Social network implemented using event sourcing and
CQRS (Command Query Responsibility Segregation) on
Kafka/Flink/Elasticsearch/Redis
More: https://data-artisans.com/blog/drivetribe-cqrs-apache-flink

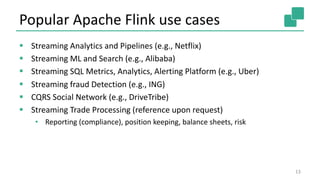

13. Popular Apache Flink use cases
§ Streaming Analytics and Pipelines (e.g., Netflix)
§ Streaming ML and Search (e.g., Alibaba)
§ Streaming SQL Metrics, Analytics, Alerting Platform (e.g., Uber)
§ Streaming fraud Detection (e.g., ING)
§ CQRS Social Network (e.g., DriveTribe)
§ Streaming Trade Processing (reference upon request)
• Reporting (compliance), position keeping, balance sheets, risk
13

14. Building blocks
14

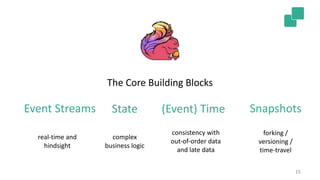

15. 15
Event Streams State (Event) Time Snapshots
The Core Building Blocks
real-time and
hindsight
complex
business logic
consistency with
out-of-order data
and late data
forking /
versioning /
time-travel

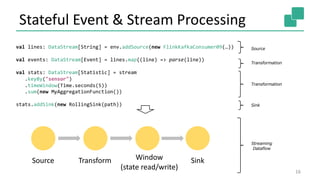

16. Stateful Event & Stream Processing
16
Source
Transformation
Transformation
Sink
val lines: DataStream[String] = env.addSource(new FlinkKafkaConsumer09(…))
val events: DataStream[Event] = lines.map((line) => parse(line))
val stats: DataStream[Statistic] = stream
.keyBy("sensor")
.timeWindow(Time.seconds(5))
.sum(new MyAggregationFunction())
stats.addSink(new RollingSink(path))
Streaming
Dataflow
Source Transform Window
(state read/write)
Sink

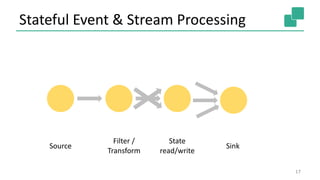

17. Stateful Event & Stream Processing
17
Source
Filter /
Transform
State
read/write
Sink

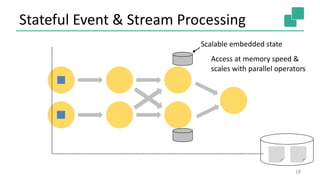

18. Stateful Event & Stream Processing
18
Scalable embedded state
Access at memory speed &
scales with parallel operators

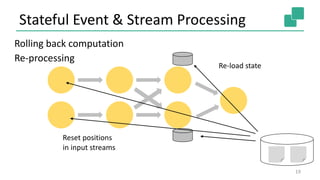

19. Stateful Event & Stream Processing
19
Re-load state
Reset positions
in input streams
Rolling back computation
Re-processing

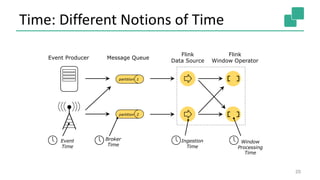

20. Time: Different Notions of Time
20
Event Producer Message Queue
Flink
Data Source
Flink
Window Operator
partition 1
partition 2
Event
Time
Ingestion
Time
Window
Processing
Time
Broker
Time

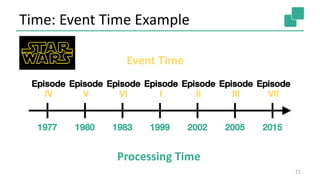

21. Time: Event Time Example
21
1977 1980 1983 1999 2002 2005 2015
Processing Time
Episode
IV
Episode
V
Episode
VI
Episode
I
Episode
II
Episode
III
Episode
VII
Event Time

22. 22
Event Streams State (Event) Time Snapshots
Recap: The Core Building Blocks
real-time and
hindsight
complex
business logic
consistency with
out-of-order data
and late data
forking /
versioning /
time-travel

23. APIs
23

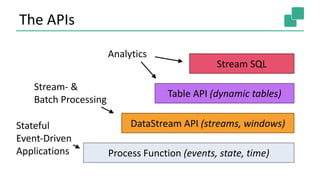

24. The APIs
24
Process Function (events, state, time)
DataStream API (streams, windows)
Table API (dynamic tables)
Stream SQL
Stream- &
Batch Processing
Analytics
Stateful
Event-Driven
Applications

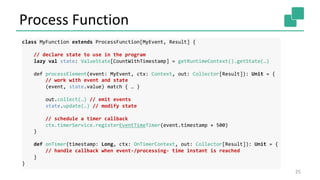

25. Process Function
25
class MyFunction extends ProcessFunction[MyEvent, Result] {
// declare state to use in the program
lazy val state: ValueState[CountWithTimestamp] = getRuntimeContext().getState(…)
def processElement(event: MyEvent, ctx: Context, out: Collector[Result]): Unit = {
// work with event and state
(event, state.value) match { … }
out.collect(…) // emit events
state.update(…) // modify state
// schedule a timer callback
ctx.timerService.registerEventTimeTimer(event.timestamp + 500)
}
def onTimer(timestamp: Long, ctx: OnTimerContext, out: Collector[Result]): Unit = {
// handle callback when event-/processing- time instant is reached
}
}

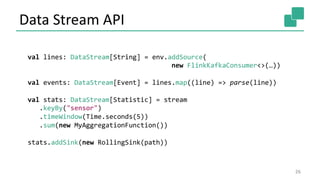

26. Data Stream API
26
val lines: DataStream[String] = env.addSource(
new FlinkKafkaConsumer<>(…))
val events: DataStream[Event] = lines.map((line) => parse(line))
val stats: DataStream[Statistic] = stream
.keyBy("sensor")
.timeWindow(Time.seconds(5))
.sum(new MyAggregationFunction())
stats.addSink(new RollingSink(path))

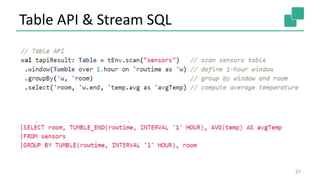

27. Table API & Stream SQL
27

28. Implementation
28

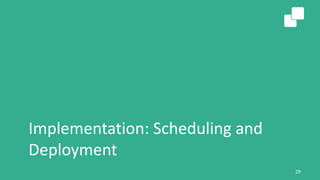

29. Implementation: Scheduling and
Deployment
29

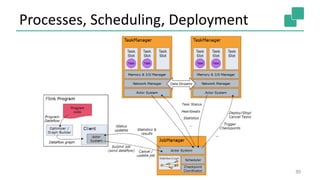

30. Processes, Scheduling, Deployment
30

31. Implementation: State
Checkpointing
31

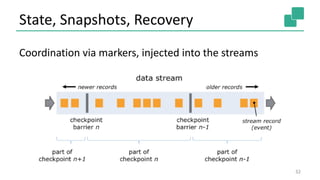

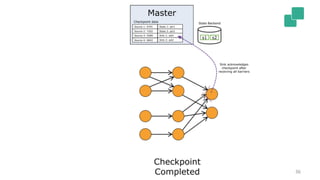

32. State, Snapshots, Recovery
32
Coordination via markers, injected into the streams

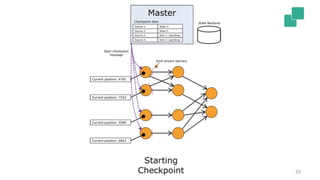

33. 33

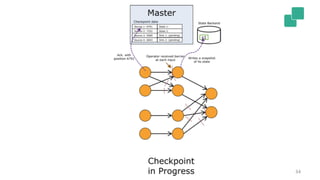

34. 34

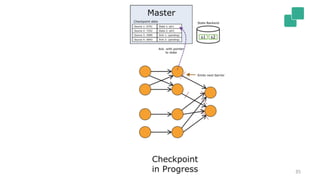

35. 35

36. 36

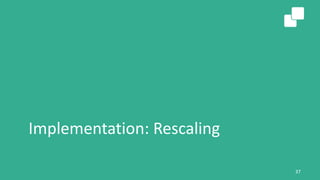

37. Implementation: Rescaling
37

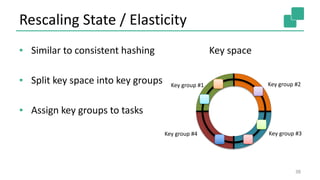

38. Rescaling State / Elasticity
▪ Similar to consistent hashing
▪ Split key space into key groups
▪ Assign key groups to tasks
38
Key space
Key group #1 Key group #2
Key group #3Key group #4

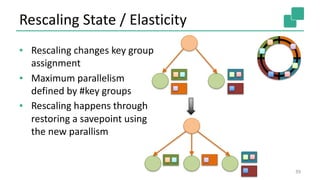

39. Rescaling State / Elasticity
▪ Rescaling changes key group
assignment
▪ Maximum parallelism
defined by #key groups
▪ Rescaling happens through
restoring a savepoint using
the new parallism
39

40. Implementation: Time-handling
40

41. Time: Different Notions of Time
41
Event Producer Message Queue
Flink
Data Source
Flink
Window Operator
partition 1
partition 2
Event
Time
Ingestion
Time
Window
Processing
Time
Broker
Time

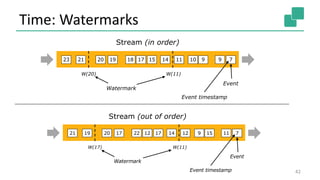

42. Time: Watermarks
42
7
W(11)W(17)
11159121417122220 171921
Watermark
Event
Event timestamp
Stream (in order)
7
W(11)W(20)
Watermark
991011141517
Event
Event timestamp
1820 192123
Stream (out of order)

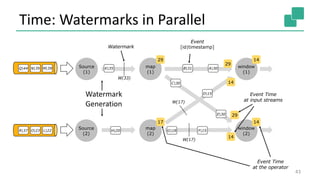

43. Time: Watermarks in Parallel
43
Source
(1)
Source
(2)
map
(1)
map
(2)
window
(1)
window
(2)
29
29
17
14
14
29
14
14
W(33)
W(17)
W(17)
A|30B|31
C|30
D|15
E|30
F|15G|18H|20
K|35
Watermark
Event Time
at the operator
Event
[id|timestamp]
Event Time
at input streams
Watermark
Generation
M|39N|39Q|44
L|22O|23R|37

44. Implementation: Stream SQL
44

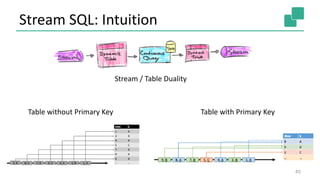

45. Stream SQL: Intuition
45
Stream / Table Duality
Table with Primary KeyTable without Primary Key

46. Stream SQL: Implementation
46
Query Compilation
Differential Computation
(add/mod/del)

47. Concluding…
47

48. 48

49. We are hiring!
data-artisans.com/careers
Positions: Software Engineers, Solution Architects, SREs,
and more

50. Q & A
50
Get in touch via Twitter:
@rmetzger_
@ApacheFlink
@dataArtisans
Get in touch via eMail:
robert@data-artisans.com
info@data-artisans.com

51. Bonus Material
51

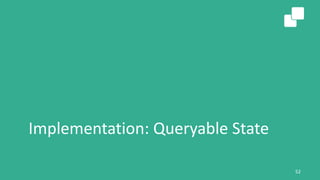

52. Implementation: Queryable State
52

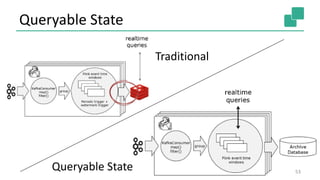

53. Queryable State
53
Traditional
Queryable State

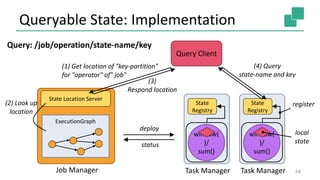

54. Queryable State: Implementation
54
Query Client
State
Registry
window(
)/
sum()
Job Manager Task Manager
ExecutionGraph
State Location Server
deploy
status
Query: /job/operation/state-name/key
State
Registry
window(
)/
sum()
Task Manager
(1) Get location of "key-partition"
for "operator" of" job"
(2) Look up
location
(3)
Respond location
(4) Query
state-name and key
local
state
register
