1. Confidential + Proprietary

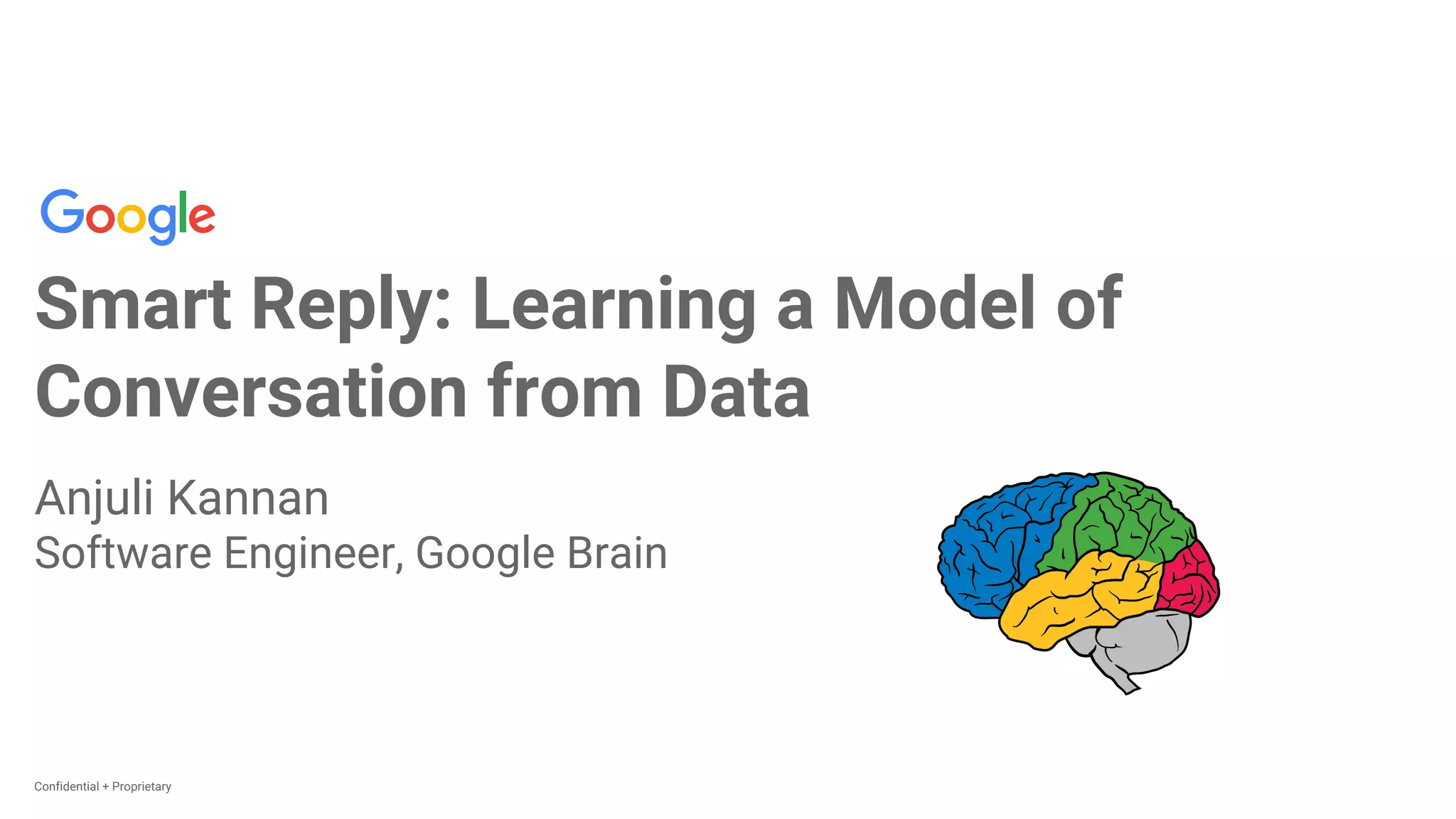

Smart Reply: Learning a Model of
Conversation from Data
Anjuli Kannan
Software Engineer, Google Brain

2. Problem

3. Confidential + Proprietary

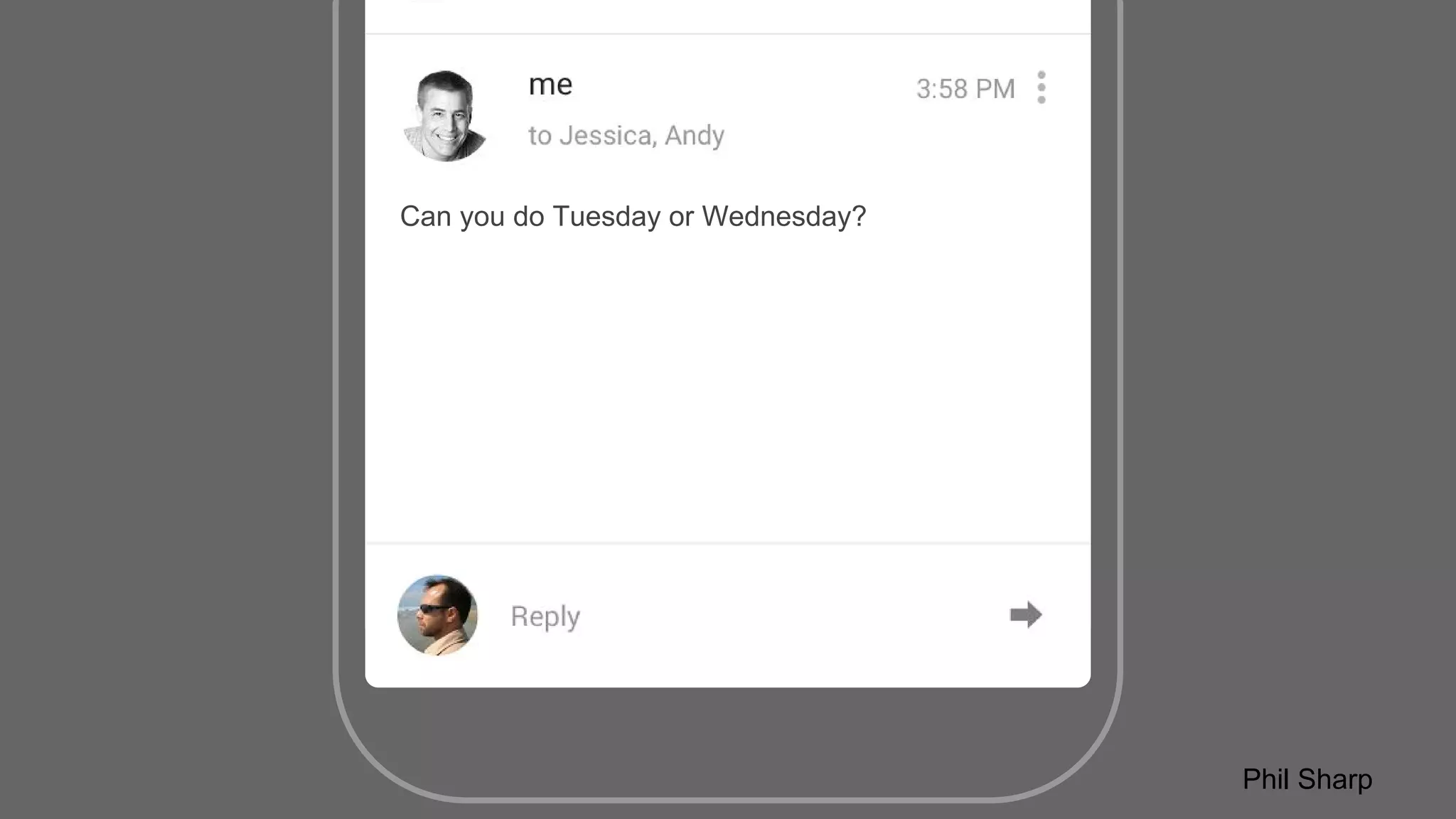

Can you do Tuesday or Wednesday?
Phil Sharp

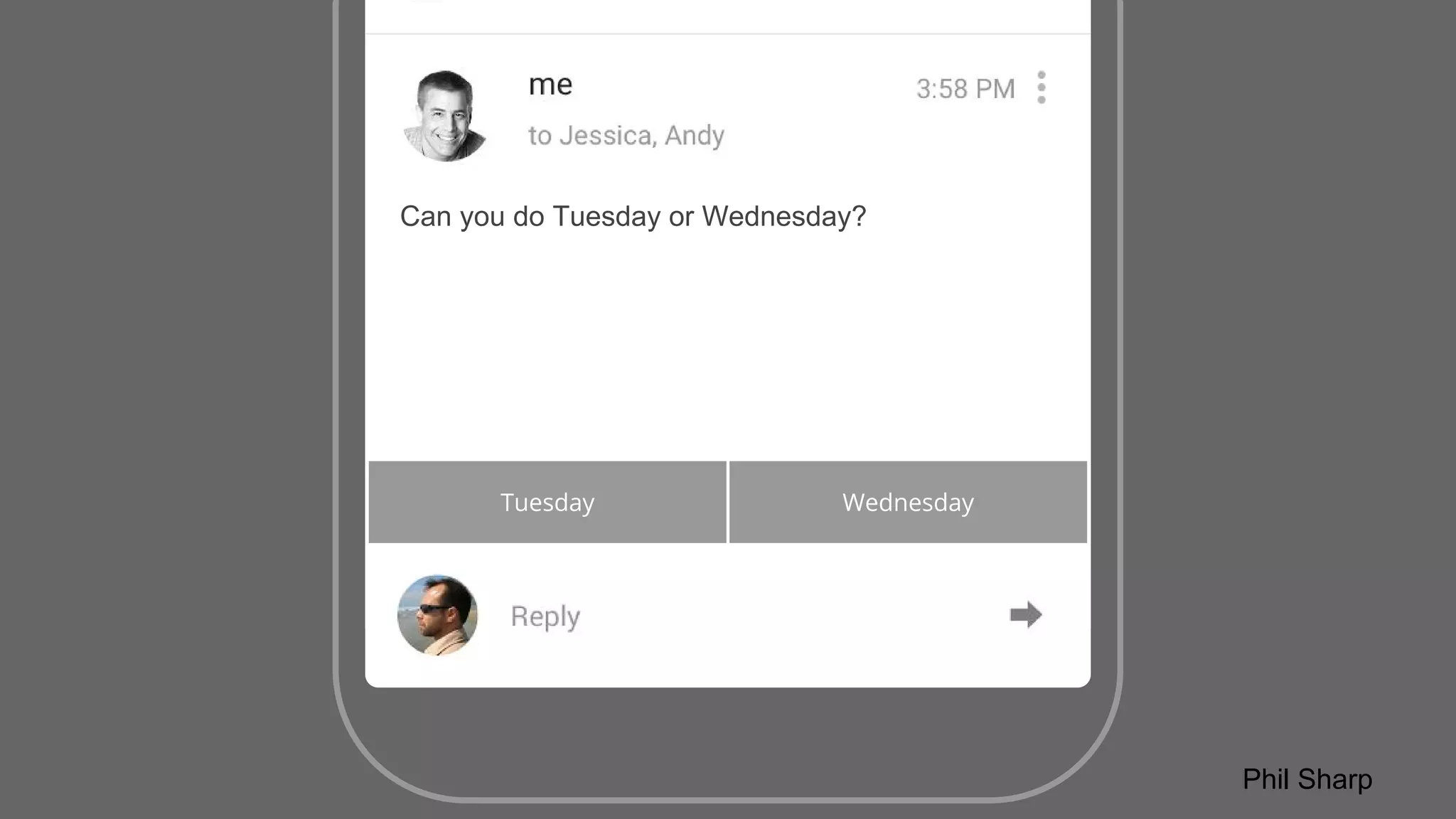

4. Confidential + Proprietary
Tuesday Wednesday
Can you do Tuesday or Wednesday?
Phil Sharp

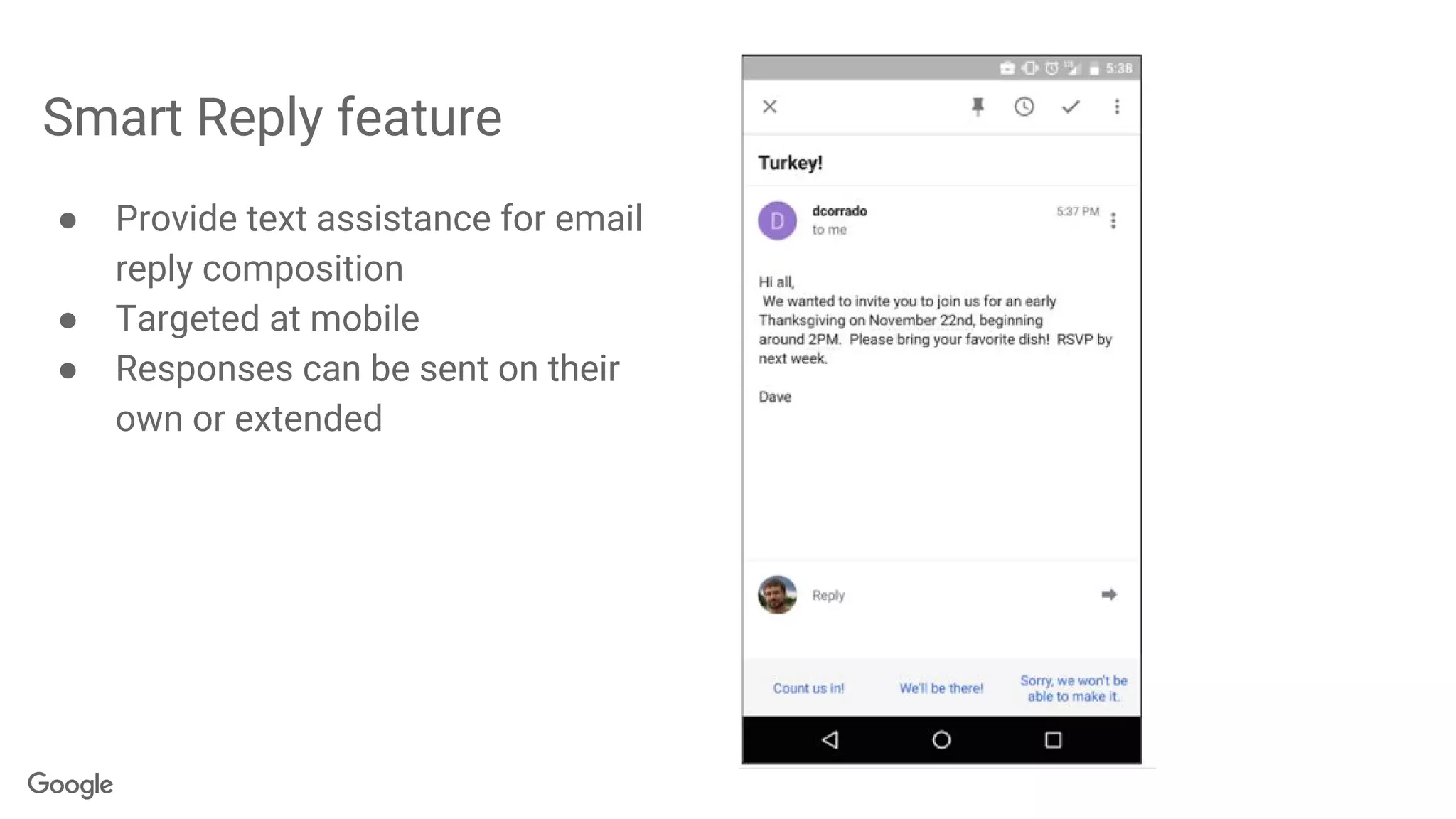

5. Smart Reply feature
● Provide text assistance for email
reply composition
● Targeted at mobile
● Responses can be sent on their
own or extended

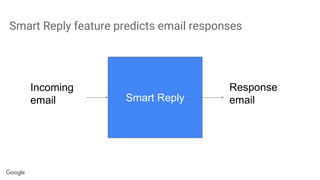

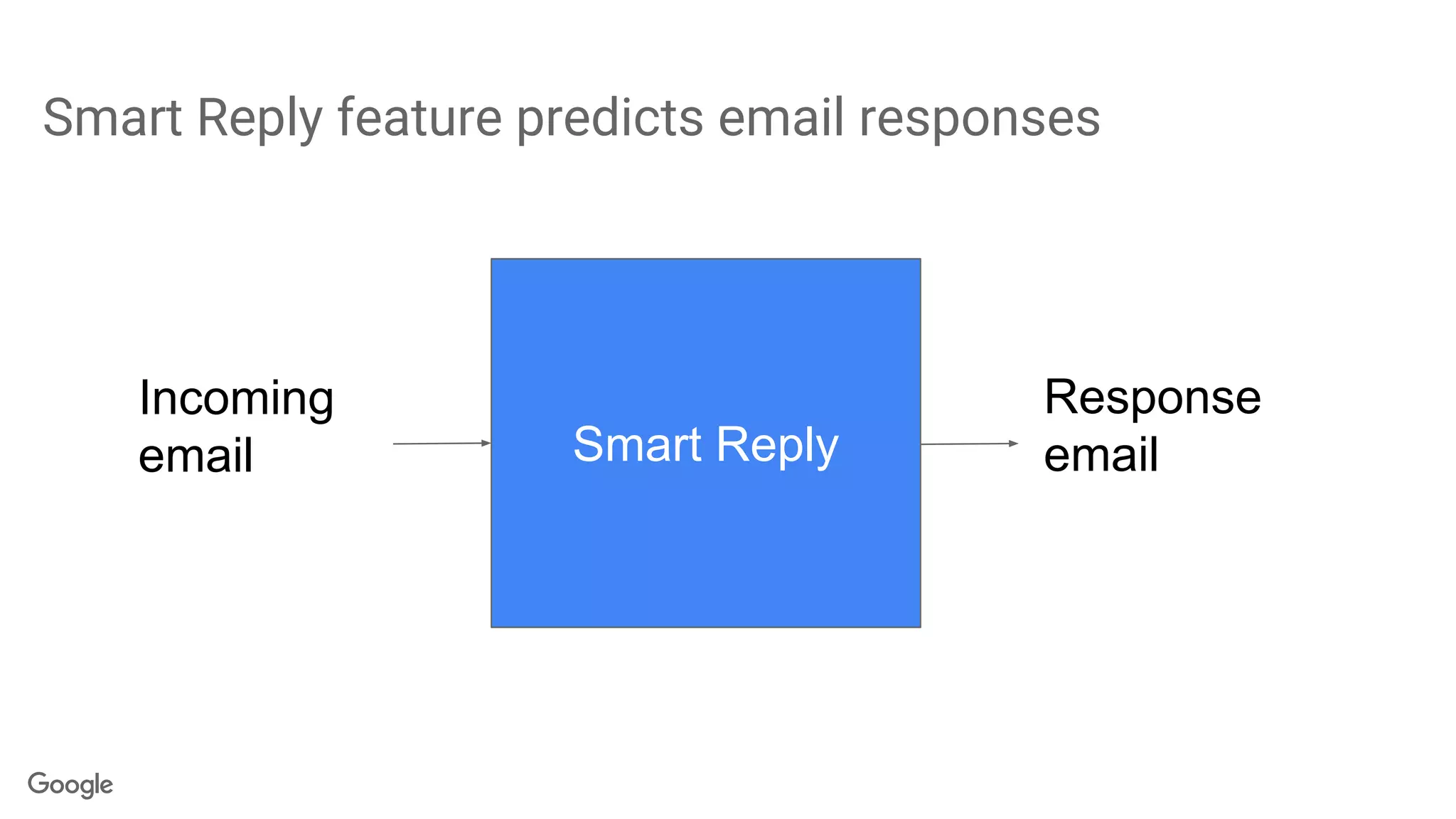

6. Smart Reply feature predicts email responses
Smart Reply
Incoming
email
Response
email

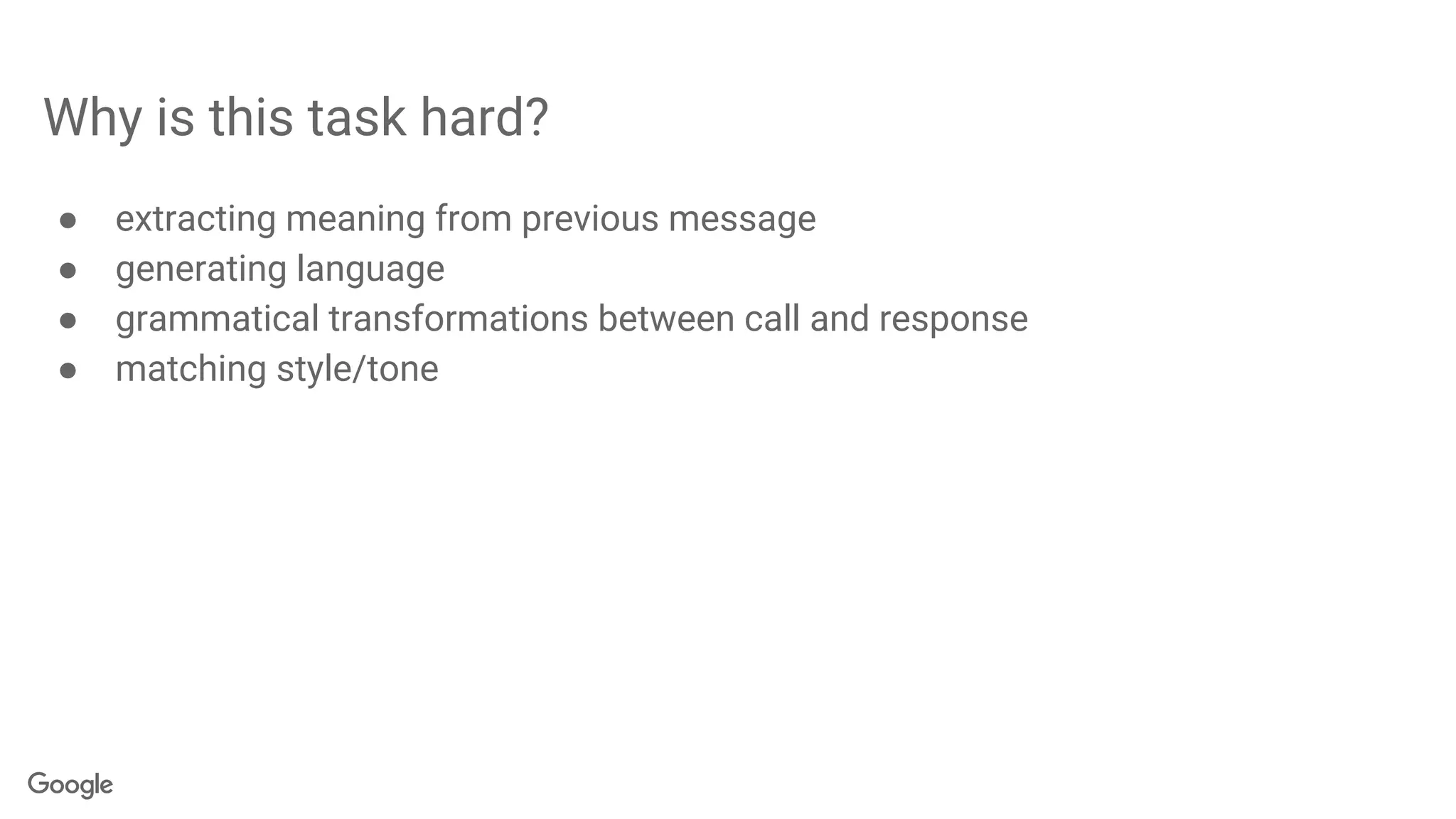

7. Why is this task hard?
● extracting meaning from previous message
● generating language
● grammatical transformations between call and response
● matching style/tone

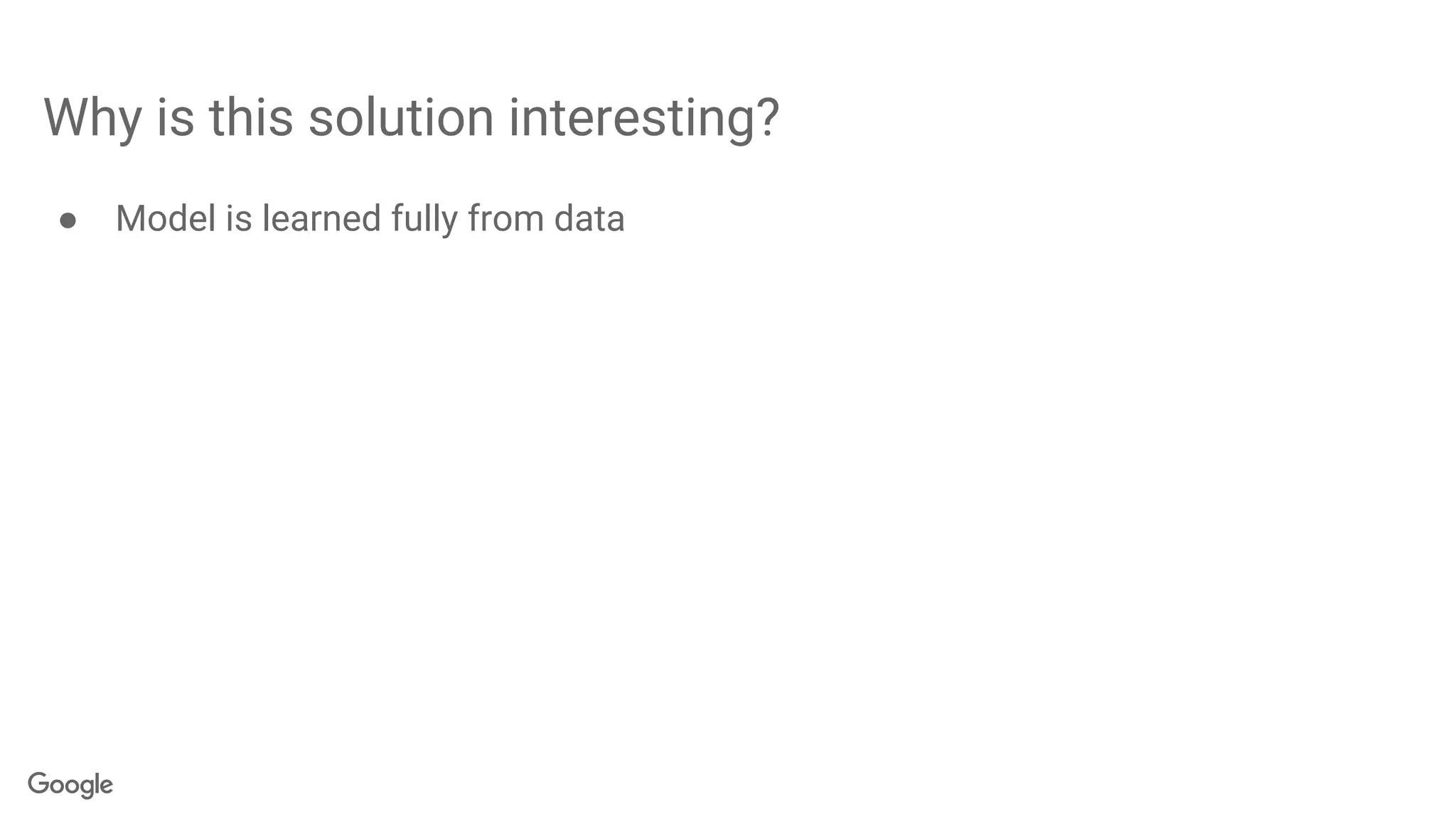

8. Why is this solution interesting?
● Model is learned fully from data

9. Model

10. Confidential + Proprietary
Neural network
Is a 4
Is a 5
...
...
Image: Wikipedia

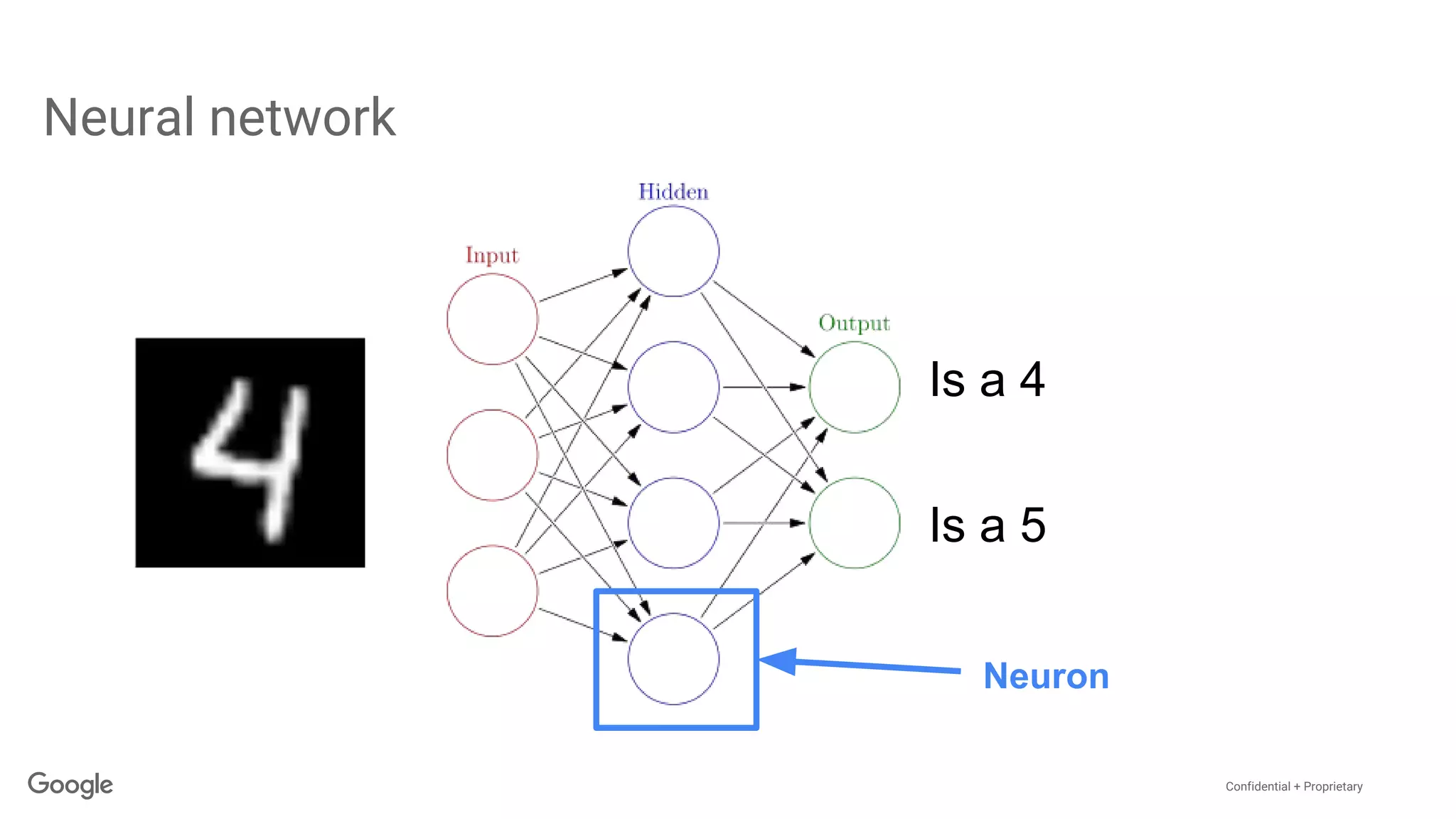

11. Confidential + Proprietary
Neural network
Neuron
Is a 4
Is a 5

12. Confidential + Proprietary

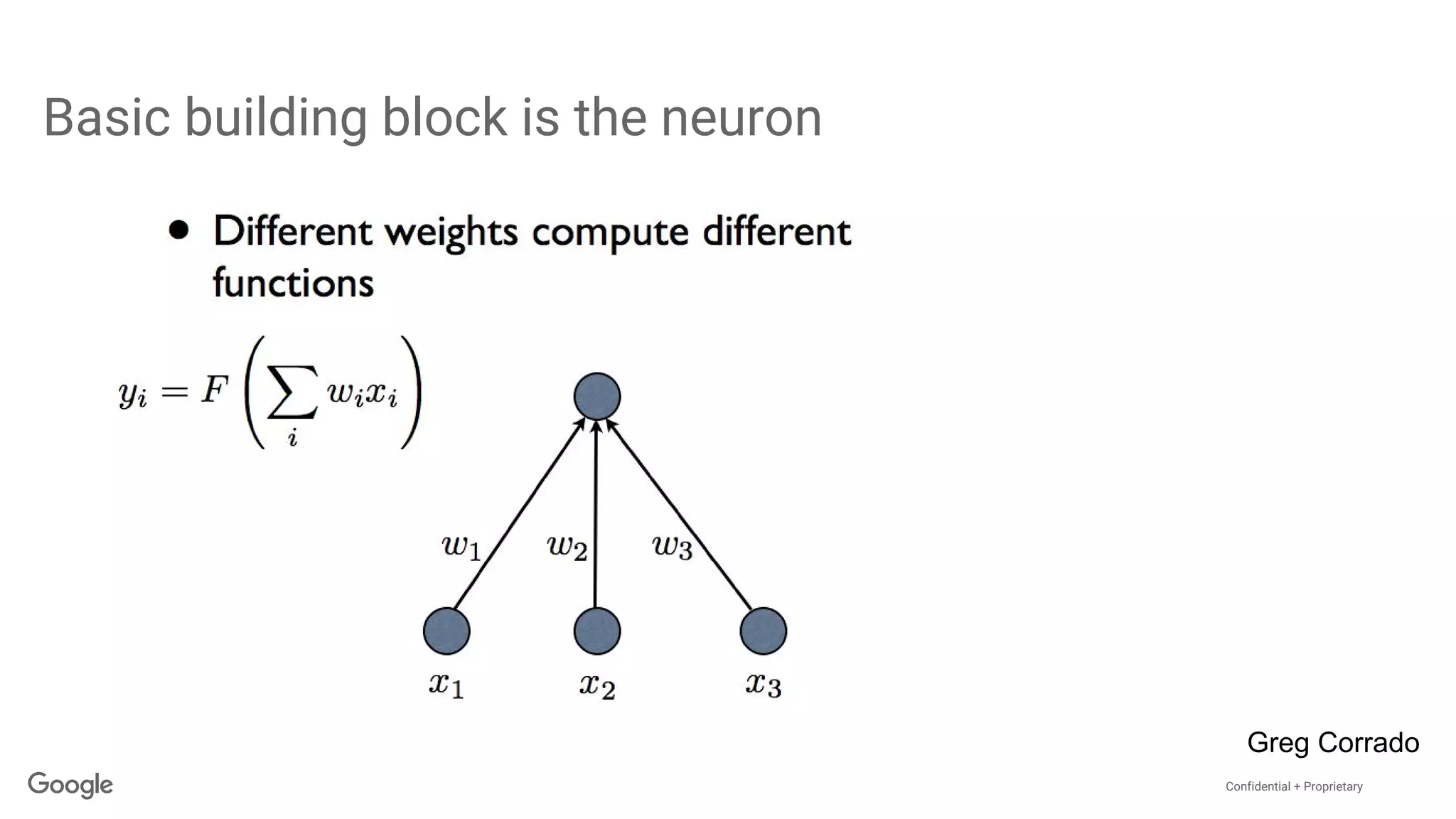

Basic building block is the neuron
Greg Corrado

13. Confidential + Proprietary

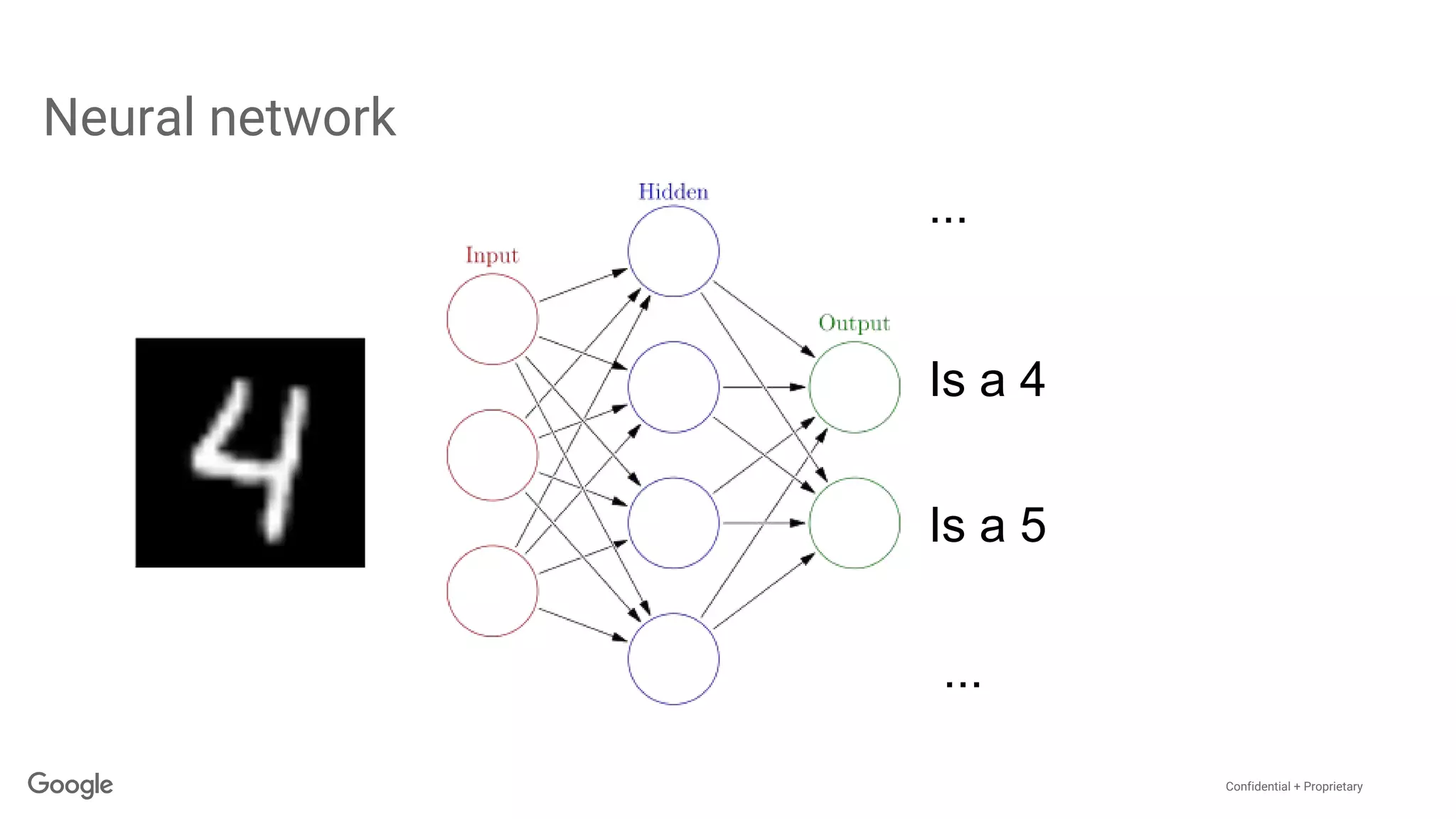

Neural network
Is a 4
Is a 5
...
...

14. Confidential + Proprietary

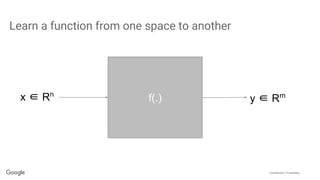

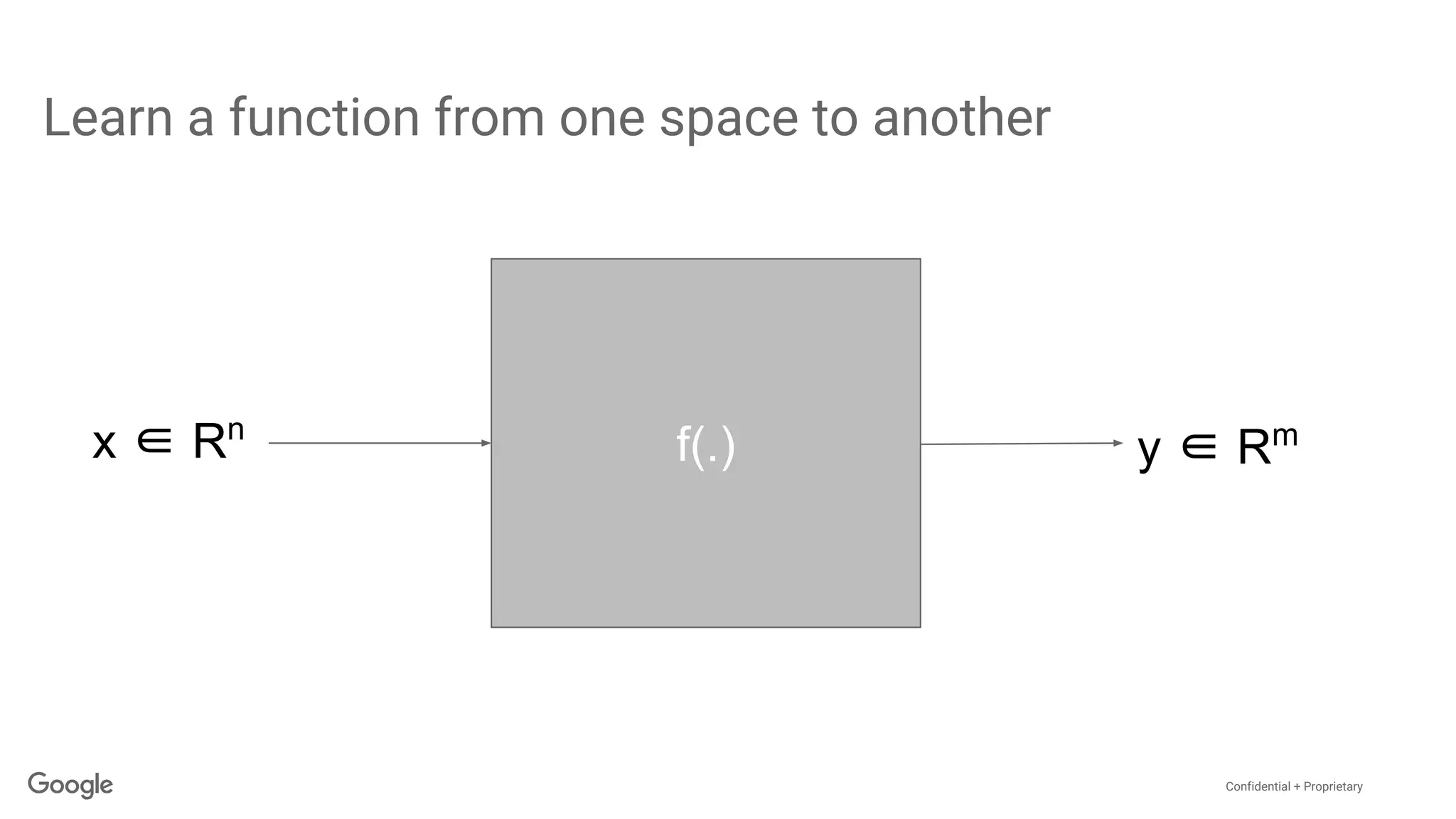

Learn a function from one space to another
f(.)x ∈ Rn
y ∈ Rm

15. Confidential + Proprietary
Smartreply feature predicts email responses
Smartreply
Incoming
email
Response
email

16. Confidential + Proprietary

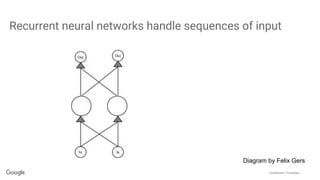

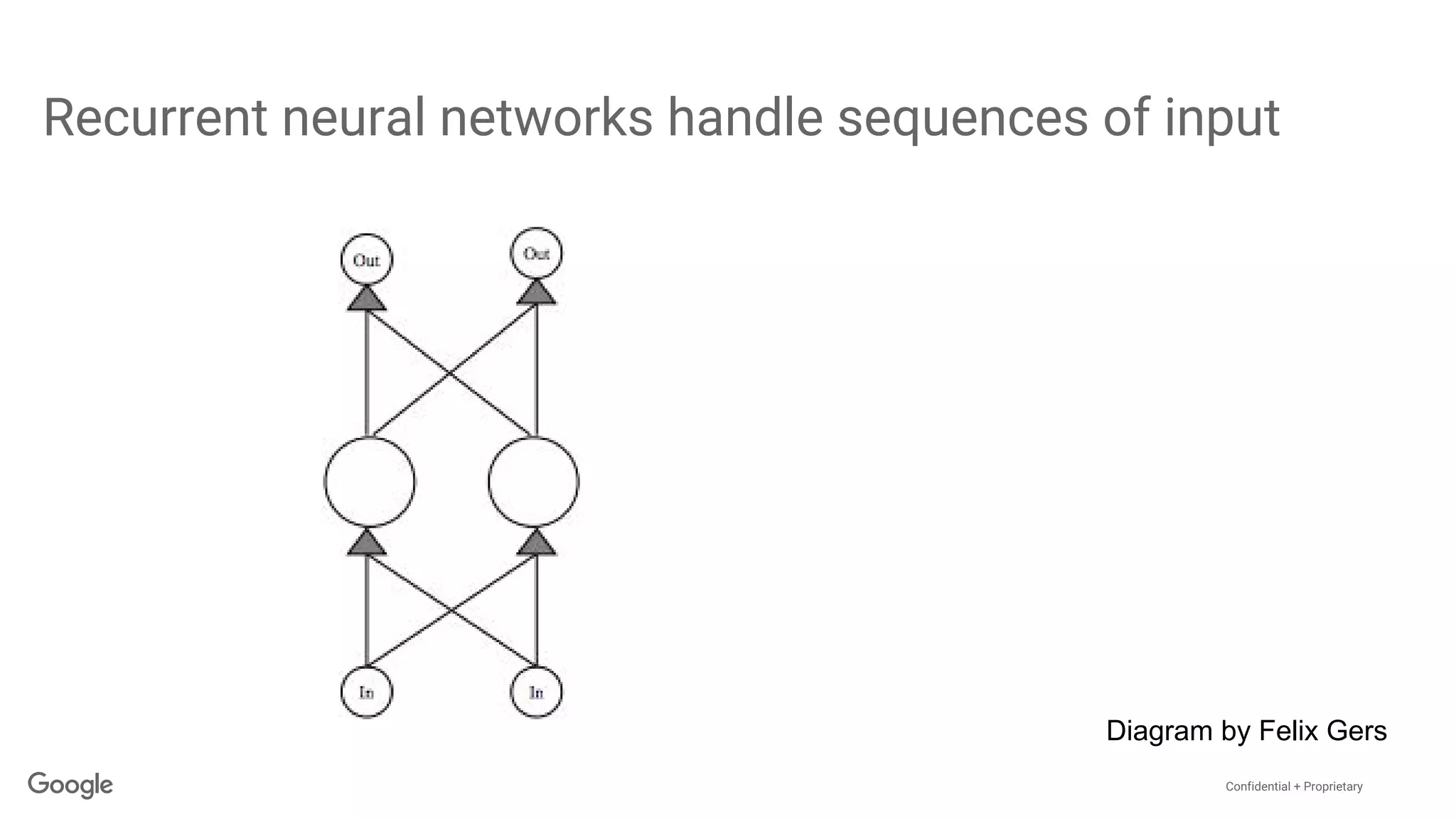

Recurrent neural networks handle sequences of input
Diagram by Felix Gers

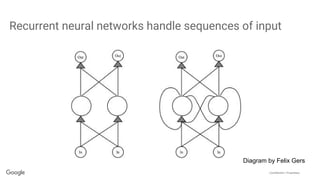

17. Confidential + Proprietary

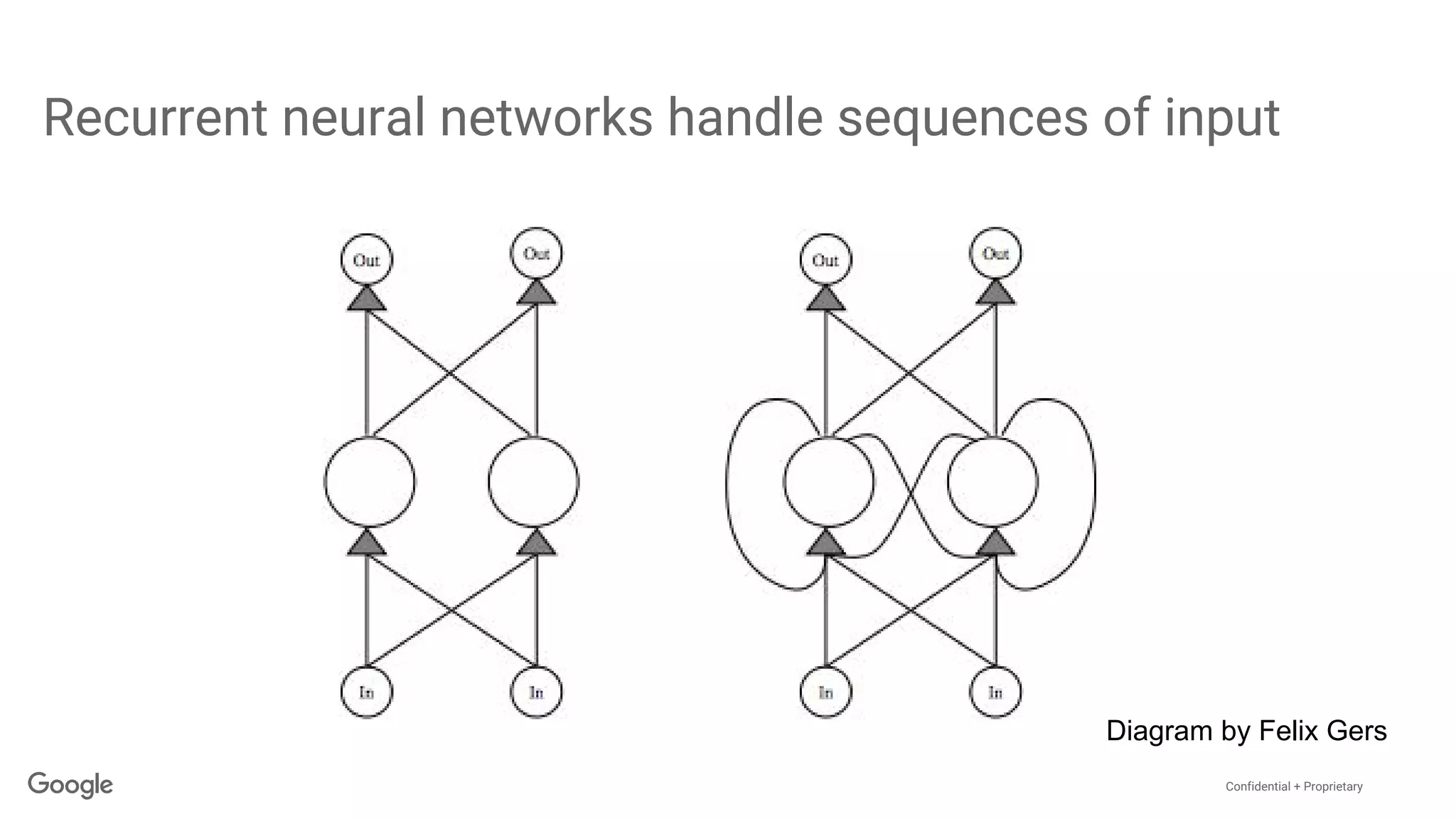

Recurrent neural networks handle sequences of input
Diagram by Felix Gers

18. Confidential + Proprietary
Recurrent neural networks handle sequences of input

19. Confidential + Proprietary

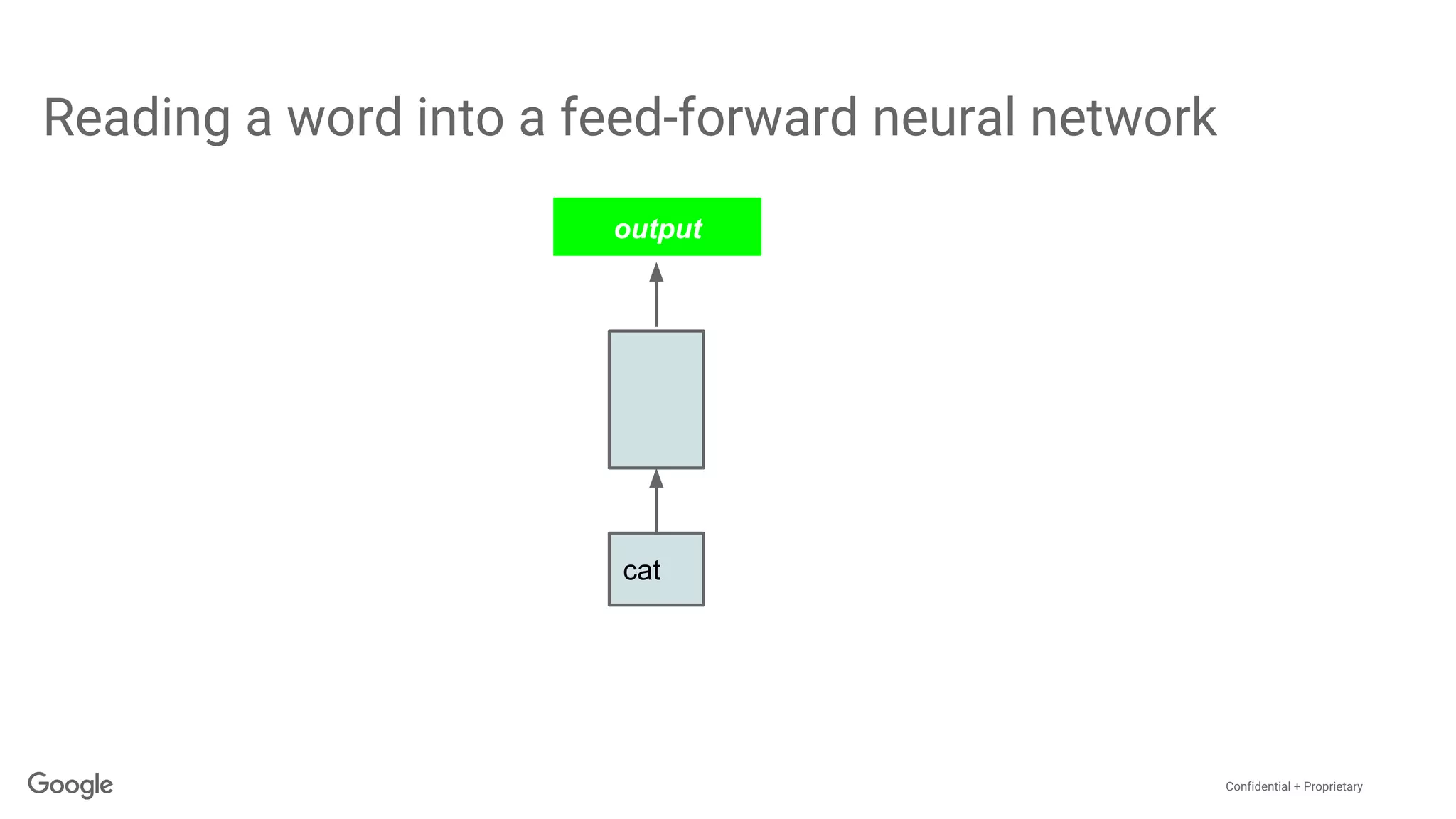

Reading a word into a feed-forward neural network
cat
output

20. Confidential + Proprietary

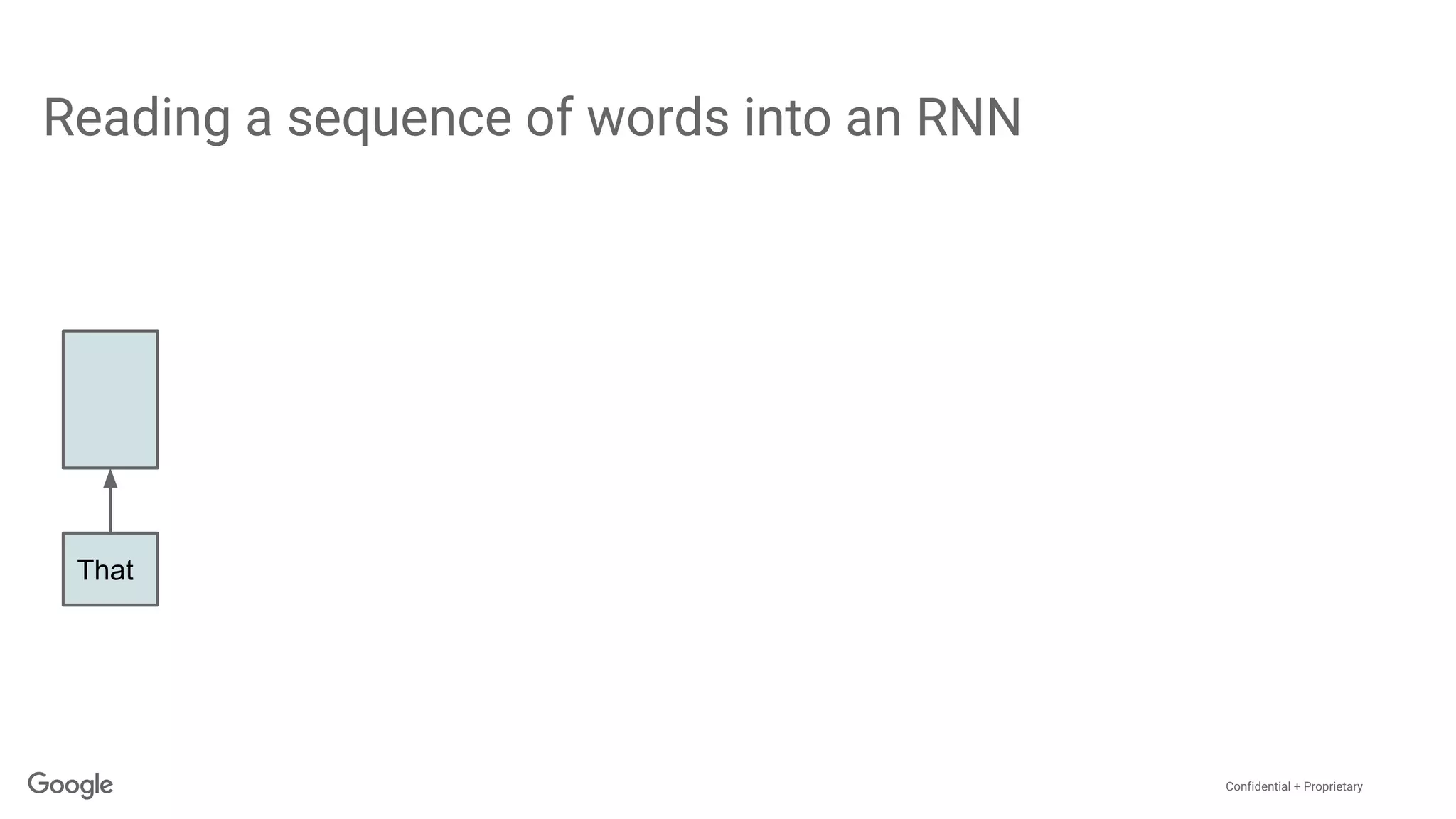

Reading a sequence of words into an RNN
That

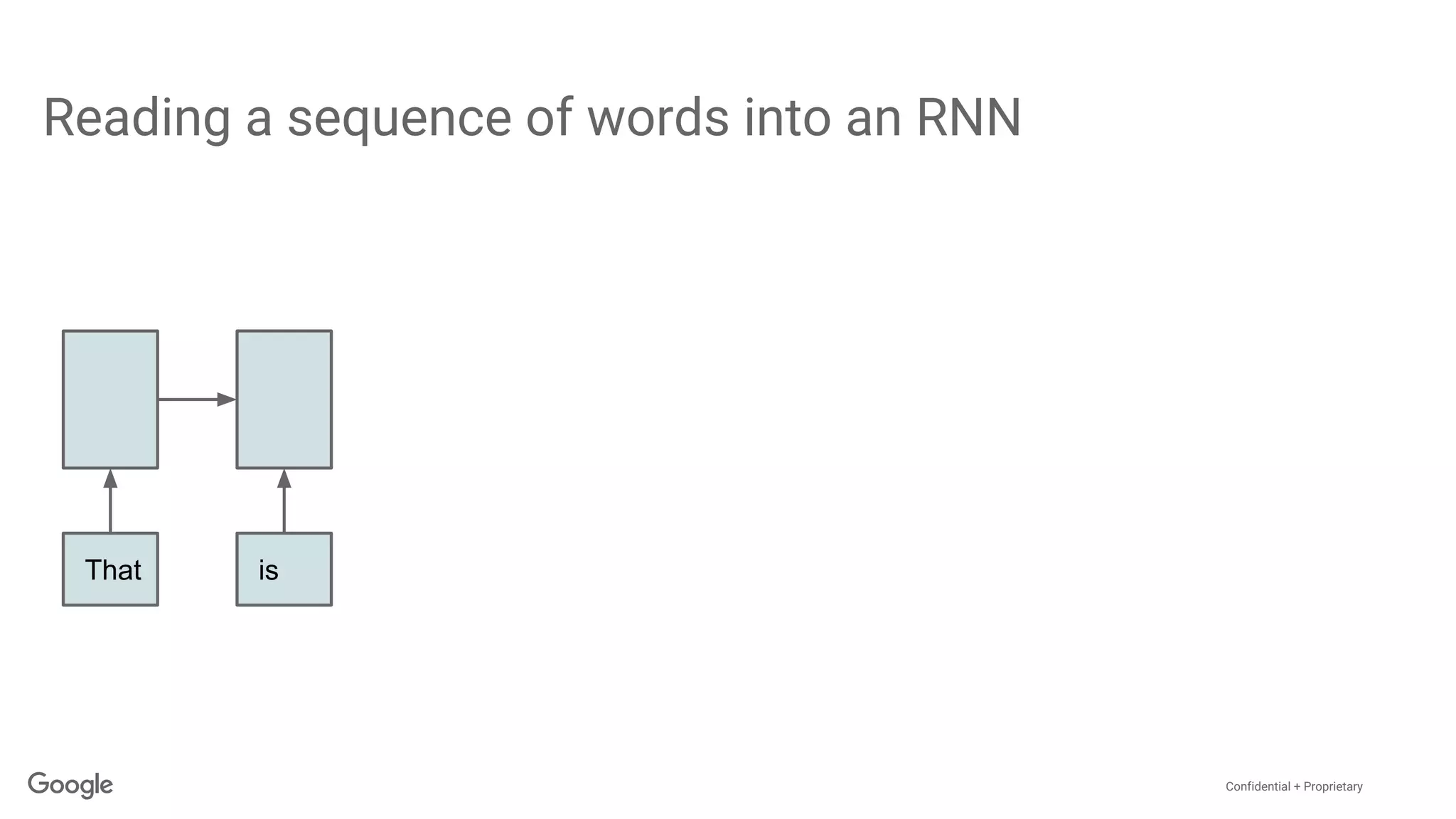

21. Confidential + Proprietary
Reading a sequence of words into an RNN
That is

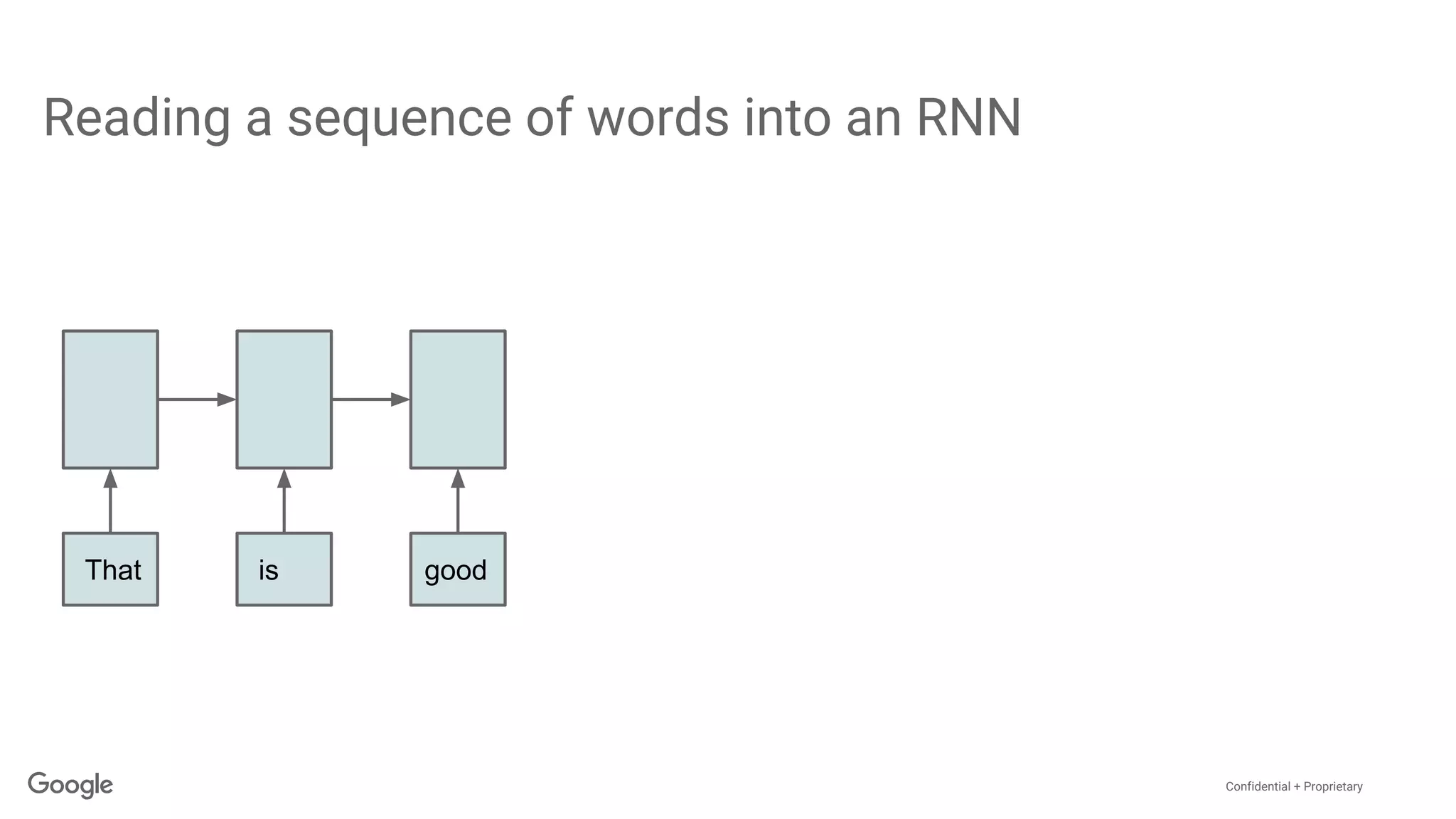

22. Confidential + Proprietary
Reading a sequence of words into an RNN
That is good

23. Confidential + Proprietary

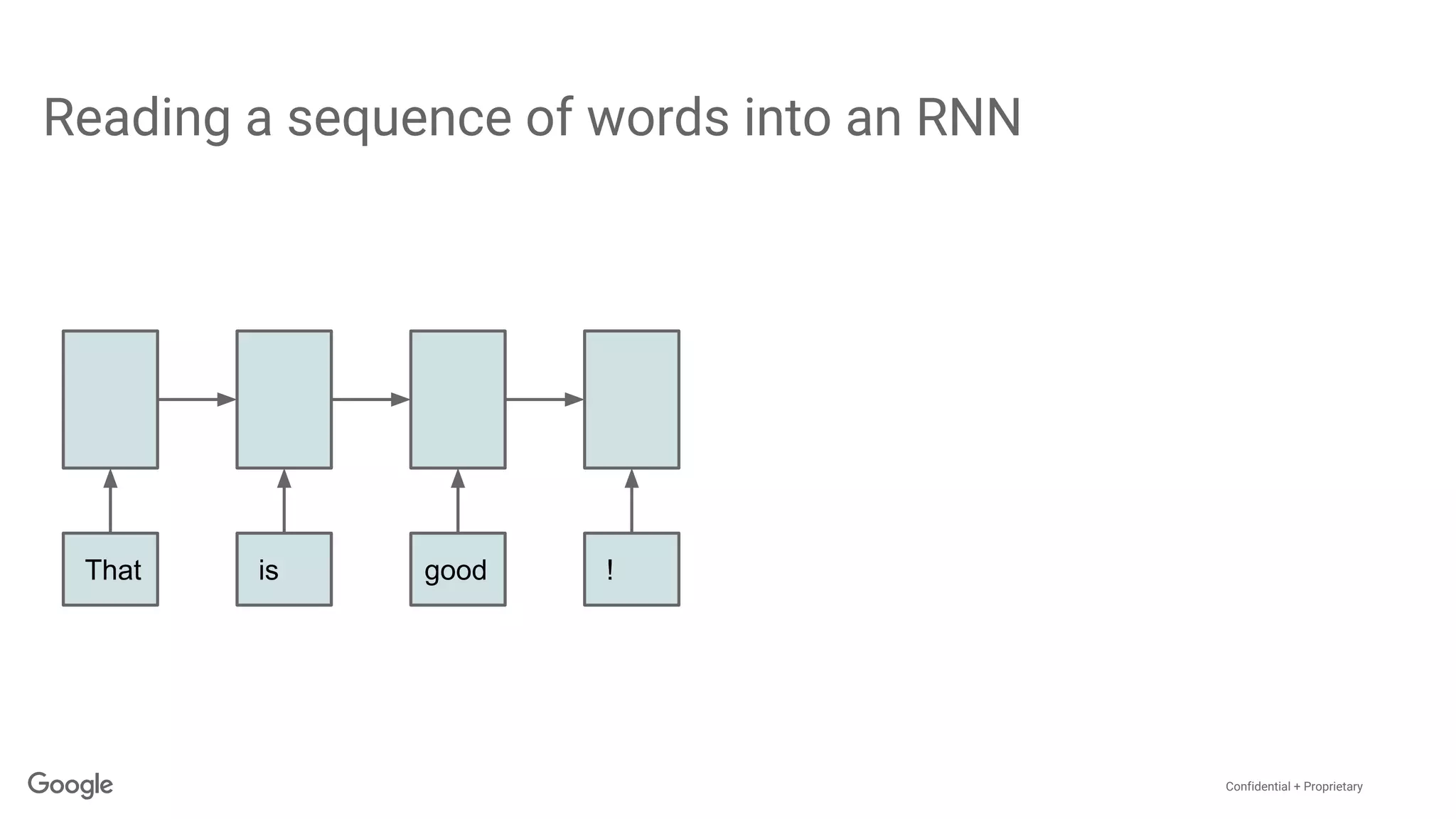

Reading a sequence of words into an RNN
That is good !

24. Confidential + Proprietary

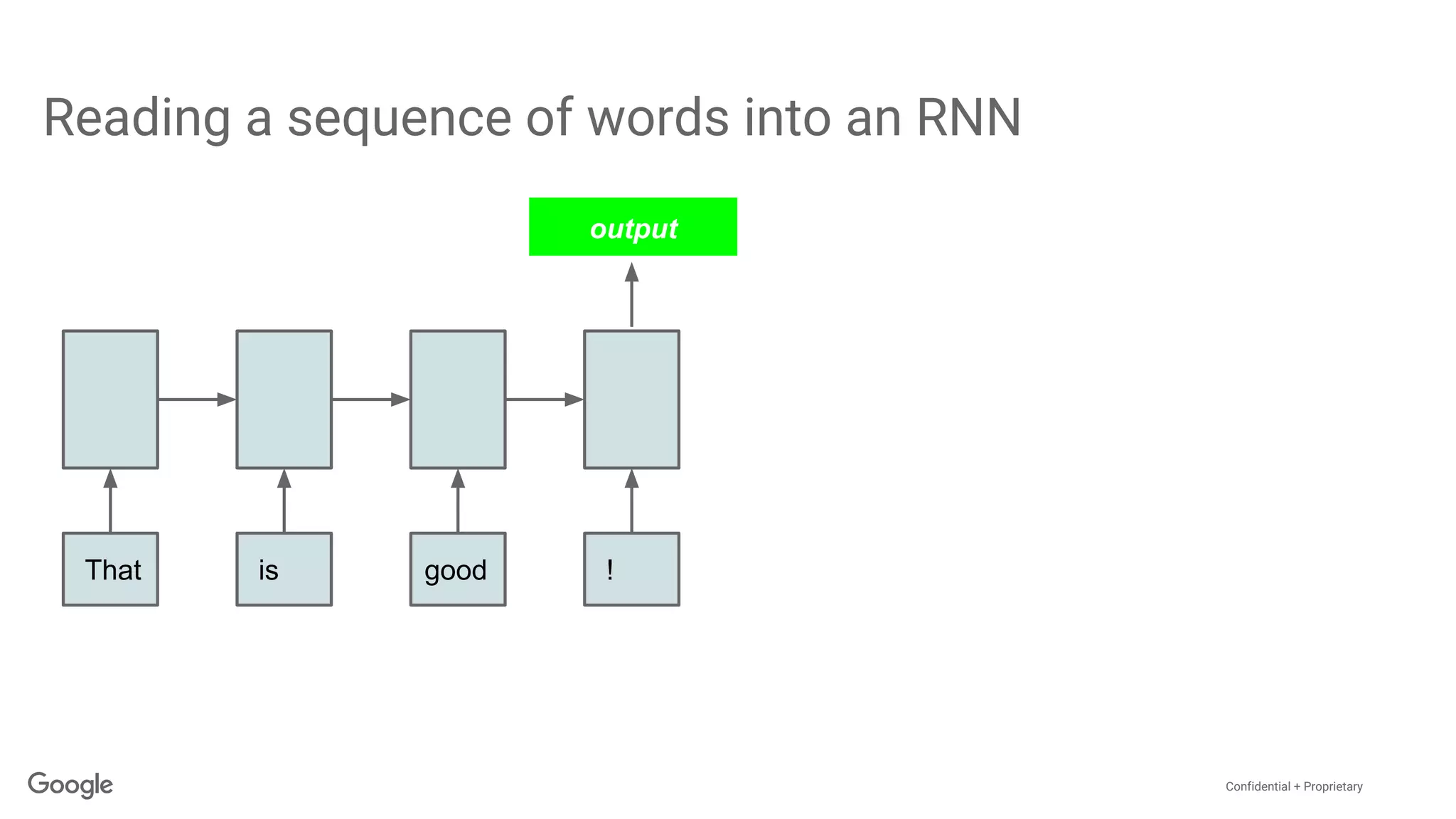

Reading a sequence of words into an RNN
That is good !
output

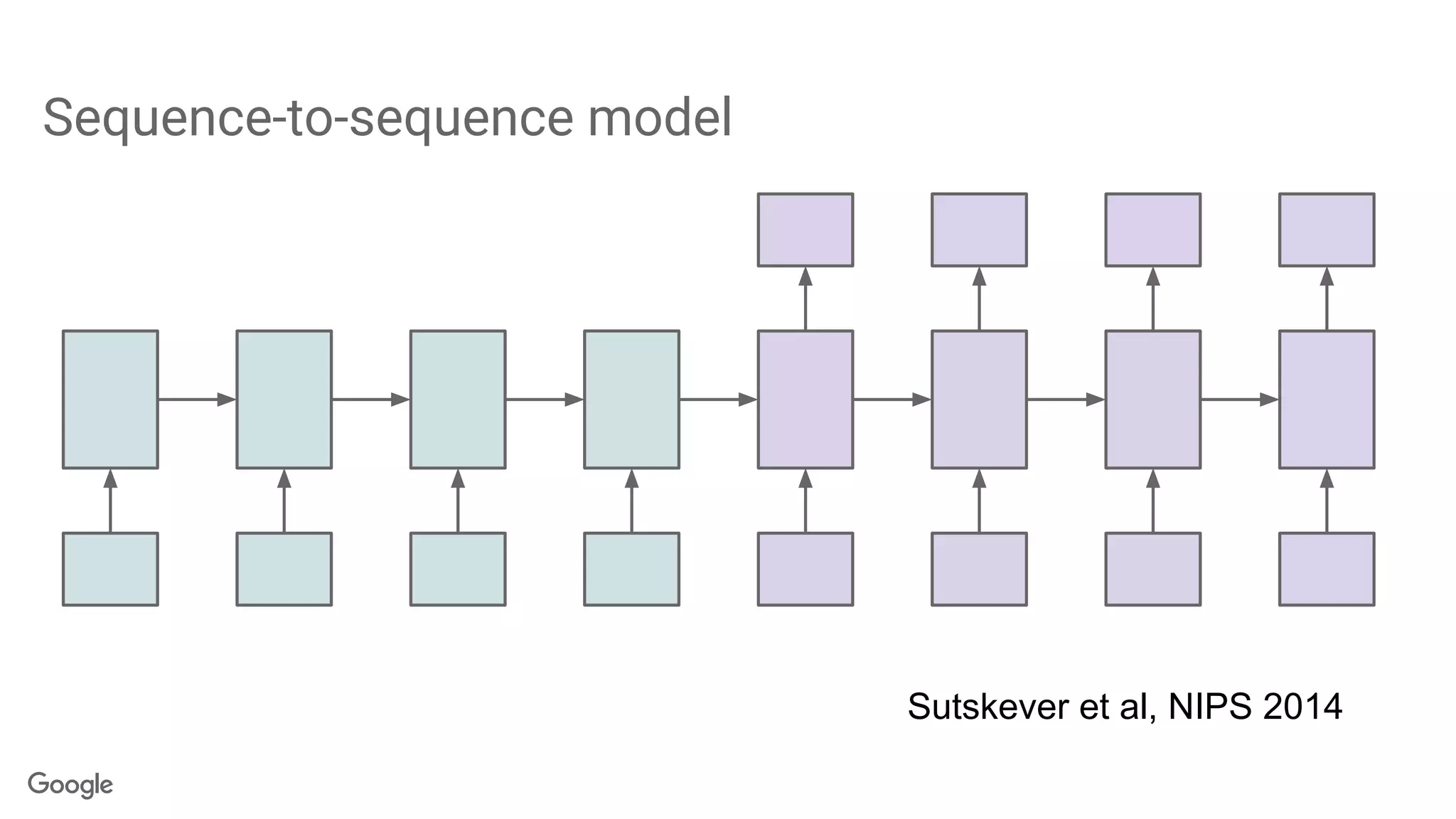

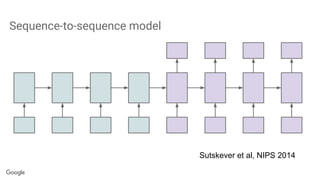

25. Sequence-to-sequence model
Sutskever et al, NIPS 2014

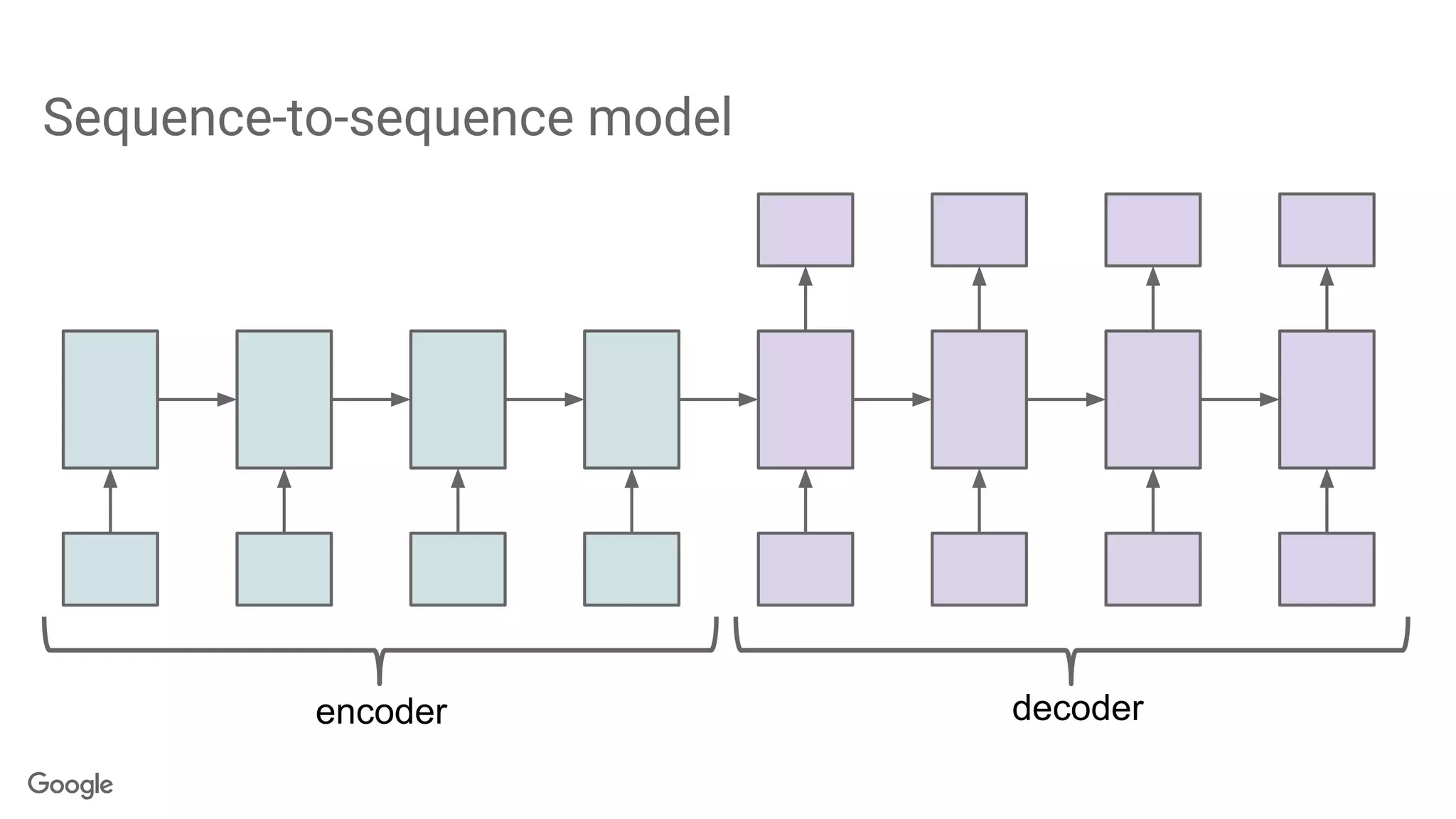

26. Sequence-to-sequence model
encoder decoder

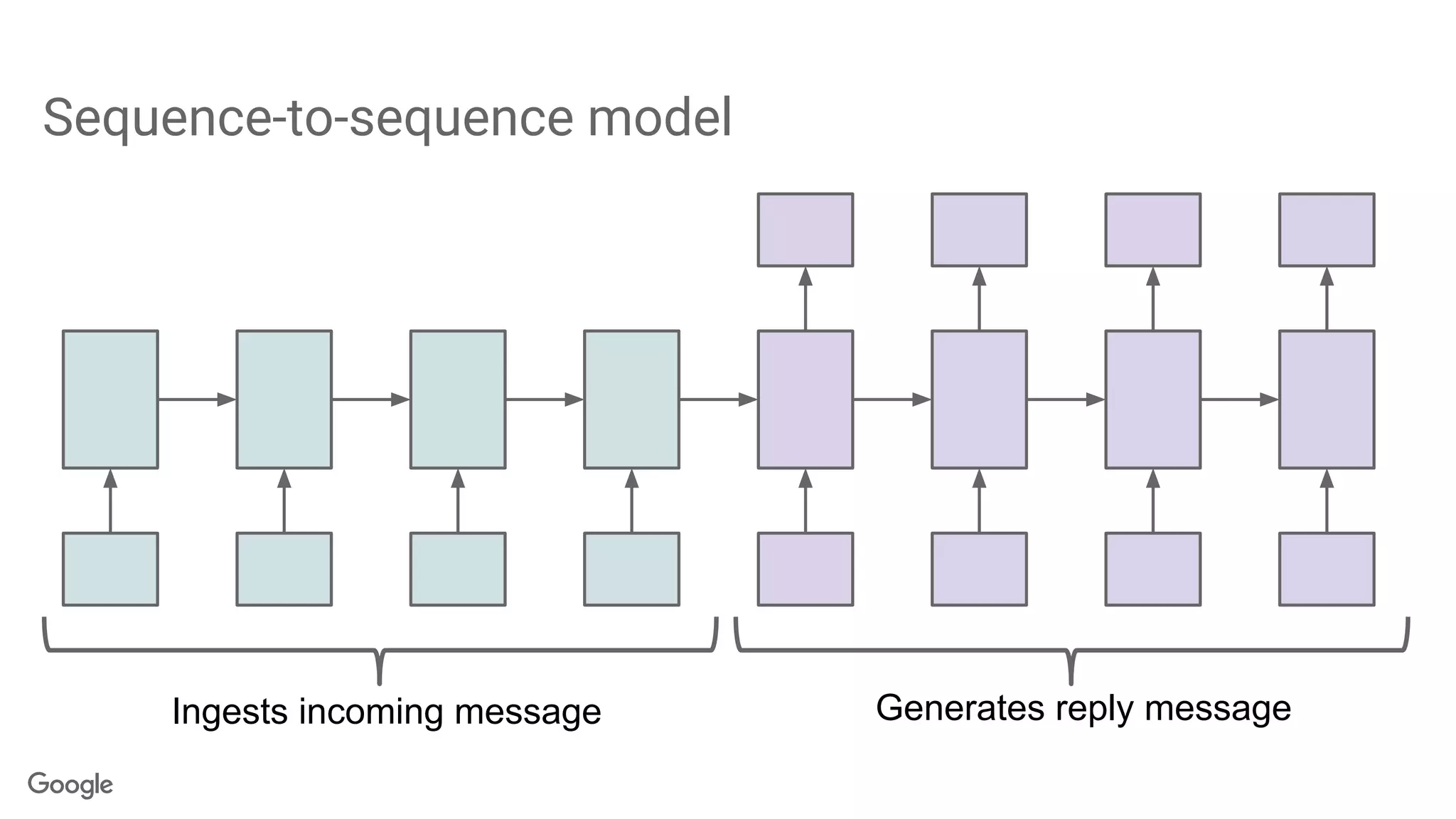

27. Sequence-to-sequence model
Ingests incoming message Generates reply message

28. Inference

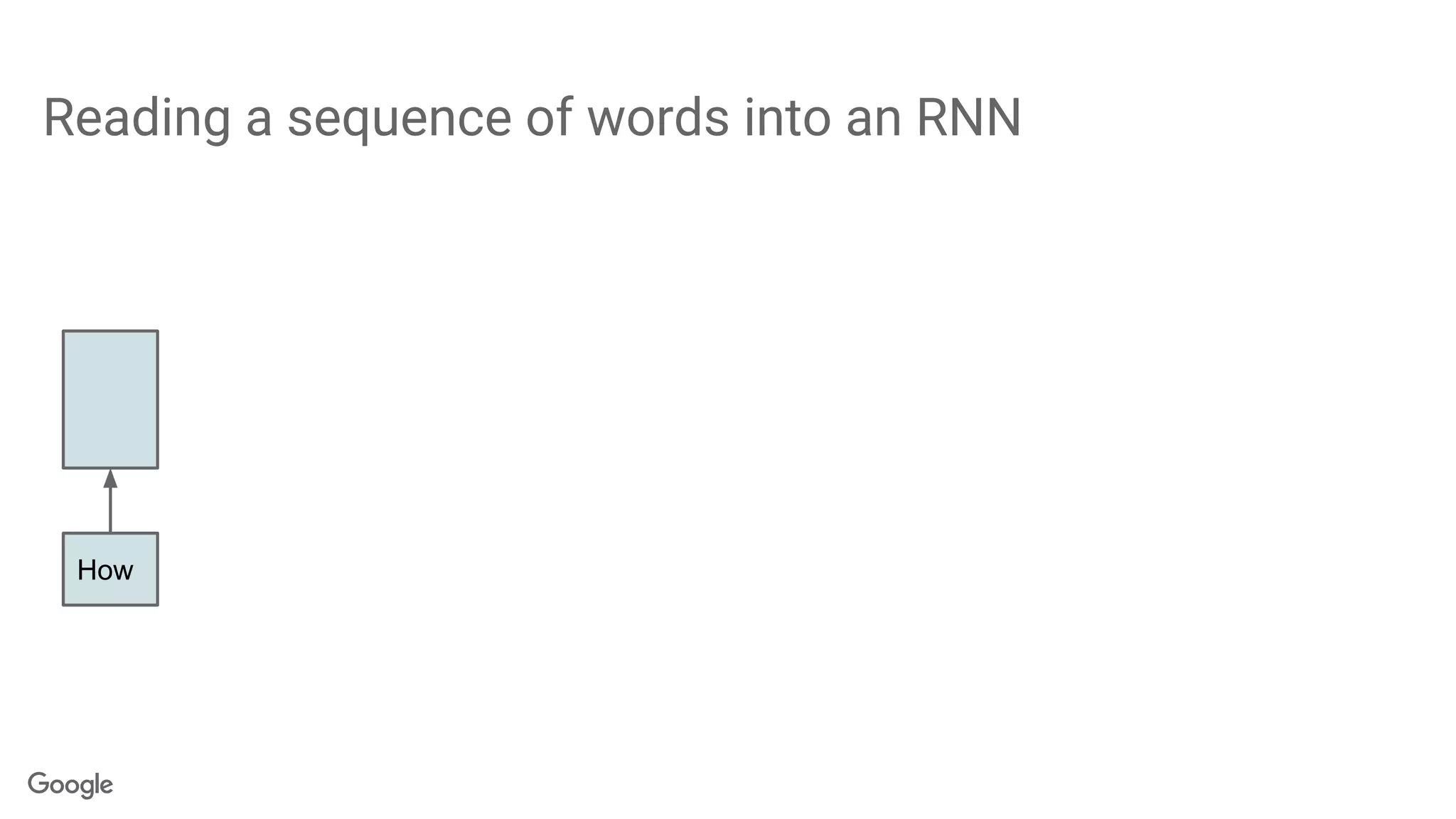

29. Reading a sequence of words into an RNN
How

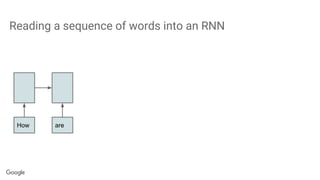

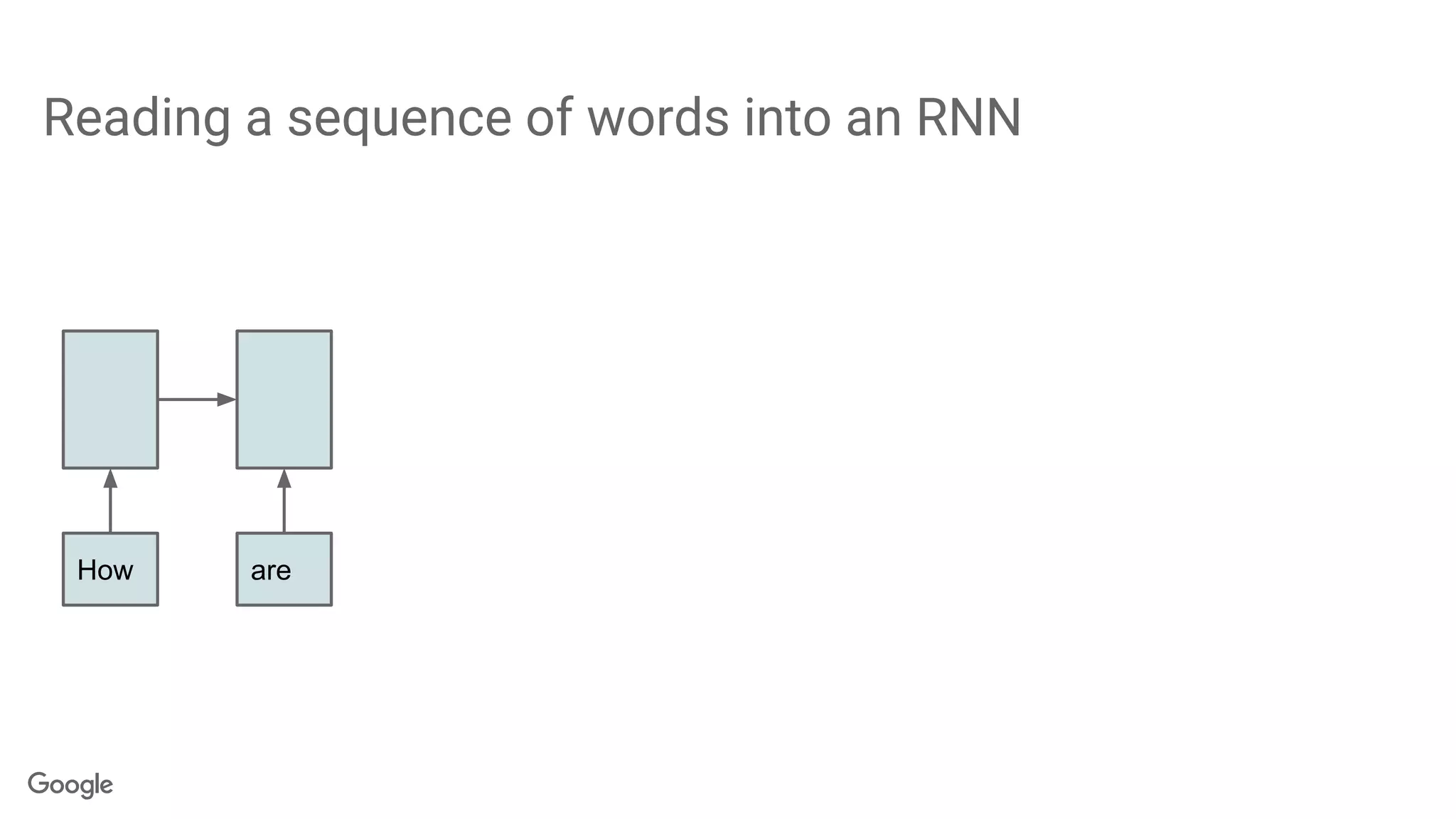

30. Reading a sequence of words into an RNN
How are

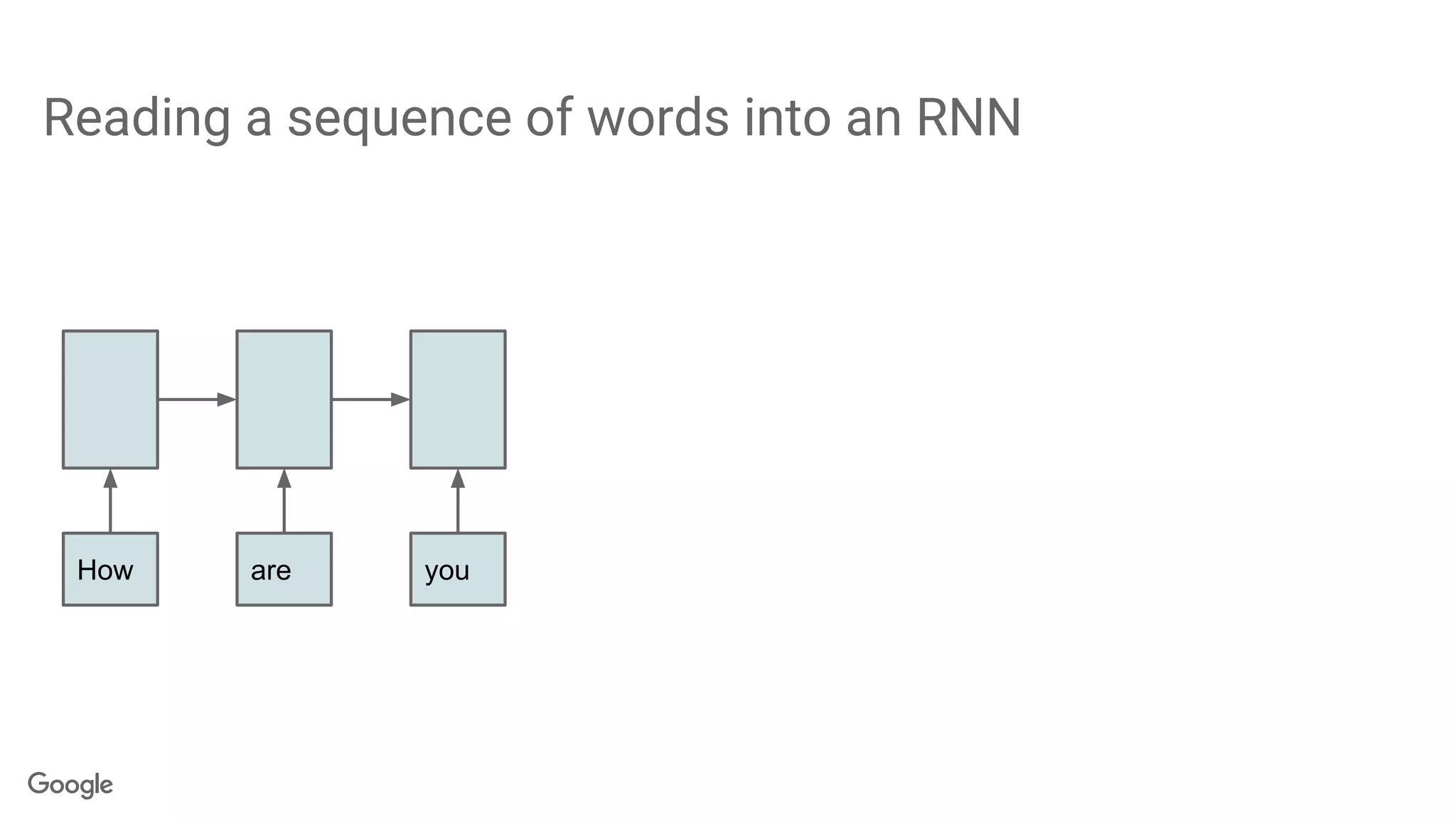

31. Reading a sequence of words into an RNN
How are you

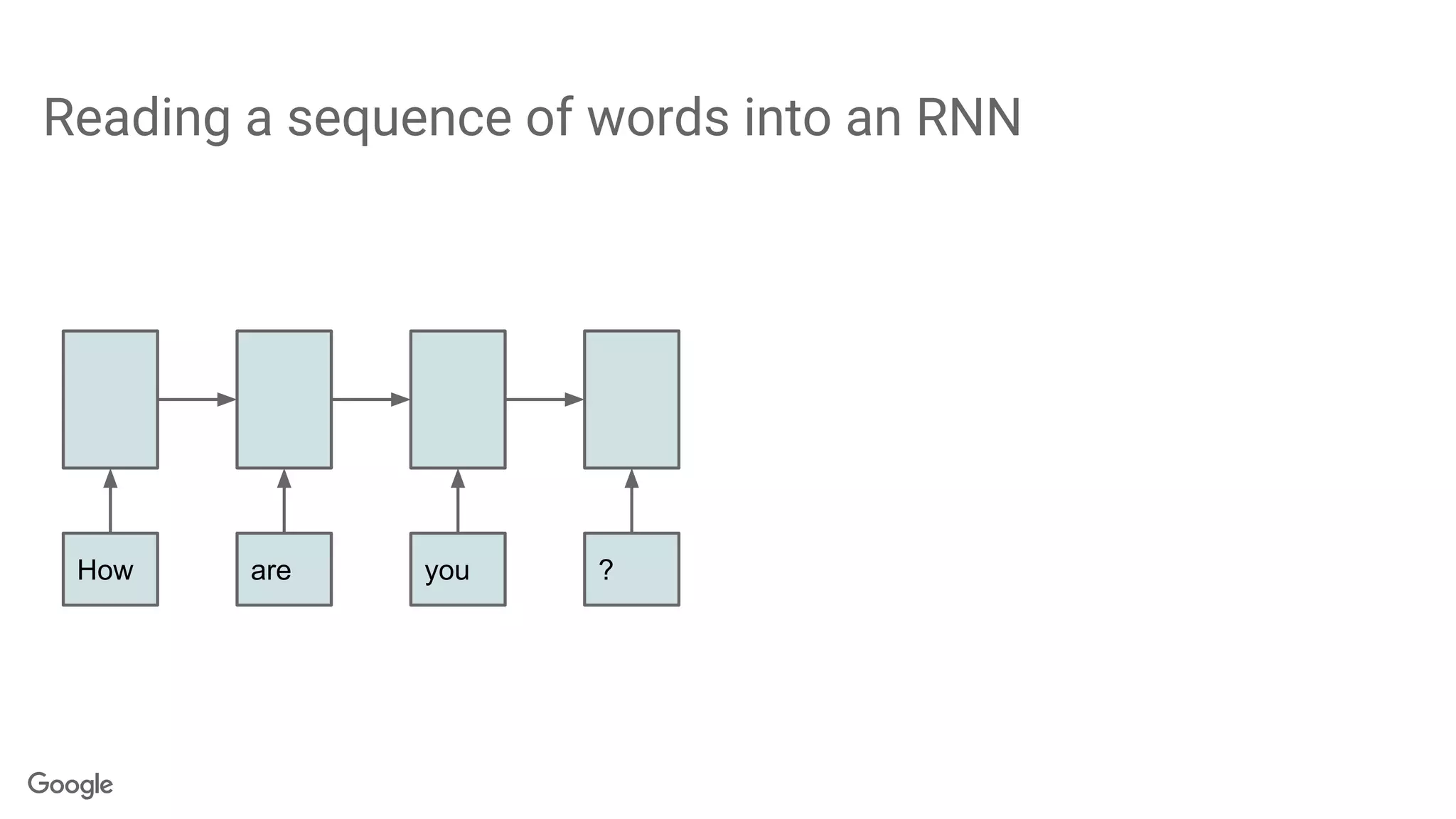

32. Reading a sequence of words into an RNN
How are you ?

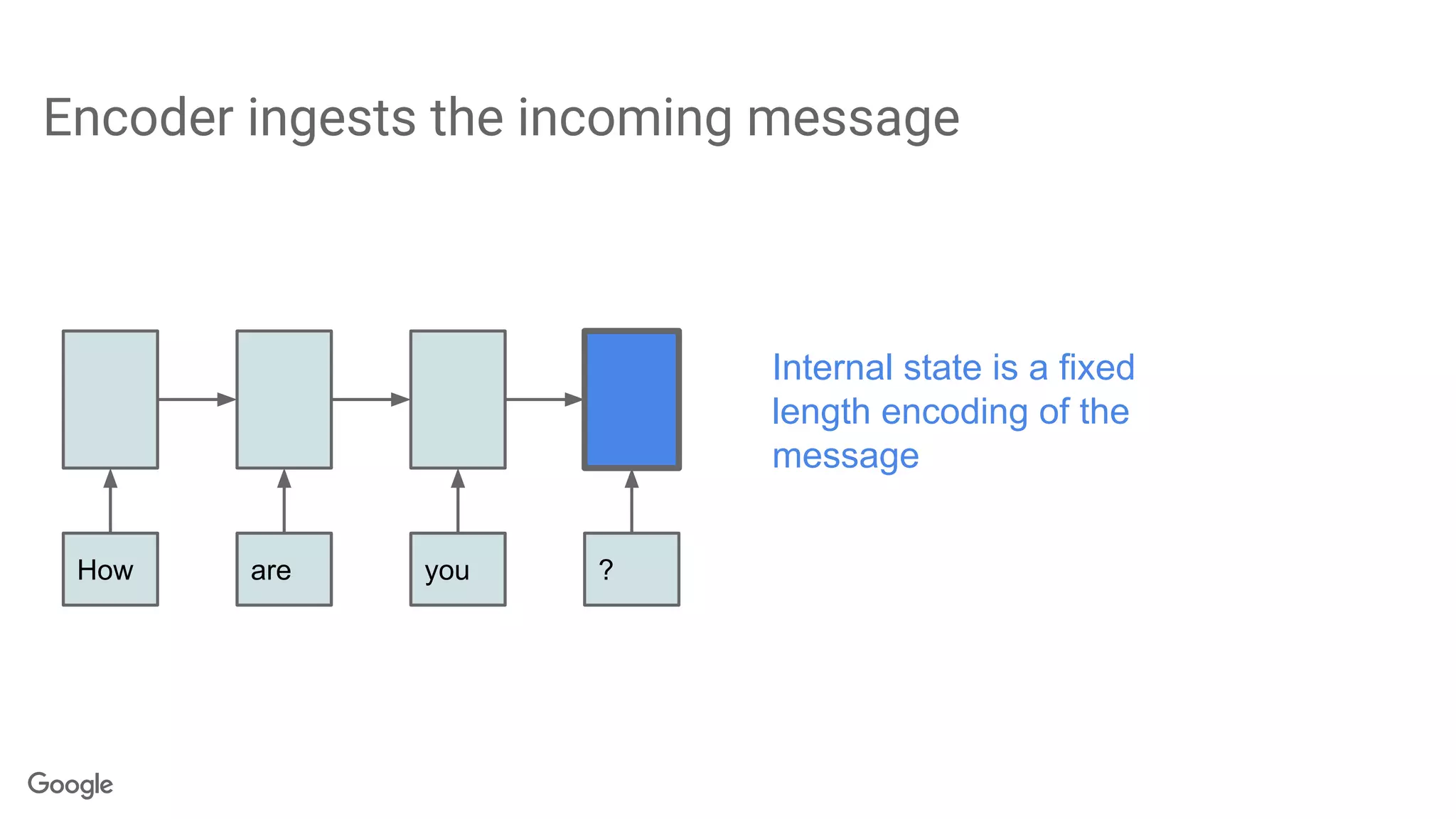

33. Encoder ingests the incoming message
How are you ?
Internal state is a fixed
length encoding of the
message

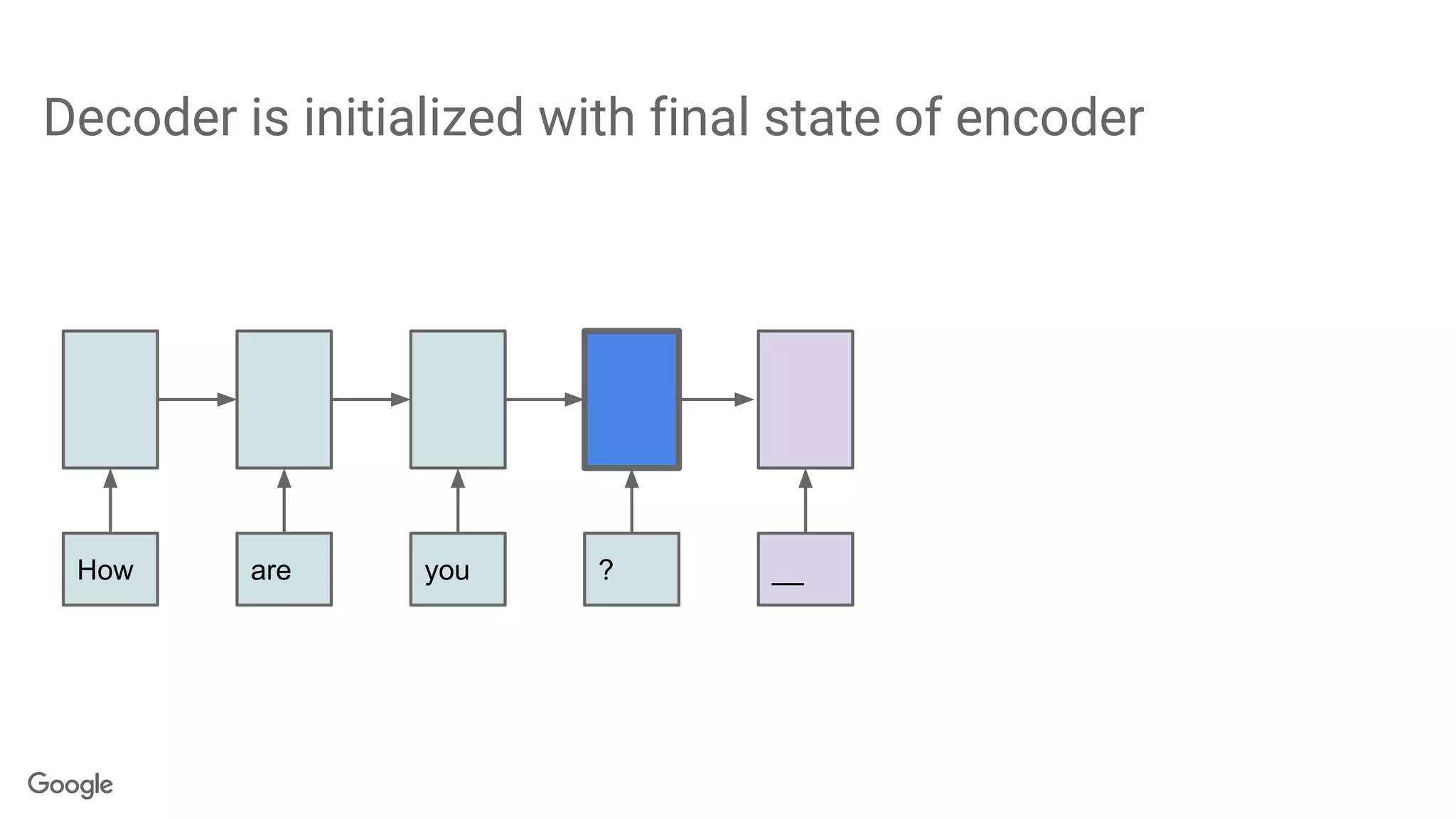

34. Decoder is initialized with final state of encoder
How are you ? __

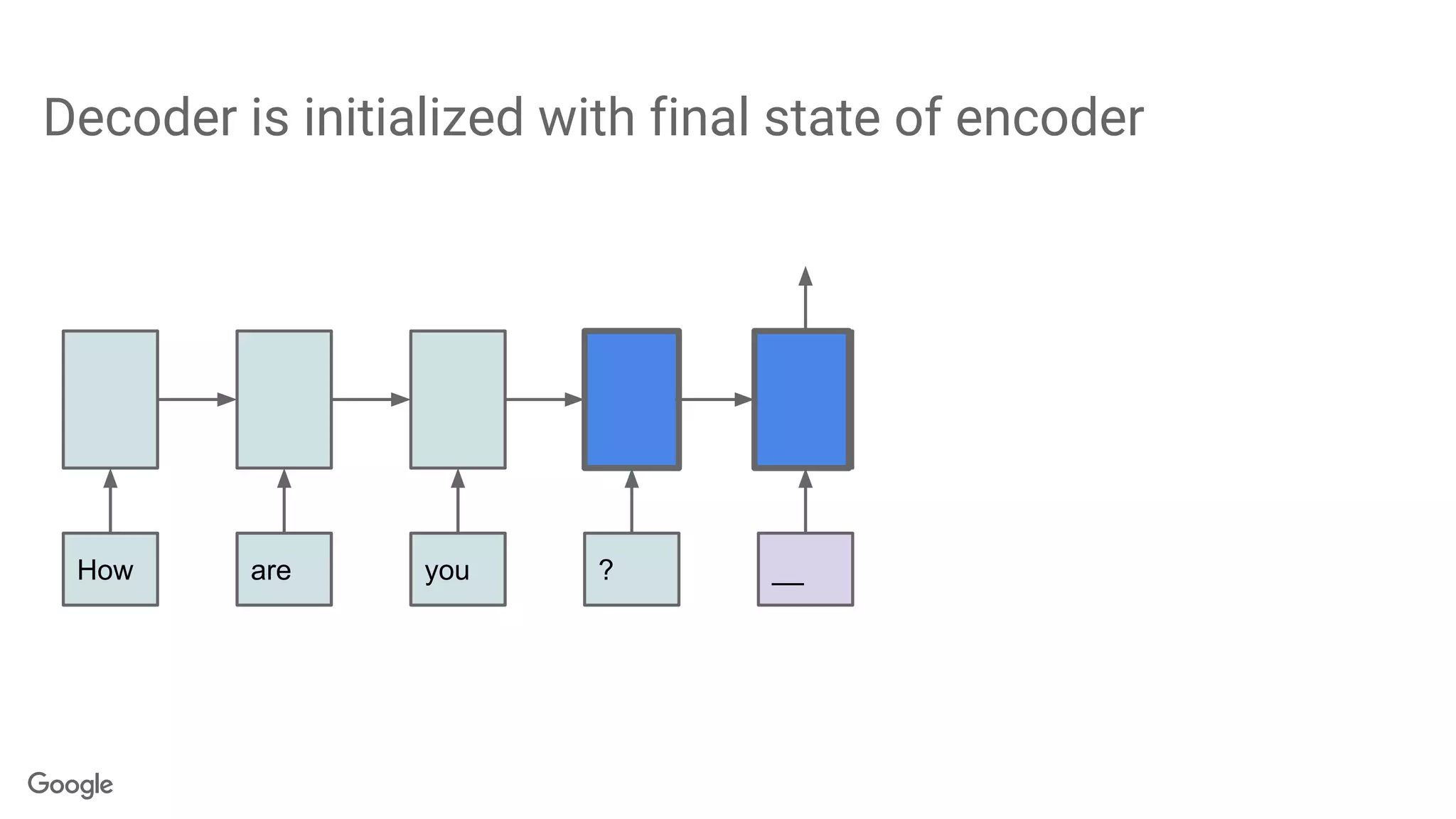

35. Decoder is initialized with final state of encoder
How are you ? __

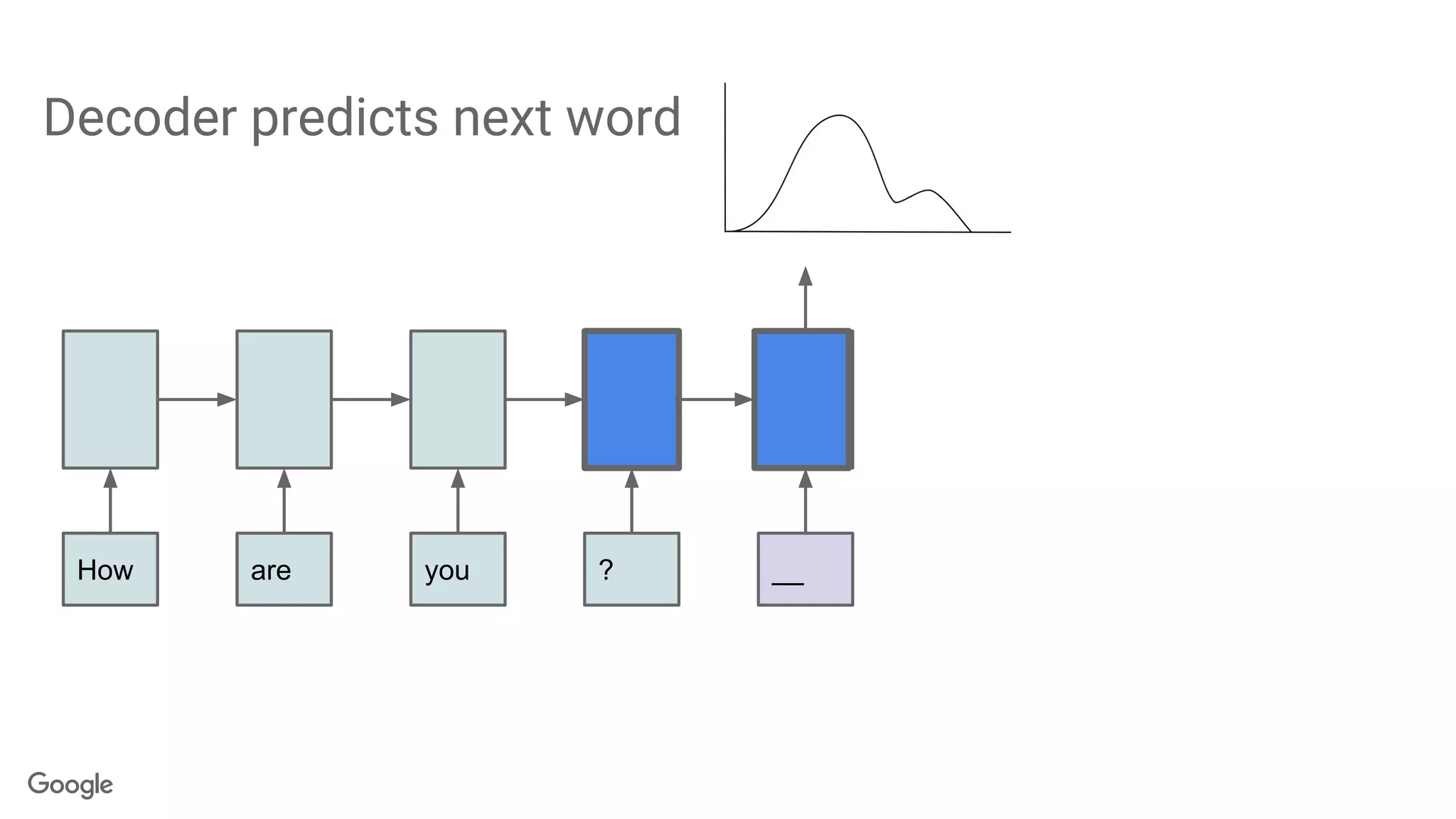

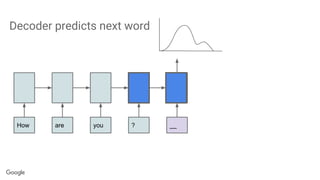

36. Decoder predicts next word
How are you ? __

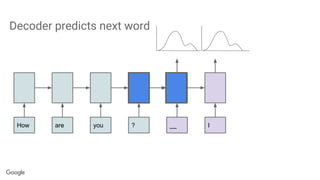

37. Decoder predicts next word
How are you ? ____ I

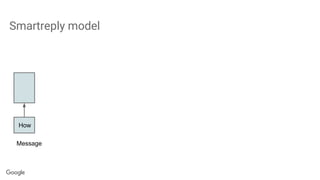

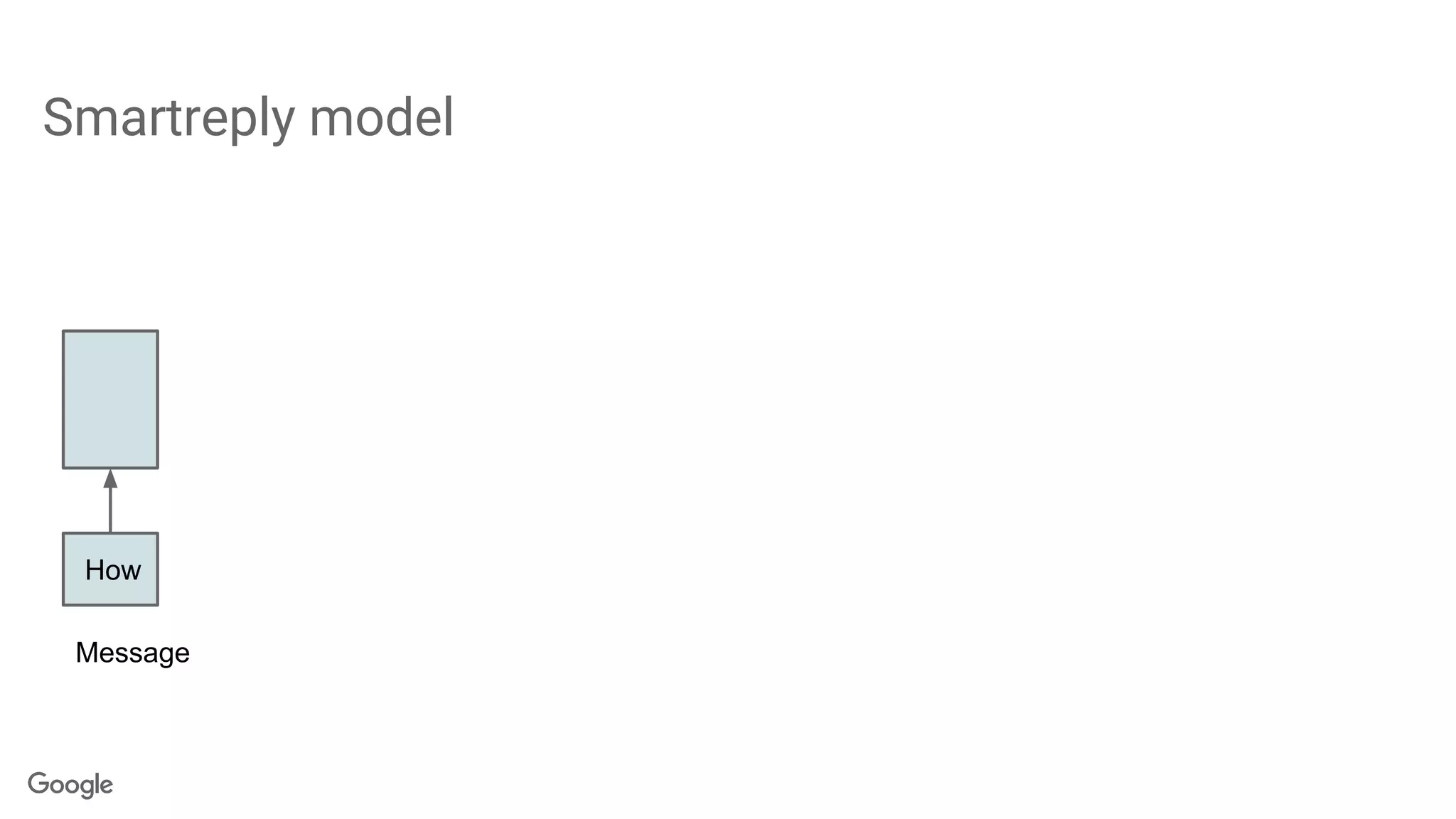

38. Smartreply model
How
Message

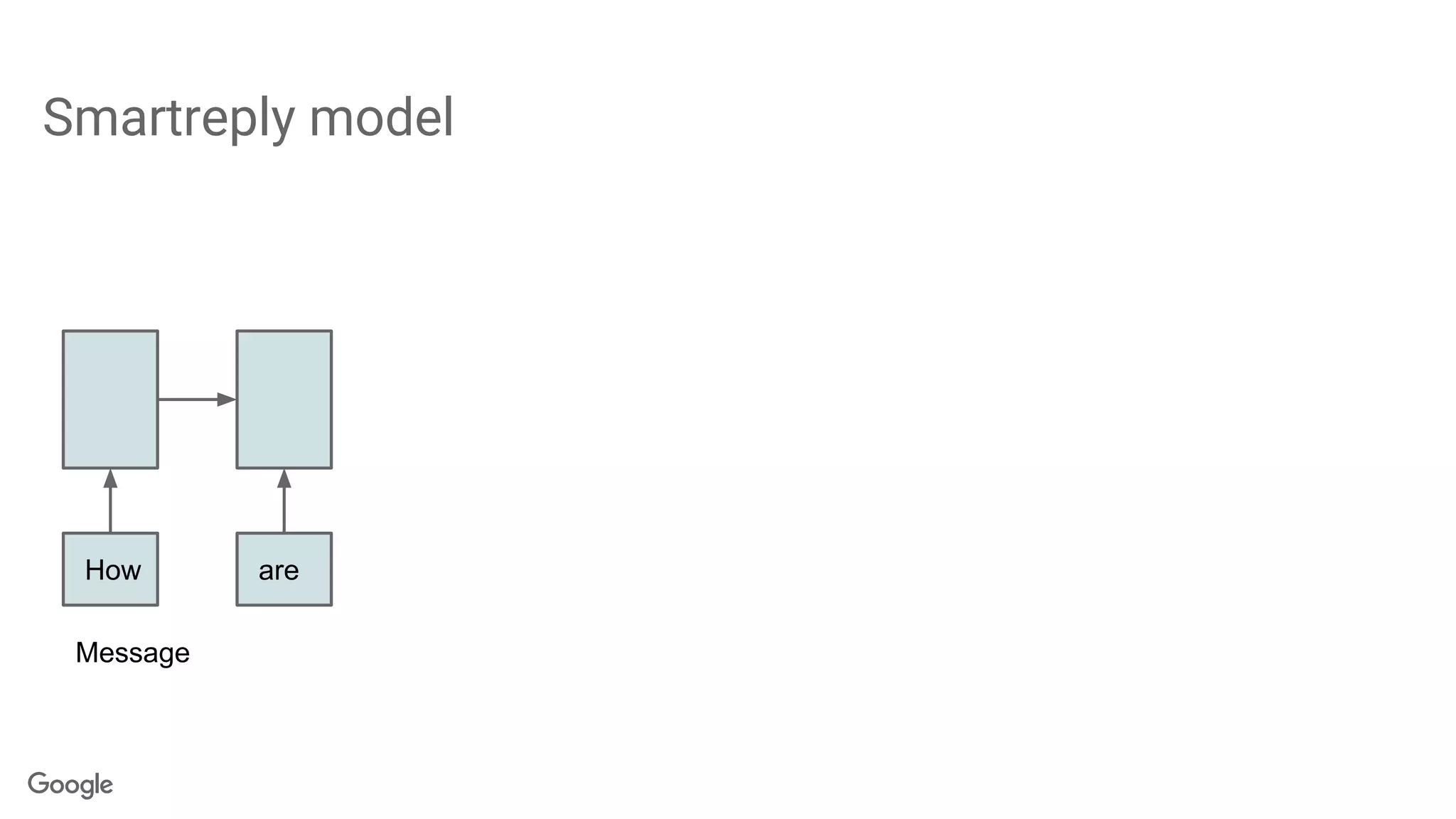

39. Smartreply model
How are
Message

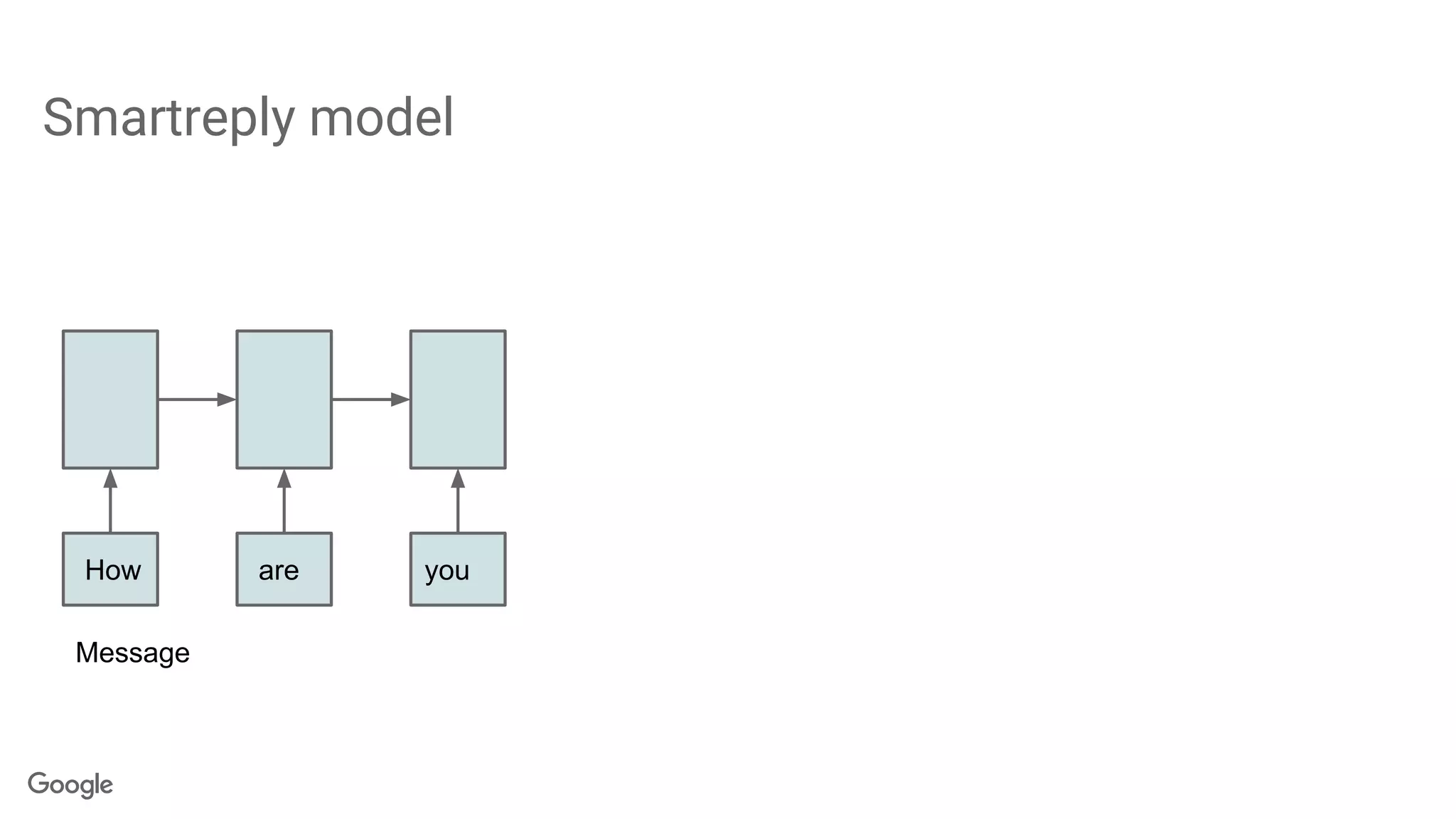

40. Smartreply model
How are you
Message

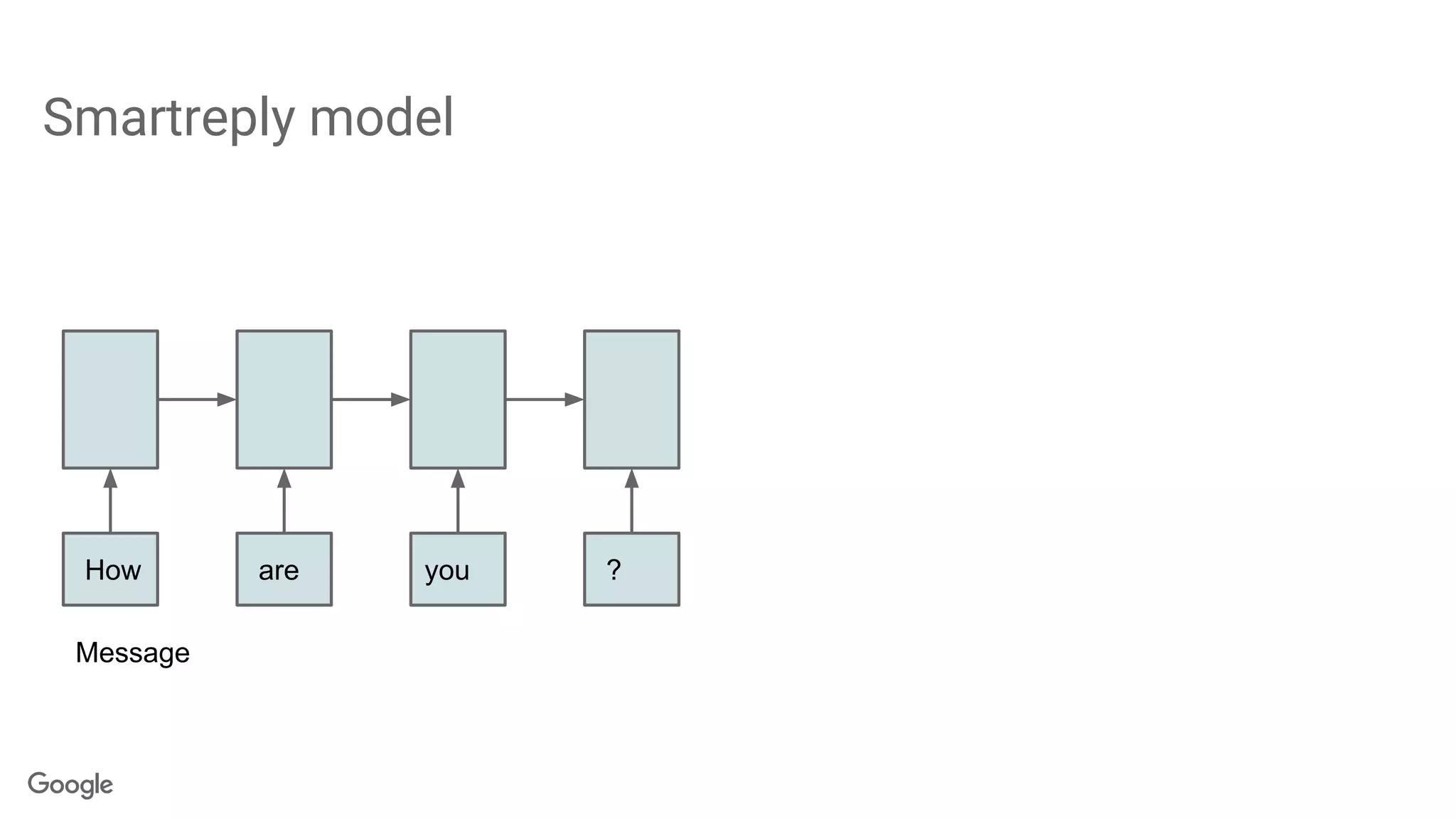

41. Smartreply model
How are you ?
Message

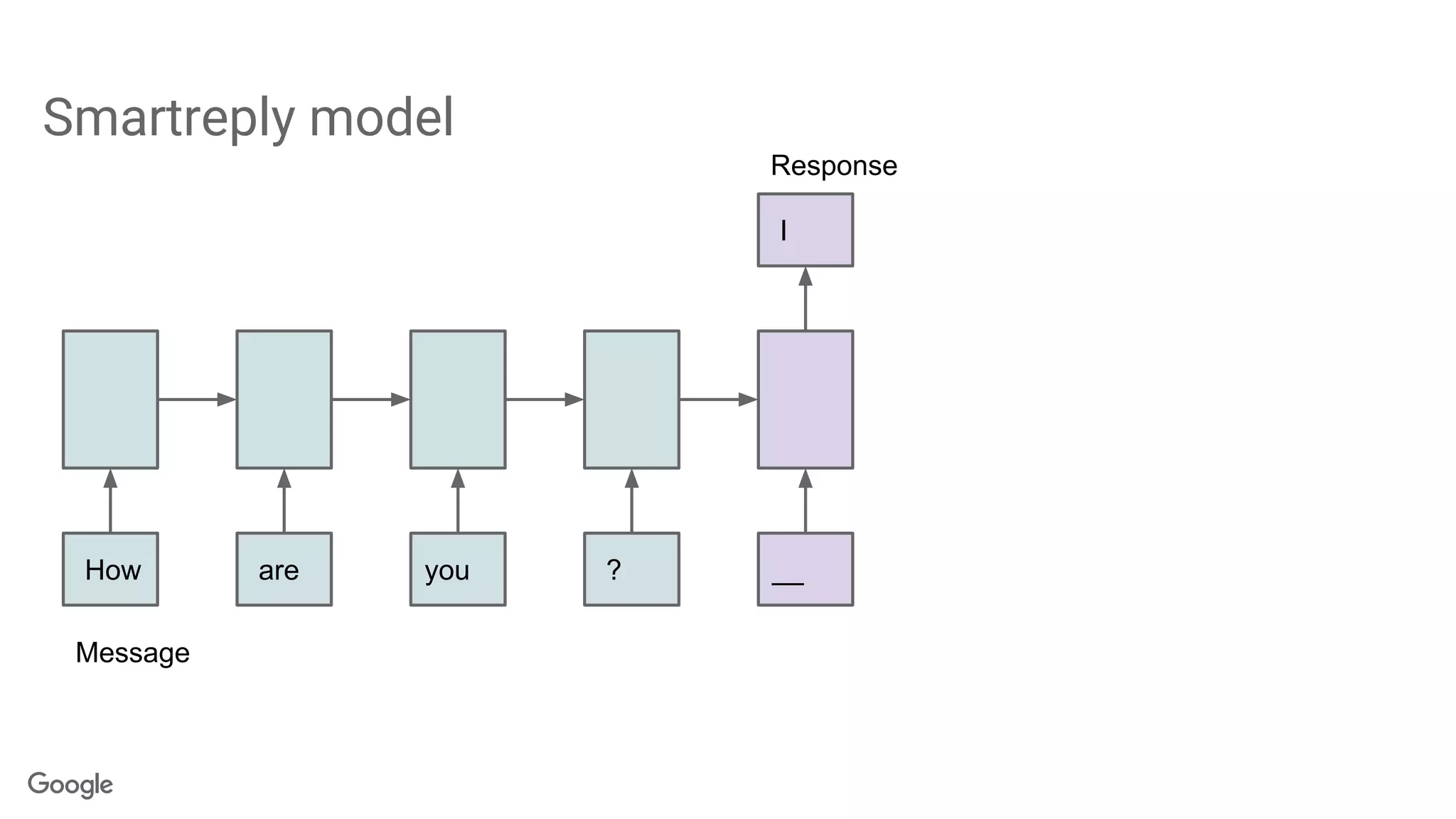

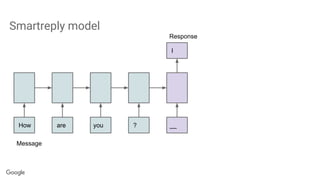

42. Smartreply model
How are you ? __
I
Message
Response

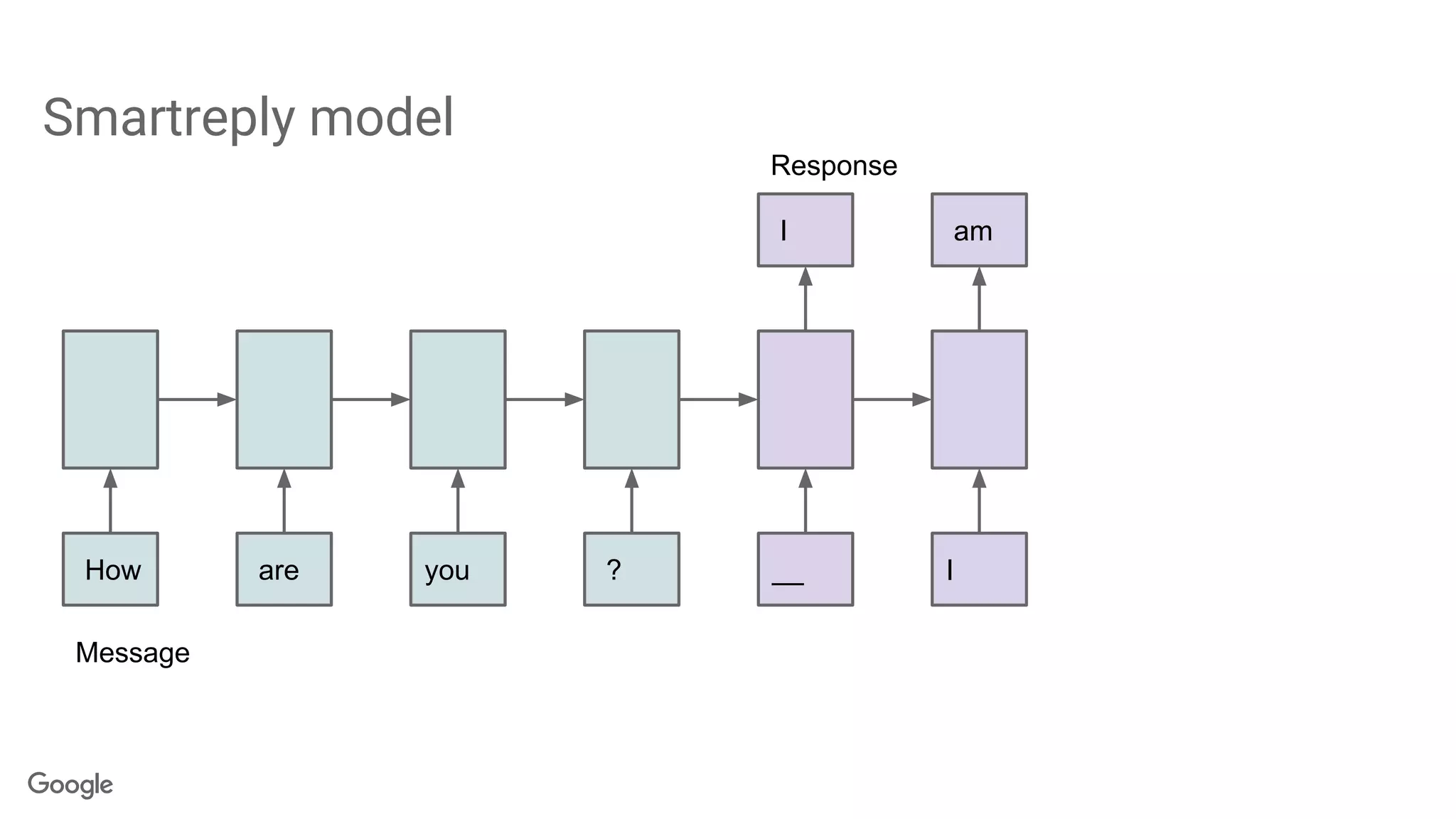

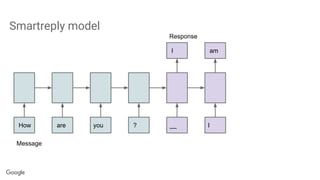

43. Smartreply model
How are you ? __ I
I am
Message
Response

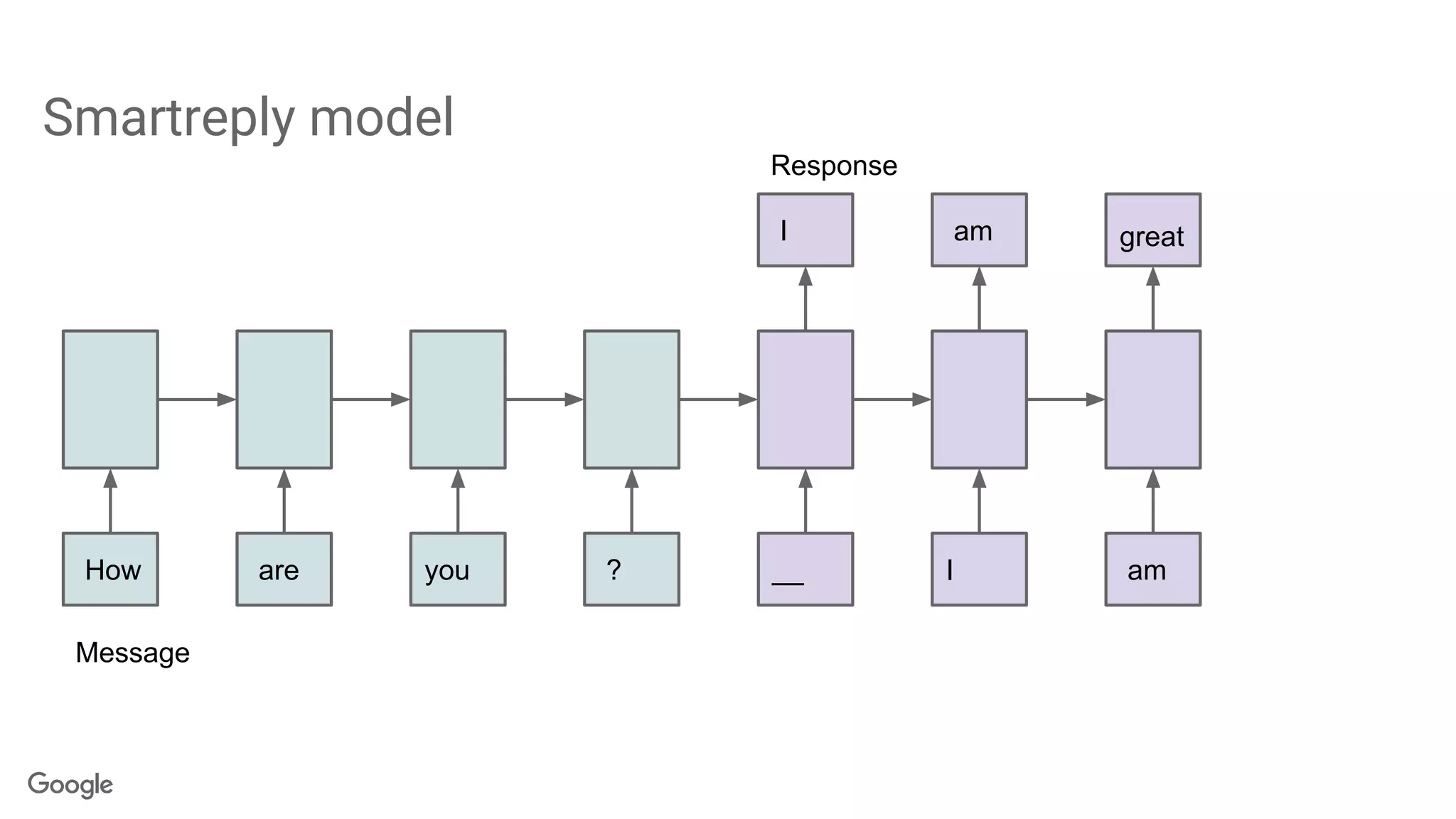

44. Smartreply model
How are you ? __ I am
I am great
Message
Response

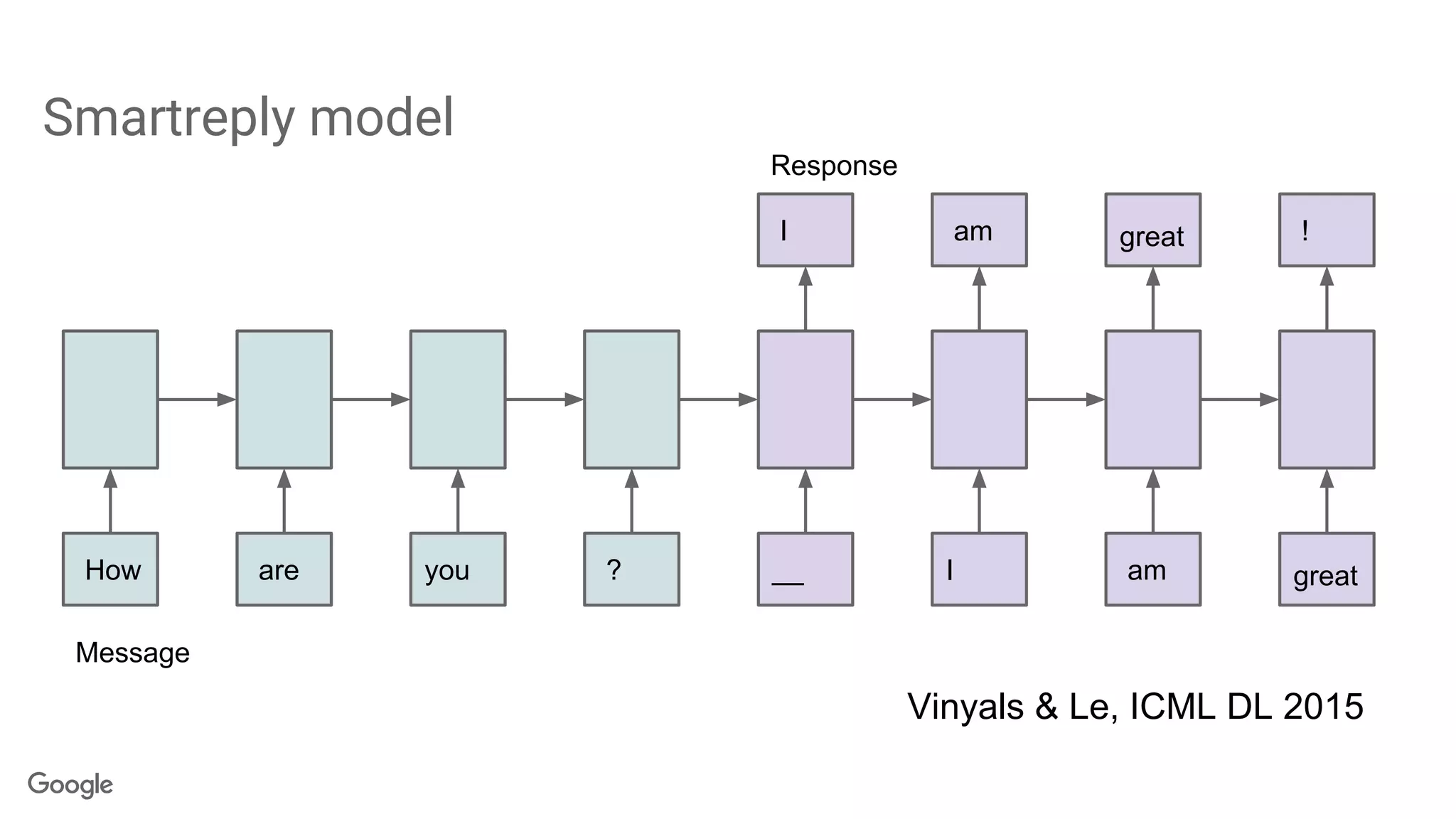

45. Smartreply model
How are you ? __ I am great
I am great !
Message
Response
Vinyals & Le, ICML DL 2015

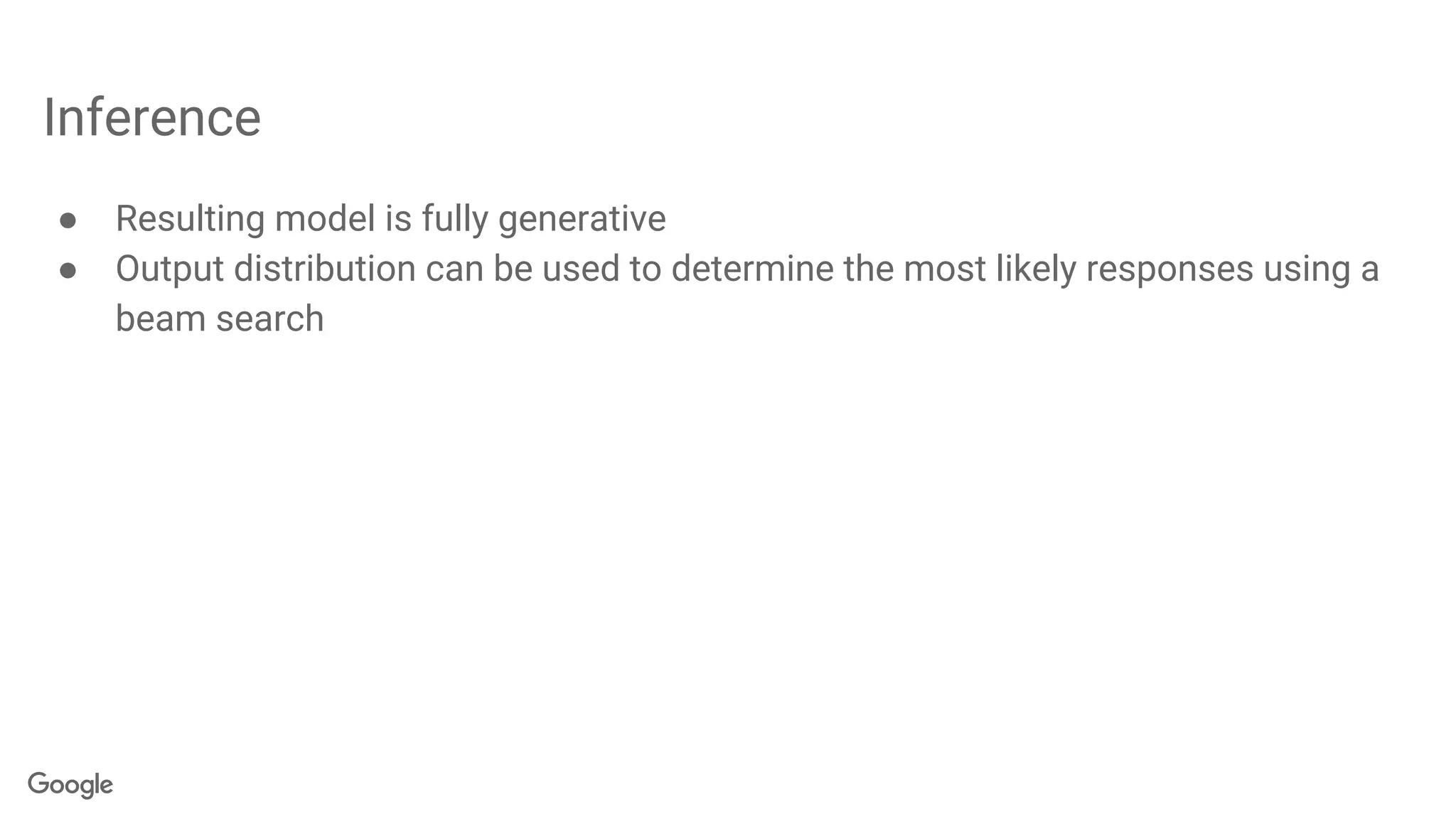

46. Inference
● Resulting model is fully generative
● Output distribution can be used to determine the most likely responses using a
beam search

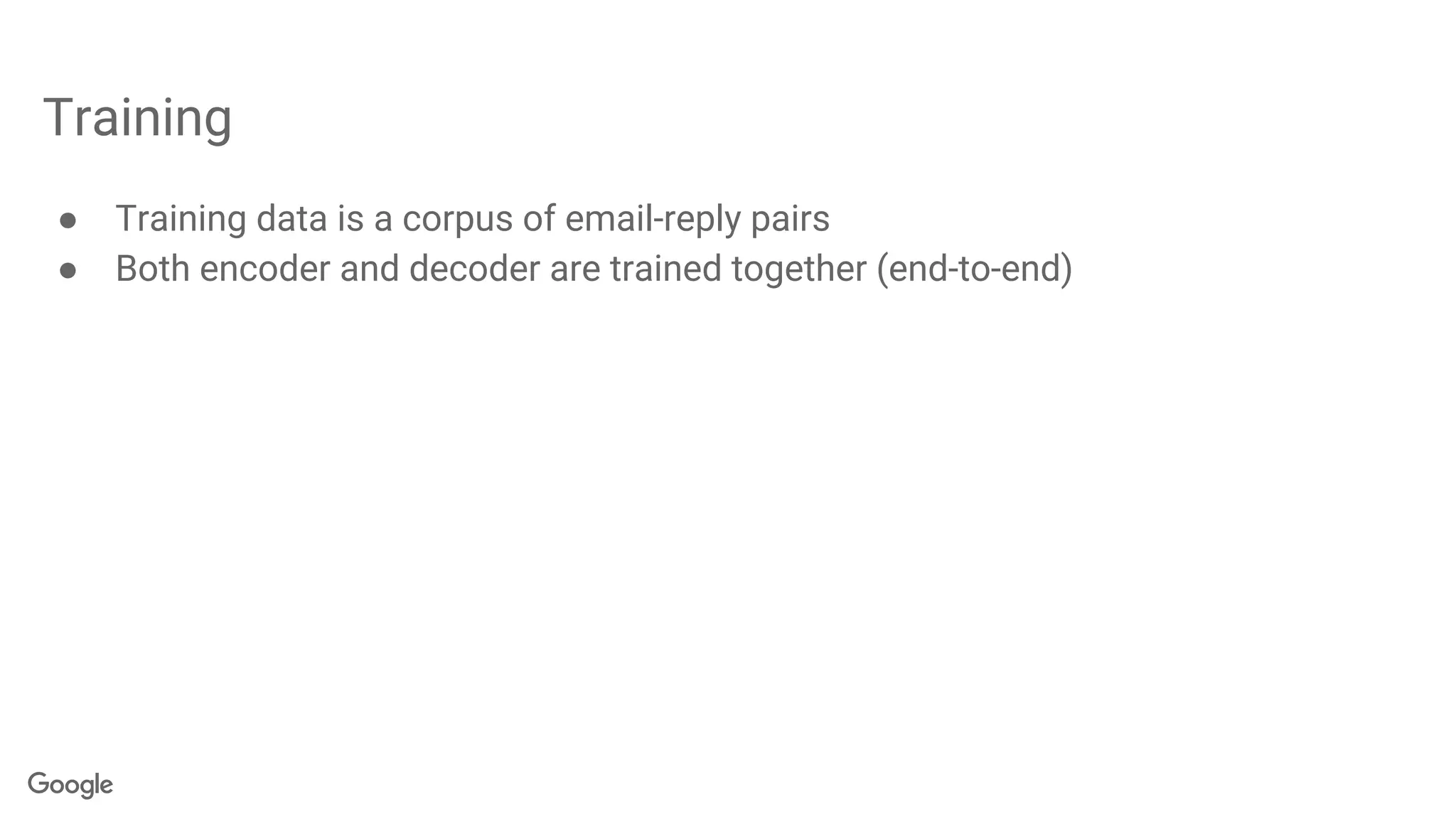

47. Training

48. Training
● Training data is a corpus of email-reply pairs
● Both encoder and decoder are trained together (end-to-end)

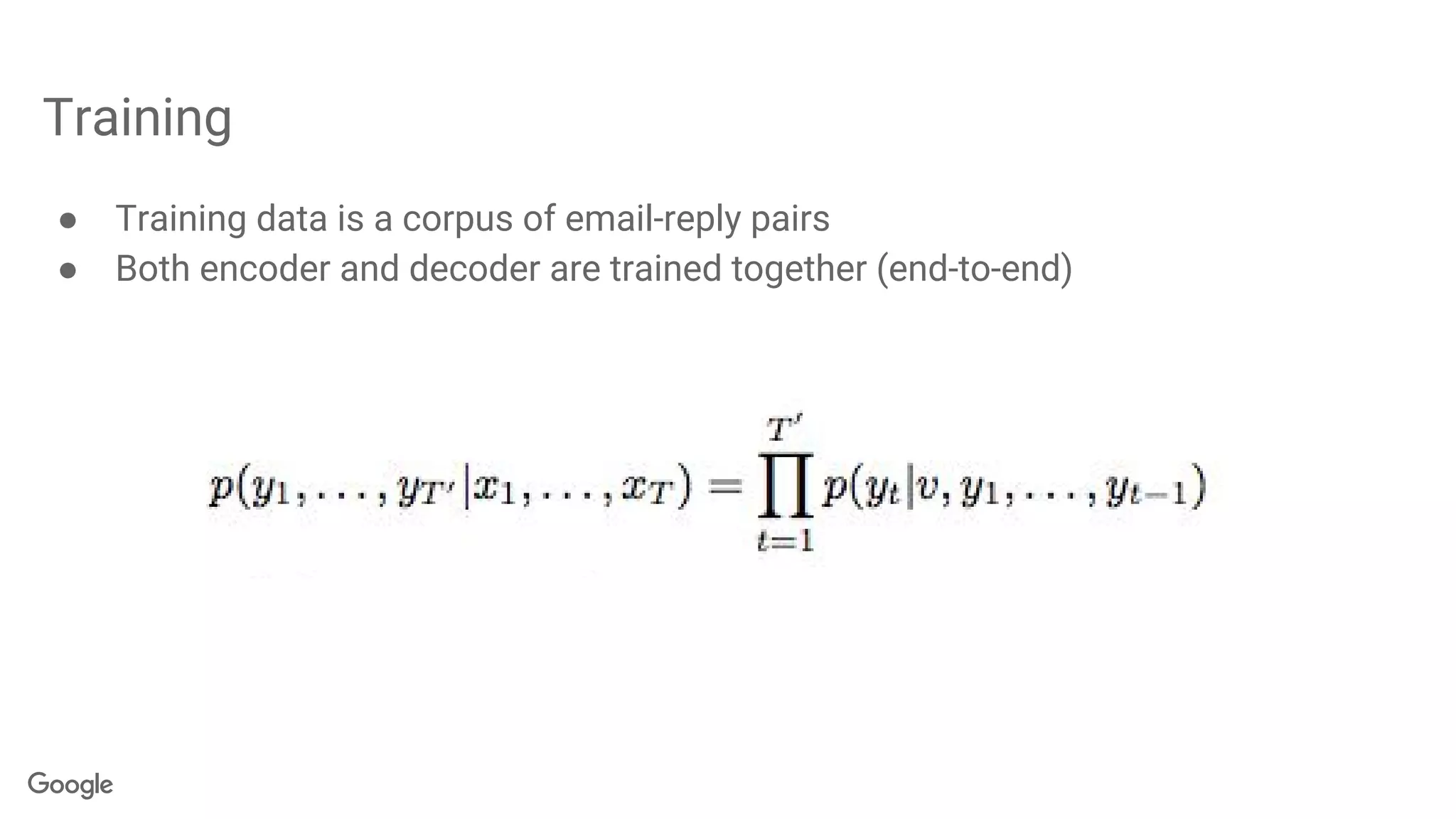

49. Training
● Training data is a corpus of email-reply pairs
● Both encoder and decoder are trained together (end-to-end)

50. Confidential + Proprietary

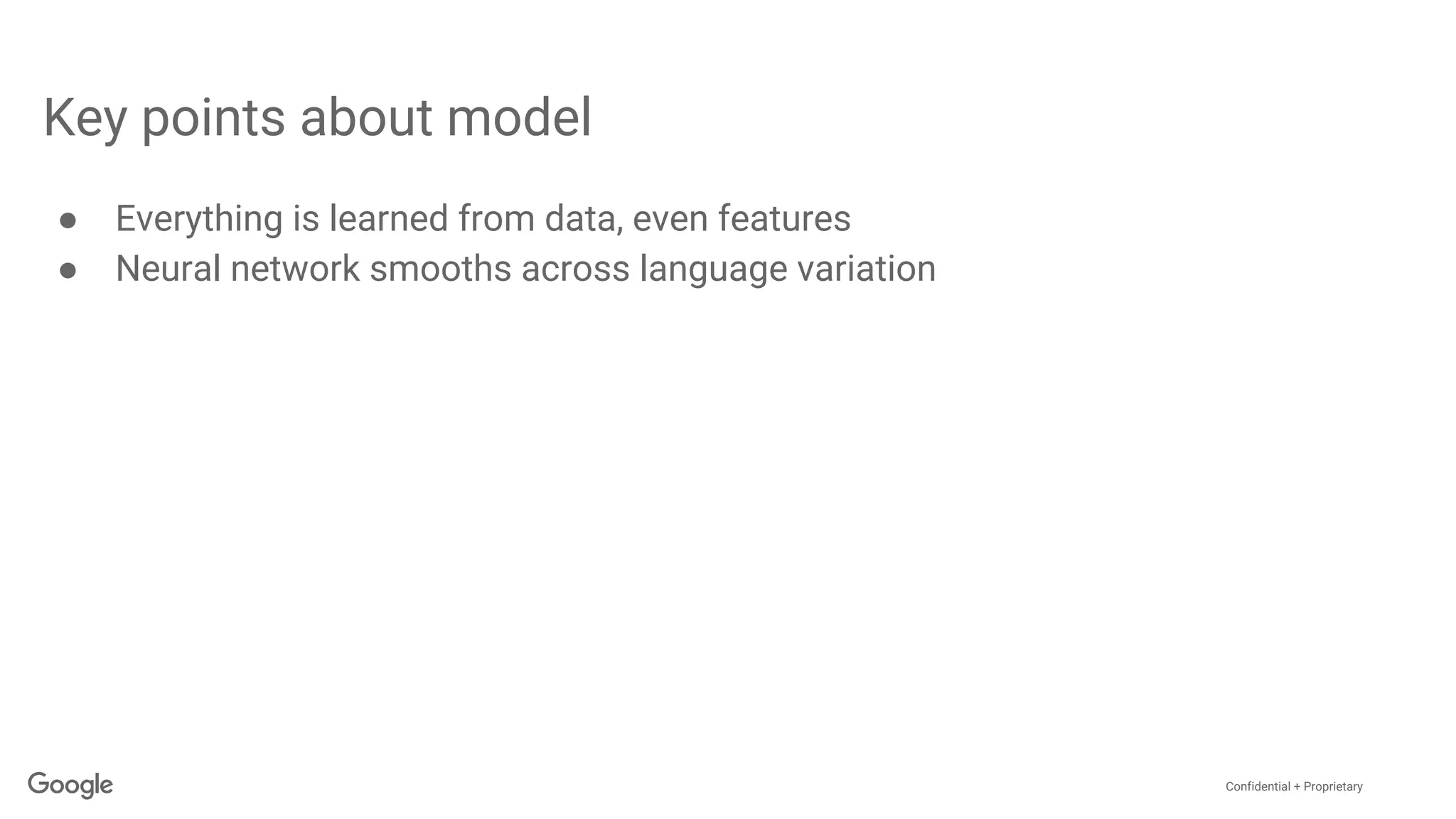

Key points about model
● Everything is learned from data, even features
● Neural network smooths across language variation

51. Smart Reply in Production

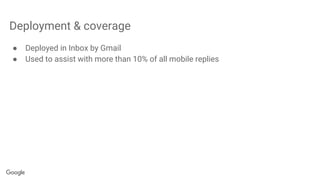

52. Deployment & coverage
● Deployed in Inbox by Gmail
● Used to assist with more than 10% of all mobile replies

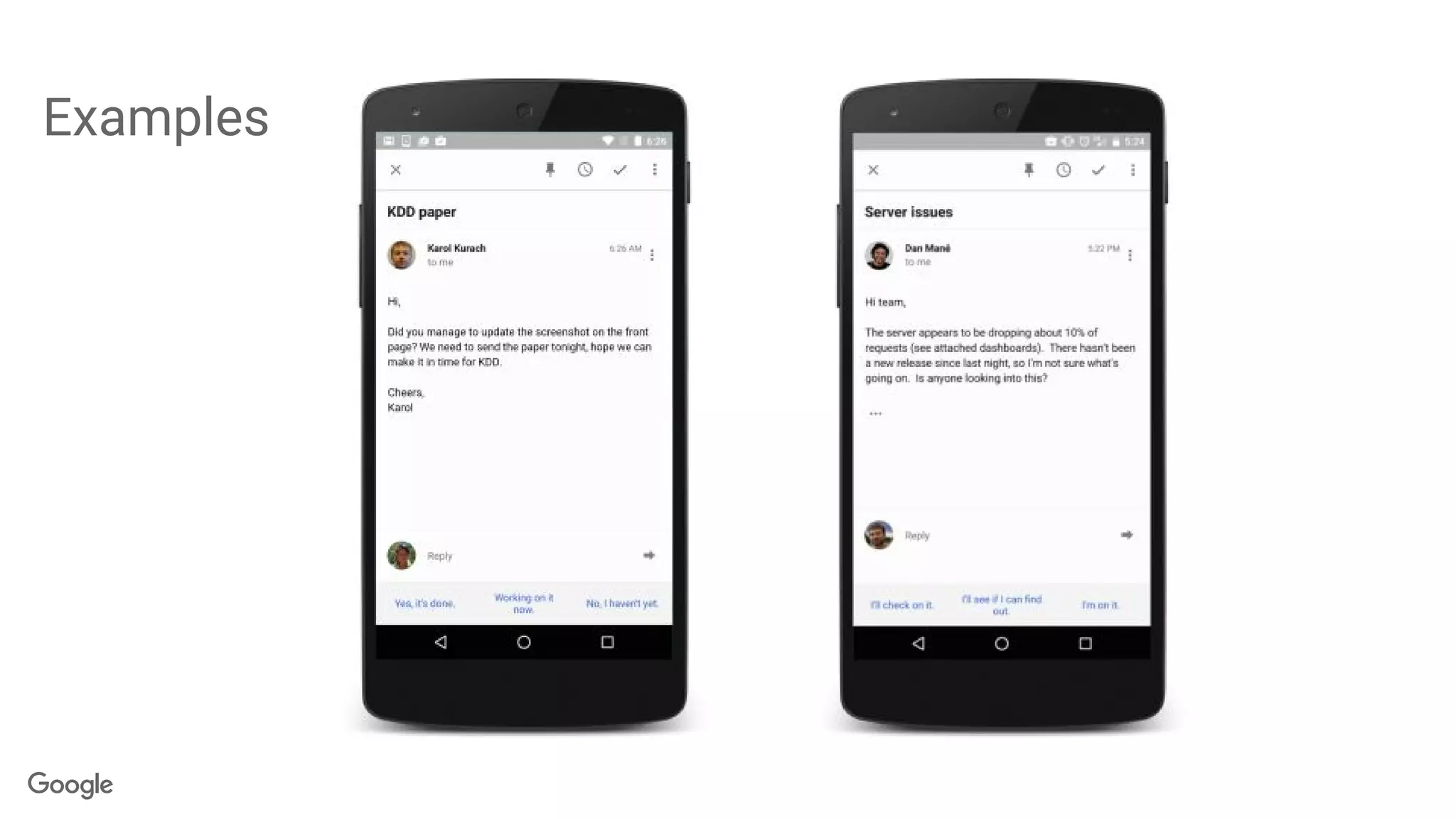

53. Examples

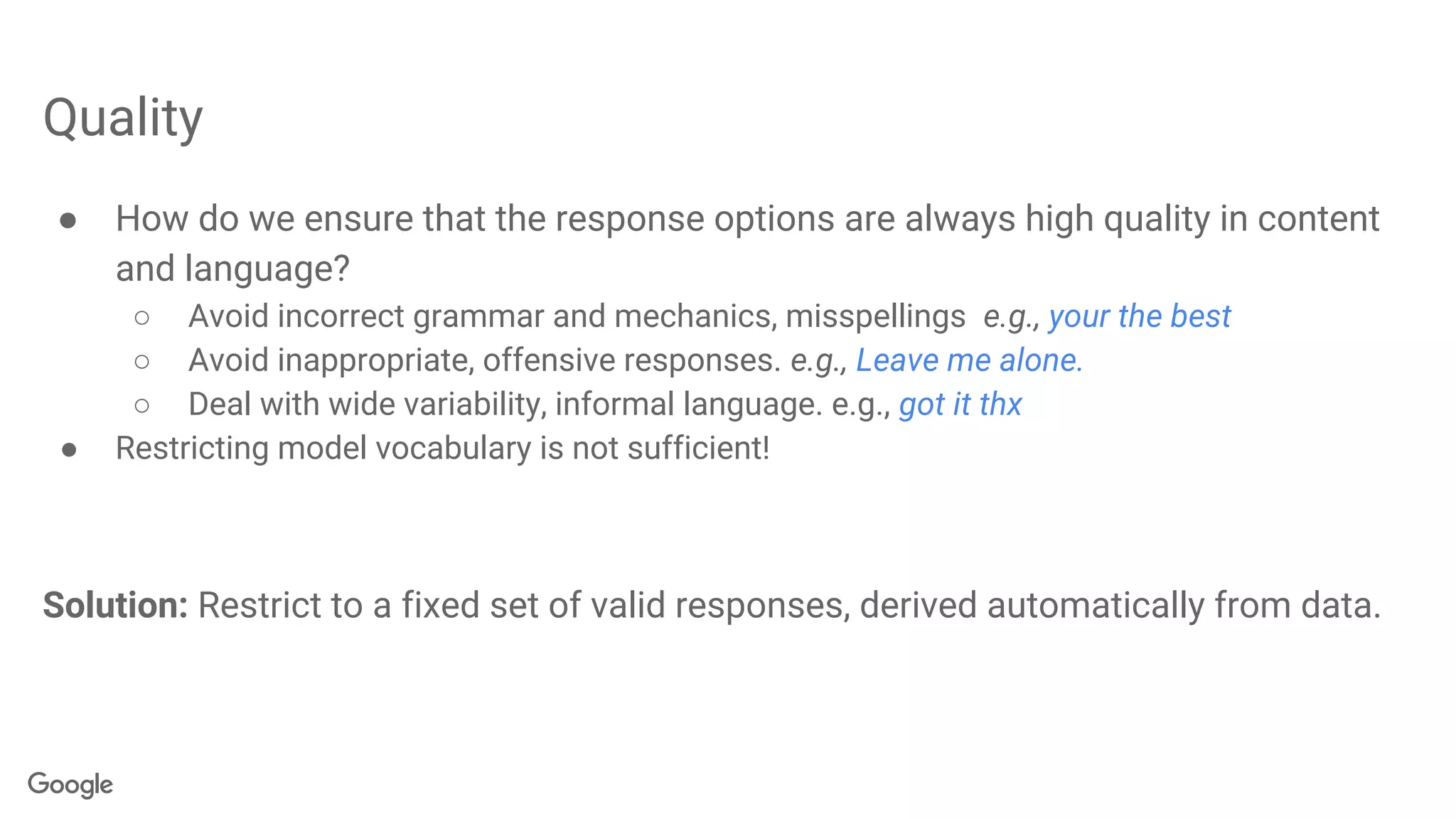

54. Quality
● How do we ensure that the response options are always high quality in content
and language?
○ Avoid incorrect grammar and mechanics, misspellings e.g., your the best
○ Avoid inappropriate, offensive responses. e.g., Leave me alone.
○ Deal with wide variability, informal language. e.g., got it thx
● Restricting model vocabulary is not sufficient!
Solution: Restrict to a fixed set of valid responses, derived automatically from data.

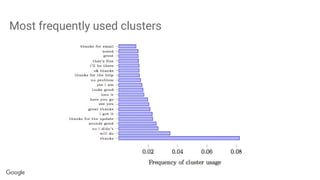

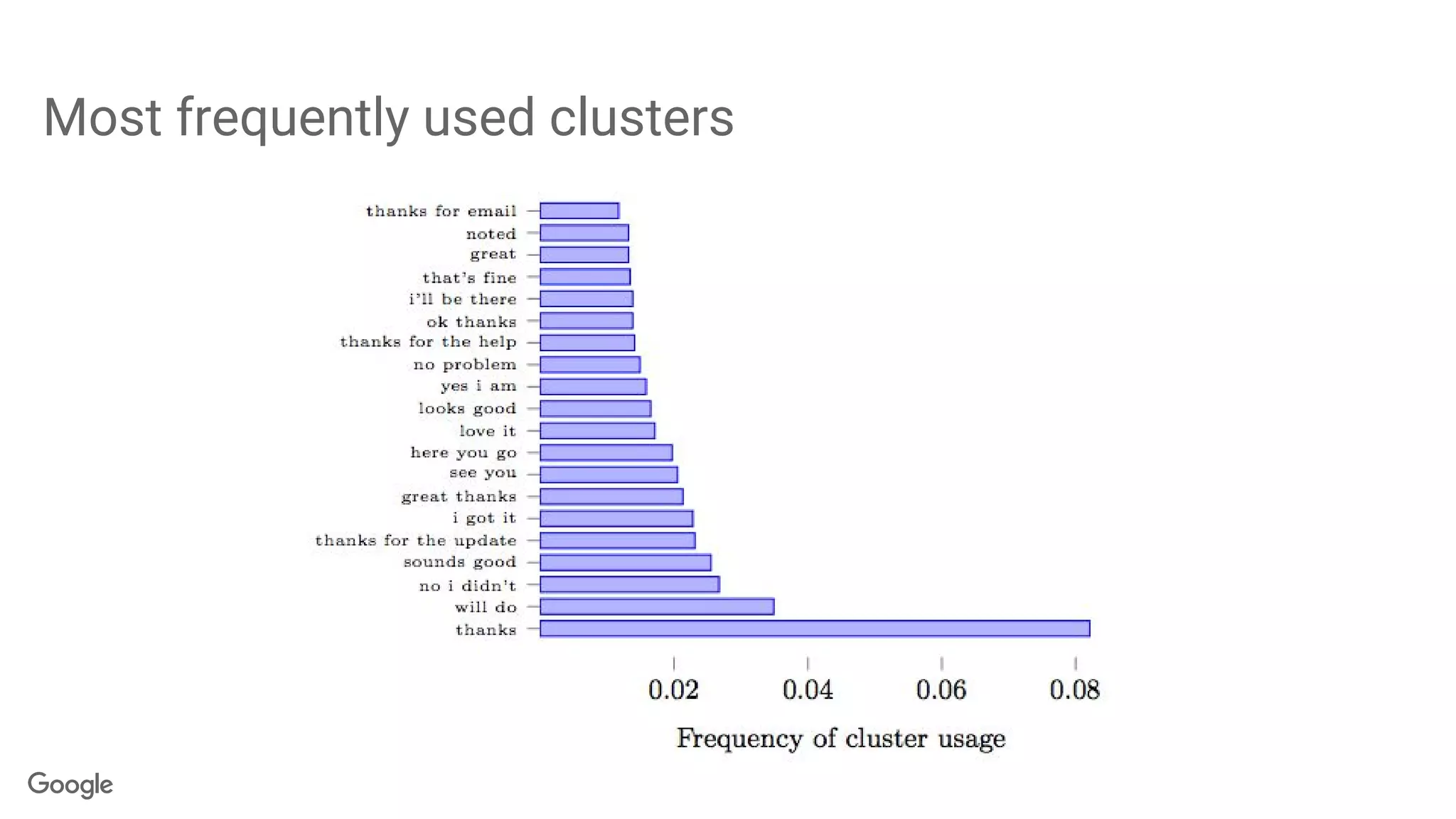

55. Most frequently used clusters

56. Confidential + Proprietary

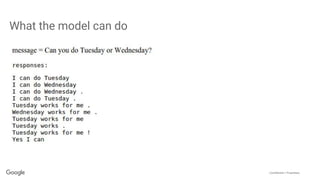

What the model can do

57. Confidential + Proprietary

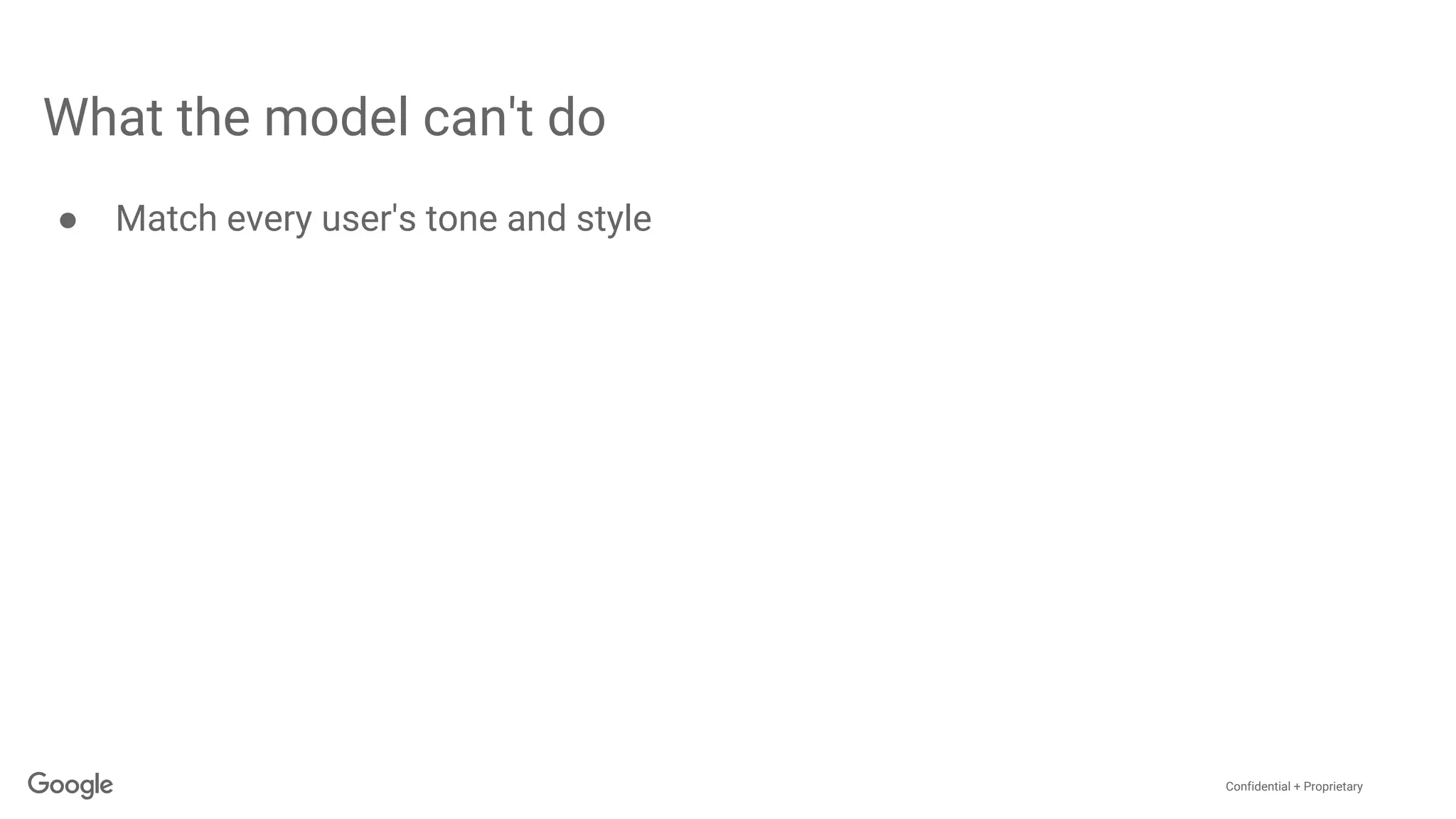

What the model can't do
● Match every user's tone and style

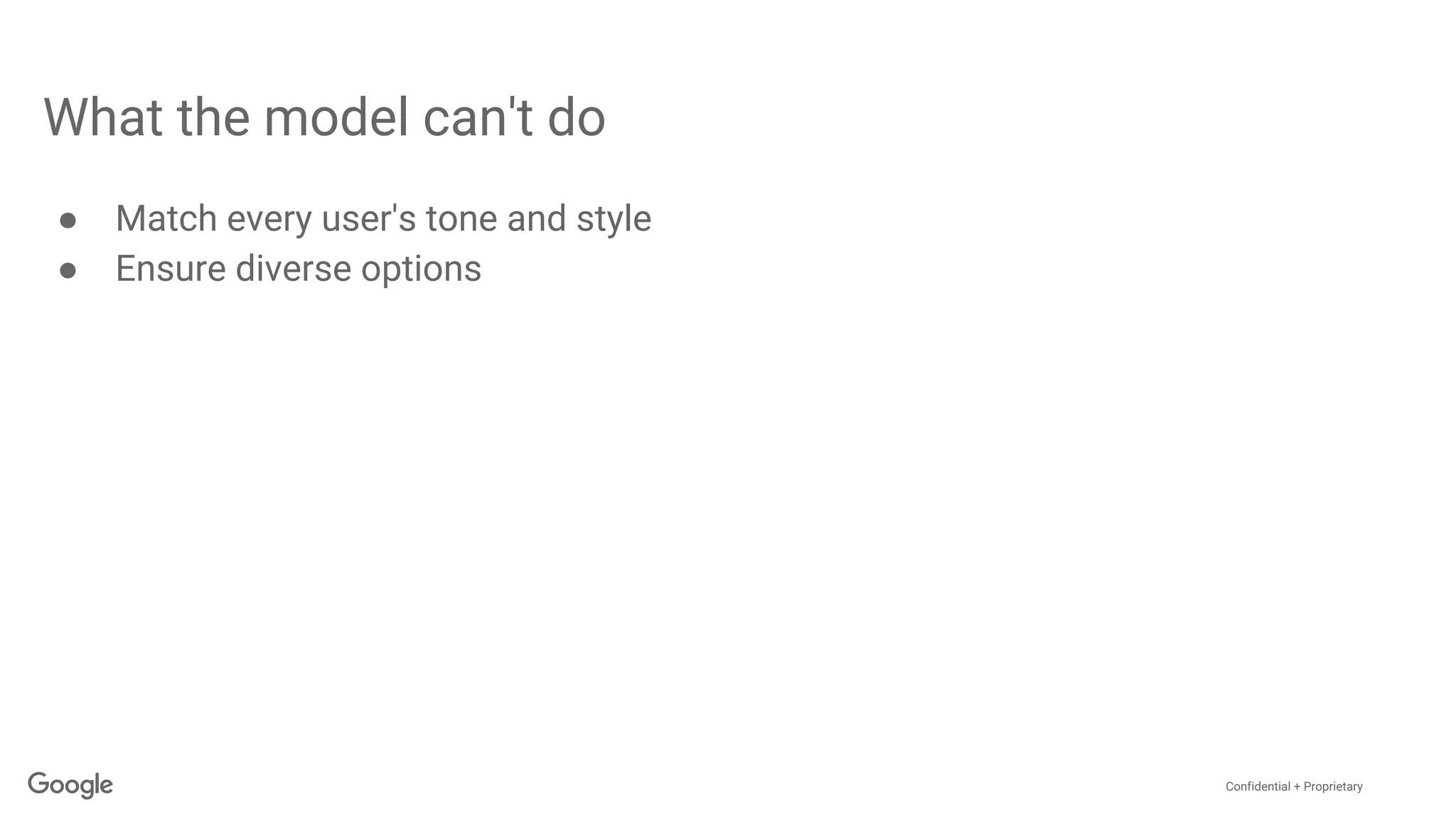

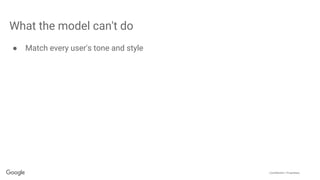

58. Confidential + Proprietary
What the model can't do
● Match every user's tone and style
● Ensure diverse options

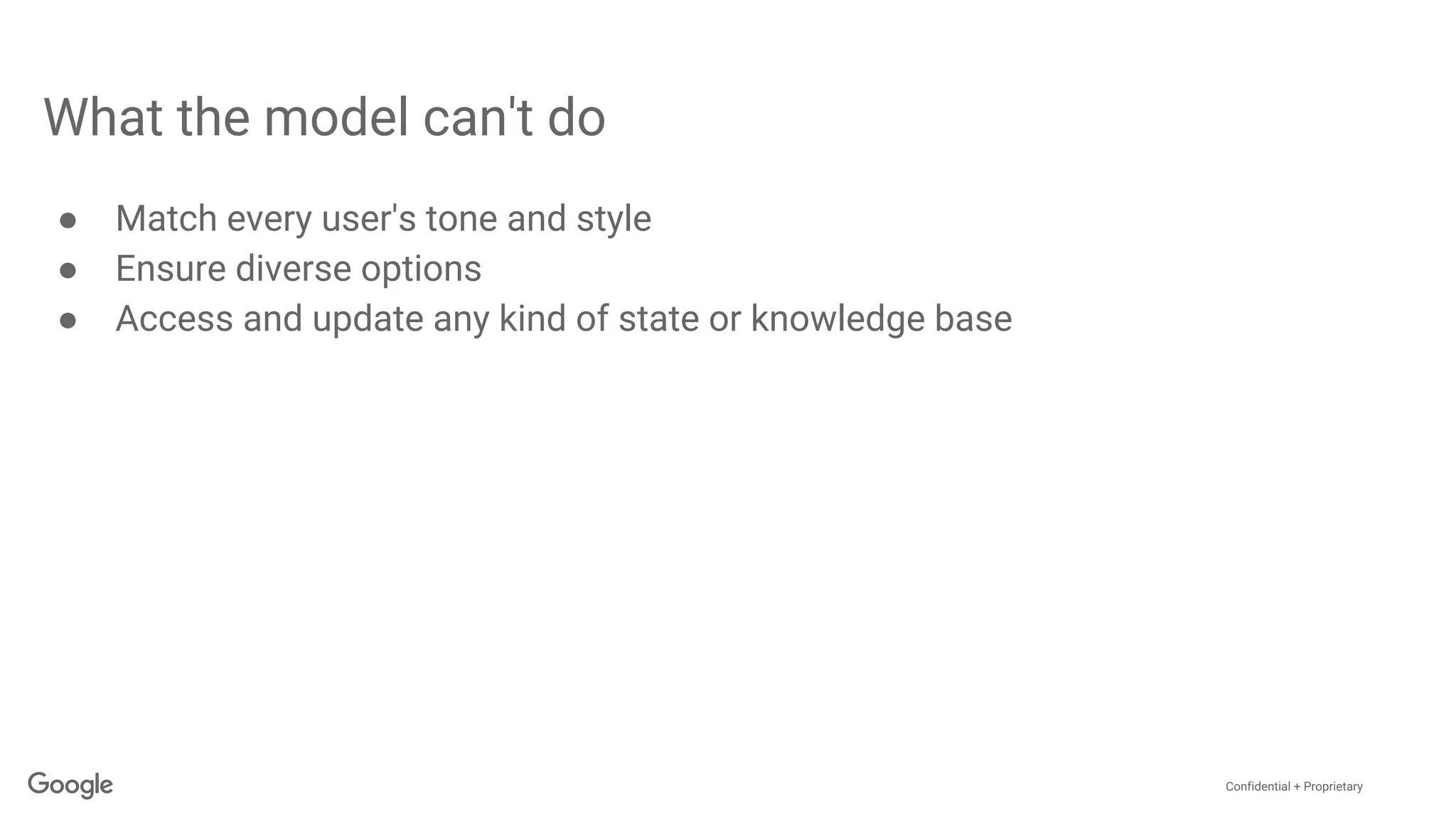

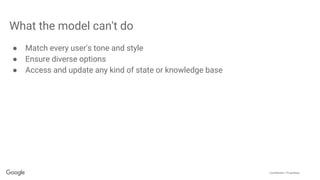

59. Confidential + Proprietary
What the model can't do
● Match every user's tone and style
● Ensure diverse options
● Access and update any kind of state or knowledge base

60. Conclusions

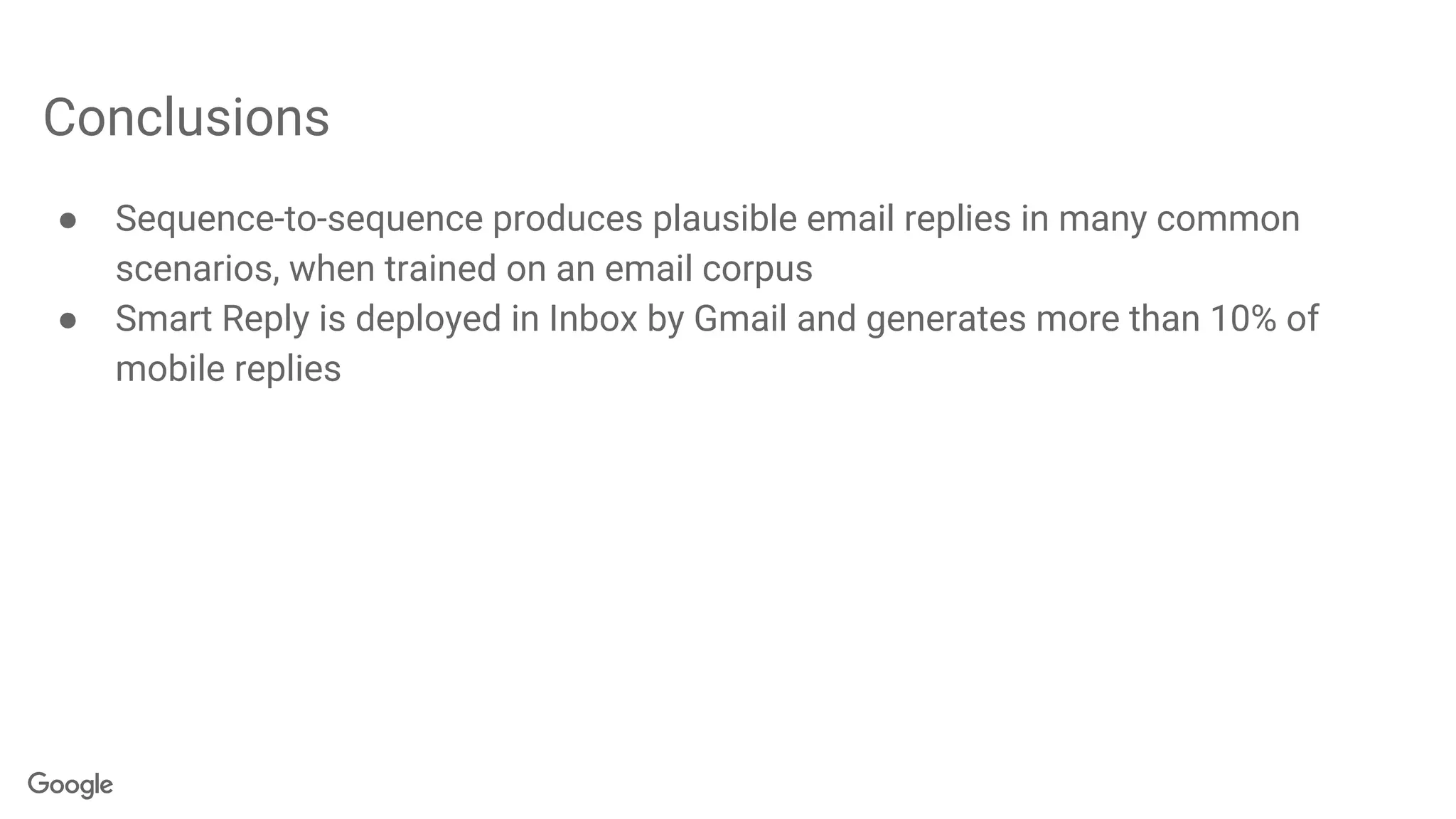

61. Conclusions
● Sequence-to-sequence produces plausible email replies in many common
scenarios, when trained on an email corpus
● Smart Reply is deployed in Inbox by Gmail and generates more than 10% of
mobile replies

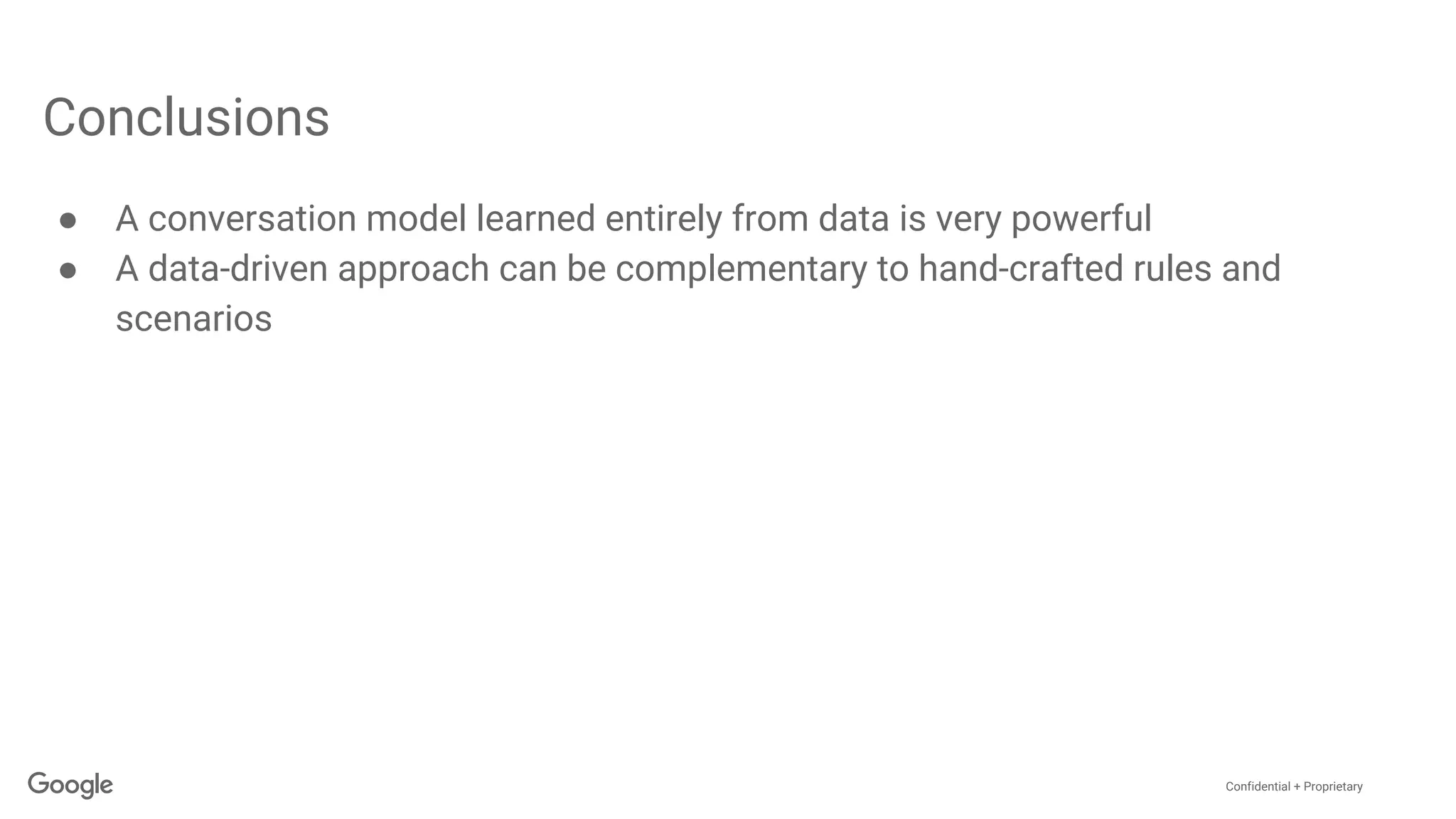

62. Confidential + Proprietary
Conclusions
● A conversation model learned entirely from data is very powerful
● A data-driven approach can be complementary to hand-crafted rules and
scenarios

63. Confidential + Proprietary
Collaborators
- Greg Corrado, Oriol Vinyals (Google Brain)
- Balint Miklos, Tobias Kaufman, Laszlo Lukacs, and Karol Kurach (GMail)
- Sujith Ravi (Google Research)

64. Confidential + Proprietary
Thank you!

65. Extra slides

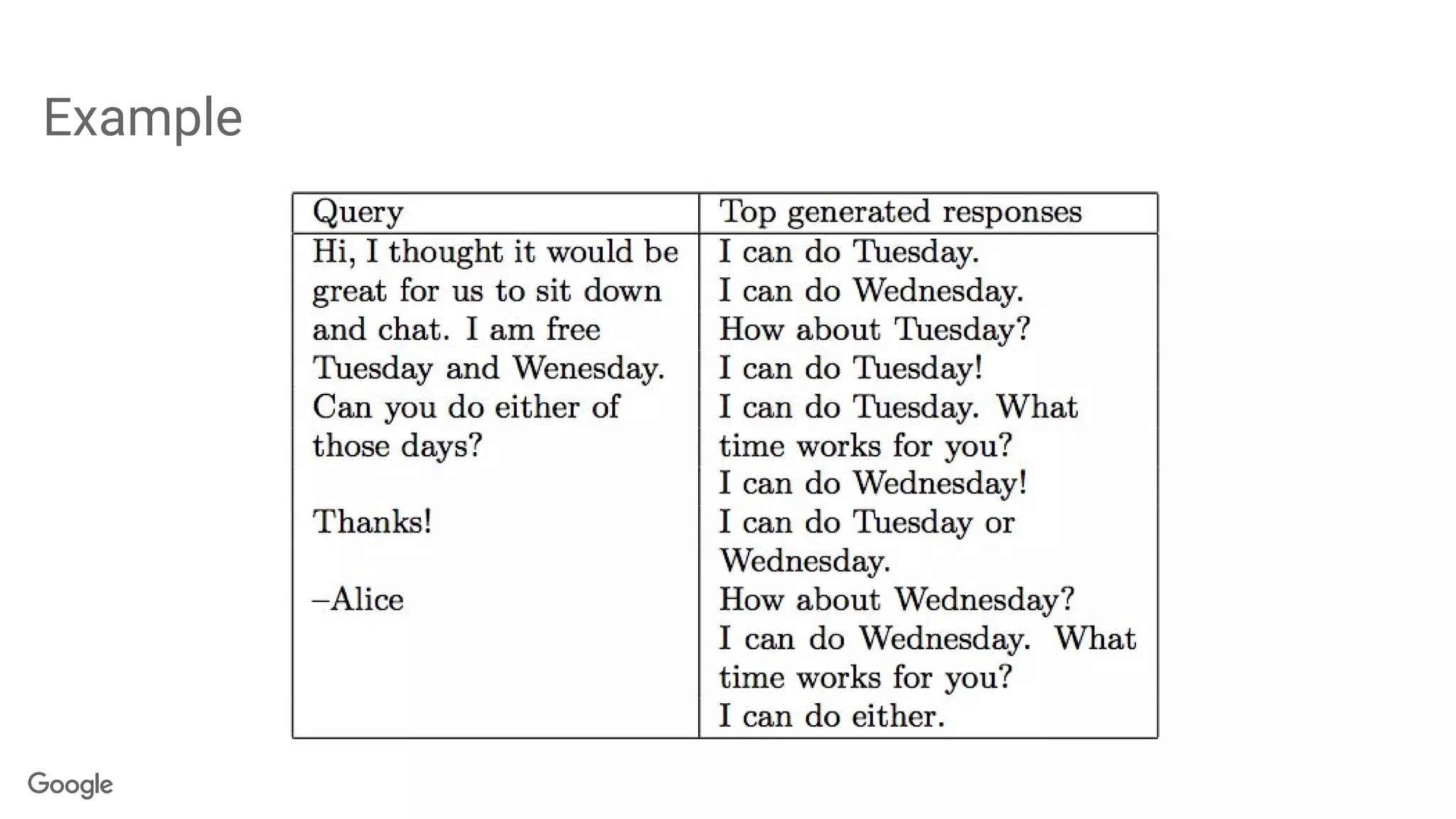

66. Example

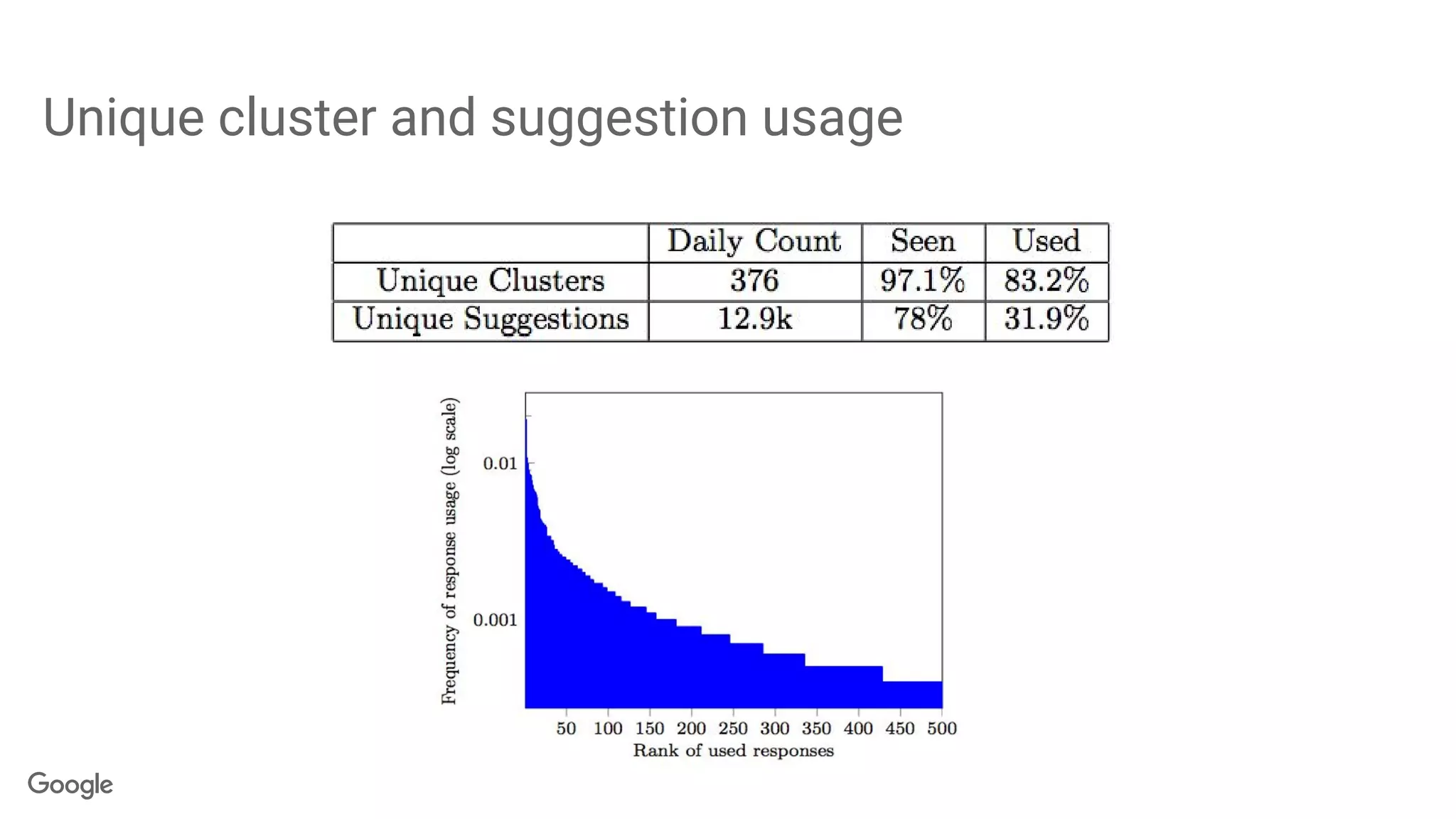

67. Unique cluster and suggestion usage

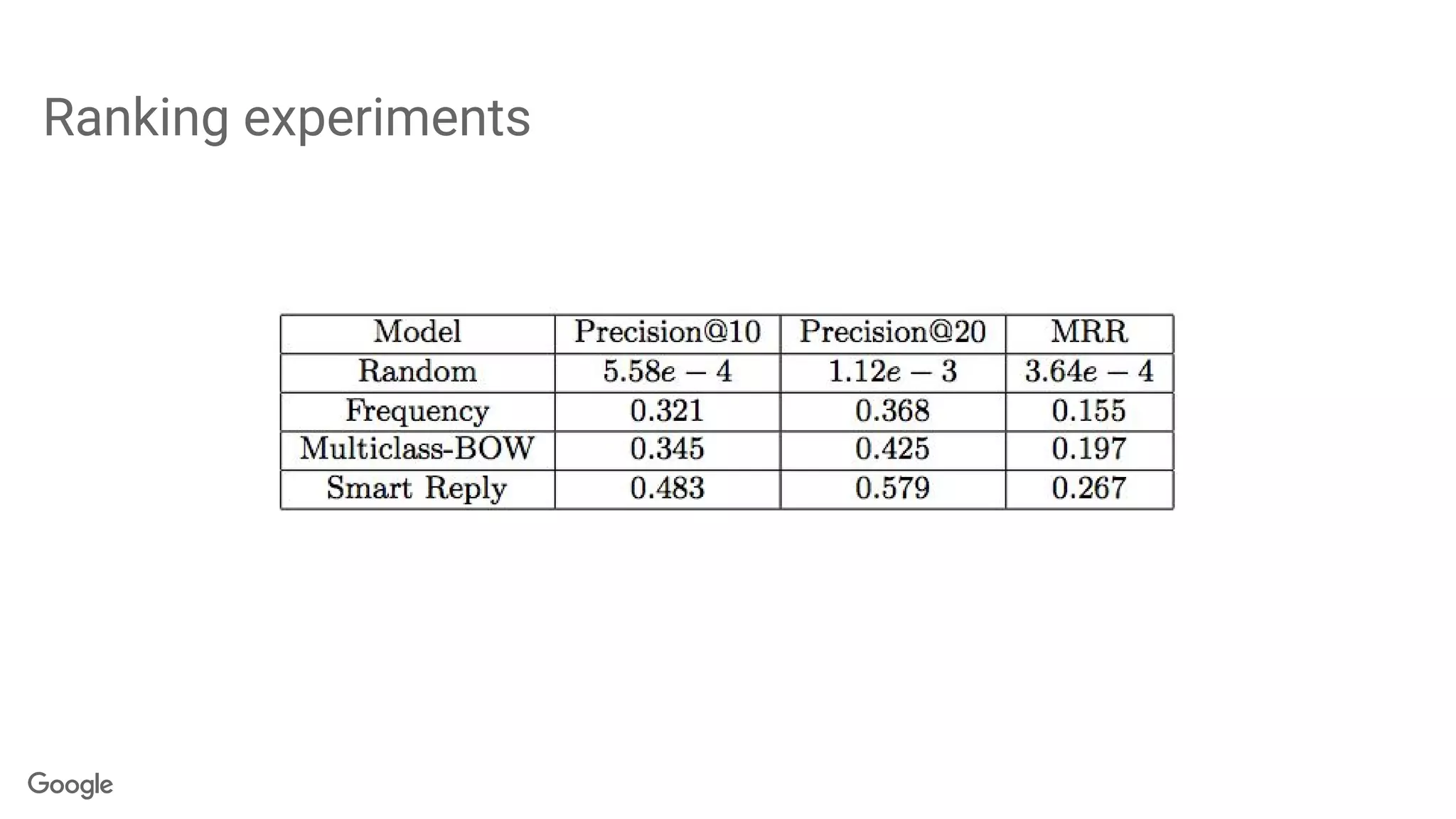

68. Ranking experiments
