The document discusses Android UI testing using Espresso, focusing on its syntax, setup, and structure for writing tests. It covers common problems faced during testing, such as flaky tests and detecting UI threads, and provides solutions like using custom view actions and idling resources. The content also includes examples of test cases to demonstrate the use of Espresso in various scenarios.

1. Android UI Testing
with Espresso

2. Gary Cheng
KKBOX
Android automation

3. Espresso
• Introduce Espresso
• How to write Android UI testing
• The problems we met

4. Introduction

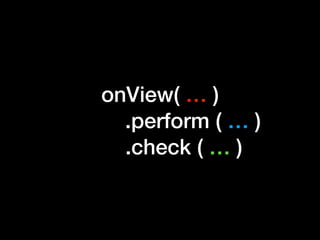

6. Simple Syntax onView( … )
.perform ( … )
.check ( … )

7. Reliability
main thread

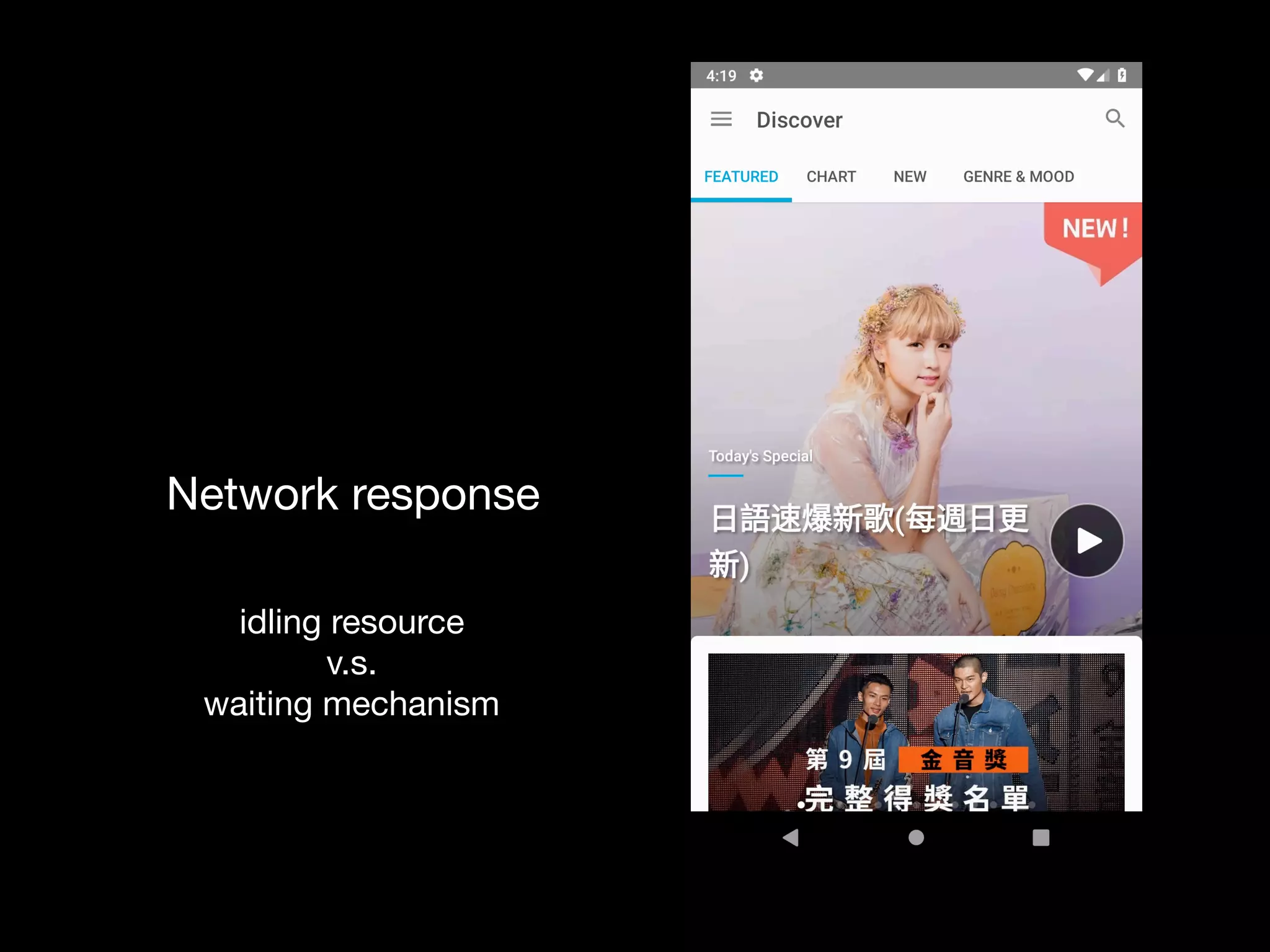

8. Network response
idling resource
v.s.
waiting mechanism

9. Run Faster
Appium / Espresso

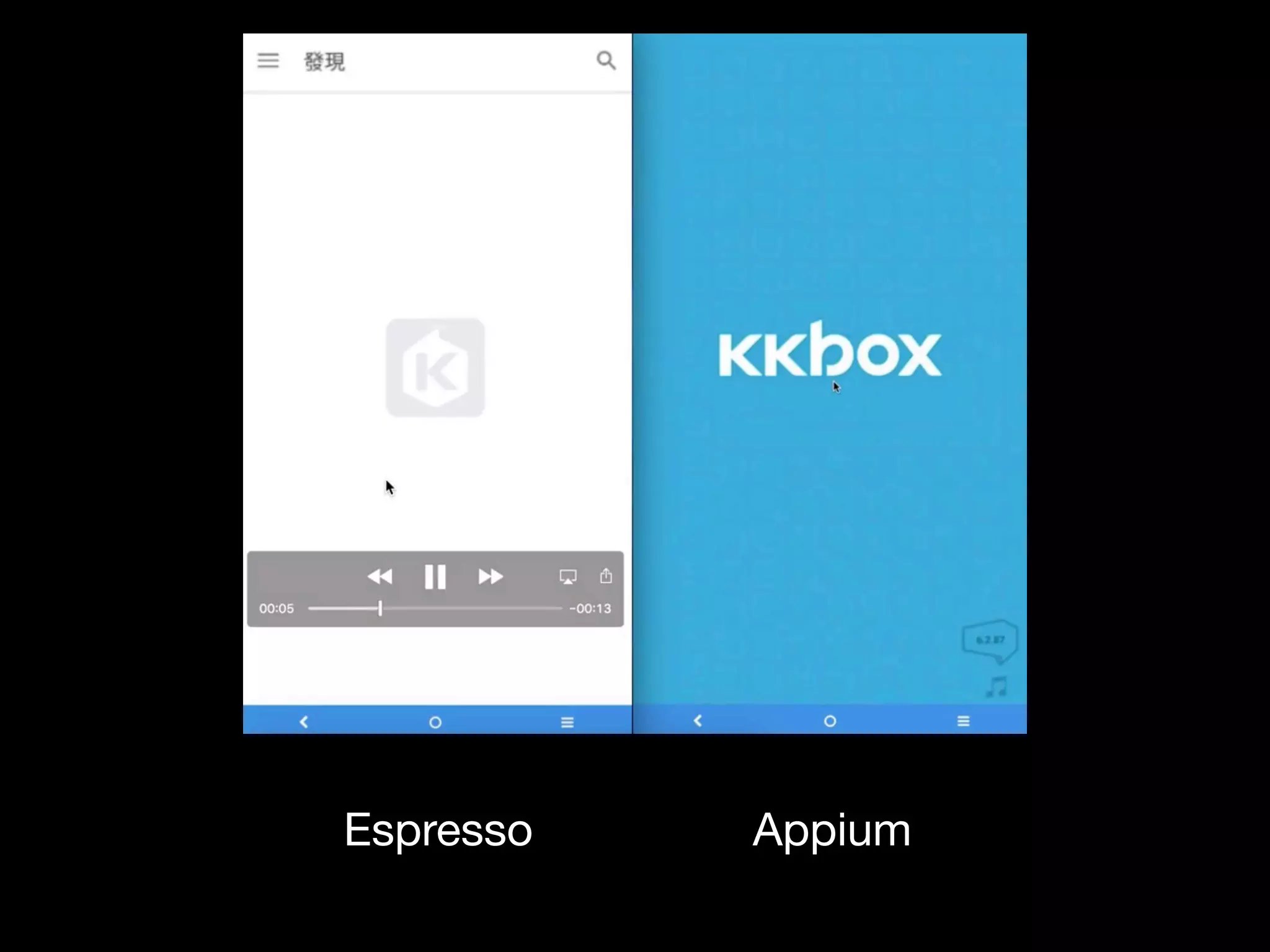

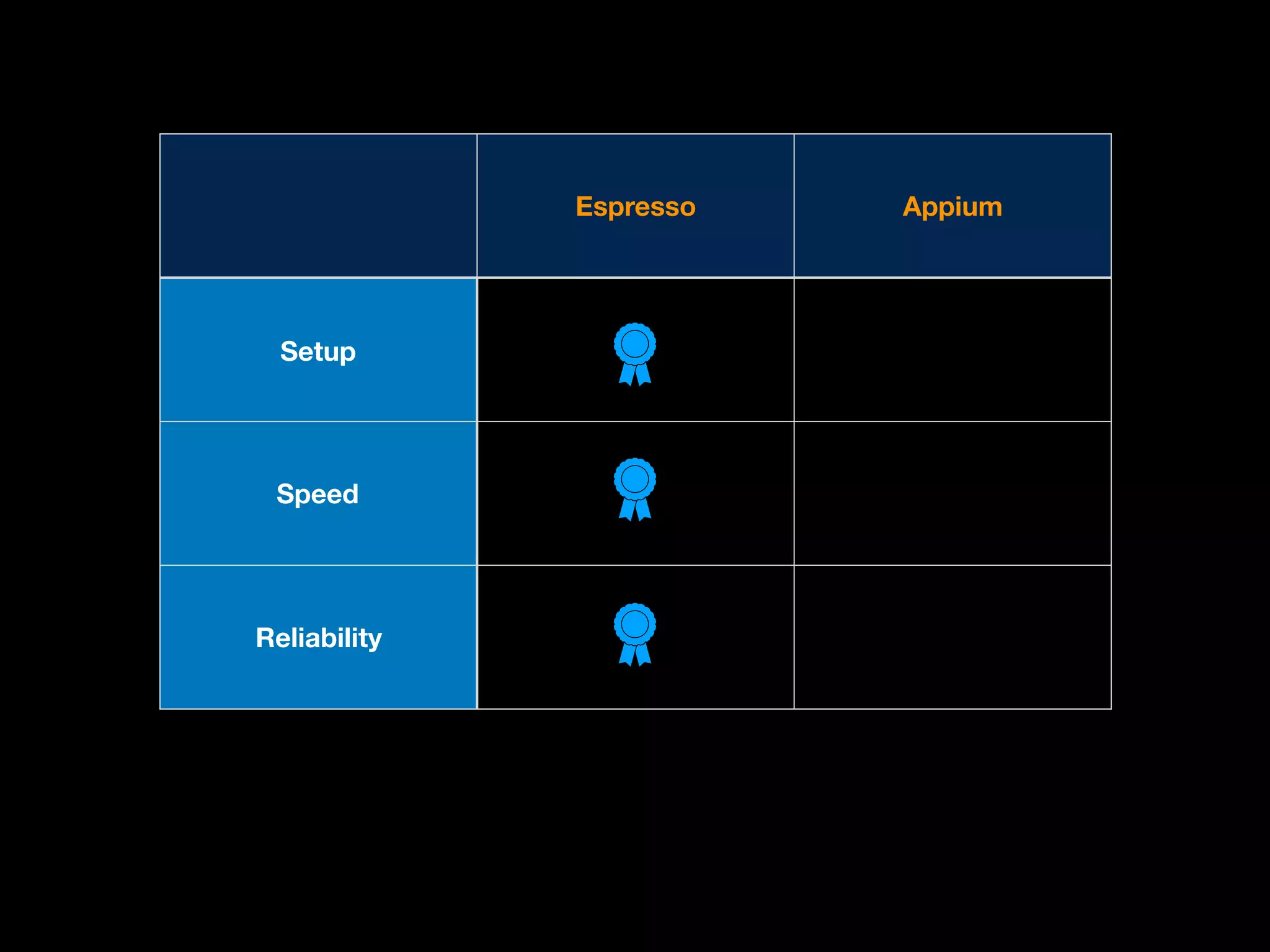

10. Espresso Appium

11. Espresso Appium
Setup
Speed
Reliability

12. Use Services
login / logout

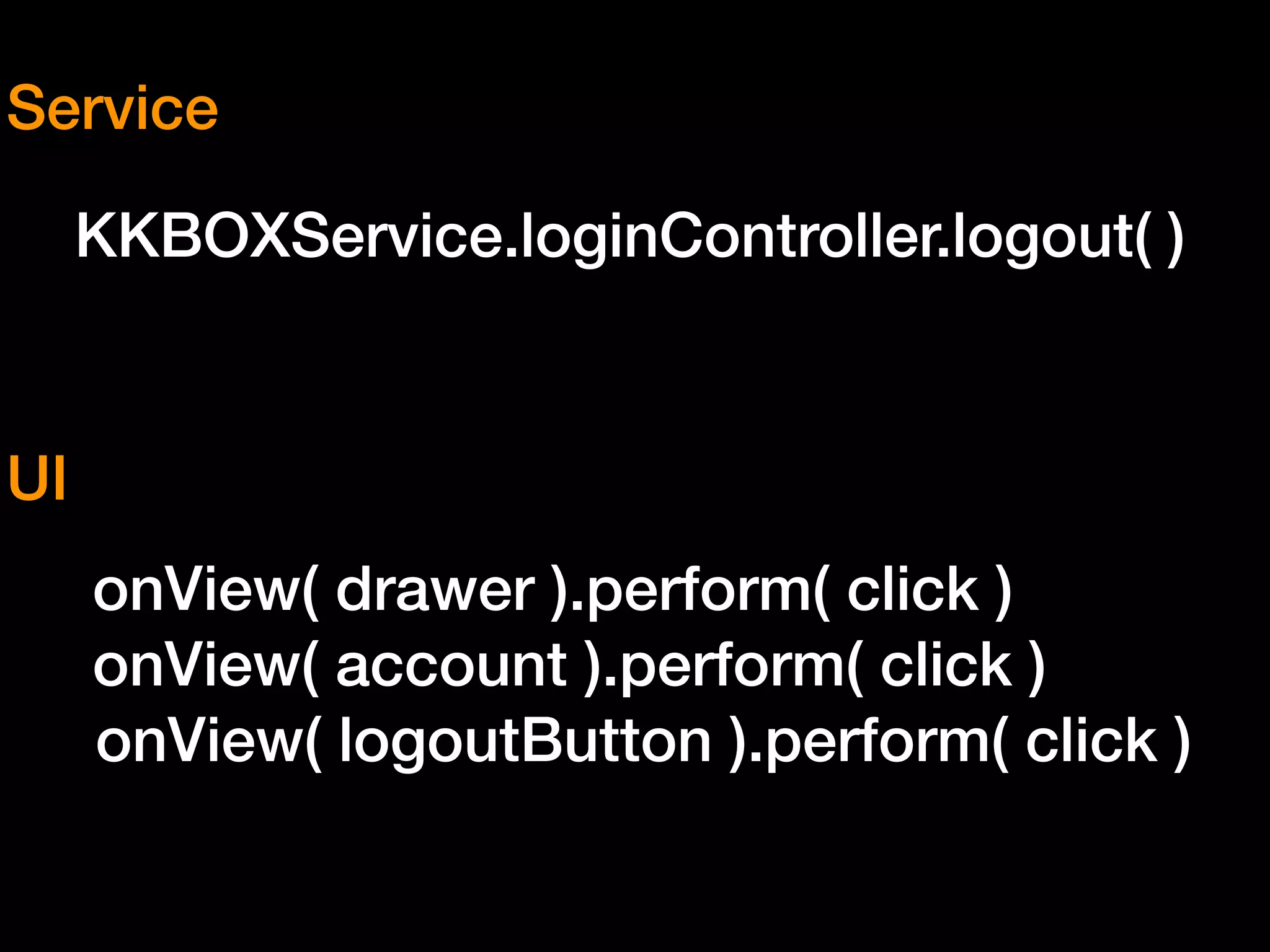

13. Service
onView( drawer ).perform( click )
onView( account ).perform( click )
onView( logoutButton ).perform( click )
KKBOXService.loginController.logout( )
UI

14. Source Code

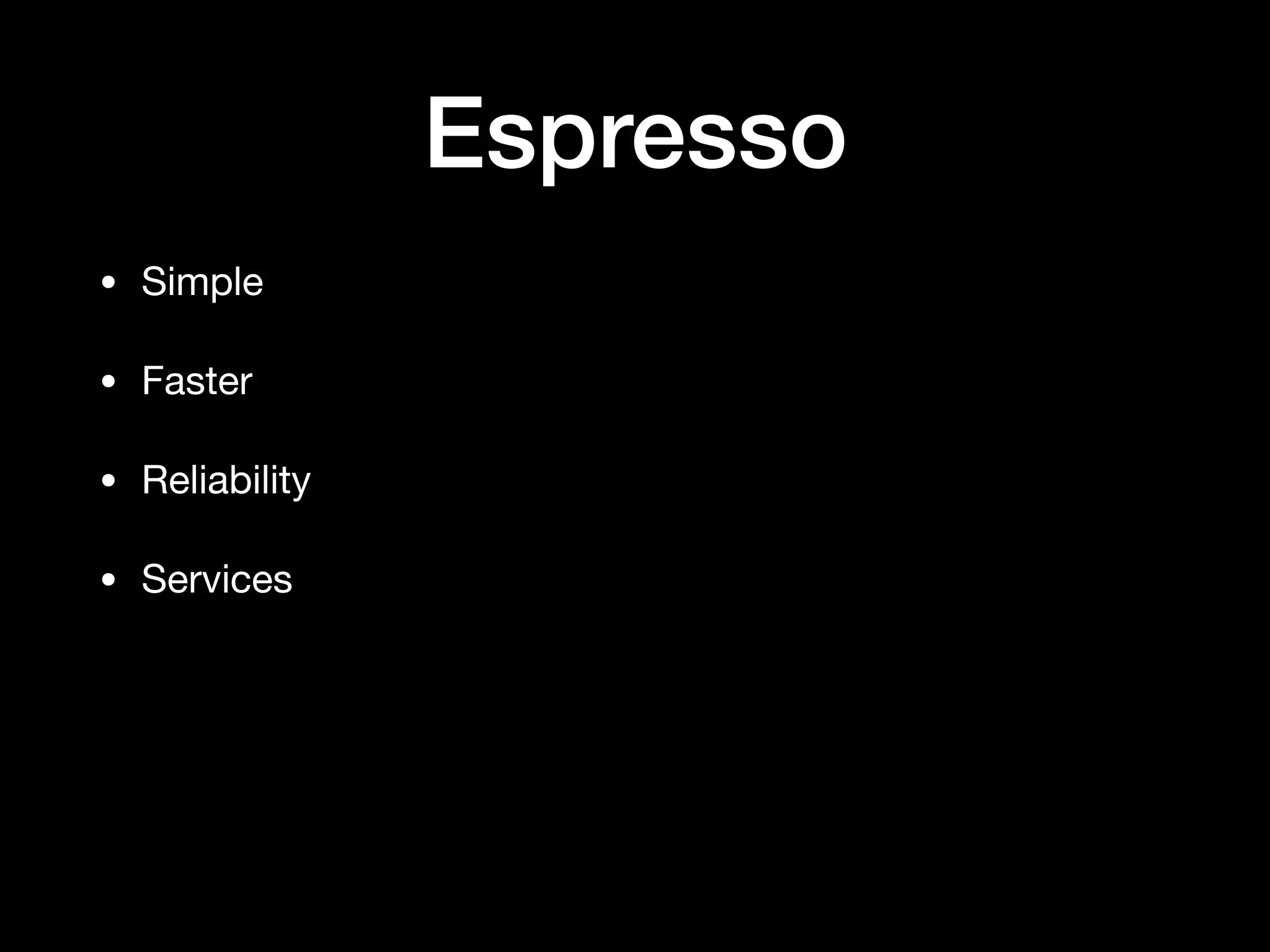

15. Espresso
• Simple
• Faster
• Reliability
• Services

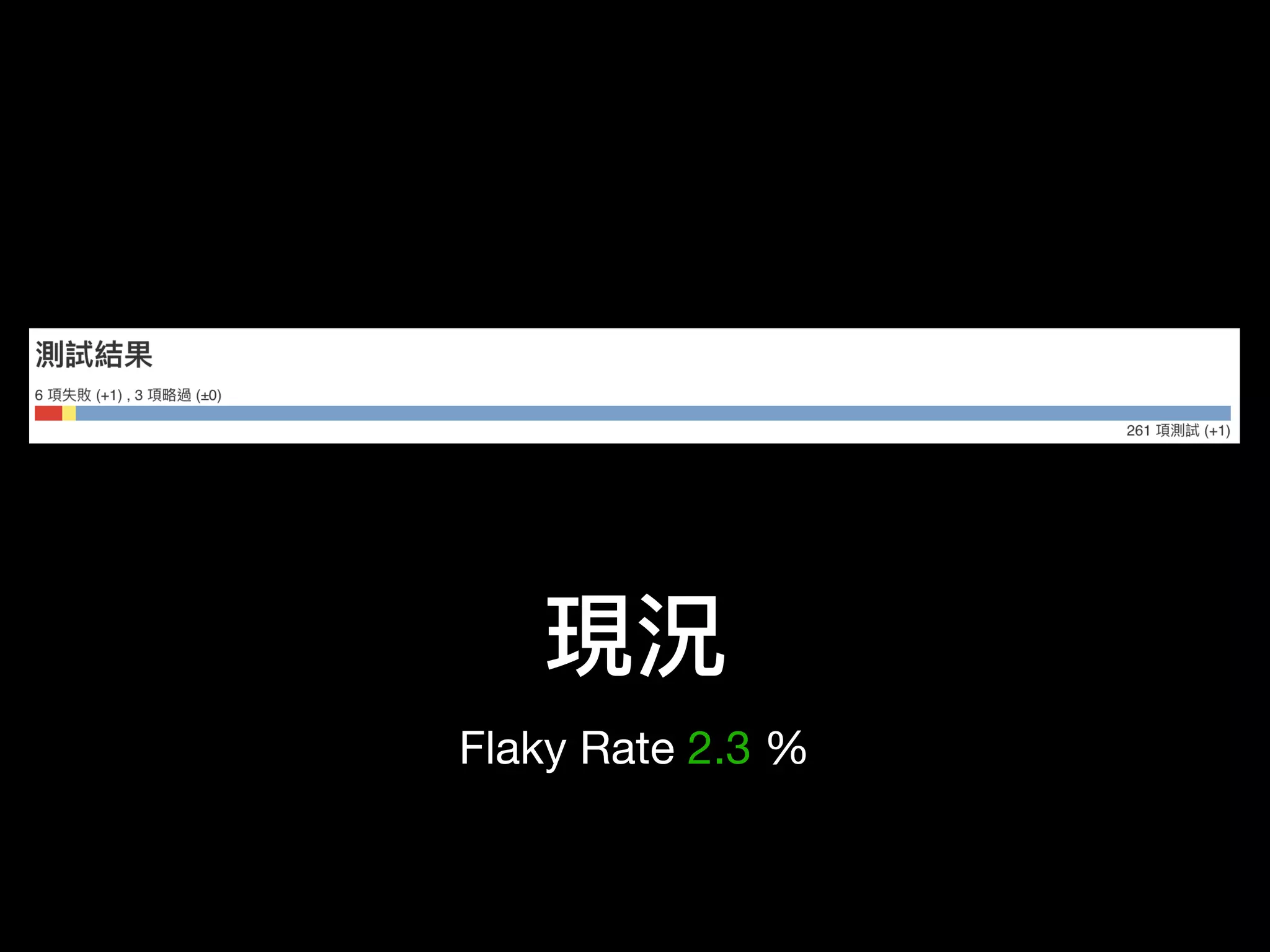

16. 現況
Flaky Rate 2.3 %

17. How to Use Espresso
• setup
• syntax
• structure

18. Setup

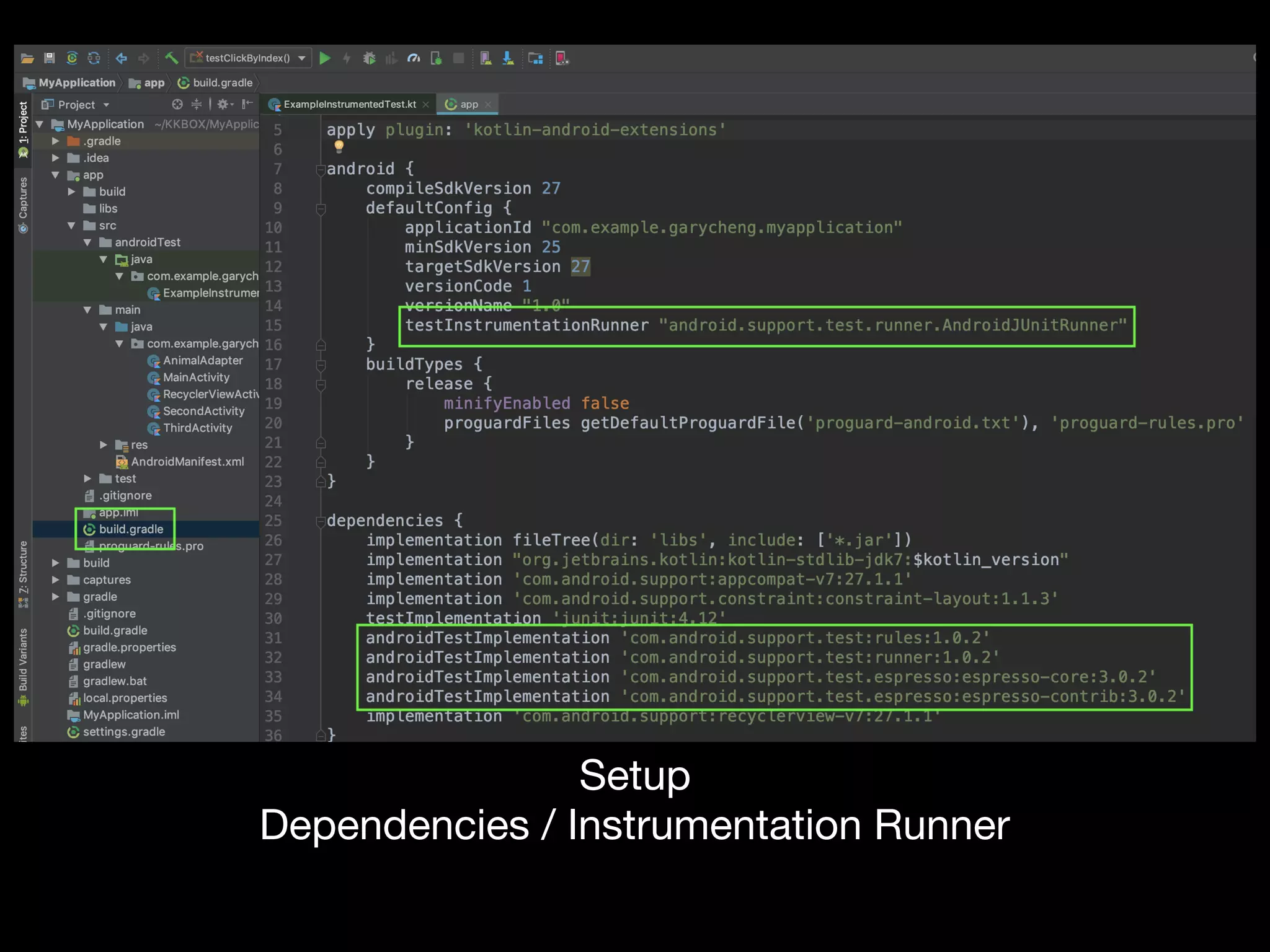

19. Setup
Dependencies / Instrumentation Runner

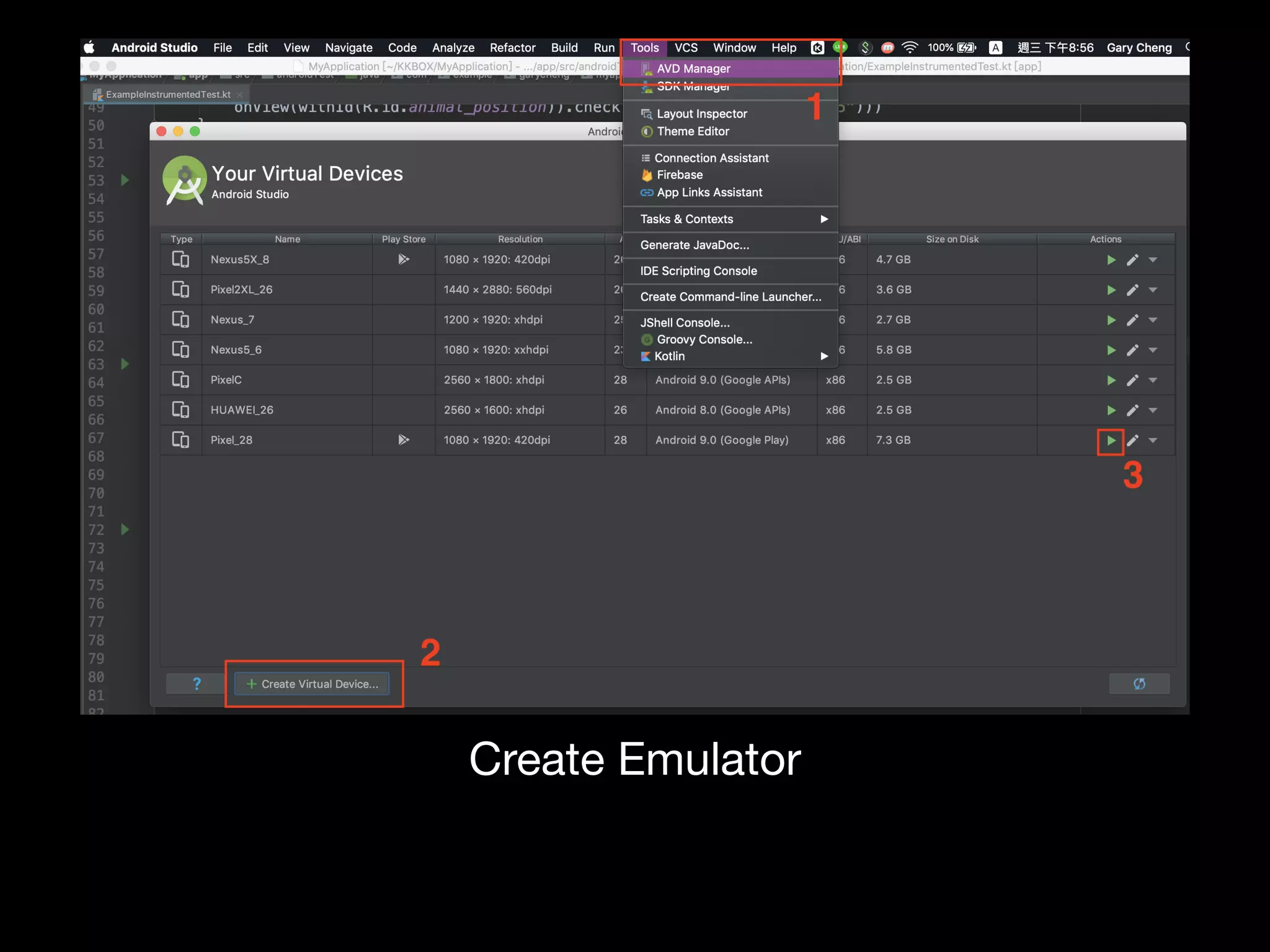

20. Create Emulator

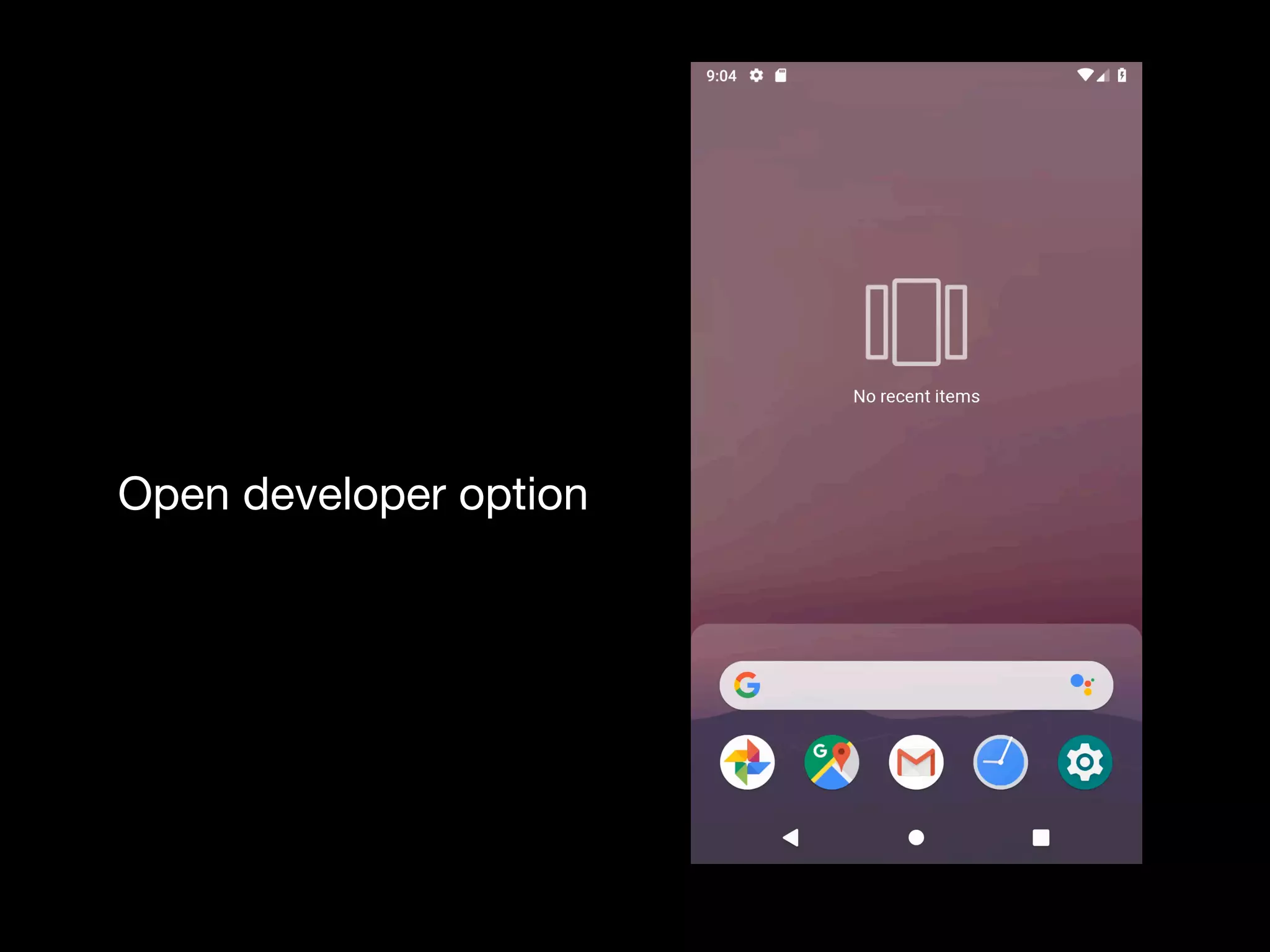

21. Open developer option

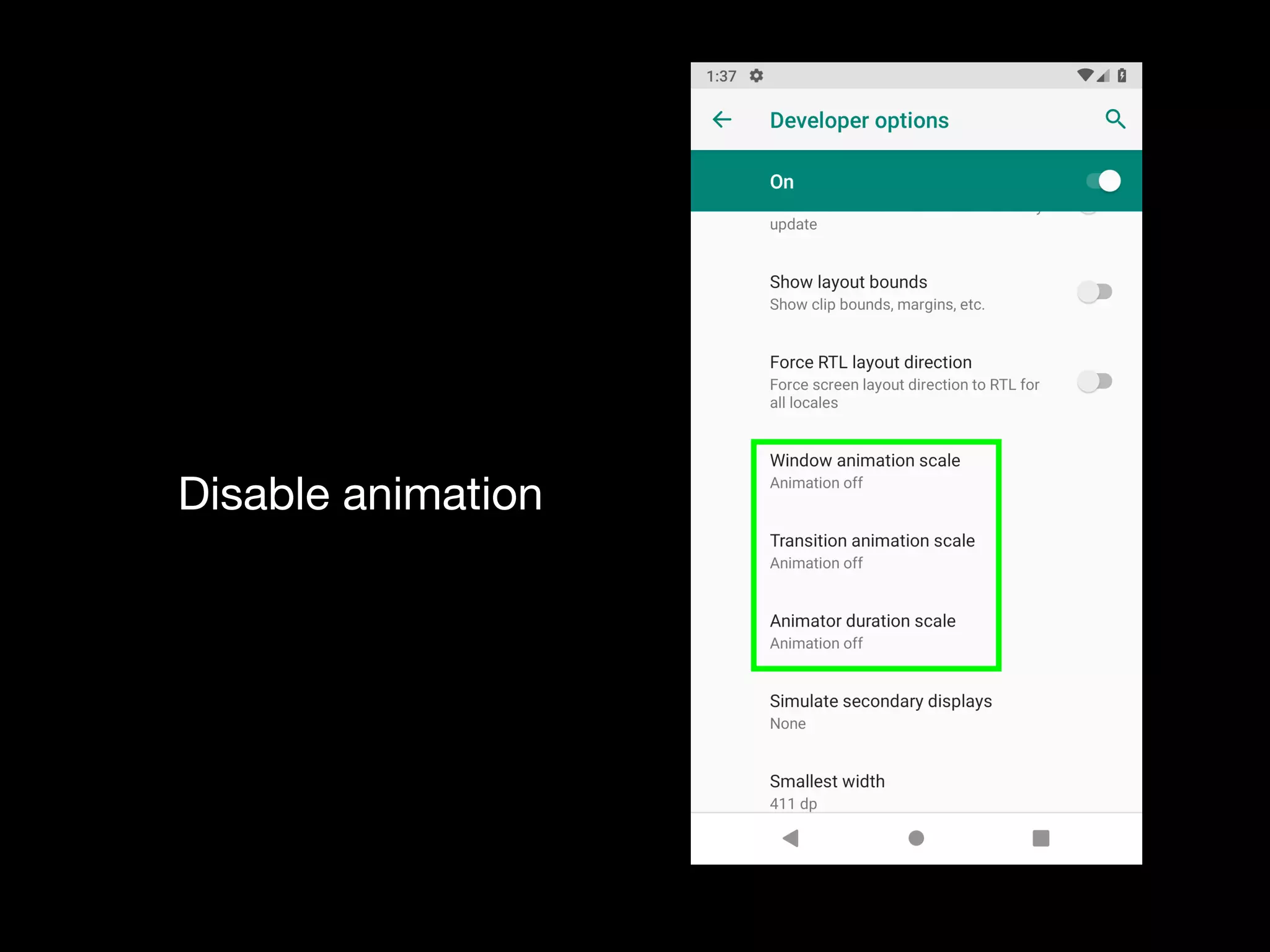

22. Disable animation

23. Syntax

24. onView( … )
.perform ( … )
.check ( … )

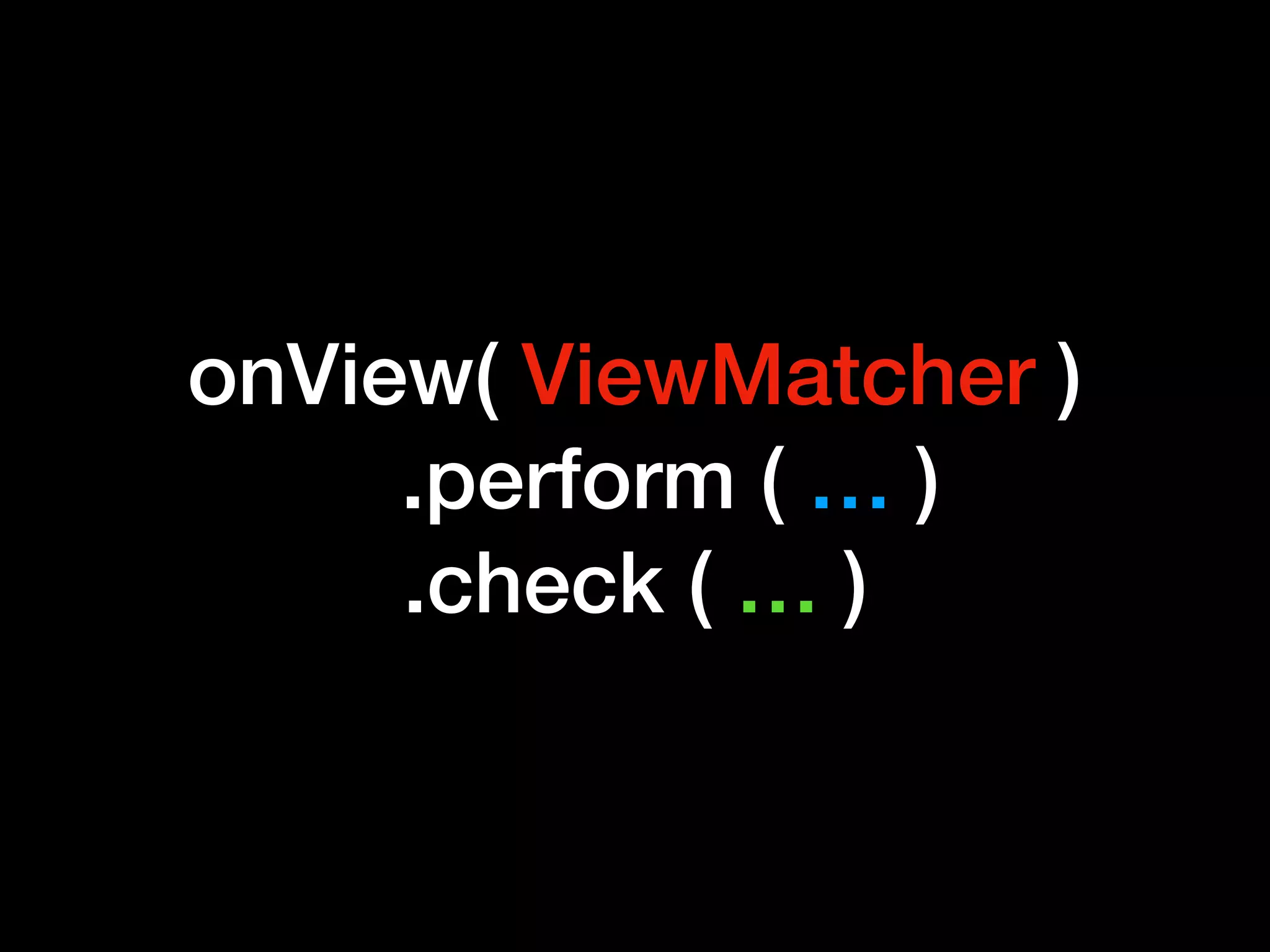

25. onView( ViewMatcher )
.perform ( … )
.check ( … )

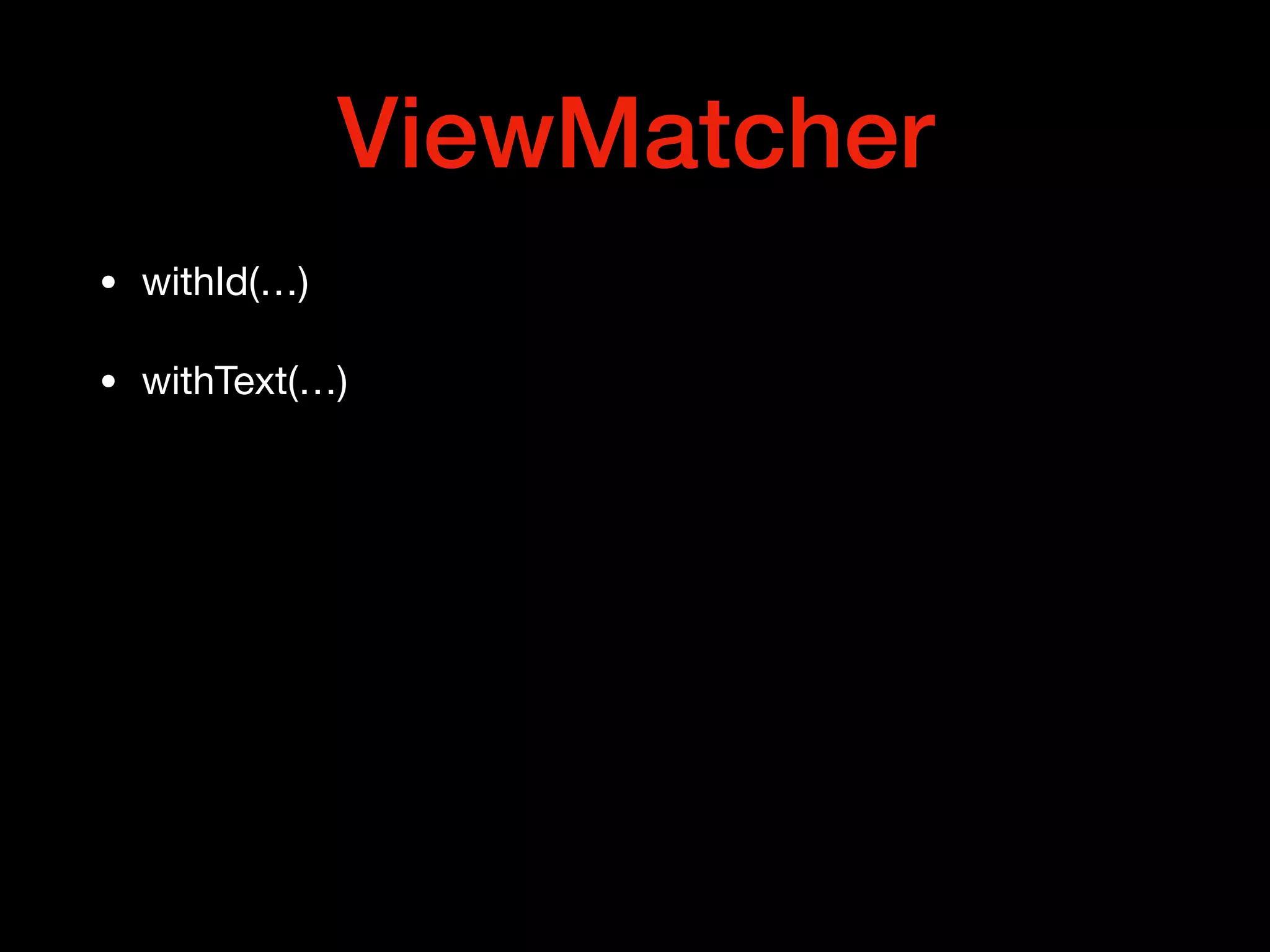

26. ViewMatcher
• withId(…)
• withText(…)

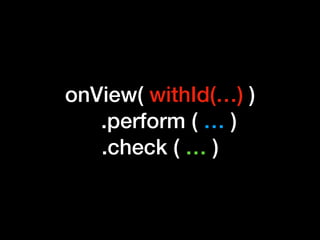

27. onView( withId(…) )
.perform ( … )
.check ( … )

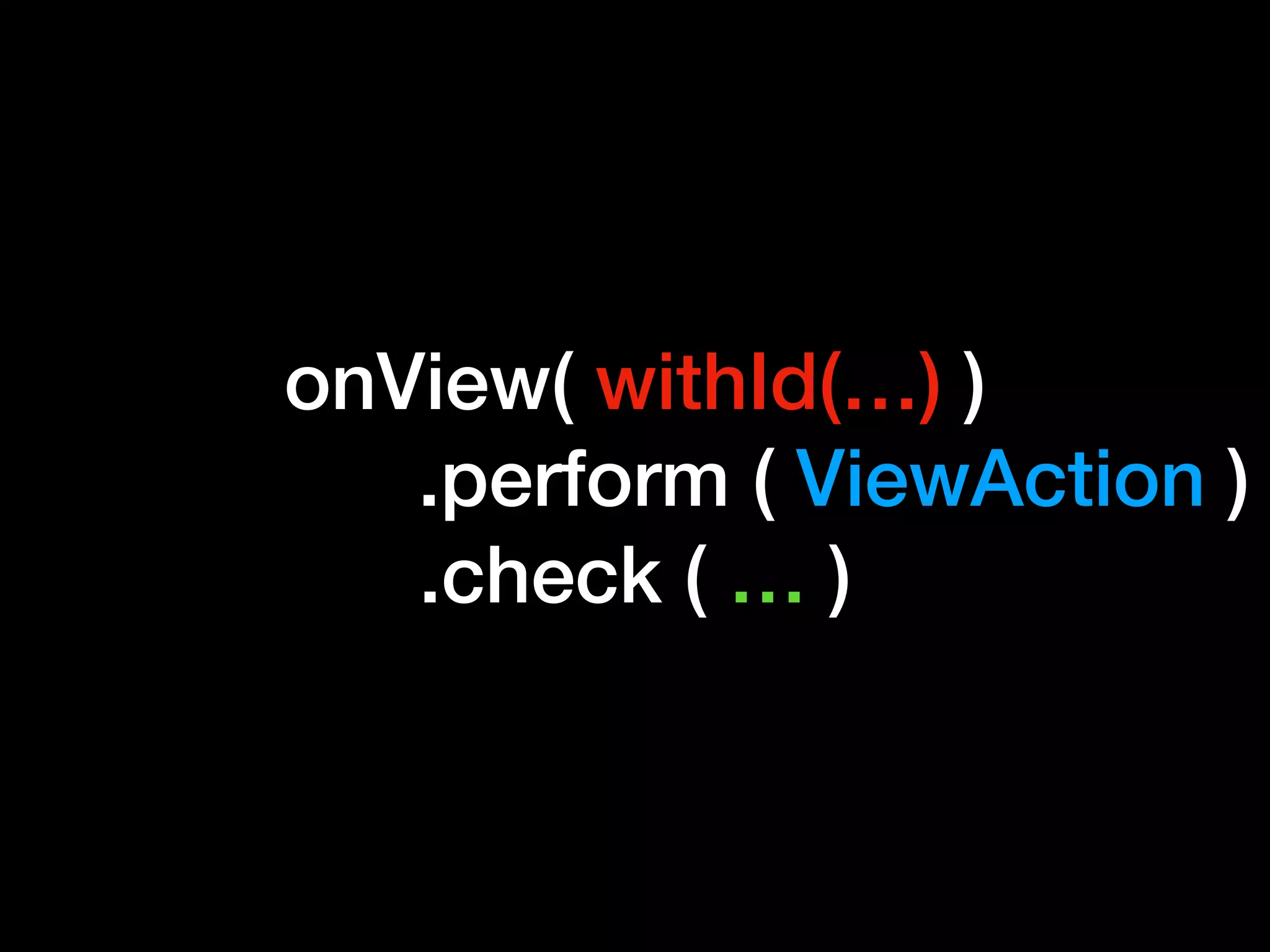

28. onView( withId(…) )
.perform ( ViewAction )
.check ( … )

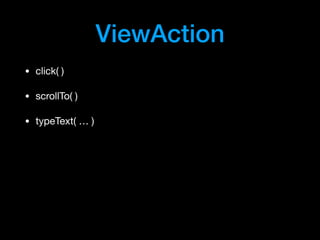

29. ViewAction
• click( )
• scrollTo( )
• typeText( … )

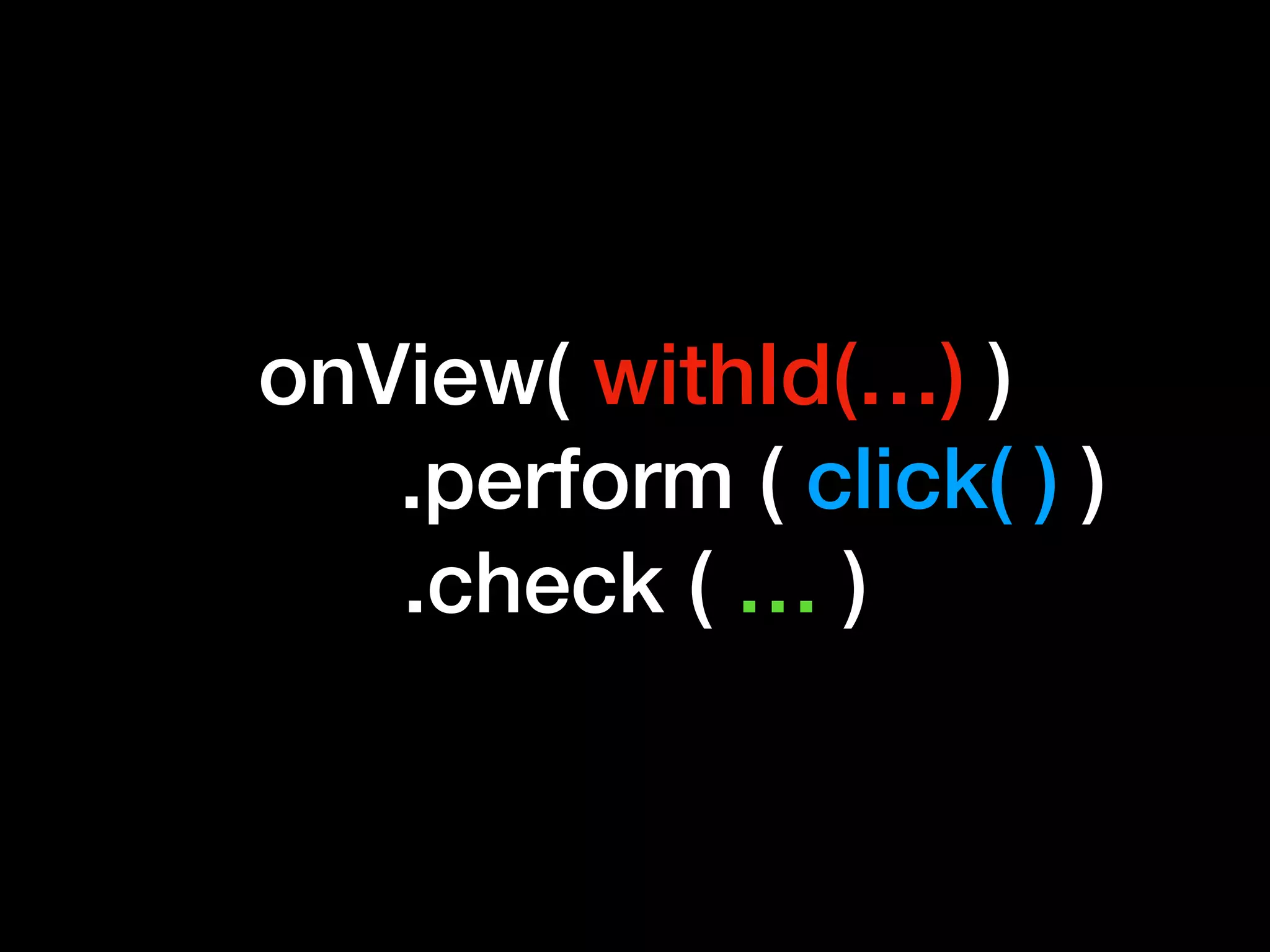

30. onView( withId(…) )
.perform ( click( ) )
.check ( … )

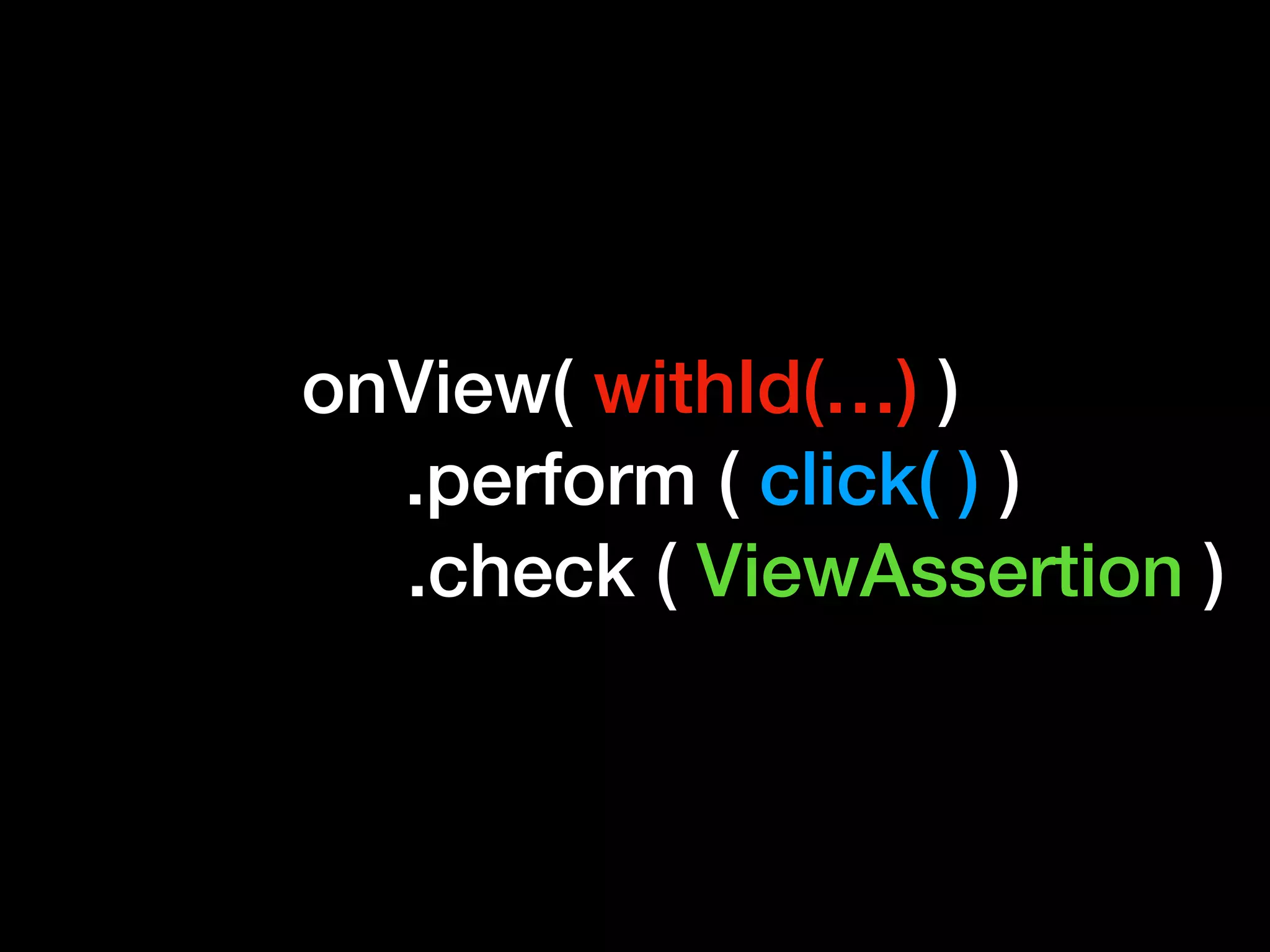

31. onView( withId(…) )
.perform ( click( ) )
.check ( ViewAssertion )

32. ViewAssertion
• matches( … )
• doesNotExist( )

33. onView( withId( … ) )
.perform ( click( ) )
.check ( matches( … ) )

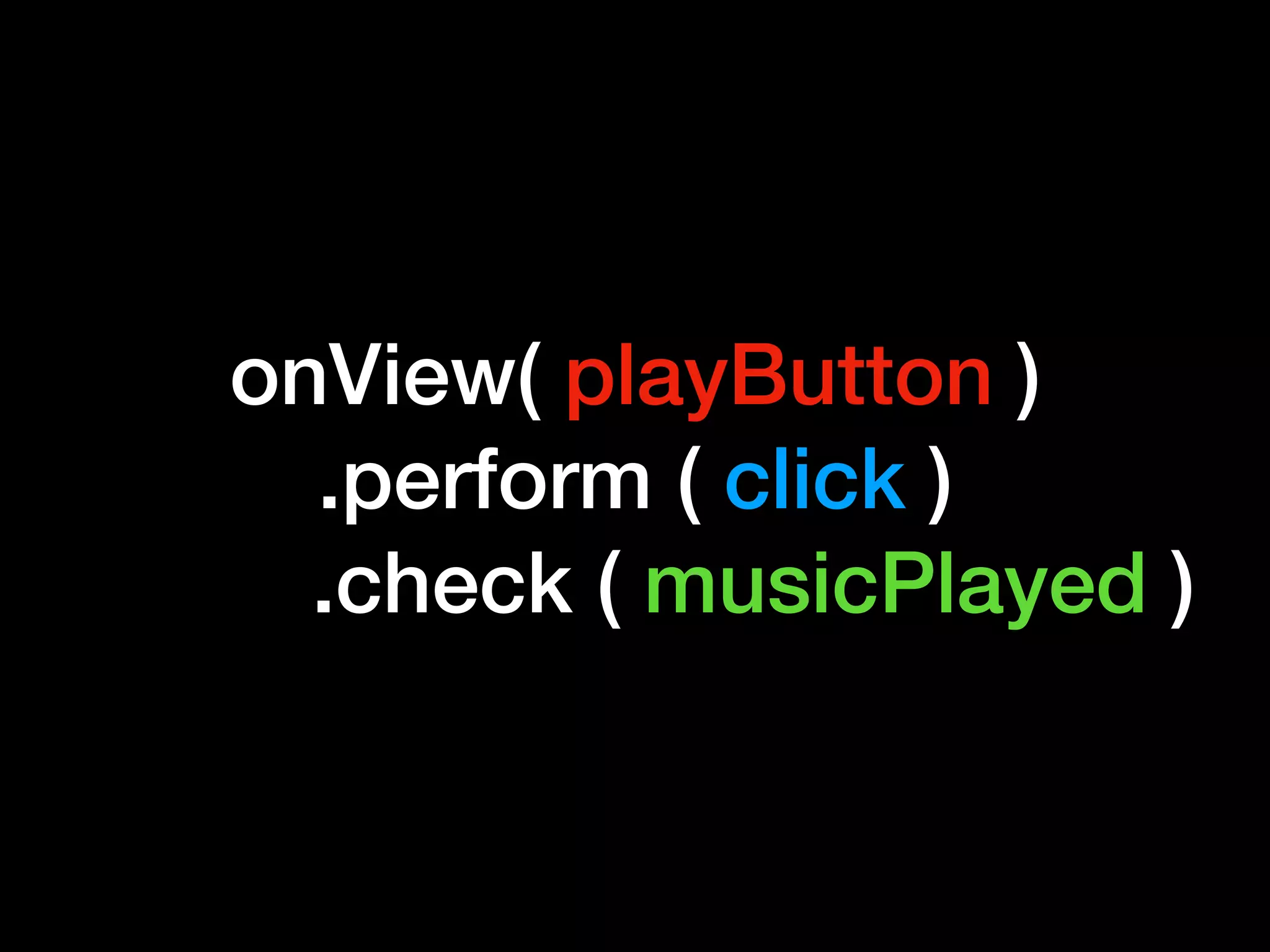

34. onView( playButton )
.perform ( click )
.check ( musicPlayed )

35. Structure

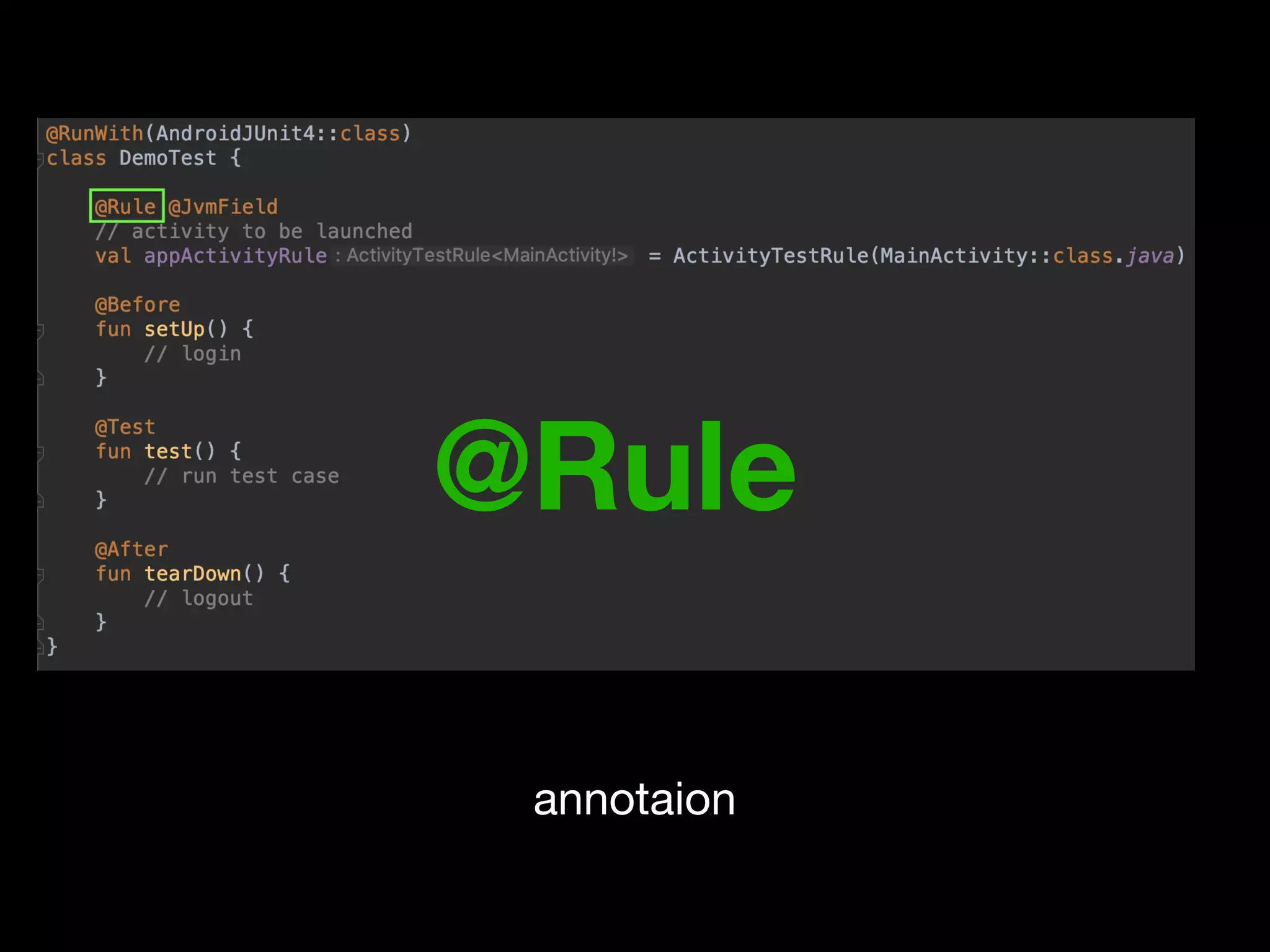

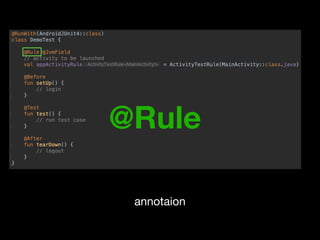

37. @Rule
annotaion

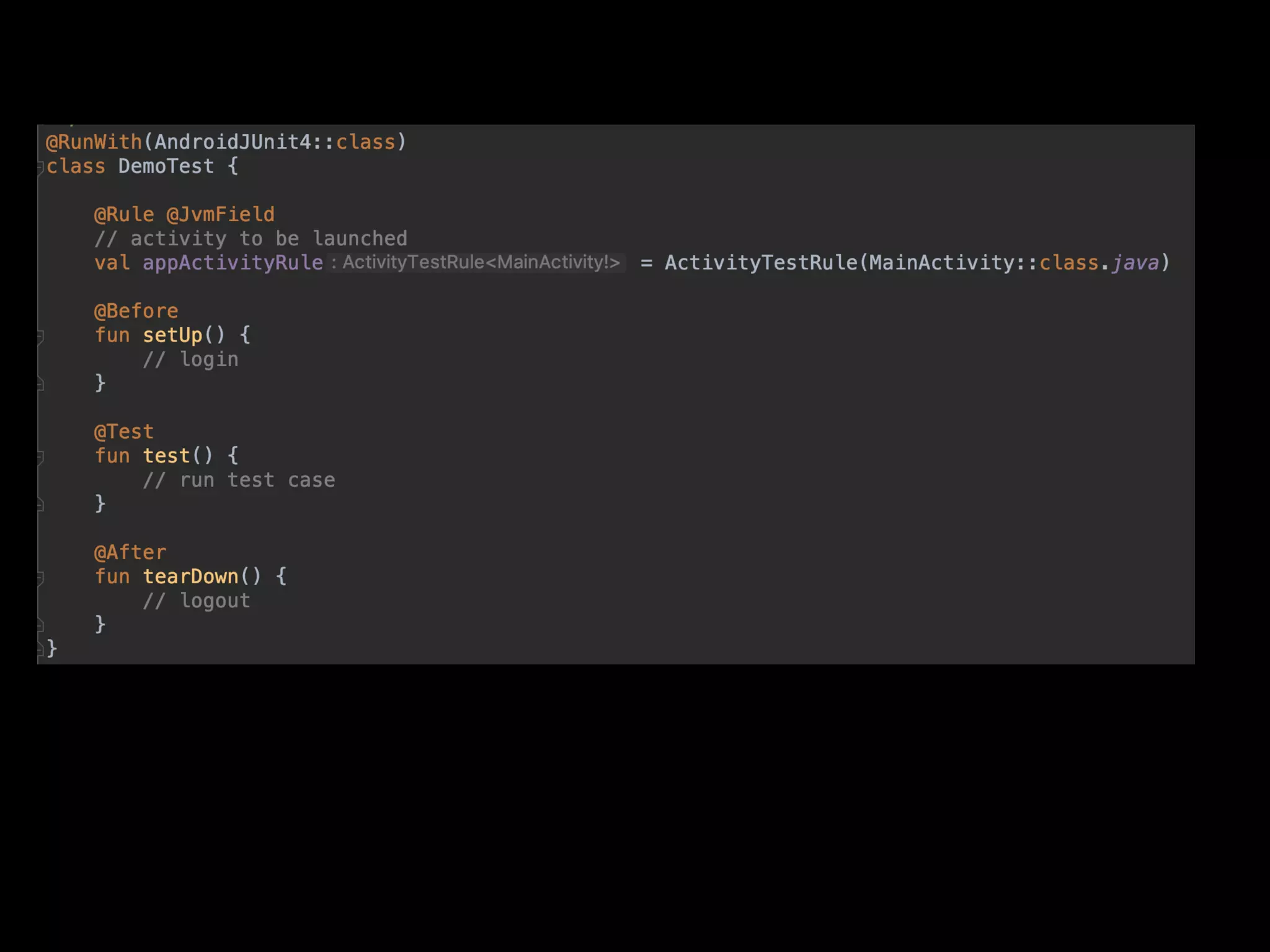

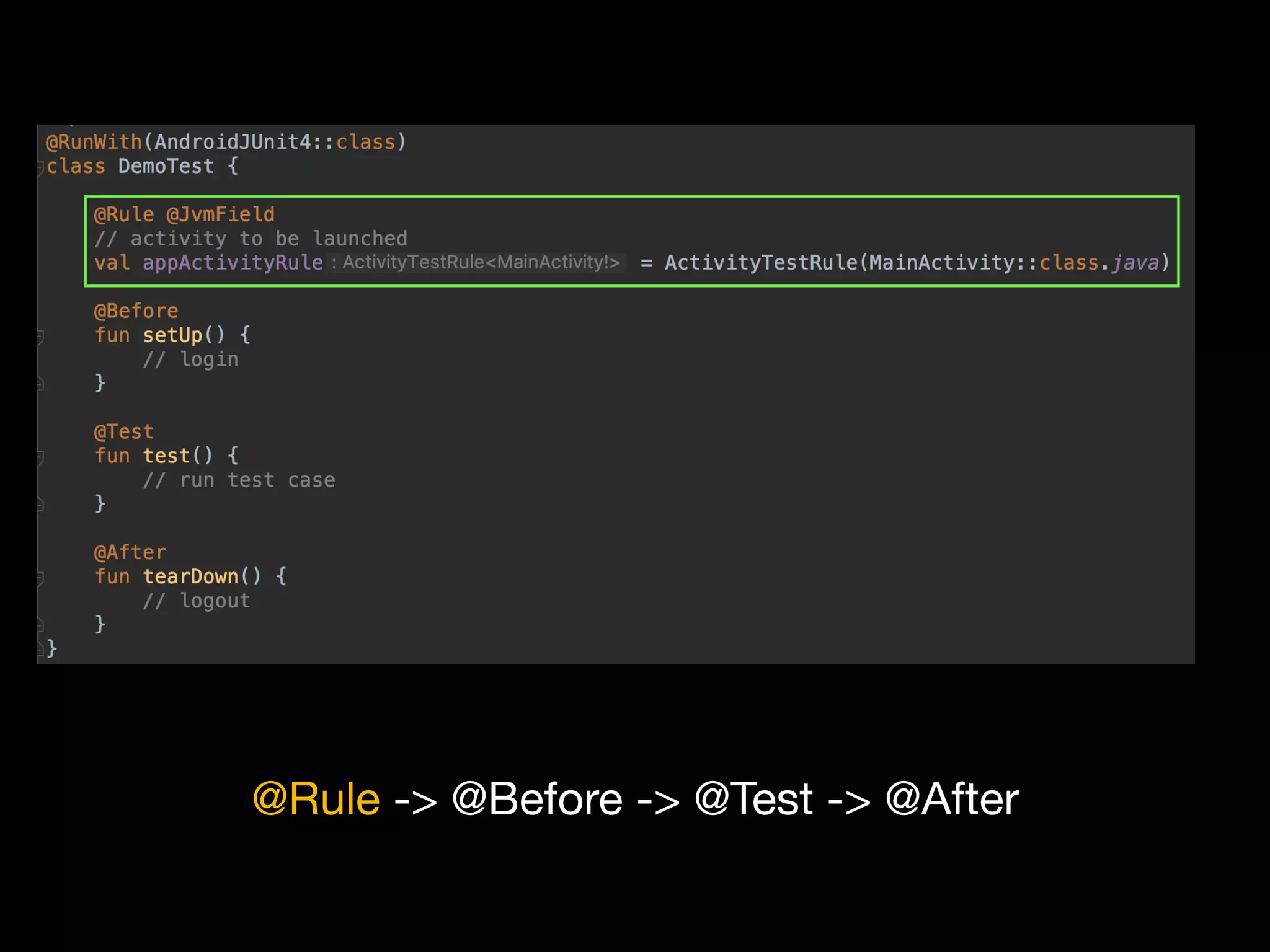

38. @Rule -> @Before -> @Test -> @After

39. @Rule -> @Before -> @Test -> @After

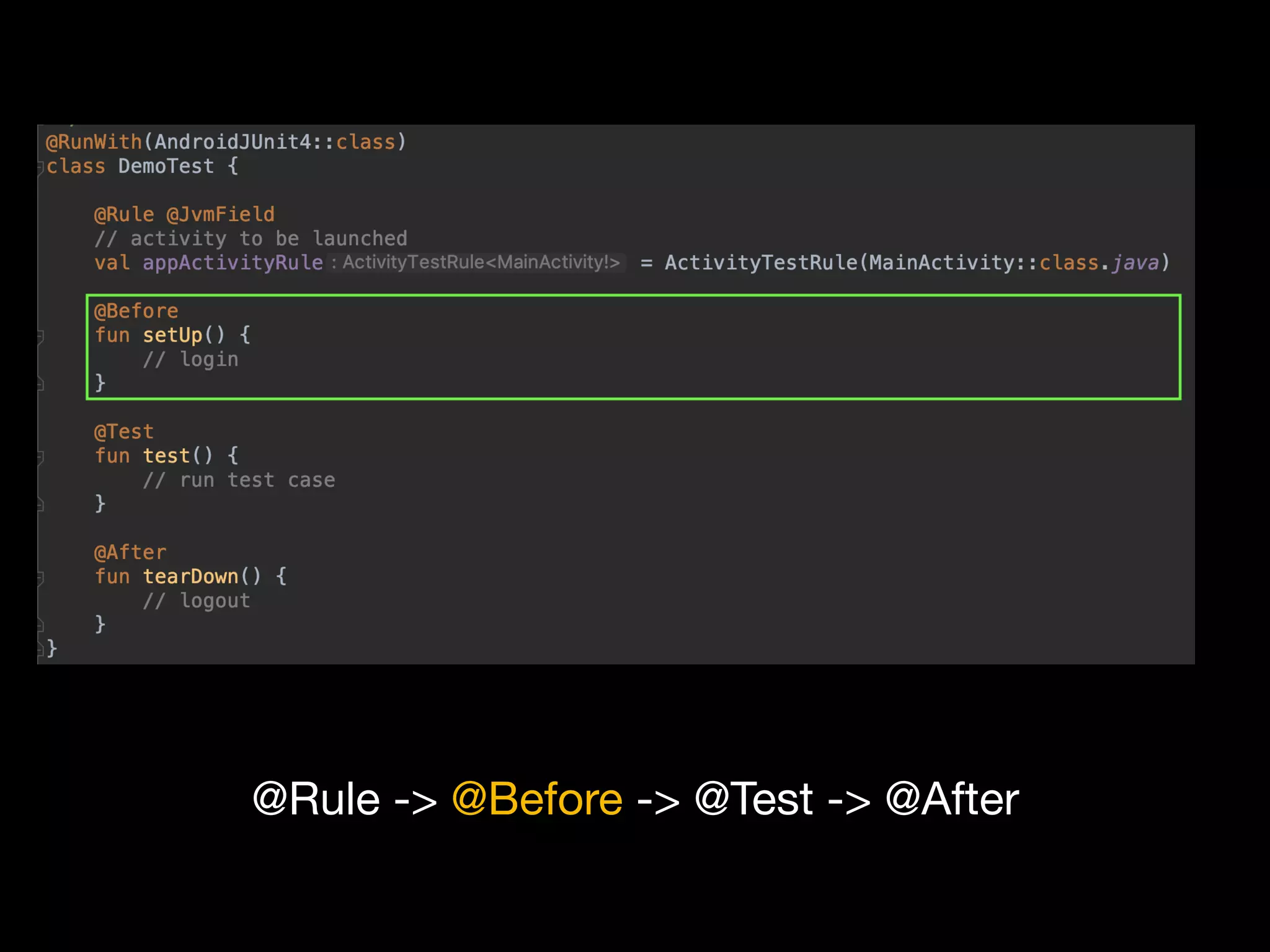

40. @Rule -> @Before -> @Test -> @After

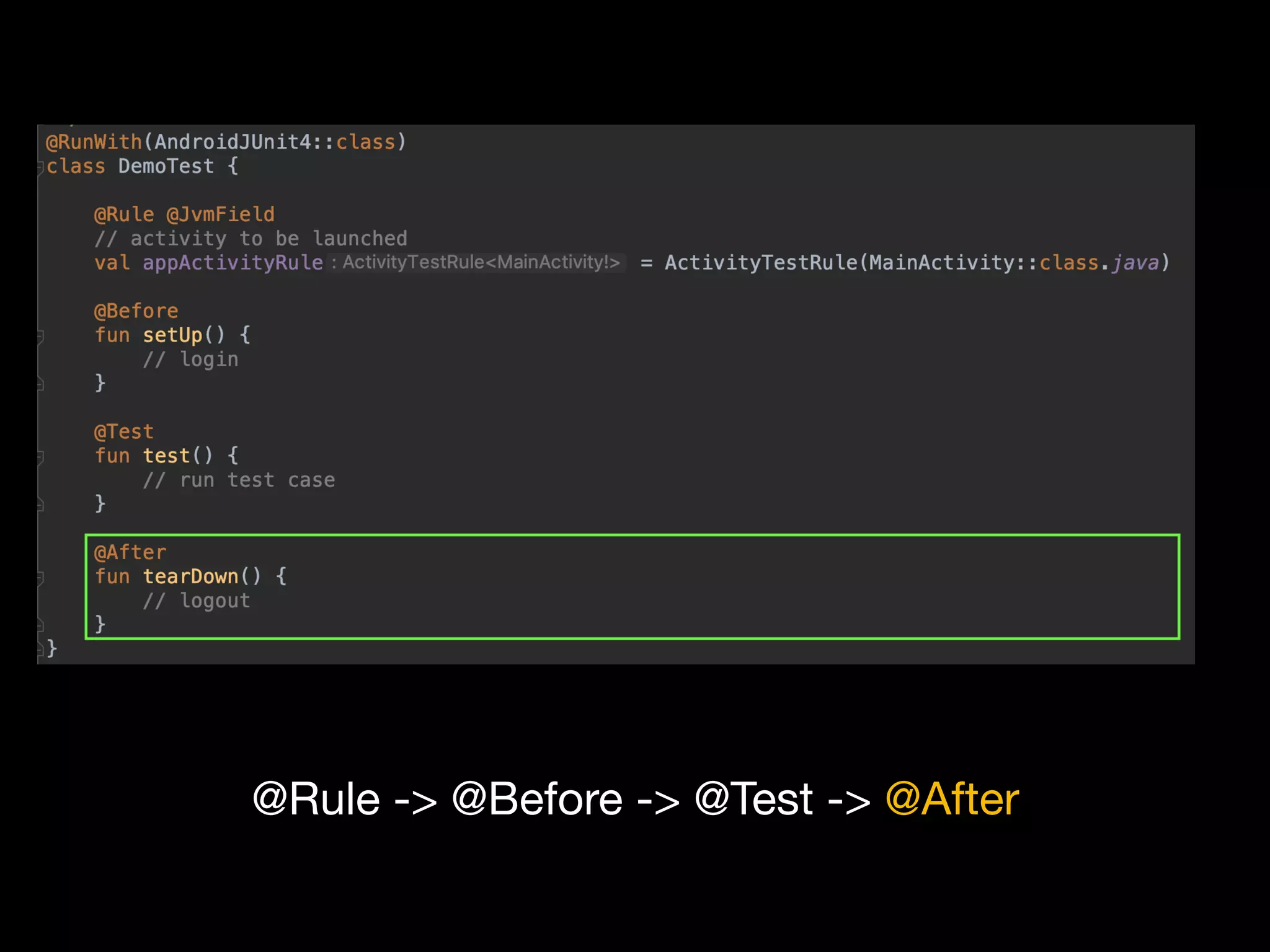

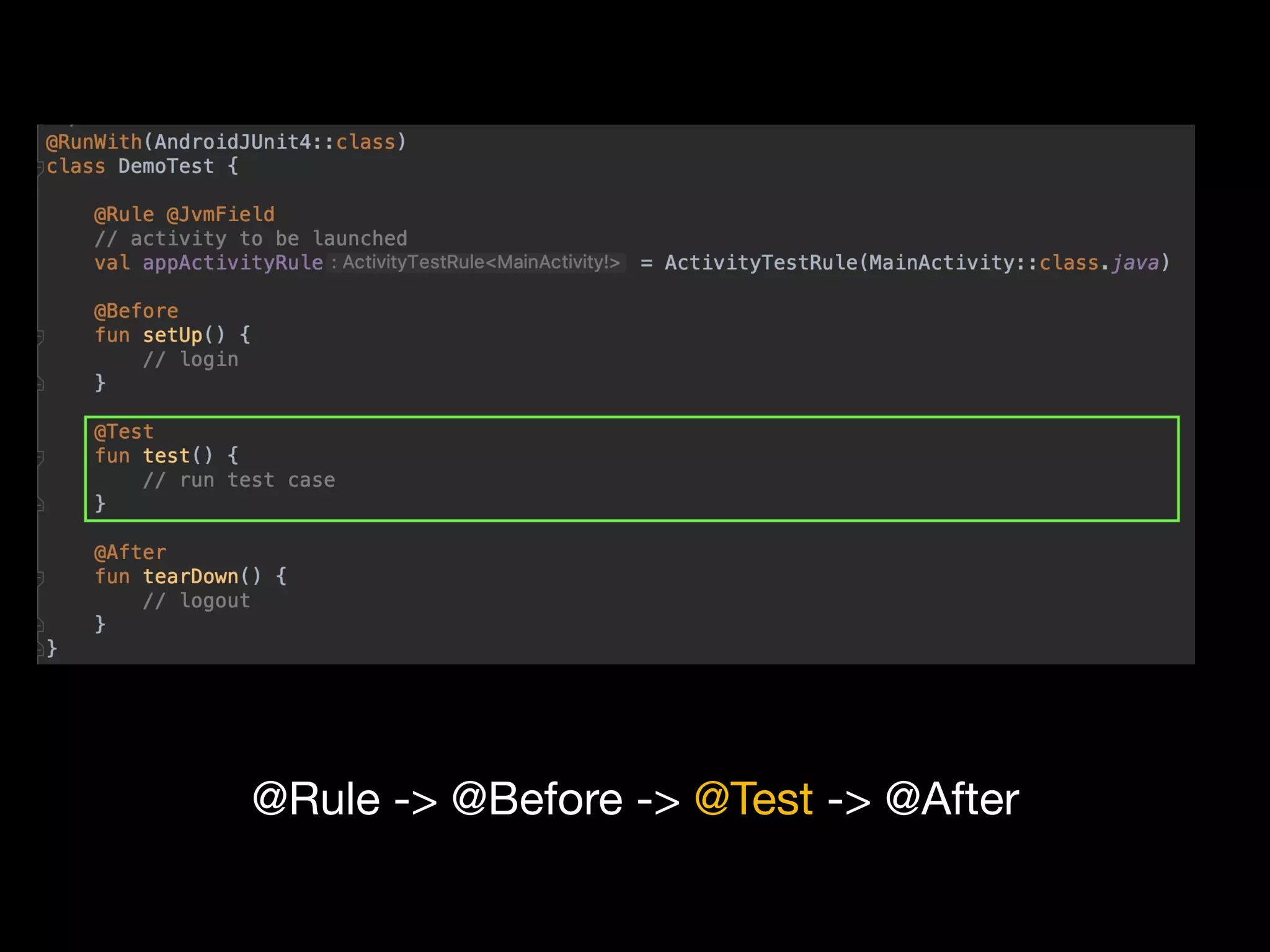

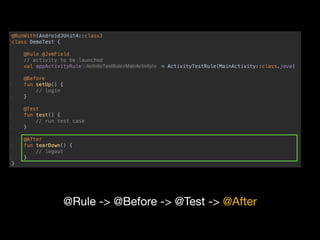

41. @Rule -> @Before -> @Test -> @After

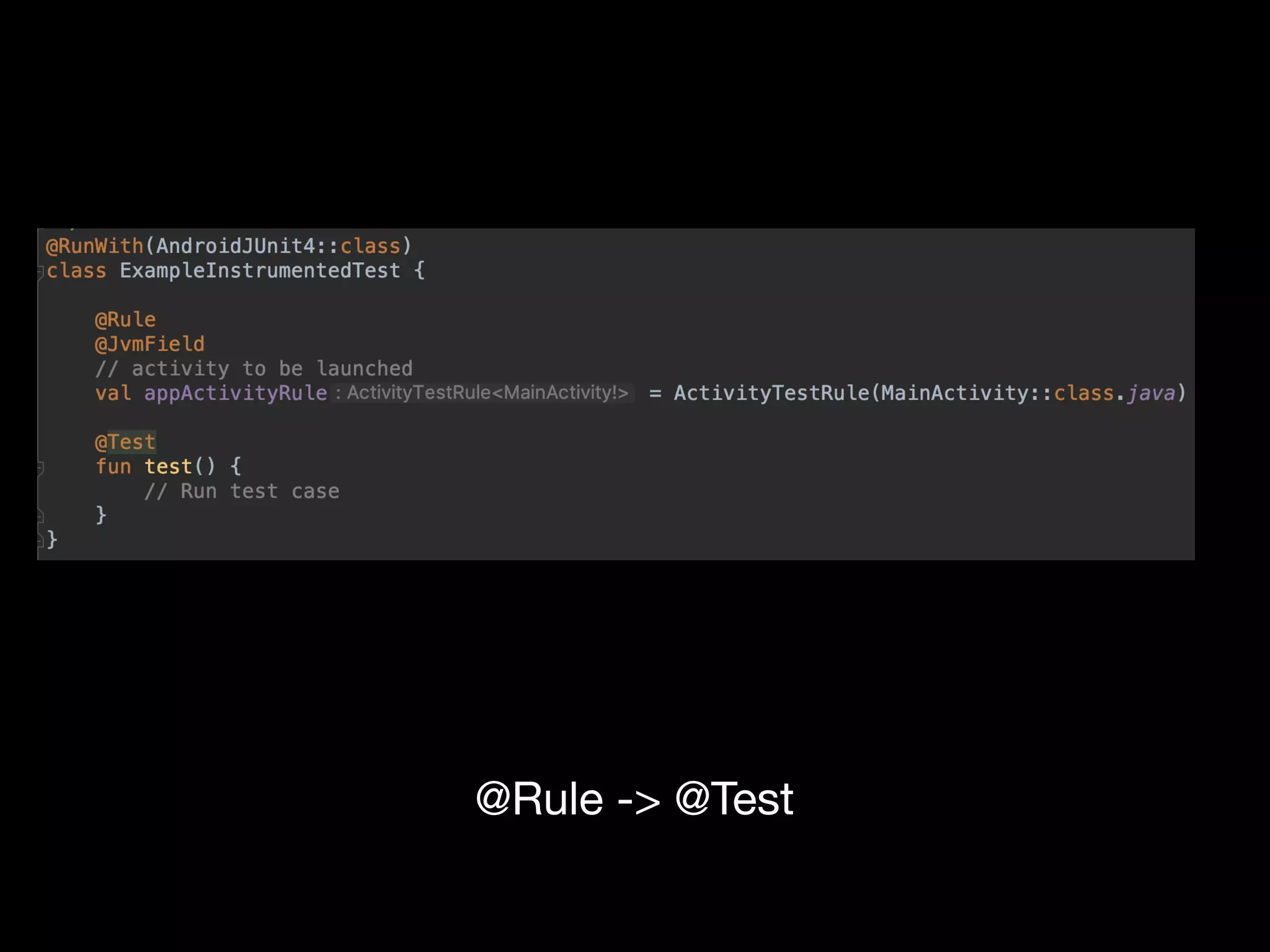

42. @Rule -> @Test

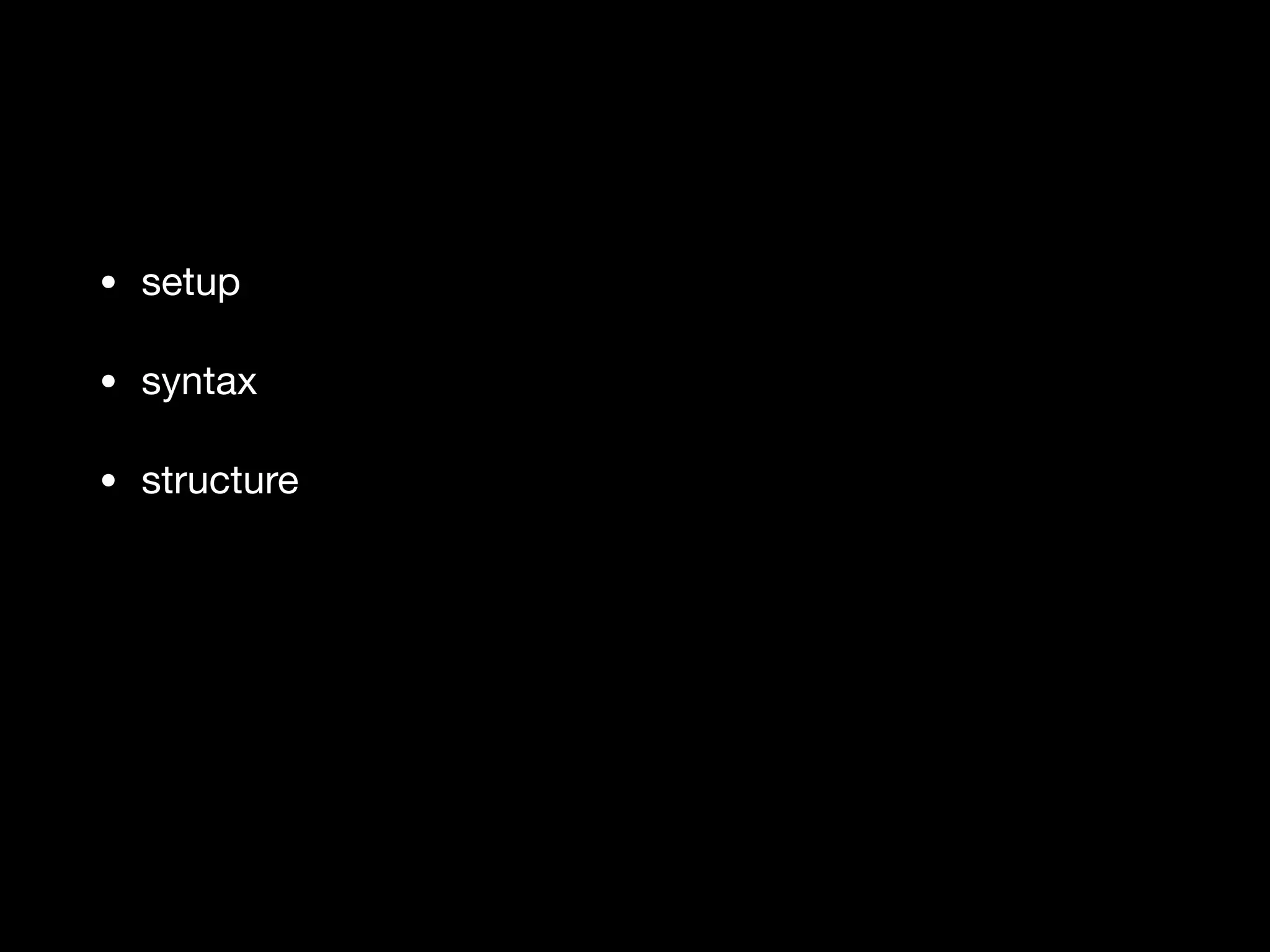

43. • setup
• syntax
• structure

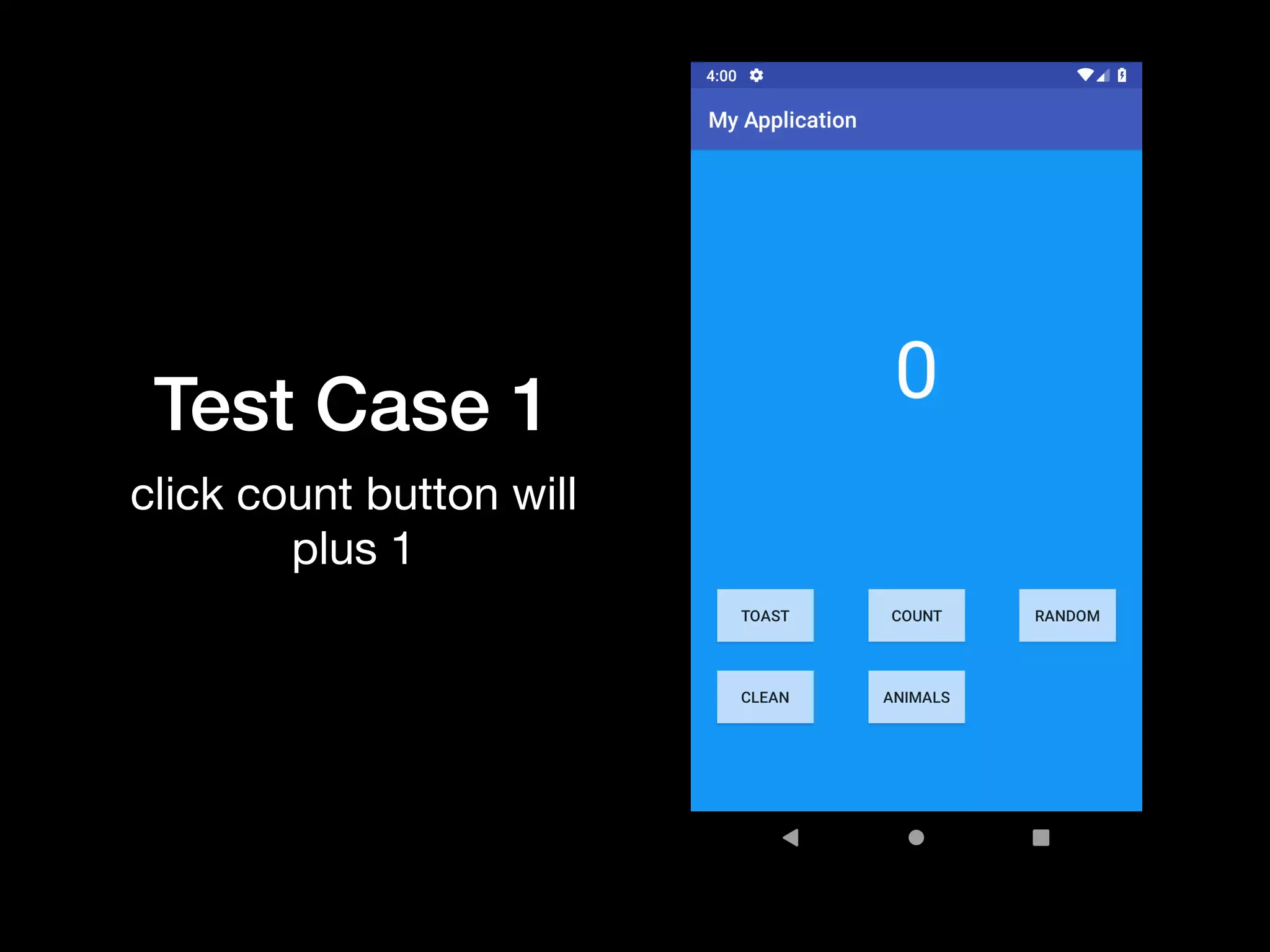

44. Test Case 1
click count button will
plus 1

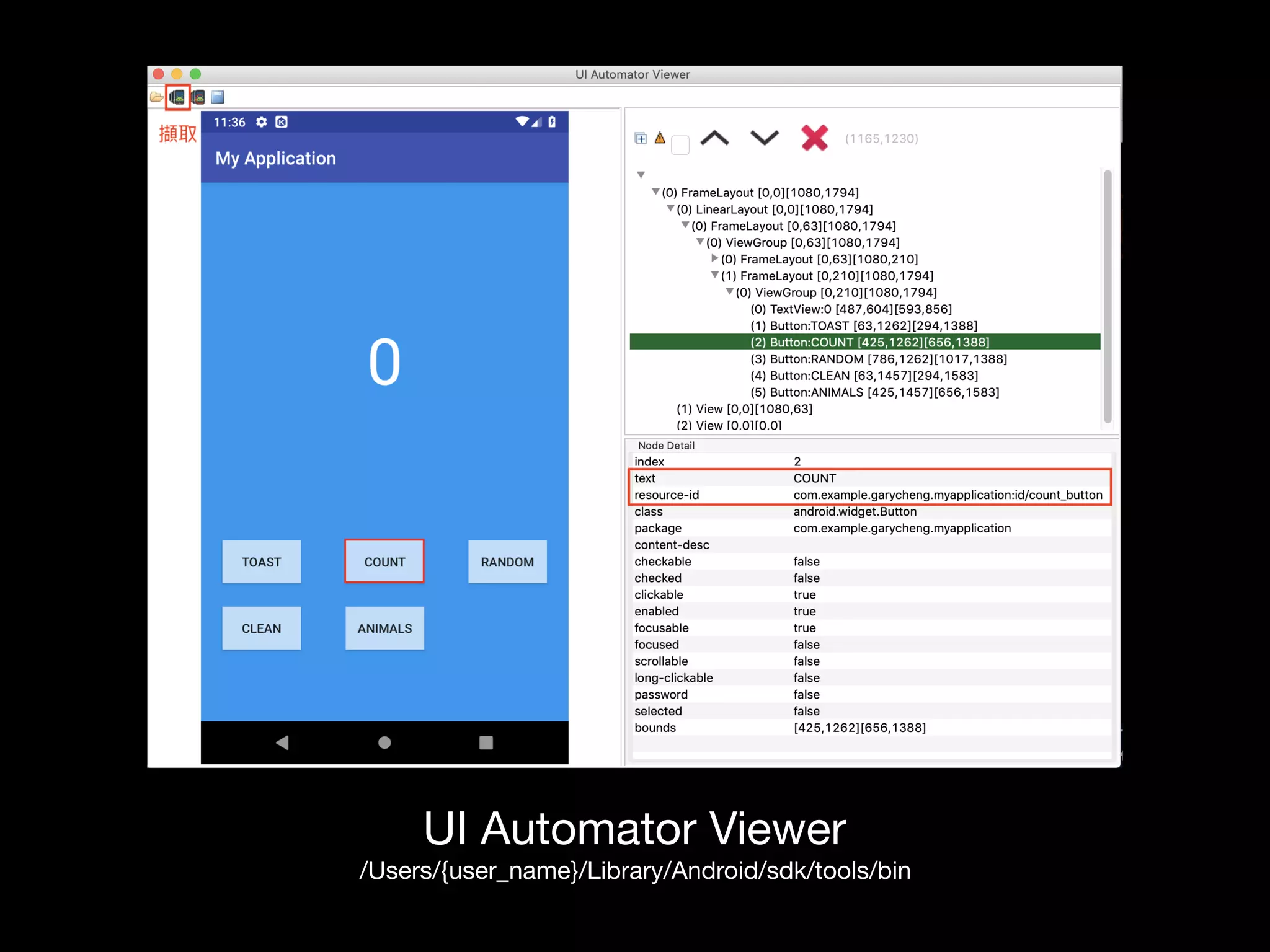

45. UI Automator Viewer
/Users/{user_name}/Library/Android/sdk/tools/bin

46. onView( withId( … ) )
.perform ( click( ) )
.check ( matches( … ) )

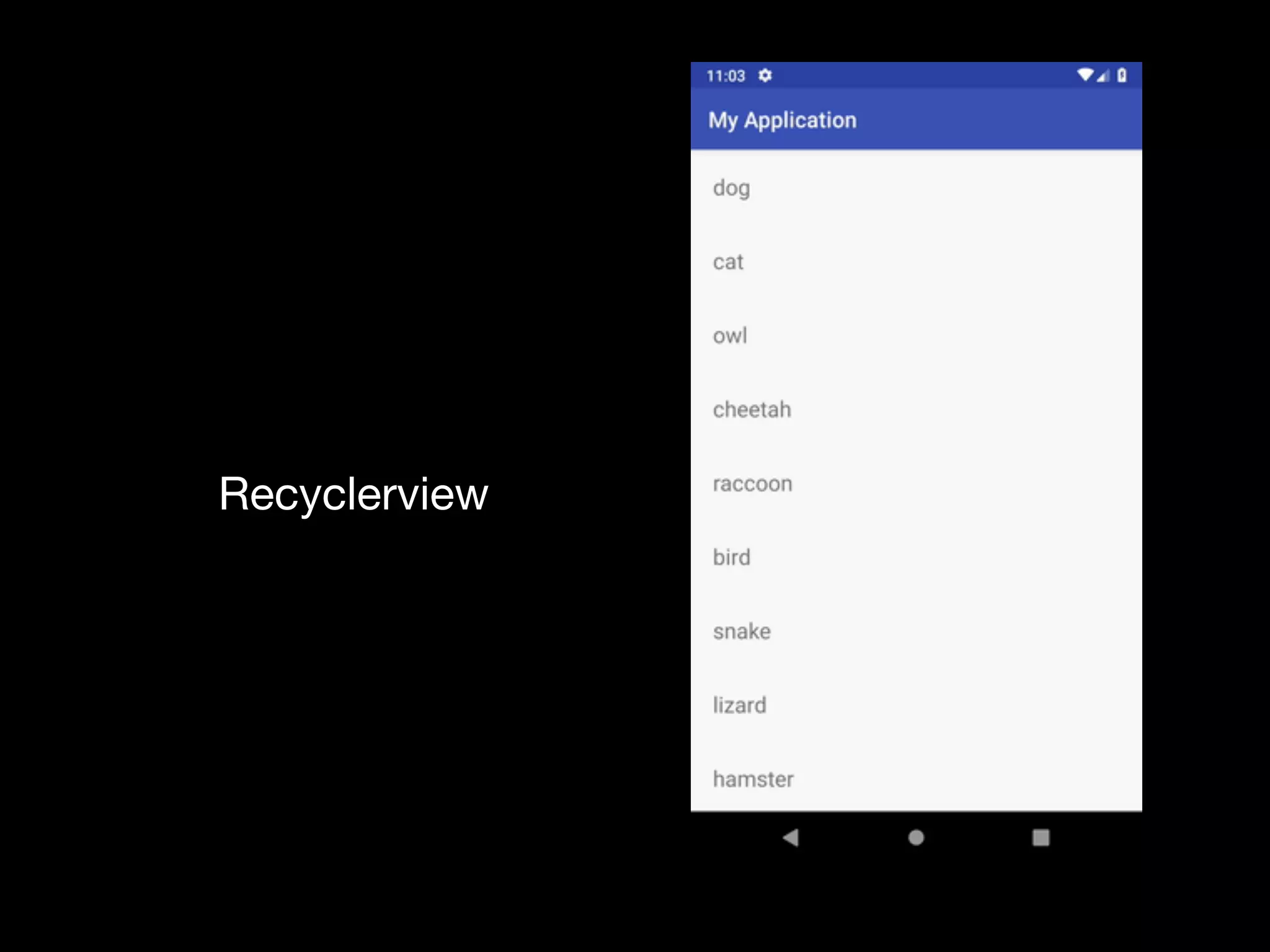

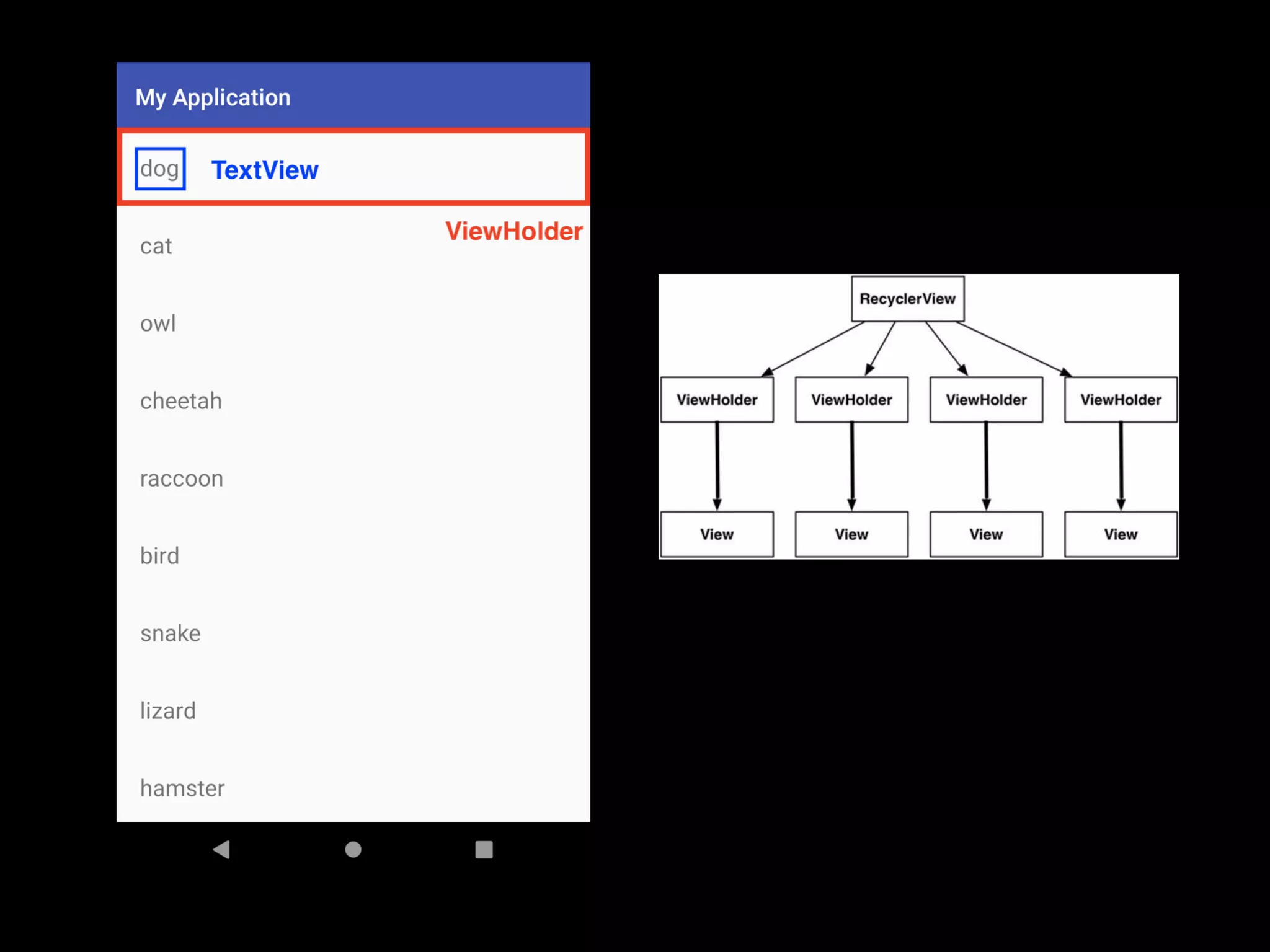

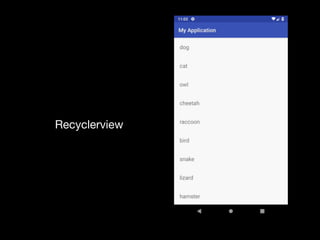

47. Recyclerview

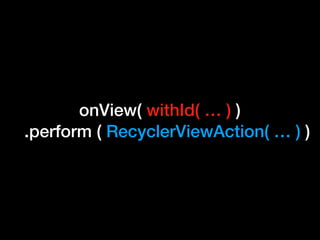

49. onView( withId( … ) )
.perform ( RecyclerViewAction( … ) )

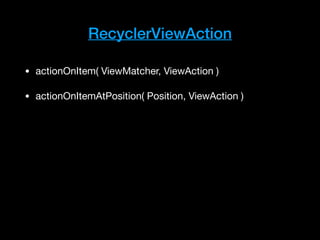

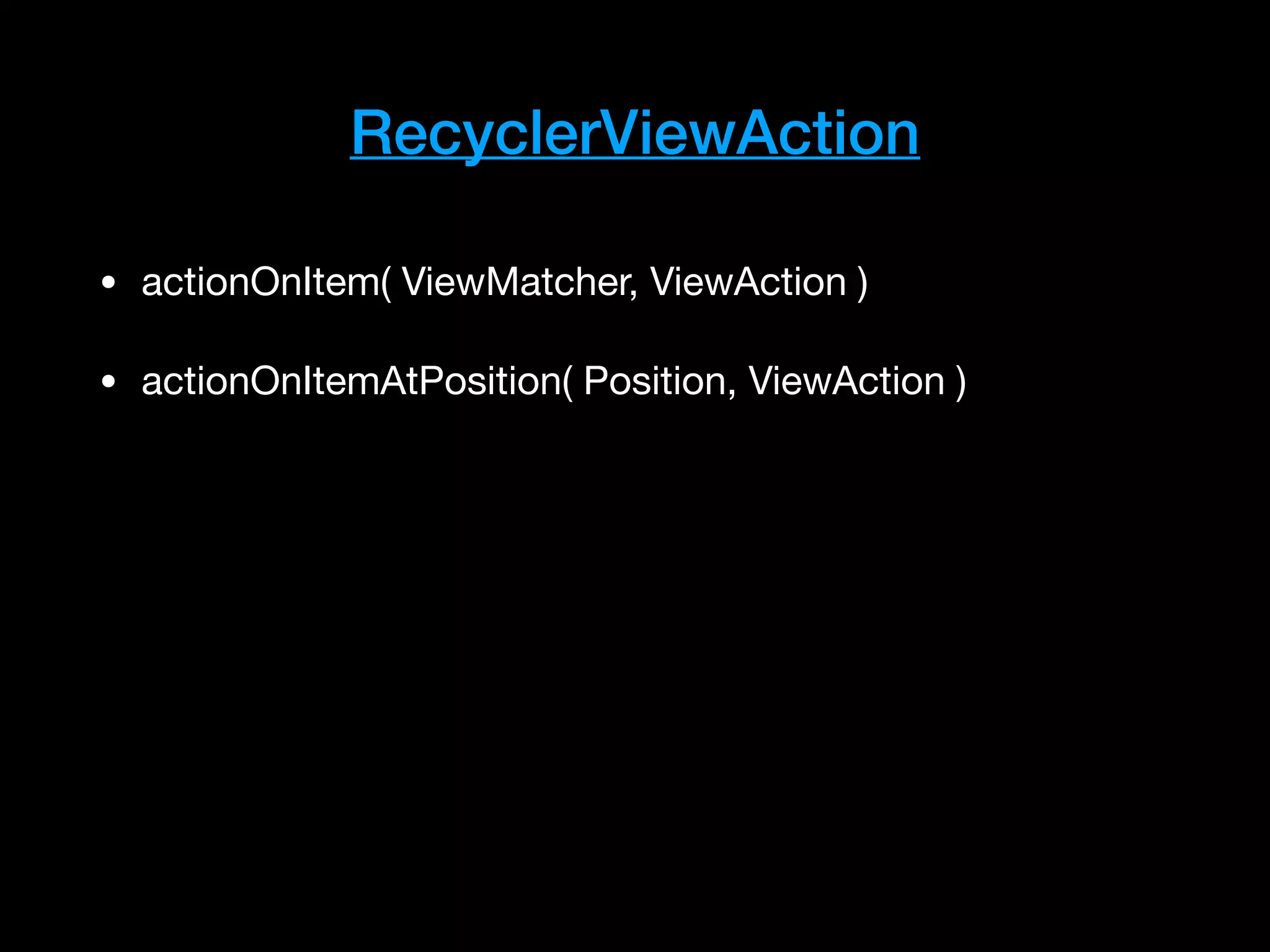

50. RecyclerViewAction
• actionOnItem( ViewMatcher, ViewAction )
• actionOnItemAtPosition( Position, ViewAction )

51. onView( withId( … ) )
.perform ( actionOnItem( … ) )

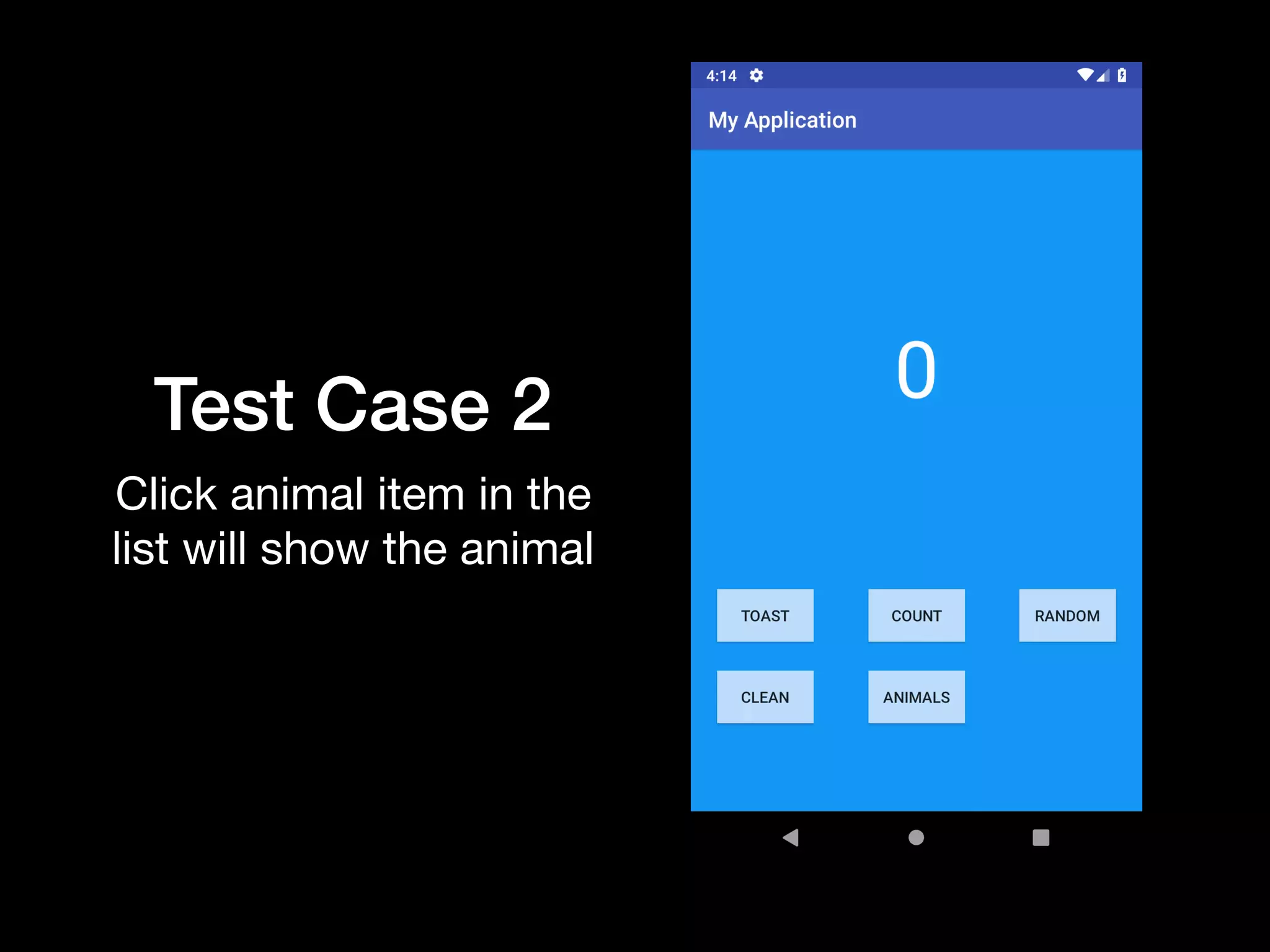

52. Test Case 2
Click animal item in the
list will show the animal

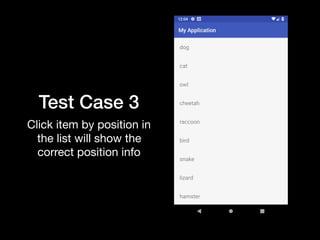

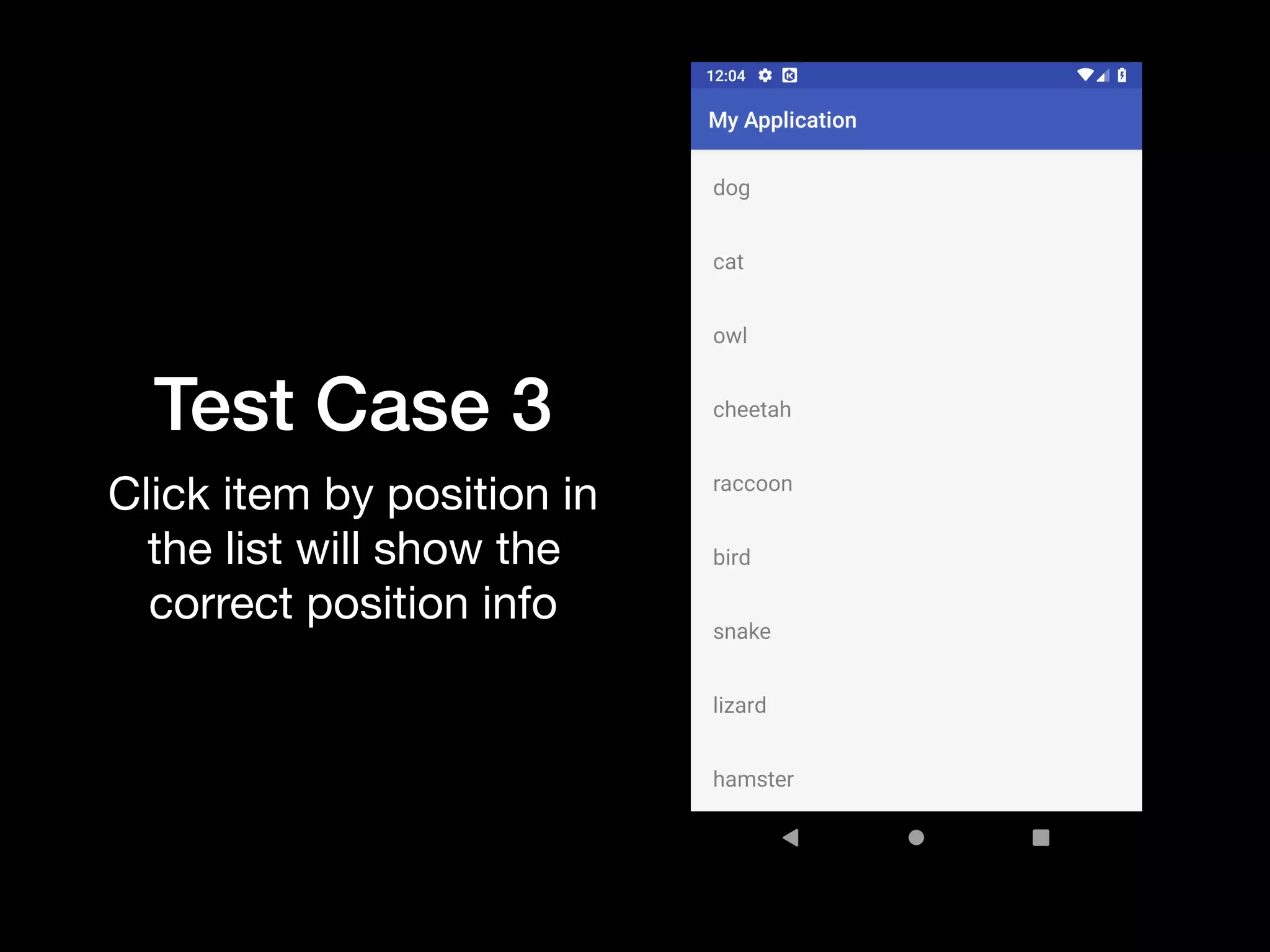

53. Test Case 3
Click item by position in
the list will show the
correct position info

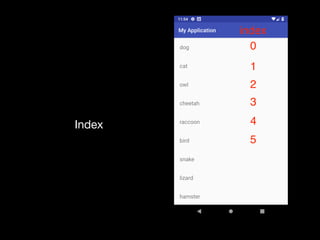

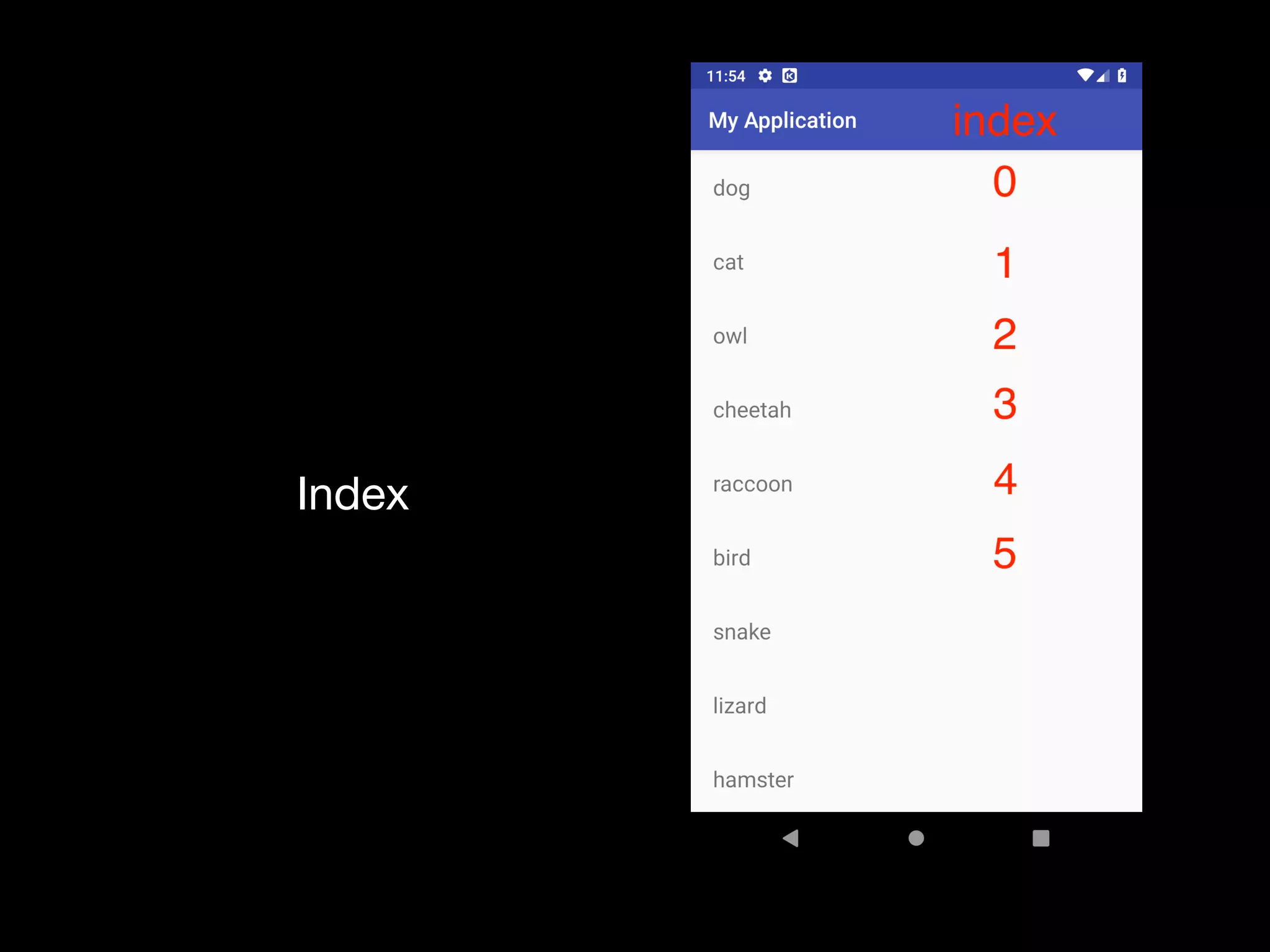

54. Index

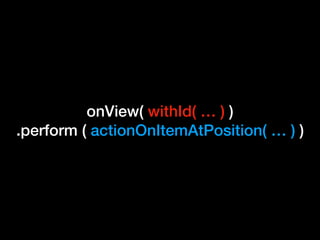

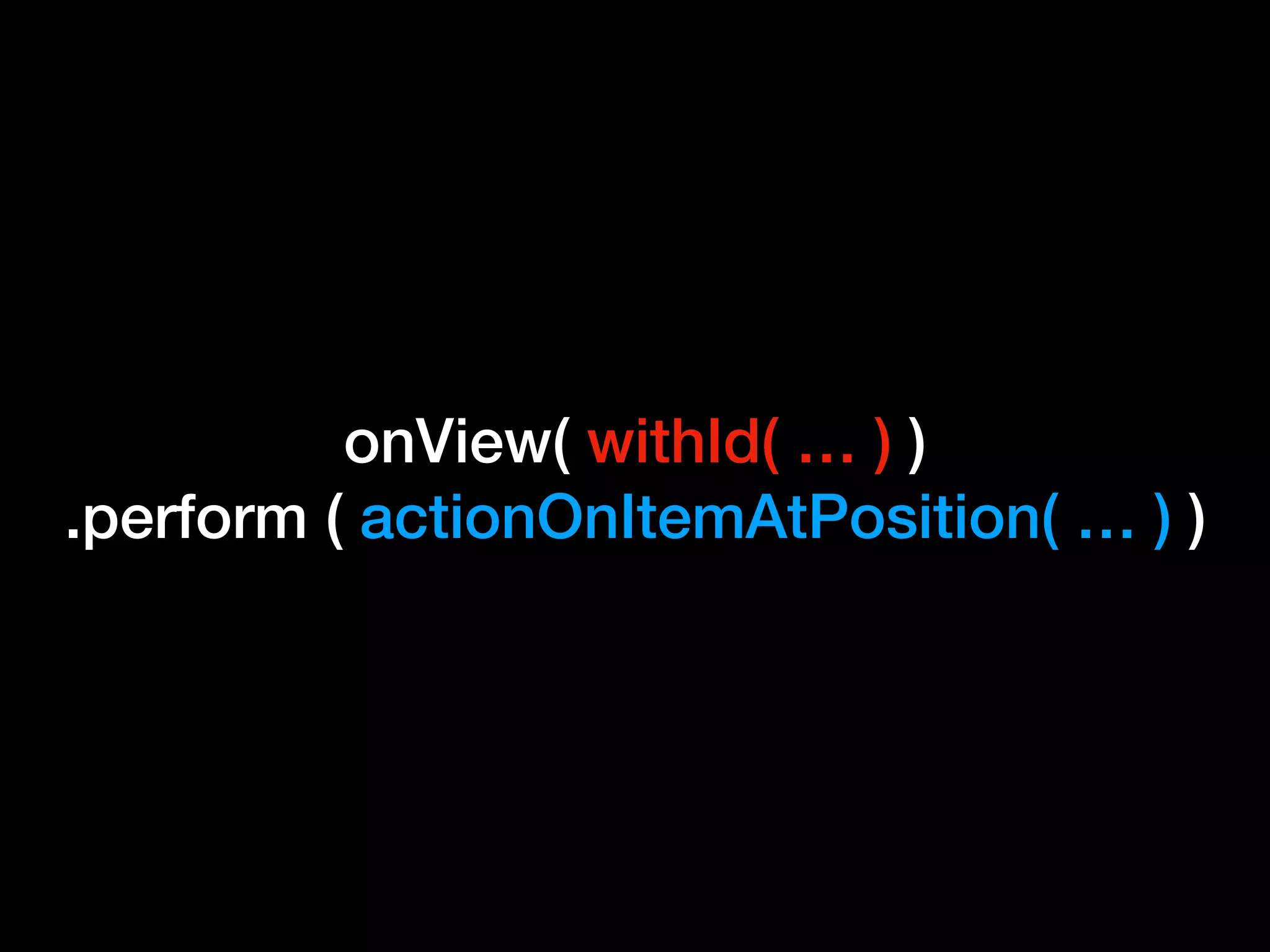

55. onView( withId( … ) )
.perform ( actionOnItemAtPosition( … ) )

56. • Normal case
• Recyclerview
• actionOnItem
• actionOnItemAtPosition

57. Problems

58. Problem 1
RecyclerViewAction can not scroll out the last views

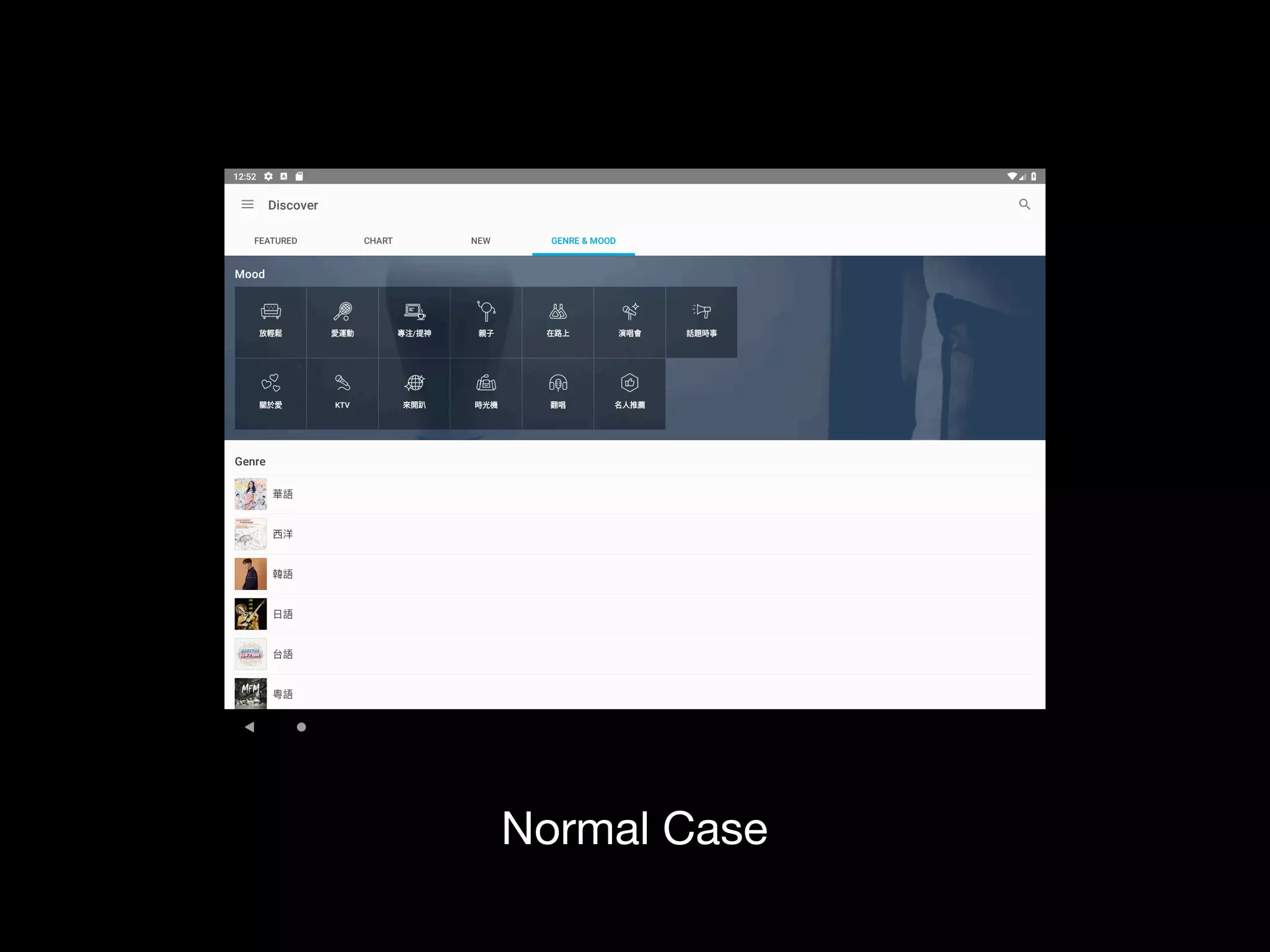

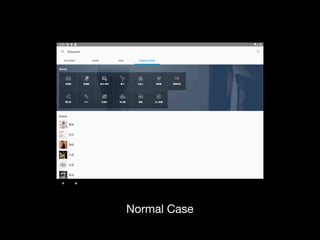

59. Normal Case

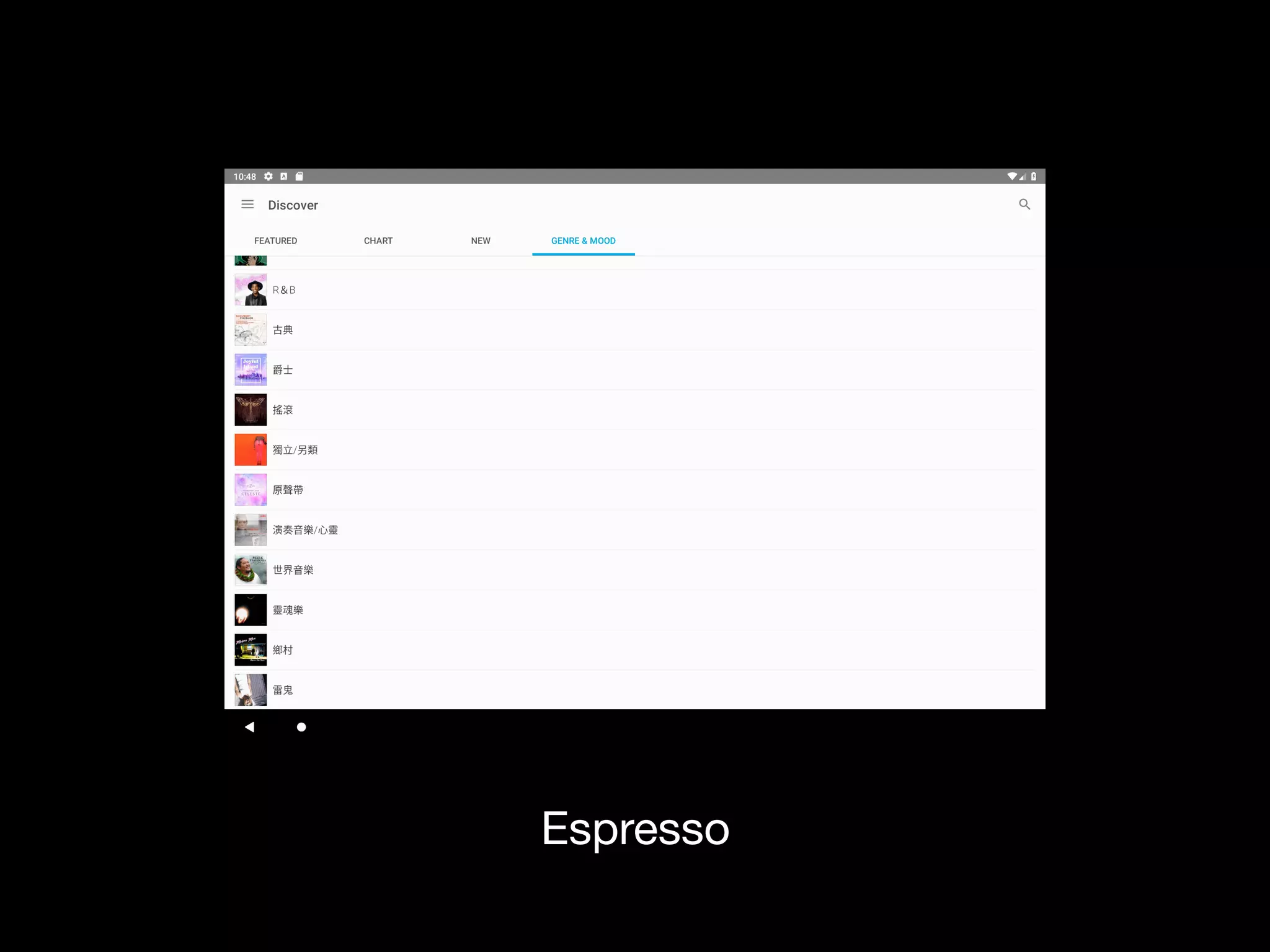

60. Espresso

61. Why!!!
Just can't see the view

62. Solution 1
scroll a little more before click action

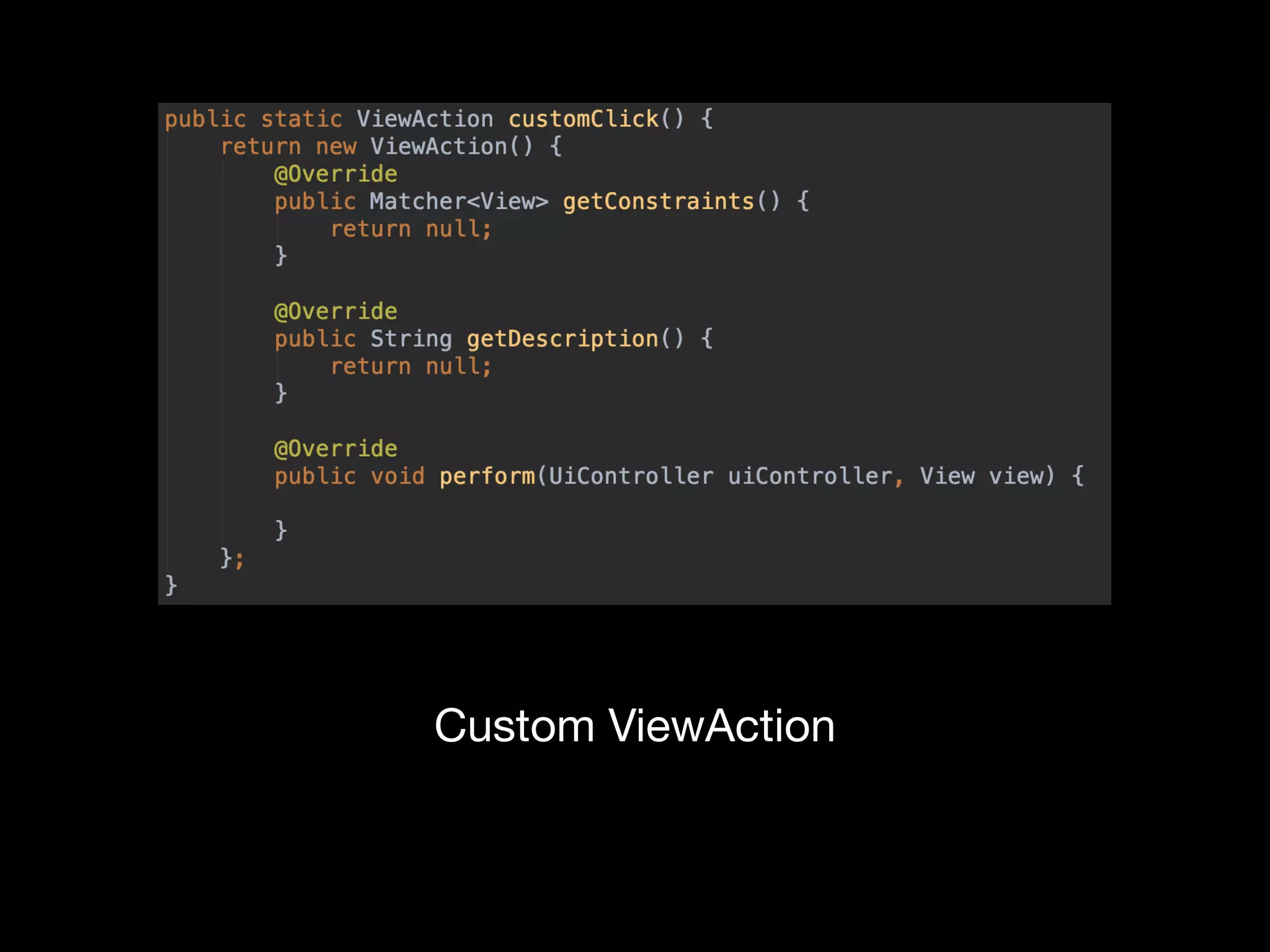

63. Custom ViewAction

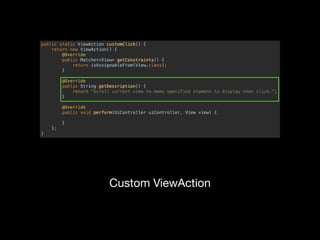

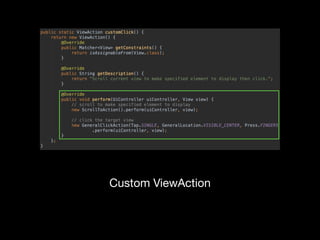

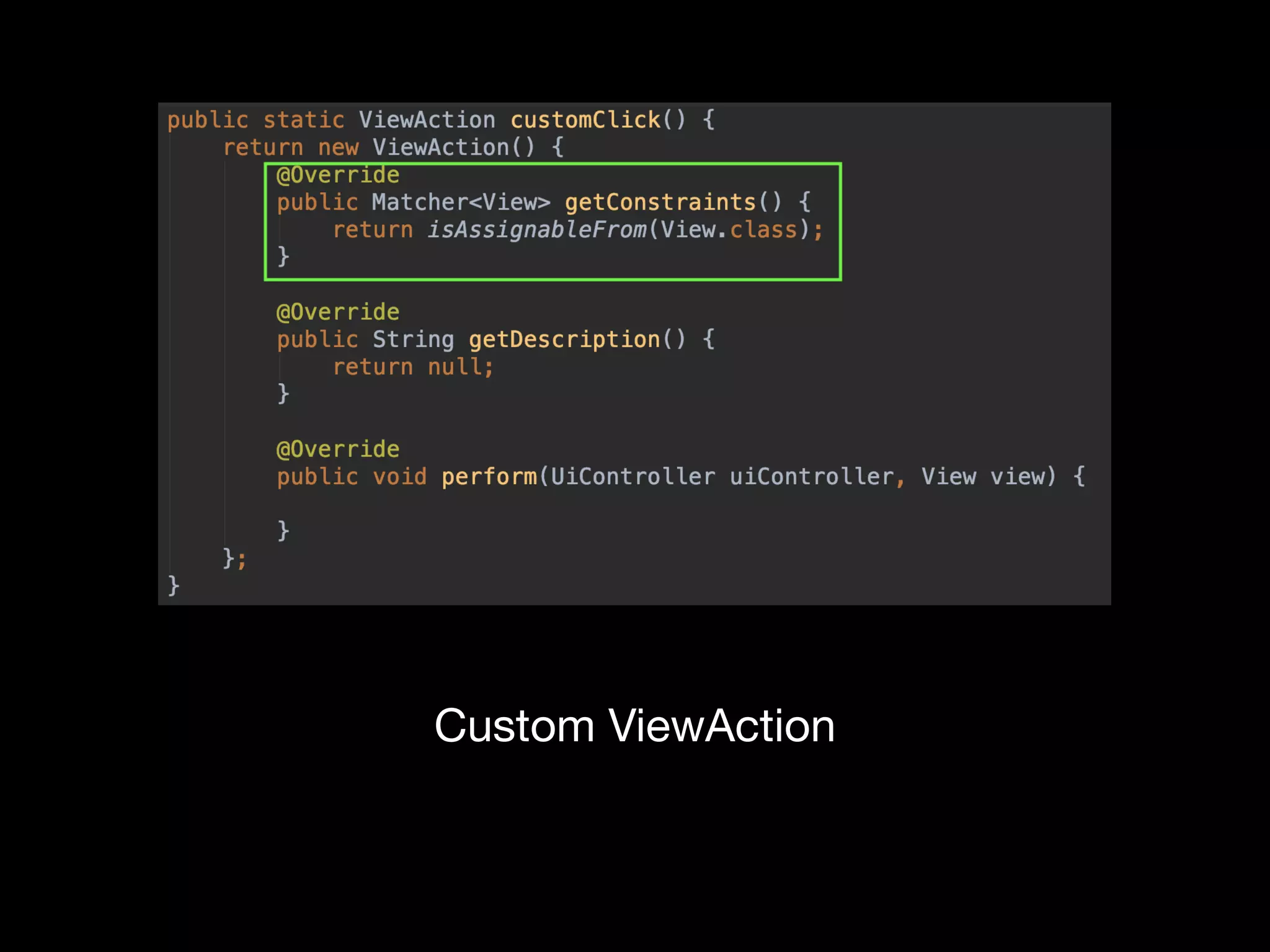

64. Custom ViewAction

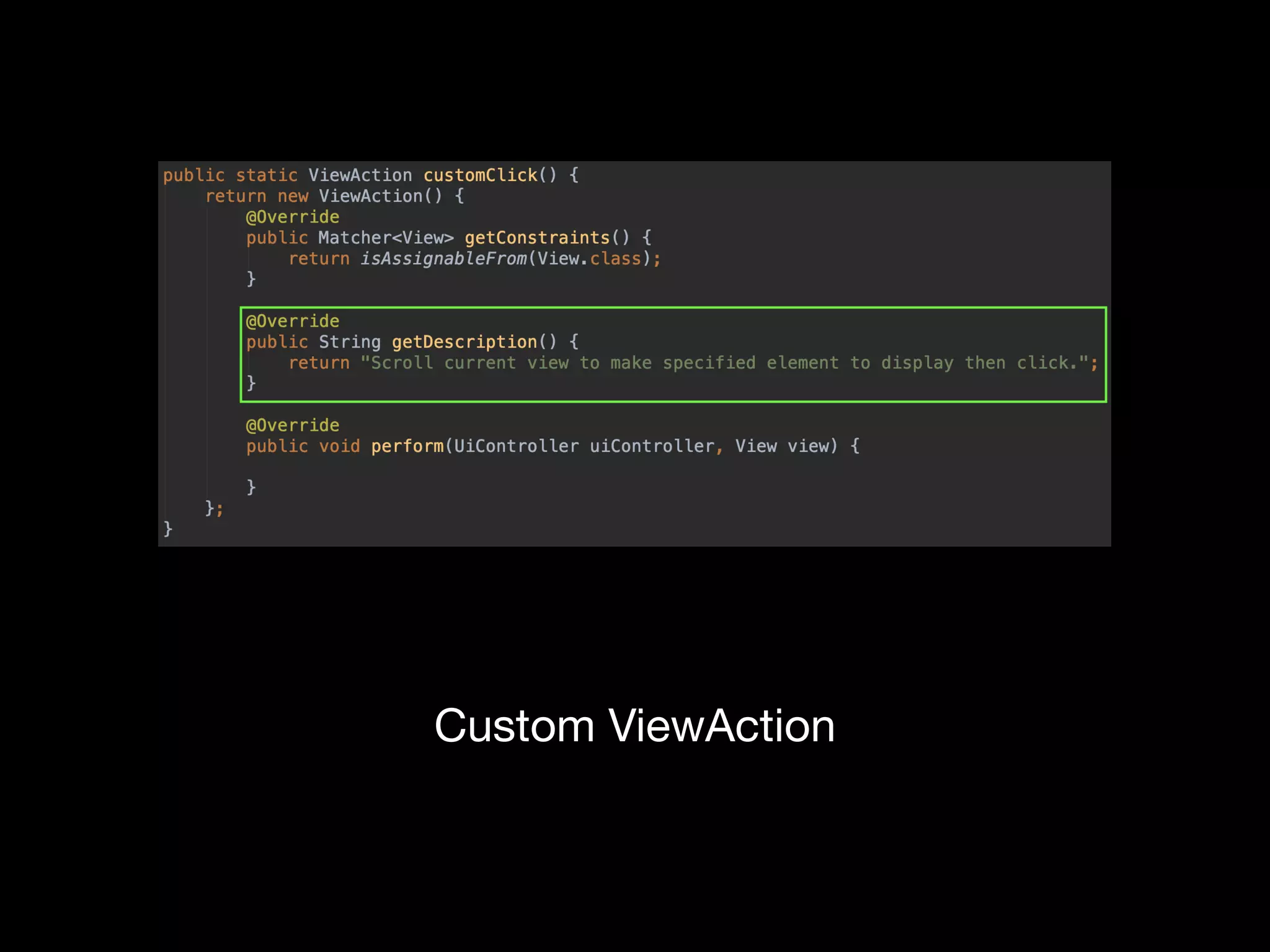

65. Custom ViewAction

66. Custom ViewAction

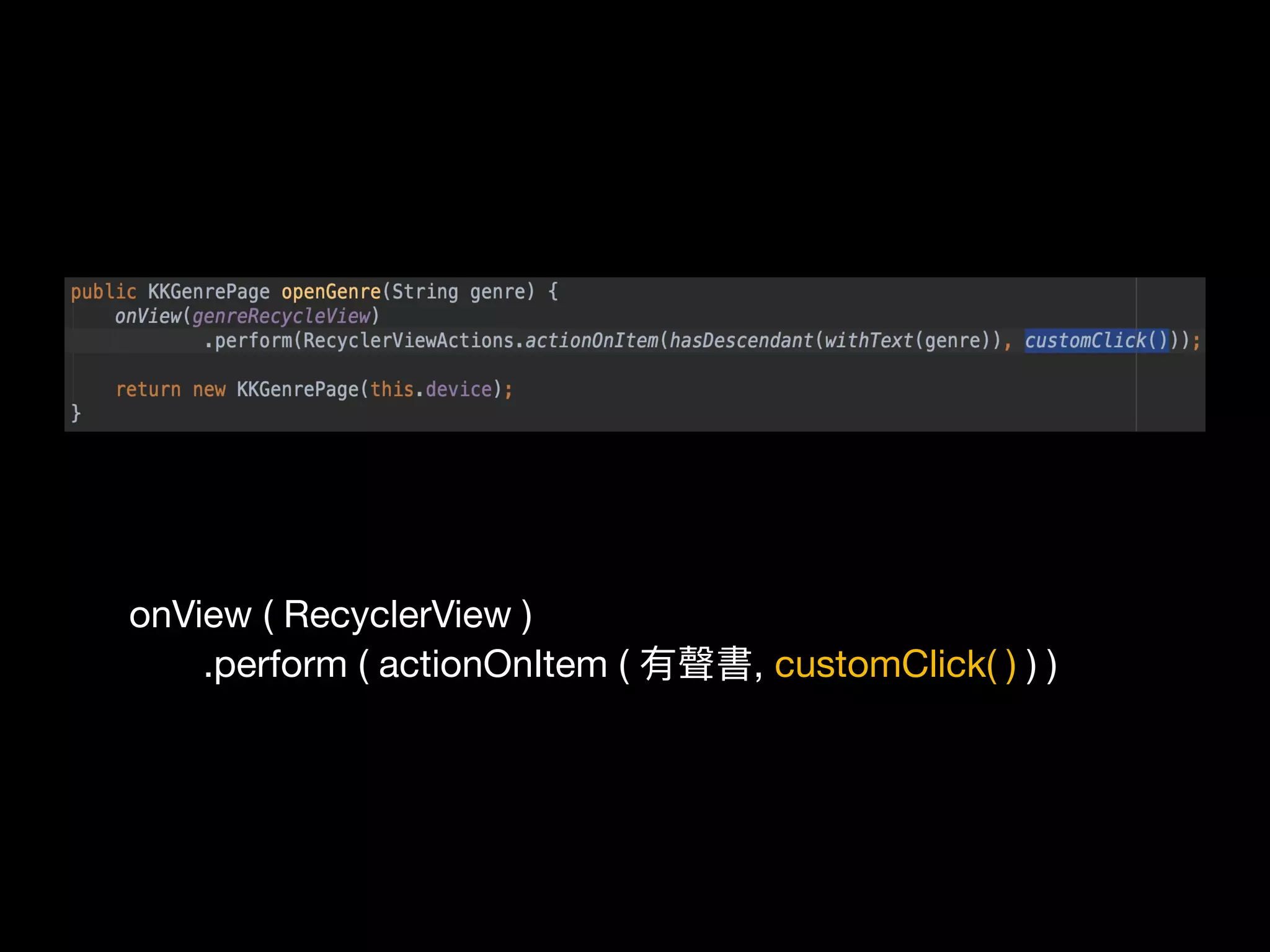

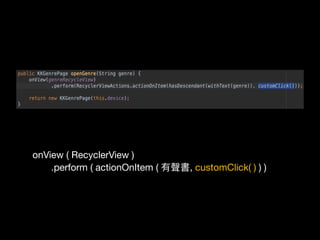

67. onView ( RecyclerView )
.perform ( actionOnItem ( 有聲書, customClick( ) ) )

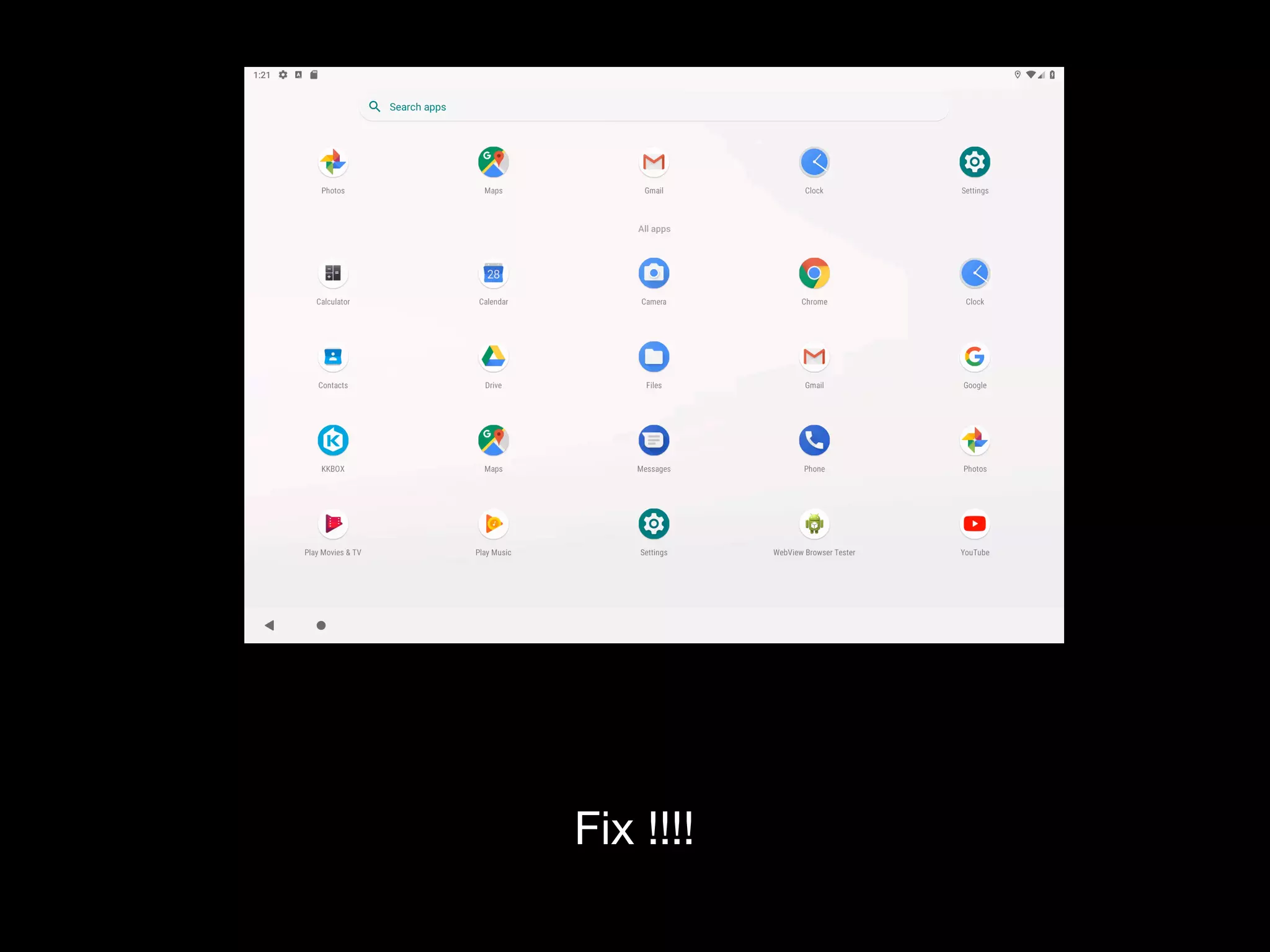

68. Fix !!!!

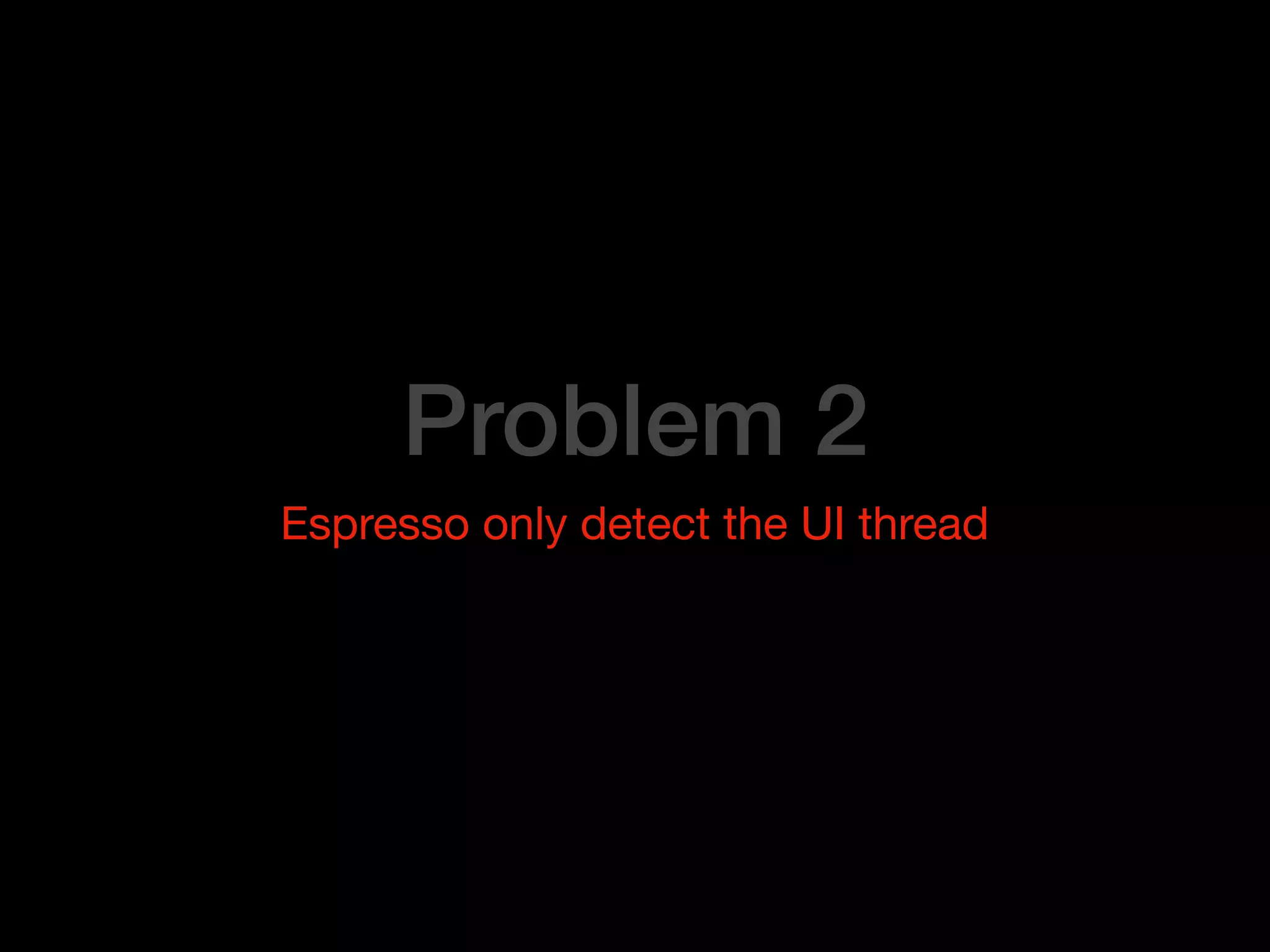

69. Problem 2
Espresso only detect the UI thread

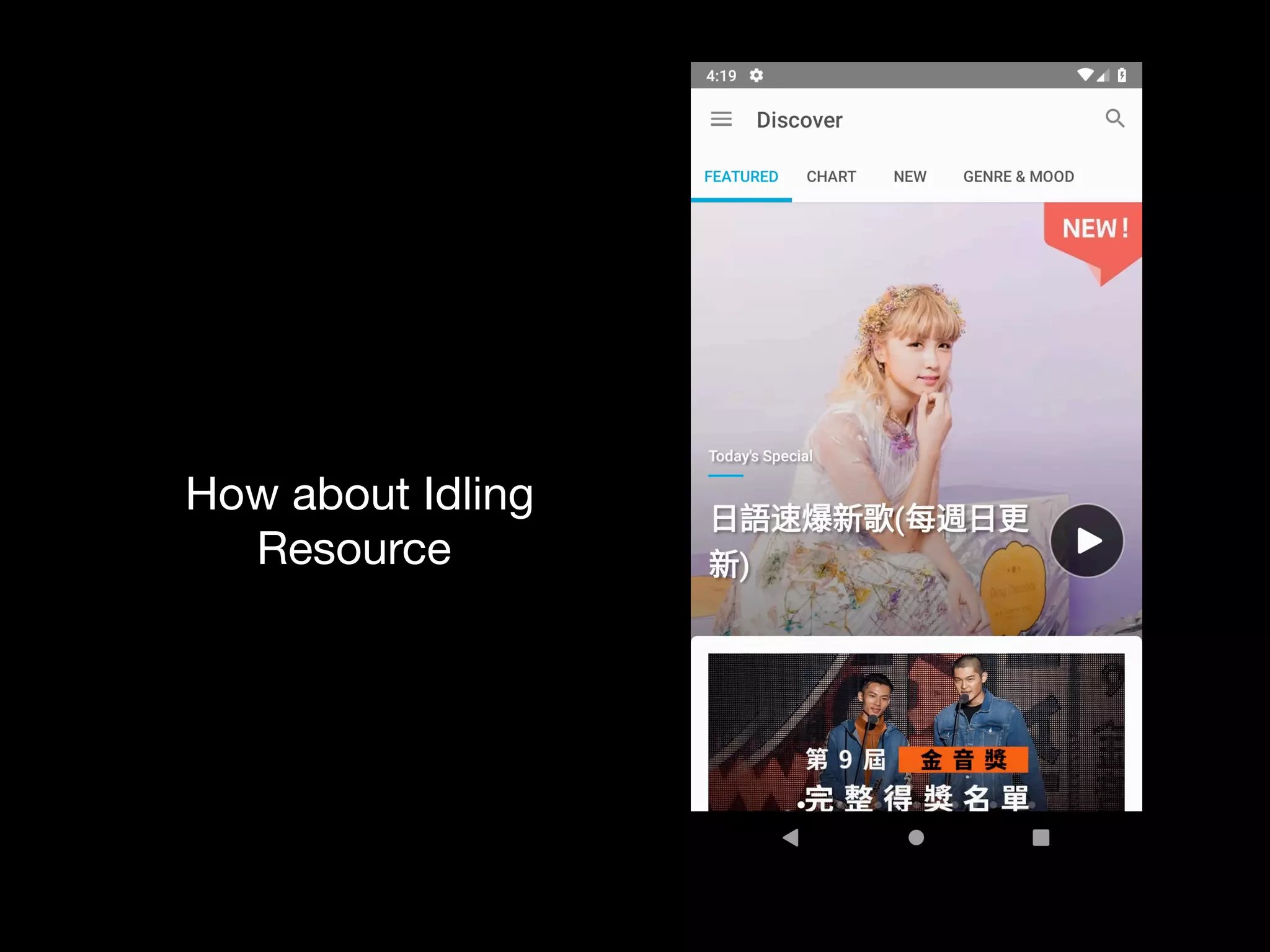

70. How about Idling
Resource

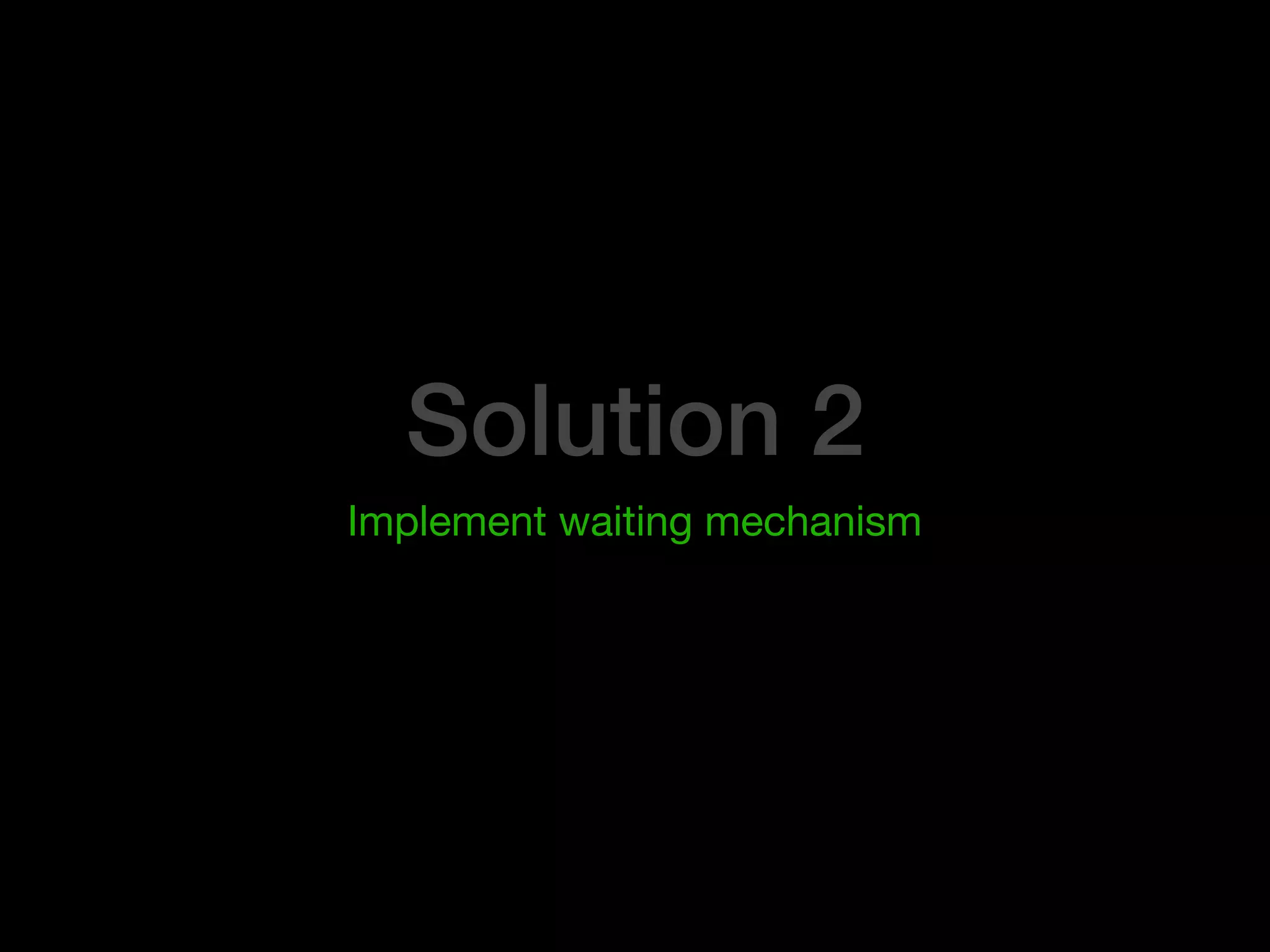

71. Solution 2
Implement waiting mechanism

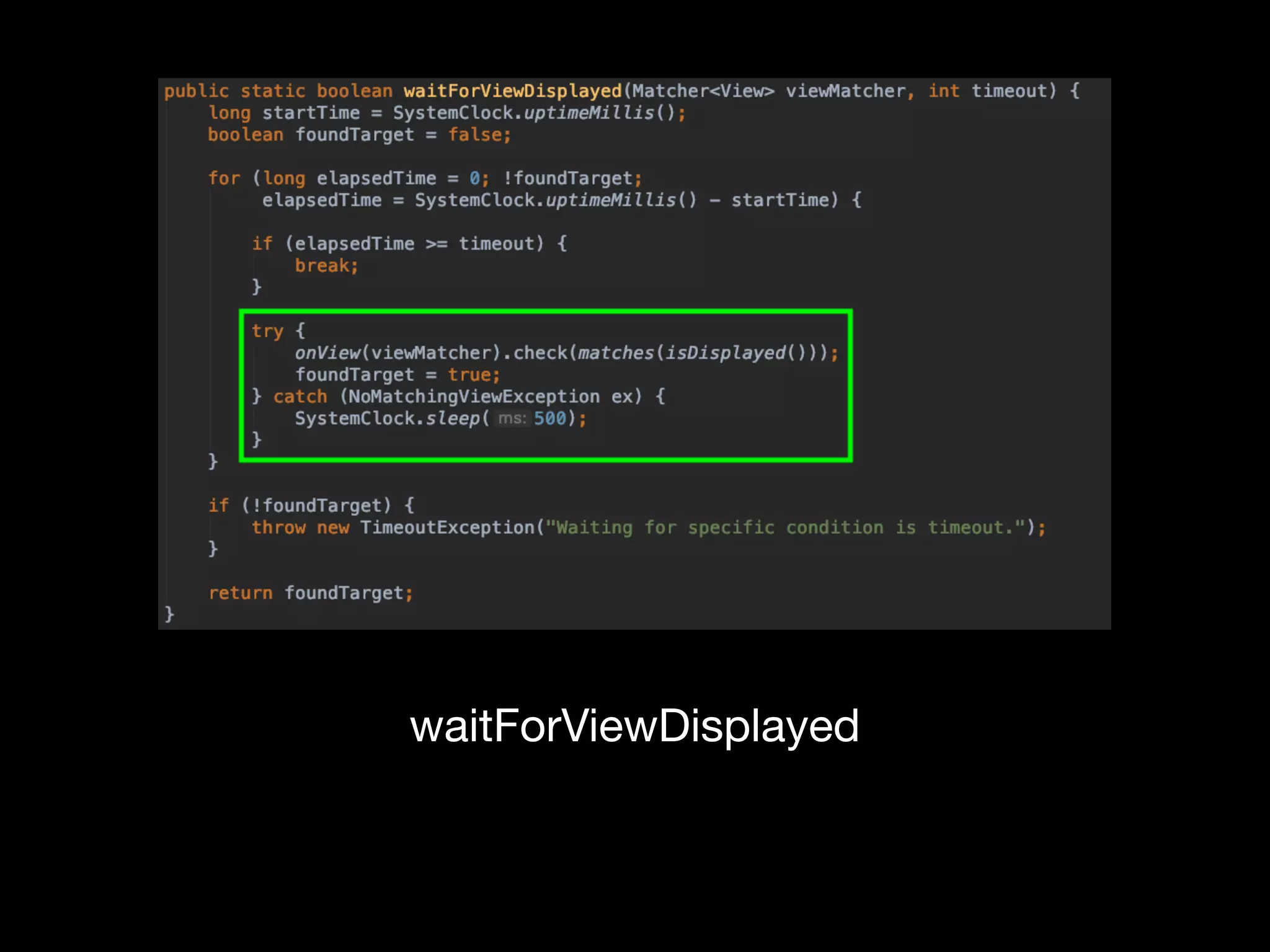

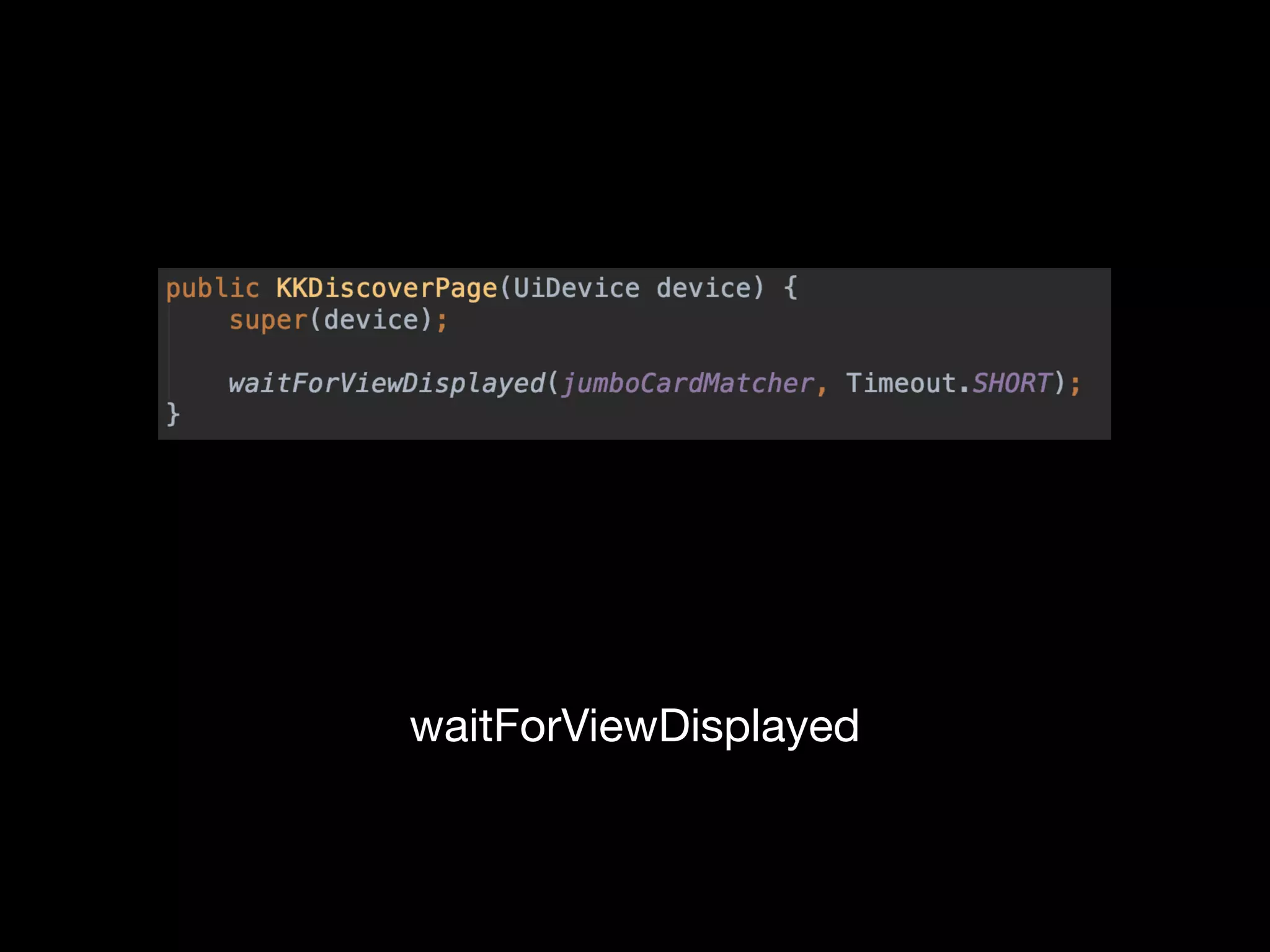

72. waitForViewDisplayed

73. waitForViewDisplayed

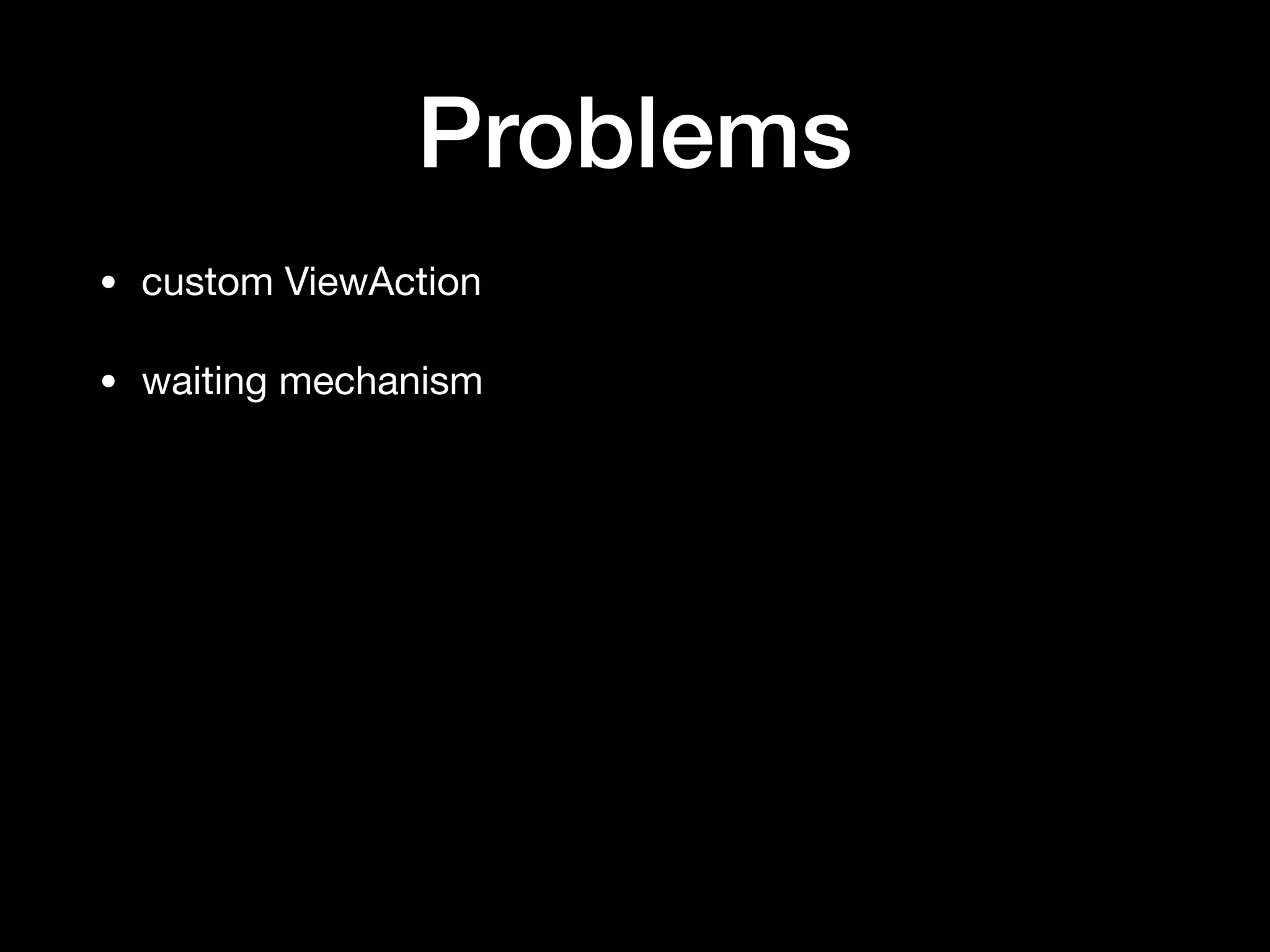

74. • custom ViewAction
• waiting mechanism
Problems

76. Thank you
