Android google mapv2
- 1. Android GoogleMap V2 資管系研⼀一 鍾聖彥TA 指導⽼老師 余仁朋 博⼠士

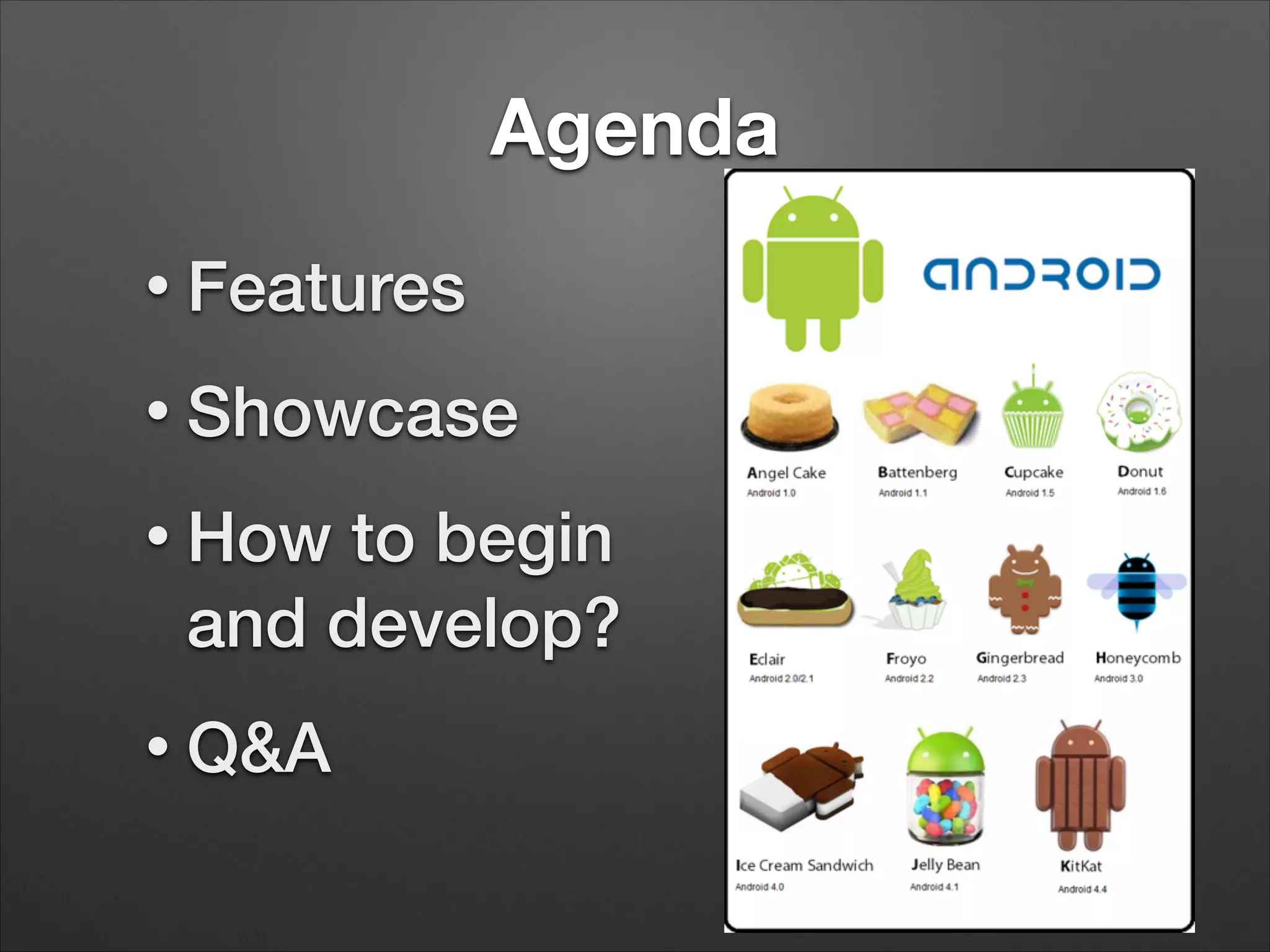

- 2. Agenda • Features • Showcase • How to begin anddevelop? • Q&A

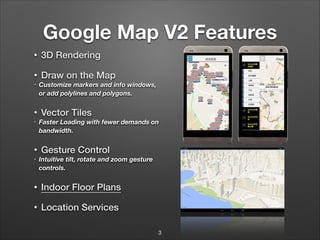

- 3. Google Map V2Features • 3D Rendering • Draw on the Map • • • • • Customize markers and info windows, or add polylines and polygons. Vector Tiles Faster Loading with fewer demands on bandwidth. Gesture Control Intuitive tilt, rotate and zoom gesture controls. • Indoor Floor Plans • Location Services 3

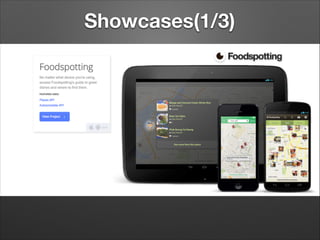

- 4.
- 5.

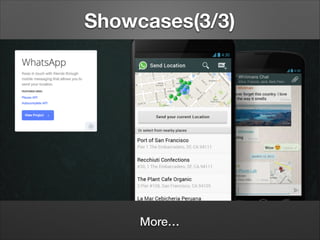

- 6.
- 7. How to Beginand Develop? Answer is step by step.And learning example.

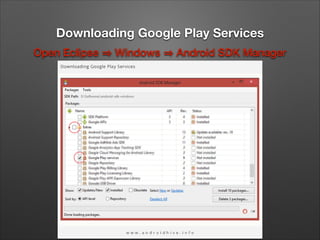

- 8. Downloading Google PlayServices Open Eclipse Windows Android SDK Manager
- 9. Importing Google PlayServices into Eclipse File Import Android Existing Android Code Into Workspace Windows os :android-sdk-windowsextrasgooglegoogle_play_serviceslibprojectgoogle-play-services_lib

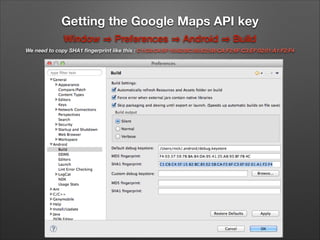

- 10. Getting the GoogleMaps API key Window Preferences Android Build We need to copy SHA1 fingerprint like this : C1:C8:C4:5F:15:82:BC:85:E2:5B:CA:F2:6F:C3:EF:02:01:A1:F2:F4

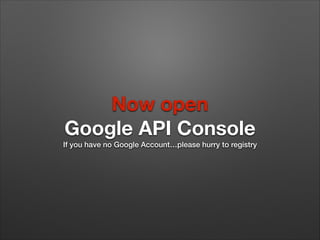

- 11. Now open Google APIConsole If you have no Google Account…please hurry to registry

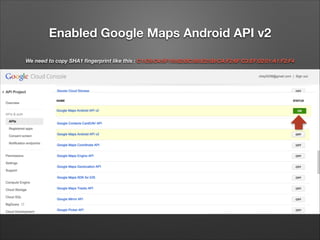

- 12. Enabled Google MapsAndroid API v2 We need to copy SHA1 fingerprint like this : C1:C8:C4:5F:15:82:BC:85:E2:5B:CA:F2:6F:C3:EF:02:01:A1:F2:F4

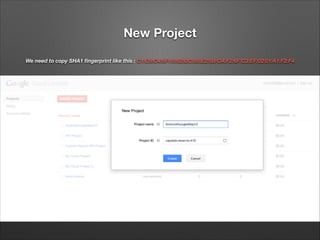

- 13. New Project We needto copy SHA1 fingerprint like this : C1:C8:C4:5F:15:82:BC:85:E2:5B:CA:F2:6F:C3:EF:02:01:A1:F2:F4

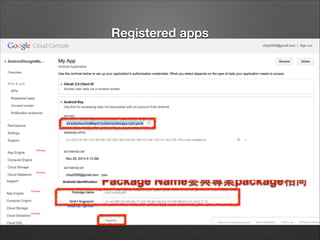

- 14. Registered apps We needto copy SHA1 fingerprint like this : C1:C8:C4:5F:15:82:BC:85:E2:5B:CA:F2:6F:C3:EF:02:01:A1:F2:F4 Package Name要與專案package相同

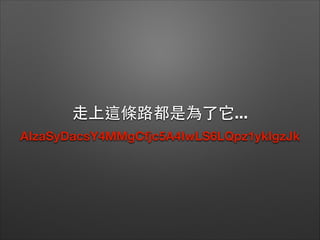

- 15.

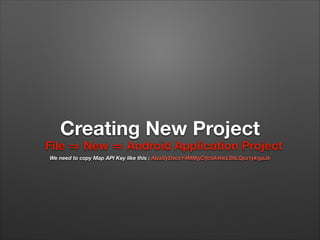

- 16. Creating New Project File New AndroidApplication Project We need to copy Map API Key like this : AIzaSyDacsY4MMgCfjc5A4IwLS6LQpz1ykIgzJk

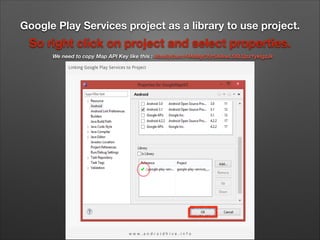

- 17. Google Play Servicesproject as a library to use project. So right click on project and select properties. We need to copy Map API Key like this : AIzaSyDacsY4MMgCfjc5A4IwLS6LQpz1ykIgzJk

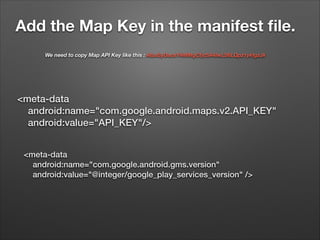

- 18. Add the MapKey in the manifest file. We need to copy Map API Key like this : AIzaSyDacsY4MMgCfjc5A4IwLS6LQpz1ykIgzJk <meta-data android:name="com.google.android.maps.v2.API_KEY" android:value="API_KEY"/> <meta-data android:name="com.google.android.gms.version" android:value="@integer/google_play_services_version" />

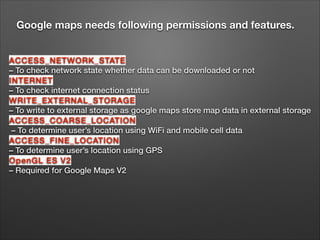

- 19. Google maps needsfollowing permissions and features. ACCESS_NETWORK_STATE – To check network state whether data can be downloaded or not INTERNET – To check internet connection status WRITE_EXTERNAL_STORAGE – To write to external storage as google maps store map data in external storage ACCESS_COARSE_LOCATION – To determine user’s location using WiFi and mobile cell data ACCESS_FINE_LOCATION – To determine user’s location using GPS OpenGL ES V2 – Required for Google Maps V2

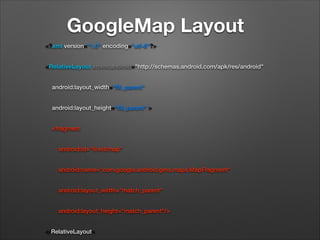

- 20. GoogleMap Layout <?xml version="1.0"encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="fill_parent" > <fragment android:id="@+id/map" android:name="com.google.android.gms.maps.MapFragment" android:layout_width="match_parent" android:layout_height="match_parent"/> </RelativeLayout>
- 21.

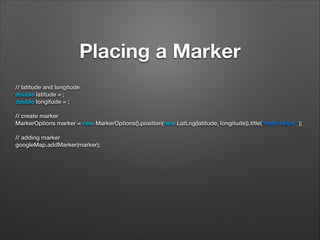

- 22. Placing a Marker //latitude and longitude double latitude = ; double longitude = ; // create marker MarkerOptions marker = new MarkerOptions().position(new LatLng(latitude, longitude)).title("Hello Maps "); // adding marker googleMap.addMarker(marker);

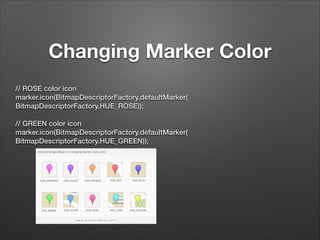

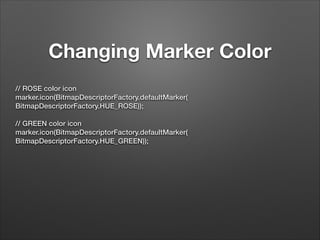

- 23. Changing Marker Color //ROSE color icon marker.icon(BitmapDescriptorFactory.defaultMarker( BitmapDescriptorFactory.HUE_ROSE)); // GREEN color icon marker.icon(BitmapDescriptorFactory.defaultMarker( BitmapDescriptorFactory.HUE_GREEN)); !
- 24. Changing Marker Color //ROSE color icon marker.icon(BitmapDescriptorFactory.defaultMarker( BitmapDescriptorFactory.HUE_ROSE)); // GREEN color icon marker.icon(BitmapDescriptorFactory.defaultMarker( BitmapDescriptorFactory.HUE_GREEN)); !

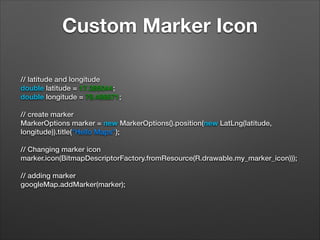

- 25. Custom Marker Icon //latitude and longitude double latitude = 17.385044; double longitude = 78.486671; // create marker MarkerOptions marker = new MarkerOptions().position(new LatLng(latitude, longitude)).title("Hello Maps"); // Changing marker icon marker.icon(BitmapDescriptorFactory.fromResource(R.drawable.my_marker_icon))); // adding marker googleMap.addMarker(marker);

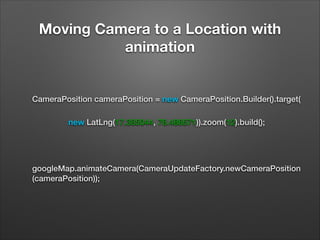

- 26. Moving Camera toa Location with animation CameraPosition cameraPosition = new CameraPosition.Builder().target( new LatLng(17.385044, 78.486671)).zoom(12).build(); googleMap.animateCamera(CameraUpdateFactory.newCameraPosition (cameraPosition));

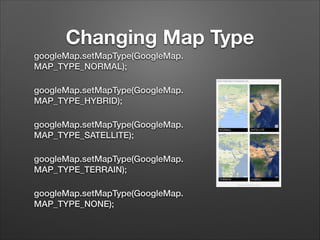

- 27.
- 28.

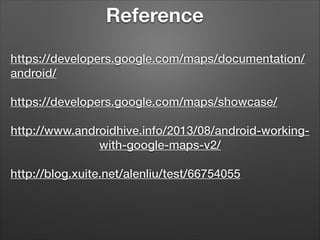

- 29.
