This document summarizes an introduction to Cassandra and Linux. It discusses Cassandra's origins from Amazon's Dynamo and Google's BigTable systems. It also outlines key features of Cassandra like availability, scalability, performance and data center support. The document provides hardware recommendations for Cassandra including memory, CPU, disks and configuration guidance. It concludes by listing resources for learning more about Cassandra.

1. Cassandra and Linux
An Introduction
Nick Bailey
@nickmbailey
nick@datastax.com
Saturday, June 1, 13

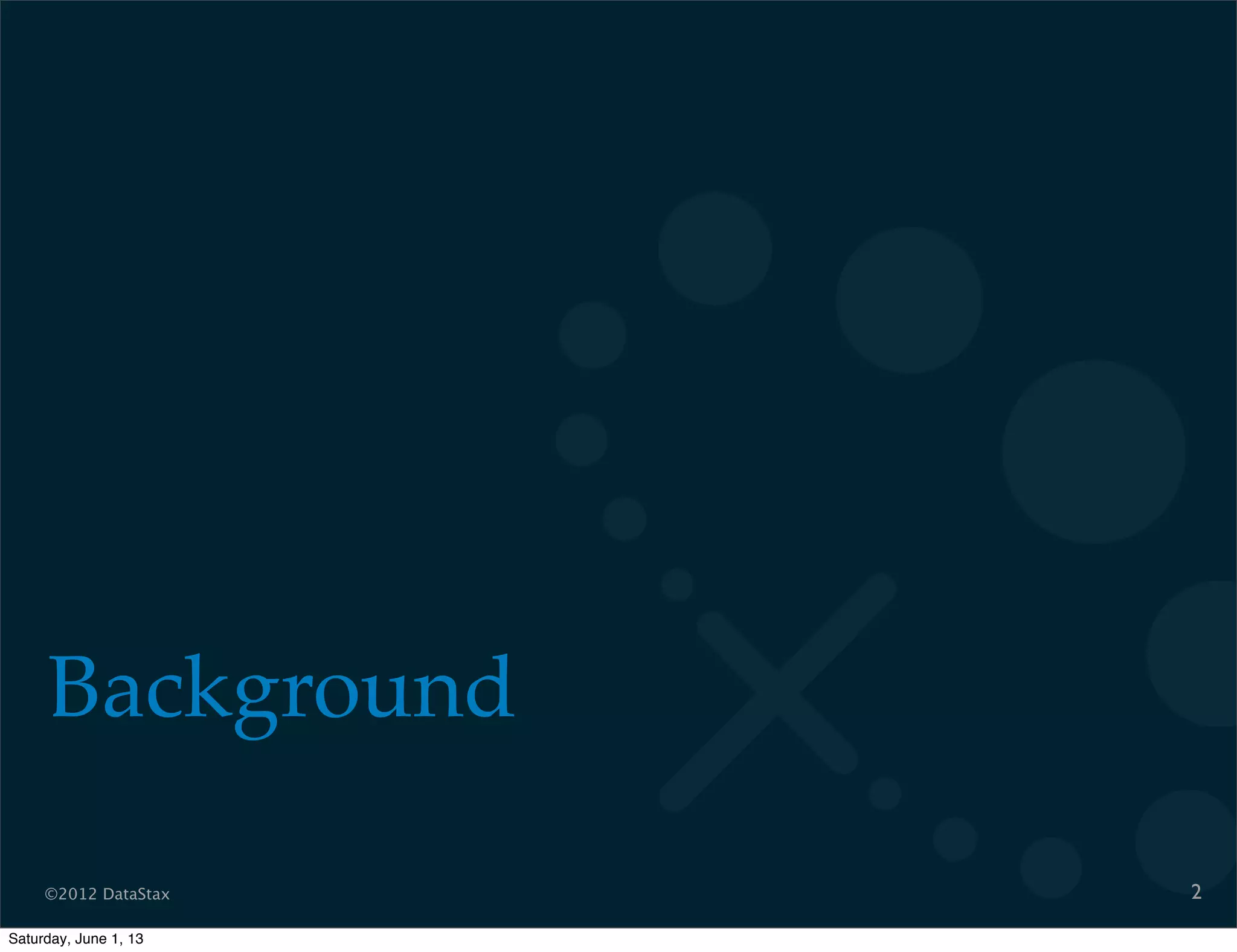

2. ©2012 DataStax
Background
2
Saturday, June 1, 13

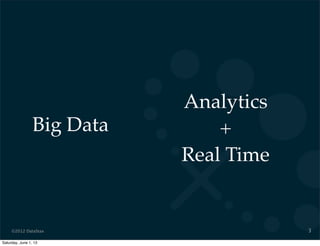

3. ©2012 DataStax
Analytics
+
Real Time
3
Big Data
Saturday, June 1, 13

4. ©2012 DataStax
Dynamo
+
BigTable
4
Saturday, June 1, 13

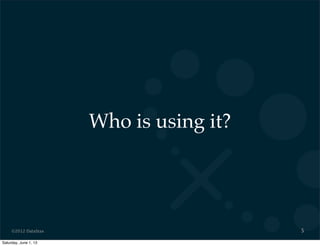

5. ©2012 DataStax
Who is using it?
5
Saturday, June 1, 13

6. ©2012 DataStax 6
Saturday, June 1, 13

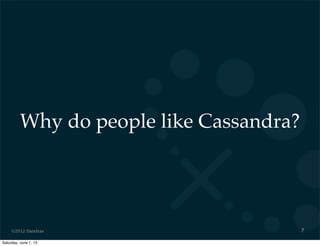

7. ©2012 DataStax
Why do people like Cassandra?
7
Saturday, June 1, 13

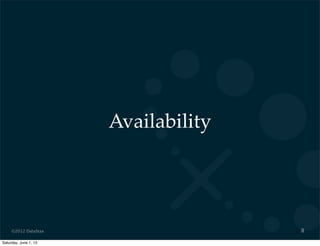

8. ©2012 DataStax
Availability
8
Saturday, June 1, 13

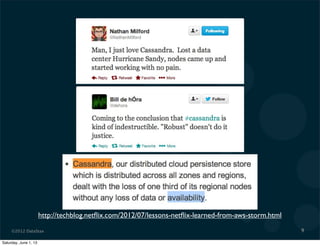

9. ©2012 DataStax 9
http://techblog.netflix.com/2012/07/lessons-netflix-learned-from-aws-storm.html
Saturday, June 1, 13

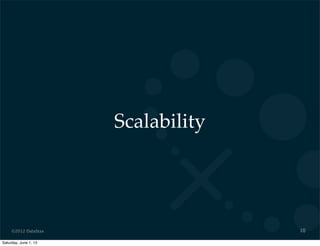

10. ©2012 DataStax
Scalability
10
Saturday, June 1, 13

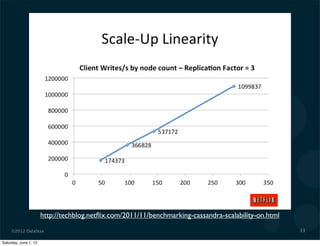

11. ©2012 DataStax 11
http://techblog.netflix.com/2011/11/benchmarking-cassandra-scalability-on.html
Saturday, June 1, 13

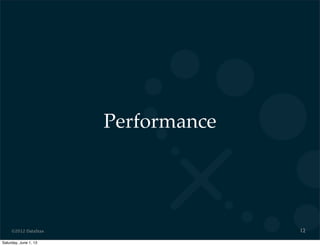

12. ©2012 DataStax
Performance
12
Saturday, June 1, 13

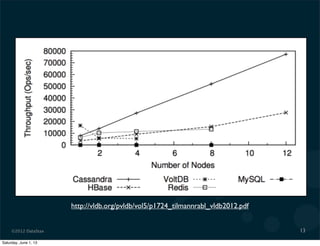

13. ©2012 DataStax 13
http://vldb.org/pvldb/vol5/p1724_tilmannrabl_vldb2012.pdf
Saturday, June 1, 13

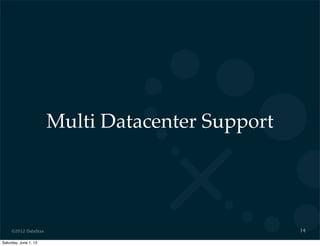

14. ©2012 DataStax
Multi Datacenter Support
14
Saturday, June 1, 13

15. ©2012 DataStax
Hadoop Support
15
Saturday, June 1, 13

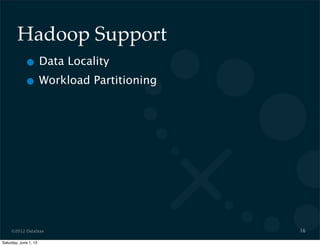

16. ©2012 DataStax
Hadoop Support
• Data Locality
• Workload Partitioning
16
Saturday, June 1, 13

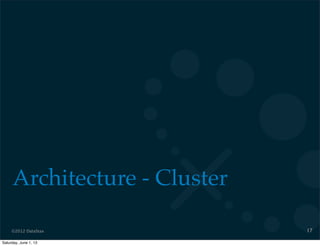

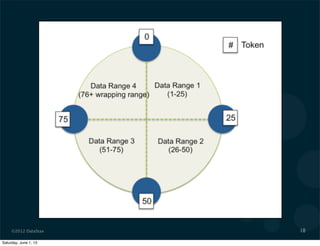

17. ©2012 DataStax
Architecture - Cluster
17
Saturday, June 1, 13

18. ©2012 DataStax 18
Saturday, June 1, 13

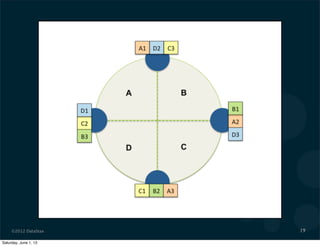

19. ©2012 DataStax 19
Saturday, June 1, 13

20. ©2012 DataStax
Architecture - Node
20
Saturday, June 1, 13

21. ©2012 DataStax
Writes
21
Saturday, June 1, 13

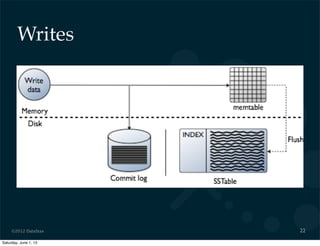

22. ©2012 DataStax
Writes
22
Saturday, June 1, 13

23. ©2012 DataStax
Reads
23
Saturday, June 1, 13

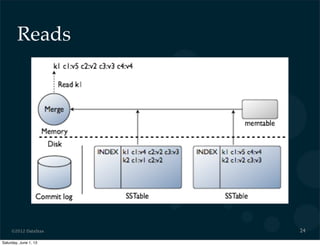

24. ©2012 DataStax
Reads
24
Saturday, June 1, 13

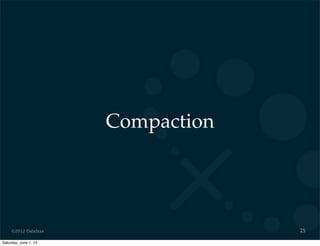

25. ©2012 DataStax
Compaction
25
Saturday, June 1, 13

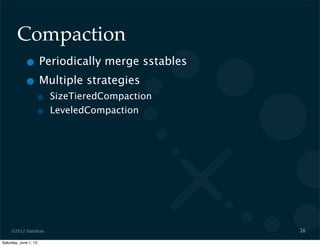

26. ©2012 DataStax
Compaction
• Periodically merge sstables
• Multiple strategies
• SizeTieredCompaction
• LeveledCompaction
26
Saturday, June 1, 13

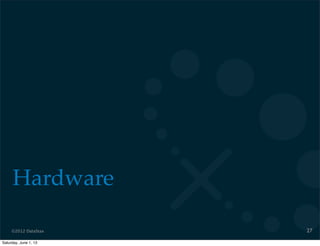

27. ©2012 DataStax
Hardware
27
Saturday, June 1, 13

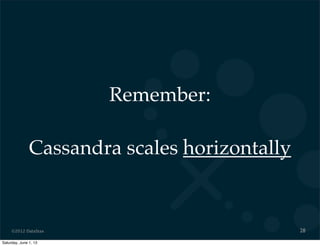

28. ©2012 DataStax
Remember:
Cassandra scales horizontally
28
Saturday, June 1, 13

29. ©2012 DataStax
Memory
29
Saturday, June 1, 13

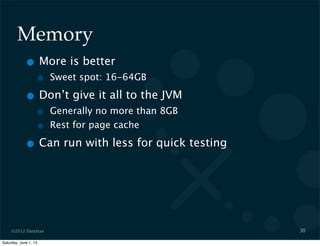

30. ©2012 DataStax
Memory
• More is better
• Sweet spot: 16-64GB
• Don’t give it all to the JVM
• Generally no more than 8GB
• Rest for page cache
• Can run with less for quick testing
30
Saturday, June 1, 13

31. ©2012 DataStax
CPU
31
Saturday, June 1, 13

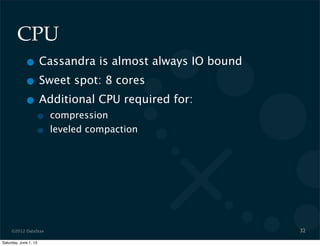

32. ©2012 DataStax
CPU
• Cassandra is almost always IO bound
• Sweet spot: 8 cores
• Additional CPU required for:
• compression
• leveled compaction
32
Saturday, June 1, 13

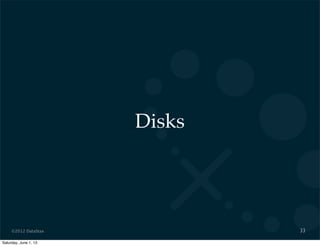

33. ©2012 DataStax
Disks
33
Saturday, June 1, 13

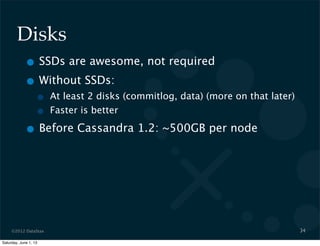

34. ©2012 DataStax
Disks
• SSDs are awesome, not required
• Without SSDs:
• At least 2 disks (commitlog, data) (more on that later)
• Faster is better
• Before Cassandra 1.2: ~500GB per node
34
Saturday, June 1, 13

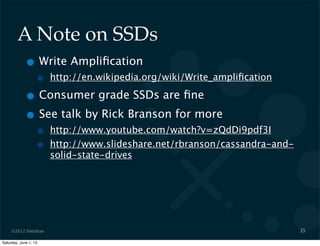

35. ©2012 DataStax
A Note on SSDs
• Write Amplification
• http://en.wikipedia.org/wiki/Write_amplification
• Consumer grade SSDs are fine
• See talk by Rick Branson for more
• http://www.youtube.com/watch?v=zQdDi9pdf3I
• http://www.slideshare.net/rbranson/cassandra-and-
solid-state-drives
35
Saturday, June 1, 13

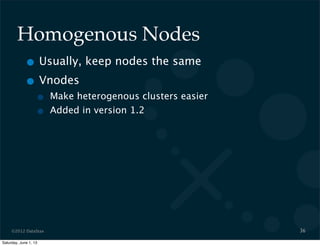

36. ©2012 DataStax
Homogenous Nodes
• Usually, keep nodes the same
• Vnodes
• Make heterogenous clusters easier
• Added in version 1.2
36
Saturday, June 1, 13

37. ©2012 DataStax
Configuration
37
Saturday, June 1, 13

38. ©2012 DataStax
Disks
38
Saturday, June 1, 13

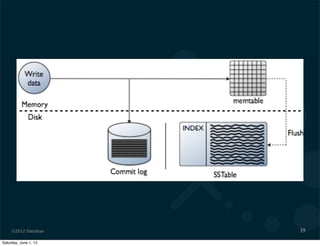

39. ©2012 DataStax 39
Saturday, June 1, 13

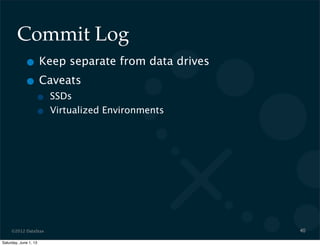

40. ©2012 DataStax
Commit Log
• Keep separate from data drives
• Caveats
• SSDs
• Virtualized Environments
40
Saturday, June 1, 13

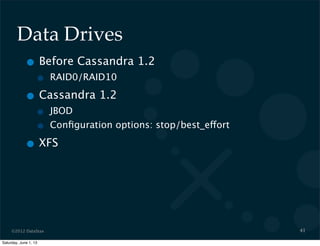

41. ©2012 DataStax
Data Drives
• Before Cassandra 1.2
• RAID0/RAID10
• Cassandra 1.2
• JBOD
• Configuration options: stop/best_effort
• XFS
41
Saturday, June 1, 13

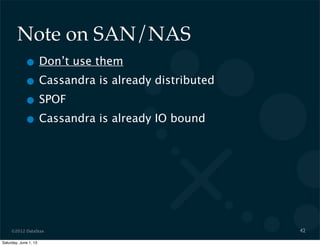

42. ©2012 DataStax
Note on SAN/NAS
• Don’t use them
• Cassandra is already distributed
• SPOF
• Cassandra is already IO bound
42
Saturday, June 1, 13

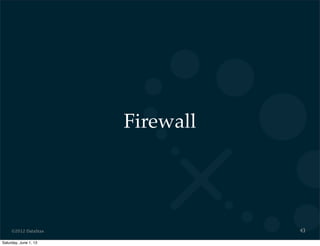

43. ©2012 DataStax
Firewall
43
Saturday, June 1, 13

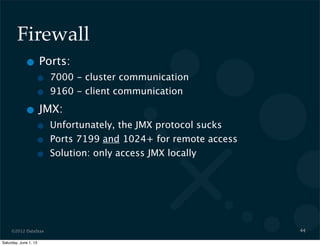

44. ©2012 DataStax
Firewall
• Ports:
• 7000 - cluster communication
• 9160 - client communication
• JMX:
• Unfortunately, the JMX protocol sucks
• Ports 7199 and 1024+ for remote access
• Solution: only access JMX locally
44
Saturday, June 1, 13

45. ©2012 DataStax
Virtualized Environments (EC2)
45
Saturday, June 1, 13

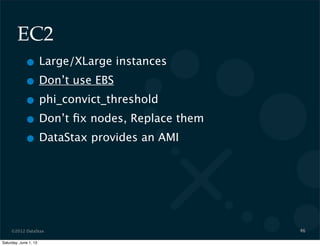

46. ©2012 DataStax
EC2
• Large/XLarge instances
• Don’t use EBS
• phi_convict_threshold
• Don’t fix nodes, Replace them
• DataStax provides an AMI
46
Saturday, June 1, 13

47. ©2012 DataStax
Miscellaneous
47
Saturday, June 1, 13

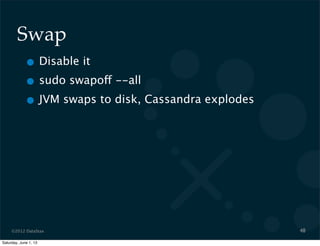

48. ©2012 DataStax
Swap
• Disable it
• sudo swapoff --all
• JVM swaps to disk, Cassandra explodes
48
Saturday, June 1, 13

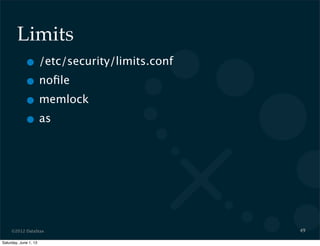

49. ©2012 DataStax
Limits
• /etc/security/limits.conf
• nofile
• memlock
• as
49
Saturday, June 1, 13

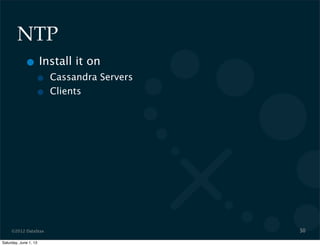

50. ©2012 DataStax
NTP
• Install it on
• Cassandra Servers
• Clients
50
Saturday, June 1, 13

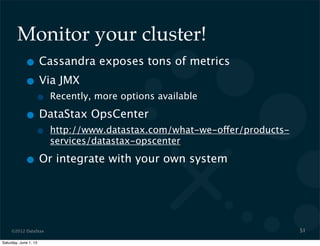

51. ©2012 DataStax
Monitor your cluster!
• Cassandra exposes tons of metrics
• Via JMX
• Recently, more options available
• DataStax OpsCenter
• http://www.datastax.com/what-we-offer/products-
services/datastax-opscenter
• Or integrate with your own system
51
Saturday, June 1, 13

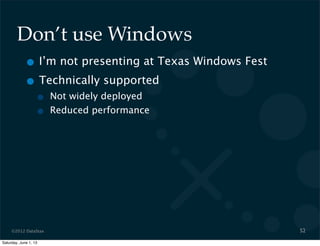

52. ©2012 DataStax
Don’t use Windows
• I’m not presenting at Texas Windows Fest
• Technically supported
• Not widely deployed
• Reduced performance
52
Saturday, June 1, 13

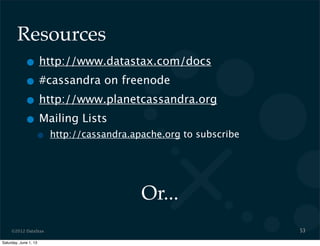

53. ©2012 DataStax
Resources
• http://www.datastax.com/docs
• #cassandra on freenode
• http://www.planetcassandra.org
• Mailing Lists
• http://cassandra.apache.org to subscribe
53
Or...
Saturday, June 1, 13

54. Come to the Summit!
Ask me for a discount code (nick@datastax.com)
June 11-12, 2013
San Francisco, CA
http://www.datastax.com/company/news-and-events/events/
cassandrasummit2013
Saturday, June 1, 13

55. Want a job?
http://www.datastax.com/company/careers
Saturday, June 1, 13

56. Questions?
Saturday, June 1, 13
