An Hour of DB2 Tips

An Hour of Tips and Techniques
for DB2 for z/OS

Craig S. Mullins
VP, Data Strategy
NEON Enterprise Software

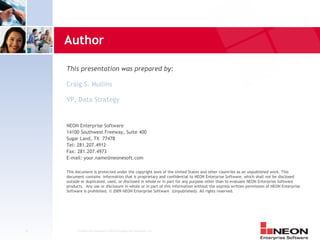

Author

This presentation was prepared by:

Craig S. Mullins

VP, Data Strategy

14100 Southwest Freeway, Suite 400
Sugar Land, TX 77478
Tel: 281.207.4912
Fax: 281.207.4973
E-mail: your.name@neonesoft.com

This document is protected under the copyright laws of the United States and other countries as an unpublished work. This
document contains information that is proprietary and confidential to NEON Enterprise Software, which shall not be disclosed
outside or duplicated, used, or disclosed in whole or in part for any purpose other than to evaluate NEON Enterprise Software
products. Any use or disclosure in whole or in part of this information without the express written permission of NEON Enterprise
Software is prohibited. © 2009 NEON Enterprise Software (Unpublished). All rights reserved.

2 Confidential Material of NEON Enterprise Software, Inc.

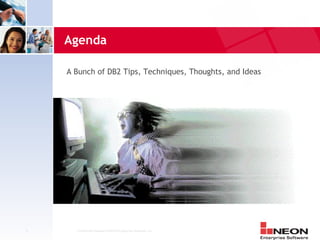

Agenda

A Bunch of DB2 Tips, Techniques, Thoughts, and Ideas

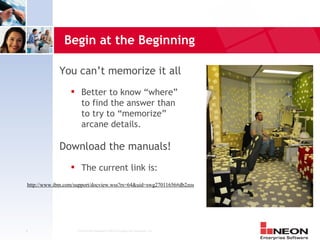

Begin at the Beginning

You can’t memorize it all
 Better to know “where”
to find the answer than
to try to “memorize”
arcane details.

Download the manuals!
 The current link is:
http://www.ibm.com/support/docview.wss?rs=64&uid=swg27011656#db2zos

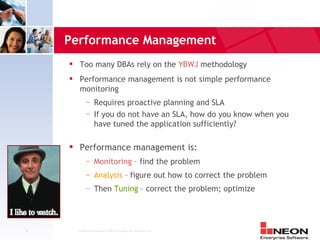

Performance Management
 Too many DBAs rely on the YBWJ methodology
 Performance management is not simple performance
monitoring
— Requires proactive planning and SLA
— If you do not have an SLA, how do you know when you
have tuned the application sufficiently?

 Performance management is:
— Monitoring – find the problem
— Analysis – figure out how to correct the problem
— Then Tuning – correct the problem; optimize


Database Performance Tuning

• Application
−SQL
−Host Language Code

• Database
−Indexes
−Database Design (normalization)
−TS/IX organization

• System (DB2 Subsystem)
−ZPARMs, Pools, Locks/IRLM, etc.

• Environment
−Network connectivity and configuration
−TP Monitor, Operating System

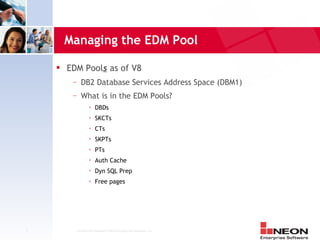

Managing the EDM Pool
 EDM Pools as of V8
— DB2 Database Services Address Space (DBM1)
— What is in the EDM Pools?
 DBDs
 SKCTs
 CTs
 SKPTs
 PTs
 Auth Cache
 Dyn SQL Prep
 Free pages

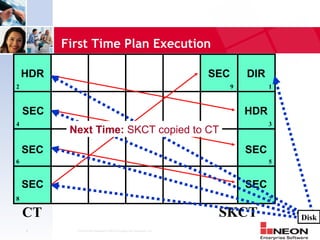

First Time Plan Execution

HDR SEC DIR
2 9 1

SEC HDR
4 3
Next Time: SKCT copied to CT
SEC SEC
6 5

SEC SEC
8 7

CT SKCT Disk

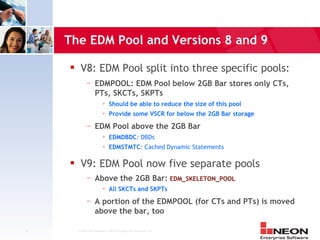

The EDM Pool and Versions 8 and 9

 V8: EDM Pool split into three specific pools:
— EDMPOOL: EDM Pool below 2GB Bar stores only CTs,
PTs, SKCTs, SKPTs
 Should be able to reduce the size of this pool
 Provide some VSCR for below the 2GB Bar storage
— EDM Pool above the 2GB Bar
 EDMDBDC: DBDs
 EDMSTMTC: Cached Dynamic Statements

 V9: EDM Pool now five separate pools
— Above the 2GB Bar: EDM_SKELETON_POOL
 All SKCTs and SKPTs
— A portion of the EDMPOOL (for CTs and PTs) is moved
above the bar, too

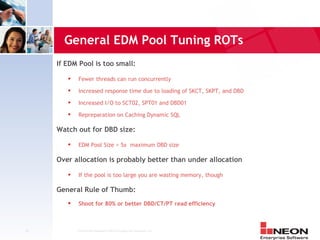

General EDM Pool Tuning ROTs
If EDM Pool is too small:
 Fewer threads can run concurrently
 Increased response time due to loading of SKCT, SKPT, and DBD
 Increased I/O to SCT02, SPT01 and DBD01
 Repreparation on Caching Dynamic SQL

Watch out for DBD size:
 EDM Pool Size > 5x maximum DBD size

Over allocation is probably better than under allocation
 If the pool is too large you are wasting memory, though

General Rule of Thumb:
 Shoot for 80% or better DBD/CT/PT read efficiency

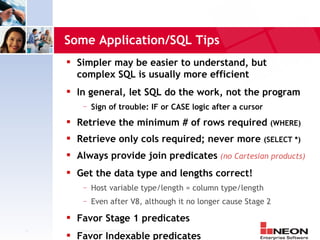

Some Application/SQL Tips
 Simpler may be easier to understand, but
complex SQL is usually more efficient
 In general, let SQL do the work, not the program
— Sign of trouble: IF or CASE logic after a cursor
 Retrieve the minimum # of rows required (WHERE)
 Retrieve only cols required; never more (SELECT *)
 Always provide join predicates (no Cartesian products)
 Get the data type and lengths correct!
— Host variable type/length = column type/length
— Even after V8, although it no longer cause Stage 2
 Favor Stage 1 predicates
 Favor Indexable predicates

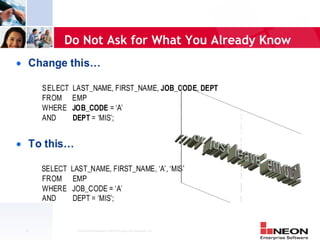

Do Not Ask for What You Already Know


SQL Request

Application Tuning: Stage 1 and 2
Result
STAGE 2 - Evaluated after
data retrieval (non-sargable)
via the RDS (Relational Data
Services) which is more
RELATIONAL DATA SERVICES expensive than the Data
Manager.

DATA MANAGER STAGE 1 - Evaluated at the
time the data rows are
retrieved (sargable). There is
a performance advantage to
using Stage 1 predicates
because fewer rows are
passed to Stage 2 via the
Data Manager
BUFFER MANAGER

I/O

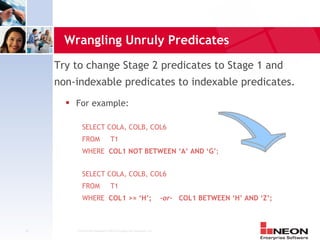

Wrangling Unruly Predicates
Try to change Stage 2 predicates to Stage 1 and
non-indexable predicates to indexable predicates.
 For example:

SELECT COLA, COLB, COL6
FROM T1
WHERE COL1 NOT BETWEEN ‘A’ AND ‘G’;

SELECT COLA, COLB, COL6
FROM T1
WHERE COL1 >= ‘H’; -or- COL1 BETWEEN ‘H’ AND ‘Z’;

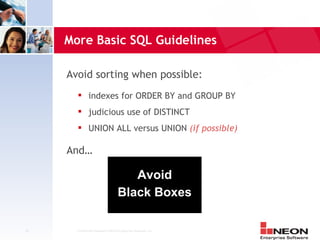

More Basic SQL Guidelines

Avoid sorting when possible:
 indexes for ORDER BY and GROUP BY
 judicious use of DISTINCT
 UNION ALL versus UNION (if possible)

And…

Avoid
Black Boxes

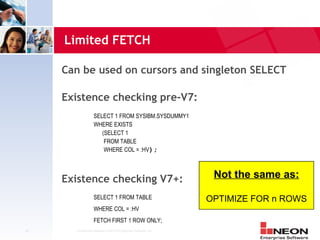

Limited FETCH

Can be used on cursors and singleton SELECT

Existence checking pre-V7:
SELECT 1 FROM SYSIBM.SYSDUMMY1
WHERE EXISTS
(SELECT 1
FROM TABLE
WHERE COL = :HV);

Existence checking V7+: Not the same as:

SELECT 1 FROM TABLE OPTIMIZE FOR n ROWS
WHERE COL = :HV
FETCH FIRST 1 ROW ONLY;

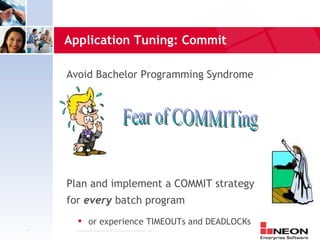

Application Tuning: Commit

Avoid Bachelor Programming Syndrome

Plan and implement a COMMIT strategy
for every batch program
 or experience TIMEOUTs and DEADLOCKs

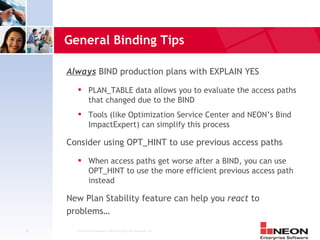

General Binding Tips

Always BIND production plans with EXPLAIN YES
 PLAN_TABLE data allows you to evaluate the access paths
that changed due to the BIND
 Tools (like Optimization Service Center and NEON’s Bind
ImpactExpert) can simplify this process

Consider using OPT_HINT to use previous access paths
 When access paths get worse after a BIND, you can use
OPT_HINT to use the more efficient previous access path
instead

New Plan Stability feature can help you react to
problems…

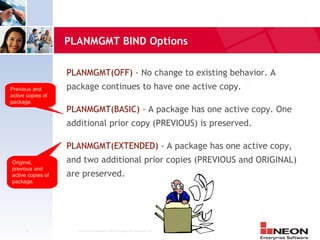

PLANMGMT BIND Options

PLANMGMT(OFF) - No change to existing behavior. A
Previous and package continues to have one active copy.
active copies of
package.
PLANMGMT(BASIC) - A package has one active copy. One
additional prior copy (PREVIOUS) is preserved.

PLANMGMT(EXTENDED) - A package has one active copy,
Original, and two additional prior copies (PREVIOUS and ORIGINAL)
previous and
active copies of are preserved.
package.

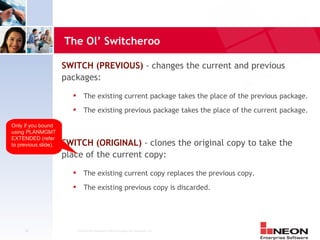

The Ol’ Switcheroo

SWITCH (PREVIOUS) - changes the current and previous
packages:
 The existing current package takes the place of the previous package.
 The existing previous package takes the place of the current package.

Only if you bound
using PLANMGMT
EXTENDED (refer
to previous slide). SWITCH (ORIGINAL) - clones the original copy to take the
place of the current copy:
 The existing current copy replaces the previous copy.
 The existing previous copy is discarded.

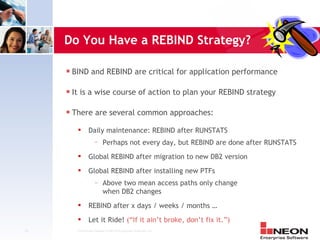

Do You Have a REBIND Strategy?

s BIND and REBIND are critical for application performance

s It is a wise course of action to plan your REBIND strategy

s There are several common approaches:
 Daily maintenance: REBIND after RUNSTATS
— Perhaps not every day, but REBIND are done after RUNSTATS
 Global REBIND after migration to new DB2 version
 Global REBIND after installing new PTFs
— Above two mean access paths only change
when DB2 changes
 REBIND after x days / weeks / months …
 Let it Ride! (“If it ain’t broke, don’t fix it.”)

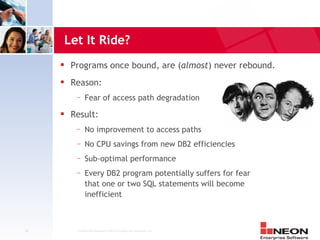

Let It Ride?
 Programs once bound, are (almost) never rebound.
 Reason:
— Fear of access path degradation
 Result:
— No improvement to access paths
— No CPU savings from new DB2 efficiencies
— Sub-optimal performance
— Every DB2 program potentially suffers for fear
that one or two SQL statements will become
inefficient

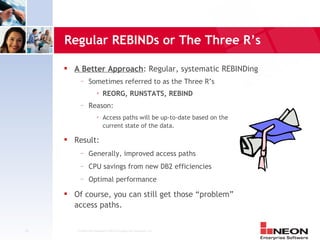

Regular REBINDs or The Three R’s

 A Better Approach: Regular, systematic REBINDing
— Sometimes referred to as the Three R’s
 REORG, RUNSTATS, REBIND
— Reason:
 Access paths will be up-to-date based on the
current state of the data.

 Result:
— Generally, improved access paths
— CPU savings from new DB2 efficiencies
— Optimal performance
 Of course, you can still get those “problem”
access paths.

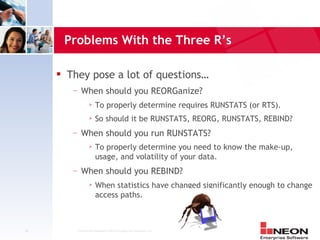

Problems With the Three R’s

 They pose a lot of questions…
— When should you REORGanize?
 To properly determine requires RUNSTATS (or RTS).
 So should it be RUNSTATS, REORG, RUNSTATS, REBIND?
— When should you run RUNSTATS?
 To properly determine you need to know the make-up,
usage, and volatility of your data.
— When should you REBIND?
 When statistics have changed significantly enough to change
access paths.

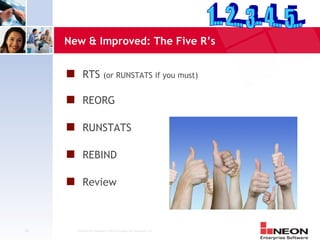

New & Improved: The Five R’s

s RTS (or RUNSTATS if you must)

s REORG

s RUNSTATS

s REBIND

s Review


Take Time to Understand NULLs

Every null column requires a one
byte null indicator

Nulls do NOT save space – ever!
 Nulls are not variable columns but…
 Can be used with variable columns.

Do NOT bury your head in the
sand & ignore nulls
 You can code a query against a SELECT SUM(SALARY)
database w/o any nulls and FROM EMP
receive null as the answer WHERE DEPTNO > 999;

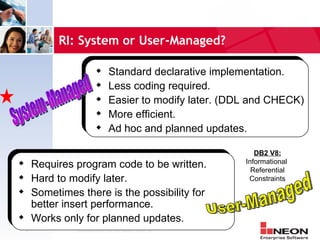

RI: System or User-Managed?

 Standard declarative implementation.
 Less coding required.
 Easier to modify later. (DDL and CHECK)
 More efficient.
 Ad hoc and planned updates.

DB2 V8:
 Requires program code to be written. Informational
Referential
 Hard to modify later. Constraints

 Sometimes there is the possibility for
better insert performance.
 Works only for planned updates.

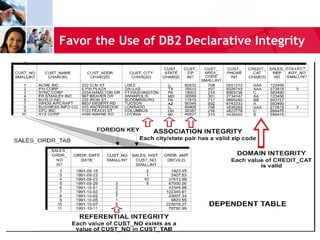

Favor the Use of DB2 Declarative Integrity

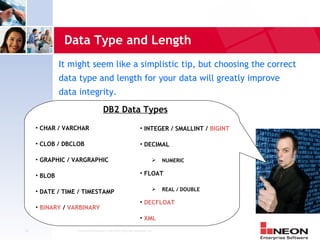

Data Type and Length
It might seem like a simplistic tip, but choosing the correct
data type and length for your data will greatly improve
data integrity.
DB2 Data Types
• CHAR / VARCHAR • INTEGER / SMALLINT / BIGINT

• CLOB / DBCLOB • DECIMAL

• GRAPHIC / VARGRAPHIC  NUMERIC

• BLOB • FLOAT

• DATE / TIME / TIMESTAMP  REAL / DOUBLE

• DECFLOAT
• BINARY / VARBINARY
• XML

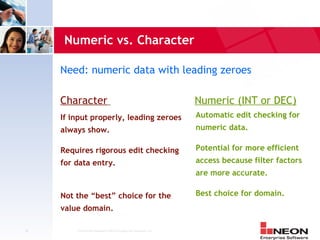

Numeric vs. Character

Need: numeric data with leading zeroes

Character Numeric (INT or DEC)
If input properly, leading zeroes Automatic edit checking for
always show. numeric data.

Requires rigorous edit checking Potential for more efficient
for data entry. access because filter factors
are more accurate.

Not the “best” choice for the Best choice for domain.
value domain.

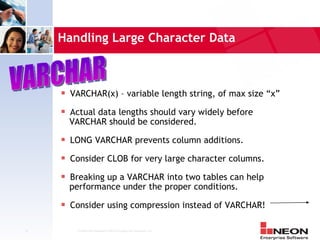

Handling Large Character Data

s VARCHAR(x) – variable length string, of max size “x”
s Actual data lengths should vary widely before
VARCHAR should be considered.
s LONG VARCHAR prevents column additions.
s Consider CLOB for very large character columns.
s Breaking up a VARCHAR into two tables can help
performance under the proper conditions.
s Consider using compression instead of VARCHAR!

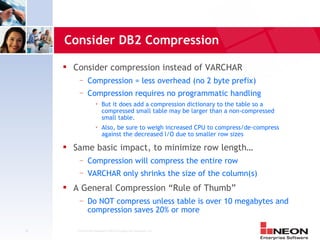

Consider DB2 Compression
 Consider compression instead of VARCHAR
— Compression = less overhead (no 2 byte prefix)
— Compression requires no programmatic handling
 But it does add a compression dictionary to the table so a
compressed small table may be larger than a non-compressed
small table.
 Also, be sure to weigh increased CPU to compress/de-compress
against the decreased I/O due to smaller row sizes
 Same basic impact, to minimize row length…
— Compression will compress the entire row
— VARCHAR only shrinks the size of the column(s)
 A General Compression “Rule of Thumb”
— Do NOT compress unless table is over 10 megabytes and
compression saves 20% or more


DATE/TIME vs. TIMESTAMP

Need: date and time for each row of a table

DATE / TIME TIMESTAMP
Requires 2 columns. Everything in 1 column.

Saves storage: only 7 total bytes Requires 10 bytes of storage.
required.

Less precise: seconds. More precise: microseconds.

DB2 provides more formatting DATE arithmetic easier using 1
options for DATE and TIME. column

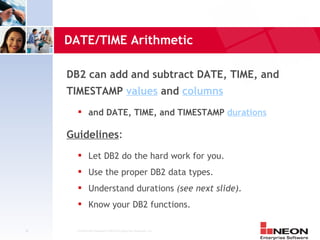

DATE/TIME Arithmetic

DB2 can add and subtract DATE, TIME, and
TIMESTAMP values and columns
 and DATE, TIME, and TIMESTAMP durations

Guidelines:
 Let DB2 do the hard work for you.
 Use the proper DB2 data types.
 Understand durations (see next slide).
 Know your DB2 functions.

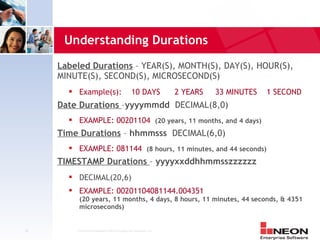

Understanding Durations
Labeled Durations – YEAR(S), MONTH(S), DAY(S), HOUR(S),
MINUTE(S), SECOND(S), MICROSECOND(S)
 Example(s): 10 DAYS 2 YEARS 33 MINUTES 1 SECOND
Date Durations –yyyymmdd DECIMAL(8,0)
 EXAMPLE: 00201104 (20 years, 11 months, and 4 days)
Time Durations – hhmmsss DECIMAL(6,0)
 EXAMPLE: 081144 (8 hours, 11 minutes, and 44 seconds)
TIMESTAMP Durations – yyyyxxddhhmmsszzzzzz
 DECIMAL(20,6)
 EXAMPLE: 00201104081144.004351
(20 years, 11 months, 4 days, 8 hours, 11 minutes, 44 seconds, & 4351
microseconds)

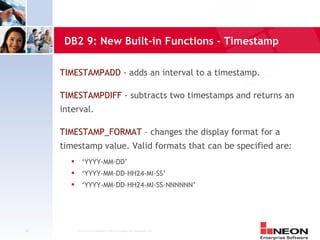

DB2 9: New Built-in Functions - Timestamp

TIMESTAMPADD - adds an interval to a timestamp.

TIMESTAMPDIFF - subtracts two timestamps and returns an
interval.

TIMESTAMP_FORMAT – changes the display format for a
timestamp value. Valid formats that can be specified are:
 ‘YYYY-MM-DD’
 ‘YYYY-MM-DD-HH24-MI-SS’
 ‘YYYY-MM-DD-HH24-MI-SS-NNNNNN’


Know Your DATE/TIME Functions!
Q: How can I get DB2 to express a duration resulting
from DATE subtraction as a total number-of-days?

For example:

SELECT DATE('03/01/2004') – DATE('12/01/2003')

A: Use the DAYS function to return the exact number
of days between those two dates, as follows:

SELECT DAYS('03/01/2004') - DAYS('12/01/2003')

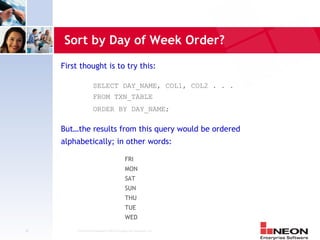

Sort by Day of Week Order?
First thought is to try this:

SELECT DAY_NAME, COL1, COL2 . . .
FROM TXN_TABLE
ORDER BY DAY_NAME;

But…the results from this query would be ordered
alphabetically; in other words:

FRI
MON
SAT
SUN
THU
TUE
WED

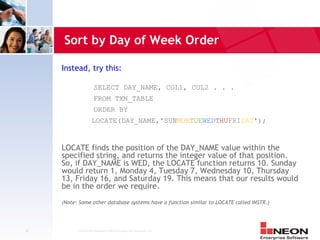

Sort by Day of Week Order

Instead, try this:

SELECT DAY_NAME, COL1, COL2 . . .
FROM TXN_TABLE
ORDER BY
LOCATE(DAY_NAME,'SUNMONTUEWEDTHUFRISAT');

LOCATE finds the position of the DAY_NAME value within the
specified string, and returns the integer value of that position.
So, if DAY_NAME is WED, the LOCATE function returns 10. Sunday
would return 1, Monday 4, Tuesday 7, Wednesday 10, Thursday
13, Friday 16, and Saturday 19. This means that our results would
be in the order we require.
(Note: Some other database systems have a function similar to LOCATE called INSTR.)

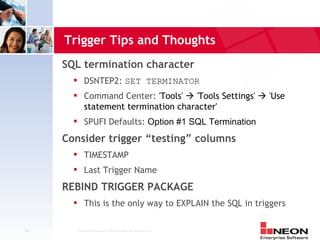

Trigger Tips and Thoughts
SQL termination character
 DSNTEP2: SET TERMINATOR
 Command Center: 'Tools'  'Tools Settings'  'Use
statement termination character'
 SPUFI Defaults: Option #1 SQL Termination
Consider trigger “testing” columns
 TIMESTAMP
 Last Trigger Name
REBIND TRIGGER PACKAGE
 This is the only way to EXPLAIN the SQL in triggers

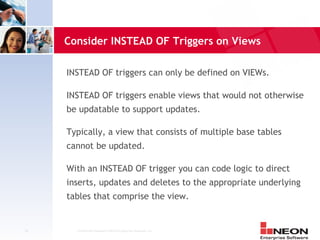

Consider INSTEAD OF Triggers on Views

INSTEAD OF triggers can only be defined on VIEWs.

INSTEAD OF triggers enable views that would not otherwise
be updatable to support updates.

Typically, a view that consists of multiple base tables
cannot be updated.

With an INSTEAD OF trigger you can code logic to direct
inserts, updates and deletes to the appropriate underlying
tables that comprise the view.

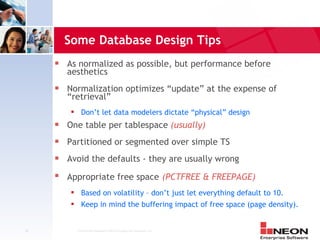

Some Database Design Tips
s As normalized as possible, but performance before
aesthetics
s Normalization optimizes “update” at the expense of
“retrieval”
 Don’t let data modelers dictate “physical” design
s One table per tablespace (usually)
s Partitioned or segmented over simple TS
s Avoid the defaults - they are usually wrong
s
Appropriate free space (PCTFREE & FREEPAGE)
 Based on volatility – don’t just let everything default to 10.
 Keep in mind the buffering impact of free space (page density).


Cluster on Appropriate Columns

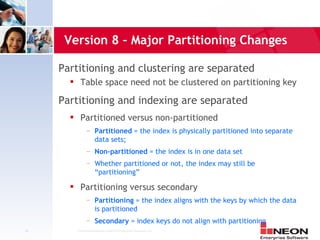

Version 8 – Major Partitioning Changes

Partitioning and clustering are separated
 Table space need not be clustered on partitioning key

Partitioning and indexing are separated
 Partitioned versus non-partitioned
— Partitioned = the index is physically partitioned into separate
data sets;
— Non-partitioned = the index is in one data set
— Whether partitioned or not, the index may still be
“partitioning”
 Partitioning versus secondary
— Partitioning = the index aligns with the keys by which the data
is partitioned
— Secondary = index keys do not align with partitioning

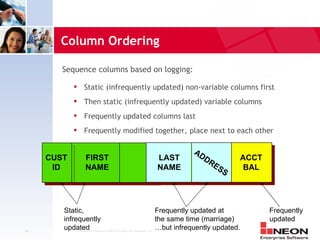

Column Ordering

Sequence columns based on logging:
 Static (infrequently updated) non-variable columns first
 Then static (infrequently updated) variable columns
 Frequently updated columns last
 Frequently modified together, place next to each other

AD
CUST FIRST LAST D RE ACCT
ID NAME NAME S S BAL

Static, Frequently updated at Frequently
infrequently the same time (marriage) updated
45
updated Material of NEON Enterprise Software, Inc. …but infrequently updated.
Confidential

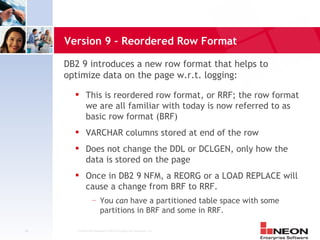

Version 9 – Reordered Row Format

DB2 9 introduces a new row format that helps to
optimize data on the page w.r.t. logging:
 This is reordered row format, or RRF; the row format
we are all familiar with today is now referred to as
basic row format (BRF)
 VARCHAR columns stored at end of the row
 Does not change the DDL or DCLGEN, only how the
data is stored on the page
 Once in DB2 9 NFM, a REORG or a LOAD REPLACE will
cause a change from BRF to RRF.
— You can have a partitioned table space with some
partitions in BRF and some in RRF.

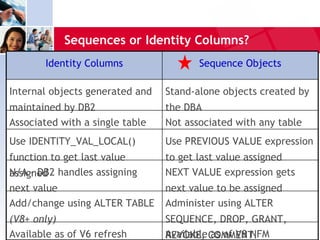

Sequences or Identity Columns?
Identity Columns Sequence Objects

Internal objects generated and Stand-alone objects created by
maintained by DB2 the DBA
Associated with a single table Not associated with any table
Use IDENTITY_VAL_LOCAL() Use PREVIOUS VALUE expression
function to get last value to get last value assigned
N/A – DB2 handles assigning
assigned NEXT VALUE expression gets
next value next value to be assigned
Add/change using ALTER TABLE Administer using ALTER
(V8+ only) SEQUENCE, DROP, GRANT,
Available as of V6 refresh Available COMMENT.
REVOKE, as of V8 NFM

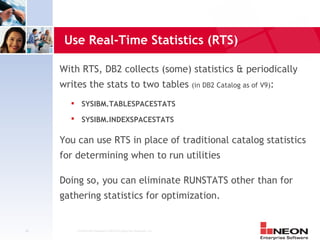

Use Real-Time Statistics (RTS)

With RTS, DB2 collects (some) statistics & periodically
writes the stats to two tables (in DB2 Catalog as of V9):
 SYSIBM.TABLESPACESTATS

SYSIBM.INDEXSPACESTATS

You can use RTS in place of traditional catalog statistics
for determining when to run utilities

Doing so, you can eliminate RUNSTATS other than for
gathering statistics for optimization.


An Hour of DB2 Tips and Techniques

Craig S. Mullins
craig.mullins@neonesoft.com

www.neonesoft.com
www.craigsmullins.com
www.DB2portal.com


An Hour of DB2 Tips

More Related Content

What's hot

Viewers also liked

Similar to An Hour of DB2 Tips

More from Craig Mullins

Recently uploaded

An Hour of DB2 Tips

Editor's Notes
