Presenter: Dean Richards of Confio Software If you're a developer or DBA, this presentation will outline a method for determining the best execution plan for a query every time by utilizing SQL Diagramming techniques. Whether you're a beginner or expert, this approach will save you countless hours tuning a query. You Will Learn: * SQL Tuning Methodology * Response Time Tuning Practices * How to use SQL Diagramming techniques to tune SQL statements * How to read executions plans

1. Microsoft SQL Server
Query Tuning
Query Tuning
Speaker: Dean Richards
Senior DBA, Confio Software
Silicon Valley SQL Server User Group
November 2010
Mark Ginnebaugh, User Group Leader,
mark@designmind.com

2. Query Tuning
Get it Right the First Time
Dean Richards
Senior DBA, Confio Software
2

3. Who Am I?
 Dean Richards, of course!
,
 20+ Years in SQL Server & Oracle
• DBA and Developer
p
 Senior DBA for Confio Software
• DeanRichards@confio.com
• Makers of Ignite8 Response Time Analysis Tools
• http://www.ignitefree.com – only free RTA Tool
 Specialize in Performance Tuning
 Presented at 24 Hours of PASS
 13 SQL Saturdays and counting…
3

4. Agenda
 Introduction
 Which Query Should I Tune
 Query Plans
 SQL Diagramming
• Who registered yesterday for Tuning Class
g y y g
• Check order status
4

5. Why Focus on Queries
 Most Applications
• Read and Write data to/from database
• Simple manipulation and smaller amounts of data
• Inefficiencies would not be noticed
 Most Queries
• Examine larger amounts of data, return a little
• Inefficiencies quickly become bottleneck
 Why Tune Q
y Queries?
• “Gives the most bang for your buck”
• Changes to SQL are usually safer
• ~85% of performance issues are SQL related
5

6. Who Should Tune
 Developers?
p
• Developing applications is very difficult
• Typically focused on functionality
• Not much time left to tune SQL
• Do not get enough practice
• SQL runs differently in Production than Dev/Test
diff tl i P d ti th D /T t
 DBA?
• D not k
Do t know th code lik developers do
the d like d l d
• Focus on “Keep the Lights On”
• Very complex environment
6
 Need a team approach

7. Which SQL
 User / Batch Job Complaints
 Queries Performing Most I/O (LIO PIO)
(LIO,
 Queries Consuming CPU
 Queries Doing Table or Index Scans
 Known Poorly Performing SQL
 Server Side Tracing
 Highest Response Times (Ignite8)
SELECT sql_handle, statement_start_offset,
statement_end_offset, plan_handle, execution_count,
statement end offset, plan handle, execution count,
total_logical_reads, total_physical_reads,
total_elapsed_time, st.text
FROM sys.dm_exec_query_stats AS qs
CROSS APPLY sys.dm_exec_sql_text(qs.sql_handle) AS st
ORDER BY total_elapsed_time DESC
7

8. Why is SQL Slow – Wait States
Focus on Response Time
 Understand the total time a Query spends in Database
 Measure time while Query executes
 SQL Server helps by providing Wait Types
8

9. Wait Time Tables (SQL 2005/8)
http://msdn.microsoft.com/en-us/library/ms188754.aspx
dm_exec_requests dm_exec_query_stats
start_time execution_count
status total_logical_writes
sql_handle total_physical_reads
plan_handle
plan handle total_logical_reads
total logical reads
start/stop offset total_elapsed_time
database_id
user_id
blocking_session dm_exec_query_plan
wait_type
yp query plan
wait_time
dm_exec_text_query_plan
query plan
dm_exec_sessions
login_time
login_name
host_name
dm_exec_sql_text
program_name
program name
text
t t
session_id
9

10. Base Monitoring Query
INSERT INTO SessionWaitInfo
SELECT r.session_id, r.sql_handle, r.statement_start_offset,
i id l h dl t t t t t ff t
r.statement_end_offset, r.plan_handle, r.database_id,
r.blocking_session_id, r.wait_type, r.query_hash,
s.host_name, s.program_name, s.host_process_id,
s.login_name, CURRENT_TIMESTAMP cdt
FROM sys dm exec requests r
sys.dm_exec_requests
INNER JOIN sys.dm_exec_sessions s ON s.session_id = r.session_id
WHERE r.status <> 'background'
AND r.command <> 'AWAITING COMMAND'
d
AND s.session_id > 50
AND s.session_id <> @@SPID
10

11. RTA - Proactive
11

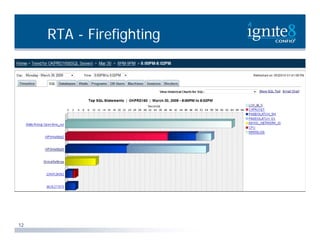

12. RTA - Firefighting
12

13. RTA - Correlation
13

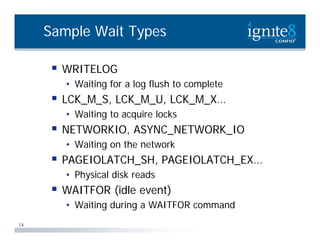

14. Sample Wait Types
 WRITELOG
• Waiting for a log flush to complete
 LCK_M_S, LCK_M_U, LCK_M_X…
• Waiting to acquire locks
 NETWORKIO, ASYNC_NETWORK_IO
• Waiting on the network
 PAGEIOLATCH_SH, PAGEIOLATCH_EX…
• Physical disk reads
 WAITFOR (idle event)
• W i i during a WAITFOR command
Waiting d i d
14

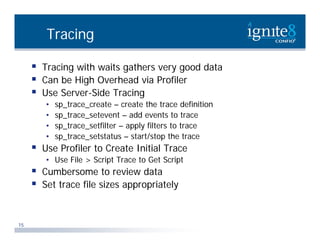

15. Tracing
 Tracing with waits gathers very good data
 C be High Overhead via Profiler
Can b Hi h O h d i P fil
 Use Server-Side Tracing
• sp_trace_create – create the trace definition
p_ _
• sp_trace_setevent – add events to trace
• sp_trace_setfilter – apply filters to trace
• sp_t ace_setstatus sta t/stop the trace
sp trace setstatus – start/stop t e t ace
 Use Profiler to Create Initial Trace
• Use File > Script Trace to Get Script
 Cumbersome to review data
 Set trace file sizes appropriately
15

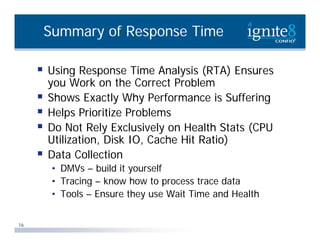

16. Summary of Response Time
 Using Response Time Analysis (RTA) Ensures
you Work on the Correct Problem
 Shows Exactly Why Performance is Suffering
 Helps Prioritize Problems
l bl
 Do Not Rely Exclusively on Health Stats (CPU
Utilization,
Utilization Disk IO Cache Hit Ratio)
IO,
 Data Collection
• DMVs – build it yourself
• Tracing – know how to process trace data
• Tools – Ensure they use Wait Time and Health
16

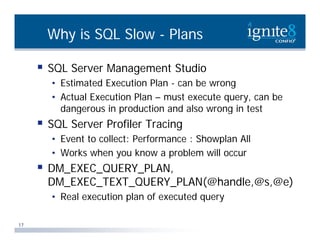

17. Why is SQL Slow - Plans
 SQL Server Management Studio
• Estimated Execution Plan - can be wrong
• Actual Execution Plan – must execute query, can be
dangerous in production and also wrong in test
 SQL Server Profiler Tracing
• Event to collect: Performance : Showplan All
• Works when you know a problem will occur
 DM EXEC QUERY PLAN
DM_EXEC_QUERY_PLAN,
DM_EXEC_TEXT_QUERY_PLAN(@handle,@s,@e)
• Real execution plan of executed query
p q y
17

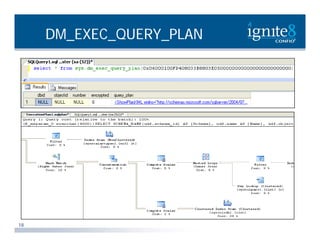

18. DM_EXEC_QUERY_PLAN
18

19. Case Studies
 SQL Diagramming
Q g g
• Who registered yesterday for Tuning Class
• Check order status
19

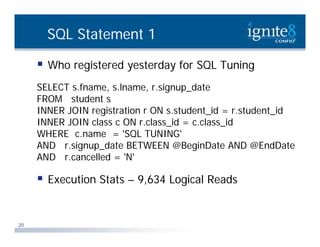

20. SQL Statement 1
 Who registered yesterday for SQL Tuning
SELECT s.fname, s.lname, r.signup_date
FROM student s
INNER JOIN registration r ON s.student_id = r.student_id
i t ti t d t id t d t id
INNER JOIN class c ON r.class_id = c.class_id
WHERE c.name = 'SQL TUNING'
AND r.signup_date BETWEEN @BeginDate AND @EndDate
AND r.cancelled = 'N'
 Execution Stats – 9,634 Logical Reads
20

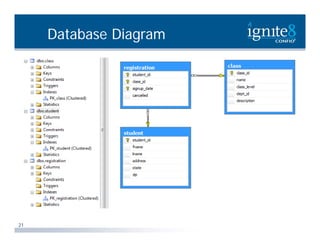

21. Database Diagram
21

22. Execution Plan
Recommendation from SSMS
R d ti f
CREATE NONCLUSTERED INDEX [<Name of Missing Index>]
ON [dbo].[registration] ([cancelled],[signup_date])
INCLUDE ([student_id],[class_id])
([student id] [class id])
22

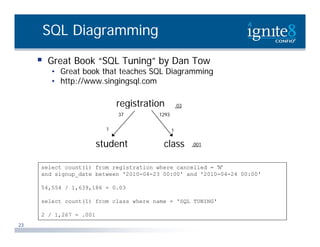

23. SQL Diagramming
 Great Book “SQL Tuning” by Dan Tow
• Great book that teaches SQL Diagramming
• http://www.singingsql.com
registration
g .03
37 1293
1 1
student class .001
select count(1) from registration where cancelled = 'N'
and signup_date between '2010-04-23 00:00' and '2010-04-24 00:00'
54,554 / 1,639,186 = 0.03
select count(1) from class where name = 'SQL TUNING
SQL TUNING'
2 / 1,267 = .001
23

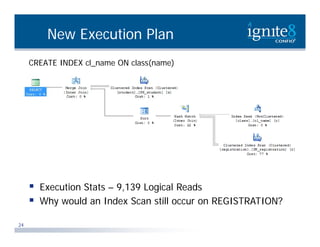

24. New Execution Plan
CREATE INDEX cl_name ON class(name)
 Execution Stats – 9,139 Logical Reads
 Why would an Index Scan still occur on REGISTRATION?
24

25. Database Diagram
25

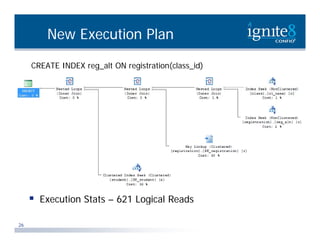

26. New Execution Plan
CREATE INDEX reg_alt ON registration(class_id)
 Execution Stats – 621 Logical Reads
26

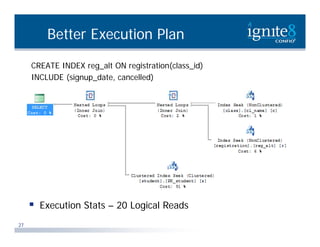

27. Better Execution Plan
CREATE INDEX reg_alt ON registration(class_id)
INCLUDE (signup_date, cancelled)
(signup date
 Execution Stats – 20 Logicall Reads
d
27

28. Alternative from SSMS
CREATE INDEX reg_can ON registration(cancelled, signup_date)
INCLUDE (class_id, student_id)
 Execution Stats – 595 Logical Reads
CREATE NONCLUSTERED INDEX [<Name of Missing Index>]
ON [dbo].[registration] ([class_id],[cancelled],[signup_date])
28
INCLUDE ([student_id])

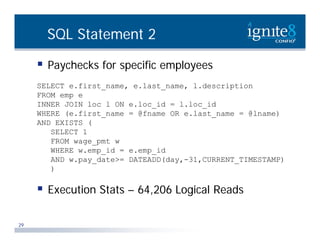

29. SQL Statement 2
 Paychecks for specific employees
SELECT e.first_name, e.last_name, l.description
FROM emp e
INNER JOIN loc l ON e.loc_id = l.loc_id
WHERE (e.first_name = @fname OR e.last_name = @lname)
AND EXISTS (
SELECT 1
FROM wage_pmt w
t
WHERE w.emp_id = e.emp_id
AND w.pay_date>= DATEADD(day,-31,CURRENT_TIMESTAMP)
)
 Execution Stats – 64,206 Logical Reads
29

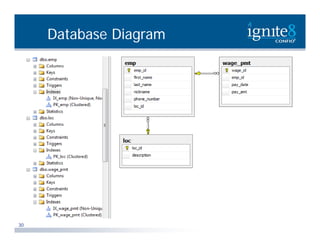

30. Database Diagram
30

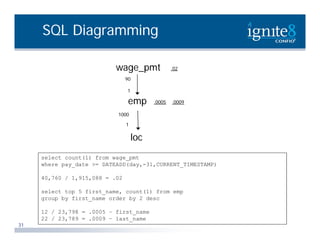

31. SQL Diagramming
wage_pmt .02
90
1
emp .0005 .0009
1000
1
loc
select count(1) from wage_pmt
where pay_date >= DATEADD(day,-31,CURRENT_TIMESTAMP)
40,760 / 1,915,088 = .02
select top 5 first_name, count(1) from emp
group by first_name order by 2 desc
12 / 23,798 = .0005 – first_name
22 / 23,789 = .0009 – last_name
31

32. Execution Plan
32

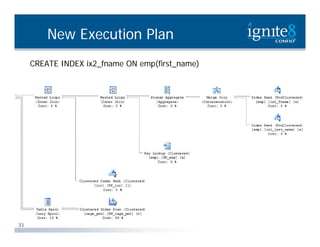

33. New Execution Plan
CREATE INDEX ix2_fname ON emp(first_name)
33

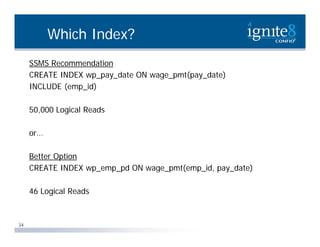

34. Which Index?
SSMS Recommendation
CREATE INDEX wp pay date ON wage pmt(pay date)
wp_pay_date wage_pmt(pay_date)
INCLUDE (emp_id)
50,000 L i l R d
50 000 Logical Reads
or…
Better Option
CREATE INDEX wp emp pd ON wage pmt(emp id, pay_date)
wp_emp_pd wage_pmt(emp_id, pay date)
46 Logical Reads
34

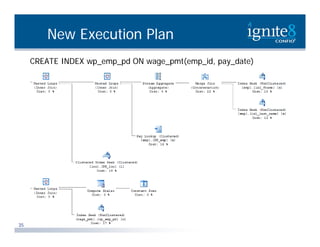

35. New Execution Plan
CREATE INDEX wp_emp_pd ON wage_pmt(emp_id, pay_date)
35

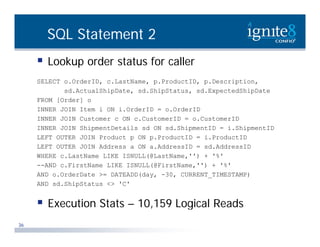

36. SQL Statement 2
 Lookup order status for caller
SELECT o.OrderID, c.LastName, p.ProductID, p.Description,
sd.ActualShipDate, sd.ShipStatus, sd.ExpectedShipDate
FROM [Order] o
INNER JOIN Item i ON i.OrderID = o.OrderID
It i O d ID O d ID
INNER JOIN Customer c ON c.CustomerID = o.CustomerID
INNER JOIN ShipmentDetails sd ON sd.ShipmentID = i.ShipmentID
LEFT OUTER JOIN Product p ON p.ProductID = i.ProductID
LEFT OUTER JOIN Address a ON a.AddressID = sd.AddressID
WHERE c.LastName LIKE ISNULL(@LastName,'') + '%'
--AND c.FirstName LIKE ISNULL(@FirstName,'') + '%'
AND o.OrderDate >= DATEADD(day, -30, CURRENT_TIMESTAMP)
AND sd.ShipStatus <> 'C'
 Execution Stats – 10 159 Logical Reads
10,159
36

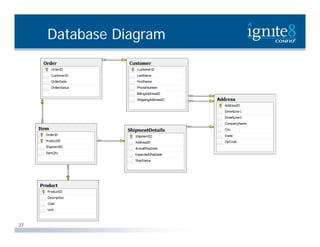

37. Database Diagram
37

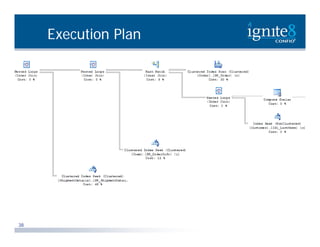

38. Execution Plan
38

39. SQL Diagramming
o .08 .005
i c .03
sd p
a
SELECT COUNT(1)*1.0/(SELECT COUNT(1) FROM Customer) FROM Customer
WHERE LastName LIKE 'SMI%'
.03
SELECT COUNT(1)*1.0/(SELECT COUNT(1) FROM [Order]) FROM [Order]
WHERE OrderDate >= DATEADD(day, -30, CURRENT_TIMESTAMP)
.08
SELECT COUNT(1)*1.0/(SELECT COUNT(1) FROM [Order]) FROM [Order]
WHERE OrderStatus <> 'C'
.005
-- Combined
.005
39

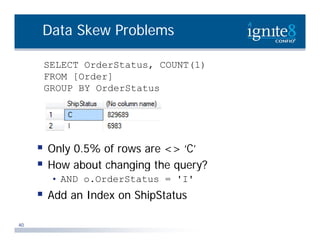

40. Data Skew Problems
SELECT OrderStatus, COUNT(1)
FROM [Order]
GROUP BY OrderStatus
 Only 0.5% of rows are <> ‘C’
 How about changing the query?
g g q y
• AND o.OrderStatus = 'I'
 Add an Index on ShipStatus
40

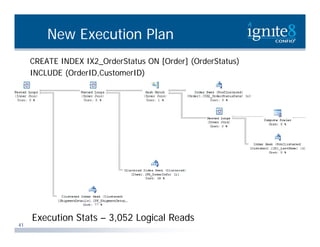

41. New Execution Plan
CREATE INDEX IX2_OrderStatus ON [Order] (OrderStatus)
INCLUDE (OrderID,CustomerID)
( , )
Execution Stats – 3,052 Logical Reads
41

42. Takeaway Points
 Tuning Queries gives more “bang for the buck”
 M k sure you are tuning the correct query
Make t i th t
 Use Wait Types and Response Time Analysis
• L ki problems may not be a Query Tuning issue
Locking bl b Q T i i
• Wait types tell you where to start
 Use “Real Execution Plans”
• Get plan_handle from DM_EXEC_REQUESTS
• Pass plan handle to DM_EXEC_QUERY_PLAN()
plan_handle DM EXEC QUERY PLAN()
 SQL Diagramming - “Get it right the First Time”
• Query Tuner Tools can mislead you

43. Confio Software
 Wait-Based Performance Tools
 Igniter Suite
• Ignite for SQL Server, Oracle, DB2, Sybase
g Q , , , y
• Ignite for Databases on VMWare (Beta)
 Helps show which SQL to tune
 Provides visibility into entire stack
 Based in Colorado, worldwide customers
,
 Free trial at www.confio.com
43

44. To learn more or inquire about speaking opportunities, please contact:
Mark Ginnebaugh, User Group Leader
mark@designmind.com
http://www.meetup.com/The‐SiliconValley‐SQL‐Server‐User‐Group/
