An End-to-End Spark-Based Machine Learning Stack in the Hybrid Cloud with Farhan Abrol
The document discusses the development and benefits of an end-to-end Spark-based data stack in a hybrid cloud environment. It highlights challenges such as historical data processing speed, AWS cost trends, and provides solutions for improved resource utilization and performance. Additionally, it concludes that on-premises infrastructure can mitigate costs while supporting diverse workloads and capabilities.
More Related Content
Similar to An End-to-End Spark-Based Machine Learning Stack in the Hybrid Cloud with Farhan Abrol
An End-to-End Spark-Based Machine Learning Stack in the Hybrid Cloud with Farhan Abrol
- 1. Farhan Abrol Product Lead,Pure Storage An end-to-end Spark based data stack in the hybrid cloud #HWCSAIS12 fabrol92@gmail.com @F_Abrol www.linkedin.com/in/fabrol

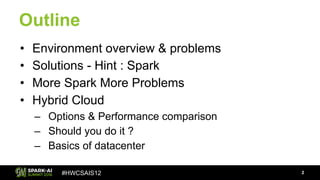

- 2. #HWCSAIS12 Outline • Environment overview& problems • Solutions - Hint : Spark • More Spark More Problems • Hybrid Cloud – Options & Performance comparison – Should you do it ? – Basics of datacenter 2

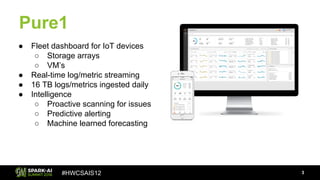

- 3. #HWCSAIS12 Pure1 3 ● Fleet dashboardfor IoT devices ○ Storage arrays ○ VM’s ● Real-time log/metric streaming ● 16 TB logs/metrics ingested daily ● Intelligence ○ Proactive scanning for issues ○ Predictive alerting ○ Machine learned forecasting
- 4. #HWCSAIS12 S3 S3 Infrequent Access FUSEFilesystem Ad-Hoc analysis by Engineering Continuous or Daily ETL Historical Grep Machine Learning Logs are king S3 4
- 5. #HWCSAIS12 Problems - Speed ofrunning historical greps - Bottlenecked on single machine throughput - Resource wastage for ETL machines - Code/maintenance for new ETL jobs - Becoming a monolith - ML training time - As data grows, taking 8-12 hours 5

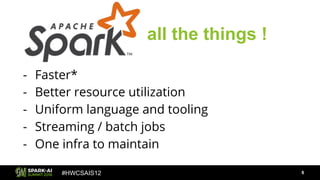

- 6. #HWCSAIS12 all the things! - Faster* - Better resource utilization - Uniform language and tooling - Streaming / batch jobs - One infra to maintain 6
- 7.
- 8. #HWCSAIS12 8 Spark Driver SparkExecutor Spark Executor Spark Executor Spark Executor rgrep “xyz” --obj-id 100 --start-date=5/13/18 --end-date=5/18/18 05/13/2018 - 5/14/2018 05/14/2018 - 5/15/2018 05/15/2018 - 5/16/2018 05/16/2018 - 5/17/2018 Grep -> Distributed grep on Spark
- 9.

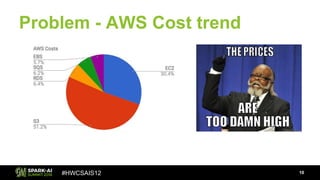

- 10. #HWCSAIS12 Problem - AWSCost trend 10
- 11.
- 12. #HWCSAIS12 Hybrid Cloud Data Centerwith HW Direct-Connect Dedicated 10G private fiber link EC2 VM EC2 VM Pure LUN Pure FS Switch Switch 500 TB 12

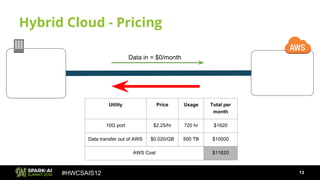

- 13. #HWCSAIS12 Hybrid Cloud -Pricing Data in = $0/month Utility Price Usage Total per month 10G port $2.25/hr 720 hr $1620 Data transfer out of AWS $0.020/GB 500 TB $10000 AWS Cost $11620 13

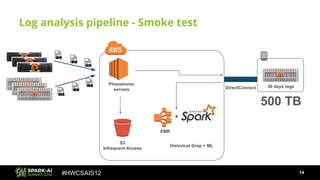

- 14. #HWCSAIS12 Log analysis pipeline- Smoke test Phonehome servers S3 Infrequent Access DirectConnect 30 days logs EMR + Historical Grep + ML 500 TB 14

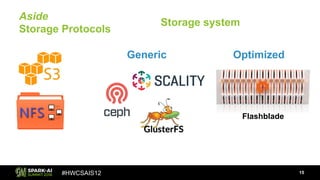

- 15. #HWCSAIS12 Aside Storage Protocols Storage system GenericOptimized Flashblade 15
- 16. #HWCSAIS12 16 AWS Only EMR Amazon S3 EMR Switch Switch Hybridwith EC2 Hybrid with Local Compute 5ms-20ms 500 TB 500 TB

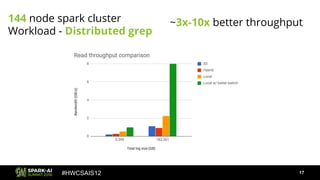

- 17. #HWCSAIS12 144 node sparkcluster Workload - Distributed grep ~3x-10x better throughput 17
- 18. #HWCSAIS12 18 Good for -Read heavy workloads - Latency insensitive workloads - Low Bandwidth workloads EMR Switch Hybrid with EC2 5ms-20ms 500 TB Performance Costs - Link latency - Cloud networking stack

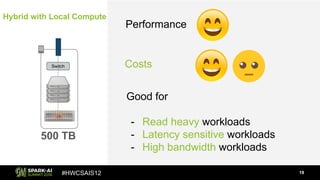

- 19. #HWCSAIS12 19 Switch Hybrid withLocal Compute 500 TB Good for - Read heavy workloads - Latency sensitive workloads - High bandwidth workloads Performance Costs

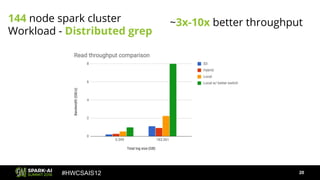

- 20. #HWCSAIS12 144 node sparkcluster Workload - Distributed grep ~3x-10x better throughput 20

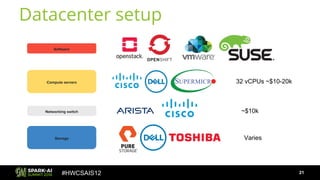

- 21. #HWCSAIS12 Datacenter setup 21 Networking switch Storage Computeservers ~$10k 32 vCPUs ~$10-20k Varies Software

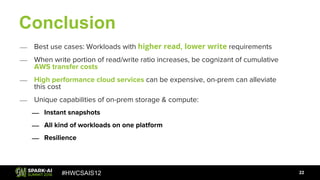

- 22. #HWCSAIS12 Conclusion 22 ⎯ Best usecases: Workloads with higher read, lower write requirements ⎯ When write portion of read/write ratio increases, be cognizant of cumulative AWS transfer costs ⎯ High performance cloud services can be expensive, on-prem can alleviate this cost ⎯ Unique capabilities of on-prem storage & compute: ⎯ Instant snapshots ⎯ All kind of workloads on one platform ⎯ Resilience
