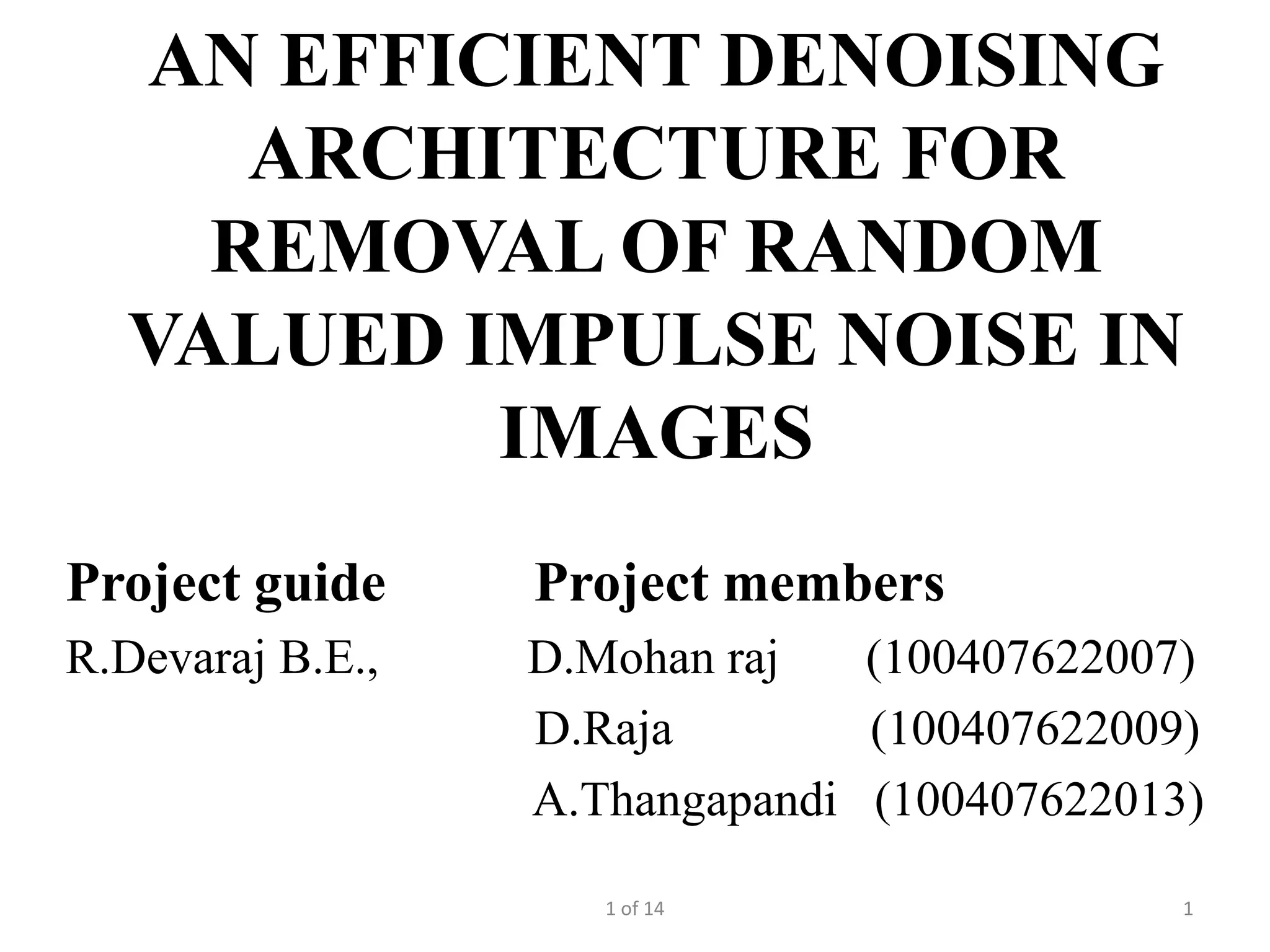

1. AN EFFICIENT DENOISING
ARCHITECTURE FOR
REMOVAL OF RANDOM
VALUED IMPULSE NOISE IN
IMAGES
Project guide Project members
R.Devaraj B.E., D.Mohan raj (100407622007)
D.Raja (100407622009)
A.Thangapandi (100407622013)
1 of 14 1

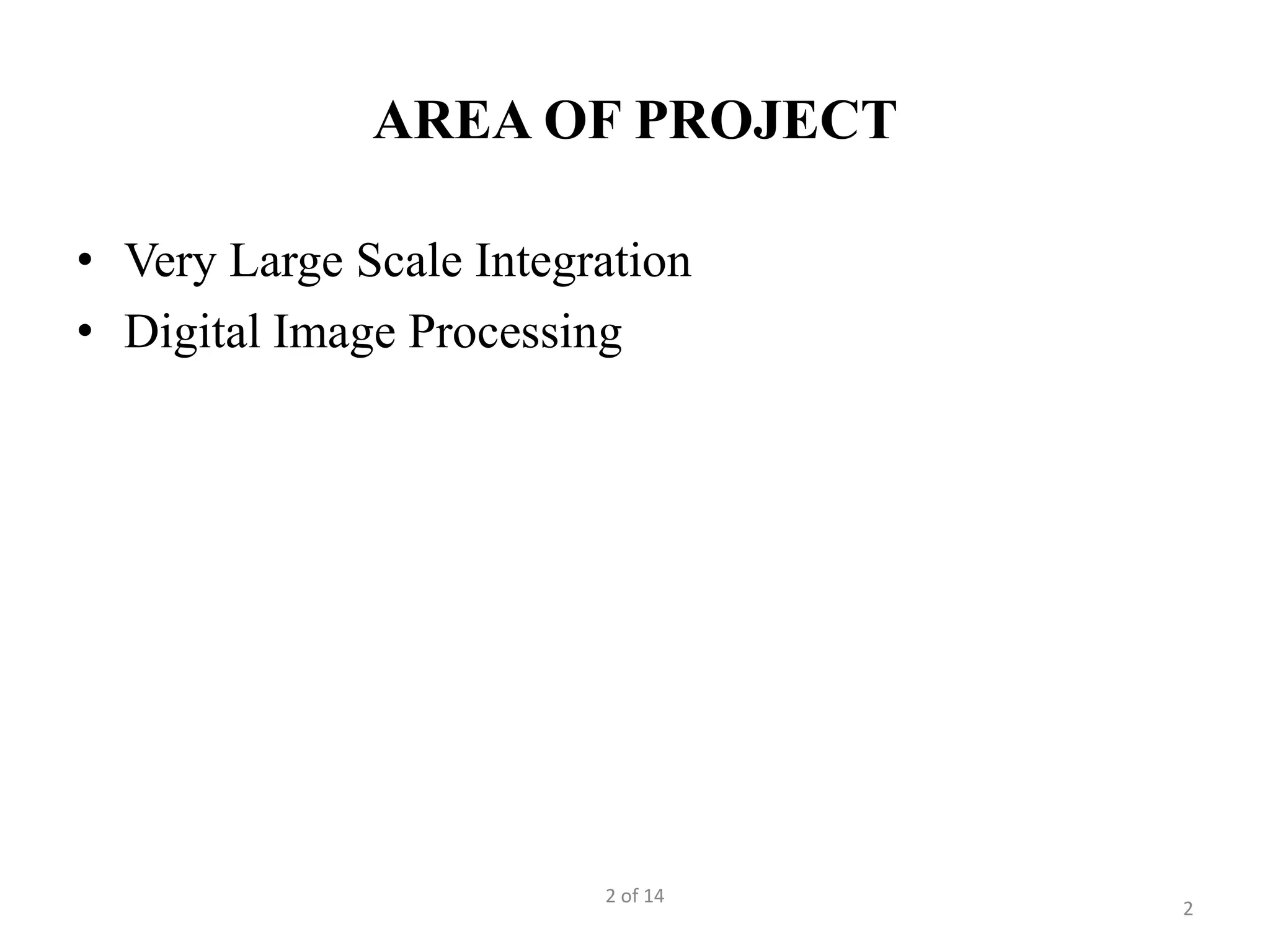

2. AREA OF PROJECT
• Very Large Scale Integration
• Digital Image Processing
2 of 14
2

3. ABSTRACT
• An efficient denoising scheme and its VLSI
architecture for the removal of random-valued
impulse noise
• A decision-tree-based impulse noise detector to detect
the noisy pixels
• Edge-preserving filter to reconstruct the intensity
values of noisy pixels
3 of 14
3

4. EXISTING SYSTEM
• ATMBM[Alpha Trimmed Mean Based Method]
• DRID[Differential Rank Impulse Detector]
• RORD-WMF[Rank Order Relative Difference –
Wavelet Median Filter]
4 of 14
4

5. DRAWBACKS
• Lower performance
• Higher complexity
• Full frame buffer
5 of 14 5

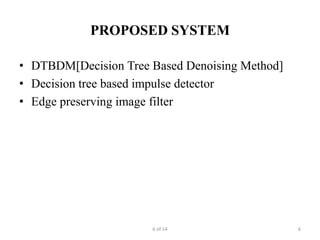

6. PROPOSED SYSTEM
• DTBDM[Decision Tree Based Denoising Method]
• Decision tree based impulse detector
• Edge preserving image filter
6 of 14 6

7. BLOCK DIAGRAM
0 controller
Odd 1 decision
1 line register Edge
tree based
0 buffer 1 bank preserving
impulse
0 filter
detector
Even
0 line Output
1 buffer image
Input
7 of 14 7

8. EXPLANATION
LINE BUFFER
• Odd line buffer and even line buffer are used to store
the pixel at odd and even rows respectively
REGISTER BANK
• It consists of nine register
• To store the 3x3 pixel values of the current mask
8 of 14 8

9. CONT…
DECISION TREE BASED IMPULSE DETECTOR
• The decision tree is a binary tree and can determine the
status of pi,j by using the different equations in different
modules
EDGE PRESERVING FILTER
• To reconstruct the intensity values of noisy pixels
• adaptive technology is used to enhance the effects of
removal of impulse noise
9 0f 14 9

10. CONT…

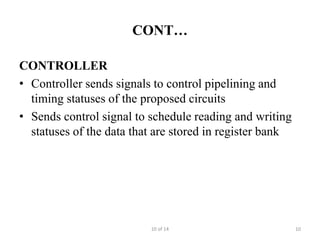

CONTROLLER
• Controller sends signals to control pipelining and
timing statuses of the proposed circuits
• Sends control signal to schedule reading and writing
statuses of the data that are stored in register bank
10 of 14 10

11. ADVANTAGES
• Two line memory buffer
• Low complexity technique
• It requires simple computations
• It remove the noise from corrupted images efficiently
and requires no previous training
• Better performance
11 of 14 11

12. APPLICATIONS
• Medical imaging
• Scanning techniques
• Face recognition
12 of 14 12

13. CONCLUSION
• Decision-tree-based detector to detect the noisy pixel
and employs an effective design to locate the edge
• The VLSI architecture of our design yields a
processing rate of about 200 mhz
• It requires only low computational complexity and
two line memory buffers
13 Of 14 13
