The document discusses a project to design a hybrid energy system using wind and solar sources to power a thermoelectric refrigerator and radio. The system was tested and found to be a viable alternative energy option for outdoor and remote applications. Some improvements were identified, such as increasing the size of the wind turbine's stepper motor and making the overall system more portable. The hybrid system was determined to be more efficient than standalone solar or wind systems.

1. Alternative Energy: A Closer look at Hybrid Energy Systems using wind and solar sources. EGR466: Winter 2008 Keon Atkins Jacob Henderson Shanda Stanley Faculty Advisor: Dr. Quamrul Mazumder

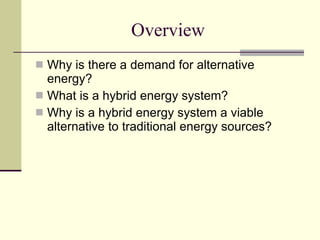

2. Overview Why is there a demand for alternative energy? What is a hybrid energy system? Why is a hybrid energy system a viable alternative to traditional energy sources?

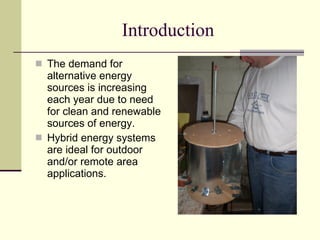

3. Introduction The demand for alternative energy sources is increasing each year due to need for clean and renewable sources of energy. Hybrid energy systems are ideal for outdoor and/or remote area applications.

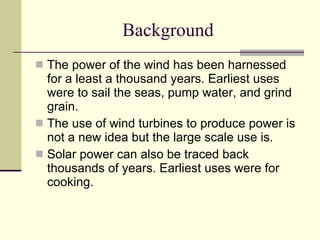

4. Background The power of the wind has been harnessed for a least a thousand years. Earliest uses were to sail the seas, pump water, and grind grain. The use of wind turbines to produce power is not a new idea but the large scale use is. Solar power can also be traced back thousands of years. Earliest uses were for cooking.

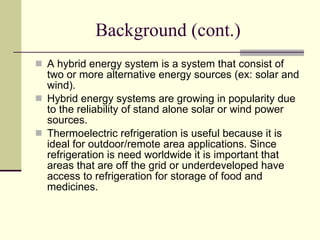

5. Background (cont.) A hybrid energy system is a system that consist of two or more alternative energy sources (ex: solar and wind). Hybrid energy systems are growing in popularity due to the reliability of stand alone solar or wind power sources. Thermoelectric refrigeration is useful because it is ideal for outdoor/remote area applications. Since refrigeration is need worldwide it is important that areas that are off the grid or underdeveloped have access to refrigeration for storage of food and medicines.

6. Objective Asked to design a device using an alternative energy source (ex: wind, water, solar) The system must be designed, manufactured, and tested by April 21 st , 2008. The budget for the project is $500. Which includes designing, testing, parts/supplies, and manufacturing.

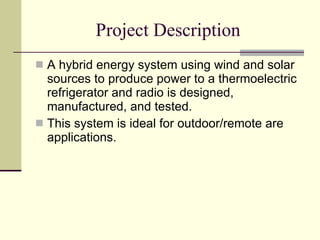

7. Project Description A hybrid energy system using wind and solar sources to produce power to a thermoelectric refrigerator and radio is designed, manufactured, and tested. This system is ideal for outdoor/remote are applications.

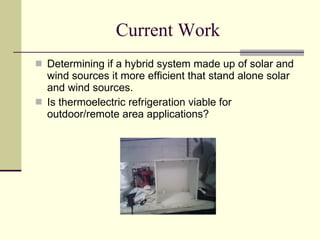

8. Current Work Determining if a hybrid system made up of solar and wind sources it more efficient that stand alone solar and wind sources. Is thermoelectric refrigeration viable for outdoor/remote area applications?

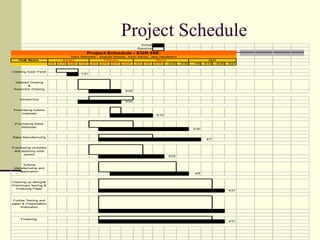

9. Project Schedule

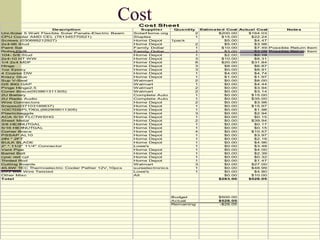

10. Cost

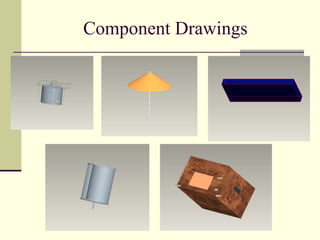

11. Component Drawings

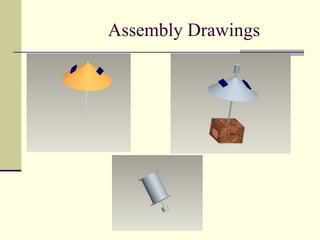

12. Assembly Drawings

13. Analysis (Hand Calculations) M = (200 lbf)(3 ft) = 600 ft – lb R = - F = - (-200 lbf) V = 200 lbf I = 1/12 bh3 = 1/12 *(36*363) - 1/12 *(33*333) = 41141.25 in3 σ = Mc/I = (600 ft – lb)(12in)(18 in)/ 41141.25 in3 = 3.15 psi τ = VQ/IB = 200 lbf (36*36)(17.25) / (1.5*41141.25 ) = 72.45 psi σ1, σ2 = (σ x + σ y / 2) ± √(σ x - σ y / 2) + τ xy = 1.575 ± 72.47 = 74.04 , -70.89 psi σ’ = √ σ x 2 - σ x σ y + σ y 2 + 3τ xy 2 = 162.937 psi

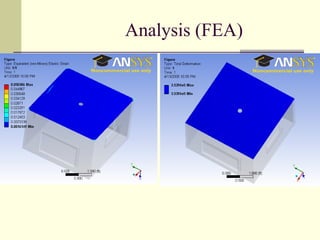

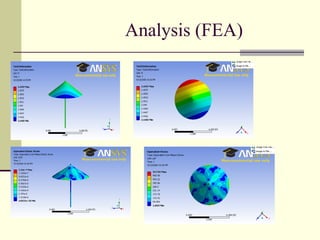

14. Analysis (FEA)

15. Analysis (FEA)

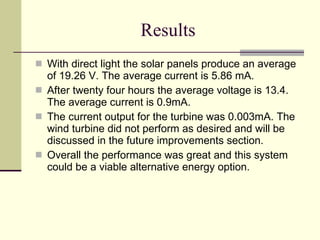

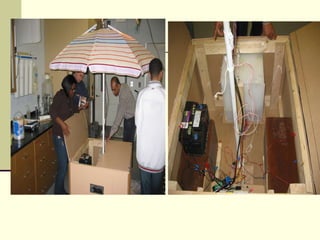

16. Results With direct light the solar panels produce an average of 19.26 V. The average current is 5.86 mA. After twenty four hours the average voltage is 13.4. The average current is 0.9mA. The current output for the turbine was 0.003mA. The wind turbine did not perform as desired and will be discussed in the future improvements section. Overall the performance was great and this system could be a viable alternative energy option.

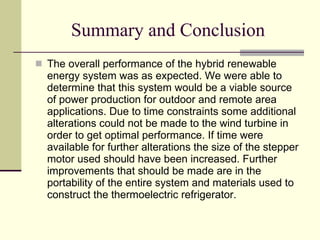

17. Summary and Conclusion The overall performance of the hybrid renewable energy system was as expected. We were able to determine that this system would be a viable source of power production for outdoor and remote area applications. Due to time constraints some additional alterations could not be made to the wind turbine in order to get optimal performance. If time were available for further alterations the size of the stepper motor used should have been increased. Further improvements that should be made are in the portability of the entire system and materials used to construct the thermoelectric refrigerator.

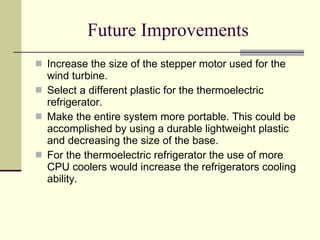

18. Future Improvements Increase the size of the stepper motor used for the wind turbine. Select a different plastic for the thermoelectric refrigerator. Make the entire system more portable. This could be accomplished by using a durable lightweight plastic and decreasing the size of the base. For the thermoelectric refrigerator the use of more CPU coolers would increase the refrigerators cooling ability.

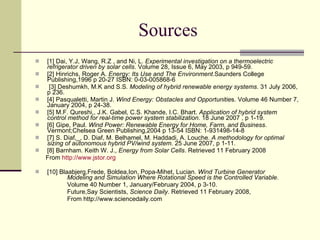

19. Sources [1] Dai, Y.J, Wang, R.Z , and Ni, L. Experimental investigation on a thermoelectric refrigerator driven by solar cells . Volume 28, Issue 6, May 2003, p 949-59. [2] Hinrichs, Roger A. Energy: Its Use and The Environment .Saunders College Publishing,1996 p 20-27 ISBN: 0-03-005868-6 [3] Deshumkh, M.K and S.S. Modeling of hybrid renewable energy systems . 31 July 2006, p 236. [4] Pasqualetti, Martin J. Wind Energy: Obstacles and Opportunitie s. Volume 46 Number 7, January 2004, p 24-38. [5] M.F. Qureshi,, J.K. Gabel, C.S. Khande, I.C. Bhart. Application of hybrid system control method for real-time power system stabilization . 18 June 2007 , p 1-19. [6] Gipe, Paul. Wind Power: Renewable Energy for Home, Farm, and Business . Vermont;Chelsea Green Publishing,2004 p 13-54 ISBN: 1-931498-14-8 [7] S. Diaf,_, D. Diaf, M. Belhamel, M. Haddadi, A. Louche. A methodology for optimal sizing of autonomous hybrid PV/wind system. 25 June 2007, p 1-11. [8] Barnham. Keith W. J., Energy from Solar Cells . Retrieved 11 February 2008 From http://www.jstor.org [10] Blaabjerg,Frede, Boldea,Ion, Popa-Mihet, Lucian. Wind Turbine Generator Modeling and Simulation Where Rotational Speed is the Controlled Variable . Volume 40 Number 1, January/February 2004, p 3-10. Future,Say Scientists, Science Daily . Retrieved 11 February 2008, From http://www.sciencedaily.com
