This document discusses application lifecycle management (ALM) and how it can be implemented using various tools. ALM aims to integrate the different phases of software development like requirements management, coding, testing and release management. It promotes collaboration and automation across tools and teams. Popular ALM solutions mentioned include IBM Rational Jazz, Microsoft Visual Studio Team System, VersionOne and Atlassian. Implementing ALM requires choosing tools, establishing processes and coaching teams.

1. Application Lifecycle Management FundamentalTech Asset TeamDaewoong Kim(iamdanielkim@daumcorp.com)

2. Our Wish : Project Success

3. Development is My Life.Life is struggle

4. Death MarchRequirement changingOvertimeUnfinishingNobody Know …

5. Life IsSolitude

7. …..........Project Fail..

8. Let’s Know Secret of SuccessMethodologiesAupScrumXPLean…

10. But We Are …

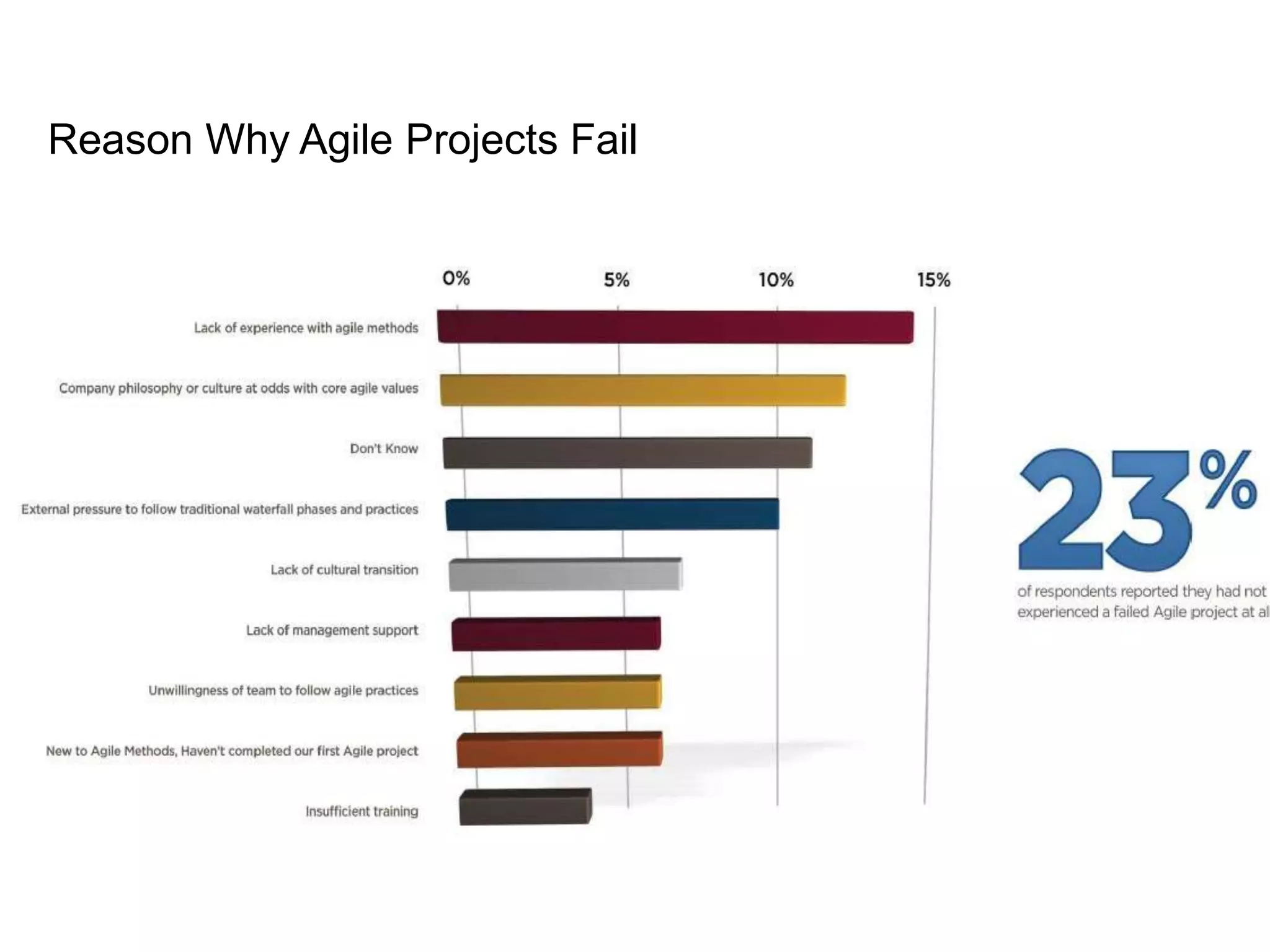

11. Reason Why Agile Projects Fail

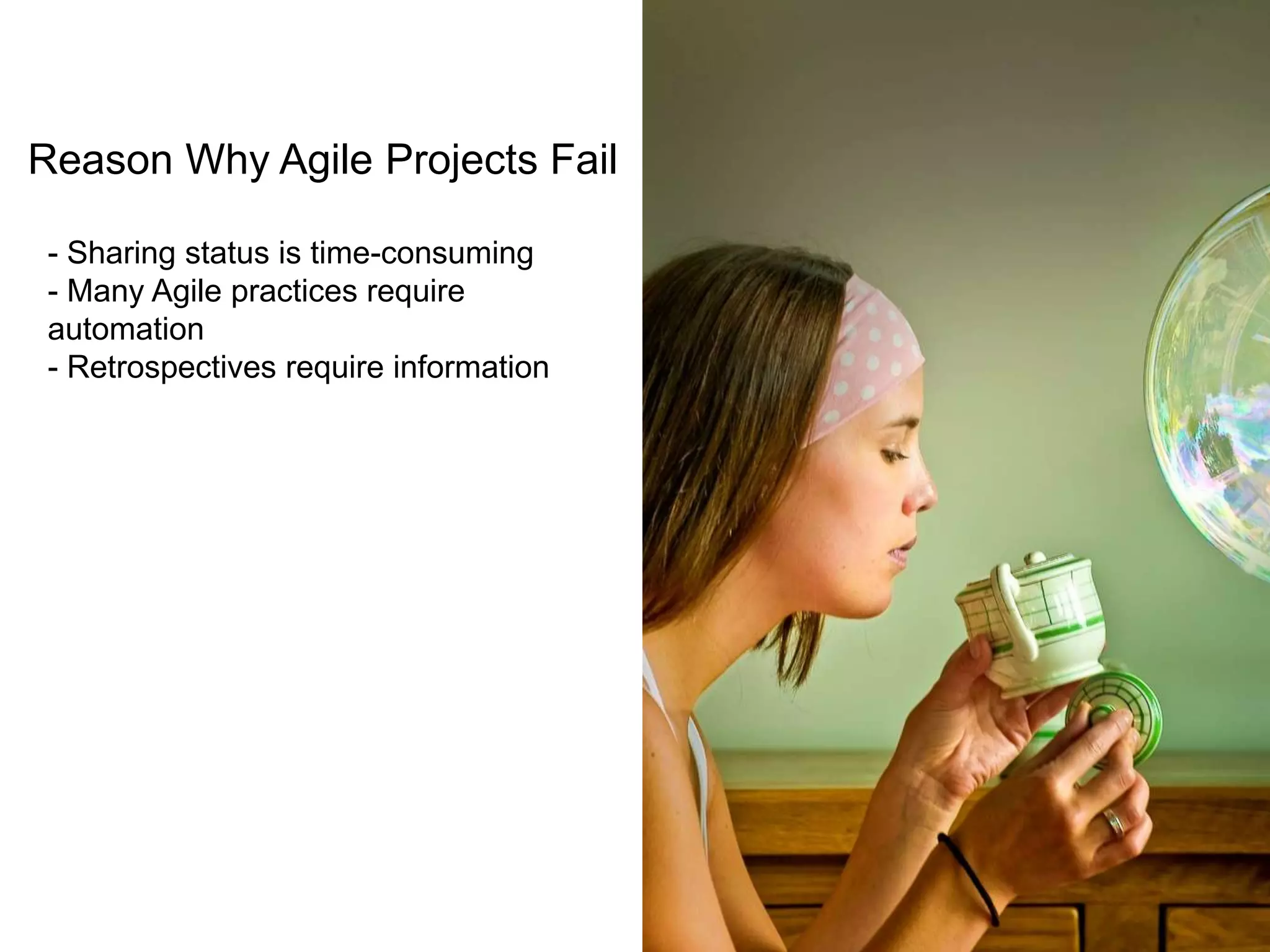

12. Reason Why Agile Projects Fail- Sharing status is time-consuming- Many Agile practices require automation- Retrospectives require information

13. What For us? New Approach : ALM

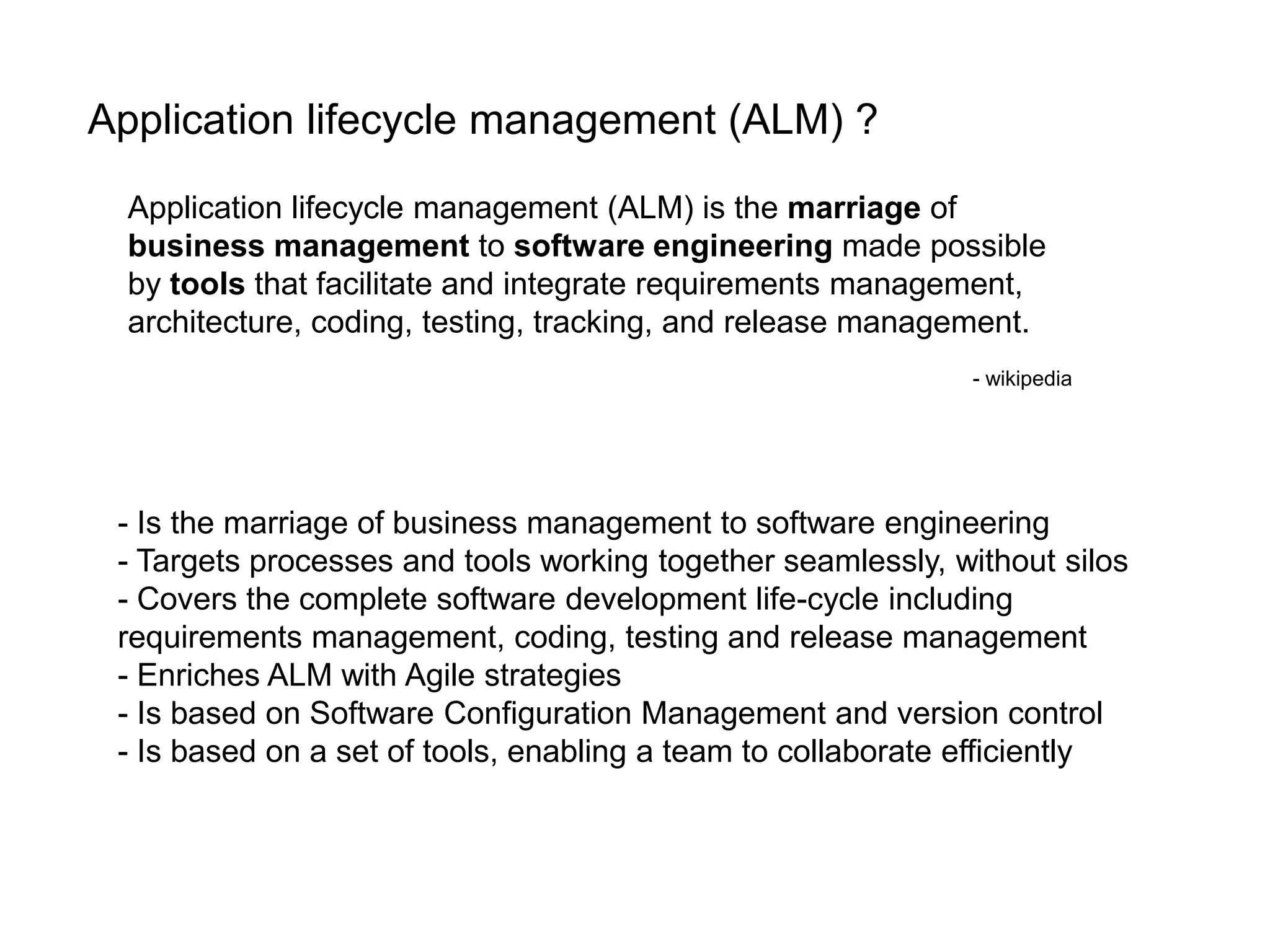

14. Application lifecycle management (ALM) ?Application lifecycle management (ALM) is the marriage of business management to software engineering made possible by tools that facilitate and integrate requirements management, architecture, coding, testing, tracking, and release management. - wikipedia- Is the marriage of business management to software engineering- Targets processes and tools working together seamlessly, without silos- Covers the complete software development life-cycle including requirements management, coding, testing and release management- Enriches ALM with Agile strategies- Is based on Software Configuration Management and version control- Is based on a set of tools, enabling a team to collaborate efficiently

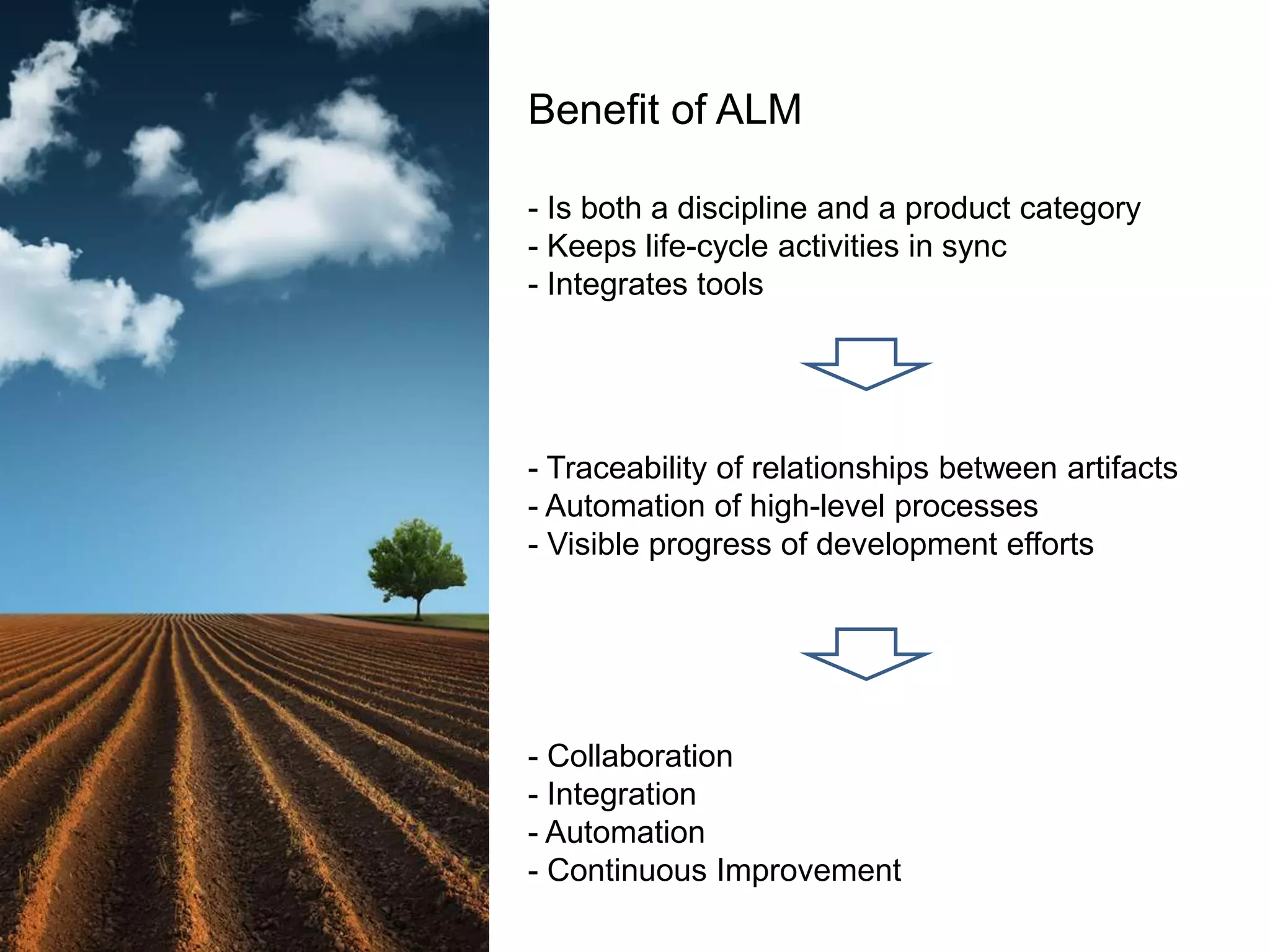

15. Benefit of ALM - Is both a discipline and a product category- Keeps life-cycle activities in sync- Integrates tools- Traceability of relationships between artifacts- Automation of high-level processes- Visible progress of development efforts - Collaboration Integration

16. Automation

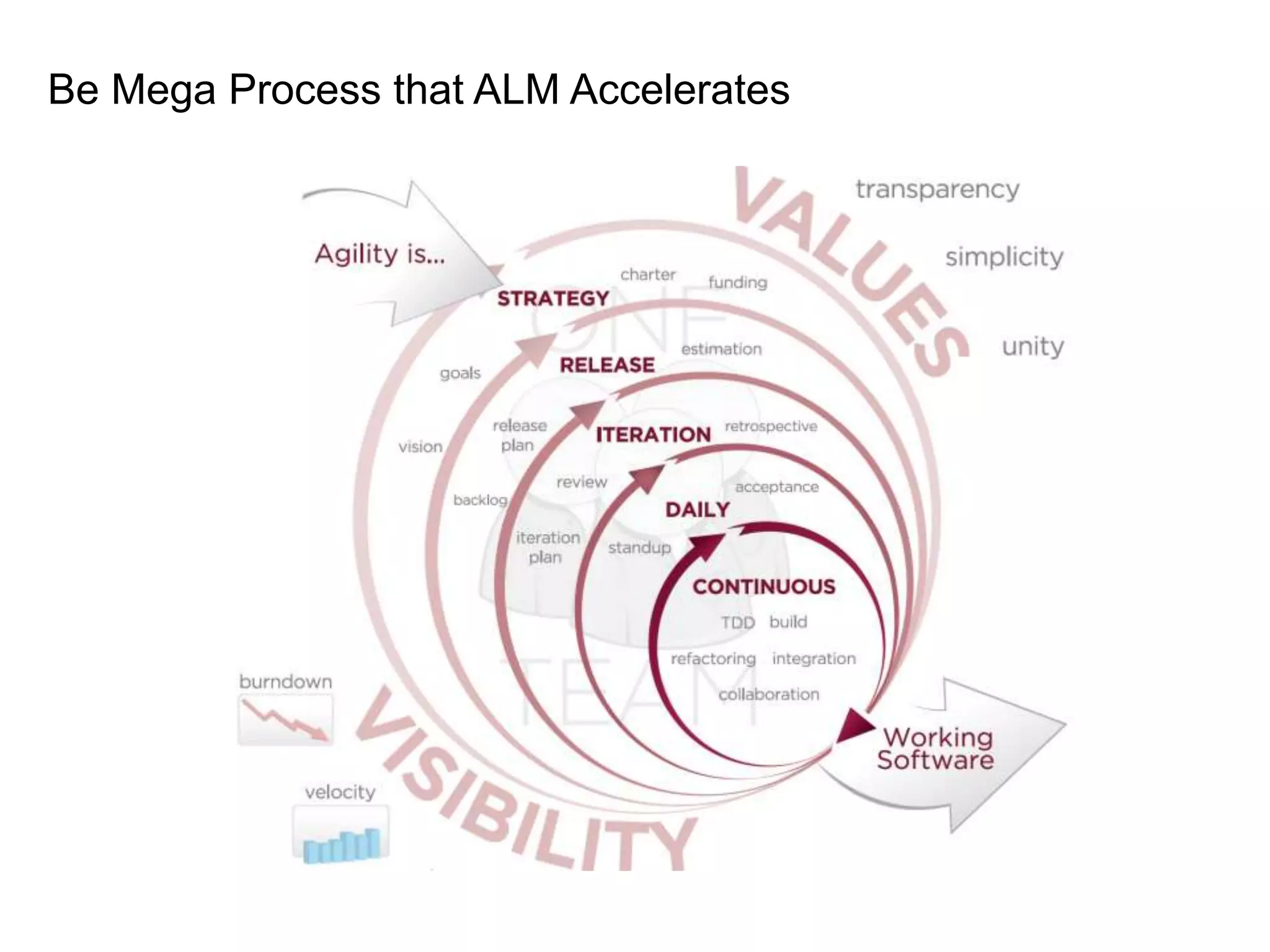

17. Continuous ImprovementBe Mega Process that ALM Accelerates

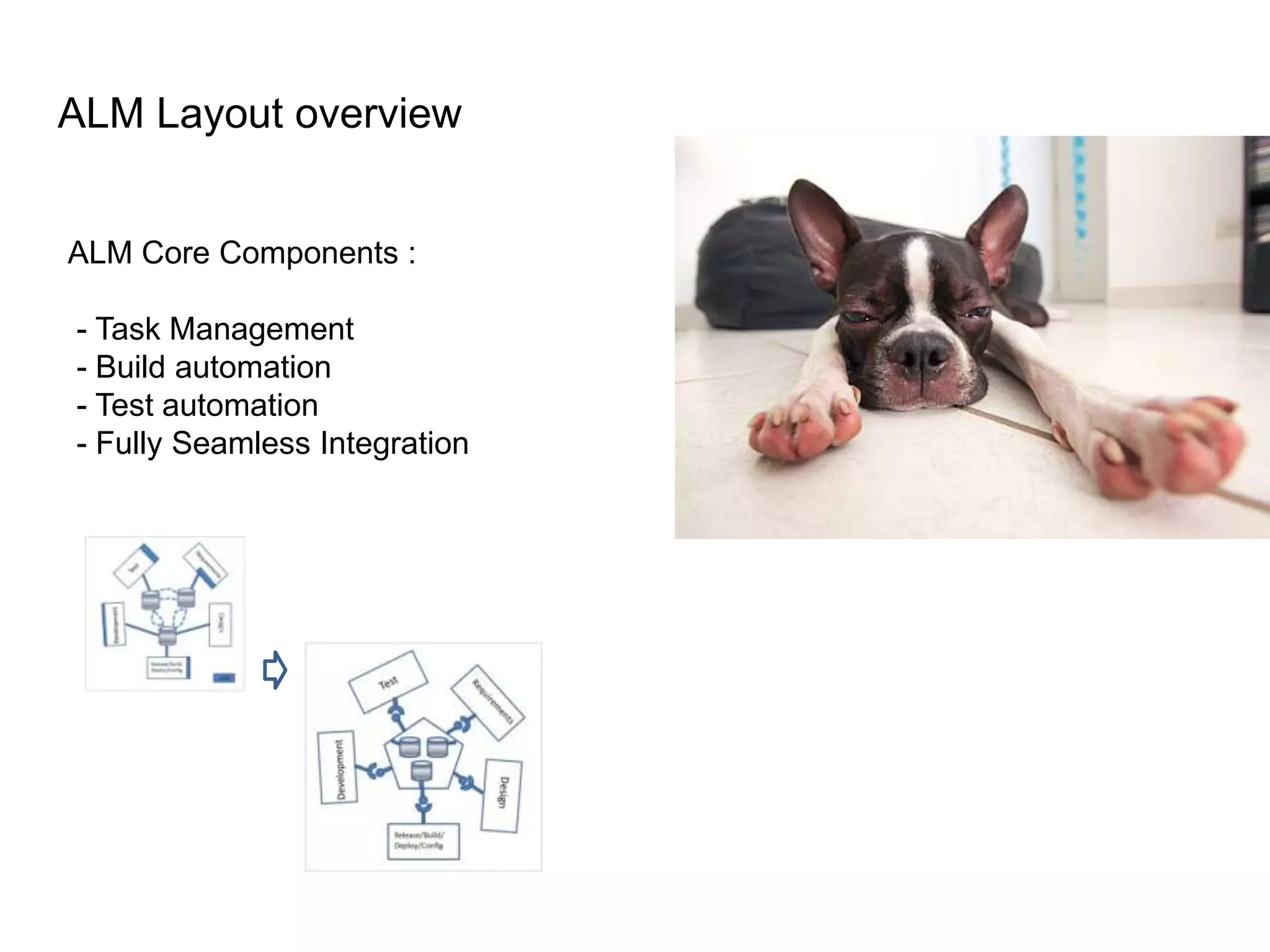

18. ALM Layout overviewALM Core Components : - Task Management - Build automation - Test automation - Fully Seamless Integration

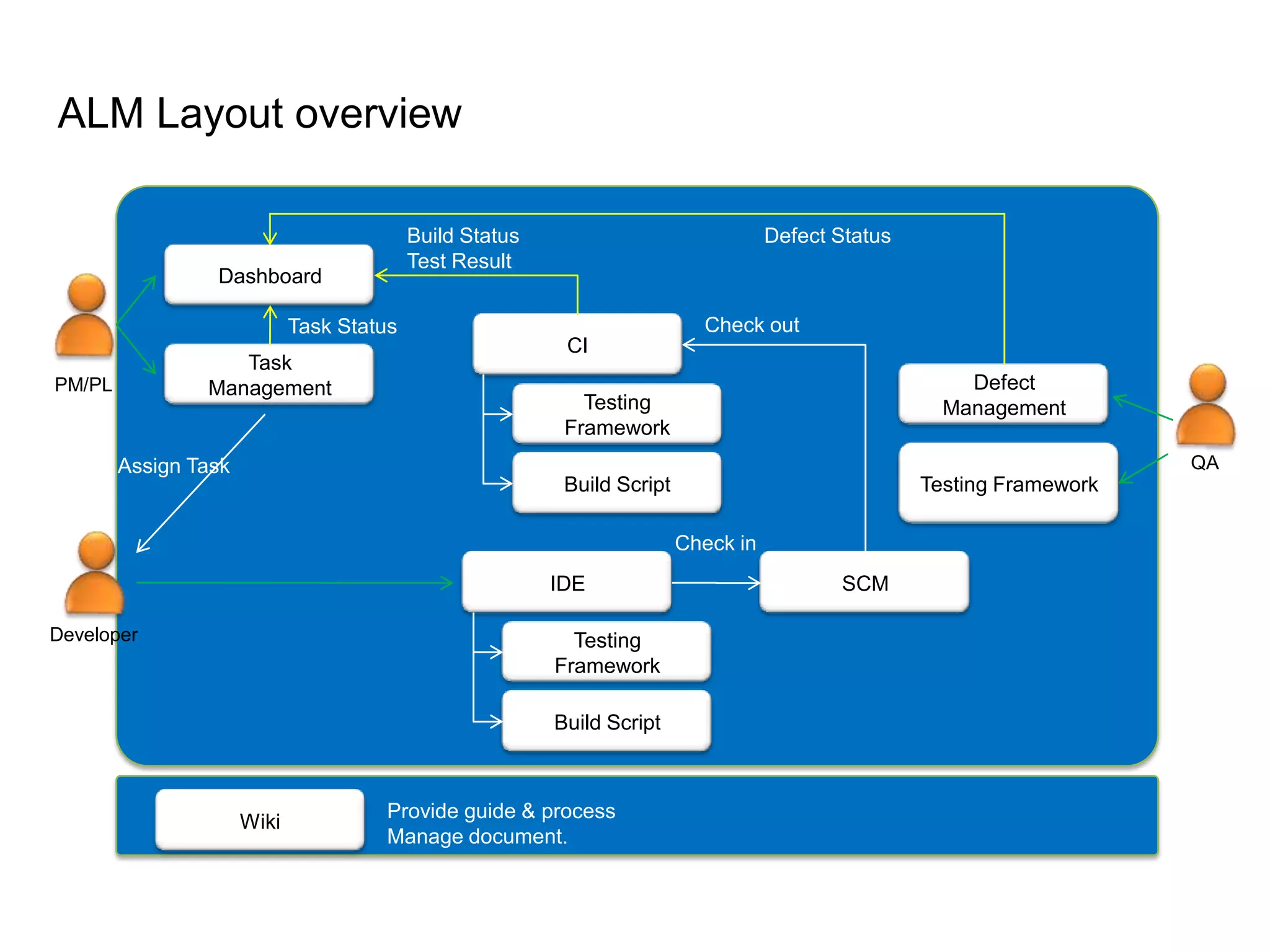

19. ALM Layout overviewBuild Status Test ResultDefect StatusDashboardCheck outTask StatusCITaskManagementDefect ManagementPM/PLTesting FrameworkQATesting FrameworkAssign TaskBuildScriptCheck inSCM IDEDeveloperTesting FrameworkBuild ScriptProvide guide & processManage document.Wiki

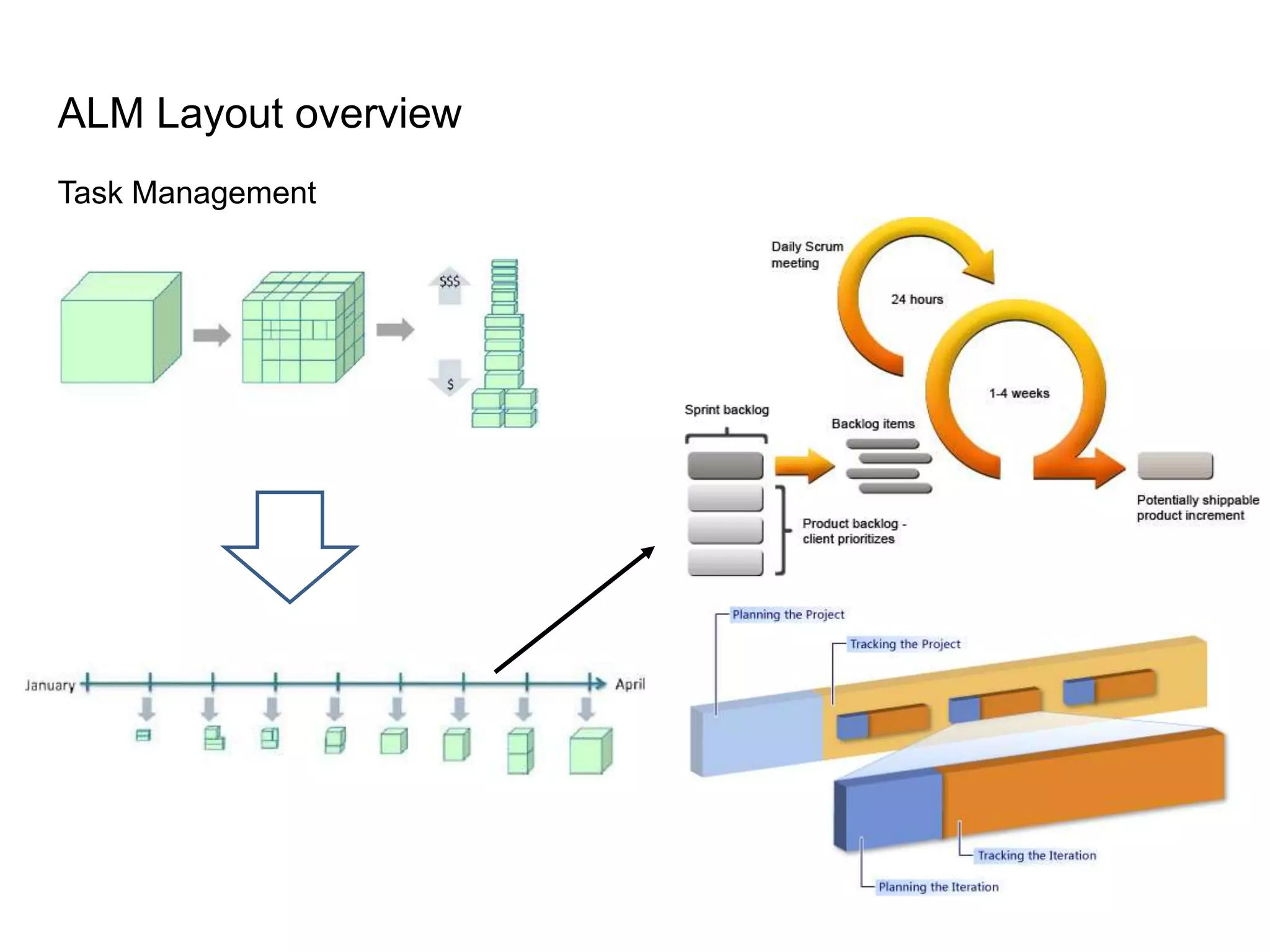

20. ALM Layout overviewTask Management

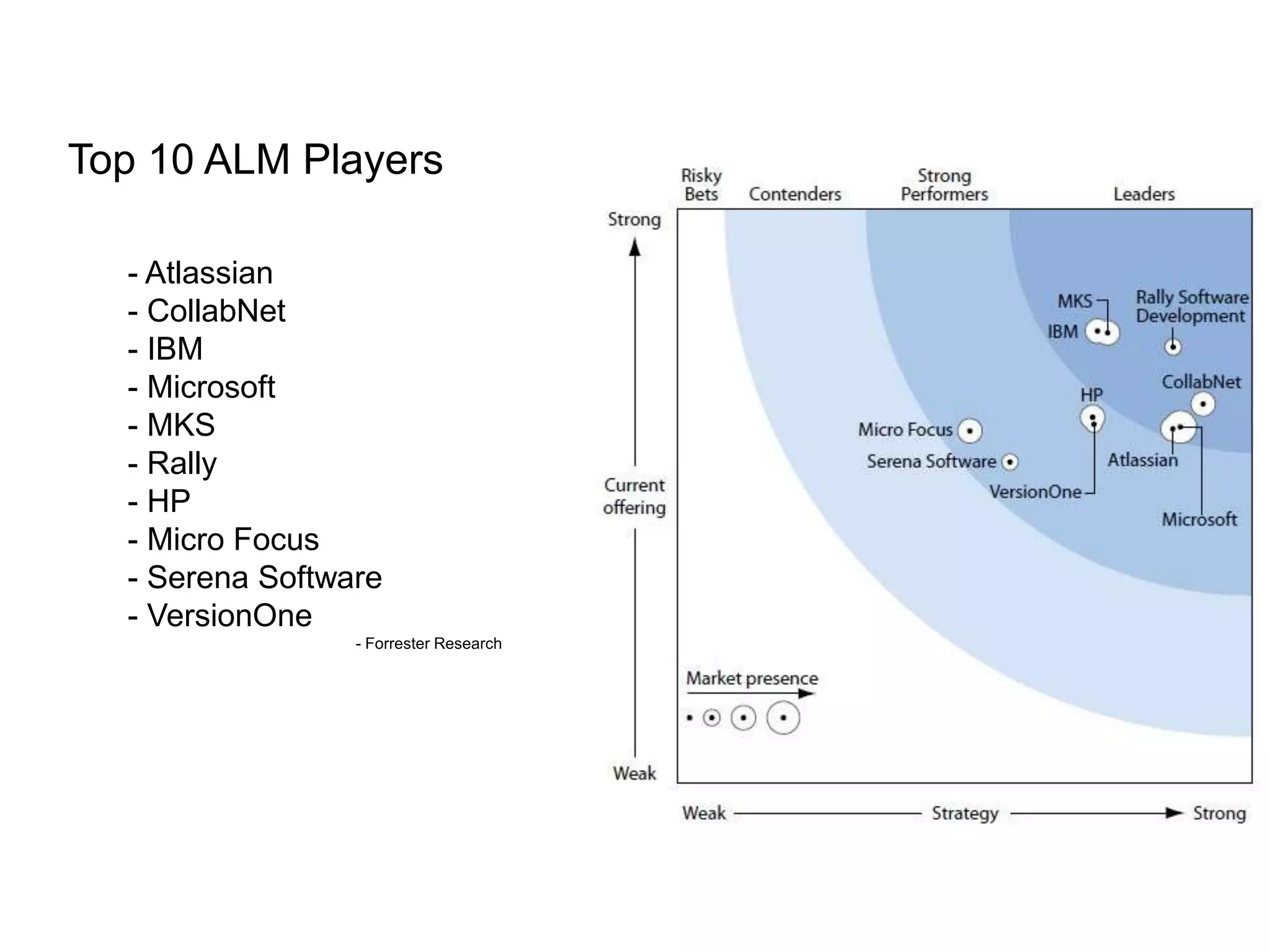

21. Top10 ALM Players- Atlassian- CollabNet- IBM- Microsoft- MKS- Rally- HP- Micro Focus- Serena Software VersionOne

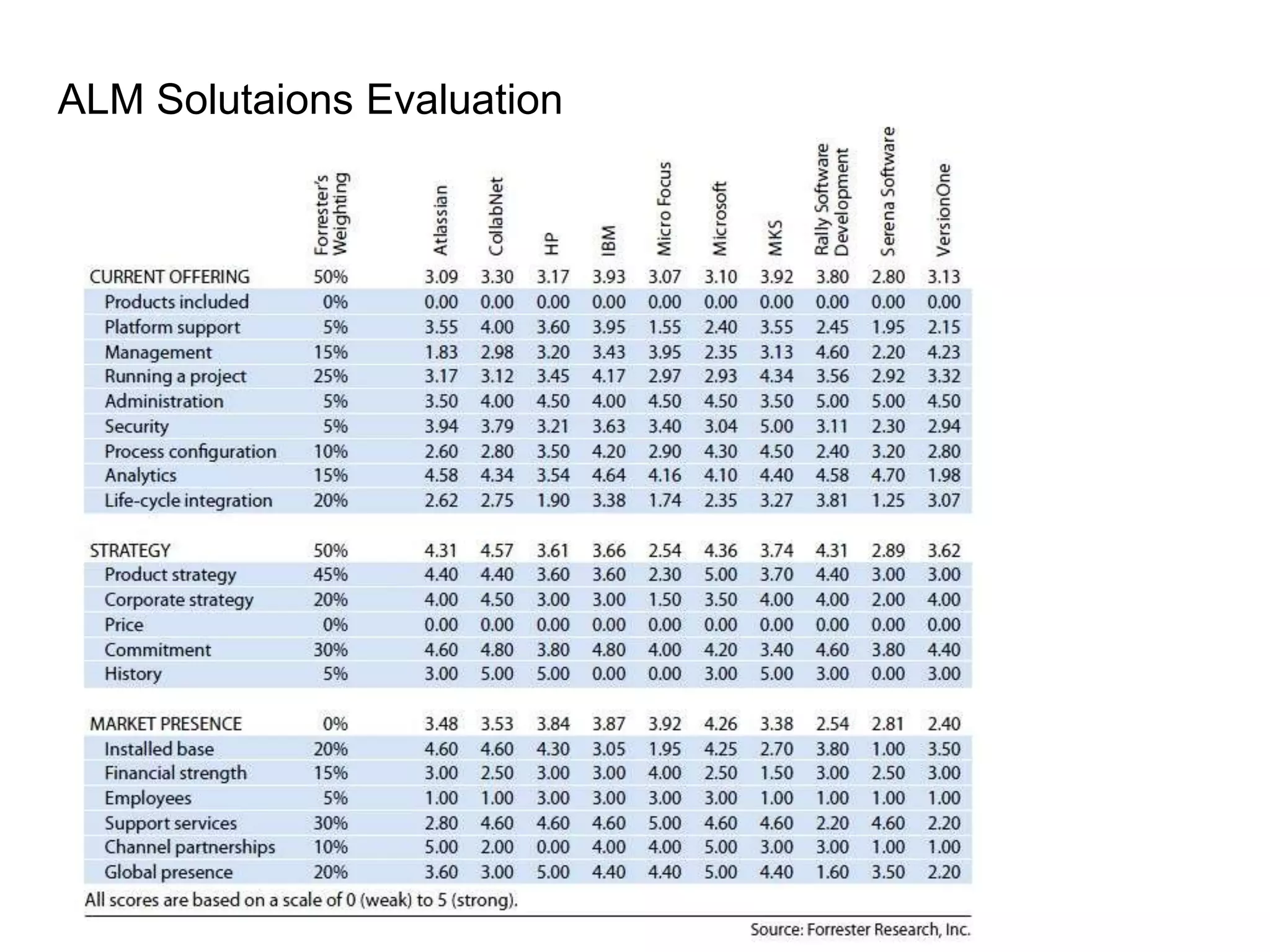

22. Forrester ResearchALM Solutaions Evaluation

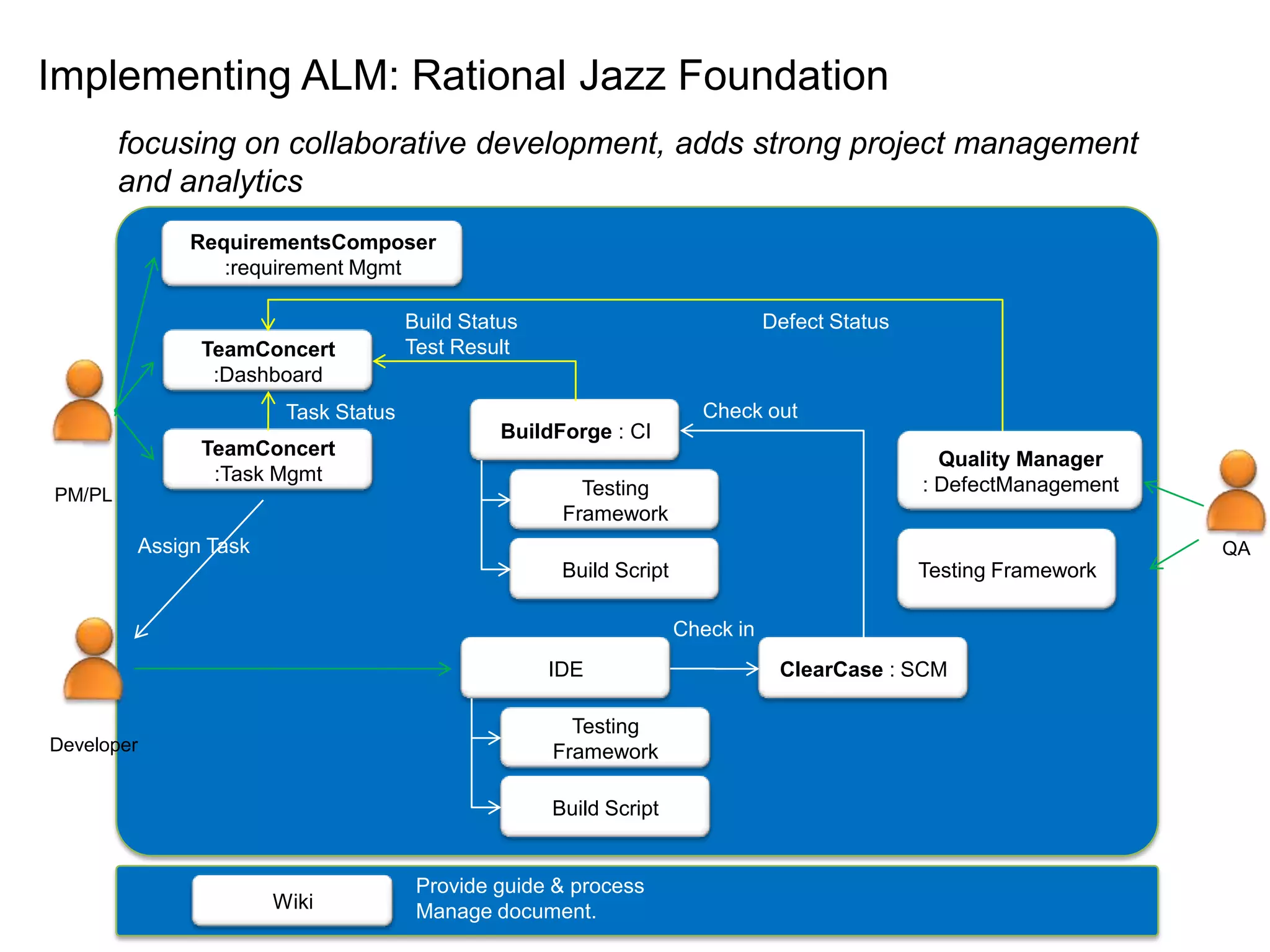

23. Implementing ALM: Rational Jazz Foundationfocusing on collaborative development, adds strong project management and analyticsRequirementsComposer:requirement MgmtBuild Status Test ResultDefect StatusTeamConcert:DashboardCheck outTask StatusBuildForge : CITeamConcert:Task MgmtQuality Manager: DefectManagementTesting FrameworkPM/PLAssign TaskQATesting FrameworkBuildScriptCheck inClearCase: SCM IDETesting FrameworkDeveloperBuild ScriptProvide guide & processManage document.Wiki

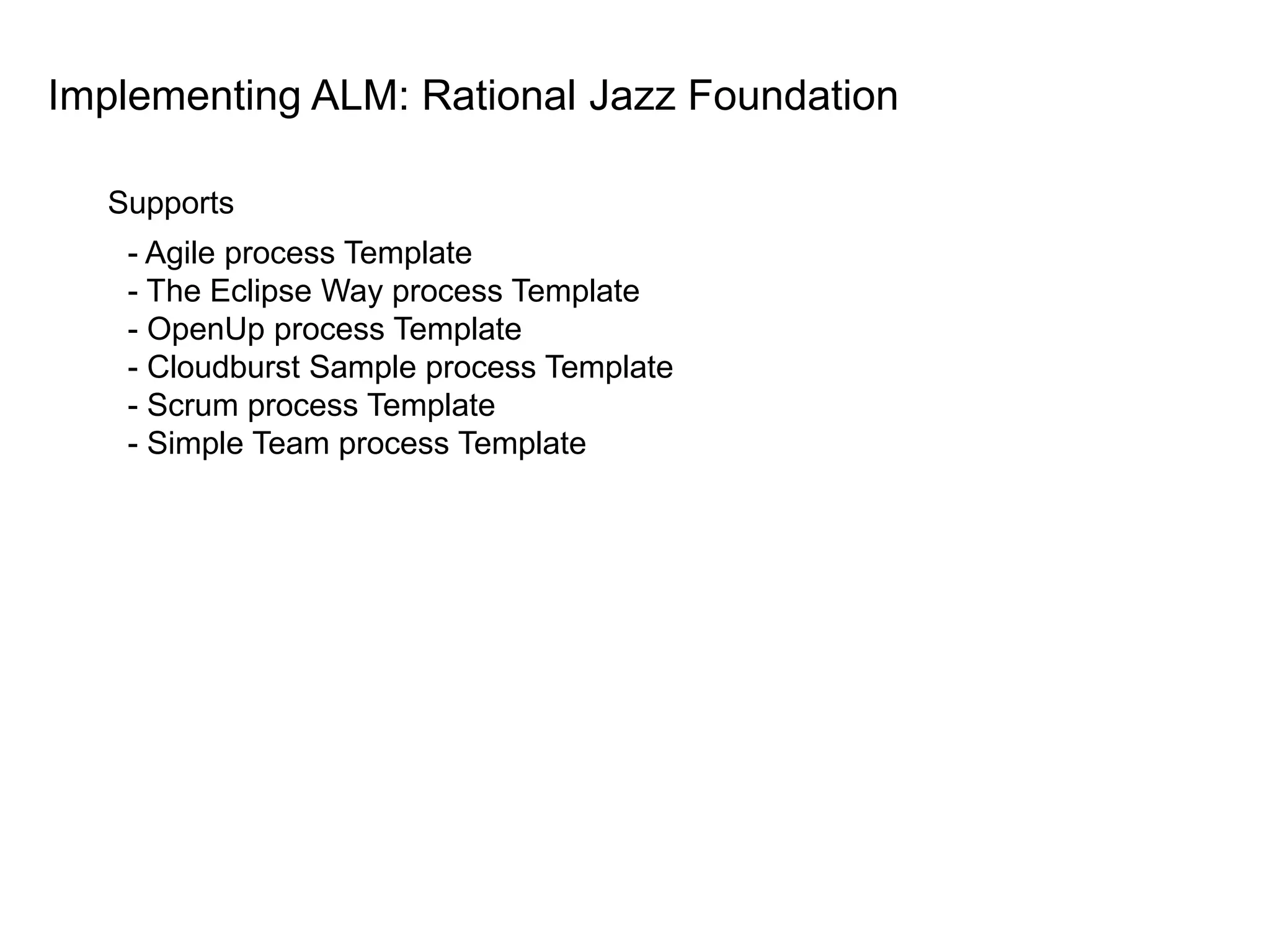

24. Implementing ALM: Rational Jazz FoundationSupports- Agile process Template - The Eclipse Way process Template- OpenUp process Template- Cloudburst Sample process Template- Scrum process Template- Simple Team process Template

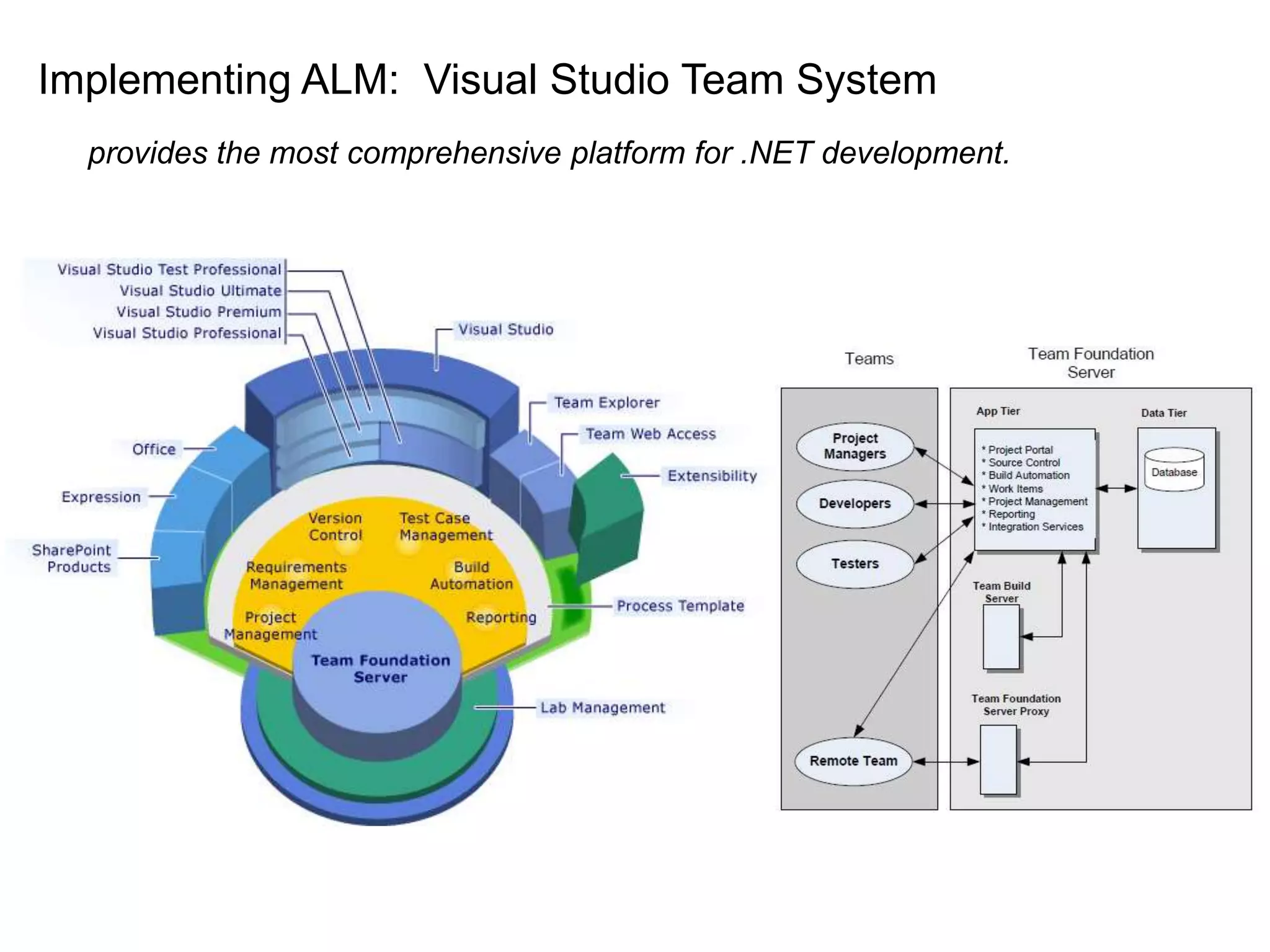

25. Implementing ALM: Visual Studio Team Systemprovides the most comprehensive platform for .NET development.

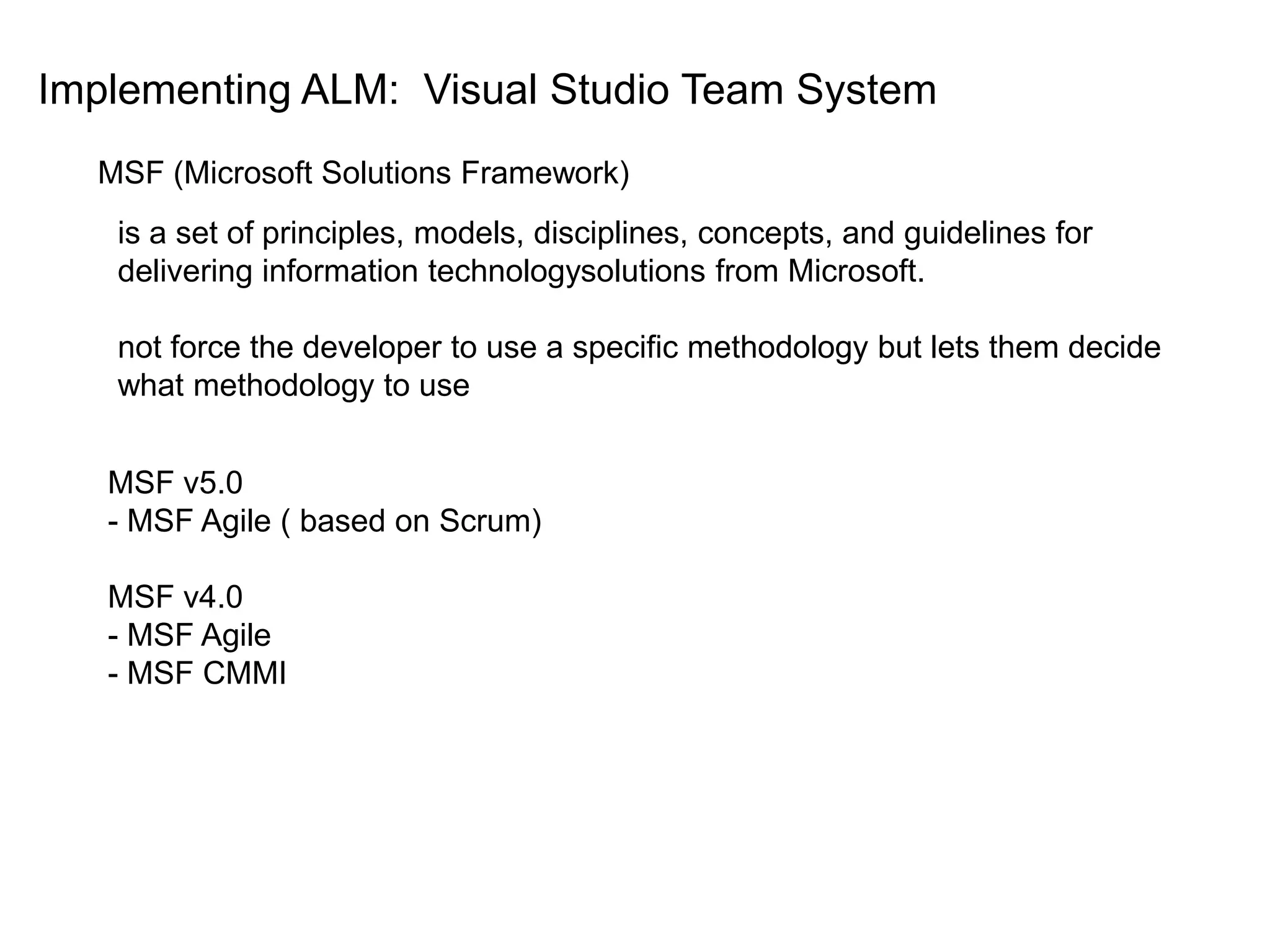

26. Implementing ALM: Visual Studio Team SystemMSF (Microsoft Solutions Framework)is a set of principles, models, disciplines, concepts, and guidelines for delivering information technologysolutions from Microsoft.not force the developer to use a specific methodology but lets them decide what methodology to useMSF v5.0 MSF Agile ( based on Scrum)MSF v4.0 MSF Agile

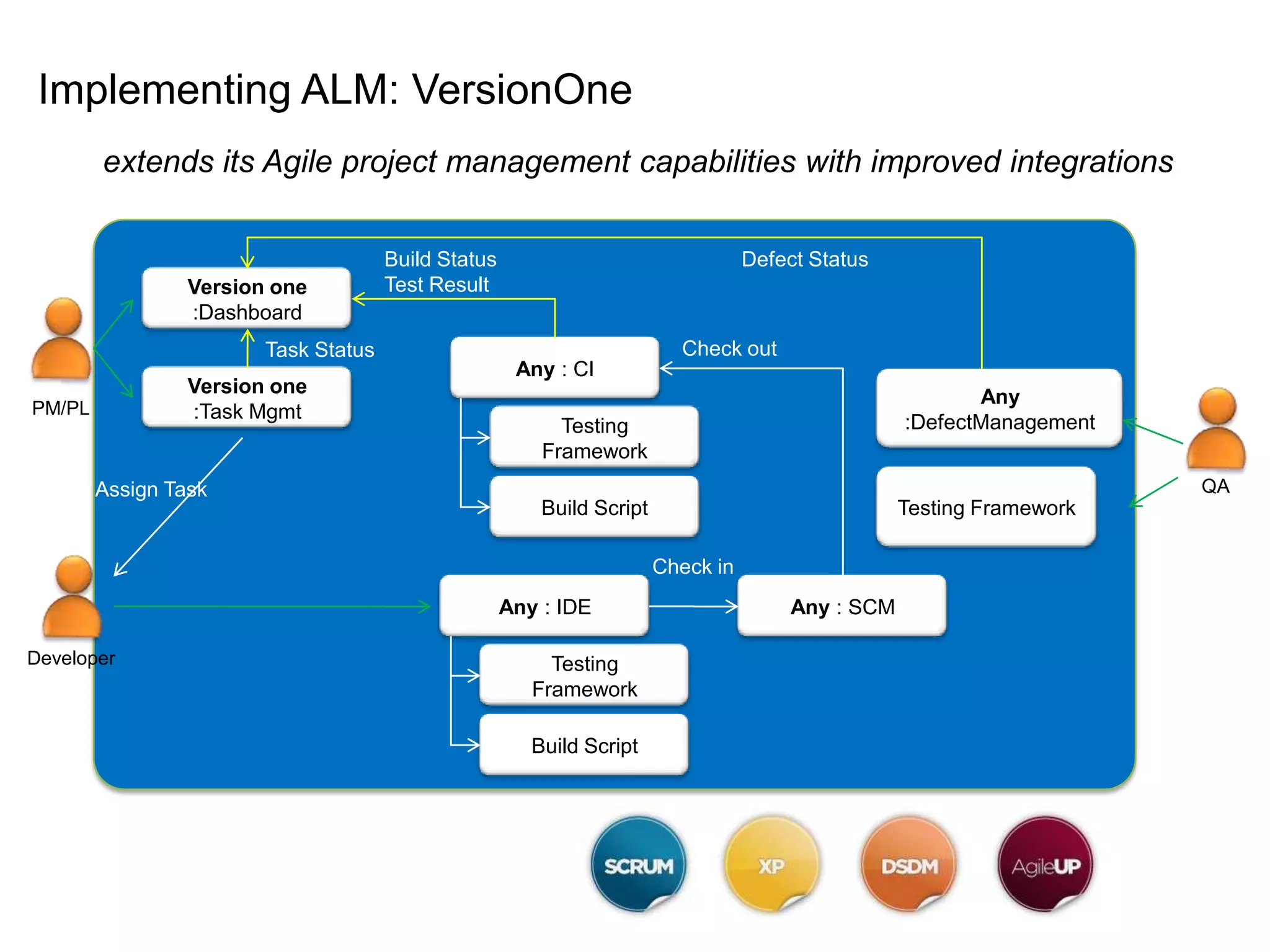

27. MSF CMMIImplementing ALM: VersionOneextends its Agile project management capabilities with improved integrationsBuild Status Test ResultDefect StatusVersion one:DashboardCheck outTask StatusAny : CIVersion one:Task MgmtAny:DefectManagementPM/PLTesting FrameworkQATesting FrameworkAssign TaskBuildScriptCheck inAny : SCM Any : IDEDeveloperTesting FrameworkBuild Script

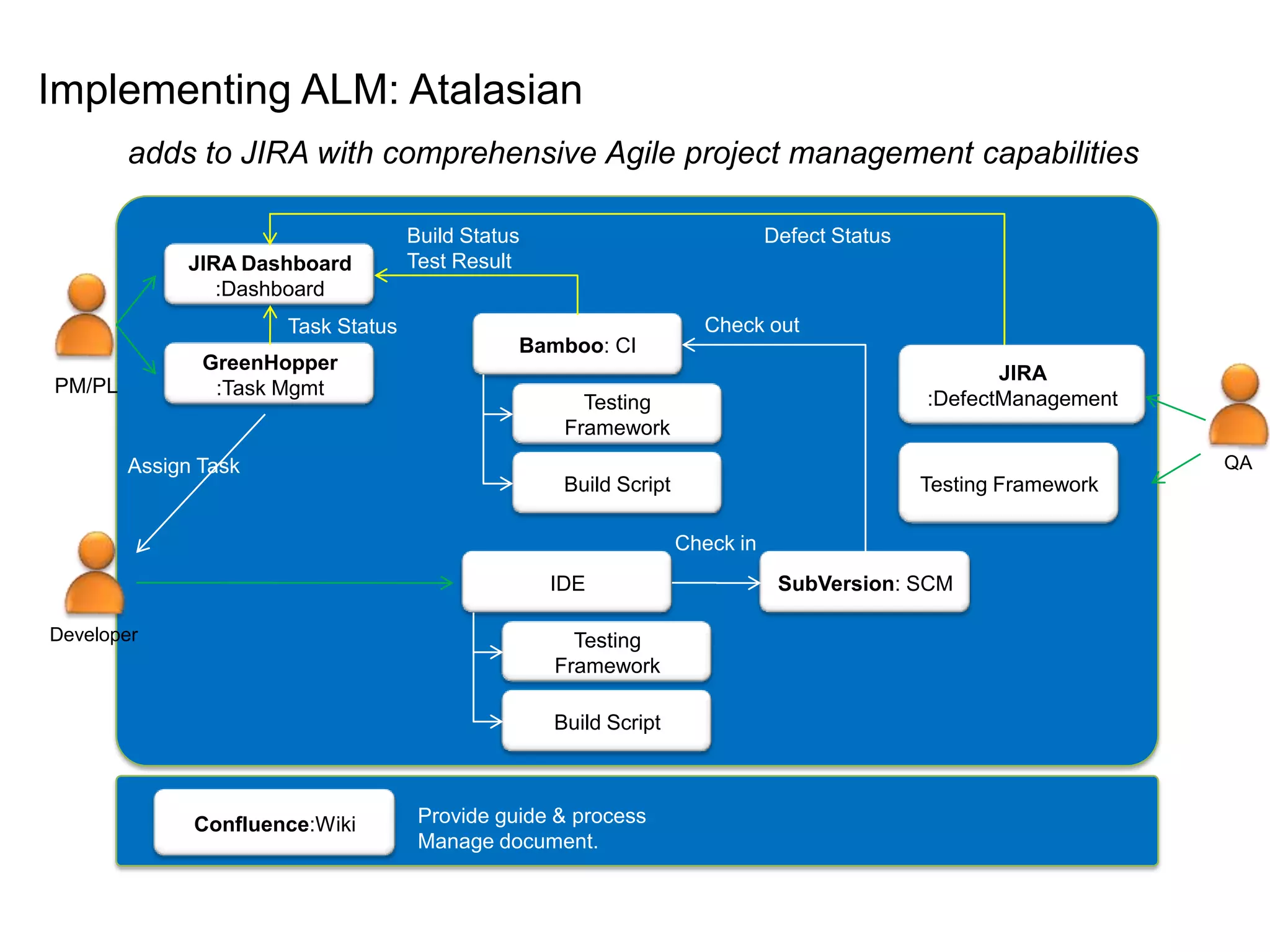

28. Implementing ALM: Atalasianadds to JIRA with comprehensive Agile project management capabilitiesBuild Status Test ResultDefect StatusJIRA Dashboard:DashboardCheck outTask StatusBamboo: CIGreenHopper:Task MgmtJIRA:DefectManagementPM/PLTesting FrameworkQATesting FrameworkAssign TaskBuildScriptCheck inSubVersion: SCM IDEDeveloperTesting FrameworkBuild ScriptConfluence:WikiProvide guide & processManage document.

29. How To Delevery ALM Boiling frog (No Awareness)

30. Be Simple

31. Step by Step

32. Process Oriented

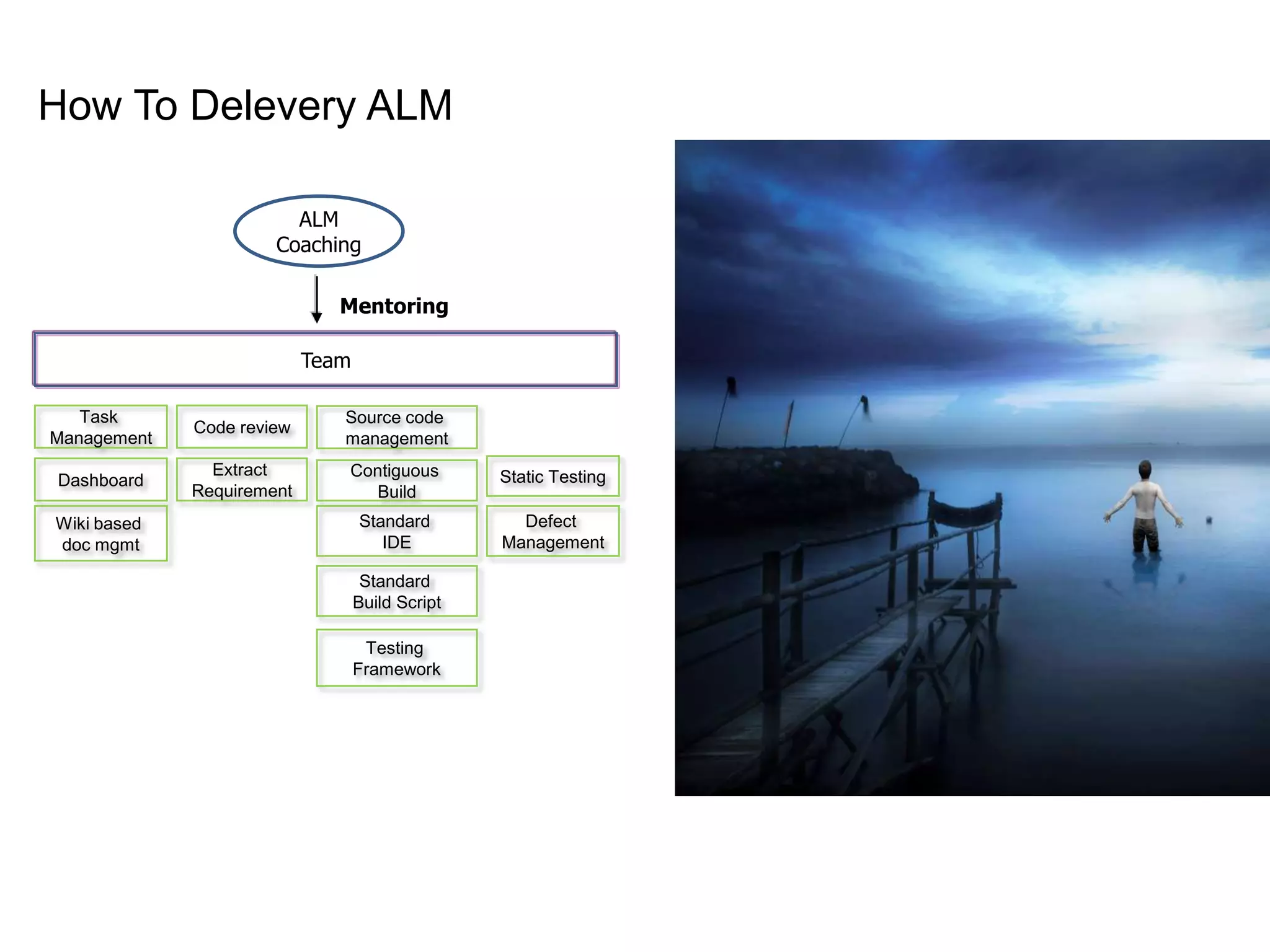

33. Comprehensive HelpHow To Delevery ALMALM CoachingMentoringTeamTask ManagementCode reviewSource code managementStatic TestingExtract RequirementDashboardContiguous BuildStandard IDEDefect ManagementWiki based doc mgmtStandard Build ScriptTesting Framework

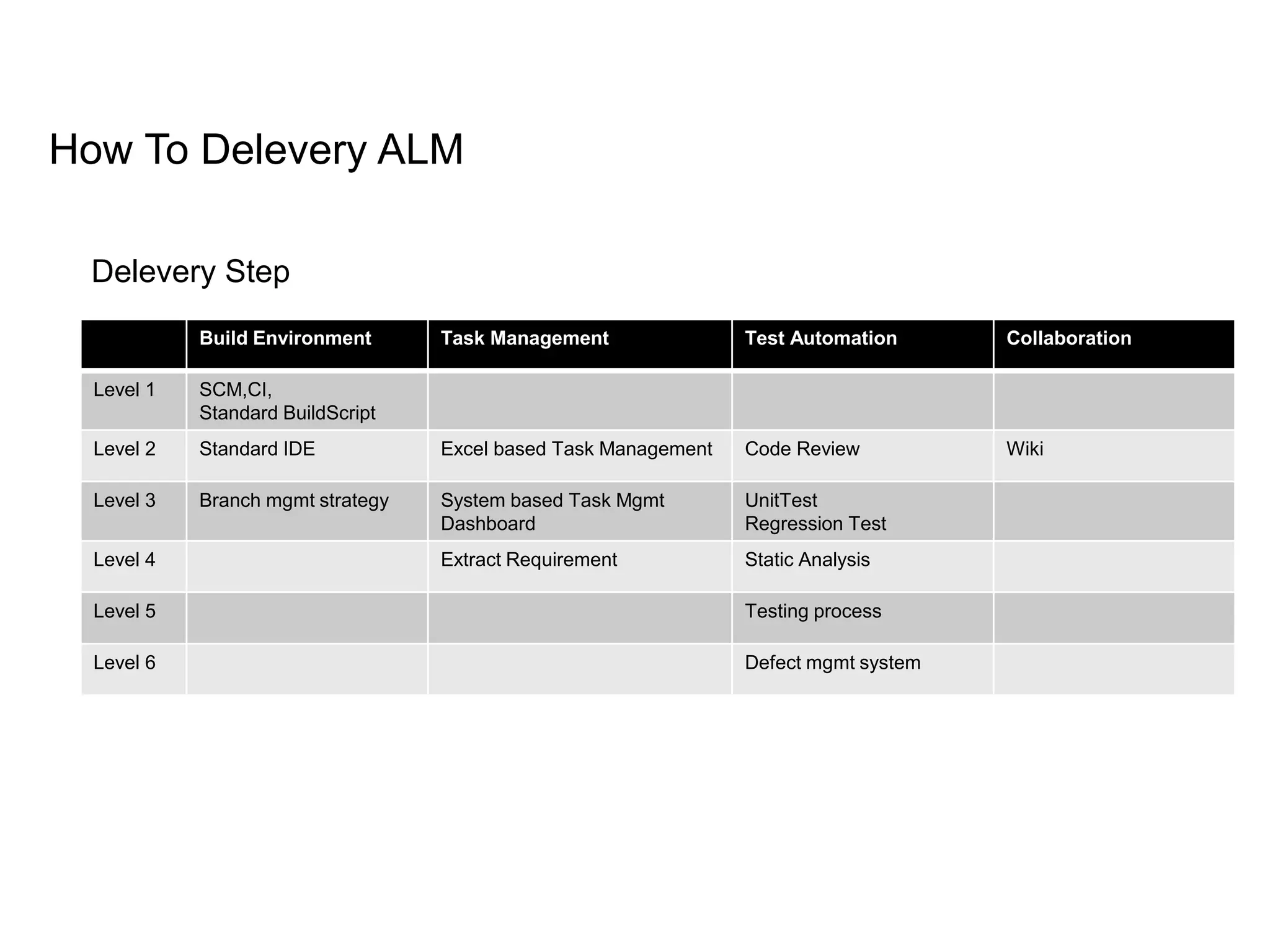

34. How To Delevery ALMDelevery Step

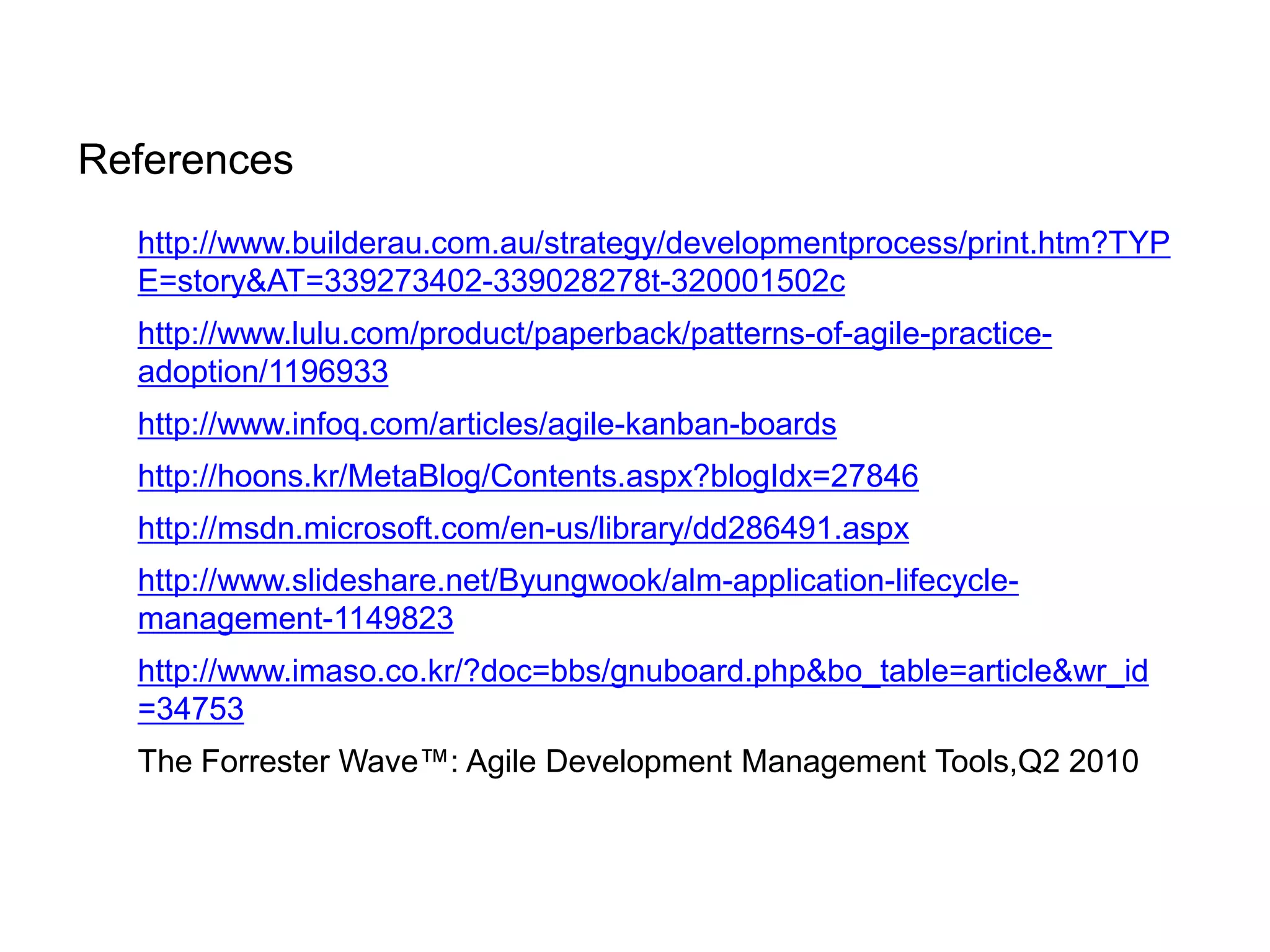

35. Referenceshttp://www.builderau.com.au/strategy/developmentprocess/print.htm?TYPE=story&AT=339273402-339028278t-320001502chttp://www.lulu.com/product/paperback/patterns-of-agile-practice-adoption/1196933http://www.infoq.com/articles/agile-kanban-boardshttp://hoons.kr/MetaBlog/Contents.aspx?blogIdx=27846http://msdn.microsoft.com/en-us/library/dd286491.aspxhttp://www.slideshare.net/Byungwook/alm-application-lifecycle-management-1149823http://www.imaso.co.kr/?doc=bbs/gnuboard.php&bo_table=article&wr_id=34753The Forrester Wave™: Agile Development Management Tools,Q2 2010

36. Thank you

37. Task ManagementCreate TaskCreate RequirementPMOpen TaskScheduledIn ProgressResolvedClosedPLPLAssignReopenPLIn ProgressResolvedClosedDeveloperDeveloperPL

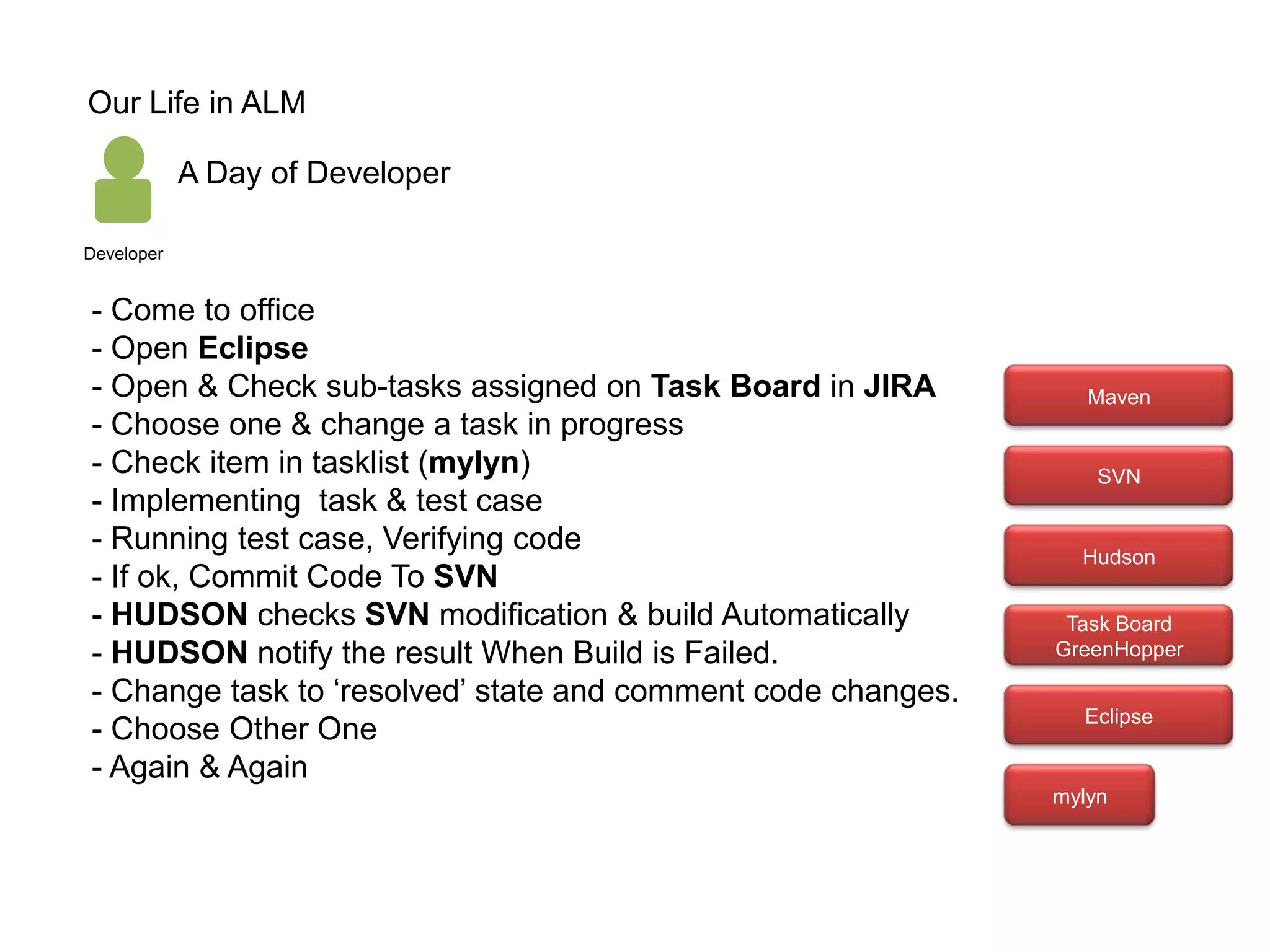

38. Our Life in ALM A Day of DeveloperDeveloper - Come to office - Open Eclipse - Open & Check sub-tasks assigned on Task Board in JIRA - Choose one & change a task in progress - Check item in tasklist (mylyn) - Implementing task & test case - Running test case, Verifying code - If ok, Commit Code To SVN - HUDSON checks SVN modification & build Automatically - HUDSON notify the result When Build is Failed. - Change task to ‘resolved’ state and comment code changes. - Choose Other One - Again & AgainMavenSVNHudsonTask BoardGreenHopperEclipsemylyn

39. Our Life in ALM Our Life in ALM A Day of Project ManagerPL___ConfluenceJIRADashboard Planning BoardGreenHopperTask BoardGreenHopper

40. Test Automationv-model (unit test, integration test, system test, acceptance test)Test : junit, httpunit, selenium, fitnesse Coverage & Inspection tools
