The document summarizes the design of a proposed creative space in Titiwangsa Park, Kuala Lumpur. It describes the site and surrounding context, including the dense urban center nearby and the vast open space of the park. It then outlines proposed spaces and activities for the building, such as exhibition spaces, performance spaces, editing rooms, and more. Diagrams show how the building could engage with and capture views of the surrounding park. The building aims to provide a creative hub that promotes activity and connections between the park and surrounding communities.
All plates
- 1.

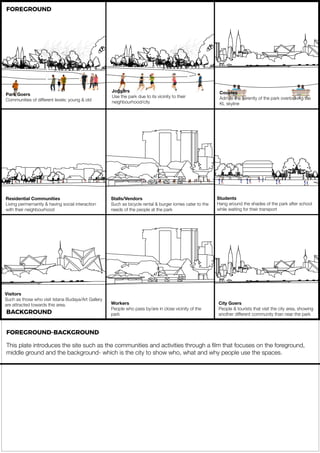

- 2.
- 3.

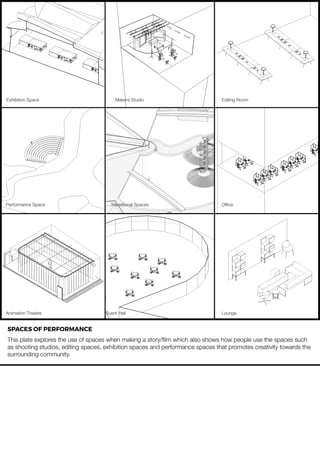

- 4. ExhibitionSpace PerformanceSpace AnimationTheatre EventHall Lounge TransitionalSpacesOffice MakersStudio EditingRoom SPACESOFPERFORMANCE Thisplateexplorestheuseofspaceswhenmakingastory/filmwhichalsoshowshowpeopleusethespacessuch asshootingstudios,editingspaces,exhibitionspacesandperformancespacesthatpromotescreativitytowardsthe surroundingcommunity.

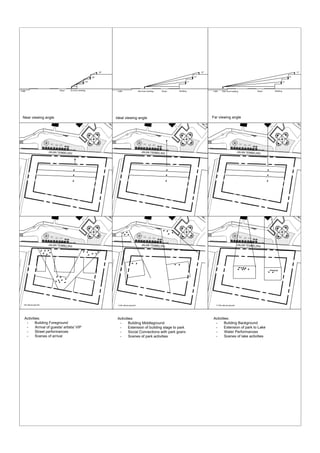

- 5. Ideal viewing angle 25mfrom building 7° 12° 15° Lake Road BuildingLake Road 5m from building 23° 28° 30° Near viewing angle JALAN TEMBELINGJALAN TEMBELING JALAN TEMBELING 40m from building 4° 8° 11° Lake Road Building Far viewing angle Activities: - Building Foreground - Arrival of guests/ artists/ VIP - Street performances - Scenes of arrival Activities: - Building Middleground - Extension of building stage to park - Social Connections with park goers - Scenes of park activities Activities: - Building Background - Extension of park to Lake - Water Performances - Scenes of lake activities JALAN TEMBELING JALAN TEMBELING JALAN TEMBELING 7-10m above ground3.5m above ground0m above ground

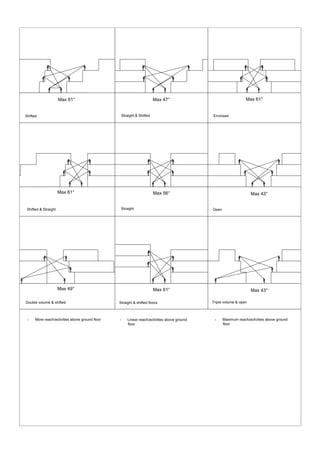

- 6. Enclosed Open Shifted Straight &Shifted Shifted & Straight Straight Max 47°Max 61° Max 61° Max 61° Max 56° Max 43° - More reach/activities above ground floor - Linear reach/activities above ground floor - Maximum reach/activities above ground floor Max 49° Max 61° Double volume & shifted Straight & shifted floors Max 43° Triple volume & open
