A quick overview about Apache ManifoldCF and the latest work about the new Alfresco connector shown at Codemotion Rome 2013

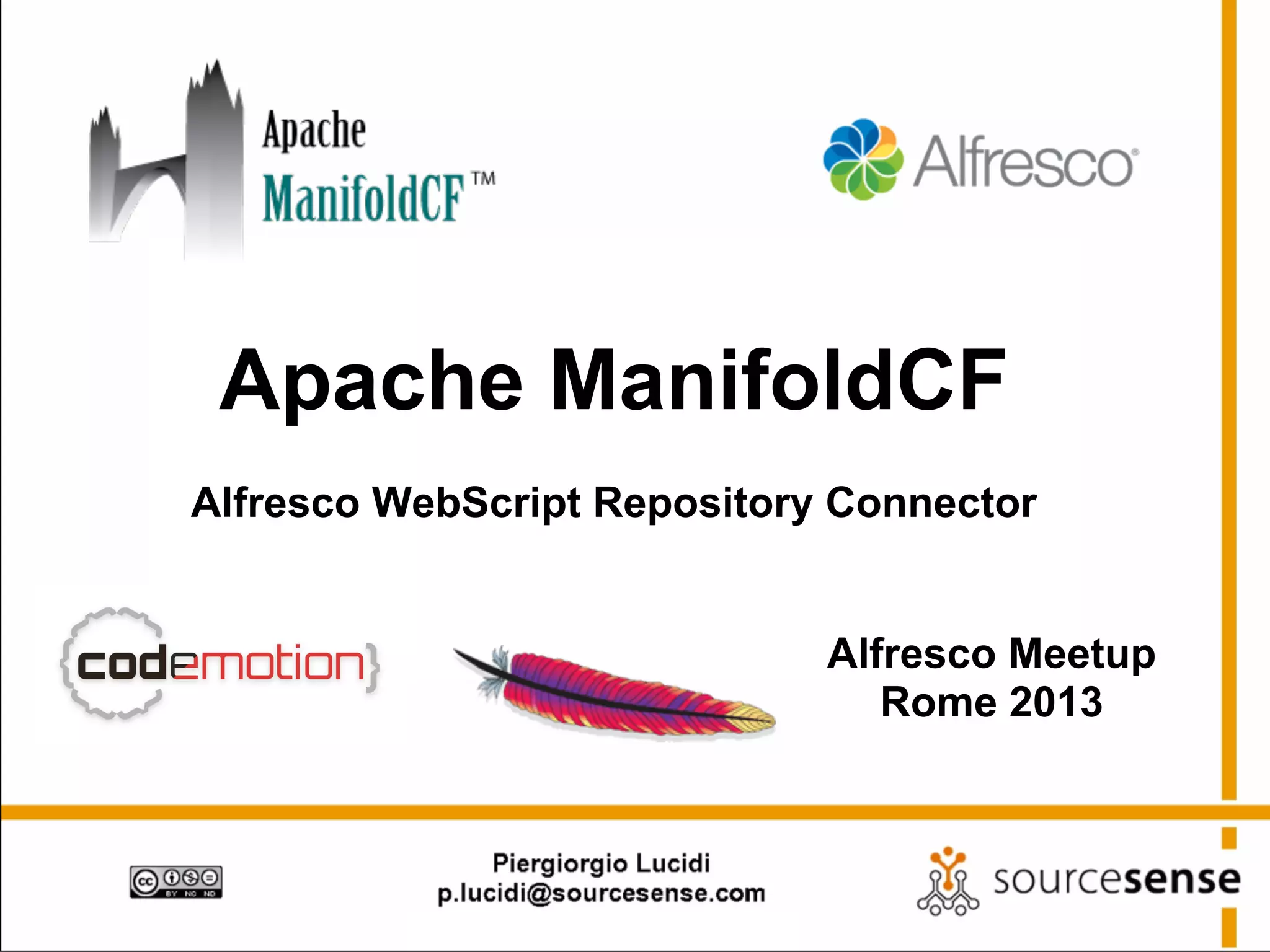

1. Apache ManifoldCF
Alfresco WebScript Repository Connector
Alfresco Meetup
Rome 2013

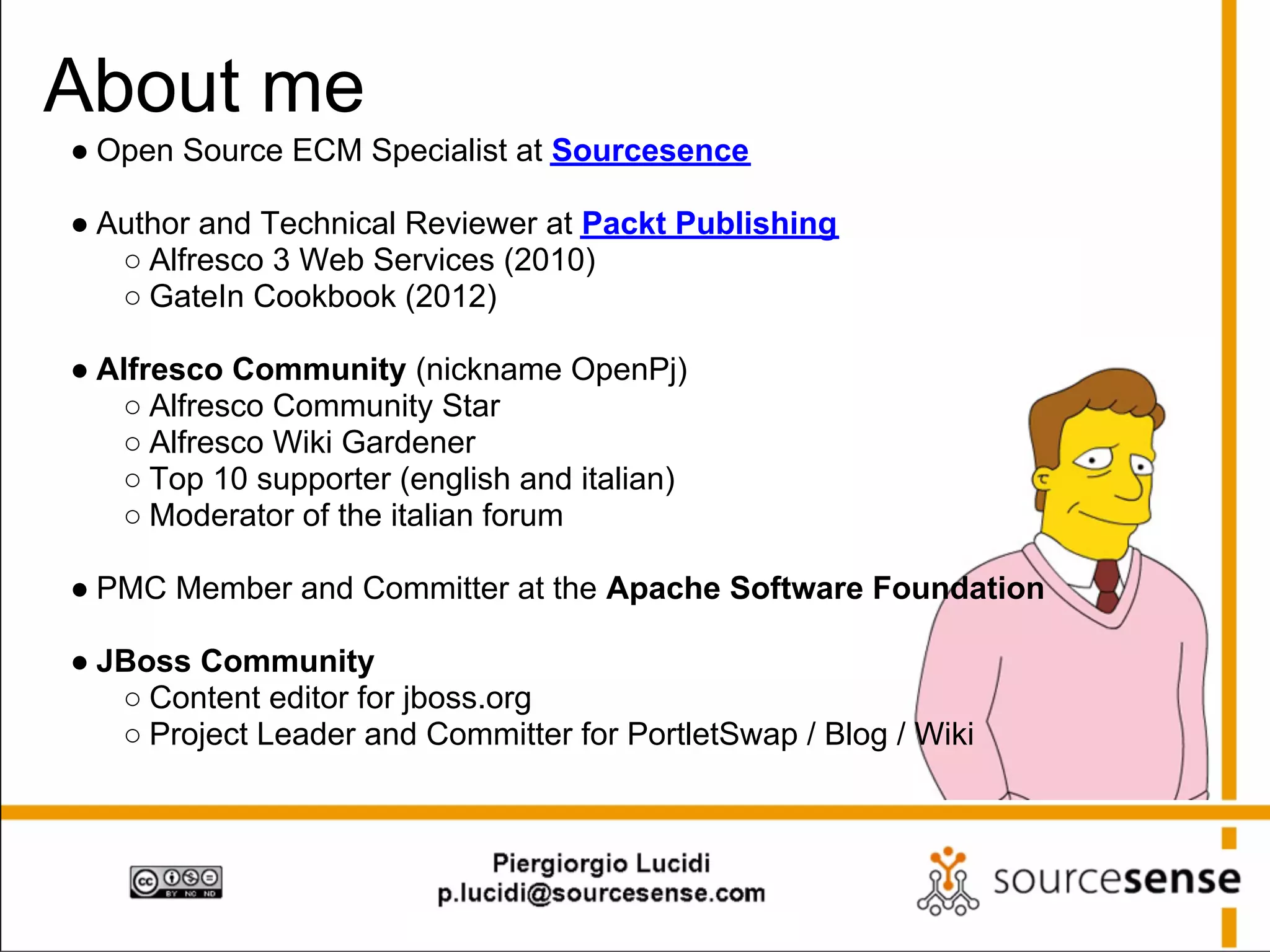

2. About me
● Open Source ECM Specialist at Sourcesence
● Author and Technical Reviewer at Packt Publishing
○ Alfresco 3 Web Services (2010)
○ GateIn Cookbook (2012)
● Alfresco Community (nickname OpenPj)
○ Alfresco Community Star
○ Alfresco Wiki Gardener
○ Top 10 supporter (english and italian)
○ Moderator of the italian forum
● PMC Member and Committer at the Apache Software Foundation
● JBoss Community
○ Content editor for jboss.org
○ Project Leader and Committer for PortletSwap / Blog / Wiki

3. Overview
● Introducing Apache ManifoldCF
○ What is ManifoldCF?
○ Why ManifoldCF?
○ Architecture
○ Who is using ManifoldCF?
○ The book
● How ManifoldCF supports Alfresco
● The goal of the new connector
○ Architecture
○ Roadmap
○ The team
● Resources

4. The story
The original ManifoldCF code base was granted by MetaCarta to the
Apache Software Foundation in December 2009.
The MetaCarta effort represented more than five years of successful
development and testing in multiple, challenging enterprise
environments.
The project was graduated as Apache Top Level Project in July 2012.

5. What is ManifoldCF?
Open Source crawler
● crawling model (add, change, delete)
● schedule jobs to create indexes
○ get contents from repositories
○ push contents on search servers
Repository 1 Search Server 1
Repository 2 Apache ManifoldCF Search Server 2
Repository 3 Search Server 3

6. What is ManifoldCF?
● Out-Of-The-Box it is distributed as a webapp
○ REST API
○ Authority Service
○ Crawler UI
● can be embedded in any Java application

7. Why ManifoldCF?
● Reliability
● Incremental
● Flexible
● Multi repositories
● Security model
● Monitoring

8. Why ManifoldCF? - Reliability
Jobs scheduling and configuration are stored in the database to
maintain the state of all the executions
Repository Pull Agent Daemon Search Server
configuration and scheduling
Database

9. Why ManifoldCF? - Incremental
get content changesets obtained from the repository API
Repository
complete
changesets Apache ManifoldCF

10. Why ManifoldCF? - Flexible
If the repository can't supply all the changes Manifold can
discover them through crawling
Repository
incomplete
changesets Apache Manifold CF
Change
Discovery
N1
N2

11. Why ManifoldCF? - Multi repositories
Jobs can retrieve contents from the following repositories:
● CMIS-compliant
● Alfresco
● IBM FileNet
● EMC Documentum
● Microsoft SharePoint
● OpenText LiveLink
● Autonomy Meridio
● Memex Patriarch
● Windows Share/DFS
● Generic JDBC
● Generic Filesystem
● Generic RSS and Web

12. Why ManifoldCF? - Multi repositories
Jobs can ingest contents to the following search
servers:
● Apache Solr
● ElasticSearch
● OpenSearchServer
● MetaCarta GTS

13. Why ManifoldCF? - Security model
Retrieve per-content ACLs Authority 1
Authority Service Authority 2
Authority 3
Repository 1
Repository 2 Pull Agent Daemon
user access
Repository 3 tokens
doc access
tokens
user specific
Search Server search
results

14. Why ManifoldCF? - Monitoring
UI Crawler allows you to:
● configure jobs and connectors
● monitor jobs execution
● monitor contents ingestion
○ status reports
■ document status
■ queue status
○ history reports
■ simple history
■ maximum activity
■ maximum bandwidth
■ result histogram

15. Architecture - Job
Authority
Connector
ACLs
Repository
Connector
retrieve Output
content ACL Connector
Repository Job Search Server
query to retrieve contents - metadata mapping
- verbal description - content ingestion
- crawling model
- scheduling

16. Who is using ManifoldCF?

17. The book: ManifoldCF in Action
ManifoldCF in Action
by Karl Wright
published by Manning
Karl is the original developer and the
principal committer of Apache ManifoldCF
The book is available at http://www.manning.com/wright

18. How ManifoldCF supports Alfresco
● CMIS Repository Connector based on OpenCMIS
● The current Alfresco Repository Connector only supports CML
○ works on any version of Alfresco 2.x, 3.x and 4.x
○ no support for quering Solr from Alfresco
○ it will die at the end of the year
○ Please see the Alfresco Roadmap

19. Alfresco Solr search subsystem
● Remote crawling of contents and ACLs into Solr
○ REST API for retrieving changesets from Alfresco db
● Solr server provided by Alfresco
○ based on Apache Solr 1.4.1 (uhm...really!!!???)
● hardcoded
● can't be used with your own Solr instance
○ customers have newer version of Solr
■ interested in new features (SolrCloud, sharding...)
■ hundred of improvements available in 3.x and 4.x

20. Alfresco Solr search subsystem
Tra
nsa
ctio
Solr 1.4.1
Alfresco ns a
nd A
CL
(provided by Alfresco)
Alfresco REST Client
alf_transaction
alf_acl_*
alf_node_*
Indexes

21. Roadmap

22. Goal - 1
Create a new connector using the Alfresco REST Client
● provided and supported by Alfresco
○ for us is a Maven dependency :)
● invokes the Alfresco Solr API

23. Goal - 2 - check feasibility
Create a real Enterprise alternative for managing indexes
● compatibility with the SearchService of Alfresco
● repository takes care only of contents
● indexes are managed externally
● no redundancy for indexes
effort to redirect queries executions

24. Goal - 3 - Security
Implement an Alfresco authority connector
○ manages ACLs indexing

25. Goal - 4
Manage indexes using ManifoldCF against any supported
search server
● Apache Solr 3.x / 4.x
● ElasticSearch
● Open Search Server
● MetaCarta

26. Architecture
ManifoldCF
Search
Alfresco Alfresco WebScript Server
Repository Connector
Alfresco REST
Client
alf_transaction Output Connector
alf_acl_* Indexes
alf_node_*

27. The team of the new connector
● Piergiorgio Lucidi (Sourcesense + ASF)
● Maurizio Pillitu (Alfresco)
● Aingaran Pillai (Zaizi) [new entry]
● Fran Alvarez (Zaizi) [new entry]
● Abraham Ayala (Zaizi) [new entry]

28. Join us!
● We are looking for developers
● this is a work in progress
● don't fork the project feel free to join us
^__^

29. Resources
● Apache ManifoldCF
http://manifoldcf.apache.org/
● The connector hosted on github:
https://github.com/maoo/alfresco-webscript-manifold-connector
● it will be included in Apache ManifoldCF

30. Thank you for your
attention!
http://www.open4dev.com
