1. Alfresco Platform Update & Roadmap
Alfresco Day Roma, 17 Novembre 2015
Gabriele
Columbro
Sr.
Product
Manager,
API
/
SDK
/
Pla,orm
@mindthegabz

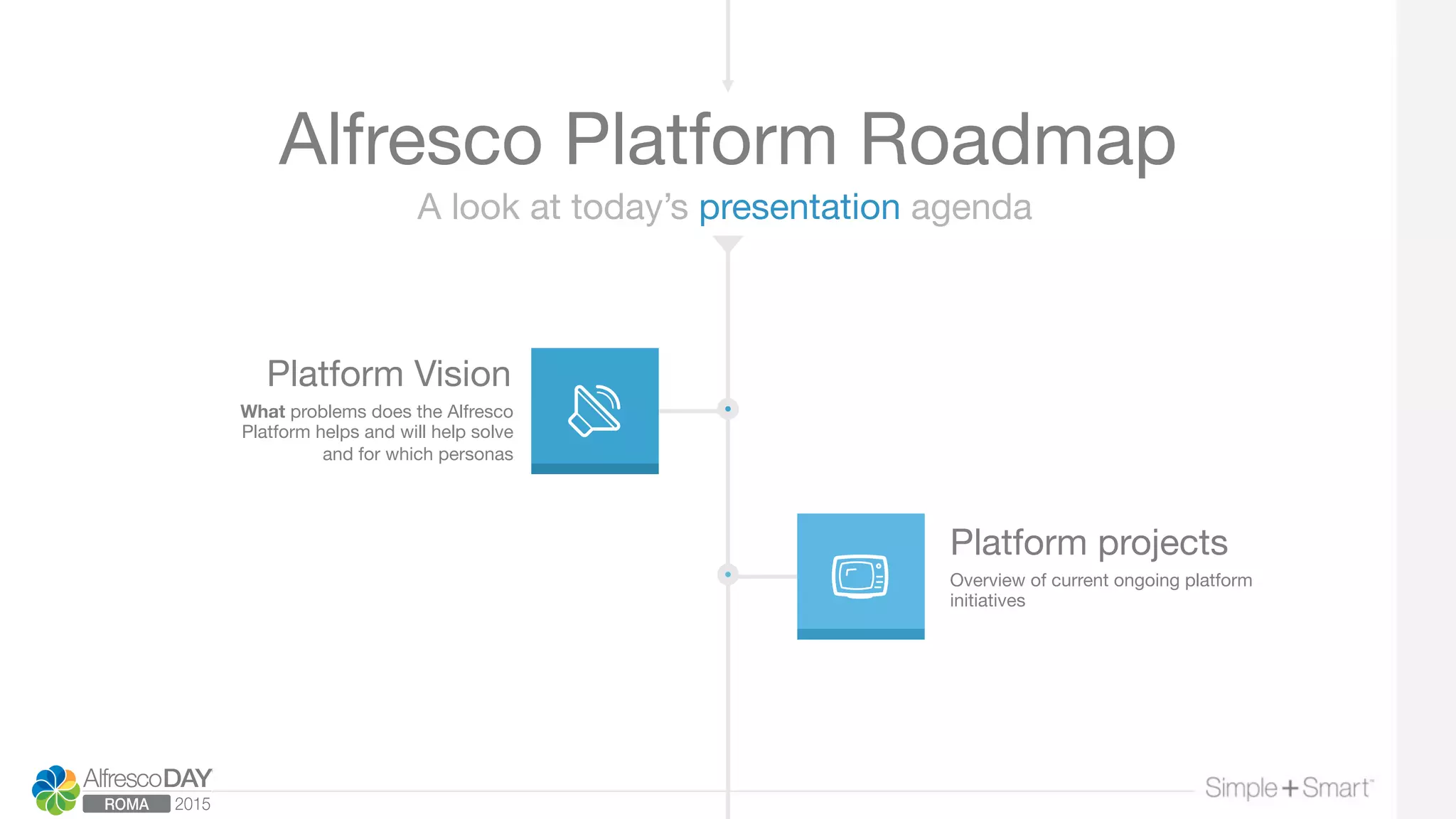

2. A look at today’s presentation agenda
Alfresco Platform Roadmap
Platform Vision
What problems does the Alfresco
Platform helps and will help solve
and for which personas
Platform projects
Overview of current ongoing platform
initiatives

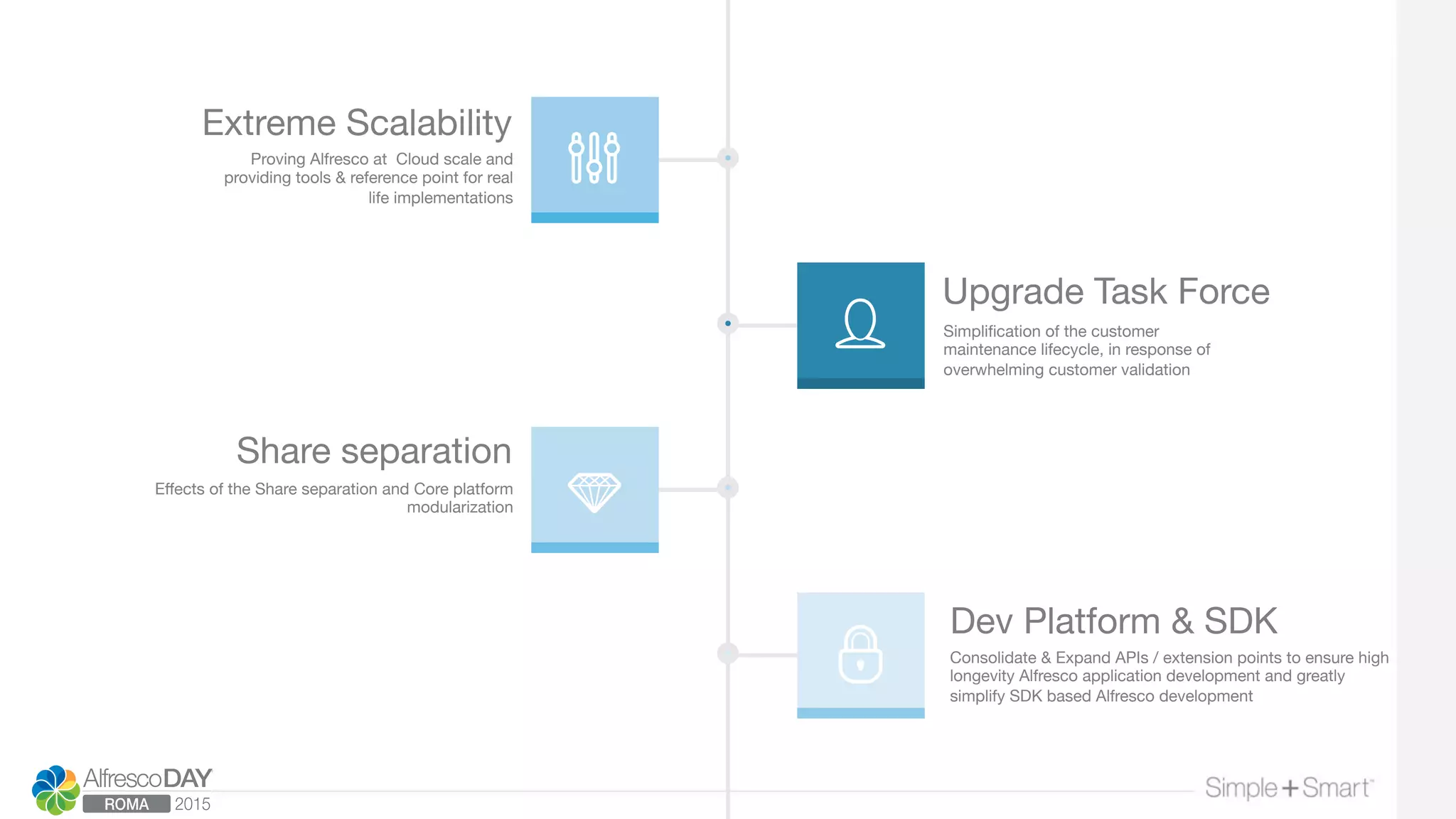

3. Extreme Scalability
Proving Alfresco at Cloud scale and
providing tools & reference point for real
life implementations
Upgrade Task Force
Simplification of the customer
maintenance lifecycle, in response of
overwhelming customer validation
Share separation
Effects of the Share separation and Core platform
modularization
Dev Platform & SDK
Consolidate & Expand APIs / extension points to ensure high
longevity Alfresco application development and greatly
simplify SDK based Alfresco development

4. A look at today’s presentation agenda
Alfresco Platform Roadmap
What’s in it & when?
When can you expect release of the
ongoing projects, what are backlog and
horizon 2 projects
Conclusions and QA
Recap of the platform lifecycle makeover
and open discussion

5. Vision for the Alfresco Platform
Objectives and guiding forces driving development of the Alfresco Platform

6. Build an open and scalable platform to power the rapid development
and deployment of hybrid content centric applications in the Alfresco
extended ecosystem
Platform Vision

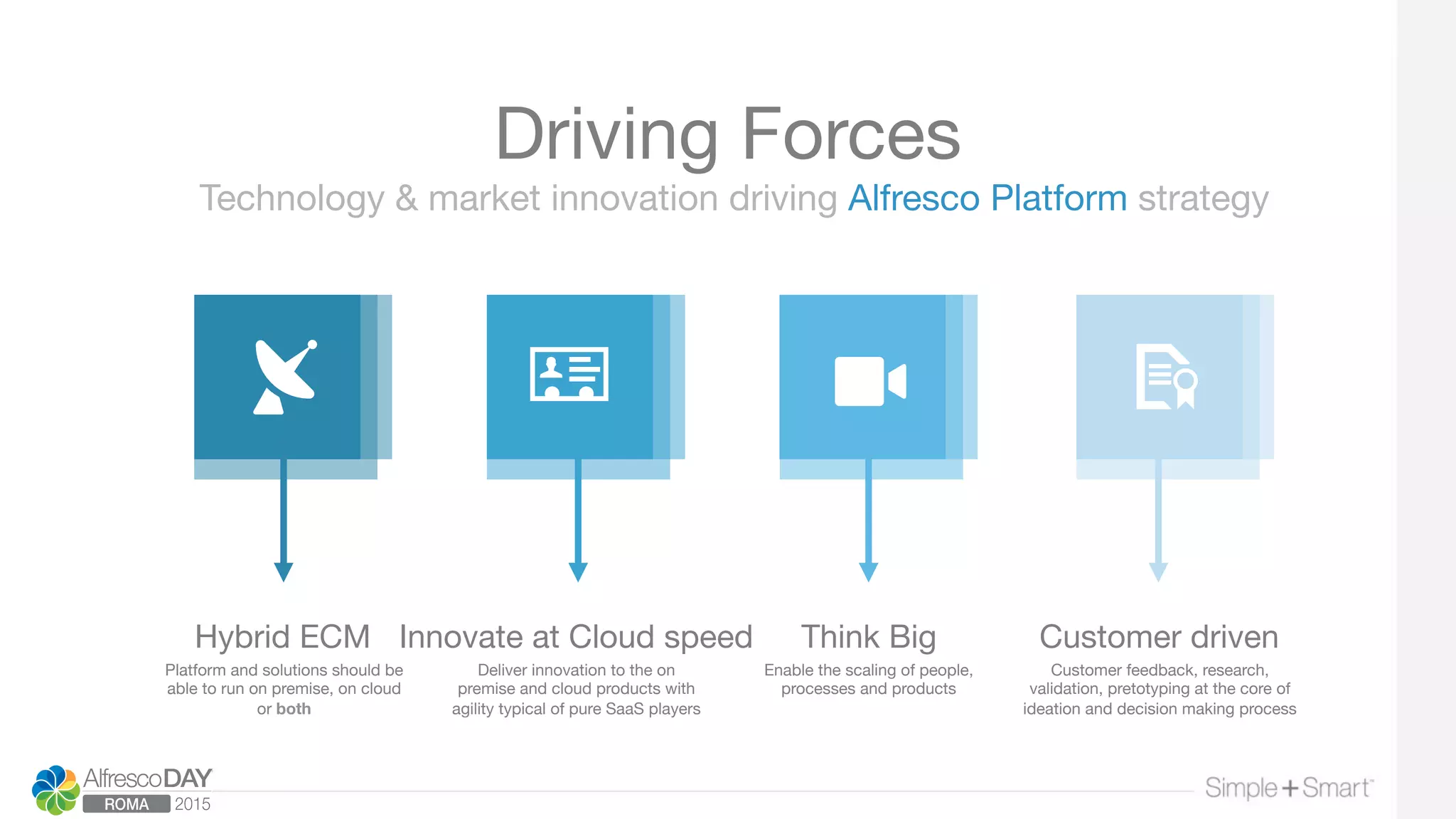

7. Technology & market innovation driving Alfresco Platform strategy
Driving Forces
Hybrid ECM
Innovate at Cloud speed
Think Big
Customer driven
Platform and solutions should be
able to run on premise, on cloud
or both
Deliver innovation to the on
premise and cloud products with
agility typical of pure SaaS players
Enable the scaling of people,
processes and products
Customer feedback, research,
validation, pretotyping at the core of
ideation and decision making process

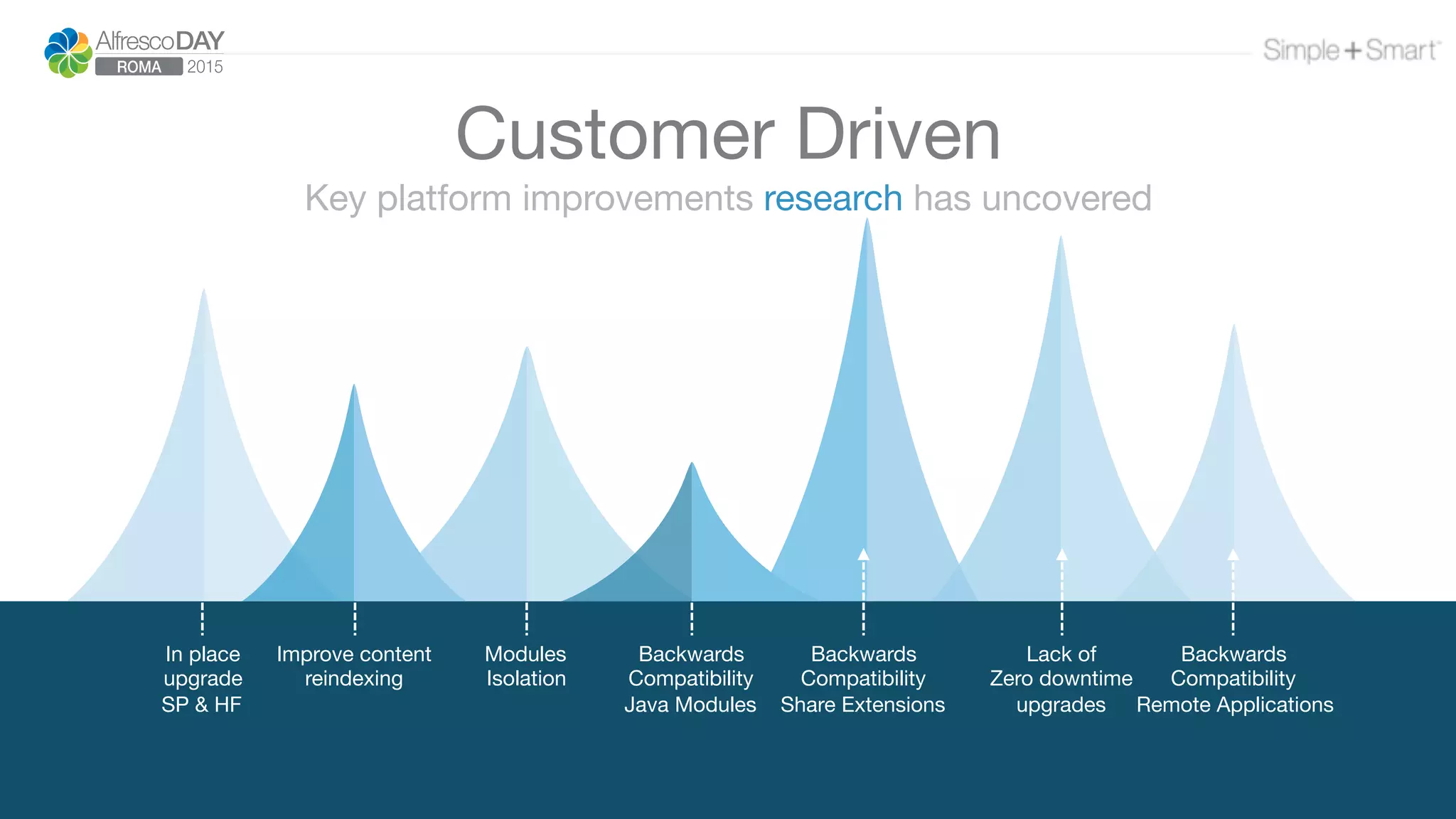

8. Key platform improvements research has uncovered
Customer Driven
Backwards
Compatibility
Java Modules
Improve content
reindexing
Backwards
Compatibility
Share Extensions
Modules
Isolation
In place
upgrade
SP & HF
Lack of
Zero downtime
upgrades
Backwards
Compatibility
Remote Applications

9. Alfresco Platform projects
Ongoing developments in the Alfresco Platform

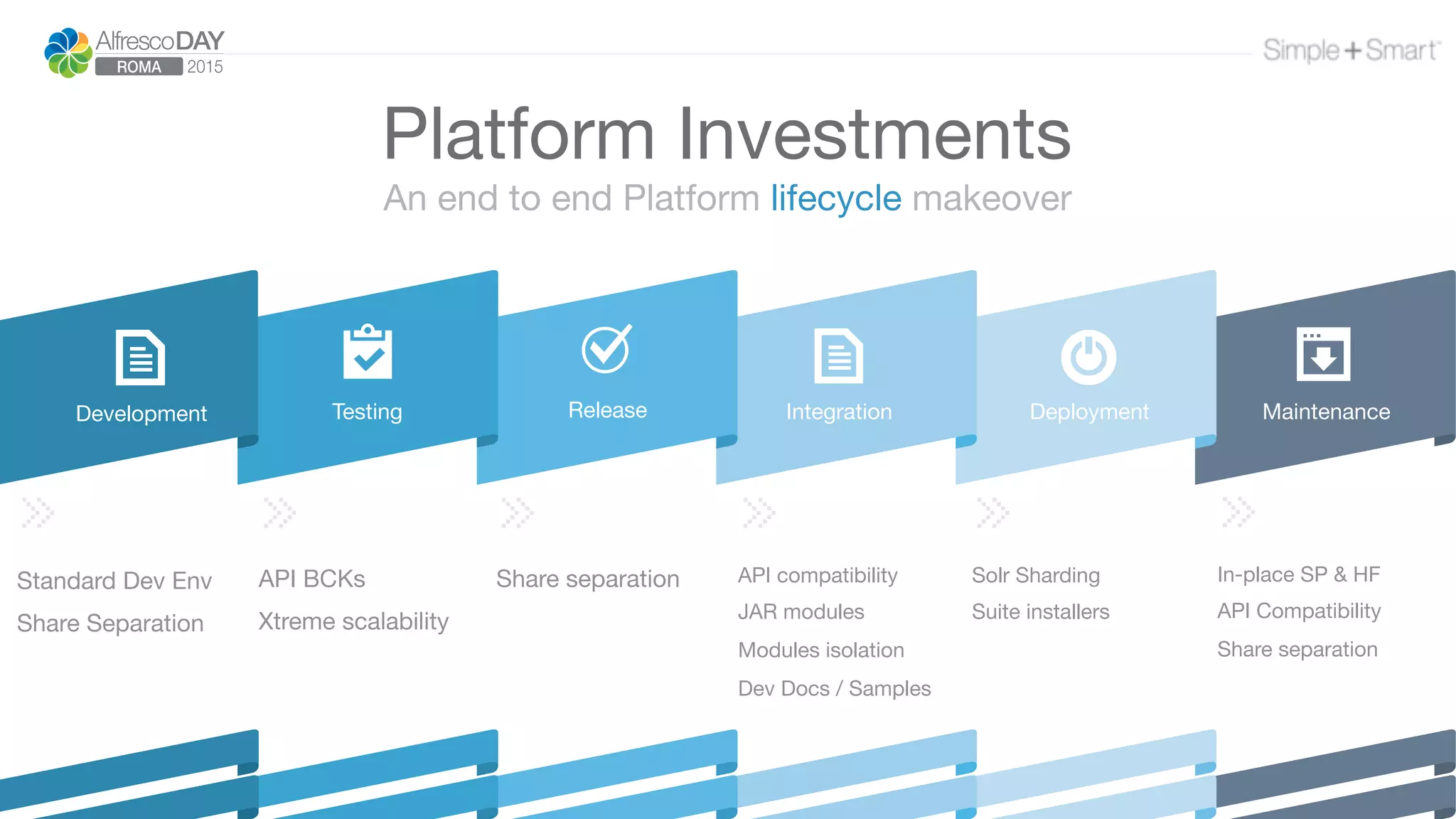

10. Platform Investments
An end to end Platform lifecycle makeover
Deployment
Testing
Release
Integration
Maintenance
Standard Dev Env
Share Separation
API BCKs
Xtreme scalability
Share separation
API compatibility
JAR modules
Modules isolation
Dev Docs / Samples
Solr Sharding
Suite installers
In-place SP & HF
API Compatibility
Share separation
Development

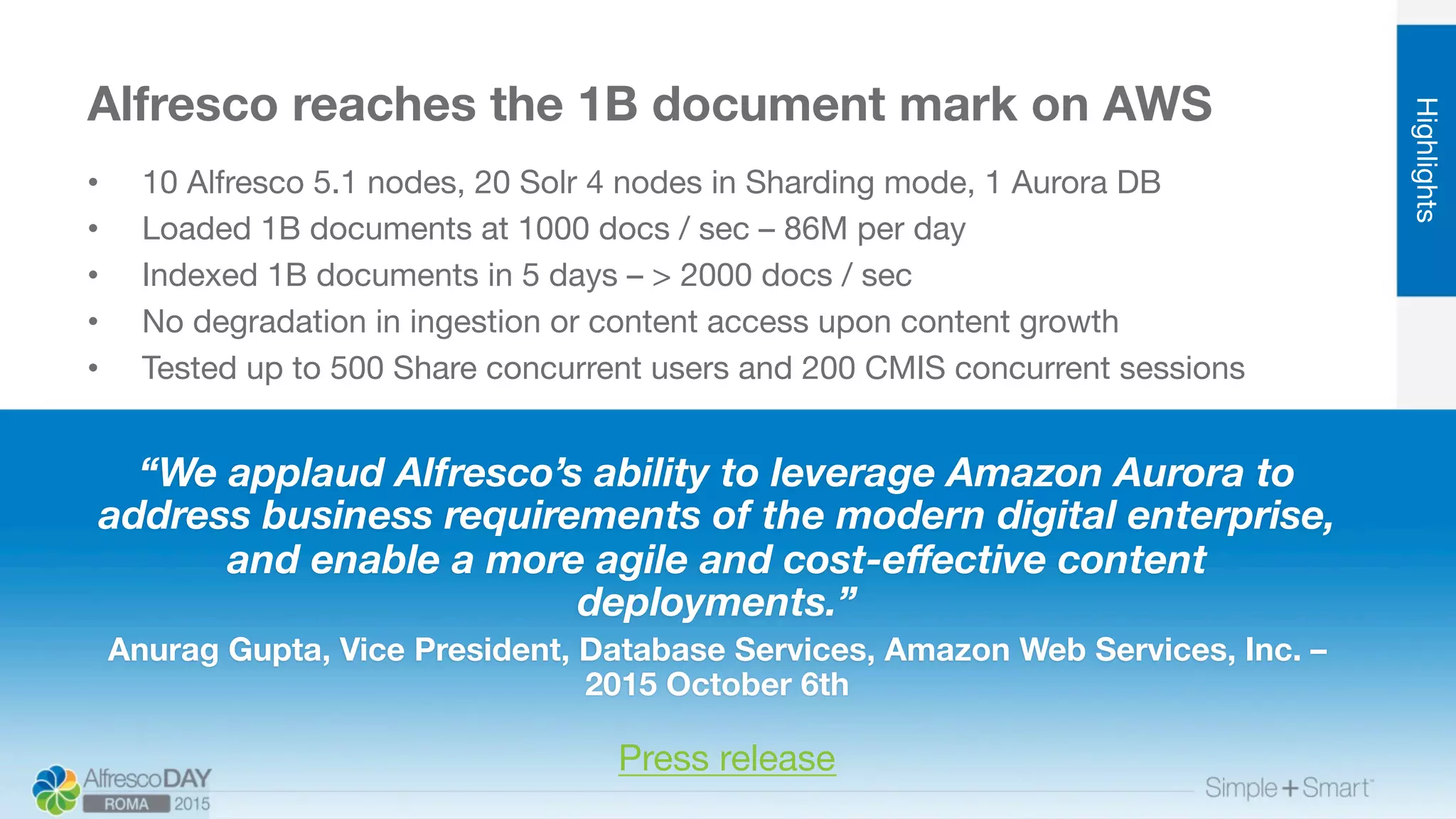

11. Alfresco reaches the 1B document mark on AWS
• 10 Alfresco 5.1 nodes, 20 Solr 4 nodes in Sharding mode, 1 Aurora DB
• Loaded 1B documents at 1000 docs / sec – 86M per day
• Indexed 1B documents in 5 days – > 2000 docs / sec
• No degradation in ingestion or content access upon content growth
• Tested up to 500 Share concurrent users and 200 CMIS concurrent sessions
Highlights
“We applaud Alfresco’s ability to leverage Amazon Aurora to
address business requirements of the modern digital enterprise,
and enable a more agile and cost-effective content
deployments.”
Anurag Gupta, Vice President, Database Services, Amazon Web Services, Inc. –
2015 October 6th
Press release

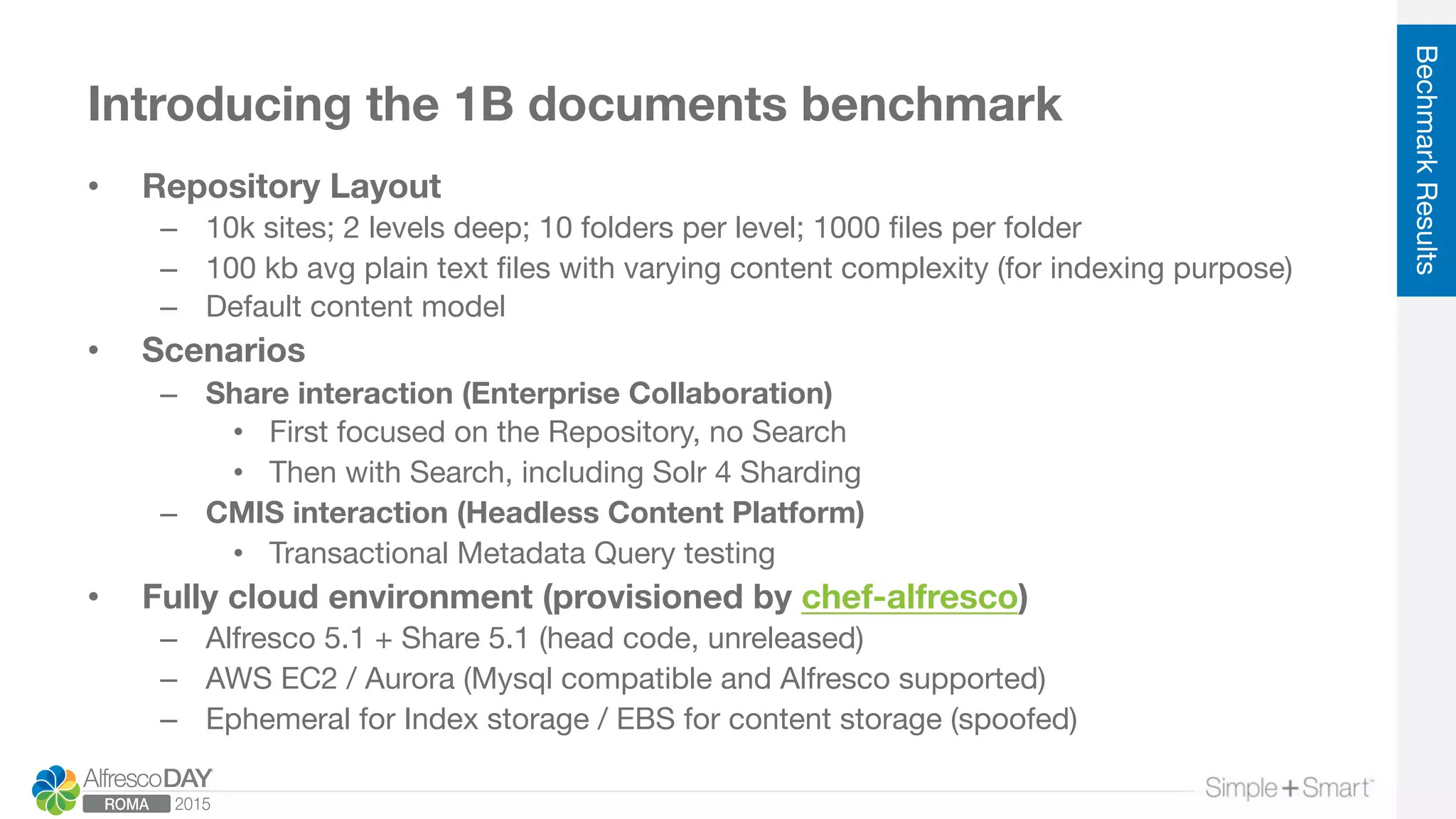

12. Introducing the 1B documents benchmark
• Repository Layout
– 10k sites; 2 levels deep; 10 folders per level; 1000 files per folder
– 100 kb avg plain text files with varying content complexity (for indexing purpose)
– Default content model
• Scenarios
– Share interaction (Enterprise Collaboration)
• First focused on the Repository, no Search
• Then with Search, including Solr 4 Sharding
– CMIS interaction (Headless Content Platform)
• Transactional Metadata Query testing
• Fully cloud environment (provisioned by chef-alfresco)
– Alfresco 5.1 + Share 5.1 (head code, unreleased)
– AWS EC2 / Aurora (Mysql compatible and Alfresco supported)
– Ephemeral for Index storage / EBS for content storage (spoofed)
BechmarkResults

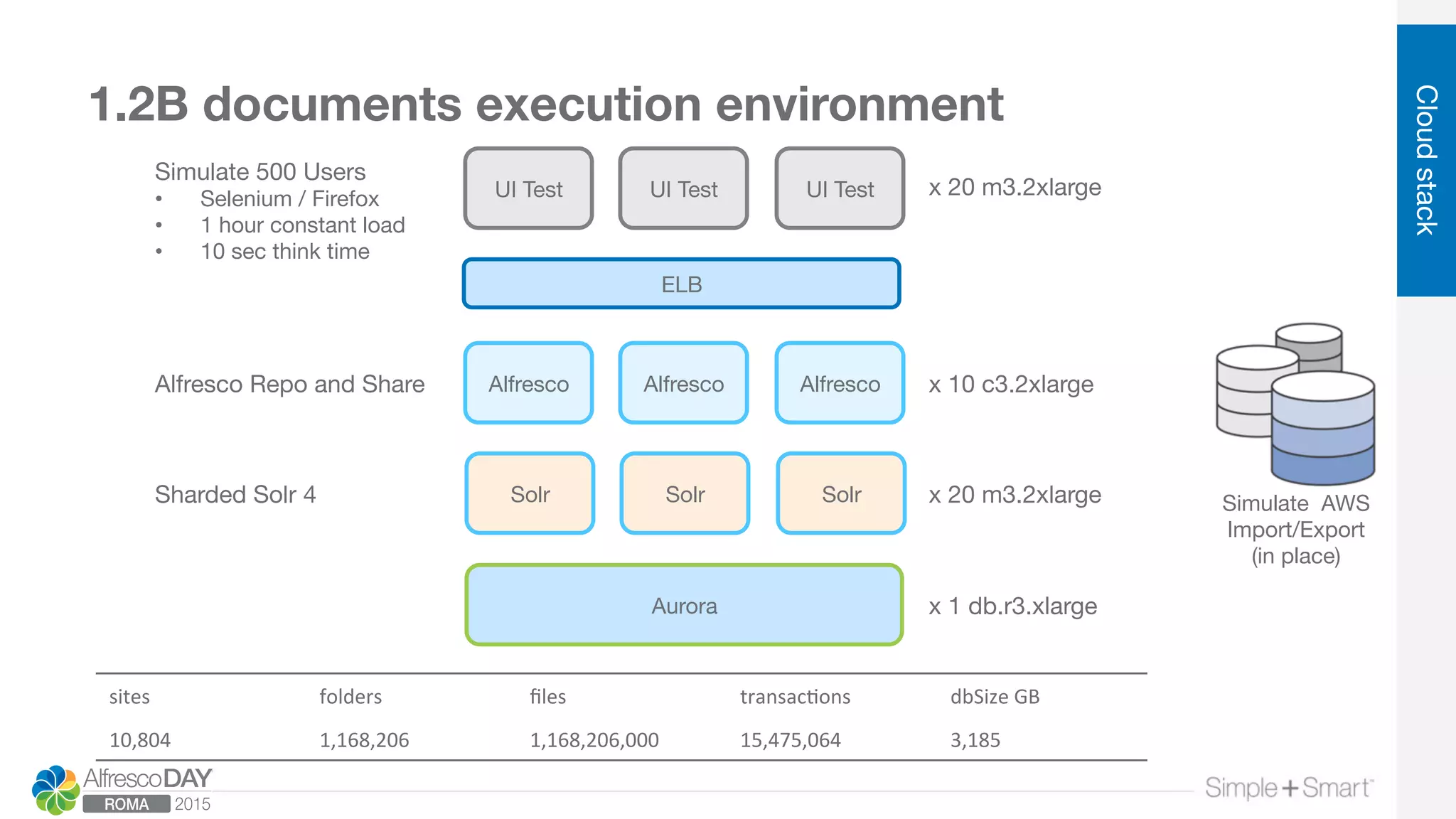

13. 1.2B documents execution environment
Cloudstack
UI Test
x 20 m3.2xlarge
Simulate 500 Users
• Selenium / Firefox
• 1 hour constant load
• 10 sec think time
UI Test
UI Test
Alfresco
Alfresco
Alfresco
x 10 c3.2xlarge
Alfresco Repo and Share
Solr
x 20 m3.2xlarge
Solr
Solr
Aurora
x 1 db.r3.xlarge
ELB
Sharded Solr 4
sites
folders
files
transac>ons
dbSize
GB
10,804
1,168,206
1,168,206,000
15,475,064
3,185
Simulate AWS
Import/Export
(in place)

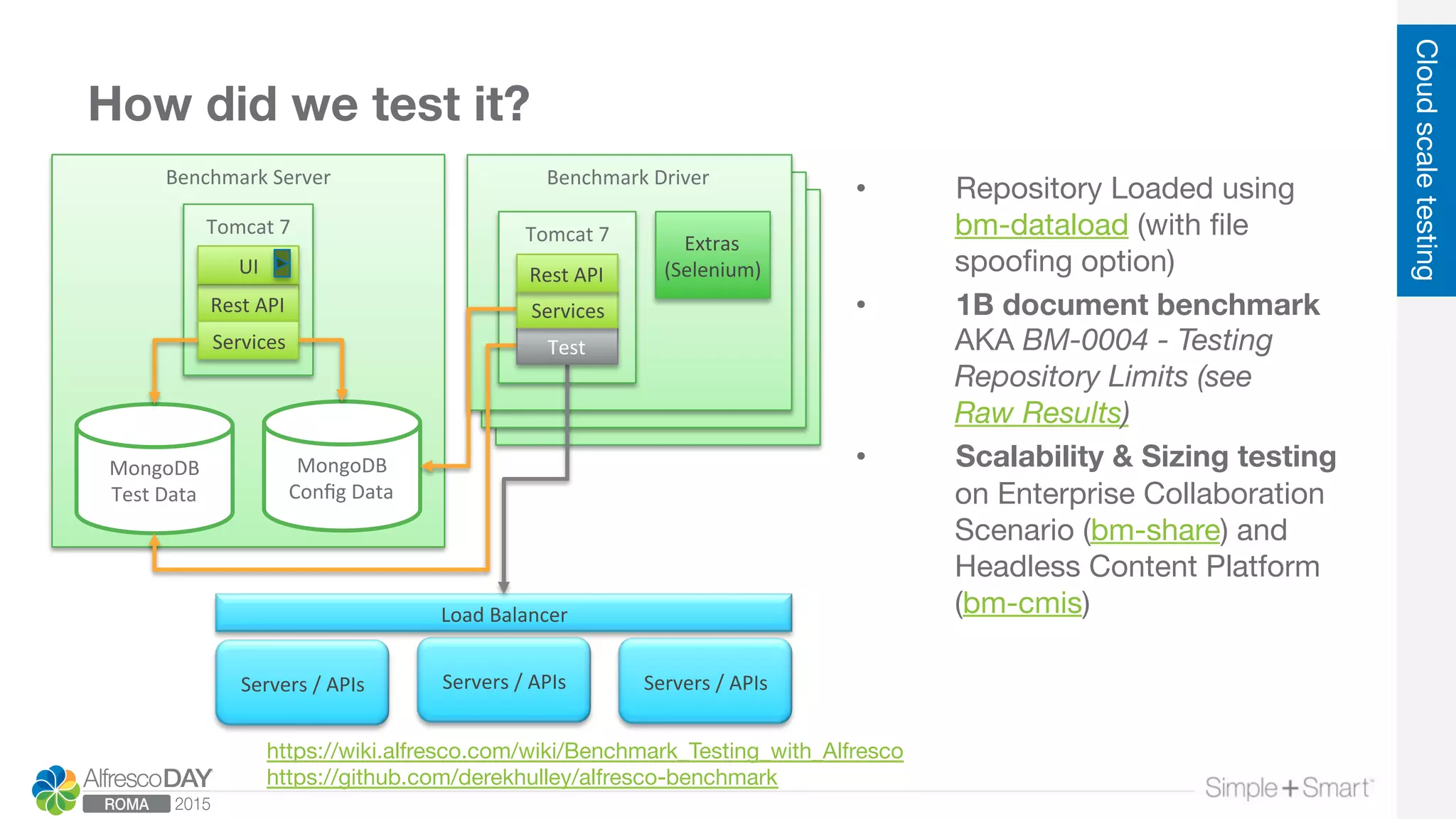

14. How did we test it?
Cloudscaletesting
Benchmark
Server
Tomcat
7
Rest
API
MongoDB
Config
Data
Services
MongoDB
Test
Data
UI
Benchmark
Driver
(xN)
Benchmark
Driver
(xN)
Benchmark
Driver
Tomcat
7
Extras
(Selenium)
Servers
/
APIs
Servers
/
APIs
Load
Balancer
Servers
/
APIs
Test
Services
Rest
API
https://wiki.alfresco.com/wiki/Benchmark_Testing_with_Alfresco
https://github.com/derekhulley/alfresco-benchmark
• Repository Loaded using
bm-dataload (with file
spoofing option)
• 1B document benchmark
AKA BM-0004 - Testing
Repository Limits (see
Raw Results)
• Scalability & Sizing testing
on Enterprise Collaboration
Scenario (bm-share) and
Headless Content Platform
(bm-cmis)

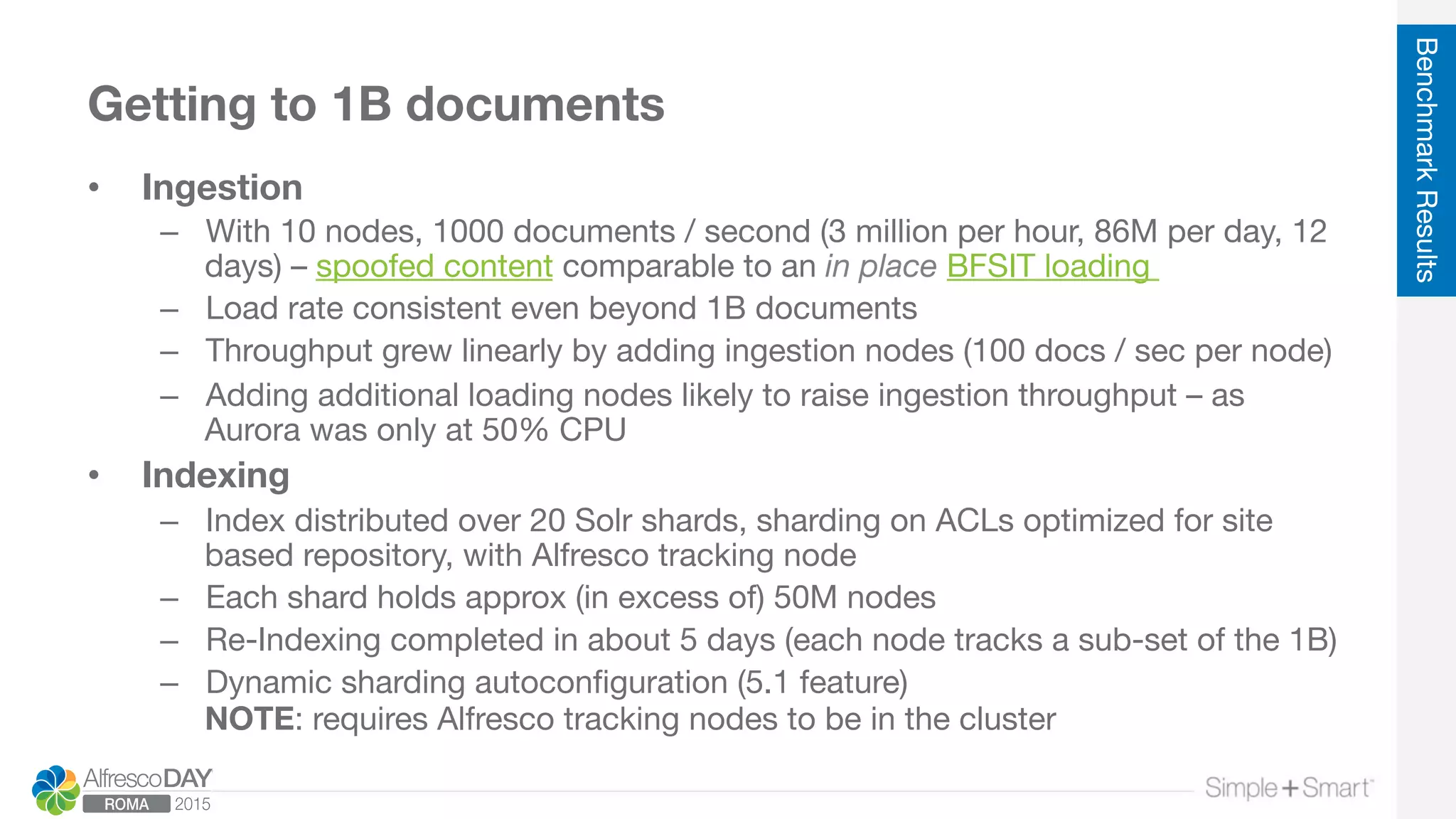

15. Getting to 1B documents
• Ingestion
– With 10 nodes, 1000 documents / second (3 million per hour, 86M per day, 12
days) – spoofed content comparable to an in place BFSIT loading
– Load rate consistent even beyond 1B documents
– Throughput grew linearly by adding ingestion nodes (100 docs / sec per node)
– Adding additional loading nodes likely to raise ingestion throughput – as
Aurora was only at 50% CPU
• Indexing
– Index distributed over 20 Solr shards, sharding on ACLs optimized for site
based repository, with Alfresco tracking node
– Each shard holds approx (in excess of) 50M nodes
– Re-Indexing completed in about 5 days (each node tracks a sub-set of the 1B)
– Dynamic sharding autoconfiguration (5.1 feature)
NOTE: requires Alfresco tracking nodes to be in the cluster
BenchmarkResults

16. The following information is based on a development version of the unreleased Alfresco 5.1.
Performance data is provisional and subtle to change based on testing the final Alfresco 5.1 release.

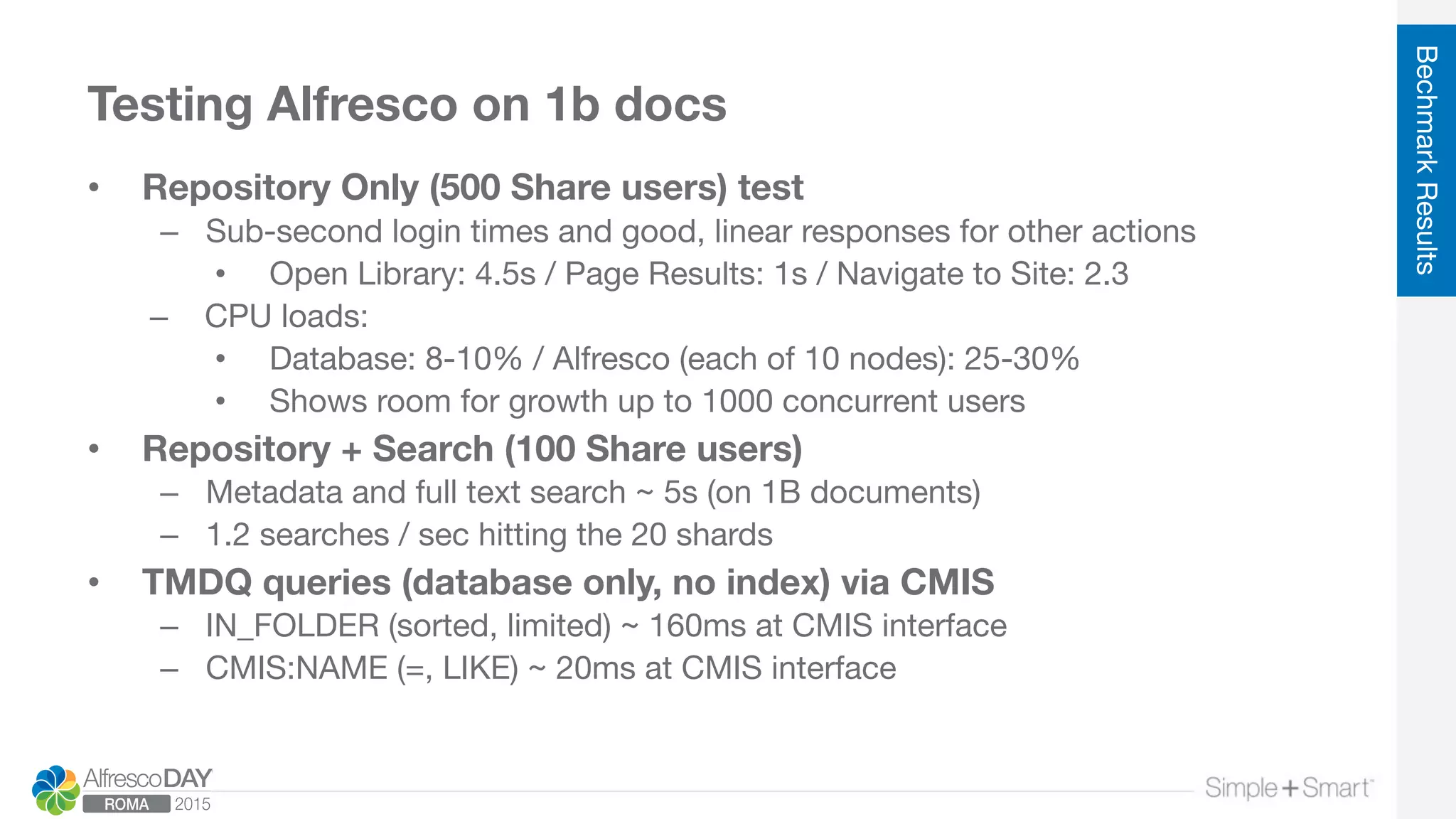

17. Testing Alfresco on 1b docs
• Repository Only (500 Share users) test
– Sub-second login times and good, linear responses for other actions
• Open Library: 4.5s / Page Results: 1s / Navigate to Site: 2.3
– CPU loads:
• Database: 8-10% / Alfresco (each of 10 nodes): 25-30%
• Shows room for growth up to 1000 concurrent users
• Repository + Search (100 Share users)
– Metadata and full text search ~ 5s (on 1B documents)
– 1.2 searches / sec hitting the 20 shards
• TMDQ queries (database only, no index) via CMIS
– IN_FOLDER (sorted, limited) ~ 160ms at CMIS interface
– CMIS:NAME (=, LIKE) ~ 20ms at CMIS interface
BechmarkResults

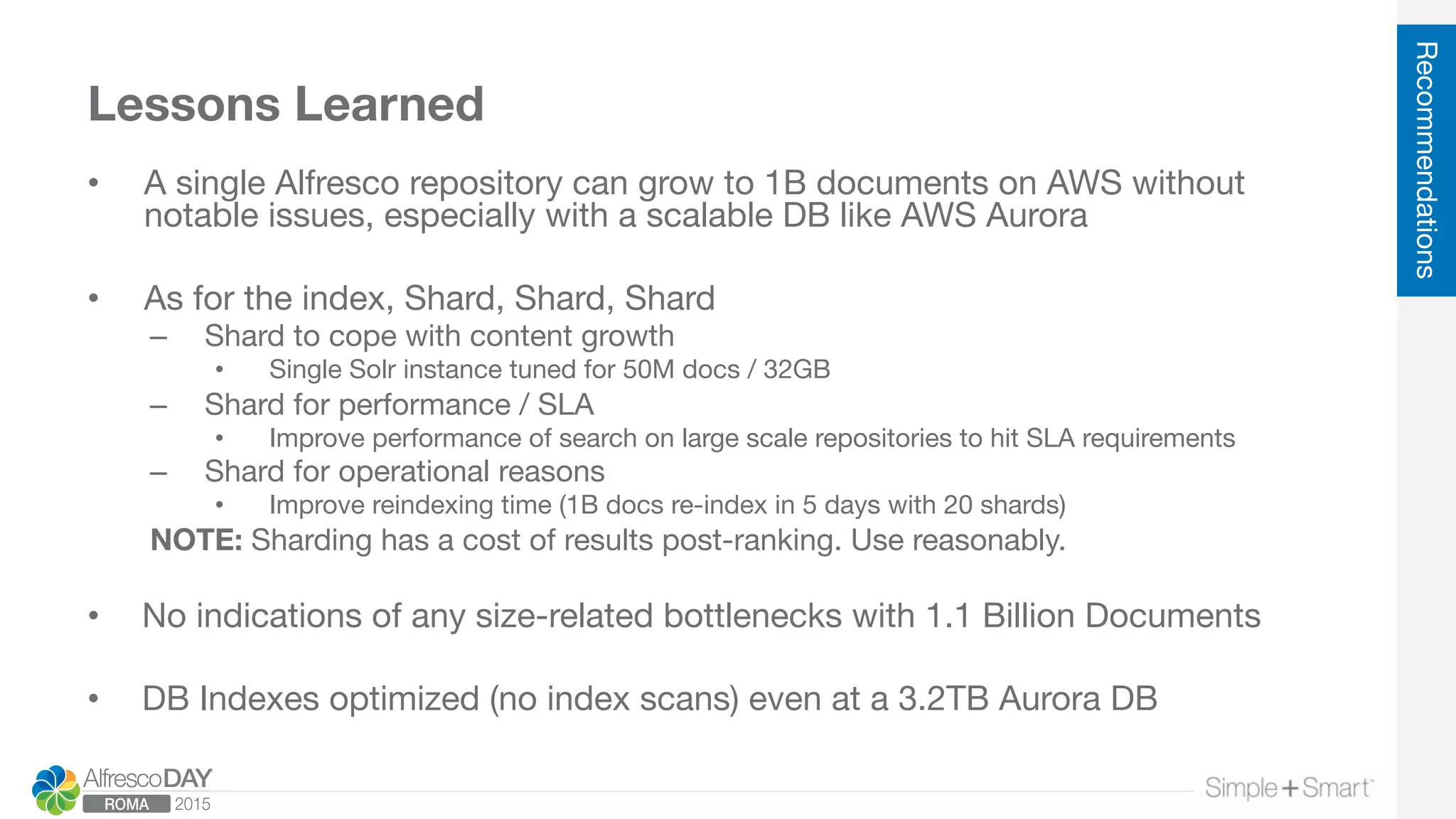

18. Lessons Learned
• A single Alfresco repository can grow to 1B documents on AWS without
notable issues, especially with a scalable DB like AWS Aurora
• As for the index, Shard, Shard, Shard
– Shard to cope with content growth
• Single Solr instance tuned for 50M docs / 32GB
– Shard for performance / SLA
• Improve performance of search on large scale repositories to hit SLA requirements
– Shard for operational reasons
• Improve reindexing time (1B docs re-index in 5 days with 20 shards)
NOTE: Sharding has a cost of results post-ranking. Use reasonably.
• No indications of any size-related bottlenecks with 1.1 Billion Documents
• DB Indexes optimized (no index scans) even at a 3.2TB Aurora DB
Recommendations

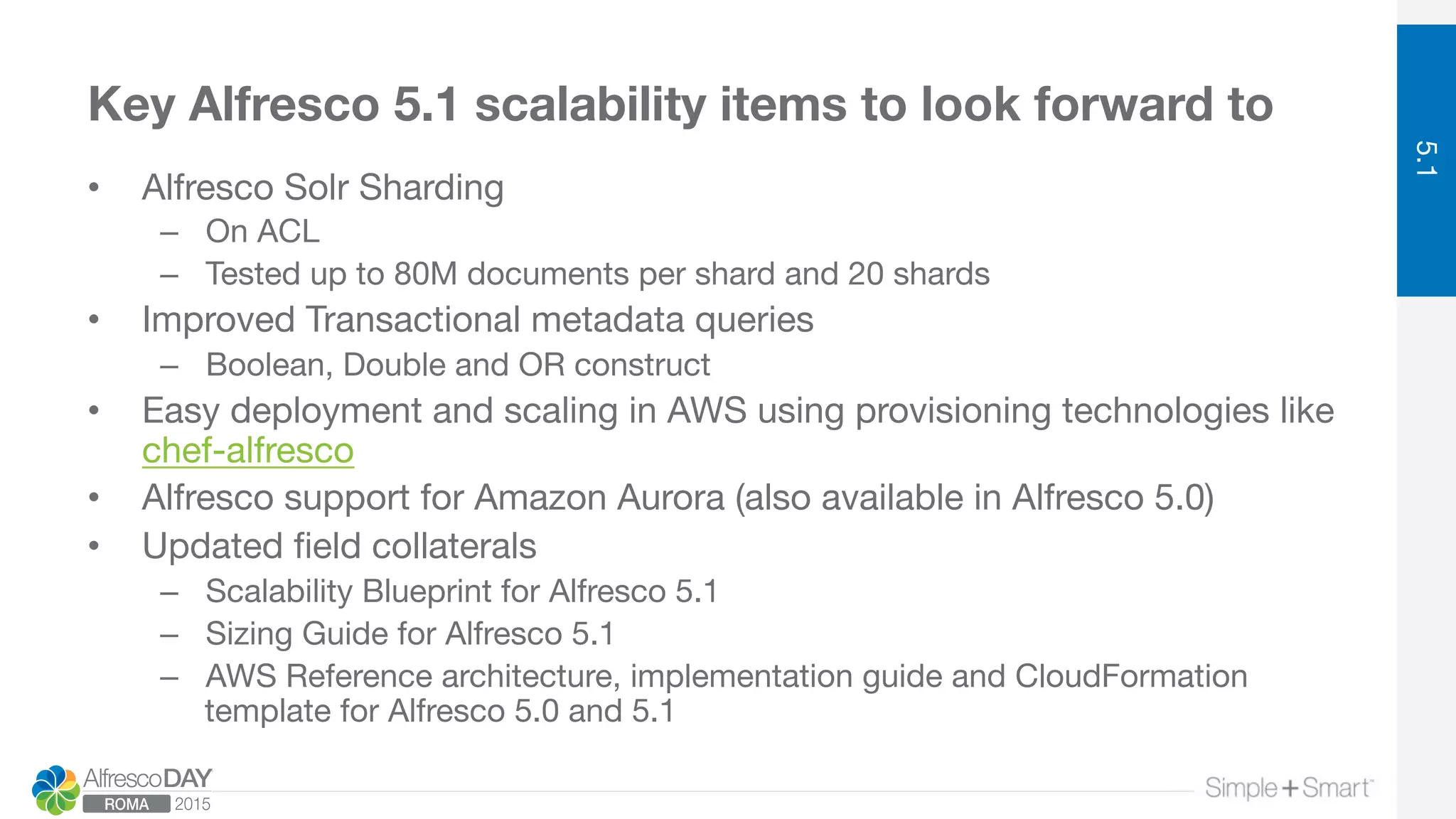

19. Key Alfresco 5.1 scalability items to look forward to
• Alfresco Solr Sharding
– On ACL
– Tested up to 80M documents per shard and 20 shards
• Improved Transactional metadata queries
– Boolean, Double and OR construct
• Easy deployment and scaling in AWS using provisioning technologies like
chef-alfresco
• Alfresco support for Amazon Aurora (also available in Alfresco 5.0)
• Updated field collaterals
– Scalability Blueprint for Alfresco 5.1
– Sizing Guide for Alfresco 5.1
– AWS Reference architecture, implementation guide and CloudFormation
template for Alfresco 5.0 and 5.1
5.1

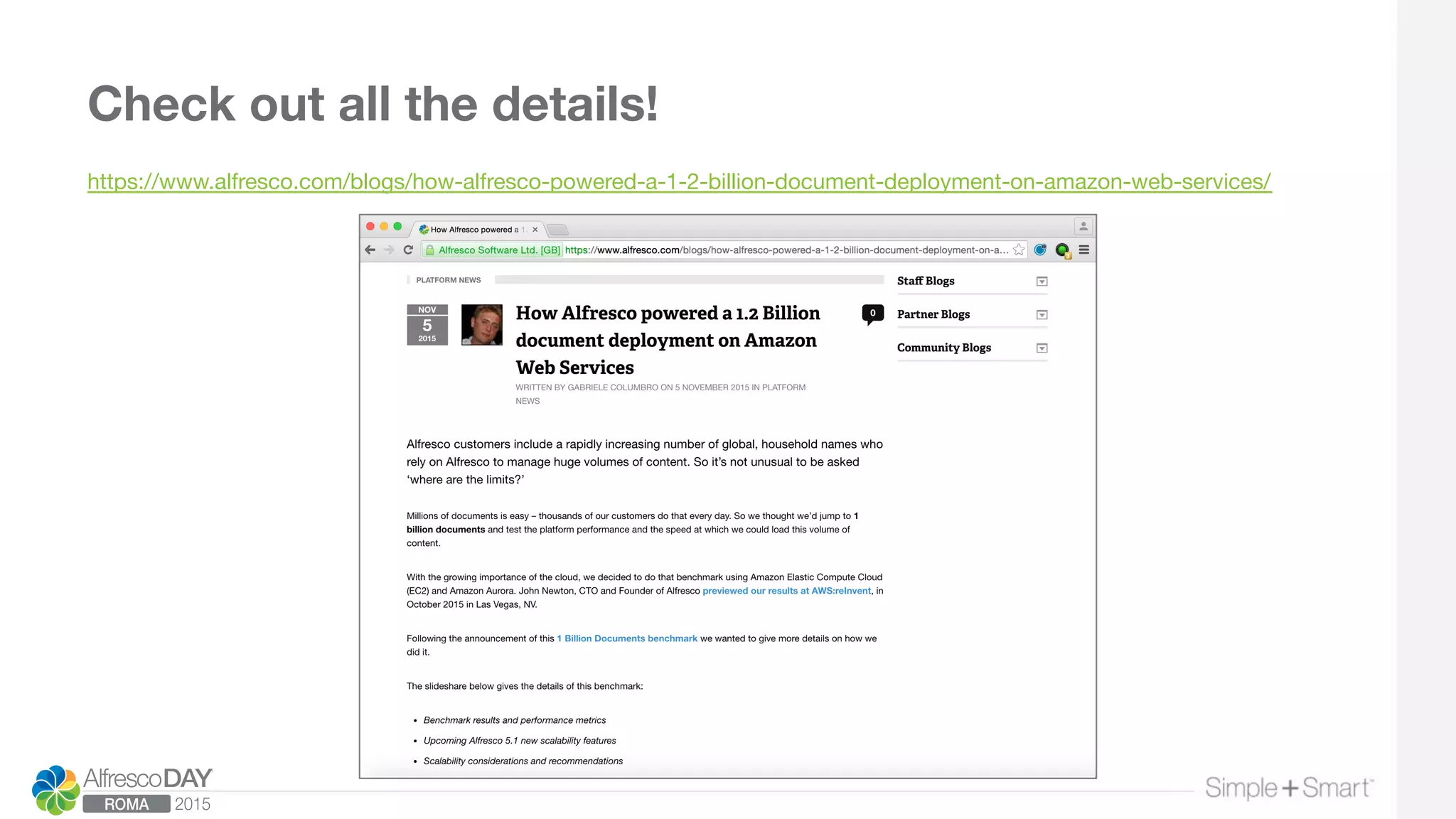

20. Check out all the details!
https://www.alfresco.com/blogs/how-alfresco-powered-a-1-2-billion-document-deployment-on-amazon-web-services/

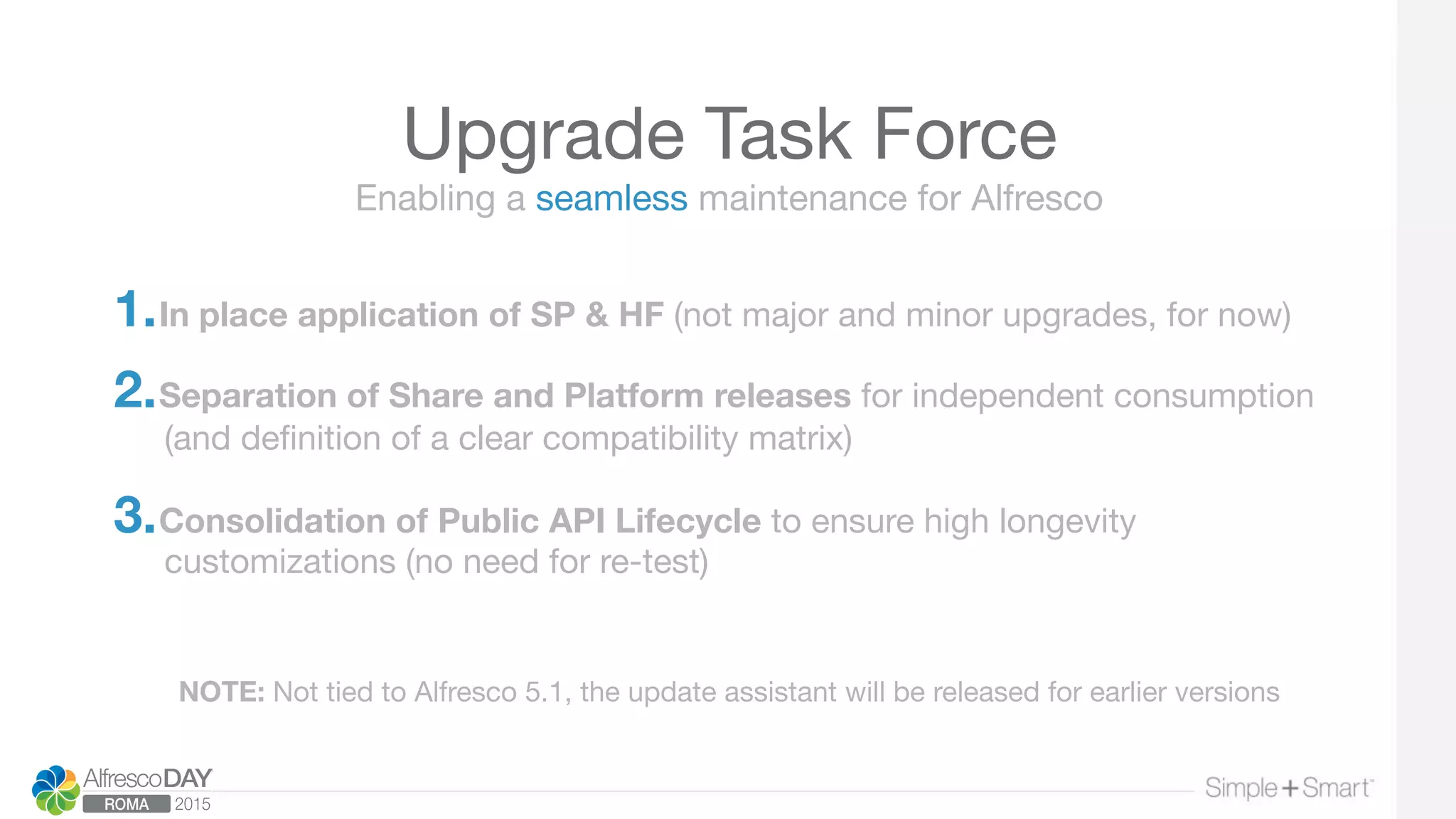

21. Upgrade Task Force
1. In place application of SP & HF (not major and minor upgrades, for now)
2. Separation of Share and Platform releases for independent consumption
(and definition of a clear compatibility matrix)
3. Consolidation of Public API Lifecycle to ensure high longevity
customizations (no need for re-test)
Enabling a seamless maintenance for Alfresco
NOTE: Not tied to Alfresco 5.1, the update assistant will be released for earlier versions

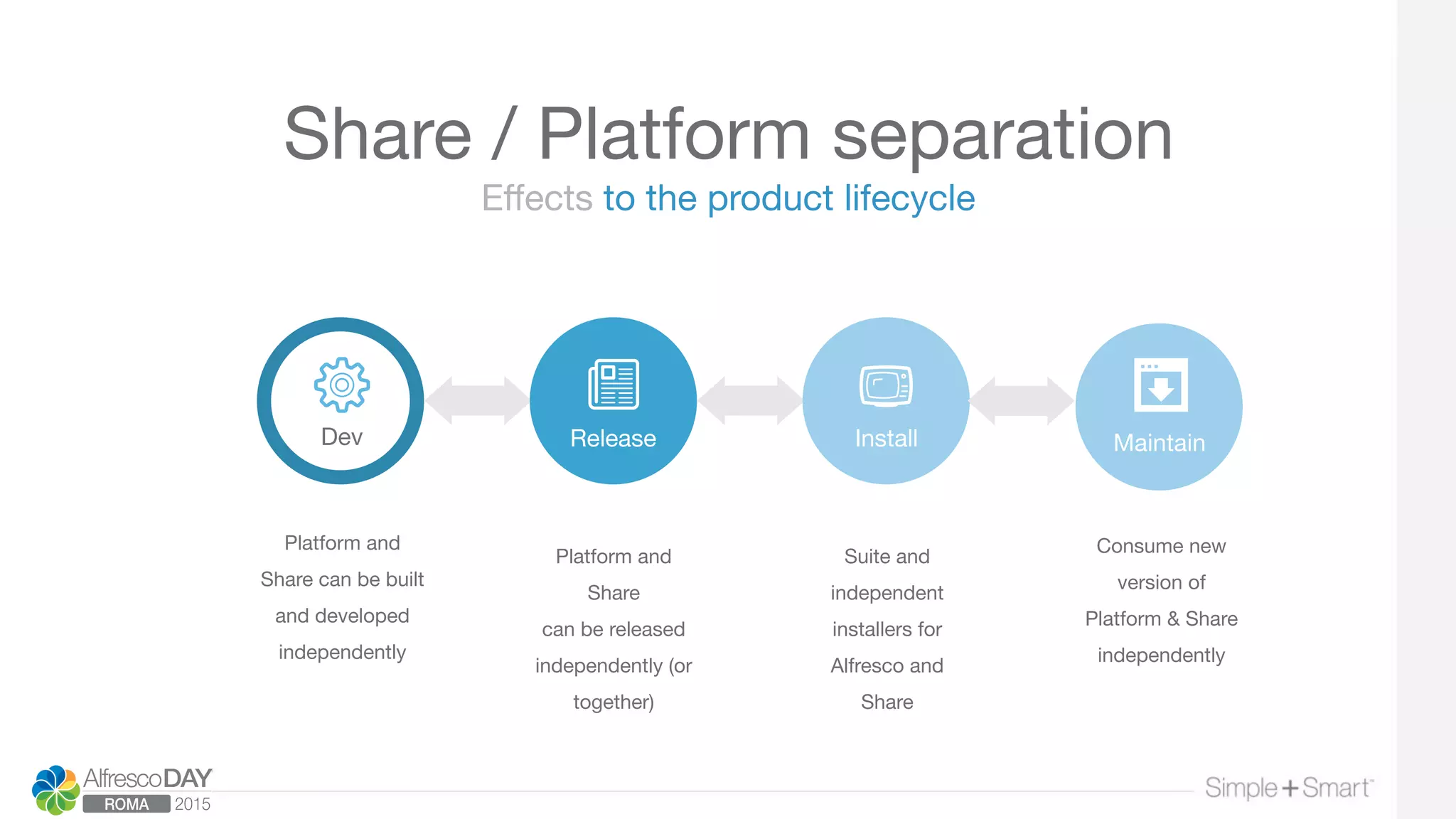

22. Effects to the product lifecycle
Share / Platform separation
Platform and
Share can be built
and developed
independently
Dev
Release
Install
Platform and
Share
can be released
independently (or
together)
Maintain
Suite and
independent
installers for
Alfresco and
Share
Consume new
version of
Platform & Share
independently

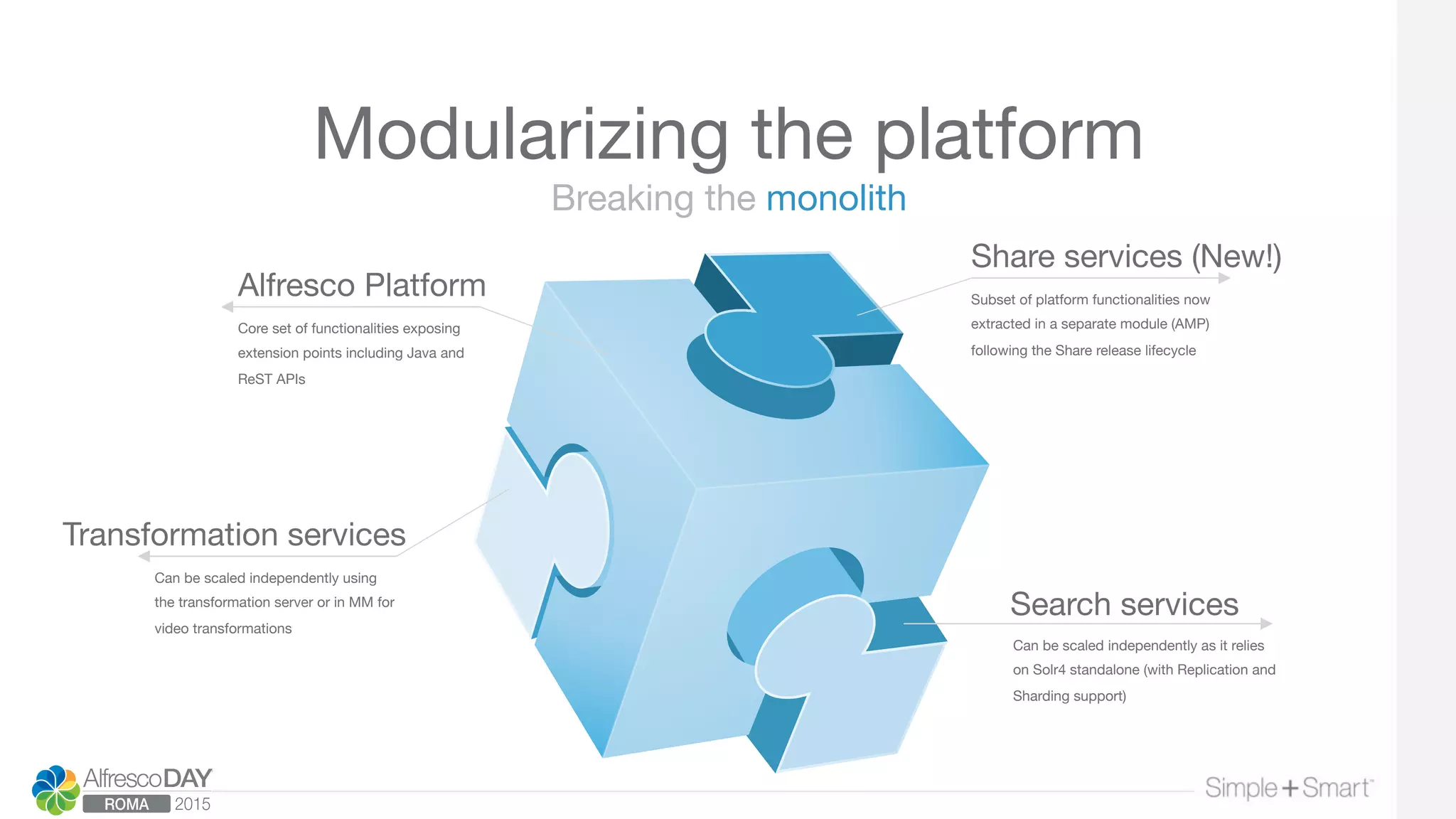

23. Modularizing the platform
Breaking the monolith
Alfresco Platform
Core set of functionalities exposing
extension points including Java and
ReST APIs
Transformation services
Can be scaled independently using
the transformation server or in MM for
video transformations
Share services (New!)
Subset of platform functionalities now
extracted in a separate module (AMP)
following the Share release lifecycle
Search services
Can be scaled independently as it relies
on Solr4 standalone (with Replication and
Sharding support)

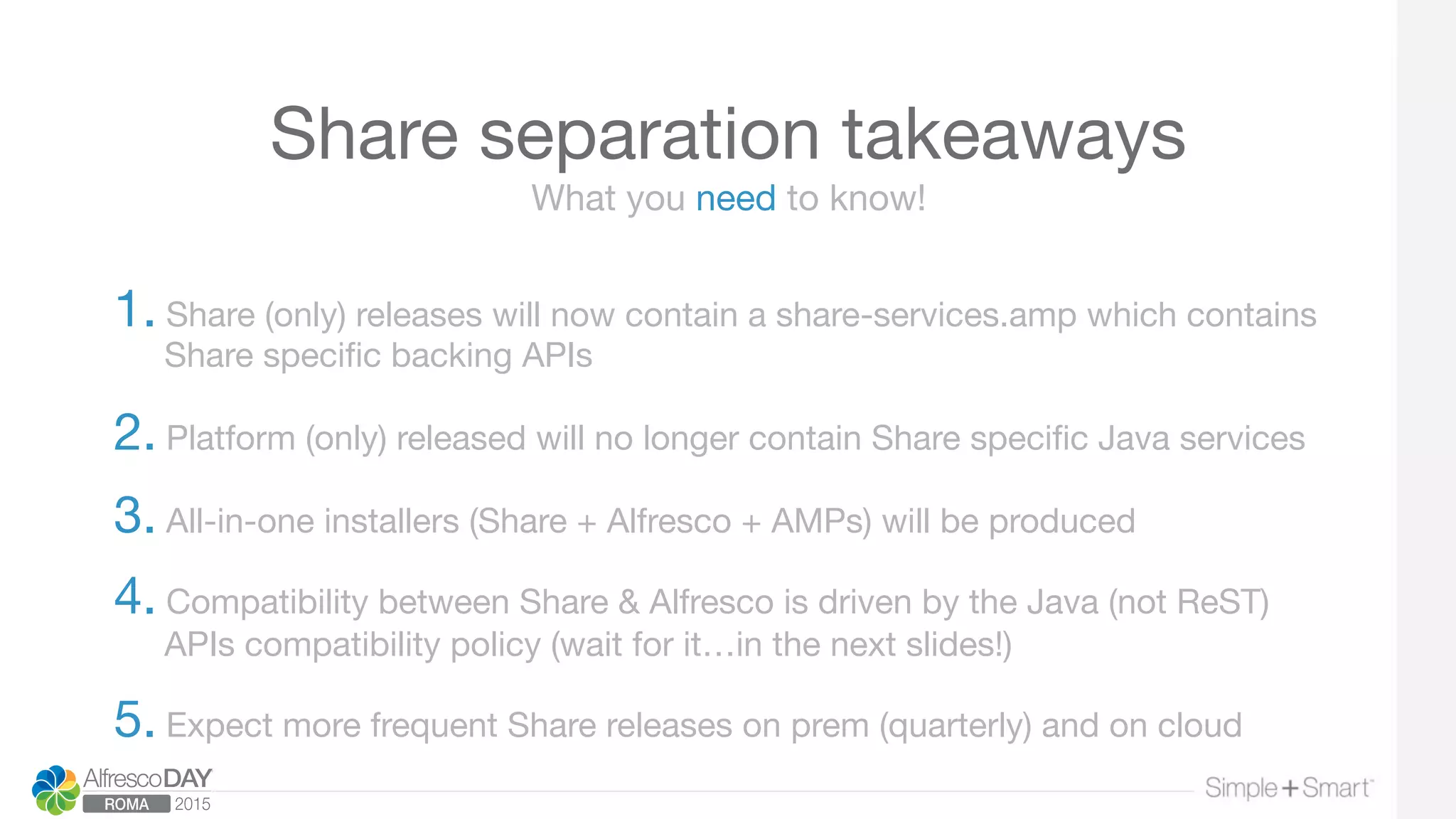

24. Share separation takeaways
1. Share (only) releases will now contain a share-services.amp which contains
Share specific backing APIs
2. Platform (only) released will no longer contain Share specific Java services
3. All-in-one installers (Share + Alfresco + AMPs) will be produced
4. Compatibility between Share & Alfresco is driven by the Java (not ReST)
APIs compatibility policy (wait for it…in the next slides!)
5. Expect more frequent Share releases on prem (quarterly) and on cloud
What you need to know!

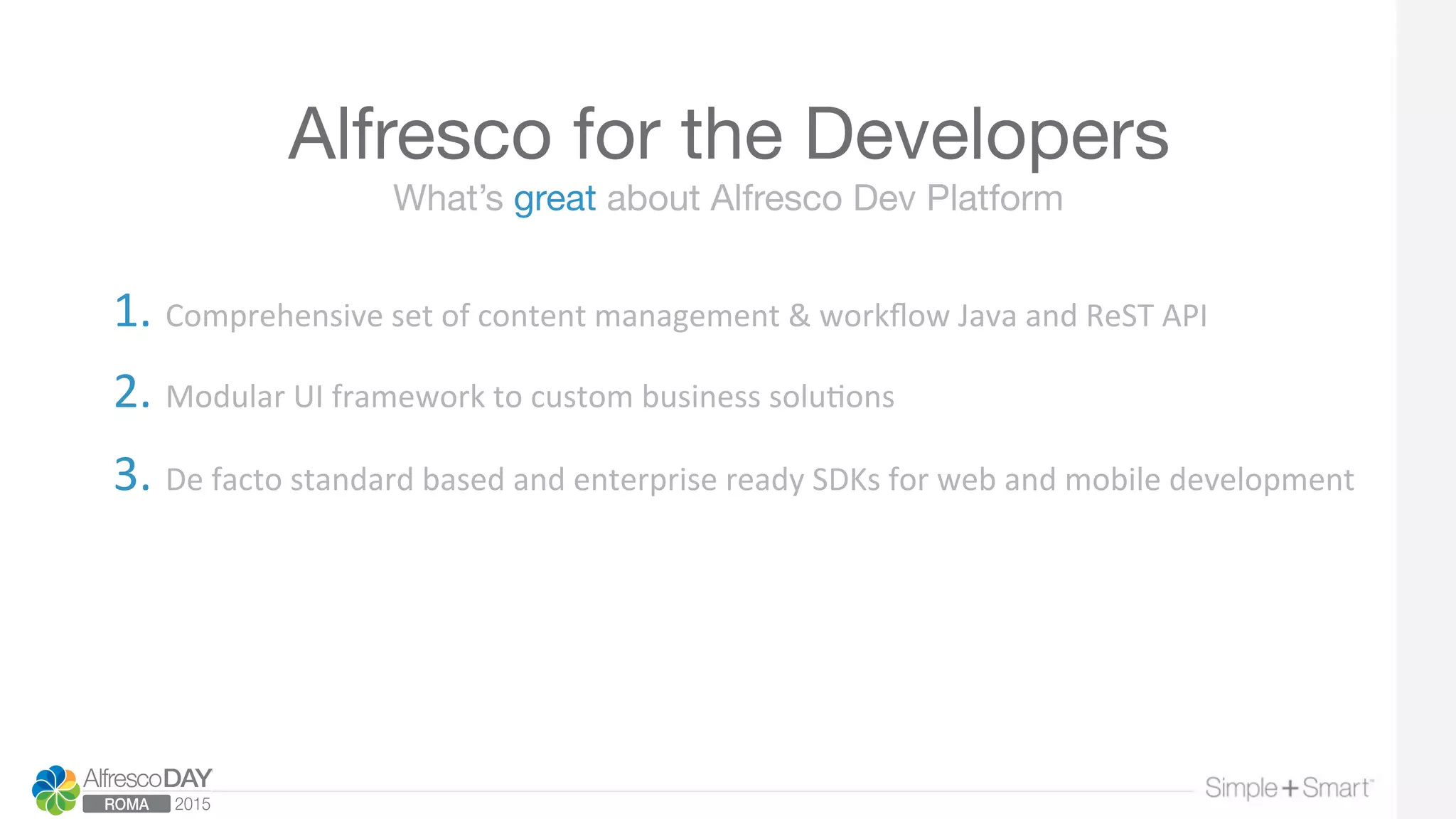

25. Alfresco for the Developers
1. Comprehensive
set
of
content
management
&
workflow
Java
and
ReST
API
2. Modular
UI
framework
to
custom
business
solu>ons
3. De
facto
standard
based
and
enterprise
ready
SDKs
for
web
and
mobile
development
What’s great about Alfresco Dev Platform

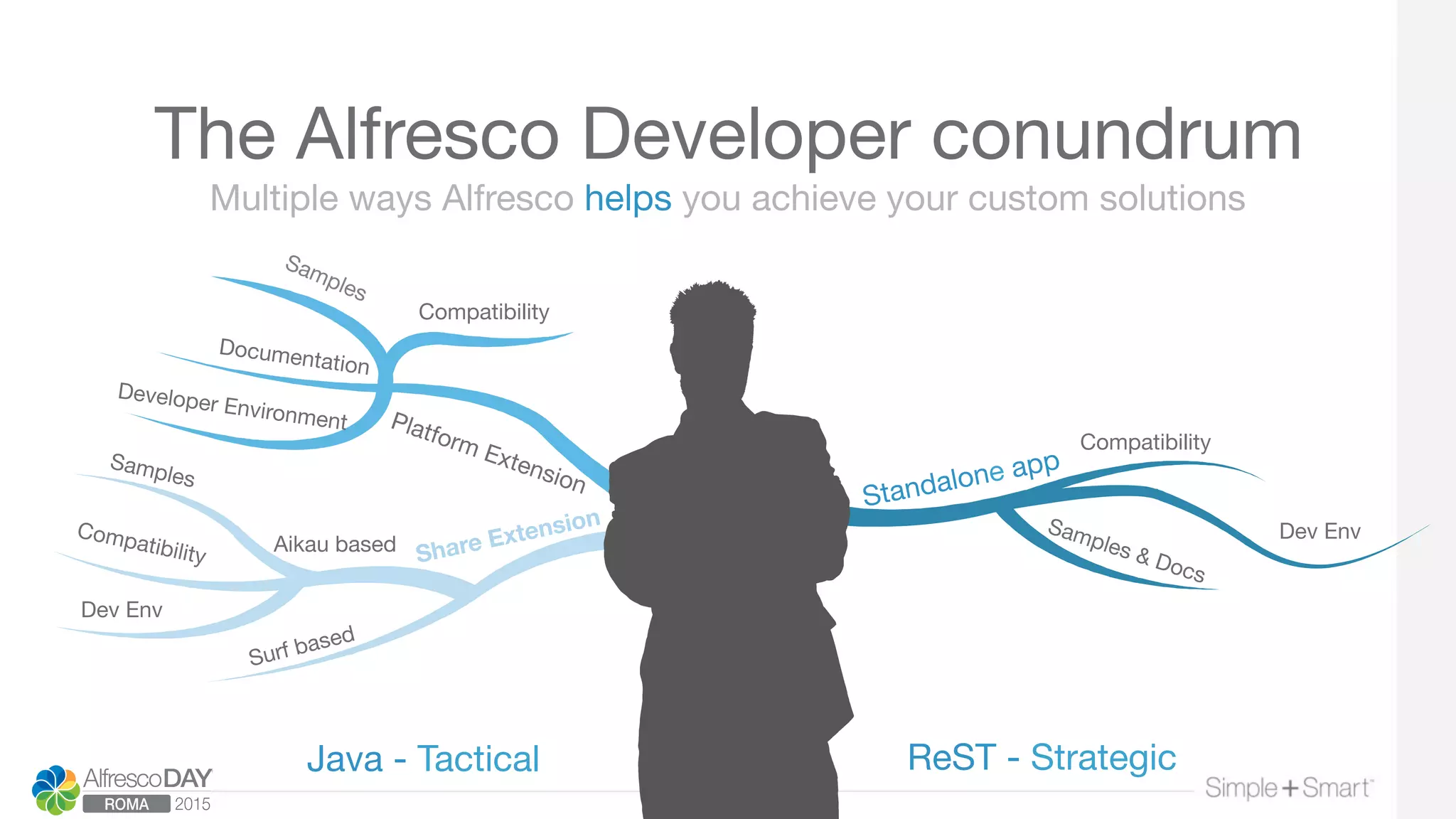

26. Multiple ways Alfresco helps you achieve your custom solutions
The Alfresco Developer conundrum
Compatibility
Dev Env
Samples & Docs
Standalone app
Platform Extension
Documentation
Compatibility
Developer Environment
Share Extension
Aikau based
Compatibility
Dev Env
Samples
Surf based
ReST - Strategic
Java - Tactical

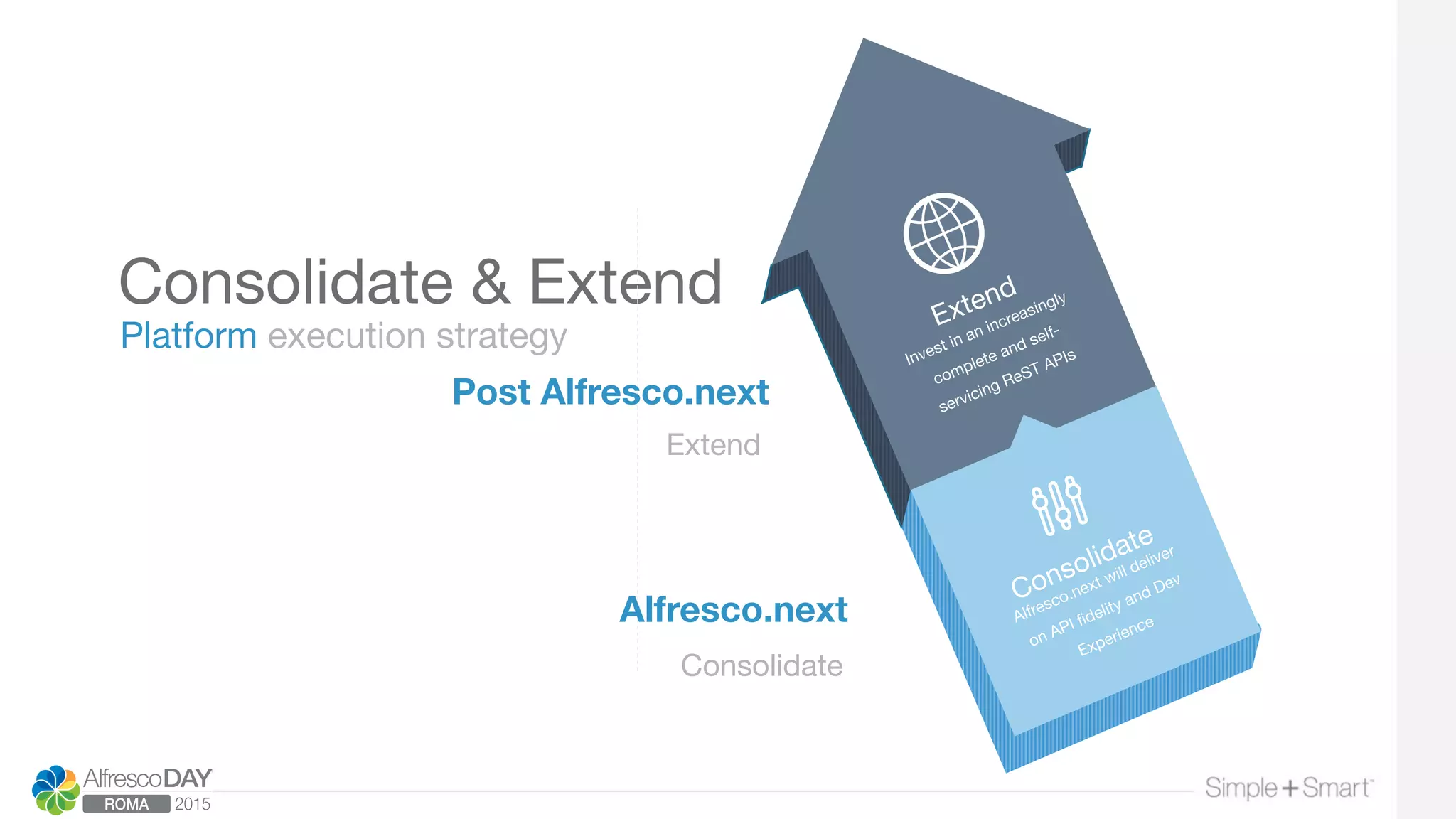

27. Consolidate & Extend
Platform execution strategy
Extend
Post Alfresco.next
Consolidate
Alfresco.next

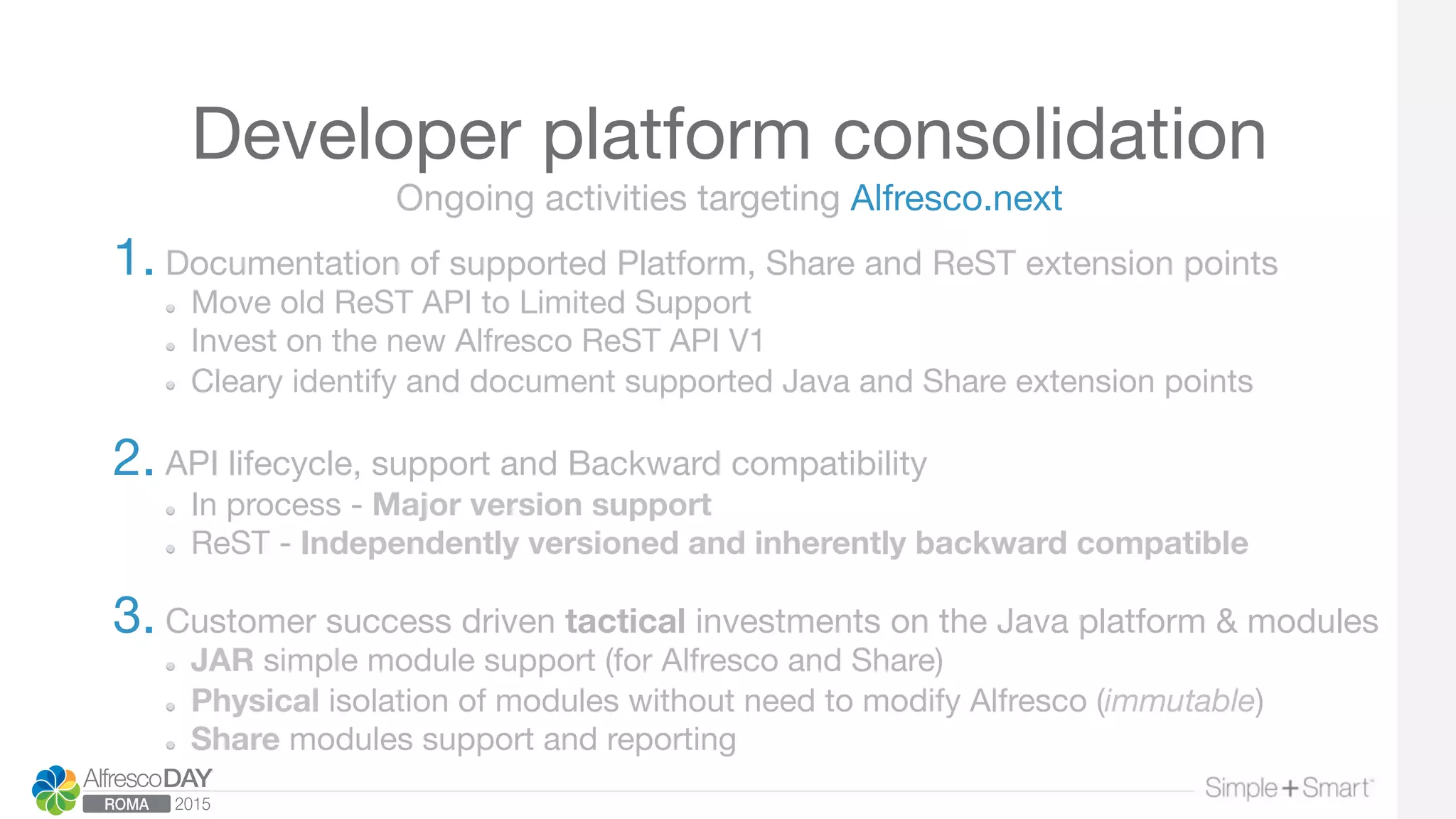

28. Developer platform consolidation
1. Documentation of supported Platform, Share and ReST extension points
Move old ReST API to Limited Support
Invest on the new Alfresco ReST API V1
Cleary identify and document supported Java and Share extension points
2. API lifecycle, support and Backward compatibility
In process - Major version support
ReST - Independently versioned and inherently backward compatible
3. Customer success driven tactical investments on the Java platform & modules
JAR simple module support (for Alfresco and Share)
Physical isolation of modules without need to modify Alfresco (immutable)
Share modules support and reporting
Ongoing activities targeting Alfresco.next

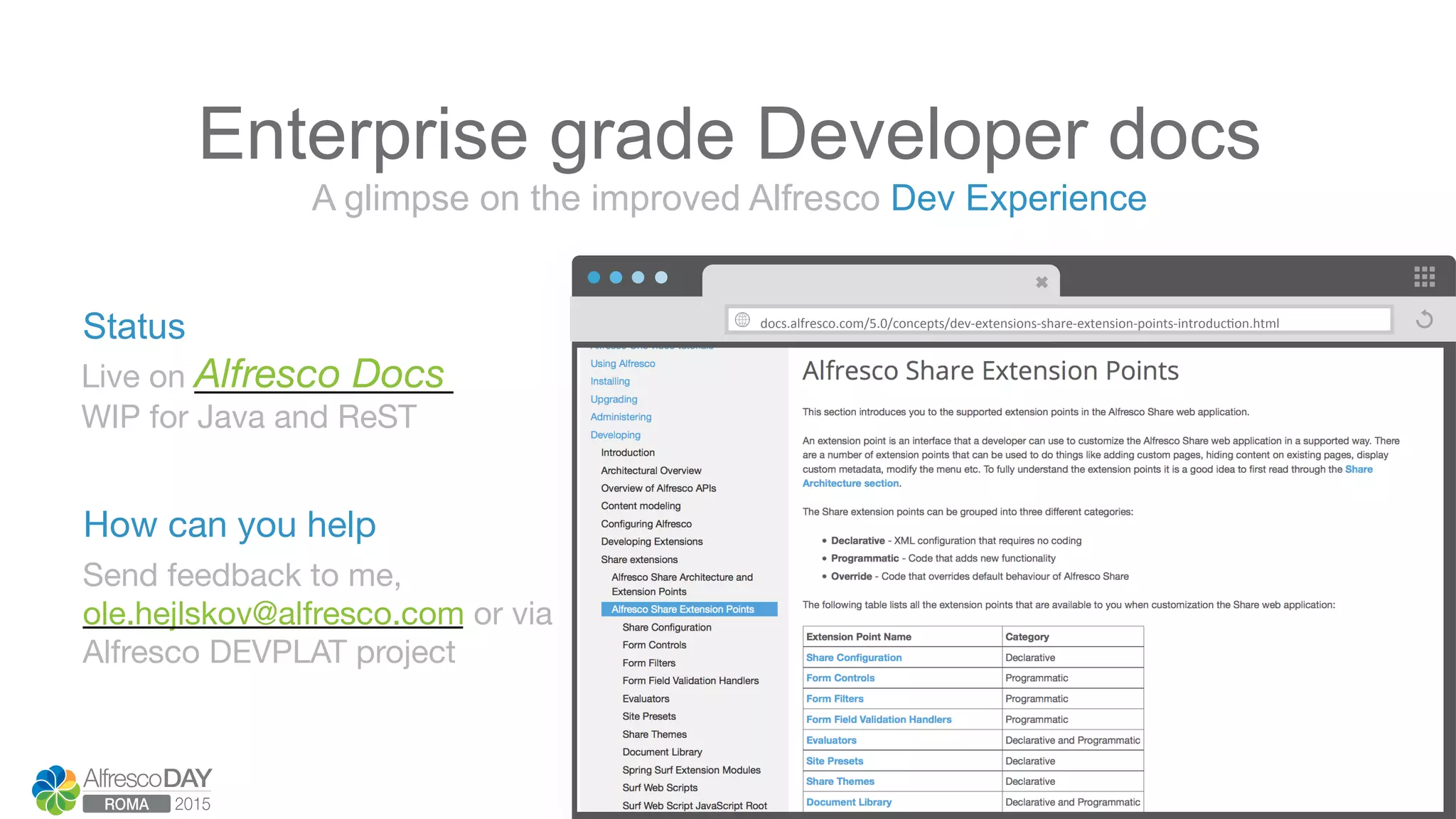

29. docs.alfresco.com/5.0/concepts/dev-­‐extensions-­‐share-­‐extension-­‐points-­‐introduc>on.html
Live on Alfresco Docs
WIP for Java and ReST
A glimpse on the improved Alfresco Dev Experience
Enterprise grade Developer docs
Send feedback to me,
ole.hejlskov@alfresco.com or via
Alfresco DEVPLAT project
Status
How can you help

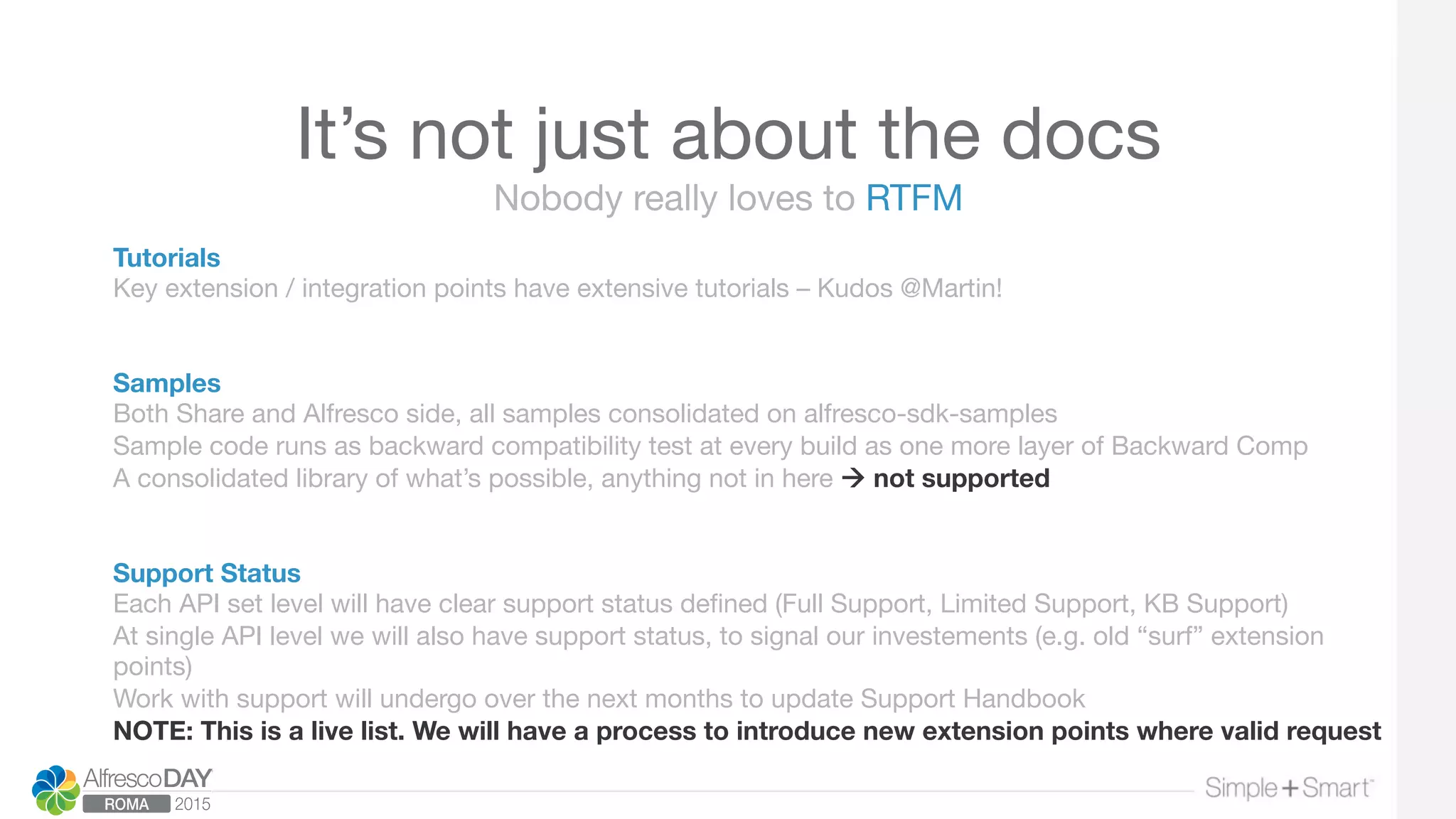

30. It’s not just about the docs
Tutorials
Key extension / integration points have extensive tutorials – Kudos @Martin!
Samples
Both Share and Alfresco side, all samples consolidated on alfresco-sdk-samples
Sample code runs as backward compatibility test at every build as one more layer of Backward Comp
A consolidated library of what’s possible, anything not in here à not supported
Support Status
Each API set level will have clear support status defined (Full Support, Limited Support, KB Support)
At single API level we will also have support status, to signal our investements (e.g. old “surf” extension
points)
Work with support will undergo over the next months to update Support Handbook
NOTE: This is a live list. We will have a process to introduce new extension points where valid request
Nobody really loves to RTFM

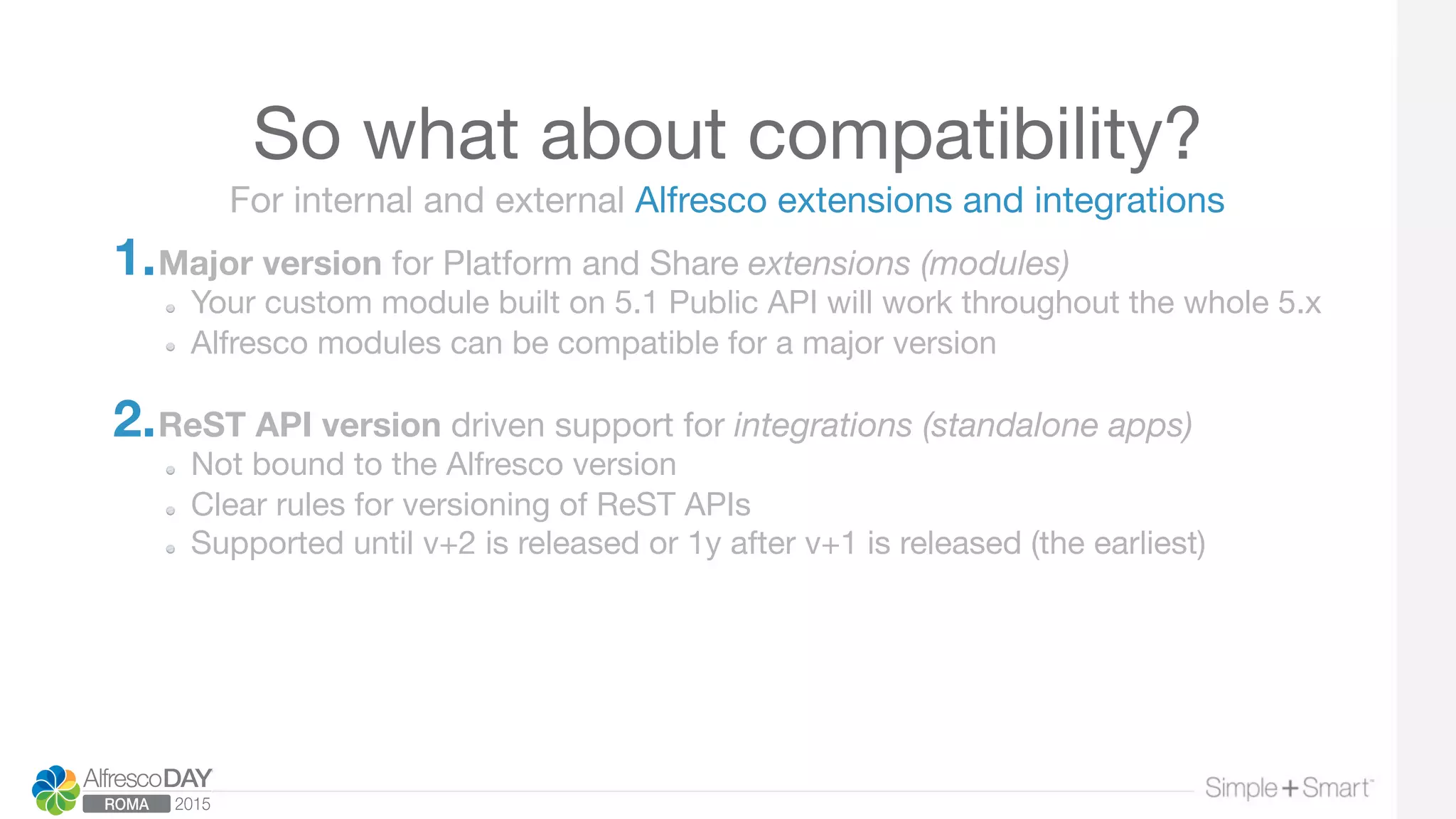

31. So what about compatibility?
1. Major version for Platform and Share extensions (modules)
Your custom module built on 5.1 Public API will work throughout the whole 5.x
Alfresco modules can be compatible for a major version
2. ReST API version driven support for integrations (standalone apps)
Not bound to the Alfresco version
Clear rules for versioning of ReST APIs
Supported until v+2 is released or 1y after v+1 is released (the earliest)
For internal and external Alfresco extensions and integrations

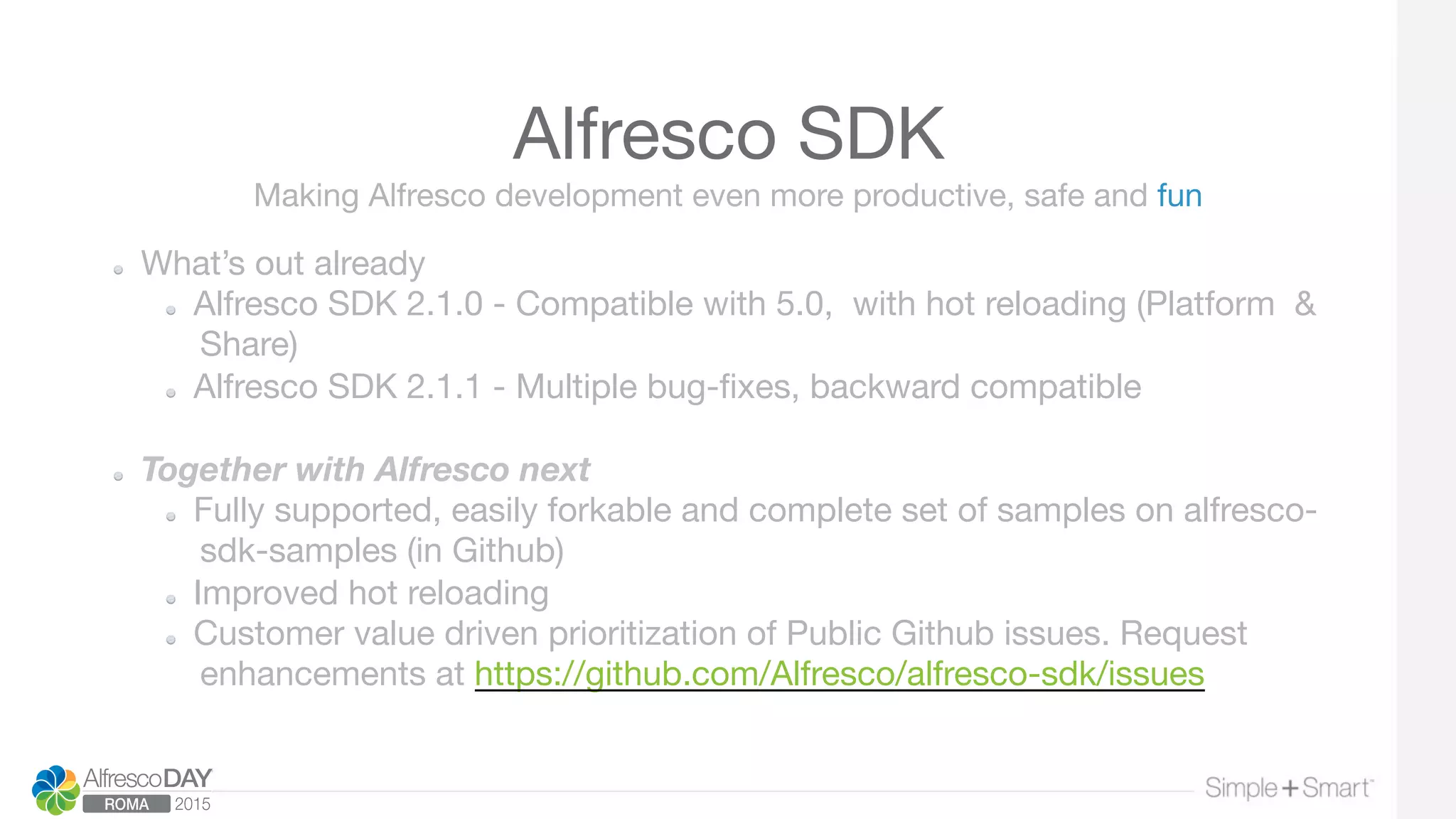

32. Alfresco SDK
What’s out already
Alfresco SDK 2.1.0 - Compatible with 5.0, with hot reloading (Platform &
Share)
Alfresco SDK 2.1.1 - Multiple bug-fixes, backward compatible
Together with Alfresco next
Fully supported, easily forkable and complete set of samples on alfresco-
sdk-samples (in Github)
Improved hot reloading
Customer value driven prioritization of Public Github issues. Request
enhancements at https://github.com/Alfresco/alfresco-sdk/issues
Making Alfresco development even more productive, safe and fun

33. What & when?
An outlook to our target Platform release plan

34. Information provided in the following slide is roadmap information and therefore subtle to change in
subject, timelines, context.

35. Platform release targets
1. Target: Alfresco.next —> Early 2016
Both Platform and Share
Includes all major Developer Platform improvements
Solr sharding and scalability collaterals
Full revamp of developer documentation
2. Post Alfresco.next —> 2016
Share can follow a more frequent release schedule
Strategic improvements in the ReST API (vs Java), functionally and non
functionally
More modularization, for agility and scalability purposes

36. Conclusions and Q/A

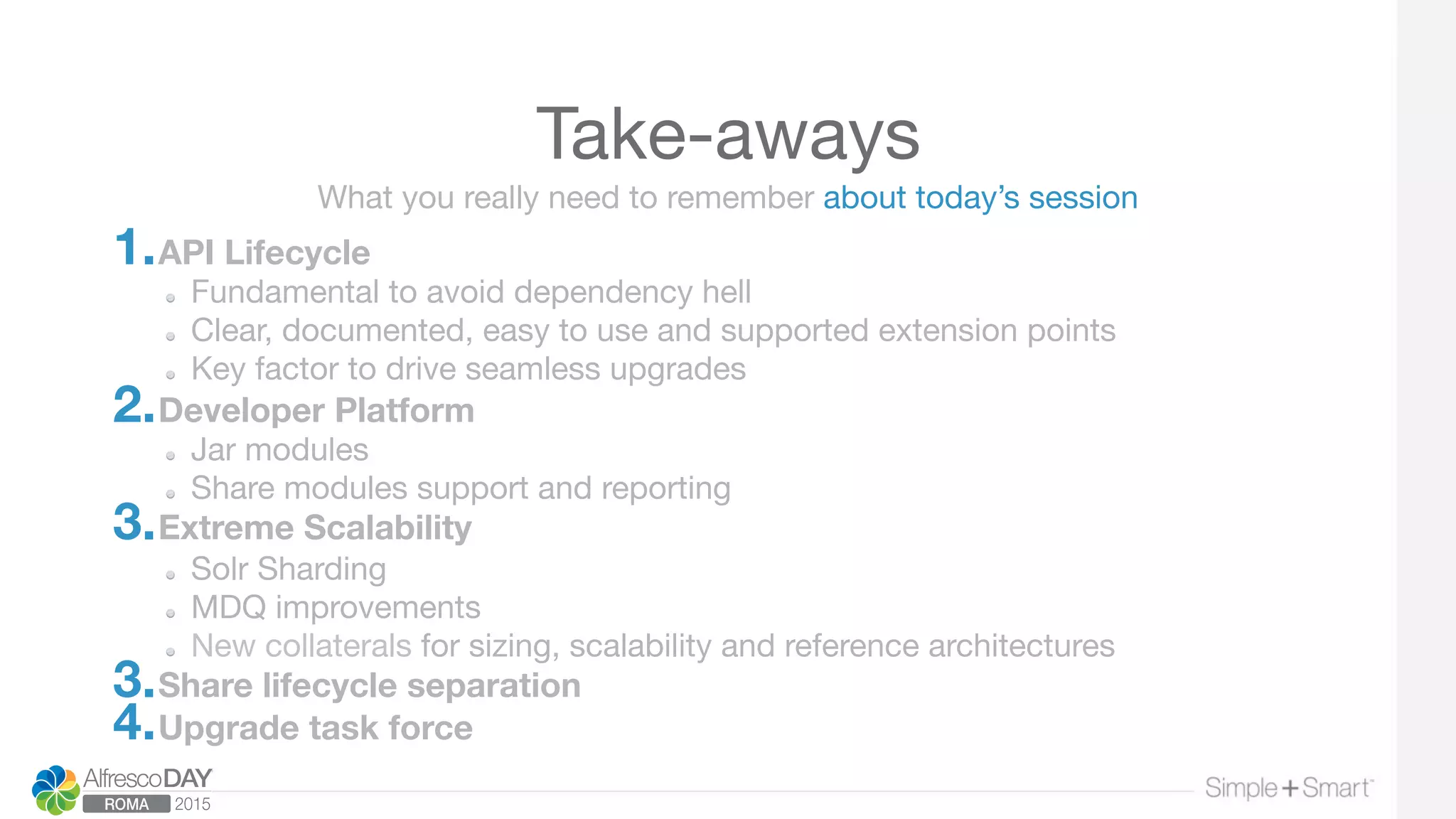

37. Take-aways
1. API Lifecycle
Fundamental to avoid dependency hell
Clear, documented, easy to use and supported extension points
Key factor to drive seamless upgrades
2. Developer Platform
Jar modules
Share modules support and reporting
3. Extreme Scalability
Solr Sharding
MDQ improvements
New collaterals for sizing, scalability and reference architectures
3. Share lifecycle separation
4. Upgrade task force
What you really need to remember about today’s session

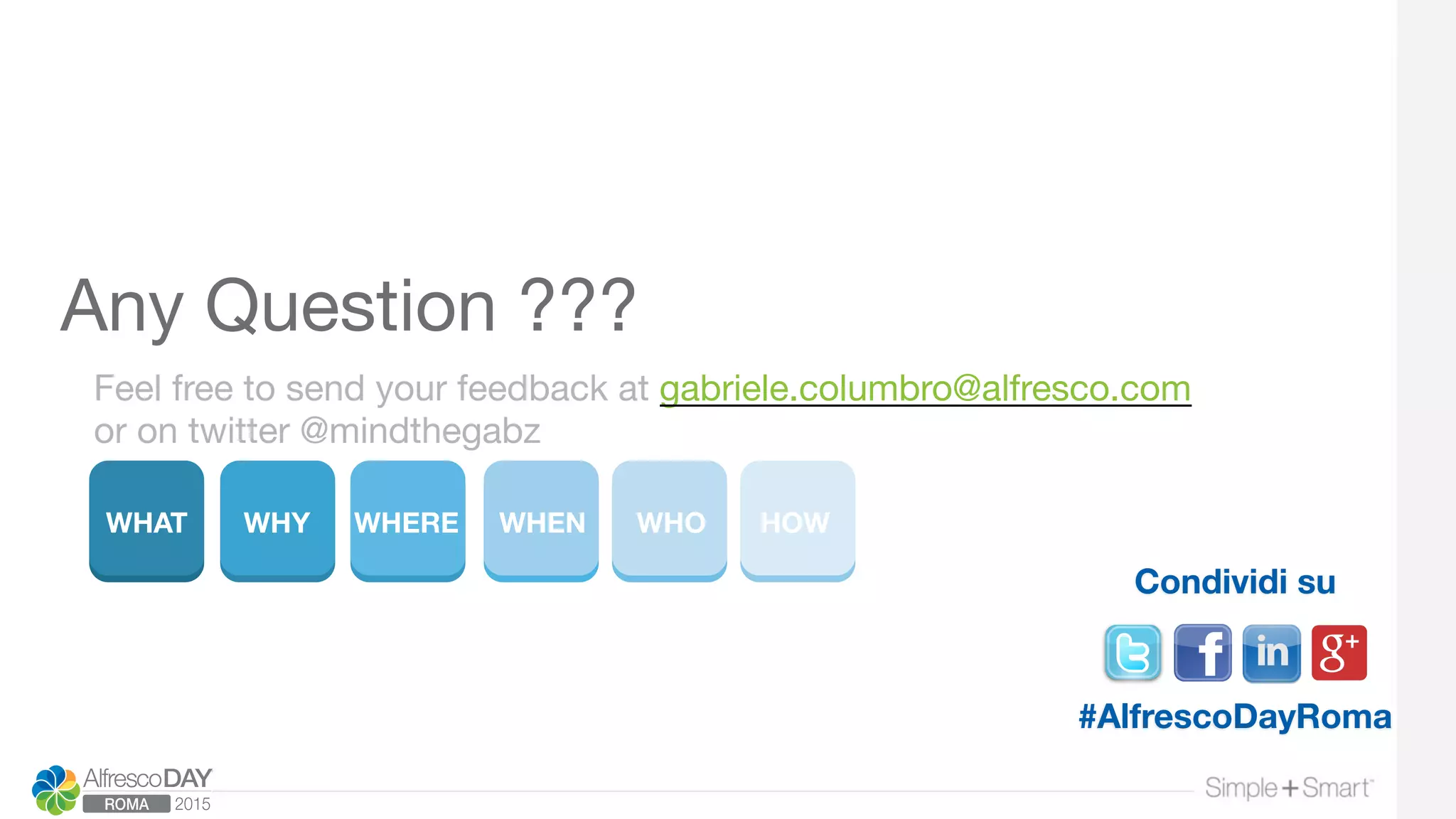

38. WHAT
WHY
WHERE
WHEN
WHO
HOW
Any Question ???
Feel free to send your feedback at gabriele.columbro@alfresco.com
or on twitter @mindthegabz
Condividi su
#AlfrescoDayRoma
