Urban Engines provides a digital replica of public transport systems that brings together various data sources to create a comprehensive understanding. This includes ticketing data, passenger counts, vehicle telemetry, revenue data, and survey results. The digital replica acts as a simulator to test scenarios in a data-driven environment. The latest version of Cube software features enhancements such as support for 64-bit applications, license borrowing capabilities, ArcGIS version 10.4 support, and improved network editing and visualization tools for public transport analysis. It also includes new functionality for outputs, urban traffic analysis, and accessibility measures.

1. Partnerships:

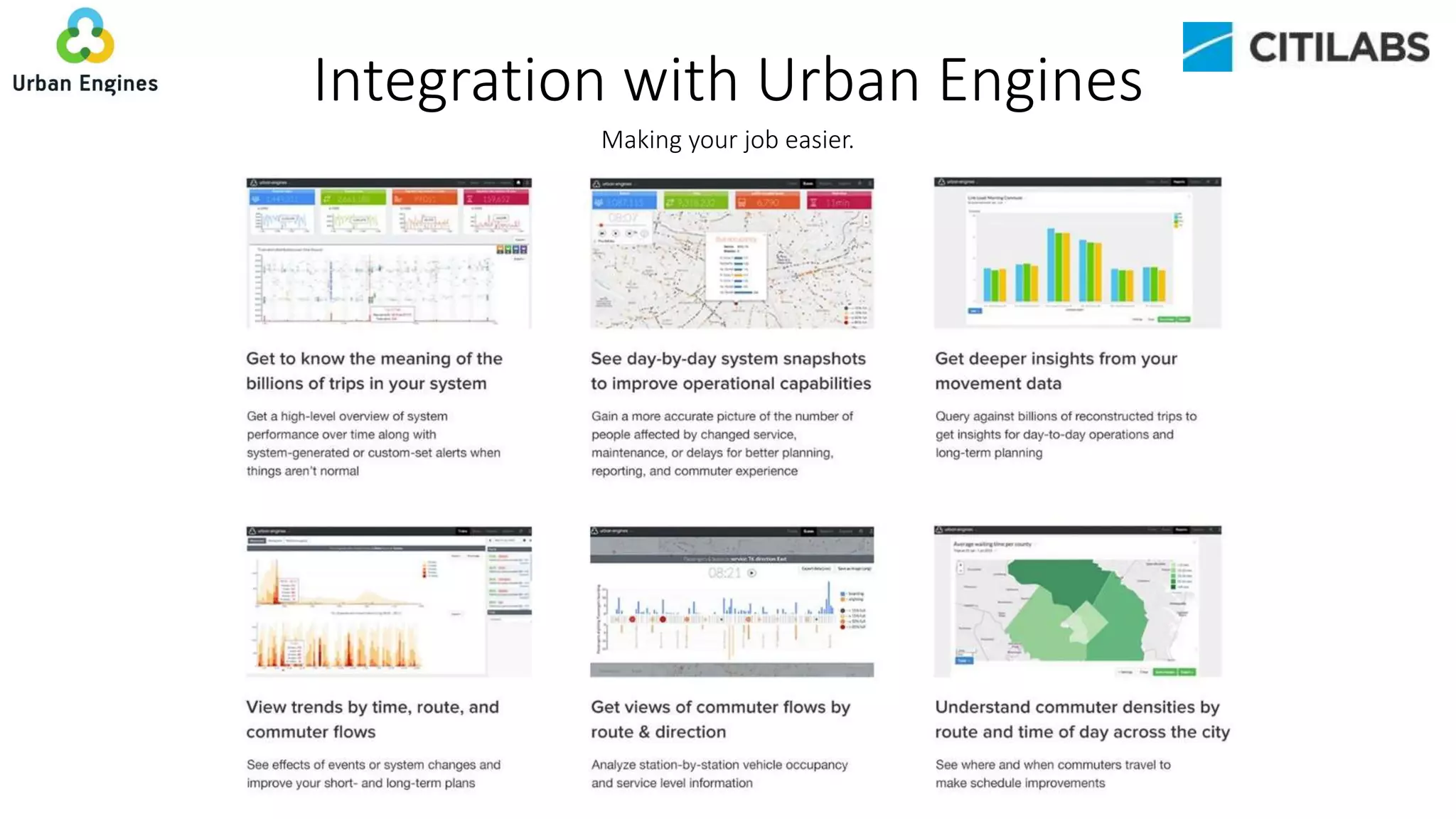

2. Integration with Urban Engines
Making your job easier.

4. Confidential and Proprietary

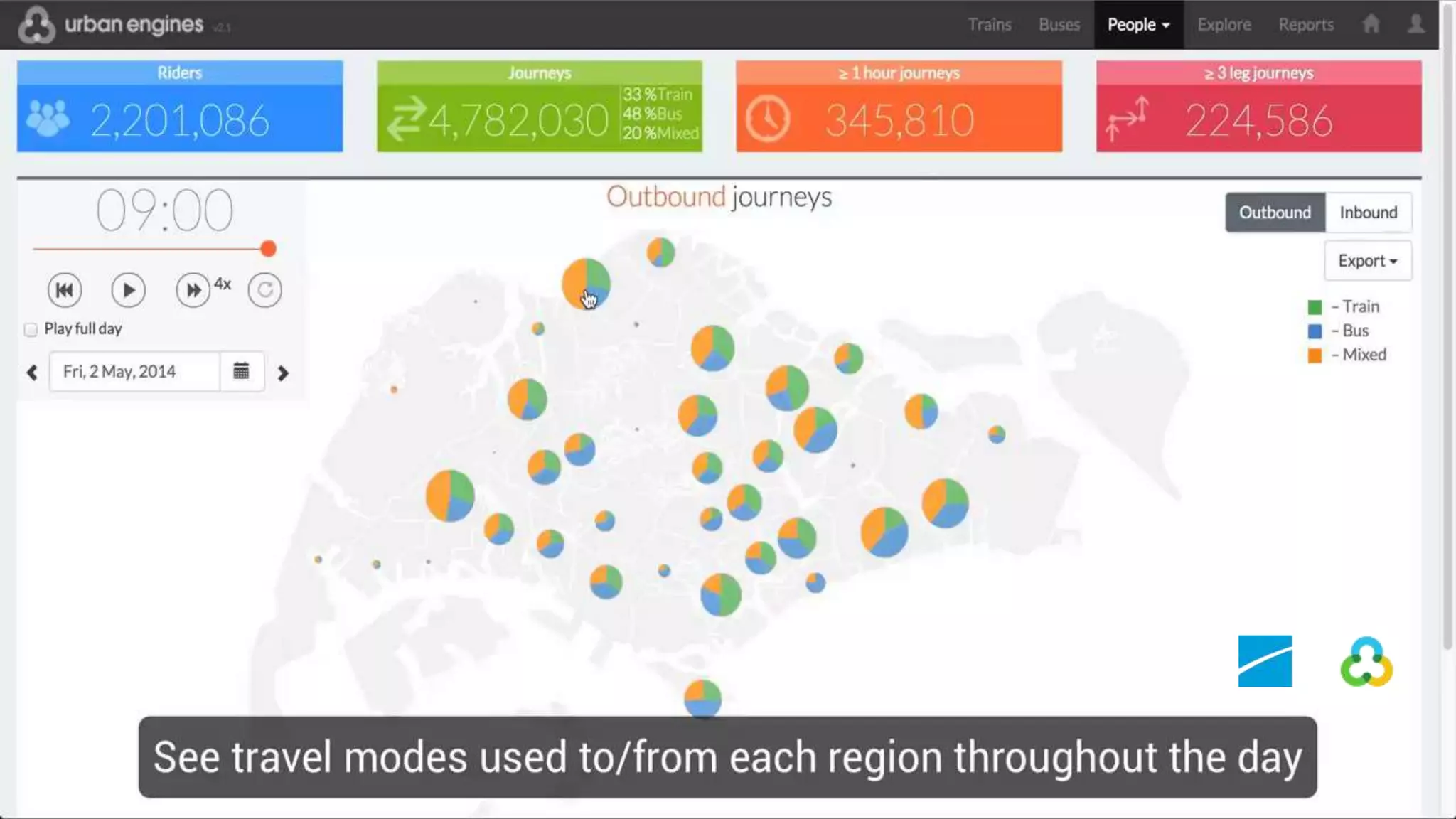

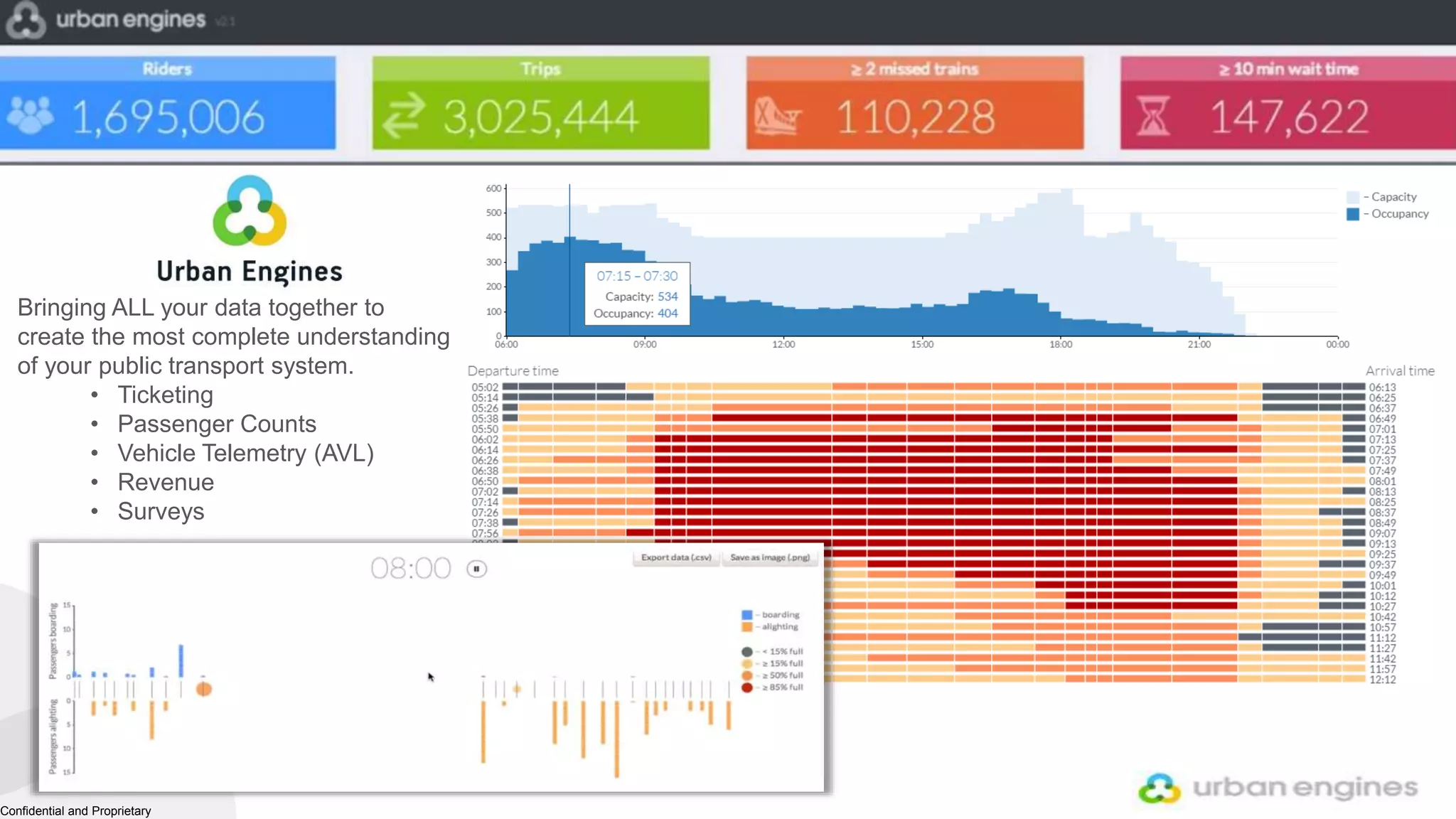

Digital replica
Bringing ALL your data together to
create the most complete understanding
of your public transport system.
• Ticketing
• Passenger Counts
• Vehicle Telemetry (AVL)
• Revenue
• Surveys

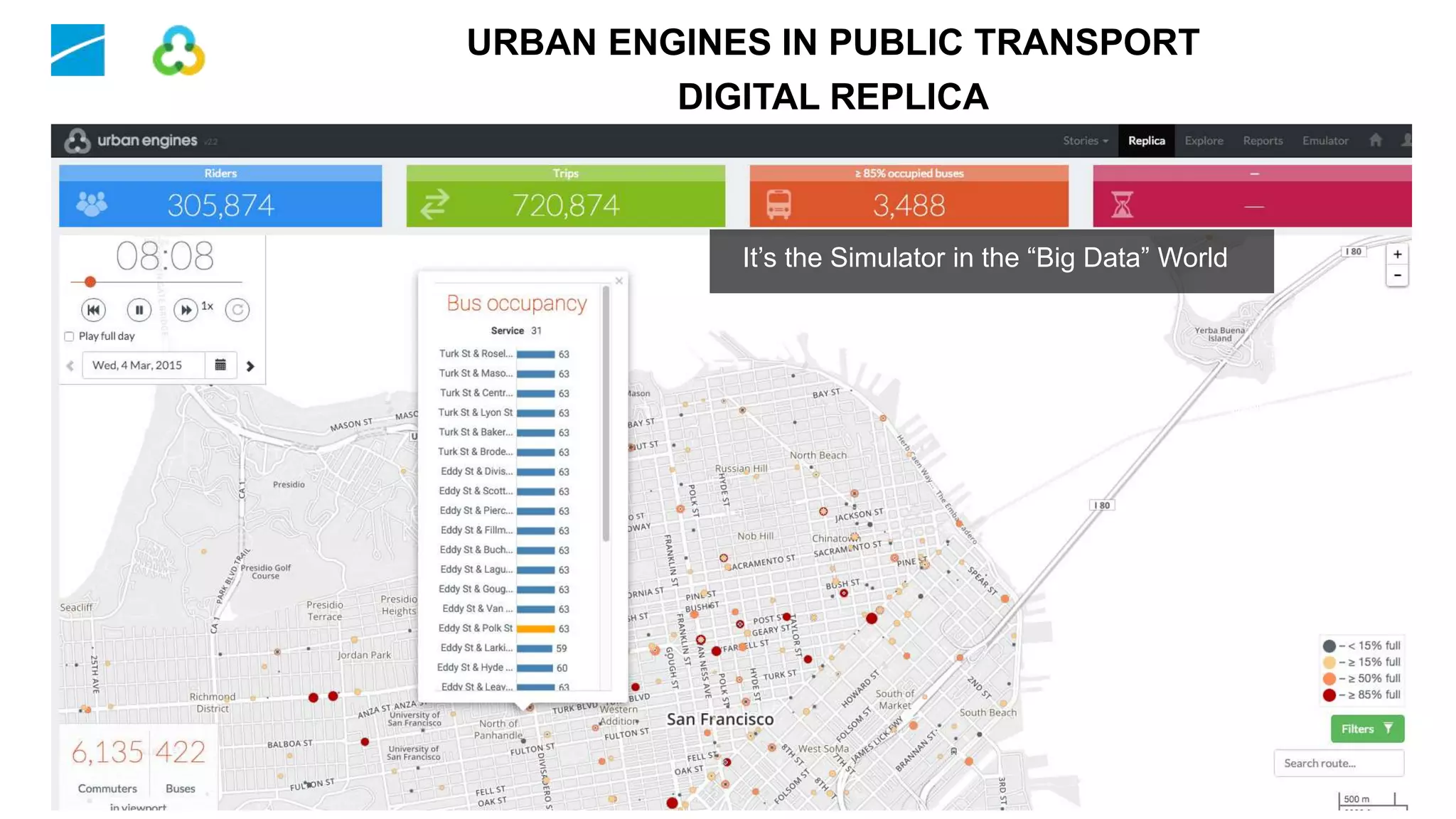

5. URBAN ENGINES IN PUBLIC TRANSPORT
DIGITAL REPLICA
It’s the Simulator in the “Big Data” World

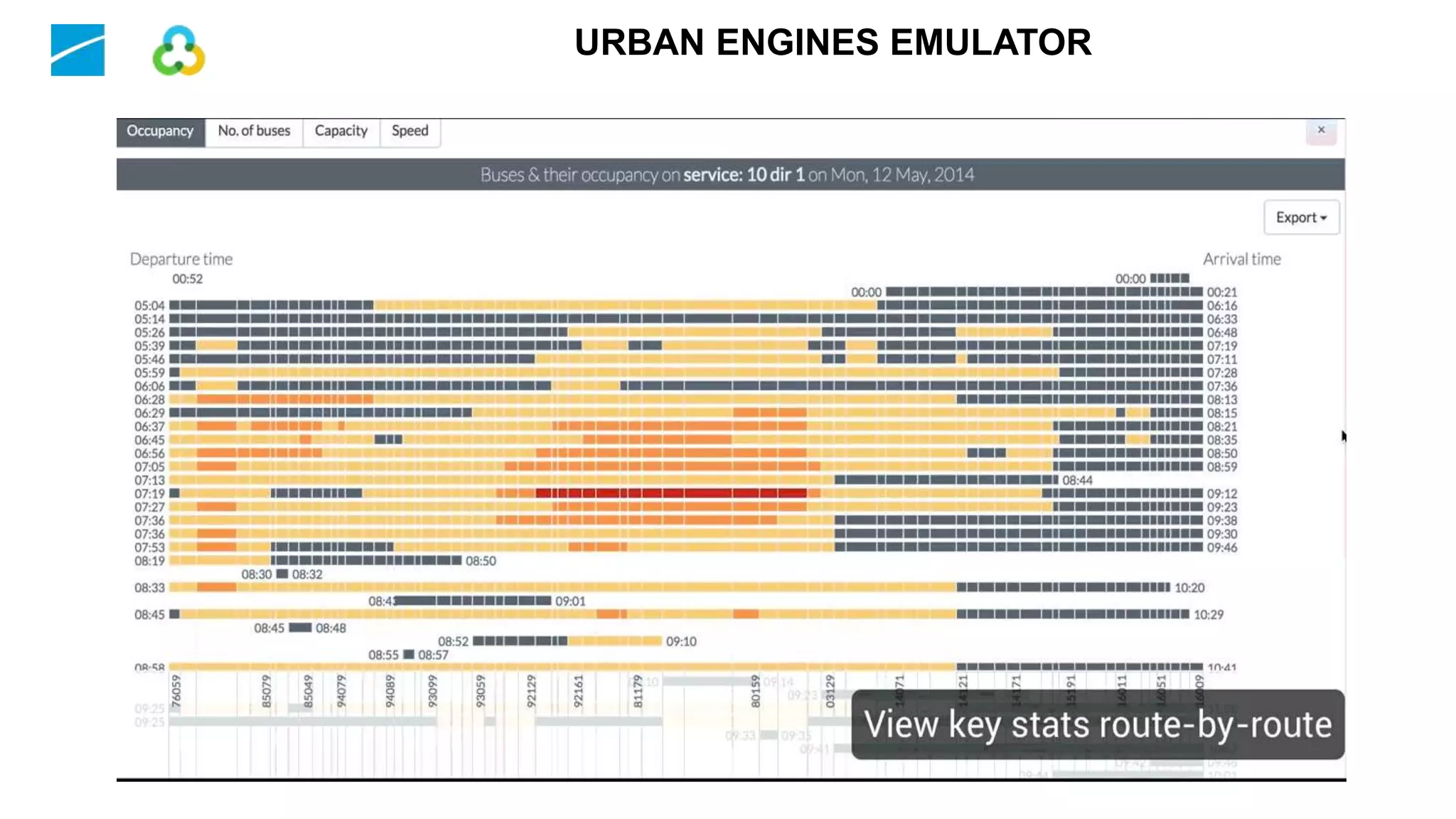

6. URBAN ENGINES EMULATOR
It’s the Simulator in the “Big Data” World

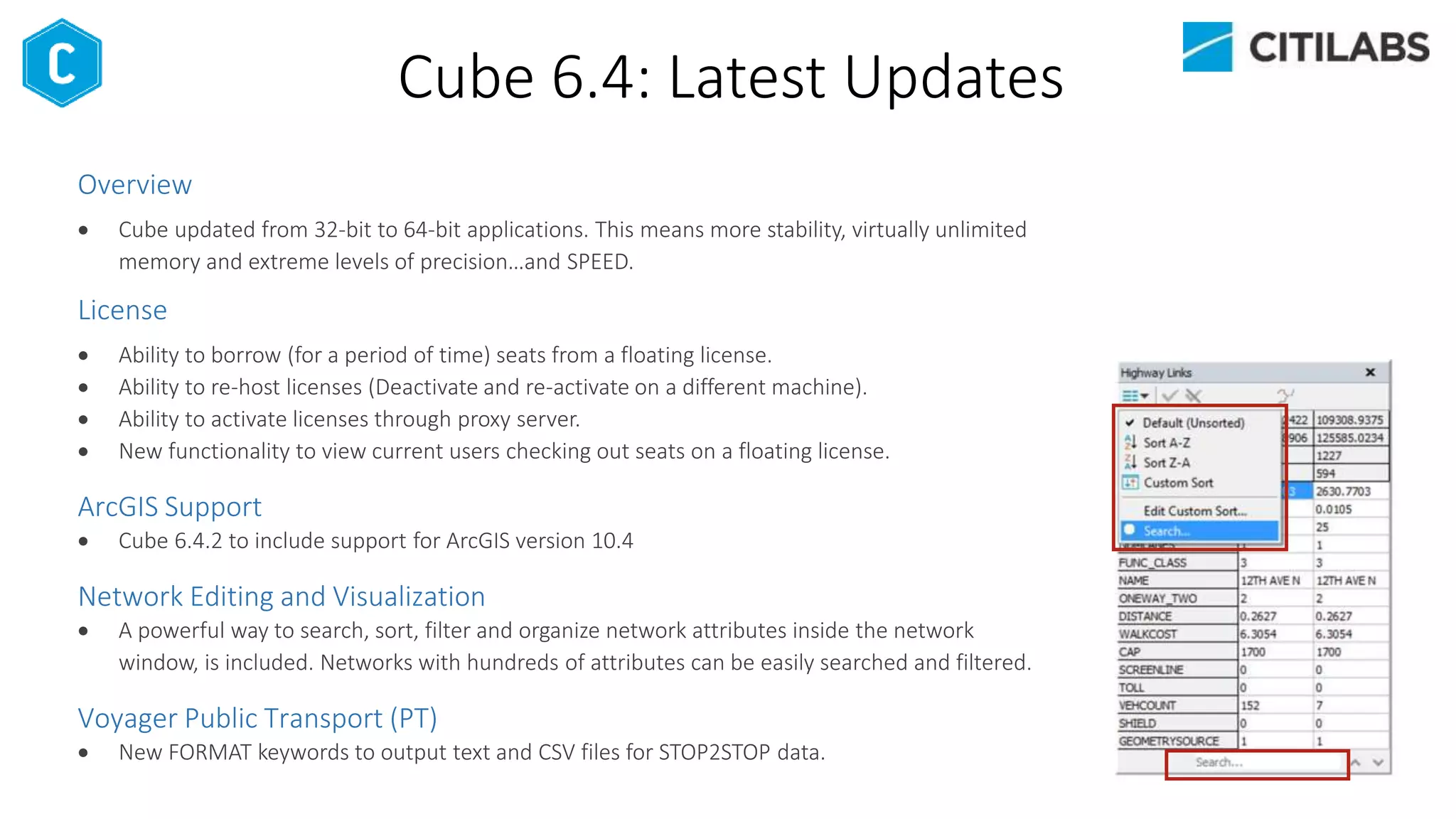

7. Cube 6.4: Latest Updates
Overview
 Cube updated from 32-bit to 64-bit applications. This means more stability, virtually unlimited
memory and extreme levels of precision…and SPEED.
License
 Ability to borrow (for a period of time) seats from a floating license.
 Ability to re-host licenses (Deactivate and re-activate on a different machine).
 Ability to activate licenses through proxy server.
 New functionality to view current users checking out seats on a floating license.
ArcGIS Support
 Cube 6.4.2 to include support for ArcGIS version 10.4
Network Editing and Visualization
 A powerful way to search, sort, filter and organize network attributes inside the network
window, is included. Networks with hundreds of attributes can be easily searched and filtered.
Voyager Public Transport (PT)
 New FORMAT keywords to output text and CSV files for STOP2STOP data.

8. Open Matrix Format (OMX)

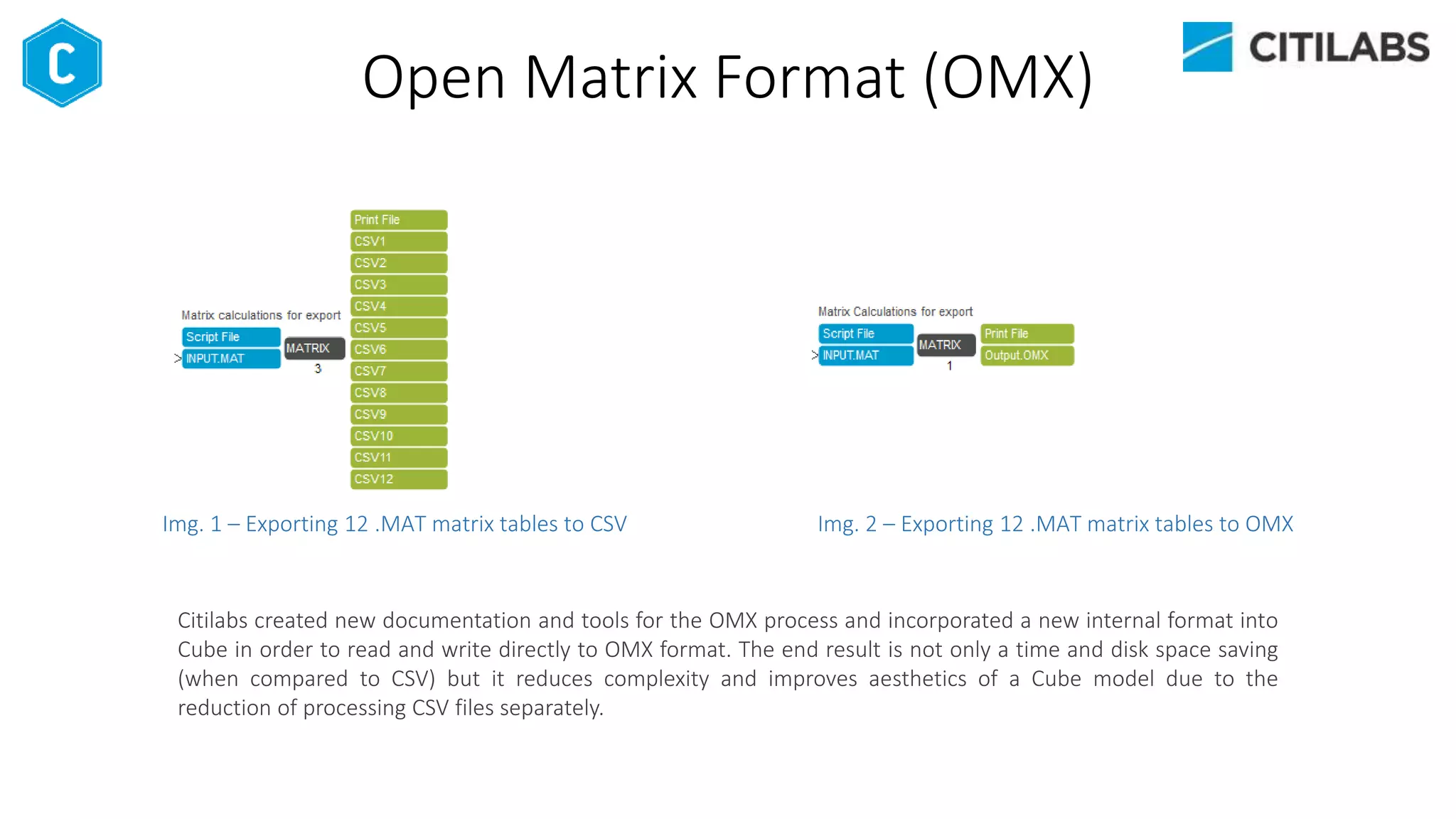

Img. 1 – Exporting 12 .MAT matrix tables to CSV Img. 2 – Exporting 12 .MAT matrix tables to OMX
Citilabs created new documentation and tools for the OMX process and incorporated a new internal format into
Cube in order to read and write directly to OMX format. The end result is not only a time and disk space saving
(when compared to CSV) but it reduces complexity and improves aesthetics of a Cube model due to the
reduction of processing CSV files separately.

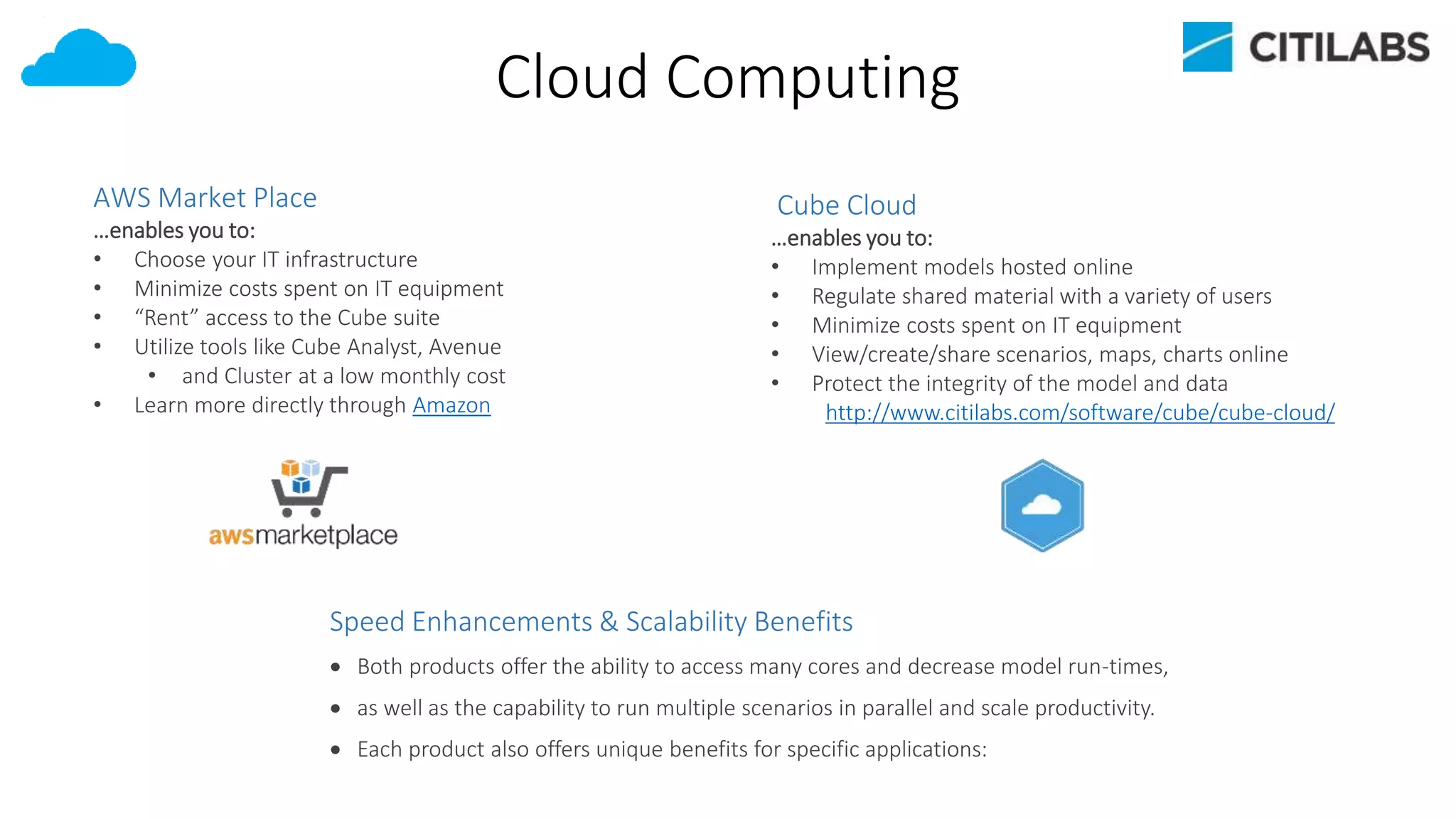

9. Cloud Computing
Speed Enhancements & Scalability Benefits
 Both products offer the ability to access many cores and decrease model run-times,
 as well as the capability to run multiple scenarios in parallel and scale productivity.
 Each product also offers unique benefits for specific applications:
AWS Market Place
…enables you to:
• Choose your IT infrastructure
• Minimize costs spent on IT equipment
• “Rent” access to the Cube suite
• Utilize tools like Cube Analyst, Avenue
• and Cluster at a low monthly cost
• Learn more directly through Amazon
Cube Cloud
…enables you to:
• Implement models hosted online
• Regulate shared material with a variety of users
• Minimize costs spent on IT equipment
• View/create/share scenarios, maps, charts online
• Protect the integrity of the model and data
http://www.citilabs.com/software/cube/cube-cloud/

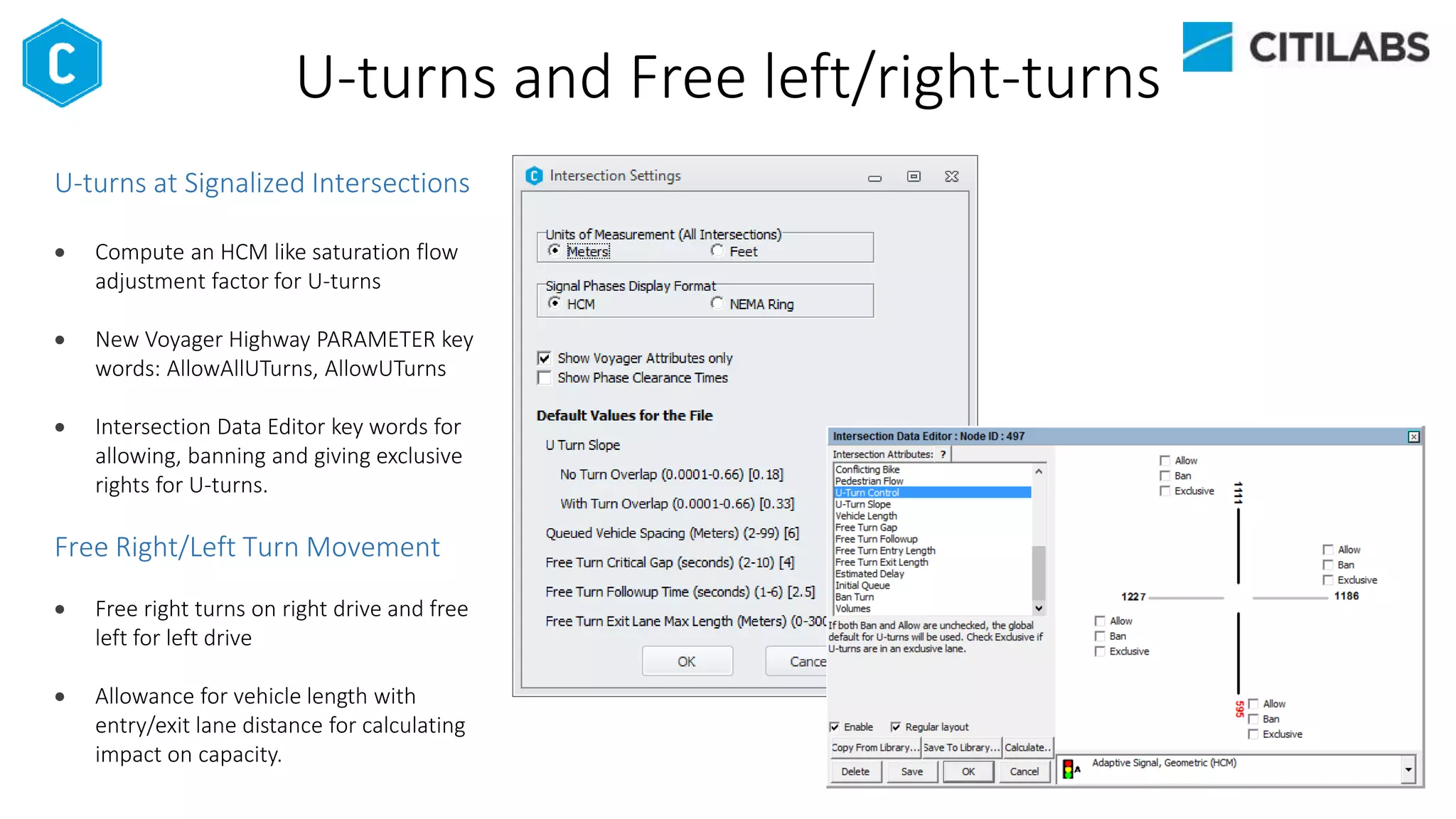

10. U-turns and Free left/right-turns
U-turns at Signalized Intersections
 Compute an HCM like saturation flow
adjustment factor for U-turns
 New Voyager Highway PARAMETER key
words: AllowAllUTurns, AllowUTurns
 Intersection Data Editor key words for
allowing, banning and giving exclusive
rights for U-turns.
Free Right/Left Turn Movement
 Free right turns on right drive and free
left for left drive
 Allowance for vehicle length with
entry/exit lane distance for calculating
impact on capacity.

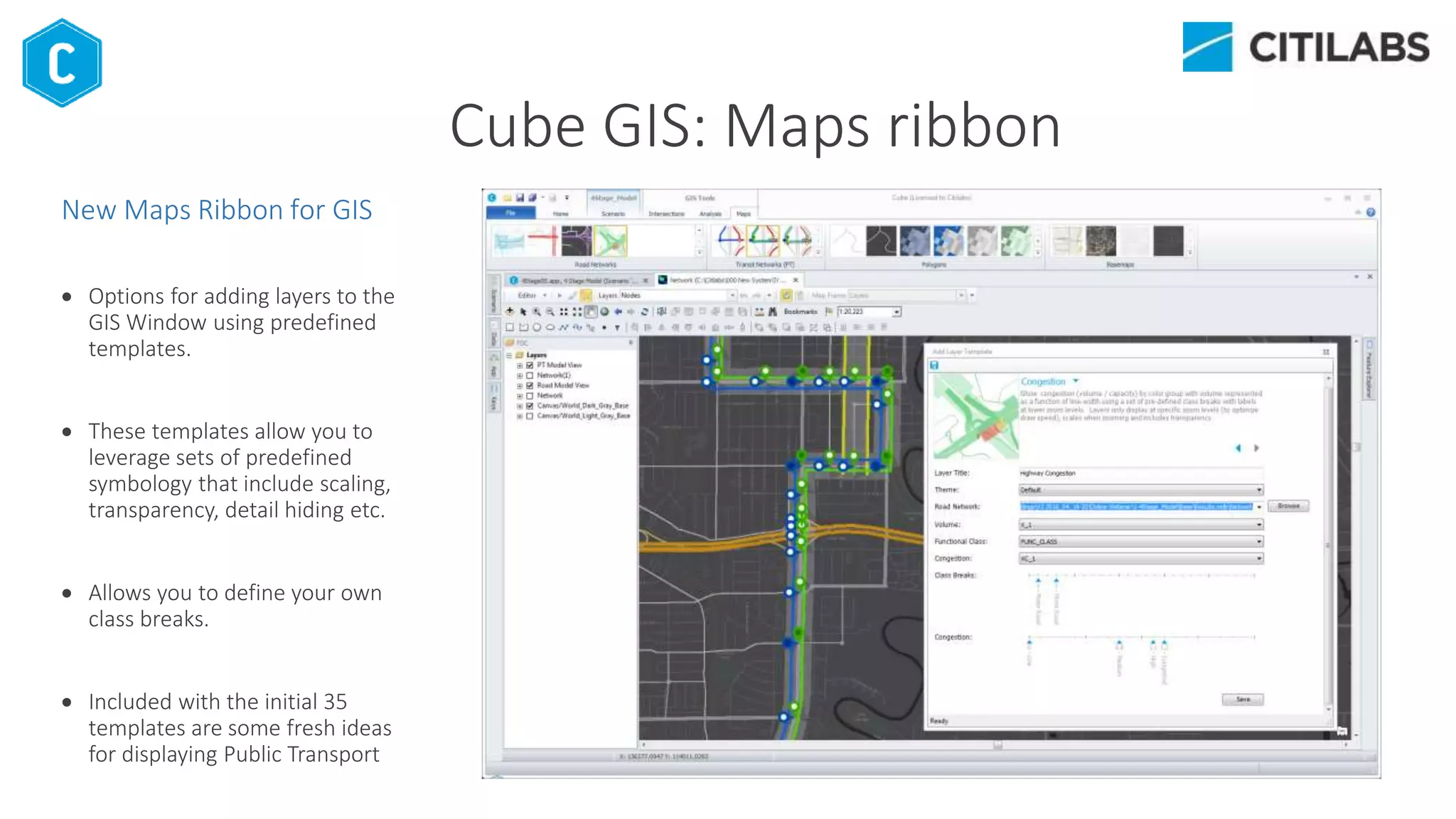

11. New Maps Ribbon for GIS
 Options for adding layers to the
GIS Window using predefined
templates.
 These templates allow you to
leverage sets of predefined
symbology that include scaling,
transparency, detail hiding etc.
 Allows you to define your own
class breaks.
 Included with the initial 35
templates are some fresh ideas
for displaying Public Transport
Cube GIS: Maps ribbon

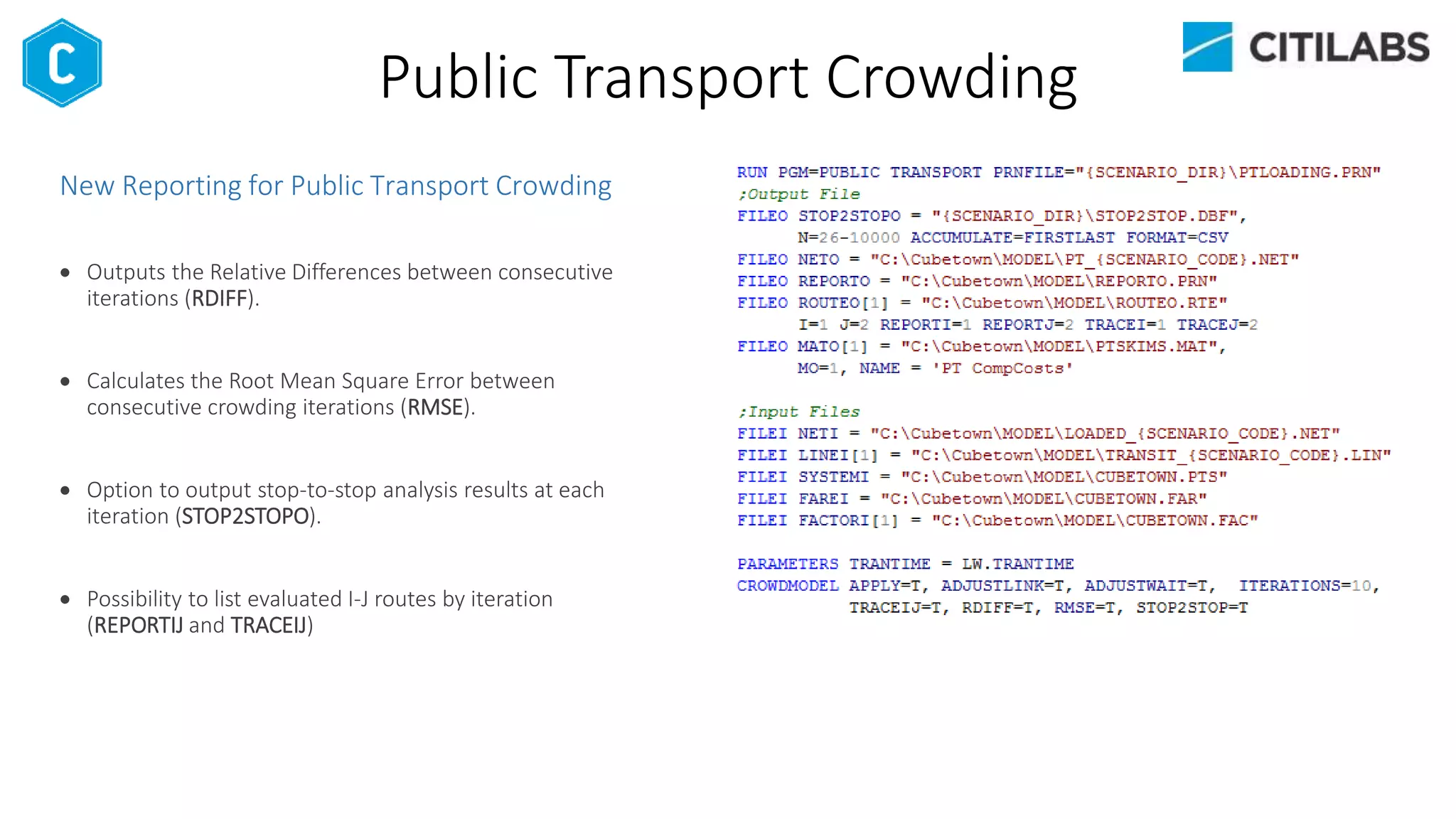

12. Public Transport Crowding
New Reporting for Public Transport Crowding
 Outputs the Relative Differences between consecutive
iterations (RDIFF).
 Calculates the Root Mean Square Error between
consecutive crowding iterations (RMSE).
 Option to output stop-to-stop analysis results at each
iteration (STOP2STOPO).
 Possibility to list evaluated I-J routes by iteration
(REPORTIJ and TRACEIJ)

13. http://www.citilabs.com/sugaraccess

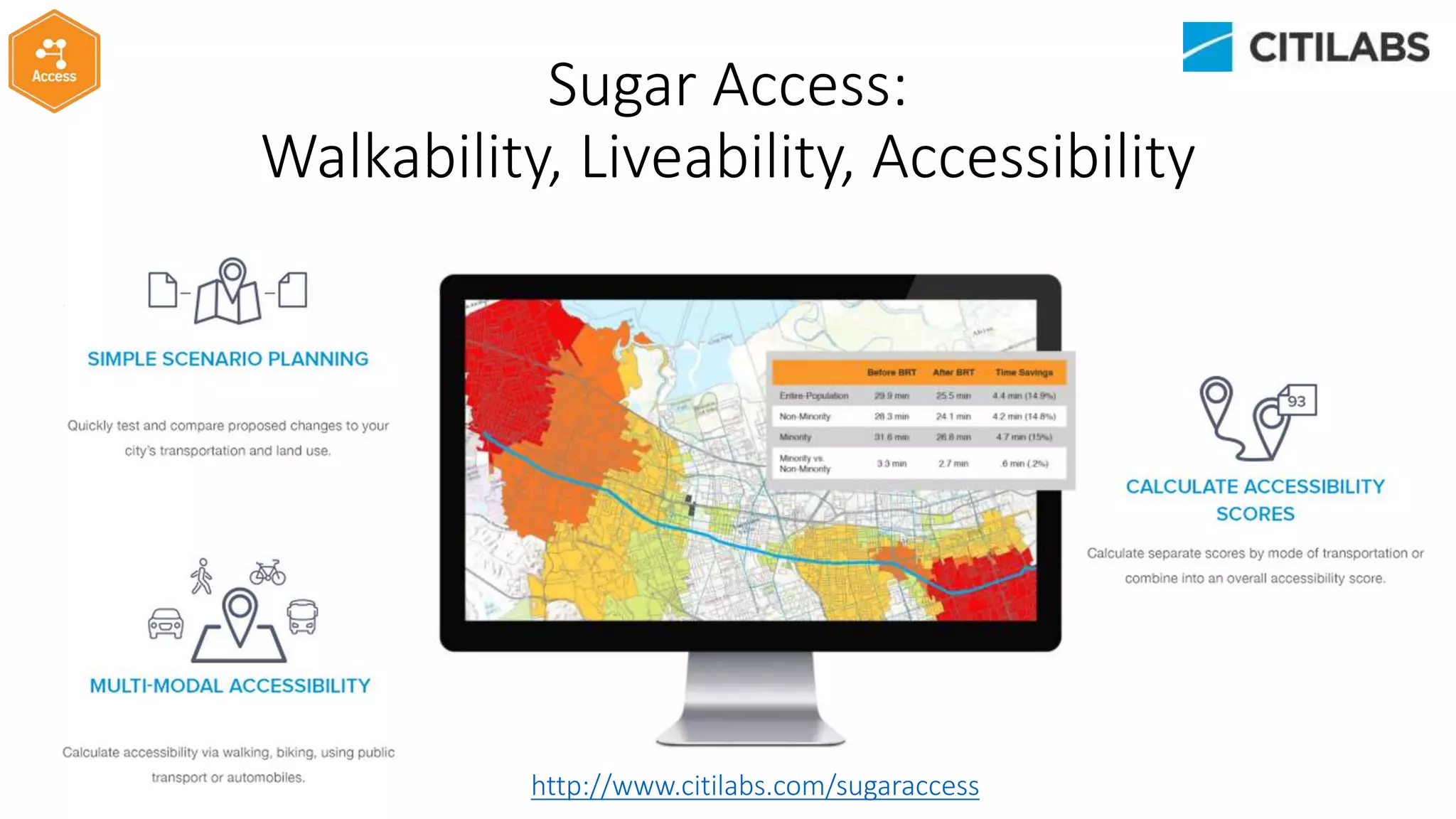

Sugar Access:
Walkability, Liveability, Accessibility

14. OLIVER CHARLESWORTH, Ph.D
Global Account Director
ocharlesworth@citilabs.com
www.citilabs.com
Manchester. UK
M: +44 (0) 7449 651 601

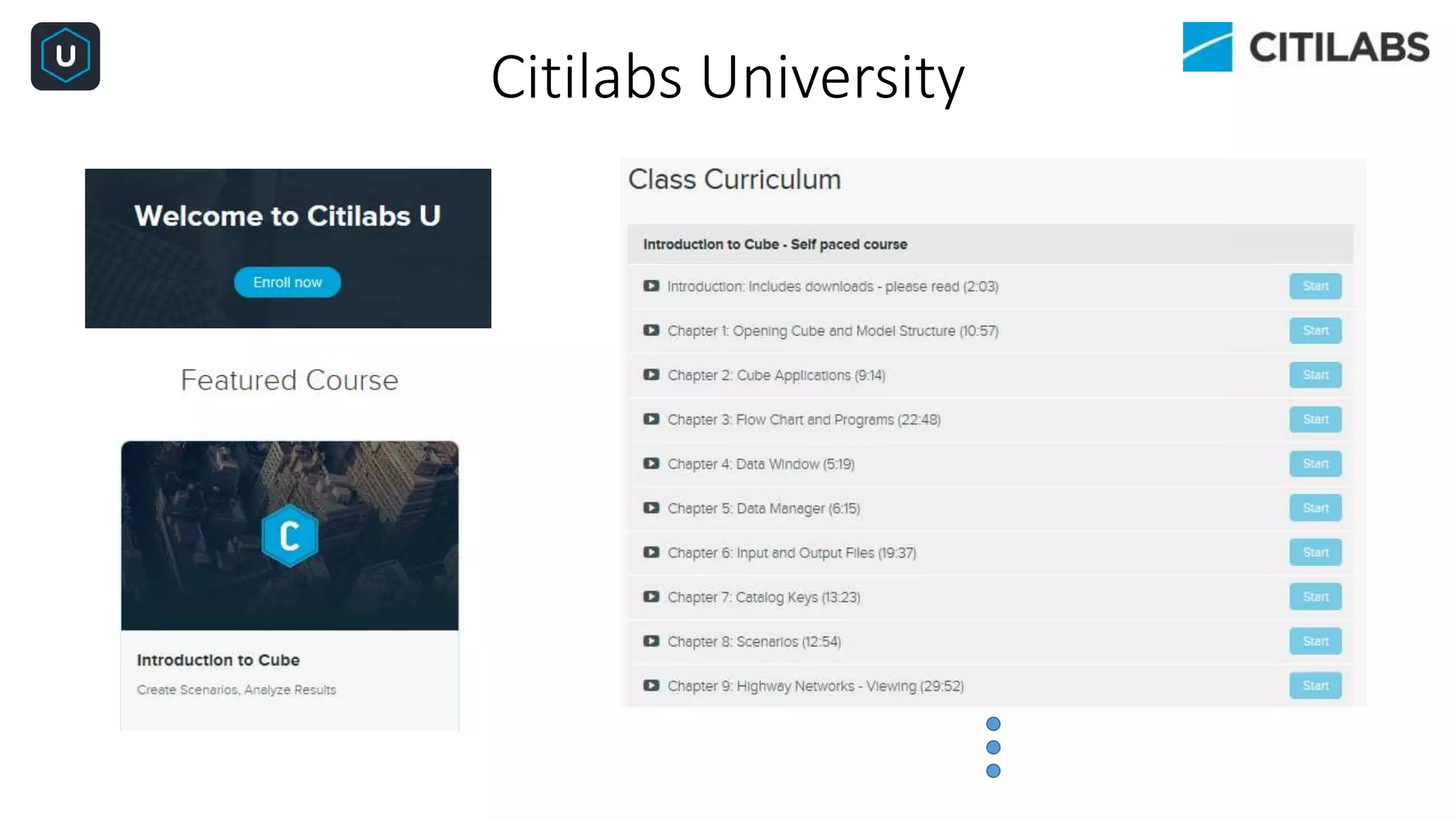

15. Citilabs University

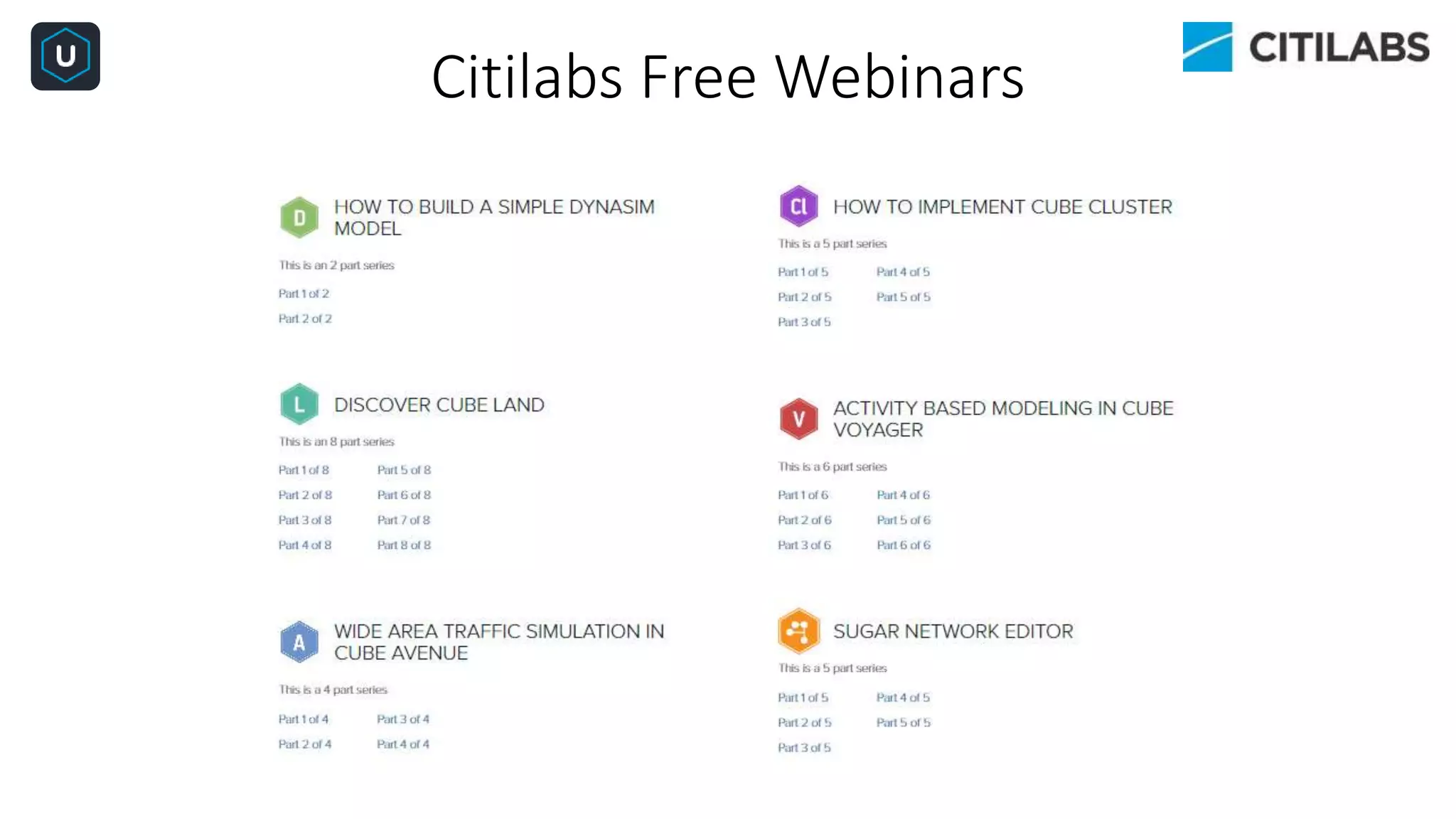

16. Citilabs Free Webinars
