AIC’s Intel Based HPC
David Chao

3. Copyright © 2013 AIC Inc. All rights reserved.
Company Brief
AIC is a leading provider of OEM/ODM server and storage solutions, ideally developed to meet the unique
demands of a wide variety of markets. With expertise in in-house design, validation, manufacturing and production,
our expansive selection of products are highly flexible and can be configured to any form factor or custom
configuration.

4. Copyright © 2013 AIC Inc. All rights reserved.
Global logistic for Rapid shipping & service

6. Copyright © 2013 AIC Inc. All rights reserved.
Strategic Solution Group
• Custom service with
quick Hardware,
Firmware, OS and
system design with
certification
• Highly Integration &
Scalable System
Platform Solution
• Need pre-sale
configurations
• More service and
technical support
( Firmware )
• Heavy peripheral
validation
Enclosure Solution
• Scalability and Connectivity
Reliability and High Density
• Most Efficiency
．Cost Effective
．More Reliable
．User Friendly
．Easy maintain
Storage Solution

8. Copyright © 2013 AIC Inc. All rights reserved.

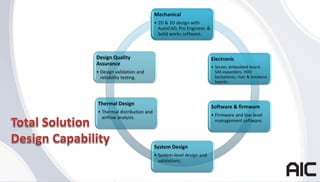

Mechanical
• 2D & 3D design with
AutoCAD, Pro Engineer, &
Solid works software.
Electronic
• Server, embedded board,
SAS expanders, HDD
backplanes, riser & breakout
boards.
Software & firmware
• Firmware and low level
management software.
System Design
• System-level design and
validations.
Thermal Design
• Thermal distribution and
airflow analysis.
Design Quality
Assurance
• Design validation and
reliability testing.

9. Copyright © 2013 AIC Inc. All rights reserved.

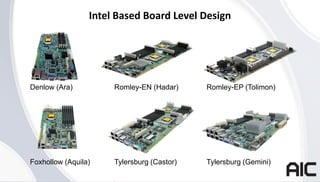

Intel Based Board Level Design
Denlow (Ara) Romley-EN (Hadar) Romley-EP (Tolimon)
Foxhollow (Aquila) Tylersburg (Castor) Tylersburg (Gemini)

10. Copyright © 2013 AIC Inc. All rights reserved.
Example…
1U Rack-mount chassis with SSI MB Supports 1 add-on card only
1U Rack-mount chassis with AIC MAX IO MB (AIC’s Castor MB)
Supports up to 5 add-on cards
(3 at rear + 2 in the middle)
1
2
4
5
3

11. Copyright © 2013 AIC Inc. All rights reserved.
MaxIO technology
 fully utilize PCIe expansion I/O
 user definable PCIe slots
1
2
4
5
3
1
2
3
4
5
6
7
8
PCIe card x 5 for 1U
PCIe card x 8 for 2U
1
2
3
4
5
6
7
8
9
1
0
PCIe card x 10 for 3U

12. Copyright © 2013 AIC Inc. All rights reserved.
Mechanical (Chassis) Design
Broadcasting
Media Content Storage
Video Editing
Audio/Visual Communication
VoIP Telephony
Access Management
Video Surveillance
Wireless Networking
TelecommunicationNetwork Infrastructure
IP SecurityStorage Archive
Digital Content Streaming Network Security
VTL/Archive
Firewall/Load Balancer

13. Copyright © 2013 AIC Inc. All rights reserved.
High Density Storage
• Optimized Cost with Modularized Design
• Ultra High Redundancy
– Supports 2 x 6G expander module for redundancy
• Hassle-Free Maintenance
– Perfect appliance building-block for system integrators
• Short Depth

14. Copyright © 2013 AIC Inc. All rights reserved.
High Density Storage
Hotswap Expander ModuleHotswap Fan Module
Redundant 1+1 PSU
Hotswap Drive Bay

15. Copyright © 2013 AIC Inc. All rights reserved.

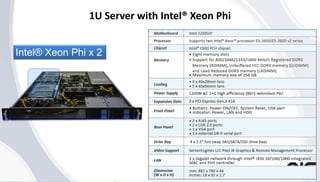

1U Server with Intel® Xeon Phi
Intel® Xeon Phi x 2

16. Copyright © 2013 AIC Inc. All rights reserved.
4U Server with Intel® Xeon Phi
16 Gen3 PCIe (144 lanes)
Intel® Xeon Phi x 7

18. Copyright © 2013 AIC Inc. All rights reserved.
HSPM SystemEnvironmental
Management System
Quality Management
System
ISO 9001
ISO 9001–2008
ISO 14001
ISO 14001
(Environmental
Standard management)
QC080000 HSPM
IECQ QC080000
(Quality Assessment
for Electronic
Components)
Quality assurance system

19. Copyright © 2013 AIC Inc. All rights reserved.
Manufacturing Facility

20. Copyright © 2013 AIC Inc. All rights reserved.

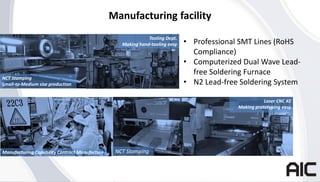

Manufacturing facility
Tooling Dept.
Making hand-tooling easy
NCT Stamping
Small-to-Medium size production
Laser CNC #2
Making prototyping easy
NCT StampingManufacturing Capability Contract Manufacture
• Professional SMT Lines (RoHS
Compliance)
• Computerized Dual Wave Lead-
free Soldering Furnace
• N2 Lead-free Soldering System
