LenovoEMC(IOMEGA) Product Presentation

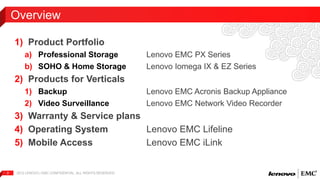

Overview
1) Product Portfolio
a) Professional Storage Lenovo EMC PX Series
b) SOHO & Home Storage Lenovo Iomega IX & EZ Series
2) Products for Verticals
1) Backup Lenovo EMC Acronis Backup Appliance

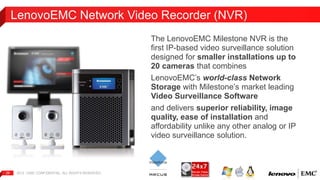

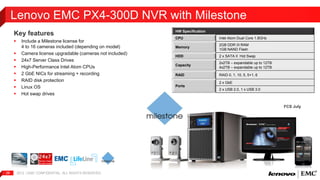

2) Video Surveillance Lenovo EMC Network Video Recorder

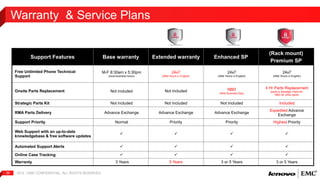

3) Warranty & Service plans

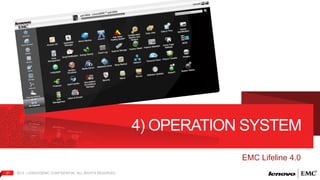

4) Operating System Lenovo EMC Lifeline

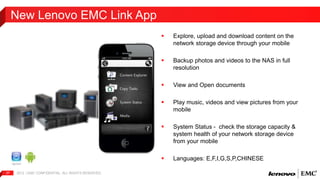

5) Mobile Access Lenovo EMC iLink
2012 LENOVO | 2 EMC CONFIDENTIAL. ALL RIGHTS RESERVED.

3 2012 LENOVO | EMC CONFIDENTIAL. ALL RIGHTS RESERVED.

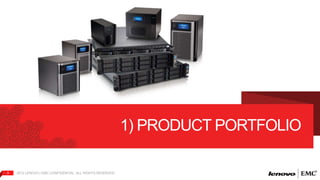

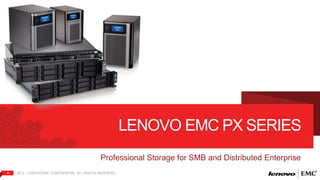

1) PRODUCT PORTFOLIO

Professional Storage for SMB and Distributed Enterprise
4 2012 | LENOVO|EMC CONFIDENTIAL. ALL RIGHTS RESERVED.

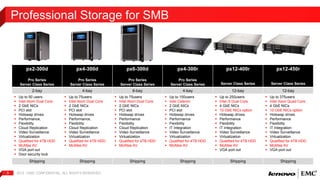

LENOVO EMC PX SERIES

Professional Storage for SMB
px2-300d
Pro Series
Server Class Series
px4-300d
Pro Series
Server Class Series
2012 | EMC 5 CONFIDENTIAL. ALL RIGHTS RESERVED.
px6-300d
Pro Series
Server Class Series
px4-300r
Pro Series
Server Class Series
px12-400r
Server Class Series
px12-450r
Server Class Series
2-bay 4-bay 6-bay 4-bay 12-bay 12-bay
 Up to 50 users
 Intel Atom Dual Core
 2 GbE NICs
 PCI slot
 Hotswap drives
 Performance,
 Flexibility
 Cloud Replication
 Video Surveillance
 Virtualization
 Qualified for 4TB HDD
 McAfee AV
 VGA port out
 Door security lock
 Up to 75users
 2 GbE NICs
 PCI slot
 Hotswap drives
 Performance,
 Flexibility
 Virtualization
 McAfee AV
 Up to 75users
 2 GbE NICs
 PCI slot
 Hotswap drives
 Performance
 Flexibility
 Virtualization
 McAfee AV
 Up to 150users
 Intel Celeron
 2 GbE NICs
 PCI slot
 Hotswap drives
 Performance
 Flexibility
 IT Integration
 Virtualization
 McAfee AV
 Up to 250users
 Intel i3 Dual Core
 4 GbE NICs
 10 GbE NICs option
 Hotswap drives
 Performance
 Flexibility
 IT Integration
 Virtualization
 McAfee AV
 VGA port out
 Up to 375users
 Intel Xeon Quad Core
 4 GbE NICs
 10 GbE NICs option
 Hotswap drives
 Performance
 Flexibility
 IT Integration
 Virtualization
 McAfee AV
 VGA port out
Shipping Shipping Shipping Shipping Shipping Shipping

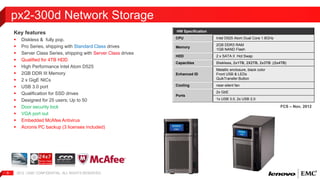

Key features
 Diskless & fully pop.
 Pro Series, shipping with Standard Class drives
 Server Class Series, shipping with Server Class drives
 High Performance Intel Atom D525
 2GB DDR III Memory
 2 x GigE NICs
 USB 3.0 port
 Qualification for SSD drives
 Designed for 25 users; Up to 50
 Door security lock
 VGA port out
 Embedded McAfee Antivirus
 Acronis PC backup (3 licenses included)
HW Specification
CPU Intel D525 Atom Dual Core 1.8GHz
Memory
2GB DDR3 RAM
1GB NAND Flash
HDD 2 x SATA II Hot Swap
Capacities Diskless, 2x1TB, 2X2TB, 2x3TB ;(2x4TB)
Enhanced ID
Metallic enclosure, black color
Front USB & LEDs
QuikTransfer Button
Cooling near-silent fan
Ports
2x GbE
1x USB 3.0, 2x USB 2.0
px2-300d Network Storage
FCS – Nov, 2012

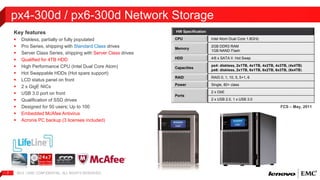

px4-300d / px6-300d Network Storage
Key features
 Diskless, partially or fully populated
 Pro Series, shipping with Standard Class drives
 Server Class Series, shipping with Server Class drives
 High Performance CPU (Intel Dual Core Atom)
 Hot Swappable HDDs (Hot spare support)
 LCD status panel on front
 2 x GigE NICs
 USB 3.0 port on front
 Qualification of SSD drives
HW Specification
CPU Intel Atom Dual Core 1.8GHz
Memory
2GB DDR3 RAM
1GB NAND Flash
HDD 4/6 x SATA II Hot Swap
Capacities
px4: diskless, 2x1TB, 4x1TB, 4x2TB, 4x3TB, (4x4TB)
px6: diskless, 2x1TB, 6x1TB, 6x2TB, 6x3TB, (6x4TB)
RAID RAID 0, 1, 10, 5, 5+1, 6
Power Single, 80+ class
Ports
2 x GbE
2 x USB 2.0, 1 x USB 3.0
FCS – May, 2011

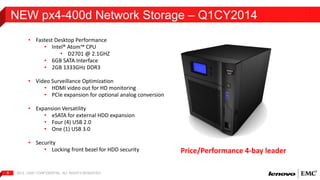

NEW px4-400d Network Storage – Q1CY2014
• Fastest Desktop Performance
• Intel® Atom™ CPU
• D2701 @ 2.1GHZ
• 6GB SATA Interface
• 2GB 1333GHz DDR3
• Video Surveillance Optimization
• HDMI video out for HD monitoring
• PCIe expansion for optional analog conversion
• Expansion Versatility
• eSATA for external HDD expansion
• Four (4) USB 2.0
• One (1) USB 3.0
• Security
• Locking front bezel for HDD security
Price/Performance 4-bay leader

Key features
 Diskless or fully populated
 Shipping 2TB with Standard Class drives
 Shipping 1TB/2TB/3TB with Server Class drives
 Intel Celeron Dual Core CPU
 Dual Power Supply (2nd PSU sold separately)
 2GB memory
 2 x GbE NIC
 Bring your own drives, online RAID expansion
 SSD drives qualified
HW Specification
CPU Intel E1500 2.2 GHz Celeron Dual core
Memory
2GB DDR3 RAM
1GB NAND Flash
Capacities Diskless, 4x1TB, 4X2TB, 4x3TB, (4x4TB)
RAID RAID 0, 1, 10, 5, 5+1
Power Redundant, 80+ Silver class, Redundant supply option
Ports
2 x GbE
3 x USB 2.0

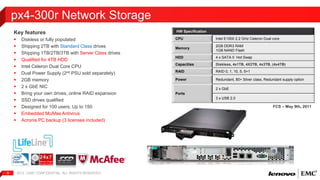

px4-300r Network Storage
FCS – May 9th, 2011

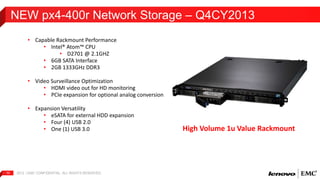

NEW px4-400r Network Storage – Q4CY2013
• Capable Rackmount Performance
• Intel® Atom™ CPU
• D2701 @ 2.1GHZ
• 6GB SATA Interface
• 2GB 1333GHz DDR3
• Video Surveillance Optimization
• HDMI video out for HD monitoring
• PCIe expansion for optional analog conversion
• Expansion Versatility
• eSATA for external HDD expansion
• Four (4) USB 2.0
• One (1) USB 3.0
High Volume 1u Value Rackmount

Key features
 Diskless, partially & fully populated
 Shipping with Server Class drives
 Intel Core i3 Dual Core 3.3 GHz processor
 4GB memory
 Designed for 10 x GbE NIC and 4TB drives
 Support up to 48 cameras
 Shipping with trays already built-in
 VGA port out
Typically used for
• Production file storage, backup target, video surveillance,
server virtualization (also running IVX virtual machines)
HW Specification
CPU
Intel Core i3-3220
Dual Core 3.3GHz Ivy Bridge
Memory
4GB DDR3 Memory
1GB NAND Flash
Capacities
Diskless, 4x1TB, 4X2TB, 4x3TB, 4x4TB, 12x2TB, 12x3TB,
12x4TB
RAID RAID 0, 1, 10, 5, 5+hot spare, 6 (per-Storage Pool)
Power Redundant power supply
Ports
4 x GbE, optional 10GbE
3 x USB 2.0 (one front, two rear)
FCS – Nov, 2012

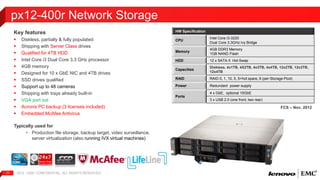

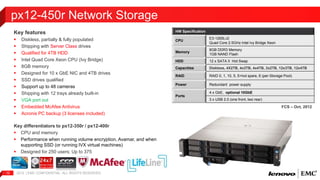

Key features
 Diskless, partially & fully populated
 Shipping with Server Class drives
 Intel Quad Core Xeon CPU (Ivy Bridge)
 8GB memory
 Designed for 10 x GbE NIC and 4TB drives
 Support up to 48 cameras
 Shipping with 12 trays already built-in
 VGA port out
Key differentiators to px12-350r / px12-400r
 CPU and memory
 Performance when running volume encryption, Avamar, and when
supporting SSD (or running IVX virtual machines)
HW Specification
CPU
E3-1265Lv2
Quad Core 2.5GHz Intel Ivy Bridge Xeon
Memory
8GB DDR3 Memory
1GB NAND Flash
Capacities Diskless, 4X2TB, 4x3TB, 4x4TB, 2x2TB, 12x3TB, 12x4TB
RAID RAID 0, 1, 10, 5, 5+hot spare, 6 (per-Storage Pool)
Power Redundant power supply
Ports
4 x GbE, optional 10GbE
3 x USB 2.0 (one front, two rear)
FCS – Oct, 2012

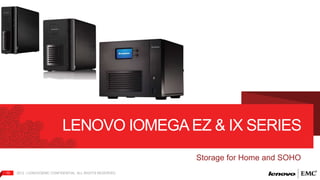

LENOVO IOMEGA EZ & IX SERIES
Storage for Home and SOHO

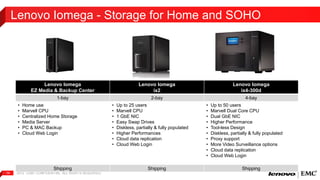

Lenovo Iomega - Storage for Home and SOHO
Lenovo Iomega
EZ Media & Backup Center
Lenovo Iomega
ix2
Lenovo Iomega
ix4-300d
1-bay 2-bay 4-bay
• Home use
• Marvell CPU
• Centralized Home Storage
• Media Server
• PC & MAC Backup
• Cloud Web Login
• Up to 25 users
• Marvell CPU
• 1 GbE NIC
• Easy Swap Drives
• Diskless, partially & fully populated
• Higher Performances
• Cloud data replication
• Cloud Web Login
• Up to 50 users
• Marvell Dual Core CPU
• Dual GbE NIC
• Higher Performance
• Tool-less Design
• Diskless, partially & fully populated
• Proxy support
• More Video Surveillance options
• Cloud data replication
• Cloud Web Login
Shipping Shipping Shipping

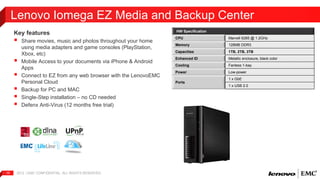

Lenovo Iomega EZ Media and Backup Center
Key features

Share movies, music and photos throughout your home
using media adapters and game consoles (PlayStation,
Xbox, etc)

Mobile Access to your documents via iPhone & Android
Apps

Connect to EZ from any web browser with the LenovoEMC
Personal Cloud

Backup for PC and MAC

Single-Step installation – no CD needed

Defenx Anti-Virus (12 months free trial)
HW Specification
CPU Marvell 6285 @ 1.2GHz
Memory 128MB DDR3
Capacities 1TB, 2TB, 3TB
Enhanced ID Metallic enclosure, black color
Cooling Fanless 1-bay
Power Low-power
Ports
1 x GbE
1 x USB 2.0

Key features
 Up to 30% faster Performance
 Backup for PC and MAC
 Flexible configurations (0-6TB)
 Tool-less Design
 CD-less installation
 Low Power Consumption
 Defenx Anti-Virus (12 months free trial)
HW Specification
CPU Marvell 6282 @ 1.6GHz
Memory
256MB DDR3
1GB NAND Flash (diskless only)
Capacities Diskless, 1x2TB, 2x1TB, 2x2TB, 2x3TB
Enhanced ID Metallic enclosure, black color
Cooling Near-silent fan
Ports
1 x GbE
1 x USB 2.0
Lenovo Iomega ix2 Network Storage

Lenovo Iomega ix4-300d Network Storage
Key features
 Marvell Dual-Core Armada XP CPU
 Excellent Read & Write Performance
 Front LCD
 Dual GbE NICs
 Flexible configurations (0-6TB)
 More efficient file system (EXT4)
 Tool-less design
 Defenx Anti-Virus (12 months free trial)
Key software features
 CD-less installation
 Personal Cloud web login
 Video Surveillance with 1 free cam license
 Customizable Cloud landing page
 Proxy support
HW Specification
CPU Marvell Armada XP Dual Core 1.3GHz
Memory
512MB DDR III
1GB NAND Flash
Capacities Diskless, 2x2TB, 4x1TB, 4x2TB, 4x3TB
Enhanced ID
Metallic enclosure, black color
Front USB & LEDs
Cooling Near-silent fan
Ports
2x GbE
1x USB 3.0, 2x USB 2.0
FCS – Dec 2012

2) PRODUCTS FOR VERTICALS

BACKUP SOLUTIONS
Lenovo EMC Acronis Appliances

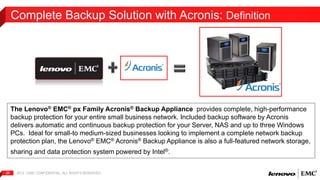

Complete Backup Solution with Acronis: Definition
The Lenovo® EMC® px Family Acronis® Backup Appliance provides complete, high-performance
backup protection for your entire small business network. Included backup software by Acronis
delivers automatic and continuous backup protection for your Server, NAS and up to three Windows
PCs. Ideal for small-to medium-sized businesses looking to implement a complete network backup
protection plan, the Lenovo® EMC® Acronis® Backup Appliance is also a full-featured network storage,
sharing and data protection system powered by Intel®.

Complete Backup Solution with Acronis: GTM
Complete, High-Performance Backup Solution for Small-to Medium-Sized
Businesses (SMBs)
 2 options for customers:
– Buy the ALL-IN-ONE Diskless PX Backup Appliance + Buy spare HDD disks
–New SKUs available: px2d dl, px4d dl, px6d dl, px4r dl, px12-400r dl, px12-450r dl
– Buy only the Backup Software license from Acronis and use with our standard NAS
http://www.acronis.com/promo/lenovo/index.html
–Targeting the install base or a modular approach
–3 Software components available:
– PC-to-NAS Backup license
– Server-to-NAS Backup license
– NAS-to-NAS Backup license

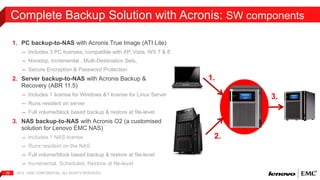

Complete Backup Solution with Acronis: SW components
1. PC backup-to-NAS with Acronis True Image (ATI Lite)
– Includes 3 PC licenses, compatible with XP, Vista, WS 7 & 8
– Nonstop, Incremental , Multi-Destination Sets,
– Secure Encryption & Password Protection
2. Server backup-to-NAS with Acronis Backup &
Recovery (ABR 11.5)
– Includes 1 license for Windows &1 license for Linux Server
– Runs resident on server
– Full volume/block based backup & restore at file-level
3. NAS backup-to-NAS with Acronis O2 (a customised
solution for Lenovo EMC NAS)
– Includes 1 NAS license
– Runs resident on the NAS
– Full volume/block based backup & restore at file-level
– Incremental, Scheduled, Restore at file-level
1.
2.
3.

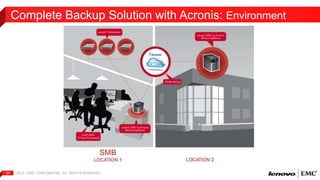

Complete Backup Solution with Acronis: Environment

IP VIDEO SURVEILLANCE
Lenovo EMC Network Video Recorders

When two leading companies
partner to make a better solution.
World-Class Hardware Leading Surveillance Software Even Stonger together

LenovoEMC Network Video Recorder (NVR)
The LenovoEMC Milestone NVR is the
first IP-based video surveillance solution
designed for smaller installations up to
20 cameras that combines
LenovoEMC’s world-class Network
Storage with Milestone’s market leading
Video Surveillance Software
and delivers superior reliability, image
quality, ease of installation and
affordability unlike any other analog or IP
video surveillance solution.

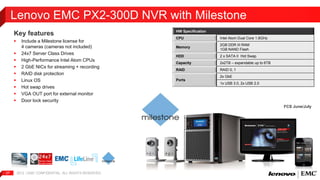

Lenovo EMC PX2-300D NVR with Milestone
Key features
 Include a Milestone license for
4 cameras (cameras not included)
 24x7 Server Class Drives
 High-Performance Intel Atom CPUs
 2 GbE NICs for streaming + recording
 RAID disk protection
 Linux OS
 Hot swap drives
 VGA OUT port for external monitor
 Door lock security
HW Specification
Memory
2GB DDR III RAM
1GB NAND Flash
Capacity 2x2TB – expandable up to 6TB
RAID RAID 0, 1
Ports
2x GbE
1x USB 3.0, 2x USB 2.0
FCS June/July

Lenovo EMC PX4-300D NVR with Milestone
Key features
 Include a Milestone license for
4 to 16 cameras included (depending on model)
 Camera license upgradable (cameras not included)
 24x7 Server Class Drives
 High-Performance Intel Atom CPUs
 2 GbE NICs for streaming + recording
 RAID disk protection
 Linux OS
 Hot swap drives
HW Specification
Memory
2GB DDR III RAM
1GB NAND Flash
Capacity
2x2TB – expandable up to 12TB
4x2TB – expandable up to 12TB
RAID RAID 0, 1, 10, 5, 5+1, 6
Ports
2 x GbE
2 x USB 2.0, 1 x USB 3.0
FCS July

3) WARRANTY & SERVICE PLANS

Warranty & Service Plans
Support Features Base warranty Extended warranty Enhanced SP
(Rack mount)
Premium SP
Free Unlimited Phone Technical
Support
M-F 8:30am x 5:30pm
(local business hours)
24x7
(After Hours in English)
24x7
24x7
Onsite Parts Replacement Not included Not included NBD
(Next Business Day)
4 Hr Parts Replacement
(parts in Strategic Parts Kit,
NBD for other parts)
Strategic Parts Kit Not included Not Included Not Included Included
RMA Parts Delivery Advance Exchange Advance Exchange Advance Exchange
Expedited Advance
Exchange
Support Priority Normal Priority Priority Highest Priority
Web Support with an up-to-date
knowledgebase & free software updates
   
Automated Support Alerts    
Online Case Tracking    
Warranty 3 Years 5 Years 3 or 5 Years 3 or 5 Years

4) OPERATION SYSTEM
EMC Lifeline 4.0

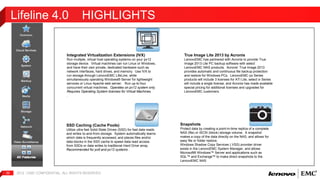

Lifeline 4.0 HIGHLIGHTS
Integrated Virtualization Extensions (IVX)
Run multiple, virtual host operating systems on your px12
storage device. Virtual machines can run Linux or Windows,
and have their own private, dedicated hardware such as
network interfaces, hard drives, and memory. Use IVX to
run storage through LenovoEMC LifeLine, while
simultaneously operating Windows® Server for lightweight
services or Linux Apache web server. Run up-to four
concurrent virtual machines. Operates on px12 system only.
Requires Operating System licenses for Virtual Machines.
.
Snapshots
Protect data by creating a point-in-time replica of a complete
NAS (file) or iSCSI (block) storage volume. A snapshot
makes a copy of the data directly on the NAS, and allows for
easy file or folder restore.
Windows Shadow Copy Services (.VSS) provider driver
exists in the LenovoEMC System Manager, and allows
Microsoft® Windows™ Server and applications such as
SQL™ and Exchange™ to make direct snapshots to the
LenovoEMC NAS
SSD Caching (Cache Pools)
Utilize ultra fast Solid-State Drives (SSD) for fast data reads
and writes to-and-from storage. System automatically learns
which data is frequently accessed, and places files and/or
data blocks in the SSD cache to speed data read access
from SSDs or data writes to traditional Hard Drive array.
Recommended for px6 and px12 systems .
True Image Lite 2013 by Acronis
LenovoEMC has partnered with Acronis to provide True
Image 2013 Lite PC backup software with select
LenovoEMC NAS products. Acronis’ True Image 2013
provides automatic and continuous file backup protection
and restore for Windows PCs. LenovoEMC px Series
products will include 3 licenses for ATI Lite, select ix Series
will include a single license, and Acronis has made available
special pricing for additional licenses and upgrades for
LenovoEMC customers.

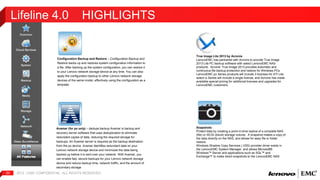

Lifeline 4.0 HIGHLIGHTS
True Image Lite 2013 by Acronis
LenovoEMC has partnered with Acronis to provide True Image
2013 Lite PC backup software with select LenovoEMC NAS
products. Acronis’ True Image 2013 provides automatic and
continuous file backup protection and restore for Windows PCs.
LenovoEMC px Series products will include 3 licenses for ATI Lite,
select ix Series will include a single license, and Acronis has made
available special pricing for additional licenses and upgrades for
LenovoEMC customers.
Snapshots
Protect data by creating a point-in-time replica of a complete NAS
(file) or iSCSI (block) storage volume. A snapshot makes a copy of
the data directly on the NAS, and allows for easy file or folder
restore.
Windows Shadow Copy Services (.VSS) provider driver exists in
the LenovoEMC System Manager, and allows Microsoft®
Windows™ Server and applications such as SQL™ and
Exchange™ to make direct snapshots to the LenovoEMC NAS
Configuration Backup and Restore – Configuration Backup and
Restore backs up and restores system configuration information to
a file. After backing up the system configuration, you can restore it
to your Lenovo network storage device at any time. You can also
apply the configuration backup to other Lenovo network storage
devices of the same model, effectively using the configuration as a
template.
Avamar (for px only) – dedupe backup Avamar is backup and
recovery server software that uses deduplication to eliminate
redundant copies of data, reducing the required storage for
backups. An Avamar server is required as the backup destination
from the px device. Avamar identifies redundant data on your
Lenovo network storage device and minimizes the data being
backed up before it is sent over your network. With Avamar, you
can enable fast, secure backups for your Lenovo network storage
device and reduce backup time, network traffic, and the amount of
secondary storage

Lifeline 4.0 Overview
Features Platforms
EZ IX2 IX4-300D PX2-300D PX4-300D PX6-300D PX4-300R PX12-4xxR
IVX (INTEGRATED VIRTUALIZATION) 
SNAPSHOTS     
4TB HDD     
CACHE POOLS     
NFS V4.0       
HYBRID AUTHENTICATION MODE       
ACTIVE DIRECTORY HIGH AVAILABILITY       
ISCSI CLEANUP       
MCAFEE AV VIRUS     
NETWORK PROXY        
SERVER & VIRTUALIZATION CERTIF       

LifeLine Wynn 4.1.x - Planned for Dec/Jan -
Wynn – Q4 2013
 Platforms
– PX4 400r: Q4 2013
– PX4 400d: Q1 2014
 Features
– Kernel 3.8.x
– Wheezy (Latest Debian release)
– Samba 4.0.x
– New “Transmission” torrent app.
– New partner SDK

5) MOBILE ACCESS
Lenovo EMC Link

New Lenovo EMC Link App
 Explore, upload and download content on the
network storage device through your mobile
 Backup photos and videos to the NAS in full
resolution
 View and Open documents
 Play music, videos and view pictures from your
mobile
 System Status - check the storage capacity &
system health of your network storage device
from your mobile
 Languages: E,F,I,G,S,P,CHINESE

LenovoEMC(IOMEGA) Product Presentation

LenovoEMC(IOMEGA) Product Presentation

More Related Content

What's hot

Viewers also liked

Similar to LenovoEMC(IOMEGA) Product Presentation

Recently uploaded

LenovoEMC(IOMEGA) Product Presentation
