January 30, 2017
CompactPCI® Solutions
for a World in Motion

2. 2

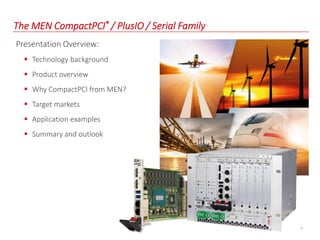

The MEN CompactPCI® / PlusIO / Serial Family
Presentation Overview:
 Technology background
 Product overview
 Why CompactPCI from MEN?
 Target markets
 Application examples
 Summary and outlook

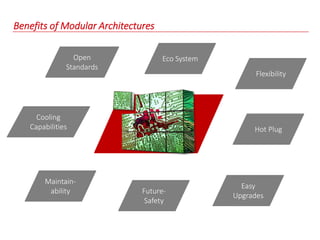

3. Benefits of Modular Architectures
Flexibility
Future-
Safety
Open
Standards
Easy
Upgrades
Maintain-
ability
Eco System
Cooling
Capabilities Hot Plug

4. CompactPCI® PlusIO Architecture Extensions
CompactPCI PlusIO is a definition for the system slot only
Simple star for PCI Express, SATA/SAS, USB and Ethernet
Connection of both worlds, parallel and serial, without bridges

5. 5

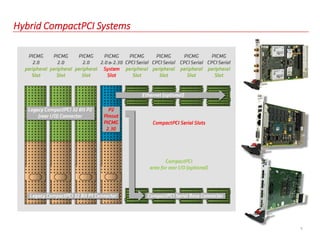

Hybrid CompactPCI Systems

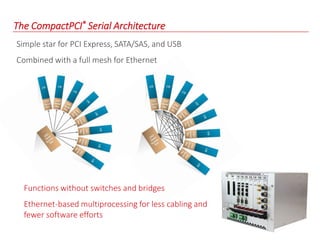

6. The CompactPCI® Serial Architecture
Simple star for PCI Express, SATA/SAS, and USB
Combined with a full mesh for Ethernet
Functions without switches and bridges
Ethernet-based multiprocessing for less cabling and
fewer software efforts

7. 7

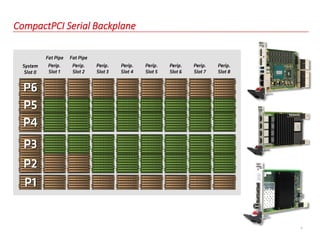

CompactPCI Serial Backplane

8. 8

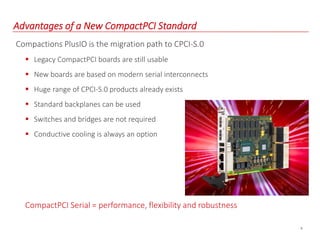

Advantages of a New CompactPCI Standard
Compactions PlusIO is the migration path to CPCI-S.0
 Legacy CompactPCI boards are still usable
 New boards are based on modern serial interconnects
 Huge range of CPCI-S.0 products already exists
 Standard backplanes can be used
 Switches and bridges are not required
 Conductive cooling is always an option
CompactPCI Serial = performance, flexibility and robustness

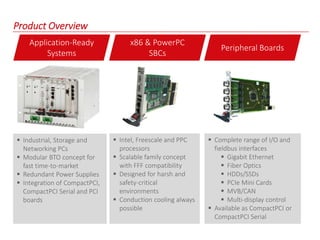

9. Product Overview
Application-Ready
Systems
 Intel, Freescale and PPC
processors
 Scalable family concept
with FFF compatibility
 Designed for harsh and
safety-critical
environments
 Conduction cooling always
possible
x86 & PowerPC
SBCs
 Complete range of I/O and
fieldbus interfaces
 Gigabit Ethernet
 Fiber Optics
 HDDs/SSDs
 PCIe Mini Cards
 MVB/CAN
 Multi-display control
 Available as CompactPCI or
CompactPCI Serial
Peripheral Boards
 Industrial, Storage and
Networking PCs
 Modular BTO concept for
fast time-to-market
 Redundant Power Supplies
 Integration of CompactPCI,
CompactPCI Serial and PCI
boards

10. 10

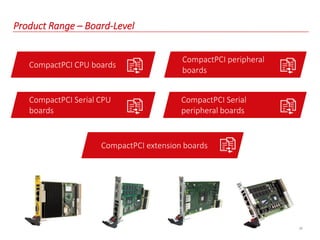

Product Range – Board-Level
CompactPCI CPU boards
CompactPCI Serial CPU
boards
CompactPCI peripheral
boards
CompactPCI extension boards
CompactPCI Serial
peripheral boards

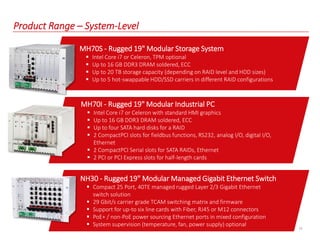

11. NH30 - Rugged 19" Modular Managed Gigabit Ethernet Switch
 Compact 25 Port, 40TE managed rugged Layer 2/3 Gigabit Ethernet
switch solution
 29 Gbit/s carrier grade TCAM switching matrix and firmware
 Support for up-to six line cards with Fiber, RJ45 or M12 connectors
 PoE+ / non-PoE power sourcing Ethernet ports in mixed configuration
 System supervision (temperature, fan, power supply) optional
MH70I - Rugged 19" Modular Industrial PC
 Intel Core i7 or Celeron with standard HMI graphics
 Up to 16 GB DDR3 DRAM soldered, ECC
 Up to four SATA hard disks for a RAID
 2 CompactPCI slots for fieldbus functions, RS232, analog I/O, digital I/O,
Ethernet
 2 CompactPCI Serial slots for SATA RAIDs, Ethernet
 2 PCI or PCI Express slots for half-length cards
11
Product Range – System-Level
MH70S - Rugged 19" Modular Storage System
 Intel Core i7 or Celeron, TPM optional
 Up to 16 GB DDR3 DRAM soldered, ECC
 Up to 20 TB storage capacity (depending on RAID level and HDD sizes)
 Up to 5 hot-swappable HDD/SSD carriers in different RAID configurations

12. 12
Product Range – System-Level

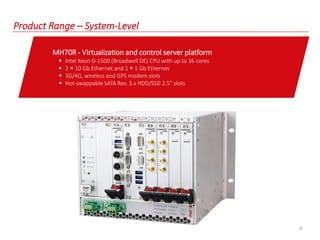

MH70R - Virtualization and control server platform
 Intel Xeon D-1500 (Broadwell DE) CPU with up to 16 cores
 2 × 10 Gb Ethernet and 1 × 1 Gb Ethernet
 3G/4G, wireless and GPS modem slots
 Hot-swappable SATA Rev. 3.x HDD/SSD 2.5” slots

13. 13

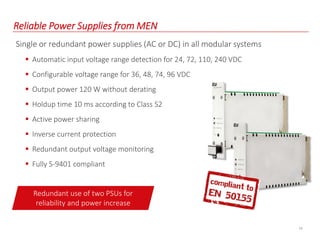

Reliable Power Supplies from MEN
Single or redundant power supplies (AC or DC) in all modular systems
 Automatic input voltage range detection for 24, 72, 110, 240 VDC
 Configurable voltage range for 36, 48, 74, 96 VDC
 Output power 120 W without derating
 Holdup time 10 ms according to Class S2
 Active power sharing
 Inverse current protection
 Redundant output voltage monitoring
 Fully S-9401 compliant
Redundant use of two PSUs for
reliability and power increase

14. 14

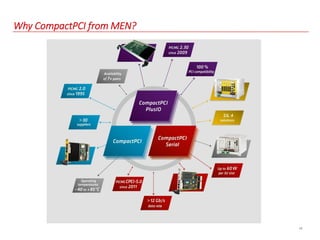

Why CompactPCI from MEN?

15. 15
Scalability Through I/O Compatibility
Front panel and side card connector remain the same
Side-card connector
F14
RSTSTA1234
VGA
®
CompactPCI
F19P
RSTSTA1234
VGA
®
CompactPCI
SBC with side-card
Gurantees form, fit and function
successor boards
Unlimited system life cycle
Same I/O with scalable
performance
F23P
RSTSTA1234
VGA
®
CompactPCI
F14 …… F23P

16. 16

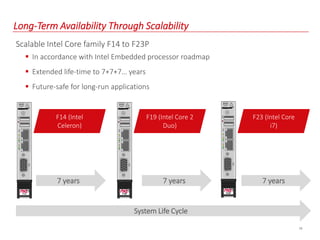

Long-Term Availability Through Scalability
Scalable Intel Core family F14 to F23P
 In accordance with Intel Embedded processor roadmap
 Extended life-time to 7+7+7… years
 Future-safe for long-run applications
F14 (Intel
Celeron)
F14
RSTSTA1234
VGA
®
CompactPCI
F19 (Intel Core 2
Duo)
F19P
RSTSTA1234
VGA
®
CompactPCI
F23 (Intel Core
i7)
F23P
RSTSTA1234
VGA
®
CompactPCI
7 years 7 years 7 years
System Life Cycle

17. 17
Robustness
Rugged for harsh environments
 -40°C to +85°C operating temperature
 Shock, vibration
 Humidity, dust, chemical influence
Reliable for mission-critical applications
 Safety-critical up to SIL 4, DAL-A
 7 days/24 hours operation, up to 30 years
Qualified and developed in accordance
with standards, e.g.
 EN 50155, EN 50128, EN 50129
 IEC 61508
 DO-160, DO-254 etc.

18. 18

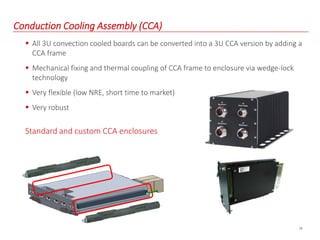

Conduction Cooling Assembly (CCA)
 All 3U convection cooled boards can be converted into a 3U CCA version by adding a
CCA frame
 Mechanical fixing and thermal coupling of CCA frame to enclosure via wedge-lock
technology
 Very flexible (low NRE, short time to market)
 Very robust
Standard and custom CCA enclosures

19. 19

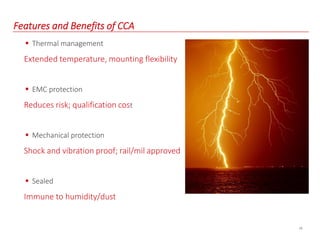

Features and Benefits of CCA
 Thermal management
Extended temperature, mounting flexibility
 EMC protection
Reduces risk; qualification cost
 Mechanical protection
Shock and vibration proof; rail/mil approved
 Sealed
Immune to humidity/dust

20. 20

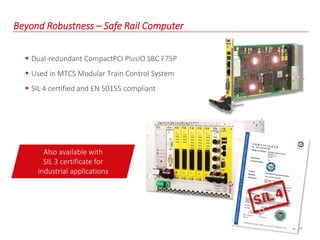

Beyond Robustness – Safe Rail Computer
 Dual-redundant CompactPCI PlusIO SBC F75P
 Used in MTCS Modular Train Control System
 SIL 4 certified and EN 50155 compliant
Also available with
SIL 3 certificate for
industrial applications

21. 21
Modularity on System Level
 All systems available as BTO components
 Drastically reduced delivery time
 Fast close-to-series prototypes
 Standard systems tailored to your needs
 Application-ready or turnkey
 Flexible configuration with a mix of
CompactPCI, CompactPCI Serial and PCI cards

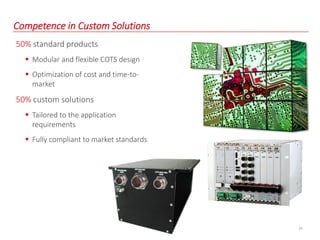

22. 50% standard products
 Modular and flexible COTS design
 Optimization of cost and time-to-
market
50% custom solutions
 Tailored to the application
requirements
 Fully compliant to market standards
22
Competence in Custom Solutions

23. 23

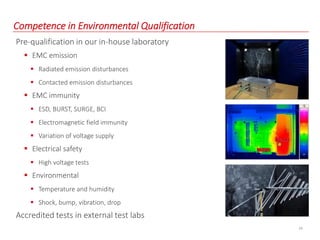

Competence in Environmental Qualification
Pre-qualification in our in-house laboratory
 EMC emission
 Radiated emission disturbances
 Contacted emission disturbances
 EMC immunity
 ESD, BURST, SURGE, BCI
 Electromagnetic field immunity
 Variation of voltage supply
 Electrical safety
 High voltage tests
 Environmental
 Temperature and humidity
 Shock, bump, vibration, drop
Accredited tests in external test labs

24. 24

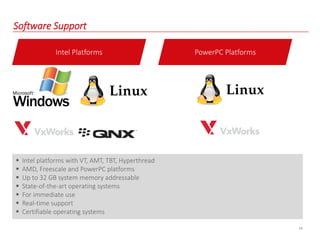

Software Support
Intel Platforms
 Intel platforms with VT, AMT, TBT, Hyperthread
 AMD, Freescale and PowerPC platforms
 Up to 32 GB system memory addressable
 State-of-the-art operating systems
 For immediate use
 Real-time support
 Certifiable operating systems
PowerPC Platforms

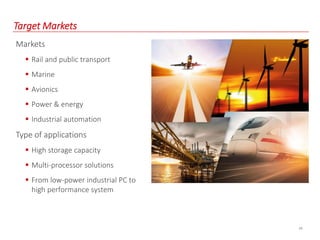

25. Target Markets
Markets
 Rail and public transport
 Marine
 Avionics
 Power & energy
 Industrial automation
Type of applications
 High storage capacity
 Multi-processor solutions
 From low-power industrial PC to
high performance system
24

26. 26

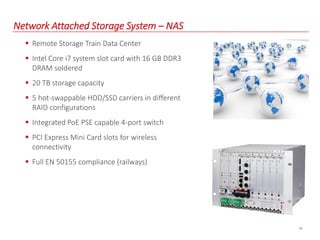

Network Attached Storage System – NAS
 Remote Storage Train Data Center
 Intel Core i7 system slot card with 16 GB DDR3
DRAM soldered
 20 TB storage capacity
 5 hot-swappable HDD/SSD carriers in different
RAID configurations
 Integrated PoE PSE capable 4-port switch
 PCI Express Mini Card slots for wireless
connectivity
 Full EN 50155 compliance (railways)

27. 27

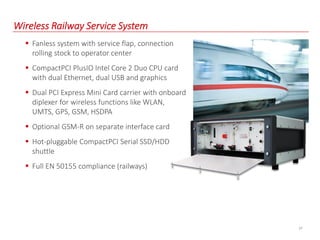

Wireless Railway Service System
 Fanless system with service flap, connection
rolling stock to operator center
 CompactPCI PlusIO Intel Core 2 Duo CPU card
with dual Ethernet, dual USB and graphics
 Dual PCI Express Mini Card carrier with onboard
diplexer for wireless functions like WLAN,
UMTS, GPS, GSM, HSDPA
 Optional GSM-R on separate interface card
 Hot-pluggable CompactPCI Serial SSD/HDD
shuttle
 Full EN 50155 compliance (railways)

28. 29

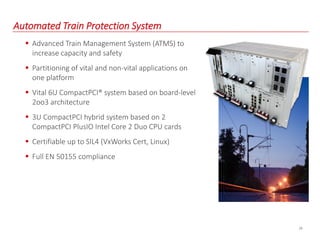

Automated Train Protection System
 Advanced Train Management System (ATMS) to
increase capacity and safety
 Partitioning of vital and non-vital applications on
one platform
 Vital 6U CompactPCI® system based on board-level
2oo3 architecture
 3U CompactPCI hybrid system based on 2
CompactPCI PlusIO Intel Core 2 Duo CPU cards
 Certifiable up to SIL4 (VxWorks Cert, Linux)
 Full EN 50155 compliance

29. 33
Video Wall Control
 Graphics output system controlling up to
28 monitors
 CompactPCI Serial Intel Core i7 CPU card
with dual Ethernet, dual USB and dual
DisplayPort
 7 AMD-based multi-display controller
cards, controlling up to 4 monitors
simultaneously via DisplayPort
 Connected via PCI Express on backplane
(2 x8, 5 x1)

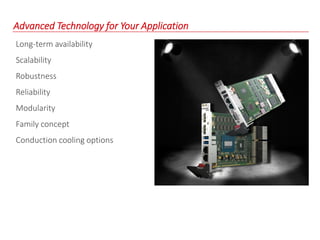

30. Advanced Technology for Your Application
Long-term availability
Scalability
Robustness
Reliability
Modularity
Family concept
Conduction cooling options
