The mobilization of SOA Suite - the rise of REST (ADF Enterprise Mobility Conference, May 2014)
The document discusses the mobilization of SOA Suite into a mobile and web-oriented architecture, highlighting the rise of REST and the challenges associated with SOA infrastructure. It outlines how Oracle SOA Suite 12c enables the exposure and invocation of RESTful services, along with native support for JSON data handling. Key implementation strategies focus on backend solutions using Oracle Service Bus and addressing requirements for data access, caching, synchronization, and user personalization.
More Related Content
Similar to The mobilization of SOA Suite - the rise of REST (ADF Enterprise Mobility Conference, May 2014)
More from Lucas Jellema
The mobilization of SOA Suite - the rise of REST (ADF Enterprise Mobility Conference, May 2014)
- 1. Lucas Jellema ADF Enterpriseto Mobility conference - 21-23 May 2014 – AMIS, The Netherlands The mobilization of SOA Suite (the rise of REST) ServiceBus

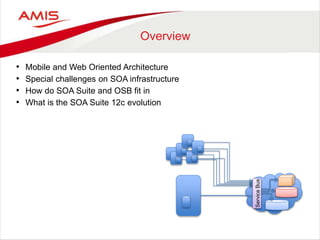

- 2. Overview • Mobile andWeb Oriented Architecture • Special challenges on SOA infrastructure • How do SOA Suite and OSB fit in • What is the SOA Suite 12c evolution ServiceBus
- 3.

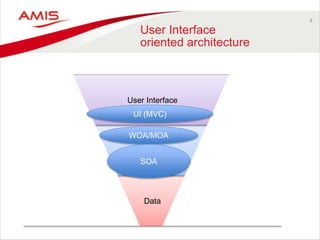

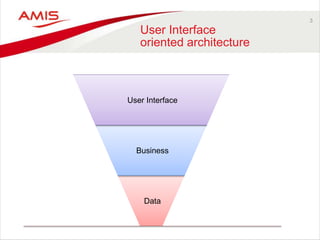

- 4. 4 User Interface oriented architecture Data Business UserInterface WOA/MOA SOA UI (MVC)

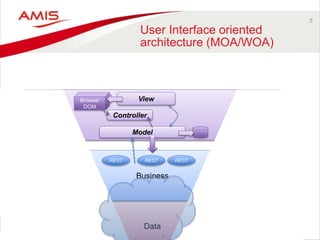

- 5. 5 User Interface oriented architecture(MOA/WOA) Data Business Model REST REST REST ViewBrowser DOM Controller
- 6.
- 7.

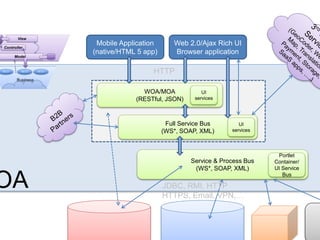

- 8. OA Mobile Application (native/HTML 5app) Web 2.0/Ajax Rich UI Browser application WOA/MOA (RESTful, JSON) Service & Process Bus (WS*, SOAP, XML) Portlet Container/ UI Service Bus UI services JDBC, RMI, HTTP HTTPS, Email, VPN,… HTTP HTTP Full Service Bus (WS*, SOAP, XML) UI services OA

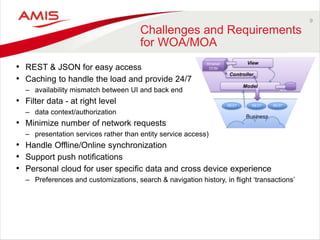

- 9. 9 Challenges and Requirements forWOA/MOA • REST & JSON for easy access • Caching to handle the load and provide 24/7 – availability mismatch between UI and back end • Filter data - at right level – data context/authorization • Minimize number of network requests – presentation services rather than entity service access) • Handle Offline/Online synchronization • Support push notifications • Personal cloud for user specific data and cross device experience – Preferences and customizations, search & navigation history, in flight ‘transactions’

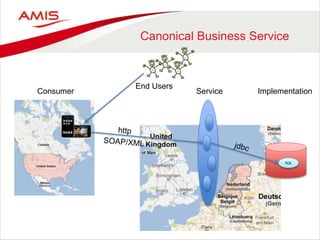

- 10. Canonical Business Service ServiceConsumerImplementation SQL End Users

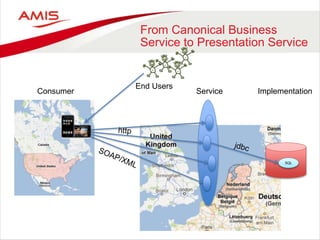

- 11. From Canonical Business Serviceto Presentation Service ServiceConsumer Implementation SQL End Users

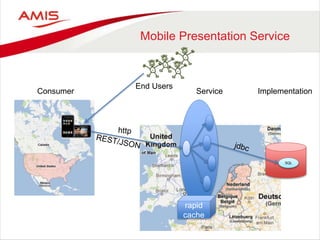

- 12. Mobile Presentation Service ServiceConsumerImplementation SQL End Users rapid cache

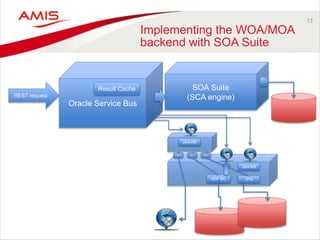

- 13. 13 Implementing the WOA/MOA backendwith SOA Suite Oracle Service Bus SOA Suite (SCA engine) Result Cache JPAADF BC DC DC DC JAX-RS JAX-RS REST request

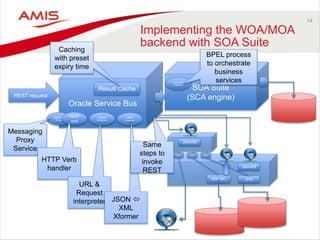

- 14. 14 Implementing the WOA/MOA backendwith SOA Suite Oracle Service Bus SOA Suite (SCA engine) Result Cache JPAADF BC DC DC DC JAX-RS JAX-RS Request Interpreter JSON processor Messaging Proxy REST verb Messaging Proxy Service HTTP Verb handler URL & Request interpreter JSON XML Xformer REST request Caching with preset expiry time Same steps to invoke REST Composite Service BPEL process to orchestrate business services

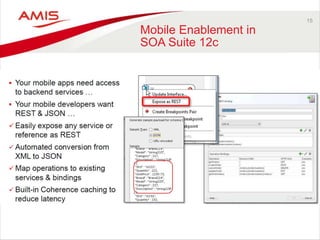

- 15. 15 Mobile Enablement in SOASuite 12c

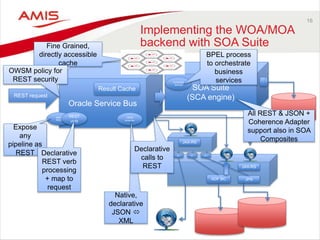

- 16. 16 Implementing the WOA/MOA backendwith SOA Suite Oracle Service Bus SOA Suite (SCA engine) Result Cache JPAADF BC DC DC DC JAX-RS JAX-RS JSON processor Native REST REST verb Expose any pipeline as REST Declarative REST verb processing + map to request Native, declarative JSON XML REST request Fine Grained, directly accessible cache Declarative calls to REST All REST & JSON + Coherence Adapter support also in SOA Composites Composite Service BPEL process to orchestrate business services OWSM policy for REST security
- 17. Summary • Mobile andWeb Oriented Architecture – Make life easier and scalable on modern UI • Special challenges on SOA infrastructure • With Oracle SOA Suite and Service Bus and quite a bit of manual effort, we can – Expose and invoke RESTful services – Deal with JSON data • SOA Suite 12c adds out of the box, native, declarative support for – Exposing Services/Pipelines and References/Business Services as RESTful interfaces and map REST operations to services – Natively converting between XML and JSON – Fine grained interaction with the Coherence cache ServiceBus
Editor's Notes
- #2 Web Oriented Architecture (WOA) and Mobile Oriented Architecture (MOA) are terms coined for the architecture backing modern HTML 5 web applications (rich client/thin server) as well as mobile applications. A pivotal part of WOA and MOA is a layer of services that exposes relevant aspects - both data and functions - of enterprise systems, in a standardized fashion that can easily be consumed. RESTful services using JSON for message payloads are commonly preferred for this. The next generation of the SOA Suite has cloud integration, JSON processing and REST-services as one of its core themes. In this session, we will discuss how a MOA & WOA is designed and how the Oracle SOA Suite & Service Bus - both the current 11g and the upcoming 12c release - can be used to create the services layer.
- #11 UI built and deployed on Force.com platform For one page – multiple service calls were required to various Business Services Each call had a network latency – 0.5-2 secs => sum of latencies was unacceptable Solution: provide Presentation Service
- #12 UI built and deployed on Force.com platform For one page – multiple service calls were required to various Business Services Each call had a network latency – 0.5-2 secs => sum of latencies was unacceptable Solution: provide Presentation Service
- #13 UI built and deployed on Force.com platform For one page – multiple service calls were required to various Business Services Each call had a network latency – 0.5-2 secs => sum of latencies was unacceptable Solution: provide Presentation Service
- #16 CON8863_Lher-CON8863-Lher-Whats-new-in-SOA-Suite – OOW 2013 Slidedeck http://technology.amis.nl/2013/09/27/oow13-soa-suite-12c/
