Conclusion Code Cafe - Microcks for Mocking and Testing Async APIs (January 2022)
- 1. Classificatie: vertrouwelijk Conclusion Code Café Microcks – testing & mocking Async APIs 11-01-2022

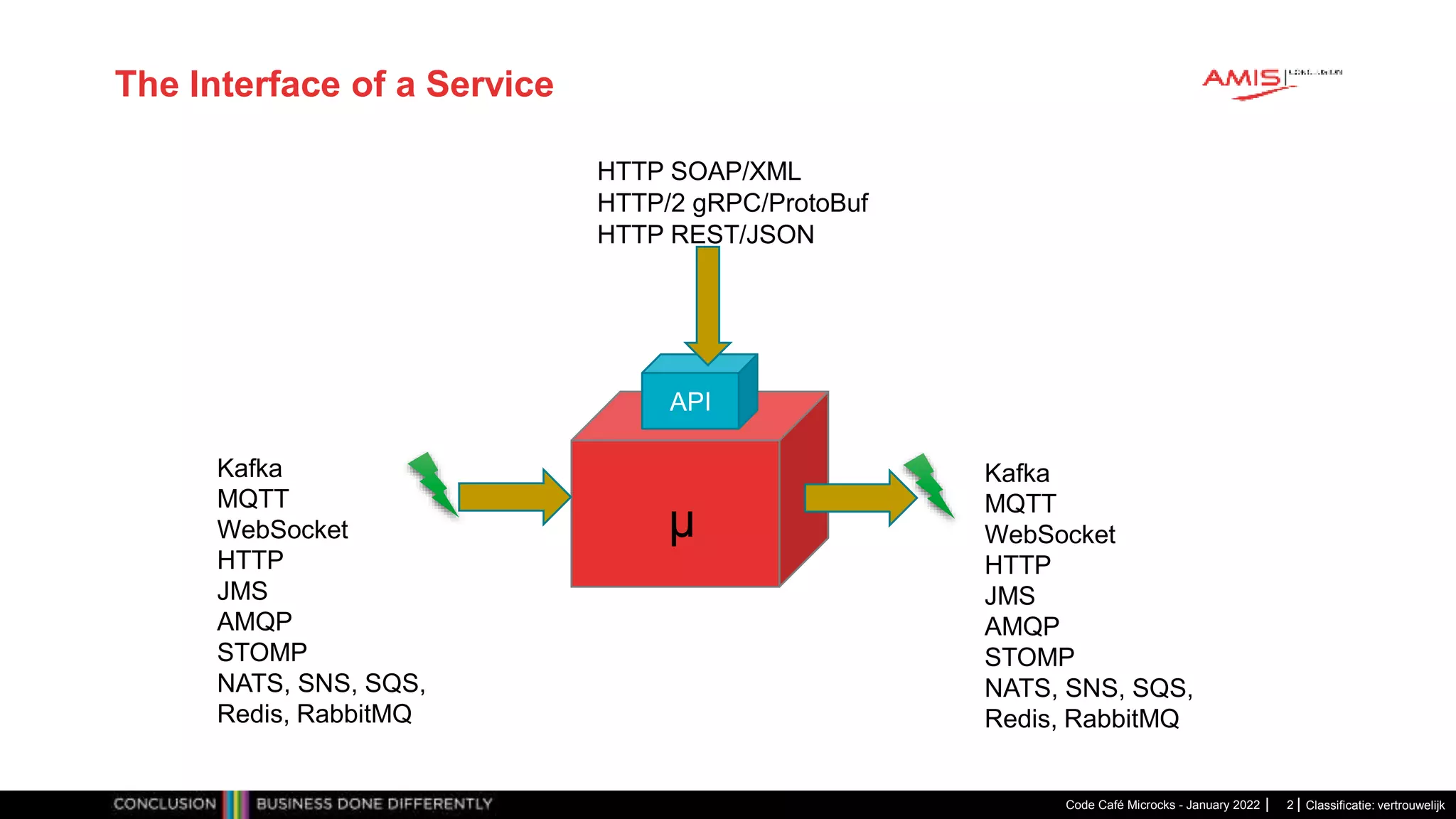

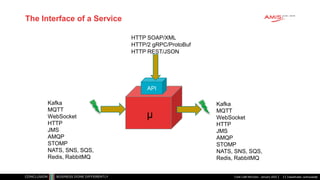

- 2. Classificatie: vertrouwelijk The Interface of a Service API HTTP REST/JSON Code Café Microcks - January 2022 µ HTTP/2 gRPC/ProtoBuf HTTP SOAP/XML Kafka MQTT WebSocket HTTP JMS AMQP STOMP NATS, SNS, SQS, Redis, RabbitMQ Kafka MQTT WebSocket HTTP JMS AMQP STOMP NATS, SNS, SQS, Redis, RabbitMQ 2
- 3. Classificatie: vertrouwelijk AsyncAPI • Design Time • Event Driven Architecture • Pub/Sub • Asynchronous Interactions • API Design • Interface Definition/Contract Code Café Microcks - January 2022 3

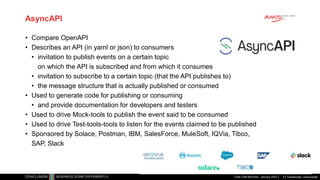

- 4. Classificatie: vertrouwelijk AsyncAPI • Compare OpenAPI • Describes an API (in yaml or json) to consumers • invitation to publish events on a certain topic on which the API is subscribed and from which it consumes • invitation to subscribe to a certain topic (that the API publishes to) • the message structure that is actually published or consumed • Used to generate code for publishing or consuming • and provide documentation for developers and testers • Used to drive Mock-tools to publish the event said to be consumed • Used to drive Test-tools-tools to listen for the events claimed to be published • Sponsored by Solace, Postman, IBM, SalesForce, MuleSoft, IQVia, Tibco, SAP, Slack Code Café Microcks - January 2022 4

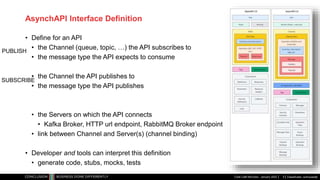

- 5. Classificatie: vertrouwelijk AsynchAPI Interface Definition • Define for an API • the Channel (queue, topic, …) the API subscribes to • the message type the API expects to consume • the Channel the API publishes to • the message type the API publishes • the Servers on which the API connects • Kafka Broker, HTTP url endpoint, RabbitMQ Broker endpoint • link between Channel and Server(s) (channel binding) • Developer and tools can interpret this definition • generate code, stubs, mocks, tests Code Café Microcks - January 2022 5 PUBLISH SUBSCRIBE
- 6. Classificatie: vertrouwelijk Testing and Mocking Async APIs with Microcks Code Café Microcks - January 2022 6 load & interpret AsyncAPI definitions Mock implementation that publishes events to channel (just as the real API would do) Test that subscribes and consumes messages that API promises to publish Kafka MQTT WebSocket Kafka MQTT WebSocket
- 7. Classificatie: vertrouwelijk application.properties Running Microcks with Docker Compose (with async-api enabled) Code Café Microcks - January 2022 7 Kafka docker-compose.yml docker-compose-async-addon.yml kafdrop-addon.yml Kaf Drop Mongo DB Key Cloak microcks- postman microcks async- minion Zoo keeper UI UI UI features.properties

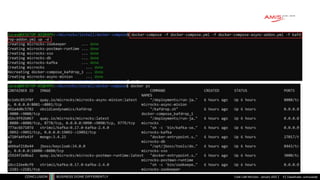

- 8. Classificatie: vertrouwelijk Code Café Microcks - January 2022 9

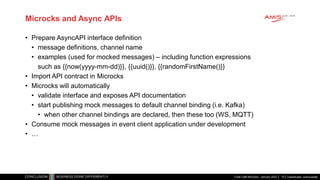

- 9. Classificatie: vertrouwelijk Microcks and Async APIs • Prepare AsyncAPI interface definition • message definitions, channel name • examples (used for mocked messages) – including function expressions such as {{now(yyyy-mm-dd)}}, {{uuid()}}, {{randomFirstName()}} • Import API contract in Microcks • Microcks will automatically • validate interface and exposes API documentation • start publishing mock messages to default channel binding (i.e. Kafka) • when other channel bindings are declared, then these too (WS, MQTT) • Consume mock messages in event client application under development • … Code Café Microcks - January 2022 10

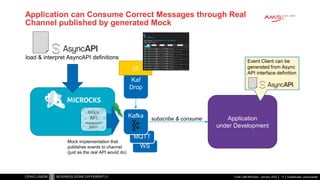

- 10. Classificatie: vertrouwelijk WS MQTT Application can Consume Correct Messages through Real Channel published by generated Mock Code Café Microcks - January 2022 11 load & interpret AsyncAPI definitions Mock implementation that publishes events to channel (just as the real API would do) Kafka Kaf Drop UI Application under Development subscribe & consume Event Client can be generated from Async API interface definition Mock API implemen- tation
- 11. Classificatie: vertrouwelijk Code Café Microcks - January 2022 12 Translated by Microcks to topic CodeCafeAdvancedStreetlightsAPI-1.1-smartylighting- codecafe-streetlights-event-lighting-measured

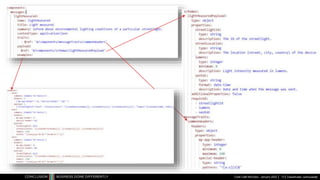

- 12. Classificatie: vertrouwelijk Code Café Microcks - January 2022 13

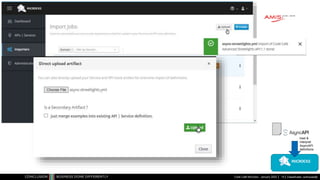

- 13. Classificatie: vertrouwelijk Code Café Microcks - January 2022 14 load & interpret AsyncAPI definitions

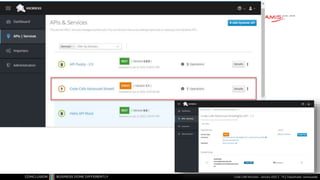

- 14. Classificatie: vertrouwelijk Code Café Microcks - January 2022 15

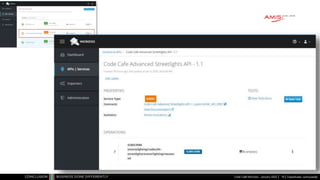

- 15. Classificatie: vertrouwelijk Code Café Microcks - January 2022 16

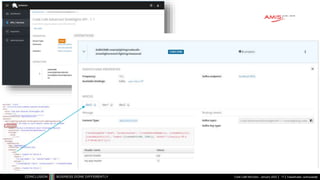

- 16. Classificatie: vertrouwelijk Code Café Microcks - January 2022 17

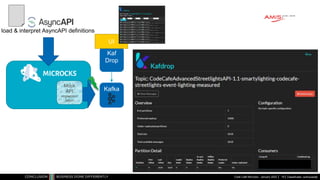

- 17. Classificatie: vertrouwelijk Code Café Microcks - January 2022 18 load & interpret AsyncAPI definitions Kafka Kaf Drop UI Mock API implemen- tation

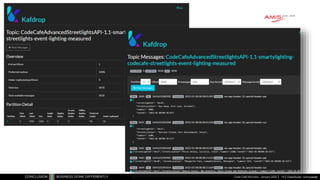

- 18. Classificatie: vertrouwelijk Code Café Microcks - January 2022 19

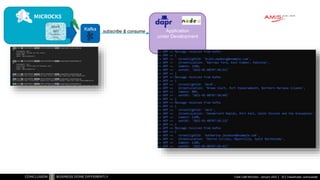

- 19. Classificatie: vertrouwelijk Code Café Microcks - January 2022 20 Kafka Application under Development subscribe & consume Mock API implemen- tation
- 20. Classificatie: vertrouwelijk Microcks and Async APIs • Prepare AsyncAPI interface definition • message definitions, channel name • Import API contract in Microcks • Microcks automatically • validates interface and exposes API documentation • starts publishing mock messages to default channel binding (i.e. Kafka) • when other channel bindings are declared, then these too (WS, MQTT) • Consume mock messages in event client application under development • Create Test in Microcks: validate messages published by application under test to a specific endpoint • messages to validate can be consumed from topic on Kafka Broker, MQTT Broker or WebSocket Server Code Café Microcks - January 2022 21

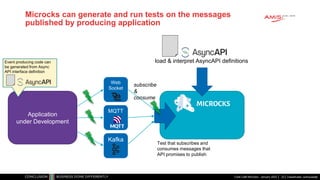

- 21. Classificatie: vertrouwelijk Microcks can generate and run tests on the messages published by producing application Code Café Microcks - January 2022 22 load & interpret AsyncAPI definitions Kafka Application under Development MQTT Web Socket Test that subscribes and consumes messages that API promises to publish subscribe & consume Event producing code can be generated from Async API interface definition

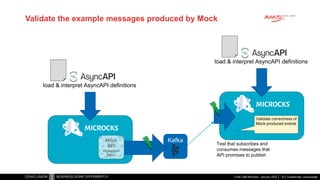

- 22. Classificatie: vertrouwelijk Validate the example messages produced by Mock Code Café Microcks - January 2022 23 load & interpret AsyncAPI definitions Kafka Test that subscribes and consumes messages that API promises to publish load & interpret AsyncAPI definitions Mock API implemen- tation Validate correctness of Mock-produced events

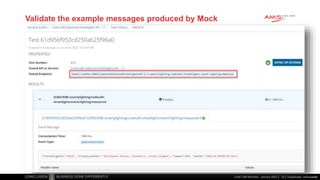

- 23. Classificatie: vertrouwelijk Validate the example messages produced by Mock Code Café Microcks - January 2022 24

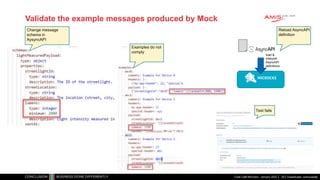

- 24. Classificatie: vertrouwelijk Validate the example messages produced by Mock Code Café Microcks - January 2022 25 Change message schema in AysyncAPI Examples do not comply Test fails load & interpret AsyncAPI definitions Reload AsyncAPI definition

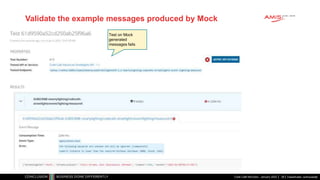

- 25. Classificatie: vertrouwelijk Validate the example messages produced by Mock Code Café Microcks - January 2022 26 Test on Mock generated messages fails
- 26. Classificatie: vertrouwelijk Conclusion on Microcks & Async APIs • AsyncAPI is standard for defining API interface for consuming or producing messages asynchronously • via queue | event broker | web socket • Microcks understands AsyncAPI contracts – but only SUBSCRIBE operations • generates Mock implementation of API that produces messages • generates Tests that validate events produced against contract • support for WS, Kafka, MQTT • No support in Microcks for • PUBLISH operation (that invites API clients to publish their events) • No Mock Event Consumers and no Tests on “proper consumption” • how useful would this be? • other Async channels (JMS, AMQP, STOMP, NATS, SNS, SQS, Redis, RabbitMQ,…) • Microcks installs with out of the box integrated Kafka broker and WebSocket server Code Café Microcks - January 2022 27
- 27. Classificatie: vertrouwelijk Steps • Create Kafka Topic streetlight-dropbox • Configure publishTopic in Kafka Binding entry in Dapr components.yaml Code Café Microcks - January 2022 28 out in app-id(s) to route to
- 28. Classificatie: vertrouwelijk Steps (2) • Run a Dapr application with the components.yaml dapr run –components-path . • Remember the HTTP port at which Dapr is listening • Publish an event through Dapr curl -X POST http://localhost:37919/v1.0/bindings/advanced-street-light- destination -H "Content-Type: application/json" -d '{"data": {"streetlightId": "dev99",.... } , "operation": "create"}' Code Café Microcks - January 2022 29

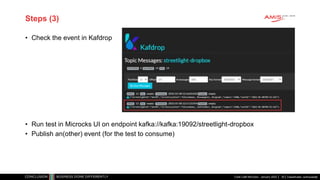

- 29. Classificatie: vertrouwelijk Steps (3) • Check the event in Kafdrop • Run test in Microcks UI on endpoint kafka://kafka:19092/streetlight-dropbox • Publish an(other) event (for the test to consume) Code Café Microcks - January 2022 30
- 30. Classificatie: vertrouwelijk Code Café Microcks - January 2022 31

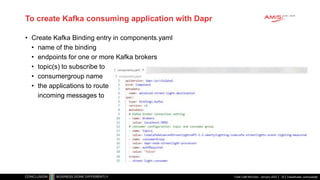

- 31. Classificatie: vertrouwelijk To create Kafka consuming application with Dapr • Create Kafka Binding entry in components.yaml • name of the binding • endpoints for one or more Kafka brokers • topic(s) to subscribe to • consumergroup name • the applications to route incoming messages to Code Café Microcks - January 2022 32

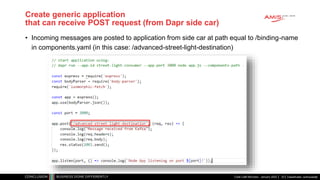

- 32. Classificatie: vertrouwelijk Create generic application that can receive POST request (from Dapr side car) • Incoming messages are posted to application from side car at path equal to /binding-name in components.yaml (in this case: /advanced-street-light-destination) Code Café Microcks - January 2022 33
- 33. Classificatie: vertrouwelijk Run Consuming application as Daprized application dapr run --app-id street-light-consumer --app-port 3000 node app.js - -components-path . • Run this command in the directory that contains both app.js and components.yaml • Make sure that: • app-port corresponds with the port on which the application listens • app-id corresponds with the value used in the scopes element in the components.yaml file Code Café Microcks - January 2022 34

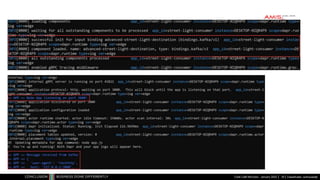

- 34. Classificatie: vertrouwelijk Code Café Microcks - January 2022 35
Editor's Notes
- https://forms.office.com/r/QXtaHEtAAH
- https://microcks.io/documentation/using/advanced/templates/#function-expressions
- https://microcks.io/blog/apache-kafka-mocking-testing/
- https://microcks.io/blog/apache-kafka-mocking-testing/
- // start application using: // dapr run --app-id street-light-consumer --app-port 3000 node app.js --components-path . const express = require('express'); const bodyParser = require('body-parser'); require('isomorphic-fetch'); const app = express(); app.use(bodyParser.json()); const port = 3000; app.post('/advanced-street-light-destination', (req, res) => { console.log("Message received from Kafka"); console.log(req.headers); console.log(req.body); res.status(200).send(); }); app.listen(port, () => console.log(`Node App listening on port ${port}!`));
