What is 3D Laser Scanning?
• 3D laser scanning is a complete and accurate 3D capture of
existing conditions within a scene
• Detailed, accurate measurements of surface geometry create
an X-Y-Z coordinate for each return signal
• Collected measurements are stored in the form of an ultra
dense point cloud
• Point cloud is a 3D digital world of the captured scene readily
available for measurements
• Multiple scans can be geo-referenced together utilizing
conventional survey methods resulting in a 360° view

3. - 3 -
Client
Logo
Client
Logo

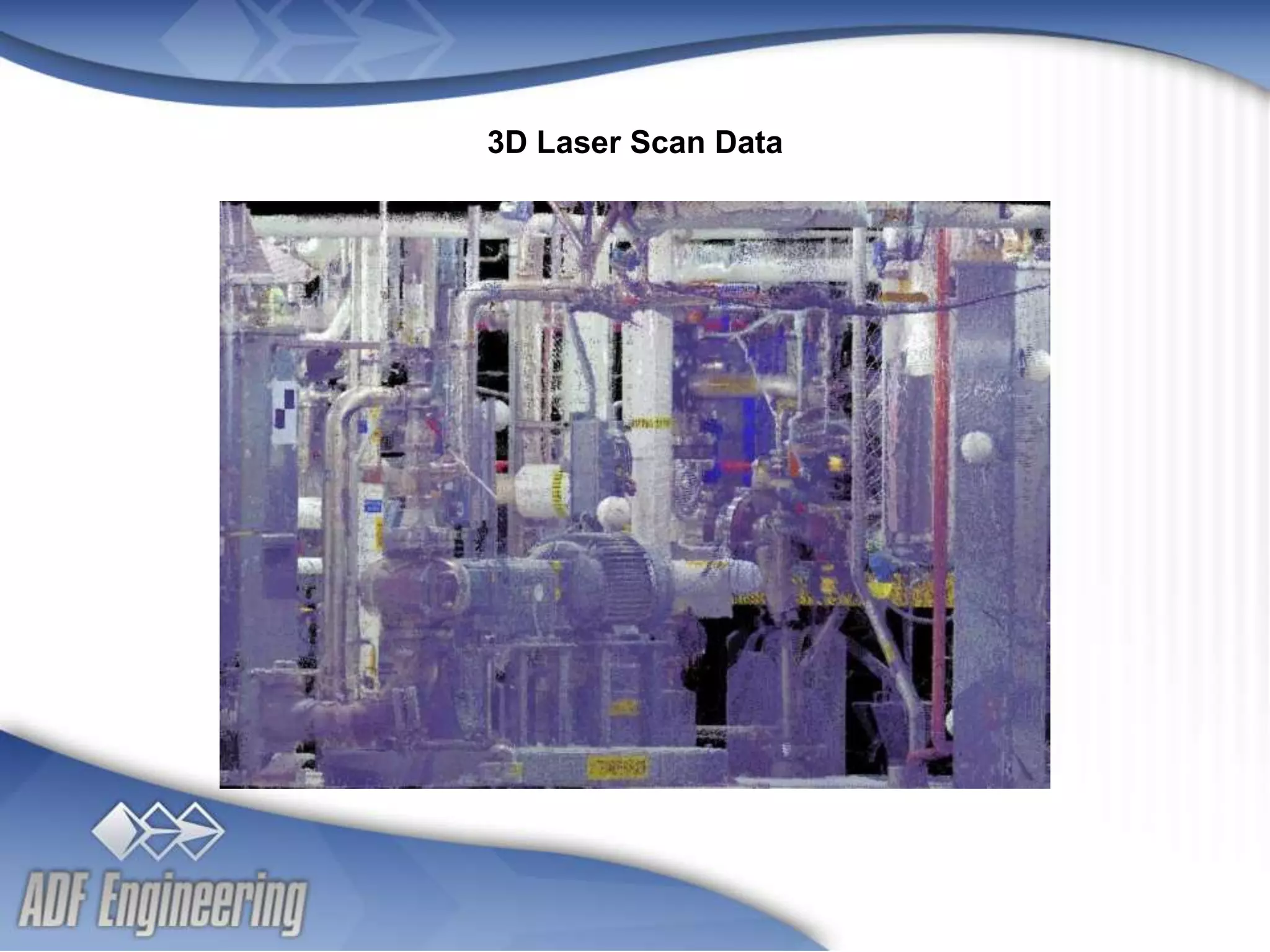

3D Laser Scan Data

4. - 4 -
Client
Logo
Client
Logo

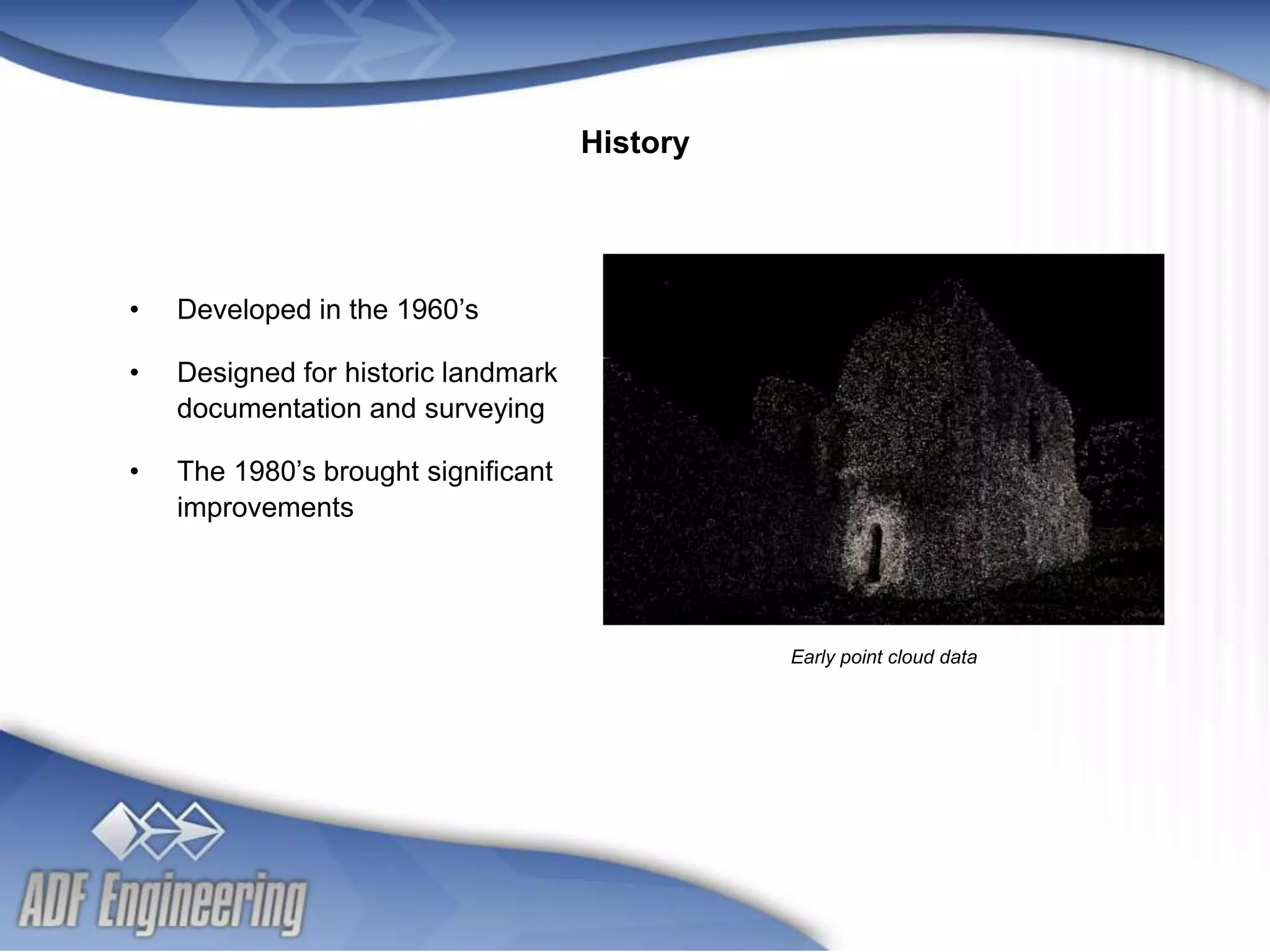

• Developed in the 1960’s
• Designed for historic landmark
documentation and surveying
• The 1980’s brought significant
improvements
History
Early point cloud data

5. - 5 -
Client
Logo
Client
Logo

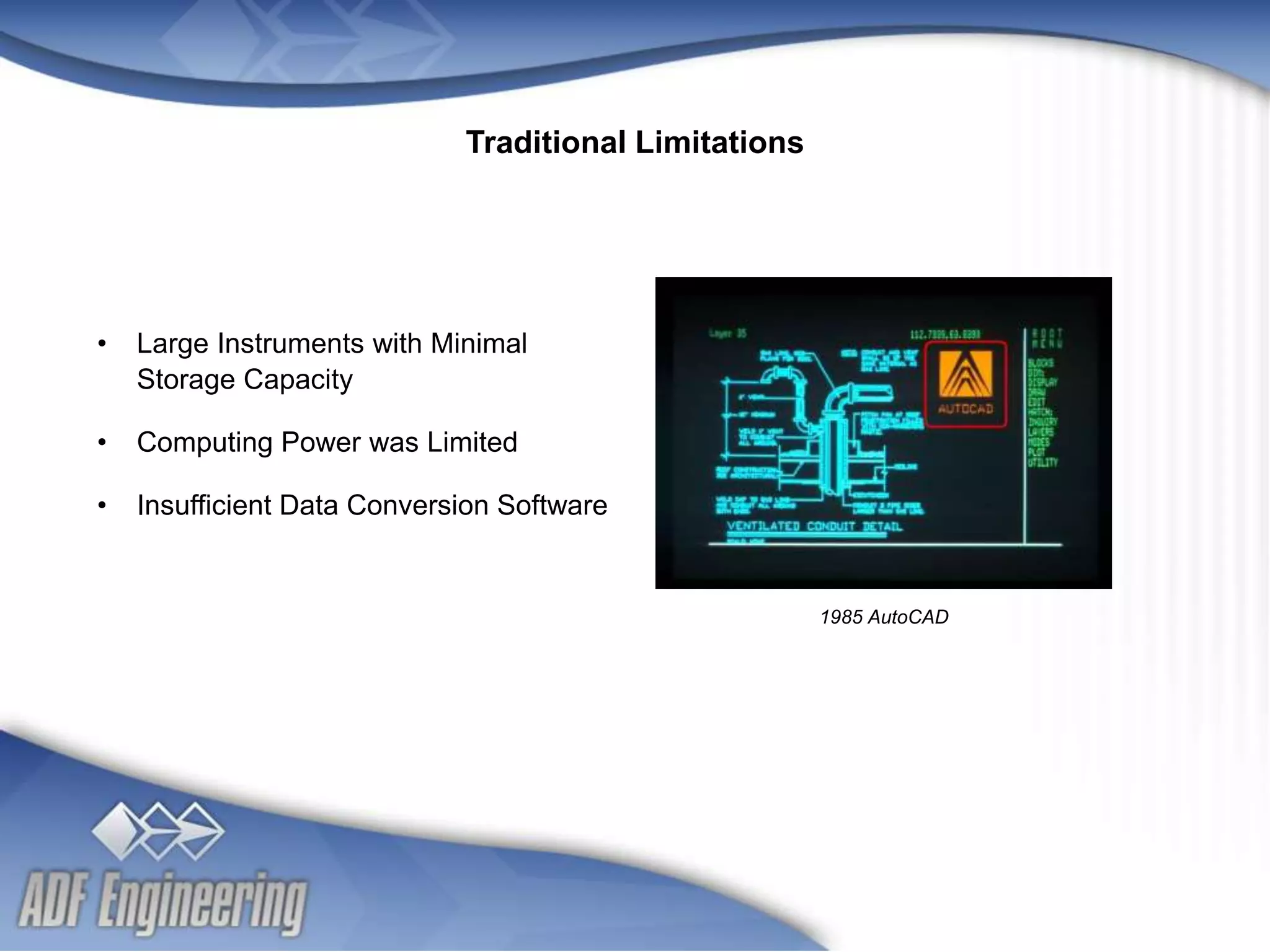

• Large Instruments with Minimal
Storage Capacity
• Computing Power was Limited
• Insufficient Data Conversion Software
Traditional Limitations
1985 AutoCAD

6. - 6 -
Client
Logo
Client
Logo

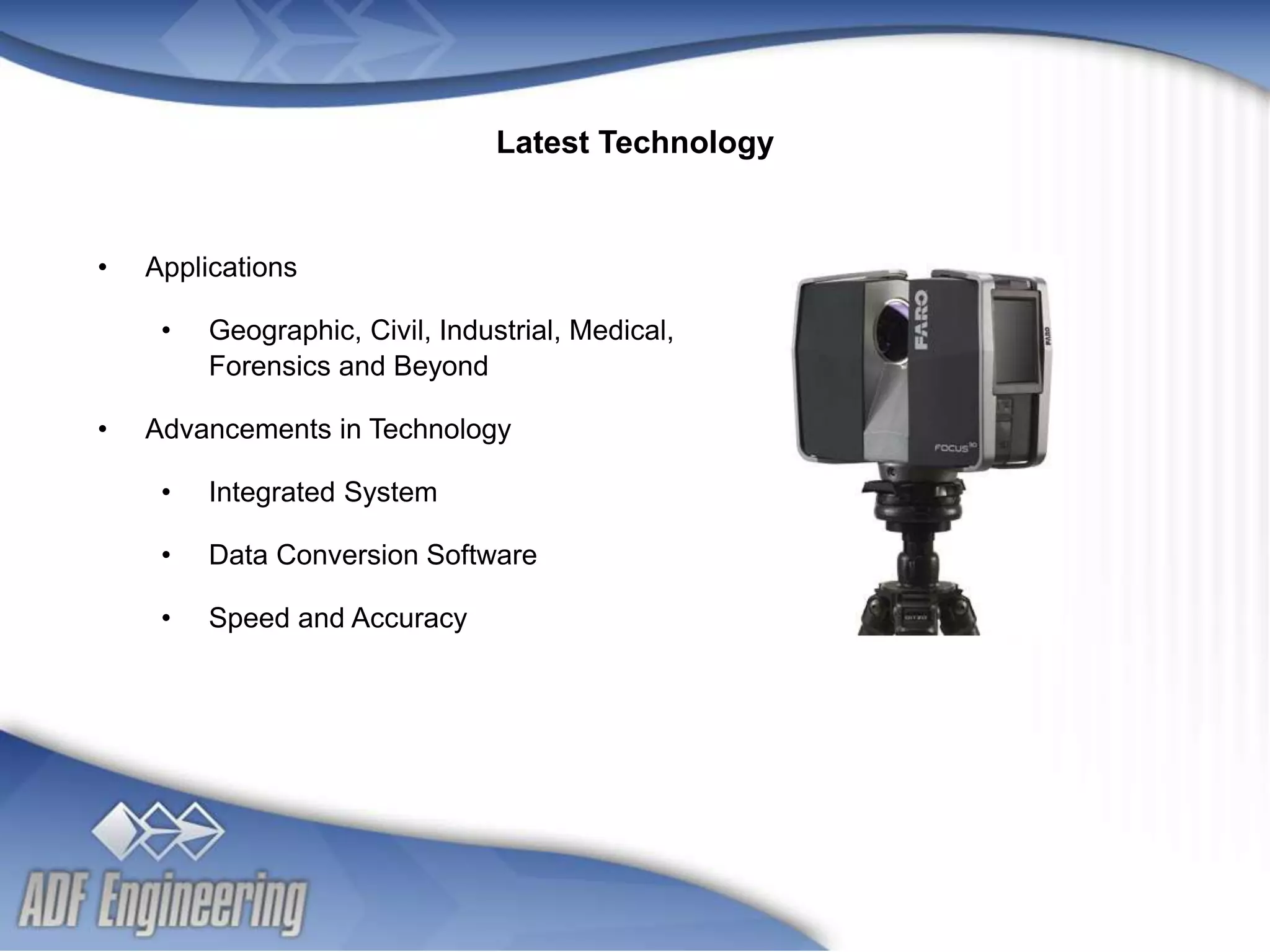

• Applications
• Geographic, Civil, Industrial, Medical,
Forensics and Beyond
• Advancements in Technology
• Integrated System
• Data Conversion Software
• Speed and Accuracy
Latest Technology

7. - 7 -
Client
Logo
Client
Logo
• Our Equipment and Software
• Faro Focus3D S-120
• Scene, PointSense Plant, EdgeWise
• Compatible with most CAD software
• Staff Training
• Intensive 3-day course
• Covers equipment, targeting and
software utilization/conversion
ADF’s Technology

8. - 8 -
Client
Logo
Client
Logo
Image from Laser Scanner Point Cloud from
Laser Scanner
Converted Point Cloud
Data to 3D Model
Rendering Developed
from 3D Model
Merging Technologies

9. - 9 -
Client
Logo
Client
Logo

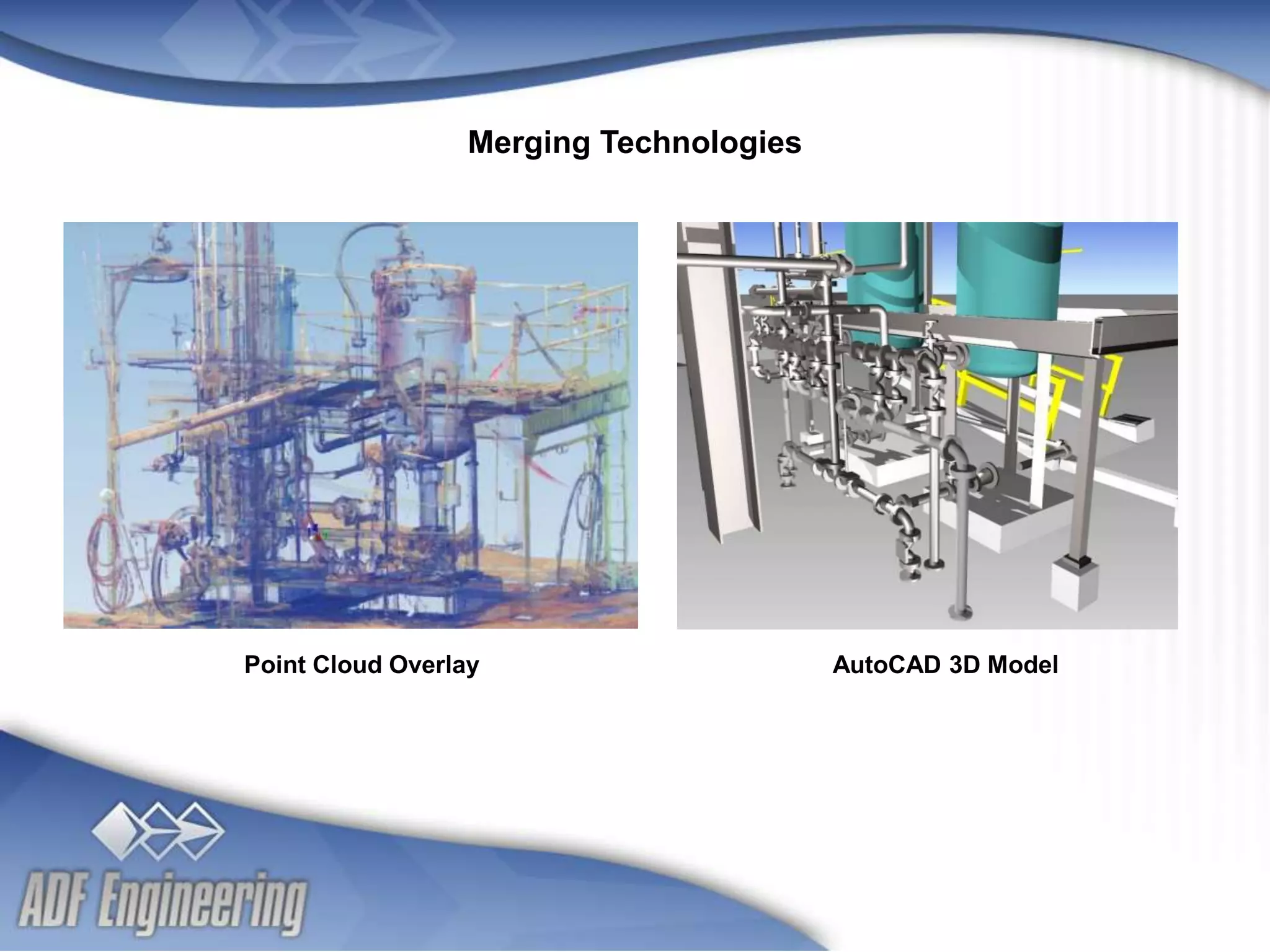

Point Cloud Overlay AutoCAD 3D Model
Merging Technologies

10. - 10 -
Client
Logo
Client
Logo

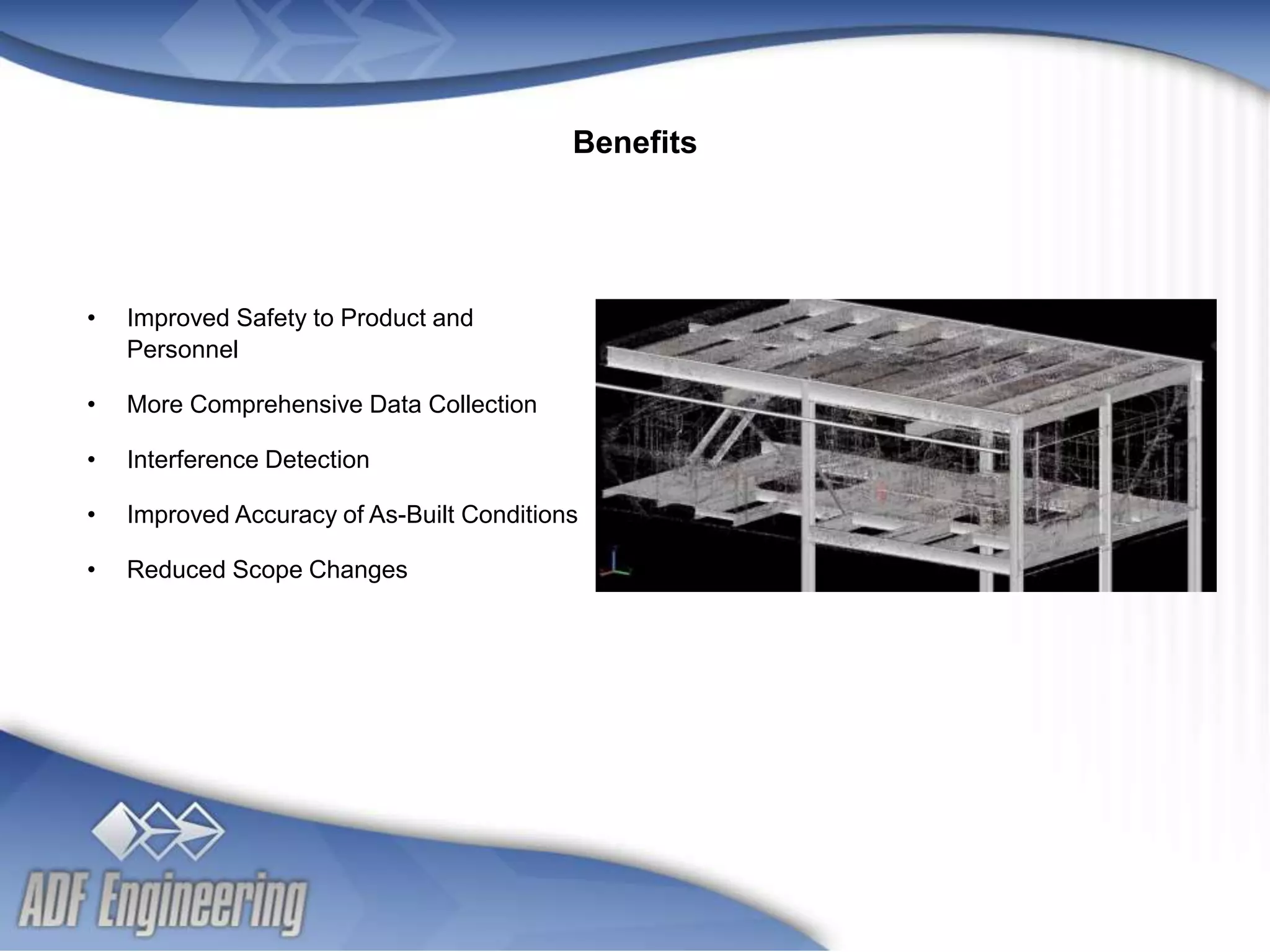

• Improved Safety to Product and
Personnel
• More Comprehensive Data Collection
• Interference Detection
• Improved Accuracy of As-Built Conditions
• Reduced Scope Changes
Benefits

11. - 12 -
Client
Logo
Client
Logo
Unlimited Opportunity
• Smaller Scanning Devices
• Compact Data Storage Capacity
• Automated Data Conversion
Future Technologies

12. - 13 -
Client
Logo
Client
Logo
Questions?
