This document discusses 3D laser scanning services provided by International Partner Buro S.R.L. for oil installations in Romania. The company uses 3D laser scanning to create 3D point clouds and models of oil refineries, which are then used to generate as-built documentation. Key deliverables include 3D point clouds, 3D models, 360-degree panoramic views, and an online/offline platform for viewing scans. The scanning provides accurate documentation of installations in a safer and more efficient manner than traditional methods.

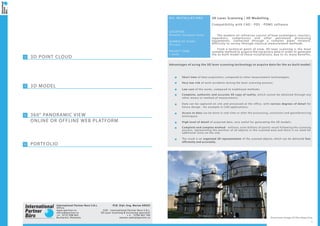

1. 3D LASER SCANNING | 3D MODELLING
O I L I N S T A L L A T I O N S
R o m a n i a , E u r o p e a n U n i o n

2. 1
3D POINT CLOUD
3D MODEL
360° PANORAMIC VIEW
ONLINE OR OFFLINE WEB PLATFORM
PORTFOLIO
2
4
6
8
International Partner Buro S.R.L.
Office:
www.ipartner.ro
office@ipartner.ro
+4 - 0722 998 663
Bucharest, Romania
PhD. Dipl.-Eng. Marian RăDOI
CEO - International Partner Buro S.R.L.
3D Laser Scanning & Surveying specialist
+ 4 - 0766 462 766
marian.radoi@ipartner.ro
O I L I N S TA L L AT I O N S
LOCATION:
Romania, European Union
NUMBER OF SCANS:
50 scans
PROJECT TERM:
1 week
Overview image of the objective
Short time of data acquisition, compared to other measurement technologies;
Very low risk of work accidents during the laser scanning process;
Low cost of the works, compared to traditional methods;
Complete, authentic and accurate 3D copy of reality, which cannot be obtained through any
other means or method of measurement;
Data can be captured on site and processed at the office, with various degrees of detail for
future design - for example in CAD applications;
Access to data can be done in real-time or after the processing, constraint and georeferencing
techniques;
High level of detail of acquired data, very useful for generating the 3D models;
Complete and complex method - millions, even billions of points result following the scanning
process, representing the position of all objects in the scanned area and there is no need for
additional visits on the site;
The result is an organized 3D representation of the scanned objects, which can be delivered fast,
efficiently and accurately.
3D Laser Scanning | 3D Modelling
Compatibility with CAD - PDS - PDMS software
The modern oil refineries consist of heat exchangers, reactors,
separators, compressors and other petroleum processing
equipments, connected through a complex pipes network,
difficulty to survey through classical measurement methods.
From a technical point of view, 3D laser scanning is the most
suitable method to acquire the necessary data in order to generate
the as-built model of these installations, due to its many benefits.
Advantages of using the 3D laser scanning technology to acquire data for the as-built model:

3. 2 3

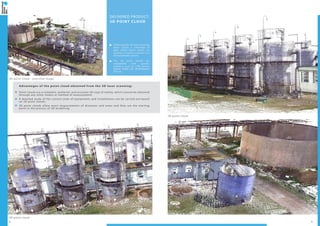

3D point cloud
3D point cloud - overview image
3D point cloud
DELIVERED PRODUCT:
3D POINT CLOUD
Following the 3D laser scanning
there results a collection of
data called “point cloud”; its
location in space is known in a
3D coordinate system.
The 3D point clouds are
compatible with specific
software such as: LFM Server,
AVEVA PDMS 3D, INTERGRAPH
PDS etc.
Advantages of the point cloud obtained from the 3D laser scanning:
Point clouds are a complete, authentic and accurate 3D copy of reality, which cannot be obtained
through any other means or method of measurement;
A detailed study of the current state of equipments and installations can be carried out based
on 3D point clouds;
3D point clouds allow exact measurements of distances and areas and they are the starting
point in the process of 3D modelling.

4. 4 5
DELIVERED PRODUCT:
3D MODEL

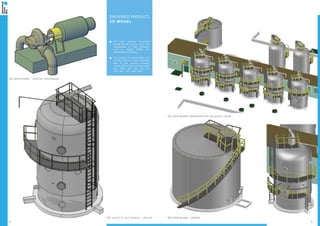

3D solid model - interior installation
3 D s o l i d X - r a y m o d e l - d e t a i l 3D solid model - details
3D solid model obtained from the point cloud
3D CAD models obtained
based on the point cloud are
compatible to CAD software
such as AVEVA PDMS 3D,
INTERGRAPH PDS etc.
The models are compatible and
can be used in a many software
due to the various formats
under which they are delivered:
.sat, .dwg, .dxf, .obj, .sat, .stl,
.fbx, .dae, .3ds, .dwf, .dgn.

5. 6 7

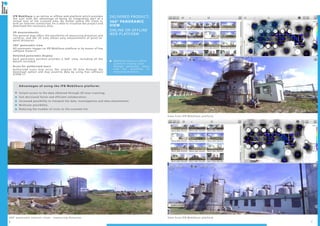

360° panoramic exterior views - measuring distances View from IPB WebShare platform
View from IPB WebShare platform
DELIVERED PRODUCT:
360° PANORAMIC
VIEW
ONLINE OR OFFLINE
WEB PLATFORM
WebShare online or offline
system for viewing scans
through panoramic views,
with the possibility of
measuring distances.
IPB WebShare is an online or offline web platform which provides
the user with the advantage of being an integrating part of a
virtual tour of the scanned area. No matter where the client is,
with an internet connection, he is able to visualize the project and
download the necessary data.
3D measurements
The general map offers the possibility of measuring distances and
surfaces, and the 3D view allows easy measurement of point-to-
point distances.
360° panoramic view
HD panoramic images on IPB WebShare platform or by means of free
software Scene LT.
Detailed panoramic display
Each panoramic position provides a 360° view, including all the
details recorded.
Acces for authorised users
Authorized users may acces the original 3D data through the
download option and may examine data by using free software
SCENE LT.
Advantages of using the IPB WebShare platform:
Instant access to the data obtained through 3D laser scanning;
Fast decisional factor and efficient collaboration;
Increased possibility to interpret the data, investigations and data attachement;
Multiuser possibility;
Reducing the number of visits on the scanned site.

6. 8

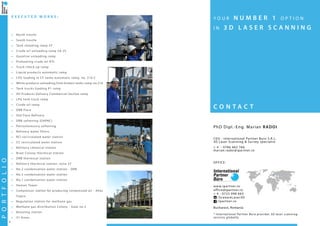

PORTFOLIO
E X E C U T E D W O R K S :
■■ North trestle
■■ South trestle
■■ Tank steaming ramp CF
■■ Crude oil unloading ramp SA 25
■■ Gasoline unloading ramp
■■ Preheating crude oil RTC
■■ Truck check up ramp
■■ Liquid products automatic ramp
■■ LPG loading in CF tanks automatic ramp, no. 216 C
■■ White products unloading from broken tanks ramp no.216
■■ Tank trucks loading P1 ramp
■■ Oil Products Delivery Commercial Section ramp
■■ LPG tank truck ramp
■■ Crude oil ramp
■■ DRB Flare
■■ Old Flare Refinery
■■ DRB softening (DAPAC)
■■ Petrochemistry softening
■■ Refinery water filters
■■ RCI recirculated water station
■■ CC recirculated water station
■■ Refinery chemical station
■■ Brazi Colony thermical station
■■ DRB thermical station
■■ Refinery thermical station, zone 37
■■ No.2 condensation water station - DRB
■■ No.3 condensation water station
■■ No.1 condensation water station
■■ Hamon Tower
■■ Compressor station for producing compressed air - Atlas
Copco
■■ Regulation station for methane gas
■■ Methane gas distribution Colony - Gate no.3
■■ Boosting station
■■ 31 Areas
