Addressing Formulas for Sparse Matrices Using Column
Major in 1D Arrays

2.  Introduction
 Sparse Matrix
 Lower Triangular Matrix
 Tri-diagonal Matrix
 Row Major Representation For Lower Triangular Matrix
 Column Major Representation For Lower Triangular Matrix
 Column Major Representation For Tri-diagonal Matrix
 Advantages of Proposed Method
 References
TABLE OF CONTENTS
2

3. INTRODUCTION
3
 Sparse matrix generally contains elements with zero values; examples of such kind of matrices are lower & upper
triangular matrix.
 For the solution of linear equations, these matrices have been used .
 Since many of the elements in such matrices contain zeroes. Thus a need to save space arises, either in memory or
disk.
 For lower and upper triangular matrices of 1-D array, analysis has been done. After the analysis their
corresponding addressing formulas have been developed.

4.  Few variants are also analyzed for lower and upper triangular matrices.
 It is needed to mention that different approaches for addressing an element of sparse matrices are remain
unanalyzed in which column major are also included.
 In this paper we analyze storage by means of 1-D array for sparse matrices of the lower triangular type, plus one
matrix of the tri-diagonal type.
 To address an element in the lower triangular matrices using row major is presented first.
 After this, a new approach based on column major is defined and analyzed for lower triangular matrices and tri-
diagonal matrices.
INTRODUCTION…
4

5. SPARSE MATRIX
5
 Matrices with a relatively high proportion of zero entries are called sparse matrices.
 Two general types of N-square sparse matrices, which occur in various applications, are
 Lower Triangular Matrix (LTM)
 Tri-diagonal Matrix (TDM)

6.  A matrix which contains nonzero elements only on or below the main
diagonal is called a lower triangular matrix i.e. above the main
diagonal all elements are zero.
 Let us define a Lower Triangular Matrix (LTM) named A of order N,
N > 0. Fig. 1 shows an example of this kind of matrix, with N = 7
 There are 7 rows and 7 columns in above 7-square LTM A. Any
element in LTM A is represented by a(J, K) where
J=0, 1, 2….7 and K=0, 1, 2….7
 In LTM A, row-1 contains 1 element and row-2 contains 2 elements.
Similarly row-3, row-4….row-7 contains 3, 4….7 numbers of
elements respectively. From above Fig. 1, it may be observed that
total number of elements in any LTM of order N can be calculated by
arithmetic progression as follows:
 1+2+3+…. +N = N(N+1)/2 (1)
Hence in LTM A, there are 7*(7+1)/2 = 28 elements.
LOWER TRIANGULAR MATRIX(LTM)
Fig. 1. Lower Triangular Matrix A (LTM A)
6
1 2 3 4 5 6 7
1 4
2 3 -5
3 1 0 6
4 -7 8 -1 3
5 5 -2 0 2 -2
6 8 4 5 -1 6 -8
7 2 7 9 0 9 5 -4

7.  The matrix, where nonzero entries can only occur on the diagonal or
on elements immediately above or below the diagonal, is called a tri-
diagonal matrix.
 Let us define a Tri-diagonal Matrix (TDM) named B of order N, N >
0. Fig. 2 shows an example of this kind of matrix, with N = 7
 There are 7 rows and 7 columns in above 7-square TDM B. Any
element in TDM B is represented by b(J, K) where
J=0, 1, 2….7 and K=0, 1, 2….7
 Note that TDM has N=7 elements on the diagonal and N–1=6
elements above and below the diagonal. From above Fig. 2, it may be
observed that total number of elements in any TDM of order N can
be calculated as follows:
N + (N–1) + (N–1) = 3N – 2 (2)
Hence TDM B contains at most 3N–2 nonzero elements i.e.
3*7 – 2 = 19.
TRI-DIAGONAL MATRIX(TDM)
Fig. 2. Tri-diagonal Matrix B (TDM B)
7
1 2 3 4 5 6 7
1 4 7
2 3 -5 4
3 0 6 1
4 -1 3 -3
5 2 -2 0
6 6 -8 2
7 5 -4

8. ROW MAJOR REPRESENTATION FOR LTM
8
4 3 -5 1 0 6 -7 8 -1 3 5 -2 0 2 -2 8 4 5 -1 6 -8 2 7 9 0 9 5 -4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
Fig. 3. 1-D representation by rows of LTM A
 Elements in LTM A are represented in Fig. 3 using 1-D array named C.
 Any element in 1-D array C is represented by C[L] where L=0, 1, 2….28
 Given an element a(J, K) belonging to the triangular array LTM A. Here, the purpose is to determine the
corresponding position of same element a(J, K) in 1-D array C.
 The position of element a(J, K) in array C is determined in the following way.
C[1]=a(1,1), C[2]=a(2,1).…C[L]=a(J,K)….C[28]=a(7,7)
 According to equation (1), number of elements in any LTM of order N is N(N+1)/2.
 So it may be observed that 1-D array C contains only N(N+1)/2 number of elements i.e. 28.

9. ROW MAJOR REPRESENTATION FOR LTM…
9
 Since the position of a(J, K) is required in 1-D array C. So the purpose is to calculate the formula that
gives us the integer L in terms of J and K where C[L] = a(J, K).
 I.e. L gives the address of element a(J, K) in which all the elements including a(J, K) are list up in 1-D
array C.
 To calculate the address of element a(J, K) in 1-D array C, following algorithm is used.
Step-1: Calculate the number of elements coming before Jth row, i.e. number of elements up to (J-1)th row.
Step-2: Then calculate the number of elements in Jth row including a(J, K).
Step-3: Add both the values calculated in above two steps. The result is desired value L i.e. address of element
a(J, K) in 1-D array C.

10.  Total numbers of elements in the rows above the element a(J, K) are calculated by arithmetic progression as
follows:
1+2+3+….+(J–1) = J(J–1)/2 (3)
and there are K elements in row-J up to and including a(J, K). The address of element a(J, K) can be
calculated by adding equation (3) with number of elements in row-J up to and including a(J, K) i.e. K. So
L = J(J–1)/2 + K (4)
yields the index that accesses the value of element a(J, K) from the linear array C.
 For example: Let’s calculate the address of an element a(5, 3) of LTM A in array C using above formula.
Here J = 5 and K = 3 Then
L = 5(5–1)/2 + 3
L= 5*4/2 + 3
L = 10 + 3
L=13
 It means the address of the desired element in 1-D array C is 13. It may be observed in Fig. 3.
ROW MAJOR REPRESENTATION FOR LTM…
10

11. 11
 The approach is to insert the same elements of LTM A in another 1-D array named D column wise.
 Elements in LTM A are represented in Fig. 4 using 1-D array D.
 Any element in 1-D array D is represented by D[L] where L=0, 1, 2….28
 Given an element a(J, K) belonging to the triangular array LTM A. Here, the purpose is to determine the
corresponding position of same element a(J, K) in 1-D array D.
 The position of element a(J, K) in array D is determined in the following way.
D[1]=a(1,1), D[2]=a(2,1), D[3]=a(3,1) .…D[L]=a(J,K)…. D[28]=a(7,7)
COLUMN MAJOR REPRESENTATION FOR LTM
4 3 1 -7 5 8 2 -5 0 8 -2 4 7 6 -1 0 5 9 3 2 -1 0 -2 6 9 -8 5 -4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
Fig. 4. 1-D representation by columns of LTM A

12. 12
 Since the position of a(J, K) is required in 1-D array D. So the purpose is to calculate the formula that gives us the
integer L in terms of J and K where D[L] = a(J, K).
 I.e. L gives the address of element a(J, K) in which all the elements including a(J, K) are list up in 1-D array D.
 To calculate the address of element a(J, K) in 1-D array D, following algorithm is used.
Step-1: Calculate the number of elements coming after Kth column, i.e. total number of elements coming
from (K+1)th column to Nth column.
Step-2: Then calculate the number of elements in Kth column coming after the element a(J, K).
Step-3: Add both the values calculated in above two steps. The result is total number of elements coming
after element a(J, K).
Step-4: Subtract the value of Step-3 from equation (1) i.e. total number of elements in LTM A. The result is
desired value L i.e. address of element a(J, K) in 1-D array D.
COLUMN MAJOR REPRESENTATION FOR LTM…

13. 13
 Total number of elements coming from (N–K)th i.e. (K+1)th to Nth column can be calculated by arithmetic
progression as follows:
1 + 2 + 3 + …. + (N–K) = (N–K)(N–K+1)/2 (5)
and there are (N-J) elements in same column Kth after a(J, K).
 So total number of elements after element a(J, K) are:
{(N–K)(N–K+1)/2} + (N–J) (6)
 According to Step-4, address of element a(J, K) of LTM A can be calculated by subtracting the total number of
elements coming after a(J, K) from total number of elements in LTM A. Subtract equation (6) from equation (1)
i.e.
L= {N(N + 1)/2} – {(N–K)(N–K+1)/2 + (N–J)} (7)
yields the index that accesses the value of element a(J, K) from the linear array D.
 For example: calculate the address of same element a(5, 3) of LTM A in array D, according to proposed method.
Here J = 5 , K = 3 and N = 7
Then L = {7(7+1)/2} – {(7–3)(7–3+1)/2 + (7–5)}
L = 28 – {(4*5/2) + 2}
L = 28 – 12 = 16
 It means the address of the same element in 1-D array D is 16. The same may be observed in Fig. 4.
COLUMN MAJOR REPRESENTATION FOR LTM…

14. 14
 The approach is to insert the elements of TDM B in another 1-D array named E column wise. Elements in TDM B
are represented in Fig. 5 using 1-D array E.
 Any element in 1-D array E is represented by E[L] where L=0, 1, 2….19
 Given an element b(J, K) belonging to the TDM B. Here, the purpose is to determine the corresponding position of
same element b(J, K) in 1-D array E.
 The position of the element b(J, K) in array E is determined in the following way.
E[1]=b(1,1), E[2]=b(2,1), E[3]=b(1,2) .…E[L]=b(J,K)…. E[19]=b(7,7)
 It may be observed initially from equation (2) that array E contains only (3N – 2) number of elements i.e. 19.
COLUMN MAJOR REPRESENTATION FOR TDM
4 3 7 -5 0 4 6 -1 1 3 2 -3 -2 6 0 -8 5 2 -4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Fig. 5. 1-D representation by columns of TDM B

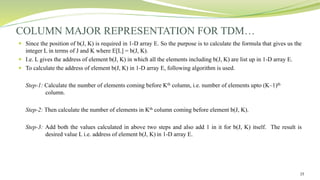

15. 15
 Since the position of b(J, K) is required in 1-D array E. So the purpose is to calculate the formula that gives us the
integer L in terms of J and K where E[L] = b(J, K).
 I.e. L gives the address of element b(J, K) in which all the elements including b(J, K) are list up in 1-D array E.
 To calculate the address of element b(J, K) in 1-D array E, following algorithm is used.
Step-1: Calculate the number of elements coming before Kth column, i.e. number of elements upto (K–1)th
column.
Step-2: Then calculate the number of elements in Kth column coming before element b(J, K).
Step-3: Add both the values calculated in above two steps and also add 1 in it for b(J, K) itself. The result is
desired value L i.e. address of element b(J, K) in 1-D array E.
COLUMN MAJOR REPRESENTATION FOR TDM…

16. 16
 Total number of elements coming before the column of element b(J, K) is
3(K–2) + 2 (8)
 Total number of elements coming before b(J, K) in Kth column is (J–K+1).
 According to Step-3, address of element b(J, K) in 1-D array E can be calculated by adding above value (J–K+1)
and equation (8). Further add 1 for b(J, K) itself. So
L= [3(K–2)+2] + [J–K+1] + 1
L= 2K + J – 2 (9)
yields the index that accesses the value of element b(J, K) from the linear array E.
 For example, Let’s calculate the address of an element b(5, 6) of TDM B in array E, according to proposed
method.
Here J = 5, K = 6 and N = 7
Then
L = 2*6 + 5 – 2
L = 12 + 5 – 2
L = 15
 It means the address of the element in 1-D array E is 15. It can be observed in Fig. 5.
COLUMN MAJOR REPRESENTATION FOR TDM…

17. 17
 Two methods are generally used to traverse the elements of any sparse matrix.
 The first method is row wise and second method is column wise.
 During traversal few of the elements appears first in column wise rather than row wise.
 In this scenario proposed method is useful to access the elements easily.
ADVANTAGES OF PROPOSED METHOD

18. 18
REFERENCES
[1] Grossman S., “Álgebra Lineal,” McGraw Hill, 1996.
[2] Cairó O. & Guardati S., “Data Structures,” McGraw−Hill, 2005.
[3] Horowitz E. & Sahni S., “Fundamentals of data Structures in Pascal,” Computer Science Press, 1990.
[4] Moreno F. & Flórez R., “Fórmulas de Direccionamiento en Matrices Triangulares,” Journal Facultad de Ingeniería
Universidad de Antioquia. Medellín, 2001.
[5] Seymour Lipschutz, “Data Structures,” McGraw-Hill, 2014.
