Day 6 of GIS Training at IOE,Pulchowk

1. GIS Training –Day 6 @IOE, Pulchowk

2. Data
Survey Camp, IOE
Adding data :
Vector Shapefiles (Previous Lecture)
Coordinate data from excel (surveycamp.xls/surveycamp.csv)
Image data (Online Source)
 See : Shuttle Radar Topography Mission.pdf
http://vterrain.org/Elevation/SRTM/

3. Coordinate data from Total Station
Text to
Columns

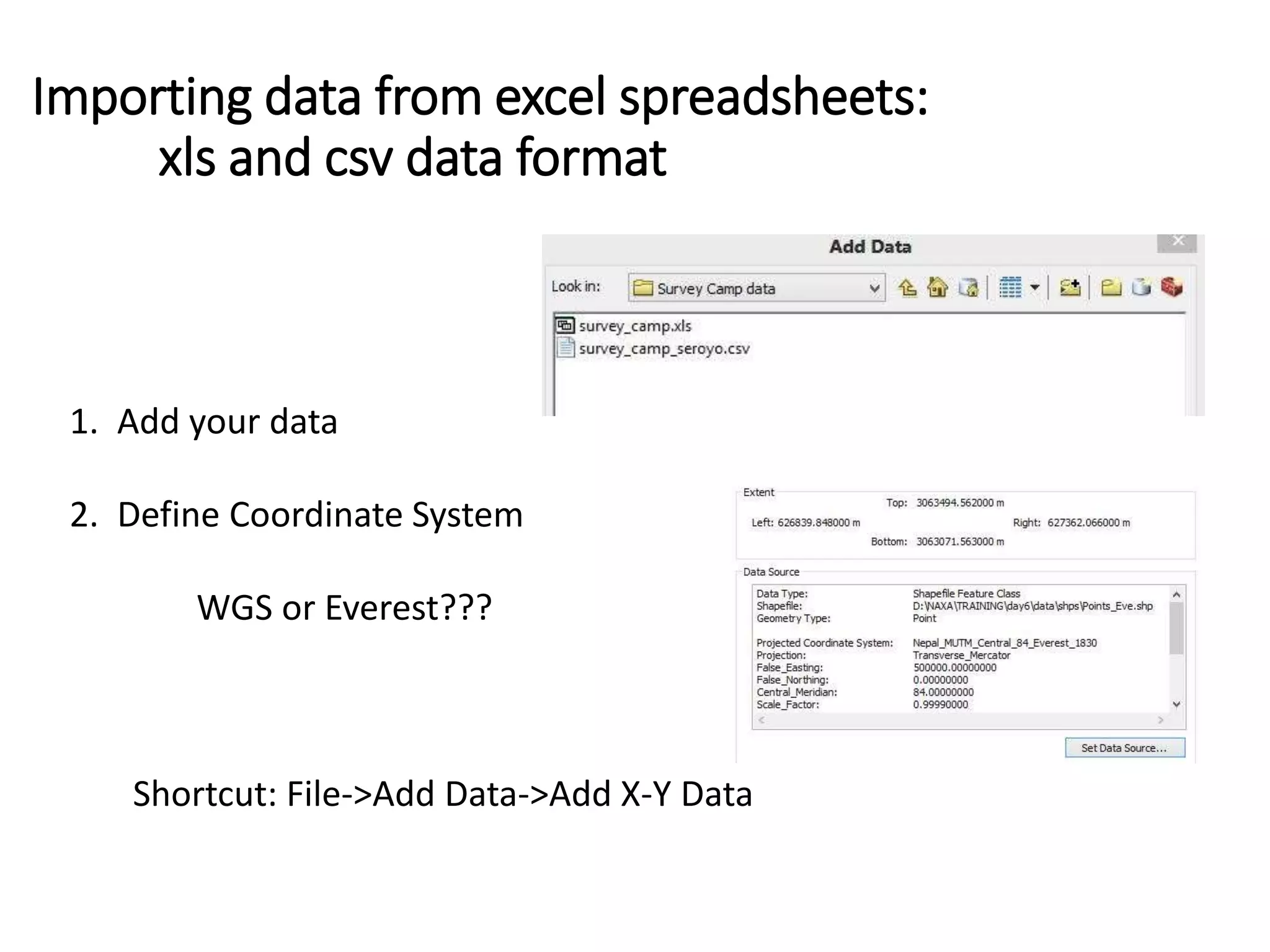

4. Importing data from excel spreadsheets:
xls and csv data format
1. Add your data
2. Define Coordinate System
WGS or Everest???
Shortcut: File->Add Data->Add X-Y Data

5. Data Contents
(On the basis of remarks)
bc
bc che
bc phy
bcc
be
bld corner
Bush
CPn
Drainage
Edge
Fench
footpath
gate
Gc
Gp
Hedge
Ladder pt
Lc
Ldp
Library corner
Mn
Manhole
Pc
Poal
pump
Road
rp
Rp-curve
Wall
Wall-corner
Wall edge

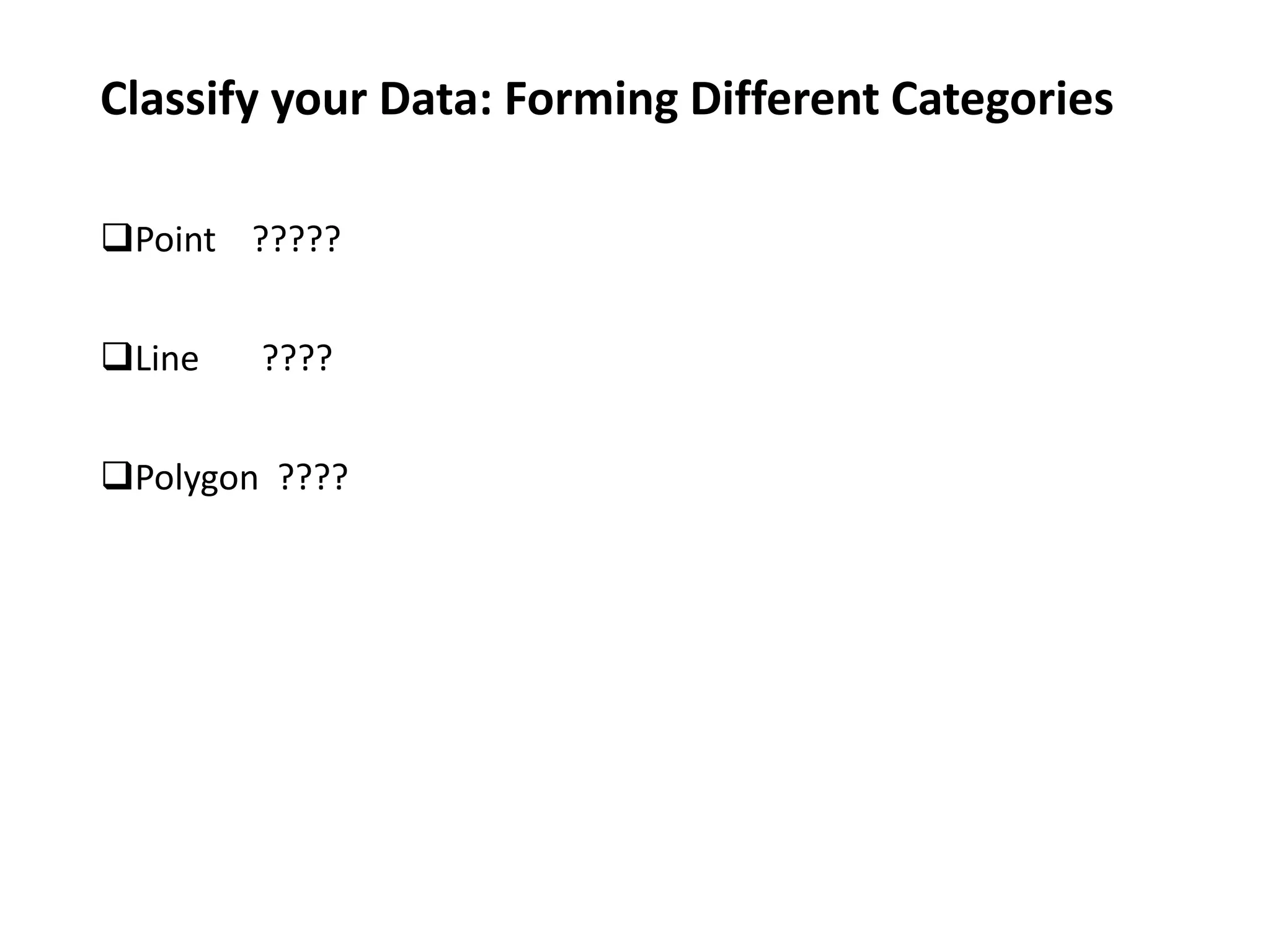

6. Classify your Data: Forming Different Categories
Point ?????
Line ????
Polygon ????

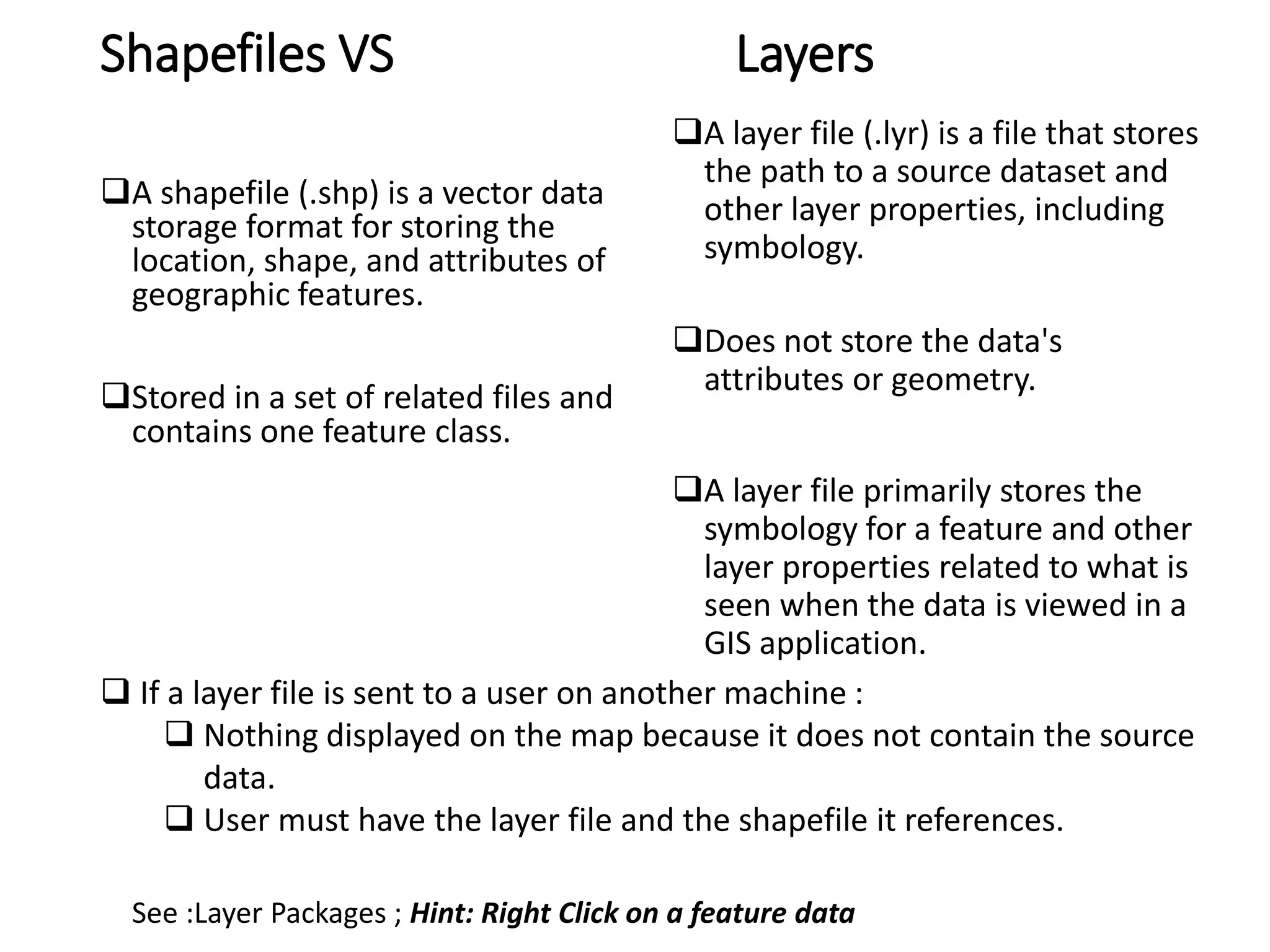

7. Shapefiles VS Layers
A shapefile (.shp) is a vector data
storage format for storing the
location, shape, and attributes of
geographic features.
Stored in a set of related files and
contains one feature class.
A layer file (.lyr) is a file that stores
the path to a source dataset and
other layer properties, including
symbology.
Does not store the data's
attributes or geometry.
A layer file primarily stores the
symbology for a feature and other
layer properties related to what is
seen when the data is viewed in a
GIS application.
See :Layer Packages ; Hint: Right Click on a feature data
 If a layer file is sent to a user on another machine :
 Nothing displayed on the map because it does not contain the source
data.
 User must have the layer file and the shapefile it references.

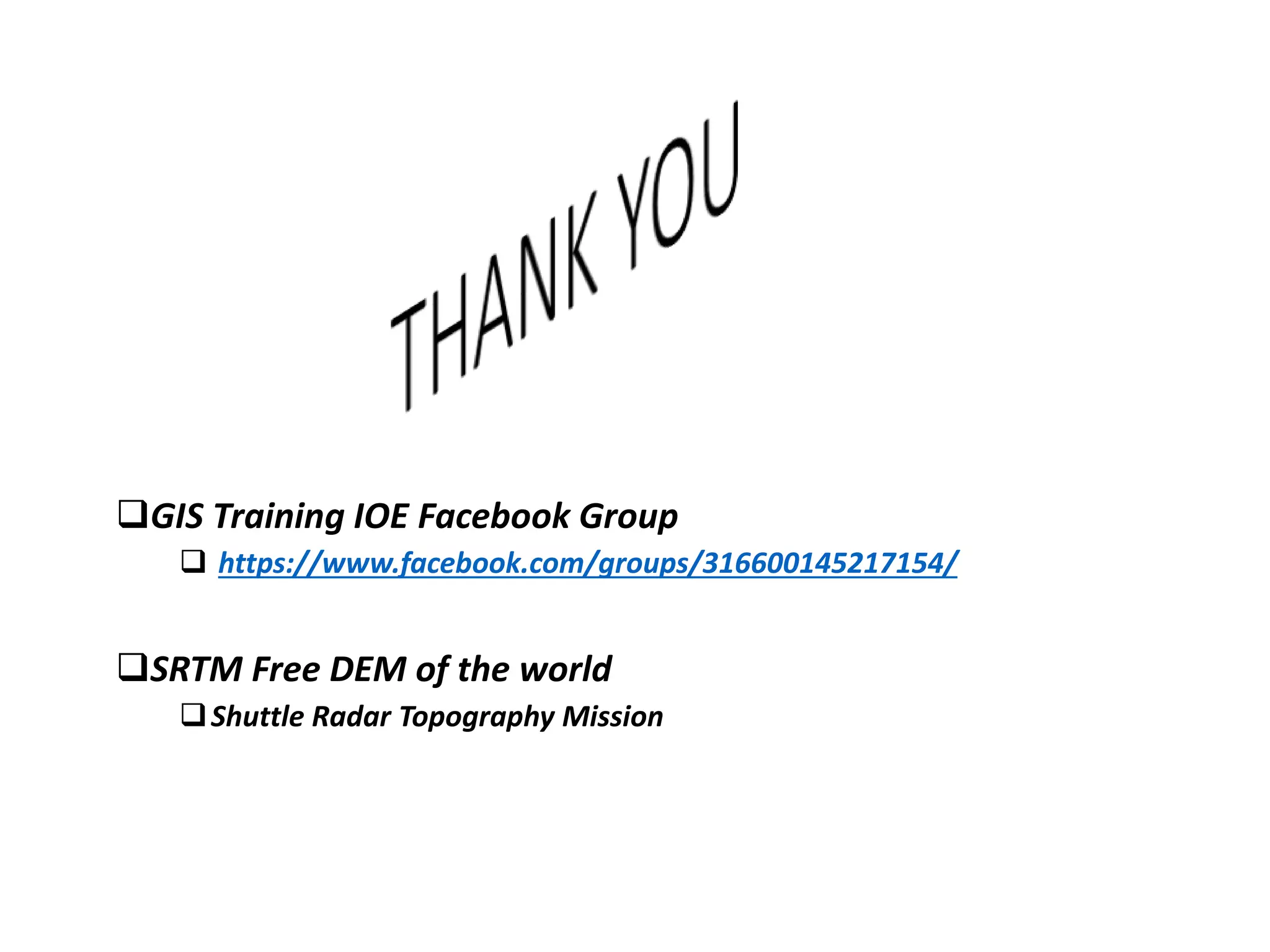

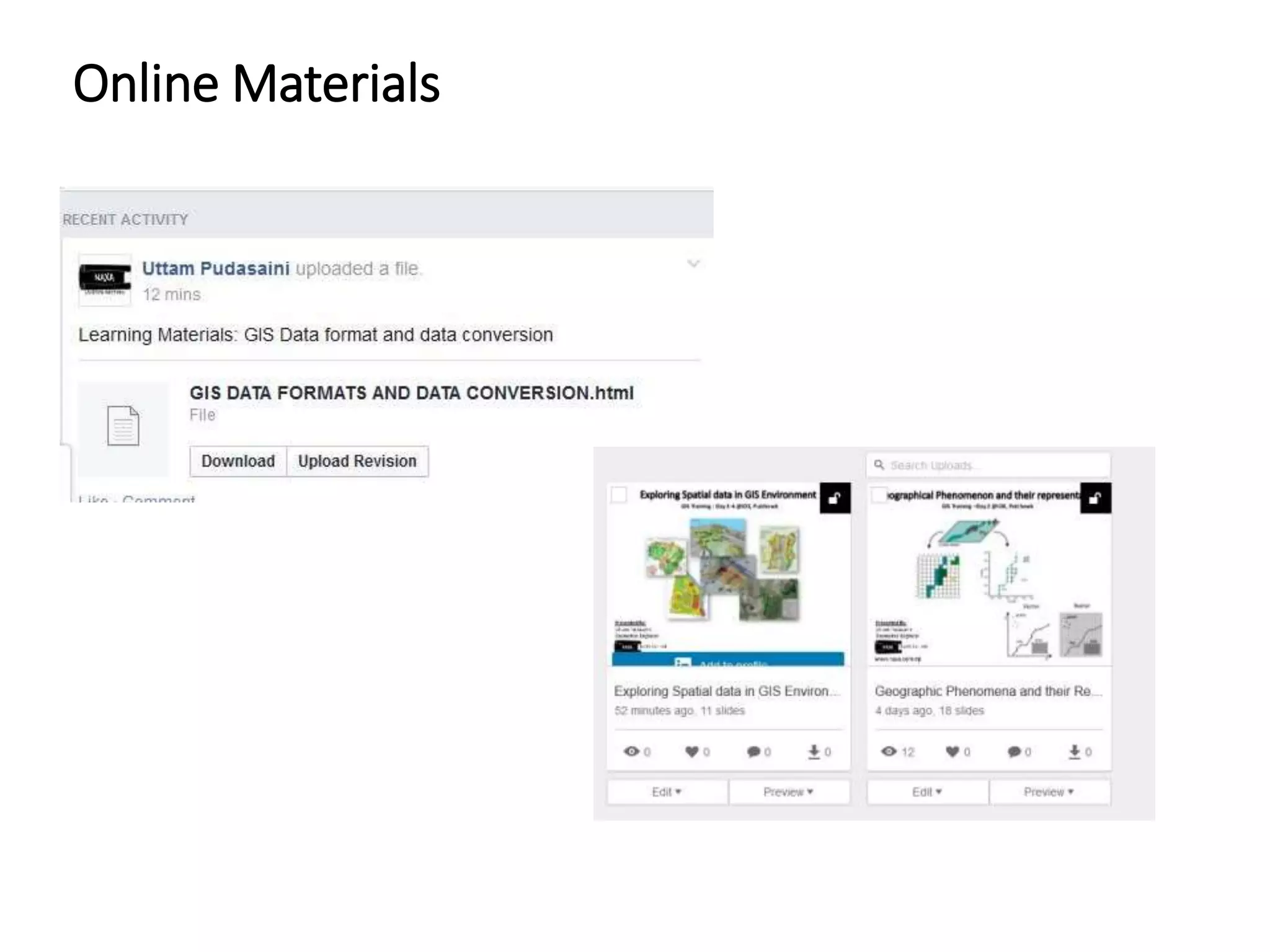

8. Online Materials

9. GIS Training IOE Facebook Group
 https://www.facebook.com/groups/316600145217154/
SRTM Free DEM of the world
Shuttle Radar Topography Mission
