The document outlines the steps and processes for duplicating a target database to an auxiliary database using RMAN, focusing on configuration and recovery. It details the procedures for ensuring synchronization between primary and disaster recovery databases, handling instances, and establishing listener connections. Key features of RMAN in Oracle 12c, such as active database duplication and backup set advantages, are discussed as significant improvements over previous versions.

1. Presented By:
PRAKASH GANESAN

2. Target Database: FNPRDDB
Auxillary Database: F1TST
Target:
-Make sure all the data’s from primary are sync with DR
-Stop the MRP from standby
-startup the DR database in open mode
Auxillary:
-If it is RAC set cluster database Is false and run only one instance
-startup no mount with minimum required parameter files

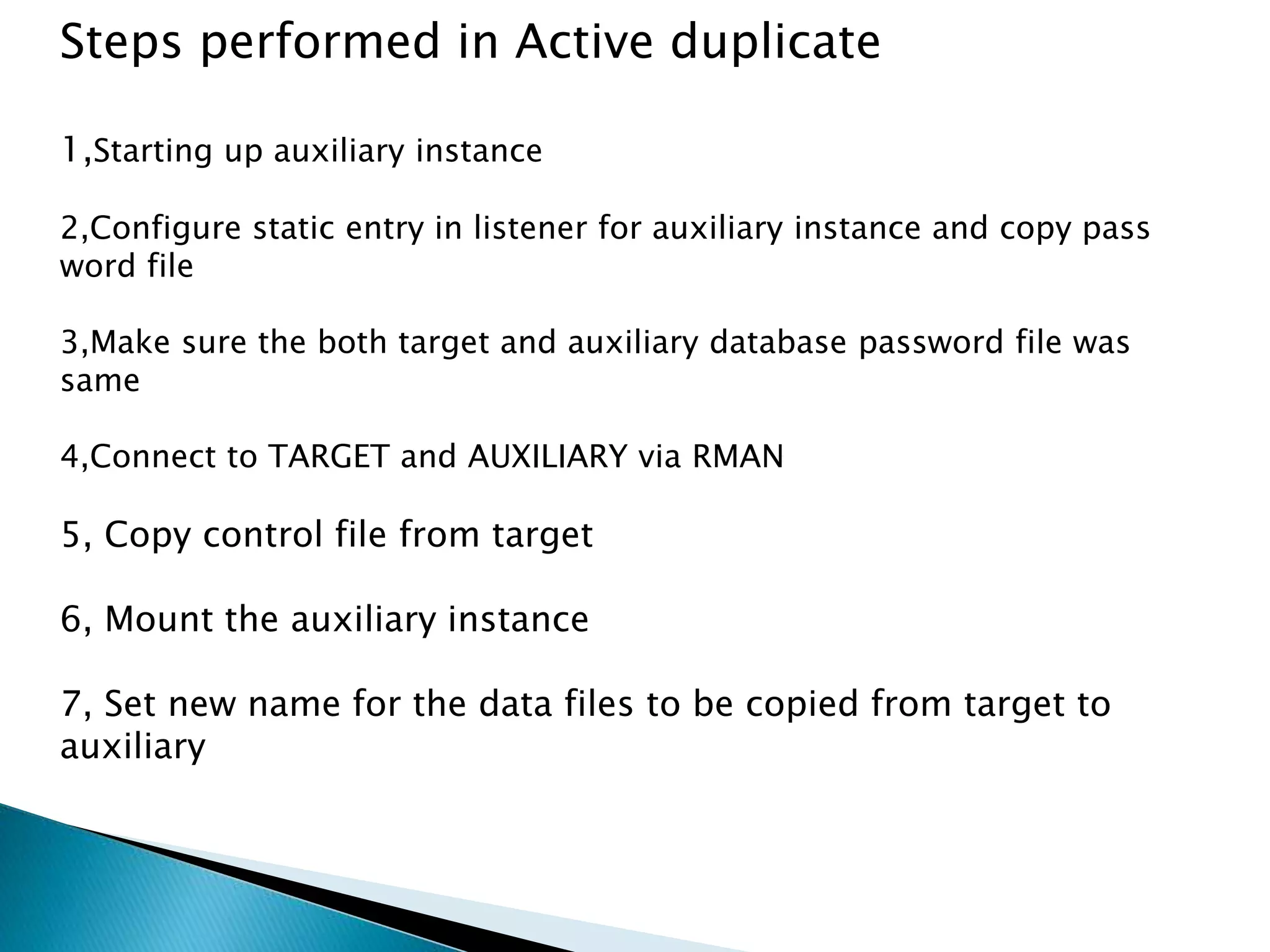

3. Steps performed in Active duplicate
1,Starting up auxiliary instance
2,Configure static entry in listener for auxiliary instance and copy pass
word file
3,Make sure the both target and auxiliary database password file was
same
4,Connect to TARGET and AUXILIARY via RMAN
5, Copy control file from target
6, Mount the auxiliary instance
7, Set new name for the data files to be copied from target to
auxiliary

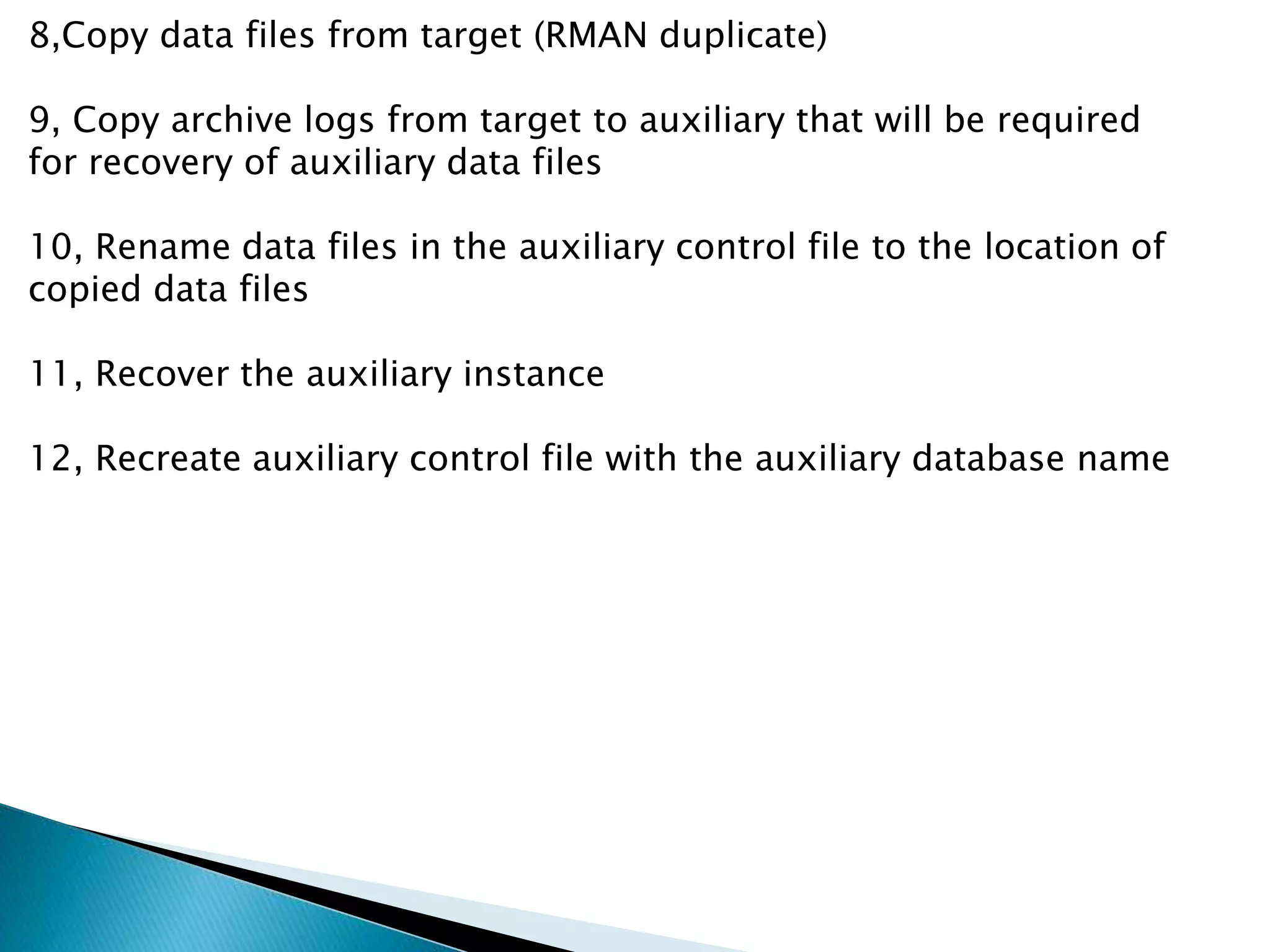

4. 8,Copy data files from target (RMAN duplicate)

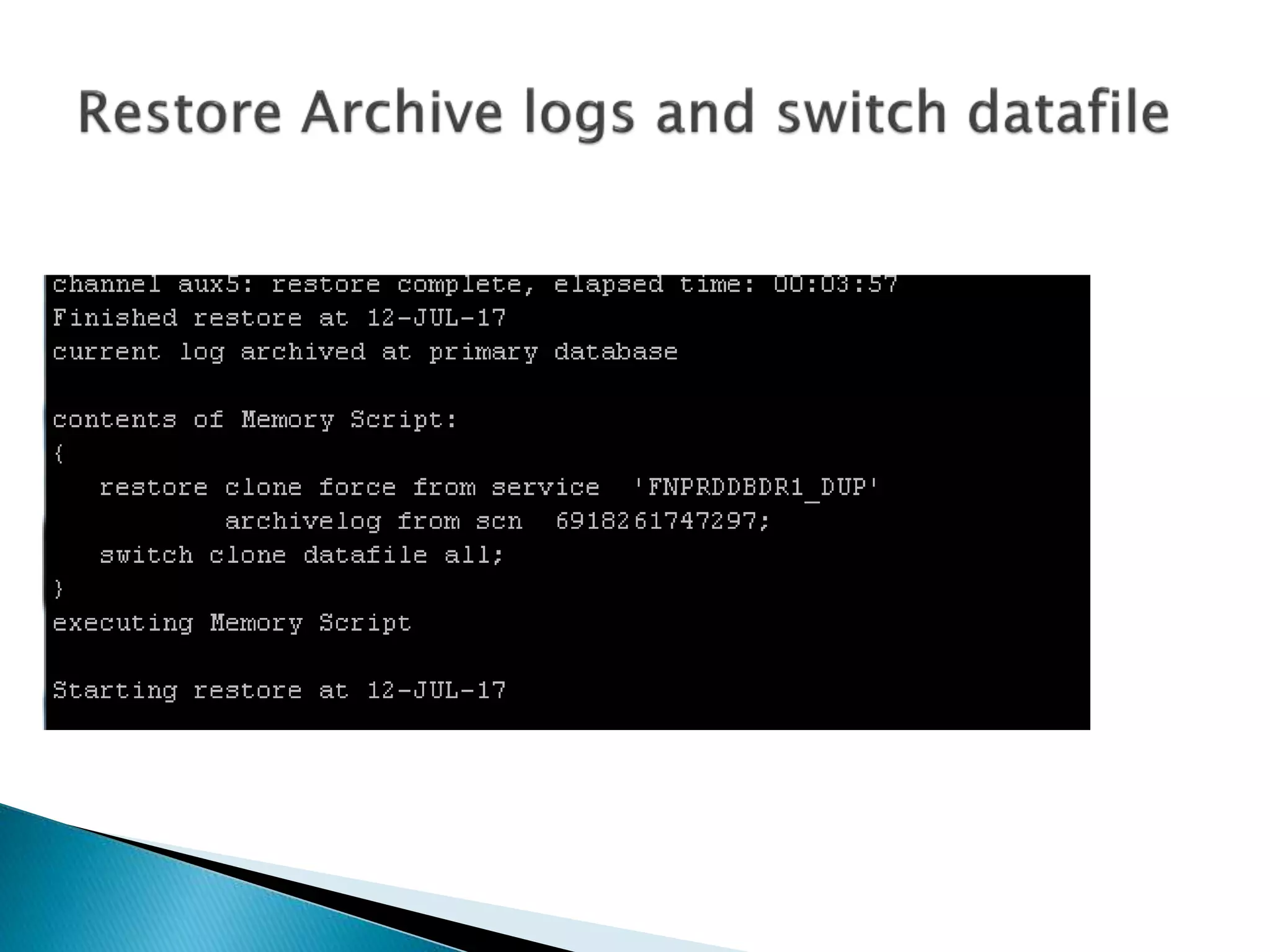

9, Copy archive logs from target to auxiliary that will be required
for recovery of auxiliary data files

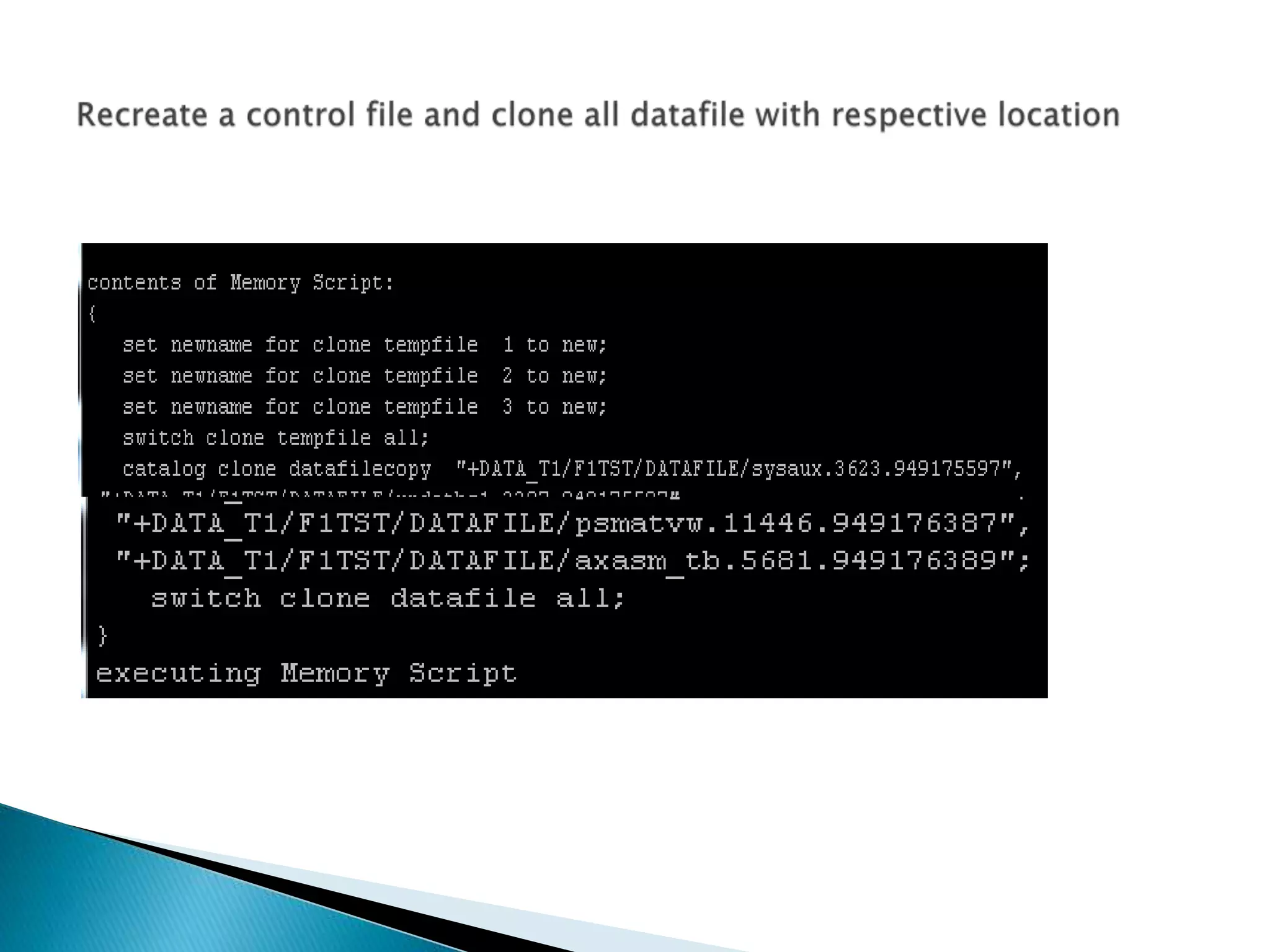

10, Rename data files in the auxiliary control file to the location of
copied data files

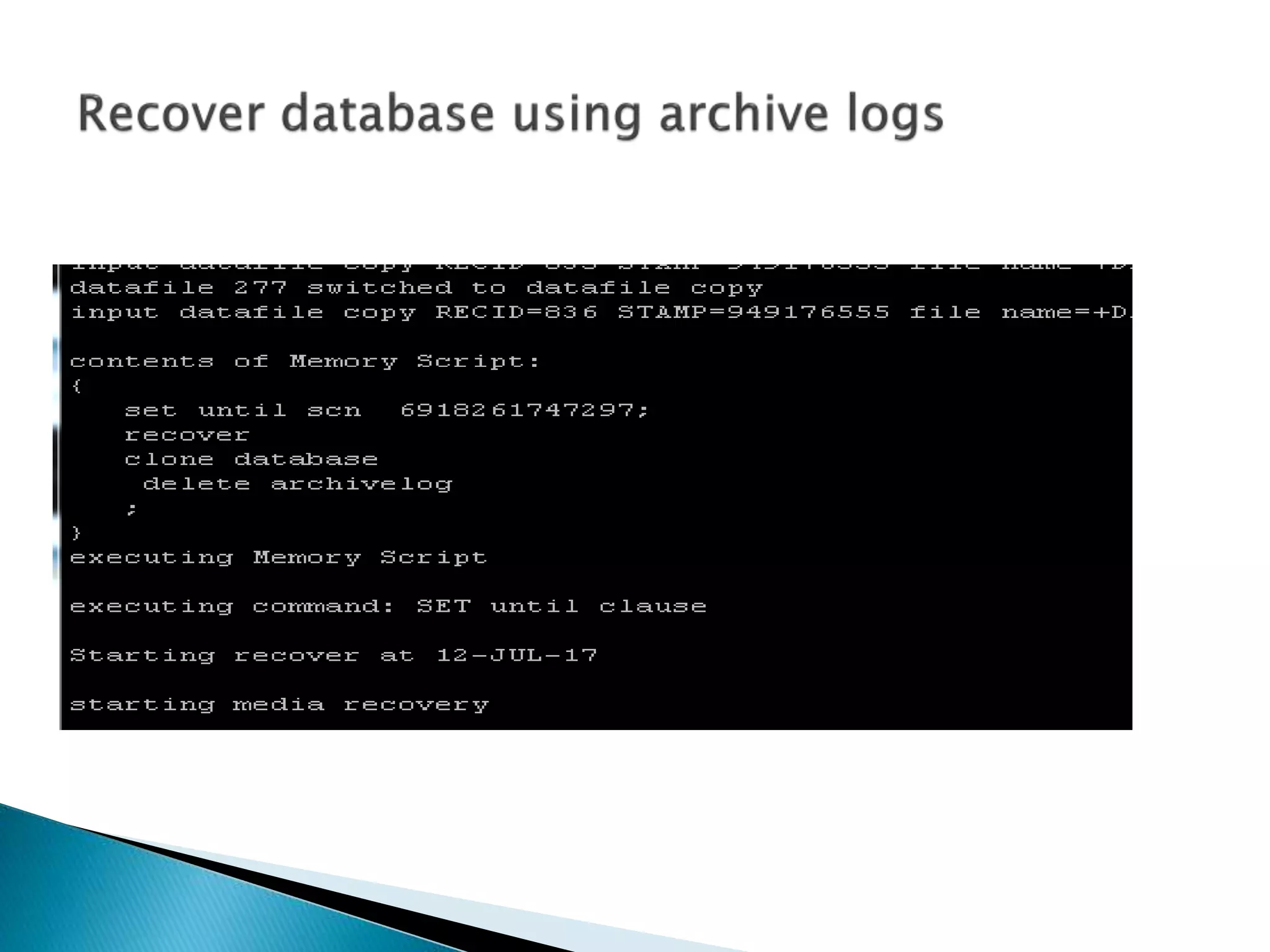

11, Recover the auxiliary instance

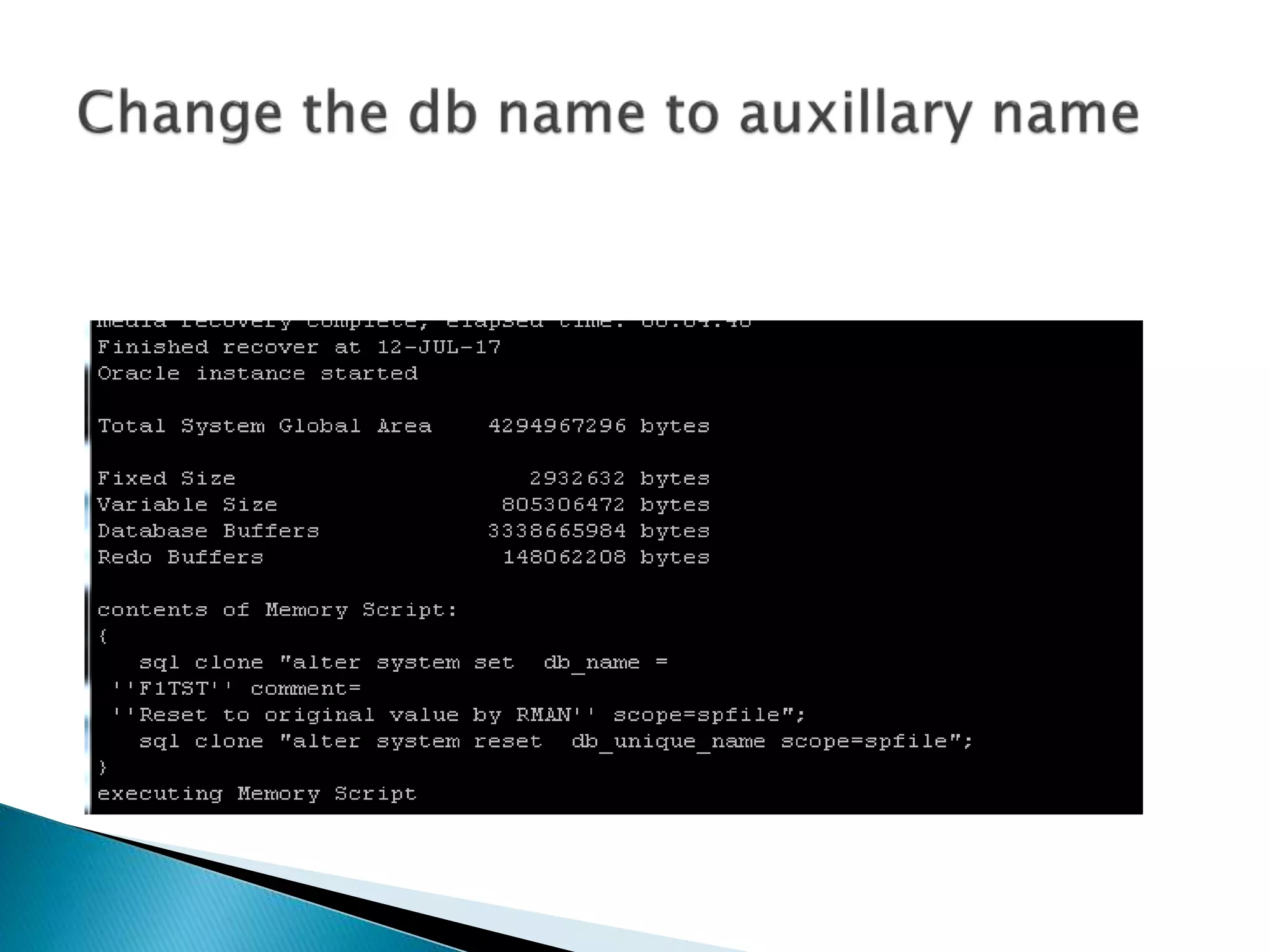

12, Recreate auxiliary control file with the auxiliary database name

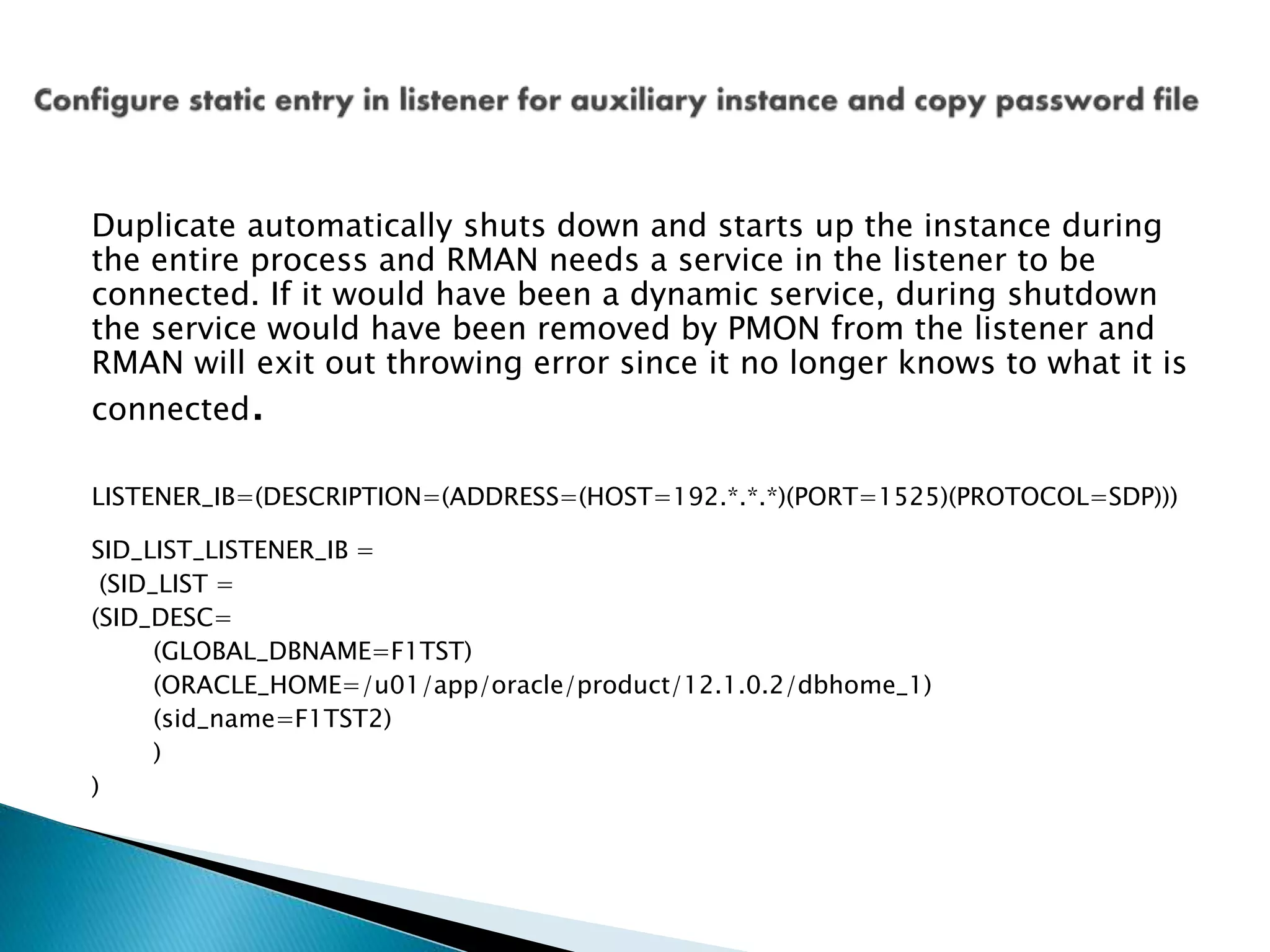

5. Duplicate automatically shuts down and starts up the instance during
the entire process and RMAN needs a service in the listener to be
connected. If it would have been a dynamic service, during shutdown
the service would have been removed by PMON from the listener and
RMAN will exit out throwing error since it no longer knows to what it is
connected.
LISTENER_IB=(DESCRIPTION=(ADDRESS=(HOST=192.*.*.*)(PORT=1525)(PROTOCOL=SDP)))
SID_LIST_LISTENER_IB =
(SID_LIST =
(SID_DESC=
(GLOBAL_DBNAME=F1TST)
(ORACLE_HOME=/u01/app/oracle/product/12.1.0.2/dbhome_1)
(sid_name=F1TST2)
)
)

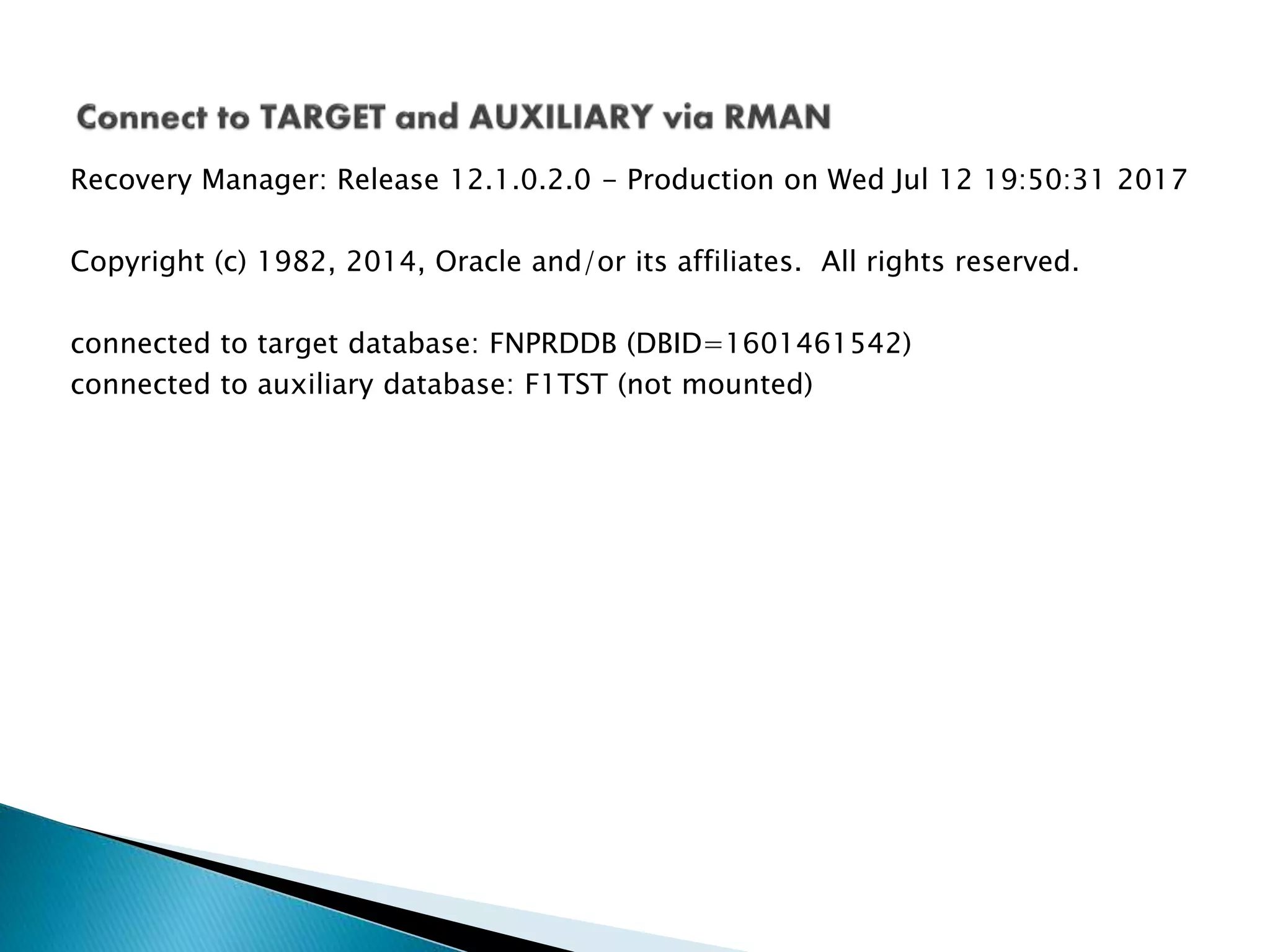

6. Recovery Manager: Release 12.1.0.2.0 - Production on Wed Jul 12 19:50:31 2017
Copyright (c) 1982, 2014, Oracle and/or its affiliates. All rights reserved.
connected to target database: FNPRDDB (DBID=1601461542)
connected to auxiliary database: F1TST (not mounted)

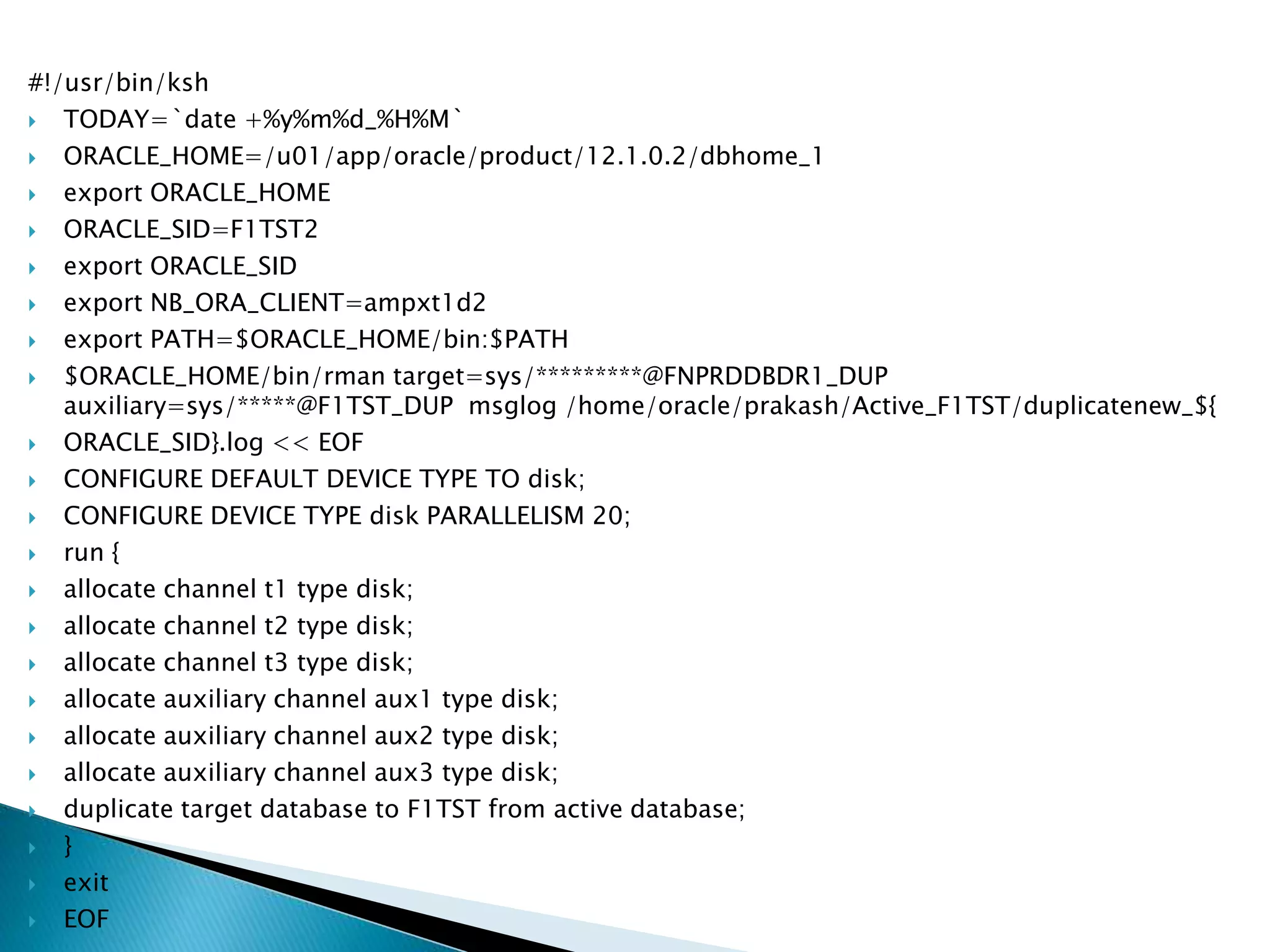

7. #!/usr/bin/ksh
 TODAY=`date +%y%m%d_%H%M`
 ORACLE_HOME=/u01/app/oracle/product/12.1.0.2/dbhome_1
 export ORACLE_HOME
 ORACLE_SID=F1TST2
 export ORACLE_SID
 export NB_ORA_CLIENT=ampxt1d2
 export PATH=$ORACLE_HOME/bin:$PATH
 $ORACLE_HOME/bin/rman target=sys/*********@FNPRDDBDR1_DUP
auxiliary=sys/*****@F1TST_DUP msglog /home/oracle/prakash/Active_F1TST/duplicatenew_${
 ORACLE_SID}.log << EOF
 CONFIGURE DEFAULT DEVICE TYPE TO disk;
 CONFIGURE DEVICE TYPE disk PARALLELISM 20;
 run {
 allocate channel t1 type disk;
 allocate channel t2 type disk;
 allocate channel t3 type disk;
 allocate auxiliary channel aux1 type disk;
 allocate auxiliary channel aux2 type disk;
 allocate auxiliary channel aux3 type disk;
 duplicate target database to F1TST from active database;
 }
 exit
 EOF

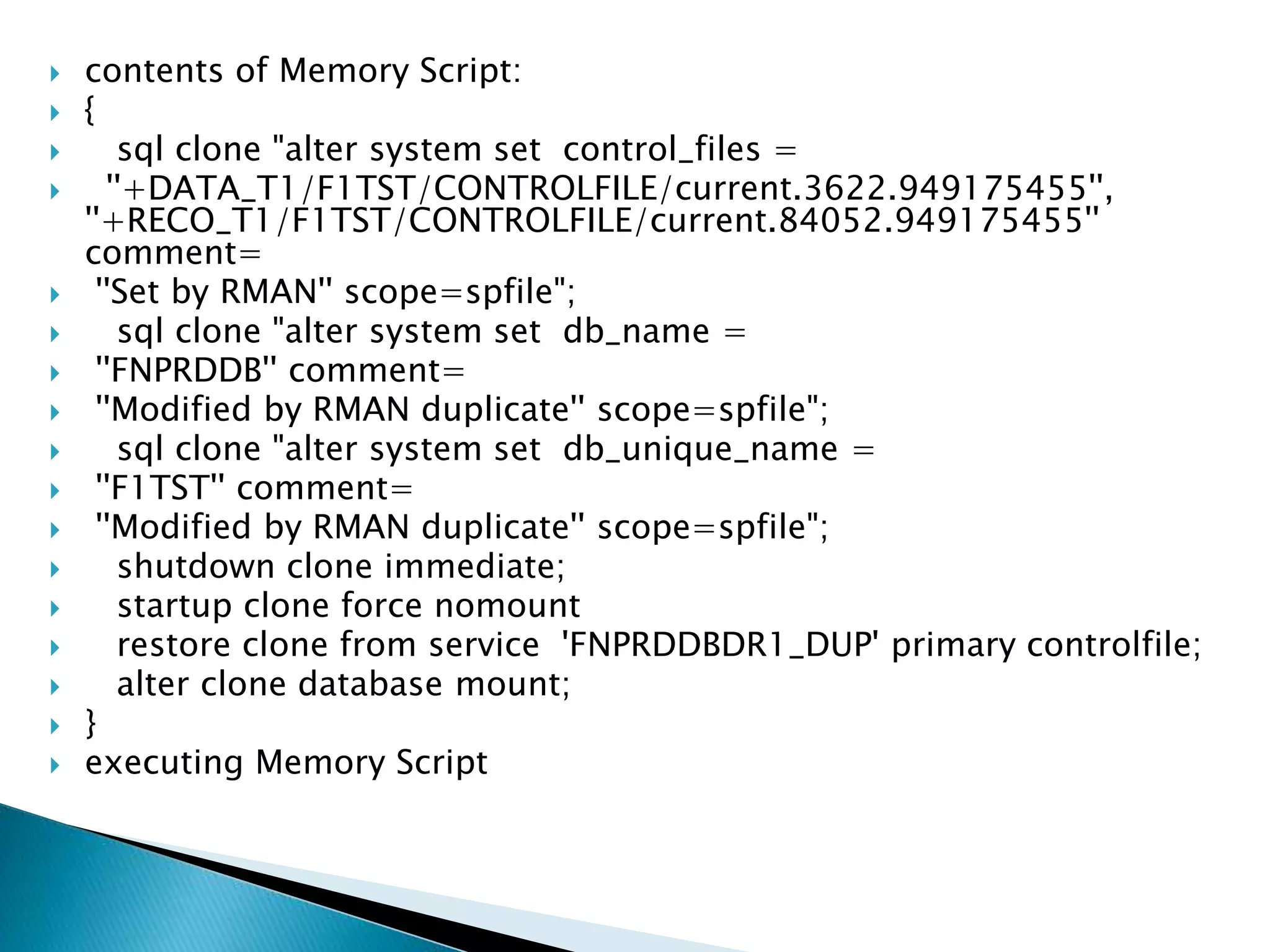

8.  contents of Memory Script:
 {
 sql clone "alter system set control_files =
 ''+DATA_T1/F1TST/CONTROLFILE/current.3622.949175455'',
''+RECO_T1/F1TST/CONTROLFILE/current.84052.949175455''
comment=
 ''Set by RMAN'' scope=spfile";
 sql clone "alter system set db_name =
 ''FNPRDDB'' comment=
 ''Modified by RMAN duplicate'' scope=spfile";
 sql clone "alter system set db_unique_name =
 ''F1TST'' comment=
 ''Modified by RMAN duplicate'' scope=spfile";
 shutdown clone immediate;
 startup clone force nomount

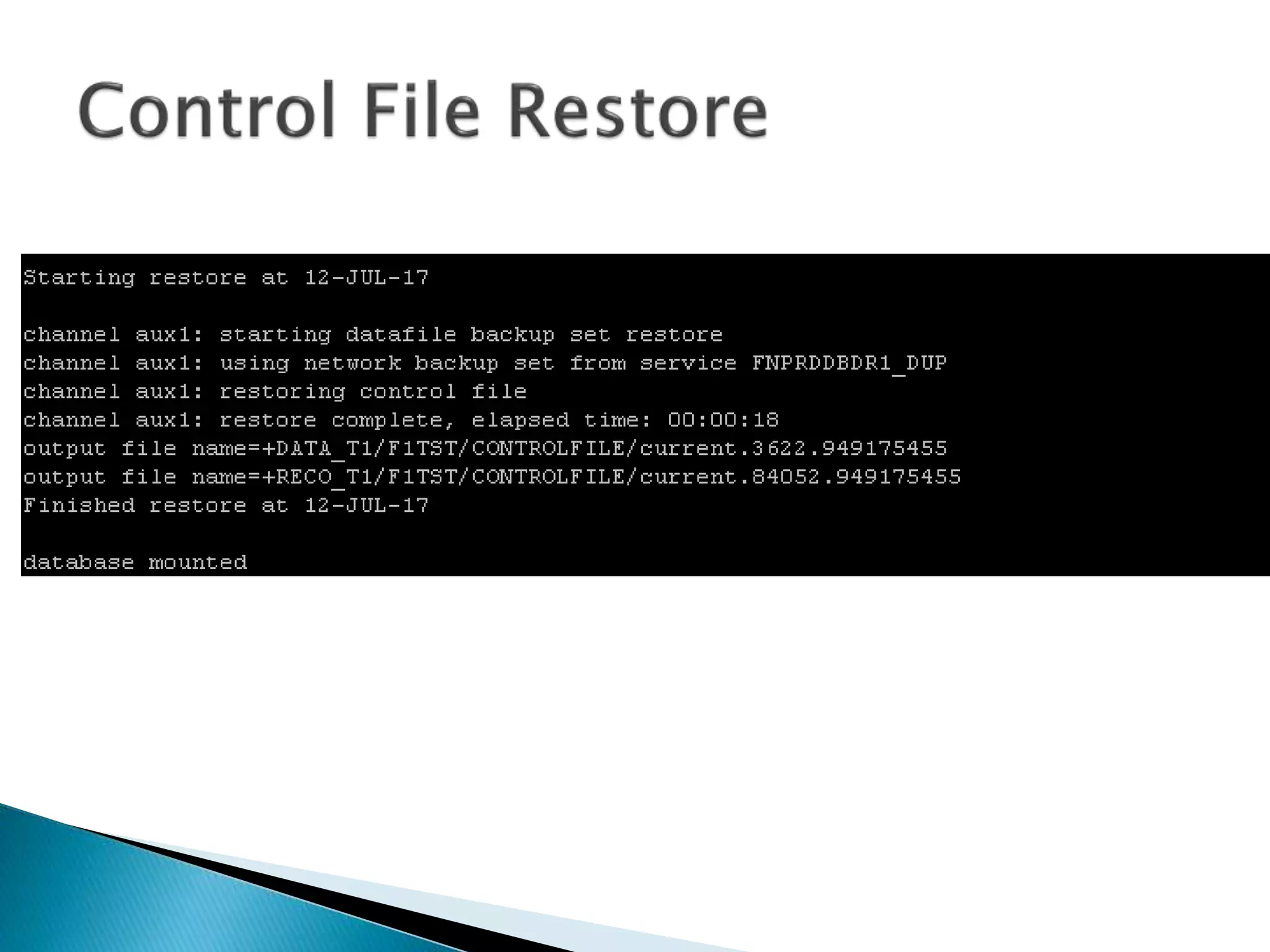

 restore clone from service 'FNPRDDBDR1_DUP' primary controlfile;
 alter clone database mount;
 }
 executing Memory Script

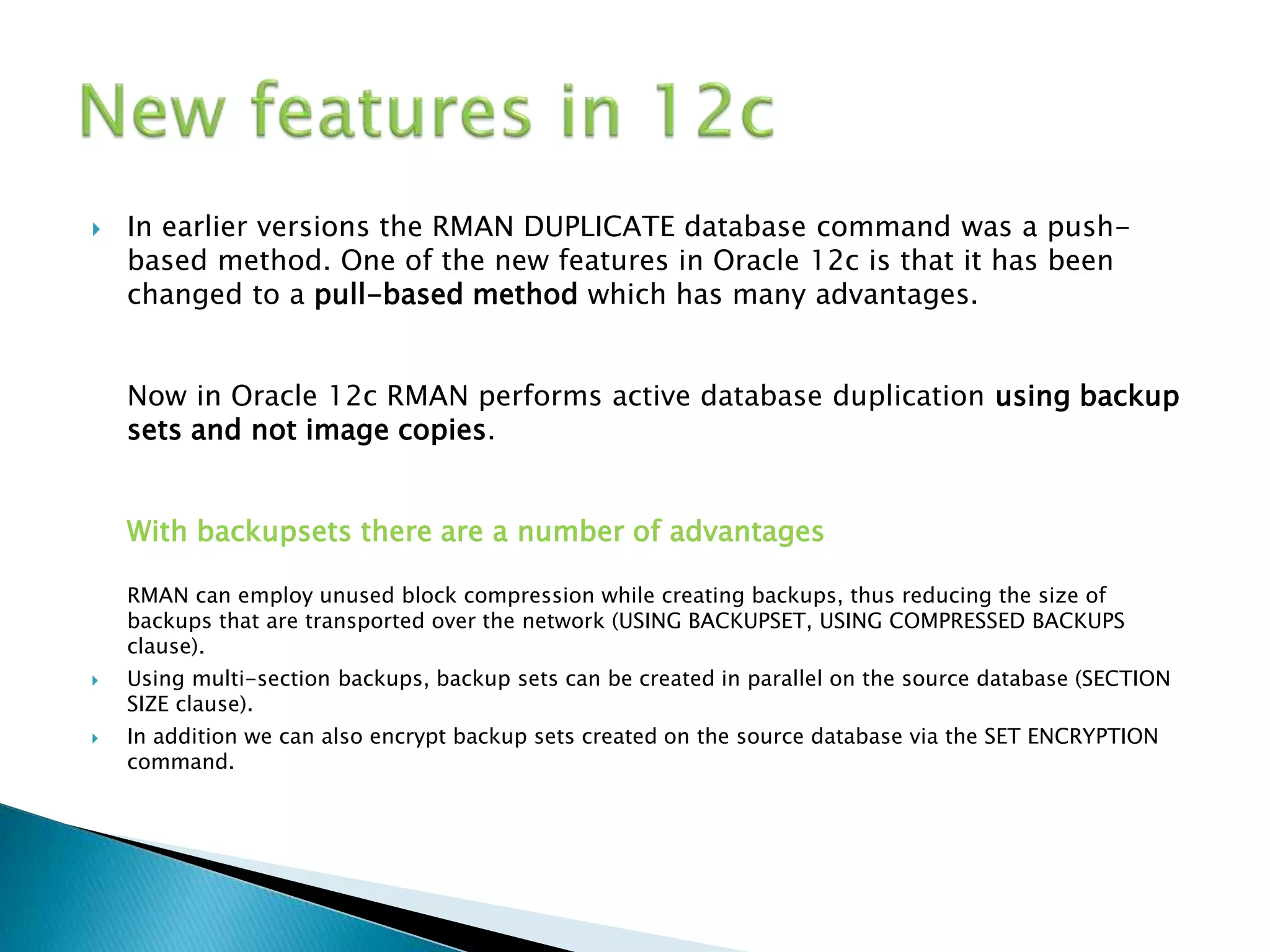

16.  In earlier versions the RMAN DUPLICATE database command was a push-
based method. One of the new features in Oracle 12c is that it has been
changed to a pull-based method which has many advantages.
Now in Oracle 12c RMAN performs active database duplication using backup
sets and not image copies.

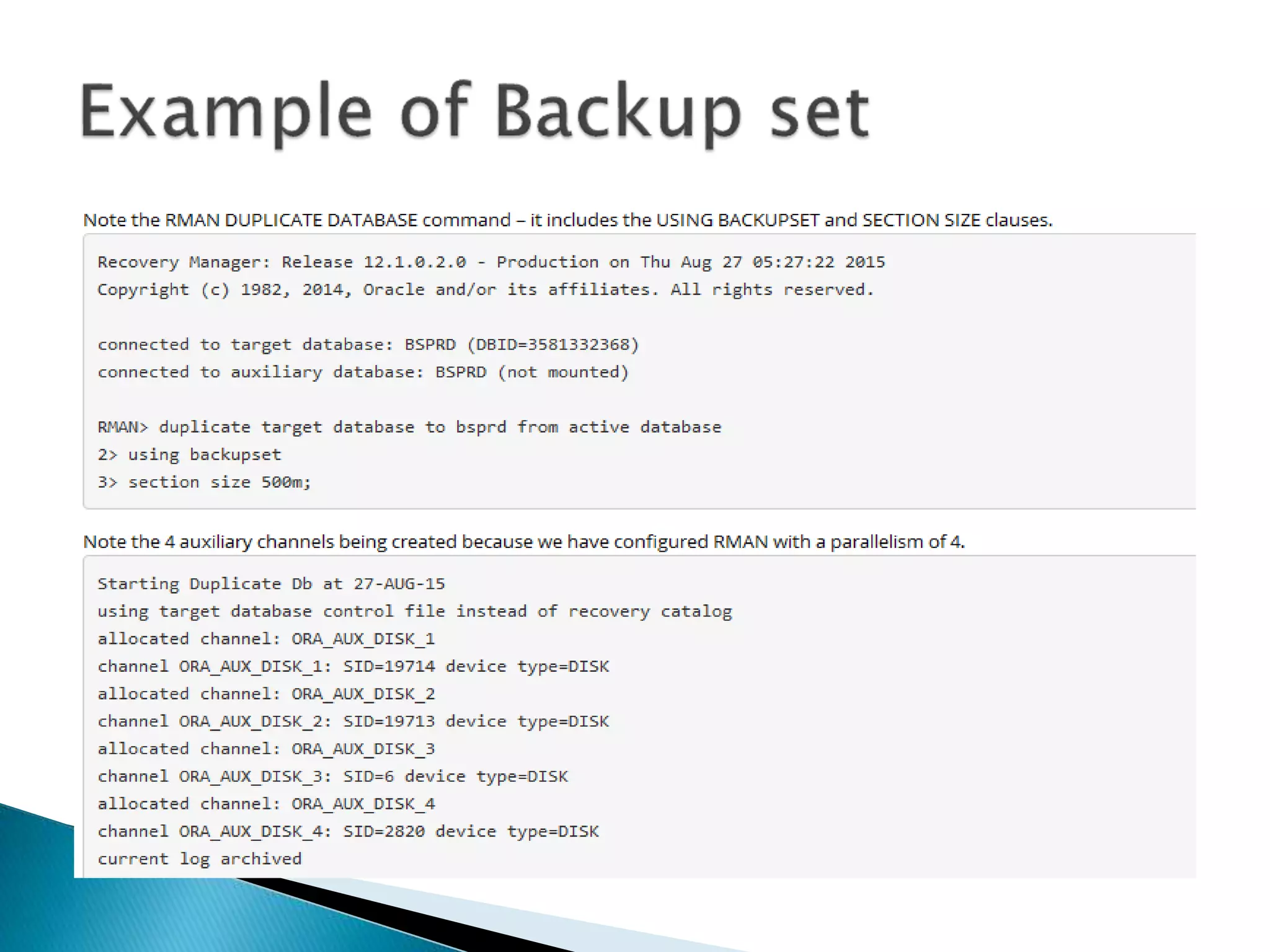

With backupsets there are a number of advantages
RMAN can employ unused block compression while creating backups, thus reducing the size of
backups that are transported over the network (USING BACKUPSET, USING COMPRESSED BACKUPS
clause).

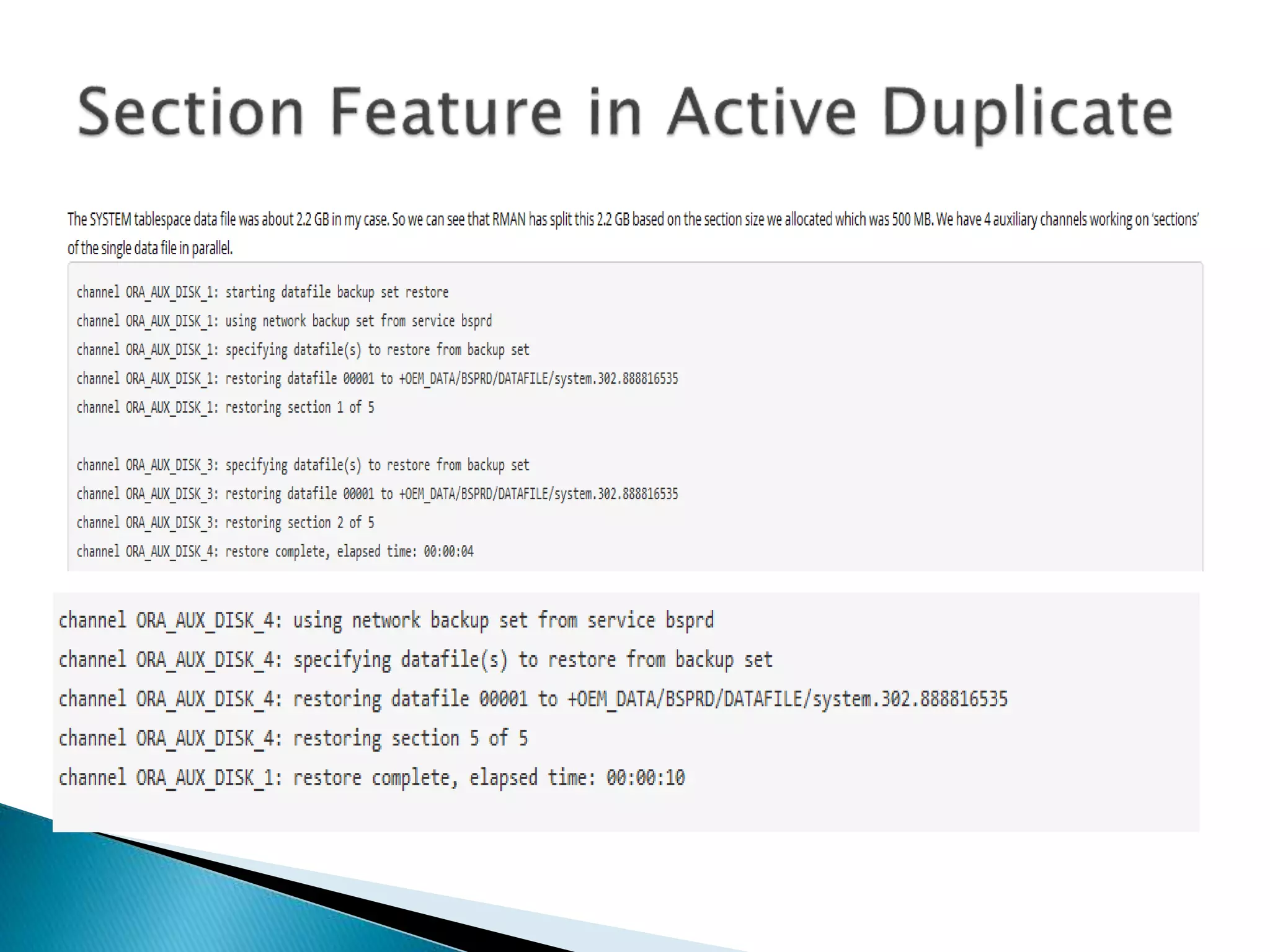

 Using multi-section backups, backup sets can be created in parallel on the source database (SECTION
SIZE clause).
 In addition we can also encrypt backup sets created on the source database via the SET ENCRYPTION
command.
