- 1. Acoustic Deep-Subwavelength Imaging Hossein Babashah MedicalUltrasound Presentation
- 2. Wave propagation innegative index metamaterial
- 3. Negative refraction inmetamaterials making perfect lenses
- 4.
- 5.
- 6. Abstract in Summary Diffraction Natural limit Optical superlenses based on the metamaterials concept have shown the possibility of overcoming the diffraction limit. Feature sizeλ/50. Application 1.Crack detection 2. ultrasound imaging
- 7. Fabry- Pérot Transmission The capability of this holey structure to resolve all the spatial information of an acoustic image can be explained within the effective medium approach. In the limit in which all diffraction effects can be safely neglected and the transmission process is dominated by the fundamental propagating mode inside the holes (λ >>Λ, a), the zero-order transmission coefficient for an acoustic plane wave of parallel momentum can be written as: where qz = k0 = 2π/λ is the propagation constant of the above-mentioned fundamental waveguide mode, S00 = a/Λ and The important point is that, at the resonance condition for standing-wave excitation (qzh=mπ , with m an integer), the transmission coefficient has unity modulus for all parallel momenta, including evanescent waves.
- 8.

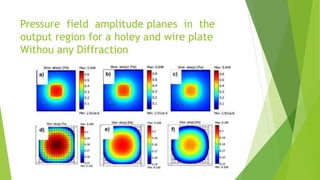

- 9. Pressure field amplitudeplanes in the output region for a holey and wire plate Withou any Diffraction
- 10. Spatial pressure fieldat Λ=1.58 mm
- 11. Experimental Setup Microphoneis attached to scanning system

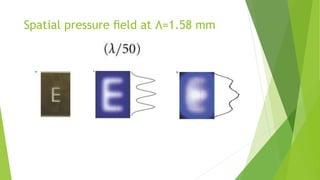

- 12. Spatial pressure fieldat Λ=1.58 mm

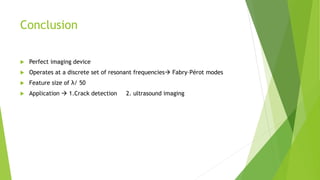

- 13. Conclusion Perfect imagingdevice Operates at a discrete set of resonant frequencies Fabry–Pérot modes Feature size of λ/ 50 Application 1.Crack detection 2. ultrasound imaging

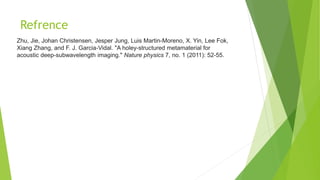

- 14. Refrence Zhu, Jie, JohanChristensen, Jesper Jung, Luis Martin-Moreno, X. Yin, Lee Fok, Xiang Zhang, and F. J. Garcia-Vidal. "A holey-structured metamaterial for acoustic deep-subwavelength imaging." Nature physics 7, no. 1 (2011): 52-55.
Editor's Notes
- #5 If an image is made through a small aperture, there is a point at which the resolution of the image is limited by the aperture diffraction. As a matter of general practice in photographic optics, the use of a smaller aperture (larger f-number) will give greater depth of field and a generally sharper image. But if the aperture is made too small, the effects of the diffraction will be large enough to begin to reduce that sharpness, and you have reached the point of diffraction-limited imaging. If you are imaging two points of light, then the smallest separation at which you could discern that there are two could reasonably be used as the limit of resolution of the imaging process. Presuming that diffraction is the determining factor, then the generally accepted criterion for the minimum resolvable detail is the Rayleigh criterion.
