The document discusses transactions and the ACID properties in database systems. It defines transactions as units of work that should be atomic and leave the database in a consistent state. It describes the four properties of ACID - Atomicity, Consistency, Isolation, and Durability. Isolation is important to ensure transactions appear to execute sequentially despite concurrent execution, avoiding inconsistent or unpredictable results. The document discusses conflict serializability and view serializability as ways to evaluate if concurrent transaction schedules maintain transaction isolation.

1. Rasmus Ejlers Møgelberg
Transactions and ACID
properties
Introduction to Database Design 2011, Lecture 13

2. Rasmus Ejlers Møgelberg
Course overview
• Communicating with DBMSs
• Designing databases
• Making databases efficient
• Making databases reliable
2

3. Rasmus Ejlers Møgelberg
Overview
• Transactions
• ACID properties
• Concurrency and safe schedules
3

4. Rasmus Ejlers Møgelberg
Transactions
• Transactions are units of work
• Example
- Read balance of account A
- Compute new balance = balance(A) - 50
- Write new balance of A
- Read balance of account B
- Compute new balance = balance(B) + 50
- Write balance of account B
• Transaction should be atomic: all or nothing
4

5. Rasmus Ejlers Møgelberg
Transactions
• In database practice transactions are sequences of
SQL statements
• Possibly intertwined by computations
• Can be written in
- programming language (e.g. Java) accessing a database
- procedural component of SQL
• SQL: begin atomic ... end
• Here we simplify and consider just sequences of
reads and writes
5

6. Rasmus Ejlers Møgelberg
ACID
• ACID stands for
- Atomicity
- Consistency
- Isolation
- Durability
6

7. Rasmus Ejlers Møgelberg
Consistency
• Database must always be consistent wrt real world
rules, e.g.,
- Integrity constraints such as referential integrity must be
satisfied
- Rules of real world situation must be satisfied, e.g.,
• Account balance must always be above a certain
number (e.g. 0)
• Should also reflect real world as it is now
- e.g. balance stored should correspond to actual balance of
account
7

8. Rasmus Ejlers Møgelberg
Transactional consistency
• Transaction leaves database in consistent state
- (may assume database consistent before transaction start)
• May be required to satisfy other rules, e.g. leave
the sum of the balances unchanged
- (no money created or lost)
• During transaction consistency requirement may
be violated temporarily
• Transactional consistency responsibility of
transaction designer
8

9. Rasmus Ejlers Møgelberg
Atomicity
• Transaction can be considered a unit of work
- All or nothing!
• Consistency is impossible without atomicity
• Sometimes not possible to complete a started
transaction, e.g.
- In case of hardware failure or loss of connection
- The application program may choose to abandon
transaction
- The DBMS may refuse to complete the transaction
• In these cases we say that transaction fails
9

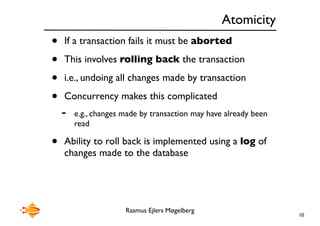

10. Rasmus Ejlers Møgelberg
Atomicity
• If a transaction fails it must be aborted
• This involves rolling back the transaction
• i.e., undoing all changes made by transaction
• Concurrency makes this complicated
- e.g., changes made by transaction may have already been
read
• Ability to roll back is implemented using a log of
changes made to the database
10

11. Rasmus Ejlers Møgelberg
Durability
• Durability is about trustworthy storage
• A transaction that has successfully completed is
said to be committed
• Changes made by a committed transaction must
be durable, i.e., able to survive
- Power failure
- Hardware failure etc
11

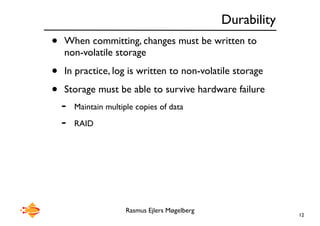

12. Rasmus Ejlers Møgelberg
Durability
• When committing, changes must be written to
non-volatile storage
• In practice, log is written to non-volatile storage
• Storage must be able to survive hardware failure
- Maintain multiple copies of data
- RAID
12

13. Rasmus Ejlers Møgelberg
Transaction model
13

14. Rasmus Ejlers Møgelberg
Isolation
• Transactions may not interfere with each other
• In reality transactions are executed concurrently
• Statements of transactions intertwined
• DBMS should create illusion of transactions being
executed sequentially
• Isolation is necessary for consistency
14

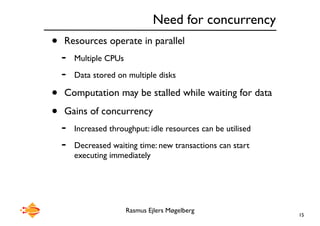

15. Rasmus Ejlers Møgelberg
Need for concurrency
• Resources operate in parallel
- Multiple CPUs
- Data stored on multiple disks
• Computation may be stalled while waiting for data
• Gains of concurrency
- Increased throughput: idle resources can be utilised
- Decreased waiting time: new transactions can start
executing immediately
15

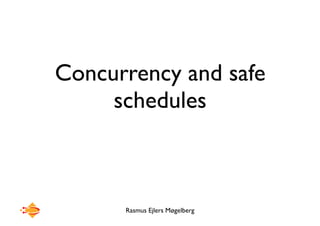

16. Rasmus Ejlers Møgelberg
Concurrency and safe
schedules

17. Rasmus Ejlers Møgelberg
A serial schedule
17
T1 T2
read(A)
A := A - 50
write(A)
read(B)
B := B + 50
write(B)
read(A)
A := A + 20
write(A)

18. Rasmus Ejlers Møgelberg
A good concurrent schedule
18
T1 T2
read(A)
A := A - 50
write(A)
read(A)
A := A + 20
write(A)
read(B)
B := B + 50
write(B)

19. Rasmus Ejlers Møgelberg
A bad concurrent schedule
19
T1 T2
read(A)
A := A - 50
read(A)
A := A + 20
write(A)
write(A)
read(B)
B := B + 50
write(B)

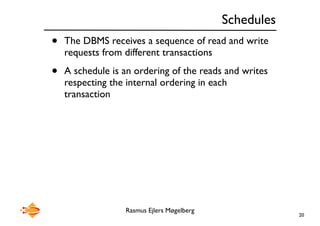

20. Rasmus Ejlers Møgelberg
Schedules
• The DBMS receives a sequence of read and write
requests from different transactions
• A schedule is an ordering of the reads and writes
respecting the internal ordering in each
transaction
20

21. Rasmus Ejlers Møgelberg
Examples
• Two schedules
• Schedule on right is equivalent to first T1 then T2
• It is up to DBMS to avoid bad schedules such as
the one on the left
21
T1 T2
read(A)
read(A)
write(A)
write(A)
read(B)
write(B)
T1 T2
read(A)
write(A)
read(A)
write(A)
read(B)
write(B)

22. Rasmus Ejlers Møgelberg
Conflicting operations
• Two operations commute if the order in which
they are executed does not affect the result
• If they do not commute we say that they conflict
22
read(A), read(B) = read(B), read(A)
write(A), read(B) = read(B), write(A)
write(A), write(B) = write(B), write(A)
read(A), read(A) = read(A), read(A)
write(A), read(A) != read(A), write(A)
write(A), write(A) != write(A), write(A)

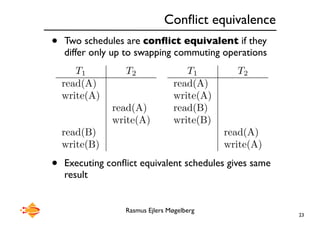

23. Rasmus Ejlers Møgelberg
Conflict equivalence
• Two schedules are conflict equivalent if they
differ only up to swapping commuting operations
• Executing conflict equivalent schedules gives same
result
23
T1 T2
read(A)
write(A)
read(A)
write(A)
read(B)
write(B)
T1 T2
read(A)
write(A)
read(B)
write(B)
read(A)
write(A)

24. Rasmus Ejlers Møgelberg
A non-example
• The following schedules are not conflict equivalent
• Suppose e.g.T1 transfers all money available in A to
B
24
T1 T2
read(A)
write(A)
read(A)
write(A)
read(B)
write(B)
T1 T2
read(A)
write(A)
read(A)
write(A)
read(B)
write(B)

25. Rasmus Ejlers Møgelberg
Conflict serializability
• A schedule is conflict serializable if it is
conflict equivalent to a serial schedule
• Example:
25
T1 T2
read(A)
write(A)
read(A)
write(A)
read(B)
write(B)

26. Rasmus Ejlers Møgelberg
A non-serializable schedule
• The following is neither conflict equivalent to T1T2
nor T2T1
26
T1 T2
read(A)
read(A)
write(A)
write(A)
read(B)
write(B)

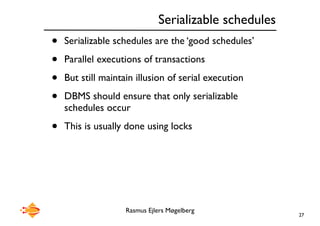

27. Rasmus Ejlers Møgelberg
Serializable schedules
• Serializable schedules are the ‘good schedules’
• Parallel executions of transactions
• But still maintain illusion of serial execution
• DBMS should ensure that only serializable
schedules occur
• This is usually done using locks
27

28. Rasmus Ejlers Møgelberg
Detecting non-serializability
28
T1 T2 T3 T4
read(A)
write(A)
read(A)
write(B)
read(C)
write(C)
read(B)

29. Rasmus Ejlers Møgelberg
Precedence graph
• A cycle, so not conflict serializable
• Theorem. A schedule is conflict serializable if
and only if its precedence graph is acyclic
29
T1
!! T2
!! T3
"" !! T4

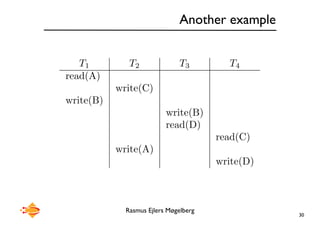

30. Rasmus Ejlers Møgelberg
Another example
30
T1 T2 T3 T4
read(A)
write(C)
write(B)
write(B)
read(D)
read(C)
write(A)
write(D)

31. Rasmus Ejlers Møgelberg
Precedence graph
• Equivalent serial schedules
31
T1T2T3T4
T1T3T2T4
T2
!!
!
!
!
!
!
!
!
T1
""
"
"
"
"
"
"
"
!!
!
!
!
!
!
!
! T4
T3
""
"
"
"
"
"
"
"

32. Rasmus Ejlers Møgelberg
Yet another example
• Not conflict serializable
• But result the same as running
32
T1 T2 T3
read(B)
write(B)
write(A)
write(A)
write(A)
T2T1T3

33. Rasmus Ejlers Møgelberg
View serializability
• Two schedules are view equivalent if
- Corresponding reads in the two schedules always read
same value
- The changes made to the database are always the same
• A schedule is view serializable if it is view
equivalent to a serial schedule
• Schedule on previous slide is view serializable
33

34. Rasmus Ejlers Møgelberg
View serializability
• The following is not view serializable
• To see this need to check all serial combinations
34
T1 T2 T3
read(B)
write(B)
read(A)
write(A)
write(A)

35. Rasmus Ejlers Møgelberg
View serializability
• We have two notions of serializability
• Conflict serializable schedules are also view
serializable
• (because swapping commuting operations does
not change behaviour of schedule)
• View serializable schedules need not be conflict
serializable
• (see example a few slides back)
35

36. Rasmus Ejlers Møgelberg
Summary
• ACID requirements for databases
- Atomicity, consistency, isolation, durability
• Isolation is an illusion
- In reality transactions are evaluated in parallel
• Two notions of good schedules
- Conflict serializability
- View serializability
• For exam you should be able to use these
36
