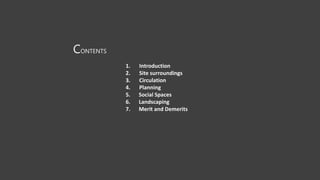

2. 1. Introduction
2. Site surroundings
3. Circulation
4. Planning
5. Social Spaces
6. Landscaping
7. Merit and Demerits
CONTENTS

3. Centrally located in Greater Noida West, Ace City
is one of the best priced flats in NCR. The project
is ready to move in and offers 2 and 3 BHK
apartments in 15 acres campus with easy
connectivity to Delhi and other parts of NCR.
• Walking distance from Balak Inter College
• 8 km. from Noida City Centre Metro Station
• 7 km. from Sai Mandir
• 8 km. from Fortis Hospital
• 13 km. from Kalindi Kunj
• 15 mins. drive from Sector 18
INTRODUCTION
ACCESSIBILTIY
Project – ACE CITY

4. Centrally located in Greater Noida West, Ace City
is one of the best priced flats in NCR. The project
is ready to move in and offers 2 and 3 BHK
apartments in 15 acres campus with easy
connectivity to Delhi and other parts of NCR.
• Walking distance from Balak Inter College
• 8 km. from Noida City Centre Metro Station
• 7 km. from Sai Mandir
• 8 km. from Fortis Hospital
• 13 km. from Kalindi Kunj
• 15 mins. drive from Sector 18
INTRODUCTION
ACCESSIBILTIY
Project – ACE CITY

5. 1
2
3
3
4
8
20
15
22
5
14
11
6
17
3
10
7
9
13
18
19
21
14
4
7
4
J
H
I
K
EFGComercial complex
45 m wide road
Towards NGN Expressway
Towards NH-24

6. FACILITIES PRESENT IN ACE CITY
1. Beautifully landscaped lawns with seating areas
2. Outdoor children’s play area
3. Water Bodies
4. Multipurpose lawn
5. Jogging & cycling tracks
6. Spacious basement parking
7. Visitor car parking
8. Tennis & badminton courts
9. Club house
CLUB HOUSE FACILITIES
1. Swimming pool Kids pool
2. Gymnasium
3. Indoor games room
4. Multipurpose hall
5. Kids Play Room
6. General Store

7. Circulation
Vehicular
Only clockwise
Ramp
Public
11 Towers
DFG

8. SECTOR 3
NOIDA EXTENTION
ACE CITY
ROUND-ABOUT
GAUTAM BUDDHA
BALAK INTER COLLEGE
SECTOR 1
NOIDA EXTENTION
GAUR CITY
STELLAR JEEVAN
SITE SURROUNDINGS

9. Main road
Open parking
Delhi Quartz at
tower entrance
Comercial complex Entry gate no. 1
Play School (currently office)

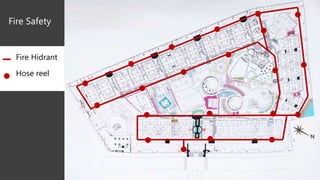

10. Fire Safety
Fire Hidrant
Hose reel

11. FLOOR PLANS

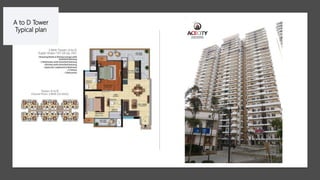

12. A to D Tower
Typical plan

13. 8
I & J Tower
Typical plan

14. 8
H & K Tower
Typical plan

15. Tower
Typical plan
E
F
G

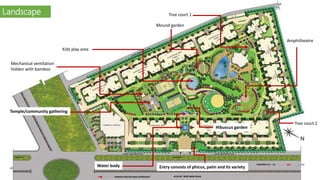

17. Amphitheatre
Temple/community gathering
Landscape
Mechanical ventilation
hidden with bamboo
Entry consists of phicus, palm and its varietyWater body
Tree court 1
Tree court 2
Mound garden
Kids play area
Hibuscus garden

18. Entry landscape Ground floor house backyard
Ornamental hedges along pathways Palm and banana at temple
Landscape
Diffused
lighting
Bamboo covering
Mechanical ventilation

19. Merits Demerits
Ventilation is proper in all the rooms. Improper house planning.
Long balcony are provided Balcony provided in corridor side
risking security.
Huge court landscape. Slope of hardscape is not done
properly
Different sports facilities like
basketball, badminton, cricket, club
with gym and swimming.
Penthouses are not present
Inbuilt commercial complex and play
school.
Service lift not present.
One direction vehicular circulation
Mechanical ventilation covered with
