This document describes a 3-axis accelerometer sensor with selectable sensitivity between 1.5g, 2g, 4g and 6g for applications like cell phones, navigation, gaming, and robotics. It has low power consumption of 500uA in active mode and 3uA in sleep mode, fits in a small 6mm x 6mm x 1.45mm QFN package, and its pin connections allow selecting sensitivity and entering sleep mode.

1. ACCELEROMETER

2. Features3-AXIS Accelerometer(X, Y, Z axis)Low voltage operation(2.2V – 3.6V)Current Consumption:Active mode : 500µASleep mode : 3µASelectable Sensitivity(1.5g/2g/4g/6g)Fast turn on time6mm X 6mm X 1.45mm QFN package

3. Typical ApplicationCell phone: Text scrolling, Motion DialingNavigation: E-Compass Tilt CompensationGaming: Tilt and motion sensing, Event RecorderRobotics: Motion Sensing

4. Pin OutQFN-16 Package

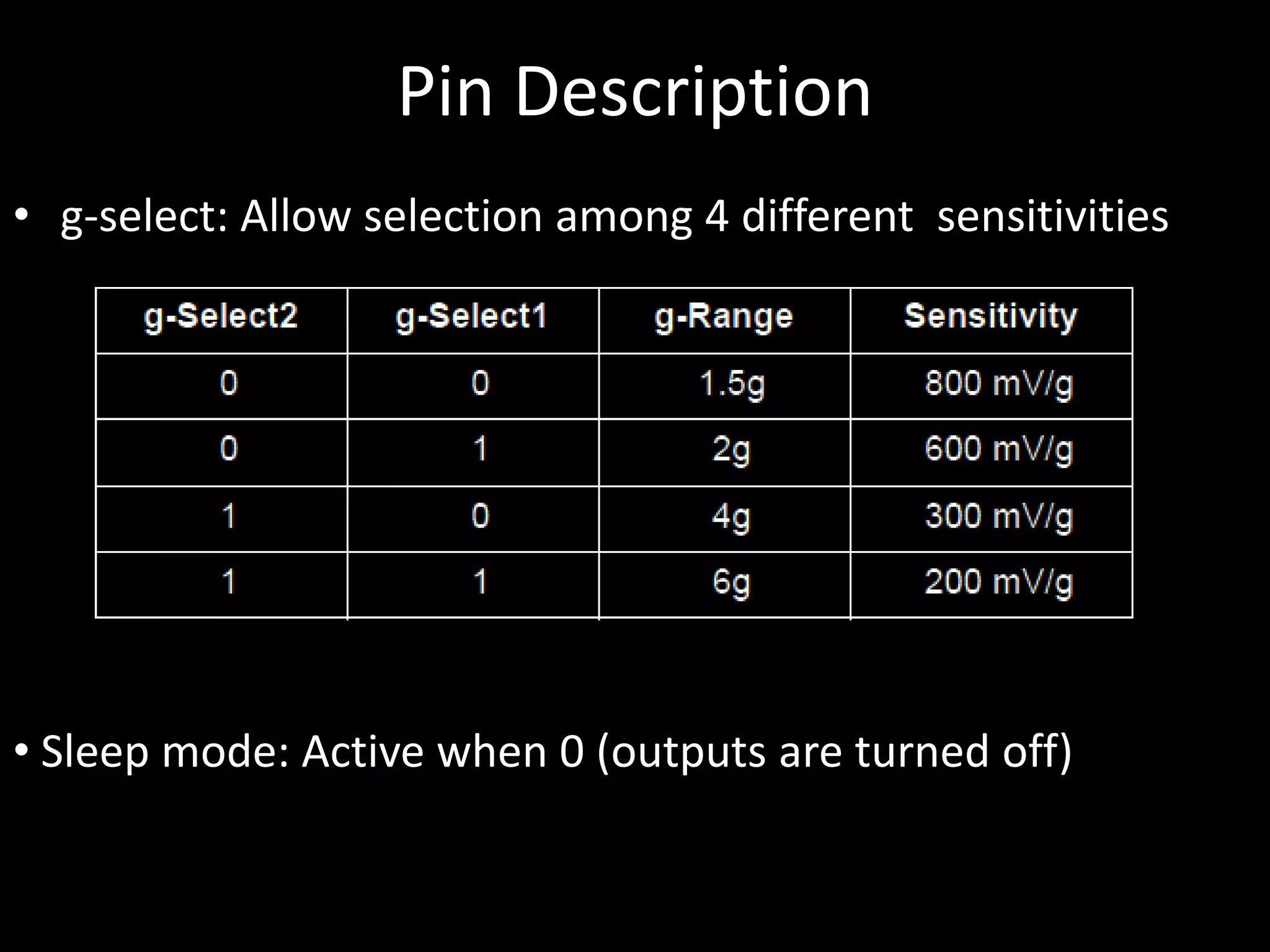

5. Pin Descriptiong-select: Allow selection among 4 different sensitivities Sleep mode: Active when 0 (outputs are turned off)
