A talk I gave at the Columbus App Dev User Group on 7/16/18. I go over 2 line of business applications and 2 gamedev projects and how third party code augmented those projects.

1. Accelerating Angular Application
Development
Using Third Party Code

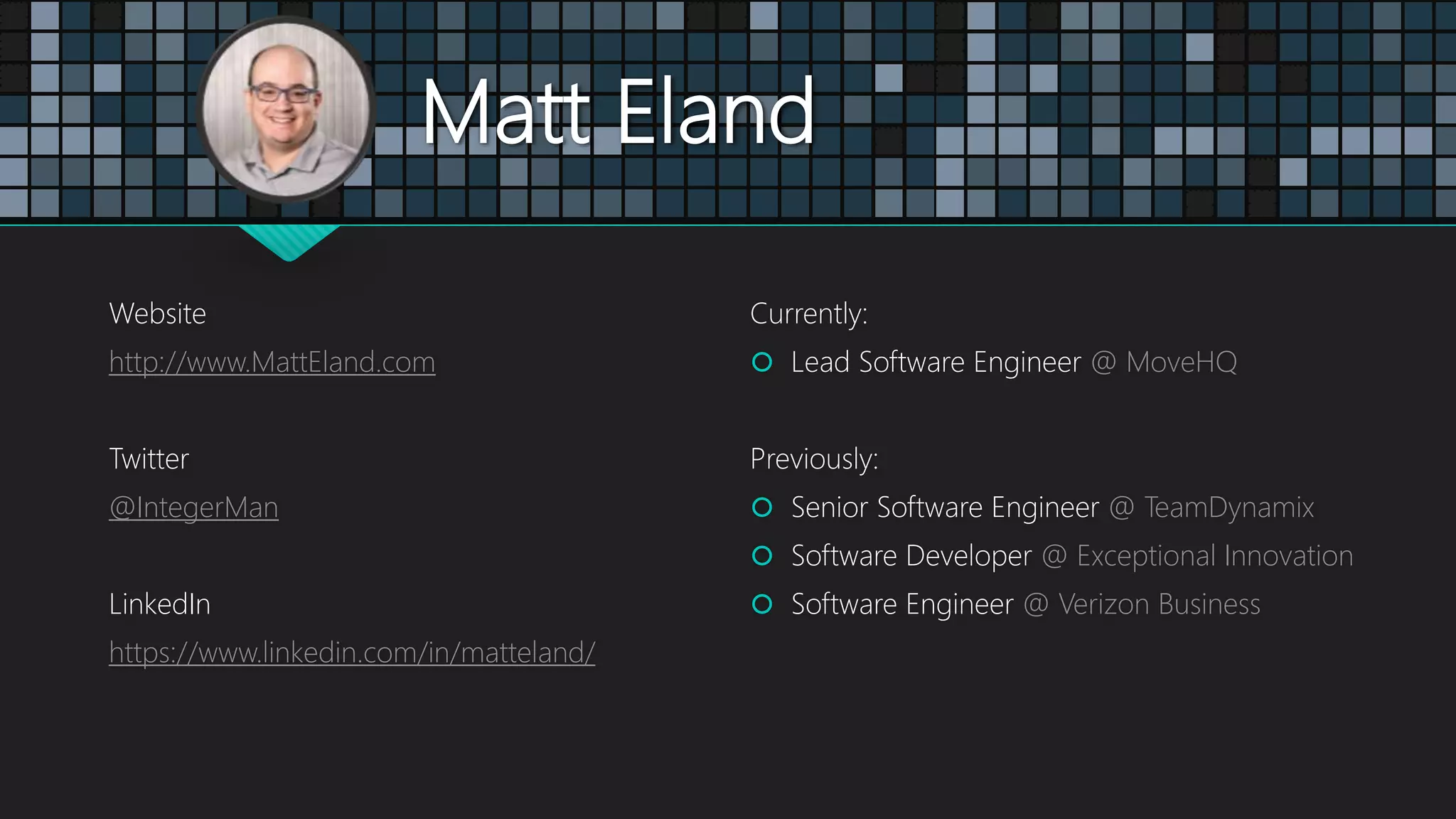

2. Matt Eland
Website
http://www.MattEland.com
Twitter
@IntegerMan
LinkedIn
https://www.linkedin.com/in/matteland/
Currently:
 Lead Software Engineer @ MoveHQ
Previously:
 Senior Software Engineer @ TeamDynamix
 Software Developer @ Exceptional Innovation
 Software Engineer @ Verizon Business

3. This presentation is
like a mullet
Business in the front; party in the back

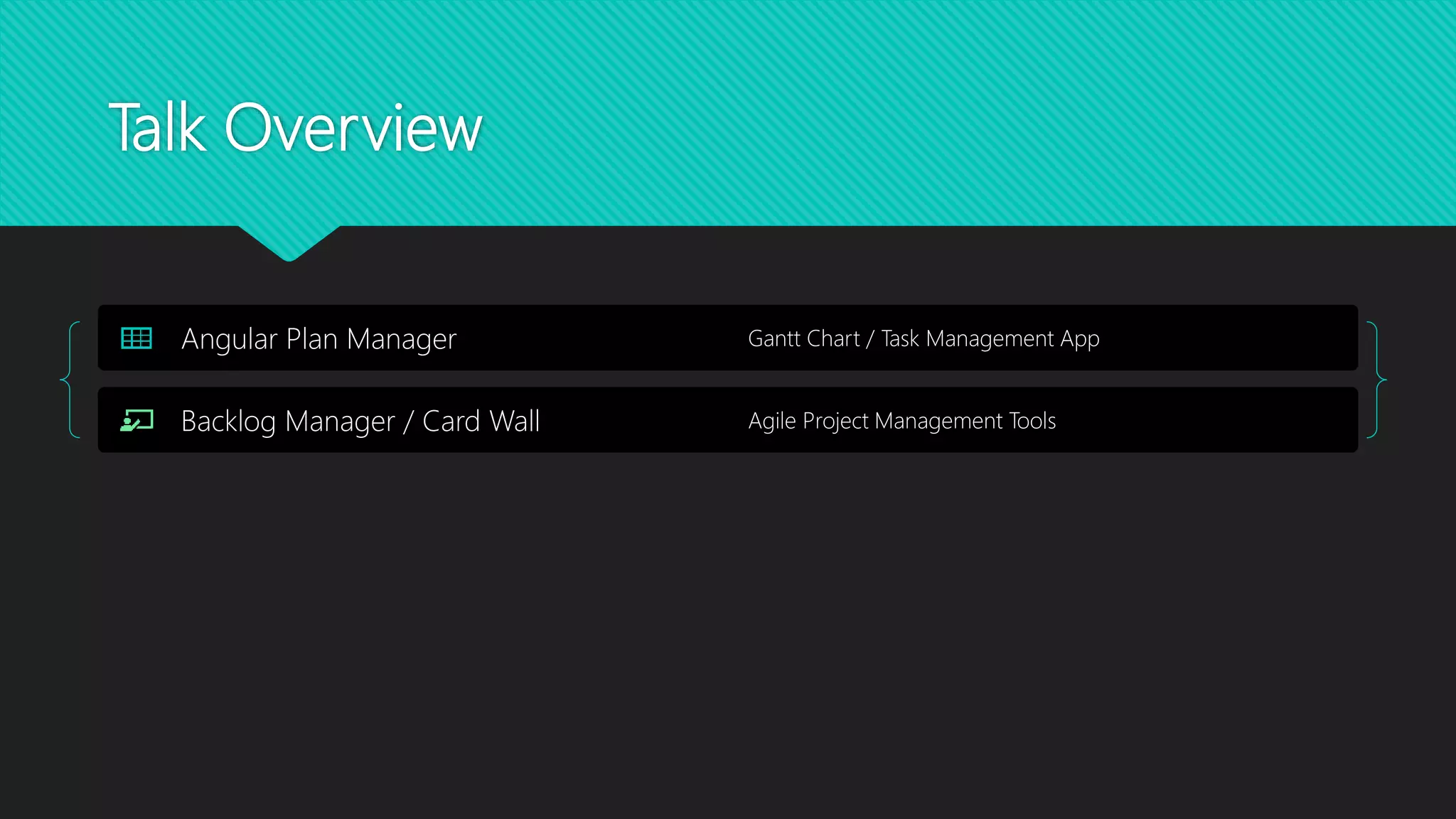

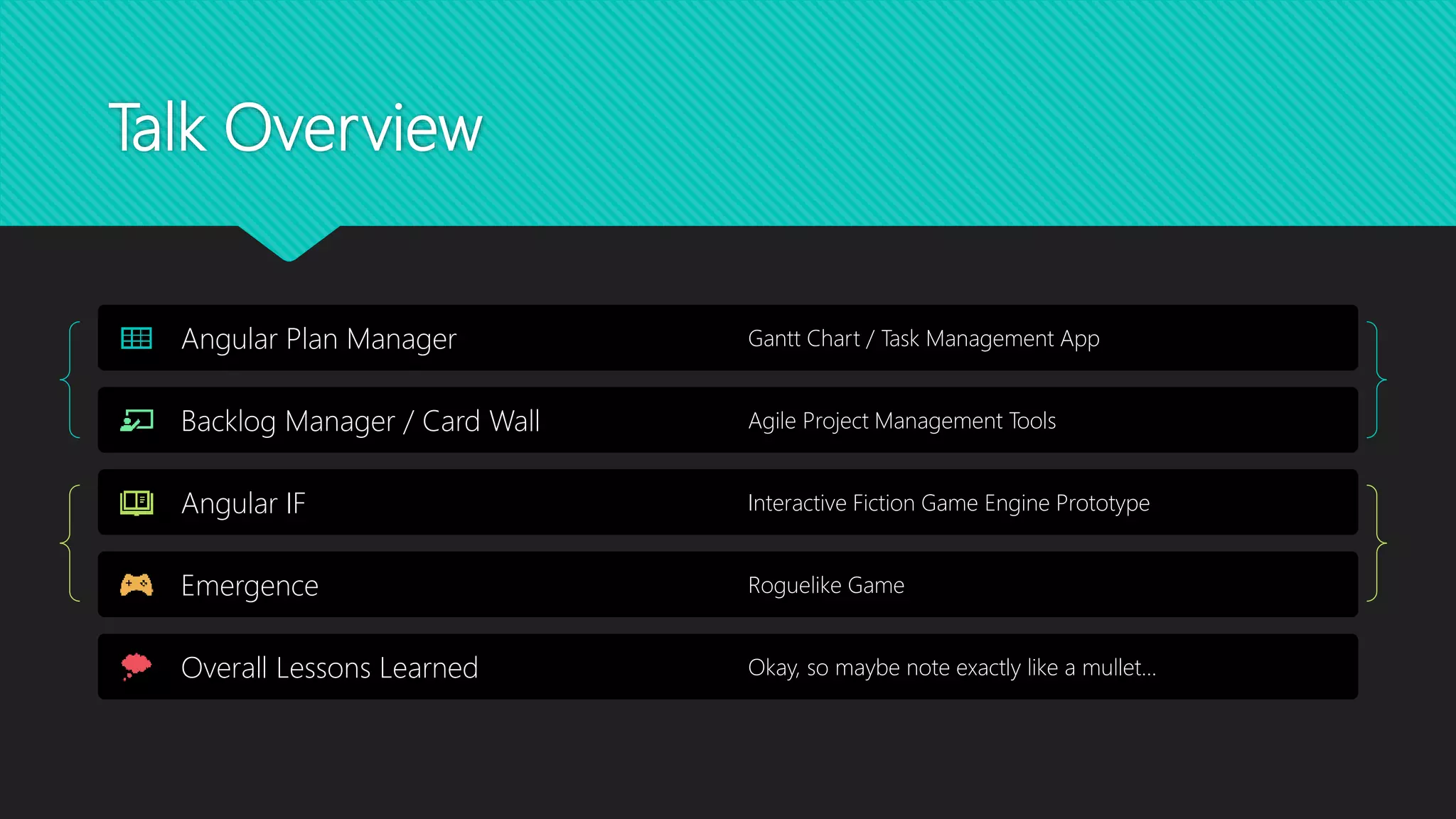

4. Talk Overview
Angular Plan Manager Gantt Chart / Task Management App
Backlog Manager / Card Wall Agile Project Management Tools
Angular IF Interactive Fiction Game Engine Prototype
Emergence Roguelike Game
Overall Lessons Learned Okay, so maybe note exactly like a mullet...

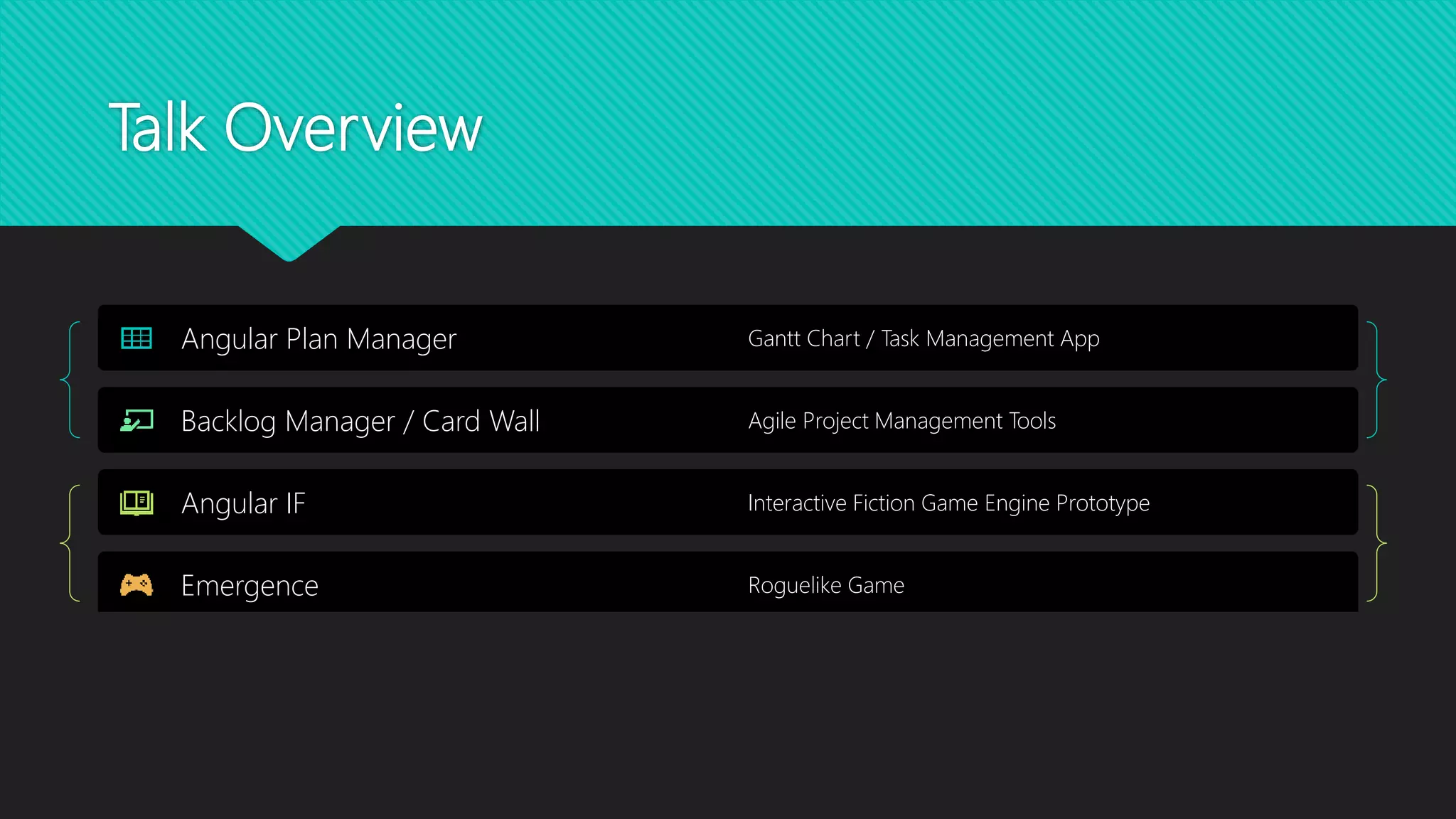

5. Talk Overview
Angular Plan Manager Gantt Chart / Task Management App
Backlog Manager / Card Wall Agile Project Management Tools
Angular IF Interactive Fiction Game Engine Prototype
Emergence Roguelike Game
Overall Lessons Learned Okay, so maybe note exactly like a mullet...

6. Talk Overview
Angular Plan Manager Gantt Chart / Task Management App
Backlog Manager / Card Wall Agile Project Management Tools
Angular IF Interactive Fiction Game Engine Prototype
Emergence Roguelike Game
Overall Lessons Learned Okay, so maybe note exactly like a mullet...

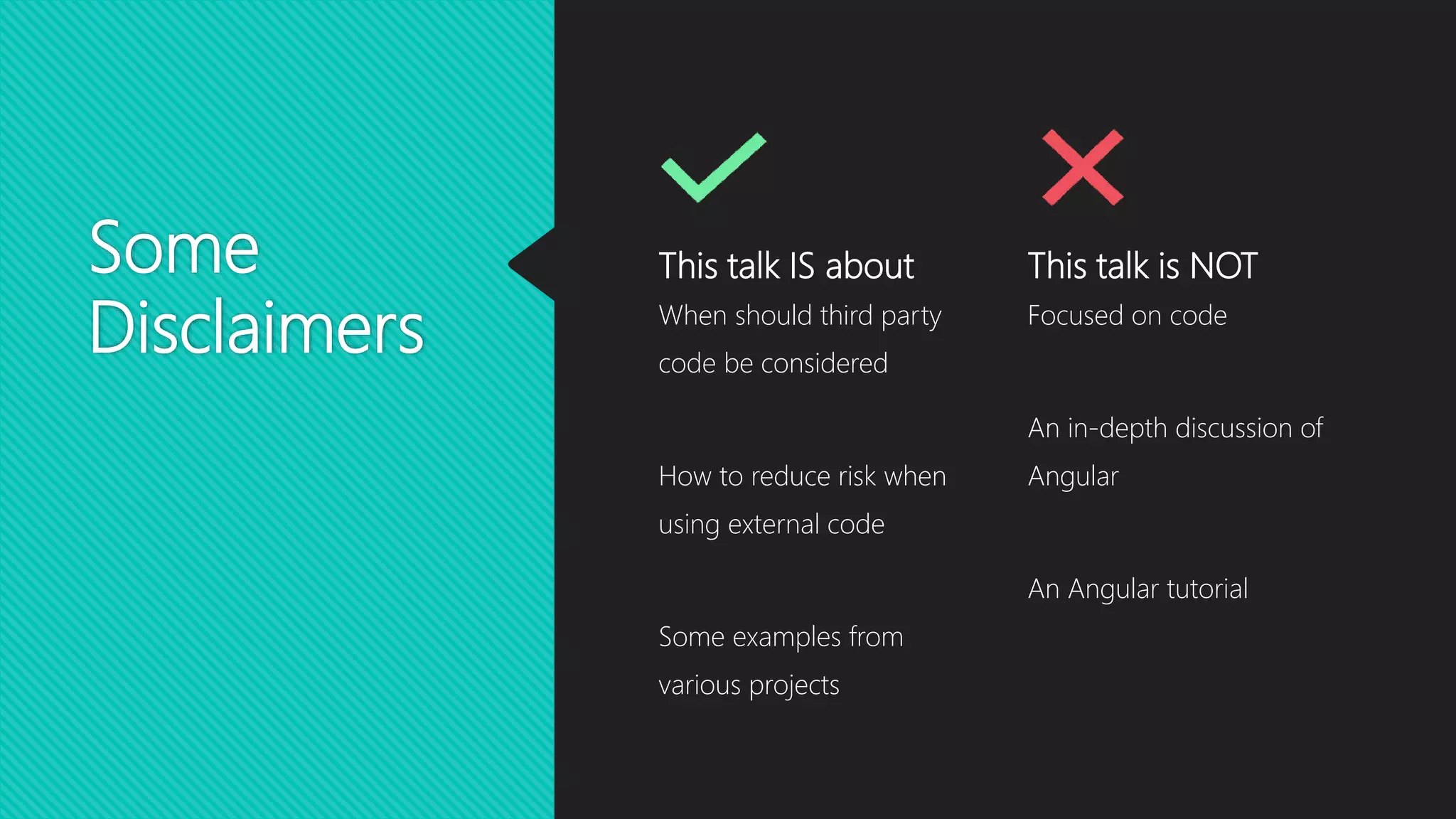

7. Some
Disclaimers
This talk IS about
When should third party
code be considered
How to reduce risk when
using external code
Some examples from
various projects
This talk is NOT
Focused on code
An in-depth discussion of
Angular
An Angular tutorial

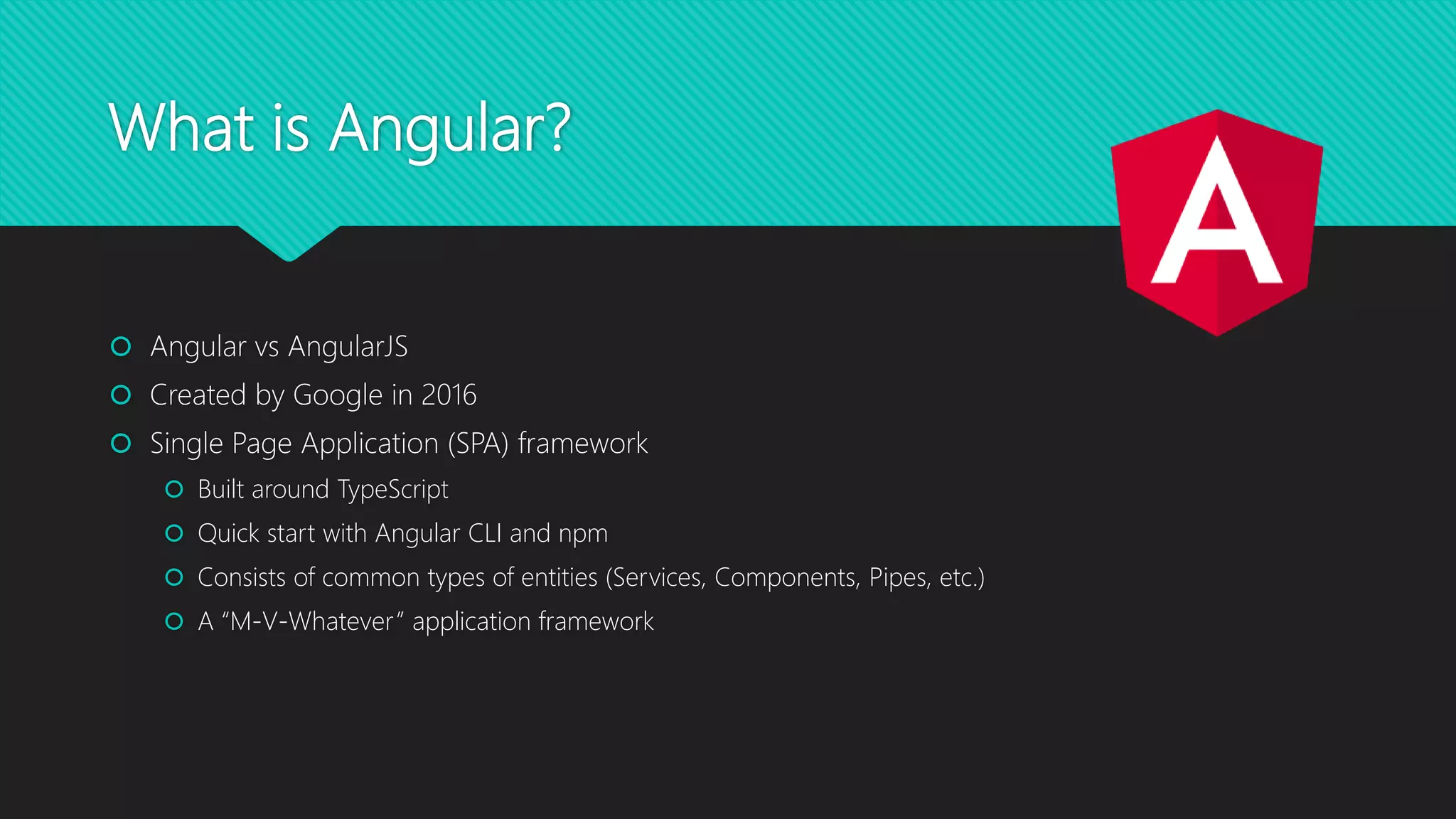

8. What is Angular?
 Angular vs AngularJS
 Created by Google in 2016
 Single Page Application (SPA) framework
 Built around TypeScript
 Quick start with Angular CLI and npm
 Consists of common types of entities (Services, Components, Pipes, etc.)
 A “M-V-Whatever” application framework

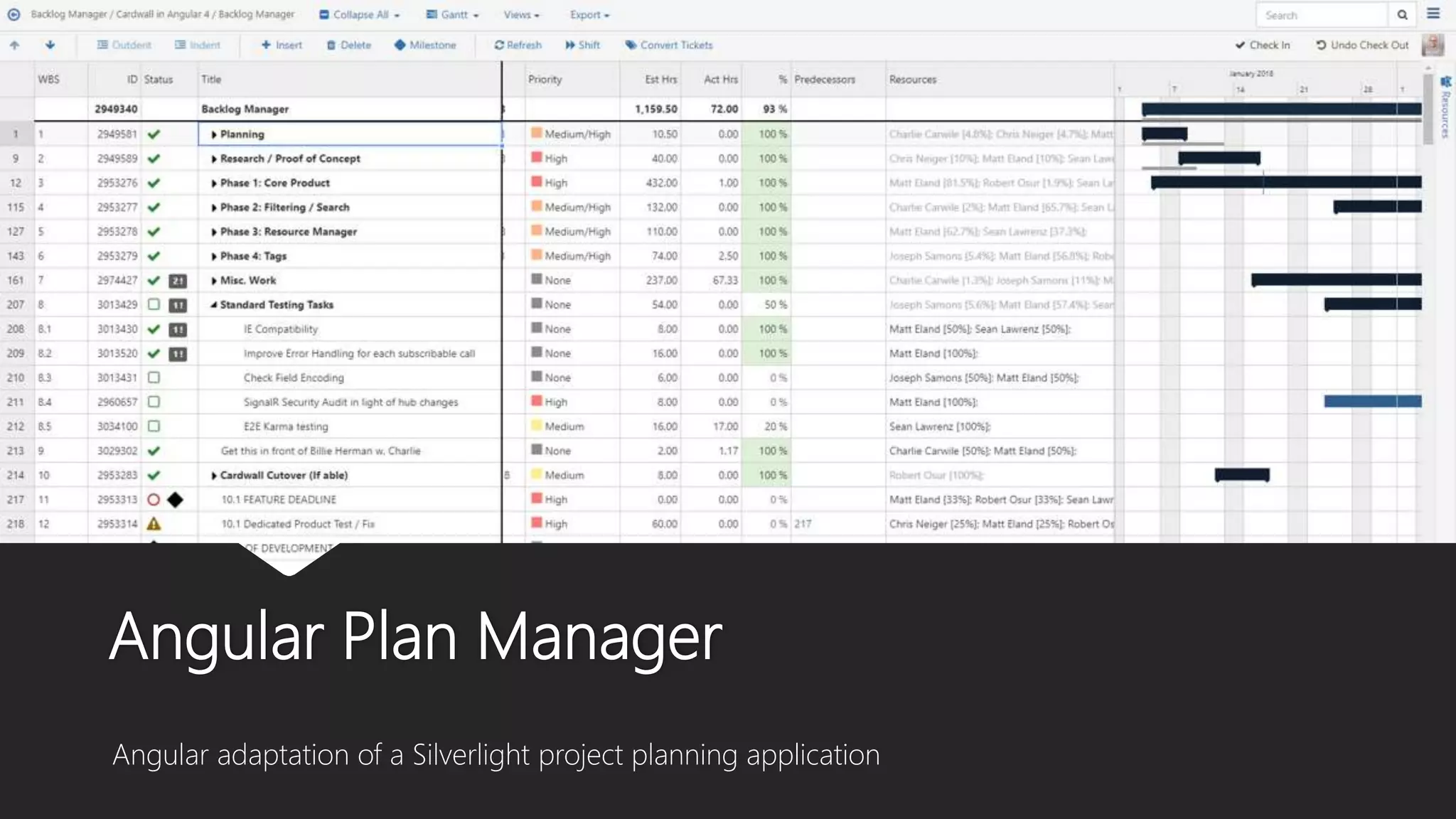

9. Angular Plan Manager
Angular adaptation of a Silverlight project planning application

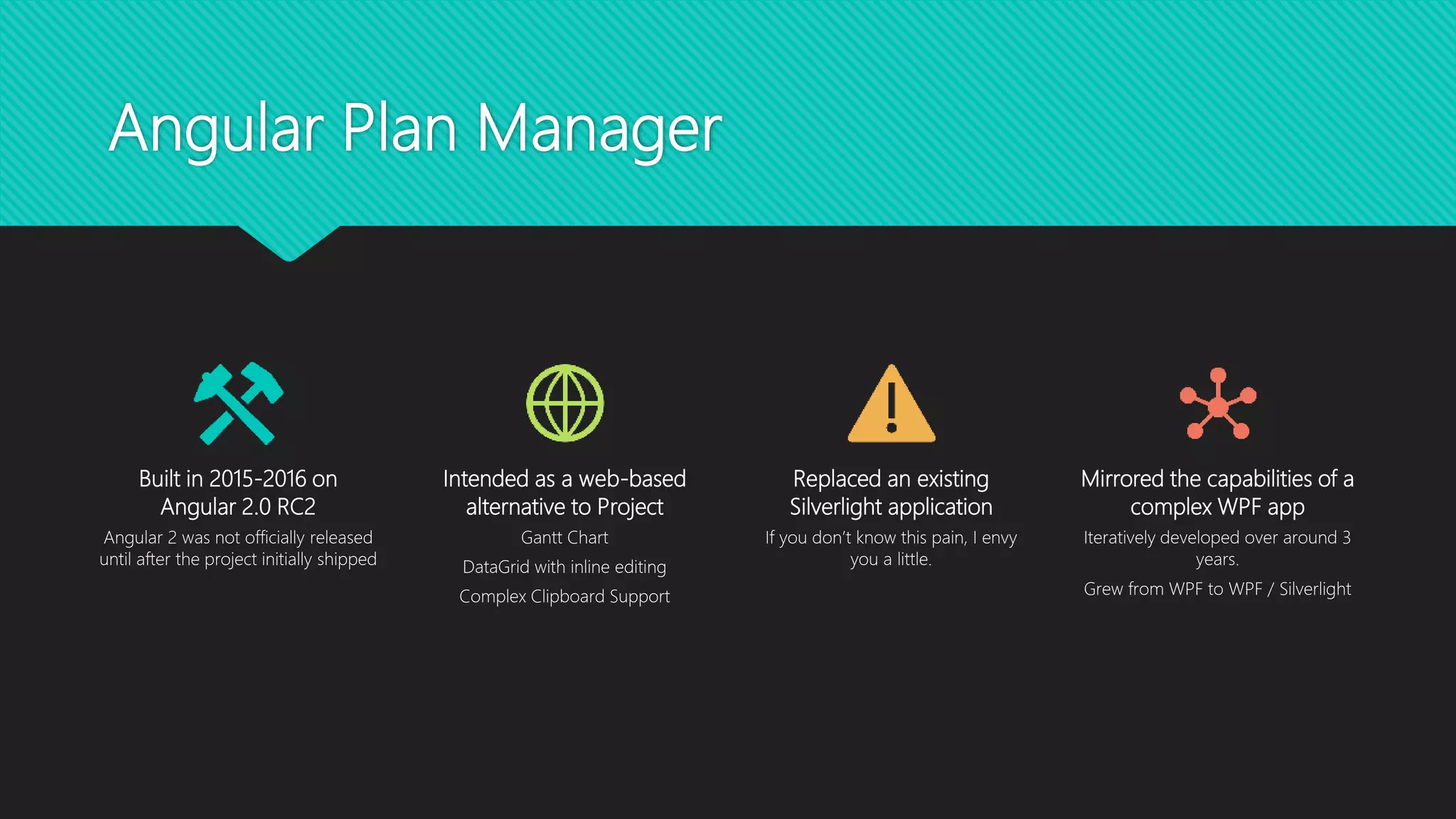

10. Angular Plan Manager
Built in 2015-2016 on
Angular 2.0 RC2
Angular 2 was not officially released
until after the project initially shipped
Intended as a web-based
alternative to Project
Gantt Chart
DataGrid with inline editing
Complex Clipboard Support
Replaced an existing
Silverlight application
If you don’t know this pain, I envy
you a little.
Mirrored the capabilities of a
complex WPF app
Iteratively developed over around 3
years.
Grew from WPF to WPF / Silverlight

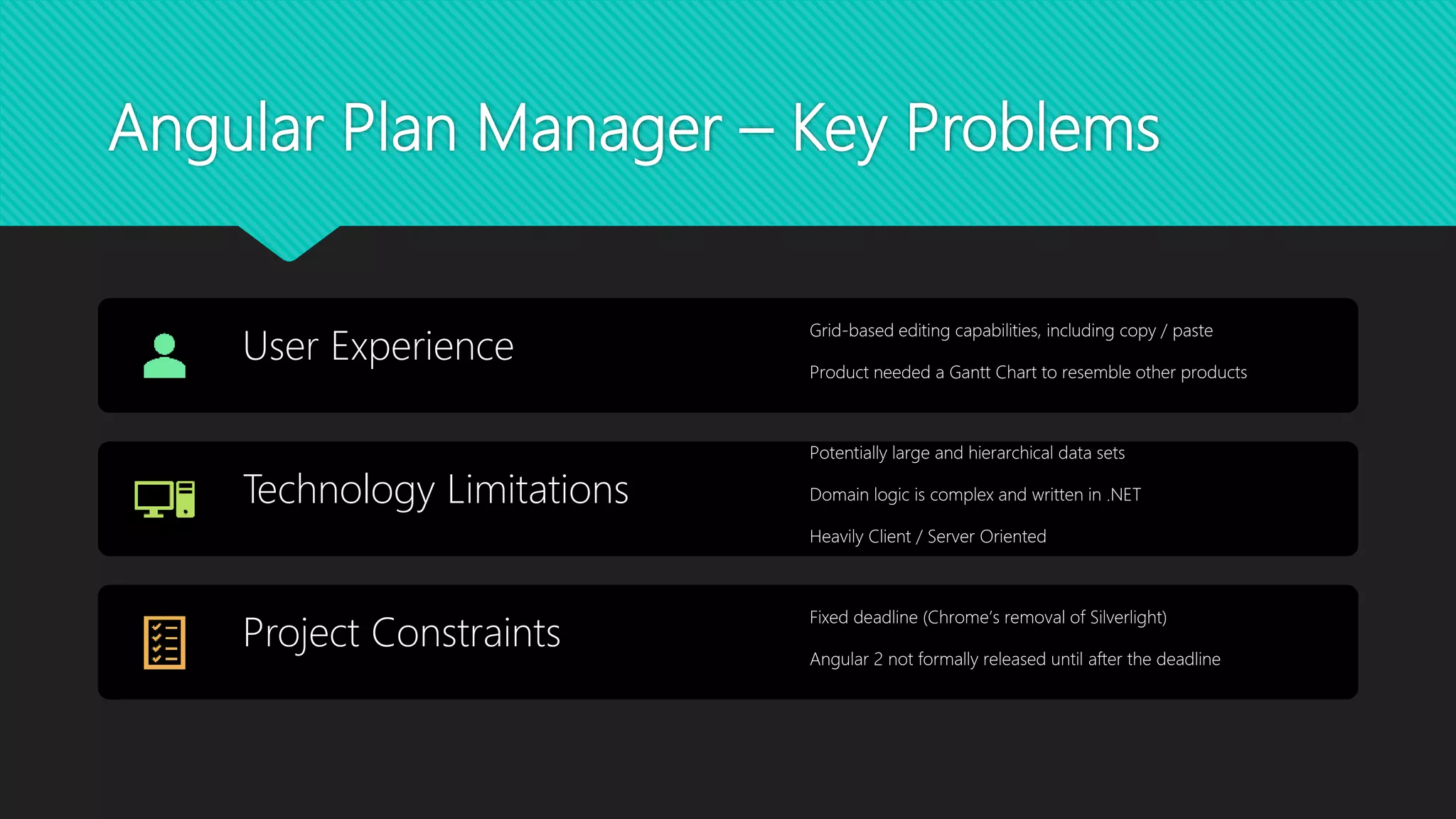

11. Angular Plan Manager – Key Problems
User Experience
Grid-based editing capabilities, including copy / paste
Product needed a Gantt Chart to resemble other products
Technology Limitations
Potentially large and hierarchical data sets
Domain logic is complex and written in .NET
Heavily Client / Server Oriented
Project Constraints
Fixed deadline (Chrome’s removal of Silverlight)
Angular 2 not formally released until after the deadline

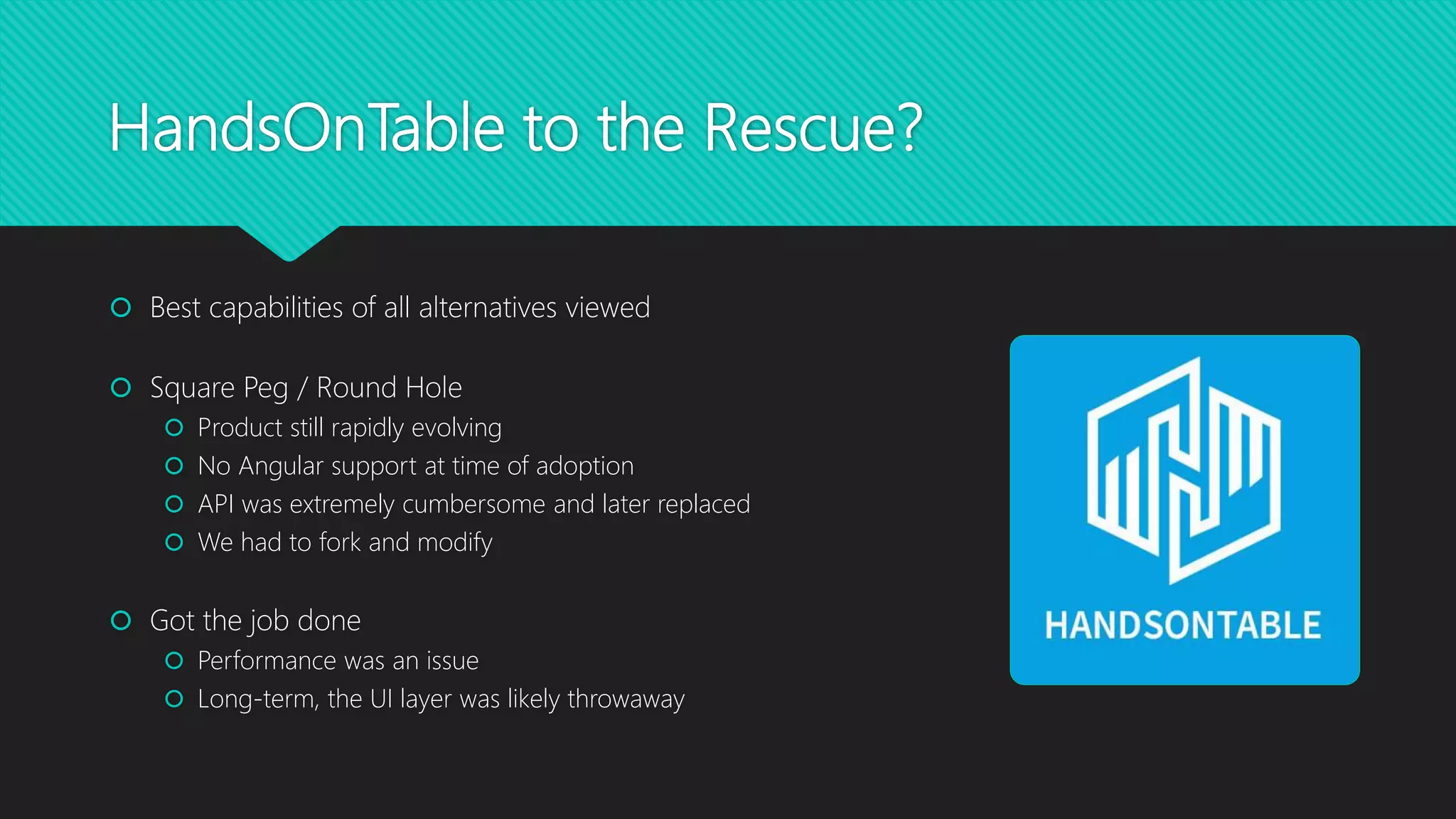

12. HandsOnTable to the Rescue?
 Best capabilities of all alternatives viewed
 Square Peg / Round Hole
 Product still rapidly evolving
 No Angular support at time of adoption
 API was extremely cumbersome and later replaced
 We had to fork and modify
 Got the job done
 Performance was an issue
 Long-term, the UI layer was likely throwaway

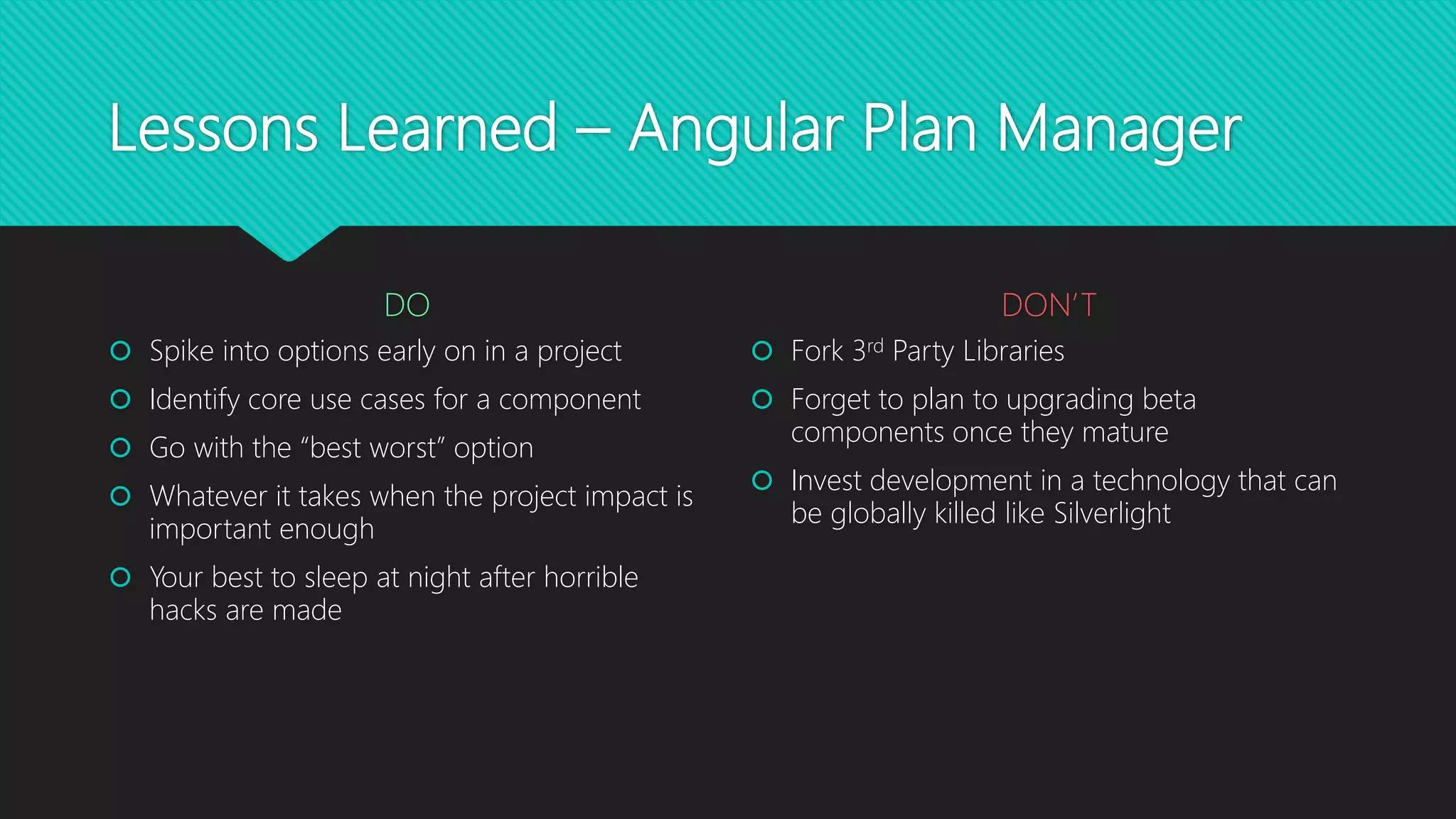

13. Lessons Learned – Angular Plan Manager
DO
 Spike into options early on in a project
 Identify core use cases for a component
 Go with the “best worst” option
 Whatever it takes when the project impact is
important enough
 Your best to sleep at night after horrible
hacks are made
DON’T
 Fork 3rd Party Libraries
 Forget to plan to upgrading beta
components once they mature
 Invest development in a technology that can
be globally killed like Silverlight

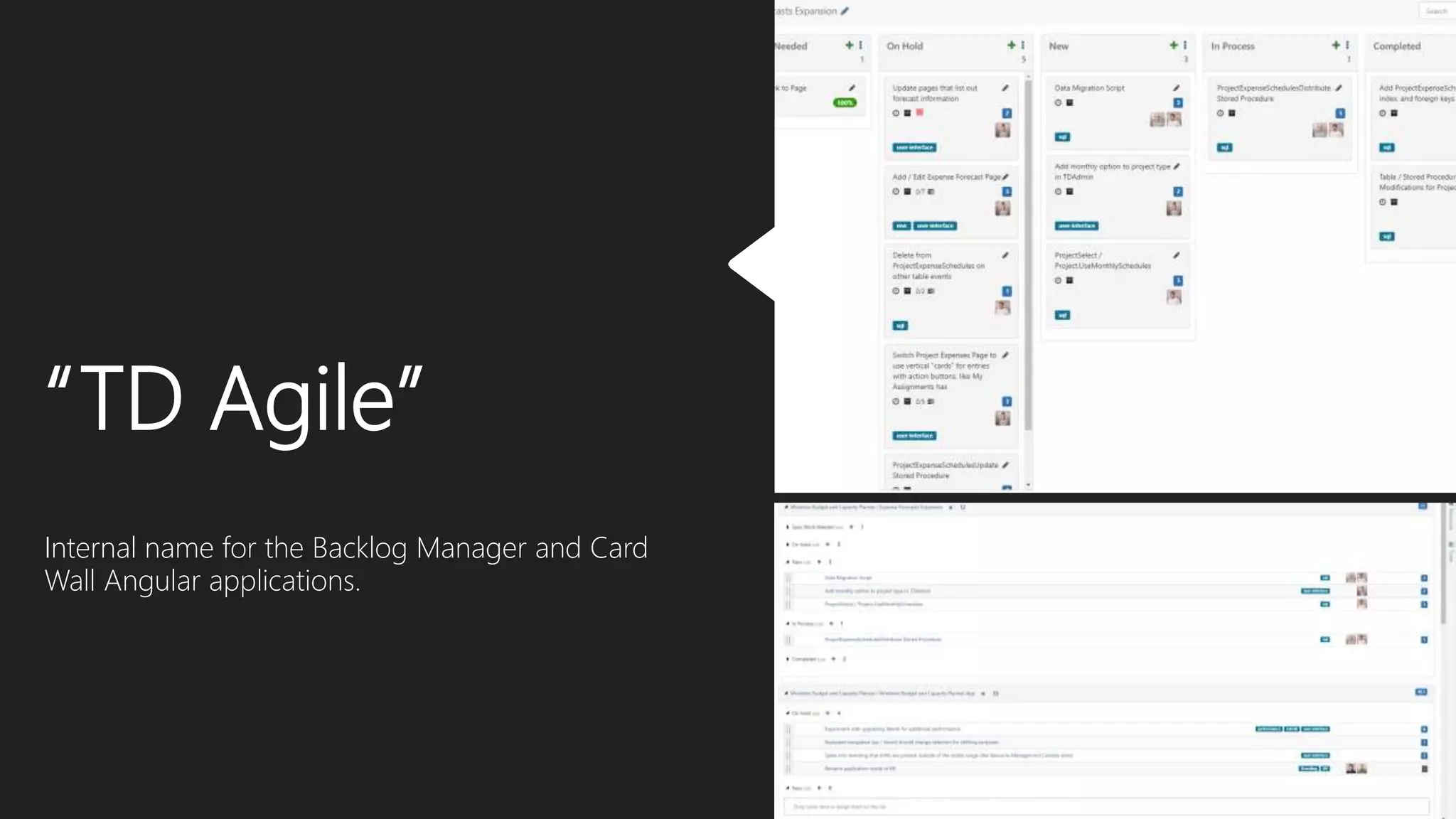

14. “TD Agile”
Internal name for the Backlog Manager and Card
Wall Angular applications.

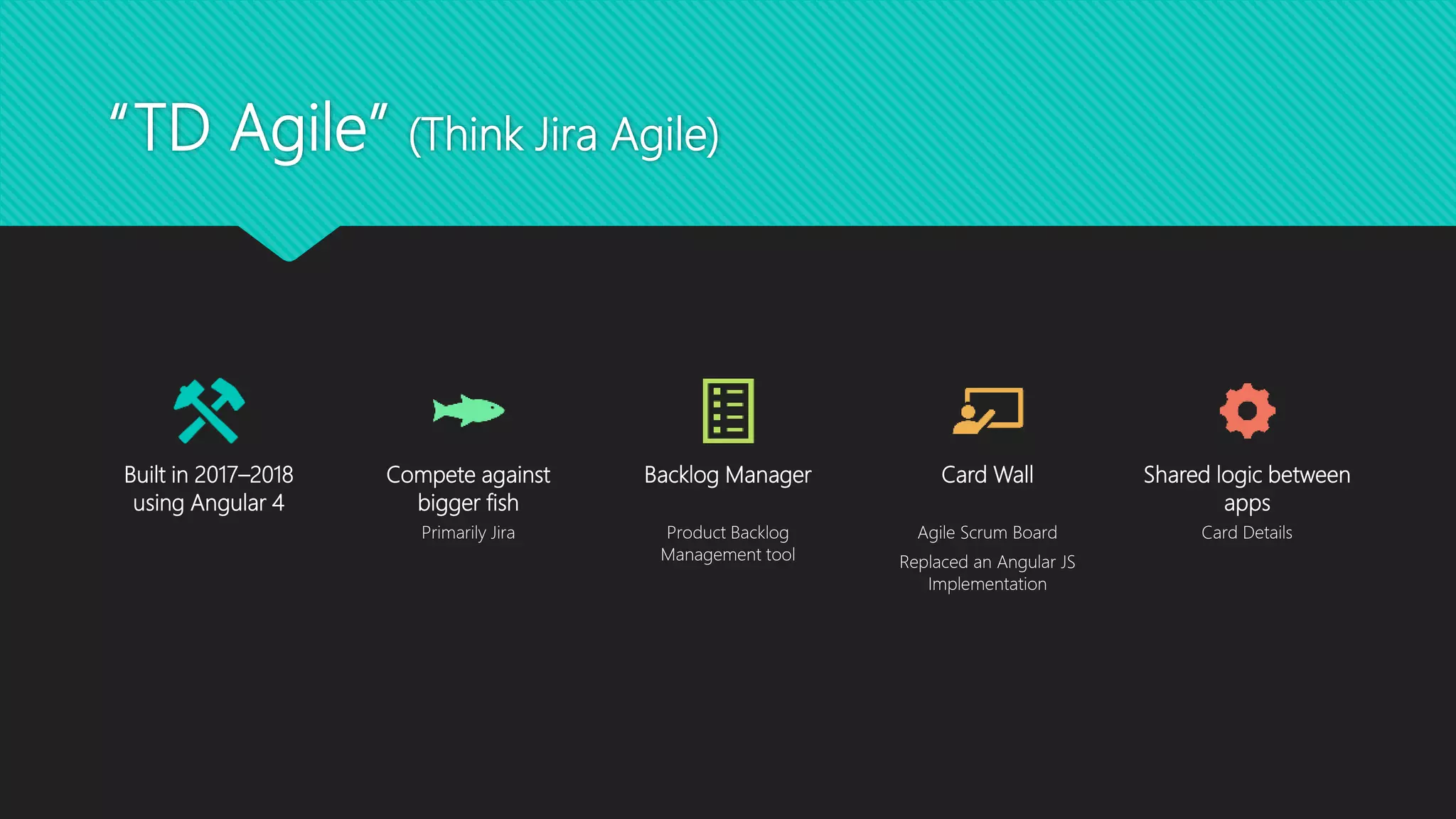

15. “TD Agile” (Think Jira Agile)
Built in 2017–2018
using Angular 4
Compete against
bigger fish
Primarily Jira
Backlog Manager
Product Backlog
Management tool
Card Wall
Agile Scrum Board
Replaced an Angular JS
Implementation
Shared logic between
apps
Card Details

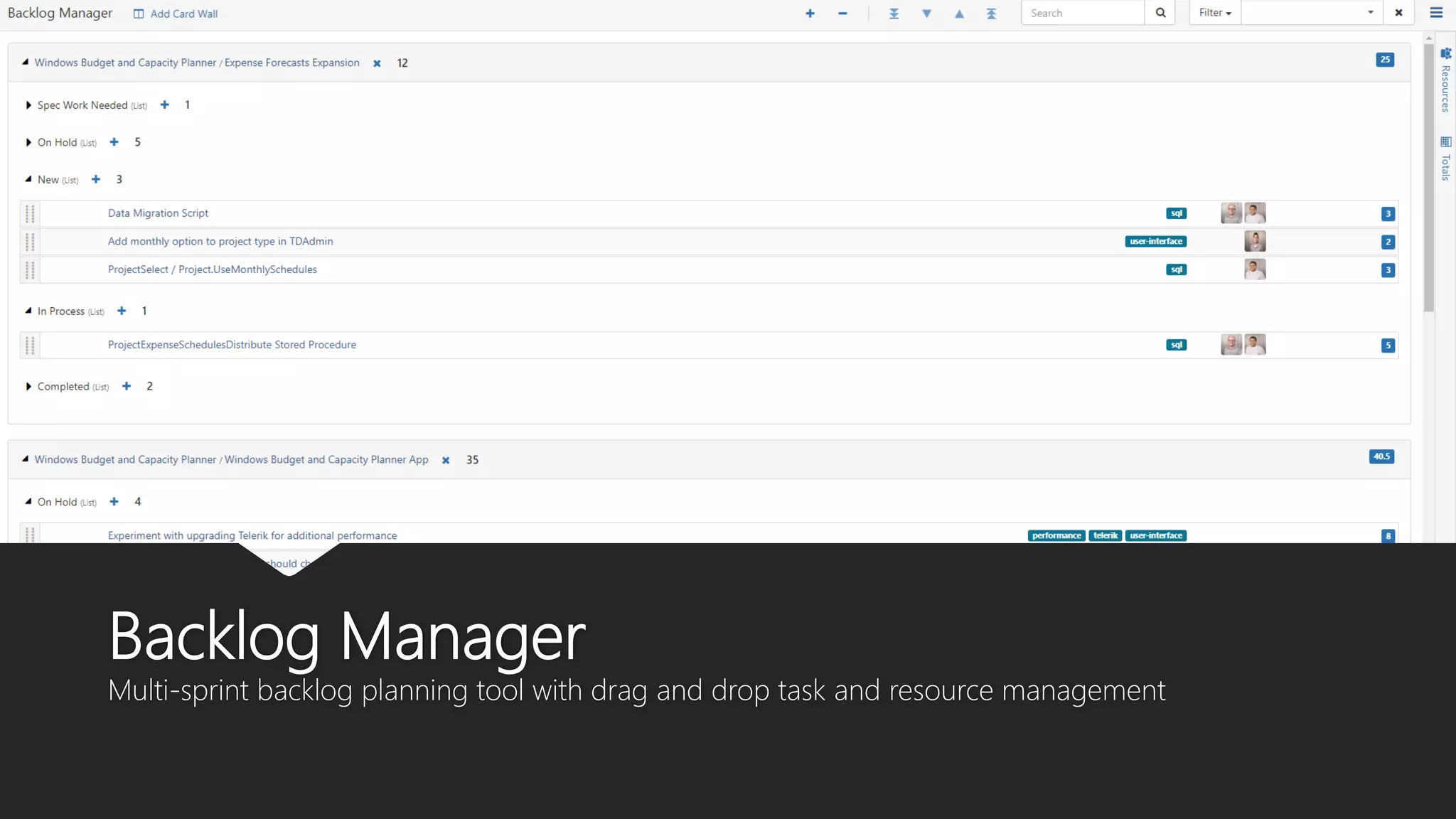

16. Backlog Manager
Multi-sprint backlog planning tool with drag and drop task and resource management

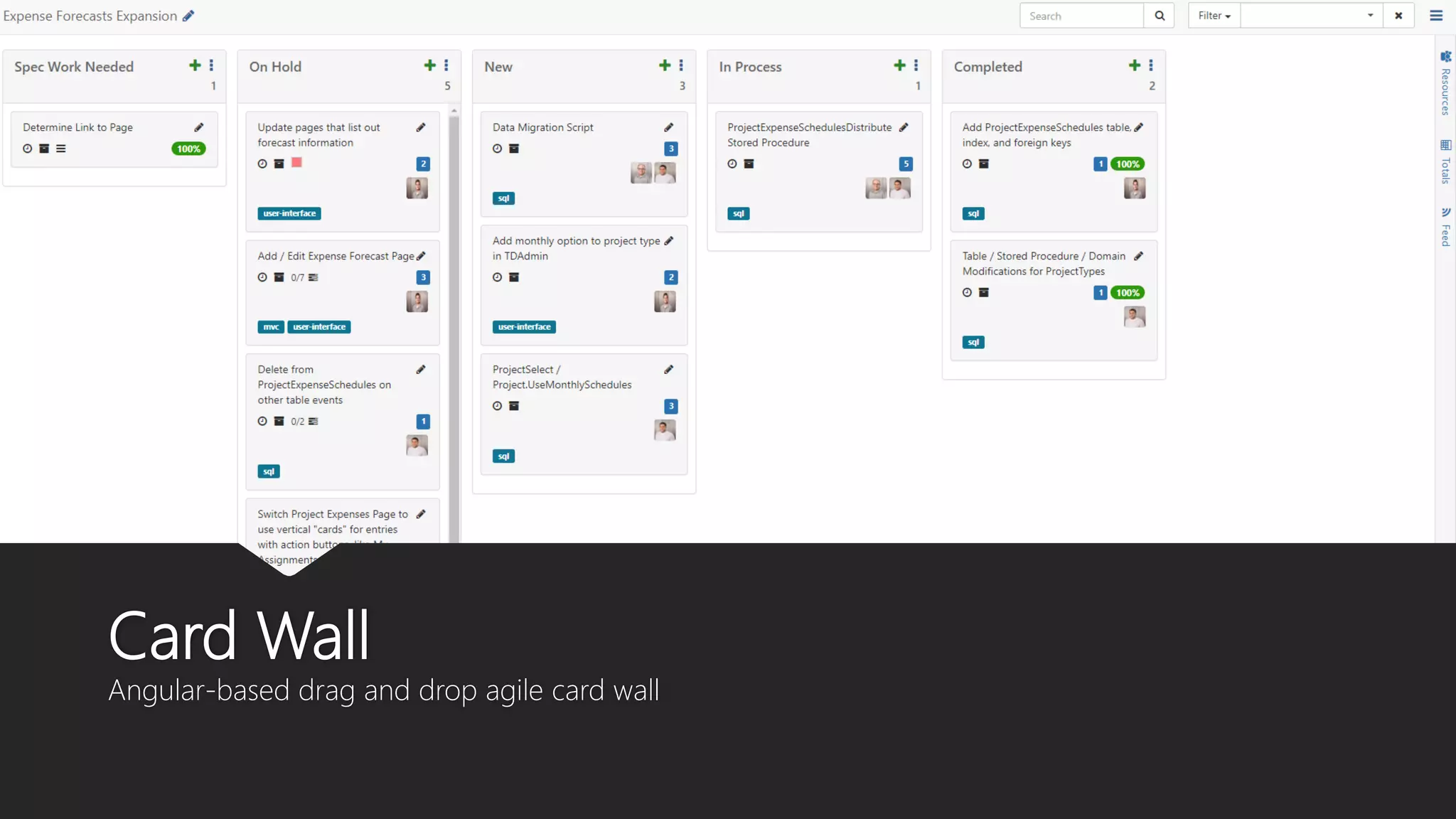

17. Card Wall
Angular-based drag and drop agile card wall

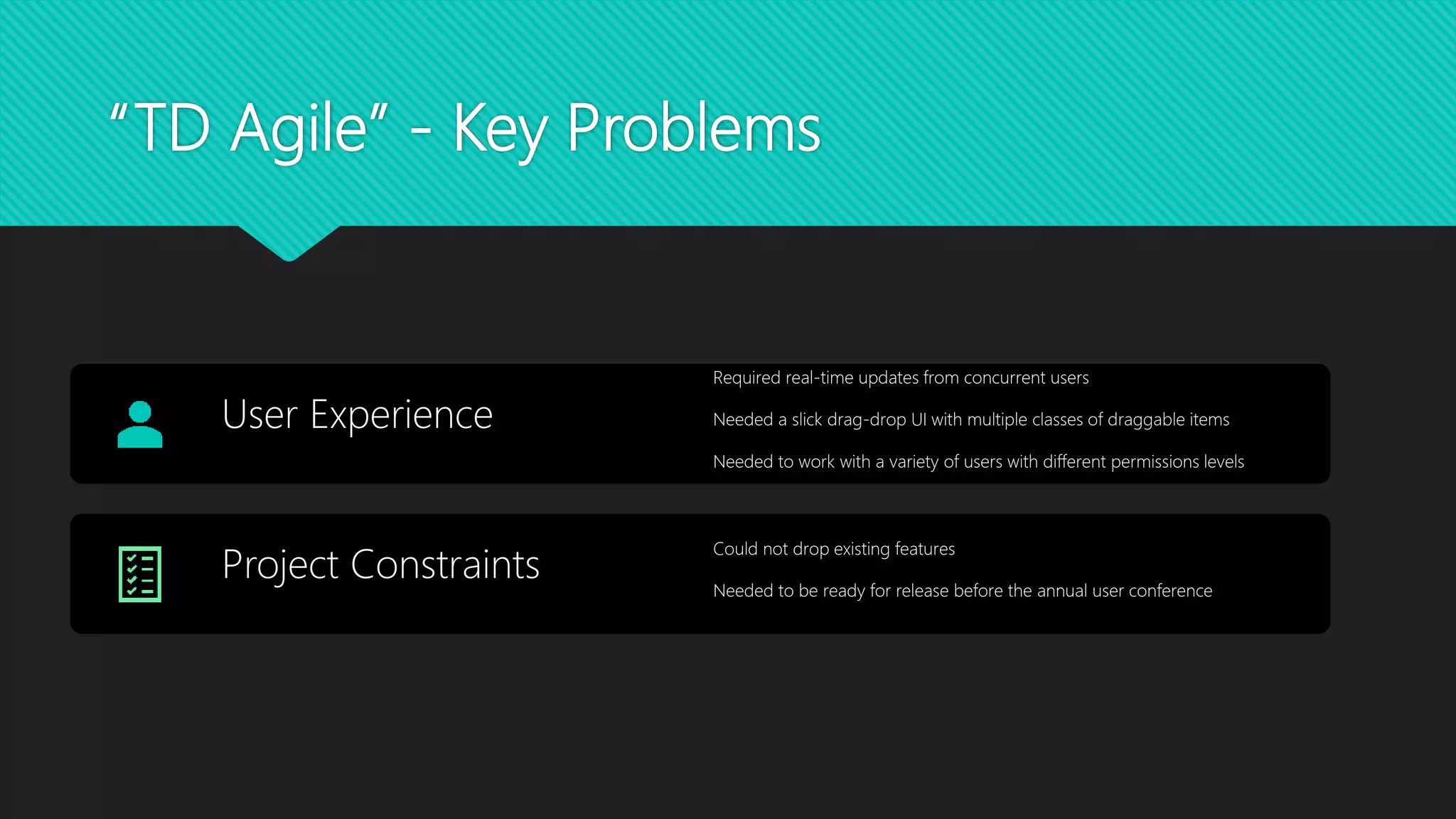

18. “TD Agile” - Key Problems
User Experience
Required real-time updates from concurrent users
Needed a slick drag-drop UI with multiple classes of draggable items
Needed to work with a variety of users with different permissions levels
Project Constraints
Could not drop existing features
Needed to be ready for release before the annual user conference

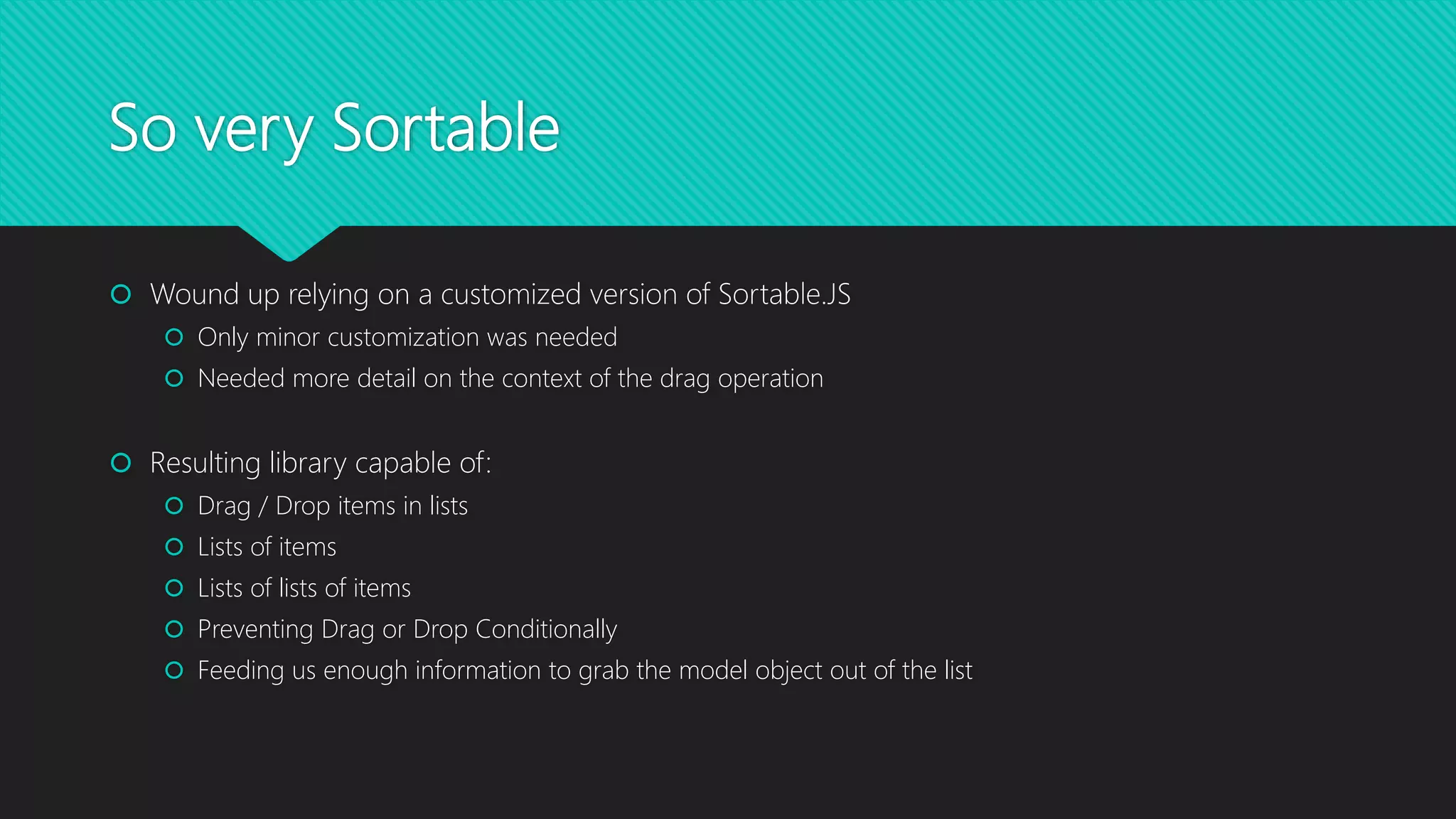

19. So very Sortable
 Wound up relying on a customized version of Sortable.JS
 Only minor customization was needed
 Needed more detail on the context of the drag operation
 Resulting library capable of:
 Drag / Drop items in lists
 Lists of items
 Lists of lists of items
 Preventing Drag or Drop Conditionally
 Feeding us enough information to grab the model object out of the list

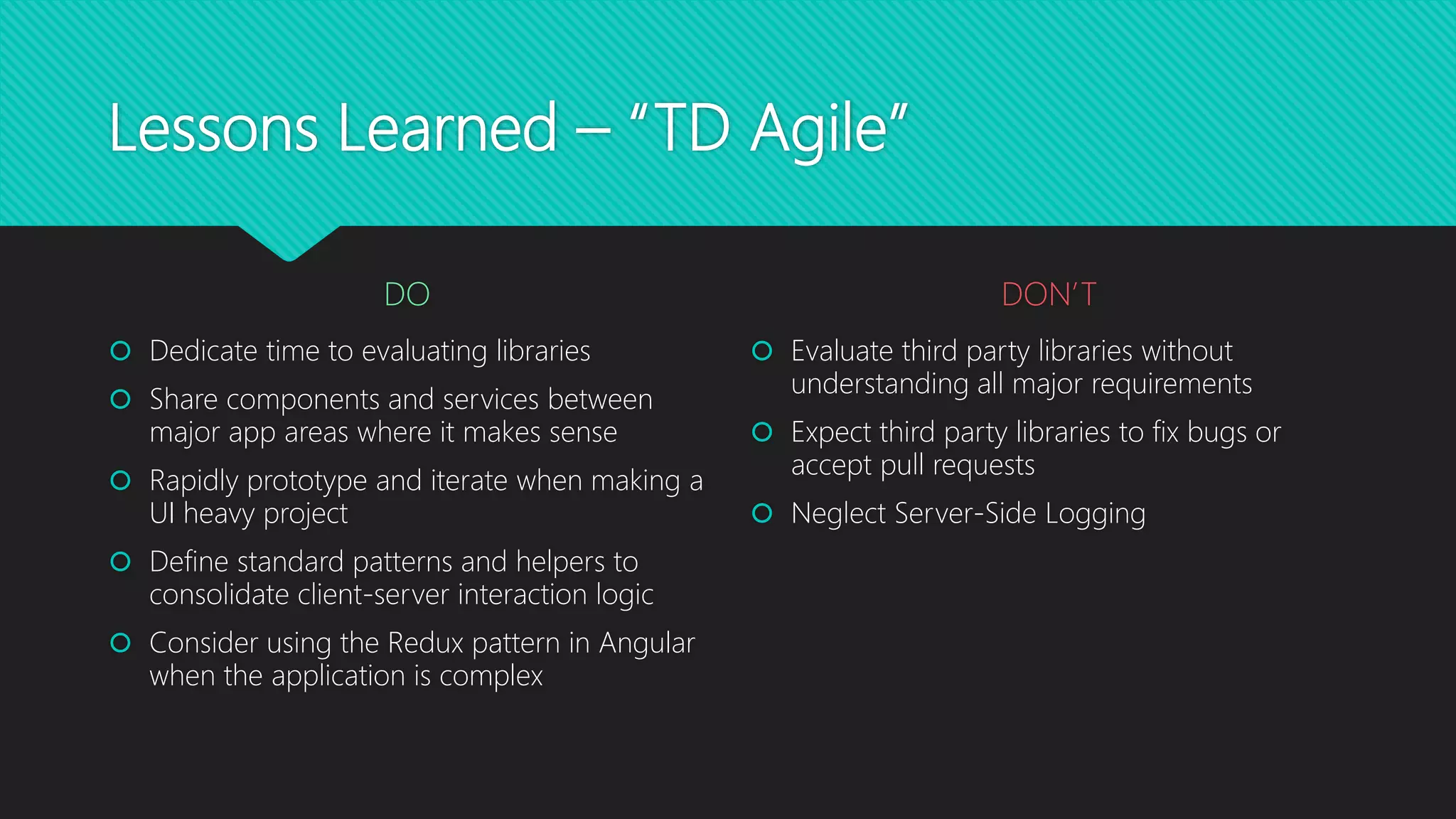

20. Lessons Learned – “TD Agile”
DO
 Dedicate time to evaluating libraries
 Share components and services between
major app areas where it makes sense
 Rapidly prototype and iterate when making a
UI heavy project
 Define standard patterns and helpers to
consolidate client-server interaction logic
 Consider using the Redux pattern in Angular
when the application is complex
DON’T
 Evaluate third party libraries without
understanding all major requirements
 Expect third party libraries to fix bugs or
accept pull requests
 Neglect Server-Side Logging

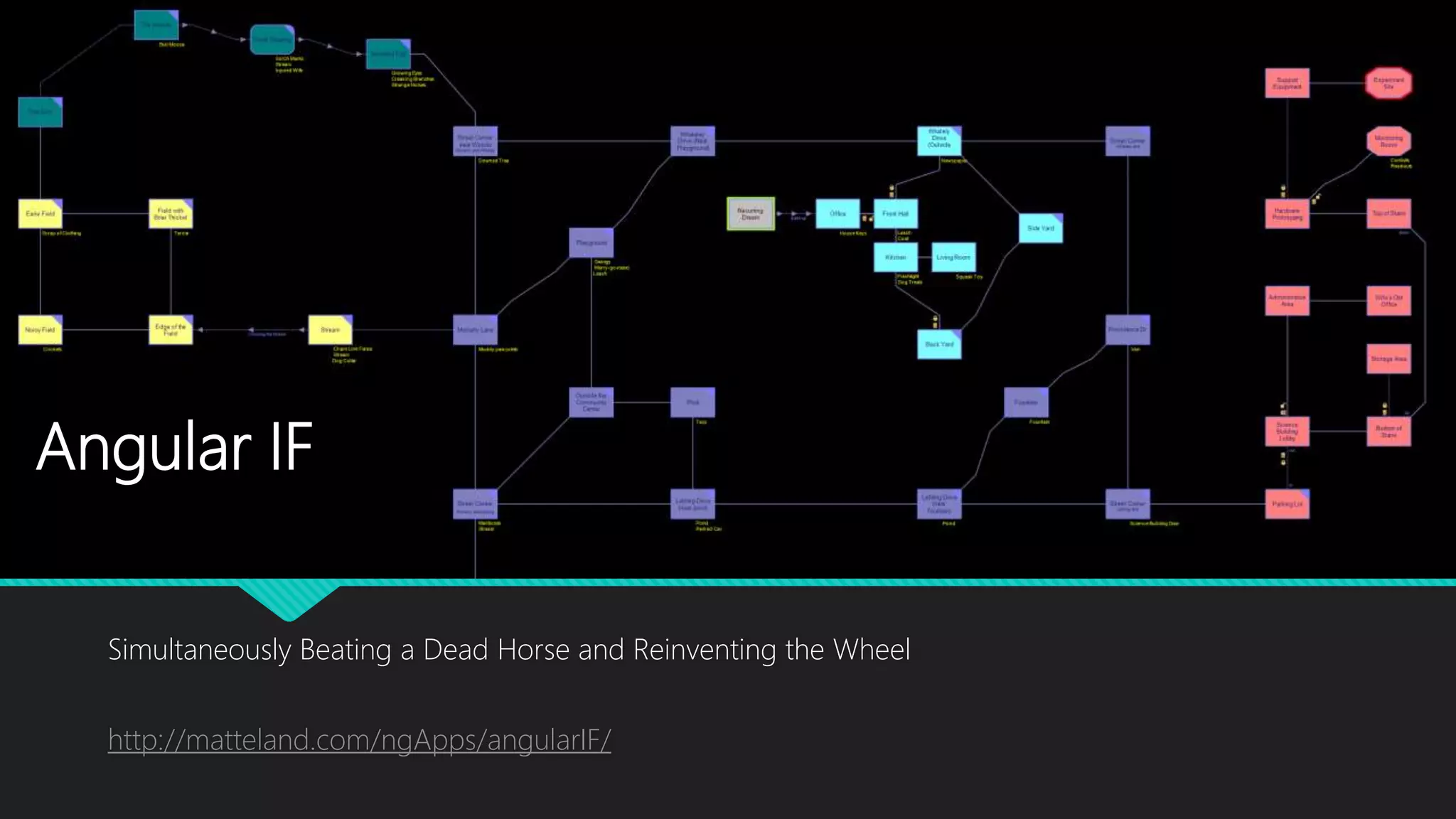

21. Angular IF
Simultaneously Beating a Dead Horse and Reinventing the Wheel
http://matteland.com/ngApps/angularIF/

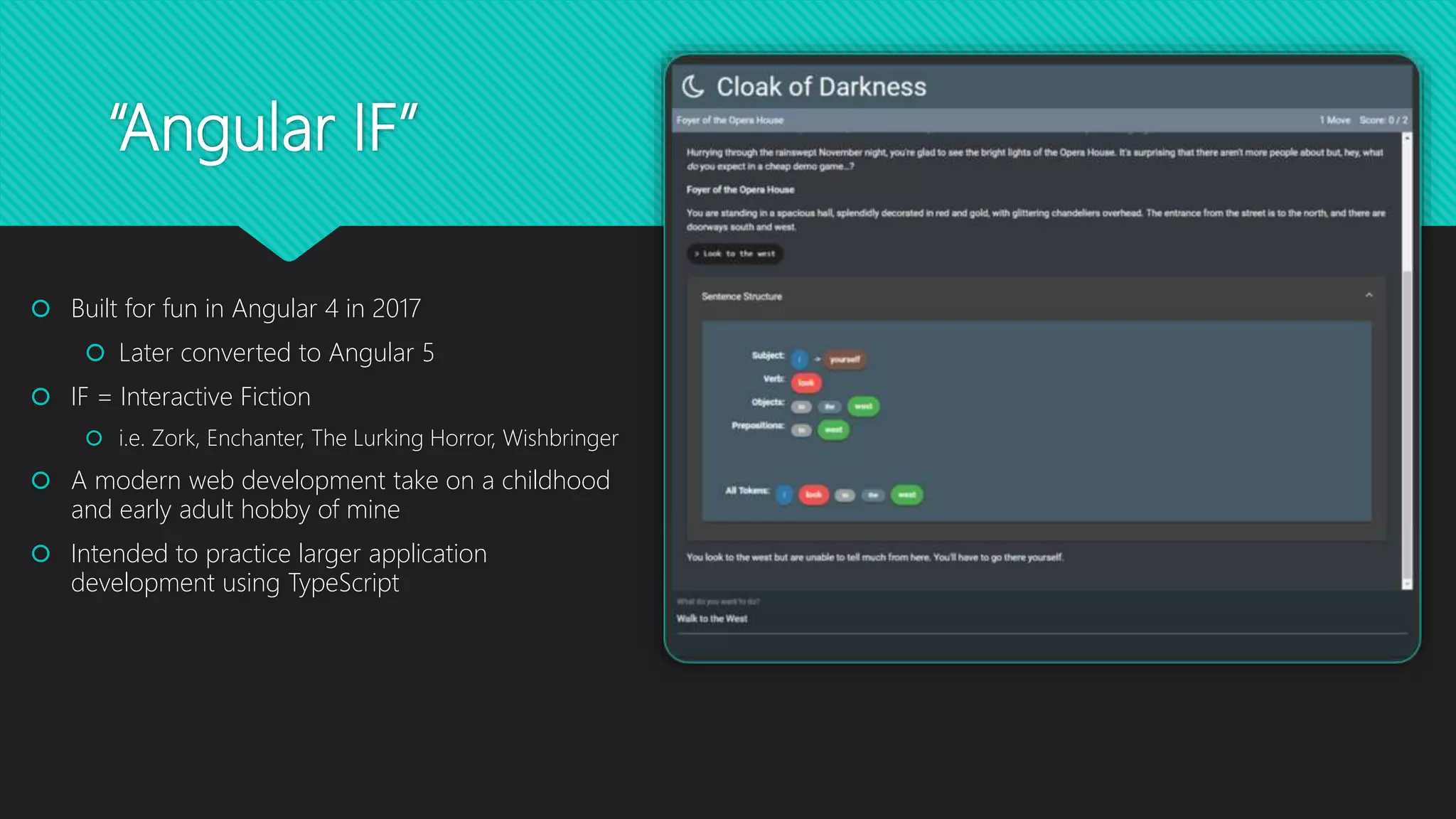

22. “Angular IF”
 Built for fun in Angular 4 in 2017
 Later converted to Angular 5
 IF = Interactive Fiction
 i.e. Zork, Enchanter, The Lurking Horror, Wishbringer
 A modern web development take on a childhood
and early adult hobby of mine
 Intended to practice larger application
development using TypeScript

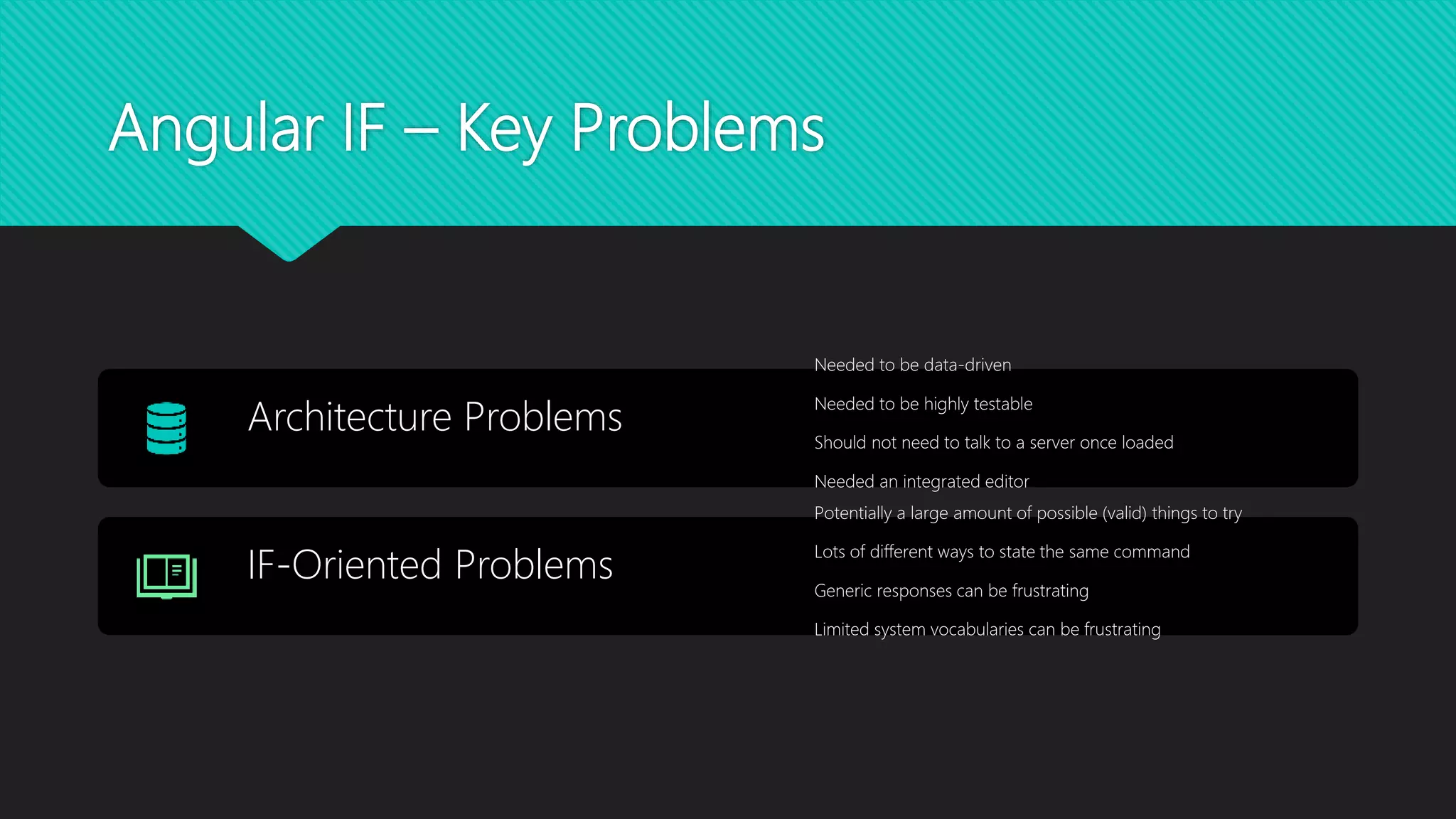

23. Angular IF – Key Problems
Architecture Problems
Needed to be data-driven
Needed to be highly testable
Should not need to talk to a server once loaded
Needed an integrated editor
IF-Oriented Problems
Potentially a large amount of possible (valid) things to try
Lots of different ways to state the same command
Generic responses can be frustrating
Limited system vocabularies can be frustrating

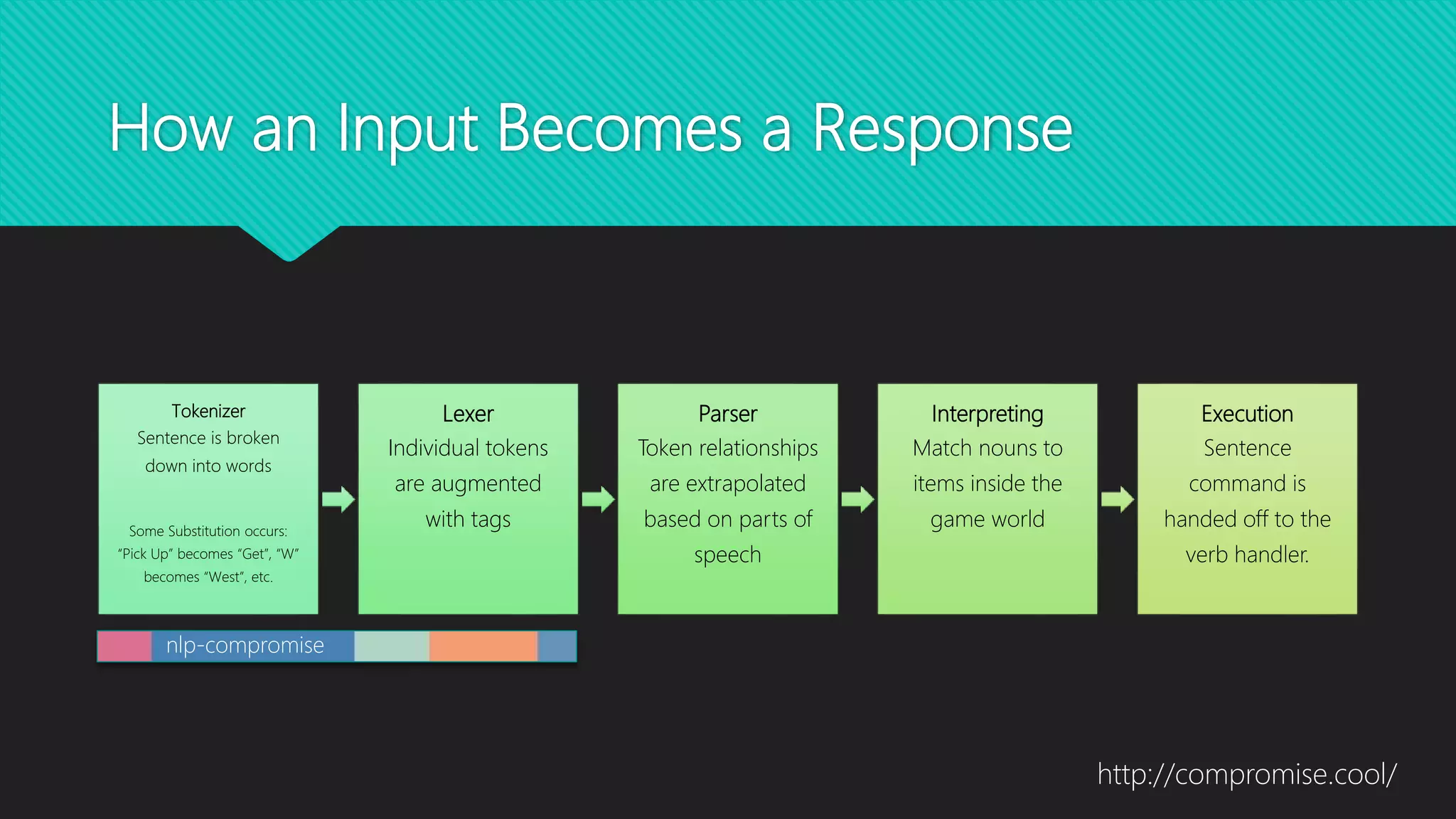

24. How an Input Becomes a Response
Tokenizer
Sentence is broken
down into words
Some Substitution occurs:
“Pick Up” becomes “Get”, “W”
becomes “West”, etc.
Lexer
Individual tokens
are augmented
with tags
Parser
Token relationships
are extrapolated
based on parts of
speech
Interpreting
Match nouns to
items inside the
game world
Execution
Sentence
command is
handed off to the
verb handler.
nlp-compromise
http://compromise.cool/

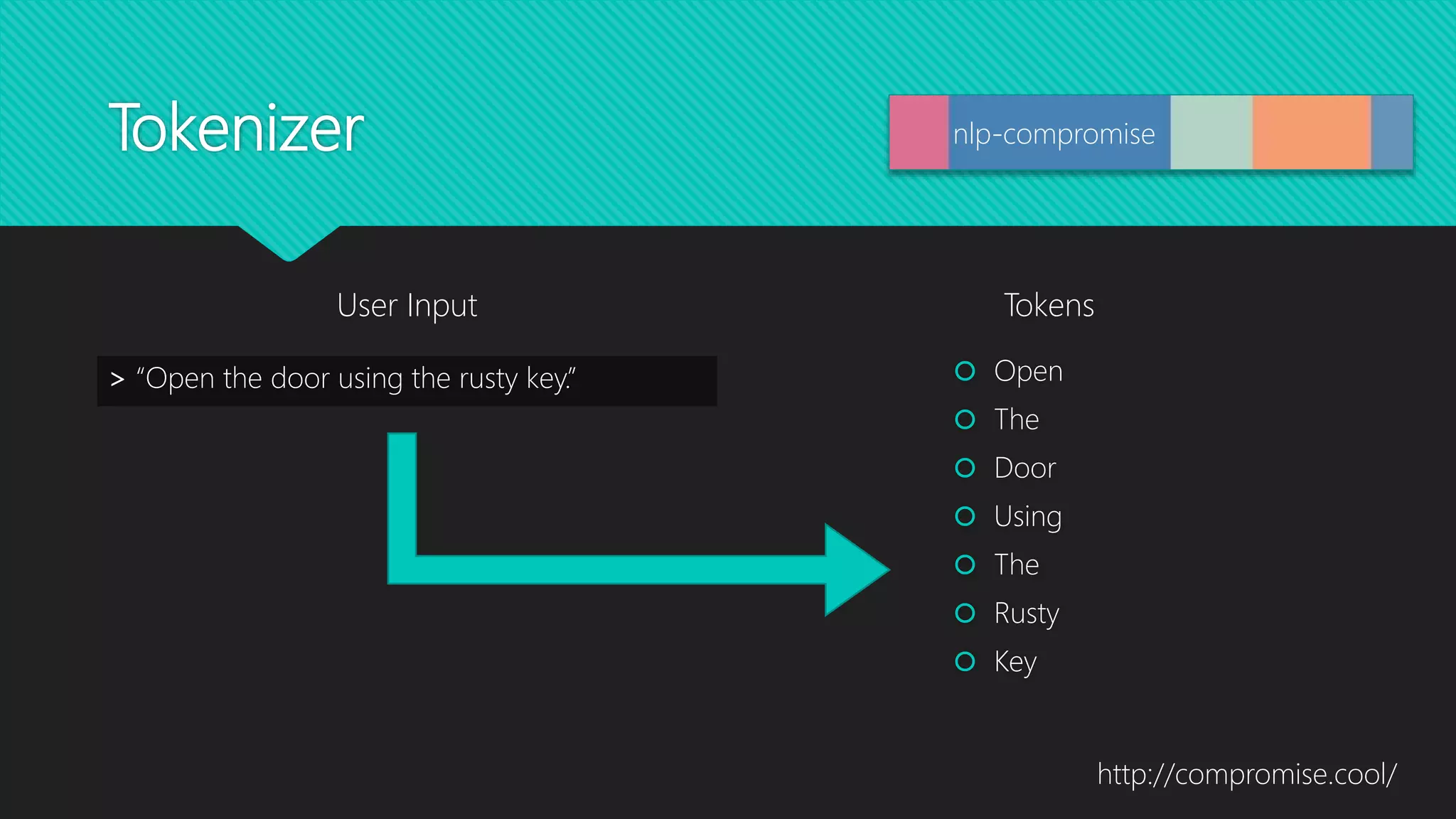

25. Tokenizer
User Input
> “Open the door using the rusty key.”
Tokens
 Open
 The
 Door
 Using
 The
 Rusty
 Key
nlp-compromise
http://compromise.cool/

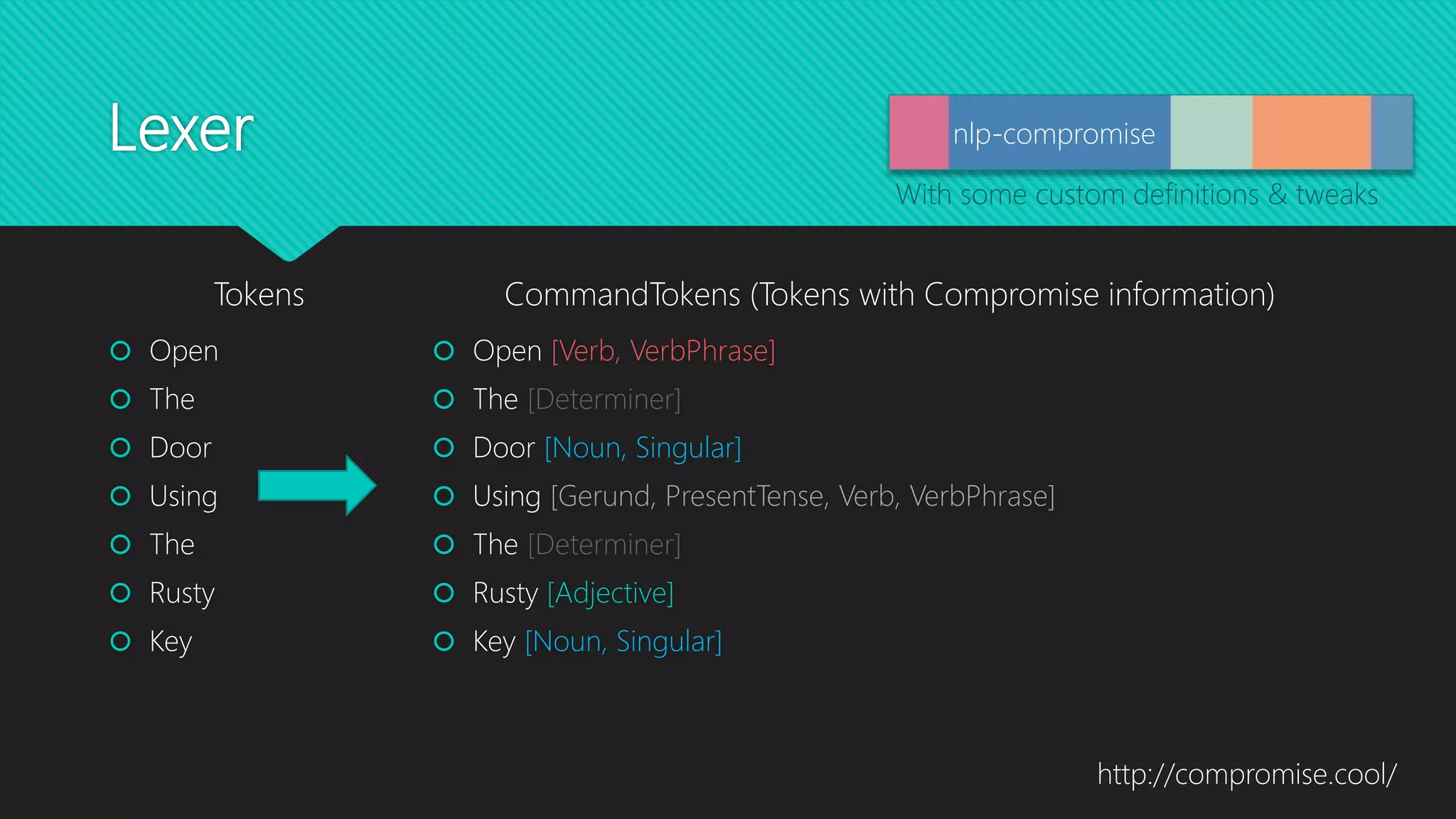

26. Lexer
Tokens
 Open
 The
 Door
 Using
 The
 Rusty
 Key
CommandTokens (Tokens with Compromise information)
 Open [Verb, VerbPhrase]
 The [Determiner]
 Door [Noun, Singular]
 Using [Gerund, PresentTense, Verb, VerbPhrase]
 The [Determiner]
 Rusty [Adjective]
 Key [Noun, Singular]
nlp-compromise
With some custom definitions & tweaks
http://compromise.cool/

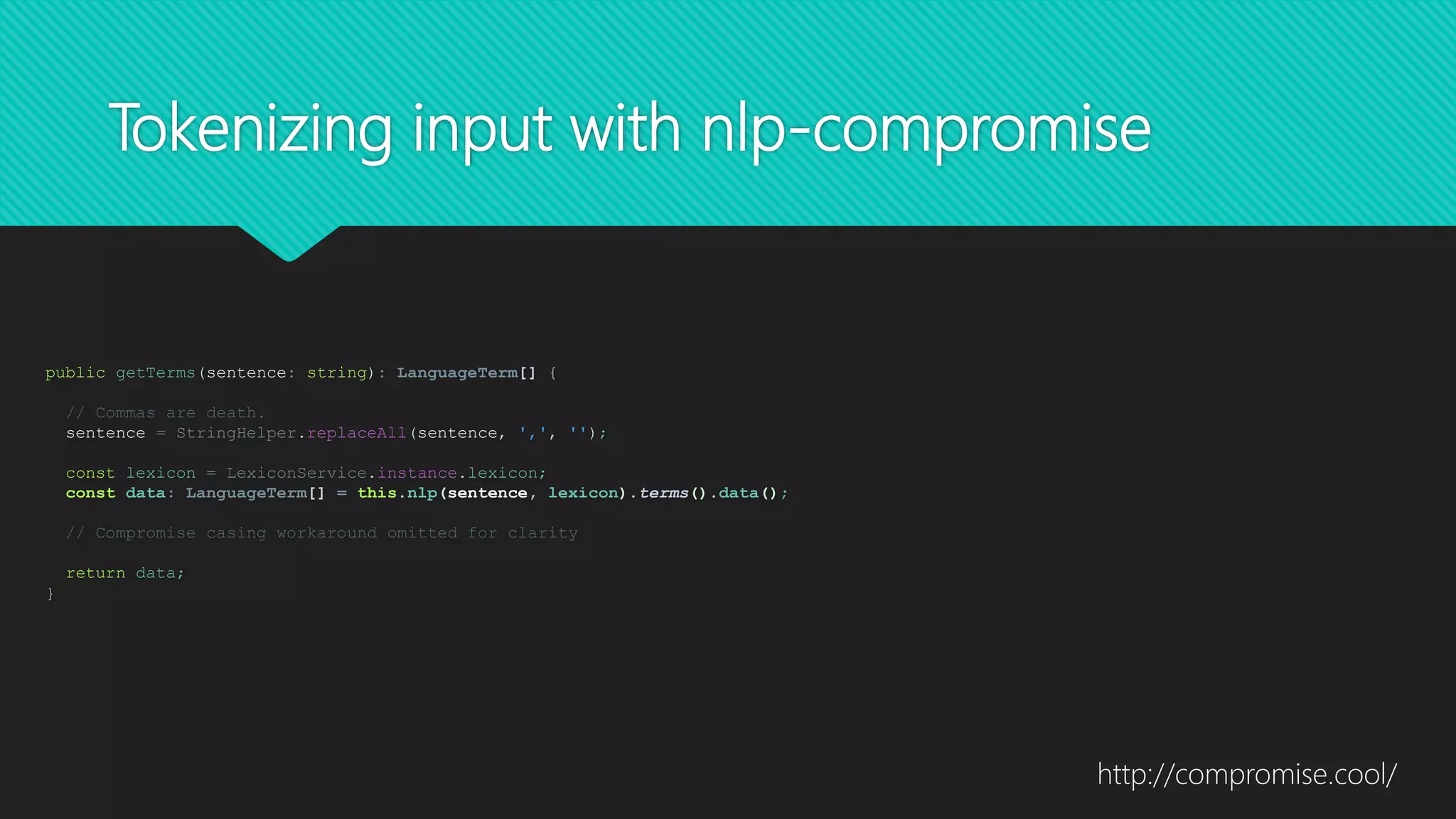

27. Tokenizing input with nlp-compromise
public getTerms(sentence: string): LanguageTerm[] {
// Commas are death.
sentence = StringHelper.replaceAll(sentence, ',', '');
const lexicon = LexiconService.instance.lexicon;
const data: LanguageTerm[] = this.nlp(sentence, lexicon).terms().data();
// Compromise casing workaround omitted for clarity
return data;
}
http://compromise.cool/

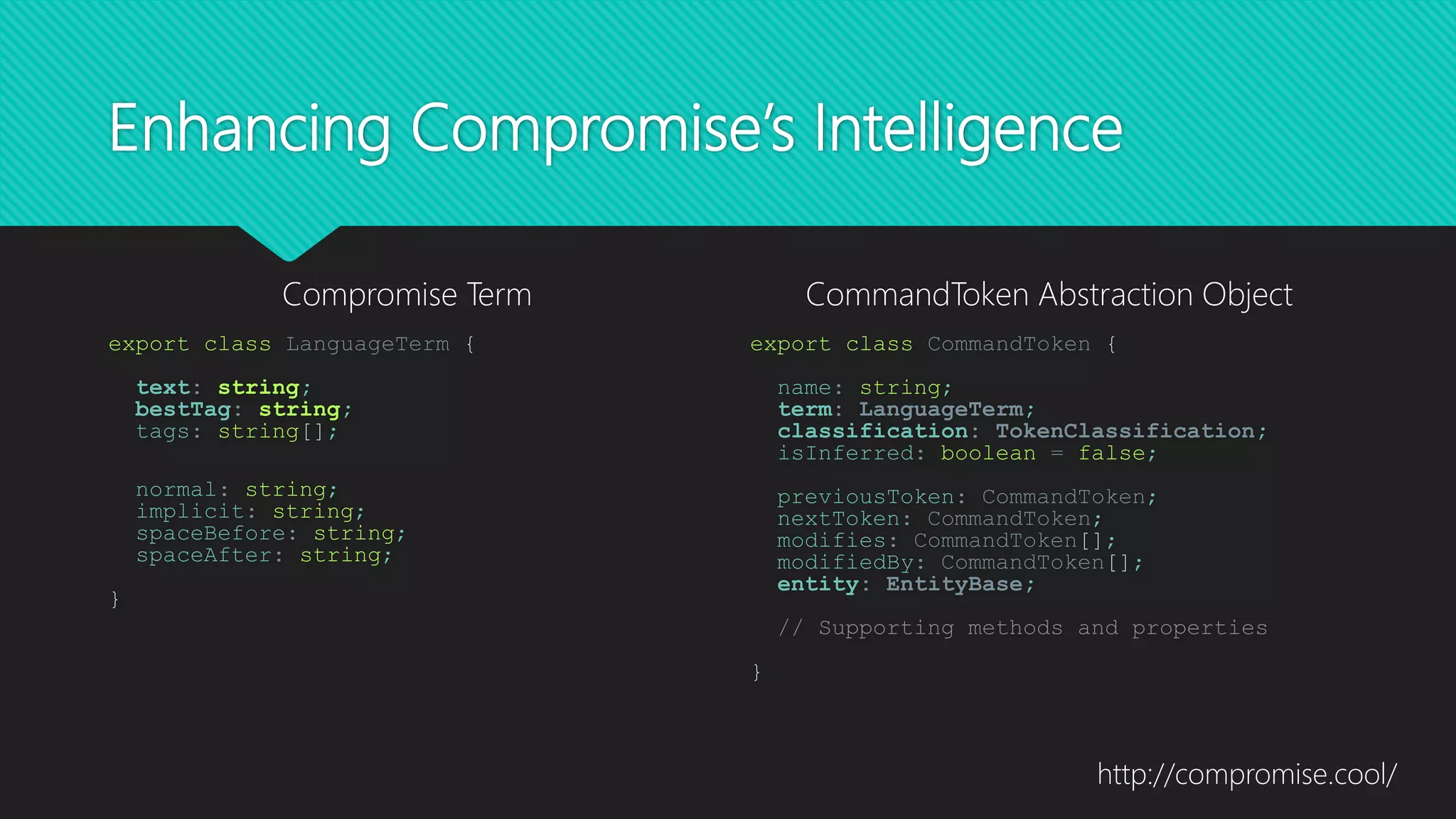

28. Enhancing Compromise’s Intelligence
Compromise Term CommandToken Abstraction Object
export class CommandToken {
name: string;
term: LanguageTerm;
classification: TokenClassification;
isInferred: boolean = false;
previousToken: CommandToken;
nextToken: CommandToken;
modifies: CommandToken[];
modifiedBy: CommandToken[];
entity: EntityBase;
// Supporting methods and properties
}
http://compromise.cool/
export class LanguageTerm {
text: string;
bestTag: string;
tags: string[];
normal: string;
implicit: string;
spaceBefore: string;
spaceAfter: string;
}

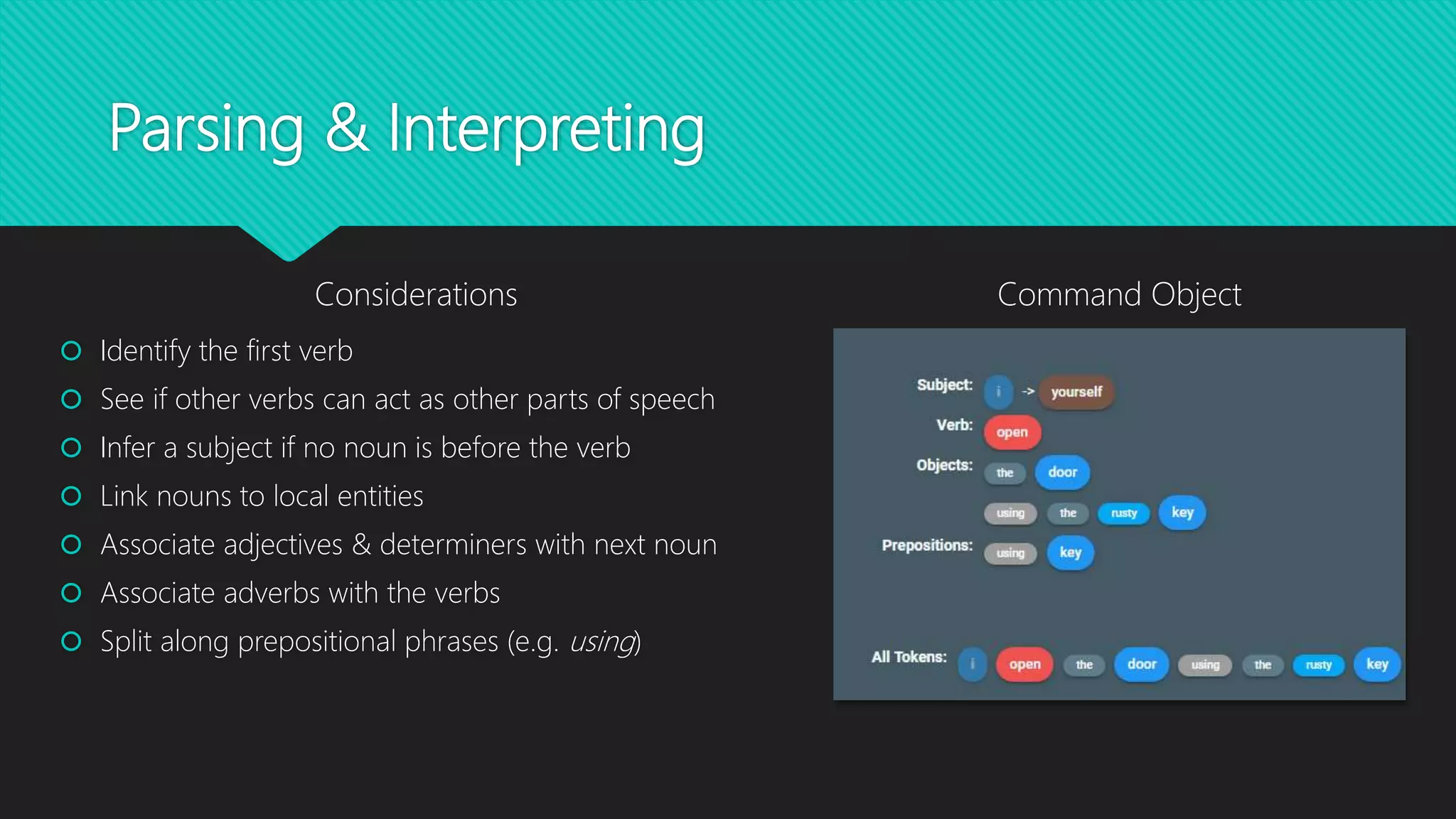

29. Parsing & Interpreting
Considerations
 Identify the first verb
 See if other verbs can act as other parts of speech
 Infer a subject if no noun is before the verb
 Link nouns to local entities
 Associate adjectives & determiners with next noun
 Associate adverbs with the verbs
 Split along prepositional phrases (e.g. using)
Command Object

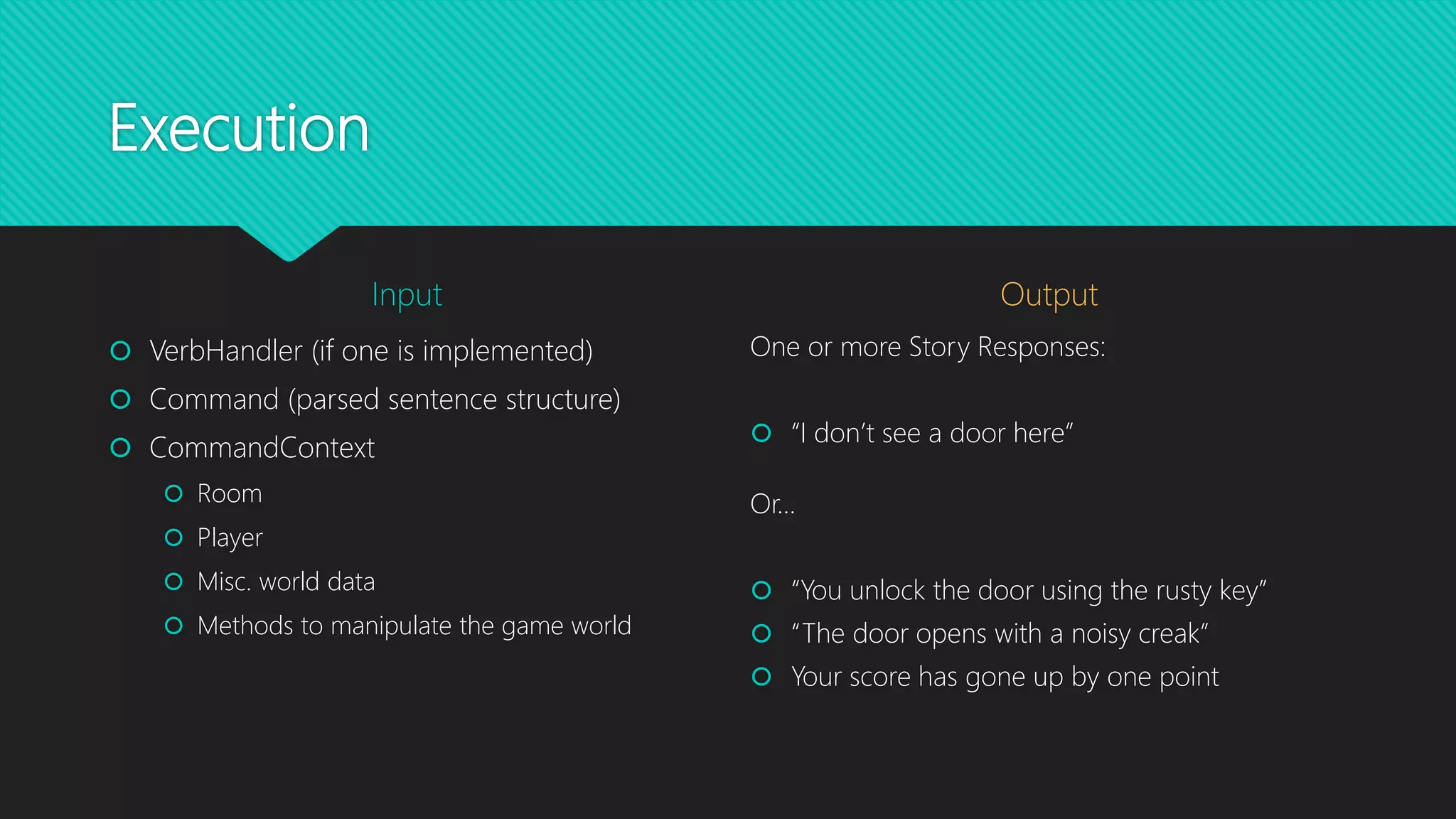

30. Execution
Input
 VerbHandler (if one is implemented)
 Command (parsed sentence structure)
 CommandContext
 Room
 Player
 Misc. world data
 Methods to manipulate the game world
Output
One or more Story Responses:
 “I don’t see a door here”
Or...
 “You unlock the door using the rusty key”
 “The door opens with a noisy creak”
 Your score has gone up by one point

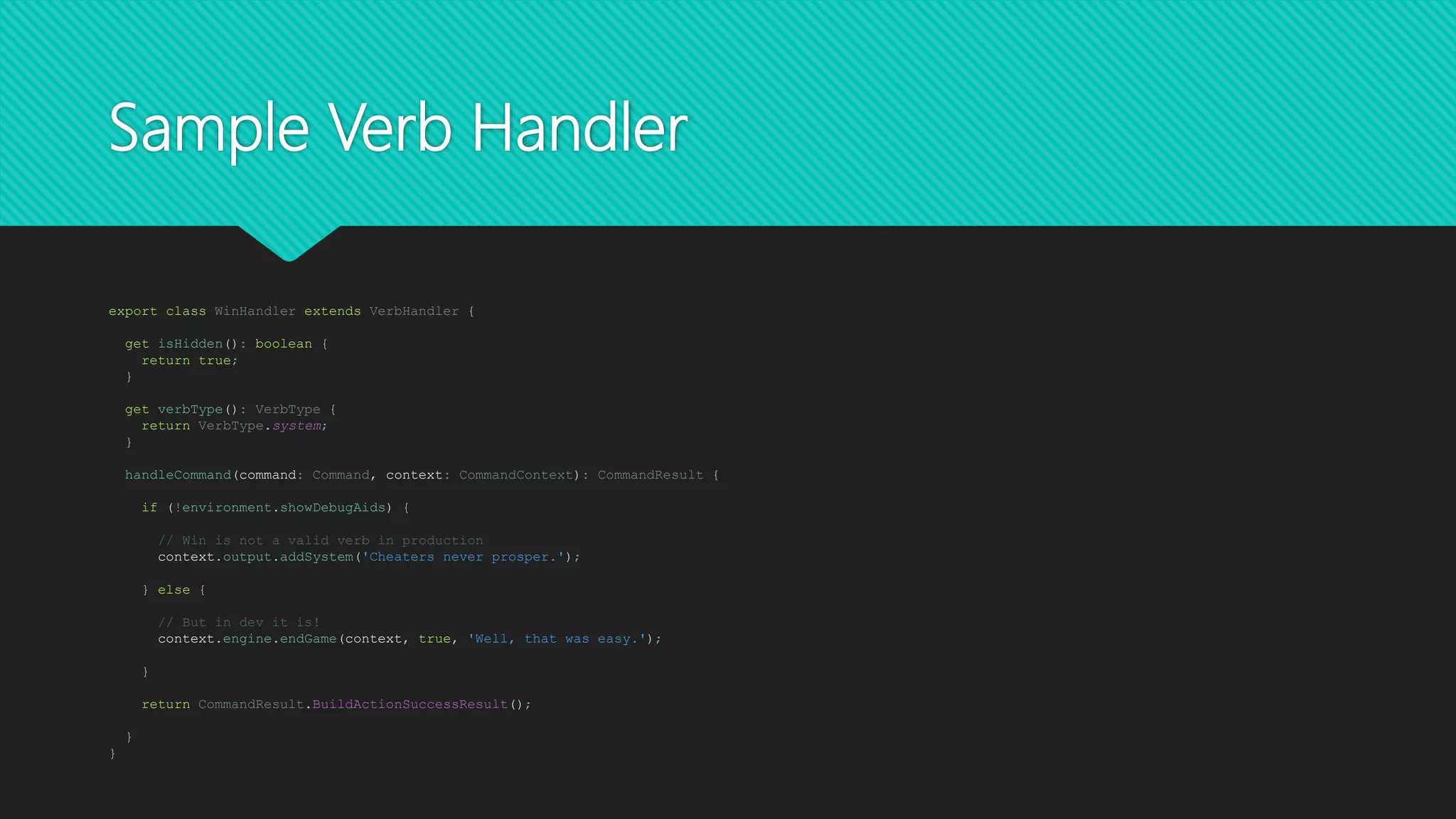

31. Sample Verb Handler
export class WinHandler extends VerbHandler {
get isHidden(): boolean {
return true;
}
get verbType(): VerbType {
return VerbType.system;
}
handleCommand(command: Command, context: CommandContext): CommandResult {
if (!environment.showDebugAids) {
// Win is not a valid verb in production
context.output.addSystem('Cheaters never prosper.');
} else {
// But in dev it is!
context.engine.endGame(context, true, 'Well, that was easy.');
}
return CommandResult.BuildActionSuccessResult();
}
}

32. DEMO: Angular IF
Hello Cloak of Darkness
http://matteland.com/ngApps/angularIF/index.html

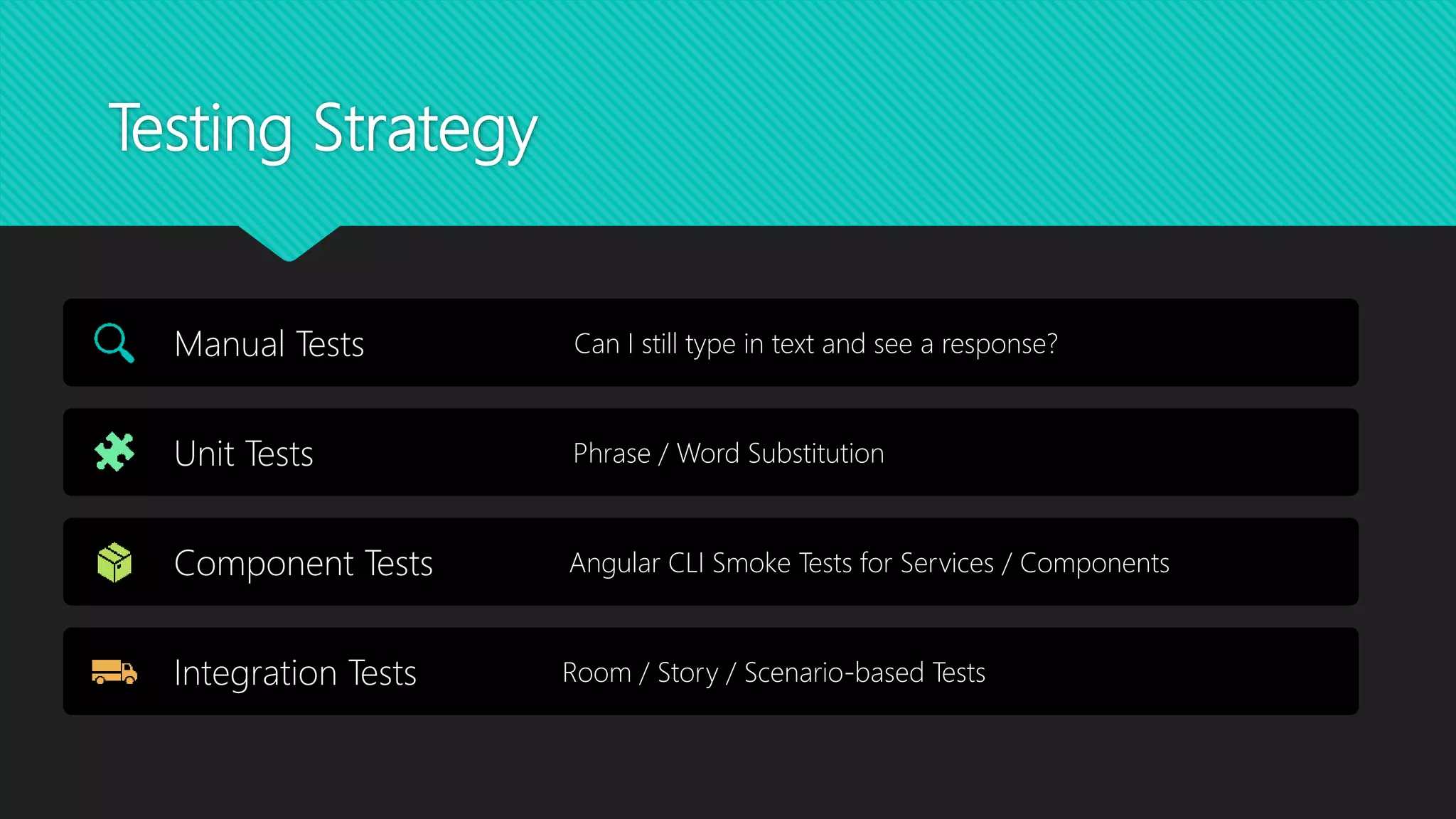

33. Testing Strategy
Manual Tests Can I still type in text and see a response?
Unit Tests Phrase / Word Substitution
Component Tests Angular CLI Smoke Tests for Services / Components
Integration Tests Room / Story / Scenario-based Tests

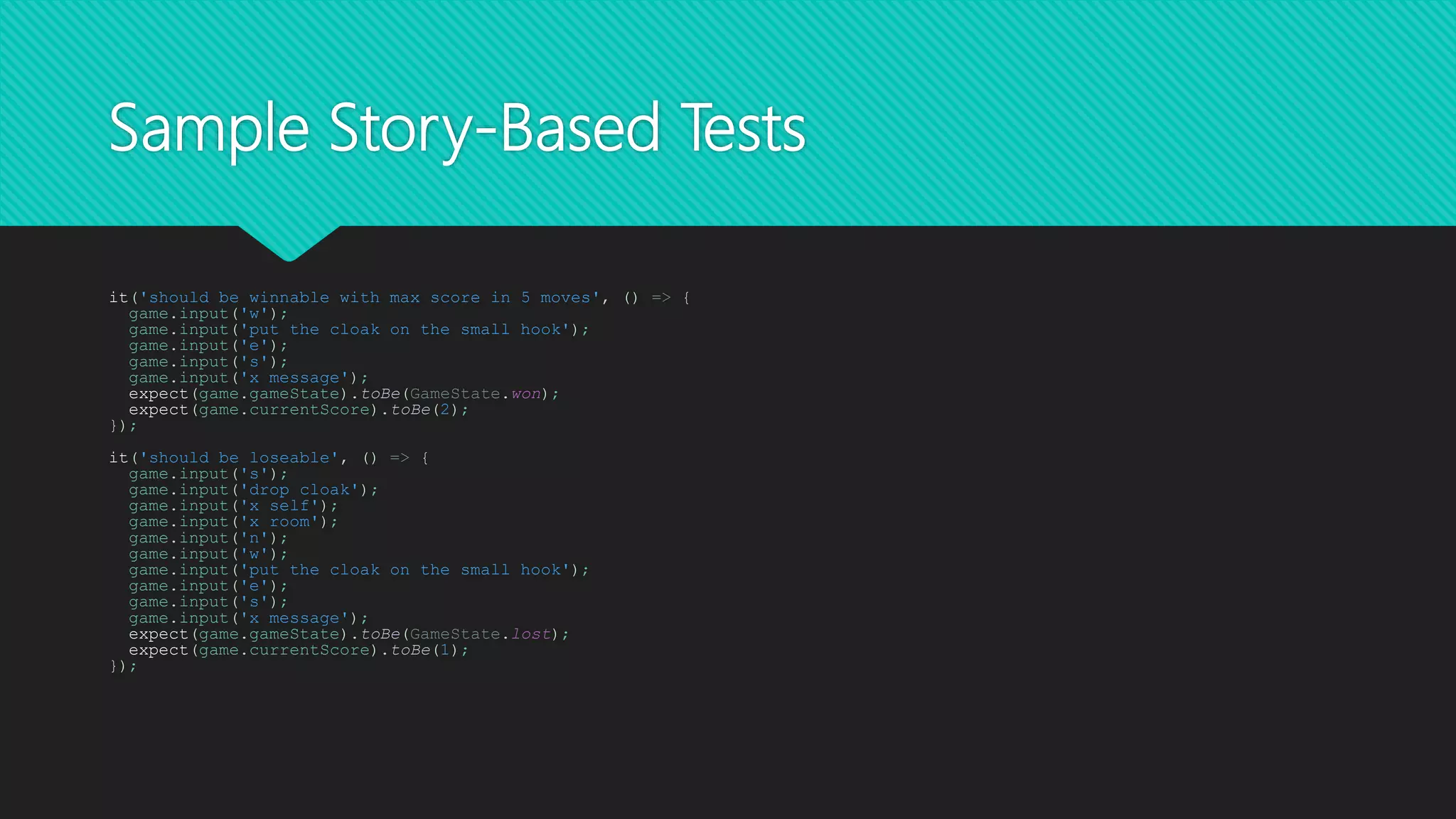

34. Sample Story-Based Tests
it('should be winnable with max score in 5 moves', () => {
game.input('w');
game.input('put the cloak on the small hook');
game.input('e');
game.input('s');
game.input('x message');
expect(game.gameState).toBe(GameState.won);
expect(game.currentScore).toBe(2);
});
it('should be loseable', () => {
game.input('s');
game.input('drop cloak');
game.input('x self');
game.input('x room');
game.input('n');
game.input('w');
game.input('put the cloak on the small hook');
game.input('e');
game.input('s');
game.input('x message');
expect(game.gameState).toBe(GameState.lost);
expect(game.currentScore).toBe(1);
});

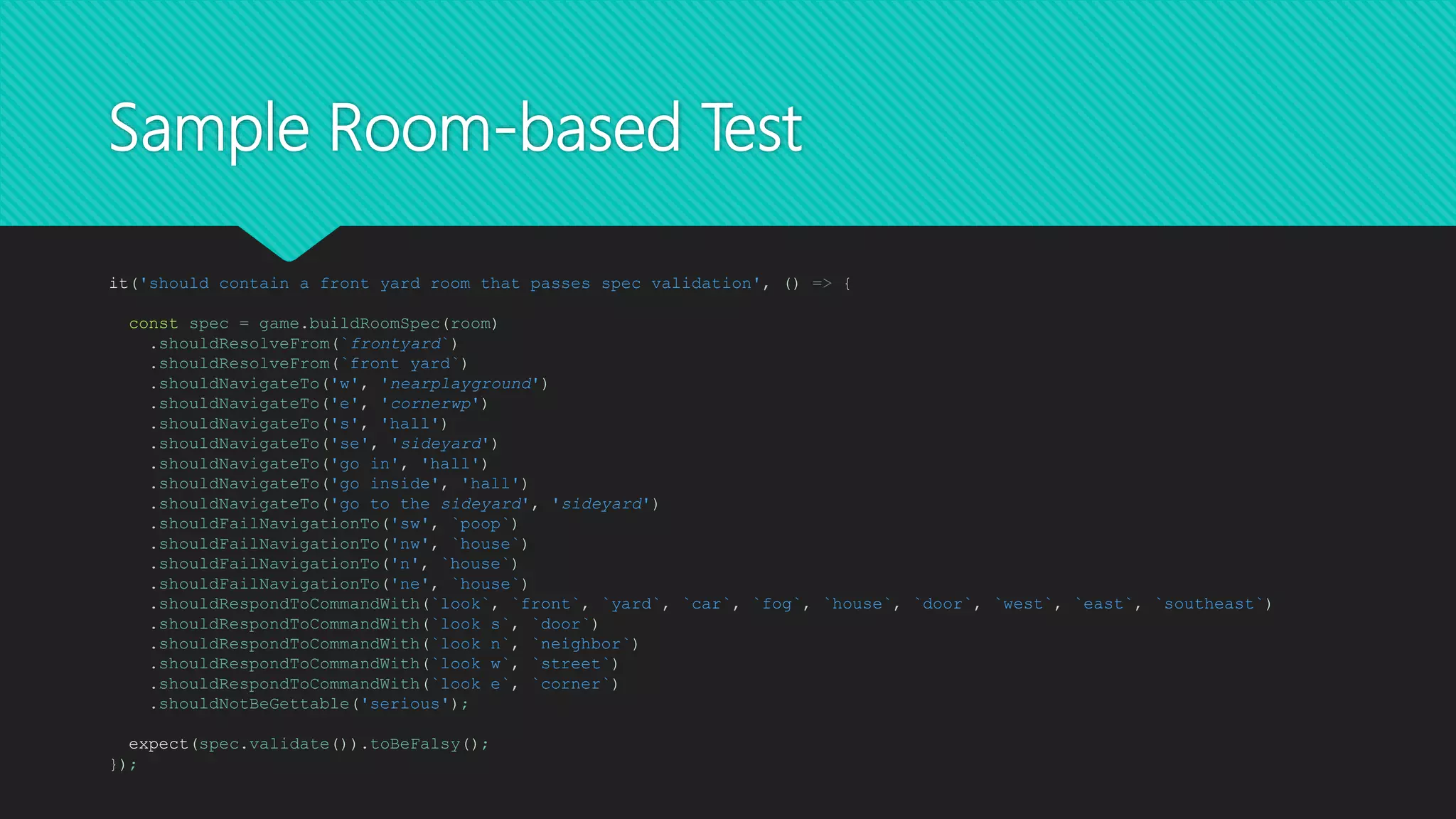

35. Sample Room-based Test
it('should contain a front yard room that passes spec validation', () => {
const spec = game.buildRoomSpec(room)
.shouldResolveFrom(`frontyard`)
.shouldResolveFrom(`front yard`)
.shouldNavigateTo('w', 'nearplayground')
.shouldNavigateTo('e', 'cornerwp')
.shouldNavigateTo('s', 'hall')
.shouldNavigateTo('se', 'sideyard')
.shouldNavigateTo('go in', 'hall')
.shouldNavigateTo('go inside', 'hall')
.shouldNavigateTo('go to the sideyard', 'sideyard')
.shouldFailNavigationTo('sw', `poop`)
.shouldFailNavigationTo('nw', `house`)
.shouldFailNavigationTo('n', `house`)
.shouldFailNavigationTo('ne', `house`)
.shouldRespondToCommandWith(`look`, `front`, `yard`, `car`, `fog`, `house`, `door`, `west`, `east`, `southeast`)
.shouldRespondToCommandWith(`look s`, `door`)
.shouldRespondToCommandWith(`look n`, `neighbor`)
.shouldRespondToCommandWith(`look w`, `street`)
.shouldRespondToCommandWith(`look e`, `corner`)
.shouldNotBeGettable('serious');
expect(spec.validate()).toBeFalsy();
});

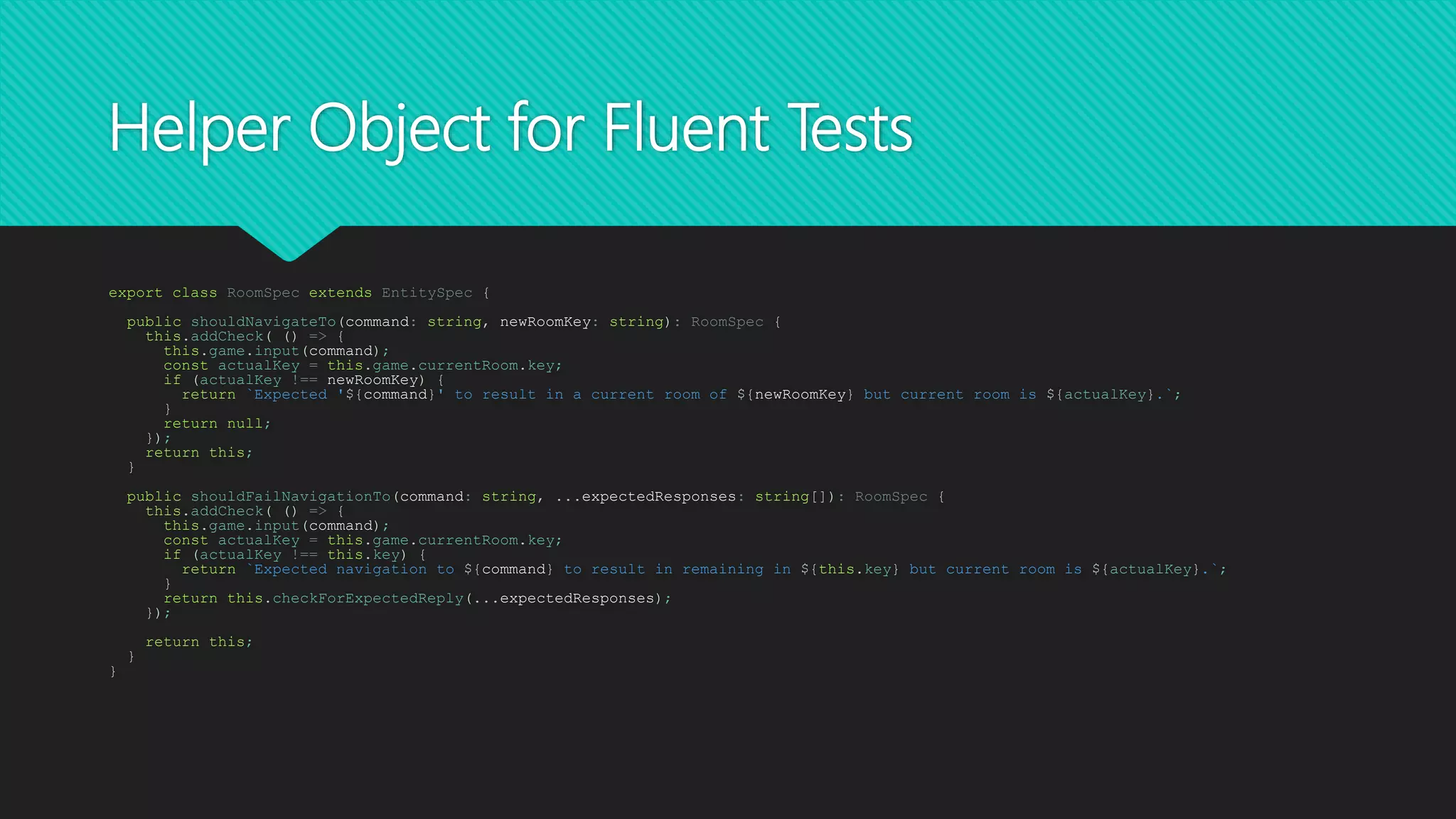

36. Helper Object for Fluent Tests
export class RoomSpec extends EntitySpec {
public shouldNavigateTo(command: string, newRoomKey: string): RoomSpec {
this.addCheck( () => {
this.game.input(command);
const actualKey = this.game.currentRoom.key;
if (actualKey !== newRoomKey) {
return `Expected '${command}' to result in a current room of ${newRoomKey} but current room is ${actualKey}.`;
}
return null;
});
return this;
}
public shouldFailNavigationTo(command: string, ...expectedResponses: string[]): RoomSpec {
this.addCheck( () => {
this.game.input(command);
const actualKey = this.game.currentRoom.key;
if (actualKey !== this.key) {
return `Expected navigation to ${command} to result in remaining in ${this.key} but current room is ${actualKey}.`;
}
return this.checkForExpectedReply(...expectedResponses);
});
return this;
}
}

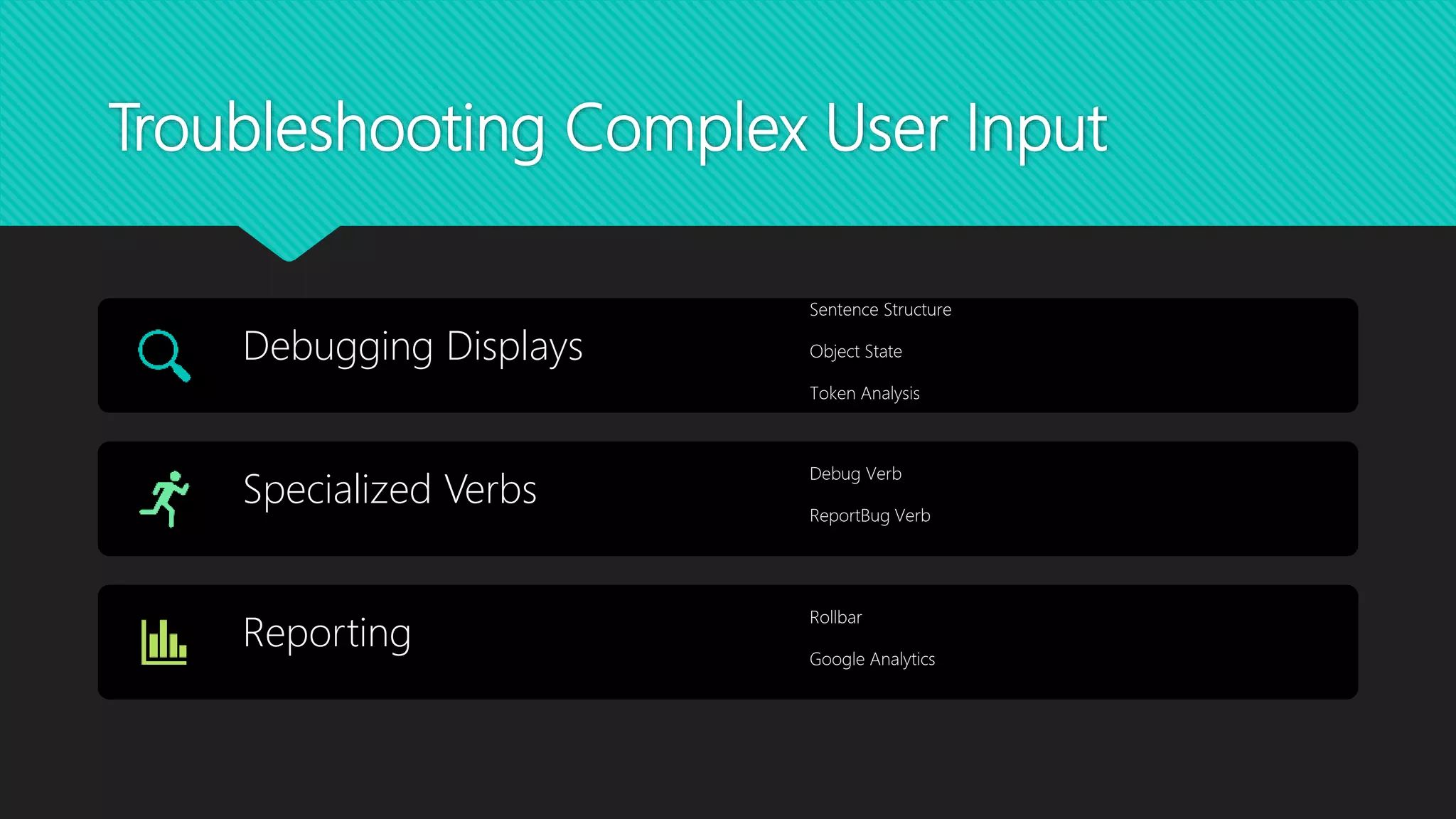

37. Troubleshooting Complex User Input
Debugging Displays
Sentence Structure
Object State
Token Analysis
Specialized Verbs
Debug Verb
ReportBug Verb
Reporting
Rollbar
Google Analytics

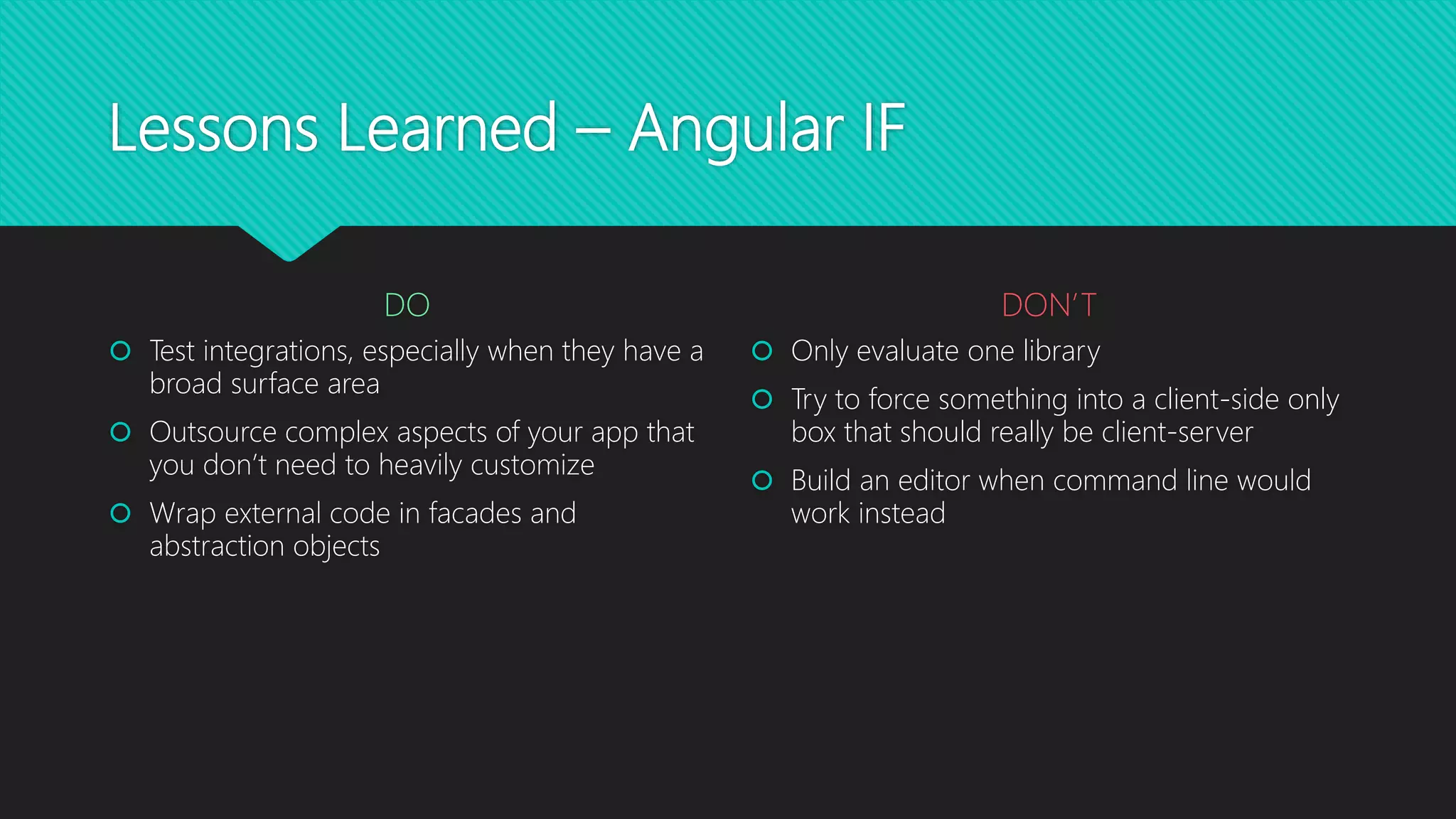

38. Lessons Learned – Angular IF
DO
 Test integrations, especially when they have a
broad surface area
 Outsource complex aspects of your app that
you don’t need to heavily customize
 Wrap external code in facades and
abstraction objects
DON’T
 Only evaluate one library
 Try to force something into a client-side only
box that should really be client-server
 Build an editor when command line would
work instead

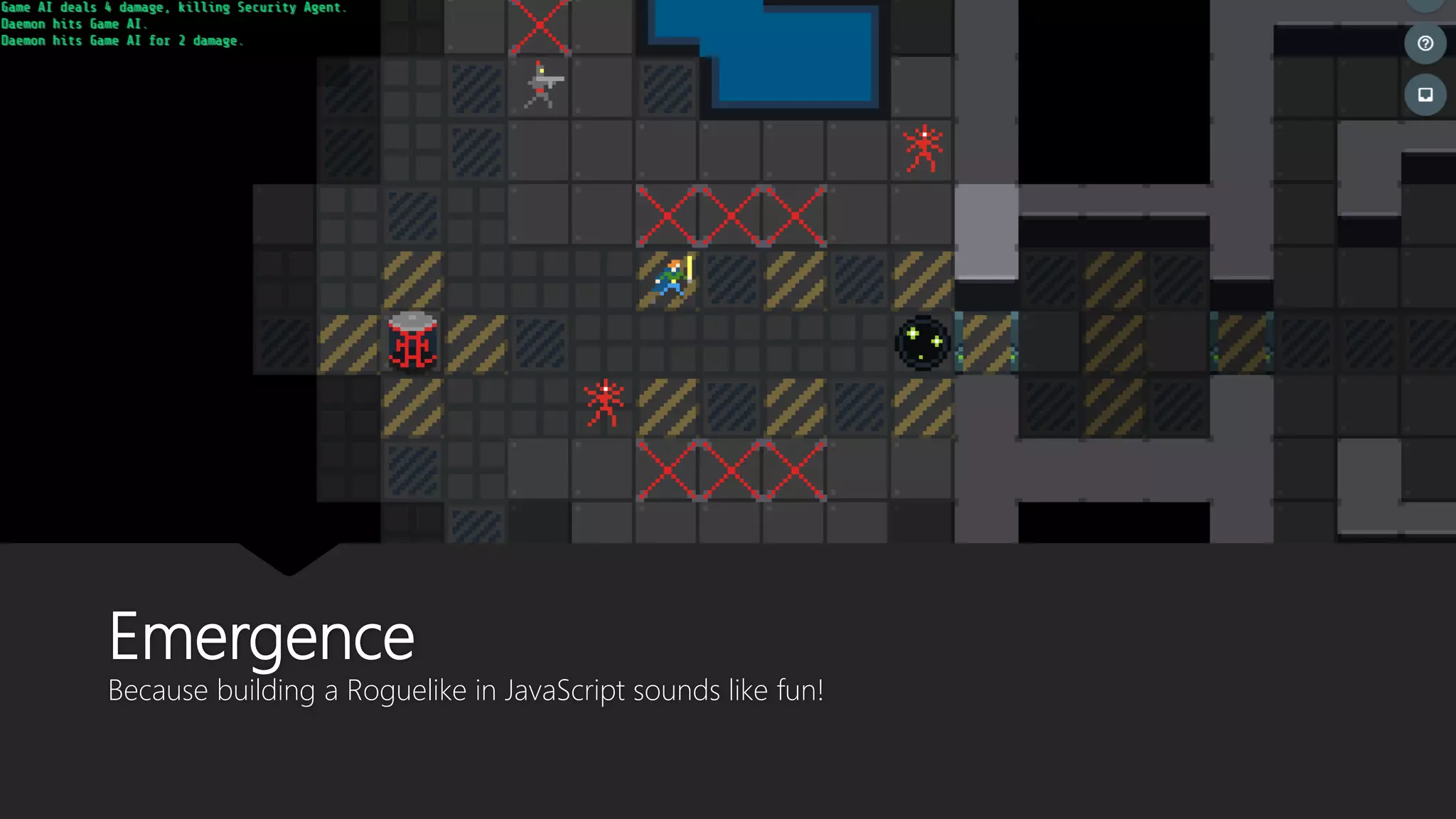

39. Emergence
Because building a Roguelike in JavaScript sounds like fun!

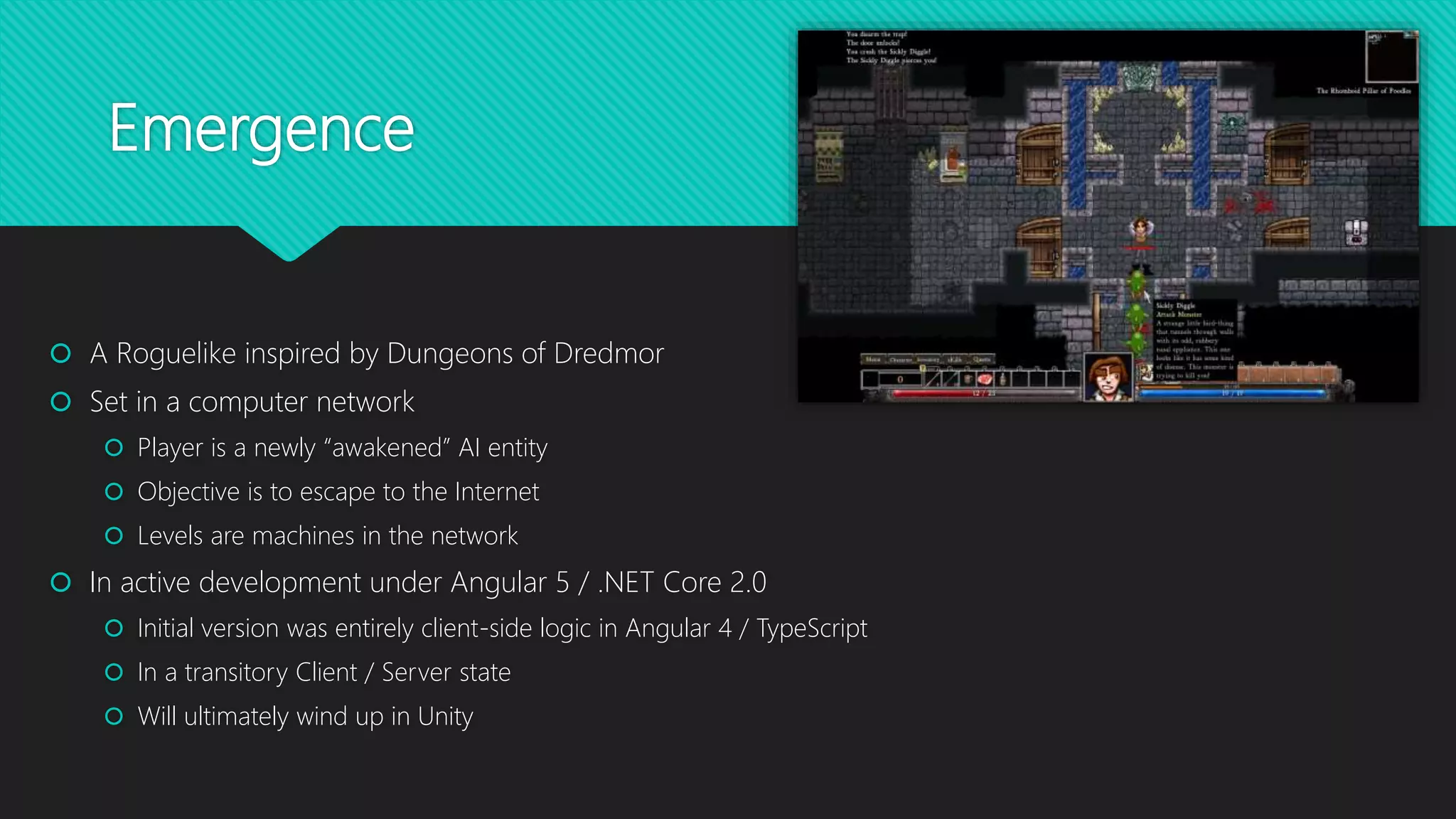

40. Emergence
 A Roguelike inspired by Dungeons of Dredmor
 Set in a computer network
 Player is a newly “awakened” AI entity
 Objective is to escape to the Internet
 Levels are machines in the network
 In active development under Angular 5 / .NET Core 2.0
 Initial version was entirely client-side logic in Angular 4 / TypeScript
 In a transitory Client / Server state
 Will ultimately wind up in Unity

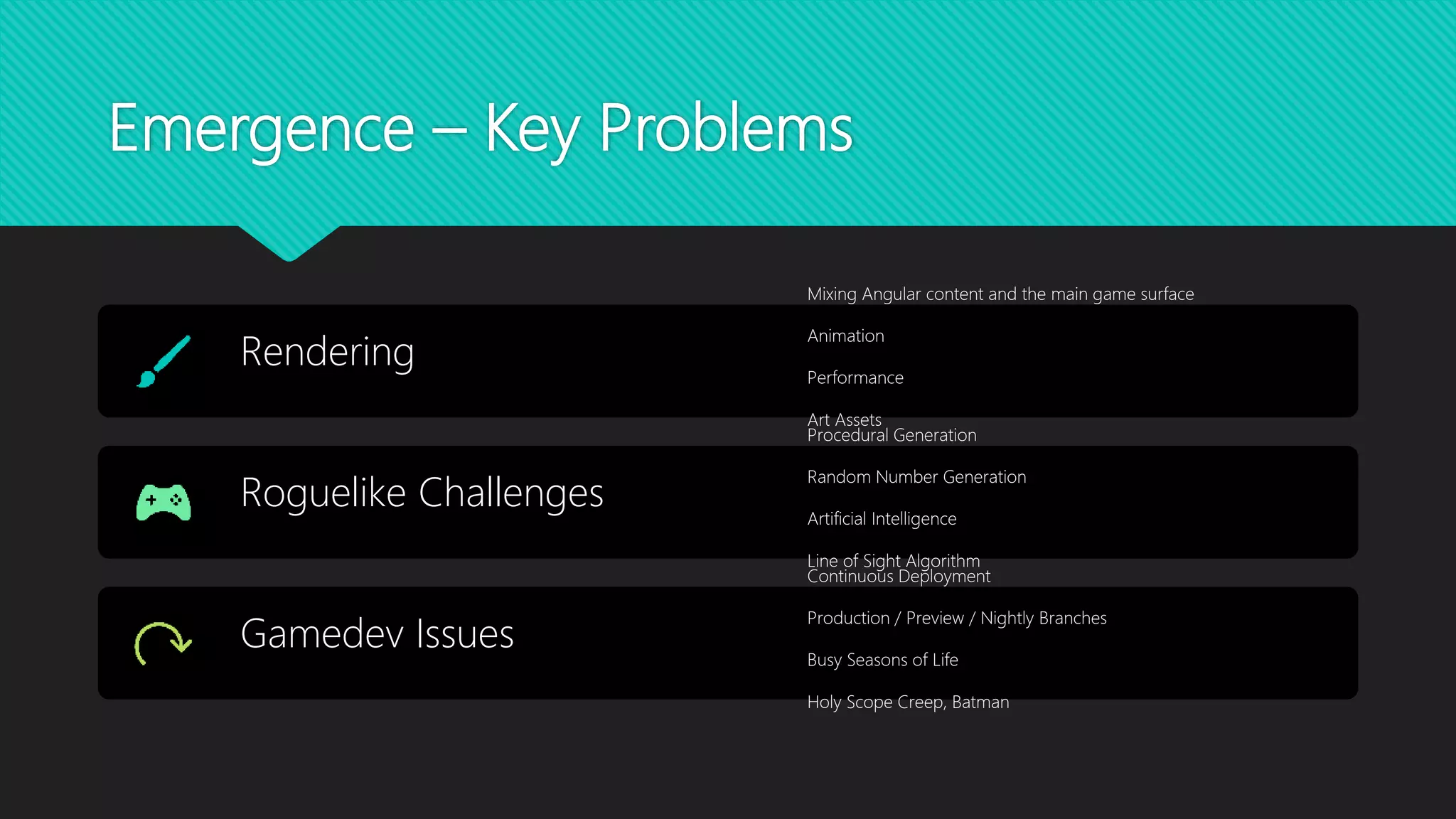

41. Emergence – Key Problems
Rendering
Mixing Angular content and the main game surface
Animation
Performance
Art Assets
Roguelike Challenges
Procedural Generation
Random Number Generation
Artificial Intelligence
Line of Sight Algorithm
Gamedev Issues
Continuous Deployment
Production / Preview / Nightly Branches
Busy Seasons of Life
Holy Scope Creep, Batman

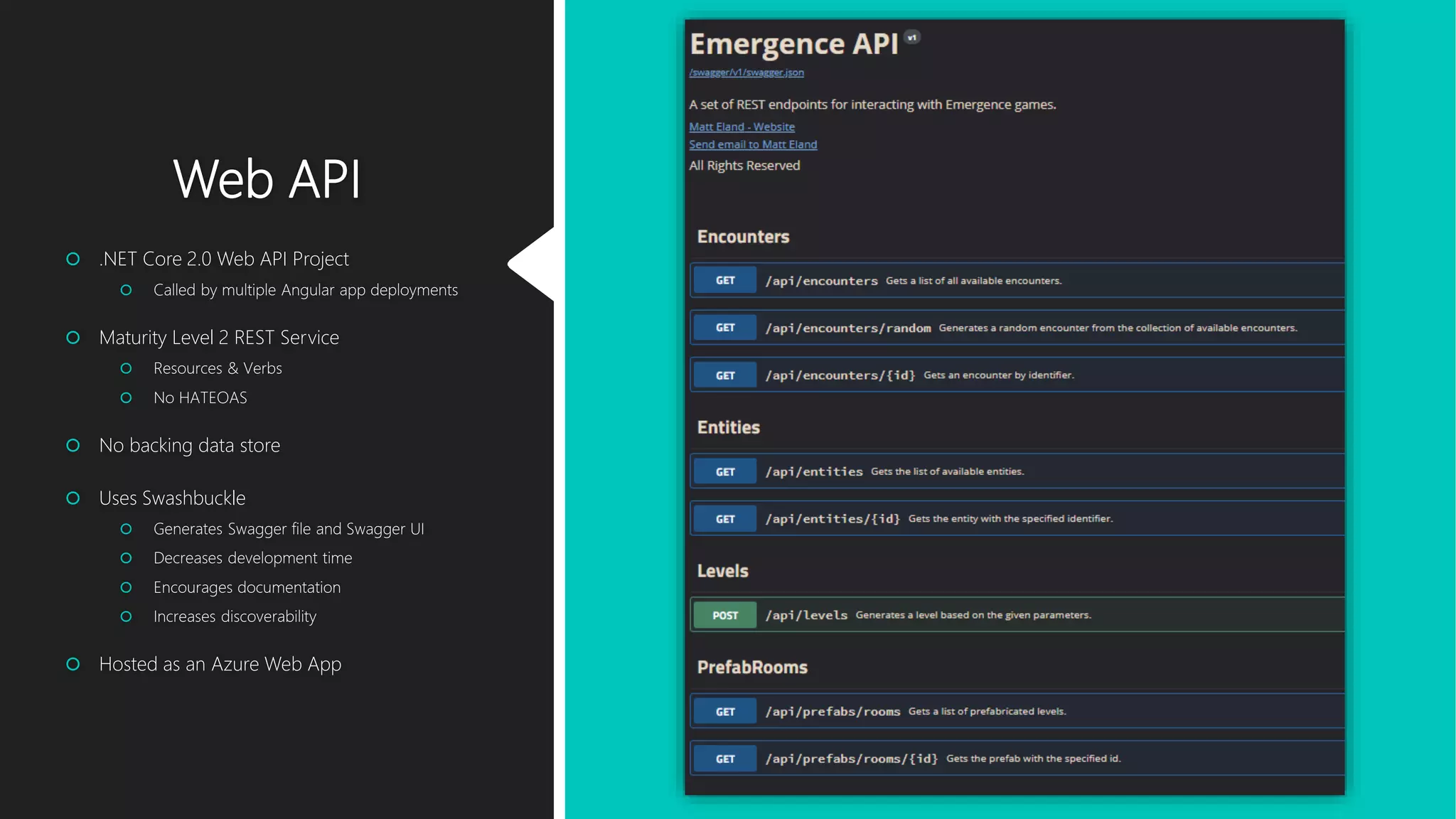

42. Web API
 .NET Core 2.0 Web API Project
 Called by multiple Angular app deployments
 Maturity Level 2 REST Service
 Resources & Verbs
 No HATEOAS
 No backing data store
 Uses Swashbuckle
 Generates Swagger file and Swagger UI
 Decreases development time
 Encourages documentation
 Increases discoverability
 Hosted as an Azure Web App

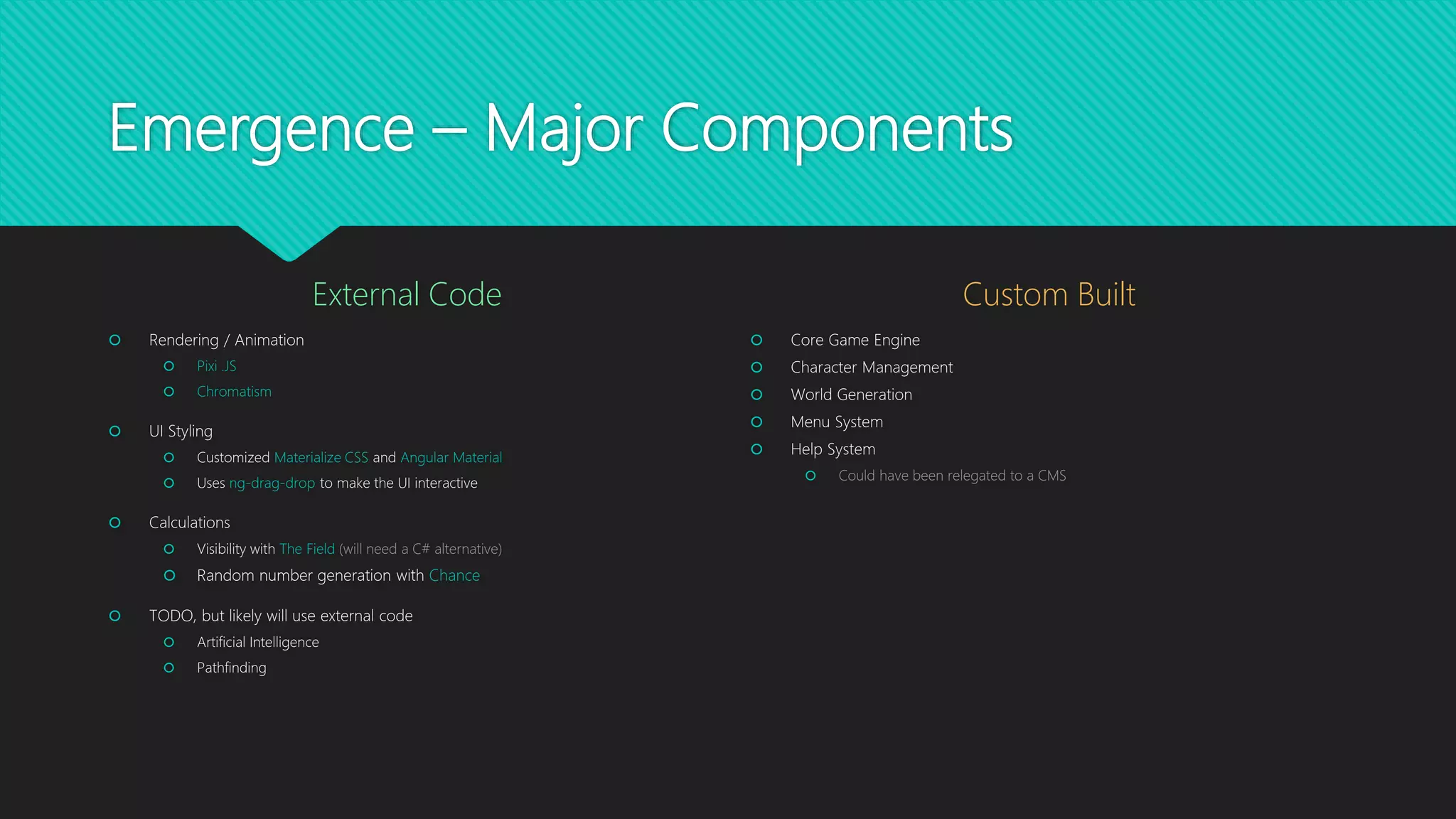

43. Emergence – Major Components
External Code
 Rendering / Animation
 Pixi .JS
 Chromatism
 UI Styling
 Customized Materialize CSS and Angular Material
 Uses ng-drag-drop to make the UI interactive
 Calculations
 Visibility with The Field (will need a C# alternative)
 Random number generation with Chance
 TODO, but likely will use external code
 Artificial Intelligence
 Pathfinding
Custom Built
 Core Game Engine
 Character Management
 World Generation
 Menu System
 Help System
 Could have been relegated to a CMS

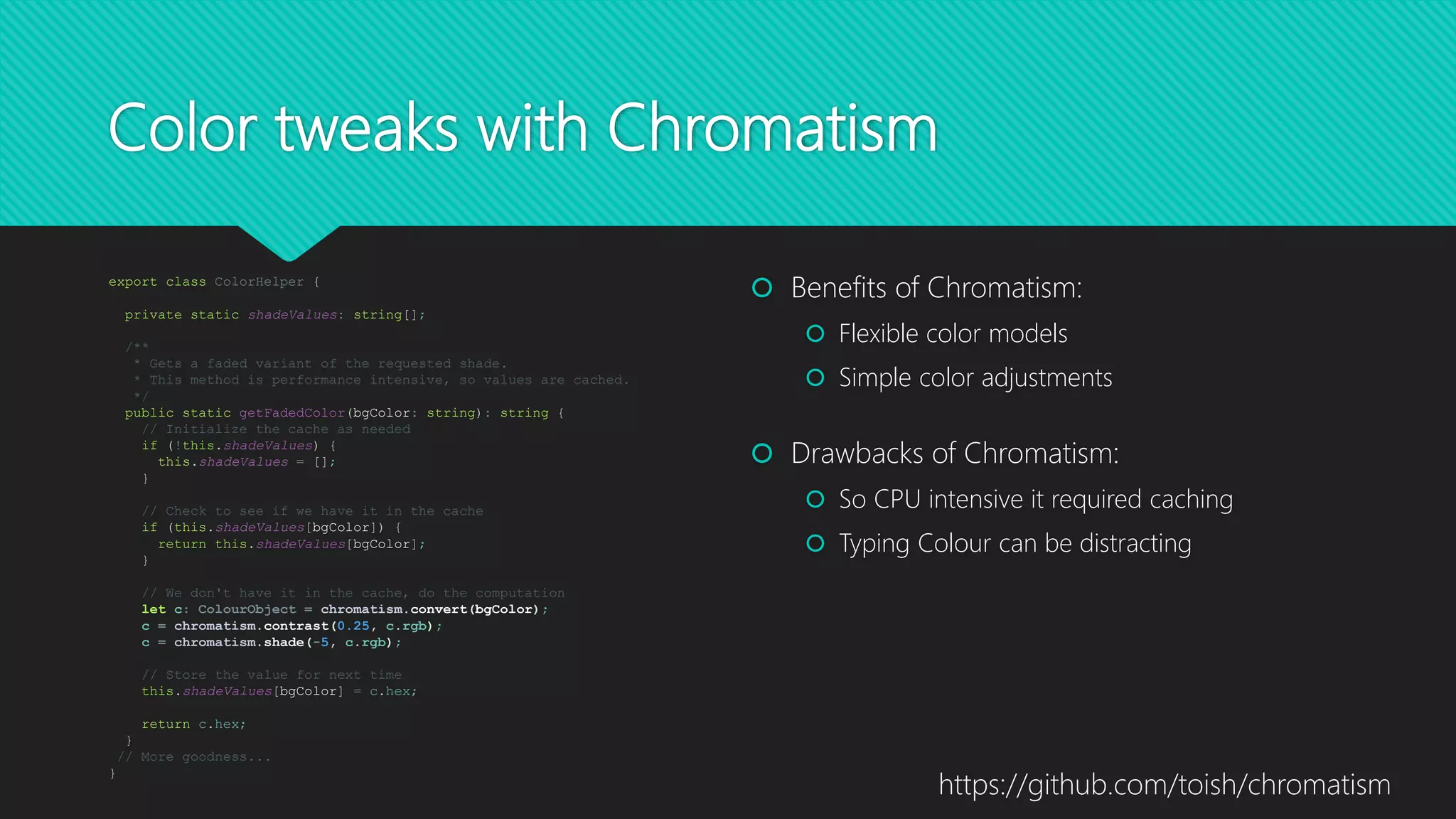

44. Color tweaks with Chromatism
 Benefits of Chromatism:
 Flexible color models
 Simple color adjustments
 Drawbacks of Chromatism:
 So CPU intensive it required caching
 Typing Colour can be distracting
export class ColorHelper {
private static shadeValues: string[];
/**
* Gets a faded variant of the requested shade.
* This method is performance intensive, so values are cached.
*/
public static getFadedColor(bgColor: string): string {
// Initialize the cache as needed
if (!this.shadeValues) {
this.shadeValues = [];
}
// Check to see if we have it in the cache
if (this.shadeValues[bgColor]) {
return this.shadeValues[bgColor];
}
// We don't have it in the cache, do the computation
let c: ColourObject = chromatism.convert(bgColor);
c = chromatism.contrast(0.25, c.rgb);
c = chromatism.shade(-5, c.rgb);
// Store the value for next time
this.shadeValues[bgColor] = c.hex;
return c.hex;
}
// More goodness...
}
https://github.com/toish/chromatism

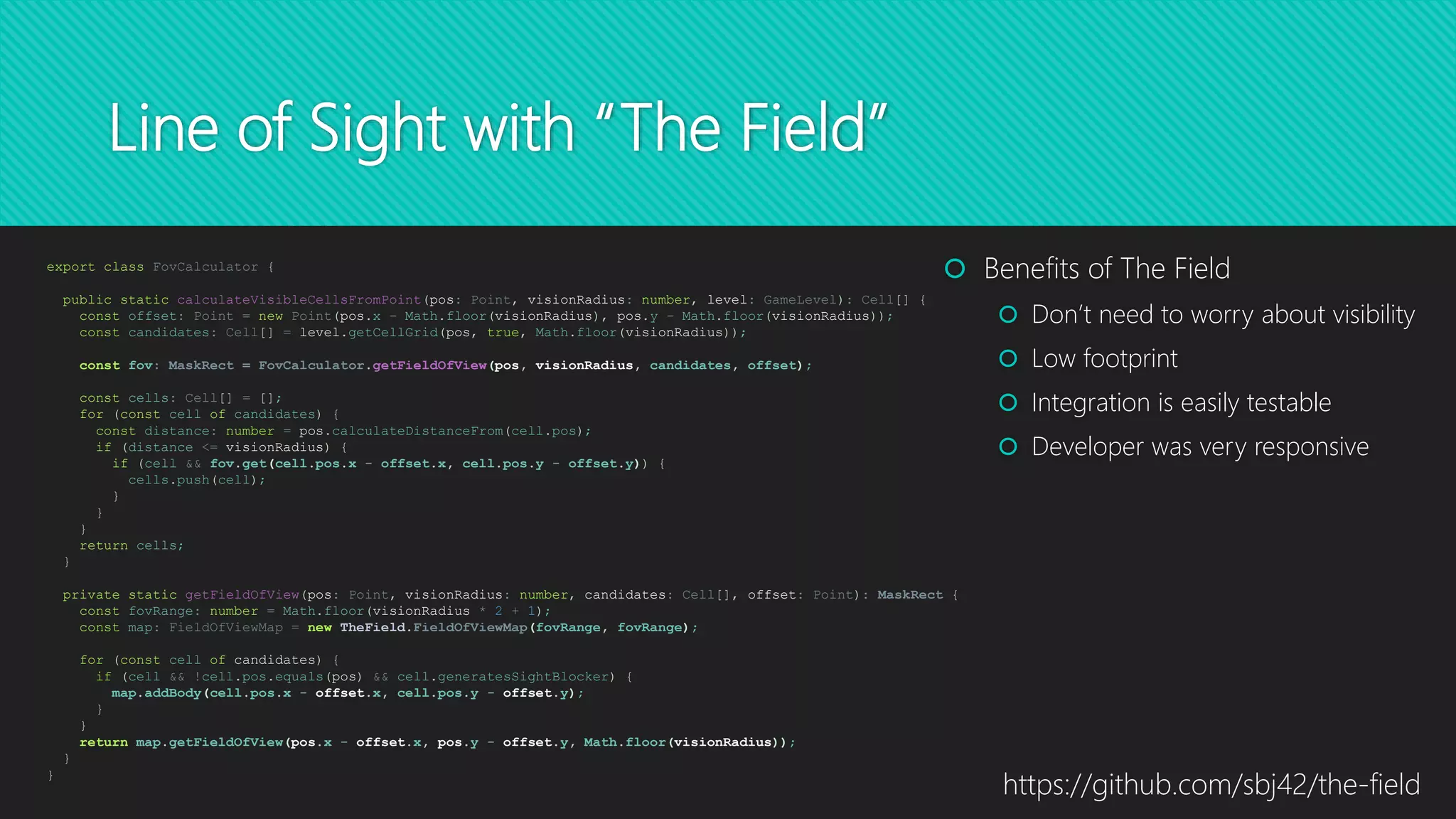

45. Line of Sight with “The Field”
export class FovCalculator {
public static calculateVisibleCellsFromPoint(pos: Point, visionRadius: number, level: GameLevel): Cell[] {
const offset: Point = new Point(pos.x - Math.floor(visionRadius), pos.y - Math.floor(visionRadius));
const candidates: Cell[] = level.getCellGrid(pos, true, Math.floor(visionRadius));
const fov: MaskRect = FovCalculator.getFieldOfView(pos, visionRadius, candidates, offset);
const cells: Cell[] = [];
for (const cell of candidates) {
const distance: number = pos.calculateDistanceFrom(cell.pos);
if (distance <= visionRadius) {
if (cell && fov.get(cell.pos.x - offset.x, cell.pos.y - offset.y)) {
cells.push(cell);
}
}
}
return cells;
}
private static getFieldOfView(pos: Point, visionRadius: number, candidates: Cell[], offset: Point): MaskRect {
const fovRange: number = Math.floor(visionRadius * 2 + 1);
const map: FieldOfViewMap = new TheField.FieldOfViewMap(fovRange, fovRange);
for (const cell of candidates) {
if (cell && !cell.pos.equals(pos) && cell.generatesSightBlocker) {
map.addBody(cell.pos.x - offset.x, cell.pos.y - offset.y);
}
}
return map.getFieldOfView(pos.x - offset.x, pos.y - offset.y, Math.floor(visionRadius));
}
}
 Benefits of The Field
 Don’t need to worry about visibility
 Low footprint
 Integration is easily testable
 Developer was very responsive
https://github.com/sbj42/the-field

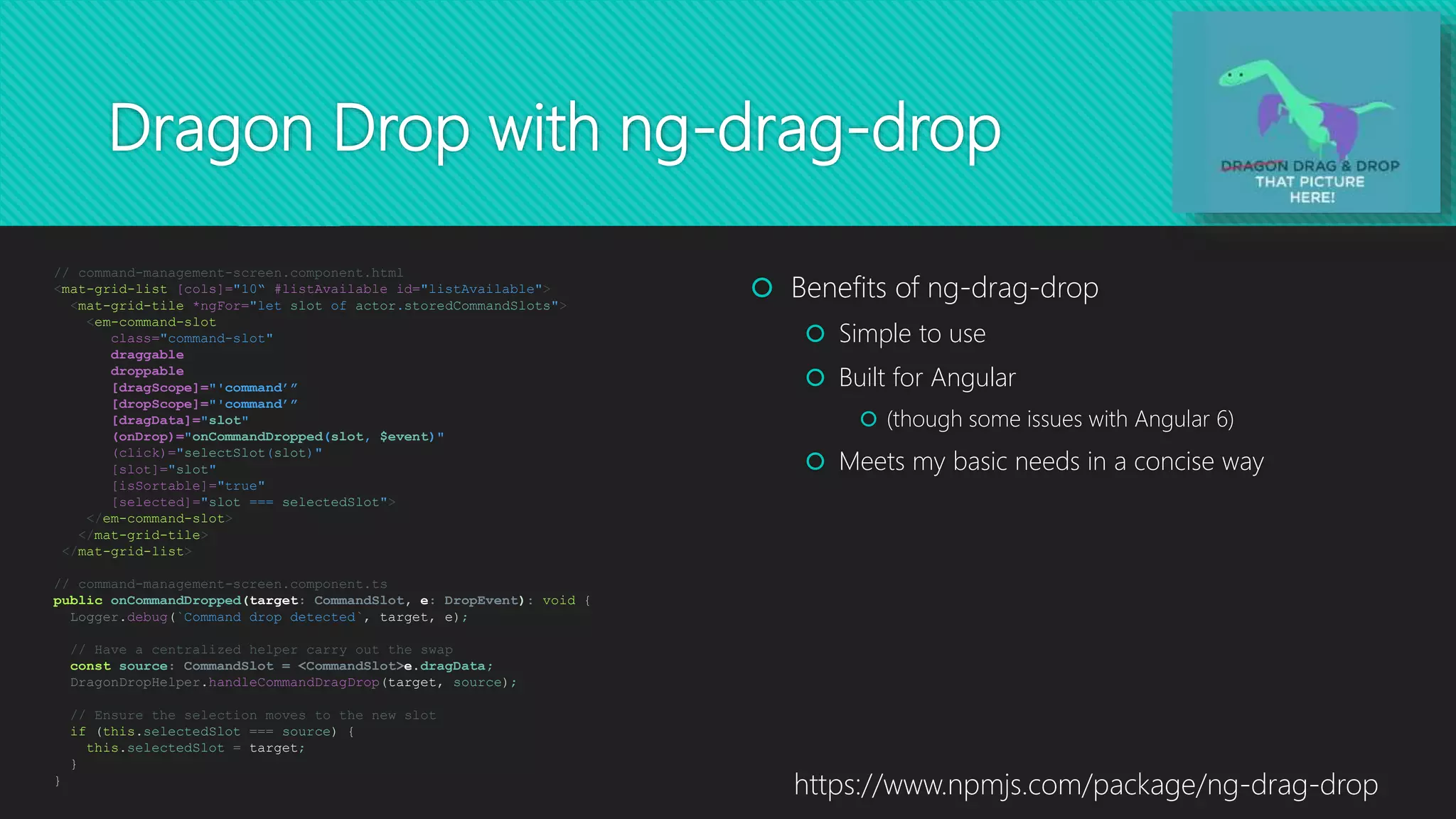

46. Dragon Drop with ng-drag-drop
 Benefits of ng-drag-drop
 Simple to use
 Built for Angular
 (though some issues with Angular 6)
 Meets my basic needs in a concise way
// command-management-screen.component.html
<mat-grid-list [cols]="10“ #listAvailable id="listAvailable">
<mat-grid-tile *ngFor="let slot of actor.storedCommandSlots">
<em-command-slot
class="command-slot"
draggable
droppable
[dragScope]="'command’”
[dropScope]="'command’”
[dragData]="slot"
(onDrop)="onCommandDropped(slot, $event)"
(click)="selectSlot(slot)"
[slot]="slot"
[isSortable]="true"
[selected]="slot === selectedSlot">
</em-command-slot>
</mat-grid-tile>
</mat-grid-list>
// command-management-screen.component.ts
public onCommandDropped(target: CommandSlot, e: DropEvent): void {
Logger.debug(`Command drop detected`, target, e);
// Have a centralized helper carry out the swap
const source: CommandSlot = <CommandSlot>e.dragData;
DragonDropHelper.handleCommandDragDrop(target, source);
// Ensure the selection moves to the new slot
if (this.selectedSlot === source) {
this.selectedSlot = target;
}
}
https://www.npmjs.com/package/ng-drag-drop

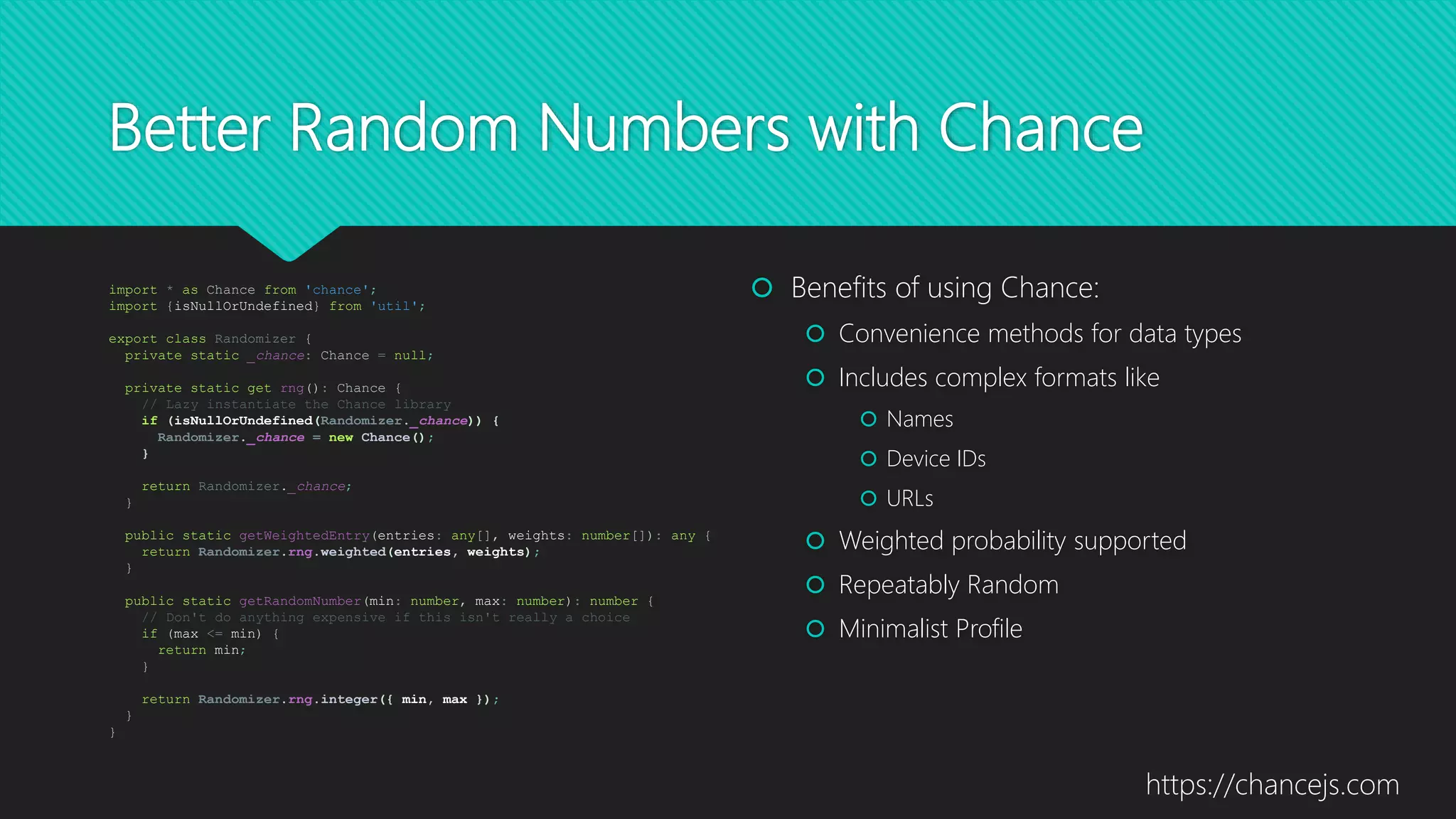

47. Better Random Numbers with Chance
import * as Chance from 'chance';
import {isNullOrUndefined} from 'util';
export class Randomizer {
private static _chance: Chance = null;
private static get rng(): Chance {
// Lazy instantiate the Chance library
if (isNullOrUndefined(Randomizer._chance)) {
Randomizer._chance = new Chance();
}
return Randomizer._chance;
}
public static getWeightedEntry(entries: any[], weights: number[]): any {
return Randomizer.rng.weighted(entries, weights);
}
public static getRandomNumber(min: number, max: number): number {
// Don't do anything expensive if this isn't really a choice
if (max <= min) {
return min;
}
return Randomizer.rng.integer({ min, max });
}
}
 Benefits of using Chance:
 Convenience methods for data types
 Includes complex formats like
 Names
 Device IDs
 URLs
 Weighted probability supported
 Repeatably Random
 Minimalist Profile
https://chancejs.com

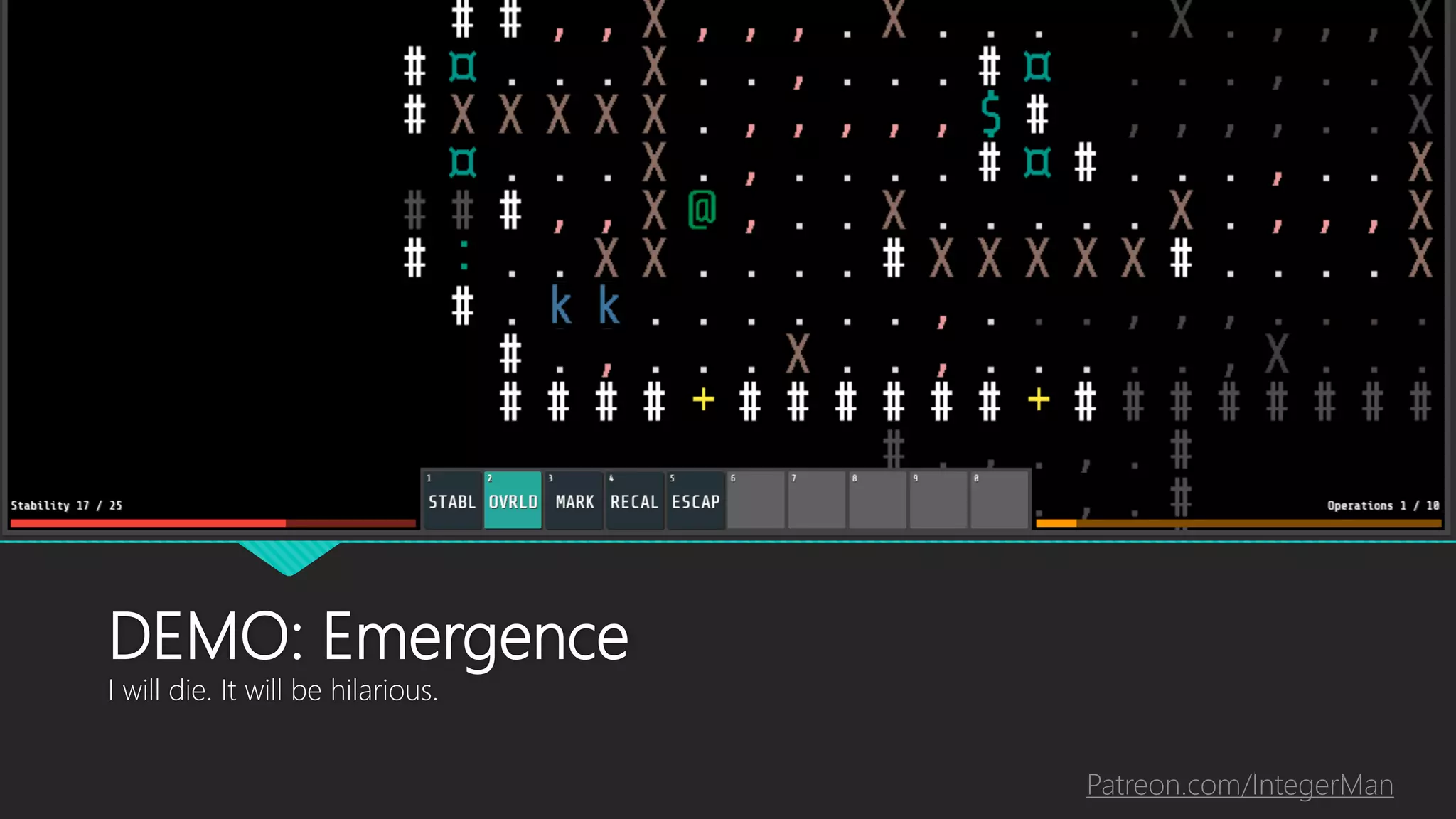

48. DEMO: Emergence
I will die. It will be hilarious.
Patreon.com/IntegerMan

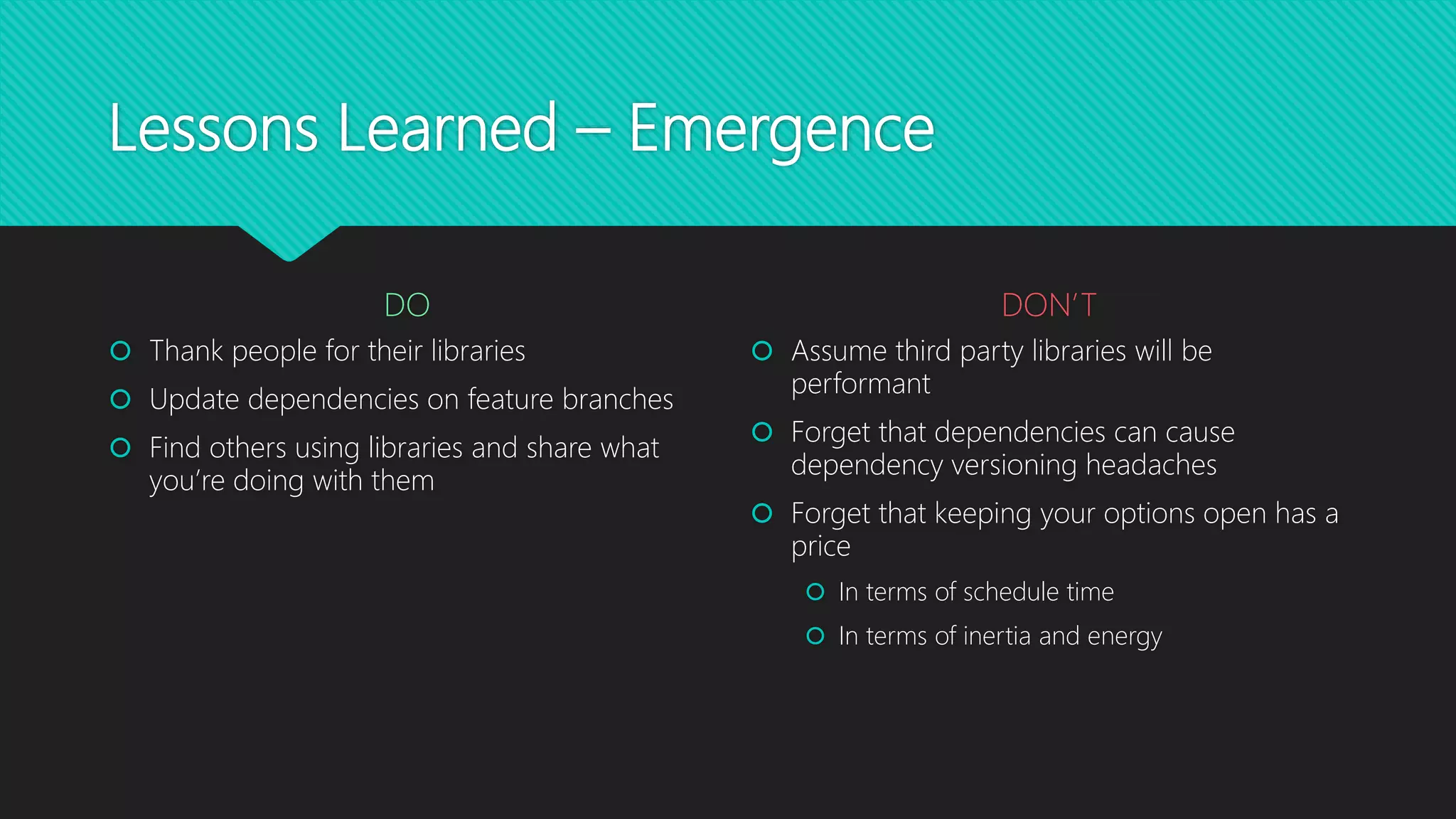

49. Lessons Learned – Emergence
DO
 Thank people for their libraries
 Update dependencies on feature branches
 Find others using libraries and share what
you’re doing with them
DON’T
 Assume third party libraries will be
performant
 Forget that dependencies can cause
dependency versioning headaches
 Forget that keeping your options open has a
price
 In terms of schedule time
 In terms of inertia and energy

50. Overall Lessons Learned
General wisdom around integrating third party controls and libraries

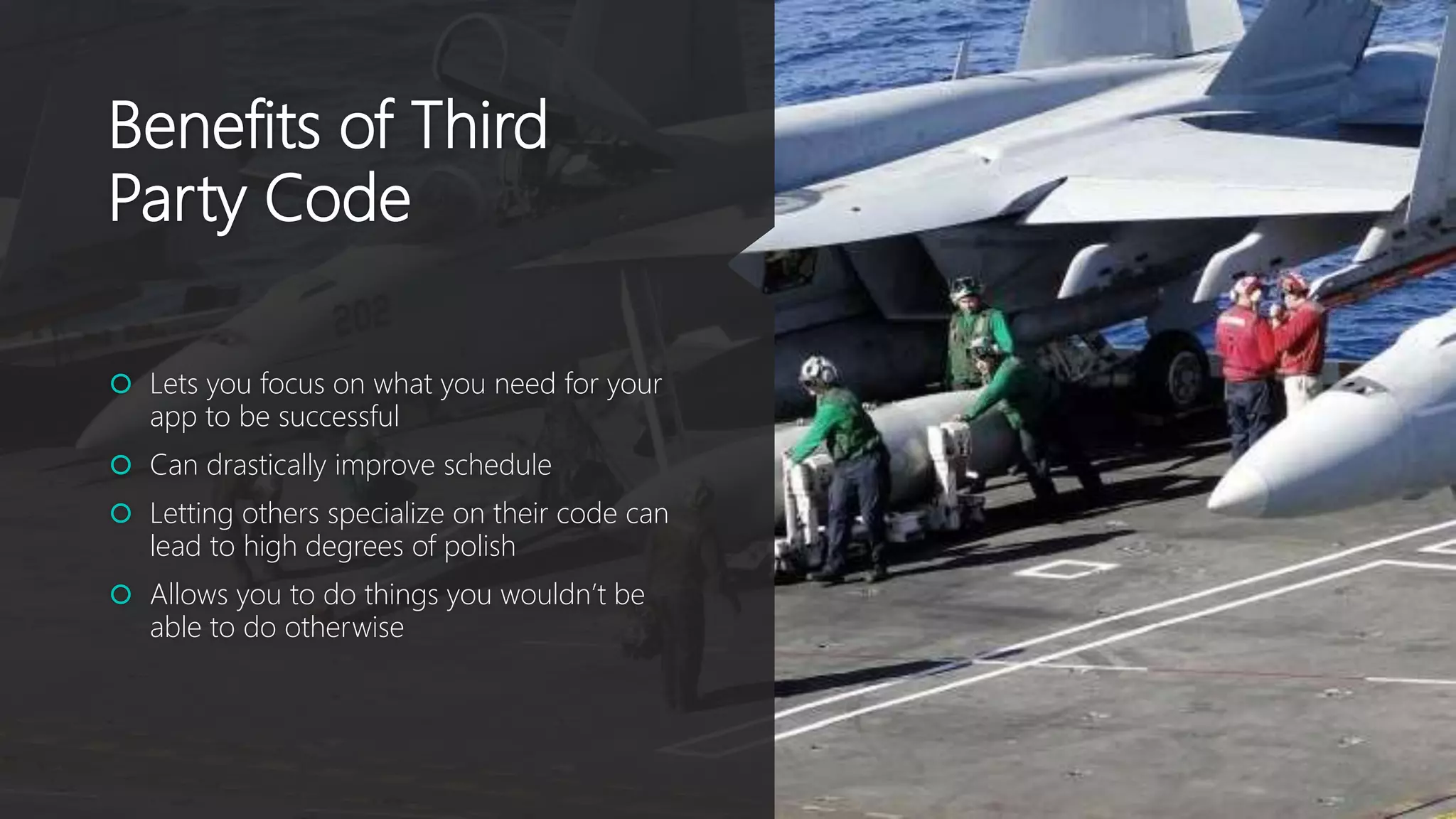

51. Benefits of Third
Party Code
 Lets you focus on what you need for your
app to be successful
 Can drastically improve schedule
 Letting others specialize on their code can
lead to high degrees of polish
 Allows you to do things you wouldn’t be
able to do otherwise

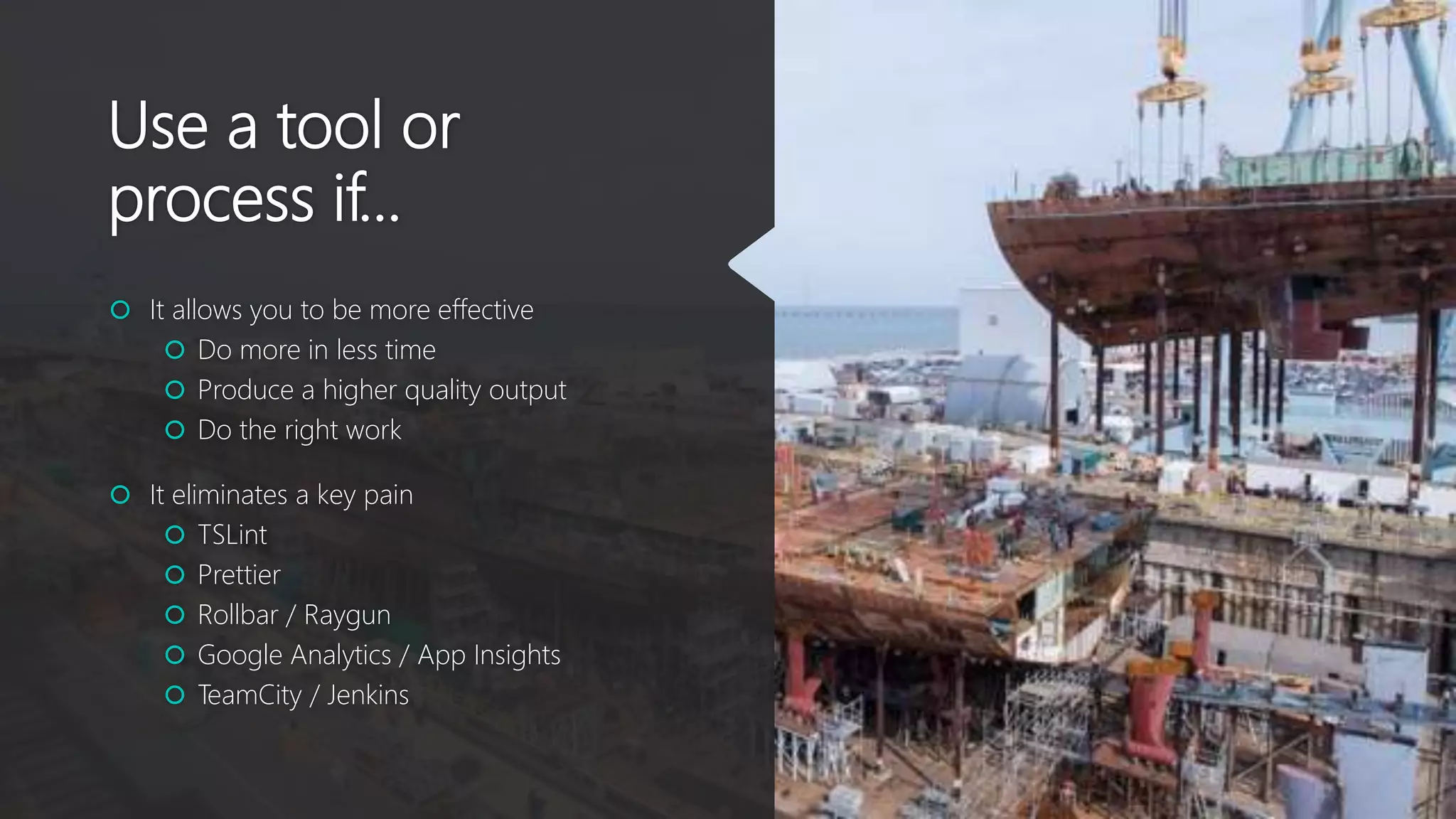

52. Use a tool or
process if...
 It allows you to be more effective
 Do more in less time
 Produce a higher quality output
 Do the right work
 It eliminates a key pain
 TSLint
 Prettier
 Rollbar / Raygun
 Google Analytics / App Insights
 TeamCity / Jenkins

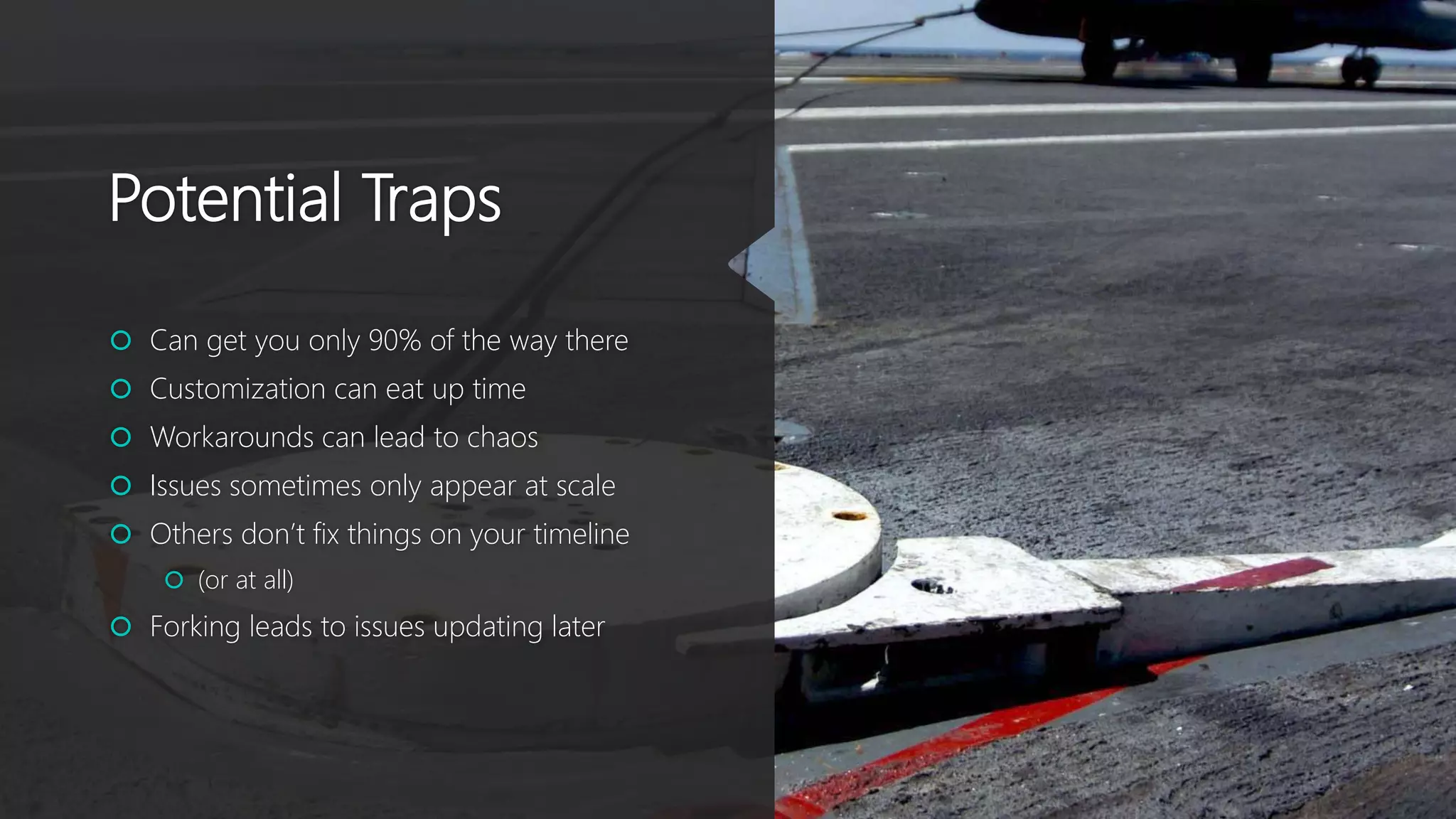

53. Potential Traps
 Can get you only 90% of the way there
 Customization can eat up time
 Workarounds can lead to chaos
 Issues sometimes only appear at scale
 Others don’t fix things on your timeline
 (or at all)
 Forking leads to issues updating later

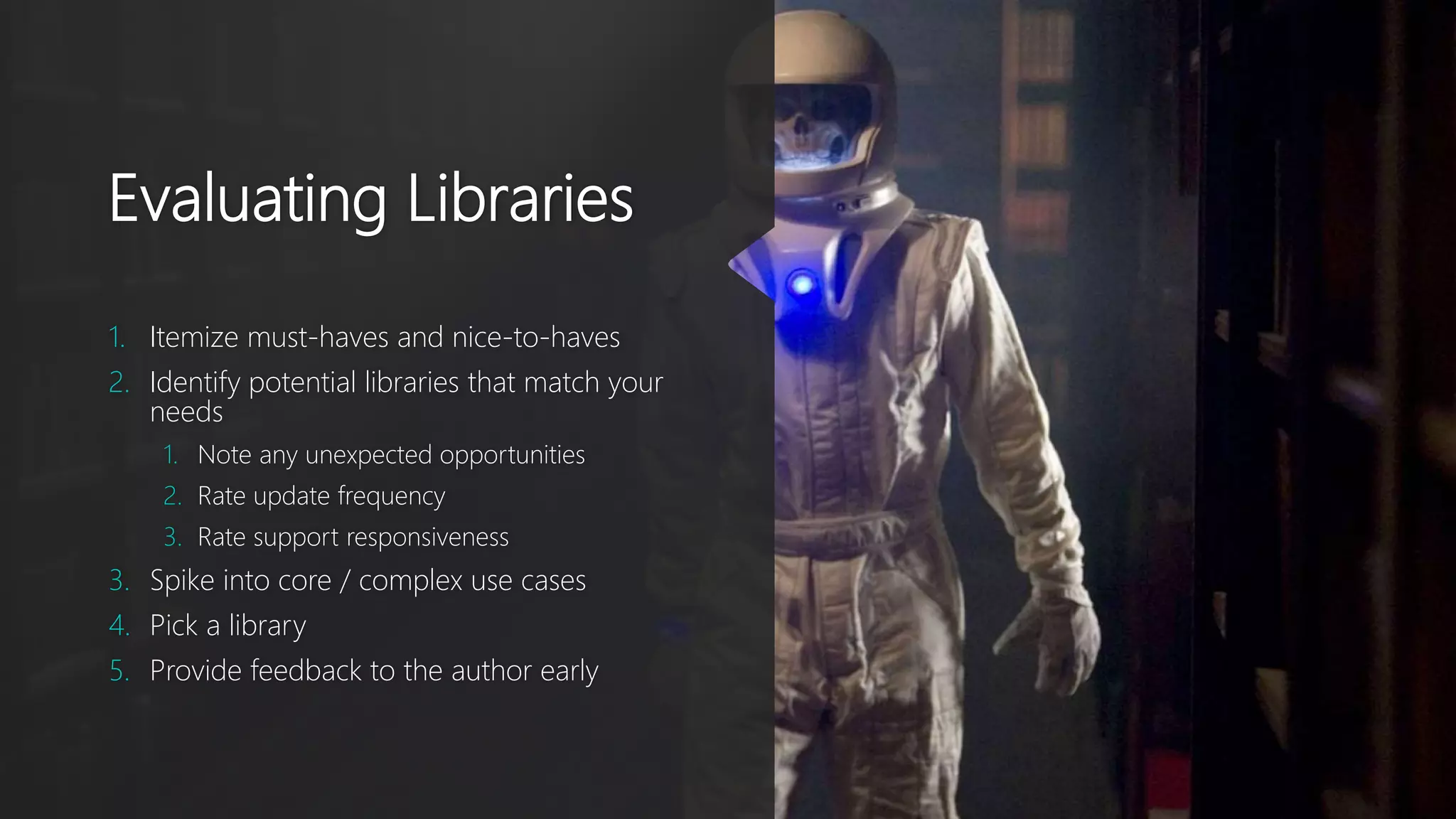

54. Evaluating Libraries
1. Itemize must-haves and nice-to-haves
2. Identify potential libraries that match your
needs
1. Note any unexpected opportunities
2. Rate update frequency
3. Rate support responsiveness
3. Spike into core / complex use cases
4. Pick a library
5. Provide feedback to the author early

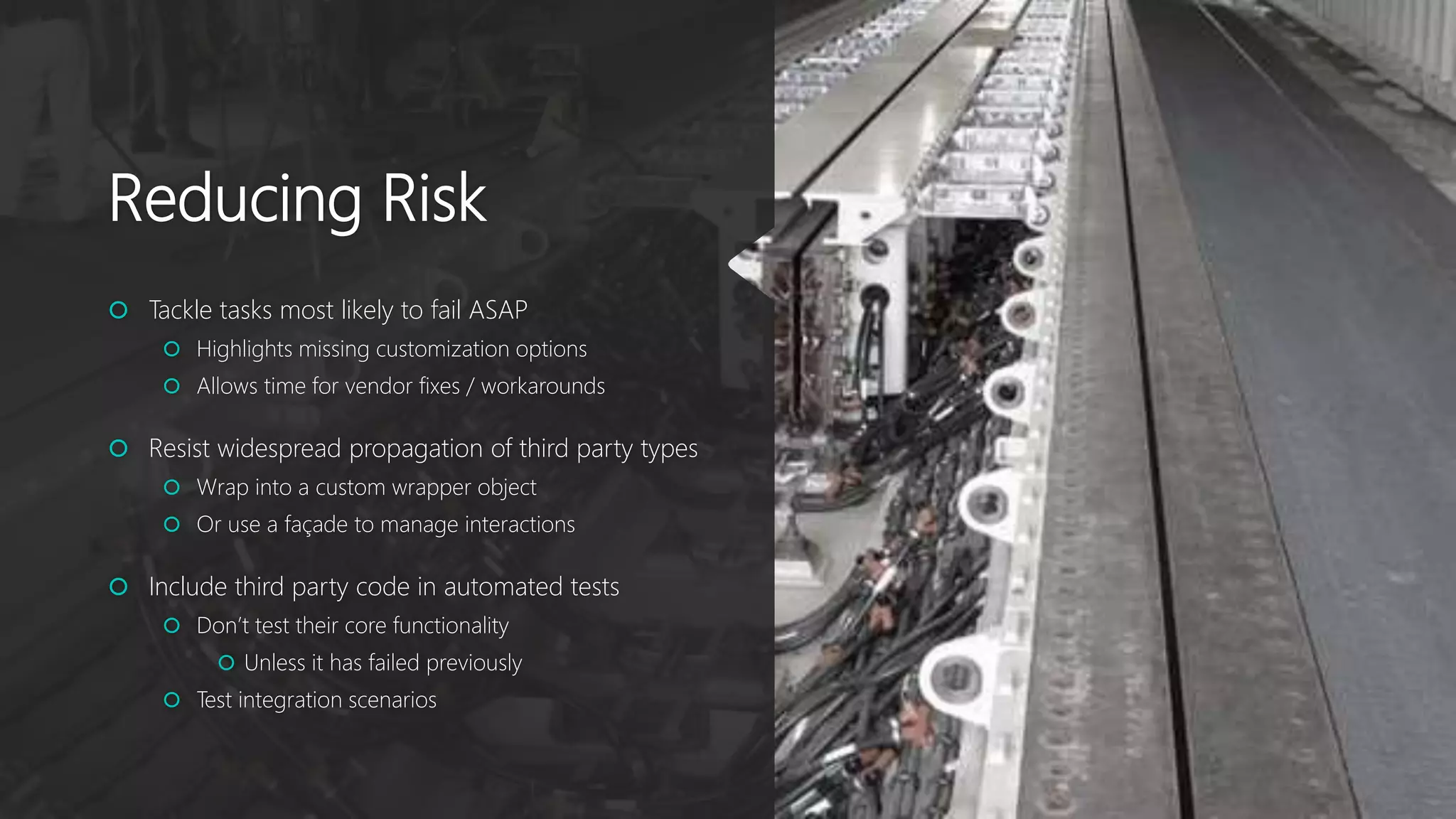

55. Reducing Risk
 Tackle tasks most likely to fail ASAP
 Highlights missing customization options
 Allows time for vendor fixes / workarounds
 Resist widespread propagation of third party types
 Wrap into a custom wrapper object
 Or use a façade to manage interactions
 Include third party code in automated tests
 Don’t test their core functionality
 Unless it has failed previously
 Test integration scenarios

56. Your Turn
Go and build all of the things (with some strategic help)

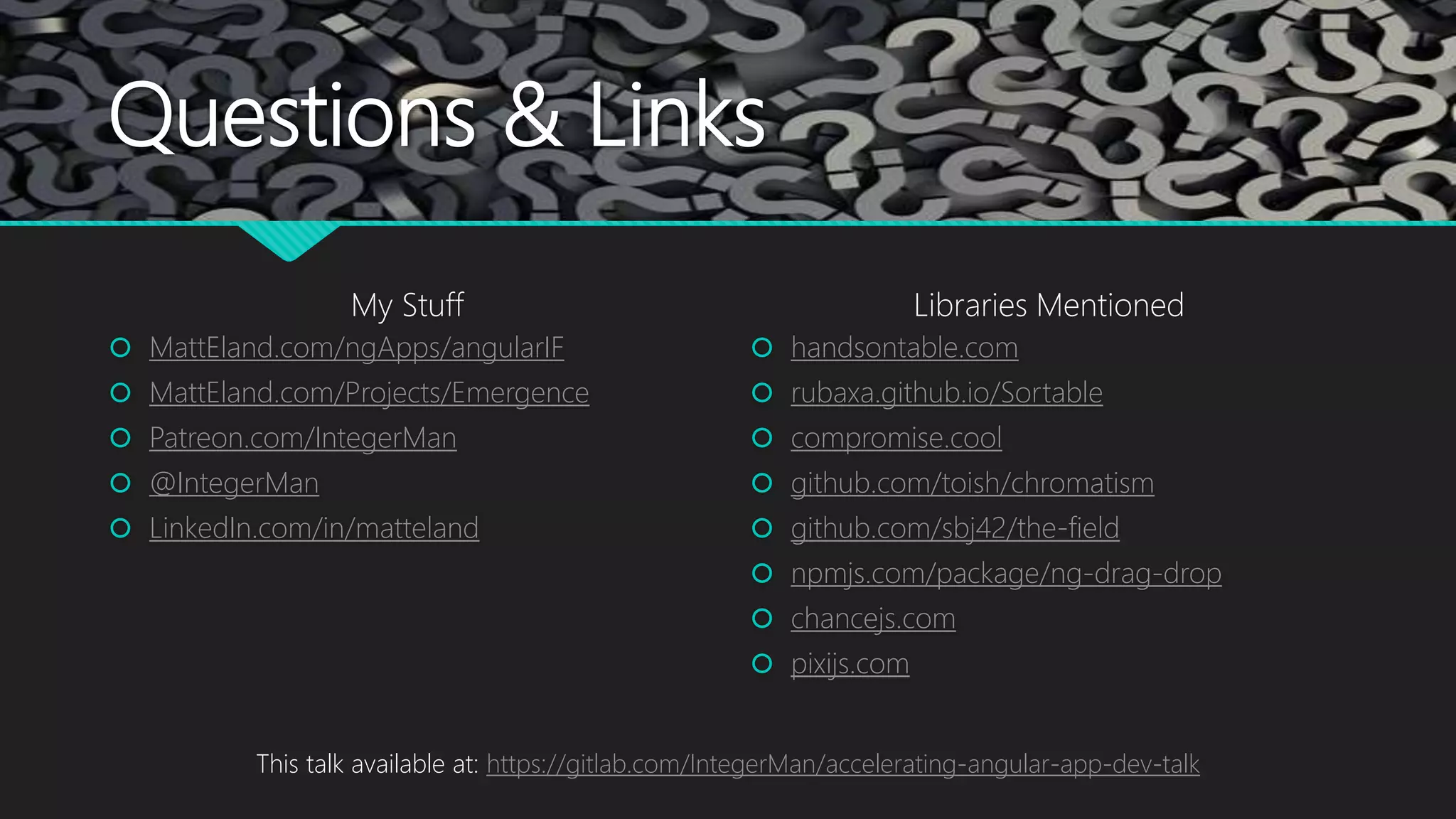

57. Questions & Links
My Stuff
 MattEland.com/ngApps/angularIF
 MattEland.com/Projects/Emergence
 Patreon.com/IntegerMan
 @IntegerMan
 LinkedIn.com/in/matteland
Libraries Mentioned
 handsontable.com
 rubaxa.github.io/Sortable
 compromise.cool
 github.com/toish/chromatism
 github.com/sbj42/the-field
 npmjs.com/package/ng-drag-drop
 chancejs.com
 pixijs.com
This talk available at: https://gitlab.com/IntegerMan/accelerating-angular-app-dev-talk
