The document provides specifications for Abtech's medium voltage terminal blocks, including: - They are available in 3, 4, and 6 way configurations for connecting 4.4-6.6kV electrical supplies to any ATEX or IECEx Zone 1 certified enclosure. - Models can withstand operating temperatures from -40°C to +130°C and are made of plastic and laminate materials. - They have certification for use in Zone 1 & 21 hazardous areas and types of protection including increased safety. - Options include linking terminals in pairs or multiples.

1. Product design and specifications are subject to change without notice; please check the website for latest specifications
Product Type Medium Voltage Terminal
Material Plastic UTR Laminate GP03 grade 1494
Operating Temp Rating -40°C to +130°C
Crimp Lugs 6mm2
to 240mm2
Mounting 4 x M8 clearance holes
Certification
Area Classification Zone 1 & 21, Gas and Dust
Type of Protection Ex e (Increased Safety)
Apparatus Coding Ex e IIC Gb
Certificate Number ATEX: CML 15ATEX3096U / IECEx: CML 15.0051U
Product
Reference
Width (mm) Height (mm) Depth
Z
(mm)
Maximum
Voltage
(kV)*
Maximum
Current
(A)
Maximum
Conductor
Size (mm2
)
Maximum
Ways
Weight
(kg)X X(M) Y Y(M)
TATEMV3 168 153 220 200 102 4.4 250 240 3 1.8
TATEMV4 212 197 220 200 102 4.4 250 240 4 2.4
TATEMV6 300 285 220 200 102 4.4 250 240 6 3.7
TATEMV3T 168 153 220 200 114 6.6 250 240 3 1.8
TATEMV4T 212 197 220 200 114 6.6 250 240 4 2.4
TATEMV6T 300 285 220 200 114 6.6 250 240 6 3.7
*dependant on conductor size and lug configuration
Standard Specifications
MVTerminal

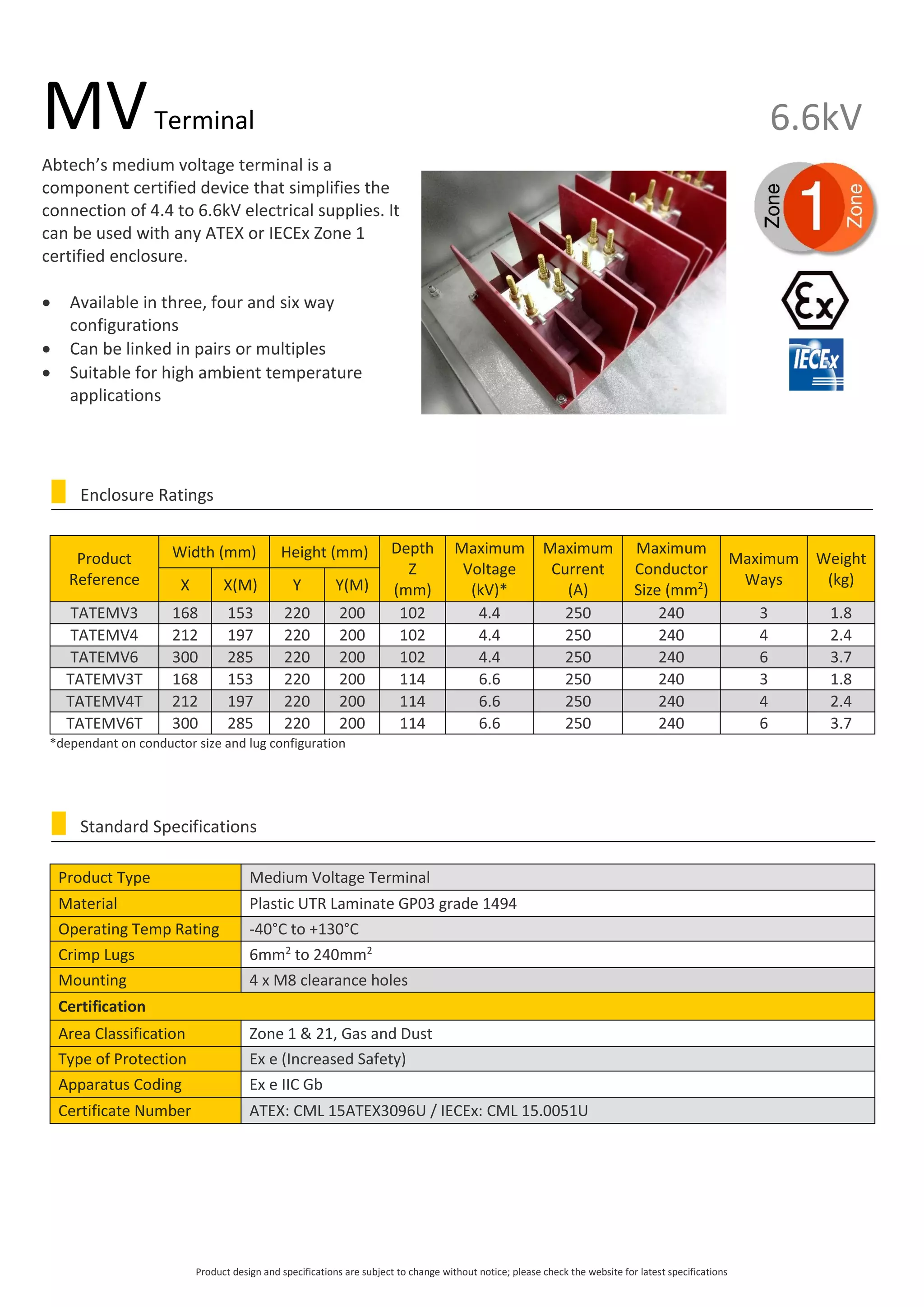

Abtech’s medium voltage terminal is a
component certified device that simplifies the
connection of 4.4 to 6.6kV electrical supplies. It
can be used with any ATEX or IECEx Zone 1
certified enclosure.
 Available in three, four and six way
configurations
 Can be linked in pairs or multiples
 Suitable for high ambient temperature
applications
6.6kV
Enclosure Ratings
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk

2. www.abtech.eu ABDS-98 - Rev 0

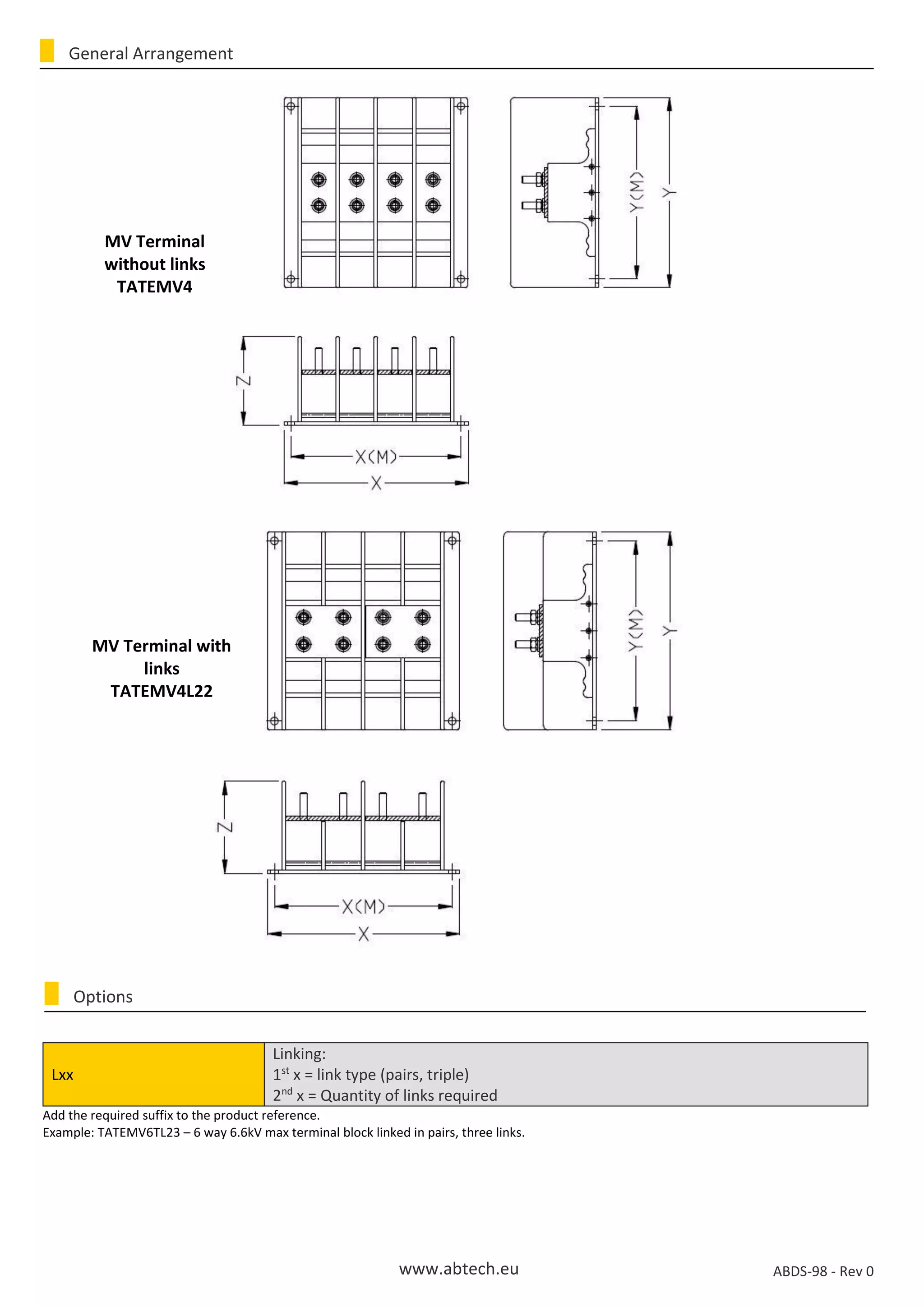

General Arrangement
Options
Lxx
Linking:
1st
x = link type (pairs, triple)
2nd
x = Quantity of links required
Add the required suffix to the product reference.
Example: TATEMV6TL23 – 6 way 6.6kV max terminal block linked in pairs, three links.
MV Terminal
without links
TATEMV4
MV Terminal with
links
TATEMV4L22
