This document provides specifications for the ET-1000 series tripod turnstiles, including power requirements, operating environment tolerances, dimensions, passage width, barrier material, and reliability. It also lists hardware integration options and provides diagrams for connecting the turnstiles to controllers and readers. The turnstiles are intended for indoor or outdoor use and can be configured for uni-directional or bi-directional traffic in entrances and exits.

1. IP CAMERAS
enterprise Software Solutions Lab Pvt. Ltd.
Tripod Turnstiles

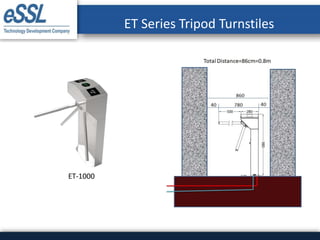

2. ET-1000
ET Series Tripod Turnstiles

3. Power Supply AC100~240V,
50Hz/60Hz
Rated Power 30W
Working Environment Indoor/outdoor
(Shelter)
Waterproof Class IP54
Operating
Temperature
-30℃~70℃
Relative Humidity 5% to 90%
Pass Speed (by card) 35 people/minute
Operating Voltage 24V
Passage width 50cm
Max. Bearing (Arms) 80Kg
Cabinet Stainless steel
Barrier Arm Stainless steel
Reliability Of core 3 million
Direction of
rotation
Unidirectional/Bidirect
ional
Operating
Temperature
-30℃~60℃
Dimension(L*W*
H)
480*280*980 mm
Specification

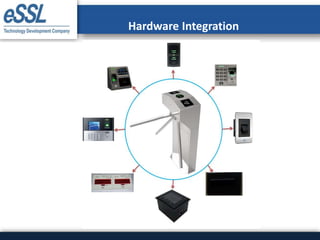

4. Hardware Integration

5. Model Entrance Exit Controller
ET--00 X X X
ET--11 KR500E KR500E C3-200
ET--22 FR1200/ID FR1200/ID inBIO-260
Configuration

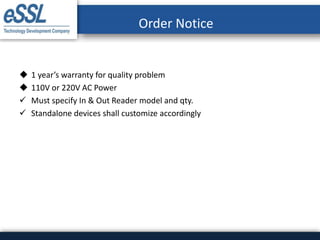

6. Order Notice
 1 year’s warranty for quality problem
 110V or 220V AC Power
 Must specify In & Out Reader model and qty.
 Standalone devices shall customize accordingly

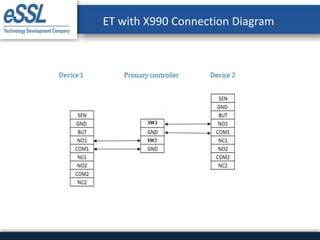

7. ET with X990 Connection Diagram

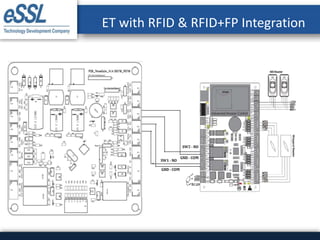

8. ET with RFID & RFID+FP Integration

9. AmpleTrails
