This document provides an overview of common ABAP objects and programming concepts. It begins with a list of T-codes related to ABAP development and editing. It then discusses ABAP programming rules and data types. The document provides examples of variable declaration, operators, and control structures like IF/ELSE and CASE statements. It also covers database access loops and standard SAP tables.

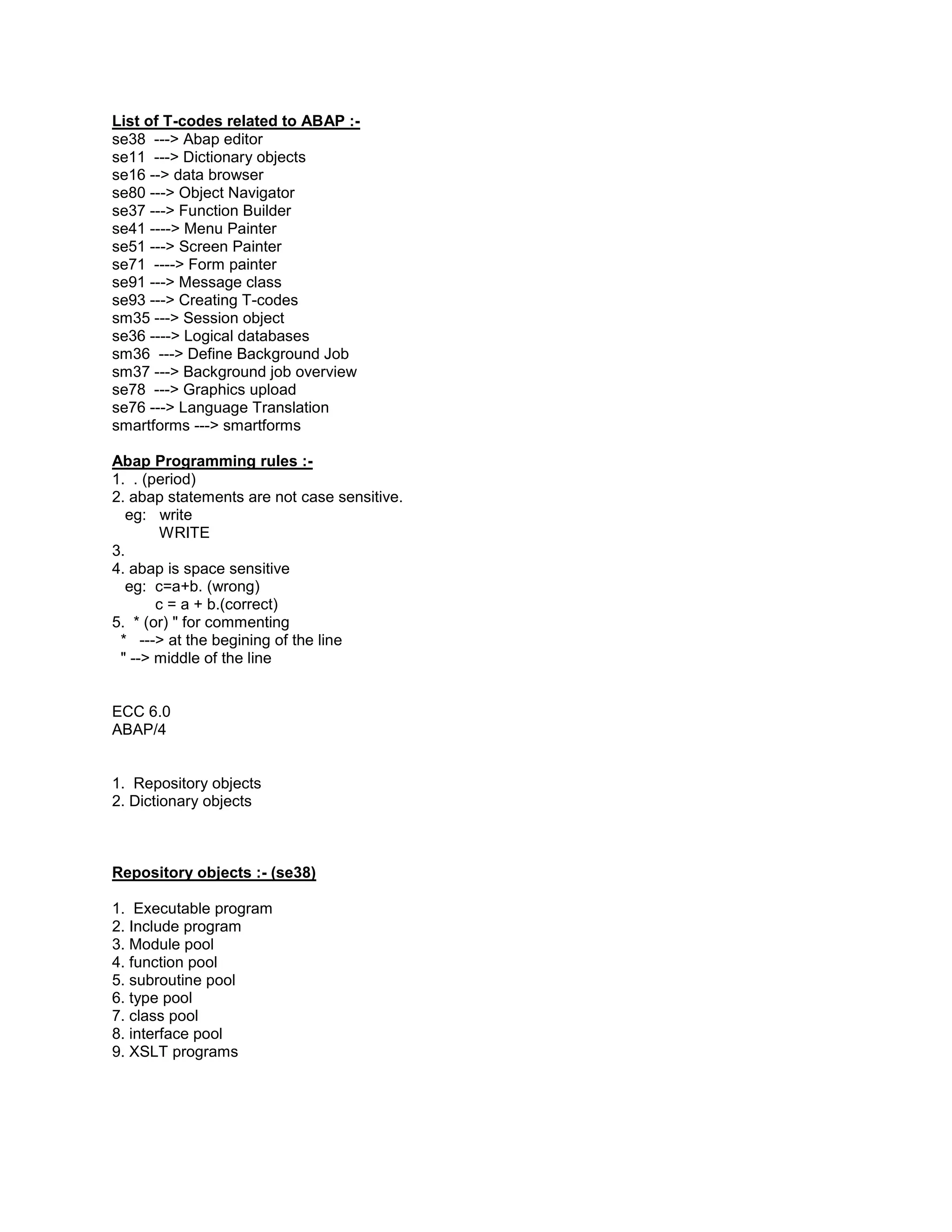

1. List of T-codes related to ABAP :-
se38 ---> Abap editor
se11 ---> Dictionary objects
se16 --> data browser
se80 ---> Object Navigator
se37 ---> Function Builder
se41 ----> Menu Painter
se51 ---> Screen Painter
se71 ----> Form painter
se91 ---> Message class
se93 ---> Creating T-codes
sm35 ---> Session object
se36 ----> Logical databases
sm36 ---> Define Background Job
sm37 ---> Background job overview
se78 ---> Graphics upload
se76 ---> Language Translation
smartforms ---> smartforms
Abap Programming rules :-
1. . (period)
2. abap statements are not case sensitive.
eg: write
WRITE
3.
4. abap is space sensitive
eg: c=a+b. (wrong)
c = a + b.(correct)
5. * (or) " for commenting
* ---> at the begining of the line
" --> middle of the line
ECC 6.0
ABAP/4
1. Repository objects
2. Dictionary objects
Repository objects :- (se38)
1. Executable program
2. Include program
3. Module pool
4. function pool
5. subroutine pool
6. type pool
7. class pool
8. interface pool
9. XSLT programs

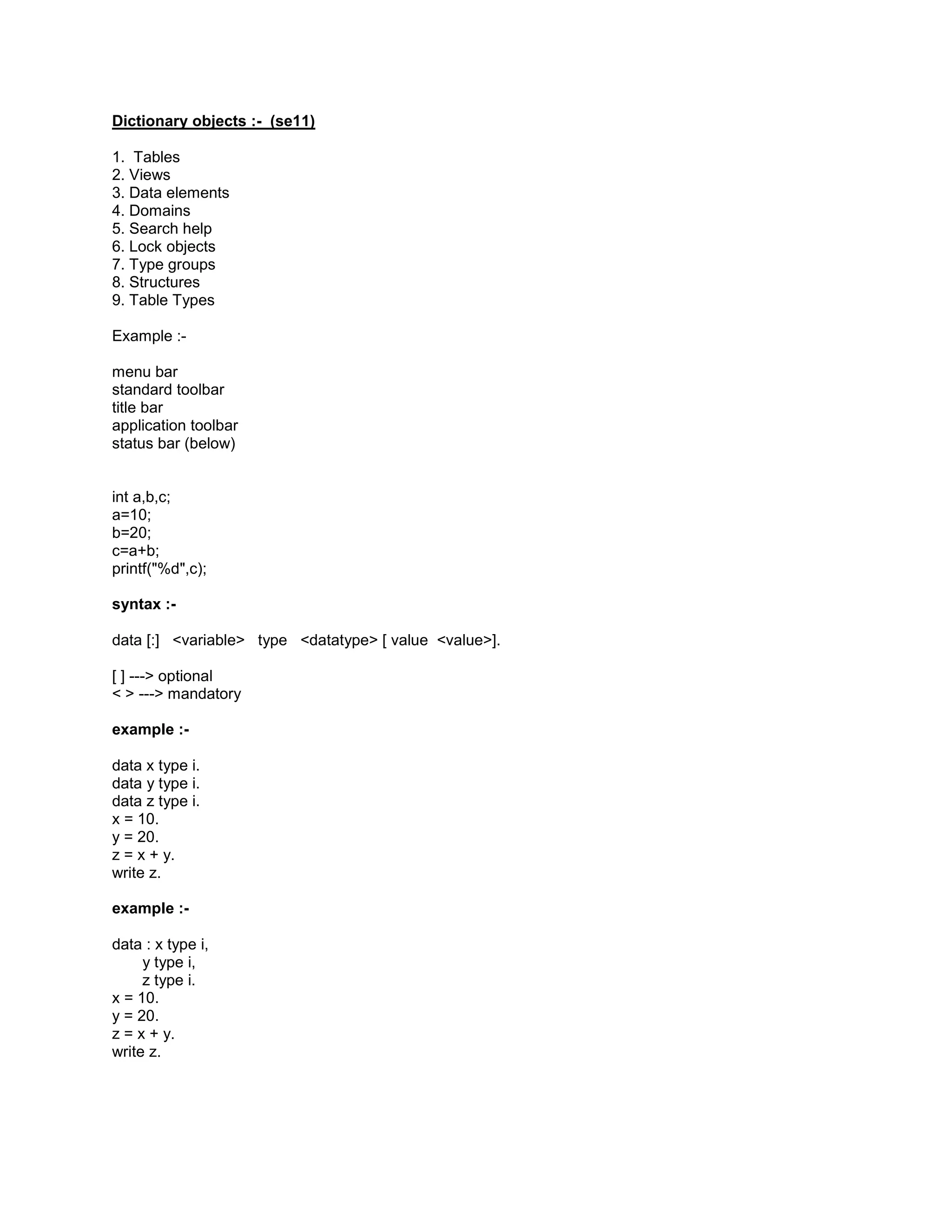

2. Dictionary objects :- (se11)
1. Tables
2. Views
3. Data elements
4. Domains
5. Search help
6. Lock objects
7. Type groups
8. Structures
9. Table Types
Example :-
menu bar
standard toolbar
title bar
application toolbar
status bar (below)
int a,b,c;
a=10;
b=20;
c=a+b;
printf("%d",c);
syntax :-
data [:] <variable> type <datatype> [ value <value>].
[ ] ---> optional
< > ---> mandatory
example :-
data x type i.
data y type i.
data z type i.
x = 10.
y = 20.
z = x + y.
write z.
example :-
data : x type i,
y type i,
z type i.
x = 10.
y = 20.
z = x + y.
write z.

3. example :-
data : x type i,
y type i,
z type i.
x = 10.
y = 20.
z = x + y.
write : 'sum is',z.
write :/ 'sum is',z LEFT-JUSTIFIED.
example : parameter
PARAMETER : x type i,
y type i.
data z type i.
z = x + y.
write :/ 'sum is ',z.
example : default values
PARAMETER : x type i DEFAULT 10,
y type i DEFAULT 20.
data z type i.
z = x + y.
write :/ 'sum is ',z.
example : Declaring and Initializing the variables
data : x type i value 10,
y type i value 20,
z type i.
z = x + y.
write :/ 'sum is ',z.
x = 23.
y = 34.
z = x + y.
write :/ 'sum is ',z.
example :- constants
CONSTANTS : x type i VALUE 10,
y type i value 20.
data z type i.
z = x + y.
write :/ 'sum is ',z.
example : characters and strings
data x type c.
x = 'genesis'.
write x.
data y(10) type c.
y = 'genesis software systems'.
write / y.
data z type string.

4. z = 'genesis software systems'.
write :/ z.
Creating Package :-
ddmmyyyy
27082009
09202708
storage : yyyymmdd
output : ddmmyyyy
sy-datum :- date
sy-uzeit :- time
example : Date and time datatypes
data x type d value '27082009'.
write :/ 'Value of x is ',x.
x = '20090827'.
write :/ 'Value of x is ',x.
write :/ 'formatted date :',x
using EDIT MASK '________'.
write :/ 'formatted date :',(10) x using EDIT MASK
'________'.
data y type t value '093503'.
write :/ y.
write :/ 'formatted time ',(8) y using EDIT MASK '__:__:__'.
write :/ 'system date is ',sy-datum.
write :/ 'system time is ',sy-uzeit.
example : Packed data type
DATA x type i.
x = '123.45'.
write x.
data y type p.
y = '123.45'.
write :/ y.
data z type p DECIMALS 2.
z = '123.456'.
write :/ z.
Conditional statements :-
1. if - else
2. case - endcase

5. syntax : if-else
if <condition>.
statements.
elseif <condition2>.
statements.
---
endif.
syntax : case-endcase
case <condition>.
when <value 1>.
statements.
when <value 2>.
statements.
------
when <others>.
statements.
endcase.
looping statements :-
1. General Loops
a) while-endwhile
syntax :-
while <condition>.
statements.
endwhile.
b) do-enddo.
syntax :-
do <n> times.
statements.
enddo.
2. Database loops
a) select-endselect
b) loop-endloop
example : radio buttons
PARAMETERS : x type i,
y type i.
PARAMETERS : r1 RADIOBUTTON GROUP g1,
r2 RADIOBUTTON GROUP g1,
r3 RADIOBUTTON GROUP g1,
r4 RADIOBUTTON GROUP g1.
data res type i.
if r1 = 'X'.
res = x + y.
write :/ 'sum is ',res.
elseif r2 = 'X'.
res = x - y.

6. if res >= 0.
write :/ 'Difference is ',res.
else.
write :/ 'Difference is -' NO-GAP,res no-SIGN LEFT-JUSTIFIED.
endif.
elseif r3 = 'X'.
res = x * y.
write :/ 'Product is ',res.
elseif r4 = 'X'.
res = x / y.
write :/ 'Division is ',res.
endif.
example : checkboxes
PARAMETERS : x type i,
y type i.
PARAMETERS : r1 as CHECKBOX,
r2 as CHECKBOX,
r3 as CHECKBOX,
r4 AS CHECKBOX.
data res type i.
if r1 = 'X'.
res = x + y.
write :/ 'sum is ',res.
endif.
if r2 = 'X'.
res = x - y.
if res >= 0.
write :/ 'Difference is ',res.
else.
write :/ 'Difference is -' NO-GAP,res no-SIGN LEFT-JUSTIFIED.
endif.
endif.
if r3 = 'X'.
res = x * y.
write :/ 'Product is ',res.
endif.
if r4 = 'X'.
res = x / y.
write :/ 'Division is ',res.
endif.
example : case-endcase
PARAMETERS : x type i,
y type i,
ch type i.
data res type i.
case ch.
when 1.
res = x + y.
write :/ 'sum is ',res.

7. when 2.
res = x - y.
write :/ 'difference is ',res.
when 3.
res = x * y.
write :/ 'product is ',res.
when 4.
res = x / y.
write :/ 'division is ',res.
when OTHERS.
WRITE :/ 'Invalid choice, Please enter 1,2,3,4'.
endcase.
Database loops
example : while-endwhile
PARAMETERS : x type i.
data : y type i value 1,
res type i.
while y <= 10.
res = x * y.
write :/ x,'*',y,'=',res.
y = y + 1.
ENDWHILE.
example : do-enddo
data : res type i,
y type i value 1.
PARAMETERS x type i.
do 10 times.
res = x * y.
write :/ x,'*',y,'=',res.
y = y + 1.
enddo.
example : continue statement
data : res type i,
y type i value 1.
PARAMETERS x type i.
while y <= 10.
if y eq 6.
y = y + 1.
CONTINUE.
endif.

8. res = x * y.
write :/ x,'*',y,'=',res.
y = y + 1.
endwhile.
example : exit statement
data : res type i,
y type i value 1.
PARAMETERS x type i.
while y <= 10.
if y eq 6.
exit.
endif.
res = x * y.
write :/ x,'*',y,'=',res.
y = y + 1.
endwhile.
write :/ 'end of program'.
Operators :-
1. Arithmetic operators :- +, - , *, / , mod
2. Logical operators :- AND, OR, NOT
3. Relational operators
Symbolic format character format
< lt (less than)
> gt (greater than)
= eq (equal to)
<= le (less than or equal to)
>= ge (greater than or equal to)
<> ne (not equal to)
Dictionary objects (se11) :-
sy-datum
sy-uzeit
Standard tables :-
kna1 ---> customer master
vbak ---> sales document header data
vbap ---> sales document item data
ekko --> Purchase document header data
ekpo --> Purchase document item data
lfa1 ---> Vendor master
mara ----> Material master
makt ---> material descriptions
1. client dependent :- 'mandt'
2. client independent

9. se11 ---> database table (yemployee), create ---> provide description (employee dteails)
Delivery and maintainance :-
Delivery class ---> A
Data browser/Table view maintainance ---> Display/Maintainace allowed
Fields :-
Field name Datatype length
empno int4 10
ename char 20
empaddress char 30
Technical settings :-
data class ---> APPL0
sizecategory ---> 0
