The document discusses using Sinatra and Datamapper to create web applications that store and retrieve data. It provides instructions on setting up a Sinatra app with Datamapper, defining a data model using classes, and storing, retrieving, updating and deleting data in YAML files. Examples are given for creating forms to store data, retrieving all data entries or a specific entry, and updating or deleting entries. The final assignment is to build a web app that uses these concepts.

1. Communications Lab :: Web Lecture 4: Sinatra and Datamapper

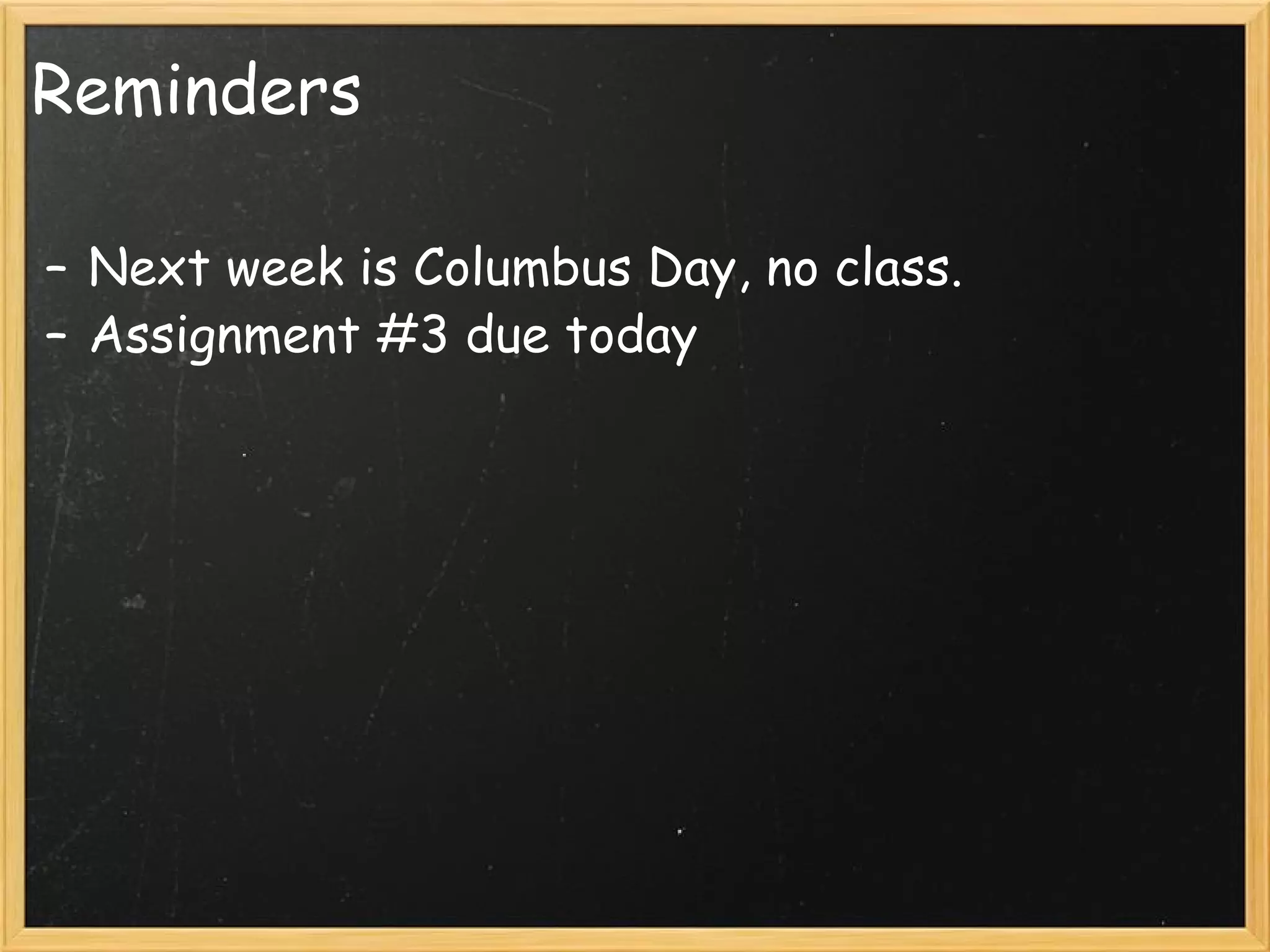

2. Reminders Next week is Columbus Day, no class. Assignment #3 due today

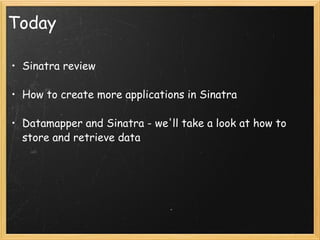

3. Today Sinatra review How to create more applications in Sinatra Datamapper and Sinatra - we'll take a look at how to store and retrieve data

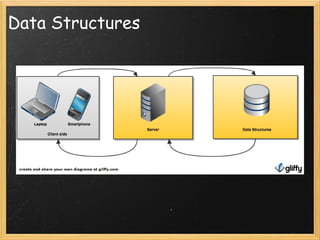

4. Data Structures

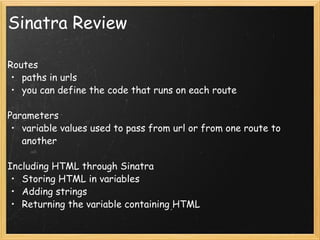

5. Sinatra Review Routes paths in urls you can define the code that runs on each route Parameters variable values used to pass from url or from one route to another Including HTML through Sinatra Storing HTML in variables Adding strings Returning the variable containing HTML

6. Creating a new application First... Download the script at https://gist.github.com/1258552 Rename it to new_sinatra_app.rb Next.. Open Terminal If you have Windows, download Putty

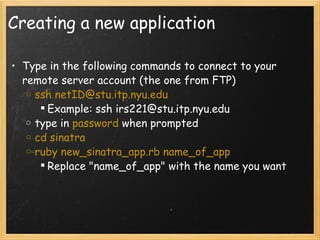

7. Creating a new application Type in the following commands to connect to your remote server account (the one from FTP) ssh netID@stu.itp.nyu.edu Example: ssh irs221@stu.itp.nyu.edu type in password when prompted cd sinatra ruby new_sinatra_app.rb name_of_app Replace "name_of_app" with the name you want

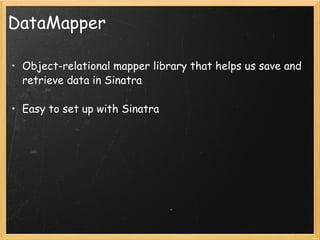

8. DataMapper Object-relational mapper library that helps us save and retrieve data in Sinatra Easy to set up with Sinatra

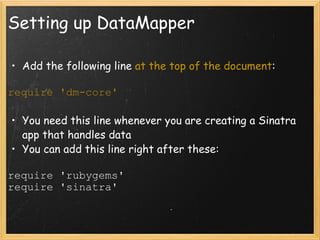

9. Setting up DataMapper Add the following line at the top of the document : require 'dm-core' You need this line whenever you are creating a Sinatra app that handles data You can add this line right after these: require 'rubygems' require 'sinatra'

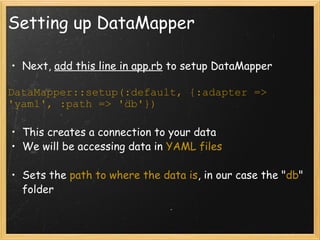

10. Setting up DataMapper Next, add this line in app.rb to setup DataMapper DataMapper::setup(:default, {:adapter => 'yaml', :path => 'db'}) This creates a connection to your data We will be accessing data in YAML files Sets the path to where the data is , in our case the " db " folder

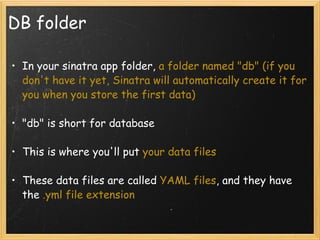

11. DB folder In your sinatra app folder, a folder named "db" (if you don't have it yet, Sinatra will automatically create it for you when you store the first data) "db" is short for database This is where you'll put your data files These data files are called YAML files , and they have the .yml file extension

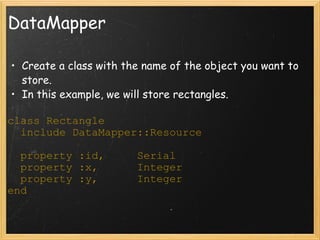

12. DataMapper Create a class with the name of the object you want to store. In this example, we will store rectangles. class Rectangle include DataMapper::Resource property :id, Serial property :x, Integer property :y, Integer end

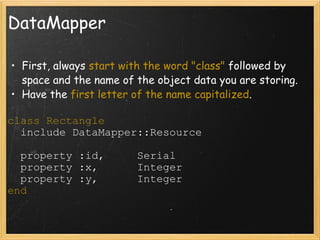

13. DataMapper First, always start with the word "class" followed by space and the name of the object data you are storing. Have the first letter of the name capitalized . class Rectangle include DataMapper::Resource property :id, Serial property :x, Integer property :y, Integer end

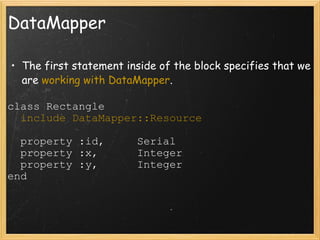

14. DataMapper The first statement inside of the block specifies that we are working with DataMapper . class Rectangle include DataMapper::Resource property :id, Serial property :x, Integer property :y, Integer end

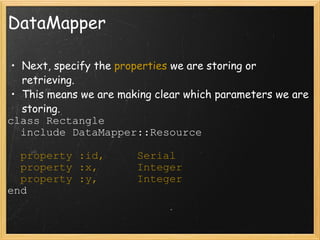

15. DataMapper Next, specify the properties we are storing or retrieving. This means we are making clear which parameters we are storing. class Rectangle include DataMapper::Resource property :id, Serial property :x, Integer property :y, Integer end

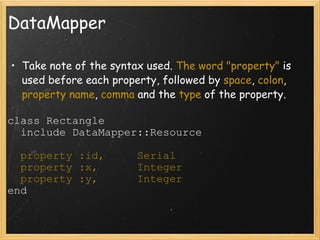

16. DataMapper Take note of the syntax used. The word "property" is used before each property, followed by space , colon , property name , comma and the type of the property. class Rectangle include DataMapper::Resource property :id, Serial property :x, Integer property :y, Integer end

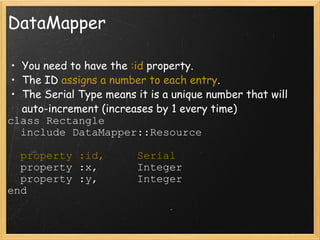

17. DataMapper You need to have the :id property. The ID assigns a number to each entry . The Serial Type means it is a unique number that will auto-increment (increases by 1 every time) class Rectangle include DataMapper::Resource property :id, Serial property :x, Integer property :y, Integer end

18. DataMapper Example of :id property. This is what the stored data will look like. --- - x: 11 y: 22 id: 1 - x: 522 y: 15 id: 2

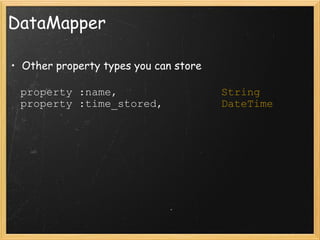

19. DataMapper Other property types you can store property :name, String property :time_stored, DateTime

20. Storing Data with POST get ' /db_rectangle ' do form = &quot;&quot; form += '<form action=&quot;/~irs221/sinatra/example1 /create_rectangle &quot; method=&quot; POST &quot;>' form += '<p><label>text:</label> <input type=&quot;text&quot; name=&quot;text&quot; /></p>' form += '<p><label>x:</label> <input type=&quot;text&quot; name=&quot;x&quot; /></p>' form += '<p><label>y:</label> <input type=&quot;text&quot; name=&quot;y&quot; /></p>' form += '<p><label>color:</label> <input type=&quot;text&quot; name=&quot;color&quot; /></p>' form += '<p><input type=&quot;submit&quot; value=&quot;create&quot; /></p>' form += '</form>' form end

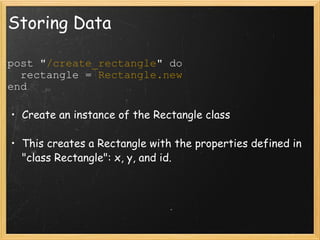

21. Storing Data post &quot; /create_rectangle &quot; do rectangle = Rectangle.new end Create an instance of the Rectangle class This creates a Rectangle with the properties defined in &quot;class Rectangle&quot;: x, y, and id.

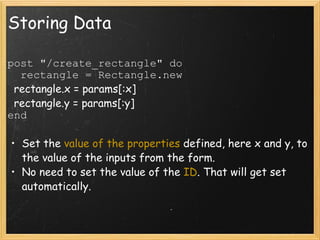

22. Storing Data post &quot;/create_rectangle&quot; do rectangle = Rectangle.new rectangle.x = params[:x] rectangle.y = params[:y] end Set the value of the properties defined, here x and y, to the value of the inputs from the form. No need to set the value of the ID . That will get set automatically.

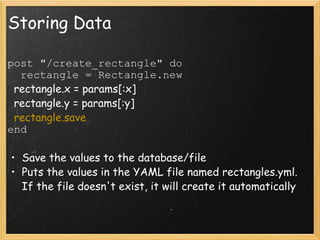

23. Storing Data post &quot;/create_rectangle&quot; do rectangle = Rectangle.new rectangle.x = params[:x] rectangle.y = params[:y] rectangle.save end Save the values to the database/file Puts the values in the YAML file named rectangles.yml. If the file doesn't exist, it will create it automatically

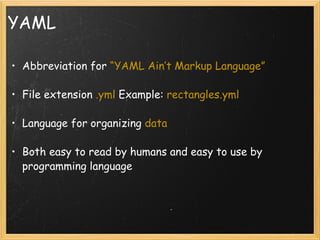

24. YAML Abbreviation for “YAML Ain’t Markup Language” File extension .yml Example: rectangles.yml Language for organizing data Both easy to read by humans and easy to use by programming language

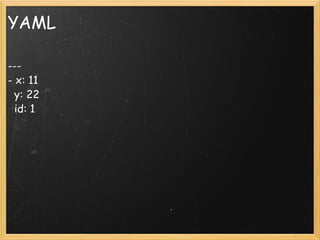

25. YAML --- - x: 11 y: 22 id: 1

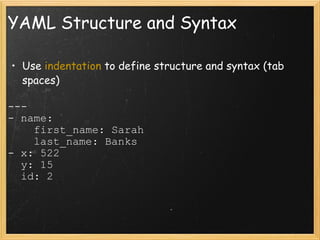

26. YAML Structure and Syntax Use indentation to define structure and syntax (tab spaces) --- - name: first_name: Sarah last_name: Banks - x: 522 y: 15 id: 2

27. YAML Structure and Syntax Mappings use colon and space : &quot;key: value&quot; Use colons to separate pairs Example: --- - x : 11 y : 22 id : 1

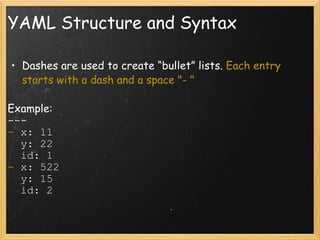

28. YAML Structure and Syntax Dashes are used to create “bullet” lists. Each entry starts with a dash and a space &quot;- &quot; Example: --- - x: 11 y: 22 id: 1 - x: 522 y: 15 id: 2

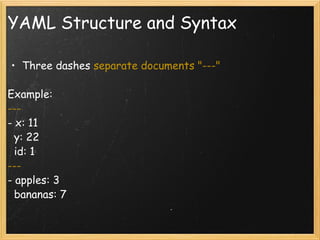

29. YAML Structure and Syntax Three dashes separate documents &quot;---&quot; Example: --- - x: 11 y: 22 id: 1 --- - apples: 3 bananas: 7

30. YAML Structure and Syntax Three dots indicate the end of a document &quot;...&quot; Optional Example: --- - x: 11 y: 22 id: 1 ...

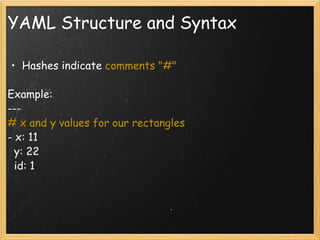

31. YAML Structure and Syntax Hashes indicate comments &quot;#&quot; Example: --- # x and y values for our rectangles - x: 11 y: 22 id: 1

32. Reading back the data Set a variable for the HTML and return at the end output = &quot;&quot; for r in Rectangle.all output += <<-HTML #{r.x},#{r.y} HTML end output

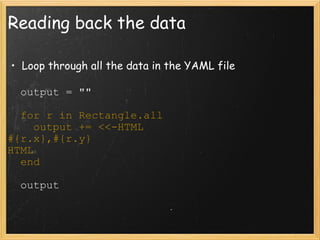

33. Reading back the data Loop through all the data in the YAML file output = &quot;&quot; for r in Rectangle.all output += <<-HTML #{r.x},#{r.y} HTML end output

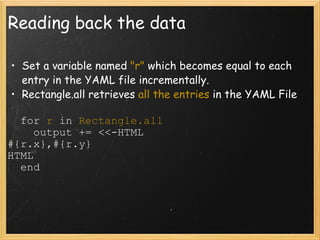

34. Reading back the data Set a variable named &quot;r&quot; which becomes equal to each entry in the YAML file incrementally. Rectangle.all retrieves all the entries in the YAML File for r in Rectangle.all output += <<-HTML #{r.x},#{r.y} HTML end

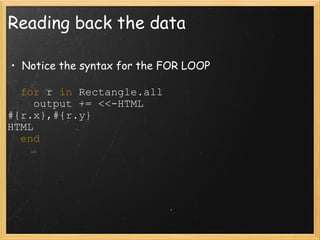

35. Reading back the data Notice the syntax for the FOR LOOP for r in Rectangle.all output += <<-HTML #{r.x},#{r.y} HTML end

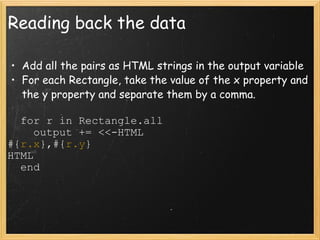

36. Reading back the data Add all the pairs as HTML strings in the output variable For each Rectangle, take the value of the x property and the y property and separate them by a comma. for r in Rectangle.all output += <<-HTML #{ r.x },#{ r.y } HTML end

37. Retrieving a certain entry This is why the id is useful. We can keep close track of all entries and retrieve them individually get &quot;/rectangles/ :id &quot; do Rectangle.get params[:id] end

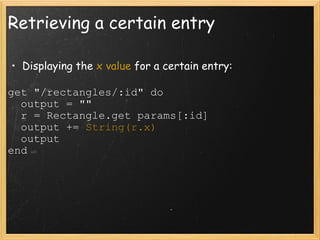

38. Retrieving a certain entry Displaying the x value for a certain entry: get &quot;/rectangles/:id&quot; do output = &quot;&quot; r = Rectangle.get params[:id] output += String(r.x) output end

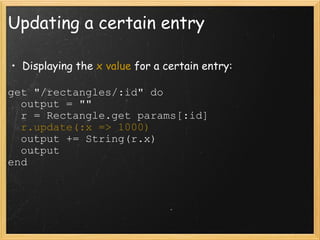

39. Updating a certain entry Displaying the x value for a certain entry: get &quot;/rectangles/:id&quot; do output = &quot;&quot; r = Rectangle.get params[:id] r.update(:x => 1000) output += String(r.x) output end

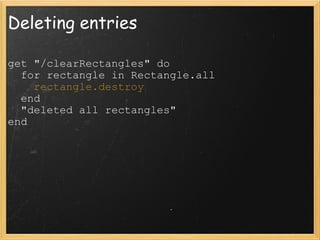

40. Deleting entries get &quot;/clearRectangles&quot; do for rectangle in Rectangle.all rectangle.destroy end &quot;deleted all rectangles&quot; end

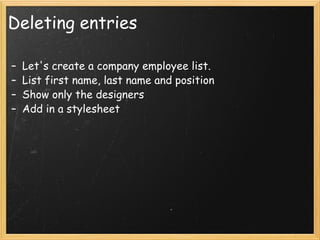

41. Deleting entries Let's create a company employee list. List first name, last name and position Show only the designers Add in a stylesheet

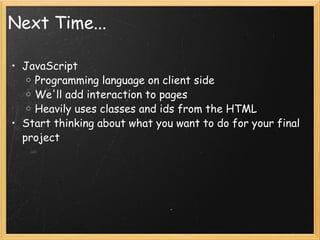

42. Next Time... JavaScript Programming language on client side We'll add interaction to pages Heavily uses classes and ids from the HTML Start thinking about what you want to do for your final project

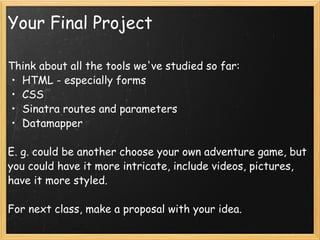

43. Your Final Project Think about all the tools we've studied so far: HTML - especially forms CSS Sinatra routes and parameters Datamapper E. g. could be another choose your own adventure game, but you could have it more intricate, include videos, pictures, have it more styled. For next class, make a proposal with your idea.

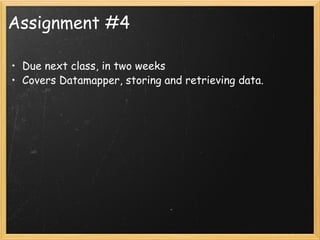

44. Assignment #4 Due next class, in two weeks Covers Datamapper, storing and retrieving data.
