This document describes an AAC block cutting machine. It cuts autoclave aerated concrete (AAC) blocks into their final shapes in a single automated step. The machine cuts the AAC "cake" into blocks with six sides within tight tolerances of ±2mm. It works by flipping the cake, moving it to cutting positions, and using level and crossing cuts to shape it. The machine cuts waste and recycles slurry with no secondary pollution. It has advantages like compact design, single-step cutting, tight tolerances, and safety features. Technical parameters and models that can cut blocks from 4050x1240x650mm up to 6050x1540x650mm are provided.

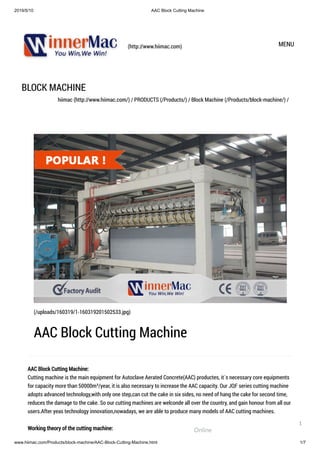

1. 2019/5/10 AAC Block Cutting Machine
www.hiimac.com/Products/block-machine/AAC-Block-Cutting-Machine.html 1/7
(http://www.hiimac.com) MENU
BLOCK MACHINE
hiimac (http://www.hiimac.com/) / PRODUCTS (/Products/) / Block Machine (/Products/block-machine/) /
AAC Block Cutting Machine:
Cutting machine is the main equipment for Autoclave Aerated Concrete(AAC) productes, it`s necessary core equipments
for capacity more than 50000m³/year, it is also necessary to increase the AAC capacity. Our JQF series cutting machine
adopts advanced technology,with only one step,can cut the cake in six sides, no need of hang the cake for second time,
reduces the damage to the cake. So our cutting machines are welconde all over the country, and gain honour from all our
users.After yeas technology innovation,nowadays, we are able to produce many models of AAC cutting machines.
Working theory of the cutting machine:
(/uploads/160319/1-160319201502533.jpg)
AAC Block Cutting Machine
Online
1

2. 2019/5/10 AAC Block Cutting Machine
www.hiimac.com/Products/block-machine/AAC-Block-Cutting-Machine.html 2/7
Put the cake together with the bottom board onto the overturn plate, then move to the small slipway near cutting, after
turn 90º, the cake will be move to the cutting place from the slipway, then level cut the cake in four sides, and crossing
cut the cake. After the cutting the cake will back to the overturn plate from the slipway, turn 90 º in reverse direction,the
cake will back to the overturn plate,the whole process will finish automatically.
Advantages of the ground overturn cutting machine:
1.Structure compact, easy to operate, less maintenance.
2.The level cutting and vertical cutting can be finish only once.
3.Cut the cake in 6 sides,the final product accuracy is accord with standard of GB/T11969-1997.
4.Can also satisfy the requirement of producing slab, the final product accuracy is accord with standard of GB15762-
1995.
5.Can recycle all the waste slurry, no secondary pollution.
6.Cake no conglutination.
7.Level cutting adopt screw drive, solve the original problem of the lack of synchronization by hydraulic transmission.
8.No Limit and interlocked in mechanical systems to prevent accident by the improper operation of the equipment.
9.Have rapid replacement wire device.
10.No defective products.
Technical Parameter of AAC Block Cutting Machine:
No. Spec cake size
(mm)
Cu ng cycle (about) Capacitym3/year Cu ng accuracy
(mm)
Power
(kw)
Overa
(mm)
1 4M 4050x1240x650 6 min/mould ≥100,000 Cut 6 sides±2 26.5 11000
2 6M 6050x1540x650 6 min/mould ≥100,000 Cut 6 sides±2 30 13200
PRODUCTS
Beneficiation Machine (/Products/Beneficiation-Machine/)
Grinding Mill (/Products/Grinding-Mill/)
Rotary Dryers (/Products/Rotary-Dryers/)
Block Machine (/Products/Block-Machine/)
Animal Feed Machine (/Products/Animal-Feed-Machine/)
Pellet Mills (/Products/Pellet-Mills/)

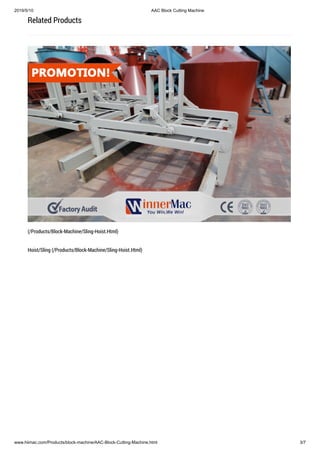

3. 2019/5/10 AAC Block Cutting Machine
www.hiimac.com/Products/block-machine/AAC-Block-Cutting-Machine.html 3/7
Related Products
(/Products/Block-Machine/Sling-Hoist.Html)
Hoist/Sling (/Products/Block-Machine/Sling-Hoist.Html)

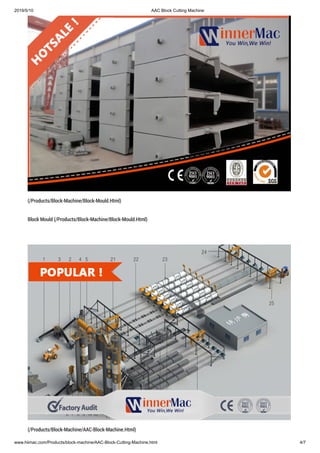

4. 2019/5/10 AAC Block Cutting Machine
www.hiimac.com/Products/block-machine/AAC-Block-Cutting-Machine.html 4/7
(/Products/Block-Machine/Block-Mould.Html)
Block Mould (/Products/Block-Machine/Block-Mould.Html)
(/Products/Block-Machine/AAC-Block-Machine.Html)

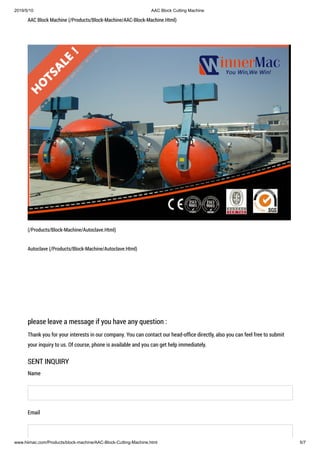

5. 2019/5/10 AAC Block Cutting Machine
www.hiimac.com/Products/block-machine/AAC-Block-Cutting-Machine.html 5/7
AAC Block Machine (/Products/Block-Machine/AAC-Block-Machine.Html)
(/Products/Block-Machine/Autoclave.Html)
Autoclave (/Products/Block-Machine/Autoclave.Html)
please leave a message if you have any question :
Thank you for your interests in our company. You can contact our head-office directly, also you can feel free to submit
your inquiry to us. Of course, phone is available and you can get help immediately.
SENT INQUIRY
Name
Email

6. 2019/5/10 AAC Block Cutting Machine
www.hiimac.com/Products/block-machine/AAC-Block-Cutting-Machine.html 6/7
Message
SEND
(http://www.hiimac.com)
phone: 0086 18637192252
skype: evitalee55
email: sales@hiimac.com
add: No.6 Cuizhu Street,Hi-Tech Zone,zhengzhou city,China
Navigation
About Us (/About-Us/)
news (/news/)
PRODUCTS (/Products/)
Mining (/for-mining/)
Spare Parts (/Spare-Parts/)
Contact us (/contact/)
recently news

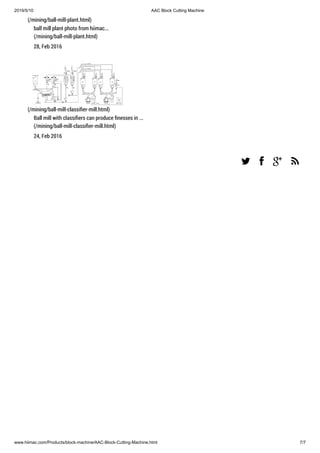

7. 2019/5/10 AAC Block Cutting Machine
