The document discusses wet pan mills, which are used to select and grind various minerals like gold, silver, and other metals. Wet pan mills have advantages over ball mills like lower costs, faster processing, smaller footprint, and higher returns. They are suitable for small to medium mining enterprises. The document provides details on the working principle, specifications, and capacities of different wet pan mill models for processing gold. It also includes contact information for the manufacturer.

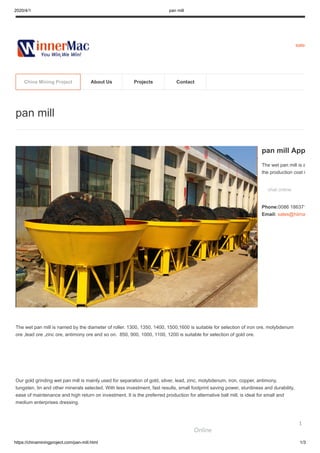

1. 2020/4/1 pan mill
https://chinaminingproject.com/pan-mill.html 1/3
sales
The wet pan mill is named by the diameter of roller. 1300, 1350, 1400, 1500,1600 is suitable for selection of iron ore, molybdenum
ore ,lead ore ,zinc ore, antimony ore and so on. 850, 900, 1000, 1100, 1200 is suitable for selection of gold ore.
Our gold grinding wet pan mill is mainly used for separation of gold, silver, lead, zinc, molybdenum, iron, copper, antimony,
tungsten, tin and other minerals selected. With less investment, fast results, small footprint saving power, sturdiness and durability,
ease of maintenance and high return on investment. It is the preferred production for alternative ball mill, is ideal for small and
medium enterprises dressing.
pan mill
pan mill App
The wet pan mill is a
the production cost i
chat online
Phone:0086 186371
Email: sales@hiima
China Mining Project About Us Projects Contact
Online
1

2. 2020/4/1 pan mill
https://chinaminingproject.com/pan-mill.html 2/3
Working principle of wet pan mill
Mainly used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold
machine can be used. Characteristics: grind gold through the raw material mixing, rolling, crushing, rolling repeatedly reach
moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the
machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the
product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized.
Specification of Gold Pan Mill
Model 1200 1100 1000 900 850
Dia.of grinding wheel
(mm)
1200±10 1100±10 1000±10 900±10 850±10
Dia.of grinding pan
(mm)
1800±20 1800±20 1800±20 1700±20 1700±20
Thickness of grinding pan
(mm)
100-80 100-80 100-80 60-45 60-45
Width of grinding pan
(mm)
230-250 230-250 230-250 170-220 170-220
Speed (r/min) For extract gold:10-13 others:18-22
Power (kw) 7.5 5.5 5.5 3 3
Drive speed (r/min) 960 960 960 960 960
Input size(mm) <25
Capacity (t/day) Gold 10 Gold 8 Gold 5 Gold 3 Gold 2
Capacity (kg/h) Gold 600 Gold 500 Gold 400 Gold 300 Gold 200
