A Seminar on Electric Vehicle Software Simulation

This document discusses simulation in electric vehicle (EV) software development. It begins with an introduction to EVs and simulation, then discusses types of EV simulations including powertrain, motor control, and battery management system simulations. It describes hardware-in-the-loop, software-in-the-loop, and model-in-the-loop simulations and their roles in the development process. Key advantages of simulation are that it allows for cost-effective testing by eliminating physical prototypes, enables rapid iteration to accelerate development, and facilitates thorough testing to ensure safety and reliability.

Embed presentation

Downloaded 49 times
A Seminar on EV Software Simulation BY: MOHSIN KHAN A
Agenda Overview of Simulation in EV Software Development  Introduction to Electric Vehicle  Introduction to Simulation  Types of Simulations  Advantages of Simulation  Common Simulation Tools Simulation for Powertrain and Motor Control  Powertrain Simulation  Motor Control Simulation  Battery Management System (BMS) Simulation  Case Studies and Examples Advanced Simulation Applications and Best Practices  Challenges in EV Software Simulation  Cybersecurity Simulation  Over-the-Air (OTA) Update Simulation

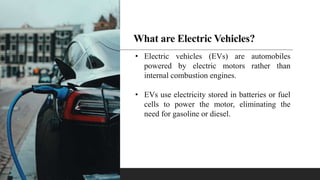

What are Electric Vehicles? • Electric vehicles (EVs) are automobiles powered by electric motors rather than internal combustion engines. • EVs use electricity stored in batteries or fuel cells to power the motor, eliminating the need for gasoline or diesel.

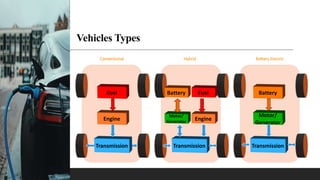

Motor/ Generator Battery Fuel Transmission Engine Fuel Transmission Engine Battery Transmission Motor/ Generator Battery Electric Hybrid Conventional Vehicles Types
Types of Electric Vehicles? 1. Battery Electric Vehicles (BEVs): 1. Solely powered by electric batteries. 2. No internal combustion engine; produce zero tailpipe emissions. 2. Plug-in Hybrid Electric Vehicles (PHEVs): 1. Utilize both electric batteries and internal combustion engines. 2. Can be charged by plugging into an outlet and also use gasoline or diesel. 3. Hybrid Electric Vehicles (HEVs): 1. Combine an internal combustion engine with an electric battery. 2. Cannot be plugged in; battery recharges through regenerative braking.
BEV: Battery Electric Vehicles Battery charged using Electricity Battery powers Electric Motor Electricity accessed through Plug How does it work? BEV PEV Chevy Bolt Tesla Model S

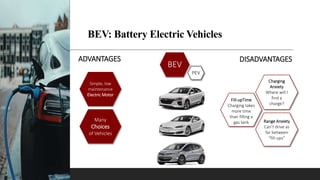

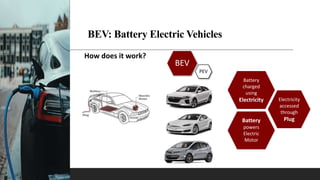

BEV: Battery Electric Vehicles How does it work? BEV PEV Chevy Bolt Tesla Model S Fill-upTime Charging takes more time than filling a gas tank ADVANTAGES DISADVANTAGES Many Choices of Vehicles Simple, low maintenance Electric Motor Range Anxiety Can’t drive as far between “fill-ups” Charging Anxiety Where will I find a charge?
BEV: Short and Mid Range How does it work? Cost 50 60 70 80 90 100 110 120 130 140 150 Miles $$ Smart ED $$$ Fiat 500e $$$ Honda Clarity Electric $$ Nissan Leaf 1st Gen $$$ Kia Soul EV $$$ BMW i3 $$ Ford Focus Electric $$ Volkswagen e-Golf $$ Hyundai Ioniq Electric $$ Nissan Leaf 2nd Gen

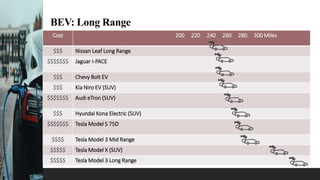

BEV: Long Range Cost 200 220 240 260 280 300 Miles $$$ Nissan Leaf Long Range $$$$$$$ Jaguar I-PACE $$$ Chevy Bolt EV $$$ Kia Niro EV (SUV) $$$$$$$ Audi eTron (SUV) $$$ Hyundai Kona Electric (SUV) $$$$$$$ Tesla Model S 75D $$$$ Tesla Model 3 Mid Range $$$$$ Tesla Model X (SUV) $$$$$ Tesla Model 3 Long Range

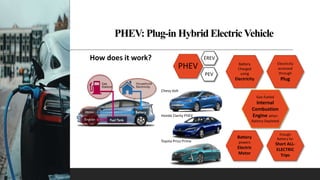

PHEV: Plug-in Hybrid ElectricVehicle PHEV EREV PEV Chevy Volt Honda Clarity PHEV Toyota Prius Prime Battery Charged using Electricity Battery powers Electric Motor Electricity accessed through Plug Enough Battery for Short ALL- ELECTRIC Trips Gas-fueled Internal Combustion Engine when Battery Depleted How does it work?

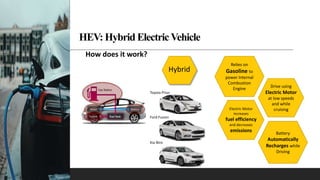

HEV: Hybrid ElectricVehicle Hybrid Toyota Prius Ford Fusion Kia Niro How does it work? Relies on Gasoline to power Internal Combustion Engine Electric Motor increases fuel efficiency and decreases emissions Drive using Electric Motor at low speeds and while cruising Battery Automatically Recharges while Driving

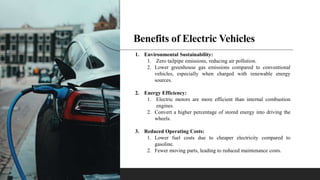

Benefits of Electric Vehicles 1. Environmental Sustainability: 1. Zero tailpipe emissions, reducing air pollution. 2. Lower greenhouse gas emissions compared to conventional vehicles, especially when charged with renewable energy sources. 2. Energy Efficiency: 1. Electric motors are more efficient than internal combustion engines. 2. Convert a higher percentage of stored energy into driving the wheels. 3. Reduced Operating Costs: 1. Lower fuel costs due to cheaper electricity compared to gasoline. 2. Fewer moving parts, leading to reduced maintenance costs.

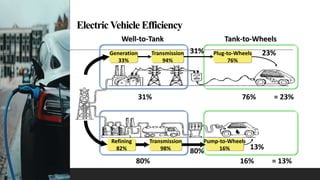

ElectricVehicle Efficiency Generation 33% Transmission 94% Plug-to-Wheels 76% Refining 82% Transmission 98% Pump-to-Wheels 16% 23% 13% 31% 80% Well-to-Tank Tank-to-Wheels 31% 76% = 23% 80% 16% = 13%

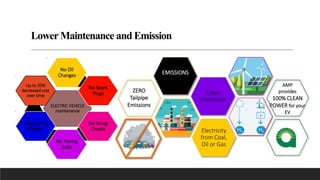

LowerMaintenance and Emission ELECTRIC VEHICLE maintenance No Oil Changes No Spark Plugs No Smog Checks No Timing Belts Long Lasting Brakes Up to 35% decreased cost over time Electricity from Coal, Oil or Gas Clean Electricity TOTAL EMISSIONS depends on Fuel Source ZERO Tailpipe Emissions AMP provides 100% CLEAN POWER for your EV
Challenges Facing Electric Vehicles? 1. Range Anxiety: 1. Limited driving range compared to gasoline vehicles. 2. Infrastructure for charging stations is still developing in many regions. 2. Charging Infrastructure: 1. Need for a widespread network of charging stations for convenient long-distance travel. 2. Variability in charging speeds and connector types. 3. Initial Cost: 1. Higher upfront purchase price compared to traditional vehicles. 2. However, total cost of ownership may be lower over the vehicle's lifetime due to lower operating costs.

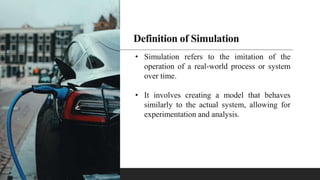

Definition of Simulation • Simulation refers to the imitation of the operation of a real-world process or system over time. • It involves creating a model that behaves similarly to the actual system, allowing for experimentation and analysis.

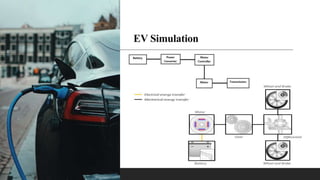

EV Simulation
EV Simulation
Vehicle Simulation

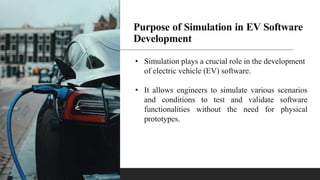

Purpose of Simulation in EV Software Development • Simulation plays a crucial role in the development of electric vehicle (EV) software. • It allows engineers to simulate various scenarios and conditions to test and validate software functionalities without the need for physical prototypes.
Importance of Simulation for Testing Software Cost-Effective Testing: • Simulation eliminates the need for building multiple physical prototypes, saving time and resources. • Reduces costs associated with physical testing, such as materials and equipment.

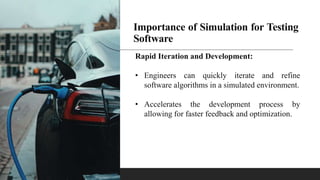

Importance of Simulation for Testing Software Rapid Iteration and Development: • Engineers can quickly iterate and refine software algorithms in a simulated environment. • Accelerates the development process by allowing for faster feedback and optimization.

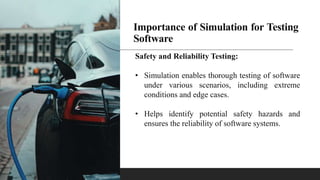

Importance of Simulation for Testing Software Safety and Reliability Testing: • Simulation enables thorough testing of software under various scenarios, including extreme conditions and edge cases. • Helps identify potential safety hazards and ensures the reliability of software systems.

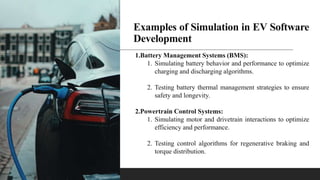

Examples of Simulation in EV Software Development 1.Battery Management Systems (BMS): 1. Simulating battery behavior and performance to optimize charging and discharging algorithms. 2. Testing battery thermal management strategies to ensure safety and longevity. 2.Powertrain Control Systems: 1. Simulating motor and drivetrain interactions to optimize efficiency and performance. 2. Testing control algorithms for regenerative braking and torque distribution.

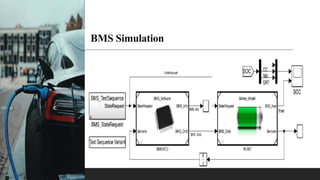

BMS Simulation
Hardware-in-the-Loop (HIL) Simulation • Definition: HIL simulation involves connecting real hardware components, such as electronic control units (ECUs), sensors, and actuators, to a simulated environment. • Role in Development: HIL simulation allows engineers to test software algorithms in conjunction with real hardware, providing a realistic representation of the system's behavior. • Applications: Used for testing control systems, validating embedded software, and evaluating hardware performance under various operating conditions.

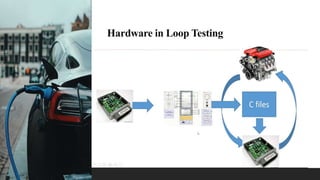

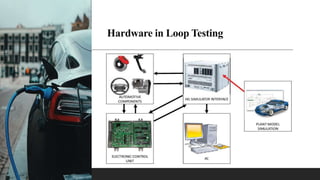

Hardware in Loop Testing
Hardware in Loop Testing

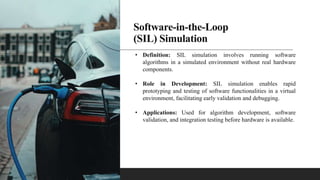

Software-in-the-Loop (SIL) Simulation • Definition: SIL simulation involves running software algorithms in a simulated environment without real hardware components. • Role in Development: SIL simulation enables rapid prototyping and testing of software functionalities in a virtual environment, facilitating early validation and debugging. • Applications: Used for algorithm development, software validation, and integration testing before hardware is available.

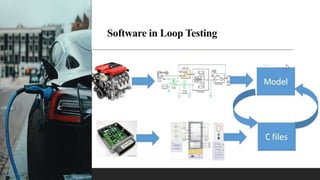

Software in Loop Testing
Model-in-the-Loop (MIL) Simulation • Definition: MIL simulation involves using mathematical models of system components to simulate their behavior. • Role in Development: MIL simulation allows engineers to assess the performance and behavior of individual system components or subsystems before integration into the complete system. • Applications: Used for model validation, algorithm development, and system-level testing during the early stages of development.

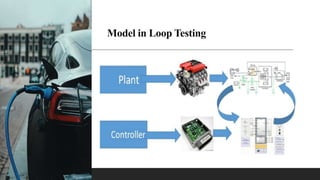

Model in Loop Testing
Role of Each Type in the Development Process • Hardware-in-the-Loop (HIL) Simulation: Integrates real hardware with simulated environments for comprehensive testing and validation. • Software-in-the-Loop (SIL) Simulation: Enables rapid prototyping and validation of software algorithms without physical hardware. • Model-in-the-Loop (MIL) Simulation: Utilizes mathematical models to simulate system behavior and assess component performance during early development stages.
Advantages of Each Simulation Type • HIL Simulation: Provides a realistic testing environment with real hardware interactions. • SIL Simulation: Facilitates early validation and debugging of software algorithms. • MIL Simulation: Allows for the assessment of individual components and subsystems before integration.
Advantages of Simulation Cost Saving: • Reduced Development Costs: • Simulation eliminates the need for building multiple physical prototypes, saving on materials, labor, and equipment costs. • Avoids expenses associated with physical testing, such as facility rentals and testing apparatus. • Optimized Resource Allocation: • Allows for efficient allocation of resources by prioritizing testing efforts and focusing on critical areas. • Minimizes wastage of resources on redundant or unnecessary tests.

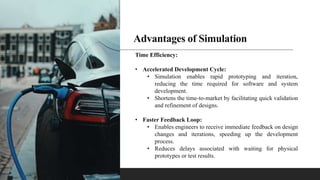

Advantages of Simulation Time Efficiency: • Accelerated Development Cycle: • Simulation enables rapid prototyping and iteration, reducing the time required for software and system development. • Shortens the time-to-market by facilitating quick validation and refinement of designs. • Faster Feedback Loop: • Enables engineers to receive immediate feedback on design changes and iterations, speeding up the development process. • Reduces delays associated with waiting for physical prototypes or test results.
Advantages of Simulation Risk Reduction: • Identification of Potential Issues: • Simulation allows for early detection and mitigation of potential issues or failures in the design. • Helps address safety concerns and reliability issues before deployment. • Mitigation of Uncertainties: • Provides a controlled environment for testing under various conditions, helping to identify and mitigate risks associated with real-world usage. • Reduces uncertainty by simulating extreme scenarios and edge cases.
Advantages of Simulation Ability to Test Under Various Conditions: • Comprehensive Testing: • Simulation enables testing under a wide range of conditions, including normal operating conditions and extreme scenarios. • Allows for evaluation of performance, reliability, and safety across different environmental and operational parameters. • Exploration of Edge Cases: • Enables engineers to explore and test edge cases that may be difficult or dangerous to replicate in the real world. • Helps uncover vulnerabilities and weaknesses in the design that might not be apparent under typical operating conditions.
Common Simulation Tools 1. Autonomie 2. MATLAB/Simulink 3. Carmaker 4. AVL CRUISE 5. GT-SUITE 6. Dymola 7. Open META Matlab and Simulink: MATLAB/Simulink is a widely used software suite for modeling, simulation, and analysis.

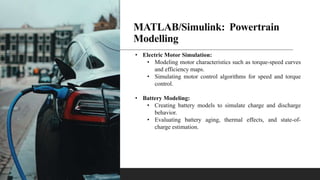

MATLAB/Simulink: Powertrain Modelling • Electric Motor Simulation: • Modeling motor characteristics such as torque-speed curves and efficiency maps. • Simulating motor control algorithms for speed and torque control. • Battery Modeling: • Creating battery models to simulate charge and discharge behavior. • Evaluating battery aging, thermal effects, and state-of- charge estimation.

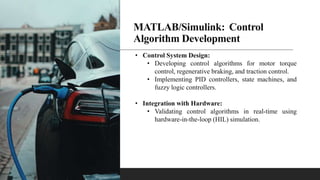

MATLAB/Simulink: Control Algorithm Development • Control System Design: • Developing control algorithms for motor torque control, regenerative braking, and traction control. • Implementing PID controllers, state machines, and fuzzy logic controllers. • Integration with Hardware: • Validating control algorithms in real-time using hardware-in-the-loop (HIL) simulation.

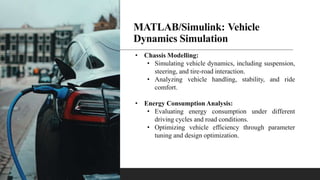

MATLAB/Simulink: Vehicle Dynamics Simulation • Chassis Modelling: • Simulating vehicle dynamics, including suspension, steering, and tire-road interaction. • Analyzing vehicle handling, stability, and ride comfort. • Energy Consumption Analysis: • Evaluating energy consumption under different driving cycles and road conditions. • Optimizing vehicle efficiency through parameter tuning and design optimization.

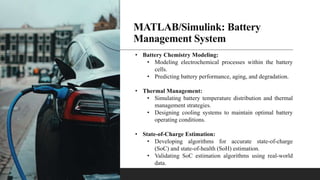

MATLAB/Simulink: Battery Management System • Battery Chemistry Modeling: • Modeling electrochemical processes within the battery cells. • Predicting battery performance, aging, and degradation. • Thermal Management: • Simulating battery temperature distribution and thermal management strategies. • Designing cooling systems to maintain optimal battery operating conditions. • State-of-Charge Estimation: • Developing algorithms for accurate state-of-charge (SoC) and state-of-health (SoH) estimation. • Validating SoC estimation algorithms using real-world data.

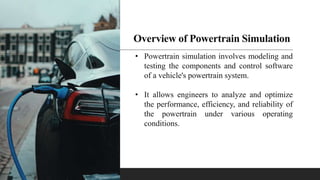

Overview of Powertrain Simulation • Powertrain simulation involves modeling and testing the components and control software of a vehicle's powertrain system. • It allows engineers to analyze and optimize the performance, efficiency, and reliability of the powertrain under various operating conditions.

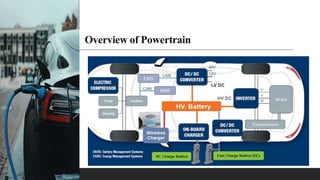

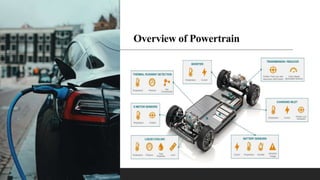

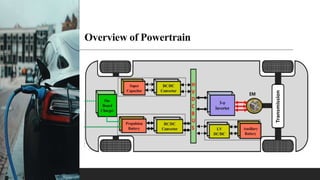

Overview of Powertrain
Overview of Powertrain
Overview of Powertrain

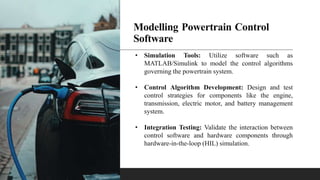

Modelling Powertrain Control Software • Simulation Tools: Utilize software such as MATLAB/Simulink to model the control algorithms governing the powertrain system. • Control Algorithm Development: Design and test control strategies for components like the engine, transmission, electric motor, and battery management system. • Integration Testing: Validate the interaction between control software and hardware components through hardware-in-the-loop (HIL) simulation.
Case Study: Optimizing Efficiency with Powertrain Simulation • Scenario: An electric vehicle manufacturer aims to improve the efficiency of its powertrain system. • Simulation Approach: • Model the electric motor, battery, and control algorithms in MATLAB/Simulink. • Simulate various driving cycles and operating conditions to evaluate energy consumption and performance. • Results: • Identify inefficiencies in control algorithms and optimize parameters for maximum energy efficiency. • Validate improvements through real-world testing, confirming significant gains in vehicle range and efficiency.
Case Study: Enhancing Performance with Powertrain Simulation • Scenario: An automotive company seeks to enhance the performance of its hybrid powertrain. • Simulation Approach: • Develop models of the engine, transmission, and hybrid system using simulation tools. • Test different powertrain configurations and control strategies to optimize performance metrics such as acceleration and fuel economy. • Results: • Identify the optimal powertrain configuration and control settings to achieve desired performance targets. • Validate improvements through virtual testing, reducing the need for costly physical prototypes and iterations.
Benefits of Powertrain Simulation • Efficiency Optimization: Identify and rectify inefficiencies in control algorithms to improve energy consumption and range. • Performance Enhancement: Fine-tune powertrain configurations and control strategies to achieve desired performance metrics. • Cost Savings: Reduce the need for physical prototypes and testing iterations, saving time and resources in the development process.

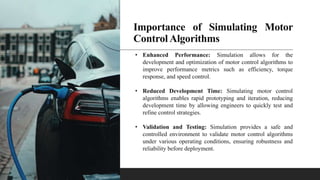

Importance of Simulating Motor ControlAlgorithms • Enhanced Performance: Simulation allows for the development and optimization of motor control algorithms to improve performance metrics such as efficiency, torque response, and speed control. • Reduced Development Time: Simulating motor control algorithms enables rapid prototyping and iteration, reducing development time by allowing engineers to quickly test and refine control strategies. • Validation and Testing: Simulation provides a safe and controlled environment to validate motor control algorithms under various operating conditions, ensuring robustness and reliability before deployment.

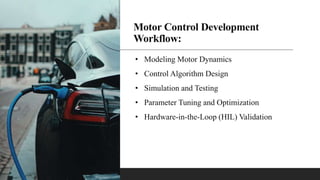

Motor Control Development Workflow: • Modeling Motor Dynamics • Control Algorithm Design • Simulation and Testing • Parameter Tuning and Optimization • Hardware-in-the-Loop (HIL) Validation
Motor Control Development Workflow:
Benefits of Simulink for Motor Control Development • Seamless integration with MATLAB for advanced analysis and algorithm development. • Extensive library of pre-built blocks and models for motor dynamics, control algorithms, and system components. • Support for code generation and hardware deployment for real-time implementation.

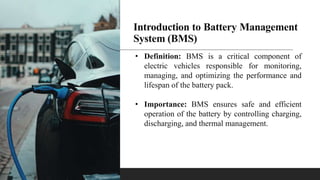

Introduction to Battery Management System (BMS) • Definition: BMS is a critical component of electric vehicles responsible for monitoring, managing, and optimizing the performance and lifespan of the battery pack. • Importance: BMS ensures safe and efficient operation of the battery by controlling charging, discharging, and thermal management.
Introduction to Battery Management System (BMS)
Importance of Battery Management System (BMS) • Realistic Modeling: BMS simulation tools enable realistic modeling of battery behavior, allowing engineers to accurately assess performance and predict battery life. • Validation and Testing: Simulation facilitates validation and testing of BMS algorithms and strategies under various operating conditions without the need for physical prototypes. • Optimization: BMS simulation helps optimize battery management strategies for improved efficiency, safety, and reliability.
Simulating Battery Behavior • Modeling Electrochemical Processes: BMS simulation tools model the electrochemical processes within battery cells to predict voltage, current, and temperature responses. • Characterizing Battery Performance: Simulate battery behavior under different load profiles, environmental conditions, and aging effects to assess performance and degradation. • State-of-Charge (SoC) Estimation: Estimate the state-of- charge of the battery based on voltage, current, temperature, and other parameters to accurately monitor its energy level.

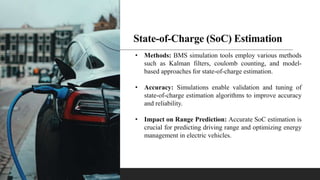

State-of-Charge (SoC) Estimation • Methods: BMS simulation tools employ various methods such as Kalman filters, coulomb counting, and model- based approaches for state-of-charge estimation. • Accuracy: Simulations enable validation and tuning of state-of-charge estimation algorithms to improve accuracy and reliability. • Impact on Range Prediction: Accurate SoC estimation is crucial for predicting driving range and optimizing energy management in electric vehicles.
Thermal Management Simulation • Importance: Battery thermal management is essential for maintaining optimal operating temperatures and extending battery life. • Modeling Thermal Behavior: Simulate heat generation, distribution, and dissipation within the battery pack and surrounding components to assess thermal performance. • Cooling Strategies: Evaluate different cooling strategies such as air cooling, liquid cooling, and phase change materials to optimize thermal management.

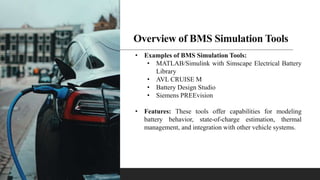

Overview of BMS Simulation Tools • Examples of BMS Simulation Tools: • MATLAB/Simulink with Simscape Electrical Battery Library • AVL CRUISE M • Battery Design Studio • Siemens PREEvision • Features: These tools offer capabilities for modeling battery behavior, state-of-charge estimation, thermal management, and integration with other vehicle systems.

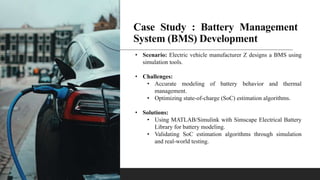

Case Study : Battery Management System (BMS) Development • Scenario: Electric vehicle manufacturer Z designs a BMS using simulation tools. • Challenges: • Accurate modeling of battery behavior and thermal management. • Optimizing state-of-charge (SoC) estimation algorithms. • Solutions: • Using MATLAB/Simulink with Simscape Electrical Battery Library for battery modeling. • Validating SoC estimation algorithms through simulation and real-world testing.

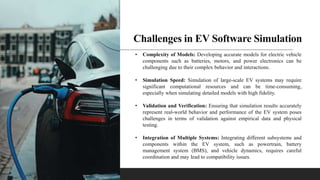

Challenges in EV Software Simulation • Complexity of Models: Developing accurate models for electric vehicle components such as batteries, motors, and power electronics can be challenging due to their complex behavior and interactions. • Simulation Speed: Simulation of large-scale EV systems may require significant computational resources and can be time-consuming, especially when simulating detailed models with high fidelity. • Validation and Verification: Ensuring that simulation results accurately represent real-world behavior and performance of the EV system poses challenges in terms of validation against empirical data and physical testing. • Integration of Multiple Systems: Integrating different subsystems and components within the EV system, such as powertrain, battery management system (BMS), and vehicle dynamics, requires careful coordination and may lead to compatibility issues.
Strategies for Overcoming These Challenges • Simplify Models: Simplify complex models by using approximation techniques or reducing model fidelity where possible without sacrificing accuracy. Focus on modeling the most critical aspects of the system. • Parallel Computing: Utilize parallel computing techniques and distributed simulation environments to improve simulation speed and scalability, enabling faster iteration and analysis of results. • Experimental Data Validation: Validate simulation results against empirical data obtained from real-world testing and validation, ensuring that the simulation accurately captures the behavior of the EV system. • Modular Design: Adopt a modular approach to system design and simulation, allowing for easier integration and testing of individual subsystems before combining them into a complete system.
Additional Strategies • Parameter Optimization: Use optimization algorithms to fine-tune simulation parameters and control strategies, optimizing system performance and efficiency. • Hardware-in-the-Loop (HIL) Simulation: Implement HIL simulation setups to validate software algorithms against real hardware components, providing a more realistic testing environment. • Model Abstraction: Abstract detailed models into simplified representations for initial design exploration and system-level analysis, gradually refining models as the design progresses. • Collaborative Development: Foster collaboration between different teams and disciplines involved in EV software simulation, ensuring alignment of objectives and sharing of knowledge and resources.
Integrating Cybersecurity Simulations into the SDLC • Introduction: Cybersecurity simulations are essential for identifying and addressing potential vulnerabilities in software systems. • Integration into SDLC: Incorporate cybersecurity simulations at various stages of the software development lifecycle (SDLC), including design, development, testing, and deployment.

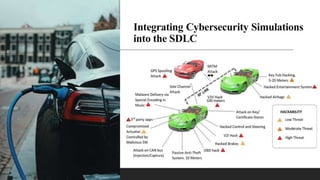

Integrating Cybersecurity Simulations into the SDLC
Simulating Potential Cyber Threats and Vulnerabilities 1. Penetration Testing: Simulate real-world cyber attacks to identify vulnerabilities and assess the effectiveness of defense mechanisms. 2. Vulnerability Assessment: Analyze software systems for known vulnerabilities and weaknesses, prioritizing remediation efforts. 3. Threat Modeling: Identify potential threats and attack vectors, allowing for proactive mitigation strategies.
Integrating Cybersecurity Simulations into SDLC • Design Phase: • Conduct threat modeling exercises to identify potential security risks and design appropriate security controls. • Development Phase: • Implement secure coding practices and conduct code reviews to prevent common vulnerabilities such as injection attacks and buffer overflows. • Testing Phase: • Perform penetration testing and vulnerability assessments to identify security weaknesses and assess the robustness of the system. • Deployment Phase: • Continuously monitor and update the system to address emerging threats and vulnerabilities throughout its lifecycle.

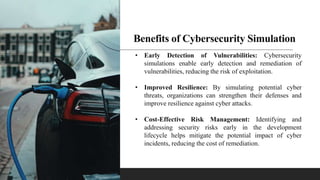

Benefits of Cybersecurity Simulation • Early Detection of Vulnerabilities: Cybersecurity simulations enable early detection and remediation of vulnerabilities, reducing the risk of exploitation. • Improved Resilience: By simulating potential cyber threats, organizations can strengthen their defenses and improve resilience against cyber attacks. • Cost-Effective Risk Management: Identifying and addressing security risks early in the development lifecycle helps mitigate the potential impact of cyber incidents, reducing the cost of remediation.
Over-the-Air (OTA) Update Simulation • Introduction: Over-the-Air (OTA) updates enable the remote deployment of software updates to vehicles, IoT devices, and other connected systems. • Importance of Simulation: Simulating OTA updates allows organizations to test the update process, ensure compatibility with existing software, and identify potential issues before deployment.

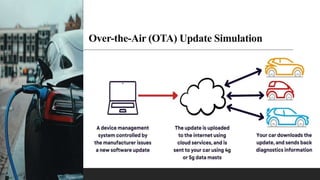

Over-the-Air (OTA) Update Simulation
Over-the-Air (OTA) Update Simulation

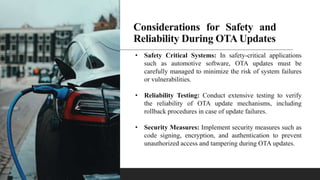

Considerations for Safety and Reliability During OTA Updates • Safety Critical Systems: In safety-critical applications such as automotive software, OTA updates must be carefully managed to minimize the risk of system failures or vulnerabilities. • Reliability Testing: Conduct extensive testing to verify the reliability of OTA update mechanisms, including rollback procedures in case of update failures. • Security Measures: Implement security measures such as code signing, encryption, and authentication to prevent unauthorized access and tampering during OTA updates.

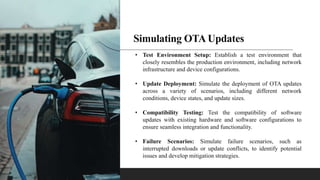

Simulating OTA Updates • Test Environment Setup: Establish a test environment that closely resembles the production environment, including network infrastructure and device configurations. • Update Deployment: Simulate the deployment of OTA updates across a variety of scenarios, including different network conditions, device states, and update sizes. • Compatibility Testing: Test the compatibility of software updates with existing hardware and software configurations to ensure seamless integration and functionality. • Failure Scenarios: Simulate failure scenarios, such as interrupted downloads or update conflicts, to identify potential issues and develop mitigation strategies.
Safety and Reliability Considerations • Safety-Critical Systems: For safety-critical systems like autonomous vehicles, OTA updates must undergo rigorous testing and validation to ensure compliance with safety standards and regulations. • Redundancy and Resilience: Implement redundancy and failover mechanisms to minimize the impact of update failures and ensure system availability and reliability. • User Experience: Consider the user experience during OTA updates, including communication of update progress, notification of completion, and rollback options in case of issues.
Benefits of OTA Update Simulation • Risk Mitigation: OTA update simulation allows organizations to identify and address potential issues before deployment, reducing the risk of system failures and downtime. • Cost Savings: By identifying issues early in the development process, OTA update simulation helps minimize the cost of remediation and avoids expensive recalls or service disruptions. • Improved Customer Experience: Seamless OTA updates enhance the customer experience by delivering new features, performance improvements, and security patches without interrupting device functionality.

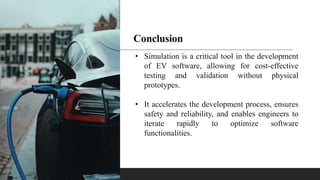

Conclusion • Simulation is a critical tool in the development of EV software, allowing for cost-effective testing and validation without physical prototypes. • It accelerates the development process, ensures safety and reliability, and enables engineers to iterate rapidly to optimize software functionalities.
Thank You
