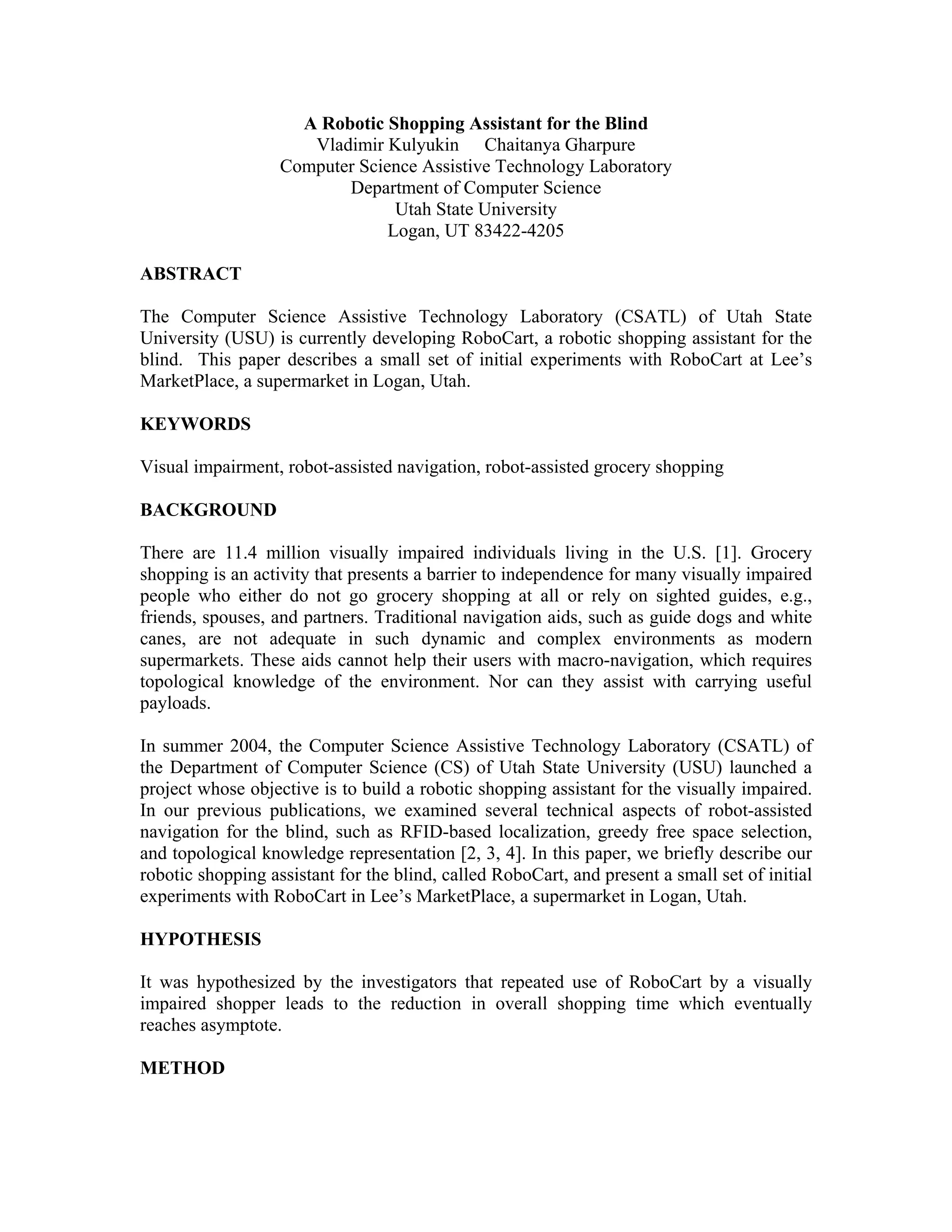

1. A Robotic Shopping Assistant for the Blind
Vladimir Kulyukin Chaitanya Gharpure
Computer Science Assistive Technology Laboratory
Department of Computer Science
Utah State University
Logan, UT 83422-4205
ABSTRACT
The Computer Science Assistive Technology Laboratory (CSATL) of Utah State
University (USU) is currently developing RoboCart, a robotic shopping assistant for the
blind. This paper describes a small set of initial experiments with RoboCart at Lee’s
MarketPlace, a supermarket in Logan, Utah.
KEYWORDS
Visual impairment, robot-assisted navigation, robot-assisted grocery shopping
BACKGROUND
There are 11.4 million visually impaired individuals living in the U.S. [1]. Grocery
shopping is an activity that presents a barrier to independence for many visually impaired
people who either do not go grocery shopping at all or rely on sighted guides, e.g.,
friends, spouses, and partners. Traditional navigation aids, such as guide dogs and white
canes, are not adequate in such dynamic and complex environments as modern
supermarkets. These aids cannot help their users with macro-navigation, which requires
topological knowledge of the environment. Nor can they assist with carrying useful
payloads.
In summer 2004, the Computer Science Assistive Technology Laboratory (CSATL) of
the Department of Computer Science (CS) of Utah State University (USU) launched a
project whose objective is to build a robotic shopping assistant for the visually impaired.
In our previous publications, we examined several technical aspects of robot-assisted
navigation for the blind, such as RFID-based localization, greedy free space selection,
and topological knowledge representation [2, 3, 4]. In this paper, we briefly describe our
robotic shopping assistant for the blind, called RoboCart, and present a small set of initial
experiments with RoboCart in Lee’s MarketPlace, a supermarket in Logan, Utah.
HYPOTHESIS
It was hypothesized by the investigators that repeated use of RoboCart by a visually
impaired shopper leads to the reduction in overall shopping time which eventually
reaches asymptote.
METHOD

2. ----------------------------------------

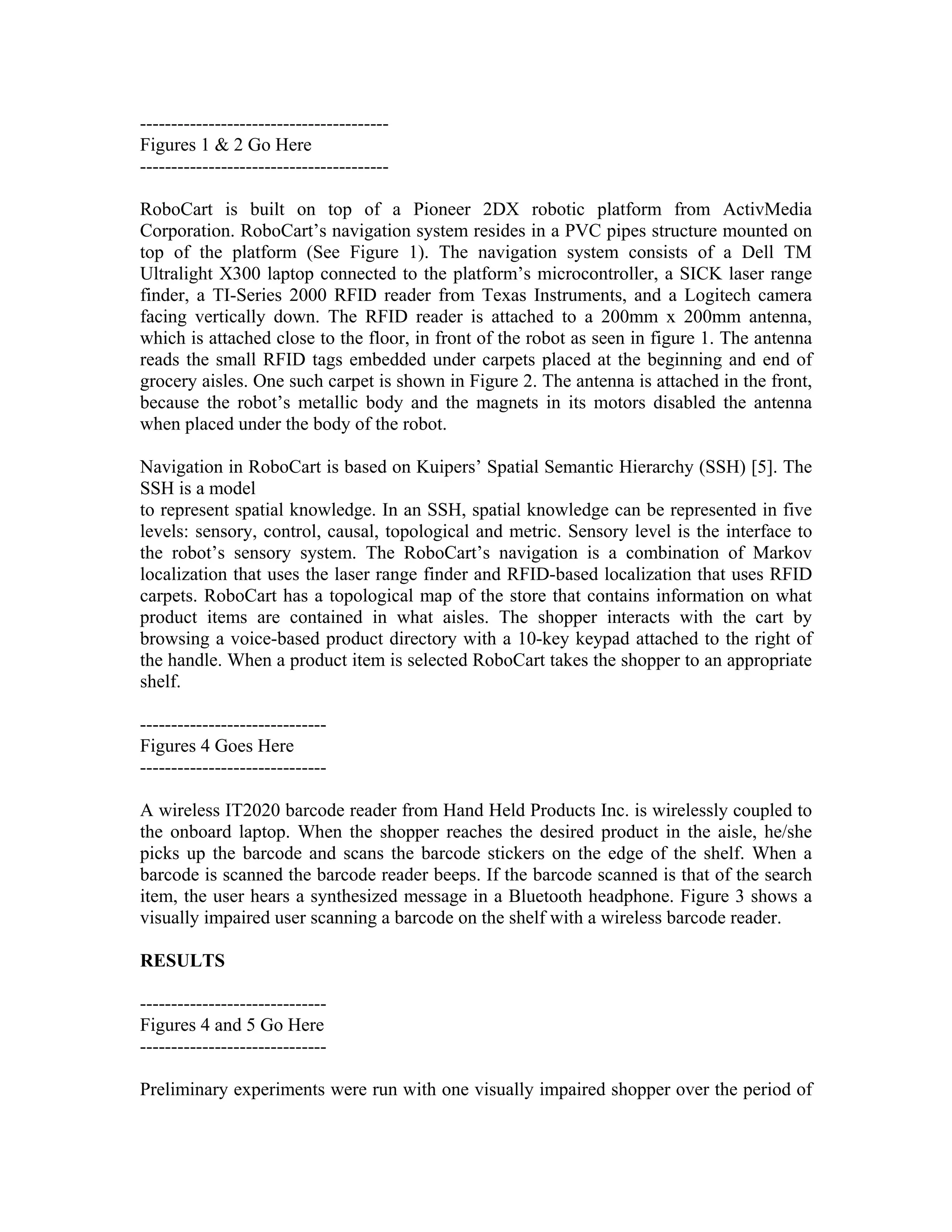

Figures 1 & 2 Go Here
----------------------------------------
RoboCart is built on top of a Pioneer 2DX robotic platform from ActivMedia
Corporation. RoboCart’s navigation system resides in a PVC pipes structure mounted on
top of the platform (See Figure 1). The navigation system consists of a Dell TM
Ultralight X300 laptop connected to the platform’s microcontroller, a SICK laser range
finder, a TI-Series 2000 RFID reader from Texas Instruments, and a Logitech camera
facing vertically down. The RFID reader is attached to a 200mm x 200mm antenna,
which is attached close to the floor, in front of the robot as seen in figure 1. The antenna
reads the small RFID tags embedded under carpets placed at the beginning and end of
grocery aisles. One such carpet is shown in Figure 2. The antenna is attached in the front,
because the robot’s metallic body and the magnets in its motors disabled the antenna
when placed under the body of the robot.
Navigation in RoboCart is based on Kuipers’ Spatial Semantic Hierarchy (SSH) [5]. The
SSH is a model
to represent spatial knowledge. In an SSH, spatial knowledge can be represented in five
levels: sensory, control, causal, topological and metric. Sensory level is the interface to
the robot’s sensory system. The RoboCart’s navigation is a combination of Markov
localization that uses the laser range finder and RFID-based localization that uses RFID
carpets. RoboCart has a topological map of the store that contains information on what
product items are contained in what aisles. The shopper interacts with the cart by
browsing a voice-based product directory with a 10-key keypad attached to the right of
the handle. When a product item is selected RoboCart takes the shopper to an appropriate
shelf.
------------------------------
Figures 4 Goes Here
------------------------------
A wireless IT2020 barcode reader from Hand Held Products Inc. is wirelessly coupled to
the onboard laptop. When the shopper reaches the desired product in the aisle, he/she
picks up the barcode and scans the barcode stickers on the edge of the shelf. When a
barcode is scanned the barcode reader beeps. If the barcode scanned is that of the search
item, the user hears a synthesized message in a Bluetooth headphone. Figure 3 shows a
visually impaired user scanning a barcode on the shelf with a wireless barcode reader.
RESULTS
------------------------------
Figures 4 and 5 Go Here
------------------------------
Preliminary experiments were run with one visually impaired shopper over the period of

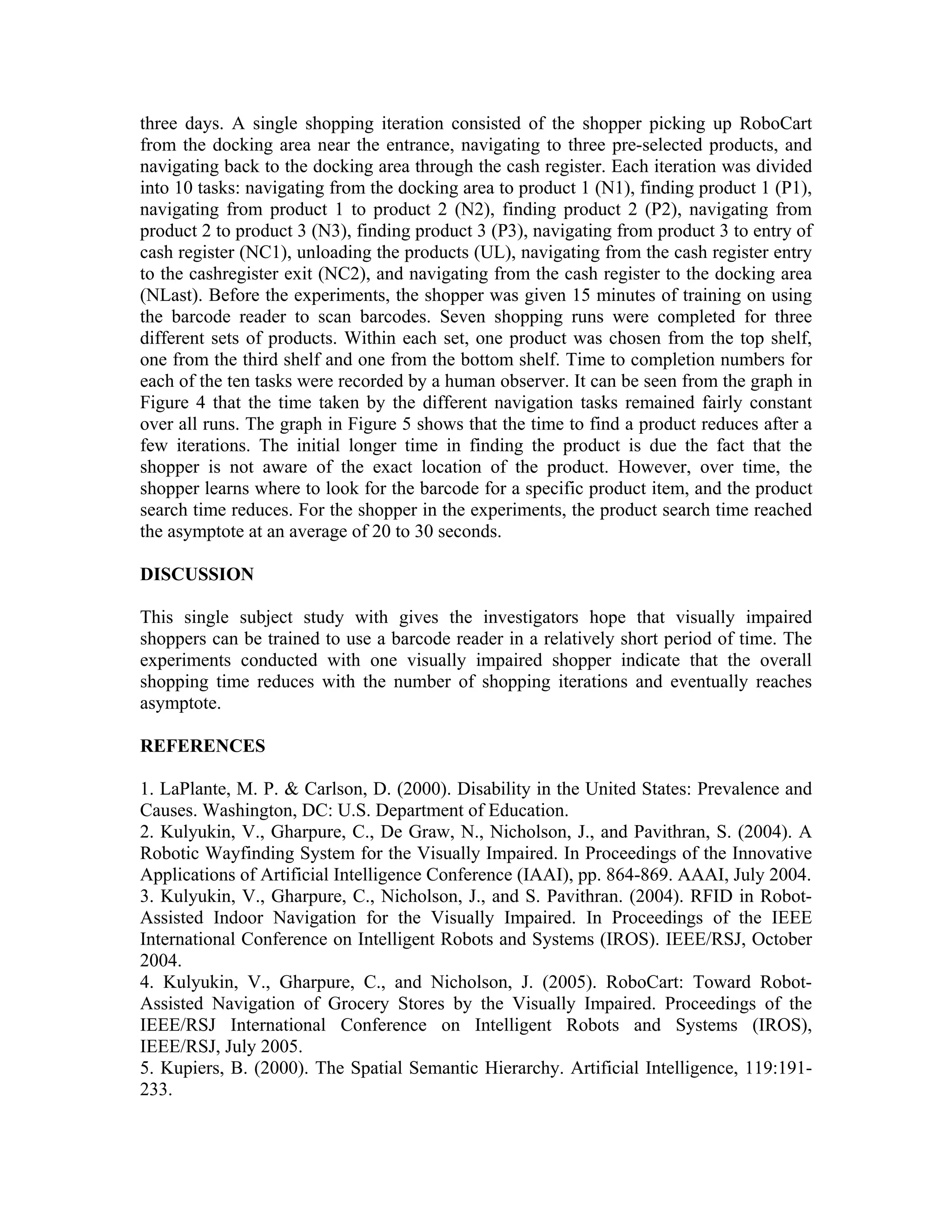

3. three days. A single shopping iteration consisted of the shopper picking up RoboCart
from the docking area near the entrance, navigating to three pre-selected products, and
navigating back to the docking area through the cash register. Each iteration was divided
into 10 tasks: navigating from the docking area to product 1 (N1), finding product 1 (P1),
navigating from product 1 to product 2 (N2), finding product 2 (P2), navigating from
product 2 to product 3 (N3), finding product 3 (P3), navigating from product 3 to entry of
cash register (NC1), unloading the products (UL), navigating from the cash register entry
to the cashregister exit (NC2), and navigating from the cash register to the docking area
(NLast). Before the experiments, the shopper was given 15 minutes of training on using
the barcode reader to scan barcodes. Seven shopping runs were completed for three
different sets of products. Within each set, one product was chosen from the top shelf,
one from the third shelf and one from the bottom shelf. Time to completion numbers for
each of the ten tasks were recorded by a human observer. It can be seen from the graph in
Figure 4 that the time taken by the different navigation tasks remained fairly constant
over all runs. The graph in Figure 5 shows that the time to find a product reduces after a
few iterations. The initial longer time in finding the product is due the fact that the
shopper is not aware of the exact location of the product. However, over time, the
shopper learns where to look for the barcode for a specific product item, and the product
search time reduces. For the shopper in the experiments, the product search time reached
the asymptote at an average of 20 to 30 seconds.
DISCUSSION
This single subject study with gives the investigators hope that visually impaired
shoppers can be trained to use a barcode reader in a relatively short period of time. The
experiments conducted with one visually impaired shopper indicate that the overall
shopping time reduces with the number of shopping iterations and eventually reaches
asymptote.
REFERENCES
1. LaPlante, M. P. & Carlson, D. (2000). Disability in the United States: Prevalence and
Causes. Washington, DC: U.S. Department of Education.
2. Kulyukin, V., Gharpure, C., De Graw, N., Nicholson, J., and Pavithran, S. (2004). A
Robotic Wayfinding System for the Visually Impaired. In Proceedings of the Innovative
Applications of Artificial Intelligence Conference (IAAI), pp. 864-869. AAAI, July 2004.
3. Kulyukin, V., Gharpure, C., Nicholson, J., and S. Pavithran. (2004). RFID in Robot-
Assisted Indoor Navigation for the Visually Impaired. In Proceedings of the IEEE
International Conference on Intelligent Robots and Systems (IROS). IEEE/RSJ, October
2004.
4. Kulyukin, V., Gharpure, C., and Nicholson, J. (2005). RoboCart: Toward Robot-
Assisted Navigation of Grocery Stores by the Visually Impaired. Proceedings of the
IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS),
IEEE/RSJ, July 2005.
5. Kupiers, B. (2000). The Spatial Semantic Hierarchy. Artificial Intelligence, 119:191-
233.

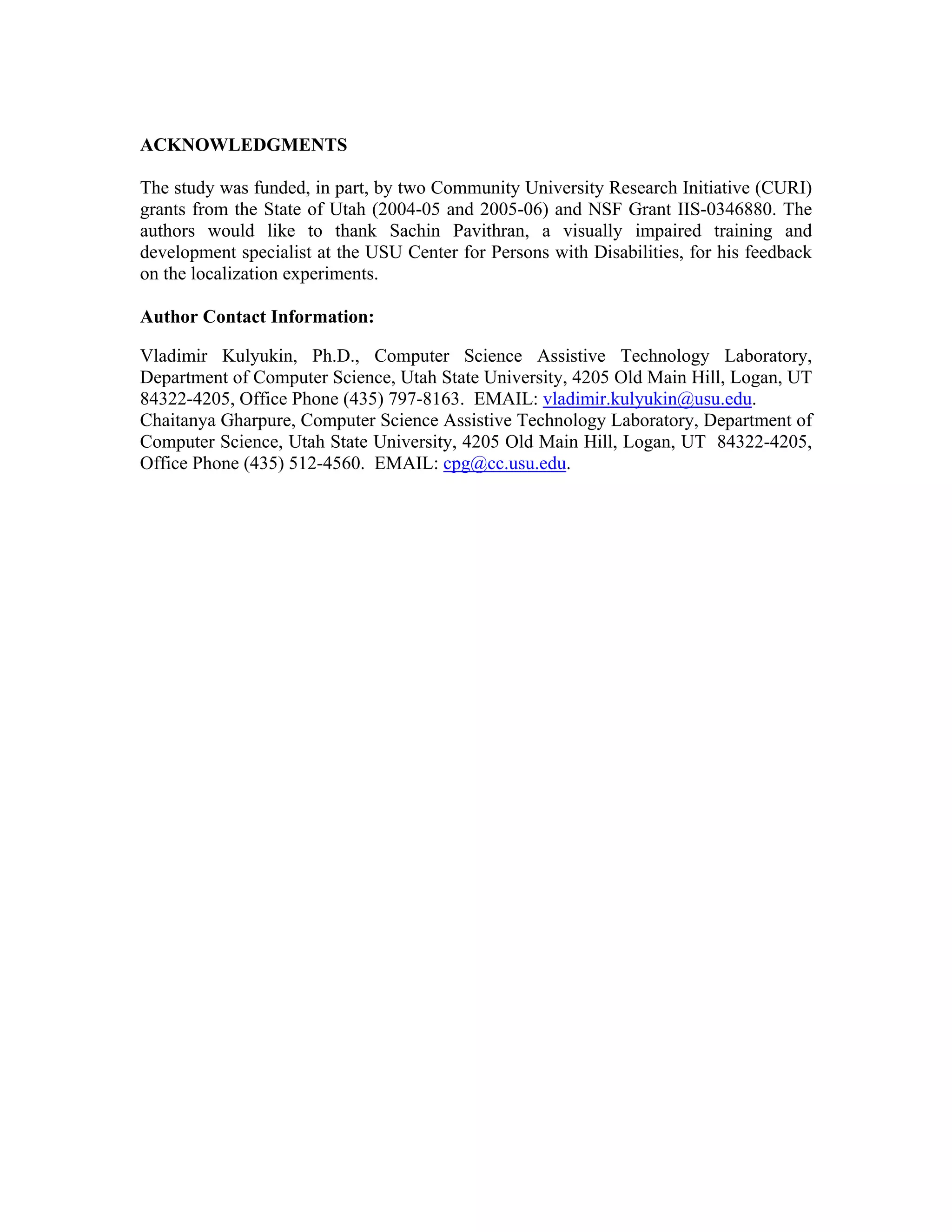

4. ACKNOWLEDGMENTS
The study was funded, in part, by two Community University Research Initiative (CURI)
grants from the State of Utah (2004-05 and 2005-06) and NSF Grant IIS-0346880. The
authors would like to thank Sachin Pavithran, a visually impaired training and
development specialist at the USU Center for Persons with Disabilities, for his feedback
on the localization experiments.
Author Contact Information:
Vladimir Kulyukin, Ph.D., Computer Science Assistive Technology Laboratory,
Department of Computer Science, Utah State University, 4205 Old Main Hill, Logan, UT
84322-4205, Office Phone (435) 797-8163. EMAIL: vladimir.kulyukin@usu.edu.
Chaitanya Gharpure, Computer Science Assistive Technology Laboratory, Department of
Computer Science, Utah State University, 4205 Old Main Hill, Logan, UT 84322-4205,
Office Phone (435) 512-4560. EMAIL: cpg@cc.usu.edu.

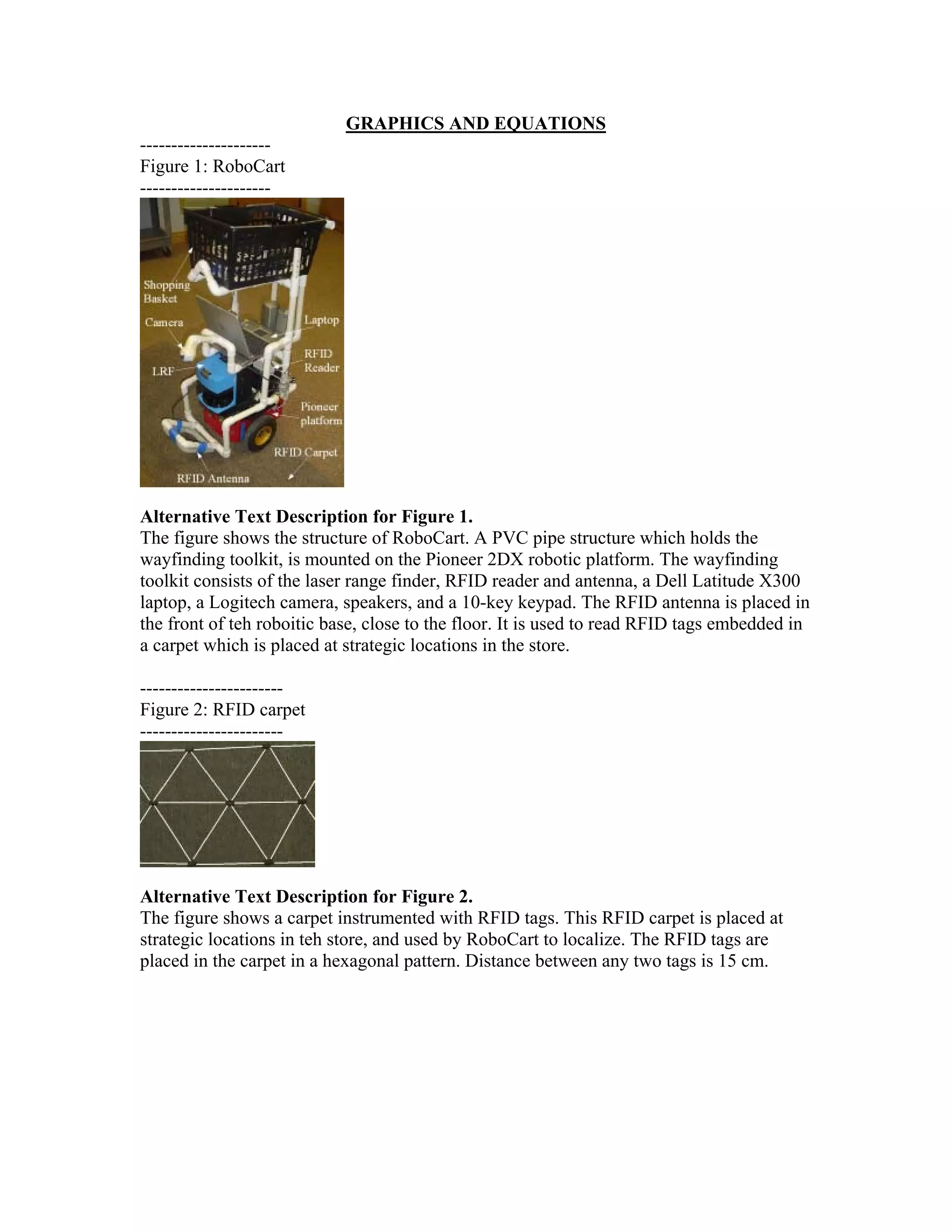

5. GRAPHICS AND EQUATIONS
---------------------
Figure 1: RoboCart
---------------------
Alternative Text Description for Figure 1.
The figure shows the structure of RoboCart. A PVC pipe structure which holds the
wayfinding toolkit, is mounted on the Pioneer 2DX robotic platform. The wayfinding
toolkit consists of the laser range finder, RFID reader and antenna, a Dell Latitude X300
laptop, a Logitech camera, speakers, and a 10-key keypad. The RFID antenna is placed in
the front of teh roboitic base, close to the floor. It is used to read RFID tags embedded in
a carpet which is placed at strategic locations in the store.
-----------------------
Figure 2: RFID carpet
-----------------------
Alternative Text Description for Figure 2.
The figure shows a carpet instrumented with RFID tags. This RFID carpet is placed at
strategic locations in teh store, and used by RoboCart to localize. The RFID tags are
placed in the carpet in a hexagonal pattern. Distance between any two tags is 15 cm.

6. -------------------------------------

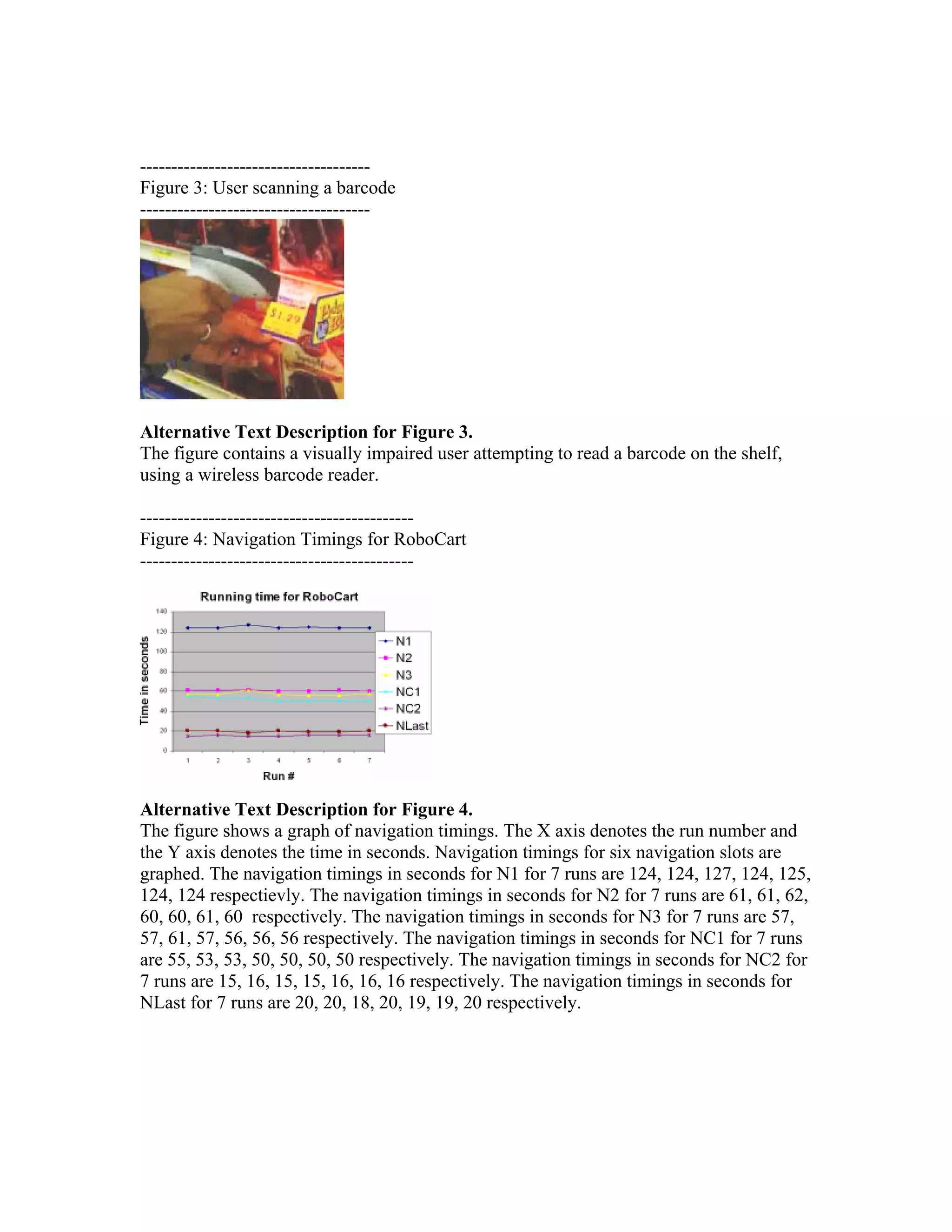

Figure 3: User scanning a barcode
-------------------------------------
Alternative Text Description for Figure 3.
The figure contains a visually impaired user attempting to read a barcode on the shelf,
using a wireless barcode reader.
--------------------------------------------
Figure 4: Navigation Timings for RoboCart
--------------------------------------------
Alternative Text Description for Figure 4.
The figure shows a graph of navigation timings. The X axis denotes the run number and
the Y axis denotes the time in seconds. Navigation timings for six navigation slots are
graphed. The navigation timings in seconds for N1 for 7 runs are 124, 124, 127, 124, 125,
124, 124 respectievly. The navigation timings in seconds for N2 for 7 runs are 61, 61, 62,
60, 60, 61, 60 respectively. The navigation timings in seconds for N3 for 7 runs are 57,
57, 61, 57, 56, 56, 56 respectively. The navigation timings in seconds for NC1 for 7 runs
are 55, 53, 53, 50, 50, 50, 50 respectively. The navigation timings in seconds for NC2 for
7 runs are 15, 16, 15, 15, 16, 16, 16 respectively. The navigation timings in seconds for
NLast for 7 runs are 20, 20, 18, 20, 19, 19, 20 respectively.

7. -----------------------------------

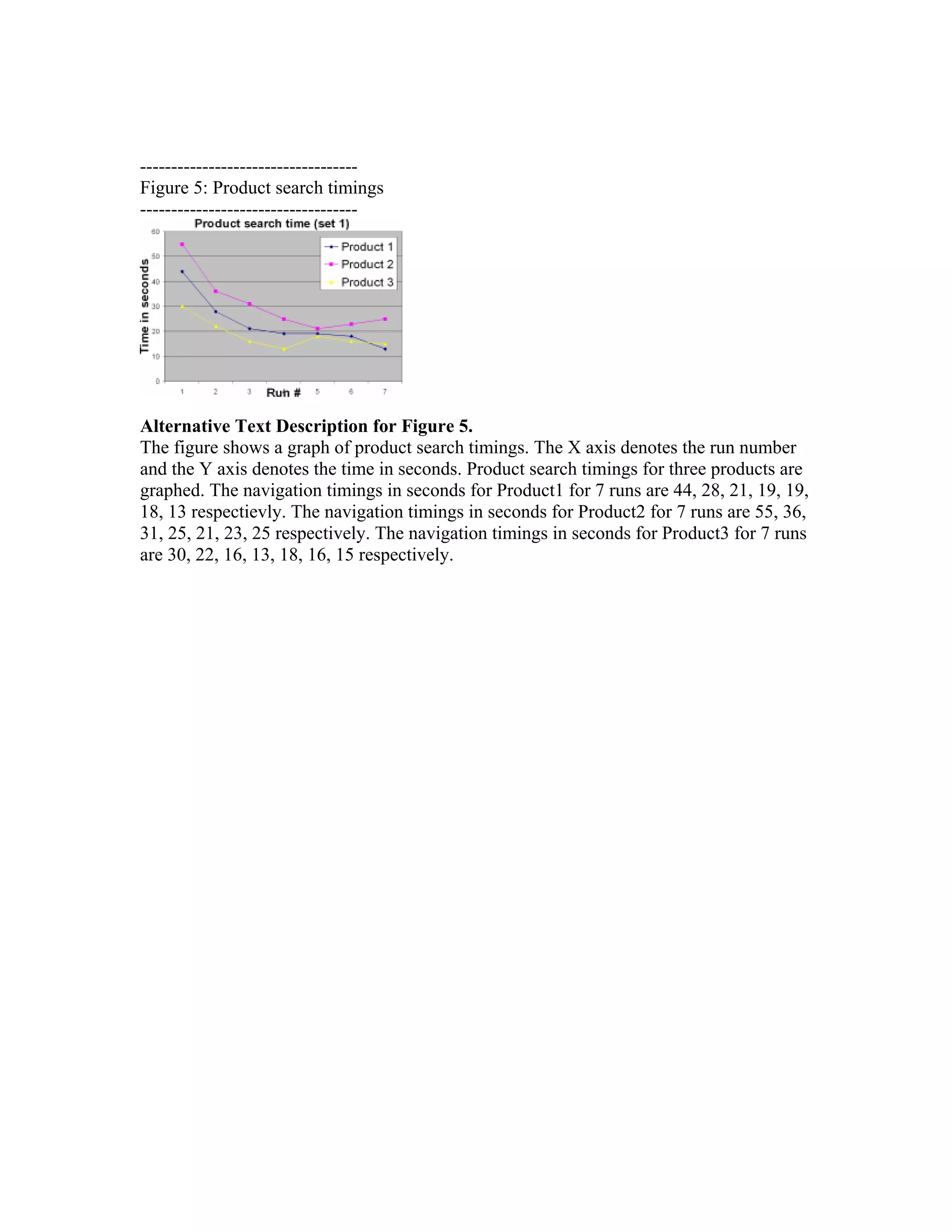

Figure 5: Product search timings
-----------------------------------
Alternative Text Description for Figure 5.
The figure shows a graph of product search timings. The X axis denotes the run number
and the Y axis denotes the time in seconds. Product search timings for three products are
graphed. The navigation timings in seconds for Product1 for 7 runs are 44, 28, 21, 19, 19,
18, 13 respectievly. The navigation timings in seconds for Product2 for 7 runs are 55, 36,
31, 25, 21, 23, 25 respectively. The navigation timings in seconds for Product3 for 7 runs
are 30, 22, 16, 13, 18, 16, 15 respectively.
