1. 1 ©2016 Acquia Inc.
Mai Irie – Software Architect, Phase2
John Kennedy – Product Manager, Acquia
Using Lightning To Build A
Future-Focused Drupal 8 Media
Platform

2. 2 ©2016 Acquia Inc.
John Kennedy
– Product Manager, Acquia Lightning
– @commercejohn

3. 3 ©2016 Acquia Inc.
Mai Irie
– Software Architect, Phase2
– Mirie
– IRC, drupal.org

4. 4 ©2016 Acquia Inc.

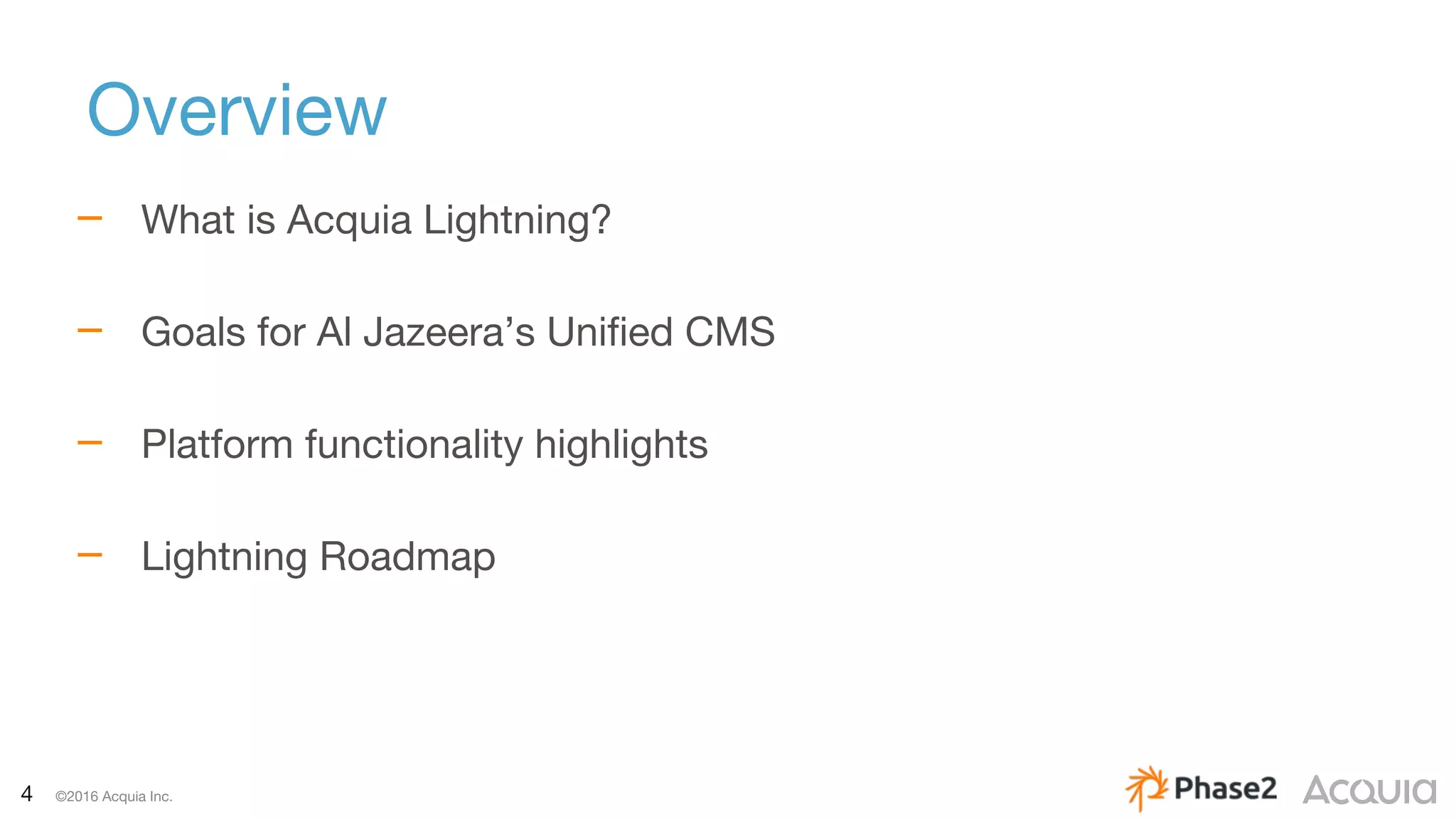

Overview
– What is Acquia Lightning?
– Goals for Al Jazeera’s Unified CMS
– Platform functionality highlights
– Lightning Roadmap

5. 5 ©2016 Acquia Inc.
What Is Lightning?
The Drupal 8 Distribution
for Enterprise Authoring

6. 6 ©2016 Acquia Inc.

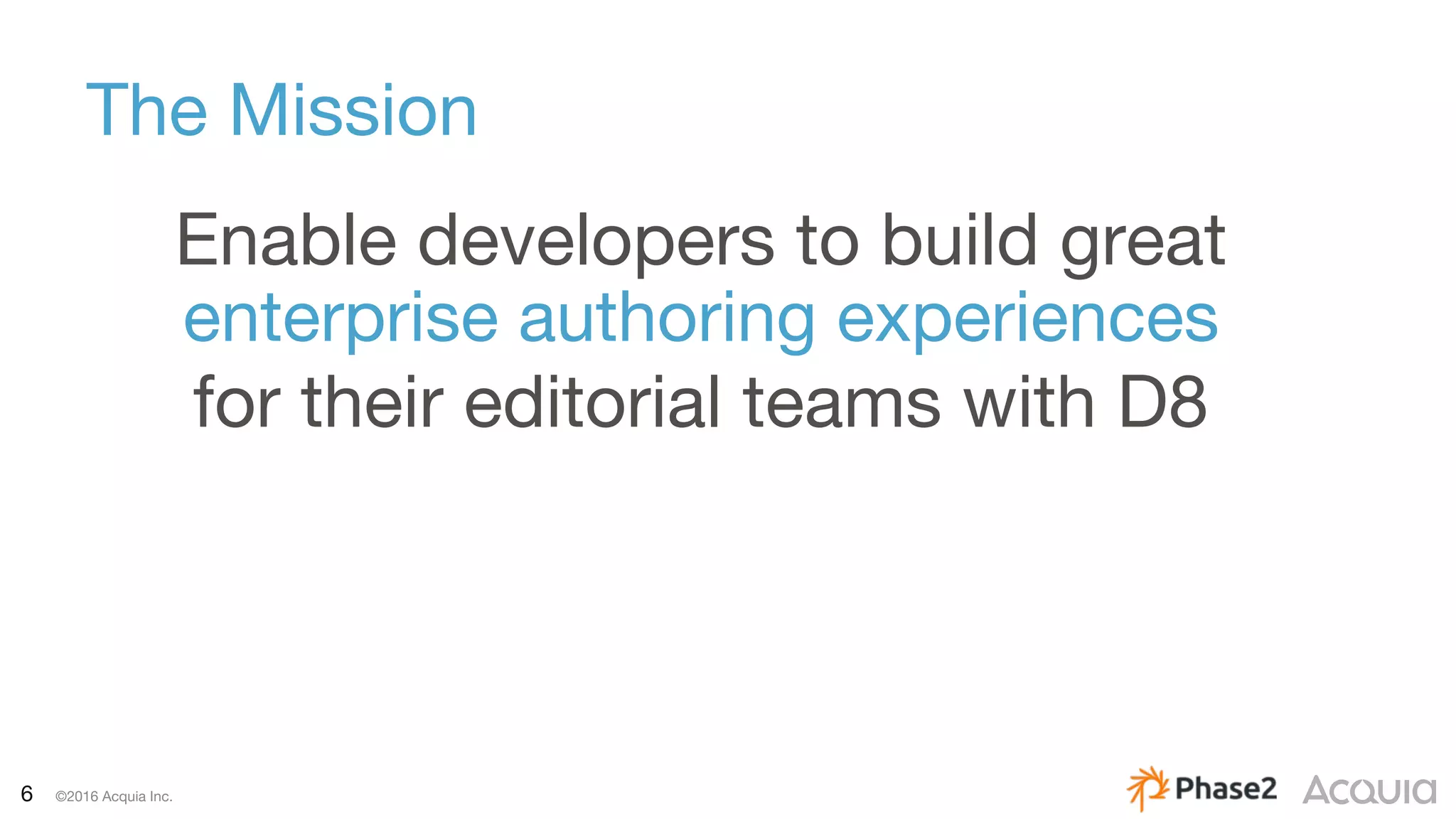

The Mission
Enable developers to build great
enterprise authoring experiences
for their editorial teams with D8

7. 7 ©2016 Acquia Inc.
Persona
Site
Builder
Persona
Content
Author
Persona
Site
Designer
Persona
Developer

8. 8 ©2016 Acquia Inc.

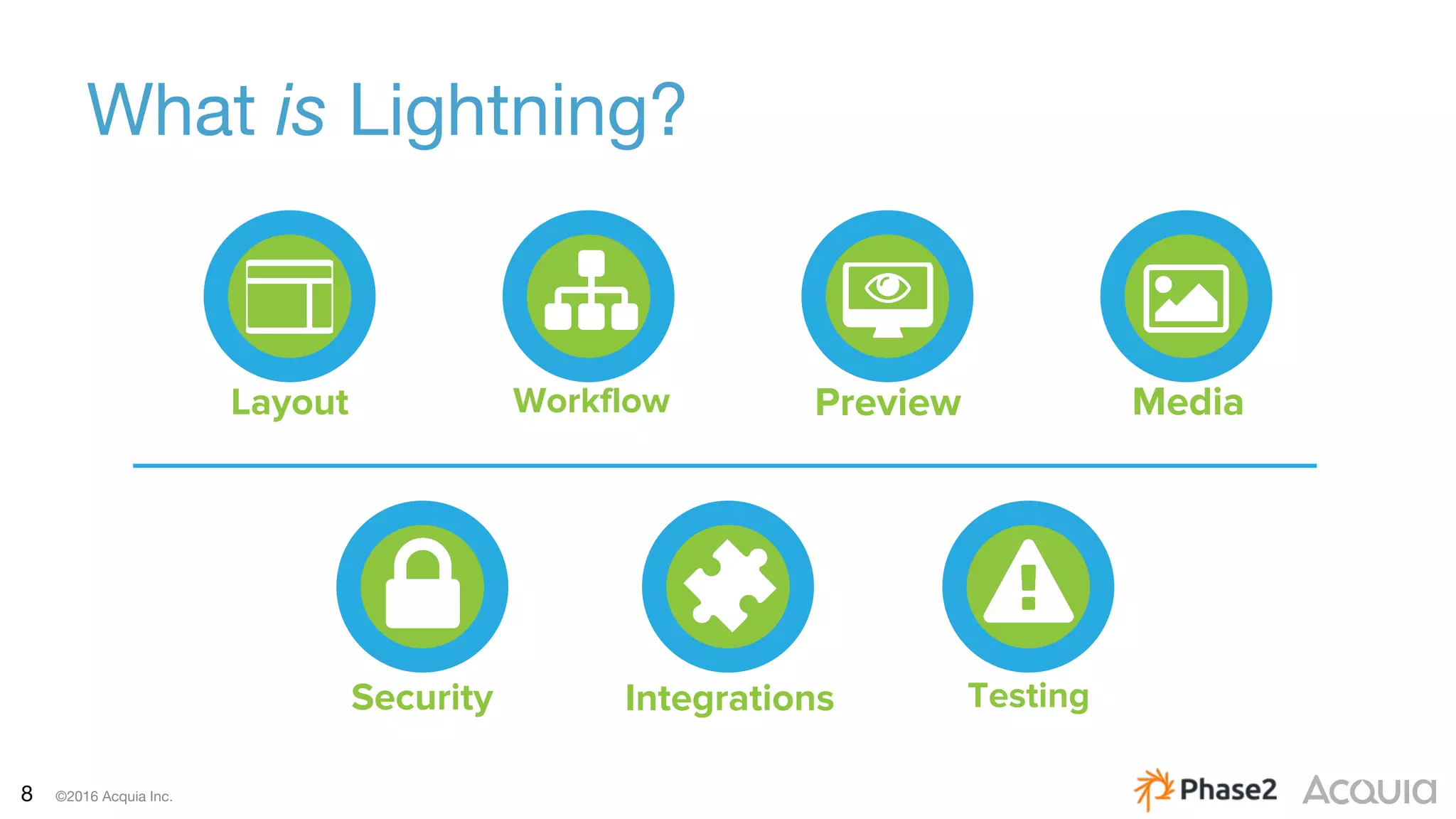

What is Lightning?
Integrations TestingSecurity
Layout Workflow Preview Media

9. 9 ©2016 Acquia Inc.

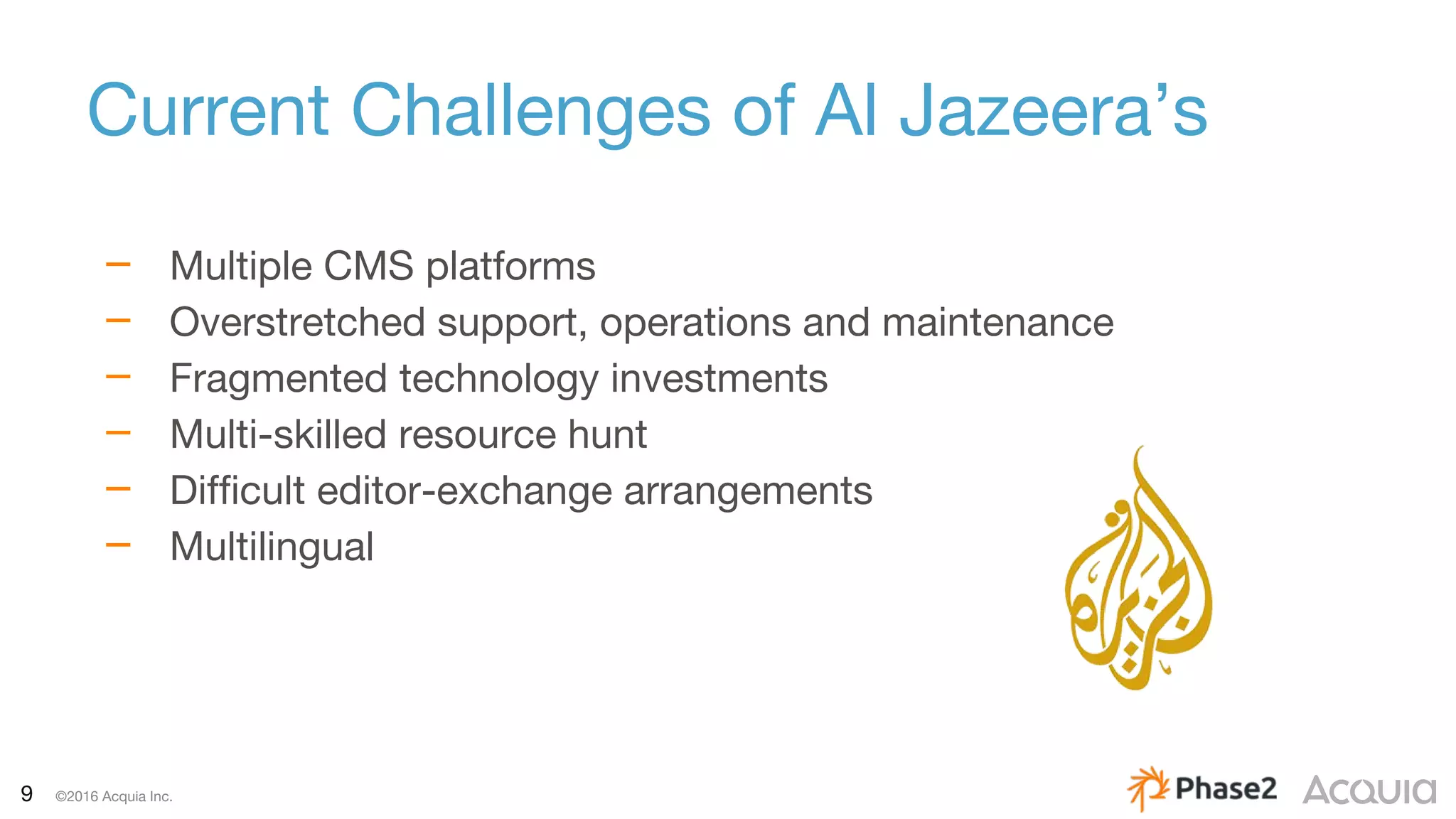

Current Challenges of Al Jazeera’s
– Multiple CMS platforms
– Overstretched support, operations and maintenance
– Fragmented technology investments
– Multi-skilled resource hunt
– Difficult editor-exchange arrangements
– Multilingual

10. 10 ©2016 Acquia Inc.

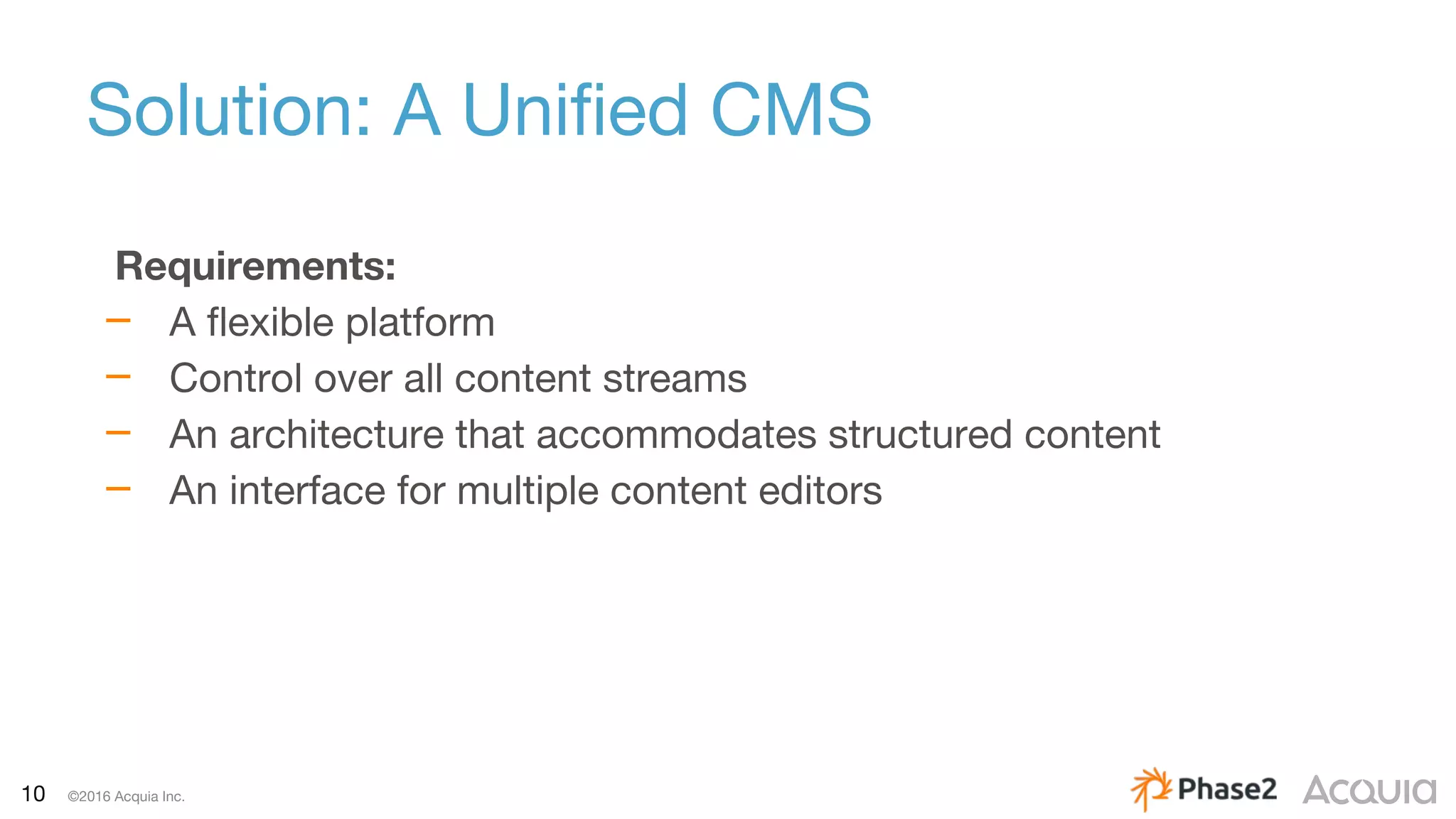

Solution: A Unified CMS
Requirements:
– A flexible platform
– Control over all content streams
– An architecture that accommodates structured content
– An interface for multiple content editors

11. 11 ©2016 Acquia Inc.

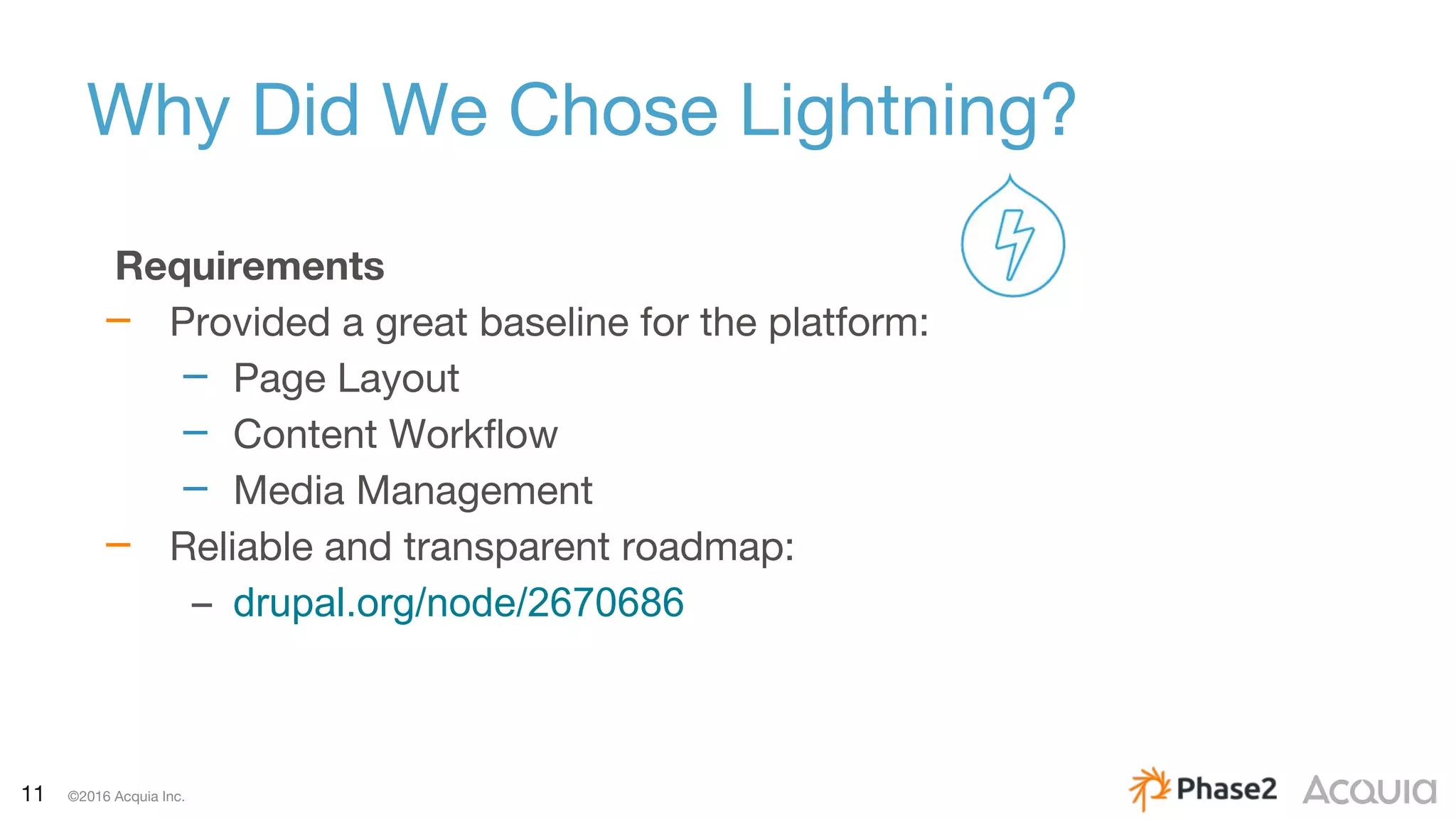

Why Did We Chose Lightning?
Requirements
– Provided a great baseline for the platform:
– Page Layout
– Content Workflow
– Media Management
– Reliable and transparent roadmap:
– drupal.org/node/2670686

12. 12 ©2016 Acquia Inc.

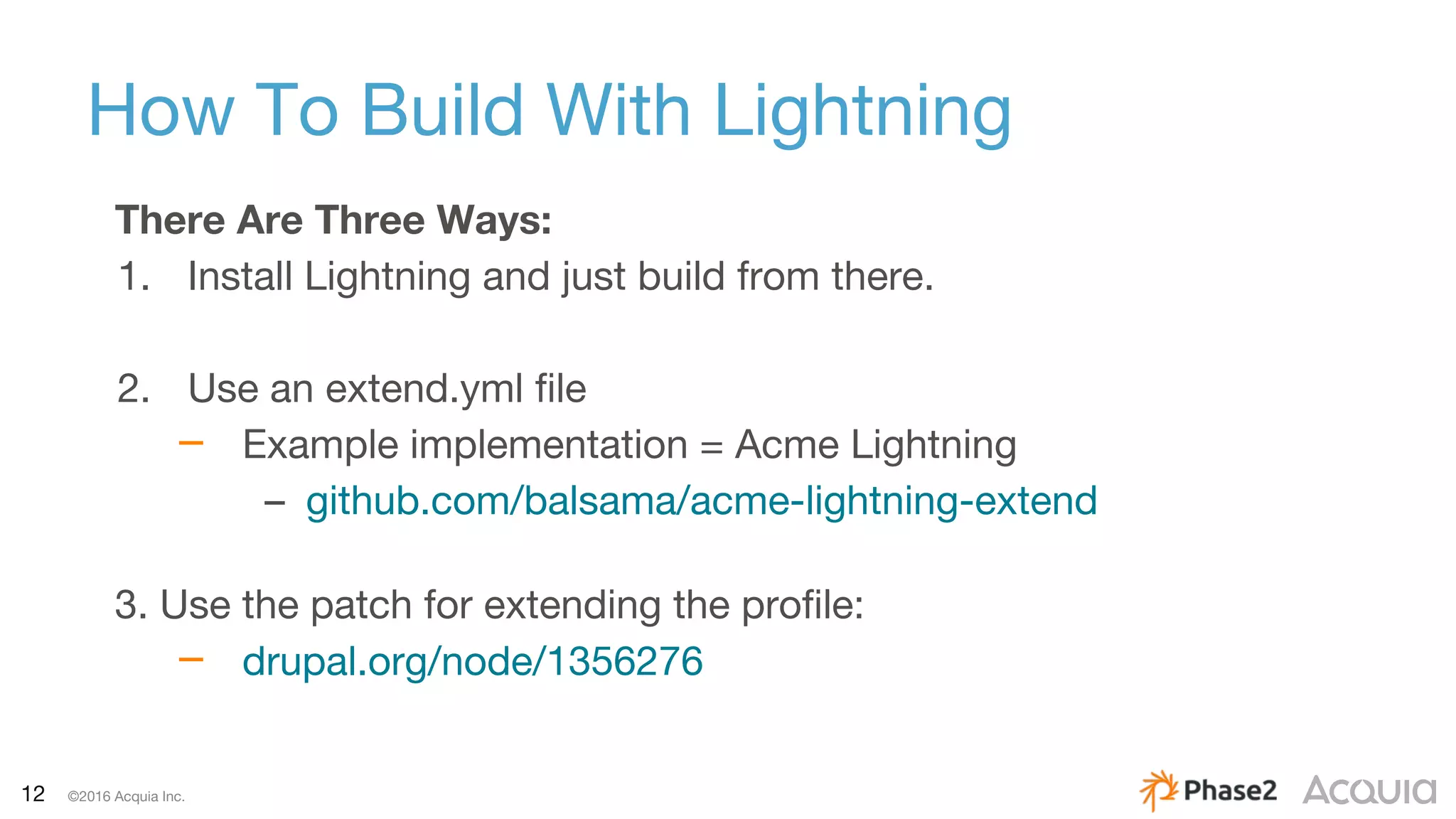

How To Build With Lightning
There Are Three Ways:
1. Install Lightning and just build from there.
2. Use an extend.yml file
– Example implementation = Acme Lightning
– github.com/balsama/acme-lightning-extend
3. Use the patch for extending the profile:
– drupal.org/node/1356276

13. 13 ©2016 Acquia Inc.
Platform Functionality Highlights

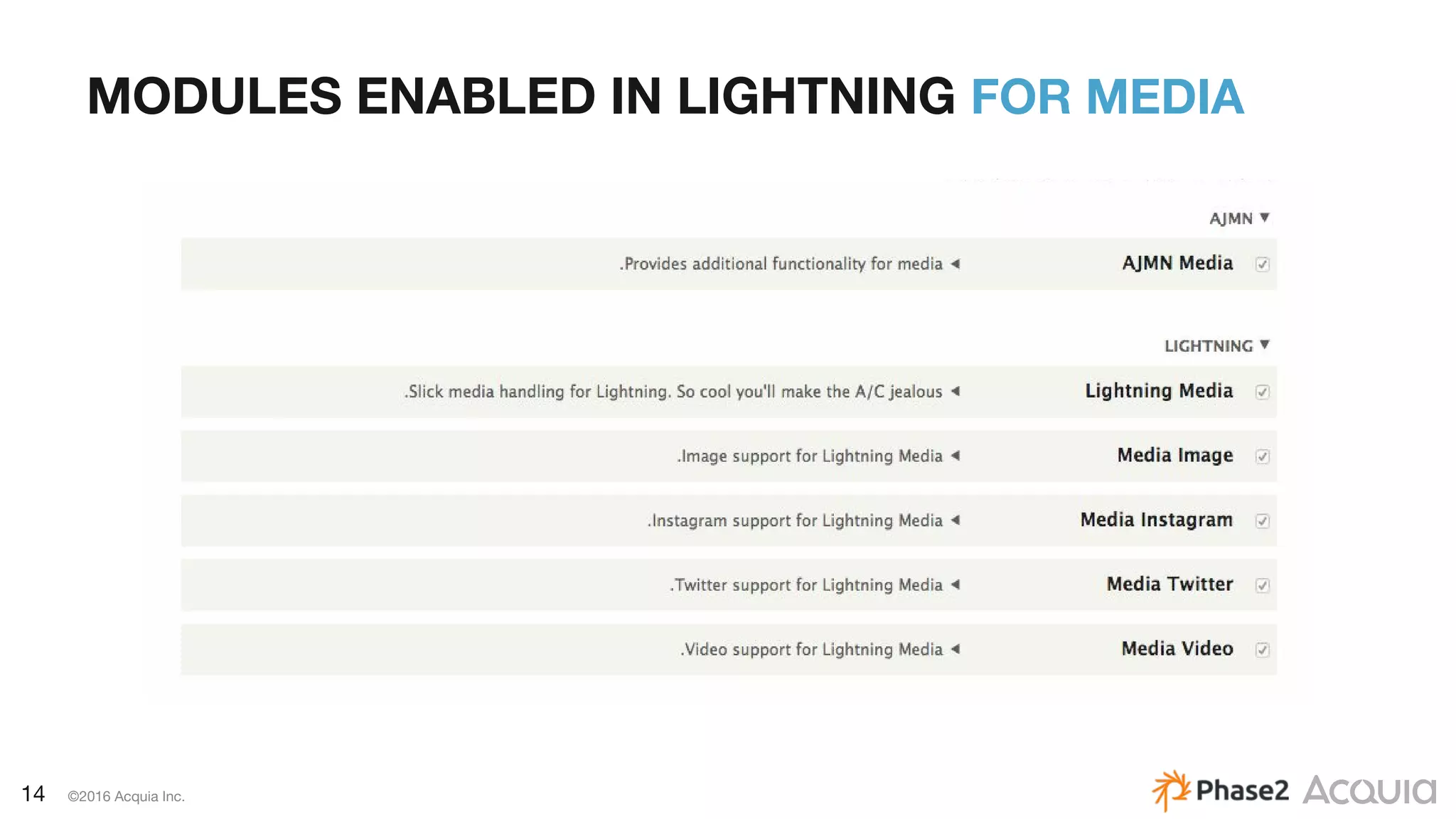

14. 14 ©2016 Acquia Inc.
MODULES ENABLED IN LIGHTNING FOR MEDIA

15. 15 ©2016 Acquia Inc.

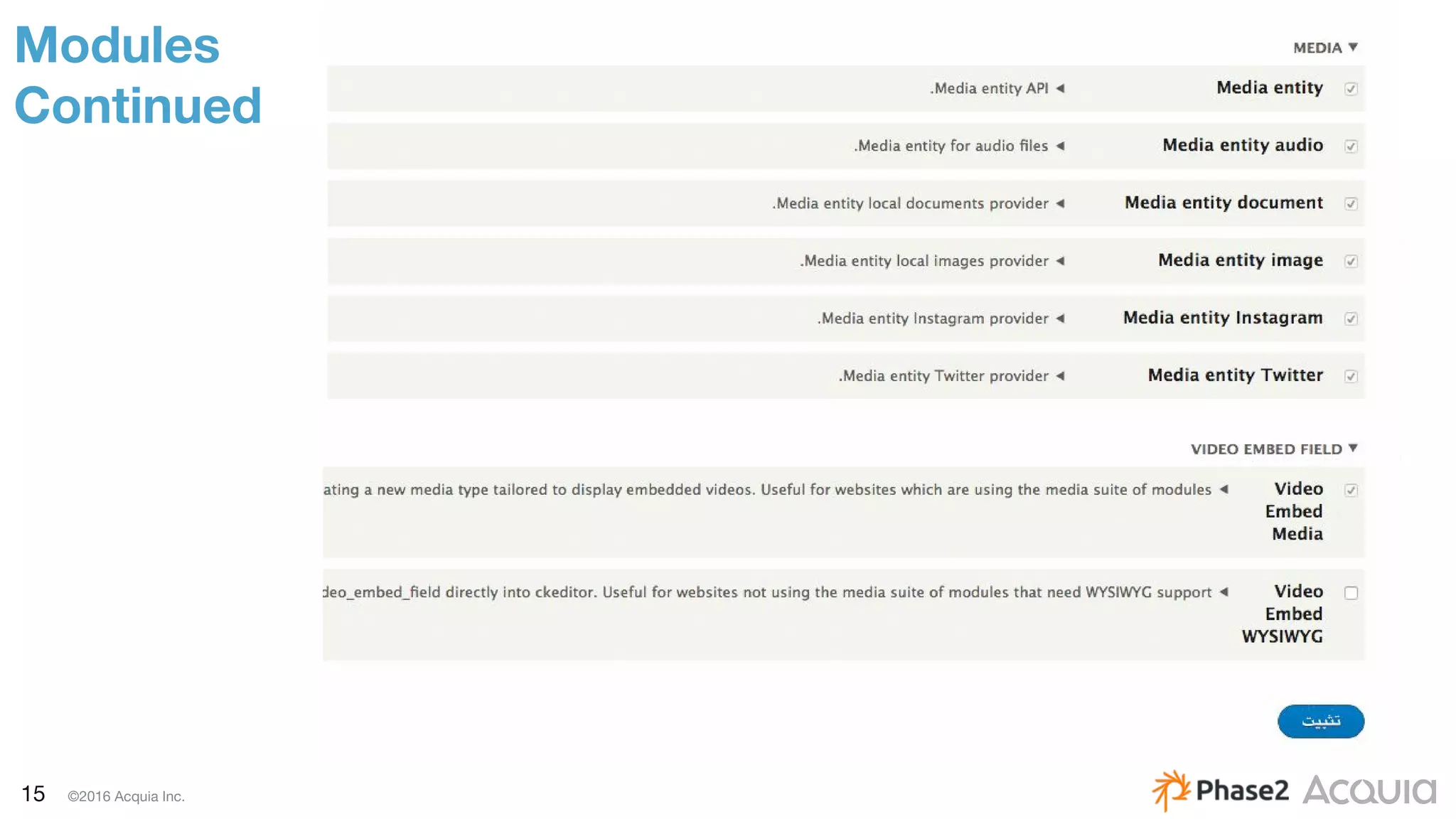

Modules
Continued

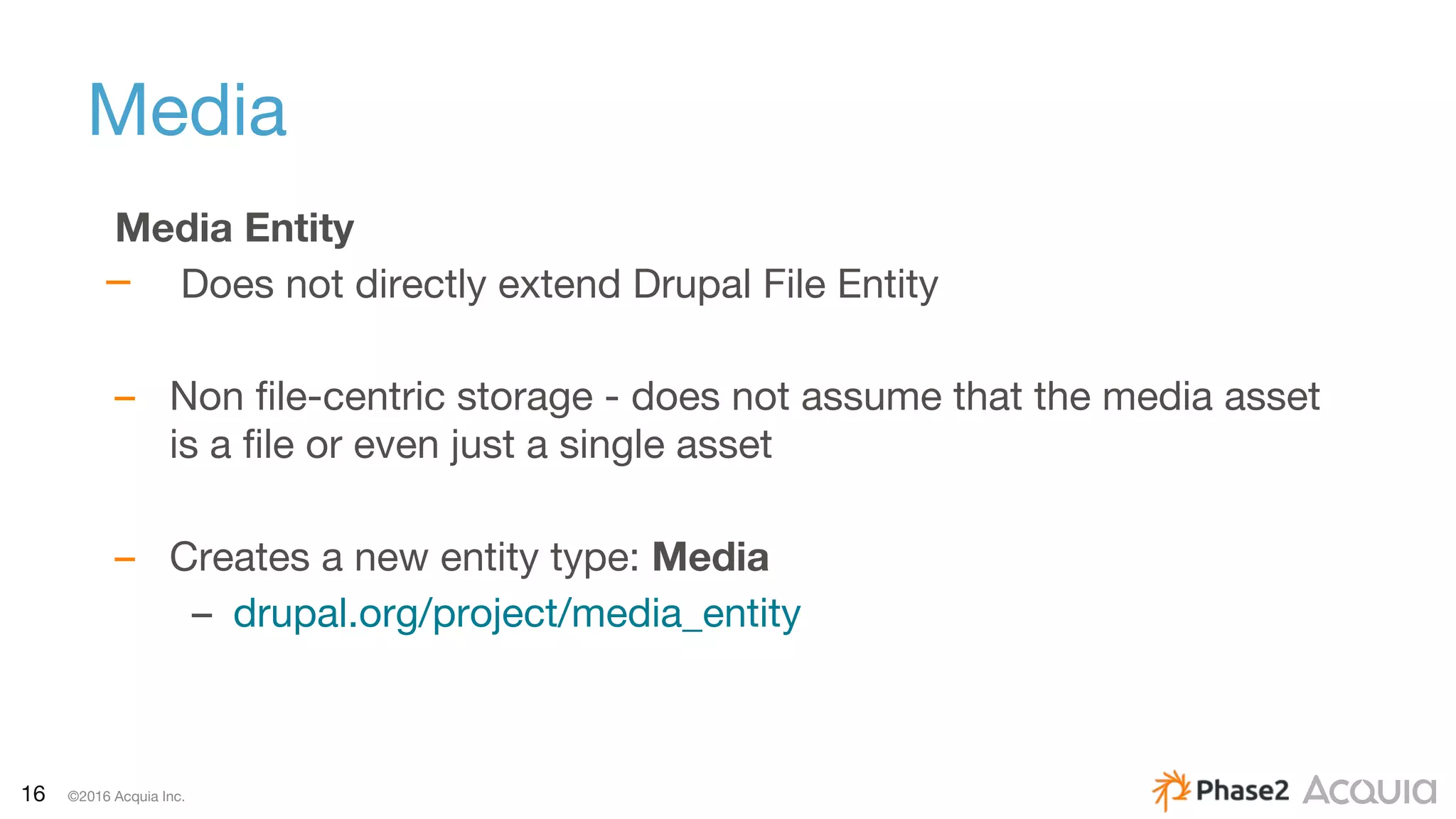

16. 16 ©2016 Acquia Inc.
Media
Media Entity
– Does not directly extend Drupal File Entity
– Non file-centric storage - does not assume that the media asset
is a file or even just a single asset
– Creates a new entity type: Media
– drupal.org/project/media_entity

17. 17 ©2016 Acquia Inc.

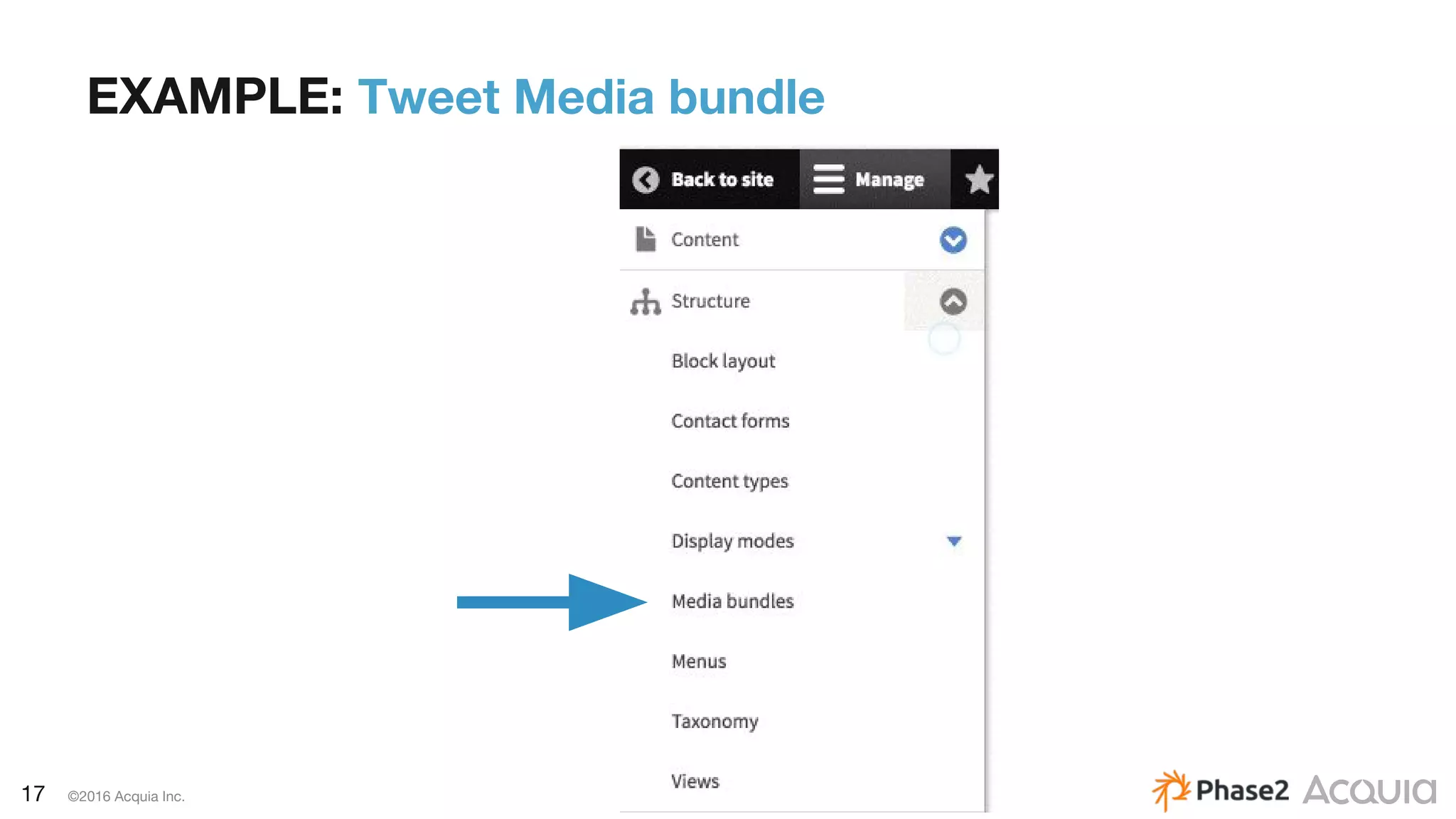

EXAMPLE: Tweet Media bundle

18. 18 ©2016 Acquia Inc.

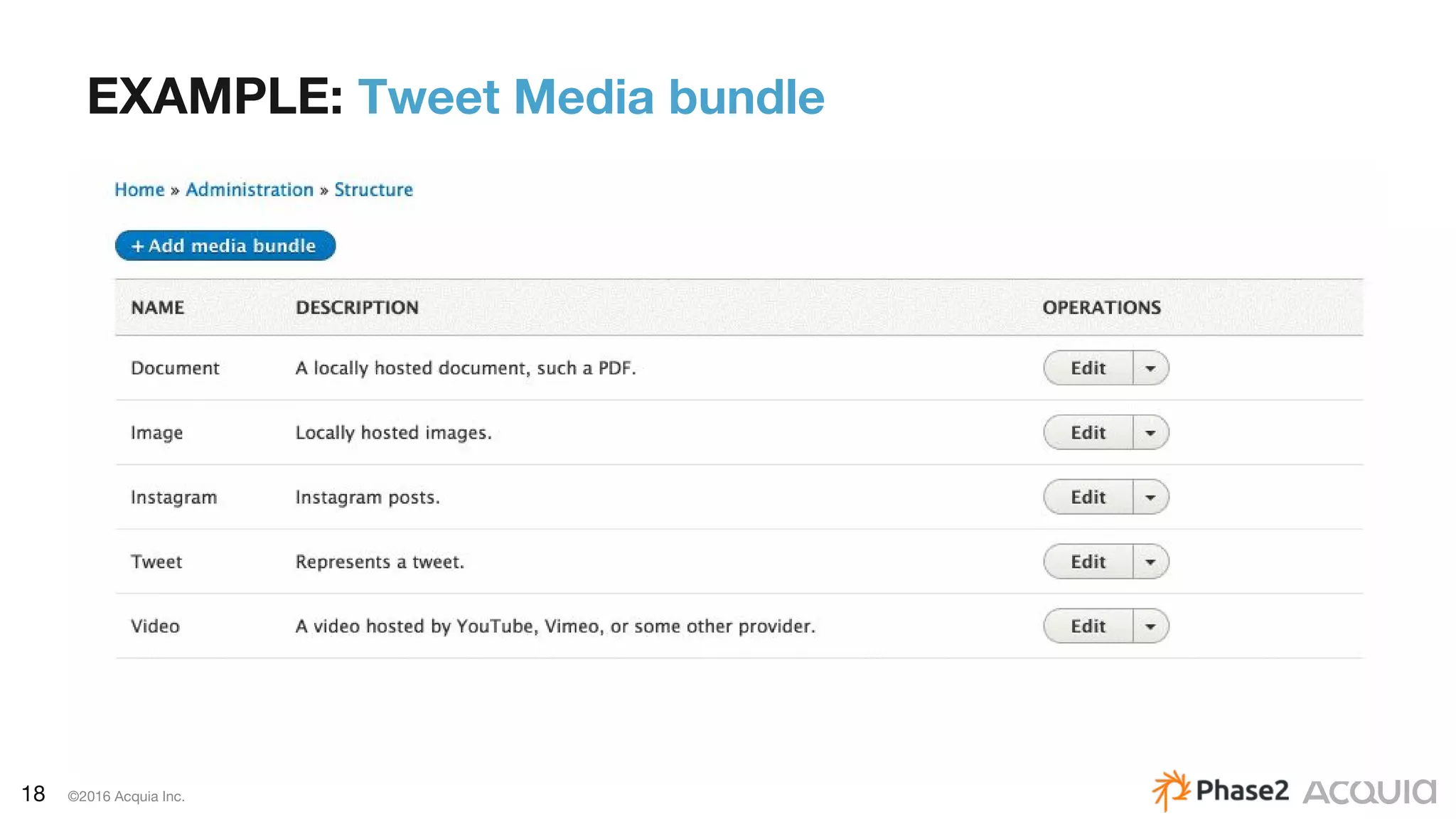

EXAMPLE: Tweet Media bundle

19. 19 ©2016 Acquia Inc.

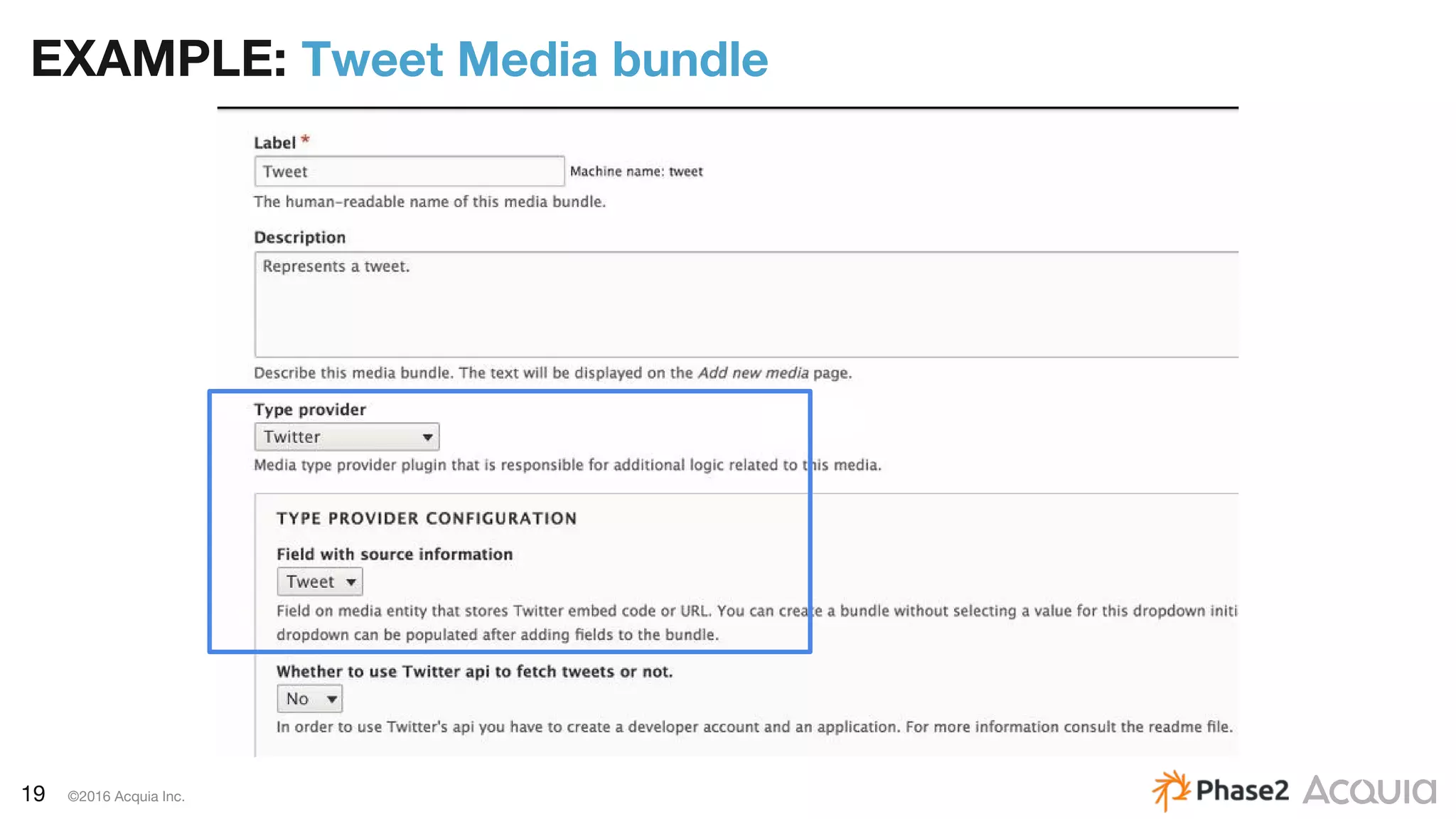

EXAMPLE: Tweet Media bundle

20. 20 ©2016 Acquia Inc.

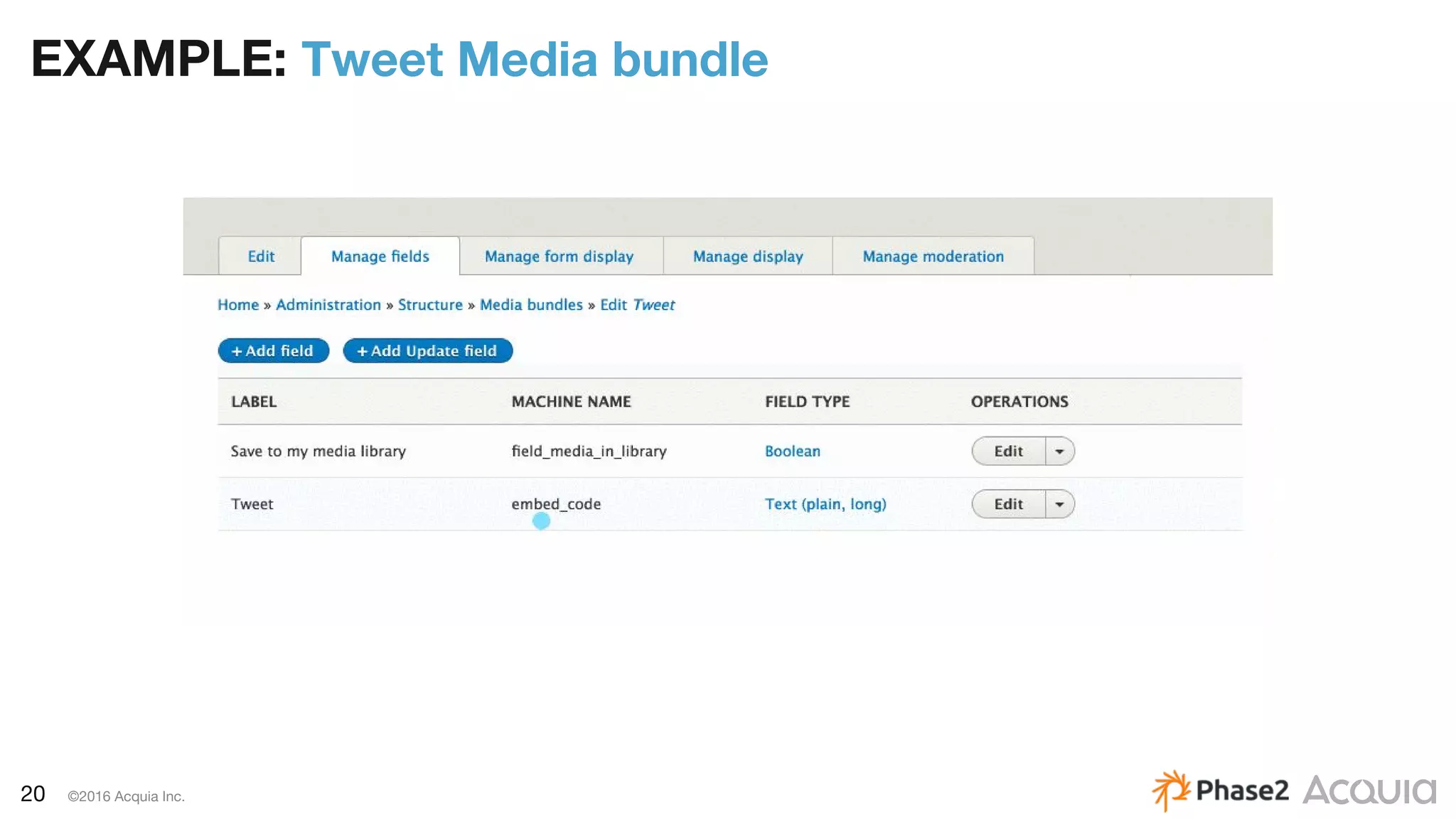

EXAMPLE: Tweet Media bundle

21. 21 ©2016 Acquia Inc.

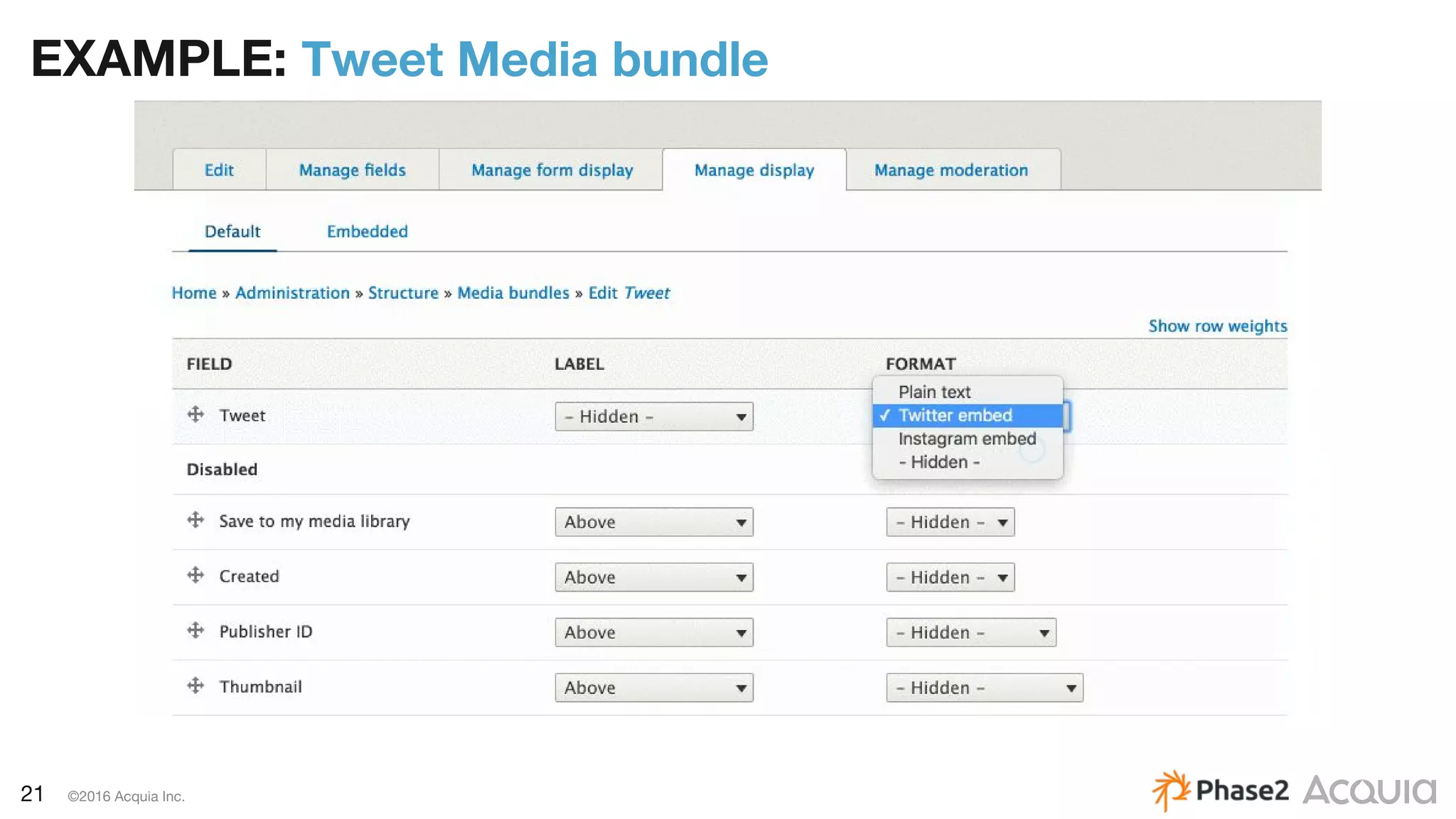

EXAMPLE: Tweet Media bundle

22. 22 ©2016 Acquia Inc.
ENTITY
EMBED
&
ENTITY
BROWSER
ENTITY
BROWSER

23. 23 ©2016 Acquia Inc.

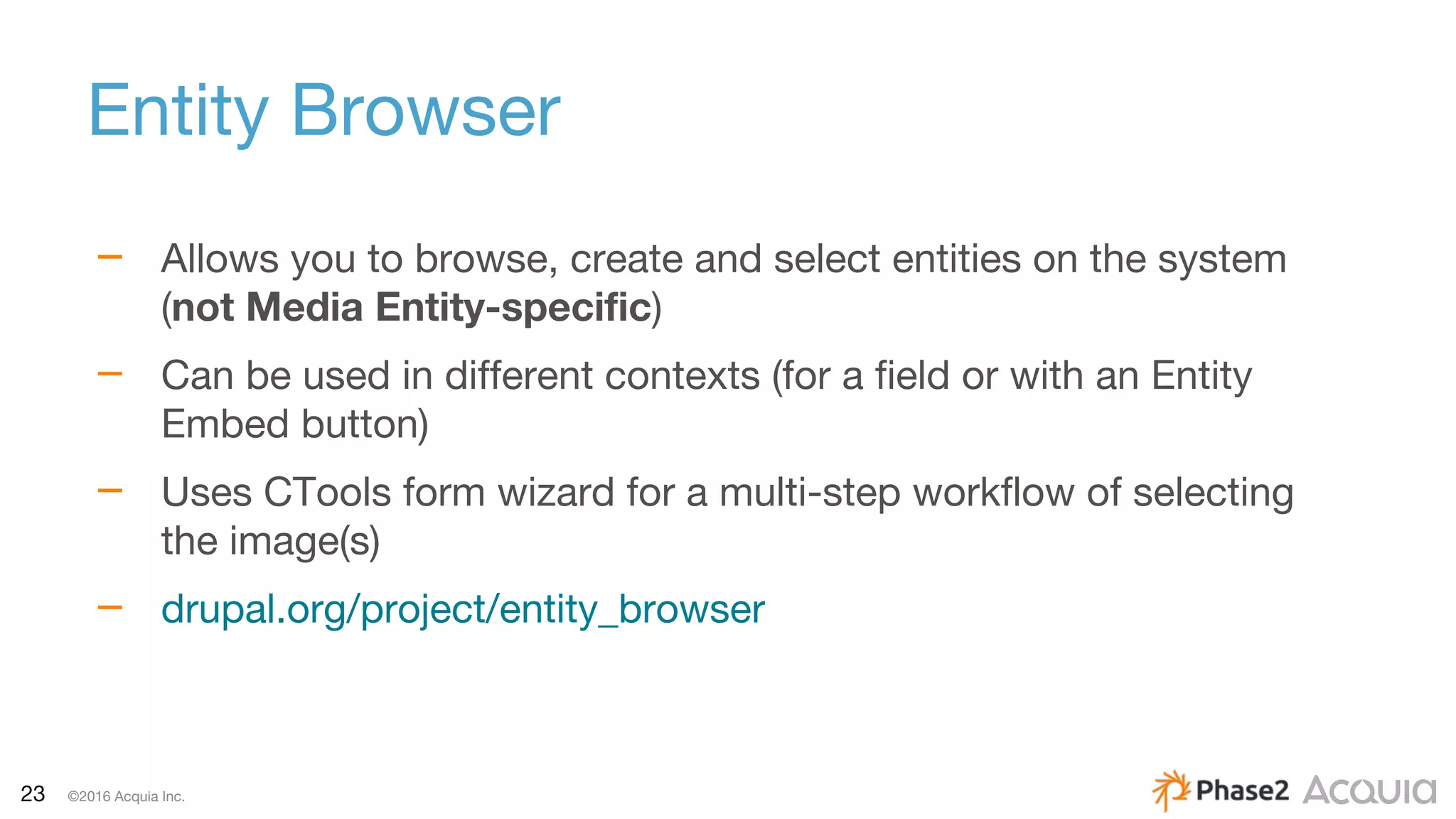

Entity Browser
– Allows you to browse, create and select entities on the system
(not Media Entity-specific)
– Can be used in different contexts (for a field or with an Entity
Embed button)
– Uses CTools form wizard for a multi-step workflow of selecting
the image(s)
– drupal.org/project/entity_browser

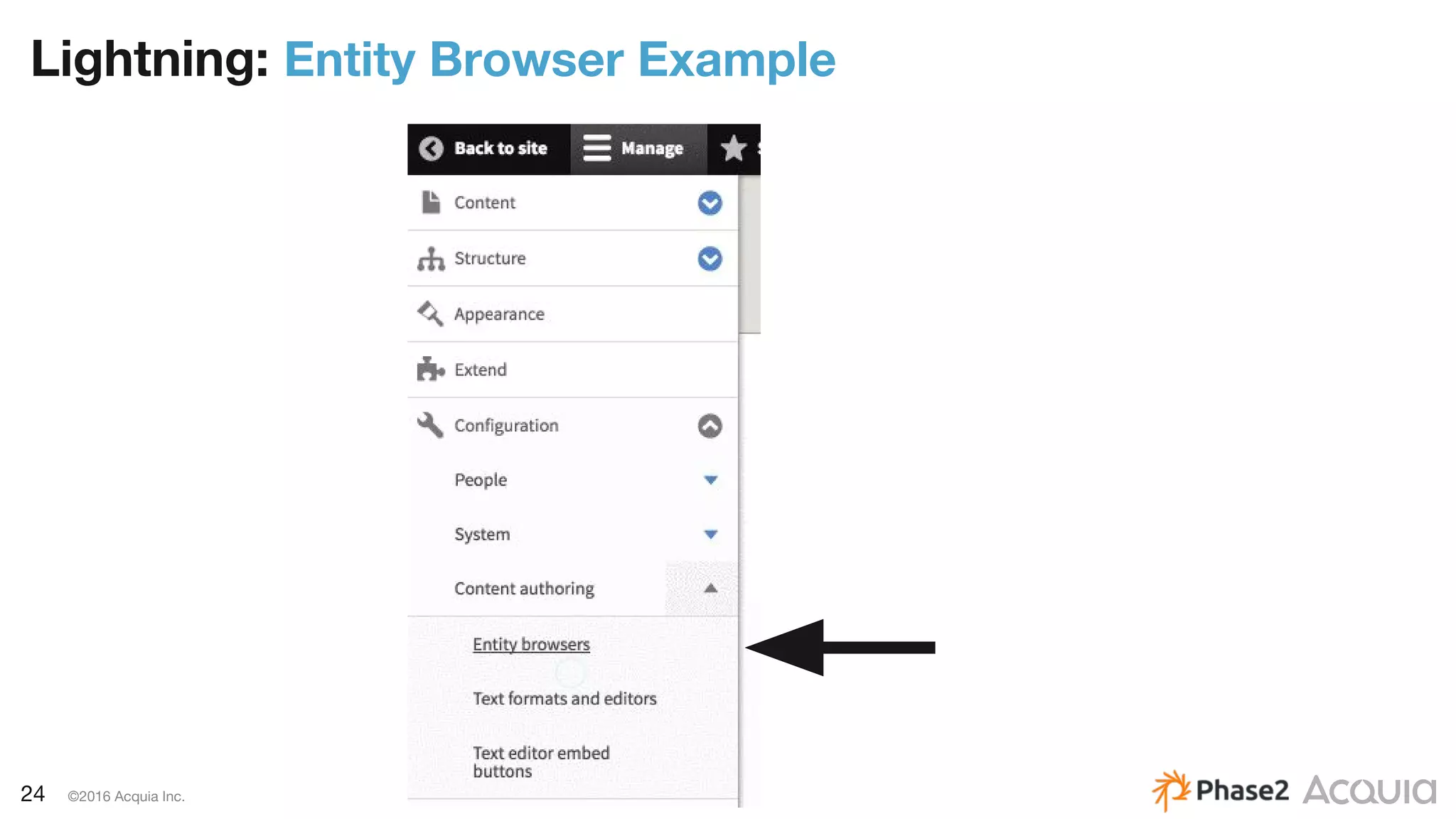

24. 24 ©2016 Acquia Inc.
Lightning: Entity Browser Example

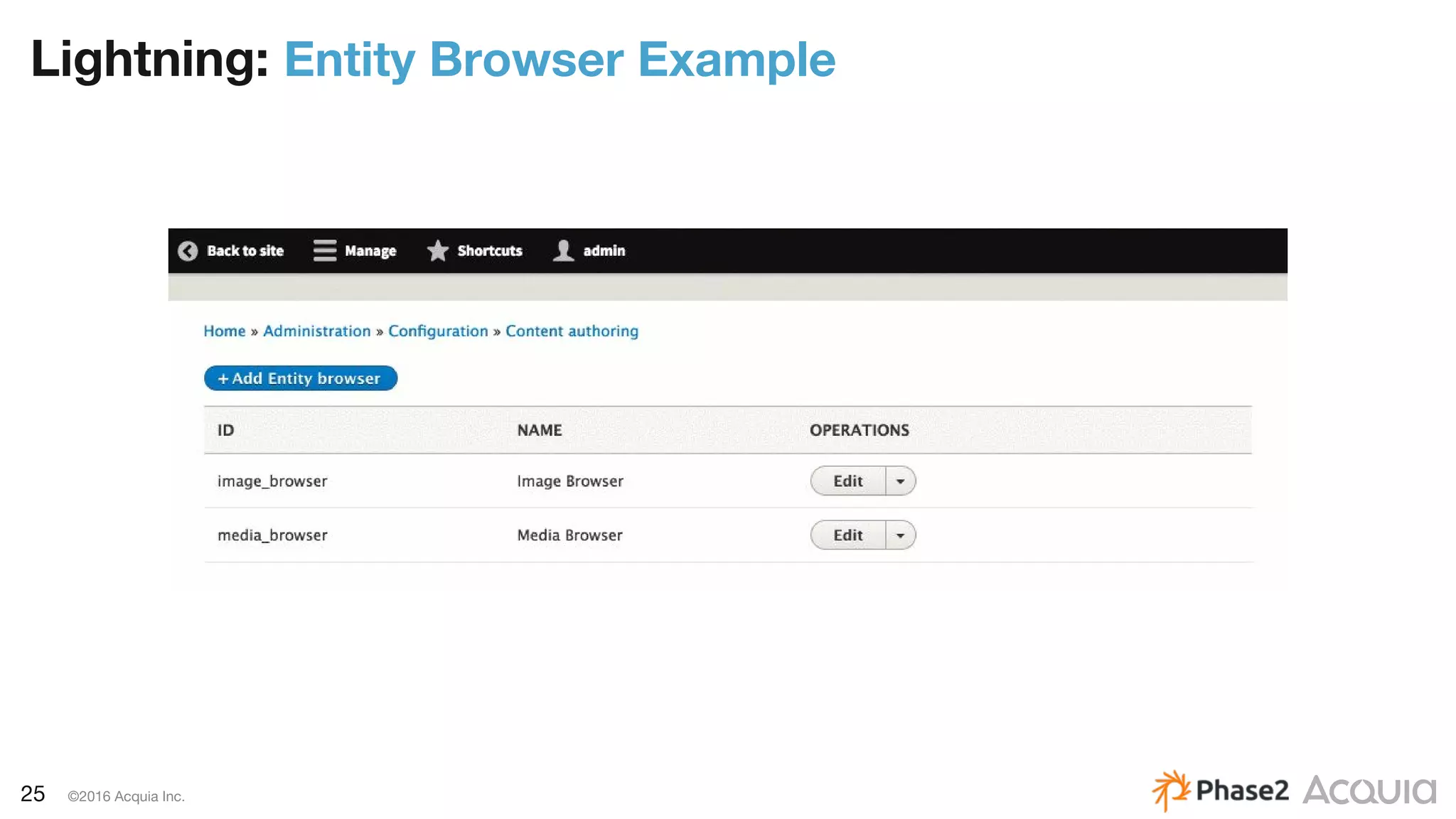

25. 25 ©2016 Acquia Inc.
Lightning: Entity Browser Example

26. 26 ©2016 Acquia Inc.

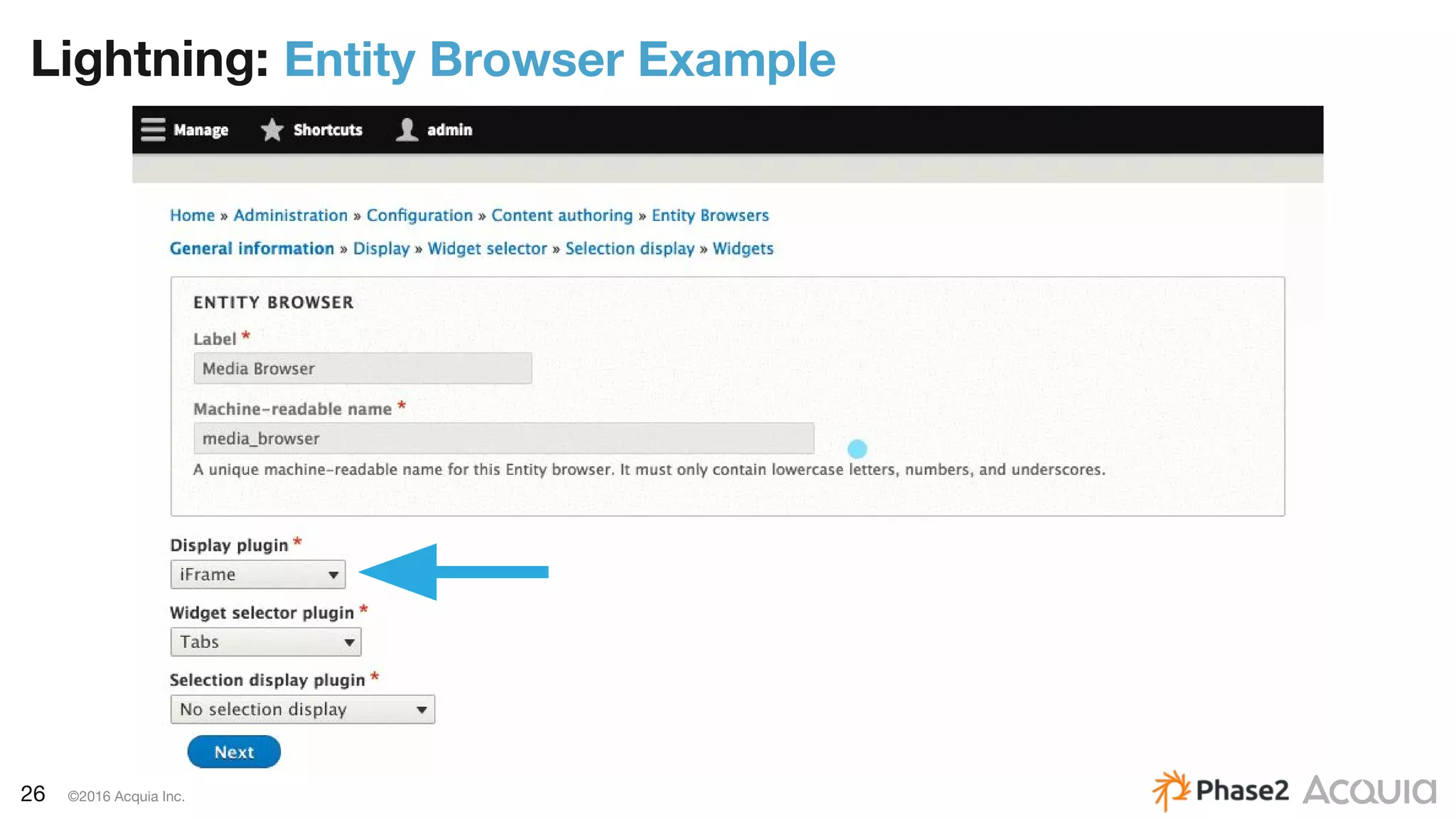

Lightning: Entity Browser Example

27. 27 ©2016 Acquia Inc.

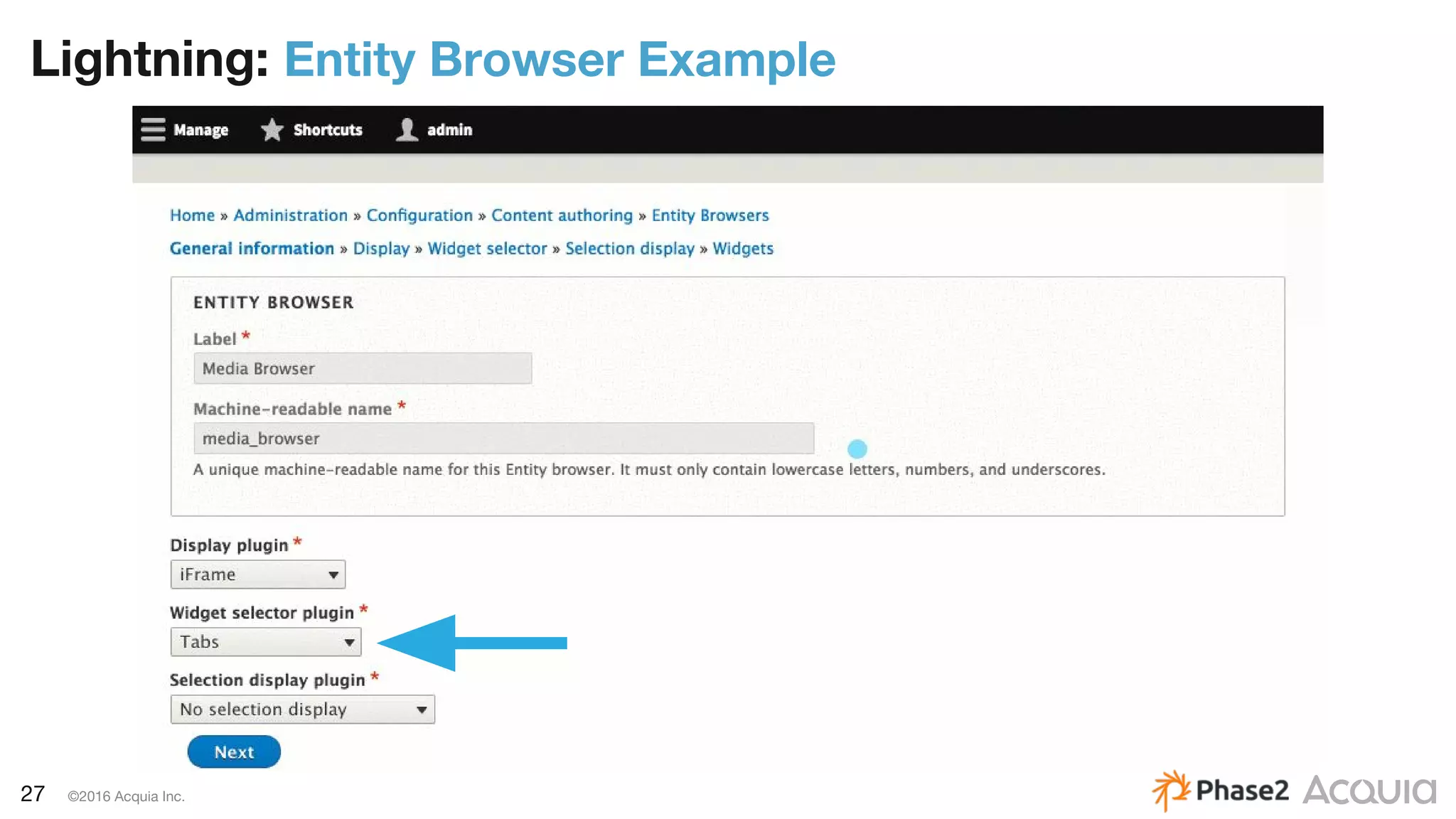

Lightning: Entity Browser Example

28. 28 ©2016 Acquia Inc.

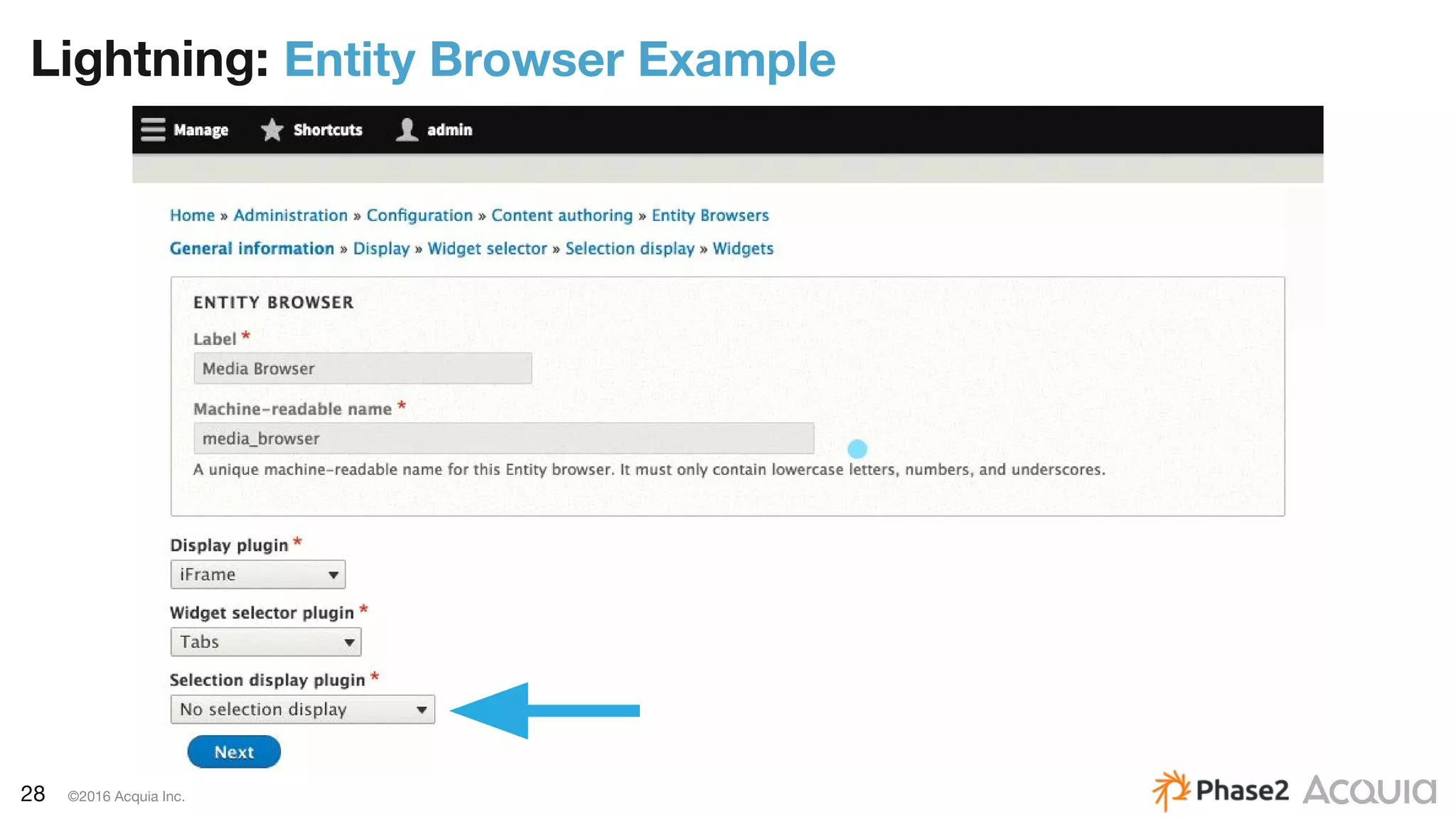

Lightning: Entity Browser Example

29. 29 ©2016 Acquia Inc.

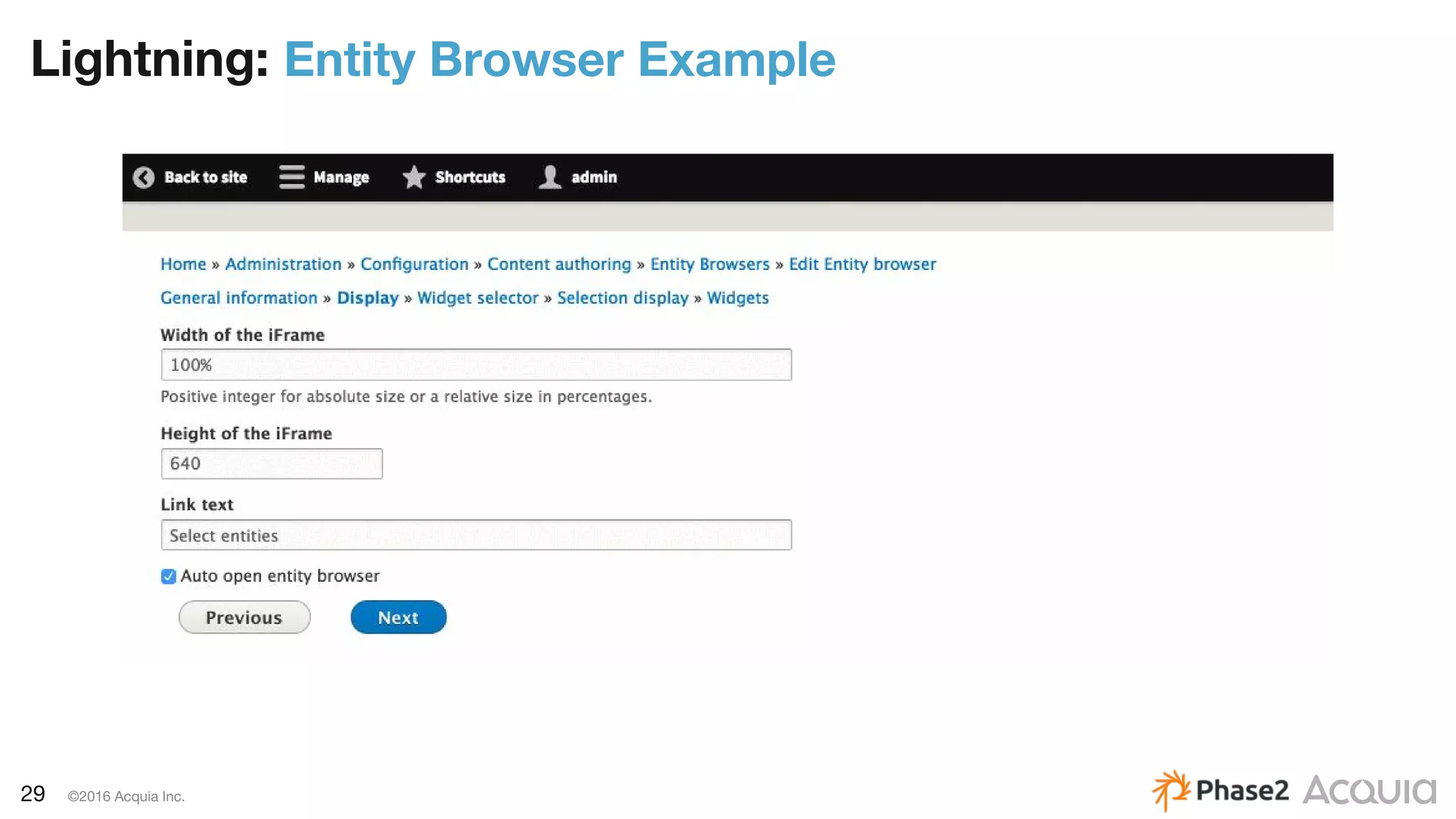

Lightning: Entity Browser Example

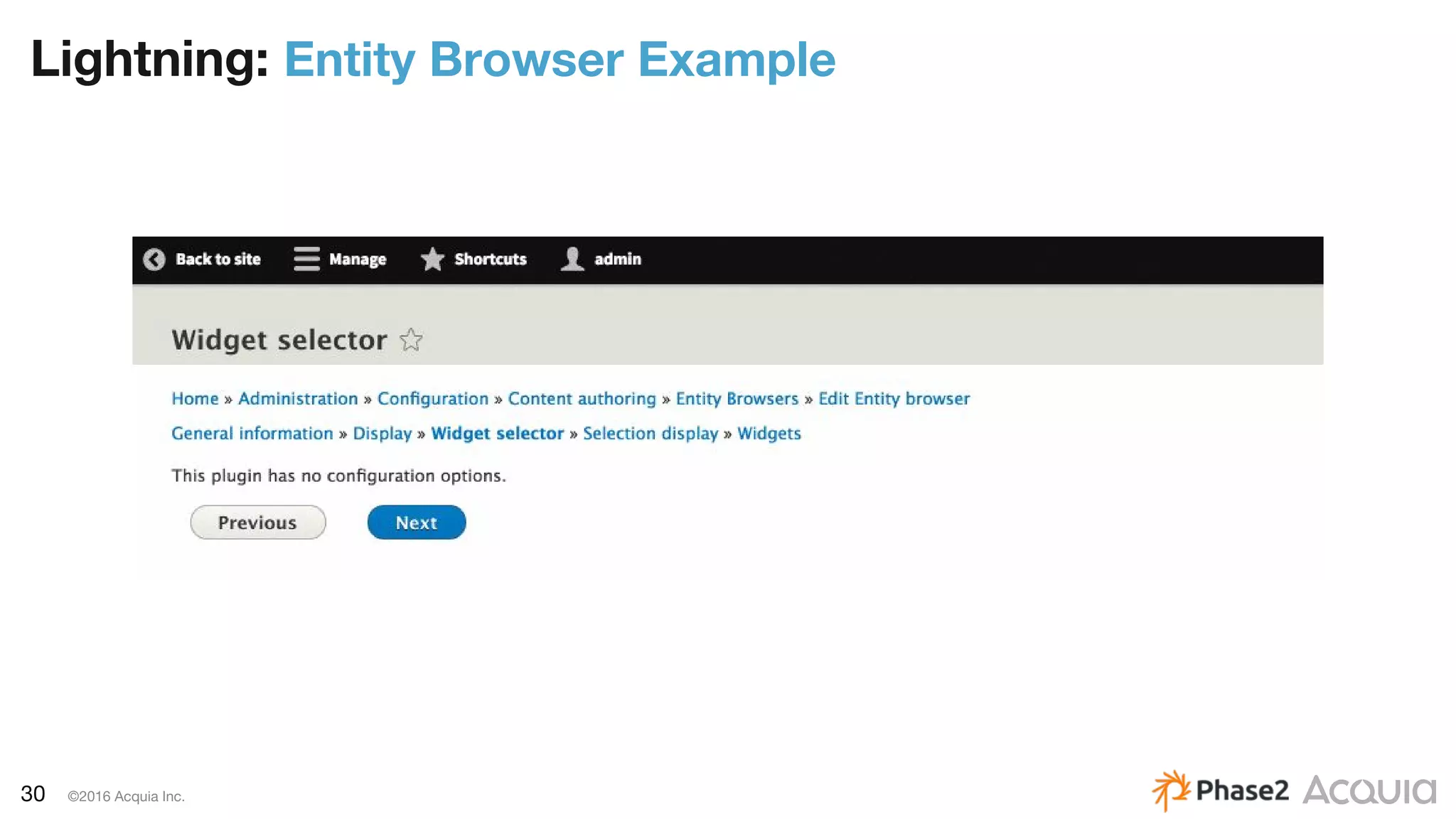

30. 30 ©2016 Acquia Inc.
Lightning: Entity Browser Example

31. 31 ©2016 Acquia Inc.

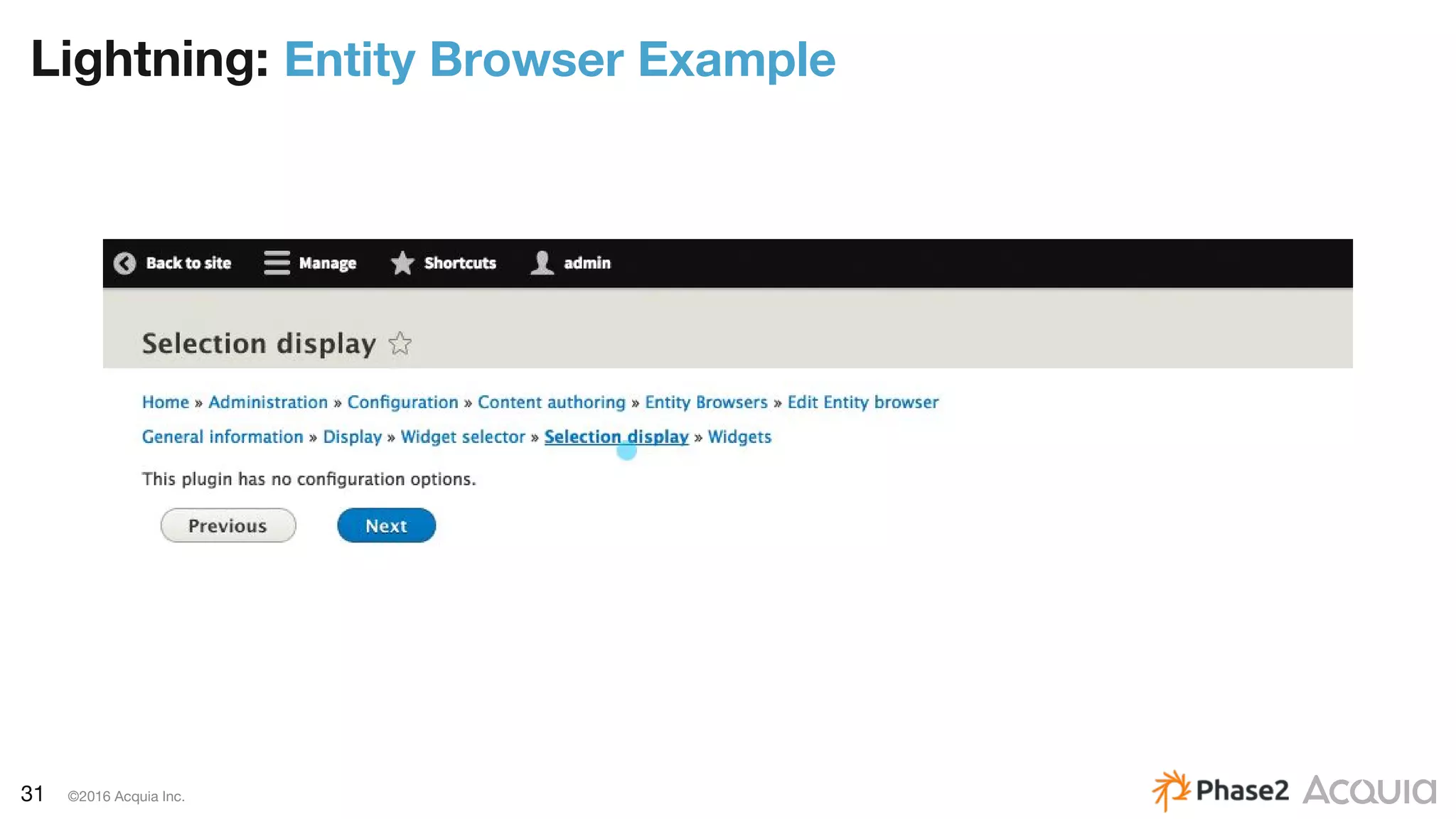

Lightning: Entity Browser Example

32. 32 ©2016 Acquia Inc.

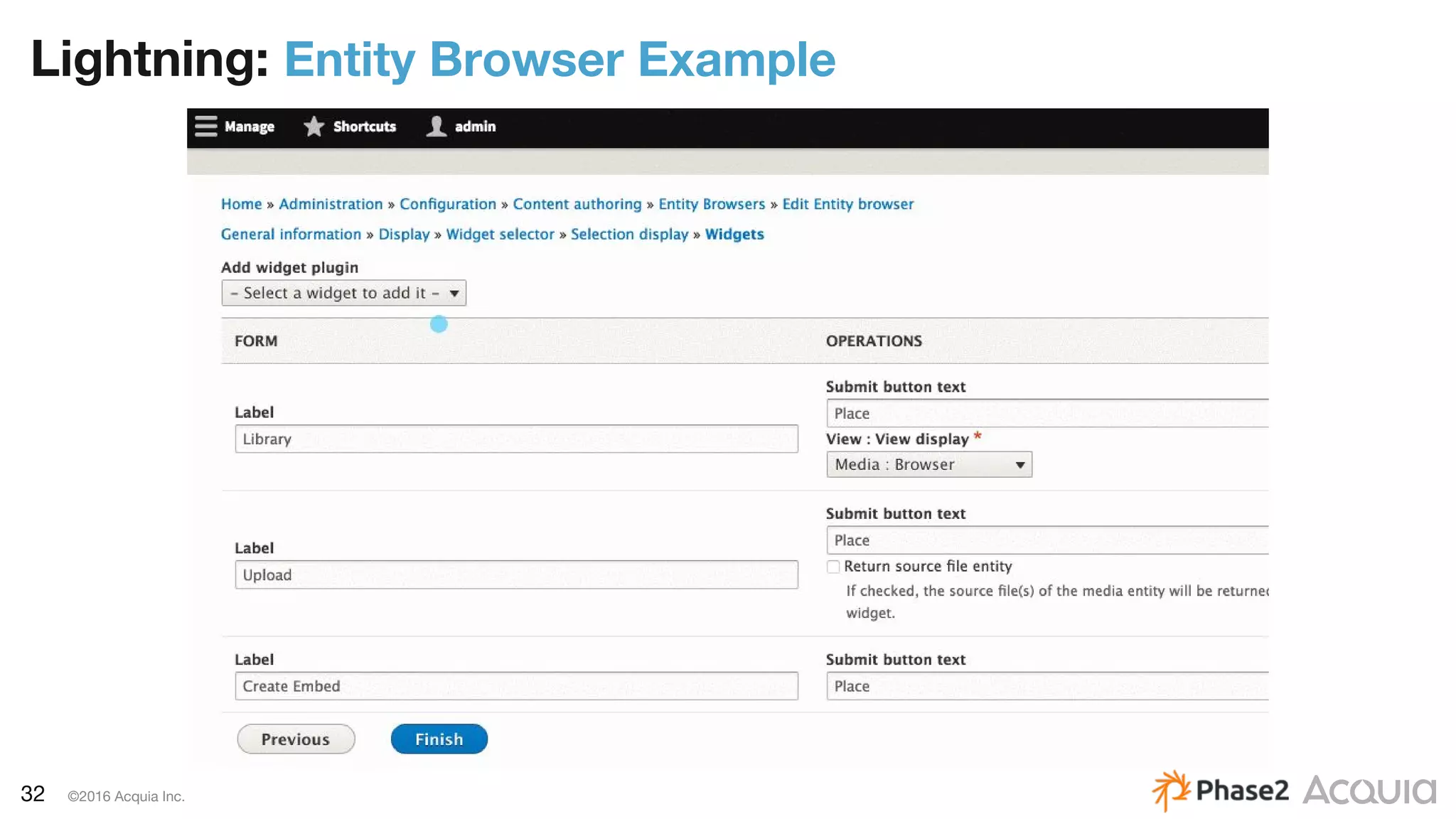

Lightning: Entity Browser Example

33. 33 ©2016 Acquia Inc.

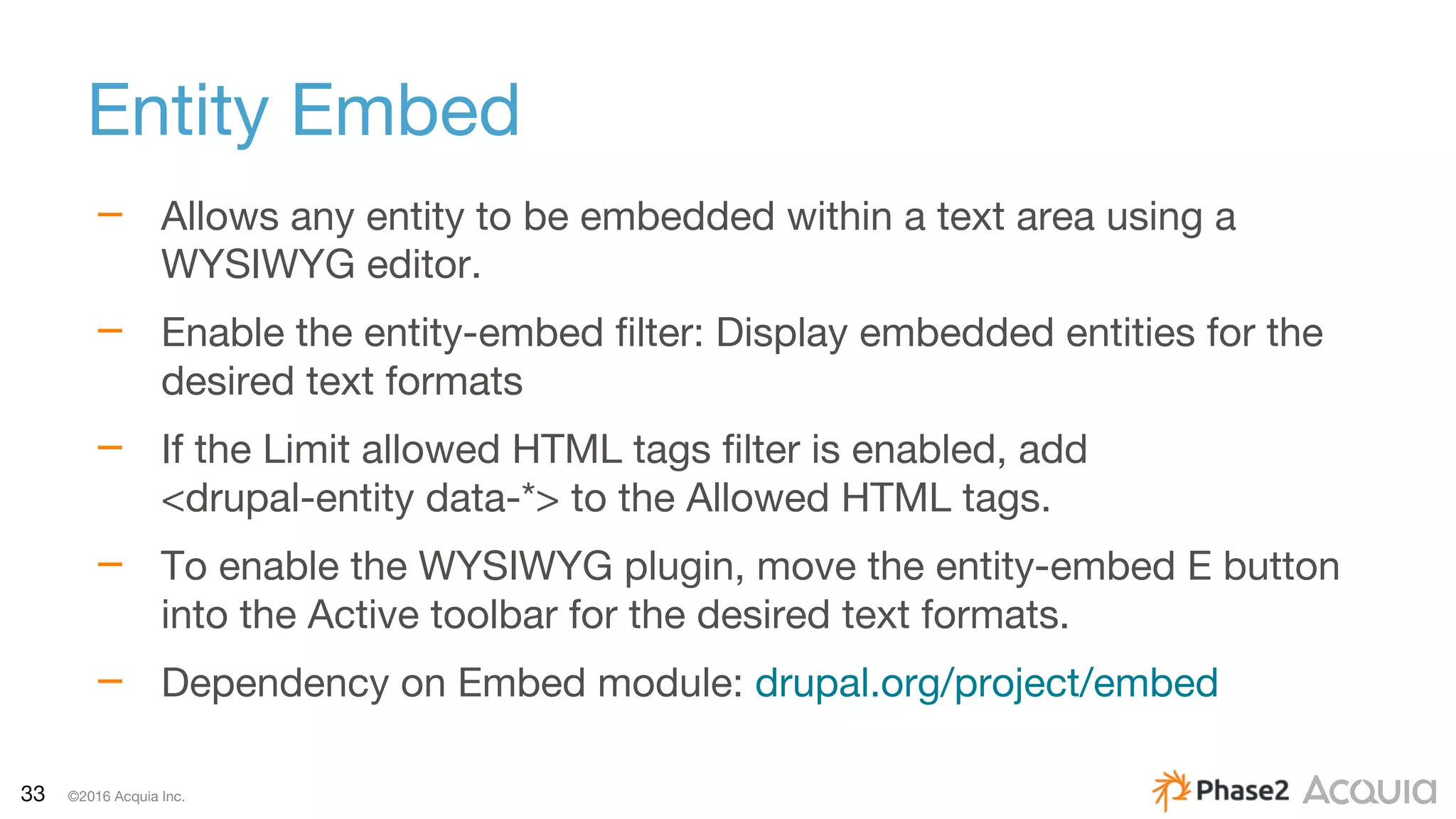

Entity Embed
– Allows any entity to be embedded within a text area using a
WYSIWYG editor.
– Enable the entity-embed filter: Display embedded entities for the
desired text formats
– If the Limit allowed HTML tags filter is enabled, add
<drupal-entity data-*> to the Allowed HTML tags.
– To enable the WYSIWYG plugin, move the entity-embed E button
into the Active toolbar for the desired text formats.
– Dependency on Embed module: drupal.org/project/embed

34. 34 ©2016 Acquia Inc.

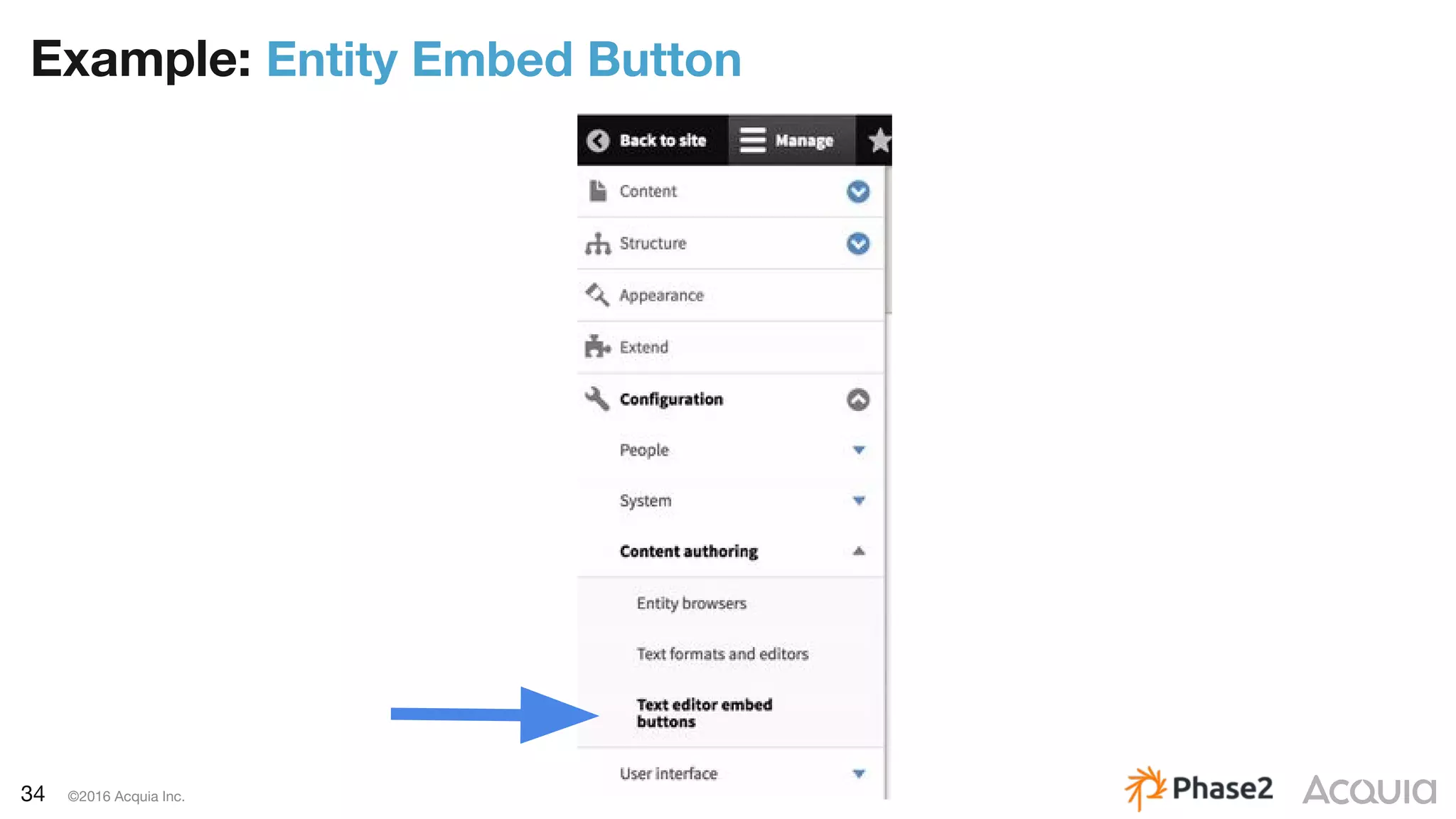

Example: Entity Embed Button

35. 35 ©2016 Acquia Inc.

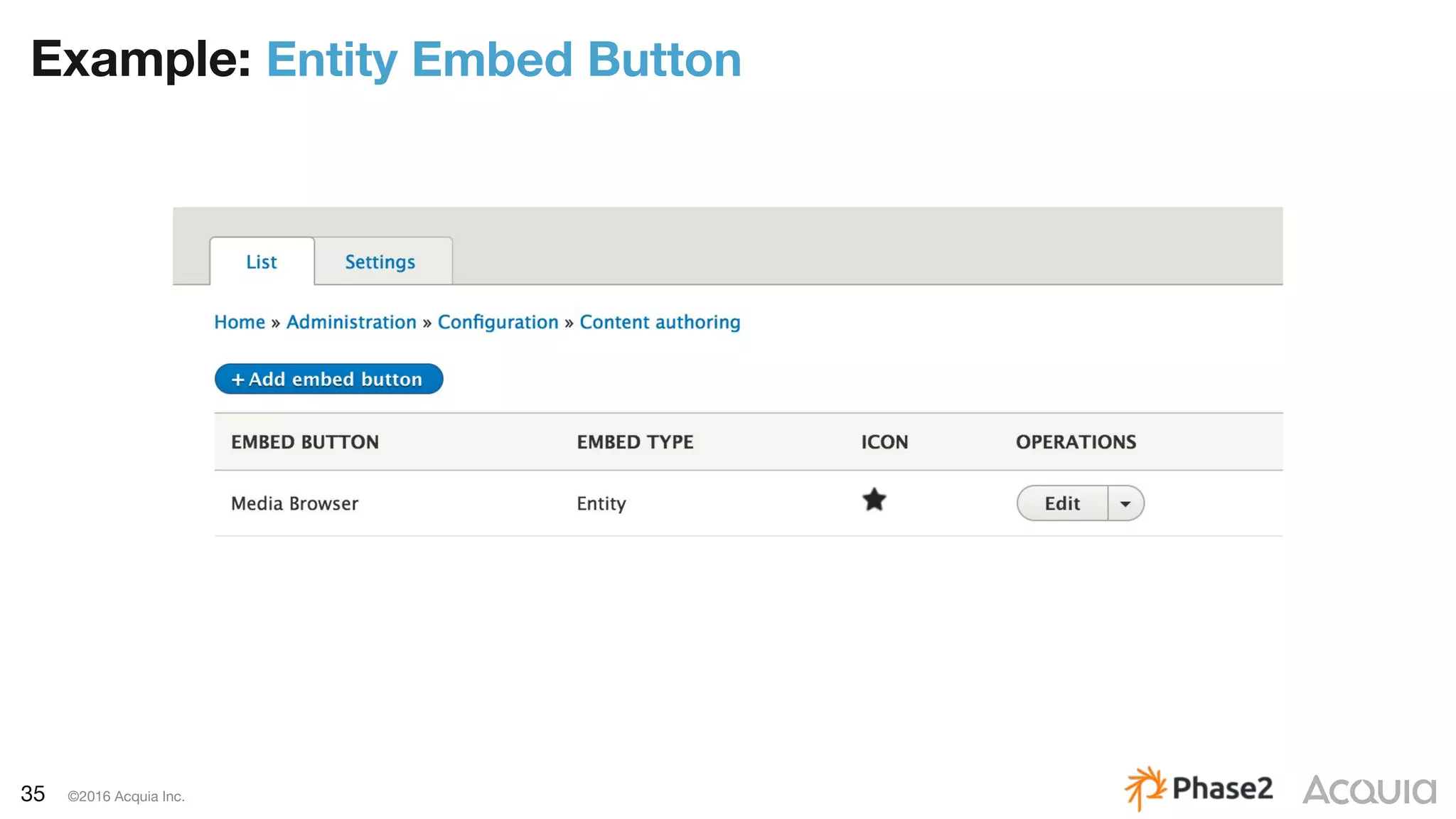

Example: Entity Embed Button

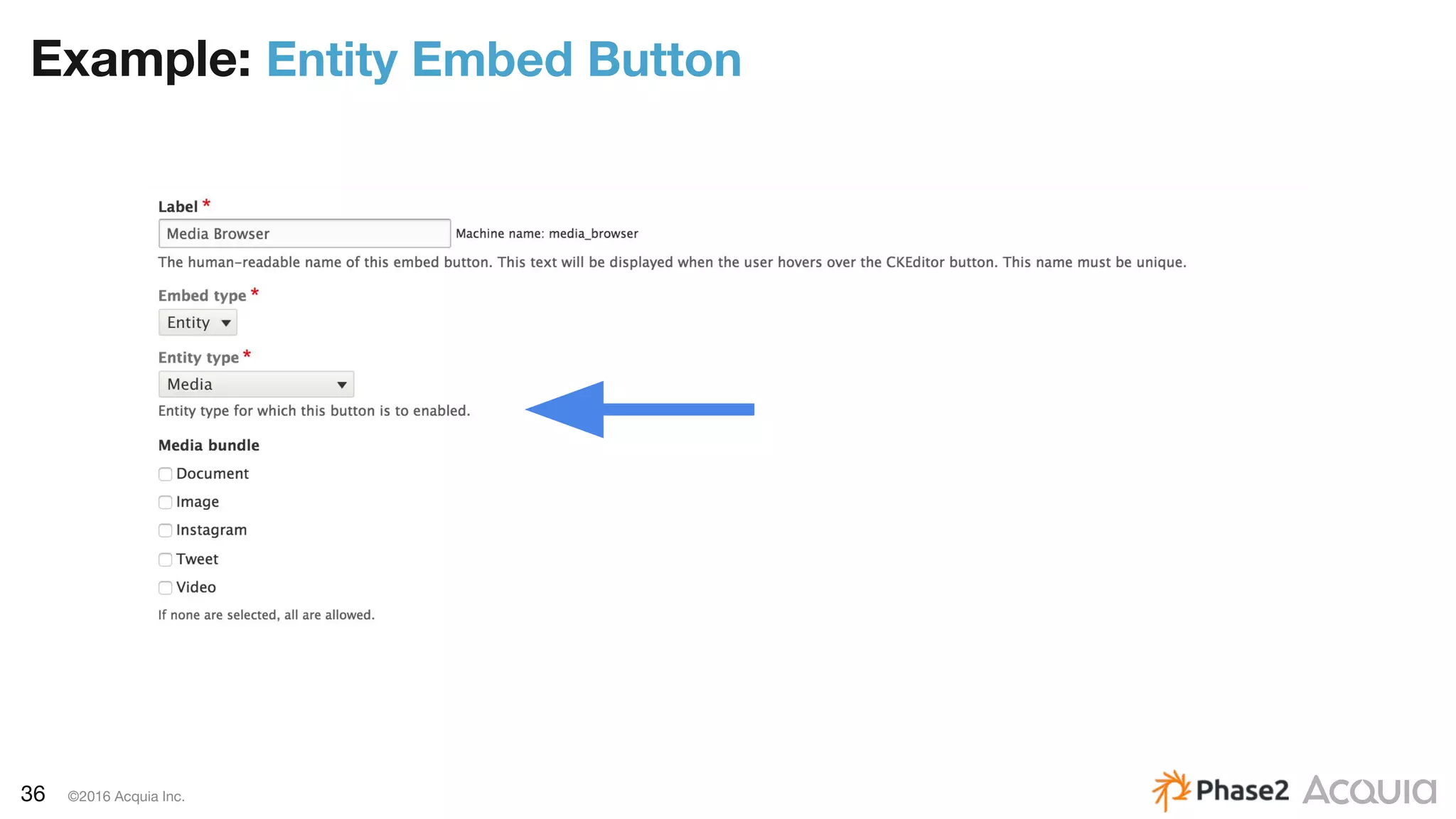

36. 36 ©2016 Acquia Inc.
Example: Entity Embed Button

37. 37 ©2016 Acquia Inc.
Example: Entity Embed Button

38. 38 ©2016 Acquia Inc.

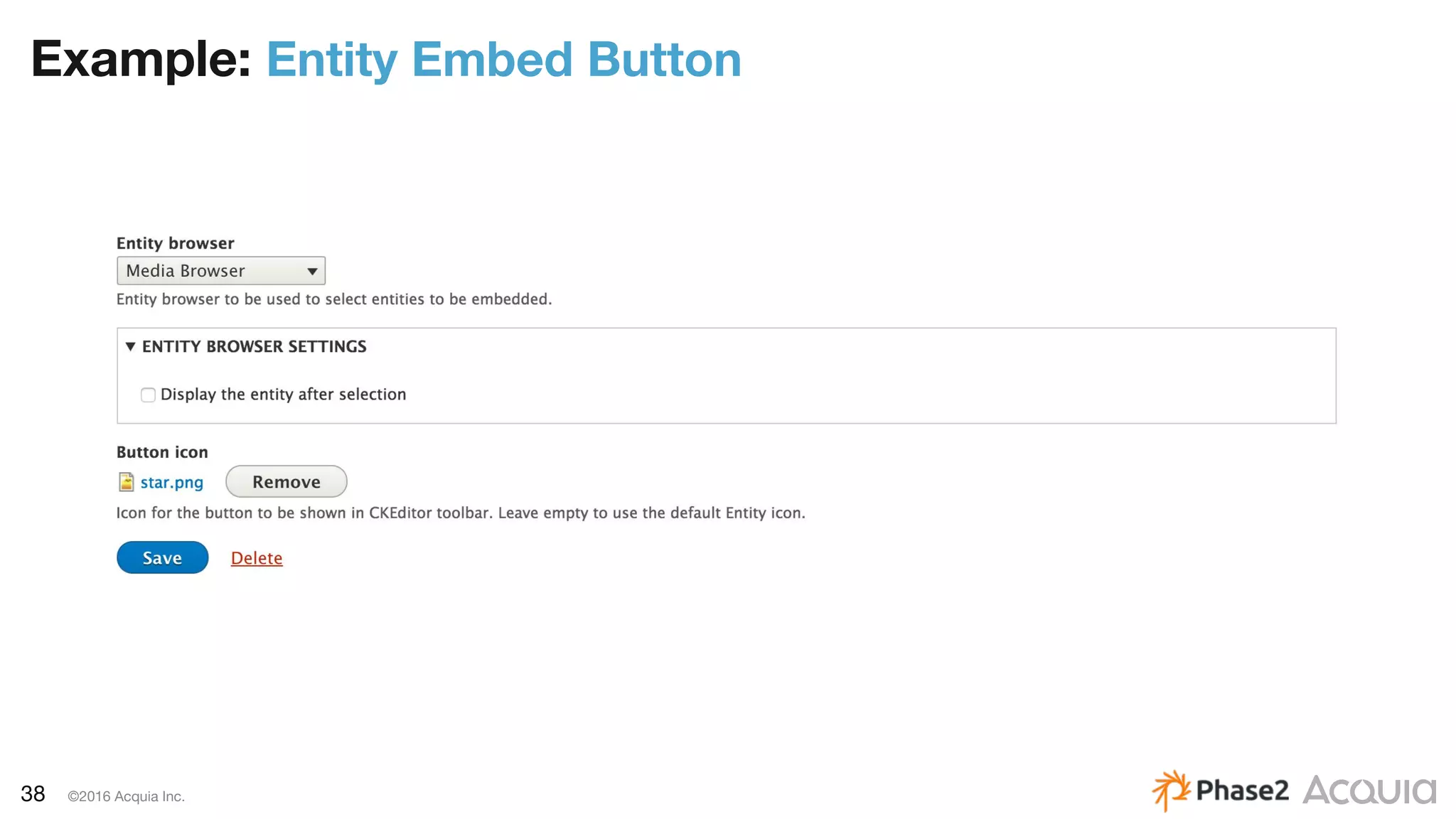

Example: Entity Embed Button

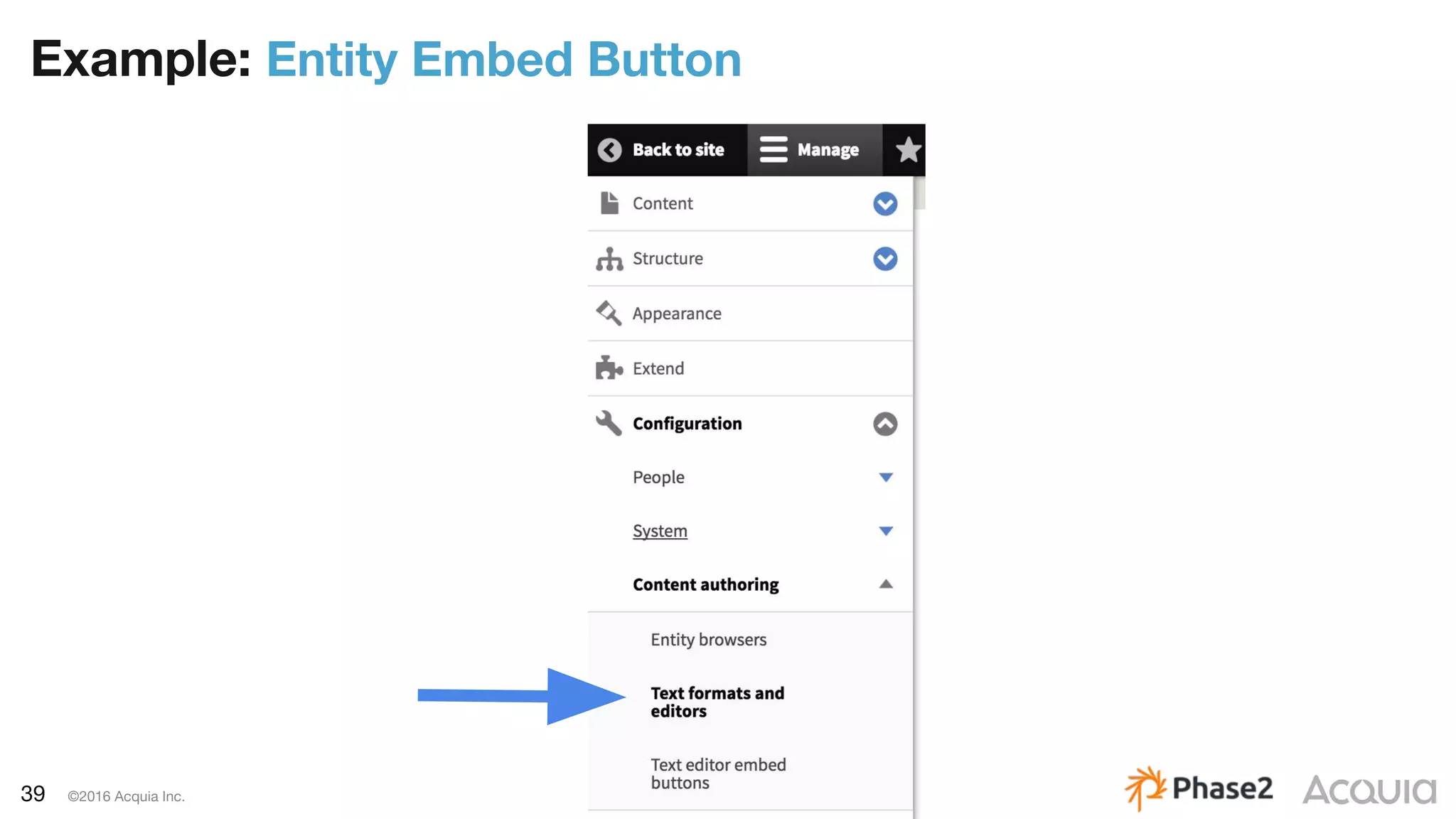

39. 39 ©2016 Acquia Inc.
Example: Entity Embed Button

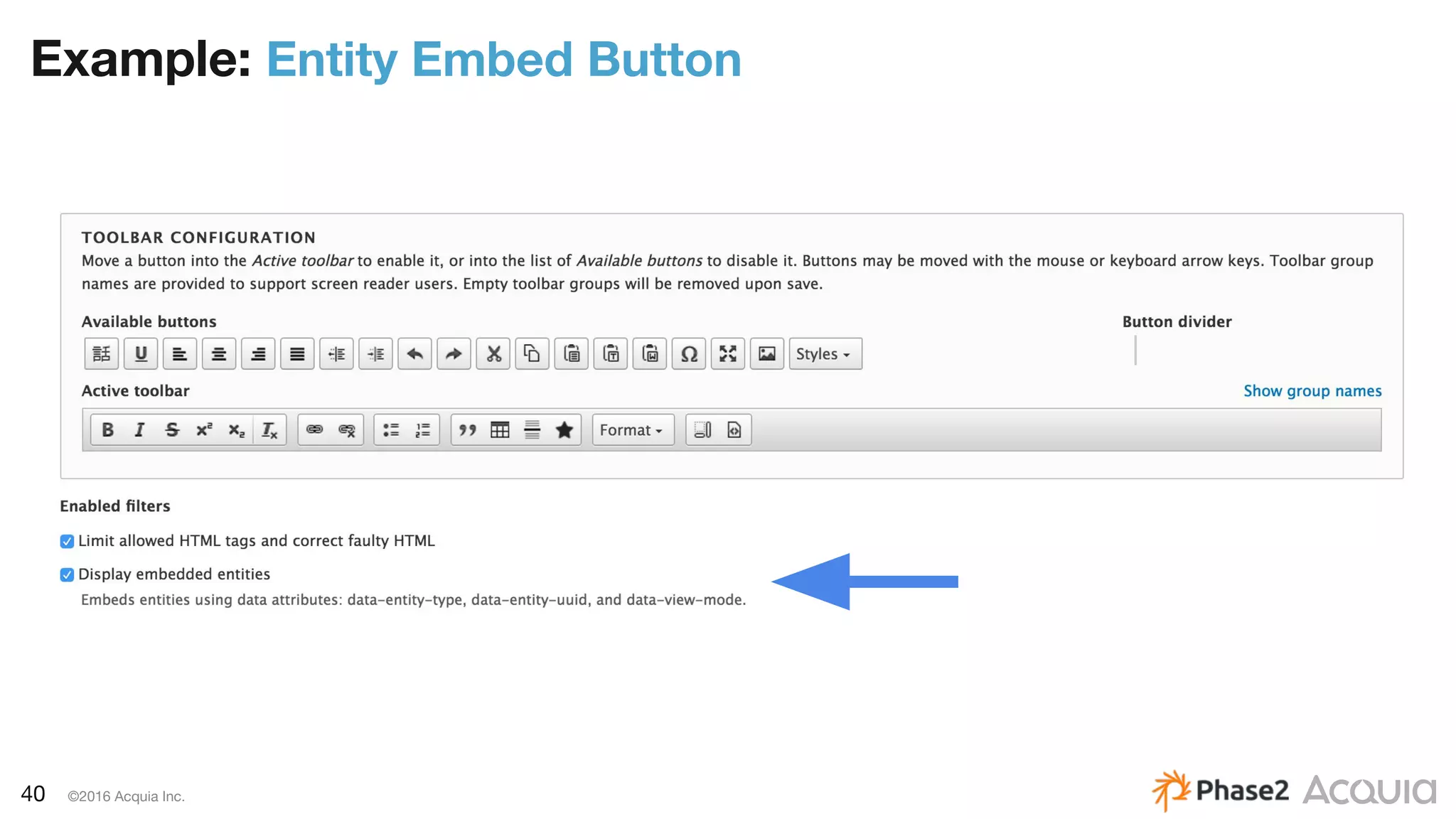

40. 40 ©2016 Acquia Inc.
Example: Entity Embed Button

41. 41 ©2016 Acquia Inc.

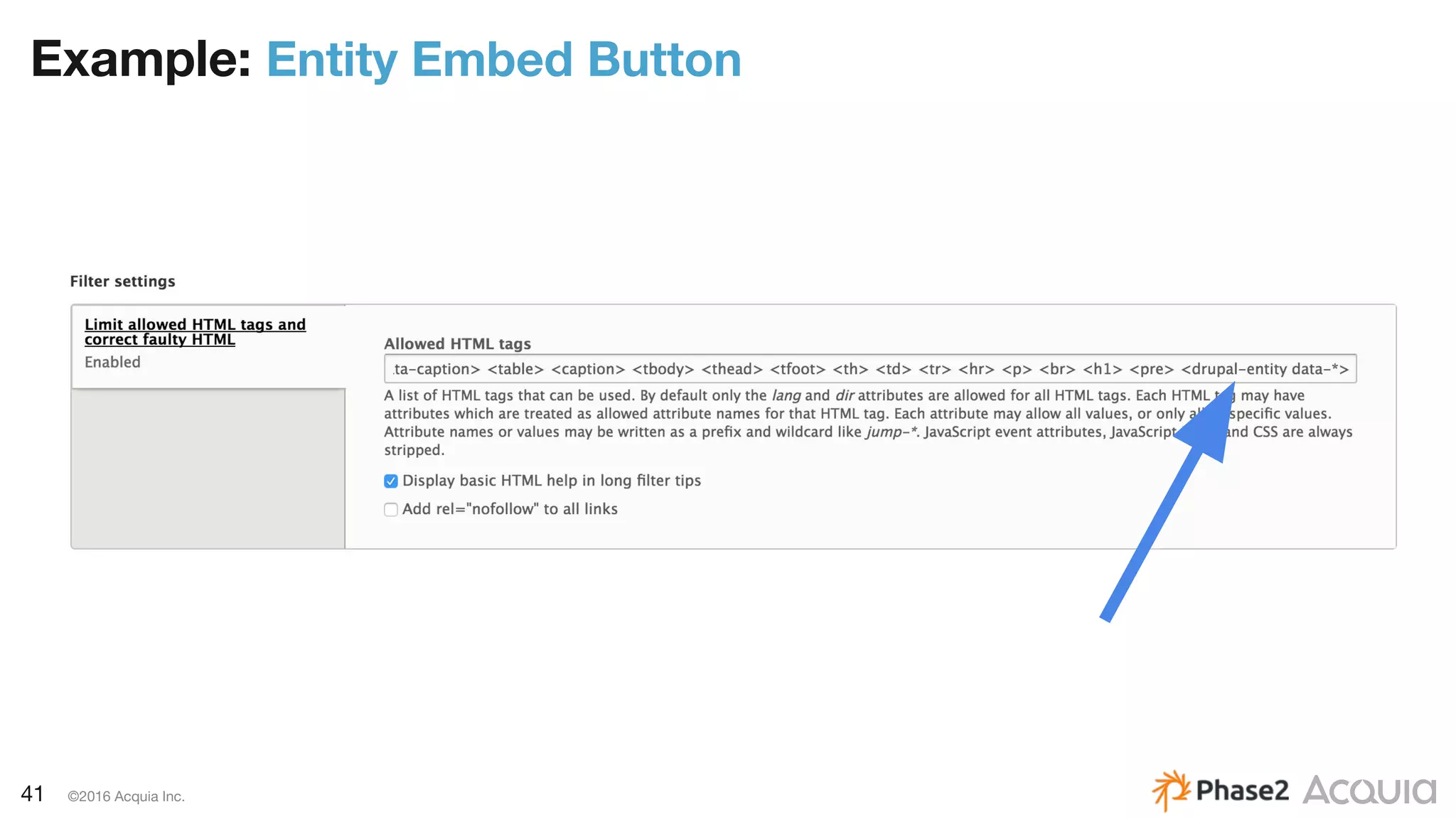

Example: Entity Embed Button

42. 42 ©2016 Acquia Inc.

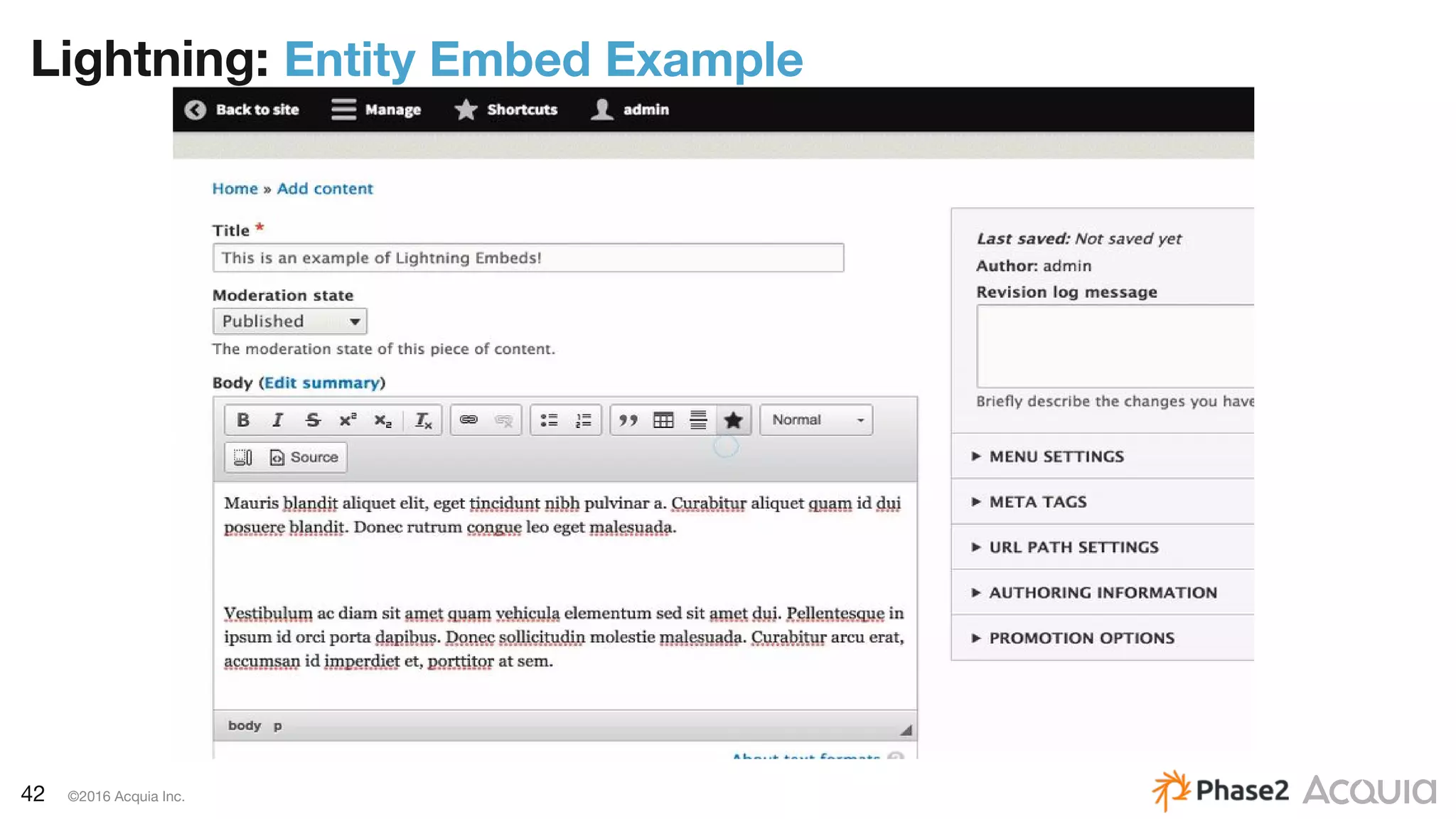

Lightning: Entity Embed Example

43. 43 ©2016 Acquia Inc.

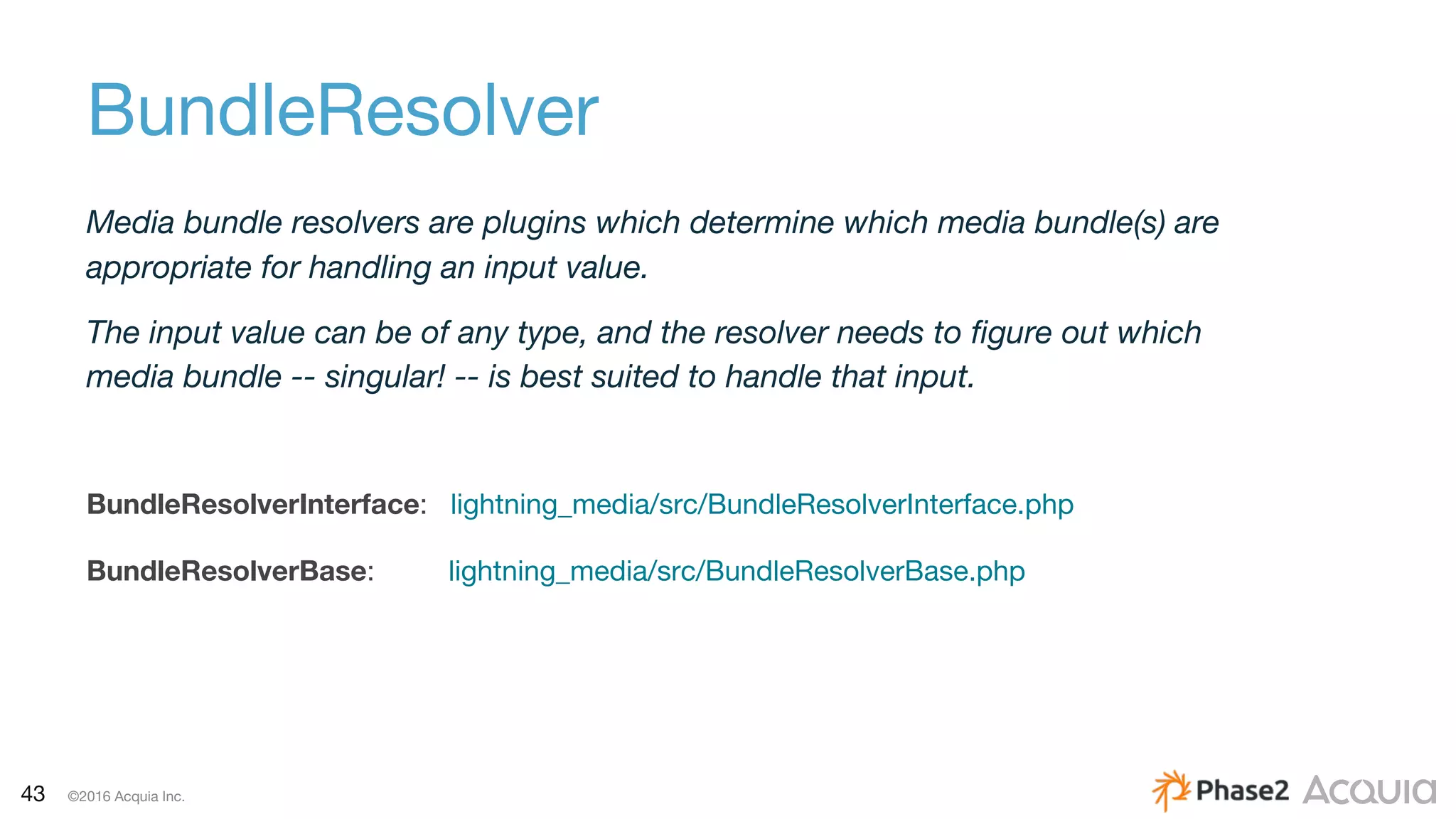

Media bundle resolvers are plugins which determine which media bundle(s) are
appropriate for handling an input value.
The input value can be of any type, and the resolver needs to figure out which
media bundle -- singular! -- is best suited to handle that input.
BundleResolverInterface: lightning_media/src/BundleResolverInterface.php
BundleResolverBase: lightning_media/src/BundleResolverBase.php
BundleResolver

44. 44 ©2016 Acquia Inc.

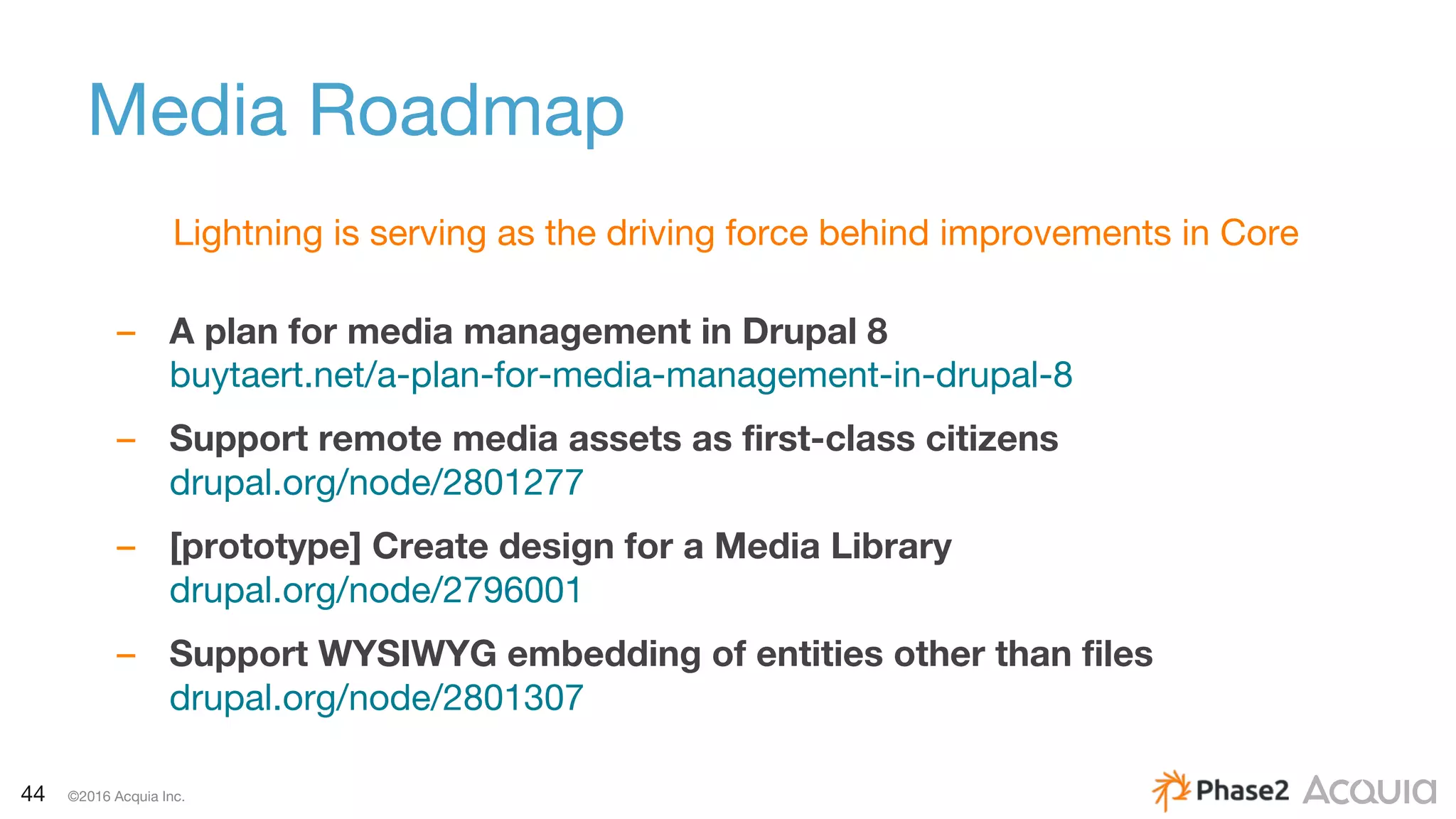

Media Roadmap
Lightning is serving as the driving force behind improvements in Core
– A plan for media management in Drupal 8
buytaert.net/a-plan-for-media-management-in-drupal-8
– Support remote media assets as first-class citizens
drupal.org/node/2801277
– [prototype] Create design for a Media Library
drupal.org/node/2796001
– Support WYSIWYG embedding of entities other than files
drupal.org/node/2801307

45. 45 ©2016 Acquia Inc.

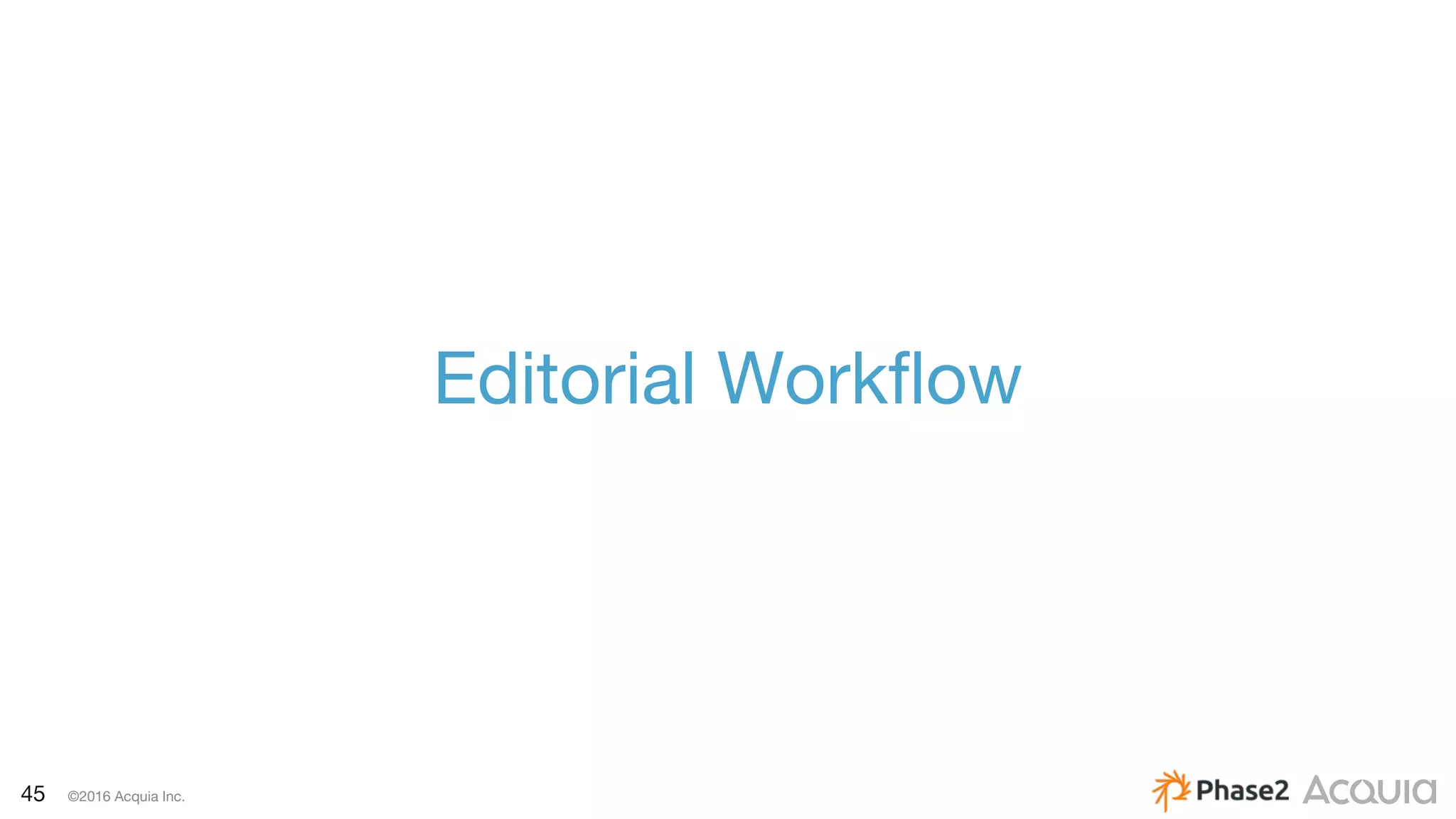

Editorial Workflow

46. 46 ©2016 Acquia Inc.

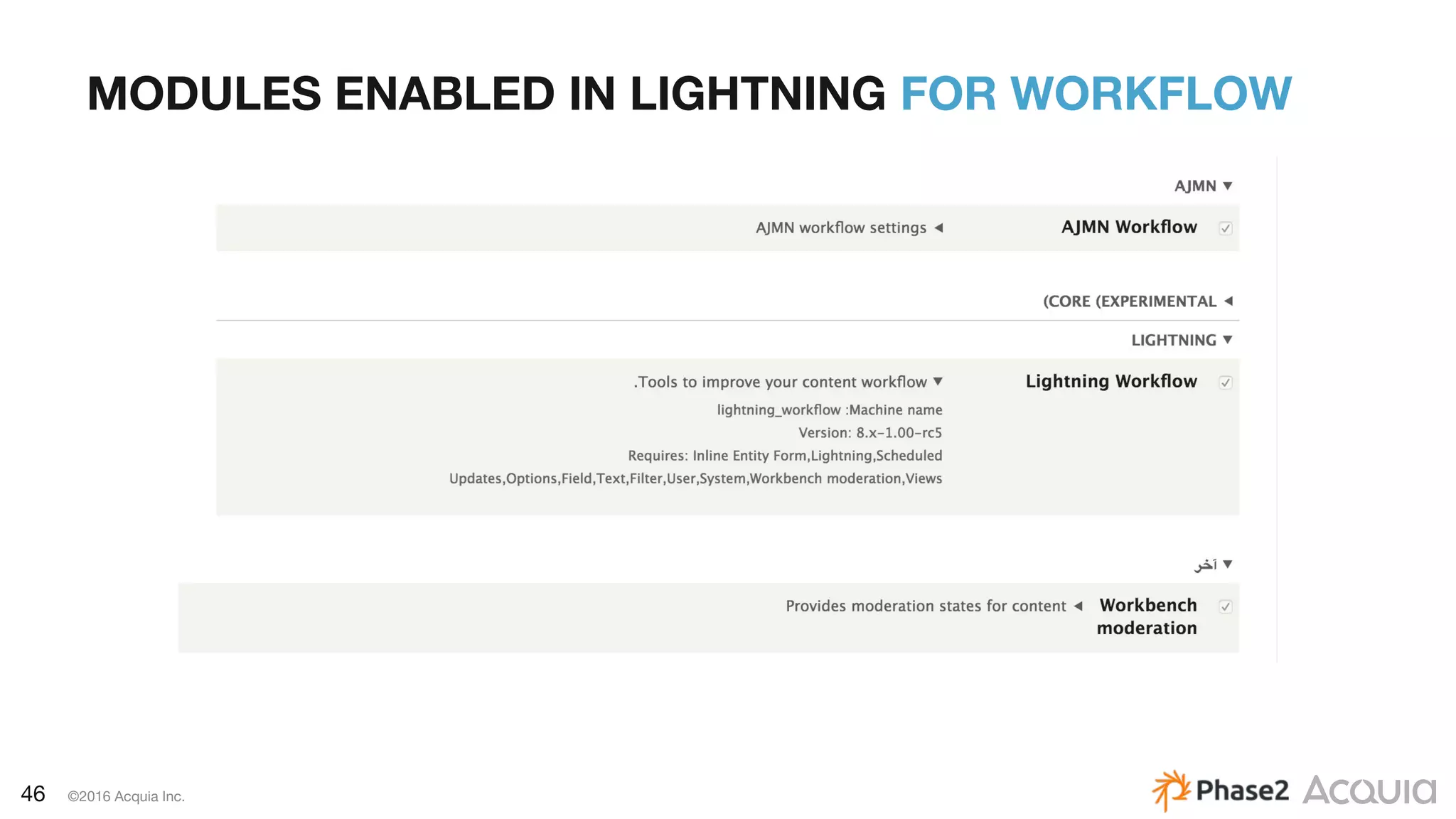

MODULES ENABLED IN LIGHTNING FOR WORKFLOW

47. 47 ©2016 Acquia Inc.

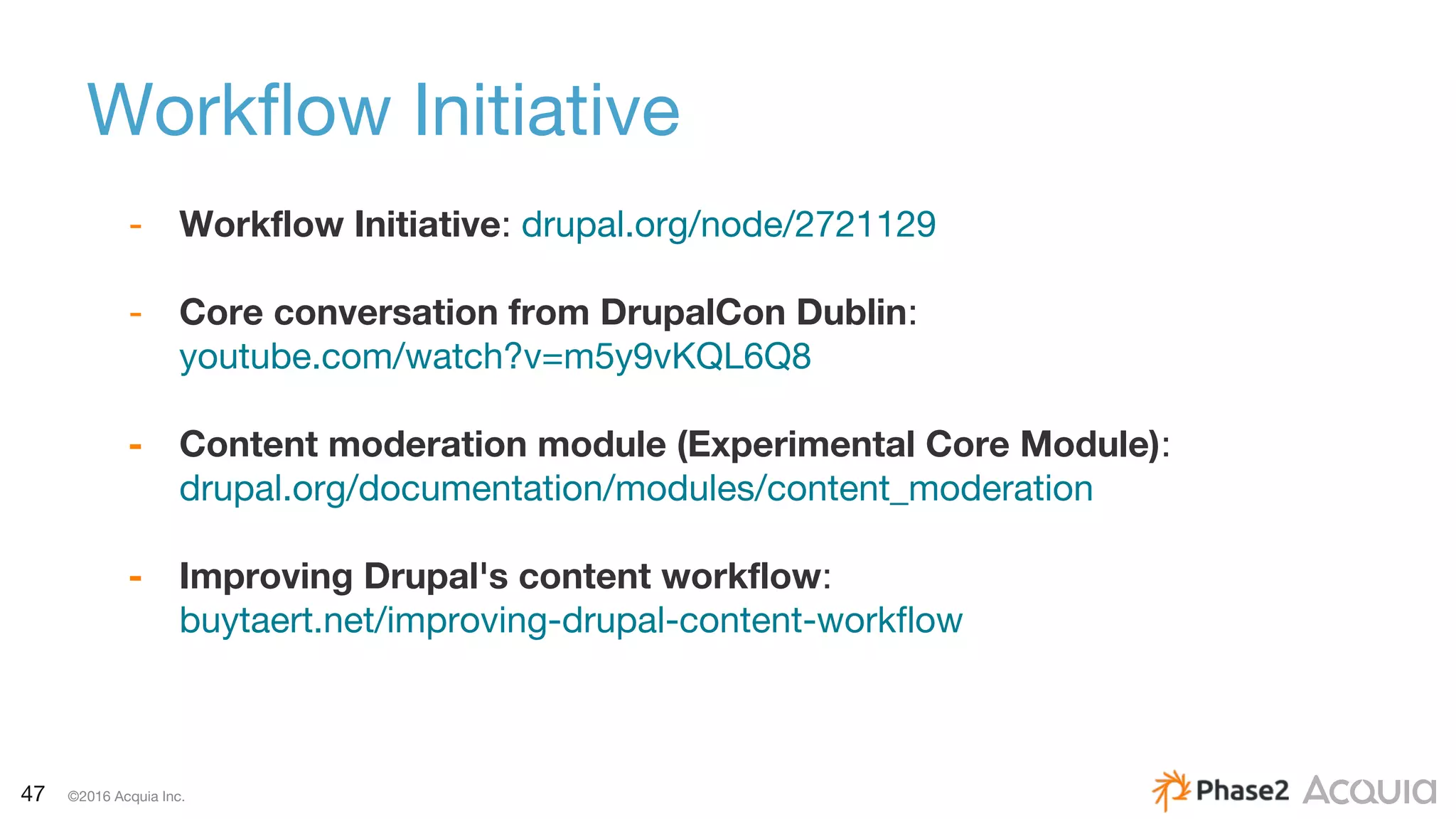

Workflow Initiative
- Workflow Initiative: drupal.org/node/2721129
- Core conversation from DrupalCon Dublin:
youtube.com/watch?v=m5y9vKQL6Q8
- Content moderation module (Experimental Core Module):
drupal.org/documentation/modules/content_moderation
- Improving Drupal's content workflow:
buytaert.net/improving-drupal-content-workflow

48. 48 ©2016 Acquia Inc.

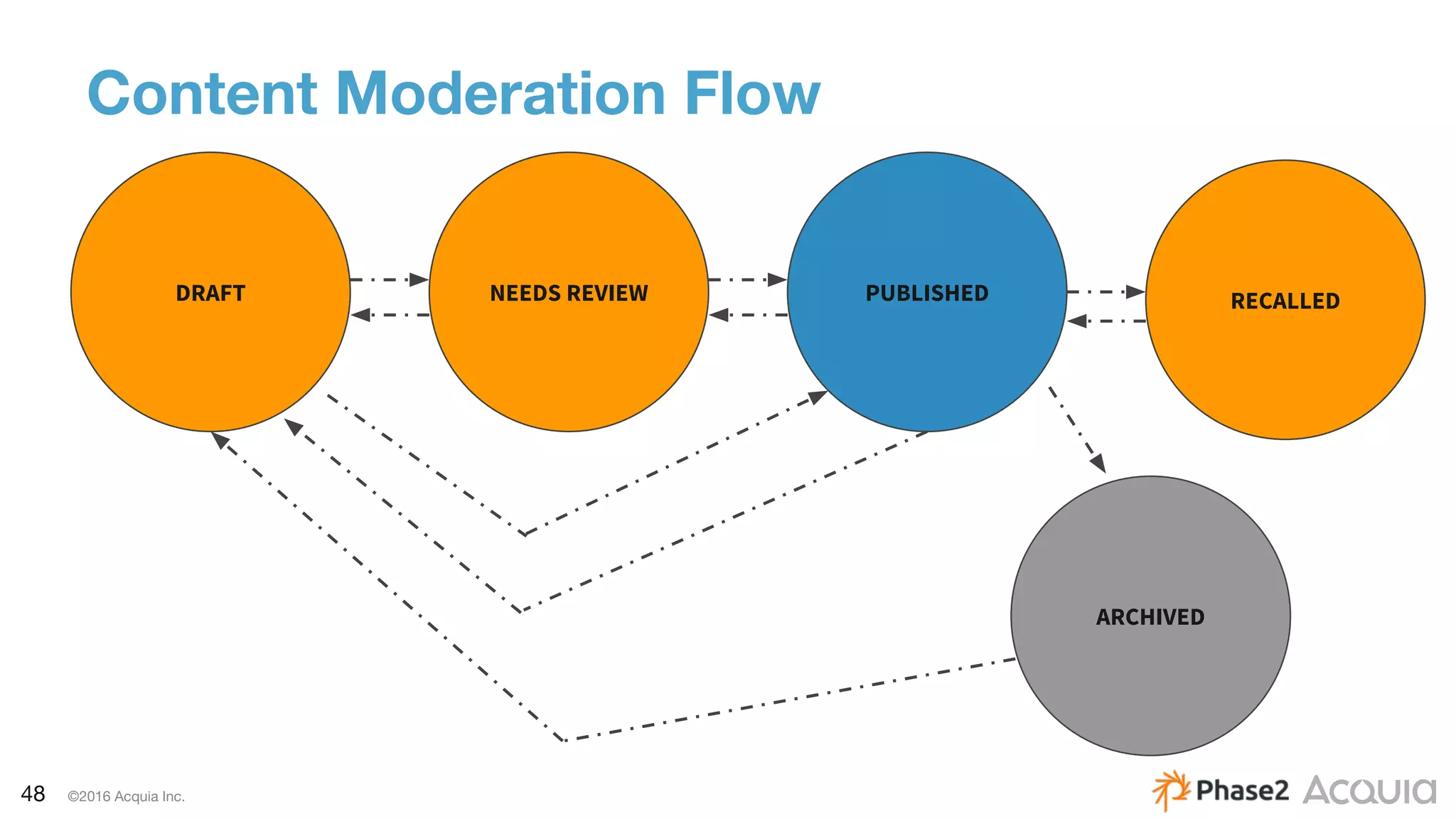

Content Moderation Flow
DRAFT NEEDS REVIEW PUBLISHED
ARCHIVED
RECALLED

49. 49 ©2016 Acquia Inc.

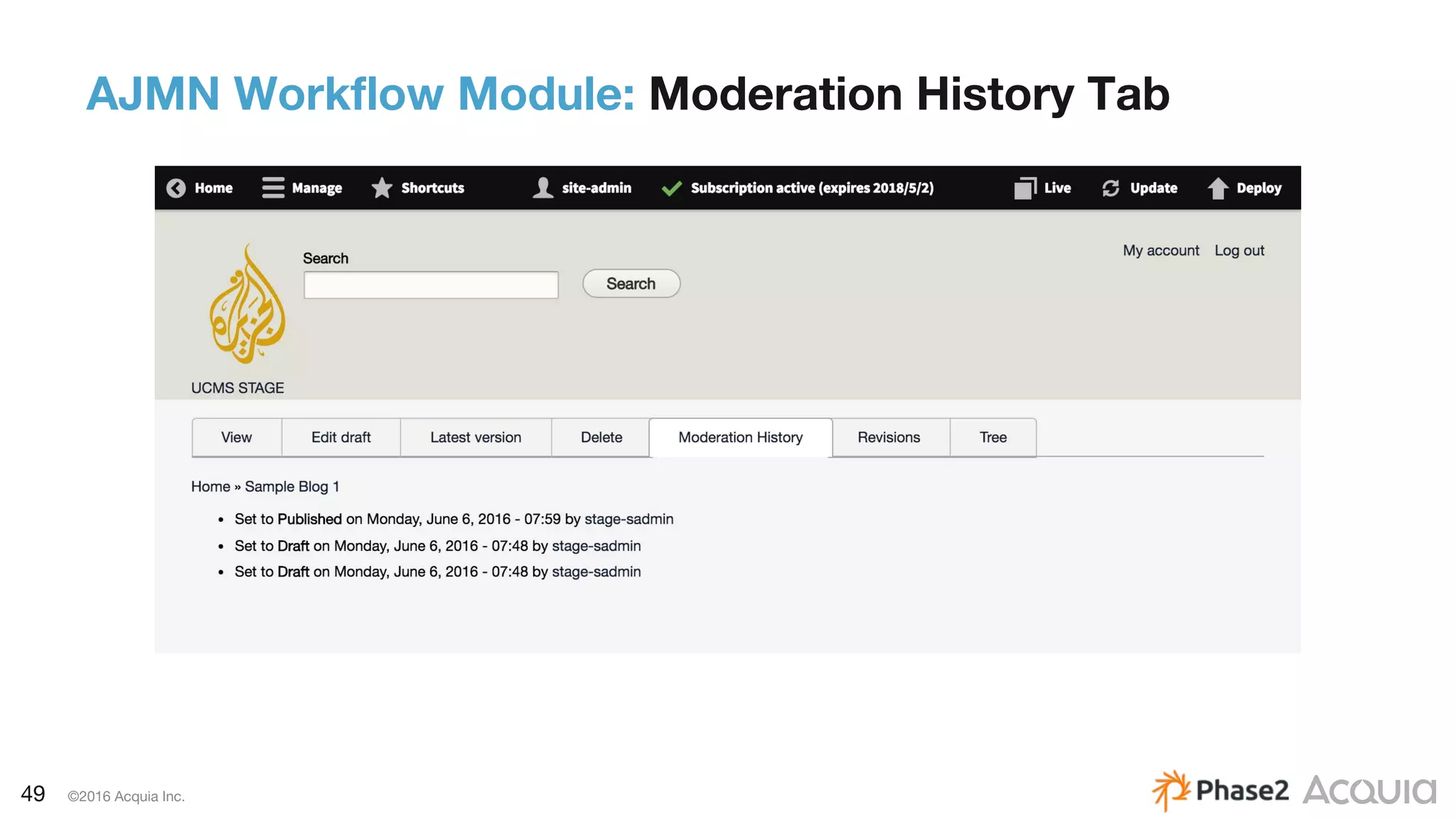

AJMN Workflow Module: Moderation History Tab

50. 50 ©2016 Acquia Inc.

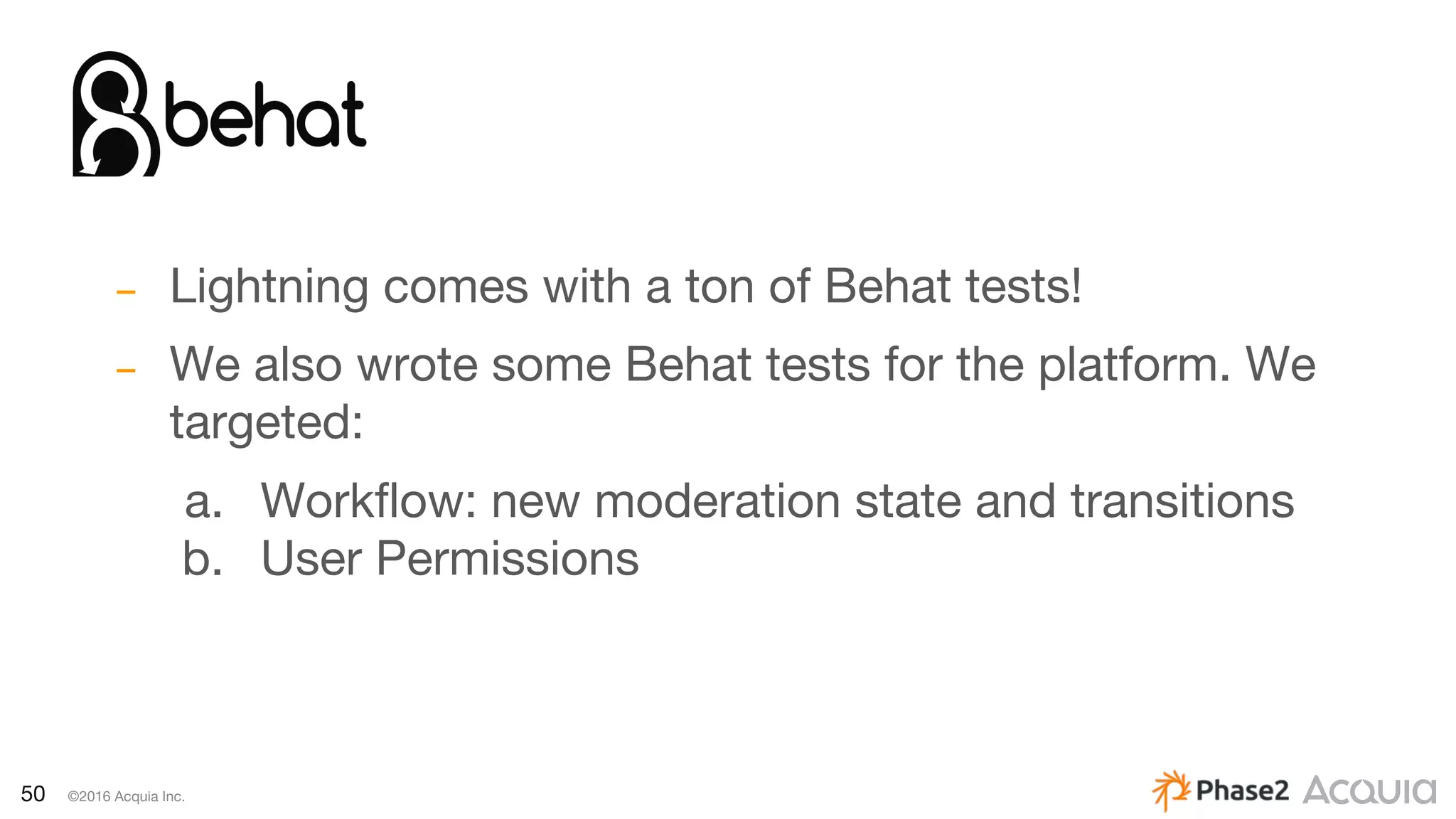

– Lightning comes with a ton of Behat tests!
– We also wrote some Behat tests for the platform. We
targeted:
a. Workflow: new moderation state and transitions
b. User Permissions

51. 51 ©2016 Acquia Inc.

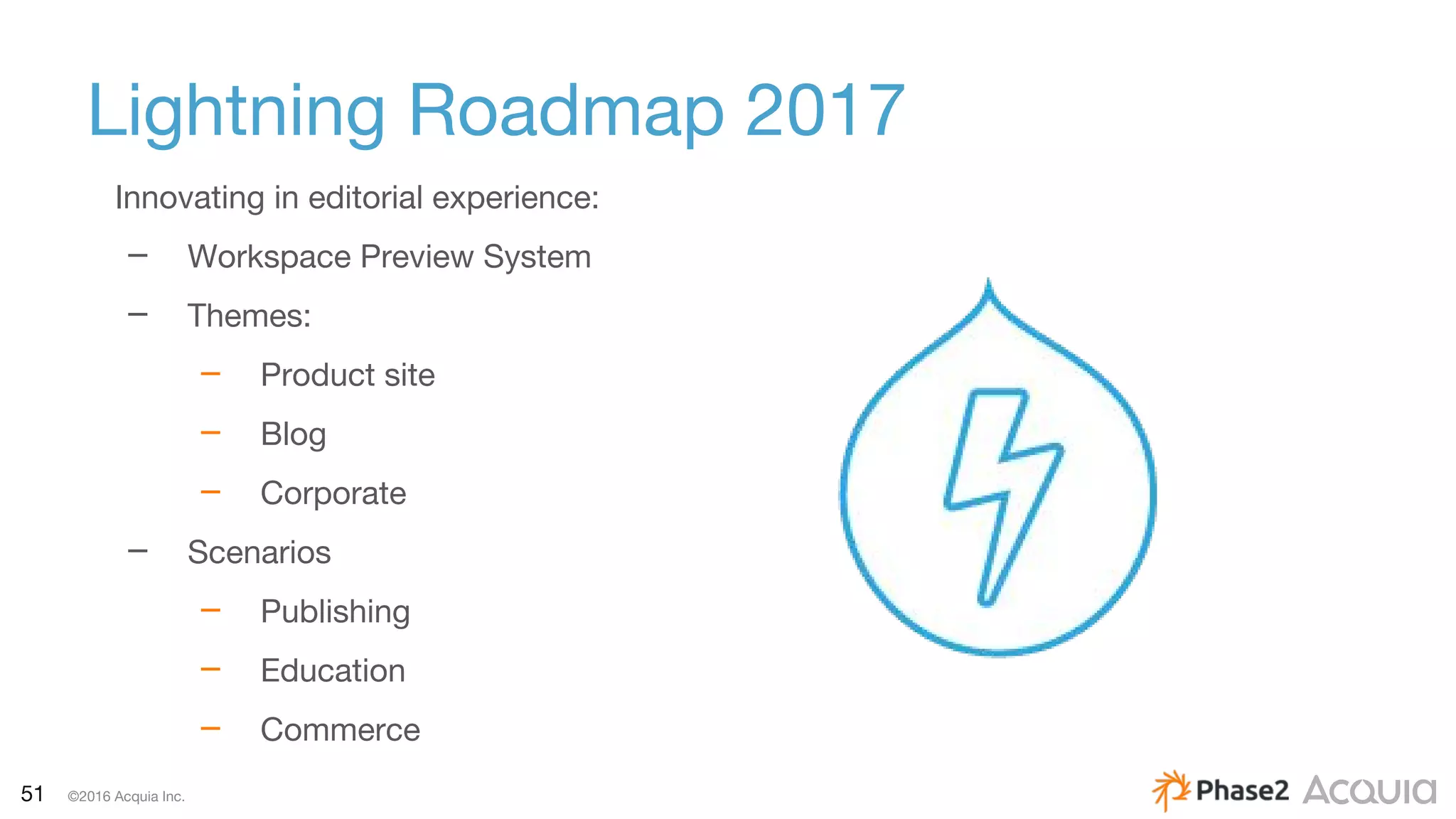

Lightning Roadmap 2017
Innovating in editorial experience:
– Workspace Preview System
– Themes:
– Product site
– Blog
– Corporate
– Scenarios
– Publishing
– Education
– Commerce

52. 52 ©2016 Acquia Inc.

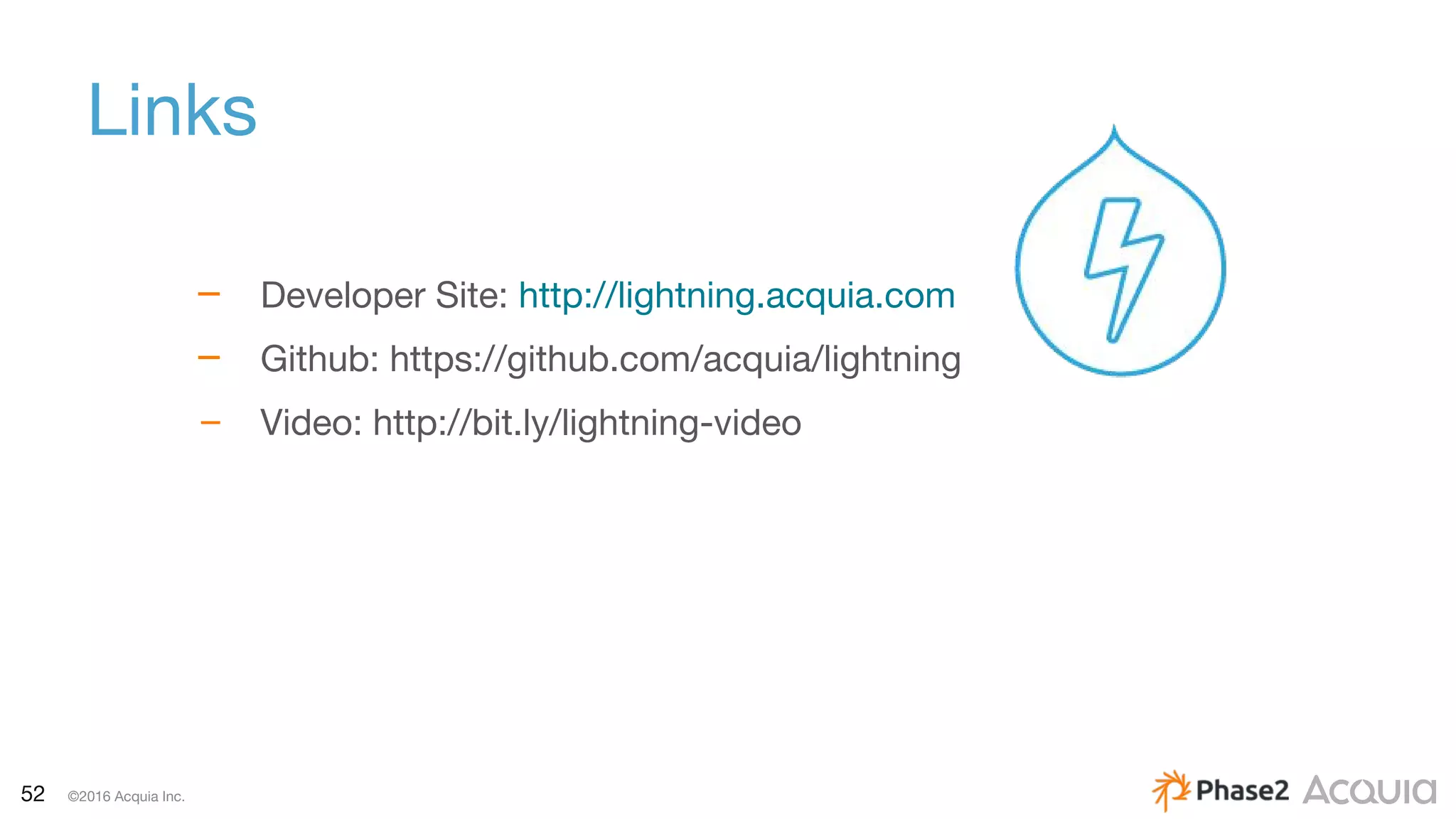

Links
– Developer Site: http://lightning.acquia.com
– Github: https://github.com/acquia/lightning
– Video: http://bit.ly/lightning-video

53. 53 ©2016 Acquia Inc.
Questions?
Thank You!
