Presentation from June 2013, Surrey, BC, Drupal Group meetup. - Some tips how to improve Drupal 7 performance. - Get Drupal 7 working faster - Optimize code in order to get proper responses - Use cache (memcache, APC cache, entity cache, varnish) - Scale Drupal horizontally in order to balance load

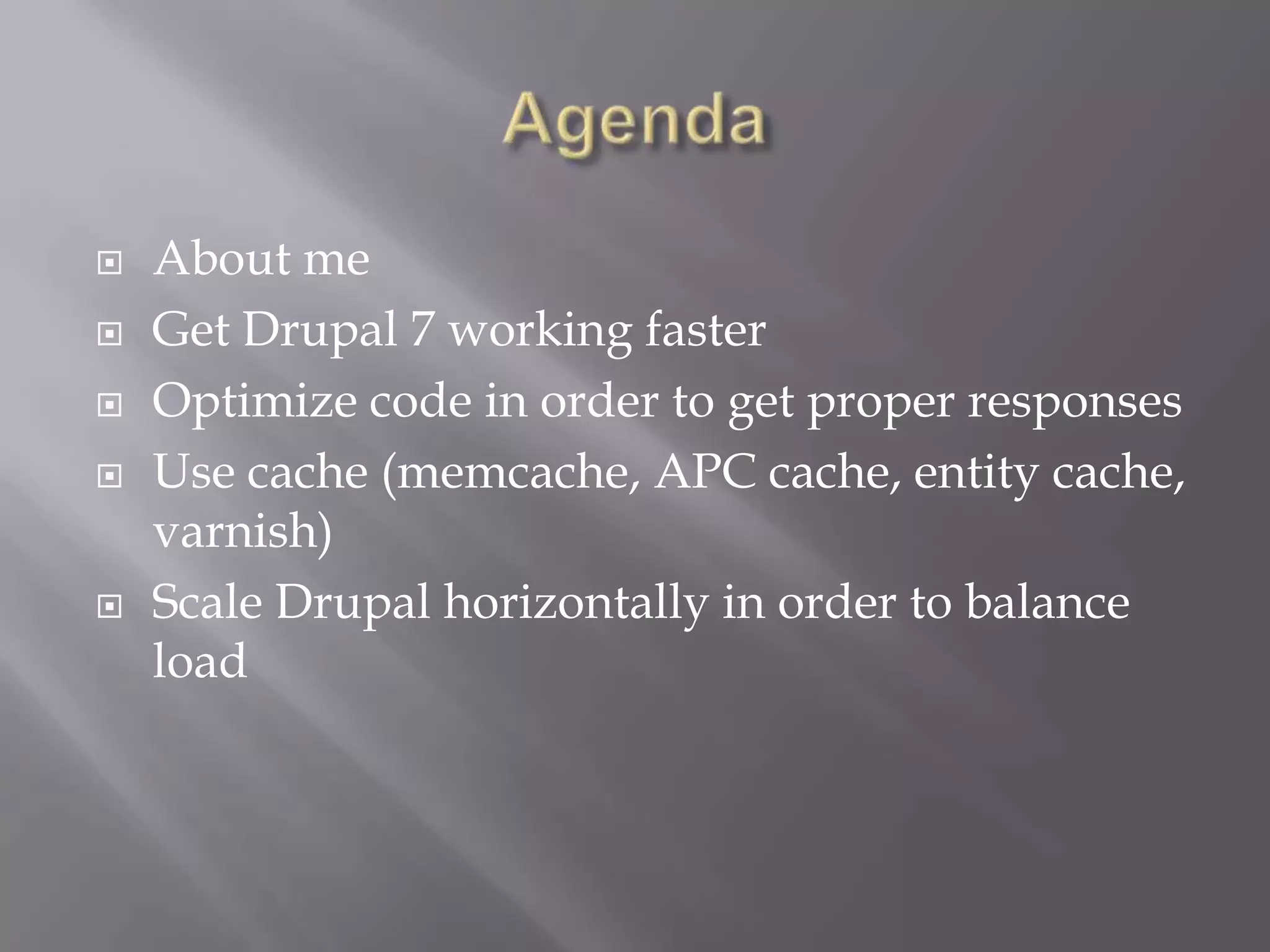

2.  About me
 Get Drupal 7 working faster
 Optimize code in order to get proper responses
 Use cache (memcache, APC cache, entity cache,
varnish)
 Scale Drupal horizontally in order to balance
load

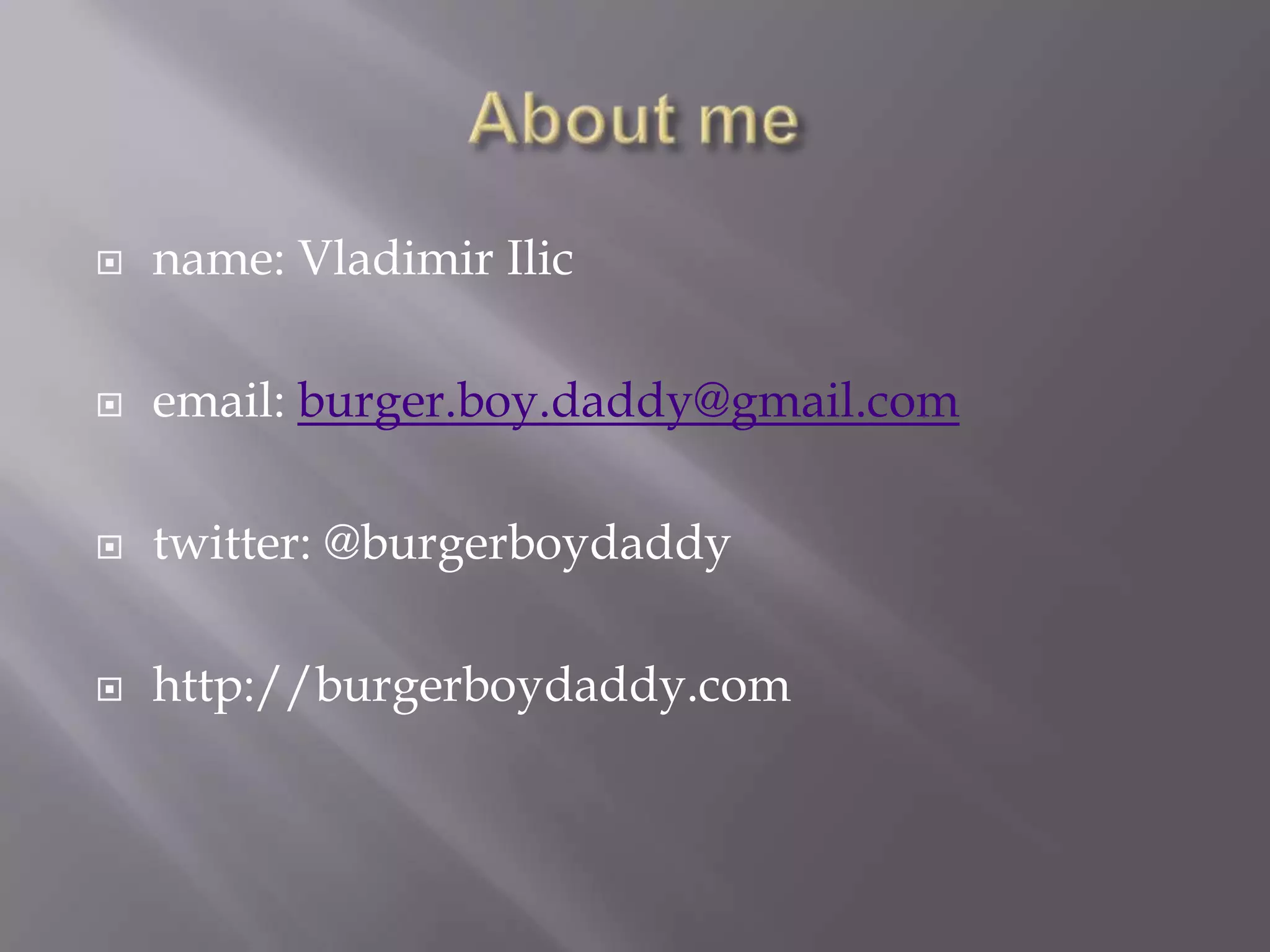

3.  name: Vladimir Ilic
 email: burger.boy.daddy@gmail.com
 twitter: @burgerboydaddy
 http://burgerboydaddy.com

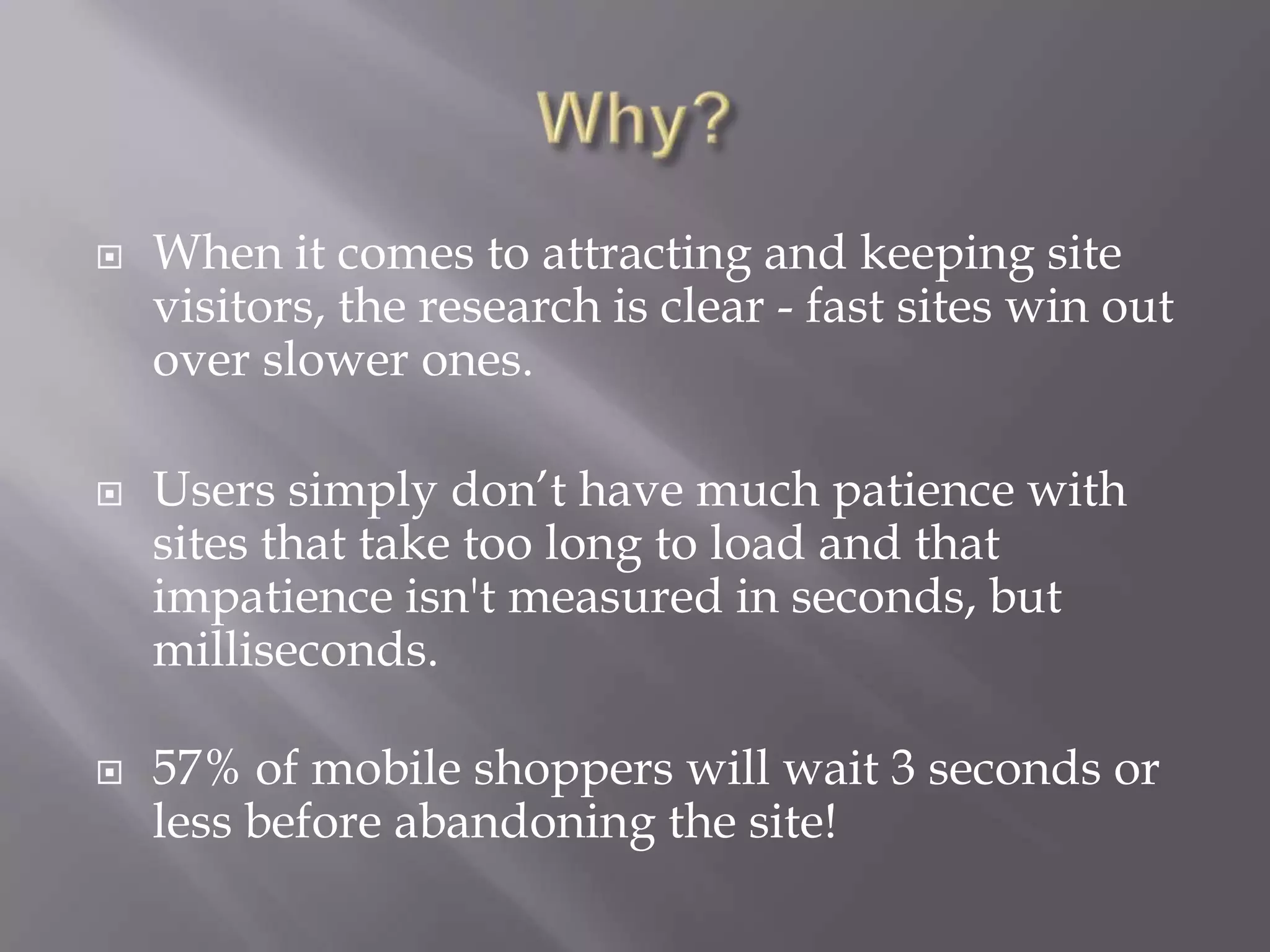

4.  When it comes to attracting and keeping site
visitors, the research is clear - fast sites win out
over slower ones.
 Users simply don‟t have much patience with
sites that take too long to load and that
impatience isn't measured in seconds, but
milliseconds.
 57% of mobile shoppers will wait 3 seconds or
less before abandoning the site!

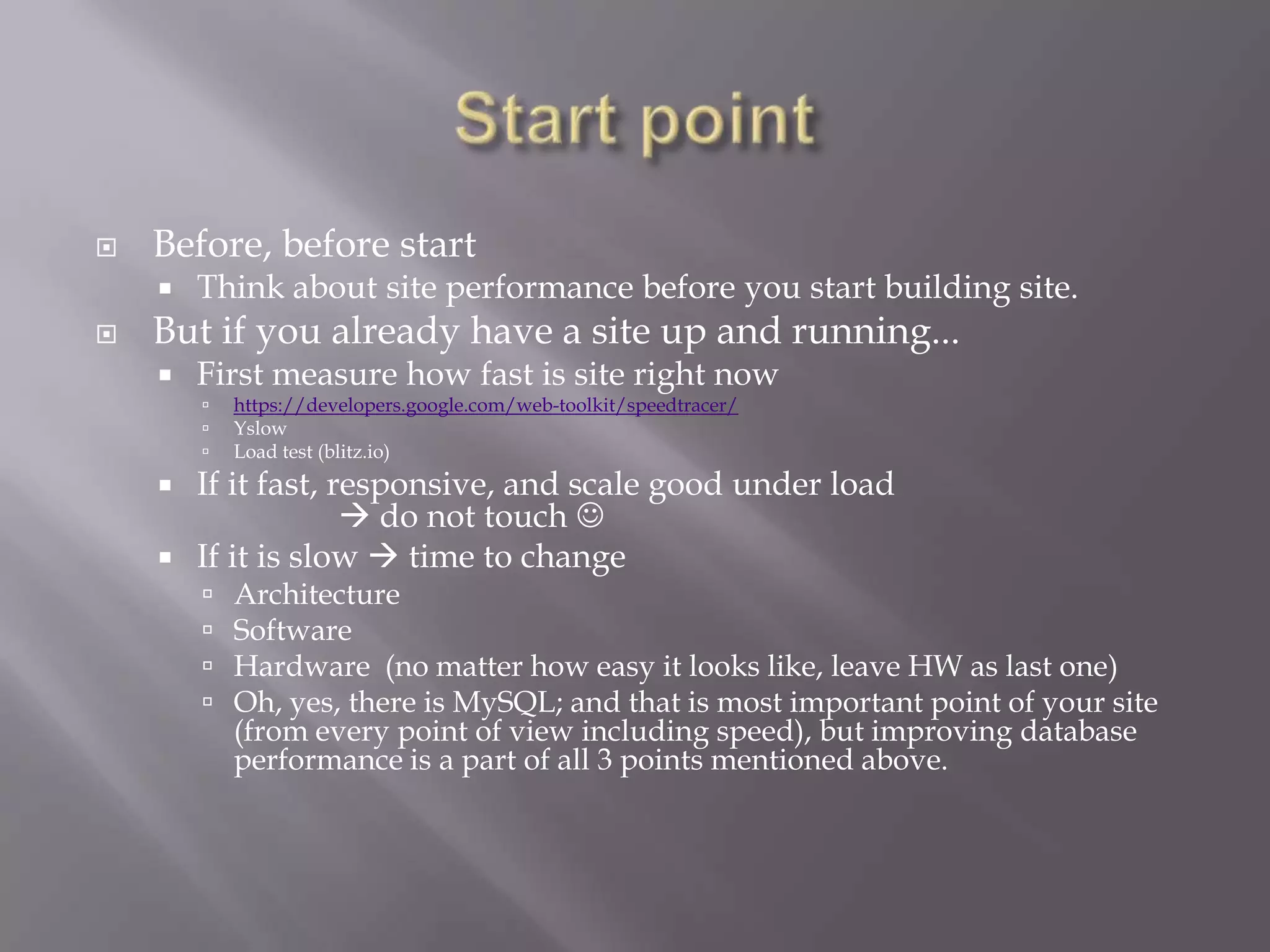

5.  Before, before start
 Think about site performance before you start building site.
 But if you already have a site up and running...
 First measure how fast is site right now
 https://developers.google.com/web-toolkit/speedtracer/
 Yslow
 Load test (blitz.io)
 If it fast, responsive, and scale good under load
 do not touch 
 If it is slow  time to change
 Architecture
 Software
 Hardware (no matter how easy it looks like, leave HW as last one)
 Oh, yes, there is MySQL; and that is most important point of your site
(from every point of view including speed), but improving database
performance is a part of all 3 points mentioned above.

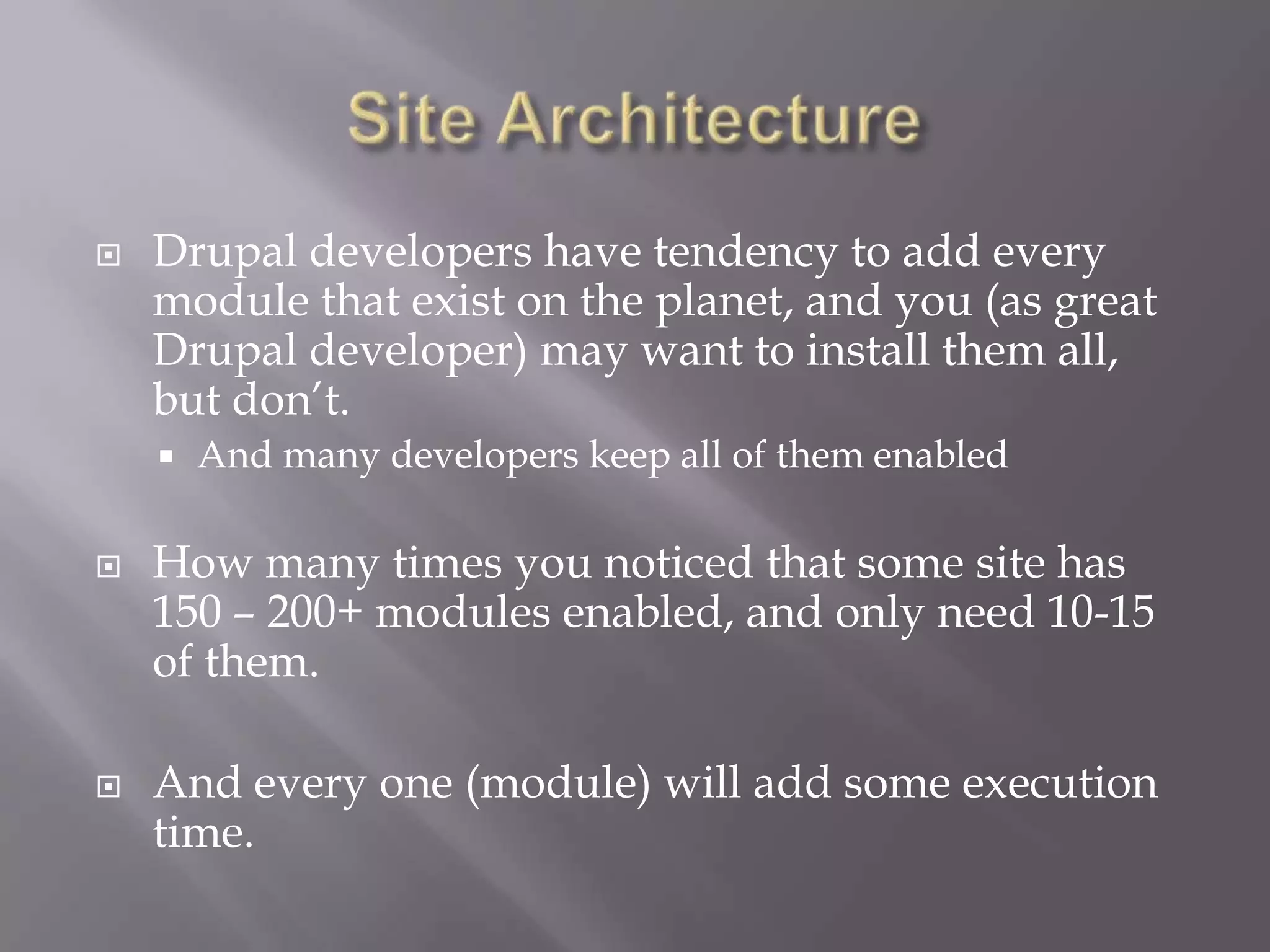

6.  Drupal developers have tendency to add every
module that exist on the planet, and you (as great
Drupal developer) may want to install them all,
but don‟t.
 And many developers keep all of them enabled
 How many times you noticed that some site has
150 – 200+ modules enabled, and only need 10-15
of them.
 And every one (module) will add some execution
time.

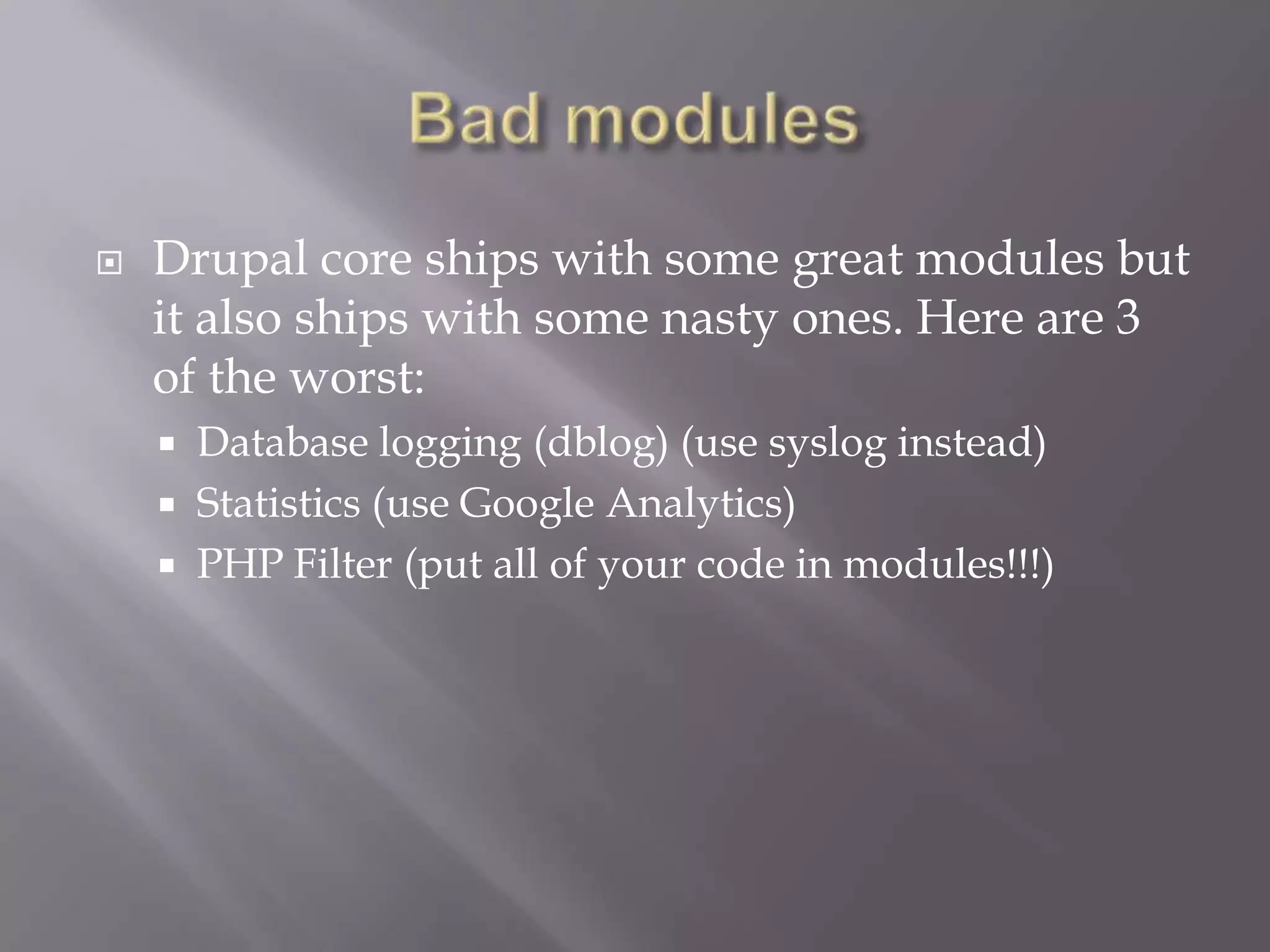

7.  Drupal core ships with some great modules but
it also ships with some nasty ones. Here are 3
of the worst:
 Database logging (dblog) (use syslog instead)
 Statistics (use Google Analytics)
 PHP Filter (put all of your code in modules!!!)

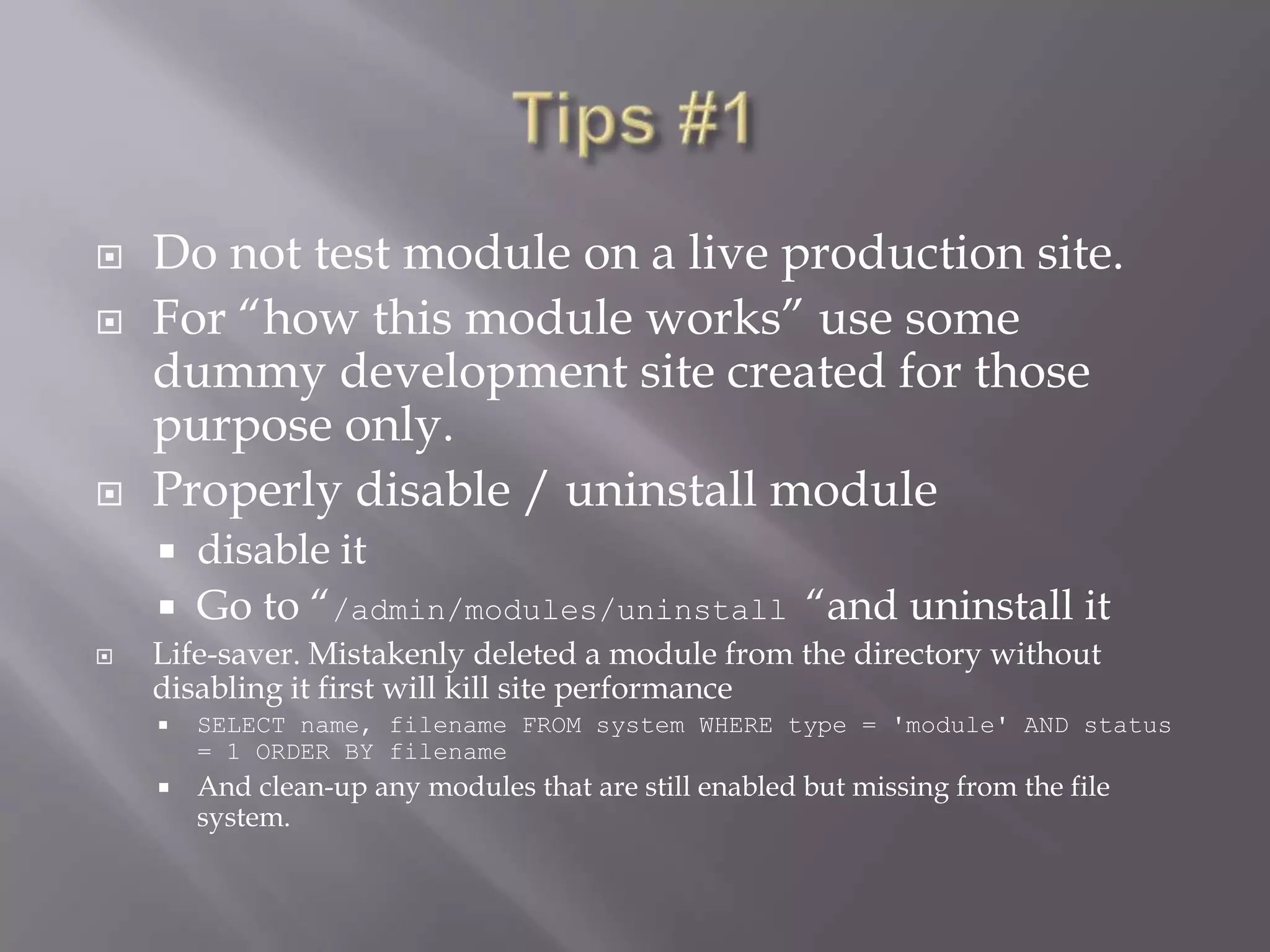

8.  Do not test module on a live production site.
 For “how this module works” use some
dummy development site created for those
purpose only.
 Properly disable / uninstall module
 disable it
 Go to “/admin/modules/uninstall “and uninstall it
 Life-saver. Mistakenly deleted a module from the directory without
disabling it first will kill site performance
 SELECT name, filename FROM system WHERE type = 'module' AND status
= 1 ORDER BY filename
 And clean-up any modules that are still enabled but missing from the file
system.

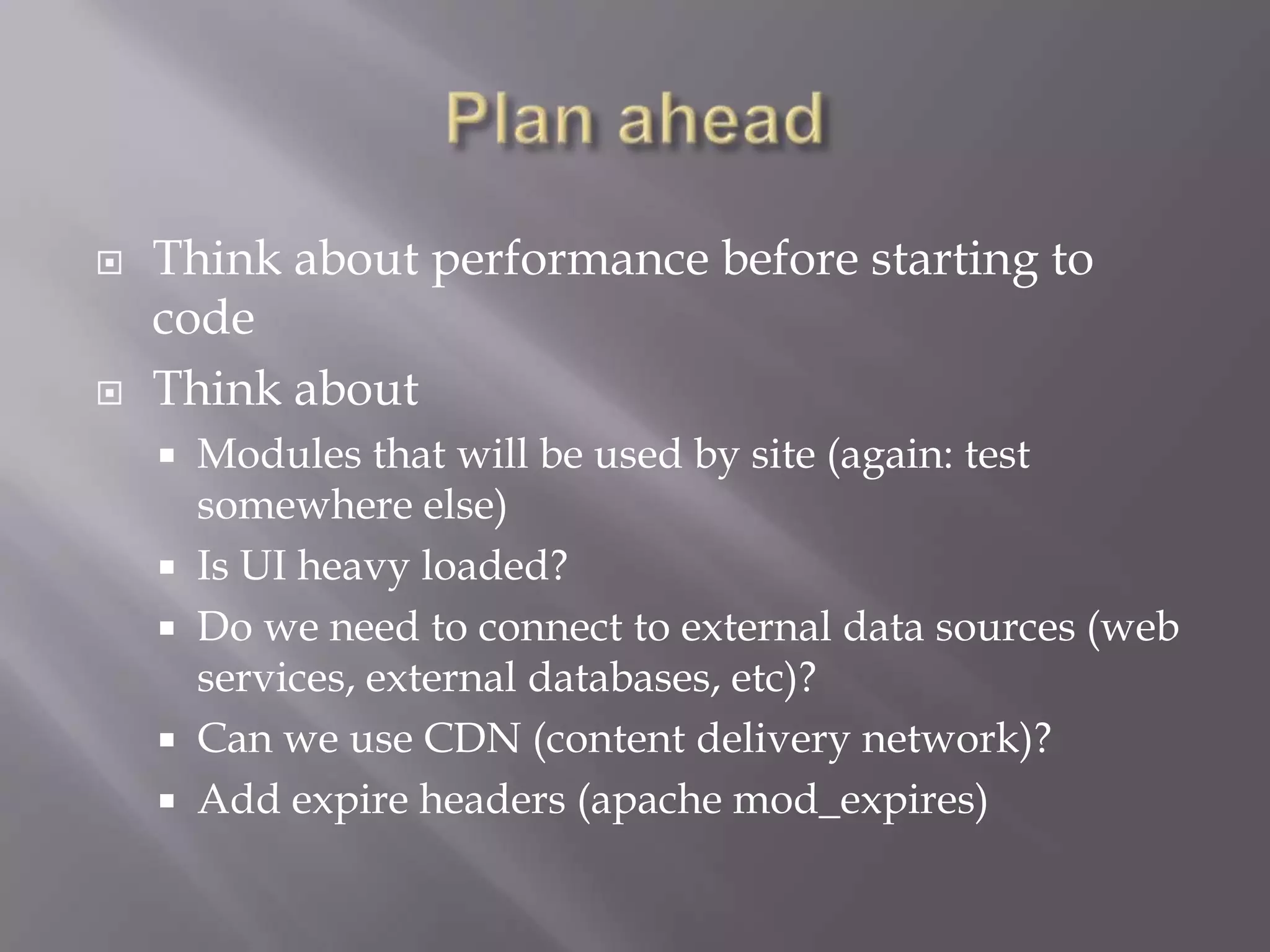

9.  Think about performance before starting to
code
 Think about
 Modules that will be used by site (again: test
somewhere else)
 Is UI heavy loaded?
 Do we need to connect to external data sources (web
services, external databases, etc)?
 Can we use CDN (content delivery network)?
 Add expire headers (apache mod_expires)

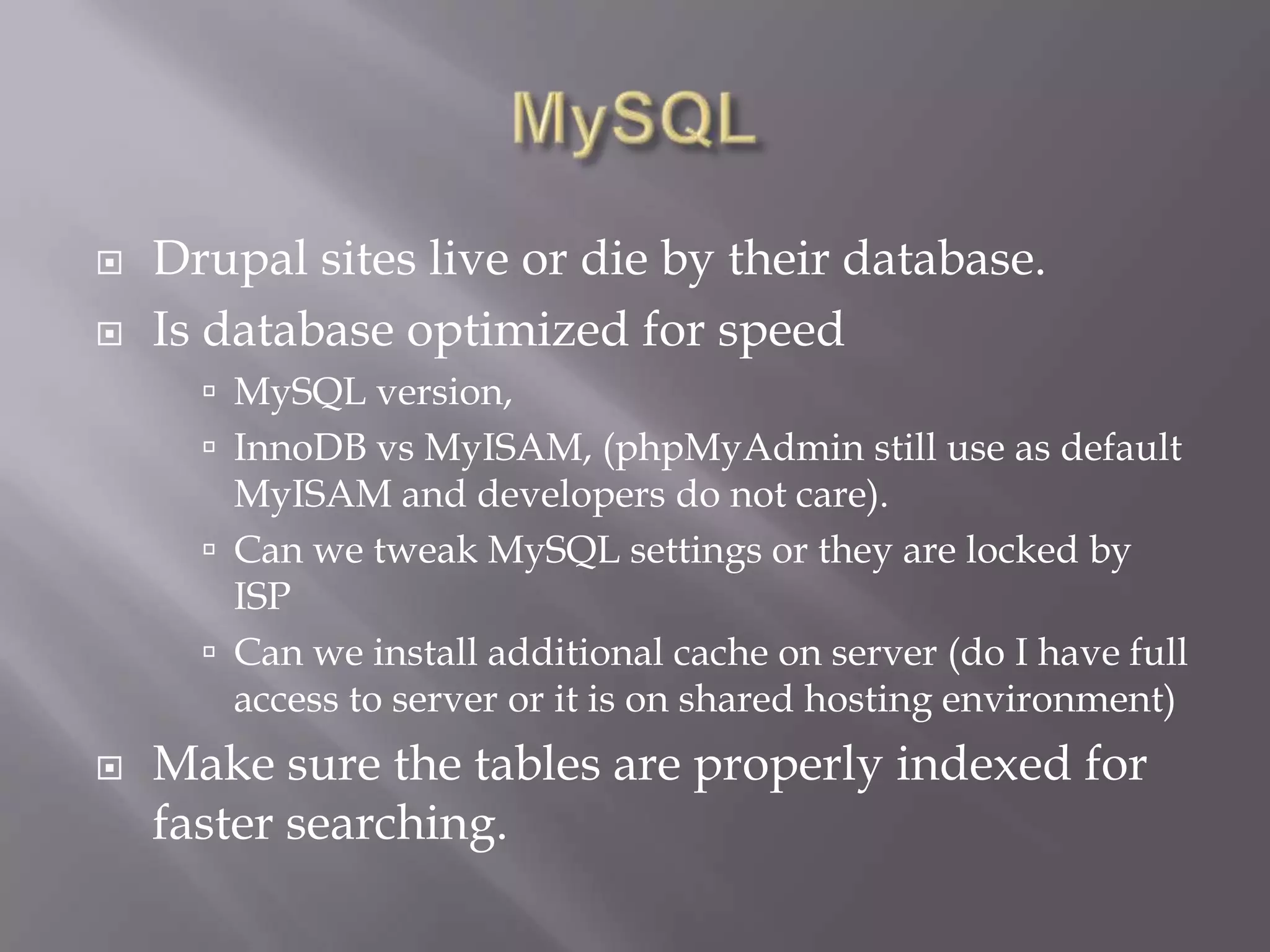

10.  Drupal sites live or die by their database.
 Is database optimized for speed
 MySQL version,
 InnoDB vs MyISAM, (phpMyAdmin still use as default
MyISAM and developers do not care).
 Can we tweak MySQL settings or they are locked by
ISP
 Can we install additional cache on server (do I have full
access to server or it is on shared hosting environment)
 Make sure the tables are properly indexed for
faster searching.

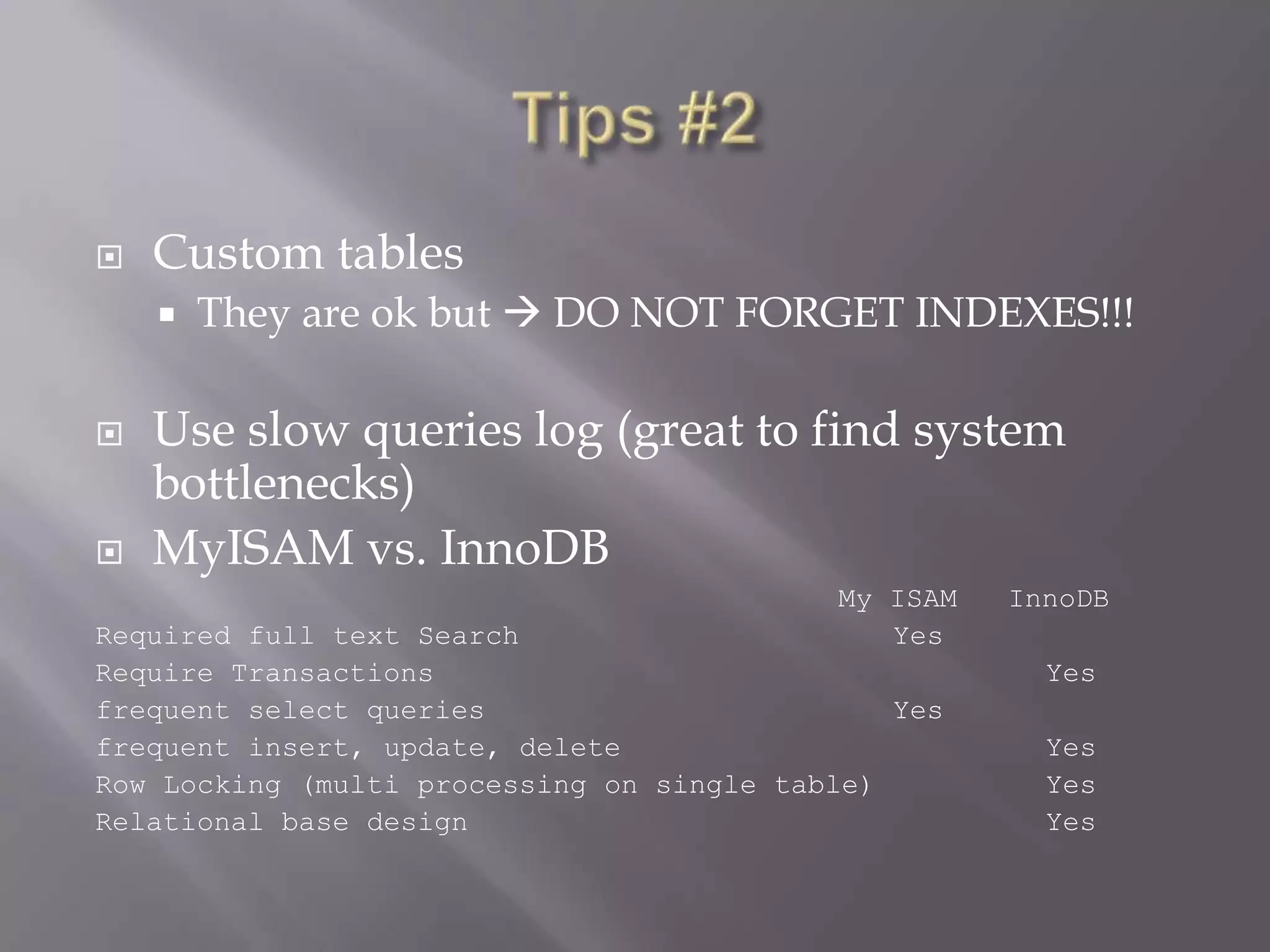

11.  Custom tables
 They are ok but  DO NOT FORGET INDEXES!!!
 Use slow queries log (great to find system
bottlenecks)
 MyISAM vs. InnoDB
My ISAM InnoDB
Required full text Search Yes
Require Transactions Yes
frequent select queries Yes
frequent insert, update, delete Yes
Row Locking (multi processing on single table) Yes
Relational base design Yes

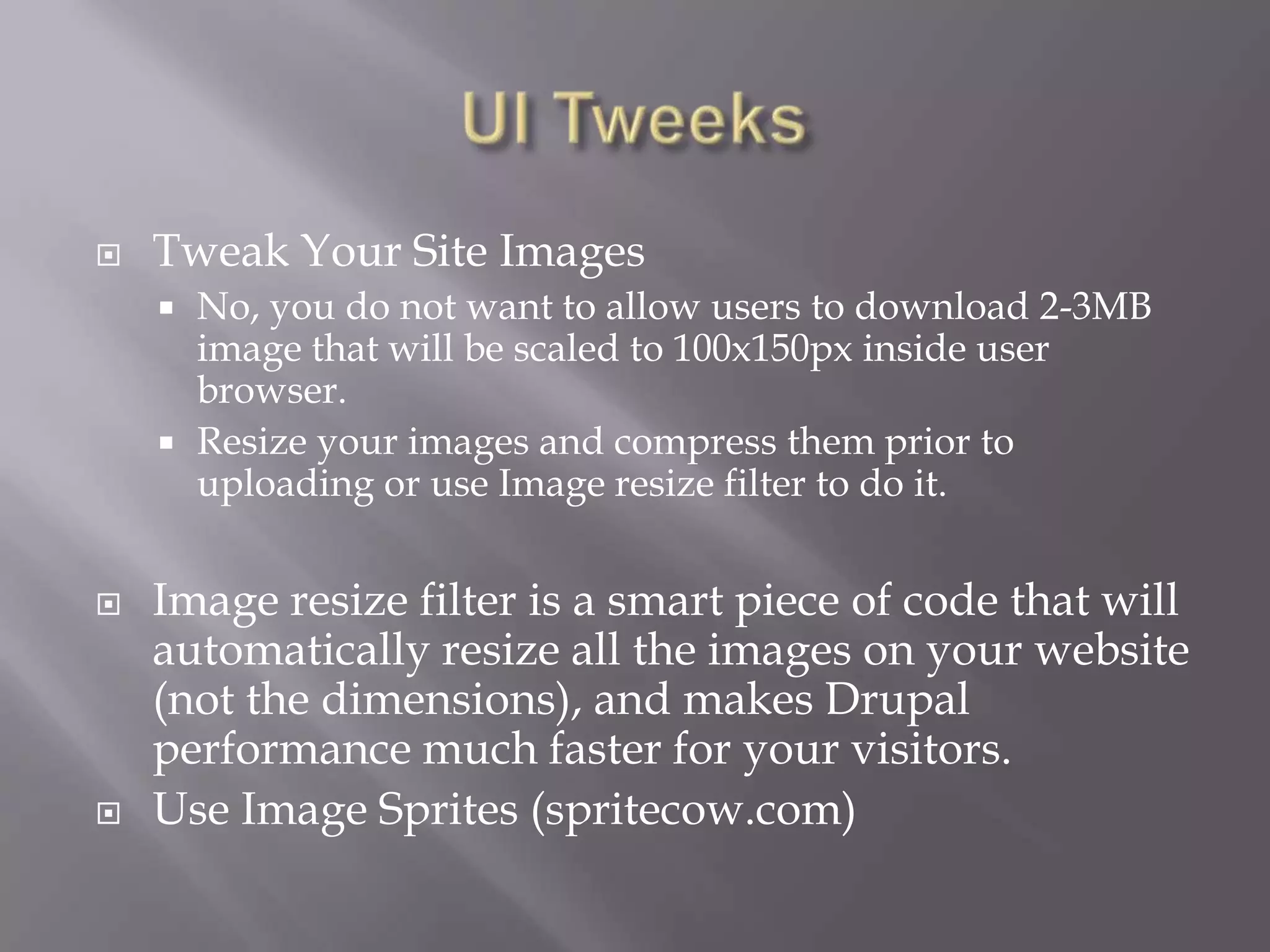

12.  Tweak Your Site Images
 No, you do not want to allow users to download 2-3MB
image that will be scaled to 100x150px inside user
browser.
 Resize your images and compress them prior to
uploading or use Image resize filter to do it.
 Image resize filter is a smart piece of code that will
automatically resize all the images on your website
(not the dimensions), and makes Drupal
performance much faster for your visitors.
 Use Image Sprites (spritecow.com)

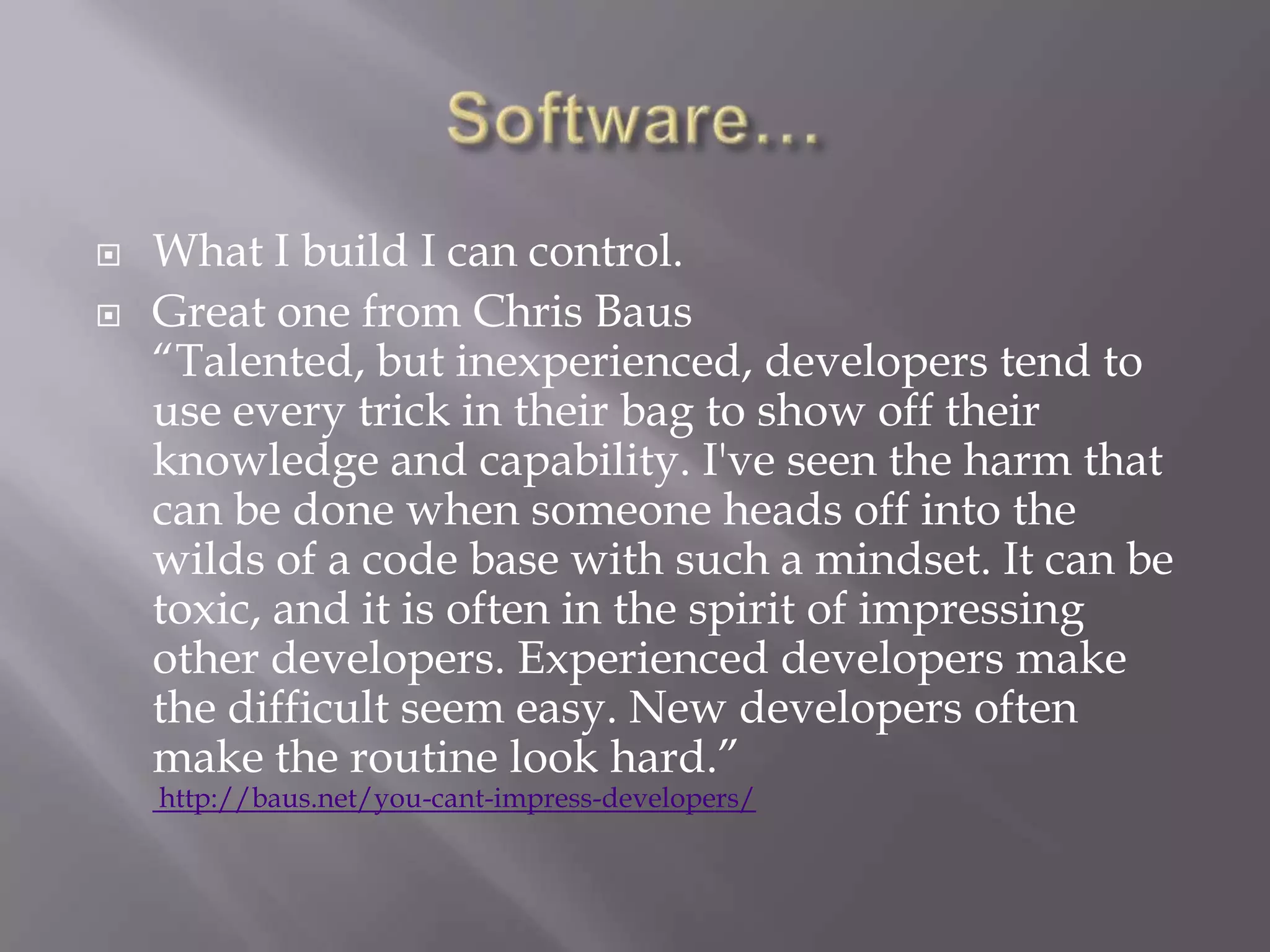

13.  What I build I can control.
 Great one from Chris Baus
“Talented, but inexperienced, developers tend to
use every trick in their bag to show off their
knowledge and capability. I've seen the harm that
can be done when someone heads off into the
wilds of a code base with such a mindset. It can be
toxic, and it is often in the spirit of impressing
other developers. Experienced developers make
the difficult seem easy. New developers often
make the routine look hard.”
http://baus.net/you-cant-impress-developers/

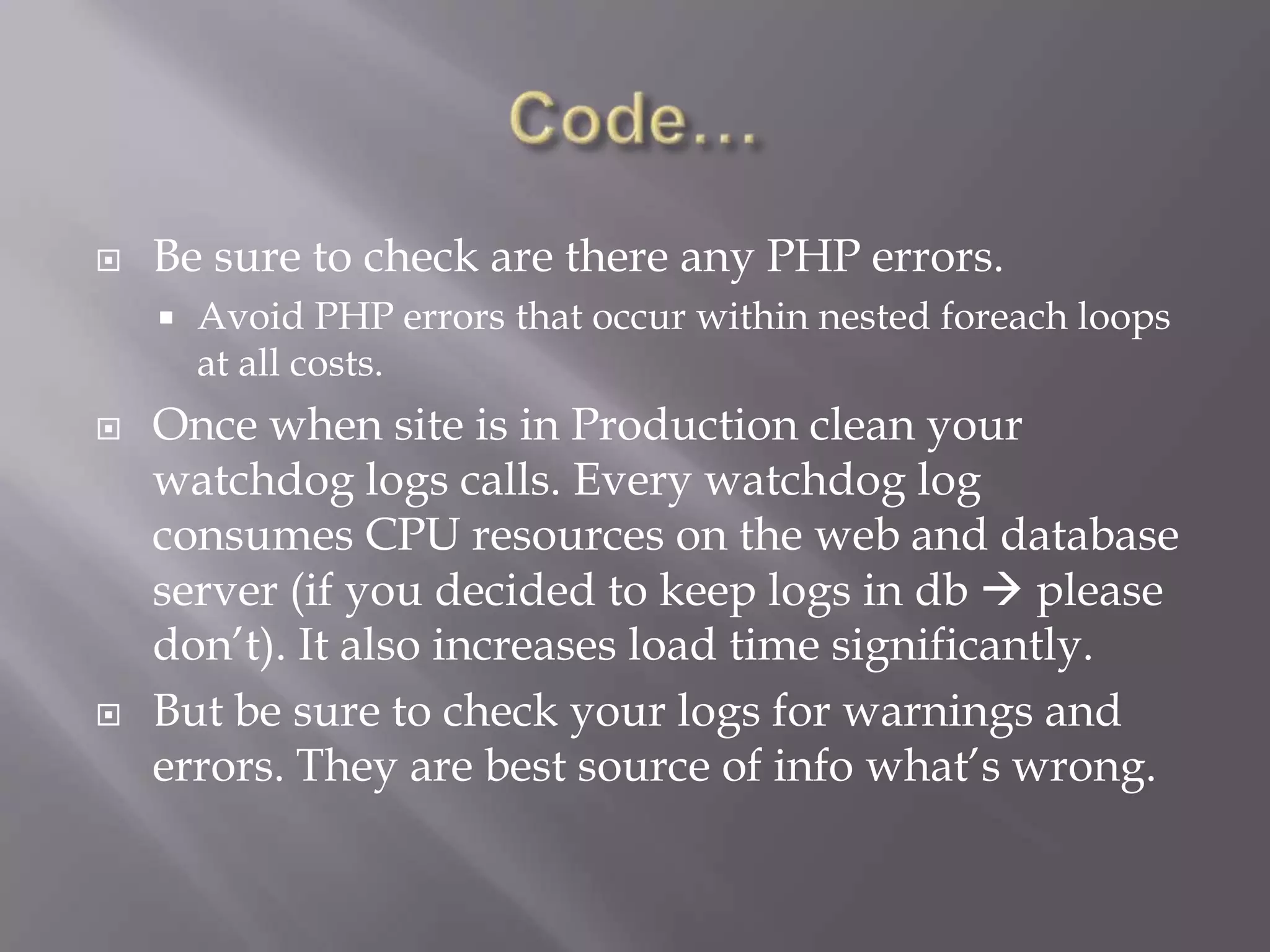

14.  Be sure to check are there any PHP errors.
 Avoid PHP errors that occur within nested foreach loops
at all costs.
 Once when site is in Production clean your
watchdog logs calls. Every watchdog log
consumes CPU resources on the web and database
server (if you decided to keep logs in db  please
don‟t). It also increases load time significantly.
 But be sure to check your logs for warnings and
errors. They are best source of info what‟s wrong.

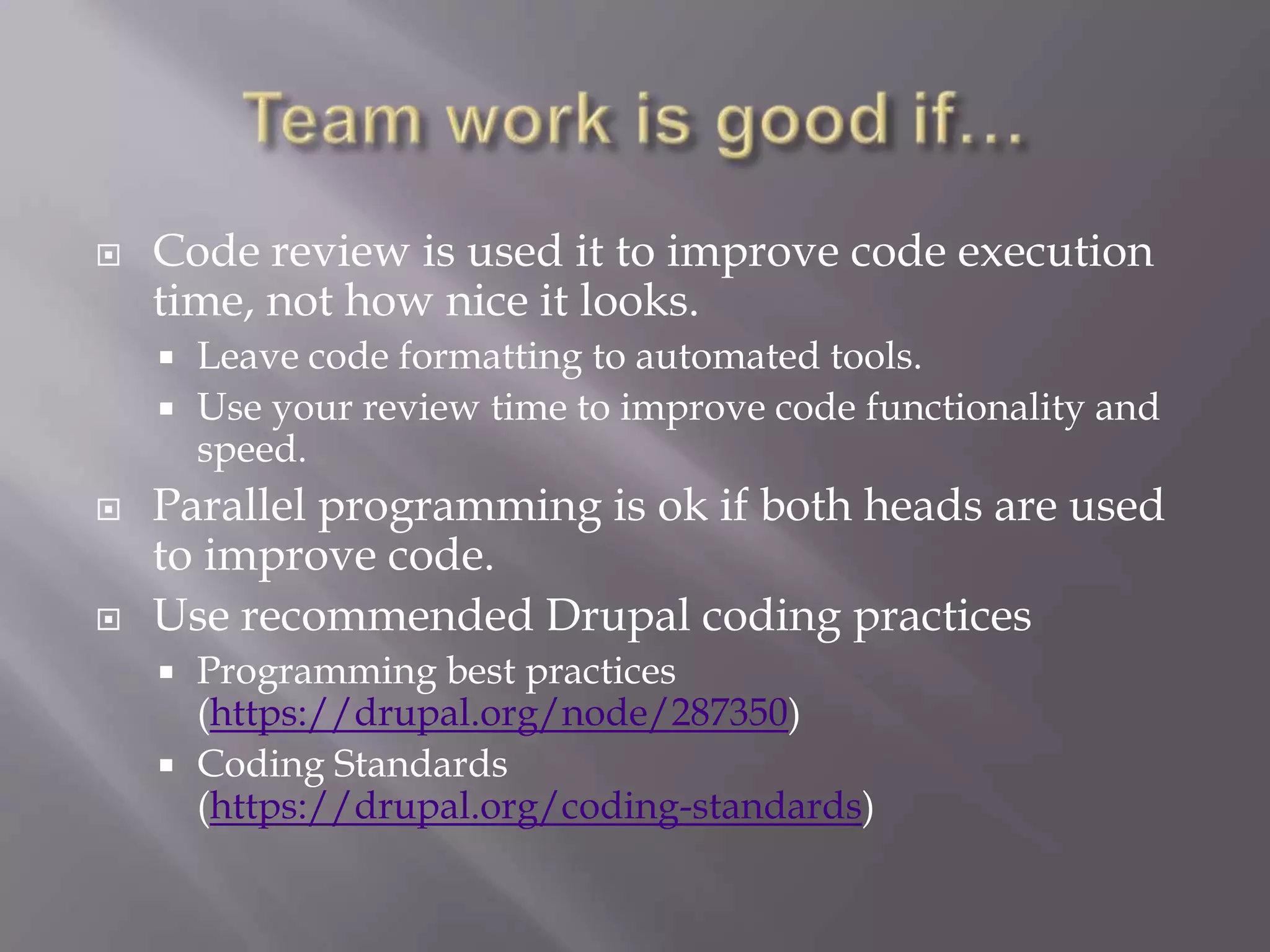

15.  Code review is used it to improve code execution
time, not how nice it looks.
 Leave code formatting to automated tools.
 Use your review time to improve code functionality and
speed.
 Parallel programming is ok if both heads are used
to improve code.
 Use recommended Drupal coding practices
 Programming best practices
(https://drupal.org/node/287350)
 Coding Standards
(https://drupal.org/coding-standards)

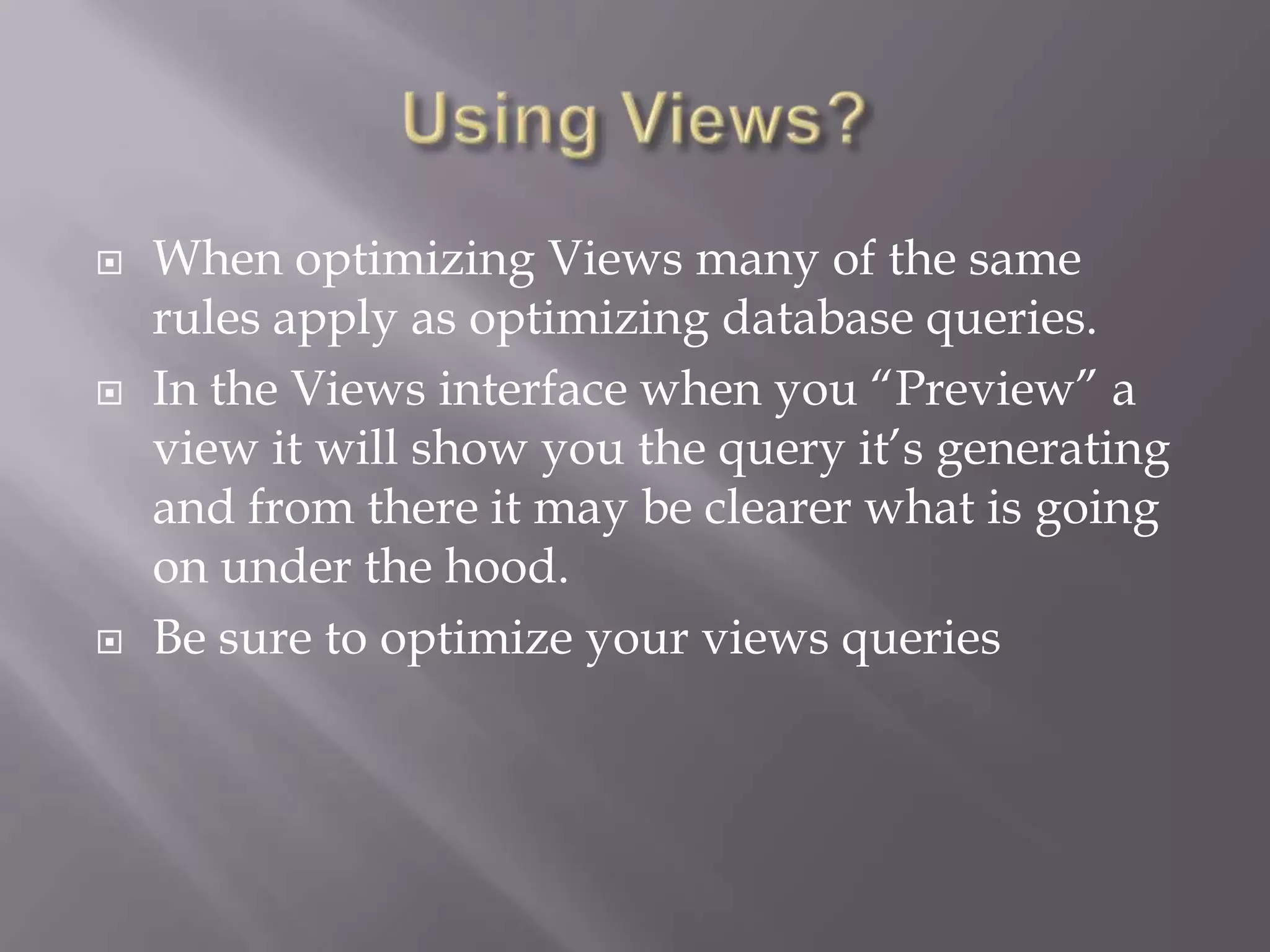

16.  When optimizing Views many of the same
rules apply as optimizing database queries.
 In the Views interface when you “Preview” a
view it will show you the query it‟s generating
and from there it may be clearer what is going
on under the hood.
 Be sure to optimize your views queries

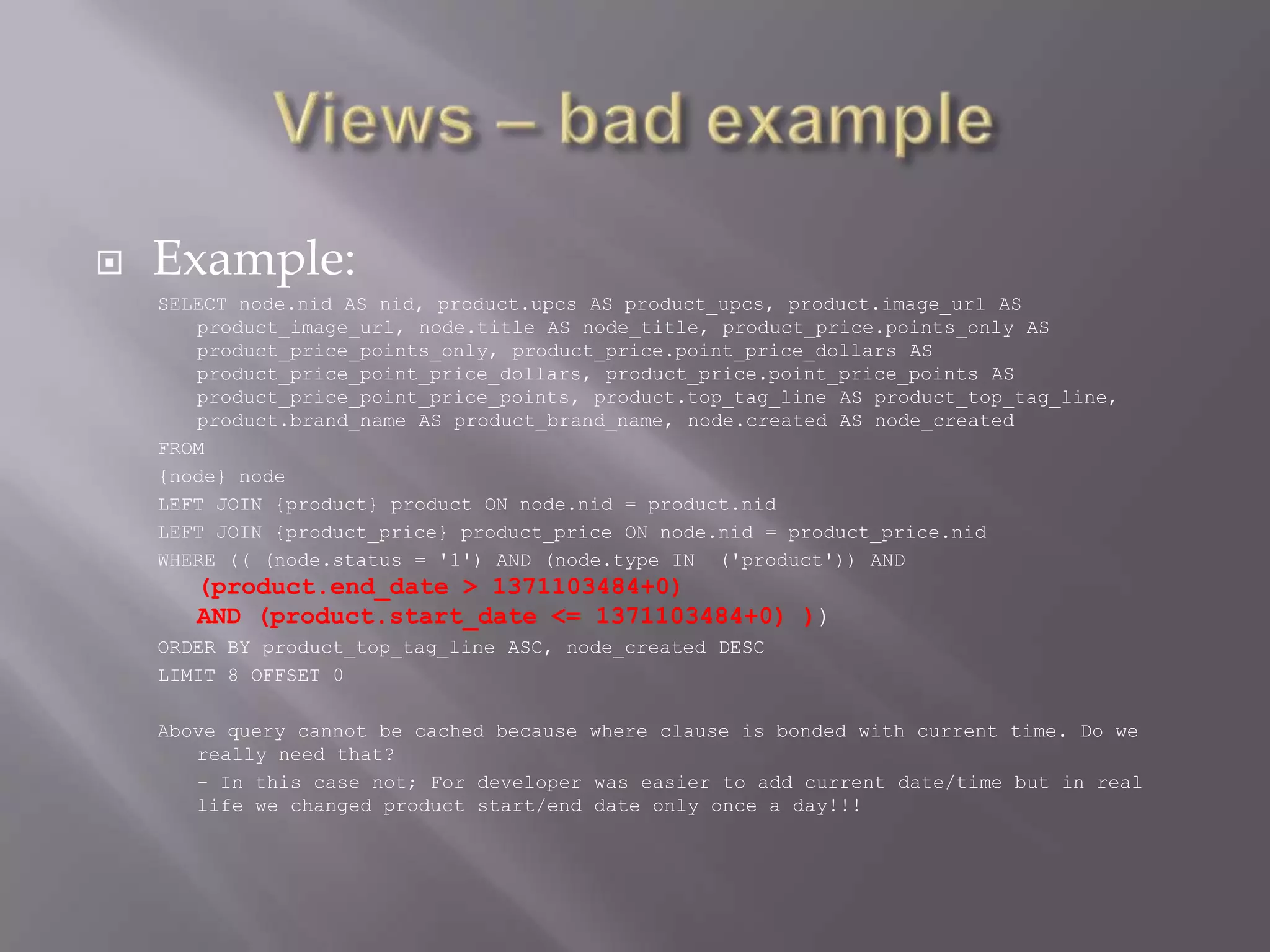

17.  Example:
SELECT node.nid AS nid, product.upcs AS product_upcs, product.image_url AS
product_image_url, node.title AS node_title, product_price.points_only AS
product_price_points_only, product_price.point_price_dollars AS
product_price_point_price_dollars, product_price.point_price_points AS
product_price_point_price_points, product.top_tag_line AS product_top_tag_line,
product.brand_name AS product_brand_name, node.created AS node_created
FROM
{node} node
LEFT JOIN {product} product ON node.nid = product.nid
LEFT JOIN {product_price} product_price ON node.nid = product_price.nid
WHERE (( (node.status = '1') AND (node.type IN ('product')) AND
(product.end_date > 1371103484+0)
AND (product.start_date <= 1371103484+0) ))
ORDER BY product_top_tag_line ASC, node_created DESC
LIMIT 8 OFFSET 0
Above query cannot be cached because where clause is bonded with current time. Do we
really need that?
- In this case not; For developer was easier to add current date/time but in real
life we changed product start/end date only once a day!!!

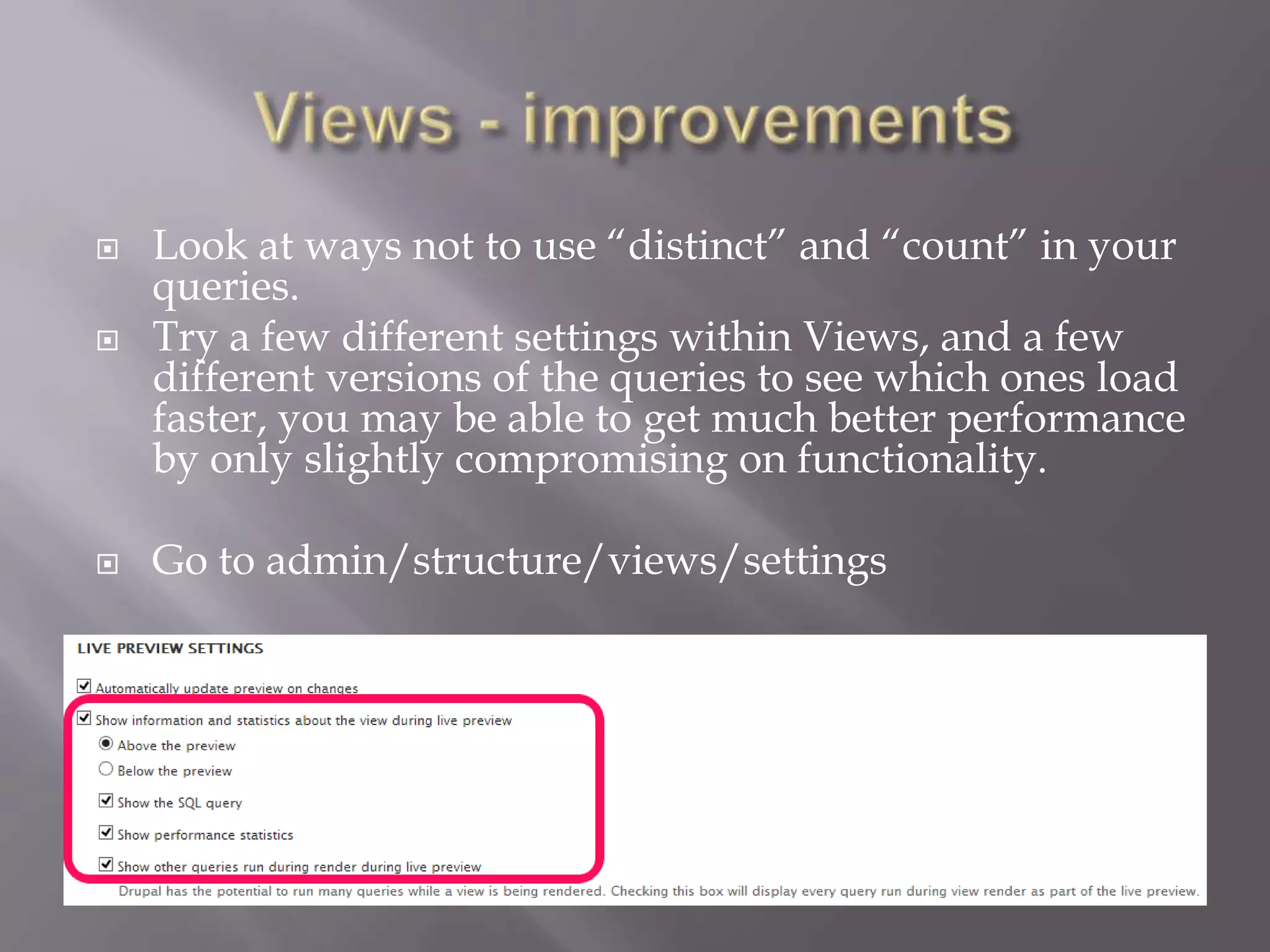

18.  Look at ways not to use “distinct” and “count” in your
queries.
 Try a few different settings within Views, and a few
different versions of the queries to see which ones load
faster, you may be able to get much better performance
by only slightly compromising on functionality.
 Go to admin/structure/views/settings

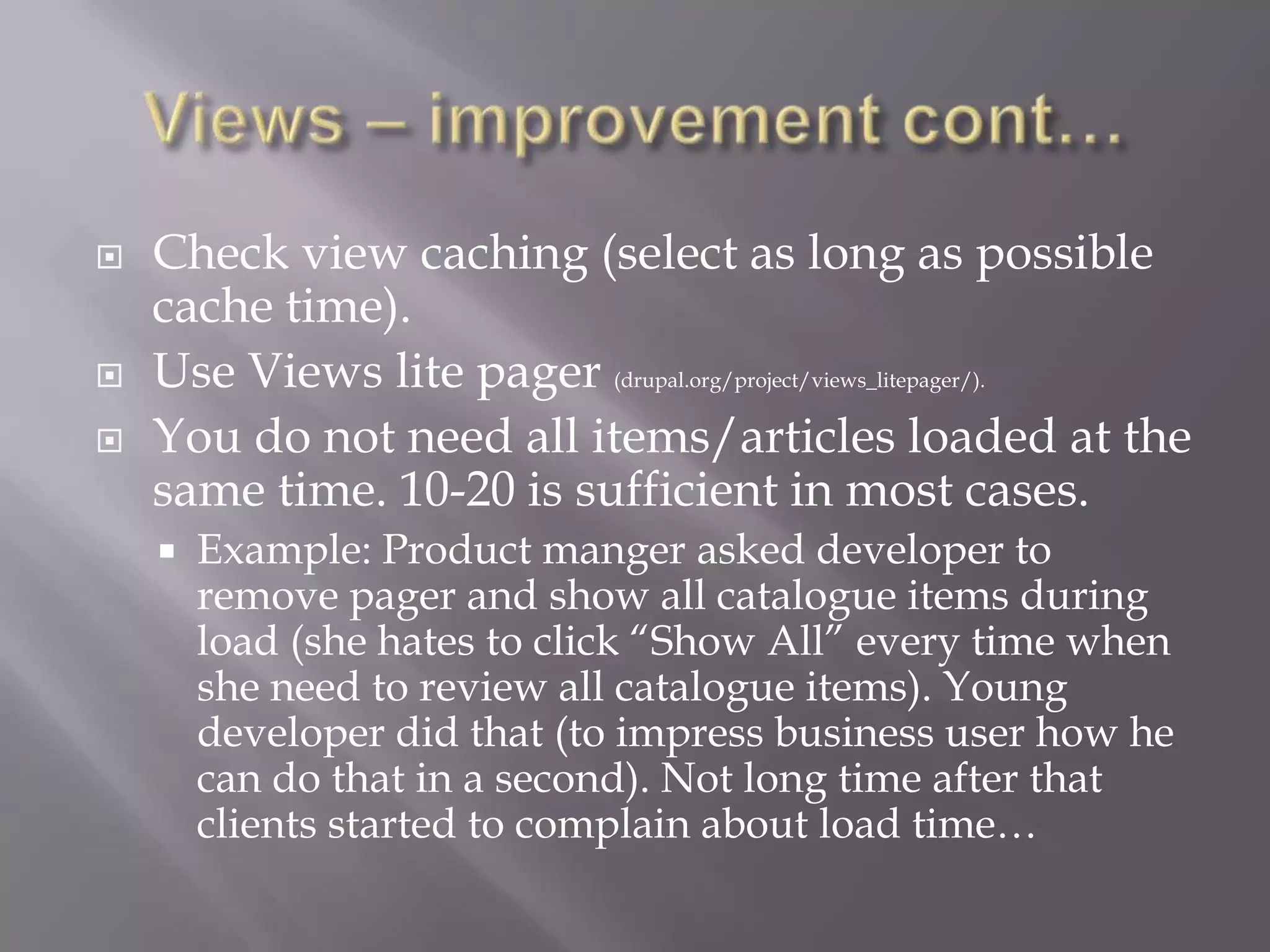

19.  Check view caching (select as long as possible
cache time).
 Use Views lite pager (drupal.org/project/views_litepager/).
 You do not need all items/articles loaded at the
same time. 10-20 is sufficient in most cases.
 Example: Product manger asked developer to
remove pager and show all catalogue items during
load (she hates to click “Show All” every time when
she need to review all catalogue items). Young
developer did that (to impress business user how he
can do that in a second). Not long time after that
clients started to complain about load time…

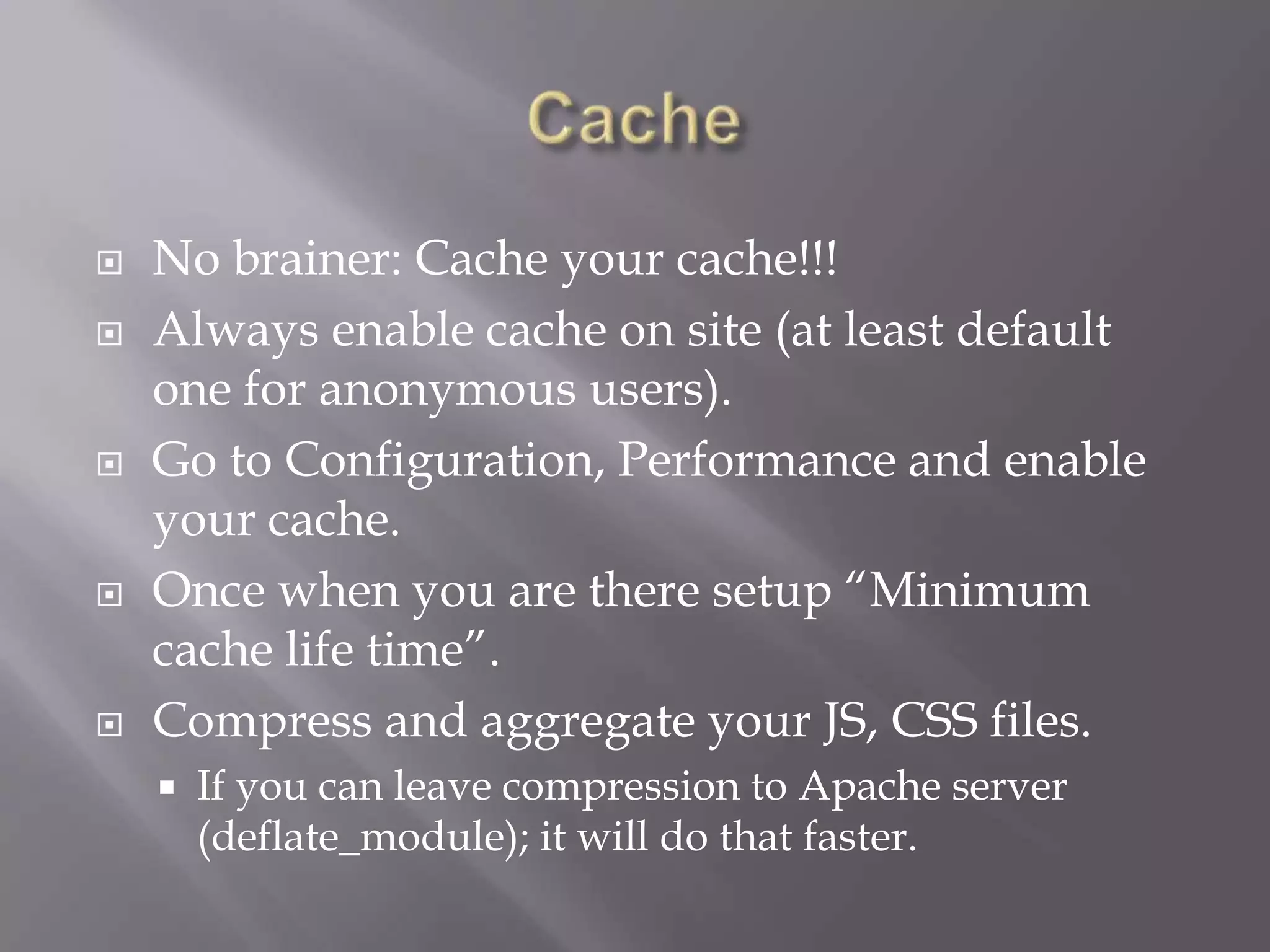

20.  No brainer: Cache your cache!!!
 Always enable cache on site (at least default
one for anonymous users).
 Go to Configuration, Performance and enable
your cache.
 Once when you are there setup “Minimum
cache life time”.
 Compress and aggregate your JS, CSS files.
 If you can leave compression to Apache server
(deflate_module); it will do that faster.

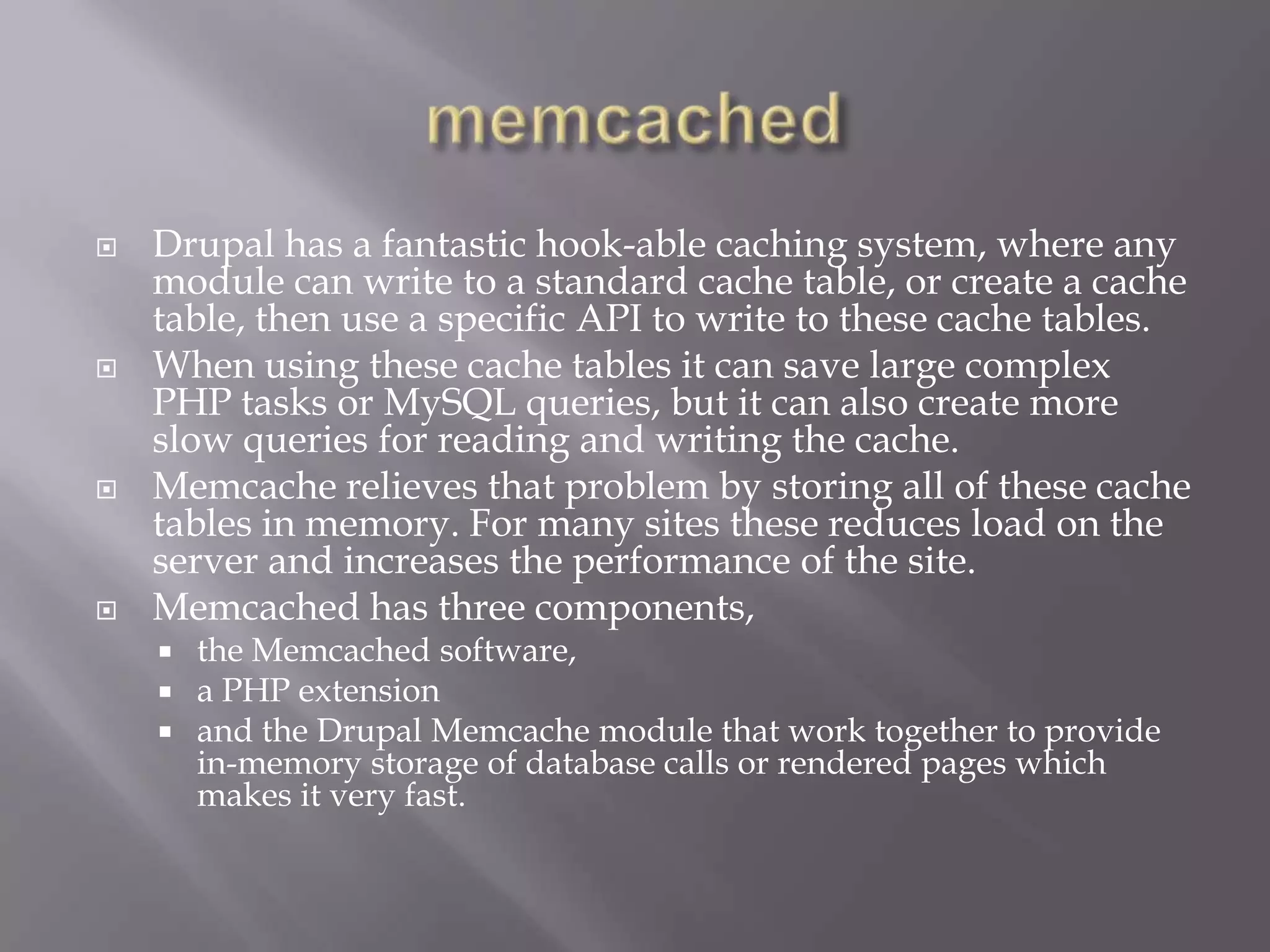

21.  Drupal has a fantastic hook-able caching system, where any
module can write to a standard cache table, or create a cache
table, then use a specific API to write to these cache tables.
 When using these cache tables it can save large complex
PHP tasks or MySQL queries, but it can also create more
slow queries for reading and writing the cache.
 Memcache relieves that problem by storing all of these cache
tables in memory. For many sites these reduces load on the
server and increases the performance of the site.
 Memcached has three components,
 the Memcached software,
 a PHP extension
 and the Drupal Memcache module that work together to provide
in-memory storage of database calls or rendered pages which
makes it very fast.

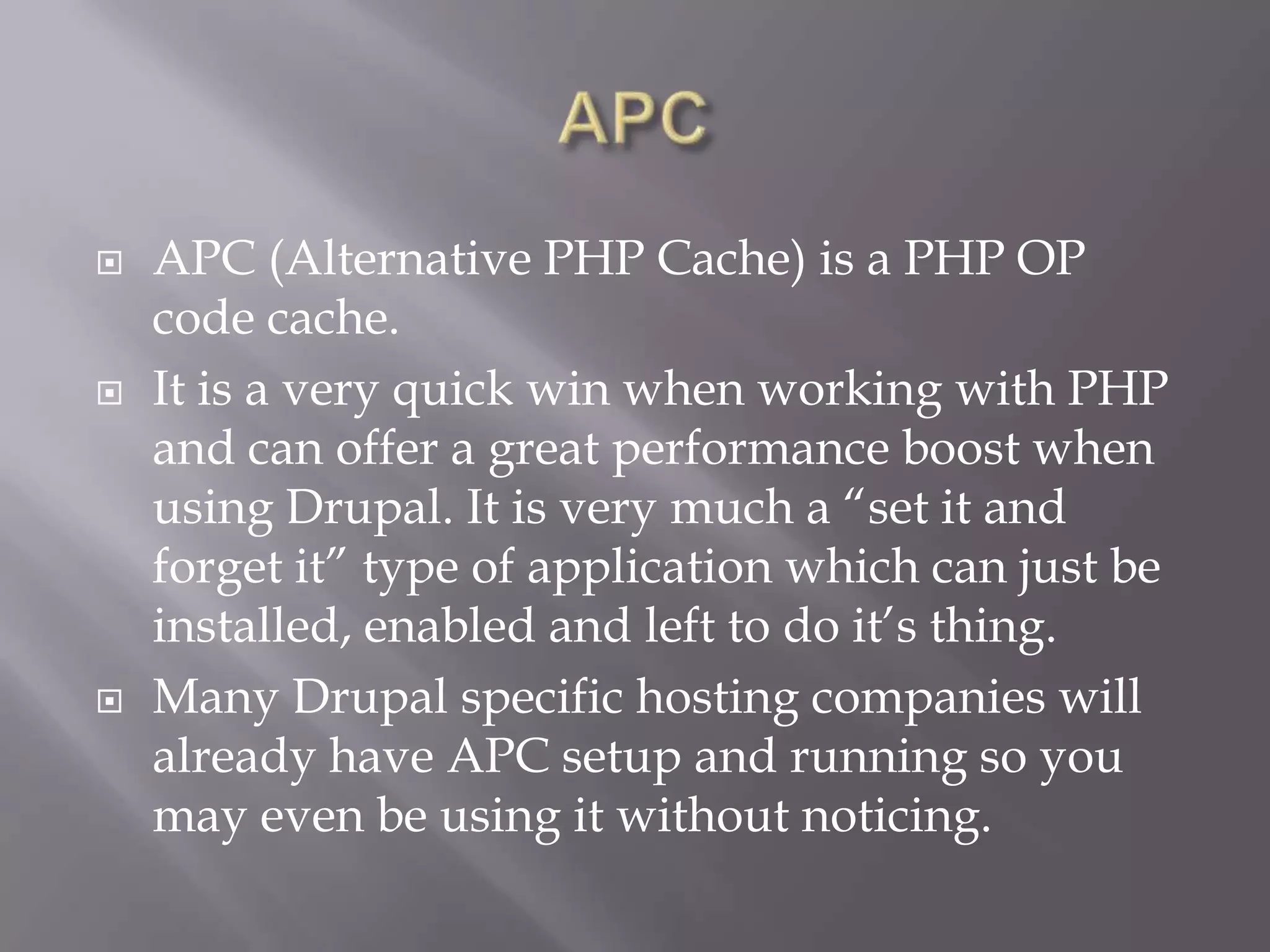

22.  APC (Alternative PHP Cache) is a PHP OP
code cache.
 It is a very quick win when working with PHP
and can offer a great performance boost when
using Drupal. It is very much a “set it and
forget it” type of application which can just be
installed, enabled and left to do it‟s thing.
 Many Drupal specific hosting companies will
already have APC setup and running so you
may even be using it without noticing.

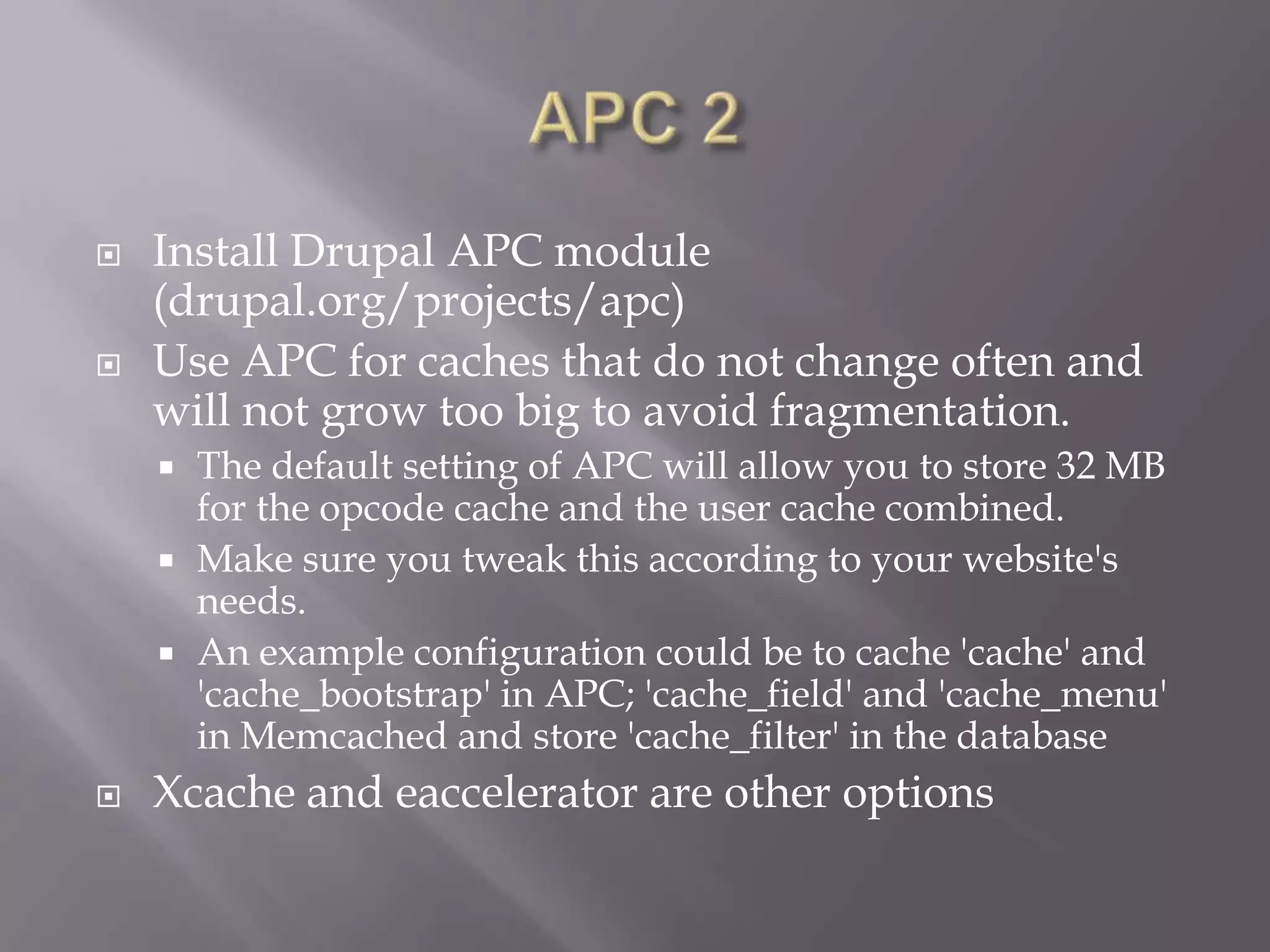

23.  Install Drupal APC module
(drupal.org/projects/apc)
 Use APC for caches that do not change often and
will not grow too big to avoid fragmentation.
 The default setting of APC will allow you to store 32 MB
for the opcode cache and the user cache combined.
 Make sure you tweak this according to your website's
needs.
 An example configuration could be to cache 'cache' and
'cache_bootstrap' in APC; 'cache_field' and 'cache_menu'
in Memcached and store 'cache_filter' in the database
 Xcache and eaccelerator are other options

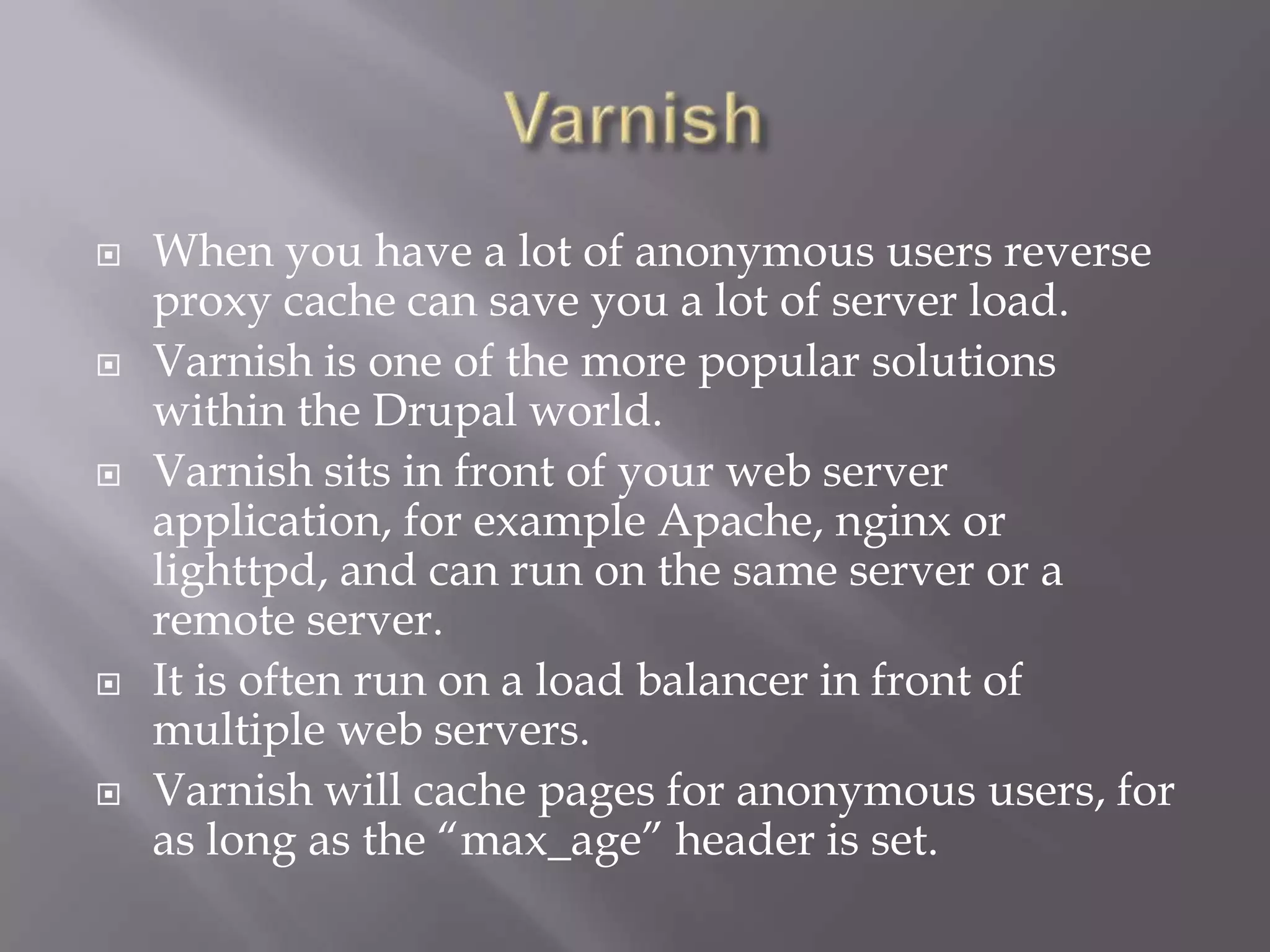

24.  When you have a lot of anonymous users reverse
proxy cache can save you a lot of server load.
 Varnish is one of the more popular solutions
within the Drupal world.
 Varnish sits in front of your web server
application, for example Apache, nginx or
lighttpd, and can run on the same server or a
remote server.
 It is often run on a load balancer in front of
multiple web servers.
 Varnish will cache pages for anonymous users, for
as long as the “max_age” header is set.

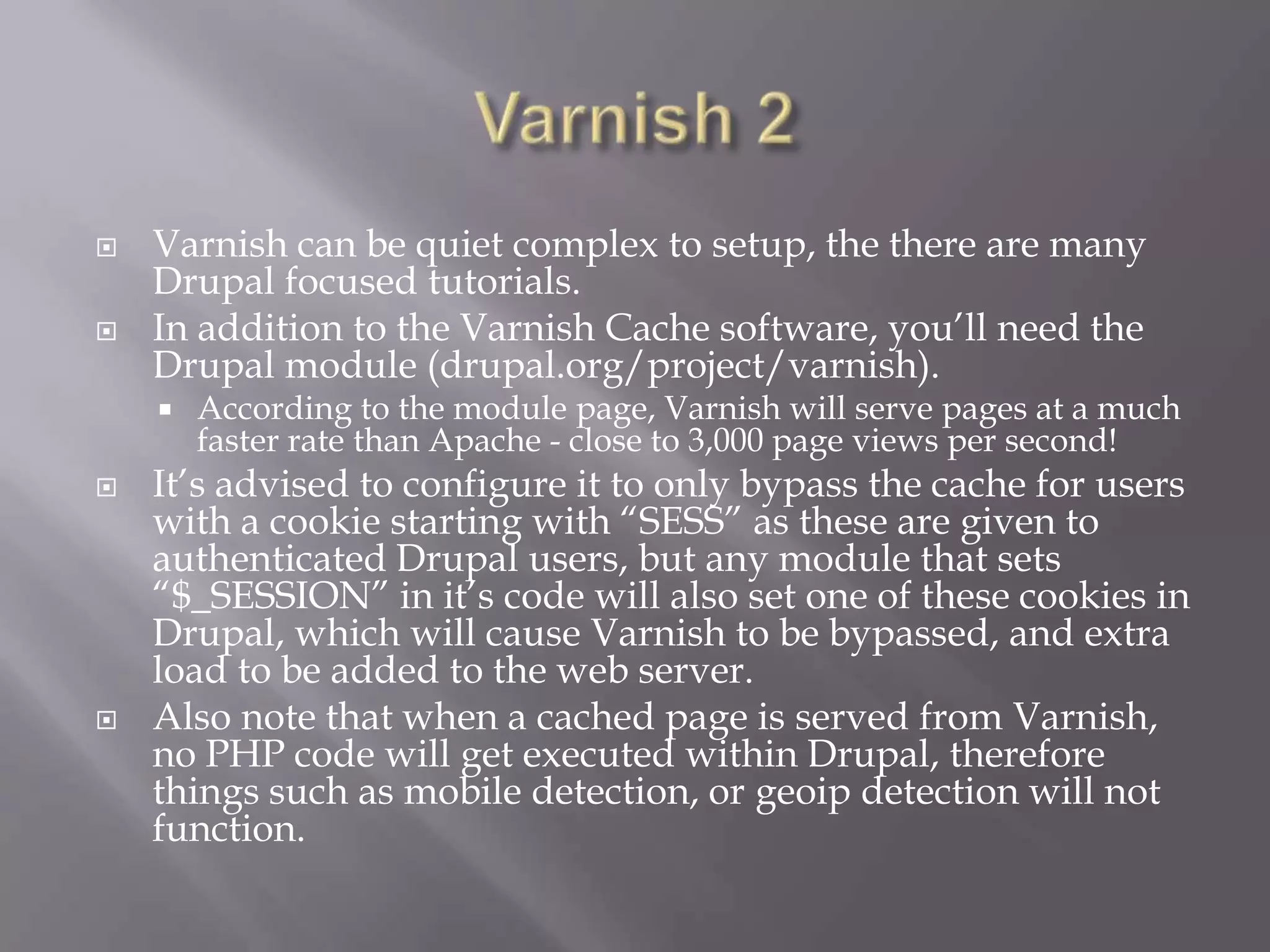

25.  Varnish can be quiet complex to setup, the there are many
Drupal focused tutorials.
 In addition to the Varnish Cache software, you‟ll need the
Drupal module (drupal.org/project/varnish).
 According to the module page, Varnish will serve pages at a much
faster rate than Apache - close to 3,000 page views per second!
 It‟s advised to configure it to only bypass the cache for users
with a cookie starting with “SESS” as these are given to
authenticated Drupal users, but any module that sets
“$_SESSION” in it‟s code will also set one of these cookies in
Drupal, which will cause Varnish to be bypassed, and extra
load to be added to the web server.
 Also note that when a cached page is served from Varnish,
no PHP code will get executed within Drupal, therefore
things such as mobile detection, or geoip detection will not
function.

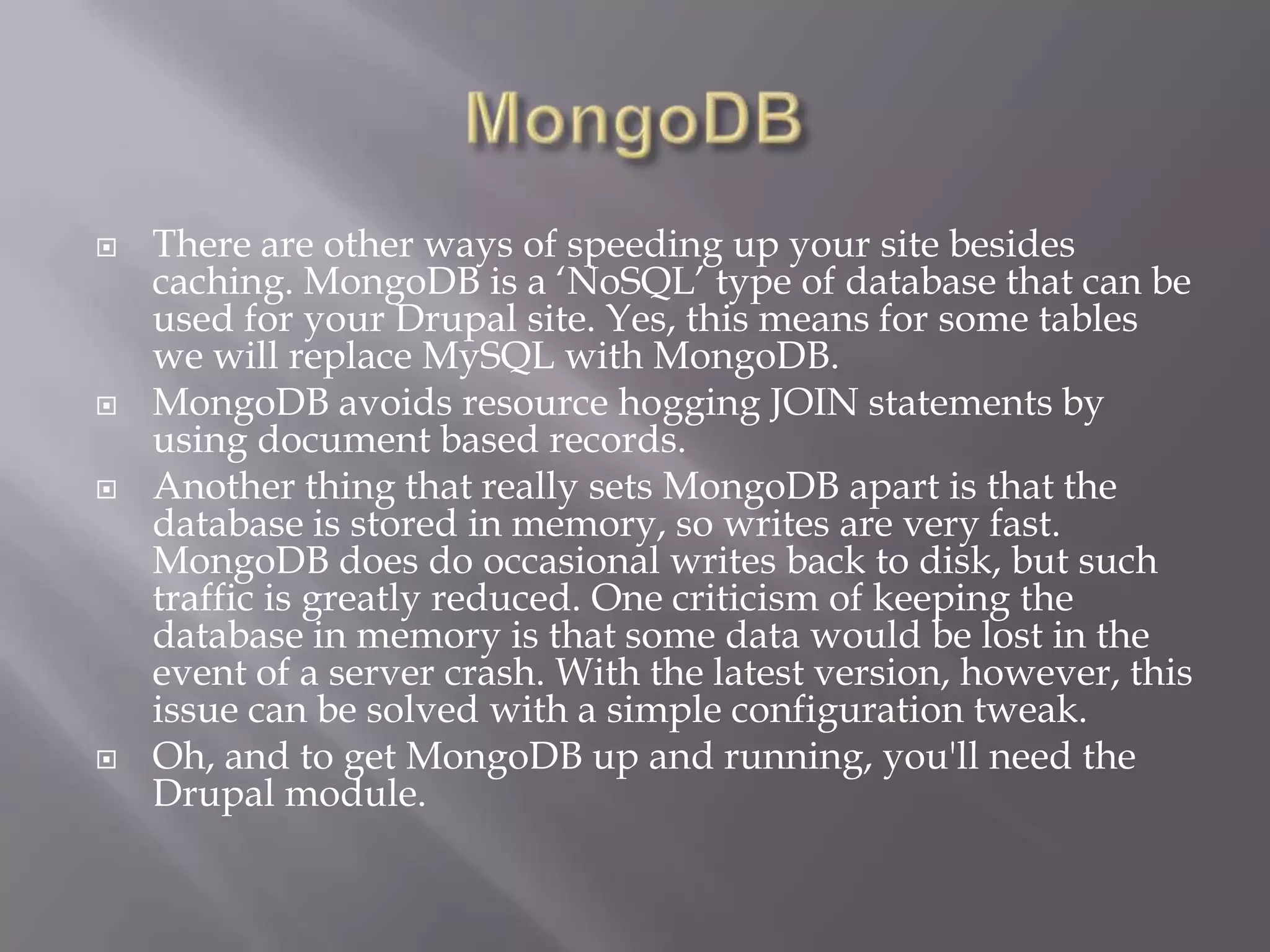

26.  There are other ways of speeding up your site besides
caching. MongoDB is a „NoSQL‟ type of database that can be
used for your Drupal site. Yes, this means for some tables
we will replace MySQL with MongoDB.
 MongoDB avoids resource hogging JOIN statements by
using document based records.
 Another thing that really sets MongoDB apart is that the
database is stored in memory, so writes are very fast.
MongoDB does do occasional writes back to disk, but such
traffic is greatly reduced. One criticism of keeping the
database in memory is that some data would be lost in the
event of a server crash. With the latest version, however, this
issue can be solved with a simple configuration tweak.
 Oh, and to get MongoDB up and running, you'll need the
Drupal module.

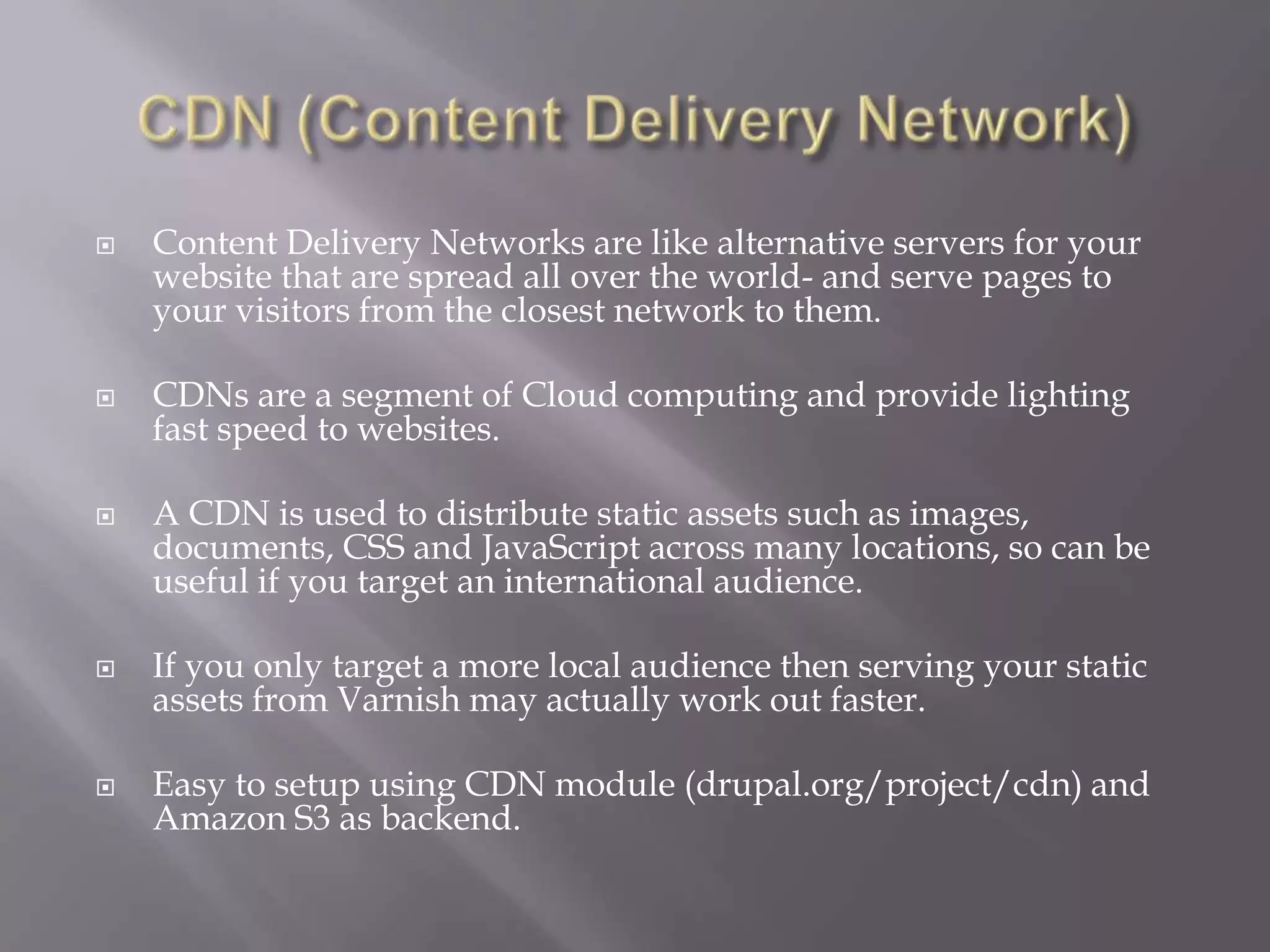

27.  Content Delivery Networks are like alternative servers for your
website that are spread all over the world- and serve pages to
your visitors from the closest network to them.
 CDNs are a segment of Cloud computing and provide lighting
fast speed to websites.
 A CDN is used to distribute static assets such as images,
documents, CSS and JavaScript across many locations, so can be
useful if you target an international audience.
 If you only target a more local audience then serving your static
assets from Varnish may actually work out faster.
 Easy to setup using CDN module (drupal.org/project/cdn) and
Amazon S3 as backend.

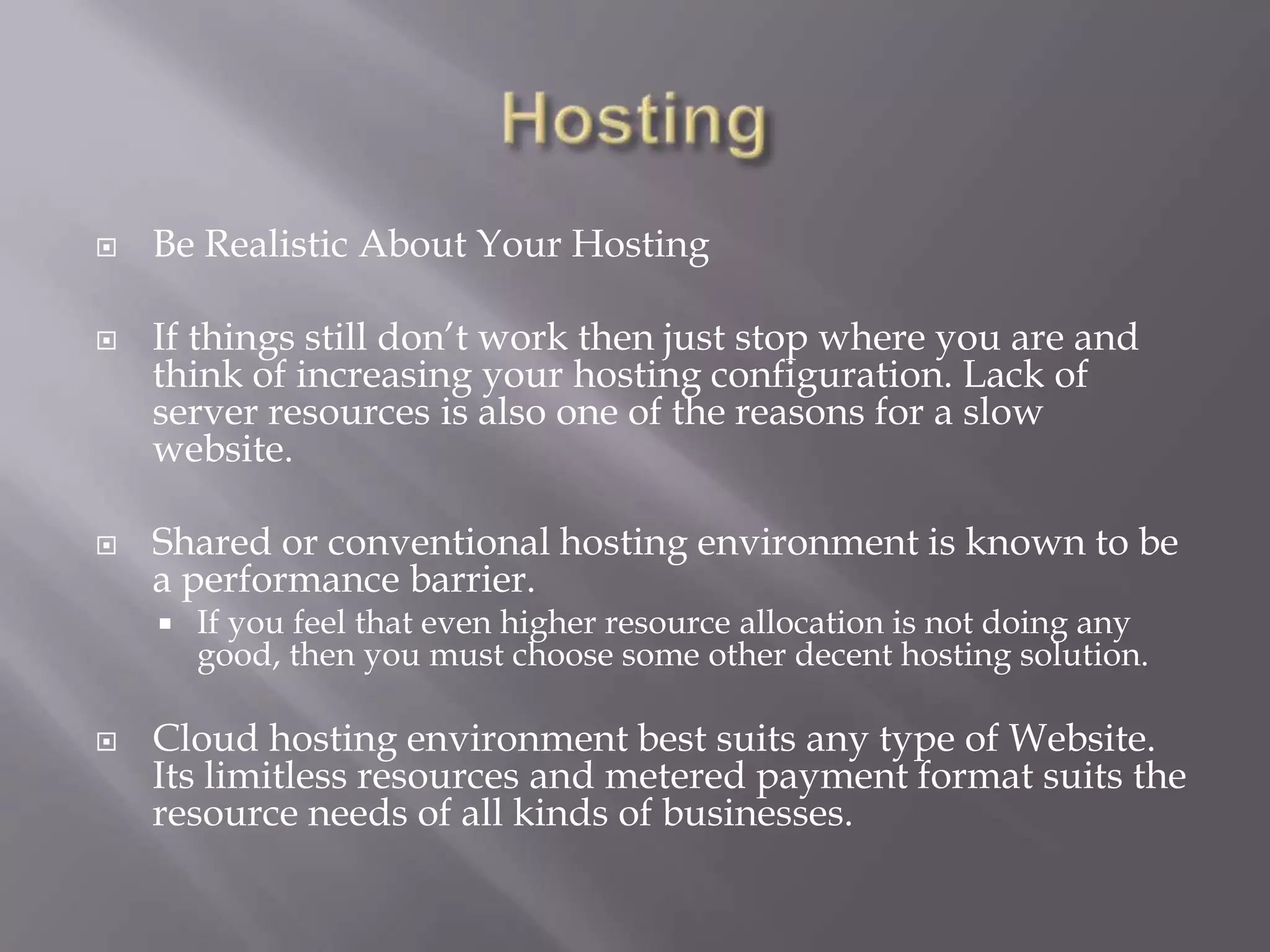

28.  Be Realistic About Your Hosting
 If things still don‟t work then just stop where you are and
think of increasing your hosting configuration. Lack of
server resources is also one of the reasons for a slow
website.
 Shared or conventional hosting environment is known to be
a performance barrier.
 If you feel that even higher resource allocation is not doing any
good, then you must choose some other decent hosting solution.
 Cloud hosting environment best suits any type of Website.
Its limitless resources and metered payment format suits the
resource needs of all kinds of businesses.

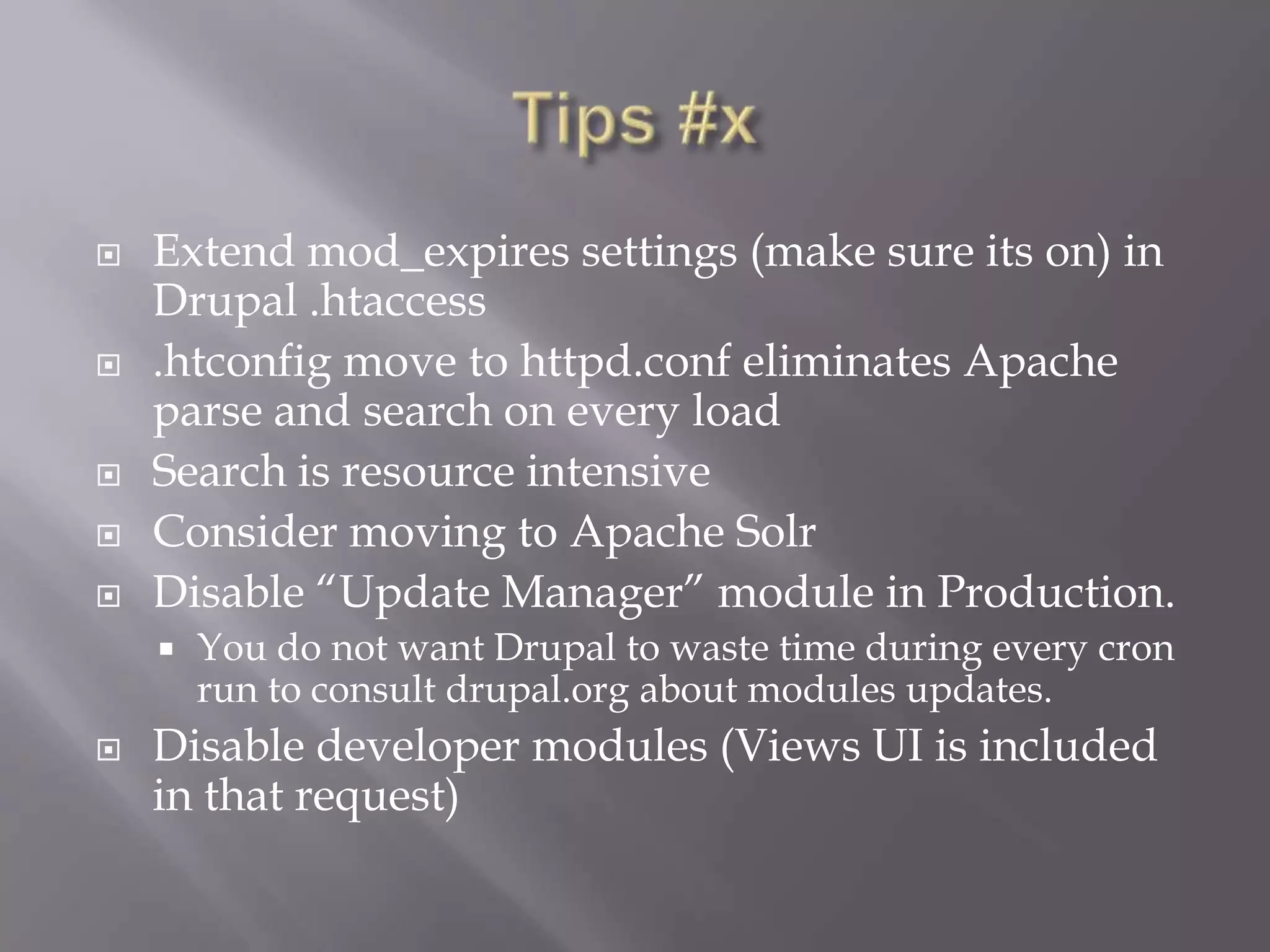

29.  Extend mod_expires settings (make sure its on) in
Drupal .htaccess
 .htconfig move to httpd.conf eliminates Apache
parse and search on every load
 Search is resource intensive
 Consider moving to Apache Solr
 Disable “Update Manager” module in Production.
 You do not want Drupal to waste time during every cron
run to consult drupal.org about modules updates.
 Disable developer modules (Views UI is included
in that request)

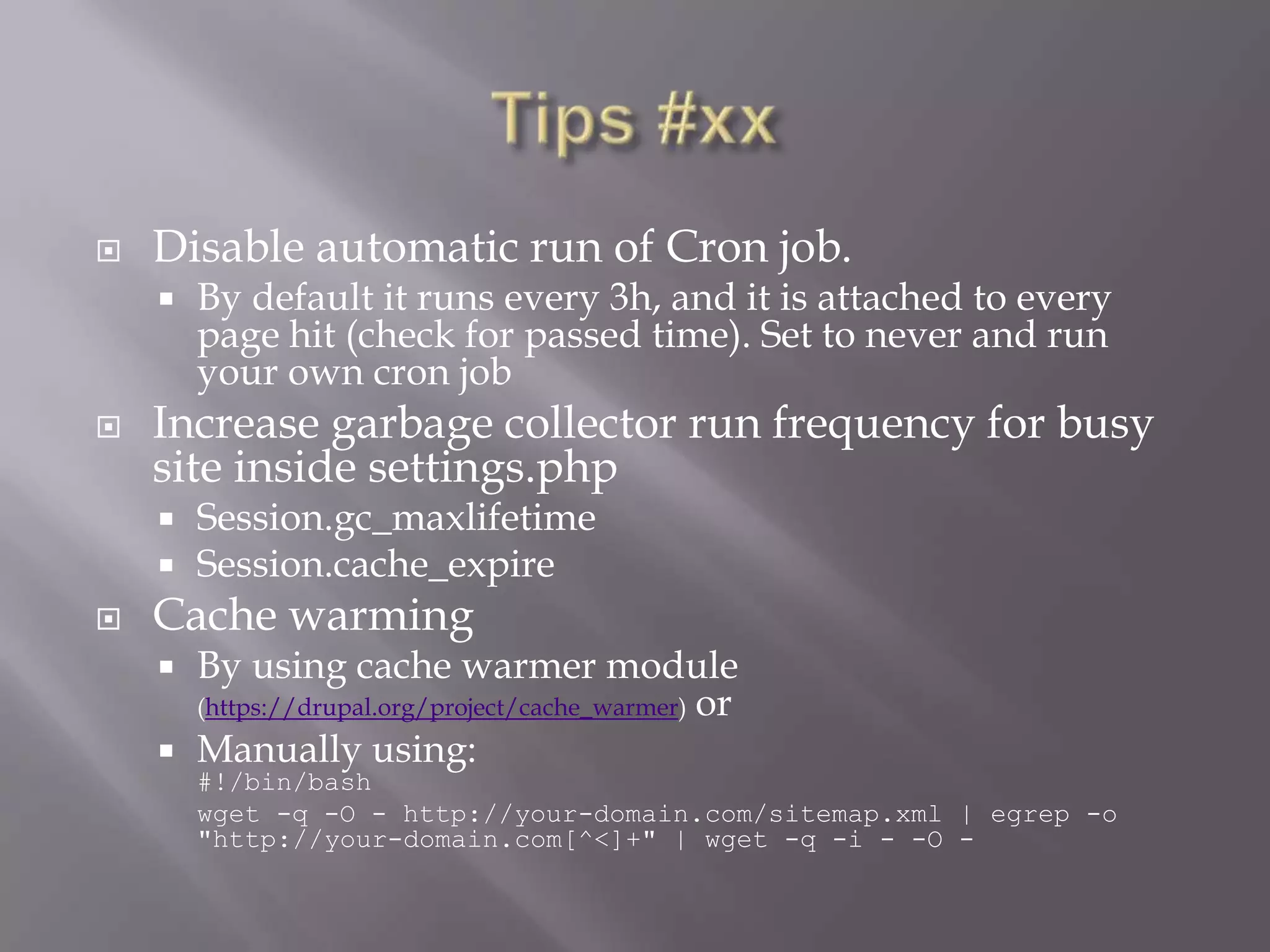

30.  Disable automatic run of Cron job.
 By default it runs every 3h, and it is attached to every
page hit (check for passed time). Set to never and run
your own cron job
 Increase garbage collector run frequency for busy
site inside settings.php
 Session.gc_maxlifetime
 Session.cache_expire
 Cache warming
 By using cache warmer module
(https://drupal.org/project/cache_warmer) or
 Manually using:
#!/bin/bash
wget -q -O - http://your-domain.com/sitemap.xml | egrep -o
"http://your-domain.com[^<]+" | wget -q -i - -O -
