Invengo is a Chinese company founded in 1993 that is the largest RFID company in Southeast Asia. It provides RFID hardware, software, and services for supply chain management, asset tracking, and transportation applications. Some of its major customers include China Railway and China Mobile. It offers a variety of passive UHF RFID tags and readers that are compatible with EPC Gen 2 standards and can reliably read tags in noisy environments.

1. Invengo Technology Corporation Philip Calderbank VP Sales & Marketing Tel: 206 669 6563 [email_address]

2. Agenda Invengo Overview Product Overview Application References Channel Partner Program

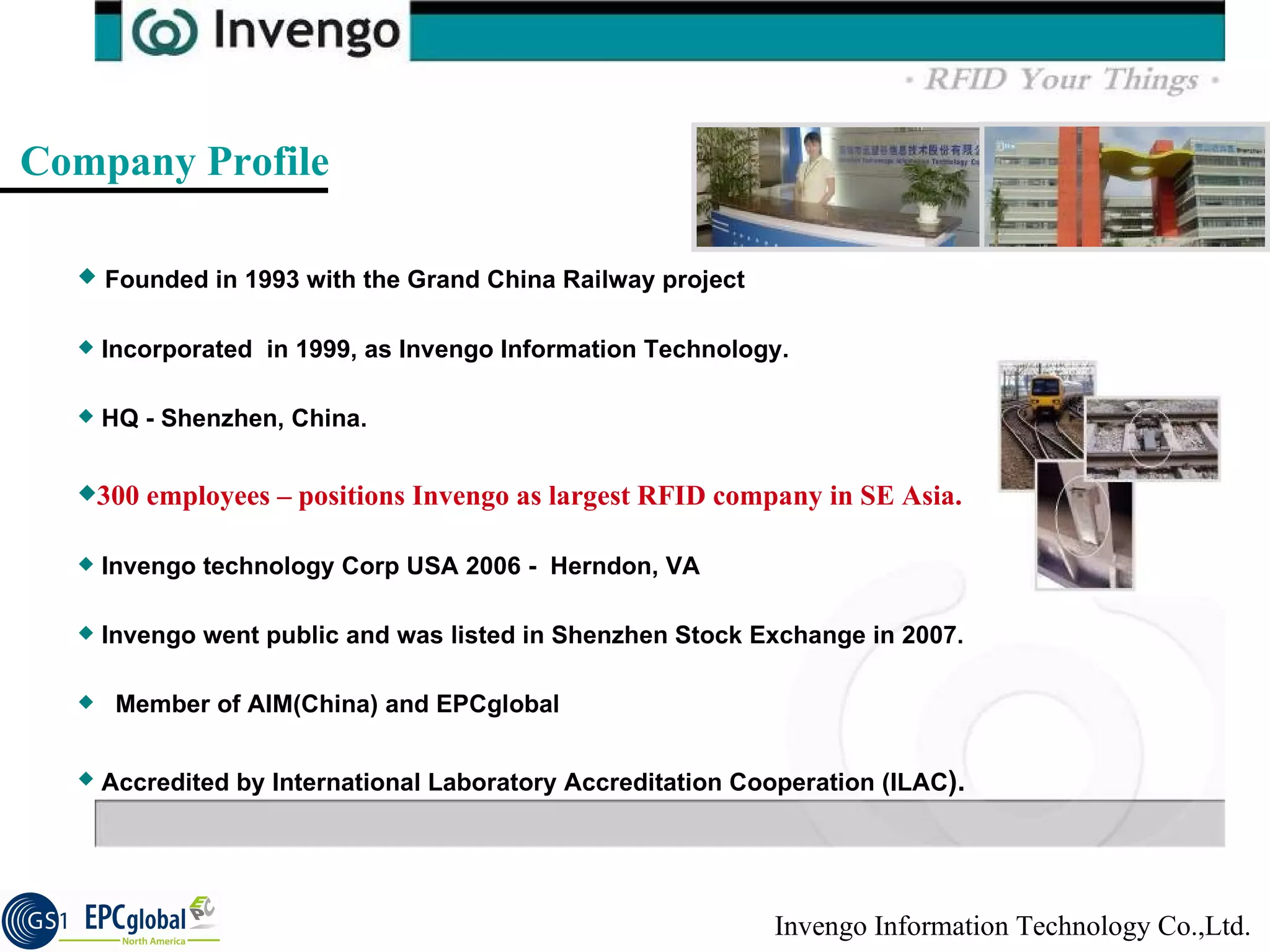

3. Company Profile Founded in 1993 with the Grand China Railway project Incorporated in 1999, as Invengo Information Technology. HQ - Shenzhen, China. 300 employees – positions Invengo as largest RFID company in SE Asia. Invengo technology Corp USA 2006 - Herndon, VA Invengo went public and was listed in Shenzhen Stock Exchange in 2007. Member of AIM(China) and EPCglobal Accredited by International Laboratory Accreditation Cooperation (ILAC ).

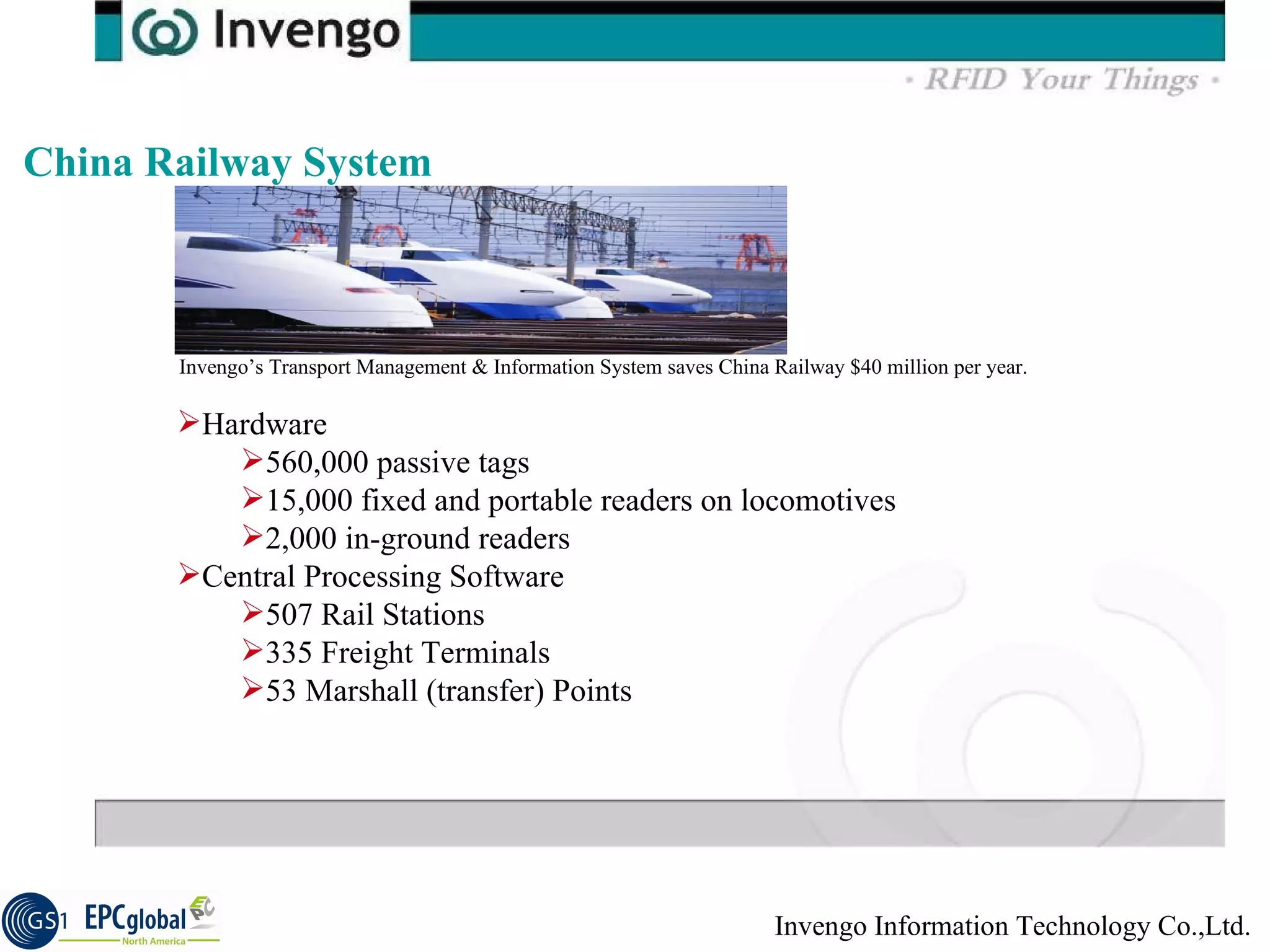

4. China Railway System Hardware 560,000 passive tags 15,000 fixed and portable readers on locomotives 2,000 in-ground readers Central Processing Software 507 Rail Stations 335 Freight Terminals 53 Marshall (transfer) Points Invengo’s Transport Management & Information System saves China Railway $40 million per year.

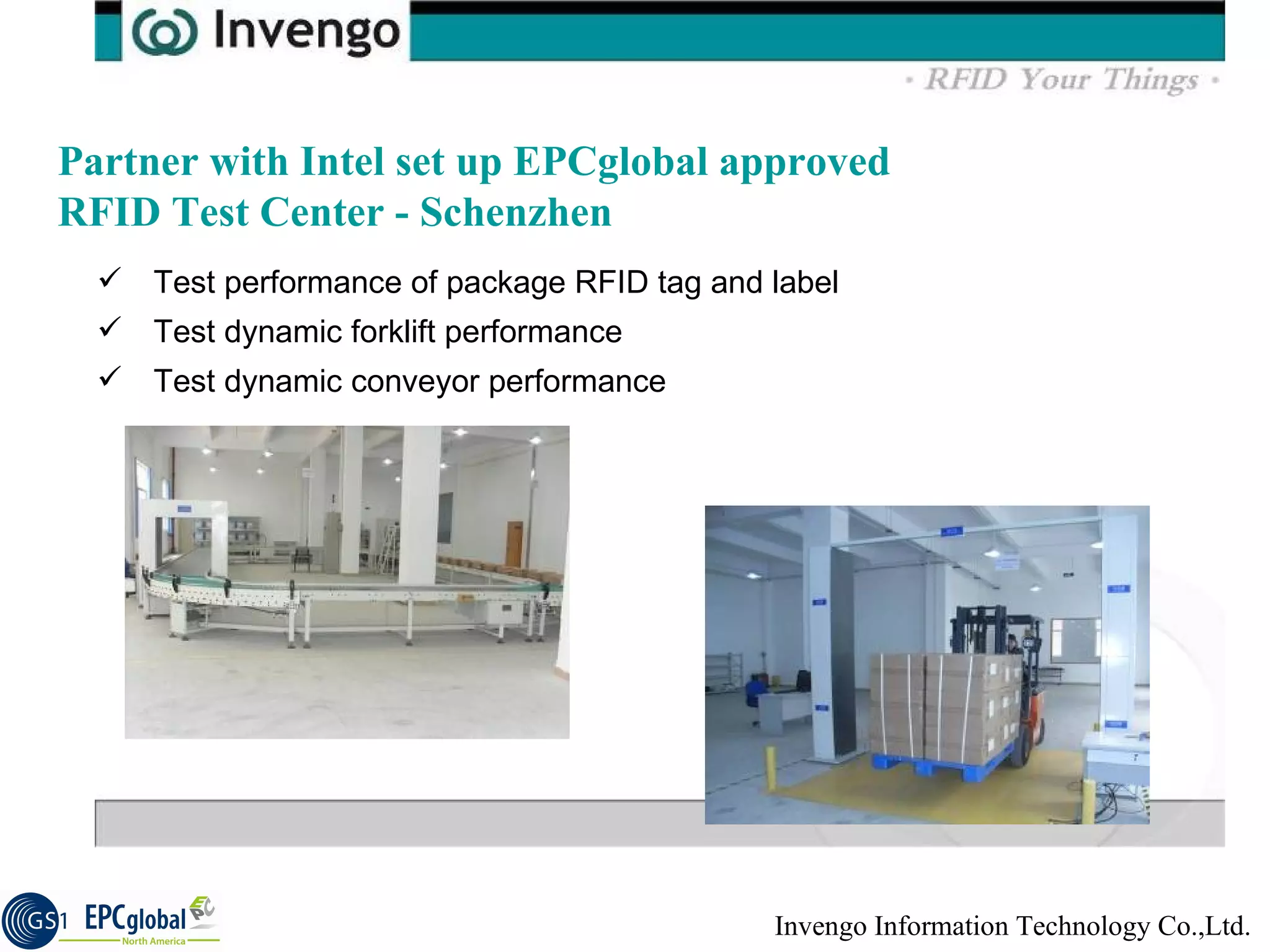

5. Partner with Intel set up EPCglobal approved RFID Test Center - Schenzhen Test performance of package RFID tag and label Test dynamic forklift performance Test dynamic conveyor performance

6. Partners

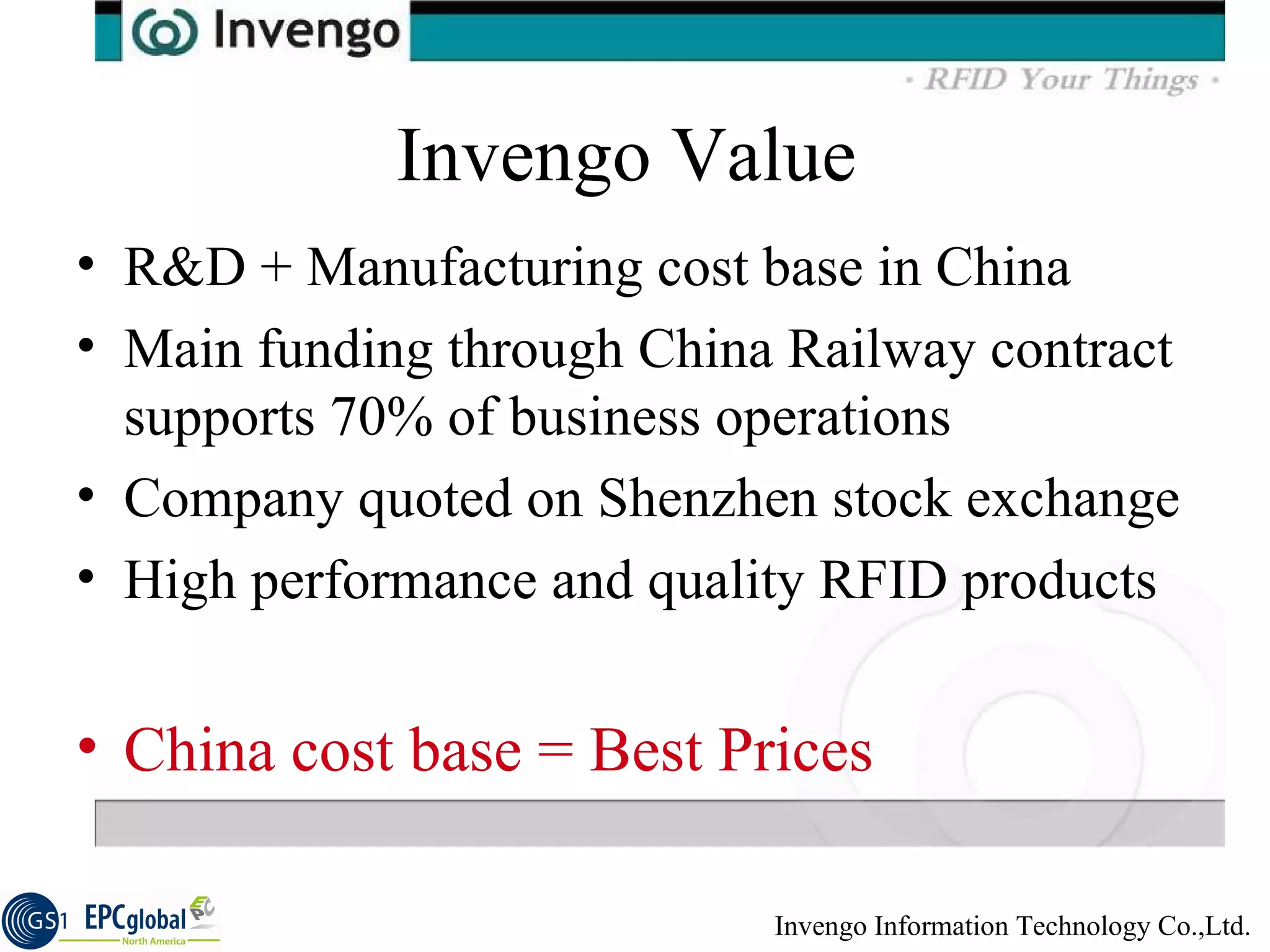

7. Invengo Value R&D + Manufacturing cost base in China Main funding through China Railway contract supports 70% of business operations Company quoted on Shenzhen stock exchange High performance and quality RFID products China cost base = Best Prices

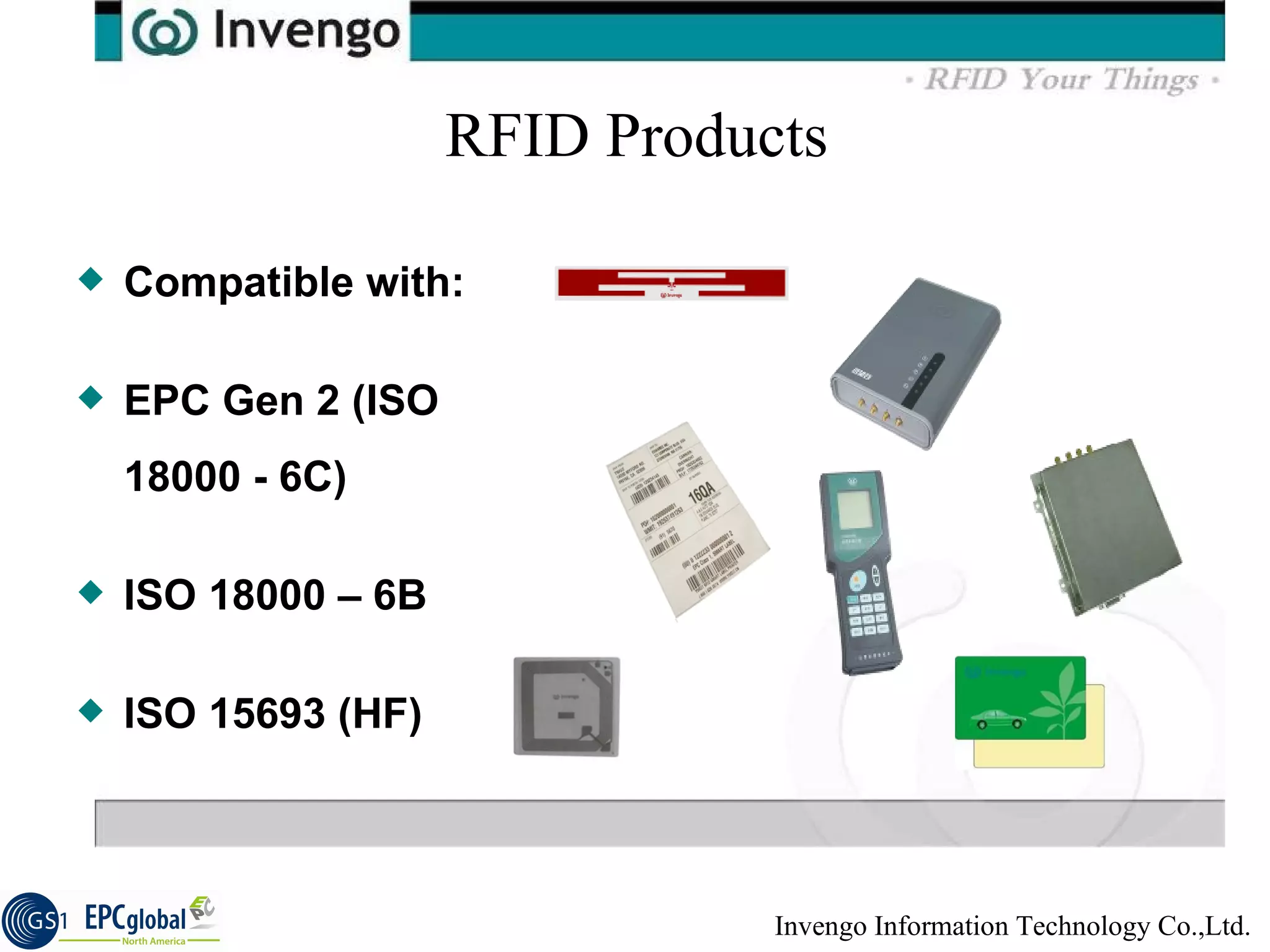

8. RFID Products Compatible with: EPC Gen 2 (ISO 18000 - 6C) ISO 18000 – 6B ISO 15693 (HF)

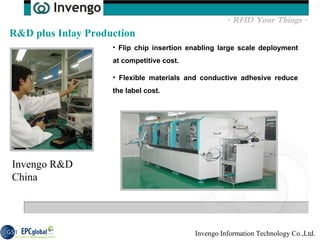

9. R&D plus Inlay Production Flip chip insertion enabling large scale deployment at competitive cost . Flexible materials and conductive adhesive reduce the label cost. Invengo R&D China

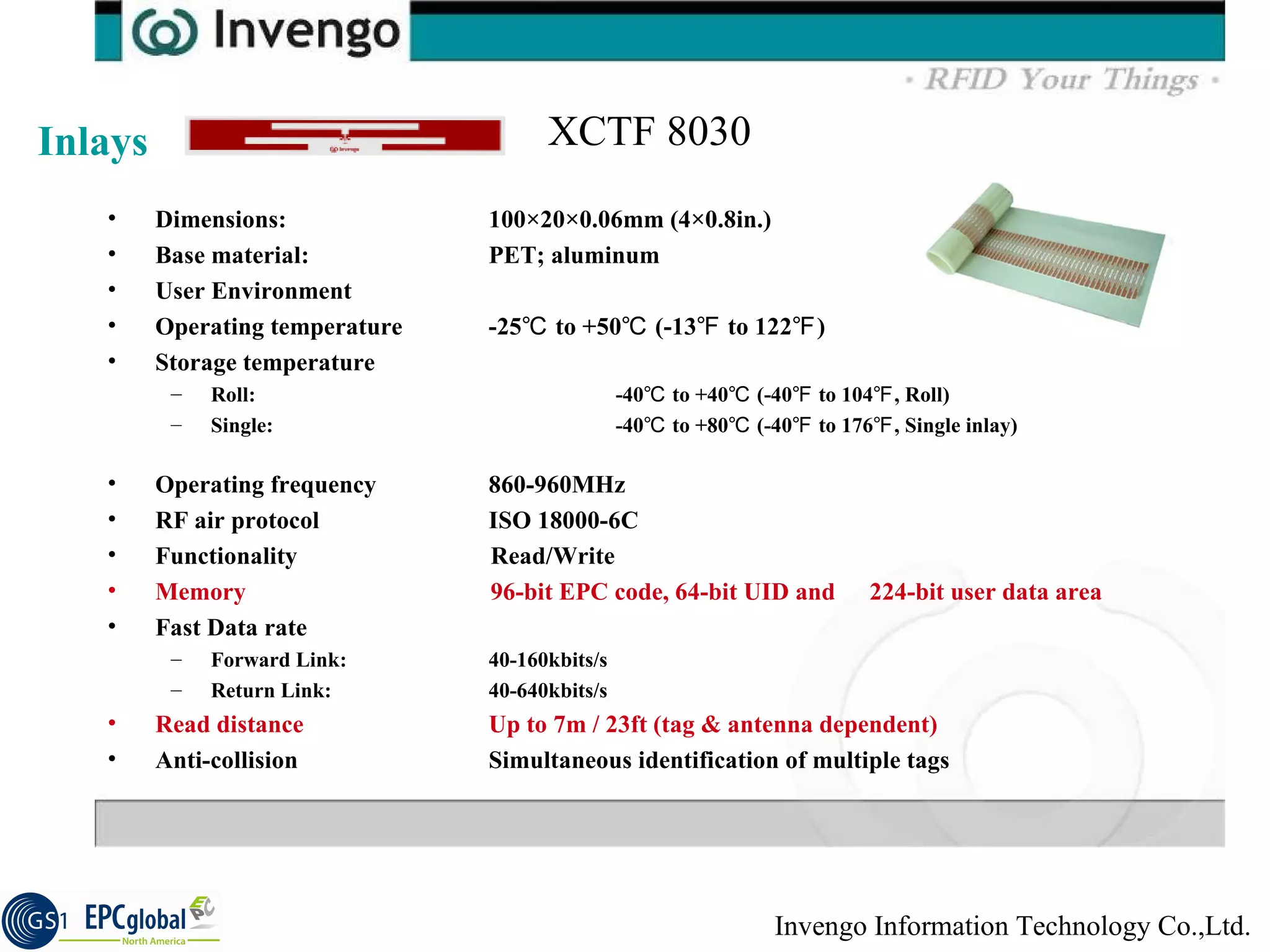

10. Dimensions: 100×20×0.06mm (4×0.8in.) Base material: PET; aluminum User Environment Operating temperature -25℃ to +50℃ (-13℉ to 122℉) Storage temperature Roll: -40℃ to +40℃ (-40℉ to 104℉, Roll) Single: -40℃ to +80℃ (-40℉ to 176℉, Single inlay) Operating frequency 860-960MHz RF air protocol ISO 18000-6C Functionality Read/Write Memory 96-bit EPC code, 64-bit UID and 224-bit user data area Fast Data rate Forward Link: 40-160kbits/s Return Link: 40-640kbits/s Read distance Up to 7m / 23ft (tag & antenna dependent) Anti-collision Simultaneous identification of multiple tags Inlays XCTF 8030

11. Dimensions: 94×20×mm Base material: PET; aluminum Operating temperature -10℃ to +50℃ (14℉ to 122℉) Storage temperature On Real: -40℃ to +40℃ (-40℉ to 104℉) Single inlay: -40℃ to +80℃ (-40℉ to 176℉) Performance Specifications Operating frequency 860-960MHz RF air protocol ISO 18000-6C Functionality Read/Write Memory 240-bit EPC code, 64-bit TID and 0/512-bit programmable user memory Data retention Up to 10 years Read distance Up to 7m (23ft); reader & antenna dependent Anti Collision: Simultaneous identification Inlays XCTF 8030A

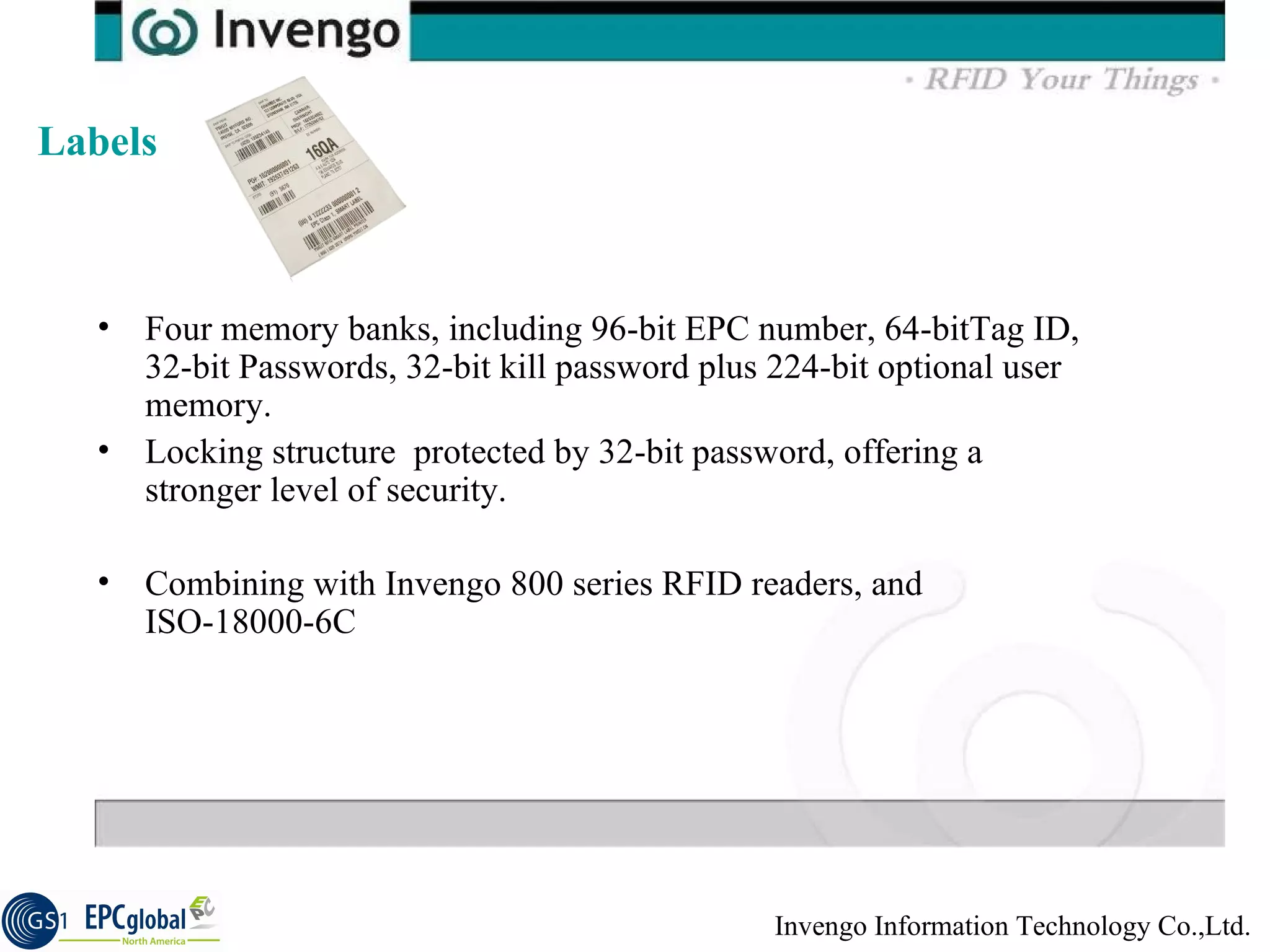

12. Four memory banks, including 96-bit EPC number, 64-bitTag ID, 32-bit Passwords, 32-bit kill password plus 224-bit optional user memory. Locking structure protected by 32-bit password, offering a stronger level of security. Combining with Invengo 800 series RFID readers, and ISO-18000-6C Labels

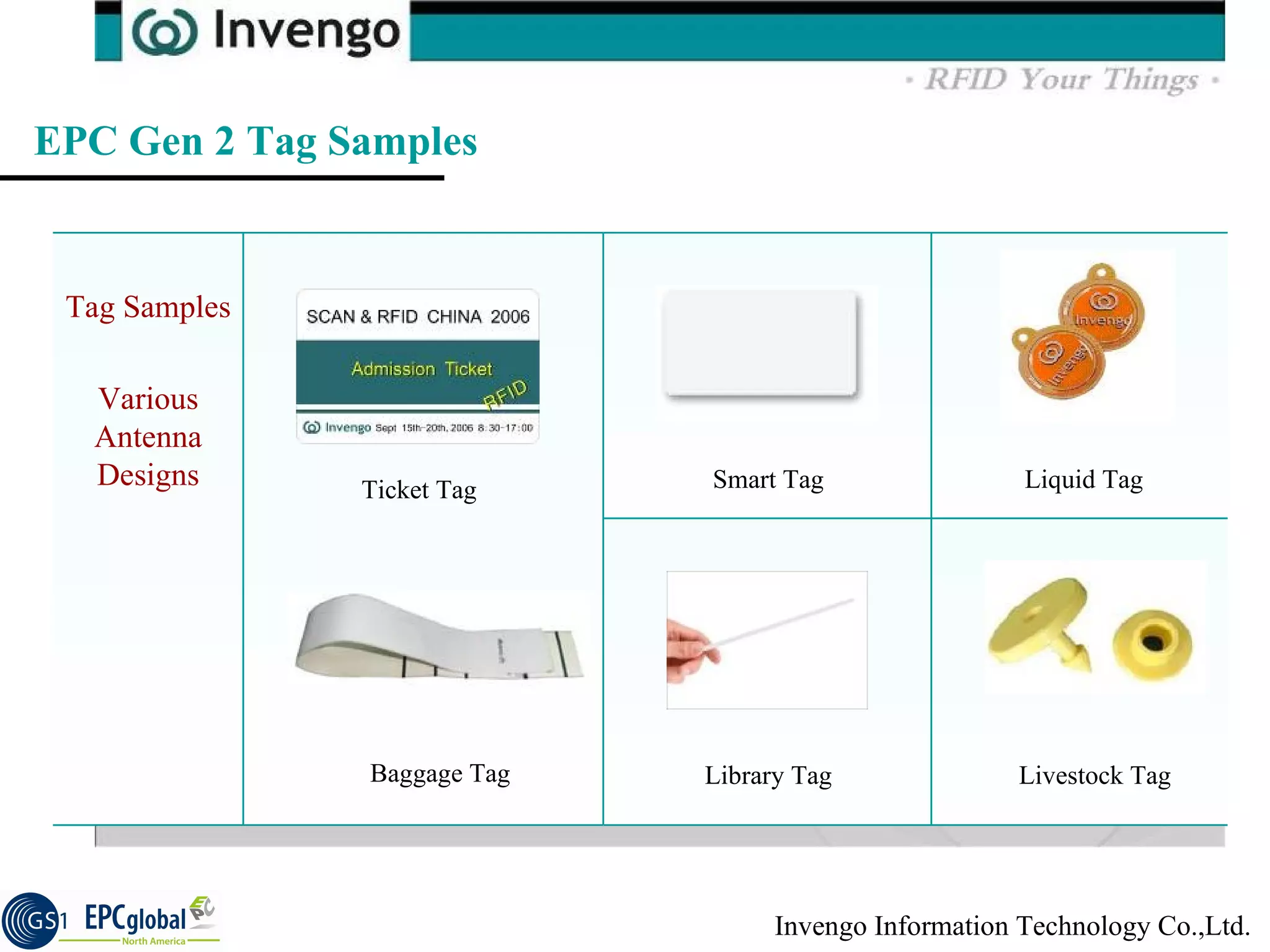

13. EPC Gen 2 Tag Samples Ticket Tag Smart Tag Library Tag Liquid Tag Livestock Tag Baggage Tag Tag Samples Various Antenna Designs

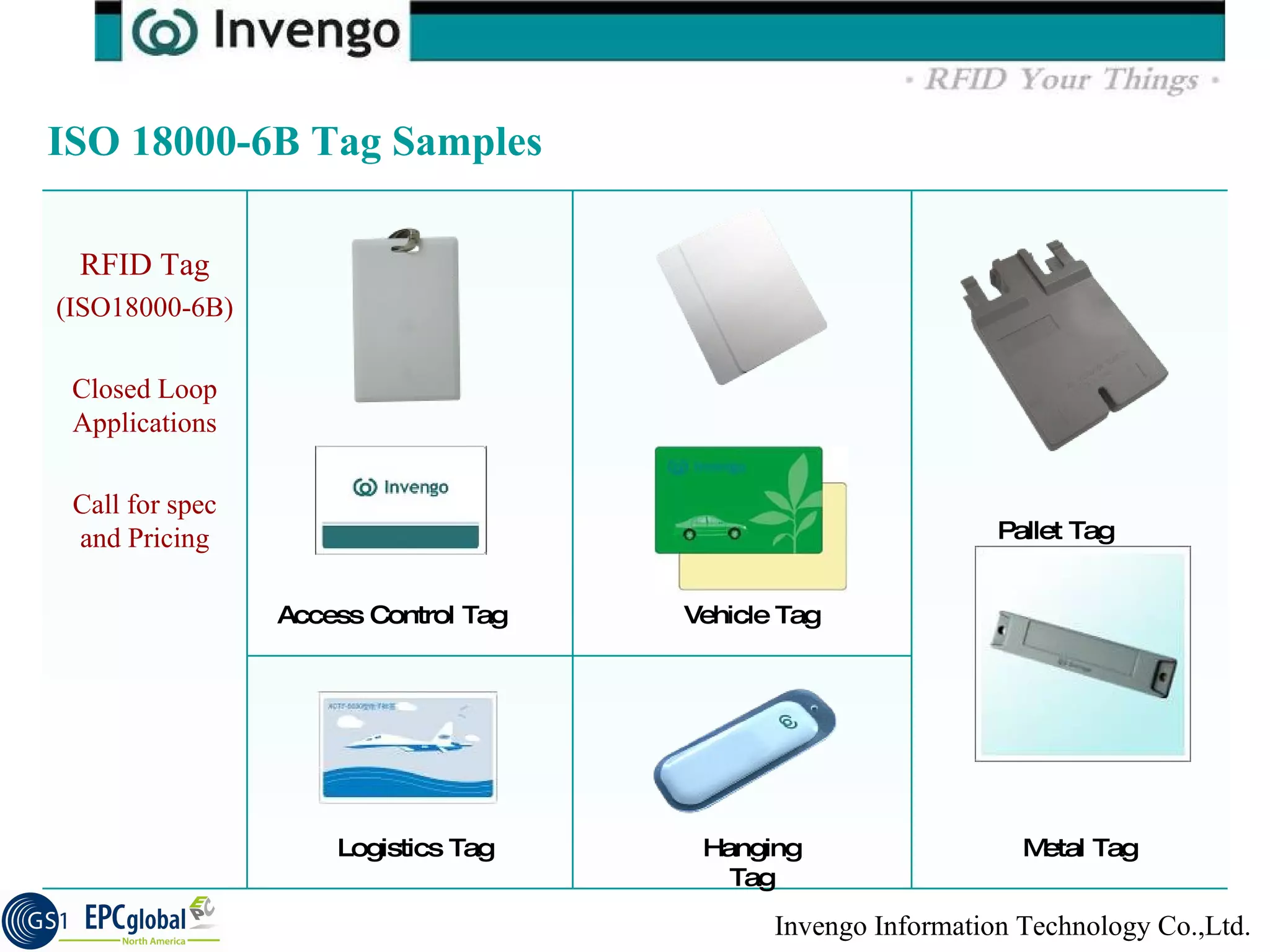

14. Access Control Tag Metal Tag Vehicle Tag Pallet Tag Logistics Tag Hanging Tag ISO 18000-6B Tag Samples RFID Tag (ISO18000-6B) Closed Loop Applications Call for spec and Pricing

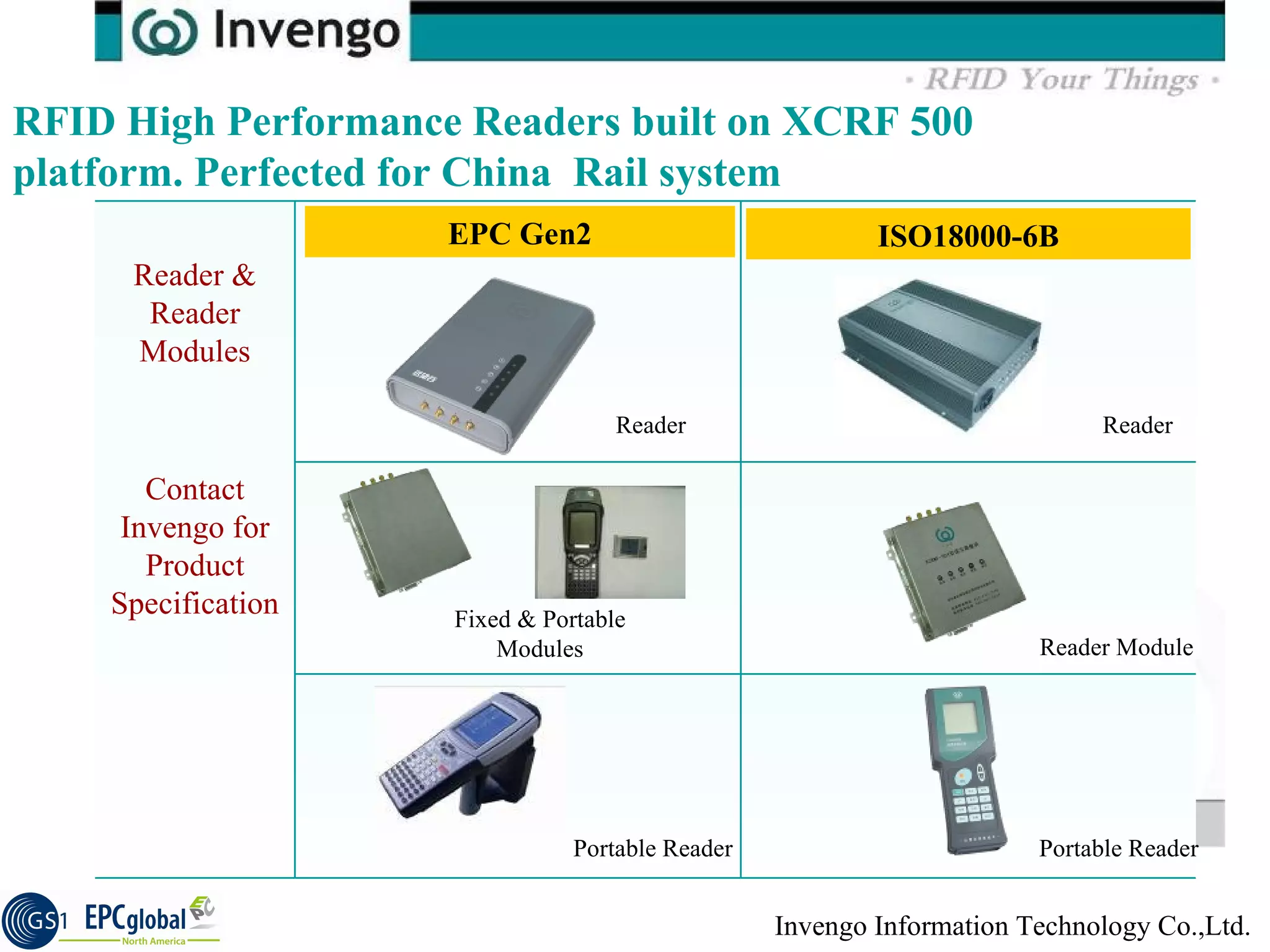

15. RFID High Performance Readers built on XCRF 500 platform. Perfected for China Rail system Reader Reader Module Reader Portable Reader Fixed & Portable Modules Portable Reader EPC Gen2 ISO18000-6B Reader & Reader Modules Contact Invengo for Product Specification

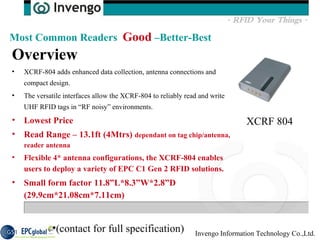

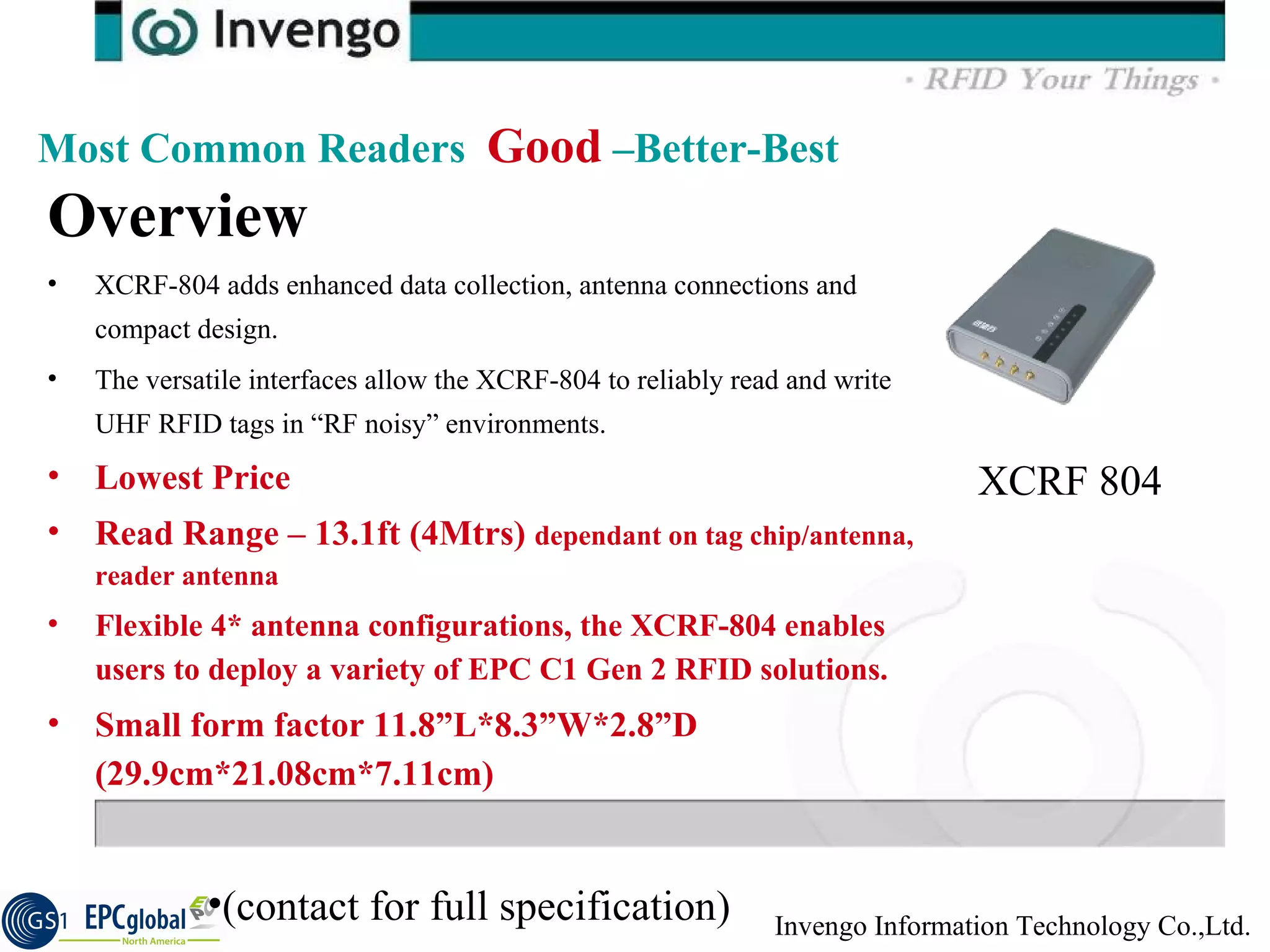

16. Overview XCRF-804 adds enhanced data collection, antenna connections and compact design. The versatile interfaces allow the XCRF-804 to reliably read and write UHF RFID tags in “RF noisy” environments. Lowest Price Read Range – 13.1ft (4Mtrs) dependant on tag chip/antenna, reader antenna Flexible 4* antenna configurations, the XCRF-804 enables users to deploy a variety of EPC C1 Gen 2 RFID solutions. Small form factor 11.8”L*8.3”W*2.8”D (29.9cm*21.08cm*7.11cm) Most Common Readers Good –Better-Best XCRF 804 (contact for full specification)

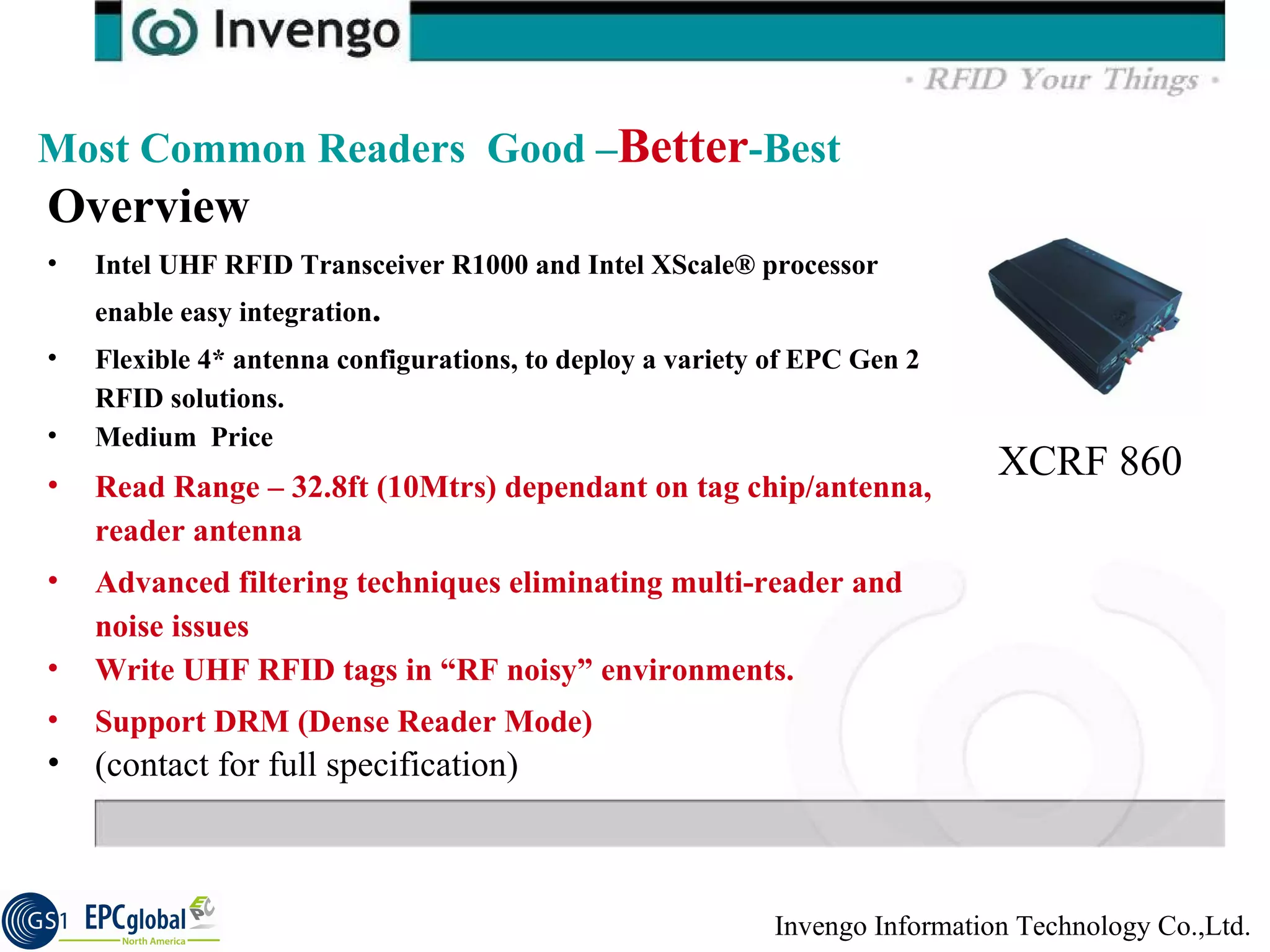

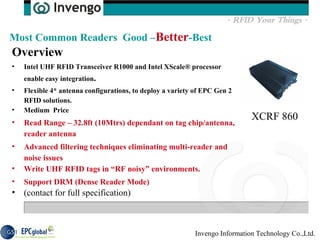

17. Overview Intel UHF RFID Transceiver R1000 and Intel XScale® processor enable easy integration . Flexible 4* antenna configurations, to deploy a variety of EPC Gen 2 RFID solutions. Medium Price Read Range – 32.8ft (10Mtrs) dependant on tag chip/antenna, reader antenna Advanced filtering techniques eliminating multi-reader and noise issues Write UHF RFID tags in “RF noisy” environments. Support DRM (Dense Reader Mode) (contact for full specification) Most Common Readers Good – Better -Best XCRF 860

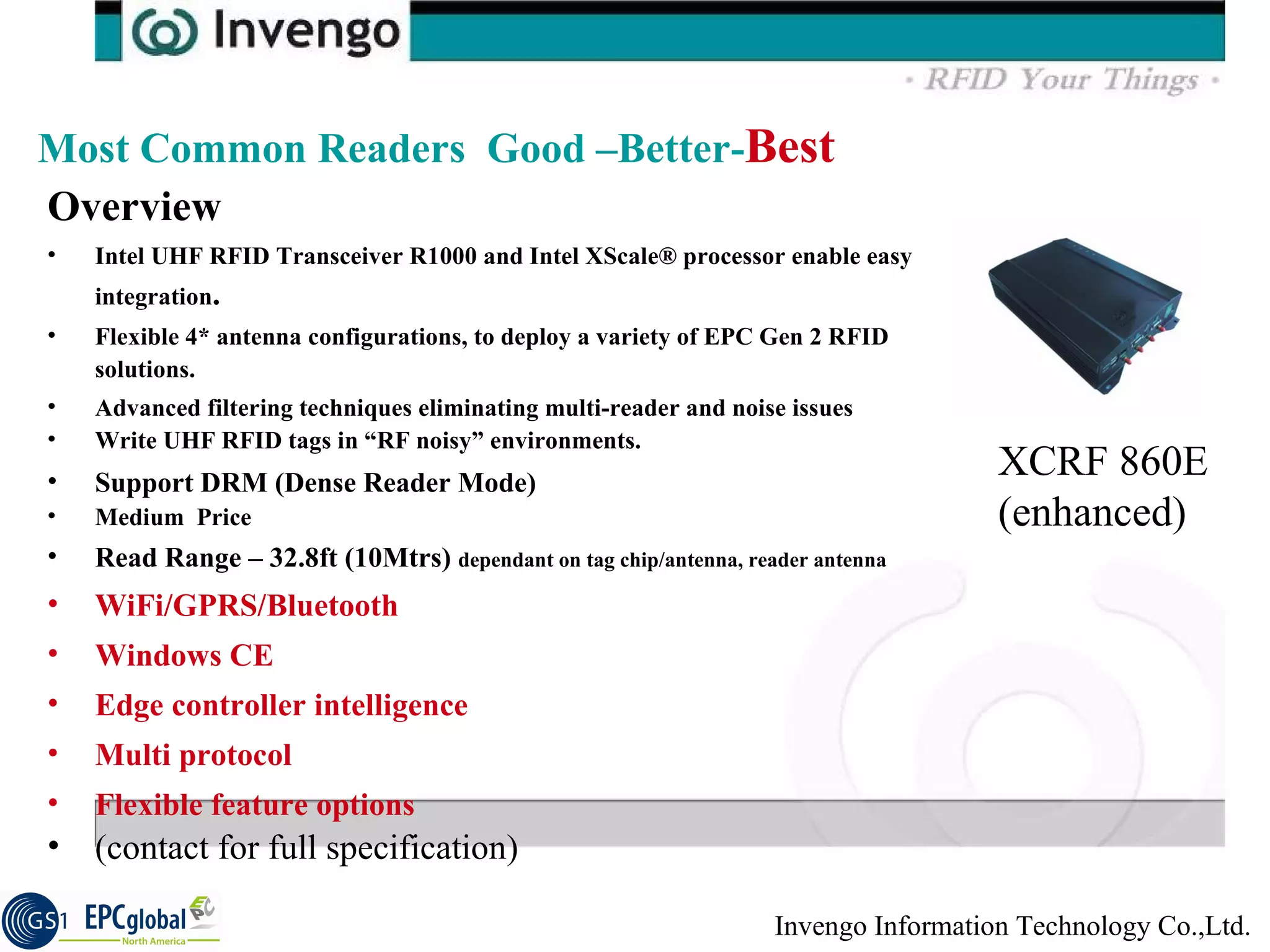

18. Overview Intel UHF RFID Transceiver R1000 and Intel XScale® processor enable easy integration . Flexible 4* antenna configurations, to deploy a variety of EPC Gen 2 RFID solutions. Advanced filtering techniques eliminating multi-reader and noise issues Write UHF RFID tags in “RF noisy” environments. Support DRM (Dense Reader Mode) Medium Price Read Range – 32.8ft (10Mtrs) dependant on tag chip/antenna, reader antenna WiFi/GPRS/Bluetooth Windows CE Edge controller intelligence Multi protocol Flexible feature options (contact for full specification) Most Common Readers Good –Better- Best XCRF 860E (enhanced)

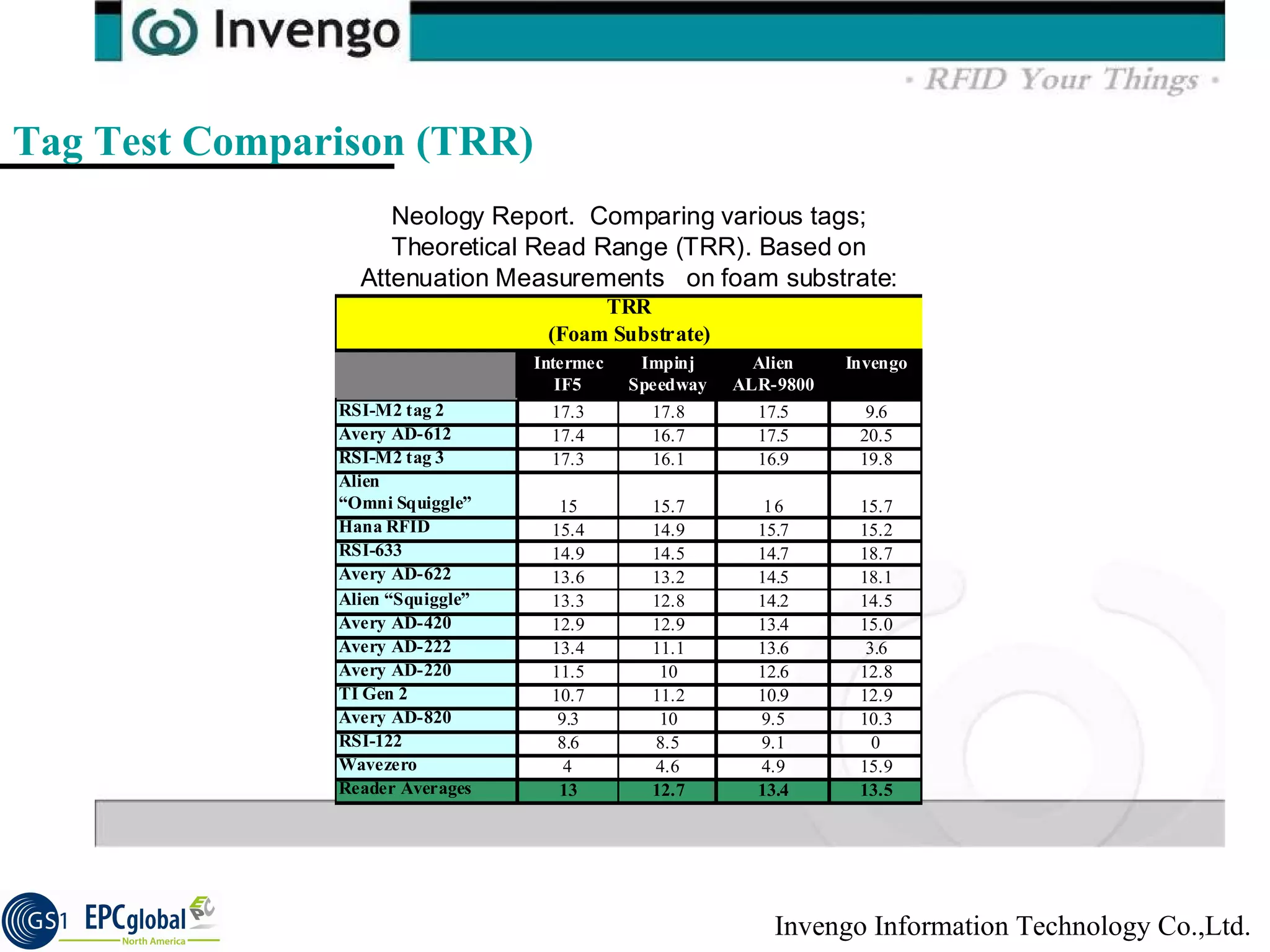

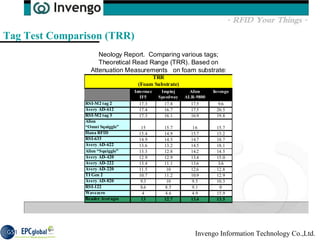

19. Tag Test Comparison (TRR)

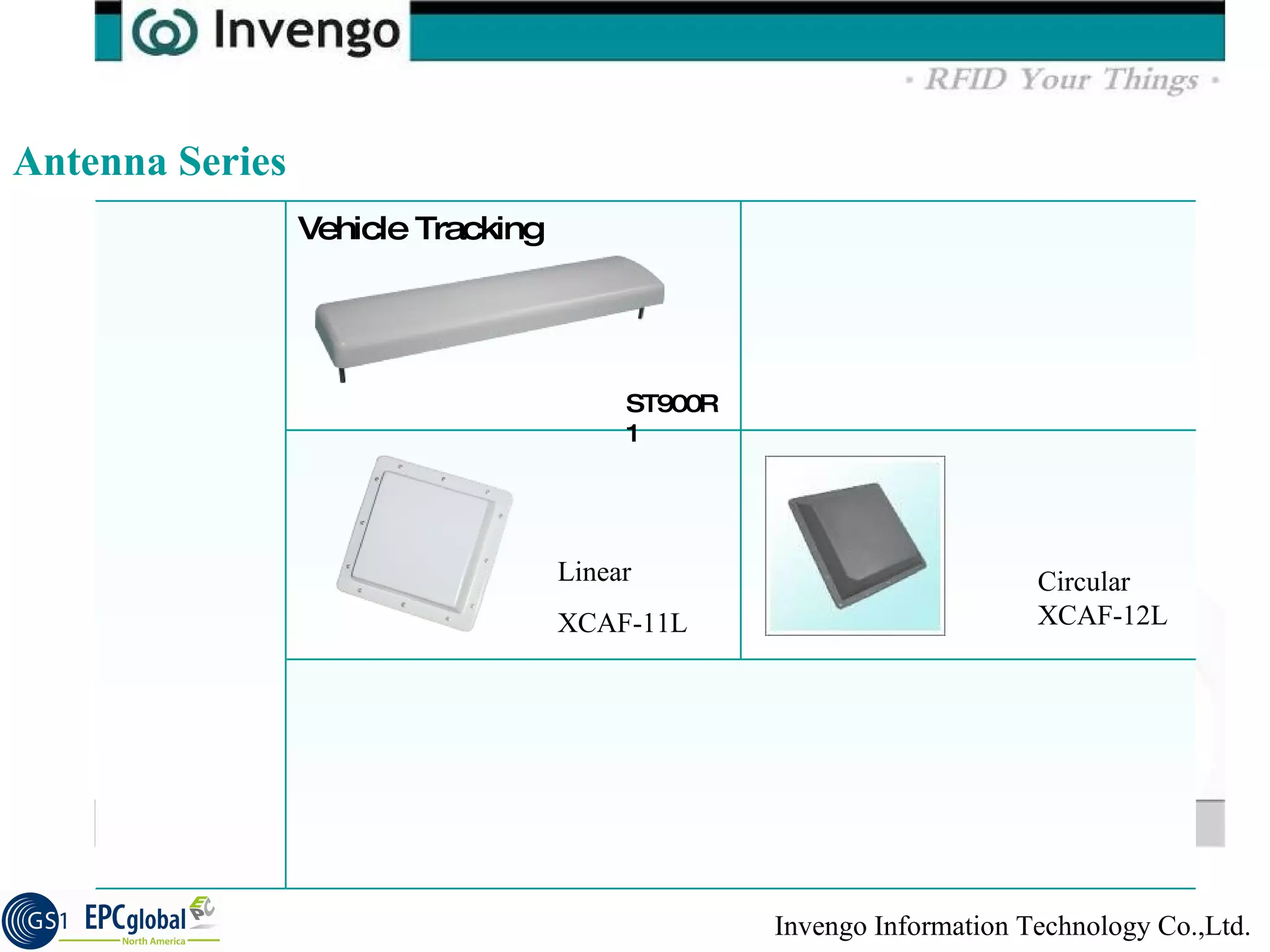

20. Antenna Series ST900R1 Linear XCAF-11L Circular XCAF-12L Vehicle Tracking

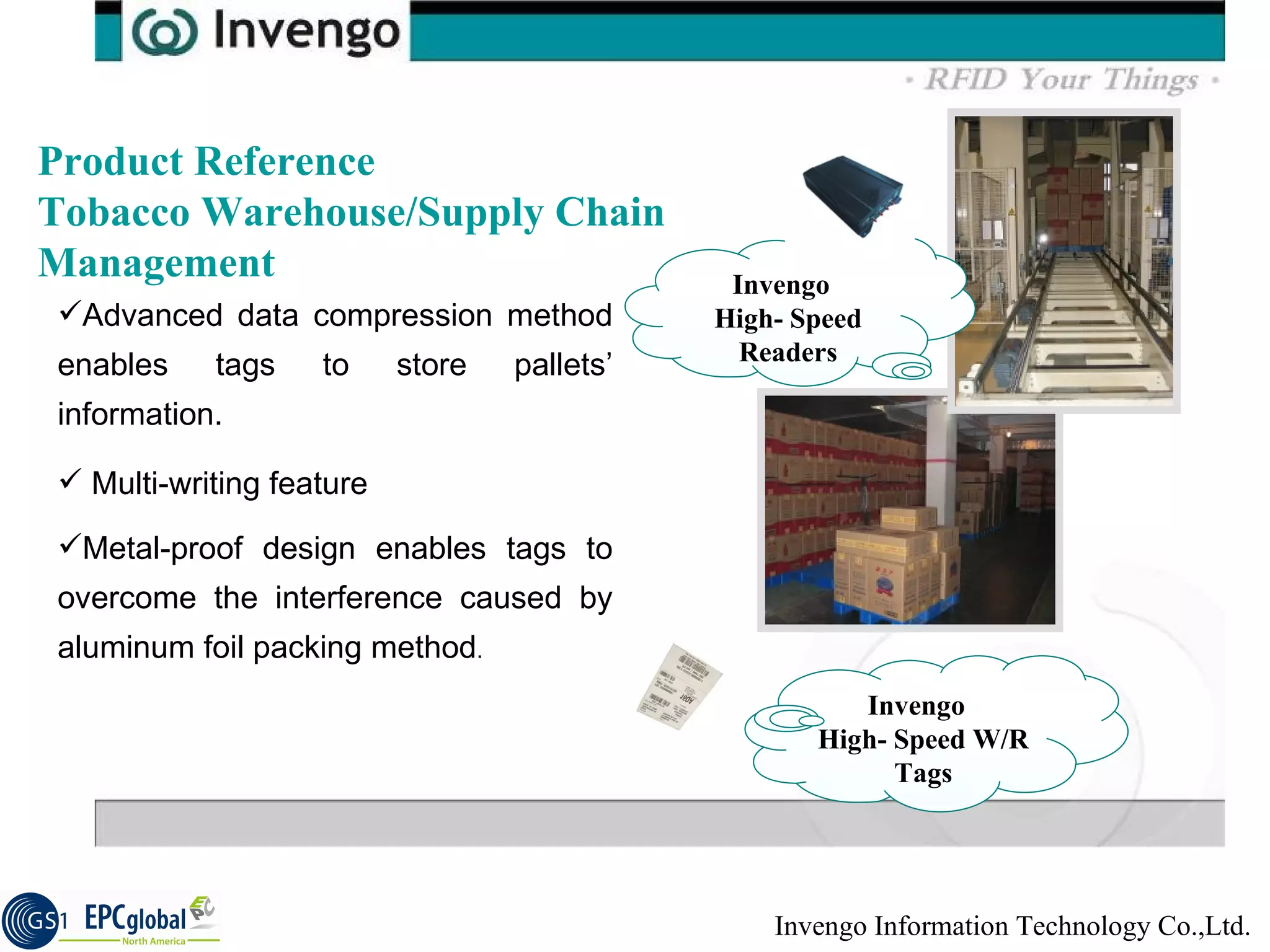

21. Product Reference Tobacco Warehouse/Supply Chain Management Invengo High- Speed W/R Tags Advanced data compression method enables tags to store pallets’ information. Multi-writing feature Metal-proof design enables tags to overcome the interference caused by aluminum foil packing method . Invengo High- Speed Readers

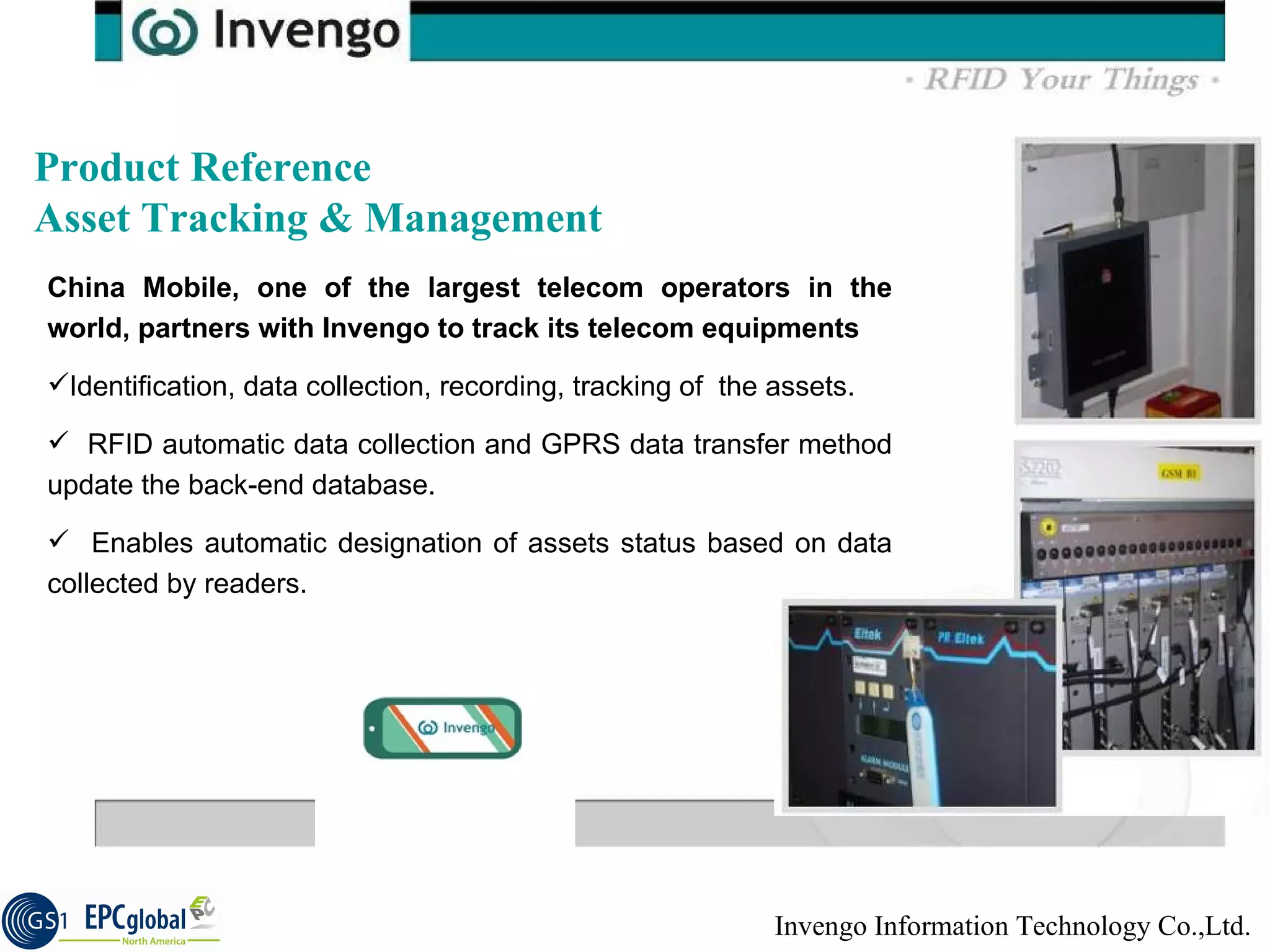

22. Product Reference Asset Tracking & Management China Mobile, one of the largest telecom operators in the world, partners with Invengo to track its telecom equipments Identification, data collection, recording, tracking of the assets. RFID automatic data collection and GPRS data transfer method update the back-end database. Enables automatic designation of assets status based on data collected by readers.

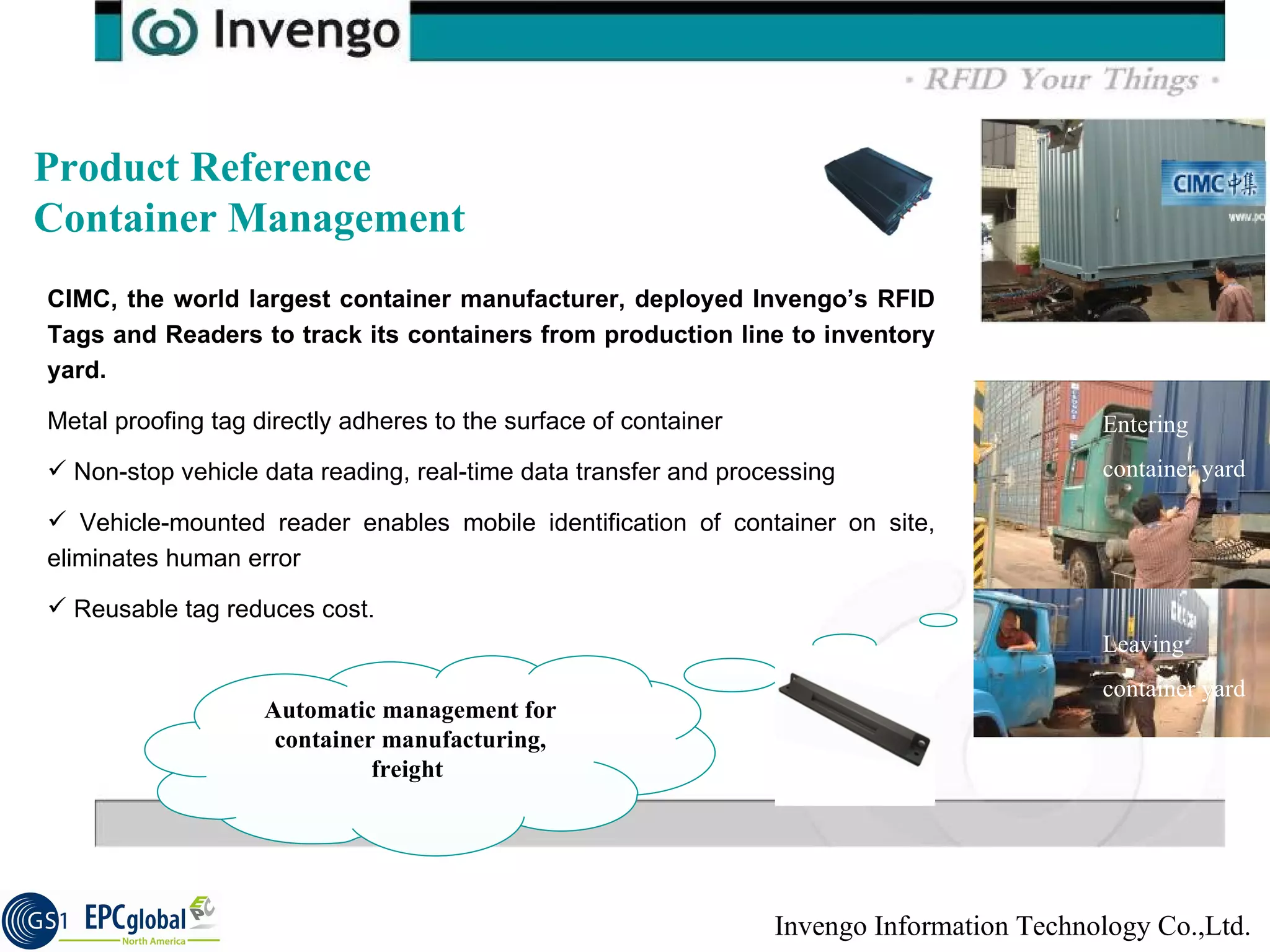

23. Product Reference Container Management CIMC, the world largest container manufacturer, deployed Invengo’s RFID Tags and Readers to track its containers from production line to inventory yard. Metal proofing tag directly adheres to the surface of container Non-stop vehicle data reading, real-time data transfer and processing Vehicle-mounted reader enables mobile identification of container on site, eliminates human error Reusable tag reduces cost. Leaving factory Entering container yard Leaving container yard Automatic management for container manufacturing, freight

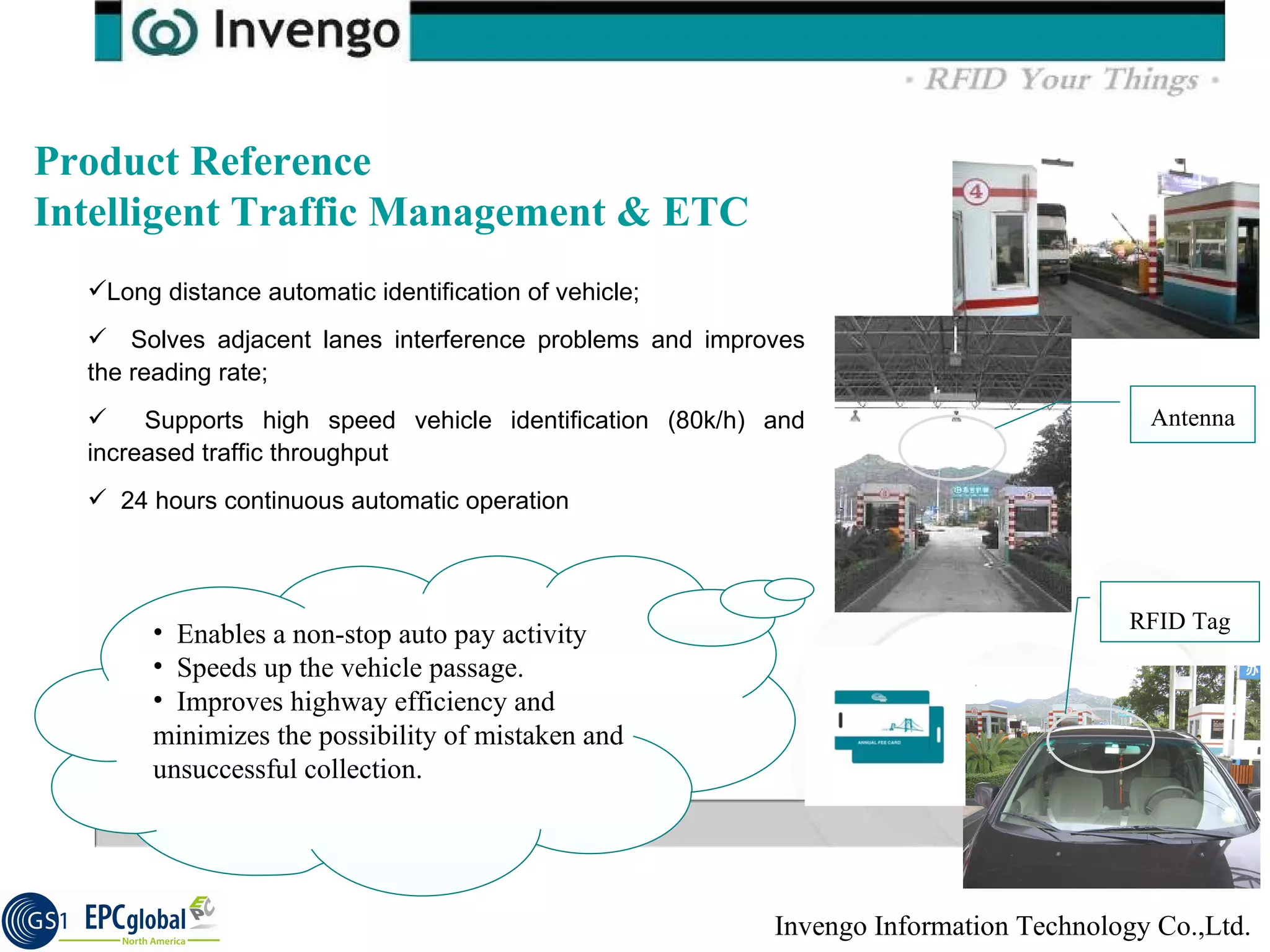

24. Product Reference Intelligent Traffic Management & ETC Long distance automatic identification of vehicle; Solves adjacent lanes interference problems and improves the reading rate; Supports high speed vehicle identification (80k/h) and increased traffic throughput 24 hours continuous automatic operation Antenna RFID Tag Enables a non-stop auto pay activity Speeds up the vehicle passage. Improves highway efficiency and minimizes the possibility of mistaken and unsuccessful collection.

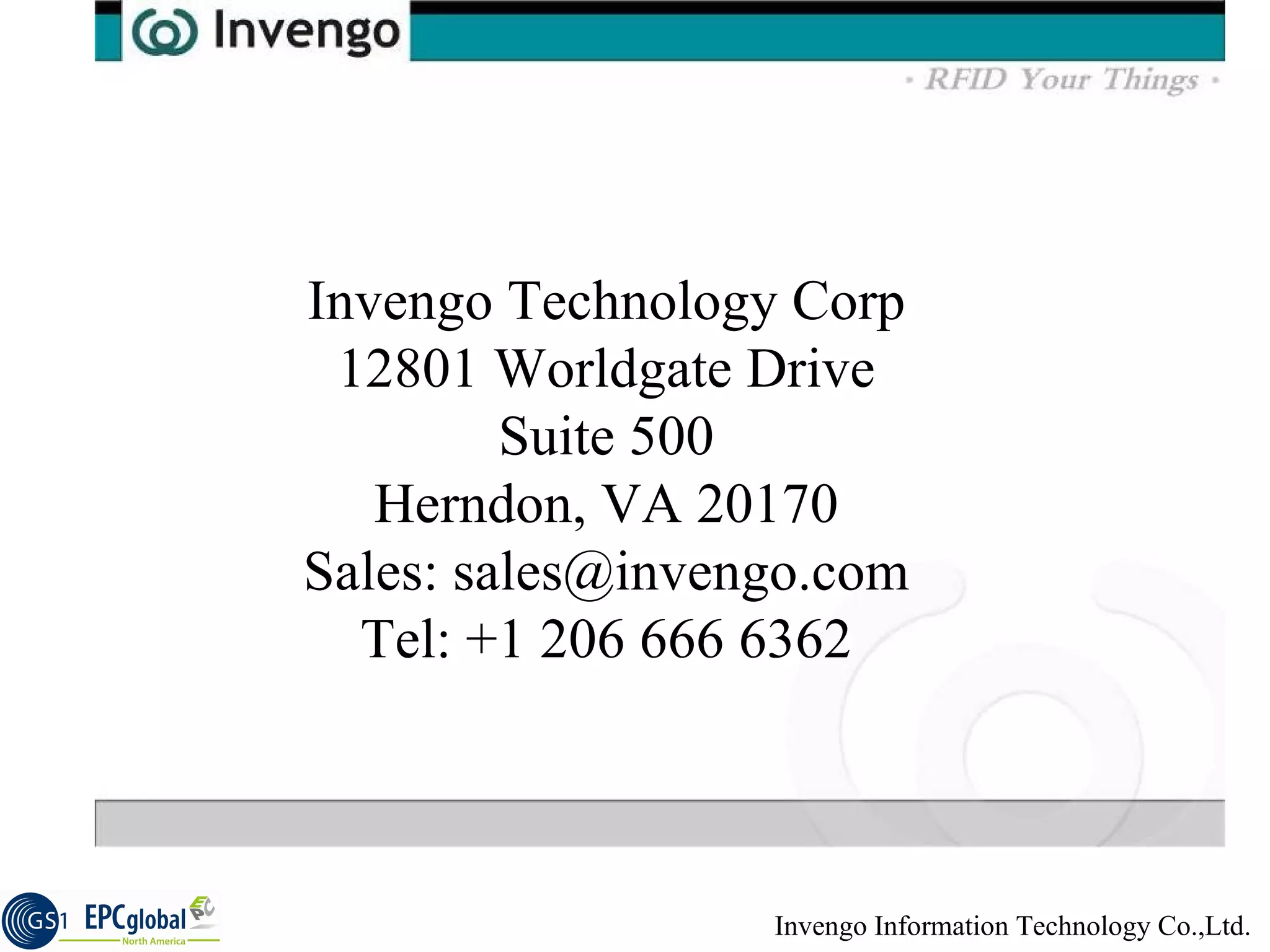

25. Invengo Technology Corp 12801 Worldgate Drive Suite 500 Herndon, VA 20170 Sales: sales@invengo.com Tel: +1 206 666 6362

26. Invengo China Rail Products For Information Only available in Asia

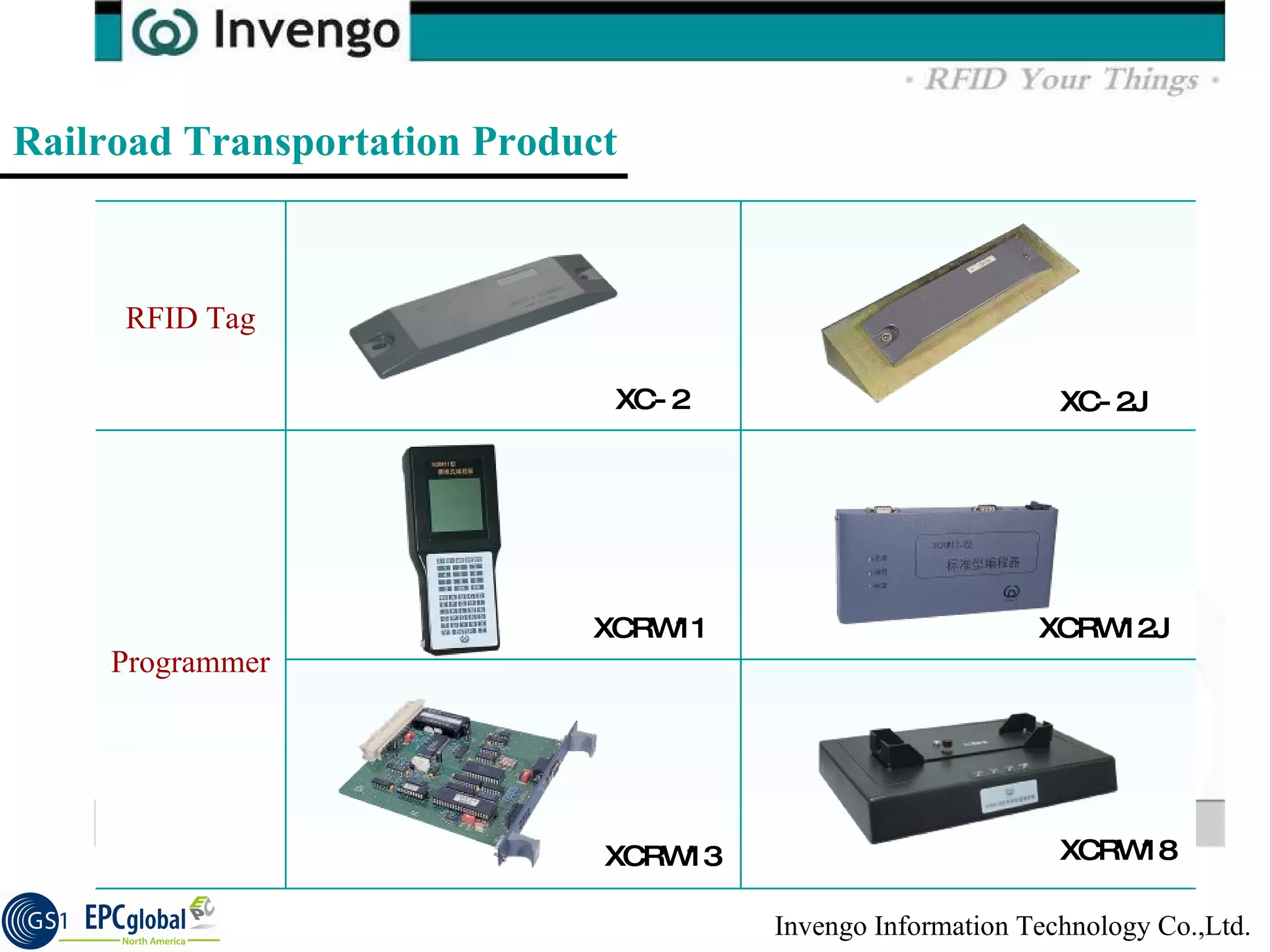

27. Railroad Transportation Product XC-2 XCRW11 XCRW13 XCRW12J XC-2J XCRW18 Programmer RFID Tag

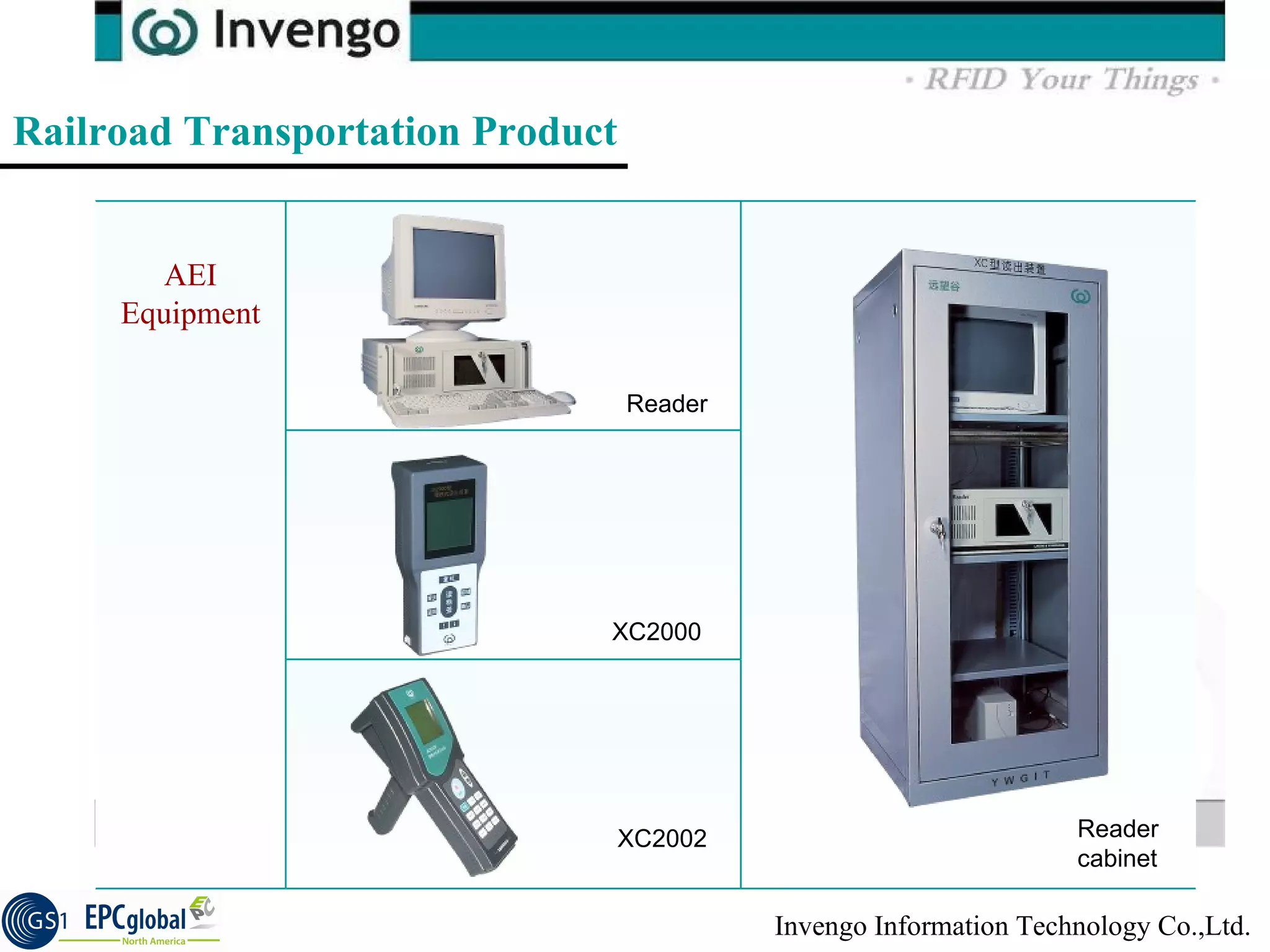

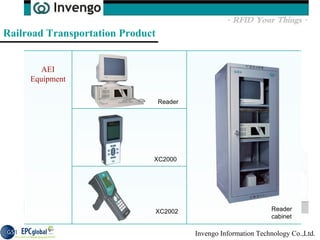

28. Reader Reader cabinet XC2000 XC2002 Railroad Transportation Product AEI Equipment

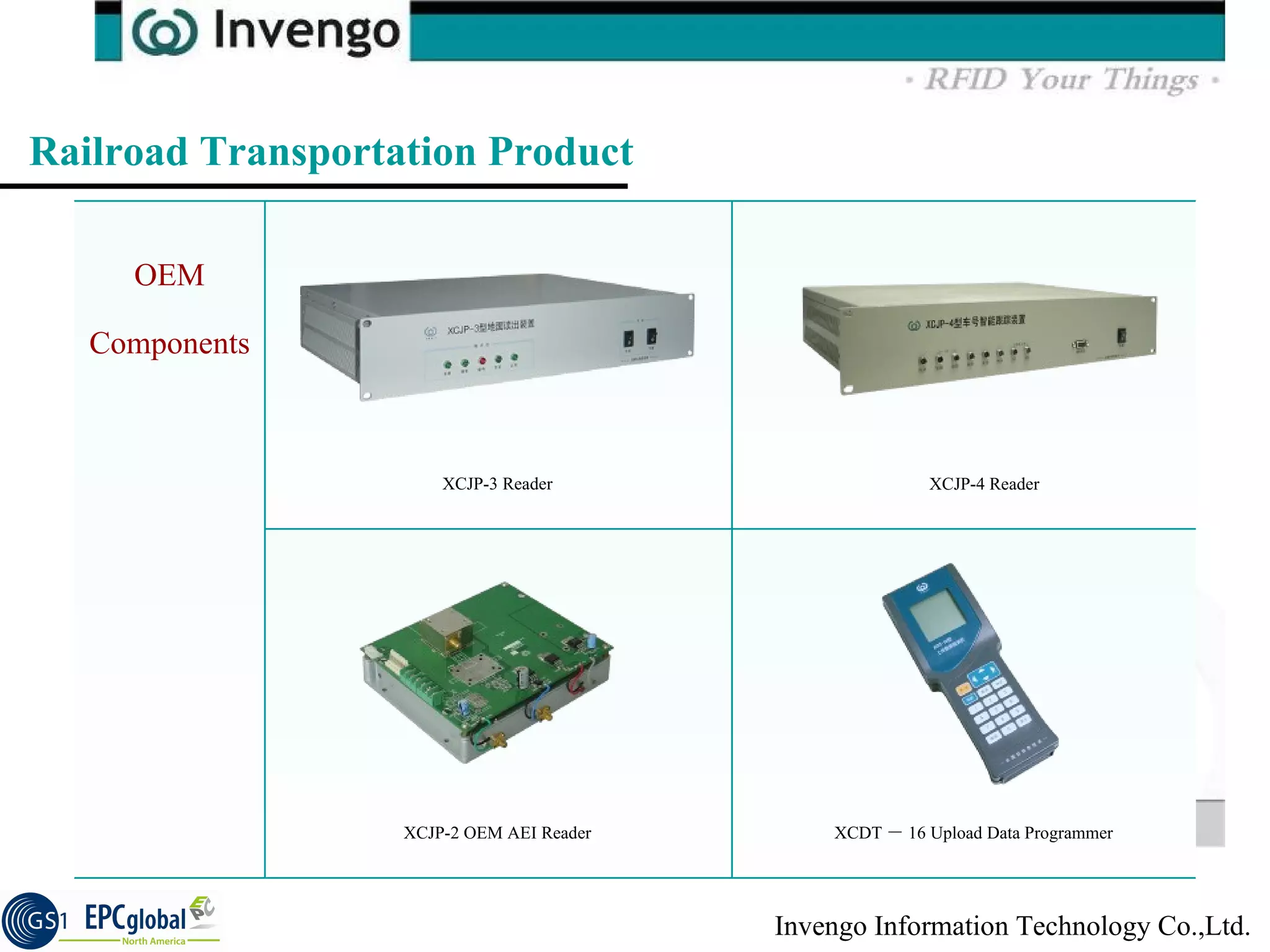

29. Railroad Transportation Product XCJP-3 Reader XCJP-2 OEM AEI Reader XCJP-4 Reader XCDT － 16 Upload Data Programmer OEM Components
