1. Orchestrating Clusters
with Ironfan and Chef
Robert J. Berger - CTO Runa, Inc.
rberger@runa.com

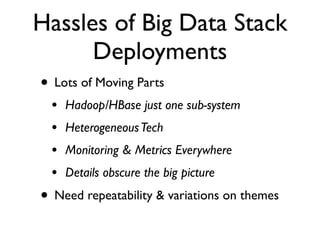

2. Hassles of Big Data Stack
Deployments
• Lots of Moving Parts
• Hadoop/HBase just one sub-system
• Heterogeneous Tech
• Monitoring & Metrics Everywhere
• Details obscure the big picture
• Need repeatability & variations on themes

3. The Forest for the Trees

4. Forest
Dash App
Monitor
board Servers
Elastic Hadoop
AMQP
Search M/R
Session
HBase MySQL
Store

5. MySQL
Slave
Slave Slave
Slave Master
GDash
Statsd
Sensu Slave
Logstash Slave
Ganglia Slave
Monitoring
Graphite Slave
Web Slave Regionsrvr
Slave Regionsrvr
Slave
Hadoop
M/R
Slave Regionsrvr

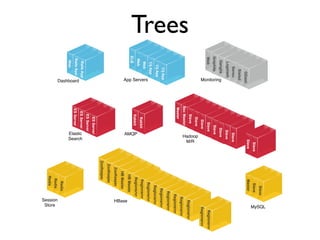

Trees
Sec Master
Regionsrvr
Master
Regionsrvr
Regionsrvr
Clj App Regionsrvr
Clj App
Regionsrvr
Clj App
Regionsrvr
App Servers
Web
Rabbit Regionsrvr
Web
Rabbit AMQP Regionsrvr
ELB
HB Master
HBase
HB Master
ZooKeeper
ZooKeeper
ZooKeeper
ES Server
ES Server
Rails App ES Server
Search
Elastic
Dashboard
Rails App ES Server
Web
Redis
Redis
Session
Store
Redis

6. Leaves
Dashboard App Servers Monitoring
Nginx MySQL Client Elastic Load Balancer MySQL Client Nginx Ganglia Server
Reverse Proxy Upstart Config Nginx Upstart Config Reverse Proxy Ganglia Web
Unicorn Logstash Client Reverse Proxy Logstash Client Java Statsd Server
Rails Swarmiji Leiningen Graphite Server
Dashboard App Java Jark Grpahite Web
Java Leiningen Postfix Python
Postfix Jark Cron jobs Logstash
Cron jobs Clojure Apps Sensu Server MySQL Client
Sensu client HBase Client Sensu Web Upstart Config
Sensu plugins Postfix Sensu Client Logstash Client
Cron jobs Sensu Plugins
Sensu client
Sensu plugins
Elastic Search AMQP Hadoop M/R
Elastic Search Server RabbitMQ Namenode
Java RabbitMQ Plugins Secondary Namenode
Cron jobs Cluster Config Tasktracker
Sensu client Erlang Jobtrackers
Sensu plugins Cron jobs Bootstrap Namenmode
Upstart Config Sensu client Java
Sensu plugins JMX
Upstart Config Cron jobs
Sensu client
Sensu plugins
Ganglia Client
Upstart Config
Session Store HBase MySQL
Redis Namenode Zookeeper MySQL Master
Cron jobs Secondary Namenode HBase Master MySQL Slaves
Sensu client Tasktracker Regionserver Cluster Setup
Sensu plugins Jobtrackers Cron jobs
Upstart Config Datanodes Sensu client
Bootstrap Namenmode Sensu plugins
Java Upstart Config
JMX
Cron jobs
Sensu client
Sensu plugins
Ganglia Client
Upstart Config

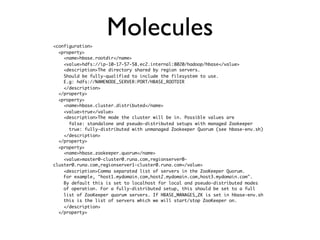

7. <configuration>
Molecules
<property>
<name>hbase.rootdir</name>
<value>hdfs://ip-10-17-57-58.ec2.internal:8020/hadoop/hbase</value>
<description>The directory shared by region servers.
Should be fully-qualified to include the filesystem to use.
E.g: hdfs://NAMENODE_SERVER:PORT/HBASE_ROOTDIR
</description>
</property>
<property>
<name>hbase.cluster.distributed</name>
<value>true</value>
<description>The mode the cluster will be in. Possible values are
false: standalone and pseudo-distributed setups with managed Zookeeper
true: fully-distributed with unmanaged Zookeeper Quorum (see hbase-env.sh)
</description>
</property>
<property>
<name>hbase.zookeeper.quorum</name>
<value>master0-cluster0.runa.com,regionserver0-
cluster0.runa.com,regionserver1-cluster0.runa.com</value>
<description>Comma separated list of servers in the ZooKeeper Quorum.
For example, "host1.mydomain.com,host2.mydomain.com,host3.mydomain.com".
By default this is set to localhost for local and pseudo-distributed modes
of operation. For a fully-distributed setup, this should be set to a full
list of ZooKeeper quorum servers. If HBASE_MANAGES_ZK is set in hbase-env.sh
this is the list of servers which we will start/stop ZooKeeper on.
</description>
</property>

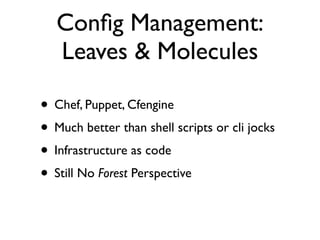

8. Config Management:
Leaves & Molecules
• Chef, Puppet, Cfengine
• Much better than shell scripts or cli jocks
• Infrastructure as code
• Still No Forest Perspective

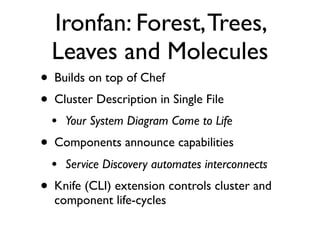

9. Ironfan: Forest, Trees,
Leaves and Molecules
• Builds on top of Chef
• Cluster Description in Single File
• Your System Diagram Come to Life
• Components announce capabilities
• Service Discovery automates interconnects
• Knife (CLI) extension controls cluster and
component life-cycles

10. Basic Chef
Community + Own Chef Server
Cookbooks Search Auth &
ACLs
Nodes Roles /
Cookbooks Data Bags
Attributes
N
N
N
Chef Knife:
Upload Cookboks to Chef Server N
Launch Instances /
Bootstrap Servers
VMs and/or Servers
Running Chef-Client
Chef Development Host

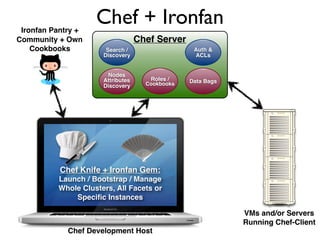

11. Ironfan Pantry +
Chef + Ironfan
Community + Own Chef Server
Cookbooks Search /
Search Auth &
Discovery ACLs
Nodes
Nodes
Attributes Roles /
Cookbooks Data Bags
Attributes
Discovery
N
N
N
Chef Knife + Ironfan Gem:
Launch / Bootstrap / Manage N
Whole Clusters, All Facets or
Specific Instances
VMs and/or Servers
Running Chef-Client
Chef Development Host

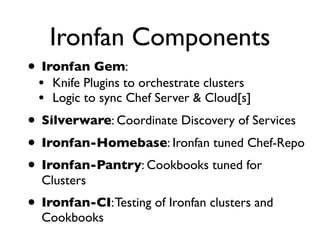

12. Ironfan Components
• Ironfan Gem:
• Knife Plugins to orchestrate clusters
• Logic to sync Chef Server & Cloud[s]
• Silverware: Coordinate Discovery of Services
• Ironfan-Homebase: Ironfan tuned Chef-Repo
• Ironfan-Pantry: Cookbooks tuned for
Clusters
• Ironfan-CI: Testing of Ironfan clusters and
Cookbooks

13. Cluster Config: Forest View
ClusterChef.cluster 'base0-cluster0' do
Global setup_role_implications
cloud :ec2 do
Cloud & Cluster region 'us-east-1'
Configs availability_zones ['us-east-1b']
backing 'ebs'
image_name 'natty'
security_group(cluster_root) do
authorize_port_range(22)
end
end
role "base_role"
role "chef_client"
role "base0-cluster0"
role "production"
role "runastack"
role "ebs_volumes_attach" Roles & Recipes
role "ebs_volumes_mount"
are the “Leaves”
Facets are facet 'master' do
the “Trees” instances 1
cloud.image_id 'ami-93c31afa'
cloud.flavor "cc1.4xlarge"
role "big_package"
role "hadoop_master"
role "hbase_master"
recipe "cluster_chef::cluster_webfront"
recipe "hbase::utils"
recipe "route53::runa"
role "monitored_client"
end

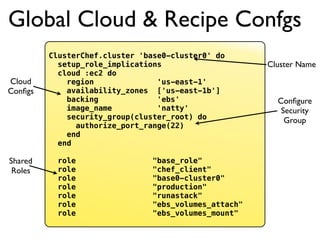

14. Global Cloud & Recipe Confgs
ClusterChef.cluster 'base0-cluster0' do
setup_role_implications Cluster Name
cloud :ec2 do
Cloud region 'us-east-1'
Configs availability_zones ['us-east-1b']
backing 'ebs' Configure
image_name 'natty' Security
security_group(cluster_root) do Group
authorize_port_range(22)
end
end
Shared role "base_role"
Roles role "chef_client"
role "base0-cluster0"
role "production"
role "runastack"
role "ebs_volumes_attach"
role "ebs_volumes_mount"

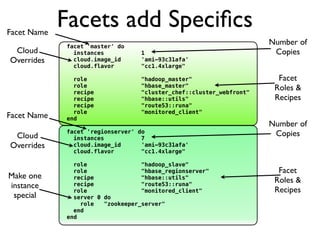

15. Facet Name
Facets add Specifics
facet 'master' do
Number of
Cloud instances 1 Copies
Overrides cloud.image_id 'ami-93c31afa'
cloud.flavor "cc1.4xlarge"
role "hadoop_master" Facet
role "hbase_master" Roles &
recipe "cluster_chef::cluster_webfront"
recipe "hbase::utils" Recipes
recipe "route53::runa"
role "monitored_client"
Facet Name end
Number of
Cloud
facet 'regionserver' do
instances 7
Copies
Overrides cloud.image_id 'ami-93c31afa'
cloud.flavor "cc1.4xlarge"
role "hadoop_slave"
role "hbase_regionserver" Facet
Make one recipe "hbase::utils"
Roles &
instance recipe "route53::runa"
role "monitored_client" Recipes
special server 0 do
role "zookeeper_server"
end
end

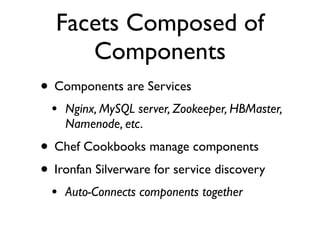

16. Facets Composed of
Components
• Components are Services
• Nginx, MySQL server, Zookeeper, HBMaster,
Namenode, etc.
• Chef Cookbooks manage components
• Ironfan Silverware for service discovery
• Auto-Connects components together

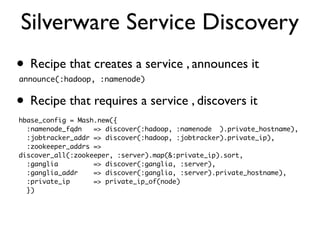

17. Silverware Service Discovery
• Recipe that creates a service , announces it
announce(:hadoop, :namenode)
• Recipe that requires a service , discovers it
hbase_config = Mash.new({
:namenode_fqdn => discover(:hadoop, :namenode ).private_hostname),
:jobtracker_addr => discover(:hadoop, :jobtracker).private_ip),
:zookeeper_addrs =>
discover_all(:zookeeper, :server).map(&:private_ip).sort,
:ganglia => discover(:ganglia, :server),
:ganglia_addr => discover(:ganglia, :server).private_hostname),
:private_ip => private_ip_of(node)
})

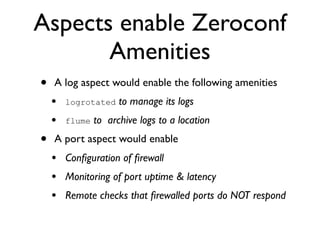

18. Aspects enable Zeroconf
Amenities
• A log aspect would enable the following amenities
• logrotated to manage its logs
• flume to archive logs to a location
• A port aspect would enable
• Configuration of firewall
• Monitoring of port uptime & latency
• Remote checks that firewalled ports do NOT respond

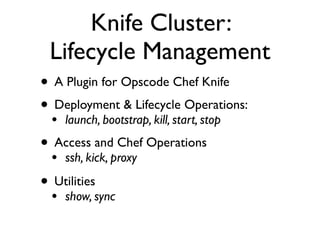

19. Knife Cluster:
Lifecycle Management
• A Plugin for Opscode Chef Knife
• Deployment & Lifecycle Operations:
• launch, bootstrap, kill, start, stop
• Access and Chef Operations
• ssh, kick, proxy
• Utilities
• show, sync

20. Knife Launch Cluster,
Facet or Instance[s]
• Launch cluster launchcluster
knife
all the nodes in a
base0-master0
• Launchcluster launch base0-master0 facet 0
knife
just a single instance of a single
master
• Launchclusterinstances base0-master0 regionserver
knife
all the
launch
of a facet

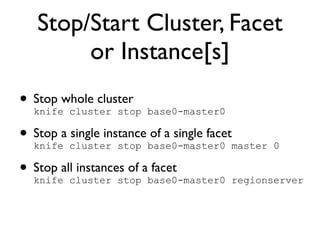

21. Stop/Start Cluster, Facet
or Instance[s]
• Stop whole cluster base0-master0
knife cluster stop
• Stop a cluster stop base0-master0 master 0
knife
single instance of a single facet
• Stop allcluster stop abase0-master0 regionserver
knife
instances of facet

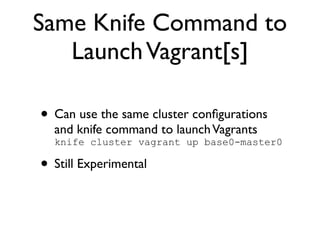

22. Same Knife Command to
Launch Vagrant[s]
• Can use the same cluster configurations
and knife command to launch Vagrants
knife cluster vagrant up base0-master0
• Still Experimental

23. Ironfan-CI
• Jenkins based Continuous Integration of
Clusters
• Still Experimental
• Uses Discovery to automate baseline test
creation
• Leverages Vagrant to create clean test
environments

24. References
• Basic Chef Stuff:
http://wiki.opscode.com/display/chef/Home
• Ironfan Screencast:
http://vimeo.com/37279372
• Ironfan Wiki for the most complete info :
https://github.com/infochimps-labs/ironfan/wiki
• The Forest for the Trees Photo - Ame Otoko
http://www.flickr.com/photos/ameotoko/5383225925/
