The document discusses starting a motor using a PLC and different timer instructions for PLCs. It describes hard-wired direct-on-line starting using contactors and overload protection. It then explains how to start and stop a motor using input and output connections to a PLC, including on-delay, retentive on-delay, and off-delay timer instructions. On-delay and retentive on-delay timers count time when an enabling input is on and turn their timer bit on when the current time exceeds the preset time. The retentive on-delay timer maintains its current value while the on-delay timer resets its value when the input turns off.

1. Input contacts example
61

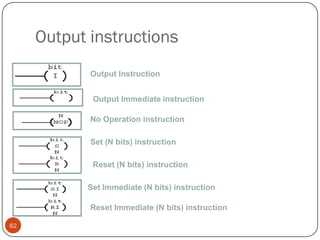

2. Output instructions
Output Instruction
Output Immediate instruction
No Operation instruction
Set (N bits) instruction
Reset (N bits) instruction
Set Immediate (N bits) instruction
Reset Immediate (N bits) instruction
62

3. Output, Set & Reset example
63

4. Starting a motor
64

5. Hard-wired DOL(direct-on-line ) starting
O.L. contact
Circuit Breaker
Contactor
Thermal
Overload
Star
t
Stop
Aux. contact
Contact coil
Induction
Motor
65
Induction Motor

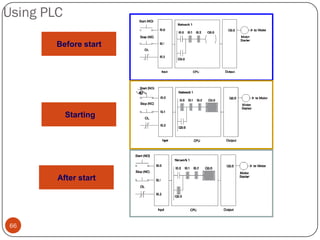

6. Using PLC
Before start
Starting
After start
66

7. Stopping
67

8. Input & Output connections
68

9. Timer instructions
On-Delay Timer
Retentive On-Delay Timer
Off-Delay Timer
69

10. On-Delay & Retentive On-Delay timers
They count time when the enabling input (IN) is
ON. When the current value (Txxx) is > the preset
time (PT), the timer bit is ON.
The On-Delay timer current value is cleared when
(IN) is OFF, while the current value of the Retentive
On-Delay Timer is maintained.
You can use the Retentive On-Delay Timer to
accumulate time for multiple periods of the input ON.
70
