1. All You Need To Know About
Types Of Cable Trays

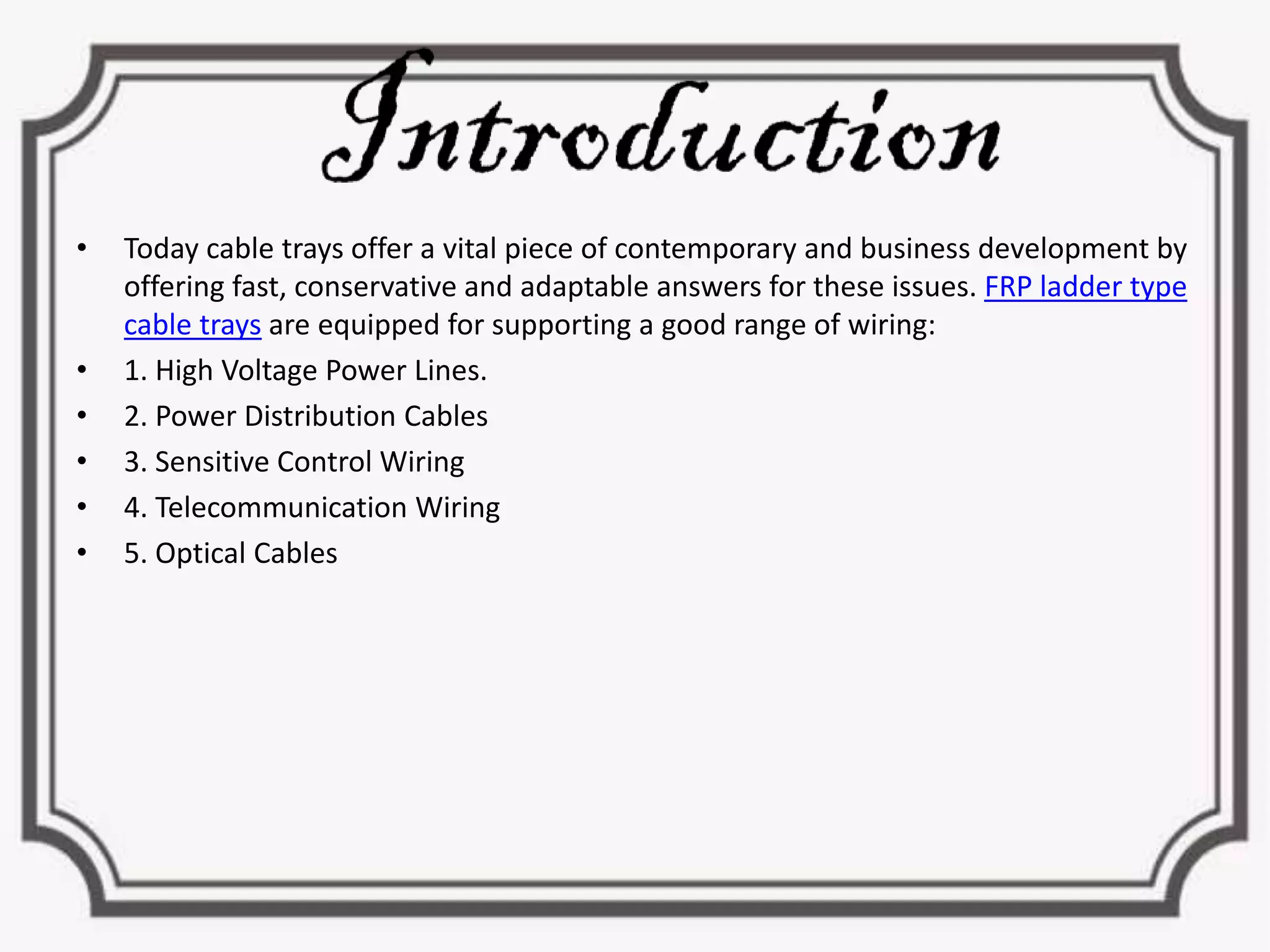

2. • Today cable trays offer a vital piece of contemporary and business development by
offering fast, conservative and adaptable answers for these issues. FRP ladder type
cable trays are equipped for supporting a good range of wiring:
• 1. High Voltage Power Lines.
• 2. Power Distribution Cables
• 3. Sensitive Control Wiring
• 4. Telecommunication Wiring
• 5. Optical Cables

3. Link Tray Materials
• Most cable tray frameworks are created from a consumption-safe metal (low-
carbon Steel, treated Steel, or an aluminium composite) or a metal with an
erosion-safe completion (zinc or epoxy).
• The decision of fabric for a selected establishment relies upon the establishment
climate (erosion and electrical contemplations) and value.
(1) Aluminium:
• Cable trays created of expelled aluminium are frequently utilized for their high
solidarity to-weight proportion, better obstruction than specific destructive
conditions, and firm ease. They additionally offer the upsides of being lightweight
(roughly half that of a steel plate) and maintenance-free. Since aluminium cable
trays are non-attractive, electrical misfortunes are diminished to a base.
• Cable tray items are shaped from the 6063 series compounds, which by
configuration are without copper composites for marine applications. These
combinations contain silicon and magnesium in fitting extents to border
magnesium silicate, which will be heat treated.

4. (2) Steel:
• Steel cable trays are manufactured from underlying quality prepared to utilize a
continual roll-framed interaction. Shaping and expulsions increment the
mechanical strength.
(3) Stainless Steel:
• Stainless Steel offers high return strength and high party pooper strength at high
surrounding temperatures.
• The treated steel cable tray is roll-shaped from AISI Type 316 tempered steel.
• Treated Steel is impervious to dyestuffs, natural synthetics, and inorganic synthetic
substances at raised temperatures. More significant levels of chromium and nickel
and a diminished degree of carbon serve to expand erosion opposition and work
with welding.

5. Completion of Cable Tray
(1) Galvanized Coatings
• The most broadly involved covering for FRP ladder type cable trays is electrifying.
It's savvy, ensures against a large assortment of environmental synthetics, and is
self-recuperating if a vicinity becomes unprotected through cuts or scratches.
• Steel is roofed with zinc through electrolysis by plunging Steel into a shower of zinc
salts. A mix of carbonates, hydroxides, and zinc oxides shapes a defensive film to
confirm the particular zinc. Protection from erosion is straightforwardly connected
with the thickness of the covering and the brutality of the environment.
(2) Pre-Galvanized:
• Pre-aroused, otherwise called factory excited or hot plunge plant stirred, is
delivered during a moving plant by steel loops through liquid zinc. These loops are
then moved, measured, and made.
• Regions not ordinarily covered during manufactures, like cuts and welds, are
ensured by adjoining zinc, which functions as a conciliatory anode. A touch region
straightforwardly impacted by heat is additionally left uncovered during welding,
yet an analogous self-mending process happens.

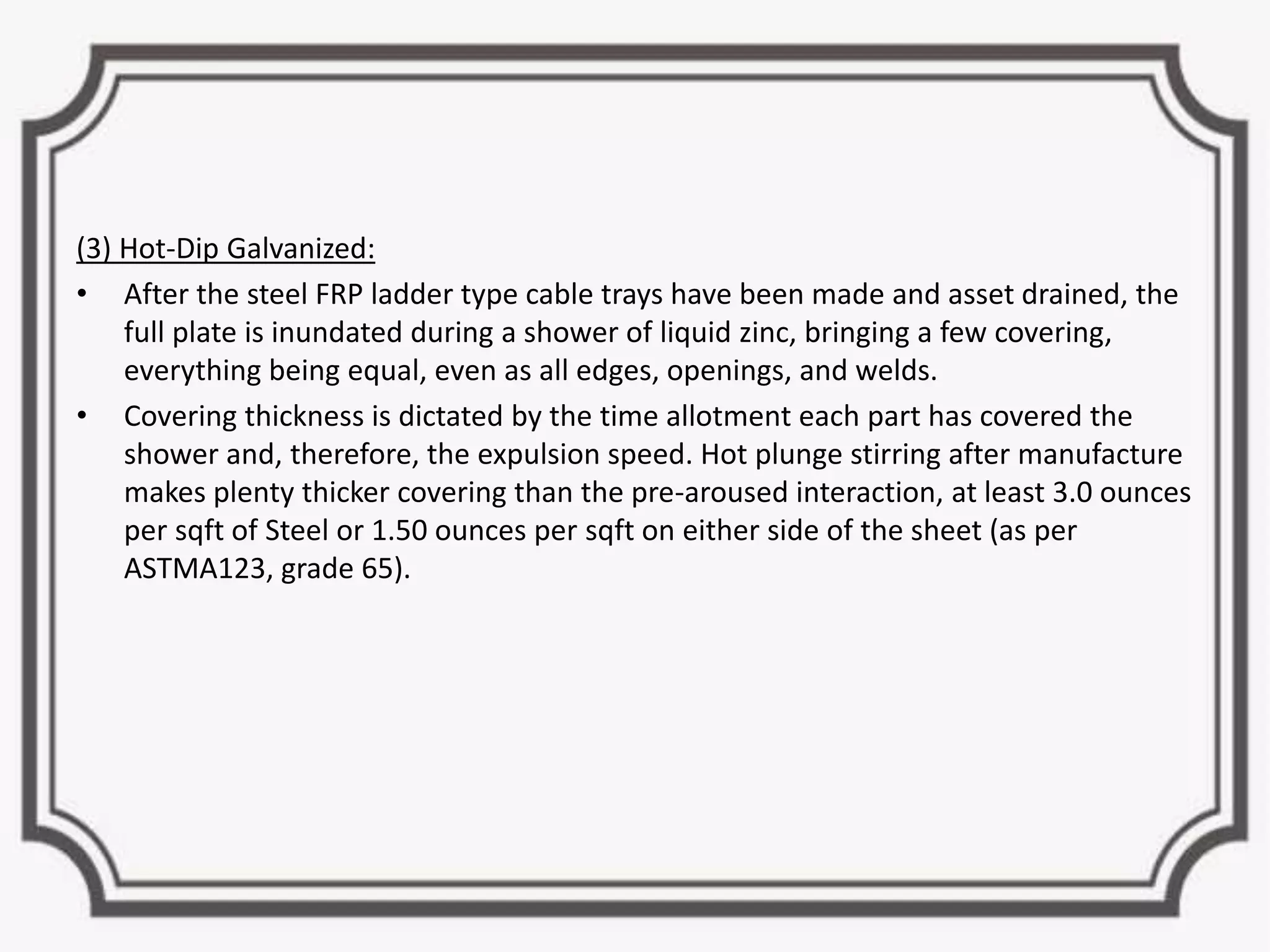

6. (3) Hot-Dip Galvanized:
• After the steel FRP ladder type cable trays have been made and asset drained, the
full plate is inundated during a shower of liquid zinc, bringing a few covering,
everything being equal, even as all edges, openings, and welds.
• Covering thickness is dictated by the time allotment each part has covered the
shower and, therefore, the expulsion speed. Hot plunge stirring after manufacture
makes plenty thicker covering than the pre-aroused interaction, at least 3.0 ounces
per sqft of Steel or 1.50 ounces per sqft on either side of the sheet (as per
ASTMA123, grade 65).

7. Kind of Cable Trays
• Cable trays are made from one or the opposite Steel, aluminum, or fibber built-up
plastic (FRP) FRP ladder type cable trays and are accessible in six fundamental
sorts,
• 1. Ladder Type Cable Tray
• 2. Solid Bottom Cable Tray
• 3. Trough Cable Tray
• 4. Channel Cable Tray
• 5. Wire Mesh Cable Tray
(1) Ladder Cable Tray
• By and enormous utilized in applications with moderate to long help traverses 12
to 30 feet.
• A stepping stool cable tray is employed for around 75% of the cable tray wiring
framework establishments. It's the prevailing cable tray type thanks to its
numerous helpful highlights:

8. • A stepping stool cable tray without covers allows the foremost extreme free
progression of air across the links. This allows the hotness delivered within the
link's guides to disseminate adequately. Under such conditions, the transmitter
protection within the links of an appropriately planned cable tray wiring
framework won't surpass its most extreme working temperature. The links won't
take age rashly due to excessive working temperatures.
(2) Solid Bottom Cable Tray:
• By and enormous utilized for negligible hotness creating electrical or telecom
applications with short to moderate help traverses 5 to 12 feet.
• The primary justification for selecting strong base FRP ladder types. Cable
trays (with covers) are the worry of EMI/RFI safeguarding assurance for very
touchy circuits. A robust base steel cable tray with steel covers gives a good level
of protection if there aren't any breaks or openings within the finished
establishment.

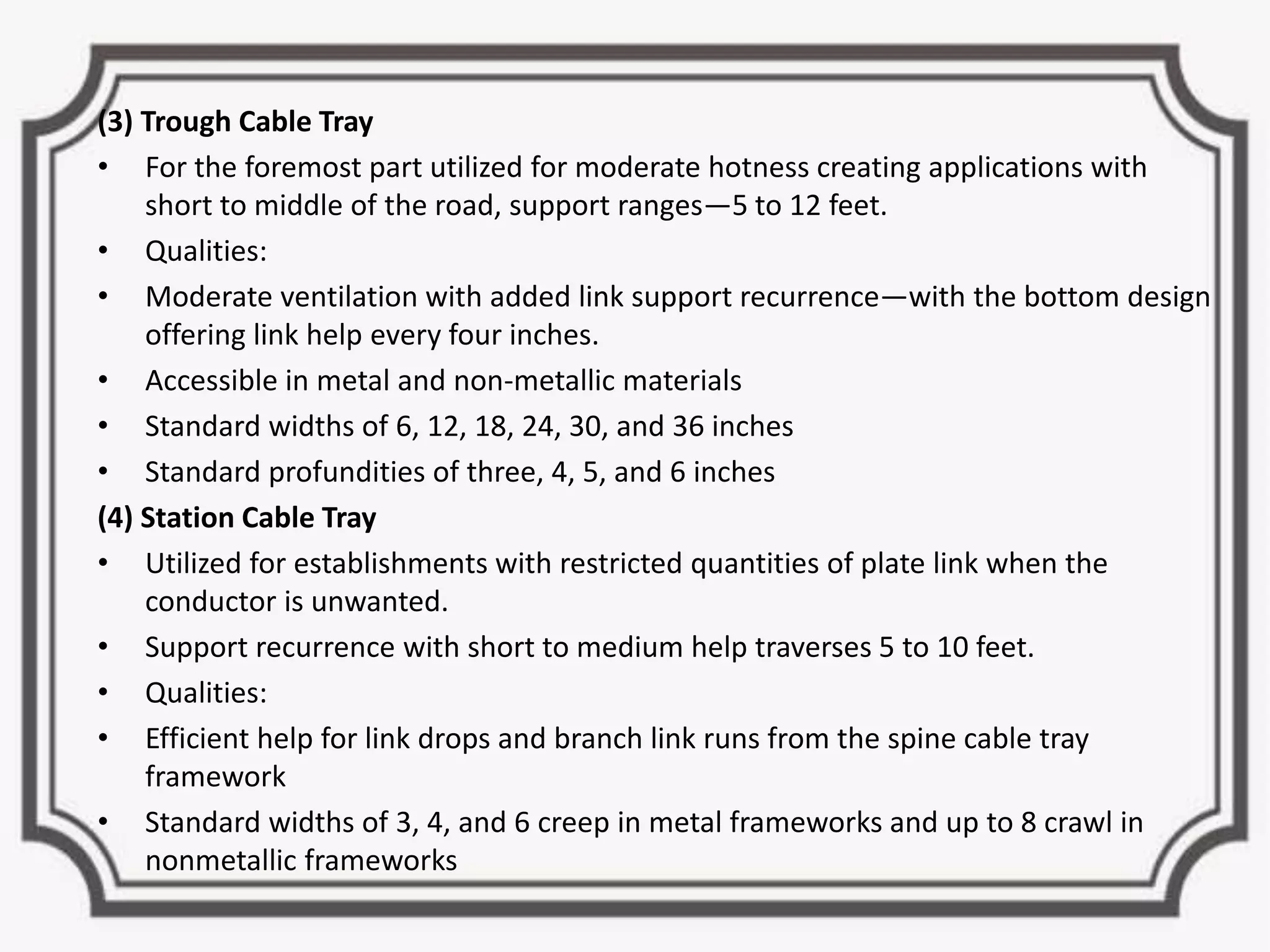

9. (3) Trough Cable Tray
• For the foremost part utilized for moderate hotness creating applications with
short to middle of the road, support ranges—5 to 12 feet.
• Qualities:
• Moderate ventilation with added link support recurrence—with the bottom design
offering link help every four inches.
• Accessible in metal and non-metallic materials
• Standard widths of 6, 12, 18, 24, 30, and 36 inches
• Standard profundities of three, 4, 5, and 6 inches
(4) Station Cable Tray
• Utilized for establishments with restricted quantities of plate link when the
conductor is unwanted.
• Support recurrence with short to medium help traverses 5 to 10 feet.
• Qualities:
• Efficient help for link drops and branch link runs from the spine cable tray
framework
• Standard widths of 3, 4, and 6 creep in metal frameworks and up to 8 crawl in
nonmetallic frameworks

10. (5) Wire Mesh Cable Tray
• For the most part, utilized for telecom and fiber optic applications, introduced on
short help ranges—4 to 8 feet.
• Qualities
• A place of work, field versatile emotionally supportive network essentially for low
voltage, telecom, and fiber-optic links.
• These frameworks are ordinarily steel wire networks, zinc plated.
• Standard widths of 2, 4, 6, 8, 12, 16, 18, 20 and 24 inches]

11. Conclusion
• The principal advantages of steel FRP ladder type cable trays are its high strength
and minimal expense. Drawbacks incorporate high weight, low electrical
conductivity, and moderately helpless erosion opposition. These magnesium
silicon amalgams have great formability and first properties, even as phenomenal
consumption obstruction.
